Abstract
Targeting the Ras/Raf/mitogen-activated protein kinase kinase (MEK)/extracellular signal-regulated kinase (ERK) pathway represents a promising anticancer strategy. Recently, we have reported a novel class of potent and selective non–ATP-competitive MEK1/2 inhibitors with a unique structure and mechanism of action. RO5068760 is a representative of this class showing significant efficacy in a broad spectrum of tumors with aberrant mitogen-activated protein kinase pathway activation. To understand the relationship between systemic exposures and target (MEK1/2) inhibition as well as tumor growth inhibition, the current study presents a detailed in vivo characterization of efficacy, pharmacokinetics, and pharmacodynamics of RO5068760 in multiple xenograft tumor models. For inhibition of MEK1/2 as measured by the phosphorylated ERK levels, the estimated EC50s in plasma were 1.36 μmol/L (880 ng/mL) and 3.35 μmol/L (2168 ng/mL) in LOX melanoma and HT-29 colorectal cancer models, respectively. A similar EC50 (1.41 μmol/L or 915 ng/mL) was observed in monkey peripheral blood lymphocytes. To achieve tumor growth inhibition (≥90%), an average plasma drug concentration of 0.65 or 5.23 μmol/L was required in B-RafV600E or K-Ras mutant tumor models, respectively, which were remarkably similar to the IC90 values (0.64 or 4.1 μmol/L) determined in vitro for cellular growth inhibition. With equivalent in vivo systemic exposures, RO5068760 showed superior efficacy in tumors harboring B-RafV600E mutation. The plasma concentration time profiles indicate that constant p-ERK suppression (>50%) may not be required for optimal efficacy, especially in highly responsive tumors. This study may facilitate future clinical trial design in using biochemical markers for early proof of mechanism and in selecting the right patients and optimal dose regimen. Mol Cancer Ther; 9(1); 134–44
Introduction
Aberrant activation of the Ras/Raf/mitogen-activated protein kinase kinase (MEK)/extracellular signal-regulated kinase (ERK) signal cascade correlates with tumor progression and poor prognosis in many cancer patients. Dysregulation of the Ras/Raf/MEK/ERK pathway, due to aberrant receptor tyrosine kinase activation and Ras or B-Raf mutation, is frequently found in human cancers and represents a major factor in determining abnormal cell growth (1). Ras oncogenic mutations occur in ∼30% of all human cancers with the highest incidence in adenocarcinomas of the pancreas (90%), colon (45%), and lung (35%; ref. 2). Recently, K-Ras mutation was found to confer resistance to epidermal growth factor receptor–targeted cancer therapy (3–5). Oncogenic mutations in B-Raf were also found in 66% of primary melanomas and less frequently in other tumors such as colon (12%), ovarian (30%), and papillary thyroid cancers (35–70%; refs. 6–8). MEK1/2 are serine/threonine kinases responsible for phosphorylating ERK1/2, which then translocate to the nucleus where they regulate the expression of genes associated with the key regulators of cellular proliferation and survival. Although MEK1/2 are rarely mutated in cancer, overexpression of MEK1/2 is sufficient to induce transformation. Thus, the MAPK pathway components have become attractive targets under extensive investigation for cancer therapeutic intervention (9–11).
Many agents targeting Ras, Raf, or MEK have entered human clinical trials; however, none have been approved as cancer therapeutics. For targeting Ras, the farnesyltransferase inhibitors have shown disappointing clinical efficacy, which now can be explained by the fact that N-Ras and K-Ras have alternative processing pathways that substitute for farnesylation (12, 13). Sorafenib was developed as a Raf inhibitor, but was later found to be a multikinase inhibitor that exhibits antitumor efficacy mainly through its antiangiogenic activity against other targets such as KDR, Flt-3, etc. (9). Most recently, PLX4032, an orally active selective B-Raf inhibitor under codevelopment by Roche and Plexxikon, exhibited significant antitumor activity in V600E B-Raf mutant tumors (14). For targeting MEK, highly selective inhibitors [PD0325901 (Pfizer), AZD6244 (Array Biopharma/AstraZeneca), XL518 (Exelixis/Genentech), and RDEA 119 (Ardea Biosciences)] have been evaluated in phase I/II studies. PD0325901 and AZD6244 have shown some signs of clinical activity in the patients with pancreatic cancer, non–small cell lung cancer (NSCLC) and malignant melanoma (15, 16). However, robust clinical proof of concept for an agent targeting the Ras/Raf/MEK pathway is still pending.
Recently, we have reported a new class of MEK inhibitors with novel chemical structure and mechanism of action (17). RO5068760 belongs to this class and exhibits a unique mode of MAPK signal blockade. Here, we describe an extensive preclinical investigation of efficacy, pharmacokinetics (PK), and pharmacodynamics (PD) of RO5068760 in nude mice bearing human tumor xenografts. Our results provide a good understanding of the relevant systemic drug exposures that are required for RO5068760 to achieve significant target suppression as well as tumor growth inhibition (TGI). These results may provide guidance for future clinical trial design in the selection of sensitive patient population, the use of biochemical markers for early proof of mechanism, and the selection of an optimal dose and regimen.
Materials and Methods
Compounds
The test compound RO5068760, systematic name, ((2S,3S)-2-{(R)-4-[4-((R)-2,3-dihydroxy-propoxy)-phenyl]-2,5-dioxo-imidazolidin-1-yl}-N-(2-fluoro-4-iodo-phenyl)-3-phenylbutyramide, was synthesized according to the procedure described in patent application WO 2007096259. RO5068760 was formulated as a suspension in 2% Klucel LF with 0.1% Tween 80 (v/v) in water for oral administration in nude mice. RO5068760 was formulated as micronized suspensions or tablets for oral administration in monkey.
Cell Lines
Cell lines were purchased from American Type Culture Collection and were maintained in the designated medium supplemented with 10% heat-inactivated fetal bovine serum (Life Technologies/Bethesda Research Laboratories) and 2 mmol/L l-glutamine (Life Technologies/Bethesda Research Laboratories). The LOX IMVI cells were provided by the Biological Testing Branch, Developmental Therapeutics Program, Division of Cancer Treatment and Diagnosis, National Cancer Institute (Frederick, MD).
Western Blot Analysis and MTT Assay In vitro
Cells were seeded at appropriate density (70–75% confluent) 1 d before the compound treatment. Upon compound treatment at various concentrations, p-ERK, cyclin D1, and p27 levels were analyzed by Western blot analysis, and cell proliferation/growth was analyzed by MTT as described previously (17).
Pharmacokinetic Analysis
Plasma samples were collected from two tumor-bearing mice per time point at the end of efficacy studies at 1, 2, 4, 8, and 12 h postdose [twice daily dosing and at 1, 2, 4, 8, 24 h for once daily dosing]. Plasma samples were stabilized with acetic acid to inhibit conversion to the epimer. The mean plasma concentration time profile was generated based on composite data for both RO5068760 and its less active epimer RO5128368. In the HT-29 xenograft study, 1-h sample was not collected and data were only generated for RO5068760. Noncompartmental pharmacokinetic analysis was done on mean plasma data using Watson Lims Software. Area-under-the-curve (AUC) for the dosing interval was calculated using the linear trapezoidal rule. The concentration at 0 h was defined as 0 ng/mL. The maximum plasma concentration (Cmax) was taken directly from the plasma concentration time profile.
Bioanalytic Method
The concentrations of RO5068760 and its epimer, RO5128368, in mouse plasma or tumor were determined using a selective and reproducible bioanalytic method. Tumor samples were homogenized in a volume of PBS equivalent to thrice the tissue weight and processed similarly as with plasma samples. Isotopic internal standards were used for some of the studies. The analytes were extracted from plasma or tissue homogenates by protein precipitation. Reconstituted samples were analyzed by liquid chromatography tandem mass spectrometry in the positive mode. The lower limit of quantification for both analytes was 5.0 ng/mL in plasma and tumor homogenates.
Western Blot Analysis (PD Assay of Phosphorylated ERK Levels in Xenograft Tumors)
Xenograft tumors were harvested and flash frozen at the indicated time points and stored at −80°C. Protein was extracted by homogenization (Autogizer, TOMTEC) in the presence of 2 to 5 mL cell lysis buffer (Cell Signaling Technology) containing protease inhibitors (Roche DiagnosticsN). After incubation on ice for 30 min, the lysates were centrifuged at 14,000 rpm for 15 min to clear the insoluble fragments. The protein concentrations were determined and equal amounts of total protein were resolved on 4% to 12% NuPage gradient gel (Invitrogen) and blotted with the antibodies as indicated. The densitometric quantitation of specific bands was determined using Multi Gauge Software (Fujifilm). The total ERK1/2 values served to normalize the phosphorylated ERK (p-ERK)1/2 signal values. After the initial subtraction of background signal, the p-ERK1/2 to total-ERK1/2 ratio was determined. This value for the control sample (vehicle treated) was set to 100% (or 0% inhibition) and the values for the compound dosed samples were expressed as percent control or percent inhibition relative to the control sample.
Fluorescence-Activated Cell Sorting Analysis (Ex vivo PD Assay of p-ERK Levels in Peripheral Blood Mononuclear Cells)
The procedure for the detection of p-ERK in whole blood by flow cytometry was based on the procedure described by Chow et.al. (18). Whole blood was drawn from monkeys before or after dosing at indicated time points using (K2)EDTA as an anticoagulant; the blood was stored at 4°C. Whole blood (0.1 mL) was stimulated with phorbol myristate acetate (PMA; Sigma-Aldrich) at a final concentration of 400 nmol/L and incubated for 10 min at 37°C. Formaldehyde (Polysciences) was then added to a final concentration of 4% and the samples were held at room temperature for 10 min. RBC were lysed by the addition of a Triton X-100/PBS solution to a final concentration of 0.1% for 30 min at room temperature. The remaining cells are washed and collected by centrifugation and resuspended in methanol (50%). Following incubation with methanol, the cells were stained with fluorescent-conjugated phospho-p44/42 MAPK (T202/Y204) antibody (Alexa Fluor 488 conjugate). The lymphocyte population was identified and gated based on a dot plot of forward scatter versus side scatter. Within the gated population, the mean fluorescence intensity (MFI) of p-ERK (T202/Y204) was determined. The MFI value for the predose sample (control) was set to 100% (or 0% inhibition) and the values for the compound dosed samples were expressed as percent control or percent inhibition relative to the control sample.
In vivo Efficacy Studies in Xenograft Tumor Models
Human cancer cells were implanted s.c. in the right flank of female nude mice. When mean tumor volume reached approximately 100 to 200 mm3, mice were randomized to treatment groups (n = 10 per group) and received either vehicle or compound at the dose indicated. Tumor volume and mouse body weight were measured twice to thrice weekly. Efficacy data were graphically represented as the mean tumor volume ± SEM. Tumor volume (in cubic millimeters) was calculated as described previously (17). Statistical analysis was determined by Mann-Whitney rank-sum test, one-way ANOVA, and post hoc Bonferroni t test (SigmaStat, version 2.0). Differences between groups were considered significant when the probability value was ≤0.05. Differences between groups were considered biologically significant when percent TGI was ≥60%.
PK-PD Modeling
The PD values and the corresponding PK values generated from the same animals were used for EC50 determination by XLfit using 4 Parameter Logistic Model or Sigmoidal Dose-Response Model (205) where y = A + [(B−A)/(1+[(C/x)D])].
Results
In vitro and In vivo Characteristics of MEK Inhibitor RO5068760
As described previously (17), we have identified a new class of MEK inhibitors that contains a novel substituted hydantoin ring system. After lead optimization, a highly potent and selective MEK1/2 inhibitor RO5068760 was identified (Table 1). In vitro, RO5068760 potently inhibits MEK1 kinase activity with an IC50 value of 0.025 ± 0.012 μmol/L in a Raf/MEK/ERK cascade assay. It is a non–ATP-competitive inhibitor and lacks activity (IC50 > 10 μmol/L) against any other kinase in a large panel of kinase assays tested (>200 kinases; Table 1; ref. 17). RO5068760 significantly inhibits MAPK pathway activity as evidenced by the dose-dependent inhibition of both ERK and MEK phosphorylation (p-ERK and p-MEK) in many human cancer cell lines. Representative IC50 values for p-ERK inhibition are shown in Table 1 as 0.022 μmol/L (LOX melanoma), 0.012 μmol/L (HT-29 colorectal cancer), 0.082 μmol/L (H460 NSCL), and 0.069 μmol/L (MIA PaCa-2 pancreatic cancer). Many lines of evidence suggest that p-ERK inhibition alone is not sufficient to predict the antitumor activities of MEK inhibitors (17, 19). RO5068760 specifically inhibited cell growth in cancer cell lines with activating pathway gene mutations (B-Raf or K-Ras), and the representative IC50/IC90 values are 0.018/0.72 μmol/L in LOX (B-RafV600E), 0.11/0.56 μmol/L in HT-29 (B-RafV600E), 0.30/3.08 μmol/L in H460 (K-RasG12C), and 1.25/5.11 μmol/L in MIA PaCa-2 (K-RasQ61K) cancer cells. The B-RafV600E mutant lines are more sensitive compared with the Ras mutant lines with average IC90 values of 0.64 μmol/L versus 4.1 μmol/L (Table 1). In cancer cells sensitive to MEK inhibition, specific suppression of p-MEK and p-ERK by RO5068760 led to the downregulation of CDK4/cyclin D1 and upregulation of p27. Dysregulation of these well-known cell cycle regulators resulted in G1 cell cycle arrest and subsequently led to the apoptotic cell death in responsive cancer cells (Supplementary Fig. S1).
Highly selective novel MEK inhibitor RO5068760
In vitro characteristics of RO5068760 . | ||||||||
---|---|---|---|---|---|---|---|---|

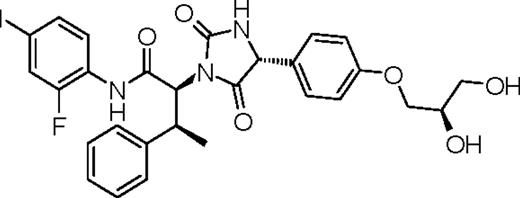

Chemical structure: C28H27FIN3O6 | ||||||||
Molecular weight: 647.45 | ||||||||
In vitro IC50 for MEK1 (μmol/L) | 0.025 ± 0.012 | |||||||
In vitro IC50 for other kinases* (μmol/L) | >10 | |||||||
In vitro IC50 for cellular p-ERK inhibition (μmol/L) | 0.022 (LOX melanoma) | |||||||
0.012 (HT-29 colorectal) | ||||||||
0.082 (H460 NSCLC) | ||||||||
0.069 (MIA PaCa-2 pancreas) | ||||||||
In vitro IC50/IC90 for cell growth inhibition (μmol/L) | 0.018/0.72 (LOX) | |||||||
0.11/0.56 (HT-29) | ||||||||
0.30/3.08 (H460) | ||||||||
1.25/5.11 (MIA PaCa-2) | ||||||||
In vivo antitumor efficacy of RO5068760 | ||||||||
Tumor type | Mutation | %TGI | ||||||
6.25 mg/kg bid | 12.5 mg/kg bid | 25 mg/kg bid | 50 mg/kg bid | 100 mg/kg bid | 200 mg/kg qd | 500 mg/kg qwk | ||
LOX (melanoma) | B-Raf (V600E) | 61 | 99 (4/10 PR 1/10 CR) | >100 (10/10 CR) | >100 (10/10 CR) | >100 (10/10 CR) | >100 (10/10 CR) | >100 (3/10 PR 5/10 CR) |
HT-29 (colorectal) | B-Raf (V600E) | 65 | 75 (1/10 PR) | 95 (4/10 PR) | ||||
MIA PaCa-2 (pancreas) | KRAS (G12C) | 71 | 84 (3/8 PR) | >100 (4/8 PR) | 97 (3/8 PR) | 42% | ||
H460 (NSCLC) | KRAS (Q61H) | 64 | 83 | 90 (2/10 PR) | 80 | 48% |
In vitro characteristics of RO5068760 . | ||||||||
---|---|---|---|---|---|---|---|---|
Chemical structure: C28H27FIN3O6 | ||||||||
Molecular weight: 647.45 | ||||||||
In vitro IC50 for MEK1 (μmol/L) | 0.025 ± 0.012 | |||||||
In vitro IC50 for other kinases* (μmol/L) | >10 | |||||||
In vitro IC50 for cellular p-ERK inhibition (μmol/L) | 0.022 (LOX melanoma) | |||||||
0.012 (HT-29 colorectal) | ||||||||
0.082 (H460 NSCLC) | ||||||||
0.069 (MIA PaCa-2 pancreas) | ||||||||
In vitro IC50/IC90 for cell growth inhibition (μmol/L) | 0.018/0.72 (LOX) | |||||||
0.11/0.56 (HT-29) | ||||||||
0.30/3.08 (H460) | ||||||||
1.25/5.11 (MIA PaCa-2) | ||||||||
In vivo antitumor efficacy of RO5068760 | ||||||||
Tumor type | Mutation | %TGI | ||||||
6.25 mg/kg bid | 12.5 mg/kg bid | 25 mg/kg bid | 50 mg/kg bid | 100 mg/kg bid | 200 mg/kg qd | 500 mg/kg qwk | ||
LOX (melanoma) | B-Raf (V600E) | 61 | 99 (4/10 PR 1/10 CR) | >100 (10/10 CR) | >100 (10/10 CR) | >100 (10/10 CR) | >100 (10/10 CR) | >100 (3/10 PR 5/10 CR) |
HT-29 (colorectal) | B-Raf (V600E) | 65 | 75 (1/10 PR) | 95 (4/10 PR) | ||||
MIA PaCa-2 (pancreas) | KRAS (G12C) | 71 | 84 (3/8 PR) | >100 (4/8 PR) | 97 (3/8 PR) | 42% | ||
H460 (NSCLC) | KRAS (Q61H) | 64 | 83 | 90 (2/10 PR) | 80 | 48% |
*Kinase panels were described by Daouti, et al. (2009).
In vivo, when administered orally, RO5068760 showed dose-dependent antitumor activity in corresponding human tumor xenografts with aberrant MAPK pathway activation. As shown in Table 1 and Fig. 1, in vivo antitumor activity of RO5068760 was evaluated using various oral doses (from 6.25–500 mg/kg) and schedules (once or twice daily, once weekly). The conventional once or twice daily dose schedule was designed to deliver continuous drug exposure in vivo. The exploratory once weekly schedule was chosen to determine whether a short pulse treatment with the highest Cmax level could be as effective as continuous dosing. We went with the highest concentration feasible for making an oral suspension that delivered the 500 mg/kg dose level. RO5068760 showed statistically significant TGI (>65% TGI, P < 0.005) in all tumor-bearing mice treated with the drug twice daily or once daily compared with vehicle-treated control mice. The maximum tolerated dose was not identified with any given regimens and there were no gross signs of adverse effect to the treatment for 3 weeks (data not shown). In the LOX melanoma model harboring B-RafV600E mutation, animals treated at doses as low as 12.5 mg/kg twice daily exhibited partial (PR) or complete regression (CR). At a dose of 100 mg/kg twice daily, PR or CR was shown in four of four tumor models tested (P < 0.001). Substantial antitumor activity was observed in the LOX melanoma model even at 500 mg/kg once weekly with three PRs and five CRs compared with vehicle controls (P < 0.001). However, treatment with 500 mg/kg once weekly in H460 lung and MIA PaCa-2 pancreatic models harboring K-Ras mutations did not yield biologically significant TGI (48% and 42%, respectively). Given the same total dose, weekly dosing was less effective and twice daily dosing yielded better antitumor efficacy compared with once daily dosing in K-Ras mutant tumors, suggesting that Cmax is not driving efficacy and continued exposure to RO5068760 may provide better clinical benefit. These in vivo results are consistent with the cytostatic nature of a MEK inhibitor. In vitro, in the HT-29 cells, RO5068760-induced cytotoxic effect is time-dependent and reversible as the EC50, and EC90 values were significantly increased when the treatment duration was <3 days (data not shown).

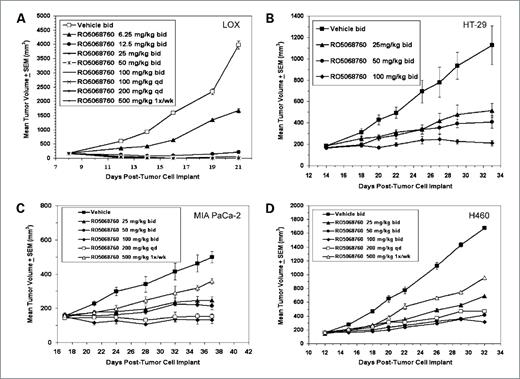

In vivo antitumor efficacy of MEK inhibitor RO5068760 in multiple human xenograft tumor models including melanoma, colorectal, lung, and pancreatic cancers. Human cancer cells were implanted s.c. in nude mice. After palpable tumors were established, mice were dosed with RO5068760 twice daily or once daily or weekly by oral gavage (10 mice per group) at various dose levels as indicated. Tumor volumes were measured and growth curves were derived from the mean tumor volume in each dosing group.
In vivo antitumor efficacy of MEK inhibitor RO5068760 in multiple human xenograft tumor models including melanoma, colorectal, lung, and pancreatic cancers. Human cancer cells were implanted s.c. in nude mice. After palpable tumors were established, mice were dosed with RO5068760 twice daily or once daily or weekly by oral gavage (10 mice per group) at various dose levels as indicated. Tumor volumes were measured and growth curves were derived from the mean tumor volume in each dosing group.
The PK-PD Relationship of RO5068760 in Nude Mice Bearing Human Tumor Xenografts
At the efficacious dose levels, the detailed PK-PD (p-ERK inhibition) relationship of RO5068760 was evaluated in the LOX melanoma and HT-29 colorectal xenograft models. After a single oral dose of RO5068760 at 100 mg/kg in nude mice bearing human LOX melanoma xenografts, tumors were excised at 0, 1, 2, 4, 8, 12 hours postdosing, and p-ERK, total ERK, cyclin D1, and p27 levels were analyzed by Western blot (Fig. 2A). The PD effects were determined by the percentage of p-ERK/ERK inhibition in treated tumors compared with the vehicle-treated controls. The plasma samples were collected from the same test animals, and drug concentrations in both plasma and tumor tissues were measured. As shown in Table 2, PD effects (p-ERK inhibition) correlated well with drug levels in both plasma and tumors. After fitting to a four-parameter logistic (sigmoidal dose-response) model using XLfit, the estimated EC50 values were 880 ng/mL (1.36 μmol/L) and 928 ng/g in plasma and xenograft tumors, respectively (Fig. 2A).

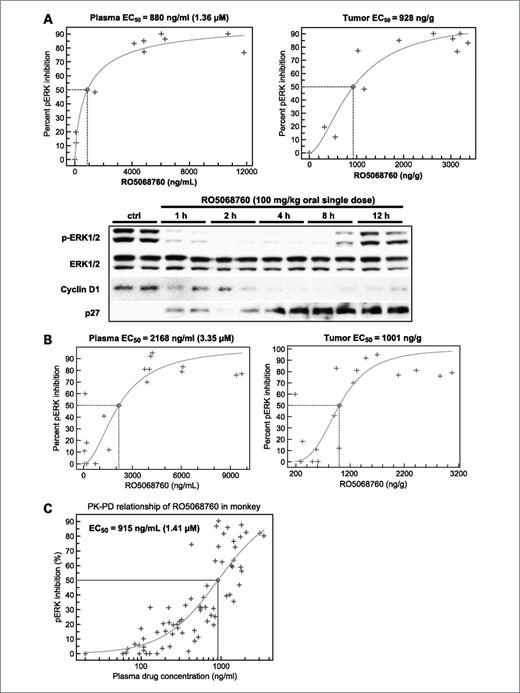

The in vivo PK-PD relationship of RO5068760. Nude mice bearing LOX melanoma (A) and HT-29 colorectal (B) xenograft tumors were treated with RO5068760 as indicated, and the xenograft tumors were harvested at various time points of postdose. The p-ERK/ERK, cyclin D1, and p27 levels in the tumor lysates were examined by Western blot analysis. The tumor lysates were derived from two to three mice for each time point. Percentage of p-ERK inhibition was quantified and plotted against the respective drug concentrations in plasma derived from the same animal. The PK-PD relationship of RO5068760 in tumor-bearing mice was modeled and EC50 was determined. C, cynomolgus monkey was orally dosed with RO5068760 at 40 mg/kg and whole blood was collected at 0, 2, 12, or 24 h postdose. The blood samples were treated with PMA (400 nmol/L) for 10 min, and p-ERK levels (MFI) in gated lymphocytes were analyzed by fluorescence-activated cell sorting. The p-ERK levels were quantified by MFI and plotted against respective plasma drug concentrations measured from the same animals. The PK-PD relationship in monkey was modeled and EC50 was determined.
The in vivo PK-PD relationship of RO5068760. Nude mice bearing LOX melanoma (A) and HT-29 colorectal (B) xenograft tumors were treated with RO5068760 as indicated, and the xenograft tumors were harvested at various time points of postdose. The p-ERK/ERK, cyclin D1, and p27 levels in the tumor lysates were examined by Western blot analysis. The tumor lysates were derived from two to three mice for each time point. Percentage of p-ERK inhibition was quantified and plotted against the respective drug concentrations in plasma derived from the same animal. The PK-PD relationship of RO5068760 in tumor-bearing mice was modeled and EC50 was determined. C, cynomolgus monkey was orally dosed with RO5068760 at 40 mg/kg and whole blood was collected at 0, 2, 12, or 24 h postdose. The blood samples were treated with PMA (400 nmol/L) for 10 min, and p-ERK levels (MFI) in gated lymphocytes were analyzed by fluorescence-activated cell sorting. The p-ERK levels were quantified by MFI and plotted against respective plasma drug concentrations measured from the same animals. The PK-PD relationship in monkey was modeled and EC50 was determined.
The relationship between RO5068760 drug concentrations and p-ERK inhibition in the LOX and HT-29 xenograft tumor models
Tumor model . | Oral dose level . | Time postdose . | % p-ERK inhibition . | Plasma drug concentration (ng/mL) . | Tumor drug concentration (ng/g) . |
---|---|---|---|---|---|
LOX | 100 mg/kg | 1 h | 77 | 11,800 | 3,130 |
77 | 4,840 | 1,030 | |||
2 h | 90 | 10,700 | 3,200 | ||
86 | 6,300 | 3,040 | |||
4 h | 83 | 4,140 | 3,360 | ||
90 | 6,040 | 2,630 | |||
8 h | 85 | 4,820 | 1,900 | ||
48 | 1,410 | 1,160 | |||
12 h | 20 | 72 | 318 | ||
12 | 88 | 549 | |||
HT-29 | 50 mg/kg | 4 h | 92 | 4,120 | 1,490 |
81 | 4,030 | 2,420 | |||
95 | 4,210 | 1,700 | |||
8 h | 81 | 3,750 | 1,320 | ||
41 | 1,260 | 906 | |||
12 | 1,560 | 995 | |||
12 h | 0 | 66 | 608 | ||
11 | 61 | 575 | |||
60 | 115 | 188 | |||
100 mg/kg | 2 h | 77 | 9,700 | 2,090 | |
76 | 9,360 | 2,860 | |||
4 h | 79 | 6,030 | 3,080 | ||
83 | 6,090 | 945 | |||
8 h | 0 | 741 | 293 | ||
70 | 3,900 | 1,260 | |||
12 h | 18 | 198 | 321 | ||
0 | 195 | 505 |
Tumor model . | Oral dose level . | Time postdose . | % p-ERK inhibition . | Plasma drug concentration (ng/mL) . | Tumor drug concentration (ng/g) . |
---|---|---|---|---|---|
LOX | 100 mg/kg | 1 h | 77 | 11,800 | 3,130 |
77 | 4,840 | 1,030 | |||
2 h | 90 | 10,700 | 3,200 | ||
86 | 6,300 | 3,040 | |||
4 h | 83 | 4,140 | 3,360 | ||
90 | 6,040 | 2,630 | |||
8 h | 85 | 4,820 | 1,900 | ||
48 | 1,410 | 1,160 | |||
12 h | 20 | 72 | 318 | ||
12 | 88 | 549 | |||
HT-29 | 50 mg/kg | 4 h | 92 | 4,120 | 1,490 |
81 | 4,030 | 2,420 | |||
95 | 4,210 | 1,700 | |||
8 h | 81 | 3,750 | 1,320 | ||
41 | 1,260 | 906 | |||
12 | 1,560 | 995 | |||
12 h | 0 | 66 | 608 | ||
11 | 61 | 575 | |||
60 | 115 | 188 | |||
100 mg/kg | 2 h | 77 | 9,700 | 2,090 | |
76 | 9,360 | 2,860 | |||
4 h | 79 | 6,030 | 3,080 | ||
83 | 6,090 | 945 | |||
8 h | 0 | 741 | 293 | ||
70 | 3,900 | 1,260 | |||
12 h | 18 | 198 | 321 | ||
0 | 195 | 505 |
Furthermore, the PK-PD (p-ERK inhibition) relationship of RO5068760 was evaluated at two different efficacious dose levels (50 and 100 mg/kg) in nude mice bearing human HT-29 colorectal cancer xenograft tumors (Table 2). Tumors tissues were excised at 2, 4, 8, and 12 hours after single oral administration of RO5068760. p-ERK and total ERK levels were analyzed by Western blot. Similar to the LOX model, the PD (p-ERK inhibition) effect of RO5068760 and the corresponding plasma and tumor drug concentrations were determined and fitted to the four-parameter logistic model; the estimated EC50 values were 2168 ng/mL (3.35 μmol/L) and 1001 ng/g in plasma and xenograft tumors, respectively (Fig. 2B).
The PK-PD Relationship of RO5068760 in Cynomolgus Monkey
In clinical trials for an investigational drug, tumor tissue may not be always available. To establish a PK/PD relationship in an easily accessible surrogate tissue such as blood cells, PK-PD studies were done with RO5068760 in cynomolgus monkeys. After oral administration of a single dose of RO5068760, monkey whole blood and plasma were collected from animals predose and at 1, 3, 6, 12, and 24 hours postdosing. Drug concentrations were determined in plasma, and p-ERK inhibition was examined in whole blood by fluorescence-activated cell sorting after stimulation with PMA (Fig. 2C). In fluorescence-activated cell sorting analysis, lymphocytes, with their high nucleus/cytoplasm ratio, show different light scattering characteristics based on their size and absorbance (granularity). Thus, it became a common strategy to use electronic gates on the basis of forward scatter versus side scatter to focus the analysis on the lymphocyte population. Peripheral blood mononuclear cells have a low basal level of ERK phosphorylation. Upon PMA stimulation, p-ERK was significantly increased. After a single oral dose of RO5068760 in monkeys, significant suppression of PMA-stimulated ERK phosphorylation in peripheral blood mononuclear cells was achieved, which correlated well with the drug concentrations measured in the corresponding plasma samples. The PK/PD relationship was modeled based on a sigmoidal dose-response as shown in Fig. 2C; the EC50 was estimated to be 915 ng/mL (1.41 μmol/L) in cynomologous monkeys.
The Relationship between RO5068760 Systemic Exposures and Antitumor Efficacy in Nude Mice Bearing Human Xenograft Tumors
Orally active RO5068760 showed dose-dependent antitumor activity in a variety of human tumor xenografts (Table 1; Fig. 1). To further characterize the relationship between RO5068760 systemic exposures and antitumor efficacy, at the end of the efficacy studies, the plasma drug concentrations of RO5068760 were measured at various time points after the final dose and PK parameters including the AUC0-12 (twice daily) or AUC0-24 (once daily) were determined (Table 3). RO5068760 showed reasonably consistent drug exposures across different tumor models with the exception of the HT-29 model where plasma drug concentrations were lower compared with others at the same dose levels. After 3 to 4 weeks of treatment, the chronic drug exposures were equivalent to that of acute (single) doses in all models. At comparable systemic drug exposures [Cmax, AUC, and average drug concentration (Cave) in Table 3], RO5068760 showed superior in vivo efficacy in B-RafV600E xenografts (LOX and HT-29) compared with K-Ras mutant xenografts (H460 and MIA PaCa-2). As Ctrough levels were negligible regardless of dose levels (Supplementary Fig. S2) and Cmax was not driving efficacy, the Cave in plasma were calculated and plotted against the corresponding antitumor activity (%TGI). The estimated Cave in plasma required for achieving tumor stasis (≥90% TGI) was 423 ng/mL (0.65 μmol/L) or 3389 ng/mL (5.23 μmol/L) in B-RafV600E or K-Ras mutant tumors, respectively (Fig. 3). Interestingly, these Cave values for tumor stasis (≥90% TGI) are remarkably similar to the average IC90 (0.64 or 4.1 μmol/L) determined in vitro for antiproliferation in the B-RafV600E or K-Ras mutant cells, respectively (Table 1).
The relationship between RO5068760 drug concentrations and TGI in multiple xenograft tumor models
Tumor model . | Dose* (mg/kg) . | Cmax (ng/mL) . | AUC0-12 (ng*h/mL) . | Cave (ng/mL) . | % TGI . |
---|---|---|---|---|---|
LOX (B-RafV600E) melanoma | 6.25 | 750 | 3,970 | 331 | 61 |
12.5 | 1,170 | 4,660 | 388 | 99 | |
25 | 3,790 | 10,000 | 833 | >100 (10/10 CR) | |
HT-29 (B-RafV600E) colorectal | 25 | 911 | 3,779 | 315 | 65 |
50 | 1,300 | 7,306 | 609 | 75 | |
100 | 4,070 | 18,354 | 1,530 | 95 (4/10 PR) | |
H460 (K-RasQ61H) NSCLC | 25 | 2,750 | 8,800 | 733 | 64 |
50 | 8,080 | 23,300 | 1,942 | 83 | |
100 | 16,900 | 62,900 | 5,242 | 90 (2/10 PR) | |
200 once daily | 20,700 | 122,000† | 5,083 | 80 | |
MIA PaCa-2 (K-RasG12C) pancreas | 25 | 3,960 | 12,700 | 1,058 | 71 |
50 | 5,240 | 18,800 | 1,567 | 84 | |
100 | 9,650 | 32,700 | 2,725 | >100 (4/8 PR) | |
200 once daily | 15,500 | 66,200† | 2,758 | 97 (3/8 PR) |
Tumor model . | Dose* (mg/kg) . | Cmax (ng/mL) . | AUC0-12 (ng*h/mL) . | Cave (ng/mL) . | % TGI . |
---|---|---|---|---|---|
LOX (B-RafV600E) melanoma | 6.25 | 750 | 3,970 | 331 | 61 |
12.5 | 1,170 | 4,660 | 388 | 99 | |
25 | 3,790 | 10,000 | 833 | >100 (10/10 CR) | |
HT-29 (B-RafV600E) colorectal | 25 | 911 | 3,779 | 315 | 65 |
50 | 1,300 | 7,306 | 609 | 75 | |
100 | 4,070 | 18,354 | 1,530 | 95 (4/10 PR) | |
H460 (K-RasQ61H) NSCLC | 25 | 2,750 | 8,800 | 733 | 64 |
50 | 8,080 | 23,300 | 1,942 | 83 | |
100 | 16,900 | 62,900 | 5,242 | 90 (2/10 PR) | |
200 once daily | 20,700 | 122,000† | 5,083 | 80 | |
MIA PaCa-2 (K-RasG12C) pancreas | 25 | 3,960 | 12,700 | 1,058 | 71 |
50 | 5,240 | 18,800 | 1,567 | 84 | |
100 | 9,650 | 32,700 | 2,725 | >100 (4/8 PR) | |
200 once daily | 15,500 | 66,200† | 2,758 | 97 (3/8 PR) |
*All doses were given twice daily other than those designated otherwise.
†AUC0-24 were presented as the dose schedules were once daily.

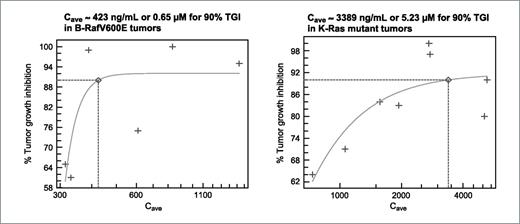

The estimated Cave in plasma required for achieving tumor stasis (≥90% TGI) in multiple tumor models. Human cancer cells were implanted s.c. in nude mice. After palpable tumors were established, the tumor-bearing mice were dosed with RO5068760 as indicated by oral gavage (10 mice per group). The mean tumor volume in each dosing group were measured. The plasma drug concentrations of RO5068760 were measured at various time points after the final dose, and the Cave in plasma were calculated and plotted against corresponding antitumor activity (% TGI; Table 3). The estimated Cave in plasma required for achieving tumor stasis (≥90% TGI) was determined.
The estimated Cave in plasma required for achieving tumor stasis (≥90% TGI) in multiple tumor models. Human cancer cells were implanted s.c. in nude mice. After palpable tumors were established, the tumor-bearing mice were dosed with RO5068760 as indicated by oral gavage (10 mice per group). The mean tumor volume in each dosing group were measured. The plasma drug concentrations of RO5068760 were measured at various time points after the final dose, and the Cave in plasma were calculated and plotted against corresponding antitumor activity (% TGI; Table 3). The estimated Cave in plasma required for achieving tumor stasis (≥90% TGI) was determined.
Although sustained drug exposure or target inhibition may be optimal for efficacy as monotherapy, safety concerns raised during the clinical investigation of other MEK inhibitors prompted us to ask what was the minimal duration and magnitude of target (p-ERK) inhibition required for efficacy. First, the mean plasma concentration time profiles of RO5068760 (Supplementary Fig. S2) at doses resulting in a significant TGI (>90% TGI) in xenograft models were assessed for the time above the mean EC50 (1.36 + 3.35 = 2.36 μmol/L or 1525 ng/mL) of p-ERK suppression in tumors (Fig. 2A and B). In the LOX model dosed with 12.5 mg/kg twice daily, which achieved CR/PR, the plasma concentrations of RO5068760 remained just below the EC50 (1525 ng/mL), whereas in the other tumor models dosed at 100 mg/kg twice daily, which resulted in tumor stasis, plasma levels of RO5068760 were sustained above EC50 (1525 ng/mL) for 5 to 7 hours (HT-29, MIA PaCa-2, and H460) within a 12-hour dosing interval. In a second assessment, the maximal plasma levels were compared with the EC90 of p-ERK inhibition (∼9,000 ng/mL). In the MIA PaCa-2 and H460 xenograft models, Cmax levels in plasma reached or exceeded the EC90 of p-ERK suppression, whereas in the LOX and HT-29 models, maximal plasma levels required for a similar degree of efficacy were significantly lower (Table 3). This suggests that K-Ras mutant tumors require a higher degree and longer duration of p-ERK suppression for optimal efficacy compared with B-Raf mutant tumors. In addition, in all models at efficacious dose levels, Ctrough was minimal, indicating that constant p-ERK suppression (>50%) may not be required for efficacy, especially in the most responsive tumor populations.
Discussion
The Ras/Raf/MEK/ERK pathway is aberrantly activated in many human cancers. Ultimate clinical proof of concept in cancer therapy for a selective Ras/Raf/MEK/ERK pathway inhibitor remains elusive. The most advanced investigational MEK inhibitors (PD0325901 and AZD6244) share similar chemical core structures and biological properties. Both agents have shown some clinical benefits including partial response and stable disease, but have also revealed potential safety issues that were not known to be mechanism or chemo-type related (15, 16). We have identified a new class of MEK inhibitors with a novel structure and a unique mechanism of action that may offer differential clinical benefit in cancer patients (17). Many challenges remain in the development of MEK inhibitors: (a) the selection of the most responsive patient population; (b) the use of biochemical markers for early proof of mechanism of action and to define an optimal dose regimen for target inhibition; (c) the use of surrogate markers to predict early response; and (d) the selection of optimal combination partners and regimens for rational combination therapy. The current study presents a detailed in vivo characterization of efficacy, PK, and PD of RO5068760 in multiple human tumor xenograft models. The relationships between RO5068760 systemic exposures and the target (ERK phosphorylation) inhibition as well as TGI were evaluated. The plasma EC50 required for p-ERK suppression and the average plasma EC90 for tumor stasis were determined. The minimal duration and magnitude of p-ERK inhibition required for optimal efficacy were estimated. These results may provide guidance for future clinical trial design in the selection of a responsive patient population, the use of biochemical markers for early proof of mechanism, and the selection of an optimal dose regimen.
For the inhibition of ERK phosphorylation (p-ERK) in LOX melanoma and HT-29 colorectal cancer xenografts, the estimated EC50 in plasma were 1.36 μmol/L (880 ng/mL) and 3.35 μmol/L (2168 ng/mL), respectively, and the estimated EC50 in tumor tissue were 928 ng/g and 1001 ng/g, respectively (Fig. 2A and B). The difference in plasma EC50 values between the two tumor models could be the result of analytic variability due to the limited actual data available around the predicted EC50 values. The tumor concentration time profile generally follows the plasma concentration time profile. Only at the 12 hours postdose did tumor drug concentration exceed plasma concentration, indicating a slightly slower elimination from the tumor. Assuming that distribution of the drug is similar between the xenograft and the patient tumors, the preclinical results support that plasma concentration in the clinic could be used for an initial estimation of drug concentration and target inhibition in tumor. Furthermore, using peripheral blood lymphocytes in monkey as a surrogate tissue, a similar EC50 (1.41 μmol/L) was observed for the inhibition of PMA-stimulated ERK phosphorylation (Fig. 2C) compared with xenografts. Because blood cells are easily accessible in human subjects, these data can be generated early in man for proof of mechanism of action and a corresponding EC50 can be readily determined. The clinical and preclinical data can be compared to assess the degree and duration of drug action in man. With the challenges mentioned above for developing MEK inhibitors in clinic, the current studies provide guidance for future clinical trial design in the use of a biochemical marker for early proof of mechanism of action and for optimal dose regimen selection.
For achieving significant TGI (≥90% TGI), an estimated average plasma concentration of 0.65 or 5.23 μmol/L was required for RO5068760 in B-RafV600E or K-Ras mutant tumor models, respectively, which were remarkably similar to the in vitro IC90 values (0.64 or 4.1 μmol/L) for growth inhibition in these cells (Table 1; Fig. 3). A more detailed analysis of the plasma concentration time profiles (Supplementary Fig. S2) indicate that constant p-ERK suppression (>50%) may not be necessary for MEK inhibitors to achieve efficacy as monotherapy, which is especially relevant for better management of toxicities in normal cells. In addition, this provides flexibility in dose regimen selection when used in combination with other cancer agents. Many data have suggested that tumors harboring B-RafV600E mutation are extremely sensitive to the MEK inhibition (19–22). In line with these results, RO5068760 shows superior in vivo efficacy in the B-RafV600E mutant xenografts compared with the K-Ras mutant xenografts with equivalent systemic exposures. In the B-Raf mutant xenografts, the effective drug concentration required for tumor regression were significantly lower than that in the K-Ras mutant xenografts (Table 3). To assess the duration and magnitude of p-ERK inhibition required for optimal efficacy (>90% TGI), we found that in the LOX model dosed with 12.5 mg/kg twice daily that achieved CR/PR, the plasma concentrations remained just below the EC50 (1,525 ng/mL) of p-ERK inhibition, whereas in the other tumor models dosed at 100 mg/kg twice daily that resulted in tumor stasis, plasma levels of RO5068760 were sustained above EC50 (1525 ng/mL) for 5 hours (HT-29) to 7 hours (MIA PaCa-2 and H460) within a 12-hour dosing interval (Supplementary Fig. S2). In the B-RafV600E tumors, the maximal degree of p-ERK inhibition required for optimal efficacy (>90% TGI) ranged from 40% to 80%, whereas in the K-Ras mutant tumors, ≥80% suppression was needed. These results suggest that the K-Ras mutant tumors require a higher degree and longer duration of p-ERK suppression for optimal efficacy compared with B-Raf mutant tumors. Our study provides guidance for testing MEK inhibitors in the clinic and in the selected patient population using an optimal biological dose for achieving efficacy and reducing toxicity.
It is worth noting that there are several caveats associated with the preclinical PK-PD study described here: first, the assumptions for monotherapy may not be directly applicable for combination therapy, which, however, is the most likely clinical treatment strategy for MEK inhibitors considering the extensive cross-talk and feedback regulation between oncogenic signaling pathways. In addition, the growth kinetics of preclinical xenografts are different from that of human patient tumors, thus the PK-PD (efficacy) relationship in preclinical models may not be directly translatable. Lastly, human DMPK and safety properties may differ from preclinical animals (mice and monkey), which further complicate the interpretation of preclinical data. Despite these limitations, the current PK-PD study with the novel MEK inhibitor RO5068760 may help to guide the clinical studies through improved understanding of the relationship between drug concentrations of RO5068760 and the target inhibition as well as the TGI in selected tumors highly sensitive to the MEK inhibition.
