Multifactorial Regulation of E-Cadherin Expression: An Integrative Study

E-cadherin (E-cad) is a transmembrane glycoprotein that functions to maintain stable cell-cell contacts in epithelial cell types (1). It forms Ca⁺²-dependent homodimers that bind to their counterparts in adjacent cells, resulting in the formation of intercellular adherens junctions (2). Down-regulation of E-cad has been described in multiple carcinoma types during tumor progression (3–6). Its down-regulation, a sign of poor prognosis for multiple types of epithelial carcinomas (7–9), is associated with increases in both invasion (3, 10, 11) and metastasis (8, 12). In melanocytes, E-cad down-regulation and a concurrent up-regulation of N-cadherin lead to altered cell-cell relationships; whereas normal melanocytes interact primarily with keratinocytes, melanoma cells interact more strongly with melanocytes and fibroblasts (13, 14).

Multiple single factors have been reported to regulate E-cad expression in one or another cancer type (3–6, 15–23). However, those factors have not been studied together in combination as a system and across the spectrum of cancers. Accordingly, to provide an integrative portrait of E-cad regulation within and across cancer cell types, we used six different microarray platforms and bisulfite sequencing to assess eight potential E-cad regulatory factors in the NCI-60 human cancer cell line panel at the DNA, RNA, protein, and epigenetic levels. One very practical motivation for understanding the complexities of E-cad regulation is the potential for reversing down-regulation of E-cad and restoring its function. That might, in principle, be achieved through the use of agents that reverse promoter region methylation or by knocking down relevant transcriptional repressors.

The NCI-60 panel consists of 60 diverse human cancer cell lines used by the National Cancer Institute's Developmental Therapeutics Program to screen compounds for anticancer activity (24). The panel includes leukemias, melanomas, and cancer cells of breast, central nervous system (glioma), colon, non-small cell lung, ovarian, prostate, and renal origin. It constitutes the most comprehensively profiled set of cells in existence, having been analyzed at the DNA, RNA, protein, chromosomal, metabolomic, and pharmacological levels (25). Profiling of the NCI-60 has been considered a forerunner of The Cancer Genome Atlas Project⁸

To test whether the correlative relationships uncovered are causal at the molecular level and whether they provide the basis for strategies to up-regulate E-cad on a cell type-specific basis, we followed up with siRNA knockdown and 5-azacytidine demethylation experiments. This overall integromic (26) approach, supported by functional data, yields a picture of the multifactorial regulation of E-cad expression. It provides the ability to predict rationally and prospectively, independent of cancer tissue of origin type, whether E-cad will be successfully up-regulated by a given treatment.

The NCI-60 cells were obtained from the National Cancer Institute Frederick Cancer DCTD Tumor/Cell Line Repository⁹

RNA was isolated as we have described previously (18, 27). Briefly, total RNA was purified using the RNeasy Midi Kit (Qiagen Inc., Valencia, CA) according to the manufacturer's instructions. Genomic DNA was purified using either the QIAamp DNA Blood Maxi Kit or the Blood & Cell Culture DNA Maxi Kit (Qiagen) according to manufacturer's instructions (18).

Our bisulfite-sequencing protocol for the minimal promoter region of E-cad has been described previously (18). In brief, genomic DNA (5 μg) from each cell line was treated with sodium bisulfite, amplified using nested polymerase chain reaction primers, and sequenced.

We have previously described our processing and normalization of NCI-60 transcript expression data from pin-spotted cDNA arrays (Incyte, Inc., Palo Alto, CA; refs. 27, 28), Affymetrix Hu-6800 arrays (Affymetrix, Sunnyvale, CA; ref. 29), Affymetrix HG-U95 arrays (30), and Affymetrix HG-U133 (30). The data from those and the other molecular profiling studies are available in a queryable relational database (CellMiner).¹⁰

Our methods for quantitation of proteins using reverse-phase lysate arrays have been described previously (31). Further information for this array is available at the Gene Expression Omnibus, identifier GSE5501.

The arrays comprised 450 cancer-related BAC, PAC, and P1 clones printed in quadruplicate (32). The clones and their genomic locations have been defined previously.¹²

We modified a previously described protocol (33) to study inhibition of DNA methylation by 5-AC. Briefly, 4,000 to 5,000 cells were seeded in 96-well cell culture clusters on day 0, treated with 0.1 to 2 mg/mL 5-aza-2′-deoxycytidine (5-AC) (Sigma, St. Louis, MO) on days 1, 3, and 5, and washed to remove the drug on days 2 and 4. The cells were lysed on day 6 using Lysis mixture (Panomics, Inc., Fremont, CA).

We used the synthetic siRNAs siTCF8.1, siTCF8.2, siSNAI2.1, siSNAI2.2, siZFHX1B.1, and siZFHX1B.2 (Qiagen) to inhibit expression of the transcription factors TCF8, SNAI2, and ZFHX1B, as described previously (34).

E-cad, TCF8, ZFHX1B, SNAI2, and PPIB mRNA levels were assayed in 5-AC and siRNA studies using a branched DNA assay (Panomics) as described previously (34).

We determined 95% confidence intervals for the correlations between E-cad methylation, expression, and DNA copy number via bootstrap analysis with 10,000 resamplings. Unless otherwise stated, all calculations were done using R.¹³

Cell images (at 25× magnification) were obtained using a Zeiss Axiovert 25 inverted phase contrast microscope with a halogen bulb and a Canon DS126071, Rebel XL digital camera. In some cases, the contrast was increased for better visibility.

The mechanism-of-action drug set used in this study has been described previously (32). It comprises 118 compounds whose mechanism is presumptively known. The activities are growth inhibition 50% concentrations, expressed as −log(GI50), and are determined as described previously (27, 28).

Table 1 summarizes the molecular profiles used in this study. We classify MDA-MB-435 and its ERBB2-transfectant MDA-N as melanomas based on multiple molecular and pharmacological profiles from our laboratory and others (18, 27–29, 35–37). Similarly, we classify OVCAR8/ADR-RES (previously called MCF7/ADR-RES and NCI/ADR-RES) as ovarian based on compelling evidence from our spectral karyotyping (38), comparative genomic hybridization (32), single-nucleotide polymorphism analysis (39), and microsatellite fingerprinting (40) that it is a (drug-resistant) derivative of OVCAR-8.

The E-cad promoter methylation levels in Table 1 are expressed as the mean methylation percentage for all 29 CpG cytosines in the minimal promoter region (18). The E-cad mRNA levels were determined using our data from 9,706-clone cDNA arrays (27, 28) and three different Affymetrix chip types: HU-6800 (29), HG-U95 (30), and HG-U133 (30). E-cad protein levels were determined using reverse-phase lysate arrays (31). E-cad expression levels were generally higher for epithelial cell types (breast, colon, non-small cell lung, ovarian, prostate, and renal) than for nonepithelial ones (gliomas, leukemias, and melanomas).

Table 1 also contains our array comparative genomic hybridization DNA copy number data (ploidy-relative) for E-cad (32) and mRNA expression levels from HG-U133 Affymetrix arrays for the E-cad transcriptional regulatory factors SNAI1, SNAI2, TCF3, TCF8, TWIST1, and ZFHX1B (30). Gray blocks indicate DNA methylation levels (18) and transcriptional repressor transcript levels associated at statistically significant levels (two-tailed P < 0.05 by bootstrap with 10,000 iterations) with E-cad down-regulation.

The mean methylation pattern (Table 1) for E-cad correlated inversely with E-cad transcript levels measured using all four microarray types (r = −0.49, −0.45, −0.52, and −0.38 for the Table 1 Hu6800, cDNA, HG-U95, and HG-U133 microarrays, respectively). It also correlated inversely with the protein (r = −0.49) pattern (data from Table 1). All of those correlations were statistically significant (bootstrap two-tailed P < 0.05; data not shown). The ploidy-relative DNA copy number (Table 1), however, showed no significant association with mean methylation, transcript expression, or protein expression. Transcript level data from the four array types were correlated with each other at statistically significant levels, with a mean r = +0.86-that is, the four transcript expression platforms corroborated each other, indicating that the measurements were generally robust. The protein and transcript levels also correlated with each other (r = +0.72, +0.81, +0.86, and +0.75 for the Hu6800, cDNA, HG-U95, and HG-U133 microarrays, respectively) at statistically significant levels.

Pearson's correlation coefficients relating E-cad and E-cad transcriptional repressor expression (Table 1) in the NCI-60 are shown in Table 2. Bold type indicates correlations with P < 0.05 (without multiple comparisons correction). Significant negative correlations, consistent across the five E-cad expression platforms, were seen for the NCI-60 for SNAI2, TCF8, TWIST1, and ZFHX1B. SNAI2 and E-cad expression were negatively correlated for breast cancer. TCF8 and E-cad were negatively correlated for breast, lung, and ovarian cancers. TWIST1 and E-cad expression were negatively correlated for the melanomas. All of the subpanel relationships, however, were based on small numbers of cell types, and they must be considered in light of multiple comparisons issues.

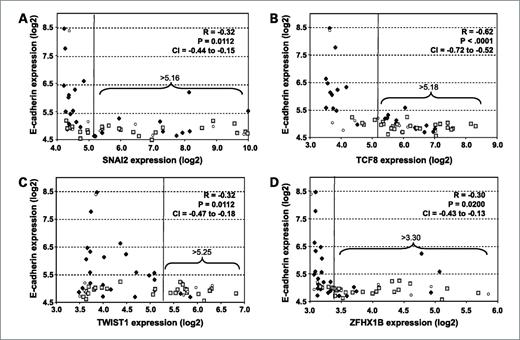

Figure 1 shows the statistically significant relationships between E-cad and transcriptional repressor transcript expression levels (Table 1). We previously noted a threshold of 20% to 30% mean E-cad methylation above which E-cad expression was not detected (18). Four of the repressors, SNAI2, TCF8, TWIST1, and ZFHX1B (Fig. 1A-D), showed L-shaped relationships with E-cad expression. Brackets indicate the approximate levels of repressor (>5.16, 5.18, 5.25, and 3.30, respectively) above which E-cad expression was predominately at background levels. SNAI1 and TCF3 (data not shown) did not reliably predict E-cad repression. The SNAI2, TCF8, and ZFHX1B E-cad down-regulation regions (as demarcated by brackets) had measurable E-cad expression in two, one, and two cell lines, respectively. Those three E-cad-expressing cell lines (MALME-3M and UACC-257 in Fig. 1A and D; EKVX in Fig. 1B) indicate a lack of complete repression of E-cad by the transcriptional repressors when expressed within the (bracketed) ranges.

For reasons considered in the Discussion section, it appears likely that the transcription factor effects are secondary to methylation status in regulating E-cad expression. Hence, for the following calculation, we adopted a model in which the transcriptional repressors cause differences in transcription rates only when mean methylation is low enough to permit E-cad expression (<30%) (ref. 18). When we then tested for a linear relationship between TCF8 and E-cad transcript levels for the cell lines with permissive methylation levels, we found P < 0.00001 and a slope (effect size) of 0.50 when both variables were represented on a log₂ scale. After fitting that model, we tested the residuals for additional effects of SNAI2 (P= 0.03; effect size 0.16) and ZFHX1B (P = 0.01; effect size 0.4) when methylation is permissive. An F-test was used to check whether addition of SNAI2 or ZFHX1B leads to a significant decrease in the unexplained variance of E-cad expression. Because the levels of SNAI2 and ZFHX1B were significantly correlated (+0.83) over the cell lines with <30% methylation, effects of the two on E-cad expression were not linearly separable. This significant (P < 0.0001) correlation suggests coordinate regulation. The statistical calculations were based on standard parametric t tests for the null hypothesis that the true regression slope was 0. The P values were not significant for the other transcriptional regulator combinations. The relationships between E-cad expression and TCF8, SNAI2, and ZFHX1B (with SNAI2 and ZFHX1B not being separable) were also maintained qualitatively when all cell lines, regardless of mean methylation level, were included (data not shown).

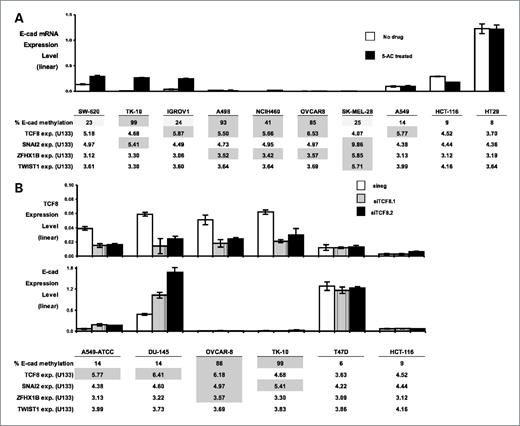

Because promoter methylation of E-cad is strongly associated with its down-regulation, we choose the DNA demethylation agent 5-AC to determine if we could up-regulate E-cad expression. Figure 2A shows the expression levels of E-cad transcript in 10 cell lines as measured via branched DNA assay, with or without 5-AC treatment. The lines are ordered based on a combination of their actual and predicted levels of E-cad up-regulation following 5-AC treatment. E-cad was up-regulated by 5-AC in the three cell lines (SW-620, TK-10, and IGROV1) that exhibited a combination of repressive levels of methylation (≥20%) and zero or one transcriptional repressor at levels associated with low levels of E-cad (Fig. 1). E-cad was not up-regulated by 5-AC in any of the four cell lines (A498, NCI-H460, OVCAR-8, and SK-MEL-28) with repressive levels of methylation plus two or more transcriptional repressors at levels associated with low E-cad expression (Fig. 1). It was also not up-regulated in any of the three cell lines with nonrepressive levels of E-cad methylation (A549-ATCC, HCT-116, and HT29). The latter three cells lines served as controls for secondary effects due to the nonspecificity of 5-AC's demethylating activity.

The transcript expression of TCF8 had the highest correlation with the E-cad expression profiles (Table 2), a striking L-shaped data distribution in the plot of E-cad versus TCF8 expression (Fig. 1B), and the strongest predictive value among the six transcriptional repressors for E-cad expression (P < 0.00001; parametric t test). We therefore used siRNAs (siTCF8.1 and siTCF8.2) to test the effect of TCF8 down-regulation on E-cad expression (Fig. 2B). The first two cell lines in the figure (A549-ATCC and DU-145) were among the best candidates for E-cad up-regulation, and both displayed E-cad up-regulation when TCF8 expression was knocked down. As predicted, OVCAR-8 and TK-10, which both have E-cad DNA methylation levels above the 30% threshold and levels of SNAI2 and ZFHX1B associated with low-level E-cad expression (Fig. 1), failed to up-regulate E-cad when TCF8 was knocked down. T47D and HCT-116 both had levels of TCF8 not associated with low E-cad expression, and thus provided controls for nonspecific effects. As predicted, neither cell line showed any change in either TCF8 or E-cad expression levels.

The transcript expression levels of ZFHX1B and SNAI2 were significantly correlated with E-cad expression (Table 2), L-shaped in distribution when plotted against E-cad expression (Fig. 1D and A, respectively), significantly correlated with one another in expression (r = 0.83), and predictive of E-cad expression (P = 0.03 and 0.01, respectively; parametric two-tailed t test). However, when we tried to identify candidate cell lines in our set with which to test whether ZFHX1B or SNAI2 down-regulation was independently sufficient for up-regulation of E-cad expression, there were none. That is, none of the cells showed ZFHX1B or SNAI2 expression in the range associated with low E-cad expression (Fig. 1, Table 1), E-cad DNA methylation levels <20%, and levels of ZFHX1B or SNAI2 associated with low E-cad expression. We therefore tested the effects on E-cad expression of ZFHX1B and SNAI2 knock-down by siRNA using the next best possibilities: MALME-3M, UACC-257, and ACHN for ZFHX1B (Fig. 2C), and MALME-3M and UACC-257 for SNAI2 (data not shown). Each of those cell lines (for both ZFHX1B and SNAI2) has one additional transcription factor in the range associated with low E-cad expression. MALME-3M and UACC-257, but not ACHN, displayed E-cad up-regulation in the presence of ZFHX1B down-regulation (Fig. 2C). MALME-3M and UACC-257 failed to up-regulate E-cad when SNAI2 expression was knocked down.

We tested the effects on E-cad expression of combination treatment directed on the two factors at the top of our proposed ranking of influence on E-cad: DNA methylation and TCF8 (Fig. 2D). IGROV1, which has both E-cad methylation and TCF8 at levels associated with low E-cad expression, displayed E-cad up-regulation following either 5-AC or siTCF8 treatment. With combined treatment, the level of E-cad up-regulation was more than additive.

Using the HG-U133 E-cad expression data in Table 1, Fig. 3A shows that cell lines with undetectable (<5.40) E-cad expression displayed lower levels of cell-cell adhesion than did those with detectable levels (Fig. 3B). In addition to the obvious increase in cell-cell contact in Fig. 3B, T47D, KM12, NCI-H322M, and OVCAR-4 also showed vertical cell stacking. Stacking occurred in none of the cells in Fig. 3A. An exception to the general trend was the unusual cell line COLO205, which expresses detectable levels of E-cad (transcript and protein) but has an almost leukemic appearance and is only weakly adherent to plastic (image not shown).

We next examined the relationship between growth inhibitory 50% measurements of drug activity for 118 drugs (27, 28) and E-cad measurements of mean methylation, transcript level, protein level, and DNA content (Table 3). The mean of the correlation coefficients of the five E-cad expression measurements for the 54 attached (nonleukemic) cell lines reached significant levels (P < 0.02 without multiple comparisons correction) for six alkylating agents, three topoisomerase I inhibitors, and one DNA antimetabolite. Of those 10 drugs, all but the DNA antimetabolite showed negative correlations, indicating that as E-cad expression increases, drug activity decreases. Adding back the leukemias to the correlation calculations (Table 3) yielded consistent or slightly stronger correlations for all but the DNA antimetabolite.

Several factors generally studied in isolation in previous studies have been shown to influence E-cad expression (4, 15, 16, 18–23). In the present study, we assessed regulation of E-cad expression levels in the NCI-60 cell panel by eight of the potential effectors (Table 1 and Fig. 2A-D) using our E-cad promoter DNA methylation data), data from six different microarray platforms, and data from pharmacological assays employing RNA interference and 5-AC treatment. These factors were assessed in combination, yielding a coherent picture of multifactorial network regulation of E-cad expression. Included were the effects of DNA methylation of the E-cad promoter region, DNA copy number, and expression levels of the transcriptional repressors SNAI1, SNAI2, TCF3, TCF8, TWIST1, and ZFHX1B. In addition, levels of E-cad were shown to be associated with cell-cell adhesion and to correlate to the potencies of alkylating agents, topoisomerase 1 inhibitors, and a DNA antimetabolite.

Because transcript and protein levels often do not correlate over diverse cell types (32), it was not obvious that they would in this case. However, we found that the E-cad transcript and protein expression data do correlate with each at statistically significant levels (mean r = 0.83; P < 0.05). There was no correlation for DNA copy number, hence no evidence that copy number regulates E-cad expression.

Next, we found that E-cad expression correlates negatively with E-cad DNA promoter region methylation in a consistent and significant manner (correlation coefficient of the mean −0.47; P < 0.05). In modeling the influences on E-cad expression, we treated methylation as an independent variable because of two lines of evidence. First, there are multiple prior examples of transcription factor binding being blocked by the presence of DNA methylation (41–43). Second, our data from multiple microarray platforms, as well as the branched DNA assay, indicated that E-cad is not expressed in any of the NCI-60 if the methylation level is greater than approximately 30% (18). That is, DNA methylation (but not the other factors studied) appeared sufficient by itself for down-regulation of E-cad. We therefore define a nonpermissive level of methylation as >30% for the purposes of regulatory and statistical modeling. Down-regulation of E-cad in cancer by promoter region methylation (but not the threshold at which it occurs) has been well documented (3–6, 17, 18, 44, 45).

Three additional factors found to be associated with and statistically predict E-cad expression in the NCI-60 were SNAI2, TCF8, and ZFHX1B. All showed significant negative correlations across the panel (P < 0.05; two-tailed, no multiple comparisons correction) with the five measurements of E-cad expression (Table 2). Additionally, Fig. 1A, B, and D show that high expression levels of SNAI2, TCF8, or ZFHX1B are associated with low levels of E-cad expression. Although high levels of TWIST1 were also associated with low E-cad expression (P = 0.01), they were not independently predictive once the confounding effects of methylation, TCF8, SNAI2, and ZFHX1B had been removed. The bracketed expression ranges of SNAI2, TCF8, and ZFHX1B (Fig. 1A, B, and D, respectively) associated with low E-cad expression all show exception cell lines with detectable E-cad expression (MALME-3M and UACC-257 for SNAI2 and ZFHX1B; EKVX for TCF8), indicating that those ranges do not absolutely prevent E-cad expression. SNAI1 and TCF3 expression were uncorrelated with E-cad expression.

The correlations shown in Table 2 between the six E-cad measurements and the six transcriptional repressor expression levels for the NCI-60 and the eight tissues of origin (excluding the prostate, for which there are only two lines) provides additional information that confirms prior relationships and indicates novel relationships. The significant correlations with E-cad expression for SNAI2 in breast and TCF8 in non-small cell lung cancer support prior findings (46, 47). The correlations between E-cad expression and TCF8 in breast and ovarian lines and TWIST1 in melanomas are novel. The correlations with SNAI1, TCF3, and ZFHX1B were not consistently statistically significant for any of the tissue-of-origin types.

Based on this bioinformatic and statistical analysis, we propose for the regulatory factors analyzed that the top three levels of influence on E-cad expression in the NCI-60 are E-cad promoter methylation, expression of TCF8, and expression of ZFHX1B or SNAI2 (whose profiles are not linearly separable statistically). E-cad is not expressed at E-cad methylation levels >30% and is repressed at SNAI2, ZFHX1B, and TCF8 HG-U133 intensity levels >5.16, >3.30, and >5.18, respectively (Fig. 1A, D, and B, respectively). In this model, DNA methylation is sufficient for down-regulation of E-cad, whereas the transcriptional repressors are conditionally sufficient (i.e., sufficient in some cell types but not in others).

To test this regulatory ranking and also assess our ability to predict treatment combinations that would result in E-cad up-regulation, we designed functional assays (Fig. 2A-D and data for SNAI2 not shown) in which we manipulated the four statistically predictive factors. In each case, the optimal test case for E-cad up-regulation was a cell line with that repressor in its proposed repressive range, levels of the other three repressive factors that were not, and undetectable levels of E-cad expression (i.e., <5.40 by HG-U133 array in Table 1). Quantitation of RNA expression was provided by the branched DNA assay, which proved to be more sensitive than the HG-U133 microarrays.

When choosing cells in which we predict that E-cad would be up-regulated by DNA demethylation, none fit our optimal test case parameters. The flaws in the three best candidates were that TK-10 expresses SNAI2 in its repressive range, and SW-620 and IGROV1 have methylation levels slightly below the 30% cutoff. Nevertheless, up-regulation of E-cad followed treatment with 5-AC (for SW-620, TK-10, and IGROV1) by 2.2-, 22-, and 6.1-fold, respectively (Fig. 2A), providing functional evidence that the 23% and 24% E-cad DNA methylation levels (in SW-620 and IGROV1, respectively), although repressive, are insufficient to silence E-cad expression completely (see Fig. 2A, no drug) and that the association between E-cad methylation and expression might be causal. E-cad was re-expressed in TK-10 in the presence of repressive levels of SNAI2. We were unable to cause E-cad up-regulation in the presence of multiple transcriptional repressors in their repressive ranges (for A498, NCI-H460, OVCAR-8, and SK-MEL-28). E-cad is not up-regulated in the secondary affect control cell lines, A549, HCT-116, or HT29, in the presence of low (baseline) levels of methylation.

To test E-cad up-regulation following TCF8 down-regulation (Fig. 2B), we used two cell lines, A549-ATCC and DU-145, with optimal profiles. E-cad was successfully up-regulated 2.4- and 2.8-fold, respectively, by TCF8 knock-down in those lines. Those findings support our predictive criteria for identifying cells that will up-regulate E-cad expression following TCF8 down-regulation and indicate that the E-cad/TCF8 expression association is potentially causal. Our model predicted successfully that E-cad up-regulation would fail in OVCAR-8 because of high DNA methylation. E-cad expression is not re-expressed in TK-10, T47D, and HCT-116 in the absence of repressive TCF-8 levels.

There were no cell lines ideal for testing E-cad up-regulation following down-regulation of ZFHX1B. Still, by using our criteria to select the “next best” cell lines, we were able to up-regulate E-cad following ZFHX1B down-regulation in MALME-3M and UACC-257 by 2.4- and 1.7-fold (mean values), respectively (Fig. 2C). Those findings support our predictive criteria for identifying cells that can re-express E-cad following ZFHX1B down-regulation and indicate that the E-cad/ZFHX1B expression association is potentially causal. E-cad is not re-expressed in ACHN, in the presence of repressive levels of TCF8.

There were also no cell lines ideal for testing E-cad up-regulation following SNAI2 down-regulation. We were unable to re-express E-cad in either of our next best cell lines, MALME-3M or UACC-257, following SNAI2 down-regulation in the presence of repressive levels of ZFHX1B (data not shown).

Most of the cell lines that showed no detectable E-cad by U133 array have multiple repressive factors in their proposed repressive ranges, implying that multiple interventions might be required for substantial E-cad up-regulation in many cancer cell lines. Therefore, we did an initial test of the effects of siRNA and 5-AC treatment in combination in IGROV1, a cell line that combines the presence of the top two repressive factors in our regulatory ranking, E-cad DNA methylation and TCF8 expression. The results (Fig. 2D) were increases in E-cad expression of 4.8-fold for 5-AC alone, a mean of 2.3-fold following siTCF8 down-regulation, and a mean of 12.0-fold for the combination of 5-AC with siTCF8. Those results support our predictive criteria for identifying cells that can be made to re-express E-cad by down-regulating both DNA methylation and TCF8 expression; indicate that both associations are potentially causal; and suggest that, in the presence of multiple repressive factors, a targeted combination of treatments is likely the optimal approach for up-regulation of E-cad expression.

Both TCF8 and ZFHX1B have previously been described as being targeted by the miR-200 family (48, 49). Consistent with these results, we found significant negative correlations between TCF8 expression and hsa-miR-200a and 200b of −0.49, −0.55, respectively, as well as between ZFHX1B and hsa-miR-200a, 200b, and 200c of −0.56, −0.67, and −0.34, respectively. Levels for the miRNA are from our prior study (50) and are available at http://discover.nci.nih.gov/cellminer/queryLoad.do.

In the present study, we also defined two additional important factors that correlate with E-cad expression in the NCI-60: cell-cell adhesion and the potencies of a variety of drugs. Within the subset of 54 (nonleukemic) attached cell lines, the high expressers of E-cad tend to exhibit higher levels of cell-cell adhesion (Fig. 3A and B), consistent with prior reports (3, 10, 11, 19, 20, 22). The leukemias, with no detectable E-cad, grow as spherical detached cells and exhibit limited cell-cell adhesion (data not shown). The drug activity patterns (Table 3) have significant negative correlations to E-cad expression in 9/10 drugs for both the attached cell subset and the NCI-60.

In conclusion, we report an integromic analysis of multiple factors with the potential, either individually or in combination, to regulate E-cad expression. We relate those factors to E-cad expression at the transcript and protein levels. Statistical analysis of this data allows the prediction of which cell lines would show up-regulation of E-cad expression in pharmacological assays using 5-AC or siRNAs against TCF8, ZFHX1B, or SNAI2. Among those regulatory factors, methylation status is proposed to be nonpermissive and sufficient by itself to down-regulate E-cad expression when above a 30% threshold (18). TCF8 expression, SNAI2 and ZFHX1B are proposed to be conditionally sufficient, and repressive ranges are proposed for each of those factors. TWIST1 is correlated with E-cad down-regulation while not being shown to be predictive. SNAI1, TCF3, and DNA copy number show no obvious effect on E-cad. The functional assays done either confirmed or extended the proposed regulatory ranking, leading us to conjecture causality for E-cad regulation for promoter methylation, TCF8, and ZFHX1B. The data thus provide a rational basis for prospectively predicting what pharmacological combinations of DNA demethylation and down-regulation of transcriptional repressors would yield E-cad up-regulation in particular cancer cell types. The findings thus have implications for strategies to suppress cancer invasion and metastasis associated with E-cad loss.

No potential conflicts of interest were disclosed.

We are grateful to the many members of the National Cancer Institute's Developmental Therapeutics Program for their work on the screen and Molecular Targets Program. We particularly acknowledge the contributions of Bruce Chabner and Michael Boyd, who led development of the NCI-60, and Kenneth Paull, who pioneered the associated informatics.

Grant Support: Intramural Research Program of the National Institutes of Health, National Cancer Institute, Center for Cancer Research.
