14-Ethyl-2,5,11-trimethyl-4,13,19,20-tetraoxa-tricyclo[14.2.1.17,10]eicosane-3,12-dione (MFTZ-1), a new macrolide compound isolated from Streptomyces sp. Is9131, displayed wide cytotoxicity in human tumor cell lines with an average IC50 of 0.905 μmol/L. Notably, MFTZ-1 showed significant cytotoxicity in the three multidrug resistance cell lines with an average resistance factor of 2.08. The in vivo experiments showed that MFTZ-1 had inhibitory effects on the human ovarian carcinoma HO-8910 cell line xenotransplanted in nude mice. Further studies showed that MFTZ-1 induced DNA double-strand breaks and triggered mitochondria-dependent apoptosis in human leukemia HL-60 cells. Using a yeast genetic system, we found that topoisomerase (Topo) II rather than Topo I was the primary cellular target of MFTZ-1. Most importantly, MFTZ-1 functions as a novel nonintercalative Topo II poison via binding to ATPase of Topo II, characterized by its strong inhibition on the decatenation and relaxation of Topo II. The capacity of MFTZ-1 to stabilize Topo II–DNA covalent complexes was comparable with that of the classic Topo II poison, etoposide. Moreover, using a Topo II catalytic inhibitor aclarubicin and Topo II–deficient HL-60/MX2 cells, we further showed that MFTZ-1–triggered DNA double-strand breaks and apoptosis occurred in a Topo II–dependent manner. Together, the well-defined Topo II–poisoning function and the potent antitumor activity, with the appreciable anti–multidrug resistance action in particular, promises MFTZ-1 as a novel potential Topo II–targeted agent, which merits further research and development. [Mol Cancer Ther 2007;6(11):3059–70]

DNA topoisomerase (Topo) II is an essential enzyme that plays an important role in DNA replication, repair, transcription, and chromosome segregation (1). In addition to its critical functions, Topo II has been identified as an important antitumor target (2). Classic Topo II poisons stabilize DNA–Topo II complexes by blocking DNA religation. The accumulation of this covalent complex in rapidly dividing cancer cells results in the formation of multiple DNA strand breaks, and these genotoxic damages activate the cell death machinery (3, 4). Topo II poisons have shown a major clinical utility including mitoxantrone, etoposide (VP16), and Adriamycin. However, they often induce dose-limiting toxicities and multidrug resistance (MDR), resulting in treatment failure after initial effective therapy. As such, efforts to develop novel potent poisons have met a limited success, and there has been continuous interest in studying and developing new anti–Topo II agents.

Nonactic and homononactic acids are plant growth stimulators and exhibit specific insecticidal effects (5, 6). Nonactin, a macrotetrolide, derived from nonactic and homononactic acids, was shown to possess antitumor activity against both mammalian cell lines in vitro and Sarcoma 180 in vivo in mice (7, 8). 14-Ethyl-2,5,11-trimethyl-4,13,19,20-tetraoxa-tricyclo[14.2.1.17,10]eicosane-3,12-dione (MFTZ-1; Fig. 1A), a new derivative of nonactic and homononactic acids isolated from an endophyte Streptomyces sp. ls9131 of Magnolia hookeri, characterized to be a dimeric dinactin (9), stood out as a novel Topo II poison structurally distinct from all Topo II inhibitors known thus far. In the present study, we aimed to investigate the antitumor activities of MFTZ-1 both in vitro and in vivo and figure out the related possible mechanisms of action. Results show that MFTZ-1 functions as a novel Topo II poison to trigger the Topo II–dependent DNA double-strand breaks (DSBs) and apoptosis. These findings should help elucidate the precise mechanisms involved in the antitumor activities of MFTZ-1 and enable the rational design of novel Topo II–targeted drugs.

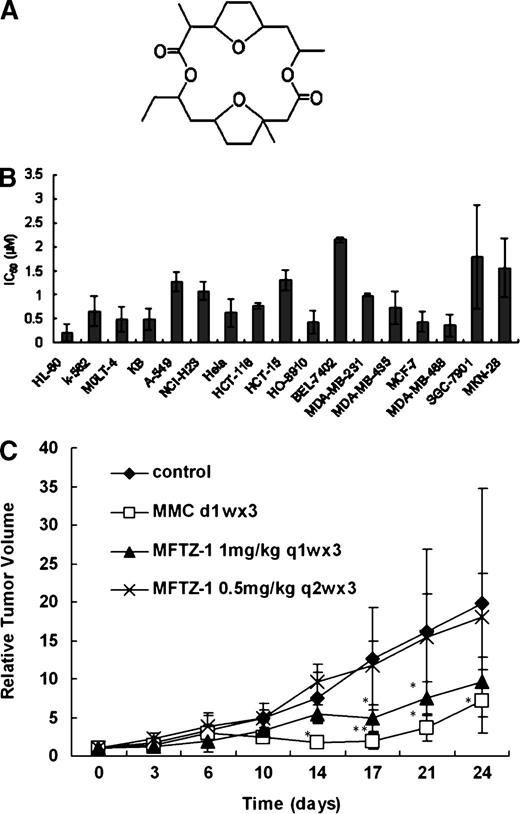

Figure 1.

Antitumor activity of MFTZ-1 both in vitro and in vivo.A, chemical structure of MFTZ-1. B, cytotoxicity of MFTZ-1 against a panel of human tumor cell lines. Cells were treated with various concentrations of MFTZ-1 for 72 h. Cell viability was determined by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide assay. Columns, mean IC50 values of three independent experiments; bars, SD. C, tumor growth inhibition of MFTZ-1 against human ovarian carcinoma xenograft HO-8910 in nude mice. The animals were randomly divided into four groups and given i.v. injection of mitomycin C (MMC), MFTZ-1, or vehicle for 3 wk. *, P < 0.05; **, P < 0.01, mitomycin C or MFTZ-1 treatments versus normal saline treatment.

Figure 1.

Antitumor activity of MFTZ-1 both in vitro and in vivo.A, chemical structure of MFTZ-1. B, cytotoxicity of MFTZ-1 against a panel of human tumor cell lines. Cells were treated with various concentrations of MFTZ-1 for 72 h. Cell viability was determined by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide assay. Columns, mean IC50 values of three independent experiments; bars, SD. C, tumor growth inhibition of MFTZ-1 against human ovarian carcinoma xenograft HO-8910 in nude mice. The animals were randomly divided into four groups and given i.v. injection of mitomycin C (MMC), MFTZ-1, or vehicle for 3 wk. *, P < 0.05; **, P < 0.01, mitomycin C or MFTZ-1 treatments versus normal saline treatment.

Close modal

Compounds

MFTZ-1 was isolated from an endophyte Streptomyces sp. ls9131 of M. hookeri as previously reported (9), and its purity is >95%. The compound was dissolved in DMSO to the concentration of 0.1 mol/L (in vitro) or in ethanol (in vivo) before each assay and then diluted with normal saline. The final DMSO or ethanol concentration did not exceed 0.1% (v/v) or 1% (v/v), respectively.

Adriamycin, VP16, camptothecin, and vincristine were prepared as 10 mmol/L stock solution in DMSO. Aclarubicin (5 mmol/L) was prepared with DMSO as a stock solution. All these agents were purchased from Sigma. Pan-caspase inhibitor Z-VAD-FMK and caspase-9 inhibitor Z-LEHD-FMK (Calbiochem) were dissolved at a concentration of 0.1 mol/L in DMSO. All stock solutions were stored at −20°C, thawed, and diluted with normal saline before each experiment.

Animals

BALB/Ca nu/nu female mice ages 4 to 5 weeks were bred in Shanghai Institute of Materia Medica. The animals were housed in sterile cages under laminar airflow hoods in a specific pathogen-free room with a 12-h light and 12-h dark schedule, and fed autoclaved chow and water ad libitum. All experiments were done according to institutional ethical guidelines on animal care.

Cell Lines

Human gastric adenocarcinoma cell line SGC-7901, hepatocellular carcinoma cell line BEL-7402, and ovarian epithelioid carcinoma cell line HO-8910 were obtained from the cell bank of Shanghai Institute of Materia Medica, Chinese Academy of Sciences. Human premyelocytic leukemia cell line HL-60, HL-60/MX2 (Topo II deficient), chronic myelogenous leukemia K-562, lymphoblastic leukemia cell line MOLT-4, oral epidermoid carcinoma KB, cervical carcinoma cell line HeLa, colorectal adenocarcinoma HT-29, HCT-116, lung adenocarcinoma A549, NCI-H23, breast carcinoma cell line MCF-7, MDA-MB-231, and MDA-MB-468 were purchased from American Type Culture Collection. Human breast carcinoma cell line MDA-MB-435 and gastric adenocarcinoma cell line MKN-28 were from Japanese foundation of Cancer Research. Both Adriamycin-selected MDR cell sublines K-562/A02 (10) and MCF-7/Adriamycin (11, 12) were purchased from the Institute of Hematology, Chinese Academy of Medical Sciences. The vincristine-selected MDR subline KB/vincristine (13) was obtained from Zhongshan University of Medical Sciences. All these cell lines except MCF-7 were maintained in RPMI 1640 (Life Technologies) supplemented with 10% heat-inactivated fetal bovine serum (Life Technologies), l-glutamine (2 mmol/L), penicillin (100 IU/mL), streptomycin (100 μg/mL), and HEPES [10 mmol/L; MCF-7 with additional 1 mmol/L sodium pyruvate and supplemented with 0.01mg/mL bovine insulin (pH 7.4)] in a humidified atmosphere of 95% air plus 5% CO2 at 37°C.

Yeast Strain

The Saccharomyces cerevisiae strains used were the generous gift of Dr. Neil Osheroff (The School of Medicine, Vanderbilt University, Nashville, TN). The parent yeast strain used in this study was S. cerevisiae JN394. Two gene-modified strains from JN394 were used: JN394top1, which had a chromosomal deletion of Topo I gene (14); JN394top2-4, in which the wild-type Topo II gene was replaced with the temperature-sensitive top2-4 mutant allele2-4 (15). Yeasts were grown in YPDA liquid medium (1% yeast extract, 2% bacto peptone, 2% glucose, and 40 μg/mL adenine) at 25°C or 30°C.

Cytotoxicity Assay

The inhibitory effect of MFTZ-1 on tumor cell line growth was assessed by measuring 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (Sigma) dye absorbance as described previously (16). The concentration required for IC50 of tumor cells treated with MFTZ-1 for 72 h was determined from the dose-response curve.

Neutral Single-Cell Gel Electrophoresis Assay

DNA DSBs were evaluated using the neutral single-cell gel electrophoresis assay as previously described (17), with minor modifications (18). A fluorescence microscope (Olympus BX51) was used to capture the images. Quantization was achieved by analyzing ≥50 randomly selected comets per slide with the Komet 5.5 software (Kinetic Imaging, Ltd.) using the tail moment.

Propidium Iodide Staining for Flow Cytometry

HL-60 cells (5 × 105/mL) were treated with various concentrations of MFTZ-1 for 24 h. Cells were harvested and washed with cold PBS. Then, cells were fixed by 70% ethanol on ice overnight, and washed twice in PBS. Staining was done in PBS containing 50 μg/mL RNase and 10 μg/mL propidium iodide at room temperature in dark for 30 min. For each sample, ≥1 × 104 cells were analyzed by flow cytometry (FACSCalibur).

DNA Agarose Gel Electrophoresis

HL-60 cells (5 × 105/mL) were treated with various concentrations of MFTZ-1 for 24 h. The samples were left untreated or pretreated with aclarubicin for 0.5 h before MFTZ-1 addition. DNA fragmentation was extracted using the method on a previous report (19). The fragmentation of DNA was electrophoresed in 1.5% agarose gel, stained with ethidium bromide, and photographed through a ChemiGenius 2 Gel Documentation System (Syngene).

Terminal Deoxyribonucleotide Transferase–Mediated Nick-End Labeling Assay

Terminal deoxyribonucleotide transferase–mediated nick-end labeling (TUNEL) assay was done according to the manufacturer's instructions (Roche). HL-60 cells (5 × 105/mL) were incubated with MFTZ-1 for 24 h in indicated concentrations and stained for TUNEL. Cells were washed in PBS twice, fixed in 4% paraformaldehyde, and permeabilized in 0.1% Triton X-100 on ice. For the labeling reaction, the cells were stained for 1 h at 37°C. All cells were stained with 4′,6-diamidino-2-phenylindole (0.5 μg/mL). Cells were photographed using a fluorescence microscope.

Topo II–Mediated Supercoiled pBR322 Relaxation

DNA relaxation assays were according to the procedure as in previous studies (20). pBR322 DNA (0.25 μg) was incubated with 0.75 unit of Topo IIα (TopoGEN) at 37°C for 30 min in relaxation buffer [50 mmol/L Tris (pH 7.8), 50 mmol/L KCl, 50 mmol/L NaCl, 5 mmol/L MgCl2, 0.1 mmol/L EDTA, 15 μg/mL of bovine serum albumin, and 1 mmol/L ATP]. Reactions were terminated by adding 3 μL of stop solution (100 mmol/L EDTA, 0.5% SDS, 50% glycerol, and 0.05% bromophenol blue). Electrophoresis was carried out in a 1% agarose gel in Tris-borate EDTA at 4 V/cm for 2 h. Gel was stained with ethidium bromide and photographed under UV light.

Kinetoplast DNA Decatenation Assay

Topo II activity was measured by the ATP-dependent decatenation of kinetoplast DNA (21). Briefly, 0.25 μg kinetoplast DNA was incubated 0.75 unit of Topo IIα at 37°C for 15 min in a 15 μL total reaction buffer [50 mmol/L Tris (pH 8.0), 120 mol/L KCl, 10 mmol/L MgCl2, 0.5 mmol/L ATP, 0.5 mmol/L DTT, and 30 μg/mL bovine serum albumin]. The reaction was terminated by adding 2 μL 10% SDS. The DNA samples were subjected to electrophoresis under the same conditions as described above.

Trapped in Agarose DNA Immunostaining Assay

Trapped in agarose DNA immunostaining assay was done as previously reported (22). Briefly, untreated or treated HL-60 cells (5 × 105/mL) were harvested and embedded in agarose onto a microscope slide. Slides were immersed in lysis buffer [1% SDS, 80 mmol/L phosphate buffer (pH 6.8), and 10 mmol/L EDTA] containing protease inhibitors (2 μg/mL pepstatin A, 2 μg/mL leupeptin, 1 mmol/L phenylmethylsulfonyl fluoride, and 1 mmol/L DTT) to disrupt the cell membranes and then were washed in 1 mol/L NaCl. Only the proteins covalently bound to DNA remained. Slides were incubated with Topo IIα antibody (Santa Cruz Biotechnology, Inc.), which binds to Topo II trapped in cleavable complexes on DNA. Finally, the complexes became visible under microscope by using a secondary Alexa Fluor 488–conjugated antibody (Molecular Probes).

Unwinding Assay

DNA-unwinding effects of MFTZ-1 were assayed according to the procedure as in previous studies (23). Plasmid pBR322 was linearized by EcoRI restriction endonuclease and recovered by phenol and ethanol precipitation. Linearized DNA and testing compounds (0.1 μg) were incubated with 2 units of T4 DNA ligase at 22°C for 30 min in T4 ligase buffer. The reaction was stopped by shifting the temperature to 60°C for 10 min. The compounds were removed from the reaction mixture by extraction with phenol. The DNA samples were subjected to electrophoresis under the same conditions as described above.

Surface Plasmon Resonance Assay

The binding reaction between MFTZ-1 and Topo II was carried out using Biacore 3000 instrument (Biacore). Human Topo IIα ATPase domain (HsATPase) was purified from a yeast overexpressing system (24). Briefly, human Topo IIα ATPase domain was immobilized onto CM5 sensor chip strictly following the ligand Thiol protocol described in BIAapplication Handbook. The unreacted moieties on the surface were blocked with ethanolamine. To correct for nonspecific binding and bulk refractive index change, a blank channel (FC2) without drugs was used as a control for each experiment. Sensorgrams for all binding interactions were recorded in real-time and analyzed after subtracting that from the blank channel. Changes in mass due to the binding response were recorded as resonance units. All binding experiments were done at 25°C with a constant flow rate of 20 μL/min HBS-EP. The system buffer was 20 mmol/L HEPES, 150 mmol/L NaCl, 5 mmol/L EDTA, and 0.05% P20. The equilibrium dissociation constants (KD) evaluating the protein-ligand binding affinity were determined by the steady-state affinity fitting analysis of the results from Biacore data.

Measurement of Mitochondrial Transmembrane Potential (Ψm)

Variations of mitochondrial transmembrane potential (Ψm) were assessed as the retention of the fluorescent dye DiOC6 (Calbiochem). After treatment with MFTZ-1 for an indicated time, 106 cells in 2 mL of complete RPMI 1640 were loaded with the probe DiOC6 (40 nmol/L) for 30 min as described previously (25) and analyzed by flow cytometry.

Western Blotting Analysis

Whole-cell lysates and cytoplasmic extracts (26) were prepared, and Western blotting was done as previously described. Briefly, equal amounts of proteins were separated on SDS polyacrylamide gels. Then, proteins were electroblotted onto nitrocellulose membranes and identified with anti–phosphohistone H2AX (Ser139), anti–Bcl-xL, anti-Bax, anti–Bcl-2, anti–cytochrome c, anti–caspase-3, and anti–caspase-7 antibodies (1:1,000; Cell Signaling); as well as anti–apoptosis-inducing factor, anti-poly(ADP)ribose polymerase (PARP), anti–caspase-8, anti–caspase-9, and anti–β-actin antibodies (1:1,000; Santa Cruz Biotechnology). Detection was done using horseradish peroxidase–conjugated secondary antibody and SuperSignal West Pico Chemiluminescent Substrate (Pierce, Inc.) according to the manufacturer's instructions.

Antitumor Activity Assay In vivo

Human ovarian carcinoma HO-8910 xenografts were established by inoculating 2 × 107 cells s.c. in nude mice. The experiments began when the xenografts had three passages in nude mice. Under a sterilization condition, well-grown tumors were cut into 1-mm3 fragments, and the fragments were transplanted s.c. into the right flank by trocar in nude mice. When tumor reached a volume of 100 to 200 mm3, the mice were randomized to control and treated groups and received vehicle, mitomycin C, or MFTZ-1 at indicated doses by i.v. administration. The size of tumors were measured individually twice per week with microcalipers. Tumor volume (V) was calculated as V = (length × width2) / 2. The individual relative tumor volume (RTV) was calculated as follows: RTV = Vt / V0, where Vt is the volume on each day of measurement, and V0 is the volume on the day of initial treatment. Therapeutic effect of compound was expressed in terms of treated versus control percent, and the calculation formula is as follows: treated versus control (%) = mean RTV of the treated group / mean RTV of the control group × 100%.

Statistical Analysis

Data were presented as ± SD, and significance was assessed with Student's t test. Differences were considered significant at P < 0.05.

MFTZ-1 Inhibits Cancer Cell Proliferation In vitro

MFTZ-1 Exhibits Antiproliferative Activity in Tumor Cells. We first determined the effects of MFTZ-1 on growth of the human tumor cell lines. MFTZ-1 displayed wide potent cytotoxicity in human cancer cell lines. The mean IC50 of MFTZ-1 for all tested tumor cell lines was 0.905 μmol/L. Although MFTZ-1 exhibited various cytotoxic effects against different cell lines, no significant tissue specificity was observed (Fig. 1B).

MFTZ-1 Overcomes Drug Resistance. To determine whether MFTZ-1 was able to overcome drug resistance, we examined the effect of MFTZ-1 on three MDR sublines, K-562/A02, MCF-7/Adriamycin, and KB/vincristine. Drug-sensitive parental K-562, KB, MCF-7 cell lines, and three conventional anticancer drugs, VP16, Adriamycin, and vincristine were used as references. MFTZ-1 displayed significant cytotoxicity in the three MDR sublines examined, with an average IC50 value of 1.08 μmol/L, which was close to that observed in the corresponding parental cell lines (average IC50, 0.525 μmol/L). The average resistance factor (RF) of MFTZ-1 on MDR cells was 2.08 versus 101.95, 75.60, and 229.35 for VP16, Adriamycin, and vincristine, respectively (Table 1).

Table 1.

Cytotoxicity of MFTZ-1 and reference drugs in MDR and drug-sensitive parental cell lines

DrugsIC50 (μmol/L, ± SD)
RF
Average value of RF
K-562K-562/A02KBKB/VCRMCF-7MCF-7/ADRK-562/A02KB/VCRMCF-7/ADR
MFTZ-1 0.65 ± 0.31 1.43 ± 0.62 0.49 ± 0.22 0.46 ± 0.20 0.43 ± 0.21 1.34 ± 1.42 2.21 0.93 3.11 2.08
VCR 1.45 ± 0.22 75.42 ± 4.35 0.02 ± 0.01 13.28 ± 4.15 0.02 ± 0.001 7.24 ± 3.02 52.01 577.39 58.66 229.35
VP16 13.61 ± 3.14 512.12 ± 16.70 9.14 ± 2.32 95.13 ± 12.40 6.54 ± 1.23 342 ± 60.30 37.63 10.41 228.63 101.95
ADR 0.88 ± 0.53 58.72 ± 11.74 0.09 ± 0.05 3.53 ± 12.30 0.72 ± 0.20 109.26 ± 18.60 66.80 37.55 151.62 75.60
DrugsIC50 (μmol/L, ± SD)
RF
Average value of RF
K-562K-562/A02KBKB/VCRMCF-7MCF-7/ADRK-562/A02KB/VCRMCF-7/ADR
MFTZ-1 0.65 ± 0.31 1.43 ± 0.62 0.49 ± 0.22 0.46 ± 0.20 0.43 ± 0.21 1.34 ± 1.42 2.21 0.93 3.11 2.08
VCR 1.45 ± 0.22 75.42 ± 4.35 0.02 ± 0.01 13.28 ± 4.15 0.02 ± 0.001 7.24 ± 3.02 52.01 577.39 58.66 229.35
VP16 13.61 ± 3.14 512.12 ± 16.70 9.14 ± 2.32 95.13 ± 12.40 6.54 ± 1.23 342 ± 60.30 37.63 10.41 228.63 101.95
ADR 0.88 ± 0.53 58.72 ± 11.74 0.09 ± 0.05 3.53 ± 12.30 0.72 ± 0.20 109.26 ± 18.60 66.80 37.55 151.62 75.60

NOTE: Values are averages ± SD of at least three independent experiments. The RF was calculated as the ratio of the IC50 value of the MDR cells to that of corresponding sensitive parental cells. The average value was obtained from the RFs of the corresponding drug in three MDR sublines.

Abbreviations: VCR, vincristine; ADR, Adriamycin.

MFTZ-1 Suppresses Tumor Xenograft Growth In vivo

Because of the potent antitumor activity of MFTZ-1 in vitro, its antitumor properties were further examined in vivo. We tested the antitumor efficacy of MFTZ-1 in the human ovarian carcinoma HO-8910 xenograft as it was highly cytotoxic to HO-8910 cell lines in vitro. As indicated in Fig. 1C, MFTZ-1 displays an obvious antitumor activity at the dosage of 1 mg/kg after i.v. injection weekly for 3 weeks with the treated versus control values of 38.91% (at day 17), 46.6% (at day 21), and 48.5% (at day 24). Moreover, no body weight loss and other apparent toxicity were observed in MFTZ-1–treated nude mice.

MFTZ-1 Triggers DNA Damage–Induced Apoptosis

Cytotoxic agents exert antitumor activity by damaging tumor-cell DNA, further inhibiting cell proliferation or inducing apoptosis. A broad range of DNA damage–inducing drugs have been developed for treatment of neoplastic disease. These drugs, although acting in many different ways, are all capable of activating the cellular responses that have evolved to respond to physiologically induced DNA damage (27).

MFTZ-1 Triggers DNA DSBs. The neutral signal cell electrophoresis was used to measure chromosomal DNA DSBs in HL-60 cells exposed to MFTZ-1. Upon treatment with MFTZ-1 for 1 h, chromosomal DNA DSBs, which were measured using the comet tail moment, were increased in a dose-dependent manner in HL-60 cells (Fig. 2A).

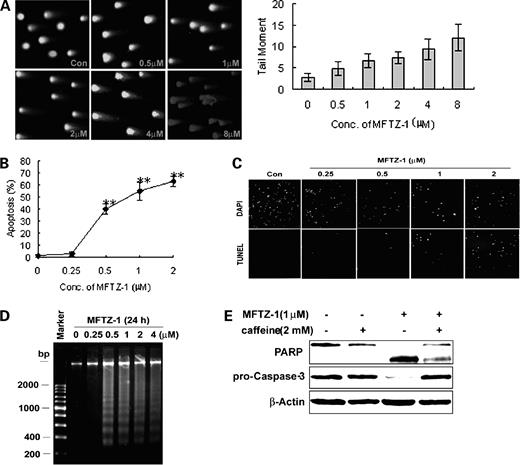

Figure 2.

DNA damage and apoptosis induced by MFTZ-1 in HL-60 cells. A, HL-60 cells were treated with 0.5 to 8 μmol/L MFTZ-1 for 1 h. Subsequent lysis and neutral single-cell gel electrophoresis were done as described in Materials and Methods (×200). Semiquantitative analysis of the results expressed as tail moment. B, propidium iodide staining for flow cytometry. Cells were treated with 0.25 to 2 μmol/L MFTZ-1 for 24 h. Sub-G1 cells were collected as apoptotic cells. Points, mean (n = 3); bars, SD. C, TUNEL assay. Cells were treated with MFTZ-1 at the indicated concentrations for 24 h and then were stained with dUTP-FITC by the TUNEL method. Top, the 4′,6-diamidino-2-phenylindole (DAPI)–stained nuclei; bottom, the corresponding FITC immunofluorescence. D, electrophoresis of DNA fragmentation. Cells were treated with MFTZ-1 at the indicated concentrations for 24 h, and fragmented DNA was extracted and separated in 1.5% agarose gel electrophoresis. E, effect of caffeine on MFTZ-1–induced apoptosis. HL-60 cells were treated with 2 mmol/L caffeine for 0.5 h before addition of 1 μmol/L MFTZ-1 for 24 h. Apoptosis was monitored by PARP cleavage and caspase-3 activation.

Figure 2.

DNA damage and apoptosis induced by MFTZ-1 in HL-60 cells. A, HL-60 cells were treated with 0.5 to 8 μmol/L MFTZ-1 for 1 h. Subsequent lysis and neutral single-cell gel electrophoresis were done as described in Materials and Methods (×200). Semiquantitative analysis of the results expressed as tail moment. B, propidium iodide staining for flow cytometry. Cells were treated with 0.25 to 2 μmol/L MFTZ-1 for 24 h. Sub-G1 cells were collected as apoptotic cells. Points, mean (n = 3); bars, SD. C, TUNEL assay. Cells were treated with MFTZ-1 at the indicated concentrations for 24 h and then were stained with dUTP-FITC by the TUNEL method. Top, the 4′,6-diamidino-2-phenylindole (DAPI)–stained nuclei; bottom, the corresponding FITC immunofluorescence. D, electrophoresis of DNA fragmentation. Cells were treated with MFTZ-1 at the indicated concentrations for 24 h, and fragmented DNA was extracted and separated in 1.5% agarose gel electrophoresis. E, effect of caffeine on MFTZ-1–induced apoptosis. HL-60 cells were treated with 2 mmol/L caffeine for 0.5 h before addition of 1 μmol/L MFTZ-1 for 24 h. Apoptosis was monitored by PARP cleavage and caspase-3 activation.

Close modal

MFTZ-1 Induces Tumor Cell Apoptosis. Cells can respond to DNA damage either by undergoing cell cycle arrest, to facilitate DNA repair, or by undergoing cell suicide. It seems that in some types of tumors, the propensity to undergo apoptosis is a critical determinant of their sensitivity to anticancer therapy. Accordingly, we investigated the ability of MFTZ-1 to induce apoptosis in HL-60 cells. MFTZ-1 significantly increased sub–G0-G1 phase in a dose-dependent manner by flow cytometry analysis (Fig. 2B). TUNEL assay showed that HL-60 cells incubated with various concentrations of MFTZ-1 for 24 h underwent apoptosis (Fig. 2C). In addition, MFTZ-1 dose dependently induced internucleosomal DNA fragmentation (Fig. 2D).

Caffeine Antagonizes MFTZ-1–Induced Apoptosis. We also tested whether MFTZ-1–induced apoptosis involves nuclear kinases ATM/ATR, which is known to mediate apoptosis induced by many DNA-damaging agents (27, 28). Caffeine, an inhibitor of ATM/ATR, was preferentially used. As shown in Fig. 2E, PARP cleavage and caspase-3 activation induced by MFTZ-1 were greatly reduced after pretreatment with caffeine, suggesting that MFTZ-1–induced apoptosis in HL-60 cells requires the ATM/ATR. The involvement of ATM/ATR in MFTZ-1–induced apoptosis indicated the possible involvement of DNA damage.

MFTZ-1 Targets Topo II But Not Topo I in Yeast Cells

A number of DNA-damaging agents currently used for the treatment of human cancers are targeted to DNA topoisomerases. A yeast (S. cerevisiae) genetic system that allowed manipulation of topoisomerase activity and drug sensitivity is commonly used to determine whether topoisomerases are the primary cytotoxic target of DNA-damaging agents (14). Here, we used this system to investigate whether topoisomerases are involved in MFTZ-1–mediated tumor cell death.

MFTZ-1 Fails to Target Topo I. Initial experiments addressed whether Topo I accounts for MFTZ-1–induced cytotoxicity. This was accomplished by using a JN394top1 strain that is devoid of Topo I activity (14). As a result, top1 strains are refractory to Topo I poison camptothecin (Fig. 3A). In contrast, no resistance was observed when JN394top1 cells were treated with MFTZ-1, and MFTZ-1 displayed significant cytotoxicity in both JN394 and JN394top1 cells (Fig. 3B). This finding suggests that Topo I was not the cytotoxic target for MFTZ-1 in yeast.

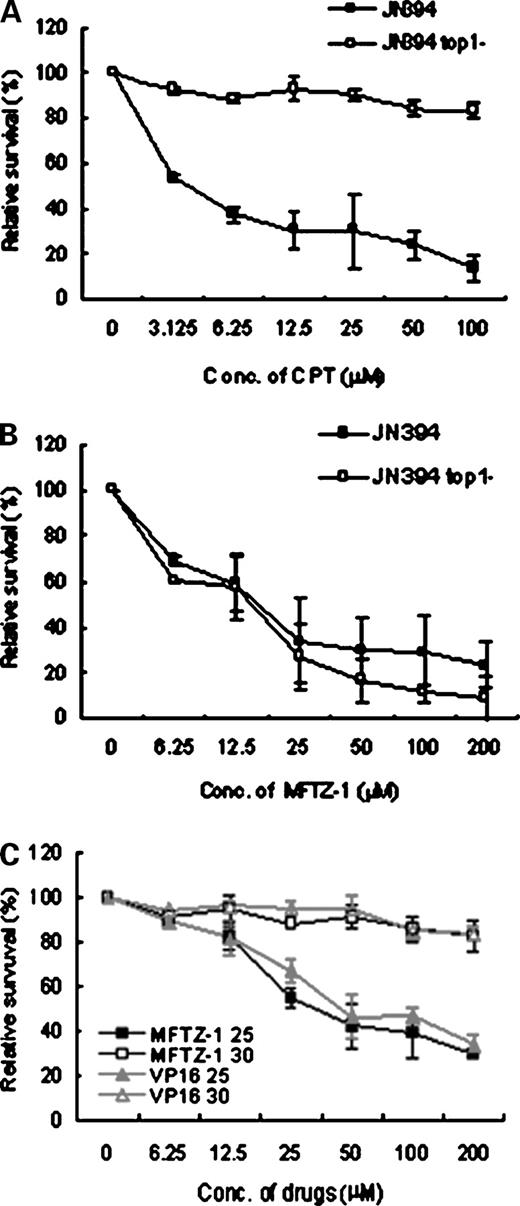

Figure 3.

Topo II is the primary cytotoxic target for MFTZ-1 in yeast cells. Sensitivities of JN394 and JN394top1 toward camptothecin (CPT; A) or MFTZ-1 (B). C, effects of VP16 and MFTZ-1 on JN394top2-4 at 25°C or 30°C. Points, mean of three independent experiments; bars, SD.

Figure 3.

Topo II is the primary cytotoxic target for MFTZ-1 in yeast cells. Sensitivities of JN394 and JN394top1 toward camptothecin (CPT; A) or MFTZ-1 (B). C, effects of VP16 and MFTZ-1 on JN394top2-4 at 25°C or 30°C. Points, mean of three independent experiments; bars, SD.

Close modal

MFTZ-1 Targets Topo II in Yeast. Because Topo I was excluded to be the target of MFTZ-1, we are then interested in addressing whether Topo II plays responsive roles for the cytotoxicity of MFTZ-1. The yeast strain JN394top2-4 contains a temperature-sensitive mutation that alters Topo II activity in the yeast strain according to the culture temperature (15). At the semipermissive temperature of 30°C, Topo II activity is reduced to about 5% to 10% of that the permissive temperature of 25°C. Our result showed that MFTZ-1, such as VP16, was a potent toxic agent toward JN394top2-4 at 25°C. Conversely, VP16 or MFTZ-1 had no obvious influence on JN394top2-4 at the semipermissive temperature of 30°C, even up to the concentrations of 200 μmol/L (Fig. 3C). The failure of MFTZ-1 to induce cytotoxicity to the cells lacking Topo II activity strongly suggests that Topo II is the primary cellular target for MFTZ-1.

MFTZ-1 Inhibits Topo II Activities

MFTZ-1 Inhibits the Catalytic Activity of Topo II. We further confirm the effect of MFTZ-1 on Topo II activity next. First, we detected the effect of MFTZ-1 on the catalytic activity of Topo II by evaluating the enzyme-mediated, negatively supercoiled pBR322 relaxation. As shown in Fig. 4A, MFTZ-1 significantly inhibited the relaxation of supercoiled pBR322 by the enzyme in a dose-dependent manner. MFTZ-1 (200 μmol/L) made most of pBR322 in a supercoiled state. To further confirm the inhibitory effect of MFTZ-1 on Topo II, one more specific Topo II–mediated kinetoplast DNA decatenation was carried out. As shown in Fig. 4B, MFTZ-1 displayed significant inhibition of this reaction in a concentration-dependent manner.

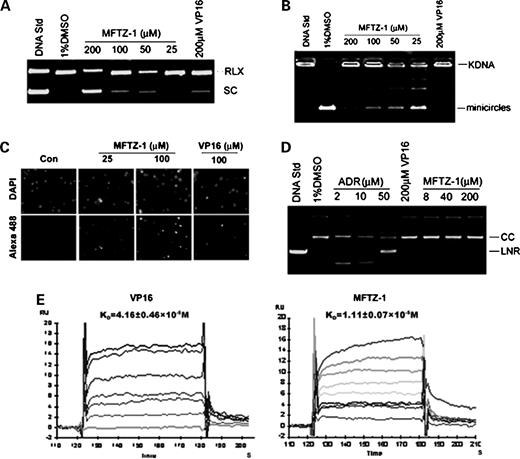

Figure 4.

Effect of MFTZ-1 on Topo II. A, effect on Topo II–mediated supercoiled pBR322 relaxation. B, kinetoplast DNA (KDNA) decatenation assay for Topo II. C, immunofluorescence of MFTZ-1–treated HL-60 cells. Cells were treated with MFTZ-1 for 1 h at the indicated concentrations before embedding and staining. Top, the 4′,6-diamidino-2-phenylindole–stained nuclei; bottom, the corresponding Alexa Fluor 488–stained immunofluorescence (×200). D, effect of MFTZ-1 on the DNA-unwinding assay with T4 DNA ligase. E, surface plasmon resonance analysis. The interactions of MFTZ-1 and VP16 with human Topo II ATPase domain immobilized on sensor chip. The concentration series from bottom to top: 6.25 to 100 μmol/L for VP16 and 3.125 to 100 μmol/L for MFTZ-1. All the experiments shown are representative of three independent experiments with similar results. Abbreviations: RLX, relaxed form; SC, supercoiled form; CC, circularized form; LNR, linear form.

Figure 4.

Effect of MFTZ-1 on Topo II. A, effect on Topo II–mediated supercoiled pBR322 relaxation. B, kinetoplast DNA (KDNA) decatenation assay for Topo II. C, immunofluorescence of MFTZ-1–treated HL-60 cells. Cells were treated with MFTZ-1 for 1 h at the indicated concentrations before embedding and staining. Top, the 4′,6-diamidino-2-phenylindole–stained nuclei; bottom, the corresponding Alexa Fluor 488–stained immunofluorescence (×200). D, effect of MFTZ-1 on the DNA-unwinding assay with T4 DNA ligase. E, surface plasmon resonance analysis. The interactions of MFTZ-1 and VP16 with human Topo II ATPase domain immobilized on sensor chip. The concentration series from bottom to top: 6.25 to 100 μmol/L for VP16 and 3.125 to 100 μmol/L for MFTZ-1. All the experiments shown are representative of three independent experiments with similar results. Abbreviations: RLX, relaxed form; SC, supercoiled form; CC, circularized form; LNR, linear form.

Close modal

MFTZ-1 Induces Stable DNA-Topo II Complexes. Trapped in agarose DNA immunostaining assay is typically used to detect Topo II drug-stabilized cleavable complexes, which is crucial for understanding the key mechanism of Topo II poison (29, 30). We further test whether MFTZ-1 produced DNA–Topo II complexes using this method. In our study, there was no visible green immunofluorescence associated with DNA in untreated cells. When cells were treated with MFTZ-1, the staining intensity was increased dose dependently and the fluorescence was easily detectable in cells exposed to 25 μmol/L MFTZ-1. VP16 also yielded high levels of fluorescence at the concentration of 100 μmol/L (Fig. 4C). All these results indicate that MFTZ-1 is a novel Topo II poison.

MFTZ-1 Poisons Topo II via Binding to ATPase Rather than Intercalating into DNA

Clinically relevant Topo II poisons fall into two general classes. One class intercalates DNA, and apparently impedes the Topo II–dependent religation step by altering DNA structure (31). The other class has weak affinity for DNA and is thought to prevent the DNA religation step by directly binding to the enzyme (32). Our aforementioned data release strong evidence that MFTZ-1 functions as Topo II poison. We next intended to learn whether MFTZ-1 accomplished its Topo II poisoning activity via intercalating into DNA or via directly binding to Topo II.

MFTZ-1 Does Not Intercalate into DNA. To investigate whether MFTZ-1 intercalated into DNA, an unwinding assay was done using linearized pBR322 and T4 DNA ligase. As shown in Fig. 4D, an obvious inhibition of the activity of T4 DNA ligase by Adriamycin was observed, as reported previously (33). However, MFTZ-1, such as VP16, had no influence on T4 DNA ligase activity even up to the concentrations of 200 μmol/L.

MFTZ-1 Binds to the ATP Domain of Human Topo IIα. To further test whether MFTZ-1, such as VP16, directly bound to the enzyme in the absence of DNA, we assessed MFTZ-1–Topo II interaction using surface plasmon resonance assay. With the ATPase domain of human Topo IIα immobilized on sensor chip, the different concentrations of MFTZ-1 or VP16 run over. Results indicated that both MFTZ-1 and VP16 bound to human Topo IIα ATPase domain in a concentration-dependent manner, yielding a dissociation constant (KD) of 11.1 and 41.6 μmol/L, respectively (Fig. 4E).

MFTZ-1 Induces DSBs, Apoptosis, and Cytotoxicity in Topo II–Dependent Pathway

Topo II poisons, such as VP16 and Adriamycin, are cytotoxic as a result of their ability to stabilize the cleavable complex, thereby decreasing the ability of the enzyme to religate the transient DNA DSBs. Therefore, we next investigated the role of Topo II in MFTZ-1–induced DNA DSBs, apoptosis, and cytotoxicity.

MFTZ-1–Induced Damage, Apoptosis, and Cytotoxicity Are Reduced in Topo II–Deficient Cells. To test the involvement of Topo II in MFTZ-1–induced DNA DSBs, we used HL-60 and HL-60/MX2 (Topo II deficient) cells. DNA damage was monitored by Ser139-phosphorylated H2AX (γ-H2AX), an established marker of DSBs (34). As shown in Fig. 5A, γ-H2AX was obviously elevated after treatment with MFTZ-1 or VP16 in HL-60 cells but not in Topo II–deficient HL-60/MX2 cells. These results suggested that MFTZ-1, such as VP16, induces Topo II–mediated DNA damage.

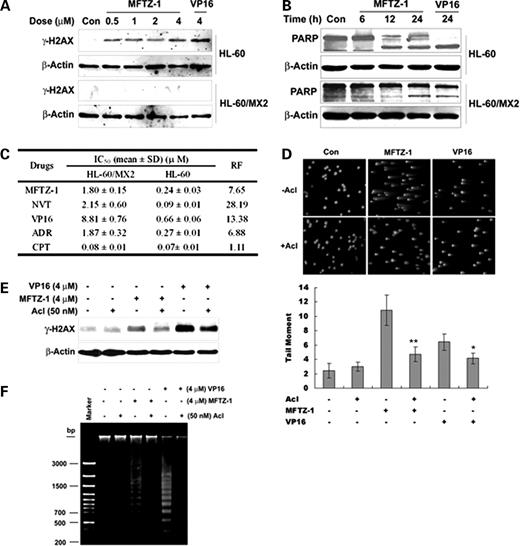

Figure 5.

DNA damage, apoptosis, and cytotoxicity induced by MFTZ-1 is affected by the level of Topo II cleavage. A, MFTZ-1 induced expression of Ser139-γ-H2AX in HL-60 cells but not in Topo II–deficient HL-60/MX2 cells. HL-60 and HL-60/MX2 cells were treated with MFTZ-1 for 1 h at the indicated concentrations. The level of γ-H2AX was examined by Western blot analysis. B, MFTZ-1–induced PARP cleavage is reduced in Topo II–deficient HL-60/MX2 cells. HL-60 cells and HL-60/MX2 cells were treated with VP16 (1 μmol/L) or MFTZ-1 (1 μmol/L) for the indicated times. Whole-cell lysate was prepared and assayed for PARP cleavage. C, cytotoxicity of MFTZ-1 and reference drugs in HL-60 and HL-60/MX2 cells. HL-60 and HL-60/MX2 cells were exposed to various concentrations of MFTZ-1, novantrone (NVT), VP16, Adriamycin, and camptothecin for 24 h. The cytotoxicity was measured by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide assay as described in Materials and Methods. The RF value was calculated as the ratio of the IC50 value of HL-60/MX2 cells to HL-60 cells. Effect of aclarubicin (Acl) on MFTZ-1–induced DNA damage. HL-60 cells were treated with 50 nmol/L aclarubicin for 0.5 h before addition of 4 μmol/L VP16 or 4 μmol/L MFTZ-1. DNA DSBs were measured using (D) neutral single-cell gel electrophoresis, quantitated by the mean comet tail moment and (E) the expression level of γ-H2AX. F, apoptosis of HL-60 cells pretreated with 50 nmol/L aclarubucin for 0.5 h before addition of 4 μmol/L VP16 or 4 μmol/L MFTZ-1. Apoptosis was monitored by DNA laddering assay as described before. The results are typical of results obtained in three independent experiments that gave similar results.

Figure 5.

DNA damage, apoptosis, and cytotoxicity induced by MFTZ-1 is affected by the level of Topo II cleavage. A, MFTZ-1 induced expression of Ser139-γ-H2AX in HL-60 cells but not in Topo II–deficient HL-60/MX2 cells. HL-60 and HL-60/MX2 cells were treated with MFTZ-1 for 1 h at the indicated concentrations. The level of γ-H2AX was examined by Western blot analysis. B, MFTZ-1–induced PARP cleavage is reduced in Topo II–deficient HL-60/MX2 cells. HL-60 cells and HL-60/MX2 cells were treated with VP16 (1 μmol/L) or MFTZ-1 (1 μmol/L) for the indicated times. Whole-cell lysate was prepared and assayed for PARP cleavage. C, cytotoxicity of MFTZ-1 and reference drugs in HL-60 and HL-60/MX2 cells. HL-60 and HL-60/MX2 cells were exposed to various concentrations of MFTZ-1, novantrone (NVT), VP16, Adriamycin, and camptothecin for 24 h. The cytotoxicity was measured by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide assay as described in Materials and Methods. The RF value was calculated as the ratio of the IC50 value of HL-60/MX2 cells to HL-60 cells. Effect of aclarubicin (Acl) on MFTZ-1–induced DNA damage. HL-60 cells were treated with 50 nmol/L aclarubicin for 0.5 h before addition of 4 μmol/L VP16 or 4 μmol/L MFTZ-1. DNA DSBs were measured using (D) neutral single-cell gel electrophoresis, quantitated by the mean comet tail moment and (E) the expression level of γ-H2AX. F, apoptosis of HL-60 cells pretreated with 50 nmol/L aclarubucin for 0.5 h before addition of 4 μmol/L VP16 or 4 μmol/L MFTZ-1. Apoptosis was monitored by DNA laddering assay as described before. The results are typical of results obtained in three independent experiments that gave similar results.

Close modal

Because DNA DSBs caused by MFTZ-1 may be responsible for the apoptosis of MFTZ-1, we then examined whether MFTZ-1–induced apoptosis involved the formation of Topo II cleavage complexes. Apoptosis was monitored by specific proteolytic cleavage of PARP. As shown in Fig. 5B, PARP cleavage induced by MFTZ-1 was greatly reduced in HL-60/MX2 compared with HL-60 cells. In addition, we found that HL-60/MX2 cells exhibited a reduced sensitivity to MFTZ-1, with the RF value of 7.65. RF for novantrone, VP16, and Adriamycin were 28.19, 13.38, and 6.88, respectively. However, there was no significant difference in the IC50 values of camptothecin between HL-60 and HL-60/MX2 (Fig. 5C).

MFTZ-1–Induced DNA Damage and Apoptosis Are Antagonized by a Topo II Inhibitor, Aclarubicin. To further test the possibility of Topo II involvement, aclarubicin, a Topo II catalytic inhibitor, was used to antagonize the formation of Topo II cleavage complexes. Unlike Topo II poisons, aclarubicin specifically inhibits the catalytic activity of Topo II without significantly elevating the level of cleavage complexes (35). Therefore, aclarubicin was commonly used to evaluate whether Topo II poison–induced DNA DSBs are due to the formation of cleavage complexes (36, 37). In the study, we found that aclarubicin significantly antagonized MFTZ-1–induced DNA DSBs in HL-60 cells (Fig. 5D). Furthermore, aclarubicin effectively reversed the level of γ-H2AX induced by MFTZ-1 (Fig. 5E). In addition, aclarubicin also counteracted MFTZ-1–triggered apoptosis in HL-60 cells (Fig. 5F). Taken together, these results indicate that Topo II cleavage complex may contribute to MFTZ-1–induced DNA DSBs, apoptosis, and cytotoxicity.

MFTZ-1 Drives Apoptosis via the Mitochondria-Mediated Pathway

The aforementioned result suggested that MFTZ-1 induced DNA damage–mediated apoptosis, which involved Topo II. Given that genotoxic DNA-damaging agents may activate both membrane death receptors and mitochondria-dependent apoptotic pathway (28, 38, 39), we are thus interested in how MFTZ-1 is involved in the activation of apoptosis.

The mitochondrial apoptotic pathway is controlled by Bcl-2 family proteins, including the proapoptotic Bax and antiapoptotic Bcl-2 and Bcl-xl (40, 41). In our study, we found that MFTZ-1 increased the expression of Bax and decreased the expression Bcl-2 and Bcl-xl, accompanied by activation of caspase-3, caspase-7, caspase-9, and cleavage of PARP in HL-60 cells (Fig. 6A). Consistent with this, MFTZ-1 induced a dose-dependent drop in mitochondrial membrane potential (Fig. 6B) then caused the release of cytochrome c and apoptosis-inducing factor into cytosol (Fig. 6C). All these findings implicated that mitochondrial pathway were involved in MFTZ-1–driven apoptosis.

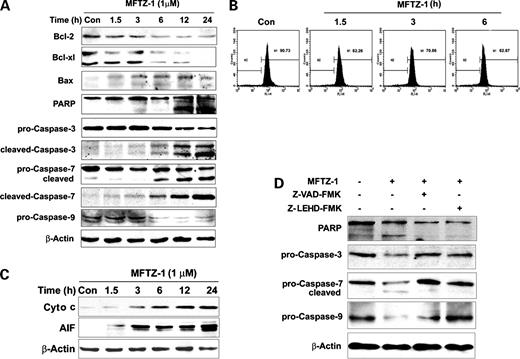

Figure 6.

Effect of MFTZ-1 on apoptotic pathway in HL-60 cells. A, effect of MFTZ-1 on the expression of apoptosis-related proteins. HL-60 cells were treated with 1 μmol/L MFTZ-1 for the indicated times. Whole-cell lysate was prepared and subjected to Western blotting for Bax, Bcl-2, Bcl-xl, and cleavage of procaspase-3, procaspase-7, procaspase-9, and PARP. B, loss of mitochondrial membrane potential. After treatment with 1 μmol/L MFTZ-1 for the indicated times, the mitochondrial membrane potential loss (characterized by left shifting of the peak) of HL-60 was detected by DiOC6 (3) and analyzed by fluorescence-activated cell sorting. C, cytochrome c (Cyto c) and apoptosis-inducing factor (AIF) release. HL-60 cells were treated with 1 μmol/L MFTZ-1 for the indicated times. Cells were homogenized and lysates (cytosolic fraction) were assayed for cytochrome c and apoptosis-inducing factor levels by Western blotting analysis. D, caspase inhibitors attenuated MFTZ-1–induced cleavage of procaspase-3, procaspase-7, and PARP. HL-60 cells were cultured with 1 μmol/L MFTZ-1 for 24 h with or without pretreatment with Z-VAD-FMK (50 μmol/L) or Z-LEHD-FMK (25 μmol/L) for 0.5 h. The results are typical of results obtained in three independent experiments that gave similar results.

Figure 6.

Effect of MFTZ-1 on apoptotic pathway in HL-60 cells. A, effect of MFTZ-1 on the expression of apoptosis-related proteins. HL-60 cells were treated with 1 μmol/L MFTZ-1 for the indicated times. Whole-cell lysate was prepared and subjected to Western blotting for Bax, Bcl-2, Bcl-xl, and cleavage of procaspase-3, procaspase-7, procaspase-9, and PARP. B, loss of mitochondrial membrane potential. After treatment with 1 μmol/L MFTZ-1 for the indicated times, the mitochondrial membrane potential loss (characterized by left shifting of the peak) of HL-60 was detected by DiOC6 (3) and analyzed by fluorescence-activated cell sorting. C, cytochrome c (Cyto c) and apoptosis-inducing factor (AIF) release. HL-60 cells were treated with 1 μmol/L MFTZ-1 for the indicated times. Cells were homogenized and lysates (cytosolic fraction) were assayed for cytochrome c and apoptosis-inducing factor levels by Western blotting analysis. D, caspase inhibitors attenuated MFTZ-1–induced cleavage of procaspase-3, procaspase-7, and PARP. HL-60 cells were cultured with 1 μmol/L MFTZ-1 for 24 h with or without pretreatment with Z-VAD-FMK (50 μmol/L) or Z-LEHD-FMK (25 μmol/L) for 0.5 h. The results are typical of results obtained in three independent experiments that gave similar results.

Close modal

Activation of the apoptotic pathway may occur via Fas-L/Fas-R and activation of the downstream caspase-8 (42, 43). However, treatment of HL-60 cells with MFTZ-1 failed to up-regulate the expression of Fas-L/Fas-R, and the receptor proximal caspase-8 was not activated either (data not shown).

To examine whether inhibition of caspase cleavage blocks MFTZ-1–induced apoptosis, caspase inhibitors were preferentially used. Pan-caspase inhibitor (Z-VAD-FMK) and caspase-9 inhibitor (Z-LEHD-FMK) significantly inhibited procaspase-3, procaspase-7, procaspase-9, and PARP cleavage triggered by MFTZ-1 treatment (Fig. 6D). These data help clarify that MFTZ-1–induced apoptosis was partly mitochondria dependent but Fas-R/Fas ligand independent.

Macrotetrolide antibiotics, including nonactin, monactin, dinactin, trinactin, and tetranactin, isolated from a variety of streptomyces species are cyclotetralactones derived from nonactic acid and homononactic acid (5). Nonactin is the parent compound of this group of macrotetrolide antibiotics. It has been shown to possess antitumor activity both in vitro and in vivo (7). In our study, we found that these two monomer, nonactic and homononactic acids, did not show obvious cytotoxicity to human tumor cells (data not shown). However, MFTZ-1, which was determined to be dimeric dinactin, has appreciable antiproliferative activities against various human tumor cell lines and possesses potent anti-MDR activities, highlighted by its encouragingly marked tumor growth arrest against human ovarian carcinoma xenograft. Nuclear magnetic resonance data of MFTZ-1 was very similar to those of dimeric nonactic acid. However, MFTZ-1 was cyclized to form a dimacrolide, and the substituent at C-8′ was ethyl in this compound but methyl in dimeric nonactic acid. Dimeric nonactic acid did not show obvious antifungal or antibacterial activity; however, the dimeric dinactin showed strong antibacterial activity (9). Overall, it seems that the lactone ring may play an important role in these activities.

Cytotoxic drugs act in principle by damaging DNA and triggering apoptosis in tumor cells. In the present study, we found that MFTZ-1 significantly mediated apoptosis involving DNA damage in defined tumor cells. Caffeine, an ATM/ATR kinase inhibitor capable of abrogating the DNA damage–induced apoptosis and desensitizing cancer cells to Topo II poisons, counteracted MFTZ-1–mediated apoptosis involving DNA damage. Given that many active DNA-damaging drugs currently clinically available hold Topo II as their primary target, we thus used the well-accepted yeast genetic system and found that Topo II was the primary cellular target of MFTZ-1.

Topo II has two closely related isoforms in mammalian species, α and β. Although Topo IIα is dramatically up-regulated during periods of rapid cell proliferation, Topo IIβ levels are relatively constant across cell growth cycles (44, 45). Both isoforms seem to play a role in mediating the effects of Topo II poisons; however, Topo IIα is believed to be the more important drug target (46, 47). In the present studies, we found that MFTZ-1 significantly inhibited Topo IIα–mediated supercoiled pBR322 relaxation and kinetoplast DNA decatenation, accompanied by an obvious stabilization of the Topo II-DNA “cleavable complex.” All these favor that MFTZ-1 is a Topo IIα poison. In fact, clinically relevant Topo II poisons fall into two general classes. One intercalates into DNA, and apparently impedes the Topo II–dependent religation step by altering DNA structure (31). The other has weak affinity for DNA and is thought to prevent the DNA religation step by directly binding the enzyme (32). In current study, we found that MFTZ-1 rather than intercalating into DNA is capable of directly binding to human Topo II ATPase domain, suggesting that enzyme-drug interactions play an important role in the ternary Topo II drug–DNA complex. This notion helps clarify that MFTZ-1 function as a nonintercalating Topo IIα poison.

Topo IIα poisons generally result in a series of biochemical changes that culminate in cell death (48). In general, the stabilization of Topo IIα cleavage complexes plays critical roles for the fate of the drug-poisoned cells. However, it is not always true for those poisons to ensure tumor cell apoptosis in a sufficient manner. Sometimes, they activate the apoptosis cascades by passing the formation of Topo II cleavage complexes. In the present study, DNA DSBs induction, PARP cleavage, and cell killing ability of MFTZ-1 were dramatically reduced in Topo II–deficient HL-60/MX2 cells, encouraging us to disclose that the stable Topo II cleavable complexes account for MFTZ-1–mediated DNA DSBs and subsequent apoptosis. Another finding that the use of Topo II catalytic inhibitor aclarubicin has led to reduced DNA DSBs and apoptosis in HL-60 cells provides more convincing data for this theory.

Addressing the issue of apoptotic pathway that becomes activated in response to MFTZ-1 will offer an alternative view of the detailed antitumor machinery of MFTZ-1. In this study, we found that MFTZ-1 increased the expression of Bax and decreased the expression of Bcl-2 and Bcl-xl in HL-60 cells, accompanied by induction of cytochrome c release from the mitochondria into cytoplasm and activation of downstream caspases, including caspase-3, caspase-7, and caspase-9. These findings highlighted the decisive roles of mitochondria-mediated caspase activation in the MFTZ-1–driven events. Additional resultant data from caspase inhibitors further help understand this story. More interestingly, MFTZ-1–induced apoptosis in HL-60 cells in a FasL/FasR–independent manner standing in contrast to the well-known Topo II poisons, including VP16 and Adriamycin, aids in distinguishing MFTZ-1 from the conventional ones.

Here, we show for the first time that MFTZ-1 functions as a novel Topo II poison structurally distinct from all Topo II inhibitors known thus far. The consequently appreciable pharmacologic profiles of MFTZ-1, including well-defined antitumor activities, anti-MDR capacities, and less toxicity promise it as an attractive subject deserving further development.

Grant support: National Natural Science Foundation of China grant 30572201.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.

1
Wang JC. Cellular roles of DNA topoisomerases: a molecular perspective.
Nat Rev Mol Cell Biol
2002
;
3
:
430
–40.
2
Walker J, Nitiss JL. DNA topoisomerase II as a target for cancer chemotherapy.
Cancer Invest
2002
;
20
:
570
–89.
3
Liu LF. DNA topoisomerase poisons as antitumor drugs.
Annu Rev Biochem
1989
;
58
:
351
–75.
4
Burden DA, Osheroff N. Mechanism of action of eukaryotic topoisomerase II and drugs targeted to the enzyme.
Biochim Biophys Acta
1998
;
1400
:
139
–54.
5
Rezanka T, Spizek J, Prikrylova V, Prell A, Dembitsky VM. Five new derivatives of nonactic and homo-nonactic acids from Streptomyces globisporus.
Tetrahedron
2004
;
60
:
4781
–7.
6
Stastna J, Goodfellow M, Kristufek V, et al. Characteristics of Streptomyces globisporus strain 0234A forming endospores in submerged cultures.
Folia Microbiol
1992
;
37
:
111
–6.
7
Bennett RE, Brindle SA, Giuffre NA, et al. Production of a novel cytotoxic agent, SQ 15,859, by Streptomyces chrysomallus.
Antimicrob Agents Chemother
1961
;
1
:
169
–72.
8
Borrel MN, Pereira E, Fiallo M, Garnier-Suillerot A. Mobile ionophores are a novel class of P-glycoprotein inhibitors. The effects of ionophores on 4′-O-tetrahydropyranyl-Adriamycin incorporation in K562 drug-resistant cells.
Eur J Biochem
1994
;
223
:
125
–33.
9
Zhao PJ, Fan LM, Li GH, Zhu N, Shen YM. Antibacterial and antitumor macrolides from Streptomyces sp. ls9131.
Arch Pharm Res
2005
;
28
:
1228
–32.
10
Yang CZ, Luan FJ, Xiong DS, Liu BR, Xu YF, Gu KS. Multidrug resistance in leukemic cell line K562/A02 induced by doxorubicin.
Zhongguo Yao Li Xue Bao
1995
;
16
:
333
–7.
11
Fairchild CR, Moscow JA, O'Brien EE, Cowan KH. Multidrug resistance in cells transfected with human genes encoding a variant P-glycoprotein and glutathione S-transferase-π.
Mol Pharmacol
1990
;
37
:
801
–9.
12
Cowan KH, Batist G, Tulpule A, Sinha BK, Myers CE. Similar biochemical changes associated with multidrug resistance in human breast cancer cells and carcinogen-induced resistance to xenobiotics in rats.
Proc Natl Acad Sci
1986
;
83
:
9328
–32.
13
Zhang XH, Zhang FY, Ji XJ, Li ZY. Vincristine-resistant human KB cell line and mechanism of multidrug resistance.
Yao Xue Xue Bao
1994
;
29
:
246
–51.
14
Nitiss J, Wang JC. DNA topoisomerase-targeting antitumor drugs can be studied in yeast.
Proc Natl Acad Sci
1988
;
85
:
7501
–5.
15
Binaschi M, Farinosi R, Austin CA, Fisher LM, Zunino F, Capranico G. Human DNA topoisomerase IIα-dependent DNA cleavage and yeast cell killing by anthracycline analogues.
Cancer Res
1998
;
58
:
1886
–92.
16
Miao ZH, Tang T, Zhang YX, Zhang JS, Ding J. Cytotoxicity, apoptosis induction and downregulation of MDR-1 expression by the anti-topoisomerase II agent, salvicine, in multidrug-resistant tumor cells.
Int J Cancer
2003
;
106
:
108
–15.
17
Olive PL, Banath JP, Durand RE. Heterogeneity in radiation-induced DNA damage and repair in tumor and normal cells measured using the “Comet” assay.
Radiat Res
1990
;
122
:
86
–94.
18
Lu HR, Meng LH, Huang M, Zhu H, Miao ZH, Ding J. DNA damage, c-myc suppression and apoptosis induced by the novel topoisomerase II inhibitor, salvicine, in human breast cancer MCF-7 cells.
Cancer Chemother Pharmacol
2005
;
55
:
286
–94.
19
Steinfelder HJ, Quentin I, Ritz V. A fast and sensitive technique to study the kinetics and the concentration dependencies of DNA fragmentation during drug-induced apoptosis.
J Pharmacol Toxicol Methods
2000
;
43
:
79
–84.
20
Osheroff N, Shelton ER, Brutlag DL. DNA topoisomerase II from Drosophila melanogaster. Relaxation of supercoiled DNA.
J Biol Chem
1983
;
258
:
9536
–43.
21
Tanabe K, Ikegami Y, Ishida R, Andoh T. Inhibition of topoisomerase II by antitumor agents bis(2,6-dioxopiperazine) derivatives.
Cancer Res
1991
;
51
:
4903
–8.
22
Willmore E, Frank AJ, Padget K, Tilby MJ, Austin CA. Etoposide targets topoisomerase IIα and IIβ in leukemic cells: isoform-specific cleavable complexes visualized and quantified in situ by a novel immunofluorescence technique.
Mol Pharmacol
1998
;
54
:
78
–85.
23
Yamashita Y, Fujii N, Murakata C, Ashizawa T, Okabe M, Nakano H. Induction of mammalian DNA topoisomerase I-mediated DNA cleavage by antitumor indolocarbazole derivatives.
Biochemistry
1992
;
31
:
12069
–75.
24
Hu CX, Zuo ZL, Xiong B, et al. Salvicine functions as a novel topoisomerase II poison by binding to ATP pocket.
Mol Pharmacol
2006
;
70
:
1593
–601.
25
Amarante-Mendes GP, Finucane DM, Martin SJ, Cotter TG, Salvesen GS, Green DR. Anti-apoptotic oncogenes prevent caspase-dependent and independent commitment for cell death.
Cell Death Differ
1998
;
5
:
298
–306.
26
Miura K, Aminova L, Murayama Y. Fusarenon-X induced apoptosis in HL-60 cells depends on caspase activation and cytochrome c release.
Toxicology
2002
;
172
:
103
–12.
27
Coultas L, Strasser A. The molecular control of DNA damage-induced cell death.
Apoptosis
2000
;
5
:
491
–507.
28
Norbury CJ, Zhivotovsky B. DNA damage-induced apoptosis.
Oncogene
2004
;
23
:
2797
–808.
29
Osheroff N. Effect of antineoplastic agents on the DNA cleavage/religation reaction of eukaryotic topoisomerase II: inhibition of DNA religation by etoposide.
Biochemistry
1989
;
28
:
6157
–60.
30
Willmore E, Errington F, Tilby MJ, Austin CA. Formation and longevity of idarubicin-induced DNA topoisomerase II cleavable complexes in K562 human leukaemia cells.
Biochem Pharmacol
2002
;
63
:
1807
–15.
31
Liu LF, Liu CC, Alberts BM. Type II DNA topoisomerases: enzymes that can unknot a topologically knotted DNA molecule via a reversible double-strand break.
Cell
1980
;
19
:
697
–707.
32
Burden DA, Kingma PS, Froelich-Ammon SJ, et al. Topoisomerase II·etoposide interactions direct the formation of drug-induced enzyme-DNA cleavage complexes.
J Biol Chem
1996
;
271
:
29238
–44.
33
Montecucco A, Pedrali-Noy G, Spadari S, Zanolin E, Ciarrocchi G. DNA unwinding and inhibition of T4 DNA ligase by anthracyclines.
Nucleic Acids Res
1988
;
16
:
3907
–18.
34
Riballo E, Kuhne M, Rief N, et al. A pathway of double-strand break rejoining dependent upon ATM, Artemis, and proteins locating to γ-H2AX foci.
Mol Cell
2004
;
16
:
715
–24.
35
Jensen PB, Sorensen BS, Demant EJ, et al. Antagonistic effect of aclarubicin on the cytotoxicity of etoposide and 4′-(9-acridinylamino)methanesulfon-m-anisidide in human small cell lung cancer cell lines and on topoisomerase II-mediated DNA cleavage.
Cancer Res
1990
;
50
:
3311
–6.
36
Sorensen BS, Sinding J, Andersen AH, Alsner J, Jensen PB, Westergaard O. Mode of action of topoisomerase II-targeting agents at a specific DNA sequence. Uncoupling the DNA binding, cleavage and religation events.
J Mol Biol
1992
;
228
:
778
–86.
37
Sehested M, Jensen PB. Mapping of DNA topoisomerase II poisons (etoposide, clerocidin) and catalytic inhibitors (aclarubicin, ICRF-187) to four distinct steps in the topoisomerase II catalytic cycle.
Biochem Pharmacol
1996
;
51
:
879
–86.
38
Kaina B. DNA damage-triggered apoptosis: Critical role of DNA repair, double-strand breaks, cell proliferation and signaling.
Biochem Pharmacol
2003
;
66
:
1547
–54.
39
Fulda S, Meyer E, Friesen C, Susin SA, Kroemer G, Debatin KM. Cell type specific involvement of death receptor and mitochondrial pathways in drug-induced apoptosis.
Oncogene
2001
;
20
:
1063
–75.
40
Zoratti M, Szabo I. The mitochondrial permeability transition.
Biochim Biophys Acta
1995
;
1241
:
139
–76.
41
Zamzami N, Marchetti P, Castedo M, et al. Reduction in mitochondrial potential constitutes an early irreversible step of programmed lymphocyte death in vivo.
J Exp Med
1995
;
181
:
1661
–72.
42
Nagata S. Apoptosis by death factor.
Cell
1997
;
88
:
355
–65.
43
Petak I, Houghton JA. Shared pathways: death receptors and cytotoxic drugs in cancer therapy.
Pathol Oncol Res
2001
;
7
:
95
–106.
44
Sullivan DM, Latham MD, Ross WE. Proliferation-dependent topoisomerase II content as a determinant of antineoplastic drug action in human, mouse, and Chinese hamster ovary cells.
Cancer Res
1987
;
47
:
3973
–79.
45
Woessner RD, Mattern MR, Mirabelli CK, Johnson RK, Drake FH. Proliferation- and cell cycle-dependent differences in expression of the 170 kilodalton and 180 kilodalton forms of topoisomerase II in NIH-3T3 cells.
Cell Growth Differ
1991
;
2
:
209
–14.
46
Qiu J, Catapano CV, Fernandes DJ. Formation of topoisomerase IIα complexes with nascent DNA is related to VM-26-induced cytotoxicity.
Biochemistry
1996
;
35
:
16354
–60.
47
Cornarotti M, Tinelli S, Willmore E, et al. Drug sensitivity and sequence specificity of human recombinant DNA topoisomerases IIα (p170) and IIβ (p180).
Mol Pharmacol
1996
;
50
:
1463
–71.
48
Kaufmann SH. Cell death induced by topoisomerase-targeted drugs: more questions than answers.
Biochim Biophys Acta
1998
;
1400
:
195
–211.
