Abstract
Tipifarnib is a potent and highly selective inhibitor of farnesyltransferase (FTase). FTase catalyzes the posttranslational attachment of farnesyl groups to signaling proteins that are required for localization to cell membranes. Although all RAS isoforms are FTase substrates, only HRAS is exclusively dependent upon farnesylation, raising the possibility that HRAS-mutant tumors might be susceptible to tipifarnib-mediated inhibition of FTase. Here, we report the characterization of tipifarnib activity in a wide panel of HRAS-mutant and wild-type head and neck squamous cell carcinoma (HNSCC) xenograft models. Tipifarnib treatment displaced both mutant and wild-type HRAS from membranes but only inhibited proliferation, survival, and spheroid formation of HRAS-mutant cells. In vivo, tipifarnib treatment induced tumor stasis or regression in all six HRAS-mutant xenografts tested but displayed no activity in six HRAS wild-type patient-derived xenograft (PDX) models. Mechanistically, drug treatment resulted in the reduction of MAPK pathway signaling, inhibition of proliferation, induction of apoptosis, and robust abrogation of neovascularization, apparently via effects on both tumor cells and endothelial cells. Bioinformatics and quantitative image analysis further revealed that FTase inhibition induces progressive squamous cell differentiation in tipifarnib-treated HNSCC PDXs. These preclinical findings support that HRAS represents a druggable oncogene in HNSCC through FTase inhibition by tipifarnib, thereby identifying a precision therapeutic option for HNSCCs harboring HRAS mutations.
This article is featured in Highlights of This Issue, p. 1761
Introduction
Squamous cell carcinoma of the head and neck (HNSCC) is the sixth most common cancer worldwide, with an estimated annual incidence of 600,000 patients. In the United States, 55,000 new cases are diagnosed each year, leading to nearly 13,000 deaths annually (1). Early-stage HNSCC disease is treated relatively well with single-modality therapy (either surgery or radiation), but nearly 66% of patients present with advanced disease and fewer than 30% of these patients are cured. Few drugs have proven effective in HNSCC therapy. Systemic, platinum-based chemotherapy is the mainstay of first-line treatment, and combination with 5-FU and the anti-EGFR antibody cetuximab has been shown to extend overall survival in the metastatic setting (2). However, despite significant advances in the understanding of the molecular underpinnings of this group of tumors, cetuximab was the only molecularly targeted drug approved for HNSCC until the arrival of anti–PD-1 antibodies in 2016, and checkpoint inhibitors only produce durable responses in a minority (<15%–20%) of patients (3). Thus, identification and exploitation of novel druggable oncogenes in HNSCC is urgently needed to improve patient outcomes.
Farnesyltransferase (FTase) is a cytosolic metalloenzyme that catalyzes the transfer of a 15-carbon farnesyl lipid moiety to a group of cellular proteins characterized by a C-terminal CAAX motif (4). Farnesylation is required for cellular membrane insertion and subsequent activity of certain signaling proteins associated with cancer progression (5), spurring the development of several FTase inhibitors (FTI) in the late 1990s and early 2000s. The first selective FTI to enter clinical studies was tipifarnib (R115777), a heterocyclic nonpeptidomimetic drug that inhibits farnesylation of the canonical FTase substrate lamin A with subnanomolar potency (6). The clinical development of tipifarnib began in 1997 and consisted of more than 70 clinical oncology and hematology studies. Many RAS family proteins are farnesylated at steady state, so FTIs were originally conceived as KRAS inhibitors and tested in high-prevalence KRAS-driven tumors. However, it was subsequently discovered that certain farnesylated proteins, including KRAS and NRAS, can be rescued from membrane displacement in the presence of FTIs by an alternative prenylation pathway mediated by the enzyme geranylgeranyl transferase, so clinical activity of tipifarnib and other FTIs in KRAS- and NRAS-driven cancer was modest. In contrast, the third family member, HRAS, is not a substrate for the geranylgeranylated transferase, and its membrane localization and cellular function are suppressed by FTIs (7).
HRAS was originally identified as an oncogene in chemical carcinogenesis studies of skin squamous cell carcinoma (SCC), and recent genomic analyses reveal that it is the predominant mutated RAS isoform in SCCs of several types, including HNSCC (8). The Cancer Genome Atlas (TCGA) reports that HRAS is mutated in 6% of HNSCC at initial diagnosis (9), and higher frequencies have been reported in some demographic groups associated with exposure to specific oral carcinogens (10). In addition, HRAS mutations have been reported in 15% of patients during acquisition of resistance to cetuximab therapy (11).
Prior to a recent report of tipifarnib activity in HRAS-mutant thyroid carcinoma (12), historical studies of FTIs in HRAS-mutant settings have employed the bladder carcinoma line T24 (6, 13), breast cancer lines (14), or recombinant models (6, 14, 15). Here, we report an in-depth characterization of the antitumor activity of tipifarnib in a series of cell line- and patient-derived HNSCC xenograft models that capture the genomic diversity of this patient subset. Tipifarnib displaced HRAS from cellular membranes and selectively inhibited proliferation and survival of HRAS-mutant HNSCC cells in vitro. In xenograft models, tipifarnib blocked tumor growth and induced regressions in cell line- and early passage patient-derived HNSCCs and was associated with robust inhibition of MAPK pathway signaling downstream of activated HRAS. FTI treatment also blocked neovascularization, in part via HRAS-independent mechanisms, and analysis of gene expression changes following tipifarnib treatment of HRAS-mutant patient-derived xenograft (PDX) models confirmed a robust G1–S cell-cycle block downstream of MAPK pathway inhibition and revealed induction of squamous lineage differentiation in vivo.
Materials and Methods
Cell lines and tissue culture
Human head and neck cancer cell lines CAL27, DETROIT562 (HRAS wild type), HN31, and UMSCC17B (HRAS mutant) were collected as part of the NIDCR Oral and Pharyngeal Cancer Branch cell collection and have been described previously (16, 17). The novel cell lines ORL48 (HRAS wild type) and ORL214 (HRAS mutant) were generously provided by Dr. Sok Ching Cheong (Cancer Research Malaysia, Subang Jaya, Selangor, Malaysia). To ensure consistency in cell identity, all the cell lines underwent DNA authentication by multiplex STR profiling (Genetica DNA Laboratories, Inc.) prior to experiments. No Mycoplasma was detected through Mycoplasma Detection Kit-QuickTest from Biomake. See Supplementary Materials for additional details.
Tipifarnib
Tipifarnib was provided by Kura Oncology. See Supplementary Materials for drug storage and preparation in vitro and in vivo.
In vivo mouse experiments and analysis
Studies on cell line–derived HNSCC xenografts were performed at the University of California, San Diego (San Diego, CA), under protocol ASP # S15195, approved by the Institutional Animal Care and Use Committee (IACUC). See Supplementary Materials for additional details. For PDX establishment, fresh surgically removed tumor tissues were obtained by Crown Bio (Crown Bioscience SPF facility; ref. 18) from patients diagnosed as HNSCC with approval by the Institutional Review Boards of the hospital and informed consents from patients, and studies were conducted in accordance with recognized ethical guidelines. The protocol and any amendment(s) or procedures involving the care and use of animals were approved by the Institutional Animal IACUC of CrownBio prior to conduct. During the study, the care and use of animals was conducted in accordance with the regulations of the Association for Assessment and Accreditation of Laboratory Animal Care.
RNAi, cell growth assays, 3D spheroids assay, immunoblot analysis, IHC and immunofluorescence, microfluidic vasculogenesis assay
See Supplementary Materials for additional details.
HRAS plasma membrane translocation assays
For HRAS-GFP transfection, cells were grown on μslide glass bottom (Ibidi). Cells were transfected with HRAS-GFP and the next day were treated with tipifarnib for 48 hours, and the image acquisition was performed by confocal microscopy.
Mouse choroidal explant assay
Male C57BL/6J mice (age P20) were euthanized and their eyes were immediately enucleated for dissection. After removing the cornea and lens, the peripheral choroid–scleral complex was separated from the retina and cut into approximately 1 mm × 1 mm fragments; then, the mouse choroidal explant assay was performed. See Supplementary Materials for additional details.
RNA sequencing and bioinformatic analysis
HN2579 and HN3504 HNSCC PDX tumors were implanted in groups of three animals as described above and allowed to grow to 350 to 450 mm3, treated for four days with vehicle or tipifarnib (80 mg/kg twice daily), excised, and snap-frozen. To ensure unbiased sampling for each tumor lesion, three fragments in different regions of the tumor were collected by microdissection techniques. See Supplementary Materials for RNA extraction, RNA sequencing, and analysis.
Statistical analysis
GraphPad Prism version 7 for Windows (GraphPad Software) was used to perform data analyses, variation estimation, and validation of test assumptions. The differences between experimental groups in tumor volume, quantification of IHC analysis were performed with longitudinal data analysis method, independent t tests, or ANOVA.
Results
Genomics of HRAS-mutant HNSCC subset
The recent completion of TCGA (9) has provided an unprecedented opportunity to perform a pancancer analysis of the genomic alterations in HRAS. We performed a detailed analysis of genomic information in the TCGA database focused on revealing HRAS gene expression levels and mutational status in a broad array of cancer types. This study showed that relatively few cancers harbor HRAS mutations, particularly thyroid cancer, pheochromocytoma and paraganglioma (PCPG), and HNSCC (Fig. 1A). Among them, the latter also represents the cancer expressing the highest levels of HRAS transcripts, together suggestive of a more prominent role for HRAS in this particular cancer type. The TCGA analysis has also provided a comprehensive genomic characterization of HNSCC (Fig. 1B; ref. 9), supporting that TP53 is one the most mutated genes (71% mutated), followed by FAT1 (23% mutated), NOTCH1 (18% mutated), CASP8 (11% mutated), CDKN2A (22% mutated) genes, and PIK3CA (∼18% mutated; ref. 19). In a prior study, we have performed a pathway-specific analysis of the HNSCC oncogenome, which indicated that the PI3K–mTOR signaling pathway is mutated in the highest percentage of the HNSCC lesions (19). Indeed, PIK3CA is the driver oncogene most frequently mutated when considering HPV− and HPV+ HNSCC cases (16.8% and 36.1%, respectively; ref. 19). HRAS is mutated at a lower frequency (6.1%), but only in the HPV− HNSCC group (9), which is often associated with tobacco use and exhibit worse prognosis (9, 20).
HPV infection has been recently recognized as a viral etiologic agent responsible for HNSCC, more specifically in the oropharynx (21, 22). The absence of any HRAS mutations in HPV+ HNSCC prompted us to explore whether there are other significantly altered genomic alterations concomitant with HRAS that may help define better the landscape of HRAS-mutant HNSCC. Indeed, aligned with a prior report (23), we found that HRAS mutations define a unique subset of HNSCC, characterized, in most of the cases, by coincident loss of function mutations in caspase-8 (q value 3.74 e−9) and enrichment for absence (nearly mutually exclusive) of TP53 mutations (q value, 9.936 e−3; Fig. 1C). In this regard, HRAS-mutant HNSCC cases also exhibit a low overall mutational burden that is associated with poor response to immuno-oncology agents (9), and hence may instead benefit from the development of targeted options disruption HRAS oncogenic signaling. As with the other RAS isoforms, HRAS exhibits mutational hotspots in exons 2 (G12, G13), 3 (Q61), and 4 (K117 and A146), but Q61 mutations are more common than in KRAS and NRAS mutants, where G12 mutations predominate (Fig. 1D).
Tipifarnib inhibits HRAS farnesylation and displaces it from cellular membranes
RAS proteins are synthesized in the cytosol and subsequent posttranslational modifications enable their stable association with intracellular membranes, which is required for GTP hydrolysis and RAS signaling (4, 5). The rate-limiting modification is farnesylation of the cysteine 186, mediated by farnesyltransferase (Fig. 2A; ref. 24). Because the linkage of a farnesyl moiety to target proteins subtly alters their molecular weight, the so called “farnesylation shift”, we used a high concentration gel (18%) to show that tipifarnib treatment deprenylated HRAS in both mutant and WT cell lines (Fig. 2B). To determine whether this defarnesylation altered the intracellular trafficking of HRAS protein, we expressed GFP-tagged HRAS in 293 cells (Fig. 2C) to be able to follow its localization with and without tipifarnib treatment. HRAS localized to the plasma and nuclear membranes and membranous organelles in control samples as described previously (25), while tipifarnib-treated cells displayed a more cytosolic localization of the protein (Fig. 2D).
Tipifarnib is selectively cytotoxic to HRAS-mutant HNSCC in vitro

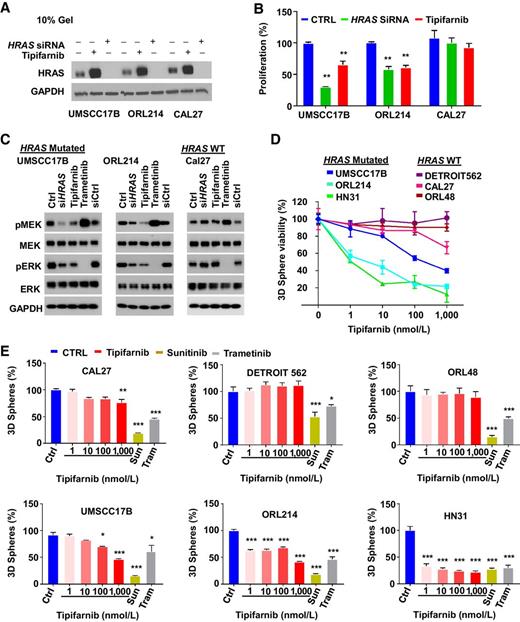

We characterized the effect of tipifarnib in HRAS-mutated and WT human HNSCC cell lines to determine whether the drug was selectively active in the HRAS-mutant subset. First, we treated the cells with tipifarnib or knocked down HRAS by siRNA, and the effect was verified by Western blot analysis (Fig. 3A). Furthermore, we compared the proliferation of HRAS-mutated HNSCC (UMSCC17B and ORL214) with HRAS WT (CAL27) treated with siRNA or tipifarnib. Although the inhibition of proliferation was incomplete, both tipifarnib and HRAS knockdown significantly reduced the growth of HRAS-mutated cell lines, while no significant effects were detected in HRAS WT cells (Fig. 3B). HRAS knockdown with siRNAs and tipifarnib treatment reduced pERK and pMEK levels in HRAS-mutant HNSCC cells, consistent with the inhibition of the HRAS–MEK–ERK pathway, but not in HRAS WT cells, using the MEK inhibitor trametinib, which inhibited ERK activation in all cells as a control (Fig. 3C).
The initial experiments with tipifarnib and HRAS knockdown were performed in monolayer culture, but as several groups have recently reported that this format fails to capture the full potency and selectivity of RAS inhibitors (26), we also tested tipifarnib in a larger panel of HRAS-mutant and WT cell lines in 3D spheroid formation assays, measuring effects on viability in terms of metabolic activity (Fig. 3D) and absolute number (Fig. 3E) of 3D tumor spheroids. The broadly active HRAS nonselective drugs sunitinib and trametinib were employed as controls. 3D assay treatment lasting 3 weeks evidenced distinct behaviors in different conditions. Tipifarnib displayed dose-dependent inhibition of spheroid viability in HRAS-mutant cells only (Fig. 3D) and also selectively reduced the absolute number of colonies (Fig. 3E), suggesting that HRAS inhibition depletes tumor-initiating cells. In contrast, sunitinib and trametinib were similarly active in both HRAS-mutant and WT HNSCC lines (Fig. 3E).
Tipifarnib is highly active in HRAS-mutant HNSCC xenografts
Given that tipifarnib shows selective cytotoxicity to HRAS-mutant HNSCC cells in vitro, we next asked whether tipifarnib is sufficient to display tumor-suppressive effects in vivo. For these studies, we used UMSCC17B cells exhibiting a HRAS Q61L mutation and ORL214, which has a HRAS G12C mutation. Remarkably, we observed that tipifarnib significantly halted tumor growth from as early as 3 days after treatment initiation (n = 6, P < 0.001; Fig. 4A–C). Tipifarnib reduced pERK in both xenograft models (Fig. 4D). Moreover, IHC for cleaved caspase-3 and IF for Ki67 showed that the inhibition of HRAS by tipifarnib caused increased apoptosis and a reduction of cell proliferation in HNSCC tumors (Fig. 4D).
Activity of tipifarnib in HRAS mutant is independent of genotype

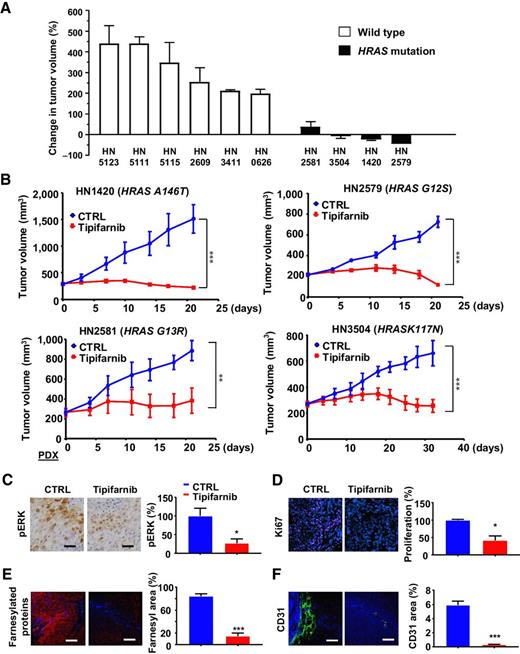

We next extended our analysis to include a panel of HRAS-mutant and HRAS wild-type patient-derived HNSCC xenograft (PDX) models (Supplementary Fig. S1A), as they may better reflect the complexity of the HNSCC lesions and limit the genetic drift that may occur during establishment and maintenance of HNSCC cell lines in vitro. In addition, because widespread differences exist within individual residues and hotspot gene mutations of amino acids and tumor types (27), the expansion of the study to include PDX models increased the range of hotspot mutations to include A146T (HN1420 model), G12S (HN2579), G13R (HN2581), and K117N (HN3504; Fig. 1D). Because tipifarnib is likely to be inhibiting the function of other farnesylated proteins in HNSCC models in vivo, it was important to determine whether the presence of mutant HRAS was necessary for the robust observed antitumor activity of the drug. As shown in Fig. 5, tipifarnib displayed selective antitumor activity in HRAS-mutant HNSCC PDX models. The six HRAS wild-type tumors grew progressively while on tipifarnib treatment (Fig. 5A; Supplementary S1B and S1C) but, in sharp contrast, all four HRAS-mutant tumors were highly sensitive to tipifarnib when compared with the control-treated groups (P < 0.01; Fig. 5A and B), demonstrating that mutant HRAS is required for tumor control by tipifarnib in HNSCC models. Consistent with our previous xenograft data, IHC for pERK (Fig. 5C) and IF for Ki67 (Fig. 5D) showed that tipifarnib caused a reduction of ERK activation and cell proliferation in these PDX models. Moreover, as expected, tipifarnib drastically reduced farneslylated proteins (Fig. 5E), and vessel density by CD31 staining (Fig. 5F; ref. 28).
Tipifarnib inhibits angiogenesis and vasculogenesis
Tumors can increase their blood supply by two recognized mechanisms: de novo formation of vessels by the differentiation of the endothelial progenitor cells, known as vasculogenesis, and angiogenesis, the sprouting of new blood vessels from the existing vasculature. Previous studies indicated that tipifarnib and other FTIs inhibit tumor angiogenesis (13, 28), but antiangiogenic activity can vary between different tumor types, so we sought to expand these observations in the context of HRAS-mutant HNSCC. CD31 immunostaining demonstrated that tipifarnib significantly inhibited vessel formation in both UMSCC17B and ORL214 xenograft tumors (Fig. 6A and B). Moreover, to explore whether tipifarnib may also act on endothelial cells directly, we performed a 3D vasculogenesis assay in a microfluidic model. Briefly, GFP-HUVECS were grown in 3D hydrogel in microfluidic channels for 48 hours with and without tipifarnib. The number of branches was quantified, which revealed the inhibitory effect of tipifarnib on vessel generation (Fig 6C). Choroid sprouting assay can be used as an ex vivo model for studying microvascular angiogenesis. We then tested tipifarnib effects using the choroid sprouting assay. As shown in Fig. 6D, tipifarnib robustly inhibited vessel sprouting from mouse choroid in the 3D matrix, suggesting that both pathological and physiological neovascular processes are sensitive to farnesyltransferase inhibition.
Tipifarnib induces differentiation in patient-derived tumors
To further elucidate the consequences of interfering with mutant HRAS and other farnesylated targets in HNSCC, we performed bioinformatics analysis of tipifarnib-induced gene expression changes in PDX models. Two tipifarnib-sensitive HRAS-mutant HNSCC PDX models were treated with tipifarnib for 4 days, at which point the tumors were harvested and processed for RNA sequencing. Data were processed and analyzed using a combination of commercial (Rosalind by OnRamp, Advaita) and Open Source (ENRICHR) resources. As shown in Fig. 7A and E, gene set enrichment analysis (GSEA) revealed two prominent patterns of altered gene expression in tipifarnib-treated tumors. When the two models were analyzed collectively, the predominant changes related to inhibition of cell cycle progression (Fig. 7A, Supplementary Fig. S2, Supplementary Fig. S3), as expected from RAS-MAPK biology. Advaita cell pathway analysis showed that the expression of drivers of G2–M progression, such as cyclins A and B, CDK1 and CDC25, and mitotic regulators, including BUB1 and PLK1, was suppressed (Fig. 7B; Supplementary S2A), consistent with shutdown of RAS-MAPK-cyclin D signaling, the dominant mitogenic pathway in HRAS-mutant cells leading to cell cycle arrest at the G1-S boundary.
However, when the two PDX models were analyzed individually a second prominent transcriptional phenotype emerged in the HN3504 model, where GSEA enriched for processes and pathways associated with differentiation of squamous cells (Fig. 7E), including epidermal development, skin development, epithelial differentiation and cornification. Keratinocytes in stratified squamous epithelia, such as the skin and the lining of the upper aerodigestive tract from which HNSCC is derived, originate as proliferating progenitor cells in the basal layer and progressively differentiate towards specialized post-mitotic cells as they move outward (29). This progression is associated with characteristic alterations in patterns of cytokeratin expression and ultimately enzymatic cross-linking of cellular proteins with barrier function, known as cornification. As shown in the volcano and box and whisker plots of gene expression changes induced by tipifarnib in HN3504 tumors (Fig. 7C and D; Supplementary S2B, Supplementary Table S1), the well-characterized squamous differentiation markers cytokeratin 4 (KRT4) and KRT13 (30), the epithelial differentiation transcription factors ELF3 (31) and KLF4 (32), the cornified protein precursor SPRR2A and the cross-linking enzyme transglutaminase-1 (TGM1) were among the most strongly upregulated loci (p-Adj 6.83e-21 − 1.01e-54). By contrast, the basal cytokeratin KRT17, the ‘stemness’ markers CD44 (33) and WNT10B (34) and the HNSCC oncogene ROS1 (35) were all strongly downregulated (p-Adj 2.49e−14 − 9.74e−22). Squamous differentiation in tipifarnib treated HN3504 tumors was confirmed histologically by robust staining for KRT4, and by quantitative analysis of the of the immunofluorescence results. Moreover, the presence of characteristic squamous differentiation morphological features in tipifarnib-treated HN3504 tumors is shown in the H&E staining sections (Fig. 7G).
Discussion
RAS genes are the most common driver oncogenes in human cancer, being mutated in approximately one third of cancer cases, so considerable efforts have been made for decades to develop therapeutics for RAS-driven tumors (36). Despite this significant investment, no drugs directly targeting RAS proteins have been approved, and alternative strategies directed against downstream RAS pathways such as MAPK and PI3K have also proved ineffective, primarily due to feedback reactivation via RAS (37). Direct inhibition of RAS proteins at the catalytic site is impractical due to their picomolar affinity for GTP (37), but a recent breakthrough has enabled direct inhibition of KRASG12C (26).
The only other currently feasible way to disrupt RAS activity directly is through preventing appropriate intracellular localization by interfering with RAS prenylation (36). Several dozen proteins are farnesylated under basal conditions and tipifarnib treatment blocks their prenylation (38), but inhibition of the farnesylation of KRAS and NRAS leads to compensatory geranylgeranylation and the restoration of membrane localization in the presence of tipifarnib (7, 38). In contrast, HRAS cannot be geranylgeranylated, and its membrane localization and cellular function may be suppressed by FTIs (38, 39). In this study we report that mutant HRAS is a targetable oncogene via farnesyltransferase inhibition in a molecularly-defined subset of HNSCC. Tipifarnib displayed robust and consistent antitumor activity in a series of cell line- and patient-derived xenograft models of HNSCC but, in sharp contrast, tipifarnib was devoid of activity in HRAS wild type HNSCC cell lines and PDX models in vitro and in vivo. Remarkably, tipifarnib displayed significant inhibition of tumor growth in HRAS-mutant xenografts harboring mutations in exon-2 (G12C, G12S, G13R), exon-3 (Q61L) or exon-4 (K117N, A146T), suggesting that all of these mutants are sufficiently oncogenic to drive full malignancy in HNSCC cells, even though exon-2 and exon-3/4 KRAS mutants have been reported to have differing GTPase activities and biologic functions in other cellular contexts (8, 40).
HRAS protein was de-prenylated in both HRAS-mutant and wild type HNSCC cells, as indicated by the gel shift and redistribution from intracellular membranes, but tipifarnib only inhibited spheroid growth of the HRAS-mutant UMSCC17B, ORL214 and HN31 cell lines, whereas the cytotoxic multikinase inhibitor sunitinib and the MEK inhibitor trametinib displayed similar activity in both HRAS mutant and HRAS wild type lines. Genetic depletion of HRAS was apparently incompletely effective at inhibiting the proliferation of HRAS-mutant HNSCC cells, but this experiment was performed in monolayer culture, and these growth conditions have recently been shown to partially undermine RAS dependence (26). Tipifarnib activity was also blunted under these conditions, underscoring the importance of using appropriate assay formats to interpret RAS dependence.
The expected effects on mitogenic signaling, cell cycle progression and apoptosis downstream of inhibition of oncogenic HRAS in vivo were observed in both cell-derived xenografts and PDX models. ERK phosphorylation was sharply reduced in UMSCC17B and HN3504, but less so in ORL214, perhaps due to feedback reactivation of the MAP kinase pathway. Indeed, ENRICHR analysis of upregulated gene-sets in PDX models following 4 days of tipifarnib therapy revealed evidence of upregulation of canonical MAPK pathway negative regulators (DUSP1, DUSP3) and activation of collateral epithelial cell oncogenic pathways including EGF/EGFR and HER2/HER3 signaling, PIK3CA and PTPN11 (Supplementary Fig. S3). Despite this, all models responded well to tipifarnib treatment and proliferation and apoptosis markers were robustly altered at both early and late timepoints during tipifarnib therapy, suggesting that continuous treatment overwhelmed innate tumor resistance mechanisms and maintained sufficient suppression of oncogenic signaling to block tumor growth in these models. Indeed, the antitumor activity of tipifarnib in all HRAS-mutant HNSCC models reported here matches or exceeds that reported with a combination of MAPK and PI3K pathway inhibitors in a HRAS-mutant lung cancer model (41).
HRAS is among several dozen obligate farnesylated proteins in cells (38), and analysis of treated PDX tumors indicated almost complete disappearance of the farnesyl moiety, raising the possibility that depletion of additional farnesylated target proteins could enhance the antitumor activity of tipifarnib in HRAS-mutant HNSCC. Tipifarnib and other FTIs have previously been shown to possess anti-angiogenic activity (5, 28, 42) mediated by effects on both tumor (42) and endothelial cells (28, 43), and we observed both in this study. The farnesylated proteins involved remain to be identified (44), but the lack of significant effects on tumor growth observed in the panel of HRAS wild type PDX strongly suggests that either (a) inhibition of angiogenesis does not provide sufficient therapeutic value in HNSCC (45) or (b) some or all of the antivascular effects of tipifarnib in vivo are secondary to mutant HRAS blockade (46).
Bioinformatics analysis of tipifarnib-induced gene expression changes in two PDX models further elucidated the multifactorial mechanisms of antitumor activity of the drug in HRAS-mutant HNSCC in vivo. GSEA of the combined dataset confirmed that FTI treatment induced a robust cell-cycle block at the G1–S boundary and also promoted squamous lineage differentiation. Malignant transformation and terminal differentiation are mutually exclusive processes with opposing effects on cellular proliferation. Carcinogenesis in squamous tissues is associated with impairment of differentiation linked to HPV infection or oncogene activation (47, 48). GSEA of HRAS-mutant HN3504 PDX tumors treated for 4 days with tipifarnib revealed that initiation of epithelial differentiation was a prominent early effect of farnesyl transferase inhibition in this model. HNSCC stem cell markers such as CD44 (33) and WNT10B (34, 49) and the basal (proliferative) layer cytokeratin KRT17 (29) were also profoundly suppressed. In contrast, the canonical squamous differentiation markers KRT4 and KRT13 (30), prodifferentiation transcription factors ELF3 (31) and KLF4 (32), and cornification markers like SPRR2A, all of which have been reported to be downregulated in HNSCC, were among the most strongly upregulated genes. This suggests that oncogenic HRAS may suppress squamous differentiation in HNSCC and that this can be reversed by tipifarnib treatment.
In the current study, we have characterized the antitumor activity and mechanisms of action of tipifarnib in a large series of HNSCC CDX and PDX models. Tipifarnib displayed robust and selective activity in HRAS mutant models harboring all of the known hotspot loci. Collectively, these data demonstrate that mutant HRAS represents an actionable oncogene in HNSCC that can be targeted with tipifarnib via inhibition of proliferation and angiogenesis and induction of apoptosis and terminal squamous cell differentiation, resulting in consistent stasis or tumor regression in vivo.
Tipifarnib was previously studied in an extensive development campaign consisting of more than 70 clinical trials in a variety of tumor types in the late 1990s and early 2000s without the benefit of methods to enrich for clinical activity such as the use of next-generation sequencing to identify patients with specific driver mutations. Although durable responses were achieved in several cancers, response rates were insufficient to support registrational studies in unselected patient populations. Because its reintroduction into the clinic in 2015, several cohorts of HRAS-mutant patients have been treated in a single-arm phase II trial (NCT02383927), with encouraging preliminary findings. As reported in 2018 (45, 50), among 7 evaluable patients with HNSCC, 5 (71%) achieved a confirmed partial response with a median duration of response of 14.1 months. Importantly, no HRAS-mutant HNSCC patient experienced an objective response on his last therapy prior to receiving tipifarnib (including platinum, immunotherapy and cetuximab ± chemotherapy regimens). On the basis of these initial encouraging clinical responses, and our current findings, an international, multicenter, open-label, single-arm study of tipifarnib after failure of platinum-based therapy in recurrent or metastatic HNSCC with HRAS mutations with registrational intent, AIM-HN, is currently underway (NCT03719690). Indeed, we expect that our experimental studies in genetically defined HNSCC systems harboring HRAS mutations may support the rationale for selectively enrolling patients with HRAS-mutant HNSCC in future tipifarnib trials, being represented as a novel precision therapeutic approach for HNSCC based on their oncogenomic landscape.
