Ovarian Primary and Metastatic Tumors Suppressed by Survivin Knockout or a Novel Survivin Inhibitor Free

Ovarian cancer has the highest mortality rate among women's malignancies due to the lack of obvious symptoms at its early stages, and often tumors were detected at the late stages and tumors were disseminated in multiple peritoneal organs (1, 2). The majority of patients with ovarian cancer suffer relapse following chemotherapy (3, 4). Ovarian cancer therapy is still a major challenge and little progress has been made in overall patient survival during last decades due to tumor metastasis and chemoresistance (5–7).

Epithelial-to-mesenchymal transition (EMT) is a biological process by which epithelial cells lose their cell polarity, and acquire migratory and invasive properties, and is associated with tumor metastasis and chemoresistance (8–10). The EMT phenotypic switch is accompanied by downregulation of epithelial markers, such as E-cadherin or cytokeratin-7, and upregulation of mesenchymal markers, such as vimentin, snai2, and β-catenin (11). Multiple signaling pathways, including TGFβ, WNT, Notch, ERK1/2, and NF-κB regulate EMT (11–16). Several studies also showed that EMT contributes to ovarian tumor metastasis and chemotherapy drug resistance (10, 11, 17–19). Inhibition of EMT is a strategy for cancer therapy. Several pharmacologic inhibitors of TGFβ-, EGFR-, or FAK-induced EMT have been used in clinical trials, such as LY36497, ZD1839, GSK2256098, or PF-573228 (20).

Survivin (BIRC5) is the smallest member of the inhibitors of apoptosis protein (IAP) family, and found to be highly expressed in a variety of human cancers, including breast cancer and ovarian cancer, but low expression of survivin was observed in adult normal tissues (21–24). Survivin expression is well-correlated with tumor metastasis and chemoresistance in several cancer types, such as melanoma, renal, prostate, breast (25–28), and ovarian (10, 29–32). The significant difference in survivin expression between various types of tumors and normal tissues suggests that survivin may be an important drug target for cancer treatment. We previously showed that survivin was highly expressed in ovarian cancer and correlated with overall patient survival. Survivin also promoted EMT in ovarian cancer cells by activating TGFβ pathway (24). Knockout (KO) of survivin using CRSIPR/Cas9 nickase or inhibition of survivin expression using a small-molecule inhibitor of survivin, YM155, leads to inhibition of EMT in ovarian cancer cells (24).

Several small-molecule inhibitors of survivin have been developed and tested for efficacy in cancer cells. One of most studied survivin inhibitors, YM155, underwent clinical trials but failed to achieve adequate efficacy (33–35). YM155 is a known substrate for the P-glycoprotein (Pgp) drug efflux pump, which may compromise its effect in Pgp-mediated multidrug resistance cancers (36). YM155 also has a short half-life in vivo; hence, it requires continuous infusion (34). Recent evidence suggests that YM155 is a DNA damage–inducing agent and that its inhibition of survivin could be secondary to this event (37). We have recently discovered a highly selective survivin degrader, MX-106, which selectively degrades survivin via proteasome-mediated degradation (38–40). MX-106 also effectively overcomes Pgp-mediated multidrug resistance (38–40). In vivo studies indicate that MX-106 maintains its ability to induce survivin degradation and strongly suppresses melanoma tumor growth (38).

To further determine the role of survivin in ovarian cancer, in this study we tested the hypothesis that survivin contributes to primary ovarian tumor growth and metastasis in an orthotopic ovarian cancer mouse model by genetically knocking out survivin or pharmacologically inhibiting survivin with MX106. We demonstrate that both approaches significantly suppressed primary ovarian tumor growth and metastasis by inhibiting EMT through attenuating TGFβ pathway.

Ovarian cancer cell lines, SKOV3 (HTB-77) and OVCAR3 (HTB-161) were obtained from ATCC and cultured as described previously (24). Cell lines were authenticated using short tandem repeat analysis by ATCC and tested negative for Mycoplasma contamination using luciferase assay (Lonza). Cells were frozen at early passages and used for less than 5 weeks in continuous culture.

For establishment of the paclitaxel-resistant cell line OVCAR3/TxR, paclitaxel-resistant OVCAR3/TxR cell line was established from the parental OVCAR3 cells by a stepwise increase of paclitaxel concentration. Paclitaxel was doubled each passage and concentration was increased from 20 nmol/L to 320 nmol/L. The resistant cell line was established once cells remained viable after 320 nmol/L treatment during 2.5 month's culture. These cells were cultured under the same conditions as the parental OVCAR3 cell line.

Survivin-KO and control SKOV3 and OVCAR3 cells were generated using lentiviral CRISPR/Cas9 nickase as we described previously (24). The lentiviral CRISPR/Cas9 nickase–mediated TGFβR2 gene editing vectors were constructed using the same method as we described previously (24) by annealing two guide RNA oligonucleotide pairs, 5′TTCCAGAATAAAGTCATGGT and 5′TTCTCCAAAGTGCATTATGA to target exon 4. Lentivirus was produced by packaging in 293FT cells as published previously (41).

The lentiviral vector pGF-SMAD2/3/4-mCMV-Luciferase-EF1a-puro (System Biosciences) containing SMAD2/3/4 transcriptional response elements was used to transduce survivin-KO and control SKOV3 and OVCAR3 cells using a multiplicity of infection of 10. This same amount of virus was also used to transduce wild-type SKOV3 and OVCAR3 cells and then treated cells with 5 μmol/L MX106 or vehicle for 4 hours. Survivin KO, control cells, or MX106-treated cells, were treated with 6 ng/mL TGFβ for 12 hours to activate SMAD2/3/4 pathway. Luciferase activity was measured and normalized by comparing with control or vehicle-treated groups.

MX106 was synthesized and characterized as described previously (42).

To track ovarian tumor growth and metastasis in vivo, wild-type, survivin-KO, and control SKOV3 cells were labeled with luciferase. To test the effect of survivin KO in ovarian cancer cells on ovarian tumor metastasis, ten 2 months old immunocompromised NOD.Cg Prkdcscid Il2rgtm1Wjl/SzJ (NSG) female mice (#005557, the Jackson Laboratory) were randomized into two groups, 5 × 10⁵ survivin-KO and control SKOV3 cells were intrabursally injected into the mice. To test the efficacy of MX106, 10 NSG female mice were intrabursally injected with 5 × 10⁵ wild-type SKOV3 cells and randomly divided into two groups after 1 week post-injection. One group of mice were treated with MX106 (20 mg/kg body weight) and another group of mice were treated with vehicle for 5 days a week through intraperitoneal injection for 4 more weeks. Tumor growth and metastasis were monitored by Xenogen bio-imaging system once a week. All mice from each group were sacrificed at 5 weeks after cell injection, and primary ovarian and metastatic tumors were collected and subjected to double-blind histopathologic analysis. Animal work was performed in accordance with the protocol (#16-161) approved by the Institutional Animal Care and Use Committee of the University of Tennessee Health Science Center (Memphis, TN).

OVCAR3 or OVCAR3/TxR cells (3,000/well) were plated into 96-well plates following treatment with different doses of MX106 or YM155 and cultured for 24 hours. Cell proliferation was determined by measuring the absorbance at 570 nm wavelength as described previously (24).

The cell migration assay was performed using the transwell plates. Briefly, SKOV3 or OVCAR3 cells were treated with 5 μmol/L MX106 or vehicle for 4 hours and then 5 × 10⁴ cells in 300 μL serum-free DMEM were added to the top chamber. DMEM containing 10% FBS was added into the bottom chamber and incubated for 8 hours. The migrated cells were counted as described previously (24).

SKOV3 and OVCAR3 cells were treated with 5 μmol/L MX106 or vehicle for 4 hours and the invaded cells were stained and counted as described previously (24).

To detect survivin, vimentin, cytokeratin-7, and cleaved-caspase3 expression, the immunofluorescence staining was performed as described previously (24). The primary antibodies include survivin (1:200 dilution, #2808S, Cell Signaling Technology), vimentin (1:200 dilution, #5741S, Cell Signaling Technology), cytokeratin-7 (1:200 dilution, ab181598, Abcam), and cleaved-caspase3 (1:200 dilution, 9661S, Cell Signaling Technology).

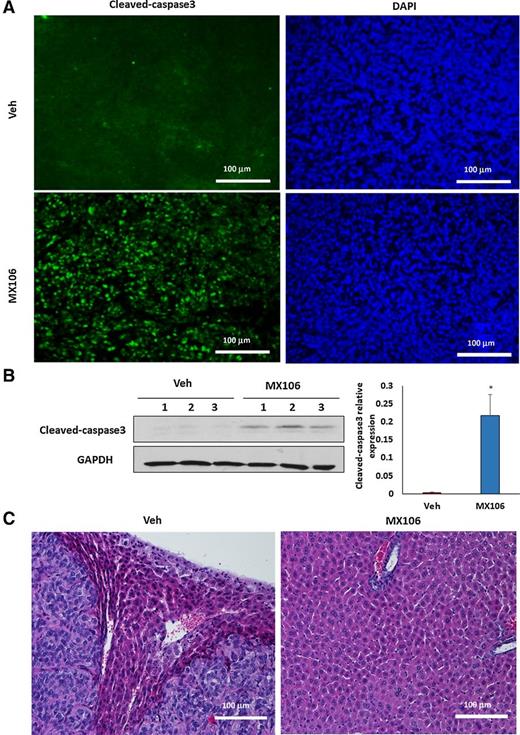

SKOV3 or OVCAR3 cancer cells were treated with MX106 at different doses (0, 1, 2, and 4 μmol/L) for 24 hours. Apoptosis was detected using a Caspase3/7 Assay Kit (Promega). Cell apoptosis was also examined in both SKOV3 and OVCAR3 cells treated with MX106 at different doses (0, 1, 2, and 4 μmol/L) for 24 hours using Western blot analysis to detect cleaved PARP and active caspase 3.

Western blot analysis was performed as described previously (24).The primary antibodies were purchased from Cell Signaling Technology including β-catenin (#8480S), snai2 (#9585S), vimentin (#5741S), surviving (#2808S), XIAP (#14334S), cIAP1 (#7065S), cIAP2 (#3130S), livin (#5471S), cleaved-PARP (#5625S), cleaved-caspase3 (#9661S), T-SMAD2/3 (#8685S), and P-SMAD2 (#18338S). GAPDH was purchased from Sigma (#G9545) and cytokeratin-7 was purchased from Abcam (#ab181598).

Statistical analysis was performed from at least two independent experiments in triplicate and presented as means ± SD using Student t test. P < 0.05 was considered significant. All data from experiments were included in statistical analysis.

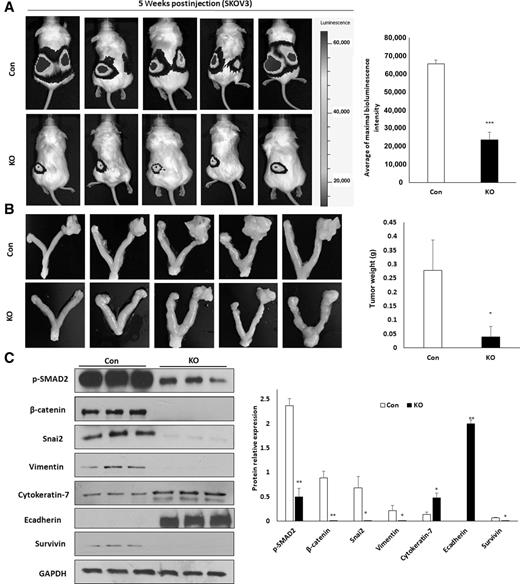

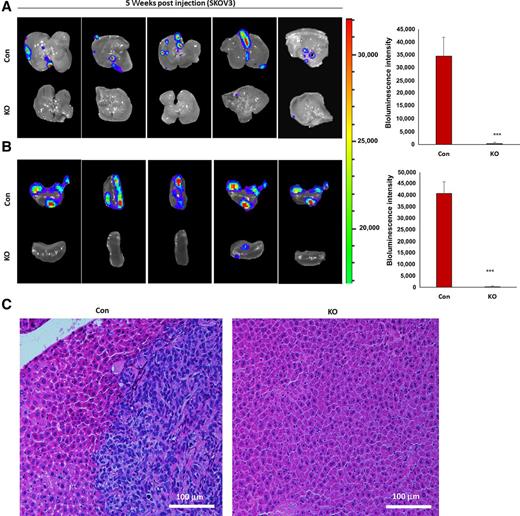

We previously reported that the disruption of survivin inhibited EMT in ovarian cancer cells by attenuating the TGFβ pathway (24), suggesting that survivin may contribute to ovarian tumor metastasis. To test this hypothesis, we first established a stable KO of survivin in the SKOV3 cell line with lentiviral CRISPR/Cas9 nickase vector as described previously (24). We then intrabursally injected 5 × 10⁵ ovarian cancer SKOV3-KO and control cells into 2-month-old immunodeficient NSG female mice. Tumor growth and metastasis were monitored weekly using live animal imaging. Mice xenografted with survivin-KO cells showed inhibition of primary tumor growth in ovaries (Fig. 1A). After 1 month, all mice xenografted with survivin-KO SKOV3 and control cells were sacrificed and tumors in ovaries were collected. Tumors were significantly smaller in mice injected with survivin-KO cells compared with the control cells (Fig. 1B). We examined EMT markers and pSMAD2 expression in primary ovarian tumors using Western blot analysis, and KO of survivin downregulated the mesenchymal marker including β-catenin, snai2 (snail2), and vimentin and pSMAD2 expression, and upregulated the epithelial marker cytokeratin-7 and Ecadherin (Fig. 1C). Tumor sections of mouse ovary were immunostained with survivin, vimentin, and cytokeratin-7 antibodies, and the results were consistent with the Western blots (Supplementary Fig. S1). We further examined multiple peritoneal organs and found that tumors mainly metastasized into the liver (Fig. 2A) and spleen (Fig. 2B) in mice injected with control cells. In contrast, mice injected with survivin-KO SKOV3 cells did not display detectable metastatic tumors in those organs. Tumors were observed in livers of mice injected with control cells, but not with survivin-KO cells as verified by hematoxylin and eosin (H & E) staining (Fig. 2C). Our results indicated that loss of survivin led to suppression of primary ovarian tumor growth and tumor metastasis by inhibiting EMT and attenuating TGFβ pathway in this orthotopic ovarian cancer mouse model.

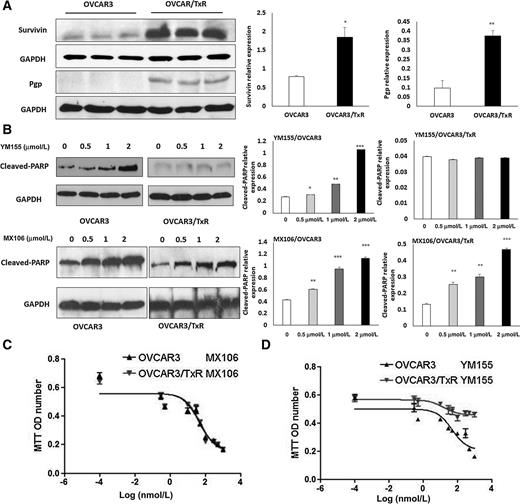

Tumor metastasis and chemoresistance are major issues for cancer therapy. KO of survivin significantly inhibited tumor metastasis by suppressing EMT in our orthotopic mouse model. To test whether survivin inhibition also overcomes ovarian cancer chemoresistance, we established a paclitaxel-resistant ovarian cancer cell line OVCAR3/TxR by selection in the presence of increased concentrations of paclitaxel. Western blot analyses indicated that both survivin and Pgp (a well-known marker for paclitaxel resistance; refs. 43–45) were significantly increased in OVCAR3/TxR as compared with parent OVCAR3 cells (Fig. 3A). To target survivin using a small-molecule inhibitor, we have designed and developed a novel inhibitor MX106 to selectively degrade survivin (42). MX106 treatment induced apoptosis in both OVCAR3 and OVCAR3/TxR cells, whereas YM155 only induced apoptosis in parent OVCAR3 cells as determined by detection of cleaved-PARP using Western blot analysis (Fig. 3B). We further determined the effects of survivin inhibitors on cell proliferation by treating both parent and drug-resistant OVCAR3/TxR cells for 24 hours with different doses of MX106 or YM155. We found that MX106 efficiently inhibits cell proliferation in both OVCAR3 and OVCAR3/TxR cells (Fig. 3C), whereas YM155 markedly inhibited the proliferation of OVCAR3 cells but not of OVCAR3/TxR cells (Fig. 3D).

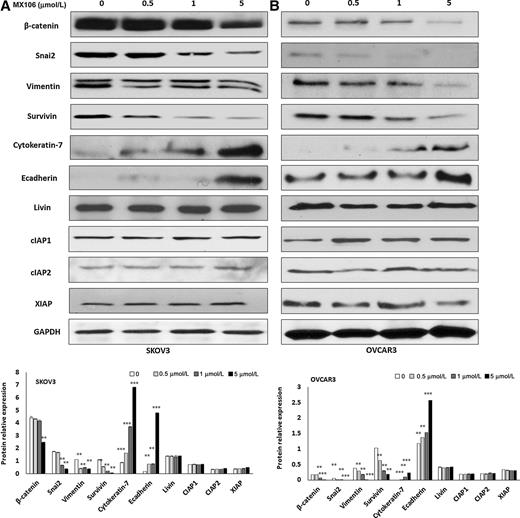

We previously reported that KO of survivin using CRISPR/Cas9 nickase-mediated editing resulted in the inhibition of EMT in ovarian cancer cells (24). To test whether MX106 inhibits EMT in ovarian cancer cells, we examined EMT marker gene expression in both SKOV3 and OVCAR3 cells after treatment with different doses of MX106. As shown in Fig. 4, MX106 inhibited survivin and mesenchymal markers and promoted epithelial marker in a dose-dependent manner. The epithelial cell marker cytokeratin-7 was upregulated and mesenchymal markers including vimentin, snai2, and β-catenin were downregulated in both SKOV3 and OVCAR3 cells following MX106 treatment for 24 hours (Fig. 4). To confirm the selective degradation of survivin as compared with other members of the IAP family, we also examined X-linked inhibitor of apoptosis protein (XIAP), cIAP1, cIAP2, and Livin expression using Western blot analysis. MX106 did not alter expression of other members of IAP family in either SKOV3 or OVCAR3 cells (Fig. 4). Our data indicate that the MX106 inhibits EMT by selectively degrading survivin in ovarian cancer cells.

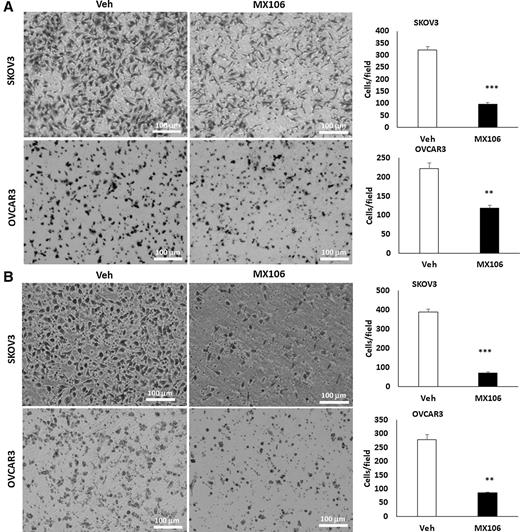

EMT promotes cell migration and invasion, and we found that MX106 inhibits EMT in ovarian cancer cells. We then examined whether MX106 inhibits ovarian cancer cell migration and invasion. SKOV3 and OVCAR3 cells were treated with 5 μmol/L MX106 for 4 hours and cell migration was assayed in transwell plates. MX106 significantly inhibited the migration in both SKOV3 and OVCAR3 cells following MX106 treatment (Fig. 5A) Cell invasion was also assessed using Matrigel-coated transwell plates. Following 5 μmol/L MX106 treatment for 4 hours in SKOV3 and OVCAR3 cells, MX106 was found to significantly inhibit invasion in both cell lines (Fig. 5B). To exclude the effect of apoptosis on cell migration and invasion, we treated both SKOV3 and OVCAR3 cells with 20 μmol/L caspase inhibitor Z-VAD for 2 hours followed by 5 μmol/L MX106 treatment for 4 hours and then performed cell migration and invasion (46). Similarly, we found that MX106 inhibited cell migration and invasion independent of cell apoptosis (Supplementary Fig. S2). To exclude cell toxicity induced by MX106, we also examined cell viability in the top chambers of transwell following cell migration and invasion. Cells treated with 5 μmol/L MX106 displayed similar viability to vehicle-treated cells (Supplementary Figs. S3 and S4). Our results demonstrated that MX106 effectively inhibits ovarian cancer cell migration and invasion.

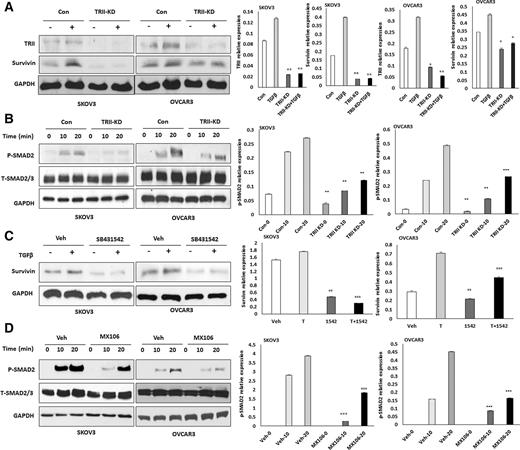

As showed in our previous study, KO of survivin attenuated the TGFβ signaling pathway in ovarian cancer cells (24). To determine the correlation between survivin and this pathway, we knocked down (KD) TGFβ receptor 2 (TGFβR2) using lentiviral CRISPR/Cas9 vector and then treated both control and TGFβR2-KD cells with 6 ng/mL TGFβ for 24 hours and examined survivin expression. Knockdown of TGFβR2 resulted in significant reduction of survivin in both SKOV3 and OVCAR3 cells, while TGFβ upregulated survivin expression (Fig. 6A). We examined the TGFβ pathway in both TGFβR2 KD and control SKOV3 and OVCAR3 cells by detecting p-SMAD2 and total SMAD2 expression following 6 ng/mL TGFβ treatment for different time points. We found that knockdown of TGFβR2 attenuated the TGFβ pathway (Fig. 6B). In addition to knocking down of TGFβR2 using lentiviral CRISPR/Cas9 nickase vector, we also inhibited TGFβ receptor 1/2 (TGFβR1/2) using its inhibitor SB431542 by pretreating wild-type SKOV3 and OVCAR3 cells with 20 μmol/L SB431542 for 24 hours, followed by 6 ng/mL TGFβ treatment for 24 hours. The TGFβR1/2 inhibitor suppressed survivin expression, while TGFβ upregulated survivin expression in both SKOV3 and OVCAR3 cells (Fig. 6C). We reported previously that KO of survivin attenuated TGFβ pathway (24). We further validated this finding by using luciferase reporter gene assay. KO of survivin significantly reduced SMAD2/3/4 transcriptional activity in both SKOV3 and OVCAR3 ovarian cancer cells (Supplementary Fig. S5A). We examined whether MX106 also attenuates TGFβ pathway by treating both SKOV3 and OVCAR3 cells with 5 μmol/L MX106 and then treating with 6 ng/mL TGFβ for different time points. We also determined reporter gene luciferase activity following MX106 and TGFβ treatment, and found that MX106 significantly inhibited SMAD2/3/4 transcriptional activity in both SKOV3 and OVCAR3 cells (Supplementary Fig. S5B). In addition, we examined non-SMAD pathway by detecting phospho-ERK1/2 and AKT following 5 μmol/L MX106 and 6 ng/mL TGFβ treatment in both SKOV3 and OVCAR3 cells (Supplementary Fig. S6). We found that MX106 attenuated p-SMAD2 in both SKOV3 and OVCAR3 cells using Western blot analysis (Fig. 6D). Our data indicated that survivin associates with TGFβ pathway, and inhibition of survivin using MX106 attenuates SMAD-dependent TGFβ pathway in ovarian cancer cells.

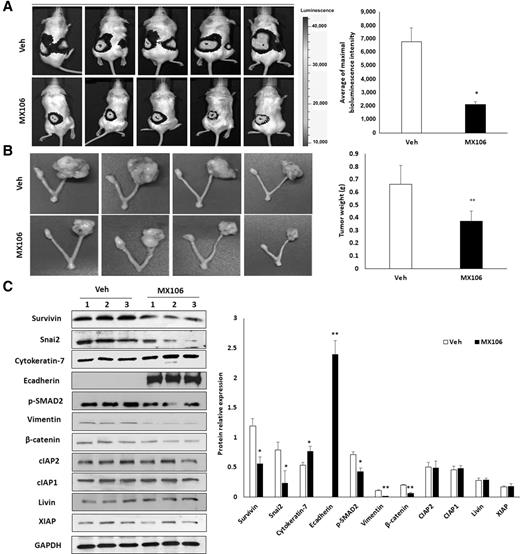

KO of survivin inhibits primary tumor growth in ovaries and tumor metastasis in multiple peritoneal organs (Figs. 1 and 2). To test whether MX106 suppresses ovarian tumor metastasis by inhibiting survivin, we examined the efficacy of MX106 using an orthotopic ovarian cancer mouse model by intrabursally injecting SKOV3-Luc2 cells into 2-month-old immunodeficient NSG female mice and then treating the mice with MX106 daily through intraperitoneal injection for 4 weeks. Tumor growth and metastasis were monitored using live animal imaging, and ovarian tumor metastasis was observed approximately 2 weeks after cell injection. At 5 weeks following cell injection, tumors were dissected at necropsy. Primary tumors in ovaries were significantly reduced in MX106-treated mice compared with vehicle control (Fig. 7A and B). We also examined survivin, other members of IAP family, and EMT markers from primary ovarian tumors using Western blot analysis. The epithelial markers cytokeratin-7 and Ecadherin were upregulated, while survivin, p-SMAD2, and mesenchymal markers including β-catenin, vimentin, and snai2 were downregulated in mice treated with MX106 compared with vehicle-treated mice. In contrast, expression of other members in IAP family was unaffected, indicating that MX106 inhibits EMT by selectively degrading survivin and attenuating the TGFβ pathway in vivo (Fig. 7C). To further assess the efficacy of MX106, we also examined its effect on apoptosis by detecting cleaved-caspase3 in ovarian tumors by immunostaining and Western blotting. Strong staining for cleaved-caspase3 was observed in cell nuclei from ovarian tumor sections in MX106-treated mice but not in vehicle-treated mice (Fig. 8A). Similarly, cleaved-caspase3 expression was significantly induced in ovarian tumor following MX106 treatment compared with vehicle-treated mice (Fig. 8B). The ovarian tumor sections were also immunostained for the cell proliferation marker proliferating cell nuclear antigen, survivin, vimentin, and cytokeratin-7. MX106 inhibited EMT by upregulating cytokeratin-7 and downregulating vimentin and survivin (Supplementary Fig. S7). Tumors were found to metastasize into multiple peritoneal organs including the liver in vehicle-treated mice but not in MX106-treated mice as shown in H&E–stained sections (Fig. 8C), which is consistent with what was observed in survivin-KO mice (Supplementary Fig. S1). Our data indicated that MX106 significantly suppresses primary ovarian tumor growth and metastasis by inhibiting EMT and attenuating TGFβ pathway in an orthotopic ovarian cancer mouse model.

On the basis of the expression of survivin in ovarian cancer, survivin is a potential biomarker for diagnosis and prognosis in ovarian cancer, and also a potential drug target for therapy. In particular, we reported previously that survivin promoted EMT in ovarian cancer cells (24), suggesting a role in ovarian tumor metastasis and chemoresistance. In this study we have demonstrated that KO of survivin using lentiviral CRISPR/Cas9 nickase vector suppresses primary tumor growth in ovaries, as well as peritoneal metastasis in an orthotopic ovarian cancer mouse model xenografted with survivin-KO and control SKOV3 cell line (Figs. 1 and 2). Although SKOV3 cell line is not a high grade serous carcinoma, (47) it is still the most frequently used ovarian carcinoma cell line due to its aggressive properties in inducing ovarian tumor metastasis in mouse models (48, 49) In addition, survivin expression is higher than that in OVCAR3 cells. Therefore, we selected SKOV3 cell line to investigate ovarian tumor metastasis in this study. Our studies using this in vivo orthotopic ovarian cancer mouse model indicate that survivin indeed contributes to ovarian tumor metastasis by promoting EMT in vivo. Furthermore, mice injected with survivin-KO cells displayed reduced p-SMAD2 in ovarian tumors as compared with control mice. For the first time we showed that loss of survivin inhibited primary ovarian tumor growth and metastasis by attenuating the TGFβ pathway. Our study provided experimental evidence that survivin is an EMT-associated drug target for ovarian cancer therapy.

Although survivin as a therapeutic target for cancer has been studied over a decade, only a few small-molecule inhibitors of survivin have been developed. For example, YM155 was in clinical trials for several different cancers, but was found to be ineffective in lung cancer (50), lymphoma (51), and rectal cancer (52), and had only modest activity in castration-resistant taxane-pretreated prostate cancer (53). YM155 was developed in screening for inhibitors of the promoter activity of survivin, but was found not to directly bind survivin. In contrast, MX106 was developed on the basis of its direct interaction with survivin, and selectively targets and degrades survivin. We found that MX106 inhibited ovarian cancer cell migration and invasion. Moreover, MX106 overcame chemoresistance in OVCAR3/TxR paclitaxel-resistant ovarian cancer cells, and induced ovarian cancer cell apoptosis and inhibited cell proliferation. In contrast, YM155 had no effect in OVCAR3/TxR drug-resistant ovarian cancer cells (Fig. 3). However, YM155 increased the toxicity of chemotherapy drugs if Pgp transport was inhibited in glioma (54). We further tested the efficacy of MX106 using orthotopic ovarian cancer mouse models and MX106 effectively inhibited primary tumor growth in ovaries and metastasis in peritoneal organs (Fig. 8). We found that MX106 mimics the phenotype of survivin KO in ovarian cancer cells and orthotopic ovarian cancer mouse models by degrading survivin and inhibiting EMT (Fig. 4). Taken together, our data indicate that MX106 functionally inhibits ovarian tumor metastasis and overcomes chemoresistance by reversing EMT.

Our previous and current studies indicate that KO or inhibition of survivin suppresses EMT in ovarian cancer cells in vitro or orthotopic ovarian cancer mouse model in vivo. Although multiple signaling pathways are involved in EMT regulation, we identified that survivin regulates EMT through its association with the TGFβ pathway in ovarian cancer cells. Genetic KO of survivin or pharmacologic inhibition of survivin attenuates TGFβ pathway as evidenced by reduced p-SMAD2 in ovarian cancer cells in vitro and orthotopic ovarian cancer mouse model in vivo. Our previous work showed that TGFβ promotes EMT in ovarian cancer cells (55). Therefore, we hypothesized that survivin promotes EMT by activating the TGFβ pathway. However, it is unclear how survivin affects the TGFβ pathway in regulating EMT in ovarian cancer cells. XIAP, a member of the IAP family, directly interacts with TGFβR1 through its baculovirus IAP repeat (BIR) domain (56). It is possible that survivin as another IAP family member interacts with TGFβR1/2 through its BIR domain, thus regulating TGFβ pathway in ovarian cancer cells.

To define the interaction between survivin and TGFβ pathway, we knocked down TGFβR2 in SKOV3 and OVCAR3 ovarian cancer cells. Survivin levels were significantly reduced in TGFβR2-KD cells as compared with control cells, indicating the interplay between survivin and TGFβ pathway in ovarian cancer cells. It was reported previously that SMAD3/4 promoted survivin expression through transcriptional regulation (57). Therefore, it is possible that survivin may interact with SMAD3/4 complex to form a positive feedback loop, thus regulating TGFβ pathway in ovarian cancer cells. However, further investigation is required to determine whether the BIR domain of survivin or interaction with SMAD3/4 complex is responsible for this interaction in ovarian cancer cells.

In conclusion, we demonstrated that survivin contributes to primary ovarian tumor growth and metastasis and chemoresistance by promoting EMT through activation of the TGFβ pathway in ovarian cancer. Survivin is a therapeutic drug target for ovarian cancer. MX106 as a selective degrader of survivin inhibited survivin expression but had no effect on other members of IAP family. Compared with YM155, MX106 overcomes chemoresistance and suppresses primary ovarian tumor growth and metastasis by inhibiting EMT through attenuating the TGFβ pathway, which provides a new approach for ovarian cancer therapy by targeting survivin.
