Metastatic breast cancer is developed in about 20% to 30% of newly diagnosed patients with early-stage breast cancer despite treatments. Herein, we report a novel nanoparticle platform with intrinsic antimetastatic properties for the targeted delivery of Polo-like kinase 1 siRNA (siPLK1). We first evaluated it in a triple-negative breast cancer (TNBC) model, which shows high metastatic potential. PLK1 was identified as the top therapeutic target for TNBC cells and tumor-initiating cells in a kinome-wide screen. The platform consists of a 50-nm mesoporous silica nanoparticle (MSNP) core coated layer-by-layer with bioreducible cross-linked PEI and PEG polymers, conjugated with an antibody for selective uptake into cancer cells. siRNA is loaded last and fully protected under the PEG layer from blood enzymatic degradation. The material has net neutral charge and low nonspecific cytotoxicity. We have also shown for the first time that the MSNP itself inhibited cancer migration and invasion in TNBC cells owing to its ROS- and NOX4-modulating properties. In vivo, siPLK1 nanoconstructs (six doses of 0.5 mg/kg) knocked down about 80% of human PLK1 mRNA expression in metastatic breast cancer cells residing in mouse lungs and reduced tumor incidence and burden in lungs and other organs of an experimental metastasis mouse model. Long-term treatment significantly delayed the onset of death in mice and improved the overall survival. The platform capable of simultaneously inhibiting the proliferative and metastatic hallmarks of cancer progression is unique and has great therapeutic potential to also target other metastatic cancers beyond TNBC. Mol Cancer Ther; 16(4); 763–72. ©2017 AACR.
About 1.7 million new cases of breast cancer were diagnosed worldwide in 2012 (1), and around 250,000 more are expected to be diagnosed in the United States in 2016 (2). About 20% to 30% of newly diagnosed patients with early-stage breast cancer will develop distant metastasis despite the treatments. There is no effective treatment for metastatic cancer so far, current treatment focuses on slowing disease progression and maintaining the quality of life. Targeted delivery of siRNAs by nanoparticles holds great promise for cancer treatment, as siRNA can target any gene deemed important to cancer progression, metastasis, and drug resistance with high specificity (3). To that end, we have recently developed and optimized a polymer-coated mesoporous silica nanoparticles (MSNP) for siRNA delivery to treat trastuzumab-resistant HER2+ breast tumors (4). The platform consists of a 50-nm MSNP core coated layer-by-layer with bioreducible cross-linked 10-kDa polyethyleneimine (PEI) for effective siRNA binding and endosomal escape and polyethylene glycol (PEG) for preventing nanoparticle aggregation, minimizing enzyme degradation of siRNAs, shielding the toxic effect of PEI, and reducing recognition by the immune system. In addition, a targeting antibody can be attached to the PEG layer to serve as a homing agent on the nanoparticle. The siRNA is then loaded last onto the nanoparticle, passing the PEG layer (due to small size) and binding to the PEI layer due to charge preference (See Supplementary Fig. S1).
Herein, we report for the first time that the same platform can act as a targeted siRNA delivery system to metastatic breast tumors. For the siRNA target, we chose polo-like kinase 1 (PLK1), which is involved in cell division and DNA damage response and is found in actively dividing cancer cells (5). PLK1 was identified as a promising therapeutic target for cancer treatment (6). There is strong association between elevated PLK1 levels in breast tumors and poor clinical outcome (7). Moreover, a recent genome-wide kinase screen also identified PLK1 as the strongest kinase target as demonstrated by significant cell death in both cancer and tumor-initiating cells (TIC) in triple-negative breast cancer (TNBC) when either knocked down or inhibited (8). PLK1 inhibitor, BI2536, had reached clinical trials but was terminated because of poor therapeutic index, as the systemic delivery of PLK1 inhibitors was associated with increased incidence neutropenia and thrombocytopenia (9). In addition, PLK1 inhibitors (e.g., BI2536, BI6727, GSK461364) can also inhibit other PLK family members PLK2 and PLK3, which may lead to unwanted off-target effects (10). In contrast, siRNA can be designed to target only PLK1 and thus have less toxicity to non-cancer cells than BI2536 (11). An siRNA against PLK1 (TKM-080301) has been in phase I/II trials by Arbutus Biopharma, but the delivery platform has no targeting agent and is lipid-based that is homing for liver. When used to treat liver tumors, stable disease in 51% of 43 patients was reported (12) but with a narrow therapeutic window due to toxicity (0.6–0.75 mg/kg; ref. 13). We hypothesize that siRNA sequence specificity and the delivery specificity will improve both efficacy and safety.
Another unique and important feature about our platform is the inherent antioxidant activity of the mesoporous silica core. This antioxidant capability is shown herein to have pronounced effects in inhibiting epithelial-to-mesenchymal transition (EMT) and cellular invasion in vitro. ROS plays an important role in cancer metastasis (14). ROS-generating NOX4 is crucial in redox-mediated signaling pathways, including Tks5-dependent invadopodia formation (15), TGF-β/SMAD3-driven EMT and cell migration (16), and PI3K/Akt-regulated cell proliferation and invasion (17). Reduction of ROS using an antioxidant, such as N-acetylcysteine (NAC), or the NOX inhibitor, diphenyleneiodonium (DPI), successfully decreased cancer invasion and invadopodia formation (15). Nevertheless, these agents are not used in clinics for such purposes due to the inability to achieve sufficient cellular NAC levels based on the current prescribed dose (18) and the challenge of getting specificity to particular NOX isoforms (19). Thus, a material that can scavenge ROS at cellular levels can offer an effective therapy for metastatic breast cancer. Of the 162 investigational new drugs (IND) in clinical trials for treating metastatic breast cancer, only one targets the cancers' ability to activate invasion and metastasis (a TGF-β inhibitor) and most target cancers' sustaining proliferative signaling (20). Our material is uniquely targeting both cancer hallmarks, making it highly novel.
Materials and Methods
Synthesis and characterization of nanoparticles and siRNA loading
MSNPs of 50 nm in size were synthesized and surface-modified as in our previous report (4). MSNP cores were measured for primary (dry) size by a Transmission Electron Microscope (Philips/FEI Tecnai TEM). After chemical modifications, the material was measured for hydrodynamic size in PBS (pH 7.2) with a Zetasizer (Malvern). PEI and PEG loadings were quantified by a thermogravimetric analyzer (TGA Q50, TA Instruments). siRNA loading was accomplished with 10-minute mixing in PBS. The siRNA loading was quantified by fluorescence detection of dye-tagged siRNA as well as gel electrophoresis. The material contained 14 wt% 10-kDa PEI, 18 wt% 5-kDa PEG, 3 wt% antibody or no antibody, and 2 wt% siRNA. It is referred to as T-siRNA-NP with trastuzumab (T) antibody or siRNA-NP without (4). The particle size in PBS was 104 ± 1.7 nm and the charge decreased from 13.3 ± 0.70 mV to 8.10 ± 0.25 mV once loaded with siRNA (measured in 10 mmol/L NaCl), which falls within neutral range as defined by Nanotechnology Characterization laboratory of NCI (21). Schematic illustration of the nanoconstruct can be found in Supplementary Fig. S1.
Cell culture and transfection
Human breast carcinoma cell lines, BT549 and MDA-MB-231, were obtained from ATCC and maintained in RPMI with 10% FBS. LM2-4luc+/H2N (22) was a gift from Prof. Robert Kerbel (University of Toronto, Toronto, ON, Canada) and Prof. Giulio Francia (now at University of Texas at El Paso, El Paso, TX) and maintained in RPMI + 5% FBS. BT549 and MDA-MB-231 were authenticated by genotyping at the Sequencing Core of Oregon Health and Science University (OHSU; Portland, OR) and both matched genotypes available from ATCC. LM2-4luc+/H2N, a derived cell line as described in ref. 22, was used as received and not authenticated in our laboratory. For nanoparticle transfection (loaded with siSCR or siPLK1), cells (3,000 cells per well in 96-well plates or 200,000 cells in 6-well plates) were seeded overnight in complete medium and transfected with nanoparticle for 24 hours. The cells were washed once with PBS on the next day and incubated in a fresh cell media for 24 to 72 hours posttreatment depending on the type of the assays. Positive controls were carried out using DharmaFECT-1 transfection reagent (GE Dharmacon) diluted in OptiMEM medium (ThermoFisher Scientific). Unless stated otherwise, all experiments were performed with nanoparticle-to-siRNA mass ratio of 50 and 50 nmol/L siRNA throughout the study.
Four different PLK1 siRNA sequences were purchased from Qiagen (cat. #1027416) for siRNA screening in the LM2-4luc+/H2N cell line. The in vivo grade siRNA was custom made by GE Dharmacon based on the sequence identified to yield the highest PLK1 gene knockdown and cell death in LM2-4luc+/H2N cells (see Supplementary Fig. S2). The siRNA sequences were as follows: optimal PLK1 (antisense 5′-UAUUCAUUCUUCUUGAUCCGG-3′); scrambled SCR (antisense 5′-UUAGUCGACAUGUAAACCA-3′). DY677-siSCR was custom made with DyLight 677 attached to the sense strand of the siSCR (GE Dharmacon).
The experimental protocol was approved by the Institutional Animal Care and Use Committee (IACUC) of OHSU. Six- to 8-week old SCID hairless SHO (Crl:SHO-PrkdcscidHrhr, Charles River) mice received intravenous tail vein injections of 2 × 106 LM2-4luc+/H2N cells (suspended in 200 μL PBS) and were allowed to establish metastasis in lungs for 2 weeks before initiating the treatments. For both studies (short-term and long-term), all mice were randomly divided into 3 treatment groups (n = 8/group): saline control, T-siSCR-NP (0.5 mg/kg siSCR), and T-siPLK1-NP (0.5 mg/kg siPLK1), with a dosing schedule of twice weekly by intravenous injection (Fig. 4A). IVIS imaging was done once weekly starting from 1 week postinoculation, following the protocol established by Caliper Life Sciences. Briefly, each animal received intraperitoneal injection of 150 mg/kg of d-luciferin (Gold Bio Technology, Inc.) in 200 μL PBS, 10 minutes before imaging with IVIS spectrum Imaging system on prone and supine positions. The average photon flux (of prone and supine positions) for each mouse was quantified within the same area of interest in the thoracic region of each mouse. The flux was plotted as average fold change (relative to the pretreatment signals of each mouse) as a function of time. Body weight was measured twice weekly. For the short-term in vivo study, all animals were sacrificed 2 days after receiving the sixth dose of treatment, and their major organs (brain, heart, lung, liver, spleen, kidney, lymph nodes, and spine) were harvested and immersed in 300 μg/mL of d-luciferin (in PBS) in a 24-well plate for 5 minutes before ex vivo IVIS imaging and signal quantification. Organs with detectable IVIS signals compared with negative controls (i.e., the same organs from mice without tumor inoculation) were considered positive for the presence of cancer and included in “incidence rate.” The tumor burden was calculated as the sum of all signals from each respective tumor-bearing organ.
For the long-term in vivo study, animals (8 animals per group) received the same dose and treatment schedule as the short-term study but the study was extended to 2 months. Mice were monitored daily for signs of illness (hind limb paralysis from suspected spine metastasis), excessive weight loss (>10% body weight loss compared with the preinoculation weight), visible tumors (from lymph nodes, with size > 1,500 mm3), or labored breathing from lung metastasis and were euthanized in accordance with IACUC ethical guidelines. All major organs were collected, weighed, and fixed for histologic analyses.
Lung metastasis quantification
The lung tissues from each mouse were collected and fixed in 4% paraformaldehyde and snap-frozen in optimal cutting temperature (OCT) compound (#4583, Tissue-Tek) before processing. Tissue sections (6-μm thick) were stained with hematoxylin and eosin (H&E). To assess the metastatic area, 10 sections of the entire lung at 160 μm apart were scanned using ScanScope XT Digital Slide Scanner (Aperio), and the area of each metastatic lesion was measured relative to the total lung area.
For determination of the tumor burden and human PLK1 mRNA expression in mouse lungs, lung tissue from each mouse was homogenized and lysed in RLT buffer using QIA-shredder columns (Qiagen), and the RNA was isolated using RNeasy Mini kit (Qiagen) following the manufacturer's protocol. RT-PCR (100 ng RNA per sample per reaction) was performed to identify the ratio of human HPRT mRNA (Hs99999909_m1) relative to mouse HPRT mRNA (Mm03024075_m1) for tumor burden or human PLK1 mRNA (Hs00983225_g1) relative to human HPRT mRNA to assess PLK1 gene knockdown as a result of the treatments.
In vitro experiments were performed in triplicates (experimentally and analytically), and the results were presented as mean ± SD. In vivo experimental data were presented as mean ± SEM. Comparisons of all groups at a single time point were performed after testing for D'Agostino–Pearson omnibus normality tests (GraphPad Prism 6.0). Comparisons of 2 groups were performed either with Student t tests (for normal distribution) or Mann–Whitney test (for nonparametric test, unpaired groups). For comparisons of more than 3 groups, statistical analysis was done either with one-way ANOVA with post-hoc Dunnett multiple comparison tests (for normal distribution) or Kruskal–Wallis nonparametric test with post-hoc Dunnett multiple comparison tests (for non-normal distribution). Two-way ANOVA followed by post-hoc Tukey multiple comparison tests was performed to analyze the treatment effects over time in the photon flux measurement of the in vivo study. Survival curves were analyzed using Kaplan–Meier and its multiple comparison tests were analyzed using log-rank test methods with adjusted alpha by Bonferroni correction. GraphPad Prism 6.0 software (GraphPad Software Inc.) was utilized for all statistical analyses. P < 0.05 was considered to be statistically significant.
Detailed procedures of intracellular ROS assay, cell viability assay, in vitro scratch assay, gelatin degradation, Matrigel invasion assay, 3D culture, qPCR, Western blotting, and histology can be found in the Supplementary Methods.
PLK1 knockdown efficacy and resultant apoptotic cell death
We chose TNBC cell lines for the in vitro studies due to their high metastatic potential. To investigate the silencing efficacy of siPLK1-NP in vitro, we treated BT549, MDA-MB-231, and LM2-4luc+/H2N (HER2-expressing MDA-MB-231 metastatic variant; ref. 22) cell lines with siPLK1-NP (without targeting agent) and measured the mRNA and protein expressions 24 and 48 hours posttreatment, respectively. As shown in Fig. 1A and B, siPLK1-NP efficiently reduced the PLK1 mRNA by 69% to 87% and protein expressions by 64% to 91% in the 3 cell lines compared with the untreated control. Consequently, the siPLK1-NP treatment induced significant loss of cell viability measured at 3 days (Fig. 1C). We also confirmed that the siPLK1-NP treatment caused G2–M cell-cycle arrest at 24 hours posttreatment similar to the PLK1 inhibitor BI-2536 (Fig. 1D). On the contrary, nontargeting siSCR-NP did not cause any significant reduction in the PLK1 expression (Fig. 1A and B), was not toxic to the cells (∼80% cell viability, Fig. 1C), and did not alter cell-cycle arrest compared with the untreated (Fig. 1D). These results demonstrate that the nanoparticle is well tolerated and can effectively deliver siPLK1 intracellularly, leading to apoptotic death of the TNBC cell lines.
Antioxidant and NOX4 reduction properties of nanoparticle in TNBC cell lines
From our recent report (23), the MSNP core of our nanoparticle had ROS-scavenging and NOX4 reduction ability in TGF-β–stimulated dermal fibroblast cells, yielding greater anti-fibrotic properties (e.g., reducing COLI and α-SMA) than observed with NAC treatment. Herein, we investigated the antioxidant effects of nanoparticle treatment on breast cancer cells. We included siSCR on the nanoparticle treatment to maintain similar size and charge of the nanoconstruct (and hence cellular uptake) as those of the siPLK1-NP. This siSCR does not have any significant sequence homology to known human or mouse genes. The ROS levels of all 3 TNBC cell lines were significantly higher (by 2- to 8-fold) than the nontumorigenic breast epithelial cells line, MCF10A (Supplementary Fig. S3A and S3B). Pretreatment of the breast cancer cell lines with siSCR-NP prior to ROS stimulation by menadione lowered the ROS levels by 60% to 84% compared with the menadione alone (Fig. 2A). The nanoparticle performed in a similar manner as the antioxidant NAC and NADPH oxidase (NOX) inhibitor DPI. Because NOX is a major source of ROS production, we measured the mRNA levels of NOX family members in the TNBC cell lines versus those in the nontumorigenic breast epithelial cell line, MCF10A. Of the 4 NOX family members tested, NOX4 mRNA levels were significantly higher (than NOX1, NOX3, and NOX5) for all the TNBC cell lines compared with MCF10A (Supplementary Fig. S3C). In addition to its high level, NOX4 (and ROS) has been shown to play very important roles in cancer invasion and metastasis via invadopodia formation (15), thus we further focused on NOX4. Treatment of siSCR-NP for 24 hours was able to significantly reduce NOX4 mRNA in the TNBC cell lines by 37% to 56% compared with the untreated cells (Fig. 2B), similar to NAC and DPI. Interestingly, in terms of NOX4 protein reduction, siSCR-NP lowered NOX4 expression better than NAC and DPI after 72-hour treatment (Fig. 2C), suggesting that nanoparticle may have more sustainable effect than NAC and DPI. Taken together, these results proved that nanoparticle, indeed, possessed ROS-scavenging ability. The ability of nanoparticle to reduce NOX4 expression upon ROS scavenging also indicates a positive feedback loop between ROS and NOX4. Interestingly, the nanoparticle did not significantly reduce the ROS level of the MCF10A (Supplementary Fig. S3D) likely due to the low baseline level of ROS and NOX4 in this cell line compared with the 3 TNBC cell lines (Supplementary Fig. S3A–S3C).
Nanoparticle treatment inhibits cellular migration and invasion and attenuates outgrowth of 3D organotypic cultures
Elevated levels of ROS have been known to promote cellular migration as well as invasion (24). To investigate the effects of nanoparticle treatment on cellular migration, we performed an in vitro scratch assay using the LM2-4luc+/H2N cell line. We used nanoparticle without trastuzumab (T) throughout the migration, invasion, and 3D growth studies to ensure that any observed effect was due to the nanoparticle itself and not trastuzumab. The cells were wounded (25) following a 24-hour pretreatment with siSCR- or siPLK1-NP. DharmaFECT commercial transfection reagent delivering both siRNAs was also used as controls. We monitored wound closure at 24 hours and reported it as the percentage of wound recovery relative to the wound size at t = 0 hour. Figure 3A shows the representative wound recovery images, and Fig. 3B shows the quantification. Cells treated with siSCR-NP and siPLK1-NP displayed the least wound recovery indicating slowest cell migration compared with the untreated control and DharmaFECT counterparts. This was not due to the siSCR or siPLK1, as when delivered with DharmaFECT, they showed no inhibitory effect on cell migration. Moreover, we delivered nanoparticle loaded with fluorescently labeled siRNA, DyLight 677 (DY677siSCR-NP) to ensure that the effect was attributed to the intracellular presence of NP and not a physical hindrance at the wound border (Fig. 3A).
Next, we investigated the ability of nanoparticle to migrate through the extracellular matrix (ECM) by forming the actin-rich protrusions known as invadopodia. Specifically, we cultured cells that were pretreated with siSCR-NP or DPI on thin fluorescent gel matrices for 24 hours and measured the area of gelatin degradation. Higher gelatin degradation indicates higher invadopodia formation which correlates to the cellular invasive potential. As shown in Fig. 3C and D, siSCR-NP treatment reduced gelatin degradation activity by about 42% compared with the untreated groups, indicating reduction of invadopodia formation by the nanoparticle. The effect is on par with DPI treatment (∼46%). To confirm our finding, we also measured the invasive capacity of the cells in a Matrigel-coated Boyden chamber assay. Nanoparticle treatment markedly reduced the invasiveness of the cells by about 65%, in a similar manner as DPI (∼60%), as compared with the untreated control (Fig. 3E). Only the high dose of NAC (30 mmol/L) produced inhibitory effects on the invasiveness of the cells in the same par with nanoparticle and DPI. This is in agreement with previous report demonstrating that only a high NAC dose (20–40 mmol/L) was able to reduce cancer cell invasion (15). Conversely, the observed increase in invaded cells at the low dose of NAC (2–5 mmol/L, Fig. 3E) is also in line with another observation (26), showing that low levels of NAC increased cancer metastasis potential in vivo. However, high levels of NAC are not achievable in blood (not even 10 mmol/L), based on the current prescribed dose of NAC (18). Thus, our antioxidant nanoparticle has a clear advantage over NAC. Specifically, much less dose of nanoparticle required to achieve the same effect as NAC may be attributed to extremely large scavenging sites (from large surface area of the MSNP, ∼500 m2/g).
To study the effects of nanoparticle treatment in a 3D environment, we seeded cells (pretreated with DY677siSCR-NP) on Matrigel-coated plates and observed the cell phenotypes from day 1 to 5 post-seeding. LM2-4luc+/H2N cells grown in 3D culture exhibited stellate structures (Fig. 3F), which is typical for highly invasive cells such as its parental MDA-MB-231 cell line (27). However, treatment with siSCR-NP inhibited the invasive growth patterns of these cells, resulting in more rounded spheroid structures. To ensure that nanoparticle was still present within the cells, we also imaged the cells in the fluorescence channel (for viewing DY677siSCR-NP) up to 5 days post-seeding on Matrigel (Fig. 3F). These experiments demonstrate that nanoparticle treatment effectively reduced cellular migration and invasiveness of a highly invasive breast cancer cell line in vitro.
Ability of T-NP to deliver siRNAs and elicit therapeutic effects in a mouse model of metastasis
A breast cancer metastasis model was established upon tail vein injection of LM2-4luc+/H2N cells (from Dr. Robert Kerbel's laboratory. University of Toronto), a highly metastatic variant of MDA-MB-231 (TNBC) which was isolated from lung metastasis in mice (28) and has been shown to develop metastasis in multiple organs (29). This cell line was later engineered to express luciferase and HER2 genes (22). We found siPLK1 to be highly effective in killing this cell line (see Fig. 1). Despite overexpressing HER2, we found that this cell line behaved like its parental MDA-MB-231 cell in that it did not respond to trastuzumab (0–30 μg/mL) as a free drug or when conjugated to the NP (T-NP) in vitro (Supplementary Fig. S4). Nevertheless, the HER2 protein can serve as the homing target receptor to facilitate targeted delivery of siPLK1 utilizing the nanoparticle conjugated with trastuzumab (T-NP). The cellular uptake specificity of T-NP to HER2+ cells over HER2− cells has been previously reported (4). In mice, tumors were allowed to establish for 2 weeks until luciferase signals were detected in lungs by IVIS (Fig. 4B), followed by twice weekly tail vein injections of T-siPLK1-NP for both the short- and long-term studies. Dosing and schedule are shown in Fig. 4A (frequency optimization as described in Supplementary Methods). After a total of 6 doses treatment (0.5 mg/kg siRNA per injection per mouse), T-siPLK1-NP exhibited significantly reduced tumor burden in the lungs compared with the saline and T-siSCR-NP groups (Fig. 4C). This was also reflected in the constant body weight of the animals treated with T-siPLK1-NP, whereas those treated with saline and T-siSCR-NP experienced weight loss likely due to advanced cancer metastases (Fig. 4D). At 2 days after the last dose, the study was concluded, and the organs from each mouse were imaged ex vivo with IVIS (Supplementary Fig. S5C). Tumor incidence rates (organs with positive IVIS signals relative to the respective organs of normal mice) as well as tumor burden (photon flux relative to the respective organs of normal mice) are presented in Table 1. Tumors were detected in fewer organs with the T-siSCR-NP treatment (vs. untreated) and in fewest organs with T-siPLK1-NP treatment (Table 1). H&E-stained and immunofluorescent tissue images are shown in Supplementary Fig. S6. The data suggest a reduction in cancer metastatic potential to distant sites by the T-NP (with just siSCR), which is consistent with our in vitro data in Fig. 3, whereas siPLK1 on the nanoparticle inhibited cancer growth.
|Group .||Parameter .||Brain .||Lung .||Liver .||Spleen .||Kidney .||Lymph nodes .||Spine .||Total tumor signal .||Ratio over saline .|
|Group .||Parameter .||Brain .||Lung .||Liver .||Spleen .||Kidney .||Lymph nodes .||Spine .||Total tumor signal .||Ratio over saline .|
NOTE: The tumor signal in each organ is reported as fold change over the signal from the same organ of normal mice (n = 4 for normal mice, n = 8 mice per treatment group). Dose and schedule as shown in Fig. 4A.
T-siPLK1-NP impedes tumor proliferation and promotes cancer apoptosis in the lungs
In addition to metastasis incidence rate and tumor burden, we carefully characterized the cancer in lungs of mice to confirm the treatment efficacy of T-siPLK1-NP. T-siPLK1-NP treatment significantly reduced the tumor lesion area (by H&E, which was confirmed by human vimentin staining) in lungs by 91% and 89% compared with the saline and T-siSCR-NP groups, respectively (Fig. 4E). The extent of human cancer in mouse lungs was also quantified by the relative levels of human HPRT (hHPRT) mRNA to mouse HPRT mRNA (mHPRT). In agreement with the histologic data, T-siPLK1-NP decreased hHPRT mRNA by 84% and 79% compared with the saline and T-siSCR-NP groups, respectively (Fig. 4F). Finally, we confirmed that the therapeutic effect was the direct result of RNAi by assessing the level of PLK1 knockdown. T-siPLK1-NP treatment effectively depleted PLK1 gene expression by 84% and 81% compared with the saline and T-siSCR-NP groups, respectively (Fig. 4G). Immunostaining for Ki-67 and cleaved caspase-3 also confirmed that T-siPLK-NP caused a significant reduction in overall proliferation (Fig. 4H) and an increase in apoptosis (Fig. 4I). Taken together, these experiments showed that our nanoparticle effectively delivered siPLK1 to metastatic tumors upon systemic delivery, which resulted in reduced tumor growth and increased cancer death.
Depletion of PLK1 by T-siPLK1-NP inhibits lung metastasis and prolongs overall survival in long-term in vivo study

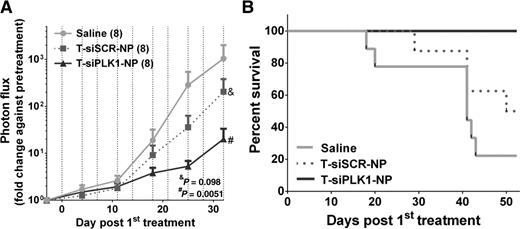

To investigate the long-term therapeutic effect of T-siPLK1-NP treatment, we conducted a long-term study in which mice received the same dosing schedule as the short-term study but extended the study to 2 months (see dashed lines in Fig. 5A for injection days). Tumor burden was monitored up to day 32 after first treatment where more than 80% of mice were still alive. As expected, T-siPLK1-NP significantly reduced tumor burden in the lungs as measured by 100-fold less of bioluminescence signal versus saline (Fig. 5A). Also, the T-siPLK1-NP treatment significantly prolonged the overall survival (Fig. 5B). In addition, upon sacrifice/death, we observed large axillary lymph node tumors (>1,200 mm3) in multiple mice from the saline and T-siSCR-NP groups (4 of 8 in each group), whereas only 1 of 8 mice in the T-siPLK1-NP group exhibited large lymph node tumors. T-siPLK1-NP treatment also yielded smaller lung lesions as compared with saline and T-siSCR-NP groups (Supplementary Fig. S7), which agrees with the results from the short-term study. In summary, treatment with T-siPLK1-NP elicits antimetastatic activity and extends overall survival in mice, which provides a novel potential therapeutic option for metastatic breast cancer disease.
Herein, we have shown for the first time that MSNPs can scavenge intracellular ROS, modulate NOX4 activity, and in turn inhibit cellular invasion and migration in breast cancer cells in vitro. The ROS-scavenging ability of MSNP is thought to be contributed by its extremely large surface area with protonated sites (from the acid reflux to remove surfactants during the MSNP synthesis). This intrinsic property of MSNP further promotes its use as a therapeutic delivery platform for cancer treatment. We believe this finding is impactful, as it may inspire new platforms that are not only passive carriers but also therapeutics. For human use, MSNP is more promising than other antioxidant nanoparticles (such as fullerene, platinum, cerium oxide) because MSNP is more benign and soluble at physiological pH to silicic acid for kidney clearance (30). Silicon (Si) is also the most abundant trace element in the human body after iron and zinc (31).
High-MW PEI (>20 kDa) is needed to form a dense siRNA-polyplex for good transfection efficacy (e.g., jetPEI, which underwent clinical trials (32)). We used smaller PEI (10 kDa) for less toxicity while enhancing efficacy by cross-linking the PEI layer. The cross-linking increased the buffering capacity (4) leading to greater endosomal escape of siRNA based on proton sponge effect principle (33). siRNA released from the PEI layer by displacement of heparan sulfate (similar size and charge with siRNA) and by reducing of the cross-linker by glutathione. The detailed mechanism will be reported in due course.
This nanotherapeutic (siRNA-nanoparticle) was effective in treating metastatic breast cancer by simultaneously reducing metastasis potential of cancer through the intrinsic antioxidant property of the nanoparticle and delivering siPLK1 to metastatic tumors to promote apoptosis in those tumors through PLK1 gene silencing mechanism. As previously discussed, PLK1 inhibitors have shown to impart adverse effects, and siPLK1 on lipid nanoparticles without a targeting agent only provided a narrow therapeutic window in clinical trials. The sequence specificity of siPLK1 combined with the tumor-targeting ability of our nanoparticle platform will potentially improve both efficacy and safety for treating metastatic breast cancer. The unique antioxidant features and the versatility of our nanoparticles will potentially be beneficial in the treatment of not only cancer but also other fibrotic diseases.
Disclosure of Potential Conflicts of Interest
OHSU, J. Morry, W. Ngamcherdtrakul, D.J. Castro, J.W. Gray, and W. Yantasee have a significant financial interest in PDX Pharmaceuticals, LLC, a company that may have a commercial interest in the results of this research and technology. This potential personal and institutional conflict of interest has been reviewed and managed by OHSU. No potential conflicts of interest were disclosed by the other authors.
Conception and design: J. Morry, W. Ngamcherdtrakul, J.W. Gray, W. Yantasee
Development of methodology: J. Morry, W. Ngamcherdtrakul, S. Gu, W. Yantasee
Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): J. Morry, W. Ngamcherdtrakul, S. Gu, M. Reda, T. Sangvanich
Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): J. Morry, S. Gu, J.W. Gray, W. Yantasee
Writing, review, and/or revision of the manuscript: J. Morry, W. Ngamcherdtrakul, M. Reda, D.J. Castro, J.W. Gray, W. Yantasee
Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): W. Ngamcherdtrakul, W. Yantasee
Study supervision: W. Yantasee
The authors are grateful to Prof. Sara Courtneidge of OHSU for independent reviewing of the data in this article and to Prof. Robert Kerbel at the University of Toronto and Dr. Giulio Francia at the University of Texas at El Paso for the generous gift of LM2-4luc+/H2N breast cancer cell line. We thank Dr. Shinji Iizuka for sharing his expertise on the gel degradation/invadopodia assays. We thank Tiera Liby in Gray's laboratory for TNBC cell lines. We also thank the Transgenic Core of Oregon Health and Science University (Dr. Lev Fedorov) for SCID hairless SHO mouse breeding.
This work was funded by NIH/NCI contract #HHSN261201300078C (W. Yantasee, W. Ngamcherdtrakul, D.J. Castro, J.W. Gray), the Prospect Creek Foundation (J.W. Gray, W. Yantasee), and OHSU's VPR fund (W. Yantasee).
The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
