Pancreatic ductal adenocarcinoma (PDAC) is the fourth leading cause of cancer-related mortality in the United States. Aggressive treatment regimens have not changed the disease course, and the median survival has just recently reached a year. Several mechanisms are proposed to play a role in PDAC therapeutic resistance, including hypoxia, which creates a more aggressive phenotype with increased metastatic potential and impaired therapeutic efficacy. AP Endonuclease-1/Redox Effector Factor 1 (APE1/Ref-1) is a multifunctional protein possessing a DNA repair function in base excision repair and the ability to reduce oxidized transcription factors, enabling them to bind to their DNA target sequences. APE1/Ref-1 regulates several transcription factors involved in survival mechanisms, tumor growth, and hypoxia signaling. Here, we explore the mechanisms underlying PDAC cell responses to hypoxia and modulation of APE1/Ref-1 redox signaling activity, which regulates the transcriptional activation of hypoxia-inducible factor 1 alpha (HIF1α). Carbonic anhydrase IX (CA9) is regulated by HIF1α and functions as a part of the cellular response to hypoxia to regulate intracellular pH, thereby promoting cell survival. We hypothesized that modulating APE1/Ref-1 function will block activation of downstream transcription factors, STAT3 and HIF1α, interfering with the hypoxia-induced gene expression. We demonstrate APE1/Ref-1 inhibition in patient-derived and established PDAC cells results in decreased HIF1α–mediated induction of CA9. Furthermore, an ex vivo three-dimensional tumor coculture model demonstrates dramatic enhancement of APE1/Ref-1–induced cell killing upon dual targeting of APE1/Ref-1 and CA9. Both APE1/Ref-1 and CA9 are under clinical development; therefore, these studies have the potential to direct novel PDAC therapeutic treatment. Mol Cancer Ther; 15(11); 2722–32. ©2016 AACR.
Pancreatic ductal adenocarcinoma (PDAC) continues to be the fourth leading cause of cancer-related mortality in the United States in both genders with a five-year survival rate of 5%–7% (1). Approximately 80% of patients present with advanced disease due to local invasion or metastatic disease (1, 2). Treatment options for this patient population are limited to palliative chemotherapy, and even the most aggressive treatment strategies fail to extend life beyond one year for most patients (1, 3). The disappointing result in pancreatic cancer may be explained by the complexity of this disease. Several mechanisms of resistance have been proposed to play a role in resistance to therapy. The presence of cancer-associated fibroblasts (CAF) as well as other cell types within a desmoplastic stroma, hypoperfusion of the tumor, hypoxia, multidrug resistance, and other mechanisms have been reported (4–6). Lack of clinical efficacy is due, at least in part, to the fibrosis that accompanies the disease. In the studies presented here, tumor–stroma effects were monitored as the importance of the stroma in PDAC is well established (7, 8). Targeting one pathway is very unlikely to alter the natural course of this disease. However, affecting critical survival mechanisms of this cancer is crucial to produce any positive results (9, 10).
Hypoxic conditions in pancreatic tumors are associated with poor prognosis. Oxygen deprivation leads to stabilization of hypoxia-inducible factor 1 alpha (HIF1α), a transcription factor that upregulates a variety of factors that contribute to increased drug resistance, proliferation, and migration/invasion in tumor cells (11–13). HIF-1 transcriptional activity depends on stabilization of its α subunit, which is targeted for degradation under normoxic conditions by proline hydroxylation and subsequent von Hippel-Lindau protein (VHL)-mediated ubiquitination. Stable HIF1α dimerizes with the constitutively expressed β subunit to activate genes with hypoxia-response elements (HRE) in their promoters (14, 15). No HIF-1–specific inhibitors currently exist, so targeting its vital transcriptional targets and the enzymes that regulate HIF-1 activity are promising ways to modulate hypoxia signaling in cancer cells (15, 16).
Apurinic/apyrimidinic endonuclease/redox factor-1 (APE1/Ref-1) is a multifunctional protein that is involved in responses to oxidative stress, acting on both oxidative and alkylative DNA damage (via its endonuclease activity in base excision repair; refs. 17–19) and augmenting activity of various transcription factors (via its redox signaling; refs. 20–23) as well as contributing to clearance of RNA with damaged bases (24). APE1/Ref-1 expression and redox activity are increased in PDAC tissue, and its upregulation increases tumor cell migration, proliferation, and survival (17, 23). We previously demonstrated that APE1/Ref-1 redox activity regulates several transcription factors involved in pancreatic cancer signaling, including HIF-1α, as well as STAT3 and NFκB (20, 21).
Carbonic anhydrase IX (CA9) is a transmembrane protein that regulates pH in tumor cells under low oxygen conditions and contributes to cell proliferation and transformation (25, 26). CA9 was reported to be an endogenous sensor to HIF-1 activity (27) and CA9 inhibitors were more potent in 3D culture due to the regions of hypoxia (28). One report demonstrated a strong correlation in vivo between pSTAT3 and CA9 expression and postulated that the regulation of CA9 by STAT3 could be important in invasion through IL6 signaling (29). Both of these transcription factors are regulated by APE1/Ref-1, so the impact of APE1/Ref-1 redox activity on HIF1 activity as well as CA9 expression was evaluated in PDAC following exposure to hypoxia.
Here we describe the mechanisms by which APE1/Ref-1 regulates hypoxia signaling through HIF1α-mediated transcription. Inhibiting APE1/Ref-1 redox signaling with the selective inhibitor APX3330 (also called E3330) resulted in decreased STAT3 activity (20) and HIF1α activity (21) leading to decreased expression of CA9, a major HIF-1 target within cells (27). We also demonstrate that hypoxia stimulates interactions between APE1/Ref-1 and its redox targets, HIF1α and STAT3, but not NFκB in both PDAC tumor and stromal cells supporting our approach.
We also show for the first time evidence using patient-derived tumor cells in the presence of appropriate stromal components, CAFs, three-dimensional spheroid size, and proliferation are dramatically reduced upon combination treatment with APE1/Ref-1 inhibitor, APX3330 and CA9 inhibitor, SLC-0111 (Clinical Trial NCT02215850; refs. 30, 31). Upon blockade of multiple hypoxia signaling pathways with APX3330 and SLC-0111, we observe a dramatic effect on 3D tumor spheroid growth even in the presence of the protective environment of the CAFs. APE1/Ref-1 redox inhibitor APX3330 (20, 22, 32, 33) is slated for phase I clinical trials in late 2016, and the CA9 inhibitor is currently in clinical trials. By decreasing APE1/Ref-1 redox activity, we can impair the tumor cells' response to hypoxia (21) and potentially improve the response to therapy. Therefore, the combination of these agents may have proximate clinical applications.
Materials and Methods
Cells were maintained in culture as described previously (20–22). Patient-derived tumor cells, Pa03C, Pa02C, and Panc10.05 and CAF19 cells, were a kind gift from Dr. Anirban Maitra (The Johns Hopkins University, Baltimore, MD; ref. 34). Upon receipt of the cells in 2011 as well as in June of 2015, we used STR analysis (CellCheck with IDEXX BioResearch) to confirm that we indeed received the aforementioned cells from Dr. Anirban Maitra and that they were mycoplasma-free. MIA-PaCa2 cells were purchased from and authenticated by ATCC. Cancer-associated fibroblasts, UH1303-02, were isolated using the outgrowth method from patient tumor tissue as described previously (35). All patient-derived lines were passaged only 10 times before new stocks frozen prior to authentication were resuscitated. Hypoxia exposure was achieved using a Ruskinn Invivo2 200 hypoxia workstation. CMV-EGFP-WT APE1/Ref-1 lentiviral construct was used to overexpress APE1/Ref-1 as described previously (36). To detect the cells for imaging, a CMV-EGFP lentiviral construct was used as described previously (36). In addition, 150 pfu/cell of the pCL7TdTOMwo lentiviral vector was incubated with Pa03C and Panc10.05 cells for 48 hours to make cells stably express TdTomato.
Western blot analysis
Western blots were performed as described previously (20–23) with antibodies for APE1/Ref-1 (Novus Biologicals), HIF1α (GeneTex), STAT1, STAT3, (Cell Signaling Technology), NFκB (Abcam), CA9 (Santa Cruz Biotechnology), Vinculin (Sigma), and Actin (NeoMarkers).
Samples were coimmunoprecipitated using the Pierce Co-IP kit (Thermo Scientific) with modifications as described previously (22).
PDAC and CAF cells were transfected with APE1/Ref -1 siRNA as described previously (20, 22, 23). siRNAs used were: #1 or scrambled control (previously reported) and two LifeTech validated siRNAs (#2: s1445 and #4: s1447; ref. 22). APE1/Ref-1 siRNA #1 was used as the standard siRNA unless otherwise specified.
Transient luciferase reporter assays
MIA-PaCa-2 cells were cotransfected with constructs containing luciferase driven by HIF1α and a Renilla luciferase reporter vector as described previously (22) using X-tremeGENE 9 DNA transfection reagent (Roche) along with siRNA as described above. Firefly and Renilla luciferase activities were assayed using the Dual Luciferase Reporter Assay System (Promega Corp.) as before (20, 22).
qRT-PCR was used to measure the mRNA expression levels of CA9 as described previously (21). Cells were treated with APE1/Ref-1 siRNA or increasing amounts of APX3330 in the presence or absence of hypoxia (1% and 0.2% O2) for 24 hours, then total RNA was extracted from cells using the Qiagen RNeasy Mini Kit (Qiagen; ref. 37). First-strand cDNA synthesis and quantitative PCR were performed as described previously (21). The relative quantitative mRNA level was determined using the comparative Ct method using 18S rRNA, RPLP0, and B2M as reference genes (37, 38). The primers for CA9, 18S, RPLP0, and B2M are commercially available (Applied Biosystems).
Compounds were prepared and used as described previously: APX3330 (32, 33) and SLC-0111 (30, 31). The concentrations of APX3330 used are within clinically tolerated levels established previously by Eisai pharmaceutical company through a prior development program that evaluated the toxicology and phase I/II safety and clinical profile in noncancer patients. In addition, the SLC-0111 analogue FC13-555A was synthesized as described in Supplementary Methods. The structure of each inhibitor can be seen in Supplementary Fig. S1.
PDAC cell proliferation in monolayer was measured using the Alamar Blue assay as described previously (22). Cells treated with APX3330 and SLC-0111 were exposed to hypoxia for 6 days followed by addition of AlamarBlue reagent (Invitrogen) and subsequent fluorescence analysis. Fold change refers to the fluorescence reading for cells treated with indicated inhibitors compared with cells growing in normal media.
Intracellular pH was evaluated using the pHrodo Red AM Intracellular pH Indicator (LifeTech). PDAC cells treated with APX3330 and SLC-0111 were exposed to hypoxia for 48 hours followed by analysis with pHrodo Red AM dye. Intracellular pH Calibration Buffers (LifeTech) were used to create a standard curve of fluorescence intensity for determination of pH values. Results were normalized to MTS analysis to account for changes in proliferation as before (20–22). Fluorescent images were acquired using a confocal/two-photon Olympus Fluoview FV-1000 MPE system (Olympus American) at the Indiana Center for Biological Microscopy facility.
qPCR data points for scrambled, siAPE1/Ref-1, and hypoxia treatments were analyzed using the 2−ΔΔCt method and analysis of covariance (ANCOVA) models as described previously (22, 39). Data points in tests with multiple treatment groups were analyzed using post hoc multiple comparisons tests (Tukey, Dunnett, or Sidak as appropriate). For evaluation of data curves using multiple drugs, an extra-sum-of-squares F test was used to compare the goodness-of-fit of a nonlinear regression curve shared between groups with that of separate curves for each group. Differences between the treatment groups and control group were considered significant if P < 0.05 following Bonferroni corrections was appropriate. Statistical analyses were performed using SAS (Version 9.3, Copyright 2010 SAS Institute Inc.) and Prism (Version 6.0f, Copyright 2014 GraphPad Software Inc.).
HIF-1−/− MEF generation
HIF-1–floxed mouse embryonic fibroblast (MEF) cells were generated as reported previously (40) and transduced with Ad-CMV-Cre (Cre adenovirus) or Ad-GFP (control) vector (Vector BioLabs) for 24 hours using 5 ng/mL polybrene to produce HIF-1–deficient cells (40). PCR was used to verify the deletion of HIF (Supplementary Fig. S2).
Ultra-low attachment 96-well plates (Corning Inc., Life Sciences) were used to generate three-dimensional (3D) tumor spheroids in the presence and absence of CAFs (75 μL/well) as described previously (41, 42). Cells were stably transduced with EGFP (green) or TdTomato (red) as indicated to preserve the genetic characteristics of the low passage patient cells (34, 42). Cells were resuspended in colorless DMEM growth media containing 3% reduced growth factor Matrigel (RGF, BD Biosciences) and 5% FBS. After plating, cells were treated on days 4 and 8 with media containing 5% serum, 3% RGF Matrigel, and inhibitors as indicated. On day 12, spheroids were analyzed using Thermo ArrayScan high-content imaging system (43). Images of 3D structures were captured by ArrayScan using a 2.5× objective for TdTomato and EGFP; then 2D projections were processed to quantify differences in total intensity and total area of both CAFs and tumor.
APE1/Ref-1 interactions with HIF1α and STAT3 are stimulated by hypoxia
We previously published data demonstrating decreased STAT3, HIF1α, and NFκB activity following knockdown of APE1/Ref-1 and/or inhibition of APE1/Ref-1 redox signaling with the selective inhibitor APX3330 (also called E3330; refs. 20, 21). Similarly, we found that inhibition of APE1/Ref-1 led to a decrease in a major HIF-1 target within cells, CA9 (21, 28). To further dissect the role of APE1/Ref-1 in hypoxia signaling and more clearly determine whether hypoxia stimulates interactions between APE1/Ref-1 and its redox targets, endogenous APE1/Ref-1 was immunoprecipitated from lysates of two low-passage PDAC cell lines (Panc10.05 and Pa03C) under normoxic and hypoxic (0.2% O2) conditions. These cell lines that are representative of ductal adenocarcinoma, were previously sequenced (34), and have the common G12D mutation in KRAS as well as missense mutations in p53. Panc10.05 was derived from a primary PDAC tumor, is wild-type (wt) for p16(INK4A), but has a SMAD4 deletion; however, Pa03C was isolated from a metastatic lesion in the liver and is wt for both p16(INK4A) and SMAD4. IPs were probed for HIF1α, STAT3, and NFκB. HIF1α and STAT3, but not NFκB, were detected in the pull-down fractions under hypoxic conditions, but these interactions were not detected under normoxic conditions (Fig. 1A and B). Controls of TNFα (NFκB) and IL6 (STAT3) were performed to show that interactions between APE1/Ref-1 and the transcription factors it regulates do indeed occur under normoxic conditions with appropriate stimulation (Supplementary Fig. S3). Interactions of APE1/Ref-1 with HIF1α and STAT3 were obvious under hypoxic conditions.
With overexpression of APE1/Ref-1, the interaction with HIF1α and STAT3 remained intact while NFκB was still not detected in IPs from cells overexpressing APE1/Ref-1 following exposure to hypoxia indicating that the amount of APE1/Ref-1 was not limiting in the above panels (Fig. 1C and D). To demonstrate that APE1/Ref-1′s interactions with the transcription factors are specific to signaling in hypoxia, we probed for another STAT family member, STAT1. IPs from Panc10.05 cells were probed for STAT1, which was not detected regardless of the levels of APE1/Ref-1 or oxygen conditions (Fig. 1C). Because of the complexity of the disease and the signaling between various cell types in the pancreatic tumor microenvironment, we investigated APE1/Ref-1 interactions with HIF1α, STAT3, and NFκB in CAFs. These CAFs are nontumorigenic and although they have activated signaling pathways due to their association with the tumor, they are nontransformed. The results were identical to the result with PDAC cells: APE1/Ref-1 interacts with HIF1α and STAT3 under hypoxia, but not NFκB (Supplementary Fig. S4). In light of CA9 inhibitors beginning clinical trials and our previous data demonstrating transcriptional regulation of CA9 following APE1/Ref-1 blockade (21), we focused these studies on HIF-1α signaling and the regulation of the downstream molecule CA9 through APE1/Ref-1.
APE1/Ref-1 protein expression contributes to hypoxia-induced HIF1α-mediated transcription
To show that the interactions between APE1/Ref-1 and HIF1α are functionally important, we evaluated the contribution of APE1/Ref-1 to HIF-1 transcriptional activity by cotransfecting MIA PaCa-2 cells with HIF1α-driven firefly luciferase or pLuc-MCS (vector control) alongside APE1/Ref-1 siRNA or scrambled control and exposing cells to hypoxia for 24 hours. APE1/Ref-1 knockdown resulted in a significant reduction (∼47%) in hypoxia-induced HIF1α activity (Fig. 2A and B).
Effects of APE1/Ref-1 on HIF transcriptional activity were further evaluated by examining hypoxia-mediated transcription of HIF-1 target, CA9. We compared CA9 mRNA levels in two PDAC cell lines and one pancreatic CAF cell line following APE1/Ref-1 knockdown and exposure to hypoxia. Bar graph represents the fold change of mRNA expression level of CA9. Hypoxia-induced CA9 mRNA levels were attenuated by APE1/Ref-1 knockdown in all cell lines at both levels of hypoxia (Fig. 2C–E). Variability in the amount of induction in different cell lines may be partially attributable to the extremely low baseline CA9 expression under normoxic conditions. APE1/Ref-1 knockdown similarly attenuated CA9 mRNA levels under hypoxic conditions in two additional primary PDAC cell lines (Supplementary Fig. S5). These results were validated in MIA-PaCa-2 cells exposed to hypoxia using two additional APE1/Ref-1–targeting siRNAs, and similar results were obtained (Fig. 2F and G). To verify the reduction in CA9 also occurred at the protein level, hypoxia-induced CA9 protein levels were evaluated via Western blot analysis following APE1/Ref-1 knockdown in PDAC cells and pancreatic CAF cells. APE1/Ref-1 knockdown resulted in an approximately 70% reduction in hypoxia-induced CA9 protein levels (Fig. 2H and I).
Hypoxia-induced CA9 transcription is HIF-1–dependent
To confirm that the effects of APE1/Ref-1 and hypoxia on CA9 transcription were mediated by HIF-1 activity, we evaluated hypoxia-induced CA9 mRNA levels in HIF-1–deficient (−/−) MEFs following APE1/Ref-1 knockdown. As expected, in HIF-1–proficient MEFs, CA9 is induced 30-fold compared with normal oxygen controls. In HIF-1−/− MEFs, CA9 mRNA levels were not induced by exposure to hypoxia (Fig. 3A), or affected by APE1/Ref-1 knockdown (Fig. 3B), indicating that CA9 transcription is HIF-1–dependent, regardless of APE1/Ref-1 expression or oxygen levels. HIF-1 depletion in these cells was confirmed by PCR (Supplementary Fig. S2).
Inhibition of APE1/Ref-1 redox signaling affects CA9 transcription
As a multifunctional protein, APE1/Ref-1 is also involved in base excision repair (BER) of DNA lesions, RNA quality control, and reduction–oxidation (redox) regulation. Knockdown of APE1/Ref-1 affects all of these functions. We therefore examined whether the redox function is responsible for the APE1/Ref-1–mediated regulation of hypoxia signaling pathways using an APE1/Ref-1–specific redox inhibitor that does not affect other APE1/Ref-1 functions (44, 45) and is slated for clinical trial in the summer of 2016. We previously showed that APX3330 decreases CA9 mRNA levels in Panc-1 and MIA-PaCa2 cells exposed to hypoxia (21). Here we expand these results to primary cells and CAF cells, as well as 3D cocultures. After treatment with APX3330 and exposure to hypoxia, CA9 mRNA levels in Pa03C cells and in pancreatic CAF cells were attenuated in a dose-dependent manner (Fig. 3C and D). In addition, CA9 protein expression was measured in a 3D coculture model following inhibition of APE1/Ref-1 with APX3330. While CA9 was not detected under normoxic conditions in the patient-derived Pa03C cells in monolayer, when grown as spheroids, these cells now express CA9. Tumor spheroids grown in the presence of CAFs more strongly upregulated CA9 expression approximately 3-fold, likely due to larger spheroids containing larger regions of hypoxia, as well as the more complex signaling present with the stromal elements. Inhibition of APE1/Ref-1 redox signaling with APX3330 led to decreased CA9 expression in 3D tumor cultures in a dose-dependent manner, both in the presence and absence of CAF cells (Fig. 3E). These data support the use of the 3D coculture system for preclinical studies validating novel targets like CA9 and APE1/Ref-1 in PDAC.
Importantly, we evaluated CA9 and APE1/Ref-1 protein expression following exposure to hypoxia (0.2% oxygen) in three PDAC cell lines and found that, while CA9 levels increased over time, APE1/Ref-1 levels did not change significantly (Supplementary Fig. S6), indicating that hypoxia-induced CA9 expression is not secondary to APE1/Ref-1 upregulation.
Dual targeting of CA9 and APE1/Ref-1 acidifies PDAC cells and inhibits cell viability under hypoxia

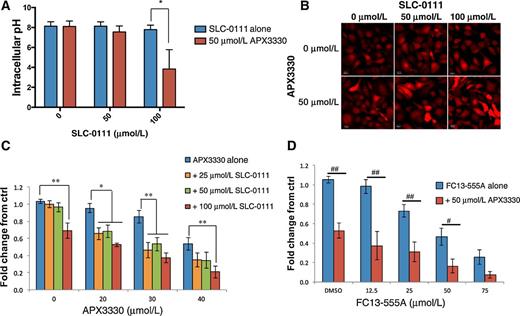

CA9 regulates intracellular pH under hypoxic conditions, and APE1/Ref-1 redox activity contributes to hypoxia-induced CA9 expression. We analyzed intracellular pH in hypoxia-exposed PDAC cells after treatment with CA9 inhibitor, SLC-0111, and the APE1/Ref-1 redox inhibitor, APX3330, using the pHrodo Red AM fluorescent pH indicator as a functional endpoint for carbonic anhydrase activity under hypoxic conditions. The analysis of intracellular pH was performed at an early timepoint (48-hour exposure to inhibitors and hypoxia) to avoid drastic changes in cell survival. Still, some viability changes were observed (Supplementary Fig. S7), so these changes were taken into account in the analysis and normalization of the intracellular pH data. Dual treatment with SLC-0111 and APX3330 results in a greater decrease in intracellular pH than treatment with either inhibitor alone (Fig. 4A and B).
Inhibition of APE1/Ref-1 redox activity results in a dose-dependent decrease in PDAC cell viability following treatment of cells with APX3330 and hypoxia. Remarkably, the effect of APE1/Ref-1 inhibition on cell viability is greatly enhanced by treating with the CA9 inhibitor, SLC-0111, in addition to APX3330 treatment under hypoxia (Fig. 4C). In support of these results, new CA9 inhibitors are being developed and the combination of APX3330 with SLC-0111 analogue, FC13-555A, is also significantly effective at killing PDAC cells in monolayer (Fig. 4D), supporting the hypothesis that blockade of hypoxia signaling proteins will be deleterious to PDAC cells.
Dual targeting of CA9 and APE1/Ref-1 inhibits PDAC tumor growth in a 3D coculture model
To more accurately mimic the tumor microenvironment, we utilized a 3D coculture model of PDAC that included the low passage patient-derived tumor cells as well as cancer-associated fibroblasts. As demonstrated above, the levels of CA9 were greater in these tumor spheroids when grown with CAF cells, and CA9 expression was attenuated by treatment with APX3330 (Fig. 3E). Inhibition of CA9 with SLC-0111 was more potent in the 3D model with dramatic effects on tumor cell killing observed at lower doses than in monolayer, as measured by reductions in area of patient-derived cells (Fig. 5A and B). Cell killing was more dramatic in the tumor cells than in the CAFs, especially when CAF19 cells were in coculture with Pa03C cells. Although these CAFs have aberrantly activated signaling pathways, they are nontumorigenic and suggest that tumor cells are more greatly affected by the dual targeting approach as compared with normal cells. Similar trends were seen when measuring fluorescence intensity (data not shown). Importantly, inhibition of CA9 can effectively kill tumor cells even when in the protective environment of the CAFs.
To determine whether the blockade of STAT3 and HIF-mediated transcription alongside the inhibition of CA9 activity would potentiate PDAC cell death, we combined APX3330 and SLC-0111 in the 3D coculture model. We can assess the effects of dual targeting on both the tumor alone and the tumor and CAFs in coculture due to the different fluorescent labels in each cell type. As seen in hypoxia-exposed 2D cultures, addition of CA9 inhibition to APE1/Ref-1 redox inhibition resulted in dramatic potentiation of the cell killing in the tumor spheroids. Spheroids composed of patient-derived PDAC cells (Pa03C or Panc10.05, labeled red) and CAF cells (labeled green) were treated with APX3330 and SLC-0111 (Fig. 5E and F), and the graphical representation, that is, area of red and green fluorescence were evaluated separately as markers for each cell type and is shown in Fig. 5C and D. Dramatic enhancement of the APX3330-induced blockade of spheroid growth was observed with the addition of CA9 inhibition. The observed decrease in tumor cell area with APX3330 treatment was significantly different in the presence of SLC-0111, validating the effects seen in hypoxia-exposed 2D cultures. Similar trends were seen when measuring red and green fluorescence intensity (data not shown).
Elevated APE1/Ref-1 expression is associated with numerous cancers, including pancreatic, ovarian, gastric, breast, lung, glioblastoma, liver, and colon (18, 19, 46), and analysis of publicly available data from The Cancer Genome Atlas (TCGA, cancergenome.nih.gov) reveals a significant decrease in survival of PDAC patients with elevated APE1/Ref-1 expression (Supplementary Fig. S8A, more information in Supplementary Methods; refs. 47, 48). In tumor cells, reduction–oxidation (redox) of thiols of cysteines in various tumor-promoting transcription factors such as STAT3, NFκB, and HIF-1 by APE1/Ref-1 is a crucial step in the activation of these factors. These TFs are all important targets in cancer therapy and particularly PDAC, but have been shown to be particularly hard to drug (18, 20, 21, 46, 49, 50). While previous studies by us and others (23, 51, 52) have demonstrated the effect of APE1/Ref-1 knockdown on tumor cell growth and survival, additional studies have demonstrated the effectiveness of a small molecule, APX3330, in targeting and blocking the redox signaling activity of APE1/Ref-1. APX3330 has been shown in multiple in vitro and in vivo models of pancreatic cancer to be effective in reducing tumor volume and metastases as both a single agent and in combination with gemcitabine (20, 21, 53). The mechanism of action has been extensively investigated and the drug has a direct and selective interaction with APE1/Ref-1 as demonstrated by chemical footprinting, mass spectrometry, and other biochemical analyses (33, 44, 54). Importantly, while APX3330 blocks APE1/Ref-1′s redox function, it has no effect on APE1/Ref-1 endonuclease DNA repair activity (45). Although multiple pathways may be modulated, unacceptable toxicity following APE1/Ref-1 inhibition has not been observed in animal or human studies (21, 55). APX3330 is slated for a phase Ia/Ib clinical trial of a dose-escalation study of APX3330 in patients with advanced solid tumors and a dose-expansion cohort of patients with advanced PDAC in mid-2016 in PDAC patients. Therefore, targeting APE1/Ref-1 with APX3330 has a great deal of potential in cancer therapy.
We previously demonstrated that APE1/Ref-1 contributes to STAT3 activation and the consequent tumor-promoting effects of STAT3 in PDAC cells (20). The cooperative activities of STAT3 and HIF-1 have been demonstrated in a variety of cancers (56, 57); however, the finding that APE1/Ref-1 binding to STAT3 is stimulated by exposure to hypoxia in PDAC cells, presented here for the first time, further indicates the importance of both APE1/Ref-1 and STAT3 as potential therapeutic targets in PDAC. These findings will be further pursued with preclinical STAT3 inhibitors that are being developed for eventual clinical trials (42). Furthermore, our results demonstrating that APX3330 treatment decreases hypoxia-induced HIF-1 transcriptional activity and CA9 mRNA levels (21) is exciting as CA9 inhibitors are either entering or are in clinical trials. This latter finding is of great interest, not only because it is closer to patient applicability, but builds upon our strategy of blocking various signaling pathways at multiple points along pathways influenced by APE1/Ref-1.
CA9 is one of only two tumor-associated carbonic anhydrase isoenzymes known, and it has similarly been established as a potential therapeutic cancer target (25, 26, 30). CA9 is not detected in most normal tissues, but its expression in renal and other cancers often indicates locally advanced, hypoxic tumors and poor treatment response (58, 59). Variations in CA9 expression by region in tumor samples make whole-tissue analysis difficult (60, 61), but analysis of publicly available data from Oncomine (oncomine.org) using microdissected samples reveals upregulation of CA9 in PDAC tissue samples, as compared with normal pancreas and pancreatic cancer precursor samples (Supplementary Fig. S8B–S8D; refs. 62, 63). Furthermore, the CA9 inhibitor SLC-0111 is in clinical trials to evaluate its safety and efficacy in patients with advanced solid tumors, including pancreatic cancer (clinicaltrials.gov ID: NCT02215850). Therefore, our strategy of inhibiting the HIF-CA9 axis at two points; blocking HIF-1 production of CA9 with APX3330 as well as blocking the activity of any CA9 that is produced using SLC-0111 (Fig. 6), is a novel approach to the targeting of hypoxic PDAC cells. However, sensitivity to the combination of APX3330 and SLC-0111 will not be limited to hypoxic cells. APX3330 is targeting other signaling pathways that are activated in tumor cells that are fully oxygenated, and SLC-0111 can also inhibit CA12, another tumor-associated carbonic anhydrase (31). Our findings establish this strategy resulting in additive cell acidification and inhibition of hypoxic PDAC cell proliferation. This combination approach is similar to the results we previously published using APX3330 and STAT3 inhibition as a dual hit strategy in PDAC cells (20) and APX3330 (HIF-1 inhibition) and avastin (bevacizumab) for VEGF signaling inhibition as an antiangiogenesis combination strategy (45, 64, 65).
As discussed, APX3330 will soon be entering clinical trials for general solid tumors as well as pancreatic cancer. As SLC-0111 is already in clinical trials with other CA9 inhibitors queued up to enter the clinic, our data demonstrating a novel two-pronged approach targeting highly hypoxic pancreatic cancer could be clinically applicable in the foreseeable future. In addition, given data demonstrating elevated expression of APE1/Ref-1, STAT3, and CA9 in a variety of other solid tumors (59, 66), these combination approaches should have applicability beyond pancreatic cancer (30, 32, 59).
In conclusion, the data presented here provide continued evidence of the close relationship between APE1/Ref-1, STAT3, and HIF-1 signaling and CA9 production in PDAC as well as the first evidence that the combination of two small-molecule inhibitors, each showing minimal toxicity, may be an important next step in the treatment of PDAC, a disease for which effective treatment remains elusive.
