The IGF-Trap: Novel Inhibitor of Carcinoma Growth and Metastasis Free

The receptor for type I insulin-like growth factor (IGFIR) and its ligands IGFI and IGFII play an important role in cancer progression and metastasis (reviewed in refs. 1, 2). Recent evidence has linked the IGF axis to all the major steps in the initiation and progression of malignant disease, including the development and maintenance of the cancer stem cell, epithelial–mesenchymal transition, and regulation of the tumor microenvironment (reviewed in ref. 3).

Several inhibitors of the IGF axis have been tested clinically. For example, humanized or fully human neutralizing antibodies against IGFIR are presently being evaluated as monotherapies or in combination with other drugs, for the treatment of various malignancies (4, 5). In addition, neutralizing antibodies [MEDI-573 (6), BI836845 (7)] and recombinant IGF-binding proteins (IGFBP; refs. 8, 9) that react with IGFI and IGFII and small-molecule tyrosine kinase inhibitors have also been developed and some have advanced into clinical trials (reviewed in refs. 3, 10, 11). The results of early and more advanced clinical trials with some of these inhibitors exposed several obstacles to their successful use in cancer therapy (12). Because of the homology between IGFIR and the insulin receptor (IR), several inhibitors of IGFIR signaling (including tyrosine kinase inhibitors) were found to also disrupt IR signaling, resulting in undesirable side effects such as hyperinsulinemia and hyperglycemia. The responses to more specific drugs, such as anti-IGFIR antibodies, were also disappointing, and this has been attributed to several potential factors, including (i) a compensatory feedback mechanism that leads to increased IGF production due to increased growth hormone release (13) and (ii) insulin receptor isoform A (IR-A) signaling that can be initiated by IGFII (the main plasma IGFIR ligand in humans) or insulin and lead to enhanced tumor cell growth (14–16). New insight into IGFIR signaling regulation has also recently led to the proposition that the targeting of IGFIR by antibodies or kinase inhibitors may result in alternative, kinase-independent, ERK signaling mediated via recruitment of interacting proteins such as β arrestins, thereby limiting the effectiveness of these inhibitors (17). Some anti-IGFIR antibodies have been withdrawn from clinical trials due to lack of benefit (CP-751871, Pfizer; RG1507, Roche; ref. 10), whereas others are currently being tested in combination with other drugs.

An effective strategy for blocking the action of cell surface receptors is the use of soluble decoys that bind the ligand with high affinity and reduce its bioavailability to the cognate receptor in a highly specific manner (18–20). For example, a soluble TNFα receptor–Fc fusion protein (Etanercept or Enbrel) is currently in clinical use for the treatment of rheumatoid arthritis (21) and a VEGFR1/VEGFR2-Fc decoy (VEGF Trap) is in clinical trials as an antiangiogenic, anticancer drug (18). Although the development of IGFIR decoys for cancer treatment has been reported (22), to date, none have advanced into clinical use.

A soluble IGFIR receptor decoy offers key advantages over receptor targeting antibodies and small-molecule inhibitors. With high specificity for IGFI and IGFII, and an expected poor affinity for insulin, a decoy should have minimal negative effects on the IR system. Because the decoy binds circulating ligands, penetration and diffusion into tumor sites are not major obstacles. Moreover, although antibodies to IGFIR or receptor-specific inhibitors do not target IR-A/IGFII-initiated signaling, a decoy receptor with high binding affinities for both circulating ligands should reduce IGFII bioavailability and IR-A activation.

Previously, we reported that metastatic lung carcinoma cells genetically engineered to produce a 933-amino acid, soluble protein spanning the entire extracellular domain of the IGFIR (sIGFIR), failed to produce liver metastases in 88% of injected mice, resulting in increased long-term, disease-free survival (23). Subsequently, we developed a novel therapeutic approach for sustained in vivo delivery of this soluble receptor by genetically engineered autologous bone marrow stromal cells (24), and this resulted in growth inhibition of several tumor types, due to reduced tumor cell growth and increased apoptosis. More recently, a third-generation gutless adenovirus engineered to express the soluble receptor was used for sustained production of the soluble receptor in vivo, and this resulted in protection of the animals from tumor growth in the liver (25).

Here, we describe the production, characterization, pharmacokinetic properties, and therapeutic potency of the next-generation decoy—a recombinant soluble protein consisting of the extracellular domain of human IGFIR fused to the Fc portion of human IgG₁ (the IGF-Trap). We show that this novel IGF-Trap was highly effective in vivo in multiple preclinical models of aggressive carcinoma types, causing regression of established tumors and comparing favorably with an anti-hIGFIR antibody and an IGF-binding protein. Collectively, these data identify the IGF-Trap as a potential anticancer drug.

The origins and metastatic properties of murine colon carcinoma MC-38 and Lewis lung carcinoma subline H-59 cells and their culture conditions and testing were described in detail elsewhere (24). MC-38 cells were originally from an NCI repository and were obtained as a kind gift from Dr. Shoshana Yakar (New York University, NY) in 2005. They were recently authenticated by Didion and colleagues (26) using SNP profiling as described. H-59 is a subline of the Lewis lung carcinoma that was developed by the Brodt laboratory in 1986, as previously described in detail (27). The 4T1 and MDA-MB-231 cell lines were obtained from the ATCC in 2002. Subline 2776 of 4T1 was obtained in 2010, as previously described (28). All cell lines were periodically tested for mouse and human pathogens and mycoplasma infection, as per the McGill University Animal Care committee and the McGill University Biohazard committee guidelines, and were last retested in 2014. To avoid cross-contamination and phenotype changes, these cell lines have not been maintained in long-term cultures. All cells used in this study were maintained as frozen stocks and cultured for 2 to 4 weeks only in DMEM (MC-38, MDA-MB-231) or RPMI (H-59, 4T1) media supplemented with 10% FBS and antibiotics before use in the experiments. Authentication of these cell lines based on morphology, growth curve analysis, and metastatic phenotype was performed regularly, and no phenotype changes were observed through the duration of this study.

Recombinant mIGFI was from Cedarlane and R&D Systems, rhIGFI was from Cedarlane and BioVision, rhIGFII was from Calbiochem (EMD-Millipore/ThermoFisher) and BioVision, and human insulin was from Sigma-Aldrich. The mouse monoclonal antibody to human IGFIR-MAb 391 (R&D Systems; ref. 29) was used to treat tumor-bearing mice in vivo. For IHC, rabbit polyclonal antibodies to pIGFIR, Ki67, and cleaved caspase-3 (all from Abcam) and a rat monoclonal antibody to CD31 (Clone MEC 13.3) from BD Biosciences were used. Secondary antibodies Alexa Fluor 647-goat-anti-rabbit and Alexa Fluor 568-goat anti-rat antibodies from Molecular Probes were used as appropriate.

The construction of the sIGFIR and IGF-Trap is detailed in Supplementary Materials and Methods. Lentivirus particles expressing sIGFIR or IGF-Trap were generated in the packaging cell line 293PacLV, as detailed previously (30). Two stable cell lines (CHO-cum2-CR5-sIGFIR and CHO-cum2-CR5-IGF-TRAP) were generated by transduction of the CHO-Cum2 cell line with the respective lentivirus particles using the protocol described previously (31). Clonal populations of the transduced cells were obtained by limiting dilution and clones identified as highest producers were expanded. Protein production was initiated by the addition of 1 μg/mL cumate in fresh medium, followed by 24-hour incubation at 37°C, and 7 to 8 days incubation at 30°C. Cells were removed by centrifugation, and the supernatants were filtered and concentrated (10×) using the Tangential Flow Filtration Systems (Pellicon ultrafiltration cassettes; EMD-Millipore). The sIGFIR and IGF-Trap fusion proteins were purified on ceramic hydroxyapatite (type I) columns (CHT; Bio-Rad) followed by size exclusion chromatography performed on Sephacryl S400 HR columns (GE Healthcare), and the purity of the eluted proteins was verified by SDS-PAGE. Where indicated, further purification using protein A columns was performed using a MabSelect SuRe column (8 ml; GE Healtcare). The proteins were stored at −80°C until used for the analyses described.

The construction of rhIFBP-1 is described in Supplementary Materials and Methods. The IGFBP-1 was purified by sequential affinity chromatography on Fractogel EMD-chelate (EMD-Millipore) charged with cobalt. The purified protein was desalted in PBS on a desalting column (GE Healthcare) as per the manufacturer's instruction.

Binding of mIGFI, hIGFI, hIGFII, and human insulin to sIGFIR, IGF-Trap, or IGFBP-1 was examined using label-free, real-time BIACORE 3000 instrumentation (GE Healthcare). Experiments were performed on research-grade CM5 sensor chips. Purified sIGFIR and IGF-Trap preparations (15 μg/mL in 10 mmol/L sodium acetate, pH 4.5) were immobilized using the Biacore Amine Coupling Kit [4,000–8,000 resonance units (RU) final]; corresponding reference surfaces were prepared in the absence of any IGF-Trap. Maltose-binding protein (negative control) and ligands were injected over reference and receptor-immobilized surfaces in-tandem, using variable flow rates (10, 25, 50 μL/min) and contact times (5–20 minutes association/dissociation), and sensor chip surfaces regenerated between sample injections. Between sample injections, surfaces were regenerated at 50 μL/min using two 30-second pulses of solution A (1 mol/L imidazole) and B [0.03% (v/v) Empigen detergent in 1/10 diluted Pierce Gentle Elution buffer]. SPR data were double-referenced (32) and are representative of duplicate injections acquired from at least two independent trials. The binding of hIGFI and -II to amine-coupled IGFBP-1 (10 μg/mL in 10 mmol/L NaOAc, pH 4.5; 600–800 RU final) was examined in a similar manner. Consistent with previous IGF-based SPR methods (33–36), individual association (k_a) and dissociation (k_d) rate constants, as well as overall equilibrium dissociation constants (K_D), for the IGF titrations were determined by global fitting of the data to a “1:1 kinetic” model (BIAevaluation v4.1 software; GE Healthcare). K_D values for the insulin titrations were determined by global fitting of the data to a “steady-state affinity” model in BIAevaluation.

Tumor cell proliferation was measured using the colorimetric MTT assay, as described (23).

Anchorage-independent cell growth was measured using the semi-solid agar clonogenicity assay, as described (37). IGFI with or without the IGF-Trap was added to the agar overlay and replenished 2 to 3 times weekly for 14 days. Colonies with a diameter of ≥80 μm were scored.

Apoptosis was analyzed using the anoikis assay, as described previously (38), and the In Vivo Cell Death Detection-RED staining Kit (Roche Diagnostics) for quantification.

Cell migration was analyzed using a standard Boyden Chamber assay (37) or a real-time, electrical-impedance–based technique with the automated xCELLigence system (Roche Diagnostics; ref. 39). Tumor cells were plated in wells (5 × 10⁴ cells/well) of CIM-Plates 16 (Roche Diagnostics) and placed on top of a lower chamber containing 10⁴ ng/dL IGFII in SF media with or without the IGF-Trap. Incubation at 37°C was for 12 hours with continuous reading and recording by the xCELLigence software.

Cell invasion was also measured with the xCELLigence system. Tumor cells were plated at 5 × 10⁴ cells per well in CIM-Plates 16 on membranes precoated with a 1:40 dilution of Matrigel (BD Biosciences), placed on top of a lower chamber containing 5,000 ng/dL IGFI with or without the IGF-Trap at the indicated molar ratios and incubated at 37°C for 48 hours.

Mice were injected intravenously with 10 mg/kg IGF-Trap. The mice were divided into several groups of 3 mice each and blood collected from alternate groups, beginning at 5 minutes and up to 10 days after injection. Plasma IGF-Trap levels were analyzed using the soluble IGFIR ELISA Kit (R&D Systems). Data for each group of mice bled at the same interval were pooled. Noncompartmental analysis was performed using Phoenix Win-Nonlin Software v6.2 (Pharsight Corporation), and pharmacokinetic parameters were determined.

To measure the effect of the IGF-Trap on ligand-induced IGFIR signaling, tumor cells cultured overnight in serum-free media were stimulated for 2 or 20 minutes (as determined based on preliminary experiments) with 10⁴ ng/dL IGFI in the presence or absence of the IGF-Trap that was added at a molar ratio of 2:1. The cells were lysed (40) and pAKT levels in the cell lysates quantified using the RayBio Phospho Akt (Ser473) ELISA Kit (PEL-Akt-S473-T; Raybiotech) as per the manufacturer's instructions.

IGFI was quantified using the mouse IGF-I DuoSet ELISA Kit (R&D Systems), circulating Trap:IGFI complexes were semiquantified using a combination ELISA, as we previously described (24), and insulin was quantified using the Mercodia mouse insulin ELISA Kit (Mercodia AB). Plasma obtained from mice injected with vehicle only (PBS) was used to establish baselines.

All mouse experiments were carried out in strict accordance with the recommendations of the Canadian Council on Animal Care (CCAC) and under the conditions and procedures approved by the Animal Care Committee of McGill University (AUP number: 5733). Mammary carcinoma 4T1 cells were injected into the mammary fatpads (MFP) of Balb/c female mice (Charles River) using 5 × 10⁴ cells in 0.05 mL PBS. Tumors were measured on alternate days using a caliper, and tumor volumes were calculated using the formula 1/2 (length × width²). One million MD-MBA-231 cells in 0.05 mL Matrigel diluted 1:1 with PBS were implanted in the MFPs of Ncr nu/nu mice (Taconic Farm). When tumors were established (50–100 mm³), the animals were randomized and treated with the indicated concentrations of IGF-Trap, MAb 391, or vehicle (i.v.), twice weekly until day 33. Longitudinal bioluminescence imaging was performed following the i.p. injection of 150 mg/kg XenoLight RediJect D-Luciferin using the IVIS Spectrum/200 (Caliper Lifesciences; Caliper/PerkinElmer).

Experimental liver metastases were generated by intrasplenic/portal injections of 5 × 10⁴ (MC-38) or 10⁵ (H-59) tumor cells into C56BL/6 mice (Charles River) followed by splenectomy, as previously described (23, 37). Treatments with the IGF-Trap or IGFBP-1 were as indicated. Metastases were scored as previously described (23).

IHC and confocal microscopy were performed as previously described (40) using the indicated antibodies. The sections were analyzed with a Zeiss LSM 780 laser scanning confocal microscope (Carl Zeiss Canada Ltd) equipped with a Zen image analysis station.

All cell-based data (in vitro assays and IHC) and tumor volumes were analyzed by the two-tailed Student t test. The nonparametric Mann–Whitney test was used to analyze experimental metastasis data, and the Mantel-Cox and Gehan–Breslow–Wilcoxon tests were used to analyze survival data.

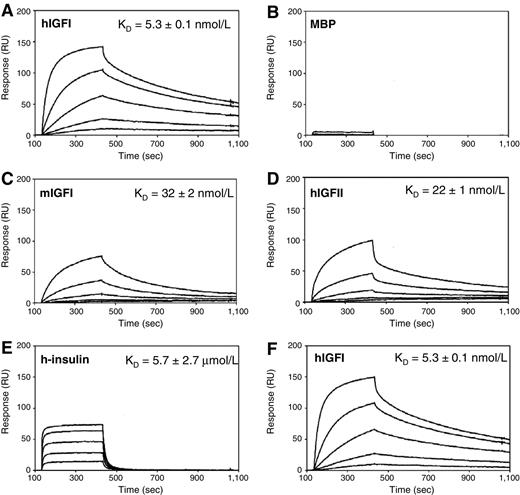

The engineering and production of the IGF-Trap involved two steps. Initially, we generated a soluble receptor decoy (sIGFIR) consisting of the entire extracellular domain of the receptor (933 amino acid residues = ∼370 kDa; Supplementary Fig. S1A) and confirmed its high binding affinity for hIGFI and its specificity, using SPR (Supplementary Fig. S1B and S1C; Supplementary Table S2). To evaluate the biologic activity of this protein, we analyzed its effect on tumor cell proliferation (Supplementary Fig. S2A), invasion (Supplementary Fig. S2B), colony formation in semi-solid agar (Supplementary Fig. S2C), and detachment-induced apoptosis (anoikis; Supplementary Fig. S2D), using the Lewis lung carcinoma subline H-59 cells that are highly responsive to IGFI (41, 42). These analyses confirmed the IGFI-inhibitory activity of the decoy.

To improve the pharmacokinetic properties of sIGFIR, we generated a sIGFIR–hFc–IgG₁ fusion protein (the IGF-Trap = ∼430 kDa) that was produced in CHO cells (Supplementary Fig. S3A). Comparison of the SPR profiles of the native Fc-free sIGFIR (Supplementary Fig. S1B and S1C) and the IGF-Trap (Supplementary Fig. S3B–S3D) revealed that the addition of the Fc fragment did not alter the individual binding kinetics or overall affinity. Specific dose-dependent binding with the IGF-Trap was most significant with hIGFI (slow-on, slow-off kinetics; Fig. 1A), whereas maltose-binding protein (MBP, negative control; Fig. 1B) exhibited little or no specific binding. Similar slow-on, slow-off kinetics with mIGFI (Fig. 1C) and hIGFII (Fig. 1D) yielded lower binding overall, whereas insulin exhibited distinctly different rapid-on, rapid-off kinetics (Fig. 1E). The observed binding responses correlated well with theoretical R_max predictions, and replicate titration series (e.g., for hIGFI; Fig. 1F) generated nearly superimposable data, validating the robustness of the SPR assay. Overall, binding of hIGFI to the IGF-Trap was strongest (K_D ∼5 nmol/L; Fig. 1A and Supplementary Table S2) and most stable (i.e., slowest dissociation rate constants), whereas moderately weaker affinities were observed for hIGFII (∼22 nmol/L), mIGFI (∼32 nmol/L), and a 1,000-fold weaker affinity for insulin (>5 μmol/L; Fig. 1A; Supplementary Table S2). Taken together, the results confirmed the high affinity and specificity of the IGF-Trap for both hIGFI and hIGFII ligands with K_D values consistent with published data on the native cell surface receptor (34, 36, 43).

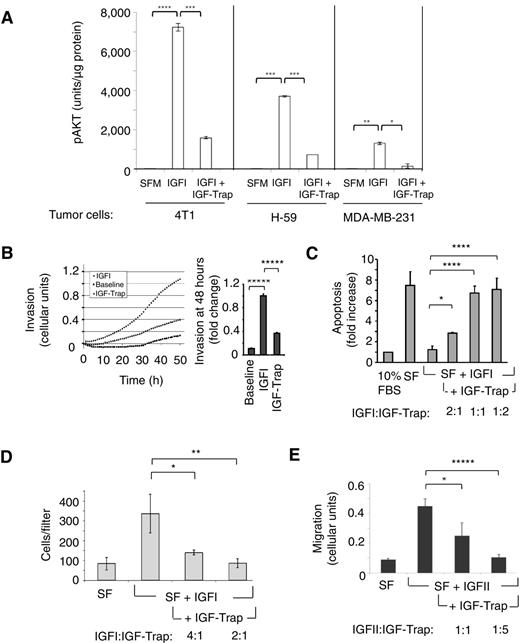

We next assessed the biologic activity of the IGF-Trap using a series of in vitro functional assays with several highly aggressive carcinoma cell types (44, 45). The PI3-K/Akt pathway is activated downstream of IGFIR phosphorylation and mediates tumor cell rescue from apoptosis (46). In response to IGFI, a marked increase in Akt phosphorylation, as measured by ELISA, was observed in all carcinoma cells tested, and this increase was abolished in the presence of the IGF-Trap (Fig. 2A). This blockade of IGFIR signaling was also reflected in a loss of IGFIR-mediated cellular activities, such as proliferation (Supplementary Fig. S4A), anchorage-independent growth (Supplementary Fig. S4B), invasion (Fig. 2B), and rescue from detachment-induced apoptosis (Fig. 2C) in the presence of IGFI, as measured using lung carcinoma H-59 cells. Similarly, cell migration in response to IGFI or IGFII, as measured using mammary carcinoma 4T1 (Fig. 2D and Supplementary Fig. S4C) or colon carcinoma MC-38 (Fig. 2E) cells, was blocked in the presence of the IGF-Trap. For each cell type, assays and conditions were selected based on preliminary optimization studies. Collectively, these results showed that the IGF-Trap was biologically active, able to block IGFIR signaling and functions in different cell types, suppress a range of cellular activities essential for cancer growth and metastasis, and inhibit the response to both IGFI and IGFII.

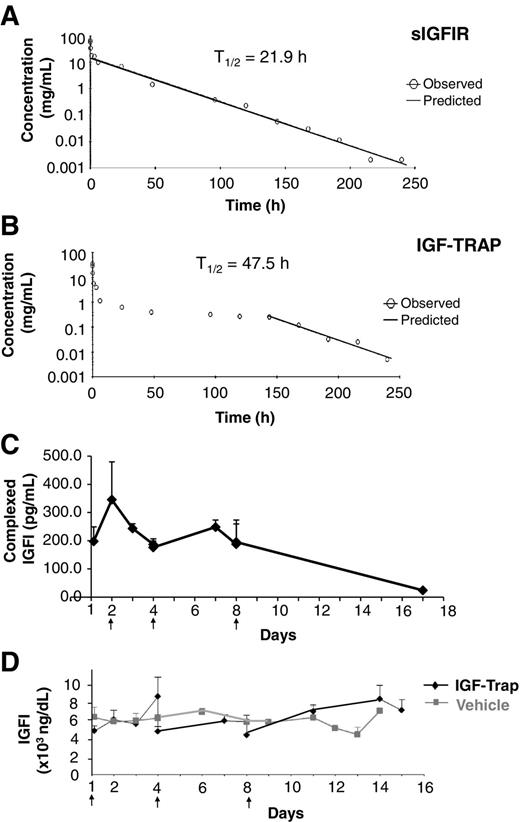

To compare the pharmacokinetic properties of sIGFIR and the IGF-Trap in vivo, mice received a single 10 mg/kg i.v. injection of the proteins and underwent a serial blood collection for up to 240 hours thereafter. Plasma concentrations were evaluated by ELISA. The area under the plasma drug concentration–time curve (AUC), which reflects the actual body exposure to the drug after administration (Fig. 3A and B; Supplementary Table S3), was increased 4-fold (from 98 to 405 μg · h/L) for sIGFIR-Fc as compared with sIGFIR, where the maximum concentration (C_max) increased 2-fold (from 28.6 to 55.4), and the plasma half-life increased 2.15-fold (from 21.9 to 47.5 hours). The results indicated that the IGF-Trap had significantly improved pharmacokinetics properties in comparison with the native sIGFIR. They also placed the pharmacokinetic properties of the IGF-Trap within the range of other targeted drugs currently in the clinic (18, 47).

We confirmed that in mice injected with the IGF-Trap, sIGFIR:IGFI complexes were detectable within 3 hours of the injection and remained at measurable levels when additional injections were administered every 3 to 4 days, declining progressively after treatment was terminated (Fig. 3C), likely due to proteolytic degradation (48). Total (bound and unbound) circulating IGFI levels during the same period were not significantly different from those in control (vehicle-injected) mice at any of the time points analyzed, although minor fluctuations (up to 15% change) were observed on the days of IGF-Trap injections (Fig. 3D). Importantly, circulating insulin levels during the same period were not significantly different from those in vehicle-injected mice (Supplementary Fig. S5).

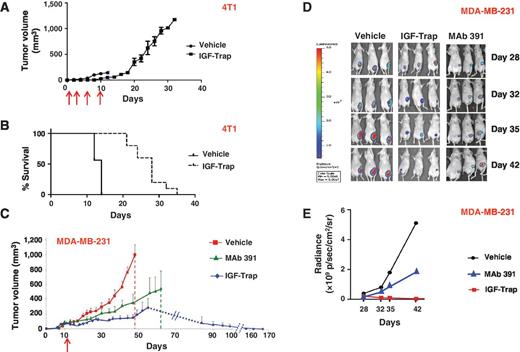

Having established the favorable pharmacokinetic properties of the IGF-Trap, we next assessed its therapeutic efficacy in several metastatic carcinoma models. Therapeutic effects were evaluated in two orthotopic breast carcinoma models, namely, the murine mammary carcinoma 4T1 (28) and triple-negative human breast carcinoma MDA-MB-231 cells (44, 49). Balb/c female mice, orthotopically injected with 10⁵ 4T1 cells in the MFP, received a total of 4 i.v. injections of the IGF-Trap; 10 mg/kg at 4 and 72 hours and 5 mg/kg at 6 and 10 days after tumor inoculation (Fig. 4A, red arrows). Local MFP tumors grew rapidly in all nontreated mice, and these mice were moribund by day 14 after tumor inoculation (Fig. 4A and B). In treated mice, however, tumors did not significantly progress for the duration of IGF-Trap treatment. Tumor growth was seen only after cessation of treatment (day 14 onward, Fig. 4A) and mice survived for up to 35 days after tumor injection (Fig. 4B; P < 0.01 using both the Mantel–Cox and Gehan–Breslow–Wilcoxon tests).

To test the effect of the IGF-Trap on the growth of human breast carcinoma cells, 10⁶ MD-MBA-231 cells were implanted with Matrigel in the MFP of nu/nu mice. When tumors were established (50–100 mm³; day 11, Fig. 4C, red arrow), the animals were randomized for i.v injection with 5 mg/kg of the IGF-Trap or vehicle as control, twice weekly, up to day 33. An additional group of mice was injected with 5 to 10 mg/kg of the anti-IGFIR MAb 391 (K_D 0.02 nmol/L; ref. 29). Mice in the control group were all moribund by day 48 (Fig. 4C, red dashed line). In the IGF-Trap–treated group, tumors did not progress during treatment. Growth arrest followed by complete regression (and long-term survival) was seen in 2 of 5 mice (dotted line). In 3 of 5 mice, tumors began to grow only 20 days after the last treatment was administered (day 53) and morbidity eventually developed in these mice by day 85 following tumor injection (Fig. 4C). In comparison, the effect of MAb 391 on tumor growth was more variable and limited with 2 of 5 mice showing progressive tumor growth at a rate similar to controls and 3 of 5 having reduced tumor growth rate, but no growth arrest, during treatment (P > 0.05 from days 10–41). Significantly, no complete regressions were observed in this treatment group, and morbidity was observed from day 65 onward (Fig. 4C, green dashed line). Longitudinal bioluminescence imaging of the tumors showed an increase in signal intensity in the control and MAb 391-treated groups and a marked reduction in signal in the IGF-Trap–treated group over time (Fig. 4D and E).

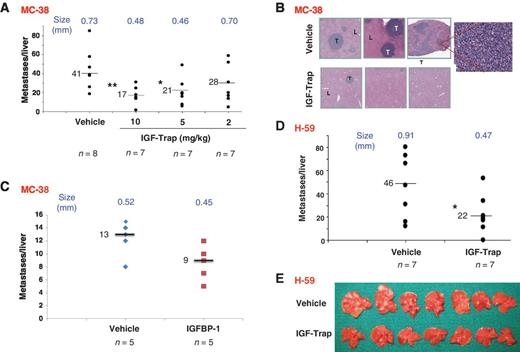

Cancer metastasis to vital organs such as the liver and lung is the major cause of cancer-related death. We assessed the ability of the IGF-Trap to inhibit the growth of metastatic cancer cells in the liver. Mice were injected with colon carcinoma MC-38 or lung carcinoma H-59 cells via the intrasplenic/portal route to generate experimental liver metastases and treated 24 hours later, when micrometastases began to develop (50), with 2 to 10 mg/kg IGF-Trap or vehicle, followed by one or two additional injections as indicated. Liver metastases were enumerated and sized 18 days after tumor injection. In a separate experiment, and as a comparison, we also treated MC-38–inoculated mice, twice daily for 5 days with 50 mg/kg rhIGFBP-1 (a 10-fold higher concentration than the IGF-Trap), which was confirmed by SPR to be functionally active (Supplementary Table S2), with binding affinities for hIGFI (K_D ∼ 2 nmol/L) similar to those of the IGF-Trap (K_D ∼ 5 nmol/L). The results show that three IGF-Trap injections administered 1, 4, and 8 days after tumor inoculation markedly reduced the number and size of MC-38 liver metastases in a dose-dependent manner (Fig. 5A and B), whereas treatment with IGFBP-1 had no significant effect on liver metastases formation (Fig. 5C). The number of H-59 metastases was also significantly reduced following two injections of IGF-Trap, 1 and 5 days after tumor inoculation (Fig. 5D and E). Although in some IGF-Trap–treated mice, the numbers of liver metastases were within the range observed in some untreated mice, these metastases were significantly smaller in size, suggesting that some surviving tumor cells may have resumed growth upon cessation of treatment on days 5 (H-59) or 8 (MC-38) and indicating that prolonged treatment and/or increased doses could probably improve outcome. Taken together, these results indicated that the IGF-Trap could block tumor cell growth even in an IGF-rich microenvironment, such as the liver.

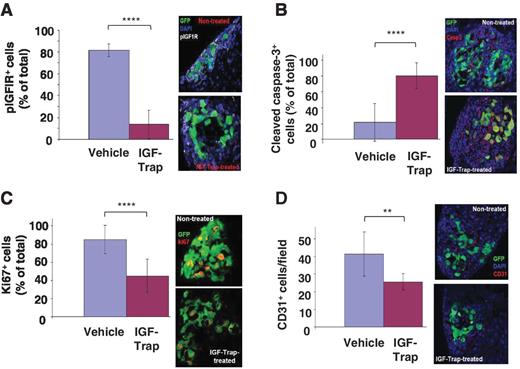

The mechanism of action of the IGF-Trap was assessed in mice that received an intrasplenic/portal injection of 10⁵ GFP-tagged H-59 cells followed by 5 mg/kg IGF-Trap (or vehicle), 1 and 3 days later. Livers removed on day 6 were analyzed by IHC using an anti-pIGFIR antibody. The results (Fig. 6A) showed that as a consequence of this treatment, signaling of the IGFIR was significantly inhibited. In turn, the proportion of tumor cells undergoing apoptosis within the hepatic micrometastases was significantly increased (Fig. 6B), whereas the proportion of proliferating tumor cells significantly decreased (Fig. 6C). Moreover, vessel density in the micrometastases (assessed by quantification of CD31⁺ endothelial cells) was also significantly reduced in IGF-Trap–treated mice (Fig. 6D). Collectively, these results showed a marked inhibition of IGFIR-dependent biologic activity in tumor cells during the early stages of metastases formation in the liver.

Taken together, our results identify the IGF-Trap as a potent inhibitor of the growth of several highly aggressive carcinoma cell types. Moreover, in our hands, the tumor-inhibitory effect of the IGF-Trap was superior to that of an anti-IGFIR antibody administered at the same (or higher) concentrations, as evidenced by the complete growth arrest and/or regression of established human breast carcinomas in IGF-Trap–treated, but not in antibody-treated xenotransplanted mice. The anticancer effect of the IGF-Trap also compared favorably with IGFBP-1 that bound IGFI and IGFII with affinities comparable with the IGF-Trap but could not significantly inhibit the growth of colorectal carcinoma MC-38 liver metastases relative to untreated controls, even when administered at a 10-fold higher concentration and with higher frequency than the IGF-Trap. This greater therapeutic efficacy is probably due to several factors, namely (i) the high affinity of the IGF-Trap for IGFII that results in blockade of both IGFIR and IR-A signaling (unlike an IGFIR-targeting drug), (ii) the ability of the IGF-Trap to bind its ligands in the circulation, thereby bypassing the requirement for efficient drug penetration into the tumor site (a potential limitation of anti-IGFIR antibodies), (iii) superior pharmacokinetic properties in comparison with IGFBPs (51), and (iv) the potential of anti-IGFIR antibodies to act as natural agonists and activate alternate IGFIR signaling (17)—a compensatory mechanism that is circumvented with the use of an IGF-Trap.

Several soluble receptor–Fc fusion proteins are already in clinical use (52–54) and others have entered clinical trials (refs. 55, 56; reviewed in ref. 57). A major challenge for engineering effective soluble, growth factor and cytokine receptor decoys has been the multiplicity of biologic receptors that are naturally available for some of these factors (e.g., IL1, IL6, and TNF). For some Traps, this has required the construction of soluble receptors consisting of more than one ligand-binding domain (18). IGFIR, however, is the only high affinity binding receptor for IGFI, and fusion to a second ligand-binding site was therefore not required for efficient trapping of circulating IGFI in the treated mice. IGFII can also bind to IGFIIR, but this second receptor does not have intracellular signaling functions and acts, in fact, to reduce IGFII bioavailability for IGFIR. Binding of free IGFII to IGFIIR does not therefore represent an obstacle to tumor growth inhibition. Finally, IGFI is the major circulating IGFIR ligand in adult mice, but IGFII is the major plasma IGFIR ligand in man (58). In addition, IGFII can also bind to the insulin receptor IR-A to activate signaling in tumor cells. Our SPR data confirmed that the IGF-Trap can bind IGFII with high affinity, and we have also shown that the IGF-Trap is able to block IGFII-induced migration in two different tumor cell types in vitro, suggesting that it is functionally active against IGFII. Although this is suggestive of anti-IGFII potency, the ability of the IGF-Trap to efficiently block the effects of circulating and paracrine or autocrine IGFII in vivo in the clinical setting cannot be conclusively determined based on the preclinical mouse models and in vitro assays used in this study and it remains to be verified in the clinic. Our finding that higher concentrations of the Trap were required to achieve an inhibition of IGFII-mediated migration that is similar in magnitude to inhibition of IGFI-induced functions is consistent with the reduced affinity of the IGF-Trap for IGFII, as was shown in Fig. 1.

The IGF-Trap could inhibit IGFIR signaling in tumor cells in vitro and in vivo and, as a result, increased apoptosis and reduced the proliferation of these cells. We also observed a reduction in tumor-associated angiogenesis. The causal relationship between these effects may involve reciprocal mechanisms. IGF ligands can promote angiogenesis by upregulating tumor-derived VEGF production or via direct effects on the endothelial cells (1). Although the observed reduction in angiogenesis may therefore be secondary to increased tumor cell apoptosis, it is also possible that (i) reduced neovascularization may contribute to increased tumor cell death or (ii) both mechanisms contribute to the observed reduction in tumor growth. It should also be noted that commercially available anti-pIGFIR antibodies generally cross react with pIR, and we found that the tumor cells used in the present study all express IR-A at different ratios to IGFIR (Supplementary Fig. S6). The reduction of >85% in pIGFIR signal observed in IGF-Trap–treated mice bearing MC-38 metastasis and the marked effects of the IGF-Trap in all tumor models tested, regardless of the expression levels of IR-A suggest that IR-A signaling in the treated mice, if it occurred due to the presence of IGFII, was also highly suppressed.

Of note, we did not observe a major sustained reduction in total circulating IGFI levels in IGF-Trap–treated mice. This suggests that method used for IGFI quantification may not distinguish between the Trap-bound and -unbound IGFI and therefore may not provide a measure of the bioavailable ligand. The IGF-Trap may also act locally, inhibiting paracrine IGFI activity at the tumor site (59). Our observation that total circulating IGFI levels did not significantly increase after IGF-Trap injection (although minor increases were observed) may suggest that any increase in IGFI production that has occurred due to a compensatory feedback loop caused by reduced IGFI bioavailability (59) may have been offset by coinciding clearance of IGF:IGF-Trap complexes, thereby masking actual changes to total IGF levels. Such changes and also the short duration of the experiments may explain the apparent lack of measurable increase in insulin levels in these mice. In IGF-Trap–injected mice, we observed a gradual decrease in IGFI:Trap complexes following injection. Although the mechanism of Trap clearance remains to be elucidated, proteolytic degradation of circulating complexes has been documented (48) and likely plays a role.

In IGF-Trap preparations, we observed protein species that migrated at a >400 kDa range [high molecular weight (HMW) species] that could be minimized by step elution following Protein A column purification. The appearance of HMW species of Fc fusion proteins was observed by others and attributed to the formation of disulfide bonds between individual Fc domains (36). These fractions could be minimized when the protein was eluted at pH 4.5 and enriched by elution at pH 3.5. Fractions enriched for HMW proteins had a markedly reduced ligand affinity and a half-life of only 10 hours (data not shown), indicating that they were more rapidly cleared from the circulation and did not contribute significantly to the biologic effects of the Trap.

In mice injected with mammary carcinoma 4T1 cells, we observed that tumors did not grow during the course of IGF-Trap treatment, but growth resumed several days after cessation of treatment. Notably, we observed that whereas all the mice in the untreated group were moribund with metastatic disease by day 14 after tumor injection (when the mean tumor volume in that group was < 200 mm³), mice in the treatment group survived for up to 35 days with significantly larger tumors (mean tumor volumes exceeding 1 cm³). Although the underlying factors remain to be fully elucidated, the data suggest that IGF-Trap treatment resulted in the elimination of a more aggressive tumor subpopulation, consequently shifting the tumor phenotype. This implies that different subpopulations within the tumor may have different susceptibilities to reduced IGFI bioavailability with highly aggressive subpopulations being particularly sensitive to the treatment.

The IGF-Trap could have several advantages over IGF-targeting drugs currently in clinical use. Because of its high specificity for IGF ligands and low affinity for insulin, deleterious effects on IR signaling should be minimized with the IGF-Trap. Indeed, we previously reported that the sustained production of an IGFI receptor decoy in mice did not significantly affect glucose homeostasis (24) and, similarly, observed here that insulin levels in IGF-Trap–treated mice were unaltered relative to controls. Moreover, the IGF-Trap binds IGFII with high affinity and could suppress IGFII functions in vitro, suggesting that unlike IGFIR-targeting antibodies (14), the IGF-Trap could potentially block compensatory IGFII/IR-A signaling, when administered as a drug in the clinical setting. The possibility that insulin/IR signaling may still provide a resistance mechanism for tumor cells expressing both receptors cannot, however, be ruled out.

The therapeutic benefits of the IGF-Trap in comparison with other agents, such as antibodies, that bind both IGFI and IGFII, (e.g., MEDI-573 and BI 8368456) can ultimately be determined only in a clinical setting. However, we have shown here that the IGF-Trap could inhibit several tumor cell properties essential for metastasis, such as migration and invasion, and also found that it blocked the growth and metastasis of several aggressive tumor types in vivo. These unique properties (not documented for the antibodies) could potentially prove to be an asset in clinical management of aggressive malignancies. It also remains to be seen whether some of the adverse effects reported for MEDI-573 (e.g., anemia and leucopenia; ref. 60) could be averted by the use of a Trap.

In the present study, significant reductions in tumor growth were observed using the IGF-Trap as a “stand-alone” single agent. In the liver metastasis models, we have observed either a modest or a lack of therapeutic effect in some cases, possibly as a result of the relatively short duration of the treatment. Moreover, liver metastasis is a complex multifactorial process (61), and a more limited therapeutic effect of the IGF-Trap on some metastases may suggest that the IGF axis may not be the predominant driver of metastatic growth in some tumor cells or that compensatory mechanisms can bypass the dependency on IGF for growth. Combination therapies in which several growth and survival factors are targeted may ultimately be required to achieve the desired therapeutic effects in metastatic disease.
