Mechanism and Efficacy of Sub–50-nm Tenfibgen Nanocapsules for Cancer Cell–Directed Delivery of Anti-CK2 RNAi to Primary and Metastatic Squamous Cell Carcinoma

Head and neck cancers (HNC) represent approximately 3% of all cancers in the United States, and 42,440 diagnoses of oral cavity and pharynx HNCs are expected for the year 2014 (1). In general, survival for patients with HNC has not improved significantly over the last several decades because of the difficulties in treating recurrent and metastatic disease (2, 3). The use of cetuximab, an EGFR-specific antibody, in combination with chemotherapy extends median overall survival from 7.4 to 10.1 months in patients with recurrent or metastatic head and neck squamous cell carcinoma (HNSCC; ref. 4) warranting more effective treatment approaches to address recurrent and disseminated disease.

Much recent work has pointed to the strong potential of targeting protein kinase CK2 for cancer therapy. CK2 (acronym for previous name casein kinase 2 or II) is a ubiquitous and highly conserved protein Ser/Thr kinase affecting a broad range of cellular activities that has led to the notion that it is a “master regulator” of cell function (5–7). The CK2 tetrameric complex consists of two catalytic α and/or α′ subunits, encoded by separate genes, and two regulatory β subunits. This kinase is constitutively active and is localized both to the nuclear and cytoplasmic compartments of cells. The potential involvement of CK2 in cancer cell biology has long been recognized because of its role in cell proliferation and the observations that CK2 is elevated, predominantly at the protein or enzymic activity level relative to normal tissue, in all cancers that have been examined (6, 8–10). The role of CK2 in the cancer cell phenotype was firmly established when it was found that CK2 both stimulates cell growth and potently inhibits apoptosis—thus providing dual effects of promoting proliferation while inhibiting cell death (11, 12). The potential of CK2 as a therapeutic target was suggested by original studies that demonstrated that downregulation of CK2 by various molecular strategies resulted in death of cancer cells in vitro and in vivo (13–18); subsequently, the druggability of CK2 was also documented with the development of chemical inhibitors (19–21).

Increased CK2 expression in HNSCC is correlated with disease status and prognosis (8, 22, 23). Using immunohistochemical analysis of patient samples, elevated CK2 levels were strongly detected at the proliferating edge as well as throughout the tumor sections; in comparison, Ki-67 staining was detected only at the proliferating edge (22, 23). Together, mounting evidence on increased CK2 abundance and its shift toward nuclear accumulation throughout tumor sections suggests that CK2 dysregulation underpins the malignant processes of tumor growth and maintenance. In a previous report, we documented the role of CK2 in various HNSCC signaling pathways and showed that CK2 knockdown has a potent effect on several of these pathways (23).

For most molecular targets, a particularly important consideration for delivery of any cancer therapy agent remains the need for specific delivery to malignant cells. To that end, a large number of nanoparticle-based delivery approaches have been devised (see, e.g., ref. 24). These approaches have achieved varying degrees of success in precise targeting to cancer cells. Because CK2 is a ubiquitous and essential survival signal in normal as well as cancer cells, it is important to target it specifically in cancer cells to achieve a satisfactory response. Along these lines, we have used a novel nanocapsule that has the characteristics of directed targeting to cancer cells while avoiding the normal cells. The nanocapsule shell is comprised of tenfibgen, the carboxy-terminal fibrinogen globe domain of tenascin-C (TNC), surrounding therapeutic agents such as CK2 antisense or siRNA (10, 23–25). Important features of the nanocapsule are (i) the tenfibgen (TBG) ligand shell that allows receptor-mediated targeting to cancer cells via tenascin receptors, which are elevated in these cells (26–31); (ii) avoidance of reticuloendothelial system (RES) accumulation; (iii) avoidance of endosomal/lysosomal compartments; (iv) high stability and nuclease resistance to protect oligonucleotide/oligonucleoside (OGN) cargos; (v) lack of aggregation; and (vi) relatively neutral charge. It is noteworthy that several of these characteristics are key for avoiding immunotoxicity (32).

The TBG nanocapsule contains a 20-mer single-stranded chimeric OGN cargo designated as RNAi-CK2 and designed as a 14-mer DNA seed arm with a 6-mer RNA 3′ end. The sequence of this OGN is bispecific in that it decreases expression of both CK2α and CK2α′ proteins. Importantly, in acute response HNSCC xenograft treatment studies, use of this TBG encapsulated OGN (TBG-RNAi-CK2) resulted in loss of CK2 expression, suppressed tumor growth, and changed survival and apoptosis-related gene expression consistent with the cell culture studies (23). Here, we further elaborate on the use of the TBG nanocapsule to target CK2 in HNC, including data on the s50-TBG nanocapsule caveolar/lipid raft–mediated entry into cells and on the possible argonaute 2/RNA-induced silencing complex (Ago2/RISC)-mediated mechanism underlying the molecular targeting of CK2 in cancer cells. We have also delineated the biodistribution of s50-TBG nanocapsules using a xenograft cancer model in mice, and present data on the targeting of metastatic sites as well as on long-term survival in mice. Together, our data further underscore the therapeutic feasibility of RNAi molecular targeting of CK2 delivered via the cancer cell–specific s50-TBG nanocapsule.

UM-SCC 11b tumor line was obtained from the University of Michigan squamous cell carcinoma series in 2000. The FaDu (HTB-43) and SCC-15 (CRL-1623) tumor lines were purchased from ATCC in 2000 and were cultured as per instructions from ATCC or as previously described (23); newly received cells were expanded, frozen back. Cells were cultured for less than 3 months per thaw. Cell lines were not authenticated by authors. Tissue culture plasticware and nanofibers (Corning) were coated with 0.5 μg/cm² of 2:1 (w/w) TNC (Millipore):Fibronectin-1 (FN1; Sigma-Aldrich) in 1× PBS. DOTAP (N-[1-(2,3-dioleoyloxy)propyl]-N,N,N-trimethylammonium methyl-sulfate) transfection reagent (Roche Applied Sciences) was used according to the manufacturer's protocol. PEI polyplexes (25-kDa polyethylenimine; Sigma-Aldrich) were prepared and used as described (33). Nanocapsule transfections were performed as described in Figs. 1–4 legends.

Nuclear or cytosolic lysates were prepared as described (34), incubated for 3 hours at 4°C with 200 nmol/L of various FITC-labeled oligos, and then pulled down using “Catch and Release” columns (Millipore) with anti-FITC antibodies.

Western analysis was performed on whole cell, nuclear, and cytoplasmic lysates as described (20) using the following antibodies: CK2α, CK2α′ (Bethyl Laboratories; A300-197A, A300-199A), caveolin-1, SP-3 (Santa Cruz Biotechnology; sc-894, sc-644), Ago2 (Abnova; 00027161), LDH (Cell Signaling; 2012), Keratin-14 (Covance; PRB155P), and FITC (Biodesign; K9006G).

For SYBR green qRT-PCR, cDNA was transcribed from 0.5 μg of total RNA using Superscript III (Invitrogen). SYBR green reagents and huCK2α, huCK2α′, and (human glyceraldehyde 3-phosphate dehydrogenase) huGAPDH normalization primers were obtained from SABiociences, and used as described (25).

For endpoint PCR, total RNA was isolated from spleens using TRIzol Reagent (Invitrogen). Total RNA (0.5 μg) was used as template to perform RT-PCR using the Titan One Tube RT-PCR system (Roche Molecular Diagnostics). Primers used were as follows: 5′-GTTGCTTCCCGATACTTCAAAGG-3′ (CK2α, F), 5′-GAACCTTGGCTATCCTCACCAAC-3′ (CK2α, R), 171-bp product; 5′-TCCTCGTGGACTATCAGATG-3′ (CK2α′, F), 5′-AACCTTGGCAATGCGAAC-3′ (CK2α′, R) 140-bp product; 5′-CCCTTCATTGACCTCAAC-3′ (GAPDH, F), 5′-TTCACACCCATCACAAAC-3′ (GAPDH, R) 120-bp product. The PCR amplification included RT at 50°C for 30 minutes, 94°C for 4 minutes, 33 cycles of 94°C for 45 seconds; 55°C for 20 seconds; 72°C for 45 seconds with final 5-minute extension at 72°C. For normalization, parallel RT-PCR reactions were performed with GAPDH primers using the same conditions. PCR products were separated by 1.0% agarose gel and stained with ethidium bromide. Images were acquired using a Kodak digital imaging system and quantitated using ImageJ.

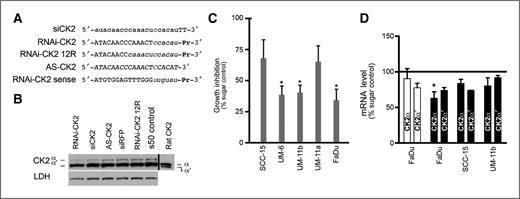

The sequences targeting CK2αα′ are shown in Fig. 1. FITC-labeled siRNAs and single-stranded oligos were modified at the 5′ end. The TBG nanocapsules containing the oligos or GFP and luciferase reporter plasmids were manufactured as previously described (23, 35). Nanocapsules manufactured for in vitro use had bismuth tribromophenate added to the ligand shell to facilitate sedimentation and improve electron density.

Frozen sections were processed, and antibodies used as described (25, 35). Other antibodies include GFP (Sigma; G1544) and keratin-14 (Covance; PRB155P). Nuclei were stained using Sytox Green (Life Technologies) or bisbenzamide. Images were acquired using Nikon C1si Laser Scanning Confocal Microscope.

SCC-15 cells (2 × 10⁵) were plated onto 4-well glass chambers coated with TNC:FN1 and treated with 2 μmol/L TBG-siRNA. Following fixation and mounting, sections were lead-stained and examined using Phillips CM12 TEM microscope (45,000×).

Animals were housed in facilities approved by Association for Assessment and Accreditation of Laboratory Animal Care International (AAALAC) in accordance with U.S. Department of Agriculture (USDA), U.S. Department of Health and Human Services (HHS), and NIH. Experiments were conducted under approved Institutional Animal Care and Use Committee protocols at University of Minnesota and Minneapolis Veterans Affairs Health Care System (MVAHCS). Balb/C athymic nude females (NCI) were used to generate the three xenograft models using intradermal flank inoculation with 4 × 10⁶ FaDu, SCC-15, or UM-11b cells (23). Treatment amounts and regimens are described in legends for Figs. 4, 5 and Table 1. Tumors were measured using calipers and tumor volumes calculated by V = 0.5(L*W*W). At necropsy, blood, liver, kidney, spleen, lung, brain, primary and metastatic tumors were collected; portions of samples were embedded in O.C.T. Compound (Tissue-Tek), or flash-frozen in liquid nitrogen for analysis. Blood and serum analysis was performed as described (35).

Balb/C athymic nude (NCI) female mice carrying FaDu tumors were treated i.v. with 3 mg/kg of TBG encapsulated iodine-derivatized siRNA when tumors were approximately 4 to 5 mm in diameter. Controls received TBG-trehalose (TBG-sugar) nanocapsules. At necropsy, blood and tissues were collected and shipped to the University of Missouri MURR facility for neutron activation analysis. By irradiation, tissue and siRNA iodine is converted to isotope I¹²⁸, which allows for counting of γ ray emission (36). Drug accumulation was calculated as the organ difference between animals receiving TBG-sugar and those receiving TBG-iodine–derivatized siRNA nanocapsules.

Percentage of mice with tumor/metastases signal among those surviving the study were compared by treatment group using Fisher exact tests. Cell culture expression data, mouse spleen expression data, tumor and mouse weights were summarized and compared by treatment group for each tumor or sample type using ANOVA. Mean ± SD are presented. Overall survival, defined as time from treatment initiation to death or censorship at six (SCC-15, FaDu) or seven (UM-11b) months, was summarized using Kaplan–Meier methods. Comparisons between the treatment and control groups were made using log rank tests. P values for pairwise comparisons were conservatively adjusted for multiple comparisons using a Bonferroni correction, and P values <0.05 were considered statistically significant.

We tested different chemistries of the same OGN sequence designed to target both the α and α′ catalytic subunits of CK2. This sequence is 100% complementary to the CK2α transcript, but has a single-base mismatch with the CK2α′ mRNA. The various base modifications of these OGNs are presented in Fig. 1A. To facilitate nanocapsule uptake, FaDu cells were plated in three-dimensional (3D) culture using 0.5 μg/cm² 2:1 TNC:FN1-coated nanofiber scaffolds to improve cell surface lipid raft density. Treatment with TBG nanocapsule containing three types of OGN caused a varying level of reduction in the CK2α subunit [RNAi-CK2 0.66 ± 0.15; siRNA to CK2αα′ (siCK2) 0.61 ± 0.08; antisense to CK2αα′ (AS-CK2) 0.84 ± 0.12; Fig. 1B]. Several HNSCC cell lines were similarly cultured and treated with s50-TBG-RNAi-CK2 nanocapsules, and 48 hours after treatment all five cancer cell lines demonstrated an inhibition of growth, with three cell lines showing statistically significant reduced growth (Fig. 1C). Corresponding analysis of the mRNA level by qRT-PCR in cells treated with nanoencapsulated RNAi-CK2 showed a significant reduction in the α subunit transcript in FaDu cells detected 24 hours after treatment (black bars compared with white bars, P < 0.05; Fig. 1D); although CK2α′ mRNA was reduced, it was not significantly different than the control sense-strand–treated cells (white bars). Reductions in SCC-15 and UM-11b CK2α and α′transcript levels were also modest.

To address the mechanism of entry of the s50-TBG nanocapsules into cancer cells, we used pharmacologic inhibitors of caveolar uptake (filipin and nystatin) or of endosomal uptake (bafilomycin) at varying concentrations. Figure 2A illustrates representative results of the treatment of SCC-15 carcinoma cells with 2 μg/mL of filipin before treatment of cells with 0.25 μg/mL of s50-TBG-RNAi-CK2 (left) or 1.25 μg/mL of FITC-labeled RNAi-CK2-PEI polyplexes (right top and middle). For this experiment, the s50-TBG nanocapsule shell was spiked with sheep IgG, and identified by using anti-sheep IgG (red signal). In Fig. 2A (left and top), the red signal denotes nuclear localization of the s50-TBG nanocapsules. Further, RNAi-CK2-PEI polyplexes were also directly visualized via the FITC label at the 5′ end of the RNAi-CK2 OGN (Fig. 2A, right and top). Treatment with 2 μg/mL of filipin caused disappearance of the s50-TBG nuclear signal (Fig. 2A, left and middle); however, the polyplexes continued to demonstrate a punctate distribution, which was nonnuclear (Fig. 2A, right and middle), consistent with the established uptake of PEI nucleic acid polyplexes by the endosomal pathway (37). Figure 2B shows a representative transmission electron micrograph of s50-TBG nanocapsules in surface caveolae of SCC-15 cells grown on TNC:FN1 matrix and treated with 20 μmol/L siCK2 encapsulated in s50-TBG nanocapsules. As shown in Fig. 2B, localization of s50-TBG nanocapsules is visualized in the caveolae. The micrograph also shows the trafficking of the nanocapsules along fibers consistent with cytoskeleton. Considering that the s50-TBG nanocapsules entered the cells via the caveolar/lipid raft pathway in cancer cells, we investigated if the matrix on which the cells grew affected expression of caveolin-1. Membrane-associated caveolin-1 protein levels were analyzed by immunoblot in HNSCC cell lines grown in 3D cultures on TNC:FN1-coated nanofiber scaffolds compared with standard tissue culture–treated plastic plates; the results demonstrated increased expression of caveolin-1 in hydrophobic membrane fractions of FaDu and UM-11b grown on TNC:FN1 scaffolds (Fig. 2C).

Because Ago2 is the key Argonaute family protein responsible for cleaving the targeted transcript within small RISCs (38), we investigated whether or not Ago2 was involved in RNAi-CK2–induced reduction of CK2 expression. The results shown in Fig. 3A depict SCC-15 cells treated with 200 nmol/L s50-TBG encapsulated FITC-labeled RNAi-CK2, DOTAP-complexed FITC-labeled RNAi-CK2, or FITC-labeled siβ-gal, or no treatment control. Ago2 (red) and RNAi-CK2 (green) signals colocalize in the s50-TBG nanocapsule-treated cells (top left), whereas this is not apparent in cells in which the single-stranded RNAi-CK2 OGN was delivered using DOTAP. As expected, the double-stranded siRNA, siβ-gal, signal also colocalized with Ago2. Figure 3B shows analysis of Ago2 protein expression in SCC-15 cells treated with s50-TBG nanoencapsulated RNAi molecules compared with those introduced using DOTAP. The expression of the nuclear Ago2 was pronounced in the cells treated with s50-TBG encapsulated single-stranded RNAi and double-stranded siRNA molecules, whereas only the siRNA elicited significant nuclear Ago2 expression when introduced with DOTAP. No increase in cytosolic Ago2 expression was observed. A significant elevation of nuclear Ago2 was observed in response to s50-TBG nanoencapsulated OGN compared with corresponding controls (P < 0.05; Fig. 3B bottom).

We next examined the interaction of Ago2 with RNAi-CK2 in SCC-15 cells 8, 24, and 36 hours following treatment with s50-TBG nanoencapsulated FITC-labeled RNAi-CK2. As shown in Fig. 3C, an increase in the perinuclear (8 and 36 hours) and nuclear (24 hours) colocalization of Ago2 (red) and FITC-labeled RNAi-CK2 (green) was detected. To confirm the nuclear Ago2 loading of various siRNA and single-stranded RNAi molecules, and the importance of the growth environment in this process, SCC-15 cells grown on TNC:FN1-coated nanofiber scaffolds or standard tissue culture plastic were treated with s50-TBG nanocapsules containing FITC-labeled siRNAs or chimeric RNAi molecules. At 24 hours after treatment, the cells were harvested and fractionated for nuclear and cytosolic compartments using methodology in which endoplasmic reticulum remains associated with the nuclear fraction. Western blot analysis of FITC-labeled OGNs immunoprecipitated with anti-FITC antibody indicated that Ago2 binds both siRNAs and the single-stranded RNAi structures, and the Ago2/FITC-siRNA or RNAi complexes are primarily localized in the nuclear/nuclear-associated fraction (Fig. 3D). By comparison, little OGN-associated nuclear Ago2 was detected in cells not grown on TNC:FN1-coated scaffolds, analogous to what was observed with caveolin-1 (Fig. 2C).

An analysis of the human HNC Affymetrix U-133a microarray database (39) indicated that Ago2 was significantly elevated in HNSCC compared with normal oral mucosa samples (Supplementary Fig. S1). Other genes relevant to the targeting/uptake of the s50-TBG nanocapsules by tumor cells such as TNC and caveolin-1 were also significantly upregulated. Among the putative receptors for TNC (and TBG) are integrin α2 and integrin β1; these genes are among those that showed the largest changes (62- and 234-fold increase, respectively) in the HNC tumors versus normal samples in this database (39).

To investigate the biodistribution of s50-TBG nanocapsules by neutron activation analysis, we produced TBG nanocapsules carrying an I¹²⁷-derivatized siRNA cargo to administer to nude mice bearing FaDu flank xenograft tumors. Two hours after i.v. administration of the nanocapsules containing the I¹²⁷-siRNA or sugar (background control), the mice were sacrificed and collected tissues were subjected to neutron bombardment, which converted I¹²⁷ to I¹²⁸. The results on I¹²⁸ γ emissions were analyzed; Fig. 4A shows the cancer cell–specific uptake of the s50-TBG nanocapsules, with negligible amounts found in brain, kidney, liver, and thyroid; these tissues were not saline perfused, which may account for the presence of small amounts of the signal. Interestingly, the nanocapsule uptake seemed to be even more avid in the metastases [78% injected dose (ID)/g] compared with the primary tumor (18% ID/g).

Using a cohort of 15 mice euthanized at day 3, we tested whether CK2 manipulation (by 1 × 25 mg/kg dose of the nanocapsules) was apparent in acutely treated tumors, and found that CK2 total protein levels were not altered by RNAi-CK2 treatment at day 3 (data not shown). Because CK2 shuttling from the nucleus precedes onset of apoptosis, we investigated posttreatment CK2 cellular distribution as well as the phosphorylation status of the CK2 substrate NF-κB p65 using confocal microscopy. The result in Fig. 4B shows nuclear and cytoplasmic CK2 signal (green) in response to nanocapsules carrying sense control (top left), whereas treatment with nanoencapsulated RNAi-CK2 (top right) shows CK2 signal markedly affected in the nuclear compartment. The corresponding panels below depict the NF-κB p65 p-Ser529 signal (red) demonstrating that the RNAi-CK2 treatment dramatically affected the NF-κB status in the treated primary tumors (lower left).

We also analyzed the CK2 response in these same acutely treated FaDu xenograft mice, which had developed metastases in the spleen. Immunoblot analysis for Keratin-14 and CK2αα′ in the primary tumor, naïve spleen, and tumor-carrying spleen showed that CK2α and Keratin-14 levels were elevated in the tumor-bearing spleen and these proteins were downregulated on treatment of the animals with TBG-RNAi-CK2 (P = 0.068 and P < 0.0001, respectively) relative to vehicle control (Fig. 4C). qRT-PCR analysis showed that human-specific CK2α message was significantly downregulated in splenic tumor compared with vehicle control in RNAi-CK2–treated animals (2.2 ± 1.8 vs. 10.0 ± 4.0; P = 0.012). A significant reduction in CK2α′ mRNA levels was also observed between the RNAi-CK2 treatment and vehicle control (1.1 ± 3.2 vs. 100.0 ± 78.3; P = 0.066).

To confirm our findings of a functional relationship between CK2 downregulation and antitumor activity, we used confocal microscopy to compare naïve baseline spleen versus metastatic tumor-carrying spleen treated with s50-TBG–delivered reporter gene (nuclear-localized GFP), s50-TBG-RNAi-CK2, or vehicle. We found that Keratin-14–positive lesions were only GFP-positive in s50-TBG–GFP nanocapsule-treated mice (Fig. 4D, pGFP versus vehicle series). In contrast to vehicle-treated animals, Keratin-14–positive lesions were not observed in s50-TBG-RNAi-CK2–treated or naïve spleen (Fig. 4D, B1 versus C1 and D1) consistent with the 13.9-fold reduction in Keratin-14 protein in the RNAi-CK2–treated animal's spleens (Fig. 4C).

Finally, blood and serum analyses demonstrated no changes in hematologic or blood chemistry profiles in these mice (Supplementary Tables S1 and S2).

We investigated the survival response of several xenograft models of HNSCC using SCC-15, UM-11b, and FaDu tumor cells treated with varying doses and regimens of s50-TBG-RNAi-CK2. CK2 and p53 expression characteristics in addition to other properties associated with aggressive tumors for the HNSCC models are summarized in Supplementary Table S3. The results in Fig. 5, A1, B1, and C1, show the tumor response to varying doses of TBG-RNAi-CK2. Tumor-bearing animals treated with one or two doses of the drug demonstrated a persistent reduction in tumor volume 35 days after treatment initiation. Moreover, significantly improved survival was observed compared with control groups up to 200 days following treatment; notably, 25 of 46 animals survived without any local recurrence. In contrast, only 12 of the 53 control animals from the 3 study groups survived. No control animals carrying FaDu tumor lived beyond 50 days, and only 2 animals carrying SCC-15 tumors lived past 150 days. Further, treated flank tumors resolved by a wound-healing process subsequent to vessel hemorrhage (which resembled bruising) rather than a conventional “shrinking.” There was no significant change in the animal weights over the course of the study (Supplementary Fig. S2).

Information on tumor burden in the surviving mice in relation to dose level and therapy regimen is shown in Table 1. At the end of the survival period, all remaining animals were treated with s50-TBG nanocapsules containing a luciferase-expressing plasmid to determine in vivo tumor burden in primary and metastatic sites (10). The results indicate that of the 25 surviving s50-TBG-RNAi-CK2–treated animals, the percentage with any metastatic tumor burden ranged from 33% (UM-11b, 3 of 9; FaDu, 2 of 6) to 10% (SCC-15, 1 of 10). In contrast, of the remaining 12 sense-RNAi and vehicle-treated control mice (UM-11b, 10; SCC-15, 2), all but 1 (i.e., 92%) had detectable local and metastatic tumors.

In recent years, considerable progress has been made toward developing cancer therapies that are designed to target specific deregulated pathways or molecules. Indeed, these targets may represent one or more hallmarks of cancer (40). However, fundamental concerns pertaining to such therapies remain. First, lack of drug delivery in a cancer cell–specific manner may have potent side effects and considerable toxicity in the host. Second, even when therapeutic effects are noted, they tend to be transient with reemergence of the cancer not only due to the development of drug resistance pathways but also due to the possible ever-changing reliance of cancer cells on alternate pathways and molecules for survival (40). Ideally, for effective cancer therapy, the target should be unique to malignancy and without redundancy in the cell so that its targeting results in specific cancer cell death. However, such a situation is now considered highly unlikely for the majority of cancers.

Protein kinase CK2 has been found to be elevated in all cancers that have been examined (6, 10). This increase in CK2 expression correlates with increased nuclear localization, is not associated with any mutational changes in CK2 genes, and serves as a prognostic indicator (5, 9). Its role in cancer cell biology likely relates to its interaction with various hallmarks of cancer (7, 40, 41), and we originally proposed CK2 as a potentially important target for cancer therapy (14). Since then, much evidence has come forth to support CK2 as a druggable target (20, 21, 42). Certainly, although a “pharmacological window” may exist for targeting of CK2 because normal/benign cells tend to be relatively resistant to downregulation of CK2, its cancer cell–specific targeting would be highly desirable (14). To that end, we have designed a novel nanocapsule that can deliver its cargo specifically to target CK2 in cancer cells while avoiding the normal cells (7, 10, 16, 23–25, 43).

Our results on the mechanism by which s50-TBG nanocapsules enter the cell demonstrate the involvement of the caveolar/lipid raft pathway, providing a mechanism for avoiding the endosomal pathway and preventing activation of the innate immune response (44, 45). This relates to the sub–50-nm size of the TBG encapsulated RNAi-CK2, which unlike conventional liposomes or other nanoparticle delivery strategies is below the known size exclusion for the lipid raft/caveolar pathway. Our data also suggest the importance of the cancer cell environment for drug uptake and processing. In the case of cultured cells, this translated to the necessity for growing cells on an extracellular matrix support containing TNC and fibronectin. The extracellular protein-enriched scaffolds allowed for increased Ago2 expression and association with the OGN drug cargo in the nuclear and nuclear-associated fractions upon treatment with TBG encapsulated OGN, consistent with Ago2 association with single-stranded small RNAs in the nucleus and Ago2 localization to the perinuclear region (46, 47), whereas growth of cells on plastic was not favorable for OGN/Ago2 association. This suggests targeting of CK2αα′ mRNAs via the nanoencapsulated RNAi-CK2 is achieved, at least in part, through the Ago2/RISC pathway. Further, it is possible that the s50 TBG nanocapsule may enhance RNAi efficacy in the cell by delivering the OGN specifically to nuclear and nuclear-associated Ago2 locations (48). Of note, all three xenograft models responded to RNAi-CK2 treatment with significantly improved survival, and remained free of local recurrence for 6 months, despite variances in their basal Ago2 expression levels. As we achieved significant reduction in vivo of orthotopic prostate xenografts using naked phosphorothioate antisense DNA with the identical bispecific sequence targeting CK2, it suggests that the chimeric DNA/RNA hybrid used in the current study might also target the CK2αα′ transcripts for destruction via RNase H (18).

We propose that the malignant cell specificity of the s50-TBG nanocapsule is achieved by the nature of the protein that forms the shell of the nanocapsule, namely TBG. The receptors for TNC are known to be elevated in cancer cells including HNSCC, whereas these receptors are minimal in normal cells (29, 31, 49). Human and mouse TBG peptides are 93% perfectly identical and 99% positively identical taking into account conservative amino acid changes, thus the TBG nanocapsule is predicted to elicit the same biologic activities in tissues of mouse and human origin. Our data also provide further evidence that s50-TBG nanocapsules target cancer cells and not the normal cells—specifically, biodistribution data demonstrate that the OGN drug cargo accumulation is much greater in primary and especially metastatic lymph node tumor tissue as compared with nontumor tissues such as liver and spleen, thereby avoiding preferential accumulation in the RES.

We previously demonstrated that s50-TBG-RNAi-CK2 was effective in acute HNSCC response studies at reducing tumor growth and inducing changes in tumor cell signaling anticipated for treatment response (23). Here, using higher s50-TBG-RNAi-CK2 dosing levels in which survival out to 6 months was examined, we have noted that the xenograft tumor response is remarkably sensitive to the dose level and regimen of therapy treatment. Dose–response analysis of survival data at the highest doses is confounded due to frequent occurrence of rapid tumor death response and, in some cases, subsequent animal death. Such a response was the most pronounced in the FaDu xenograft as it was observed at single doses ≥ 10 mg/kg. Interestingly, these tumors also expressed the highest levels of Ago2 among the three cell lines used in our studies. UM-11B showed moderate rapid tumor death response, and also expressed the second-highest levels of Ago2. The rapid form of tumor death response was minimal in the SCC-15 model, which had the lowest Ago2 levels.

Remarkably, our data demonstrate the ability of s50-TBG-RNAi-CK2 to target metastatic spleen and elicit a response by shutting down CK2 expression. Although an approximate 2-fold reduction in CK2α transcript was observed with the sense-RNAi-CK2 control in the splenic metastases, little change in the cytosolic or nuclear CK2αα′ protein levels was observed. An analysis of sense-RNAi-CK2 sequence by Biobridge indicated it could act as an anti-CK2α but not anti-CK2α′ sequence. In contrast, the bispecific RNAi-CK2 reduced the transcripts and protein levels in all cellular compartments and for both subunits by at least 65%. As the sense-RNAi-CK2 provided no survival advantage, these results support the importance of targeting both kinase subunits of the enzyme to achieve effective cancer cell killing. Furthermore, it is particularly noteworthy that the efficacy of the TBG-RNAi-CK2 treatment was observed regardless of cellular p53 mutational status or of EGFR expression. Together, these results indicate that s50-TBG encapsulated RNAi-CK2 is delivered specifically to primary and metastatic tumors in a wide range of HNSCCs; is effective in downregulating CK2; and achieves significant tumor-free survival following only a two-dose therapy regimen.

In summary, we have demonstrated that s50-TBG nanocapsules carrying RNAi-CK2 administered for brief periods of time at relatively low doses target cancer cells specifically in both primary and metastatic tumors without affecting the normal cells, thereby serving as an effective therapeutic for several xenograft HNSCC tumor models, and resulting in significant posttreatment survival of the tumor-bearing mice. This suggests that the combined impacts of targeting CK2 with the nanocapsule's ability to affect metastases fulfill an important deficit in current nanoparticle drug strategies (50).
