A Small Molecule That Binds and Inhibits the ETV1 Transcription Factor Oncoprotein

ETV1 is an oncogenic transcription factor that lacks an enzymatic activity and therefore is deemed “undruggable” by conventional means (1). A significant proportion of the “undruggable” oncoproteins are transcription factors that become deregulated by various somatic genetic events, including gene amplification or balanced translocation (2, 3). The ETS transcription factor family includes several well-known oncogenes affected by genetic aberrations across multiple tumor types (4). For example, 80% of Ewing sarcomas (5) harbor FLI1 (ETS factor) translocations and a majority of prostate cancers harbor chromosomal translocations of the ERG (V-Ets Erythroblastosis Virus E26 Oncogene Homolog Avian), ETV1 and ETV4 (ETS variant 4) ETS factor genes (6). In prostate cancer, these translocations arise in the setting of chromoplexy (7) and yield fusion genes involving androgen-regulated upstream partners such as TMPRSS2 (transmembrane protease, serine 2) or housekeeping genes (8, 9).

ETV1 is an ETS transcription factor oncogene that is altered in several cancers. Translocations are observed in Ewing sarcoma and prostate cancer, amplification occurs in melanoma (10), and oncogenic lineage dysregulation seems ubiquitous in gastrointestinal stromal tumors (11). These genetic events induce aberrant activation of transcriptional programs that govern various aspects of tumorigenesis (12, 13). ETV1 is phosphorylated downstream of mitogen-activated protein kinase (MAPK) signaling (14), which enhances its protein stability (15). In addition, the histone acetyltransferase (HAT) p300 (E1A binding protein p300) binds and acetylates ETV1 at lysines 33 and 116 (16), with both events leading to increased protein half-life and enhanced transcriptional activity (17, 18). A putative “degron” sequence in the N-terminal region of ETV1 may control its COP1-dependent, proteasome-mediated degradation (19, 20).

In recent years, several small molecules that bind and inhibit regulators of oncogenic transcription factors have been reported. The identification of JQ-1 as a bromodomain perturbagen is exemplary in this regard (21). Research to develop tool compounds that interfere with oncogenic ETS factors led to the discovery of YK-4-279, which modulates several ETS family members including ERG, ETV1, and FLI1 (22, 23). However, much more work is needed to develop systematic approaches to identify small-molecule “perturbagens” of oncogene transcription factors in general and ETS factors in particular.

Small molecule microarray (SMM) screening has been described as a high-throughput means to interrogate many thousands of diverse chemical species for their ability to bind various types of proteins (24). As such, we sought to use SMMs to identify putative ETV1-binding compounds. We reasoned that a subset of such compounds might also inhibit its function and thereby provide new insights into pharmacologic perturbation of these and other transcription factor oncoproteins. These efforts identified BRD32048, a compound that binds ETV1 directly in vitro and inhibits its transcriptional activity through a mechanism that involves altered acetylation and compound-induced ETV1 degradation. These results provide new insights into mechanisms that suppress ETV1 activity and may provide a generalizable approach to identify chemical probes of traditionally “undruggable” protein targets.

Each SMM slide contained approximately 10,800 printed features including 9,000 unique compounds and was prepared as described previously (25). In total 45,000 compounds were screened. The collection contained commercially available natural products, FDA-approved drugs, known bioactive small molecules, and products of diversity-oriented synthesis (24, 26–28). Each sample was screened against 3 replicate SMMs. Lysates were prepared from HEK293T cells overexpressing HA-tagged ETV1 or vector alone as control. Cells were lysed in mild phosphatase buffer (MIPP) lysis buffer (20 mmol/L NaH₂PO₄, pH 7.2, 1 mmol/L Na₃VO₄, 5 mmol/L NaF, 25 mmol/L β-glycerophosphate, 2 mmol/L EGTA, 2 mmol/L EDTA, 1 mmol/L DTT, 0.5% Triton X-100, complete protease inhibitors). The concentration of total protein was adjusted to 0.3 mg/mL, where ETV1 protein was at approximately 0.5 μg/mL lysate, estimation obtained by comparing Western blot signals of lysates and known amounts of purified ETV1. Each slide was incubated with 3 mL of adjusted lysate for 1 hour at 4°C followed by anti-HA mouse monoclonal (Covance) at 1:1,000 for 1 hour at 4°C in PBS-T buffer (1× PBS, 0.1% Tween-20) supplemented with 0.5% (w/v) BSA. A Cy5-labeled anti-mouse secondary antibody (Millipore) for detection was incubated at 1:1,000 using the same conditions. Each incubation step was followed by 3 washes in PBS-T. Finally, the slides were briefly rinsed in distilled water and spin-dried (26). The slides were immediately scanned using a GenePix 4000B fluorescence scanner (Molecular Devices). The image was analyzed using GenePix Pro software (Axon Instruments) and the raw data were analyzed based on the signal-to-noise ratio and reproducibility. For each feature a CompositeZ score was calculated as described previously (29, 30). The refined data were visualized using Spotfire software (Spotfire TIBCO Software). Assay positives with a composite Z score ≥3 were compared with the control screen and all other SMM screens within ChemBank database to filter nonspecific binders.

The MMP1 promoter region (1,537 bases upstream of the start codon) was amplified from genomic DNA (5′: CTAGCGCAAACCTGATACAGTGGGAAAGGTGG and 3′: ATCTCGAGCAGTGCAAGGTAAGTGATGGCTTCC) and cloned in pGL3 vector (Promega). The tyrosinase promoter region (712 bases upstream of the start codon) was amplified from genomic DNA (5′: CTAGCGCTCTTTAACGTGAGATATCCCCACAATG and 3′: ATCTCGAGCTTCCTCTAGTCCTCACAAGGTCTGCAGG). 501mel cells were seeded in 6-cm Petri dishes and cotransfected with Renilla plasmid (Promega), reporter construct in the presence or absence of ETV1 plasmid. The ratio of reporter to driver was 2:1. After 24 hours, the cells were reseeded in triplicate 96-well plates (∼5,000 cells/well) and incubated for 24 hours in the presence of 10 μmol/L BRD32048. The luciferase signal was measured using a dual-luciferase reporter assay (Promega) according to manufacturer's protocol. The luminescence signal was read using a Luminoskan Ascent instrument (Thermo Electron).

A codon-optimized sequence of full-length ETV1 was cloned into a pcDNA3.4 vector (Invitrogen). Synthesized ETV1 sequence included at C-terminus a FLAG tag sequence and a streptavidin binding peptide sequence (SBP tag). The vector was transfected into HEK293F (Invitrogen) cells adapted to grow in suspension to enable the up scaling of protein production. After 72 hours, the cells were harvested and lysed in 1× RIPA buffer supplemented with 2× complete protease inhibitors (Roche). The lysates were cleared by centrifugation at 15,000 rpm for 20 minutes at 4°C and filtered through a 0.2-μm filter. The ETV1 protein was bound to a streptavidin column via SBP tag and eluted in 2 mmol/L biotin in PBS buffer.

The surface plasmon resonance (SPR) assays were conducted on a Biacore T200 instrument using Biacore CM5 sensor chips (Biacore). Ethanolamine, N-ethyl-N'-(3-dimethylaminopropyl) carbodiimide (EDC), N-hydroxysuccinimide (NHS), and P-20 surfactant were all obtained from GE Lifesciences. M2 Flag antibody was obtained from Sigma. Reference proteins were obtained from Origene.

The surface of the sensor chip was conditioned using alternating 1-minute injections (30 μL/min flow rate) of 10 mmol/L glycine pH 2.2 and 50 mmol/L NaOH (repeated 3 times). Surface carboxyl groups were activated with 1:1 0.4 M EDC/0.1 M NHS. A 30 μg/mL solution of anti-FLAG in acetate buffer pH 4.5 was flowed for 10 minutes at a rate of 5 μL/min over all 4 flow cells. The remaining NHS-ester groups on the sensor surface were quenched with a 7-minute injection of 1 M ethanolamine. Recombinant ETV1-FLAG and FLAG-tagged proteins were diluted to 5 μg/mL and captured on the anti-FLAG antibody surface with a 10 to 30 minutes injection at 5 μL/min. Between 1,700 and 2,300 response units (RU) of protein were captured for each assay. The running buffer used during immobilization and capture was HEPES buffered saline (HBS), pH 7.4 with 0.05% P-20 surfactant.

Small-molecule binding assays were performed at 25°C. The running buffer for the binding assays was HBS, pH 7.4 supplemented with 0.05% P-20 surfactant, and 2% DMSO as a cosolvent. Compounds were diluted from 10 mmol/L DMSO stocks in the appropriate concentrations in buffer with the same solvent concentration as the running buffer (2% DMSO). Binding was measured for a range of concentrations (from 0.78 to 50 μmol/L) injected in duplicate. Compound solutions were injected for 60 seconds at a flow rate of 60 μL/min followed by 120 seconds of buffer only.

Sensorgram data, the equilibrium plot, and the residual plot were analyzed using BiaEvaluation software (GE LifeSciences). Data were reference-subtracted and corrected for variations in solvent concentration. Binding affinity was calculated using kinetic and steady-state analyses. Kinetic analysis was performed using a least squares fit of a Langmuir 1:1 binding model with locally measured R_max values. The timing for association phase is adjusted at 2 seconds after the start of injection and 3 seconds before the end of injection. The steady-state affinity constant for each ligand was derived from a plot of R_eq against concentration. The plot was then fitted to a general steady-state model. The graphs displaying the binding level to various surfaces (see Supplementary Figs. S2B, S2C, and S2D and S3B, and S3C) were created using the BiaEvaluation software where the cycle number (X-axis) represents the number of injections of buffer or compound solutions.

LNCaP cells were seeded in 6-well plates and induced with 100 ng/mL doxycycline for 4 days. LNCaP shRNA sequences: shETV1-872 = GCATCTCCAAACTCAACTCAT and shETV1-1117 = CGACCCAGTGTATGAACACAA. SK-MEL-28 cells were infected with lentivirus encoding 2 different ETV1 shRNAs (shETV1-3 = GACCCAGTGTATGAACACAA and shETV1-5 = GAGAGAGATATGTCTACAAGTTT) or sh-GFP for 24 hours followed by 3 days puromycin selection. Both cell lines were treated with 20 μmol/L BRD32048 for 16 hours. Each condition was performed in triplicate. Total RNA was collected using QIAgen RNA Extraction Kit. mRNA expression data were obtained using Affymetrix HT Human Genome U133A arrays according to the manufacturer's instructions. Gene-centric expression values were obtained using updated Affymetrix probe set definition files (CDF files) based on Entrez Gene (hthgu133ahsentrezg) from Brainarray version 15, which consists in 12,012 unique genes (31). Background correction was accomplished using RMA (Robust Multichip Average) (32) and quantile normalization (33). For each experimental condition, we fitted a linear model using Linear Models for Microarray Data (LIMMA; ref. 34) and calculated the average fold-change for each gene between that experimental condition and the control. Gene expression signatures were built using a fold-change cutoff of 1.5 and an FDR-adjusted q-value ≤ 0.25. P values for the significance of the signatures' overlap were calculated using Fisher exact test taking into account the total number of genes measured (12,012). The microarray data (raw data, normalized data and metadata file) are deposited in GEO (accession No. GSE52154).

Cancer cell lines LNCaP, PC3, and SK-MEL-28 were purchased from ATCC. 501mel and primary melanocytes were purchased from Cell Culture Core Facility, Yale University, New Haven, Connecticut. These cell lines were not authenticated in our laboratory. For invasion assays, cells were serum-starved for 24 hours before conducting invasion assays as described previously (35). Briefly, 250,000 cells/well were seeded in Millipore collagen trans-well plates and each condition was carried out in quadruplicates. The relative amounts of invading cells were measured calorimetrically according to the manufacturer protocol using a SpectraMAX 190 instrument (Molecular Devices). Final values were corrected for background signal (empty well). Proliferation assay was performed in 96-well plates where cells were seeded at 3,000 cells/well followed by compound treatment for 4 days. The relative number of cells was quantified using a CellTiter-Glo assay (Promega).

Cells expressing Flag-HA-tagged ETV1 were lysed in 1× RIPA buffer (50 mmol/L Tris-HCl, pH 7.4, 150 mmol/L NaCl, 1% NP-40, 0.1% SDS, 0.5% sodium deoxycholate, complete protease inhibitors) and diluted 1:10 in EMSA buffer (Pierce) to a final volume of 1 mL. Unlabeled or biotin-labeled oligonucleotides (wt—5′: biotin-TCTACCAAGACAGGAAGCACTTCCTGGAGATTAATC and scrambled—5′: AGTCGTCATGCATTAAGCTGTTGTTGAAGAGTGTAC) were added at 5 pmol/reaction. The compound was added during the pull-down reaction at the stated concentrations. The complexes were precipitated for 2 hours at 4°C using streptavidin magnetic beads (Pierce) and washed 3 times with EMSA buffer. The samples were subjected to Western blotting and probed with anti-HA antibody (Covance).

Cells were lysed in cold lysis buffer [50 mmol/L Tris pH 7.4, 150 mmol/L NaCl, 0.1% (v/v) NP-40, 0.5% (v/v) Triton-100, 5 mmol/L MgCl₂, 1 mmol/LM EDTA, 1× complete protease inhibitors]. Three milligrams of total protein was subjected to immuno-precipitation using anti-HA agarose beads (Covance) or anti-FLAG M2 agarose beads (Sigma). Samples were washed 3 times in lysis buffer, boiled in 1× sample buffer and resolved by SDS-PAGE. p300 silencing was performed using p300 short hairpin (Santa Cruz) delivered by lentiviral infection. Antibodies used: p300 (N-15; Santa Cruz); P/CAF (C14G9), anti-K-acetyl (Cell Signaling); ETV1 (ab81086, Abcam); vinculine, actin, FLAG (F7425, Sigma); V5 (Invitrogen).

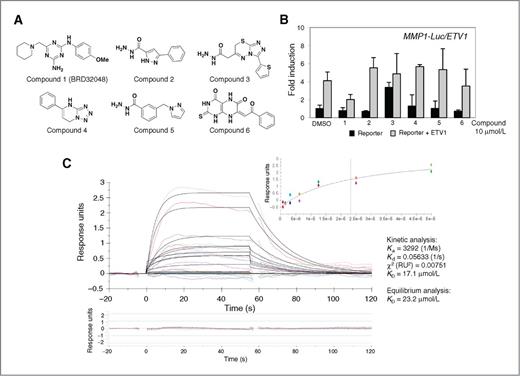

To identify small molecules that interact with ETV1, we pursued an SMM screening approach using methods described previously (25, 26, 36). We used cell lysates instead of purified ETV1 protein for the SMM screens to allow it to undergo additional regulation that might be relevant to the mammalian cellular environment. Like other ETS factors, the ETV1 protein conformation is thought to be regulated by various posttranslational modifications and protein–protein interactions, several of which may be altered during the purification process (25, 26). We generated cell lysates from HEK 293T cells transiently transfected with a HA-tagged ETV1 expression vector resulting in moderate ETV1 expression levels (Supplementary Fig. S1A). A total of 45,000 compounds were screened against HA-ETV1–expressing lysates in triplicate. To identify “hits” from this screen, we calculated a composite Z-score for each compound as published previously (37). Analysis of the composite Z-scores corresponding to the primary SMM screen revealed 6 assay positives (Fig. 1A and Supplementary Fig. S1B) that showed selectivity toward ETV1 relative to >100 additional proteins, including other transcription factors, that had previously been screened using the same SMM library (24, 29).

Next, we sought to determine whether the candidate small-molecule binders identified in the SMM screen might alter ETV1 activity in a cellular context. As a preliminary means to test this, we evaluated the top 6 compounds that emerged from the screen (based on a composite Z-score; see Materials and Methods) in a cell-based reporter construct where the MMP1 promoter was cloned upstream of the luciferase gene (MMP1 is a known ETV1 target gene; ref. 17). We consistently observed that compound 1, hereafter termed BRD32048, was able to suppress luciferase activity by ∼50% in 501mel melanoma cells, which harbor an ETV1 amplification (Fig. 1B). To confirm that this molecule did not interfere with the general transcriptional machinery, we also tested its effects in a reporter assay with the tyrosinase (TYRP1) promoter, which is activated downstream of the microphthalmia-induced transcription factor (MITF; ref. 38). MITF is a known melanoma oncoprotein (39) that is structurally unrelated to ETS transcription factors. In this context, BRD32048 had no effect on the luciferase signal, suggesting that the compound effects were not solely because of nonspecific transcriptional or posttranscriptional modulation (Supplementary Fig. S1C).

BRD32048 is a substituted [1,3,5]triazine derivative. This synthetic scaffold has previously been observed in orally active PDE inhibitors (40), DHFR inhibitors (41), and PI3K/mTOR inhibitors (42, 43), among others. As an additional control to rule out nonspecific compound effects, we tested a small set of commercially available BRD32048 analogs that contain the [1,3,5]triazine core but vary either the methoxyphenyl group in the 4-position or the alkyl piperidine group in the 6-position. Using the MMP1 reporter assay in the LNCaP prostate cancer cell line, we observed that major substitutions negatively impacted the inhibitory effect of the triazine scaffold in this reporter assay, whereas minor substitutions failed to enhance its inhibitory activity (Supplementary Fig. S1D). Therefore, we resynthesized BRD32048 and used this compound for all subsequent experiments (the chemical characterization is presented in the Supplementary Material and Methods).

We next sought to determine whether BRD32048 binds ETV1 directly. Here, we used an SPR approach, in which the SPR surface was configured using anti-FLAG M2 antibody to capture FLAG-tagged proteins. The M2 antibody was covalently immobilized to a carboxymethyl dextran surface. Recombinant ETV1 was purified from HEK293F cells (Supplementary Fig. S2A) and captured onto the antibody surface resulting in a stable baseline (Supplementary Fig. S2B). Next, BRD32048 was injected at increasing concentrations from 0.78 to 50 μmol/L (Fig. 1C; see Materials and Methods). For the reference surface we used TBX21, an unrelated transcription factor with a comparable molecular weight (55 kDa) and isoelectric point (∼5.8). The reference surface showed no specific interactions, whereas the ETV1 surface recorded an increasing response in a concentration-dependent manner (Supplementary Fig. S2C and S2D).

Kinetic binding analysis of BRD32048 to ETV1 was carried out using a simple 1:1 Langmuir model, which provided a K_D of 17.1 μmol/L. The residual plot revealed that the noise level did not exceed 0.4 RU. Moreover, the steady-state equilibrium analysis of the same experiment with TBX21 reference provided a similar K_D of 23.2 μmol/L (Fig. 1C). In addition, the kinetic analysis and steady-state equilibrium analysis using anti-FLAG M2 antibody as reference revealed similar binding affinity for ETV1 (Supplementary Fig. S3A and S3B). We also evaluated binding of BRD32048 to other protein-coated sensor surfaces including RELA, RUNX1, RFWD2, and P/CAF without observing any specific binding (Supplementary Fig. S3C). Moreover, the fact that BRD32048 did not bind to low isoelectric point surfaces (such as TBX21 and RELA) suggests that binding to ETV1 was not merely the result of unspecific charge-based interactions. Together, these results suggested that BRD32048 is capable of binding ETV1 directly.

To confirm that BRD32048 is able to bind ETV1 in lysates, we performed a compound pull-down experiment in which BRD32048 was covalently attached to beads. The coupling was carried out using an isocyanate chemistry-based approach similar to that used in SMM (see Supplementary Methods). Incubation of 501mel cells lysates with BRD32048-beads showed that BRD32048 was able to precipitate endogenous ETV1, whereas addition of excess amounts of soluble BRD32048 was able to significantly out compete the immobilized compound from binding to ETV1 (Supplementary Fig. S3D). These data provided further evidence that BRD32048 is capable of binding ETV1 in cells.

Although the reporter-based experiments raised the possibility that BRD32048 might perturb ETV1 activity in cells, these assays rely on an artificial read-out that is not necessarily specific to ETV1 function. To ascertain whether BRD32048 might modulate endogenous ETV1 function, we examined its effects on an empirically determined transcriptional signature linked to ETV1 activity. To generate this ETV1 signature, we used derivatives of the LNCaP prostate cancer cell line engineered to express 2 distinct inducible shRNAs against ETV1 (shETV1-1117 and shETV1-872). LNCaP cells are known to harbor a chromosomal rearrangement that translocates the entire ETV1 locus in an androgen-regulated region (8, 9). Induction with doxycycline for 4 days caused a marked reduction of ETV1 mRNA levels (Fig. 2A), which was also confirmed by quantitative RT-PCR (Supplementary Fig. S4A). The ETV1 protein is virtually eliminated after 4 days of silencing as shown in nuclear extracts (Supplementary Fig. S4B). The proliferation of LNCaP cells also seems to be ETV1 dependent, although the reduction in proliferation only became apparent at later time points (Supplementary Fig. S4C). Using this system, we defined a gene expression signature linked to ETV1 activity by calculating the fold change in expression levels for each gene measured. The final list of differentially expressed genes consist of either upregulated or downregulated genes with a fold change of >1.5.

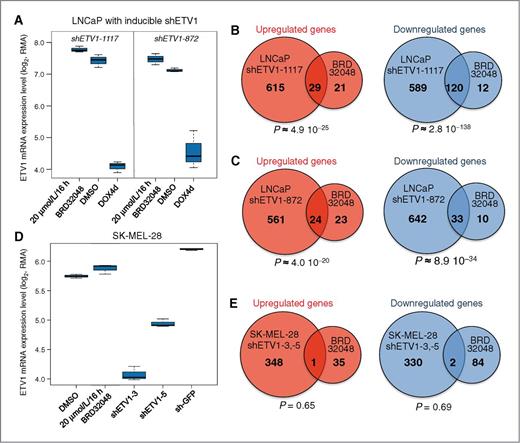

To derive a gene expression signature linked to BRD32048 exposure, parental LNCaP cells were treated with 20 μmol/L BRD32048 for 16 hours. Using the same analysis approach (see Materials and Methods), we identified genes with a fold change greater than 1.5 following BRD32048 exposure, and a false discovery rate of <0.25. We then determined the overlap between the ETV1 shRNA signature and the BRD32048 signature by intersecting the lists of differentially up- and downregulated genes. Strikingly, ∼51% to 58% of upregulated and ∼76% to 91% of downregulated genes following BRD32048 exposure were also up- or downregulated following shRNA-mediated knockdown of ETV1. This degree of overlap was highly significant for both upregulated (P = 4.0 × 10⁻²⁰ and P = 4.9 × 10⁻²⁵ for the 2 shRNA signatures) and downregulated (P = 8.9 × 10⁻³⁴ and P = 2.8 × 10⁻¹³⁸) genes (Fig. 2B and C). The overlap remained highly significant (upregulated P = 5.4 × 10⁻¹³ and downregulated P = 2 × 10⁻³⁹) when the 2 shETV1 signatures were merged and intersected with both compound signatures (Supplementary Fig. S4D), suggesting that BRD32048 may modulate the ETV1-dependent signature.

From the downregulated genes common to these 4 sets, we selected 8 genes that harbor multiple potential ETS binding sites in their promoter region and tested their expression following shETV1 or BRD32048 treatment. Quantitative RT-PCR results confirmed the microarray data, indicating comparable reductions in expression levels (Supplemental Fig. S4E). In contrast, similar experiments performed in the SK-MEL-28 melanoma cell line did not yield any overlap between signatures obtained following shRNA knockdown of ETV1 (shETV1-3 and shETV1-5) and exposure of the cells to BRD32048 (Fig. 2D and E). ETV1 knockdown was confirmed by quantitative RT-PCR and Western blot analysis (Supplementary Fig. S4A and S4B). These results suggest that the effects of this compound may be influenced by genetic or lineage factors.

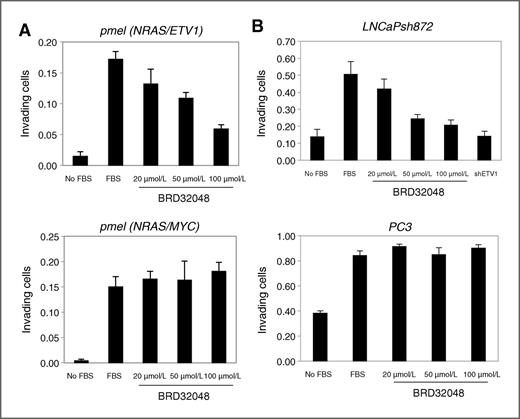

We next wished to determine whether BRD32048 might modulate a tumor cell phenotype that is governed by ETV1 activity. Toward this end, ETV1 silencing can inhibit invasion or survival of some ETV1-dependent cancer cell lines (10, 44). We generated an isogenic system where primary melanocytes expressing NRAS^G12D were infected with either ETV1 or MYC (Supplementary Fig. S5A). These cell lines were assessed using an established collagen-based invasion assay (35). Ectopic expression of ETV1 in primary melanocytes expressing constitutive active NRAS^G12D significantly stimulates the invasive potential of these cells (Supplementary Fig. S5B). Treatment with BRD32048 for 24 hours inhibited invasion of cells expressing ETV1 in a dose-dependent manner, but not those expressing MYC (Fig. 3A). In contrast, we observed no inhibitory effects on the invasive phenotype of primary melanocytes expressing mutant NRAS only (Supplementary Fig. S5C), suggesting that the inhibitory effects involve an ETV1 cellular context. LNCaP cells were inhibited in a concentration-dependent manner, with the highest concentration yielding comparable potency as with ETV1 knockdown (Fig. 3B). These results are reminiscent of prior studies showing that the invasive phenotype of LNCaP cells can be suppressed by silencing of ETV1 (44). In contrast, the invasion phenotype of PC3 cell line (which lack ETS factor rearrangements) was insensitive to compound treatment, likely because the invasive phenotype of PC3 cell line does not seem to be dependent on ETV1 (Supplementary Fig. S5D). Interestingly, 501mel cells, which have been shown previously to be ETV1-dependent (10) also showed suppressed invasive capacity following BRD32048 exposure, whereas SK-MEL-28 cells were unaffected (Supplementary Fig. S5E). The lack of effect of BRD32048 on SK-MEL-28 invasion is consistent with the observation that BRD32048 also did not inhibit the ETV1 signature in this cell line. The inhibitory effects of BRD32048 on the invasion phenotype of sensitive cell lines did not result from a global impairment of cell viability, because the cell lines used in the invasion assay showed no diminution of proliferative potential more than 4 days in the presence of 20, 50, and 100 μmol/L BRD32048 compared with untreated controls (Supplementary Fig. S5F). Collectively, these results suggest that BRD32048 may inhibit a tumorigenic phenotype linked to ETV1 function.

To begin to explore the mechanism by which BRD32048 might perturb ETV1, we sought to determine its effect on ETV1 protein function. We first assessed DNA-binding capacity (45) in the absence or presence of BRD32048 by performing oligonucleotide pull-down assays. Here, biotin-labeled oligonucleotides containing ETS binding sites were used to precipitate ETV1 from lysates of HEK 293T or LNCaP cells that overexpressed Flag-HA-tagged ETV1. BRD32048 had no effect on ETV1 pull-down in this assay, even at 100 μmol/L concentrations (Supplementary Fig. S6A). In contrast, ETV1 pull-down was largely abrogated by excess unlabeled oligonucleotide, suggesting that the oligo-bound ETV1 may represent a relatively specific interaction. These results implied that BRD32048 might perturb ETV1 function in a DNA binding-independent manner, although a possible role for off-target compound effects could not be excluded completely.

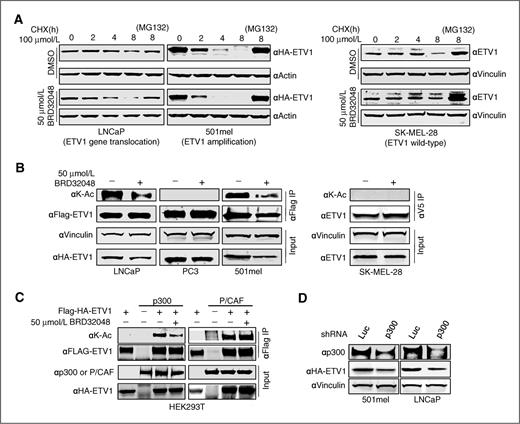

We next sought to ascertain whether BRD32048 might alter the stability of ETV1 protein. To test this, we performed time course experiments to monitor the effects of the compound on exogenous Flag-HA ETV1 protein levels in the absence or presence of BRD32048. In the presence of cycloheximide (CHX), which blocks protein synthesis, the half-life of ETV1 was markedly reduced following pretreatment of either LNCaP or 501mel cells with BRD32048 for 24 hours. In contrast, BRD32048 did not affect ETV1 stability in SK-MEL-28 cells; this observation accords with the lack of BRD32048 effect on either the ETV1 gene expression signature or the invasion phenotype in these cells (Fig. 4A). The BRD32048-induced instability of exogenous ETV1 is also valid for endogenous ETV1 in 501mel and LNCaP cells following overnight treatment with BRD32048 (Supplementary Fig. S6B). This result suggested that BRD32048 might promote degradation of ETV1 in some but not all cellular contexts.

Previous studies suggest that ETV1 stability is enabled through acetylation of lysines situated at residues 33 and 116 (46). To determine if BRD32048 might alter ETV1 acetylation, we expressed Flag-HA-tagged ETV1 in our cell line panel, performed immunoprecipitations of ETV1 using an anti-Flag antibody, and examined its acetylation status by immunoblotting. ETV1 acetylation was readily detected following anti-Flag immunoprecipitation in LNCaP and 501mel cells (Fig. 4B). In contrast, no acetylation was observed in PC-3 cells or SK-MEL-28 cells, even after overexpression of exogenous p300 (Supplementary Fig. S6C). Interestingly, the ETV1 acetylation status was substantially reduced in both LNCaP and 501mel cells following 24 hours of pretreatment with 50 μmol/L BRD32048, which was consistent with the reduction in ETV1 stability induced by this compound (Fig. 4B). Together, these results raised the possibility that BRD32048 binds and inhibits ETV1 function by reducing its acetylation and stability, thereby promoting cell context-dependent protein degradation.

Because various acetyltransferases are known to acetylate ETV1 (46), we sought to determine if the loss of acetylation conferred by BRD32048 in certain cell contexts might be linked to the activity of a particular HAT protein. To test this, we coexpressed ETV1 together with either p300 or P/CAF in HEK293T cells in the absence or presence of 50 μmol/L BRD32048. In this cell system, ectopic expression of both p300 and P/CAF induced ETV1 acetylation, as measured by Flag-immunoprecipitation followed by immunoblotting with the anti-acetyl antibody (Fig. 4C). However, only p300-dependent acetylation was inhibited by BRD32048 in this setting (Fig. 4C). In addition, shRNA-mediated knockdown of p300 protein reduced ETV1 protein levels in LNCaP and 501mel cells (Fig. 4D).

Previous studies have shown that p300 acetylates ETV1 at residues K33 and K116, and that these residues may also regulate ETV1 protein stability (46). Therefore, we reasoned that overexpression of an acetylation-deficient ETV1 mutant might counteract the inhibitory effects of BRD32048 towards this protein. We therefore generated a mutant form of ETV1 (K33R/K116R), which can no longer be acetylated by p300 (ref. 46; Supplementary Fig. S6D). Addition of BRD32048 to ETV1 (K33R/K116R) expressing cells had no effect on invasion (Supplementary Fig. S6E and S6F), in contrast to the effects of BRD32048 in cells overexpressing wild-type ETV1. Collectively, these findings suggest that BRD32048 may reduce p300-dependent ETV1 acetylation, thereby decreasing its stability in a context-dependent manner.

Although many transcription factors play important roles in carcinogenesis and tumor progression, this class of proteins is traditionally considered poorly “druggable” by conventional means. Our results suggest that SMM screening may provide one approach through which to discover chemical probes that modulate the function of these and perhaps other “undruggable” proteins. Although we interrogated only 45,000 printed compounds, the SMM platform could easily be scaled to accommodate 100,000s of compounds in the future.

For our SMM screens, we utilized cell lysates that contained epitope-tagged ETV1. This approach may offer several advantages compared with the use of purified protein, as described previously (47). First, the use of cell lysates allows the protein of interest to be expressed in an appropriate cell context; for example, mammalian cells instead of bacterial or insect cells. This may allow the protein to undergo physiologically relevant posttranslational modifications that may affect its 3-dimensional structure and therefore its available binding surface. Second, lysates may retain multiprotein complexes that affect the conformation or avidity of the query protein. Third, preparation of cell lysates may offer technical advantages over protein purification, which may require extensive optimization to preserve protein folding and activity. Despite these potential advantages, it is often still necessary to utilize purified protein for subsequent validation steps, such as SPR-based binding studies, as performed here. Also, the use of lysates may carry an increased risk of false positives during the primary screen because of binding to other members of multiprotein complexes or nonspecific interacting proteins. In the future, multiple SMM screens could be conducted in parallel using various alternative lysate preparations; for example, by expressing distinct epitope-tagged proteins in several cellular contexts before harvest. Here, small molecule “hits” identified in multiple screens could be prioritized for validation. The use of nuclear extracts instead of total protein lysates may also offer advantages in SMM screens that interrogate transcription factors.

Several lines of evidence support the premise that BRD32048 may alter the cellular function of ETV1 through direct binding. First, the SPR analysis indicates that BRD32048 can bind purified ETV1, albeit at micromolar concentrations. In addition, a BRD32048 affinity resin is capable of precipitating endogenous ETV1 from cell lysates. Second, BRD32048 modulates a gene expression signature linked to ETV1 activity in cancer cell lines known to harbor an ETV1 dependency. The gene expression signature is directly linked to the availability and function of ETV1 protein. Although BRD32048 only marginally decreased ETV1 mRNA, it dramatically reduces ETV1 protein levels in certain cellular contexts, resembling the effects of shETV1. This may explain the overlapping mRNA signature between these 2 conditions. Third, BRD32048 exposure results in decreased ETV1 acetylation in the same cancer cell lines in which it modulates the ETV1 signature and inhibits their invasion. Our data demonstrate that BRD32048 directly modulates the ETV1 protein stability, leading to a significant decrease in the amount of ETV1 molecules available to carry out the oncogenic functions of ETV1.

However, the exact location within the ETV1 protein to which BRD32048 binds remains unclear. One possibility is that the compound blocks K33 because P/CAF-dependent acetylation remains unaffected. Another possibility is that BRD32048 is directly interfering with a cofactor interaction or perhaps p300. The investigation of differential binding of ETV1 to its interaction partners in the presence or absence of BRD32048 may require structure–activity relationship (SAR) studies to identify derivatives that bind ETV1 with much higher affinity in vitro. Such studies would certainly aid understanding its specificity toward other cellular proteins, enabling quantitative target identification experiments involving mass spectrometry (48), as well as improve its in vivo potency. In the future, these avenues will likely be needed to develop molecules such as BRD32048 into mature chemical probes that explore biologic processes and possible therapeutic avenues linked to oncogenic transcription factors.

The observation that BRD32048 exposure may destabilize ETV1 by reducing its acetylation may highlight an alternative approach to therapeutic modulation of certain transcription factors that involves blocking vital posttranslational modifications. In contrast to the transcription factors themselves, protein acetyltransferases may prove amenable to more conventional small-molecule discovery approaches. Toward this end, HATs are well-known transcriptional coactivators, and several HAT inhibitor tool compounds have been developed (49). Moreover, several previous reports have found that multiple ETS transcription factors including ETV1 can be regulated by acetylation in general and by p300 HAT activity in particular (46, 50). Thus far, however, few HAT inhibitors have entered clinical development. Additional studies of HAT inhibitors that exhibit selectivity for p300 may provide additional insights into the possible efficacy of such approaches against cancer cells that show dependence on ETV1 or other ETS factors for viability or tumor progression.

In summary, this study used an SMM screen to identify a compound capable of binding and inhibiting ETV1. The results may endorse a general approach to the discovery of chemical probes that modulate transcription factors and other currently “undruggable” oncoproteins. Such studies may pave the way for future systematic efforts with important implications for chemical biology and therapeutic discovery.
