Bortezomib-Resistant Nuclear Factor-κB Activity in Multiple Myeloma Cells

The nuclear factor-κB (NF-κB)/Rel family of transcription factors is composed of five members, p65 (RelA), RelB, cRel, p100/p52, and p105/p50, which bind one another to form homodimers or heterodimers. NF-κB dimers are normally held inactive in the cytoplasm due to association with inhibitor proteins, IκBs. NF-κB can be activated by a wide array of extracellular signals leading to its release from IκBs and translocation to the nucleus where it binds to its cognate κB elements and regulates transcription of genes involved in embryogenesis, innate and adaptive immunity, regulation of cell death, and other physiologic processes (1).

There are two most widely studied mechanisms of NF-κB activation, so-called “canonical” and “noncanonical,” which involve signaling events leading to the degradation or processing of inhibitor proteins by the ubiquitin-dependent 26S proteasome system. Thus, these pathways are highly sensitive to inhibition by proteasome inhibitors, including bortezomib (Velcade/PS341), the first proteasome inhibitor approved for clinical use (2, 3). However, there are also several other mechanisms of NF-κB activation known that have been shown to contribute to detrimental processes such as hypoxia/reoxygenation stress and to diseases such as muscular dystrophy that involves a calcium-dependent protease, calpain 3 (4-11). We have previously described yet another NF-κB regulatory mechanism that is constitutively activated in certain murine B-cell lines that involves degradation of IκBα in a manner dependent on calcium and calmodulin and a process that is sensitive to inhibition by the anticancer agent perillyl alcohol, which among other effects has been shown to inhibit a specific L-type calcium channel (12, 13). Pharmacologic evidence suggested that several major intracellular proteolytic systems, including proteasomes, calpains, caspases, lysosomal proteases, and the giant/tricorn protease, the latter of which can complement proteasome deficiency (14), are not involved in this unusual IκBα degradation and NF-κB activation mechanism (13). Moreover, cis-element analysis has shown that IκBα degradation involves distinct amino acid structures and does not require the canonical phosphorylation event or polyubiquitination mediated by β-TrCP (13, 15, 16), thereby partly explaining the lack of proteasome requirement. Although the precise proteolytic system involved in this “atypical” pathway remains to be determined, to distinguish it from all other known mechanisms, we have referred it as the “proteasome inhibitor–resistant” (PIR) pathway because of its high resistance to more than 10 different proteasome inhibitors analyzed, including bortezomib (16). In addition to certain murine B lymphoma cell lines (e.g., WEHI231), normal murine splenic B cells, the human breast cancer cell line MDA-MB-463, and the human multiple myeloma (MM) cell line RPMI8226 have also been found to harbor constitutive NF-κB activity that is maintained by the PIR mechanism (12, 13, 15, 16).

Bortezomib, which potently blocks chymotryptic activity within the 26S proteasome, showed a significant overall response rate as a single agent against refractory MM in phase I and II clinical trials (3, 17). Because proteasomes are involved in a wide variety of intracellular and intercellular events, the precise molecular pathway(s) of bortezomib that gives rise to favorable clinical outcomes is unclear; however, modulation of many important pathways, including NF-κB, within the malignant cells has been implicated (18-21). Because MM pathogenesis also involves the critical participation of bone marrow microenvironment components, such as bone marrow stromal cells (BMSC), endothelial cells, and osteoclasts (22), bortezomib effects on these nonmalignant cells have also been implicated in clinical efficacy (22, 23). Although initial overall response rates to bortezomib are promising, the vast majority of patients who respond develop resistance to the drug over time. The exact mechanisms of bortezomib sensitivity and resistance in vivo in MM patients remain incompletely understood.

Because constitutive NF-κB activity is observed by immunofluorescence in virtually all primary MM samples analyzed (24, 25) and is implicated in chemoresistance of MM cells, here we investigated (a) the frequency of constitutive PIR NF-κB activity in a cohort of primary MM patient samples and (b) whether PIR NF-κB activation in MM cells is modulated by the presence of BMSCs derived from MM patients. Below, we describe a surprising finding that a constitutive NF-κB activity present in primary MM cells is frequently refractory to inhibition by bortezomib and that MM patient-derived BMSCs have the capacity to further increase this activity. This increase in constitutive NF-κB activity due to BMSCs is also seen in RPMI8226 cells, which correlated with increased bortezomib resistance in vitro. Our data provide the first insight into the potentially significant involvement of the PIR pathway of NF-κB activation in MM pathogenesis and resistance development.

Figure 1A shows electrophoretic mobility shift assay (EMSA) analysis of total cell extracts prepared from RPMI8226 cells along with supershift analysis using antibodies selective for NF-κB family members. Based on reactivity to these antibodies, the two major NF-κB complexes were assigned to be p50/p65 (RelA) and p52/RelB dimers (Fig. 1A, lanes 3-8). Increasing concentrations of bortezomib resulted in corresponding inhibition of the proteasomal activity in the RPMI8226 cells within 2 h (Fig. 1B); however, a high concentration could not block constitutive NF-κB activity (Fig. 1A). As a positive control to evaluate the efficacy of bortezomib, we tested its effect on tumor necrosis factor α (TNFα)-induced canonical activation and found, as expected, that 100 nmol/L bortezomib nearly completely blocked this activation (Fig. 1C). In contrast to bortezomib, treatment with a calcium chelator (BAPTA-AM) or perillyl alcohol, agents that selectively block the PIR activation pathway, effectively inhibited constitutive NF-κB activity (Fig. 1D).

Previous studies have shown that NF-κB is constitutively active in nearly all primary MM samples examined (24, 25). However, whether such activities are highly sensitive to bortezomib has not been reported. The existence of constitutive PIR NF-κB activity in RPMI8226 MM cells prompted us to test if constitutive NF-κB activity in a certain fraction of primary MM cells is also resistant to bortezomib. Because of the limited number of primary cells available, we developed a miniaturized EMSA (“mini-EMSA”) that is reproducible with at least 50,000 cells per sample with a variance of ∼10% (Fig. 2A). When we isolated CD138⁺ MM cells from 14 patients, we found that all patients harbored some level of constitutive NF-κB activity. Treatment with 100 nmol/L bortezomib for 4 h induced near-complete proteasome inhibition in several primary MM cell samples tested (Fig. 2B); nevertheless, we were surprised to find that in many cases (10 of 14), this high-dose bortezomib failed to inhibit constitutive NF-κB activity, as measured by EMSA, in these primary cells (Fig. 2C). These experiments were done in duplicate when possible, but due to the limited number of available primary cells, we were unable to do triplicate experiments for statistical analysis. Paradoxically, in eight of these cases, NF-κB DNA binding was enhanced by treatment with bortezomib (Fig. 2C and D). Thus, these studies showed that bortezomib-resistant (or even bortezomib augmented) NF-κB activity is frequently detectable in primary MM samples.

Although a considerable fraction of primary MM cell samples examined displayed bortezomib-resistant constitutive NF-κB activity, this observation was made in suspension culture conditions in the absence of bone marrow microenvironment components. It was unclear how these primary MM cells would behave in the presence of patient-derived BMSCs. Thus, we established BMSC cultures from mononuclear cell preparations of MM patient bone marrow aspirates using the standard protocol (26). Next, we incubated primary MM cells on top of BMSCs and evaluated the consequent sensitivity of NF-κB activity to bortezomib in primary MM cells. Placing primary MM cells in coculture with MM-BMSCs caused further enhancement in NF-κB activity in most cases (Fig. 3, lanes 2, 5, 8, and 10). Significantly, we were unable to block this BMSC-enhanced NF-κB activity using up to 100 nmol/L bortezomib in certain primary MM cells (Fig. 3, lanes 3 and 11). However, this was not a universal phenotype of MM cells because, in some cases, bortezomib was able to effectively inhibit BMSC-induced NF-κB activity in MM cells (Fig. 3, lanes 6 and 9). These data suggest that, depending on the MM samples, BMSC-induced NF-κB activity could be sensitive or insensitive to high-dose bortezomib treatment.

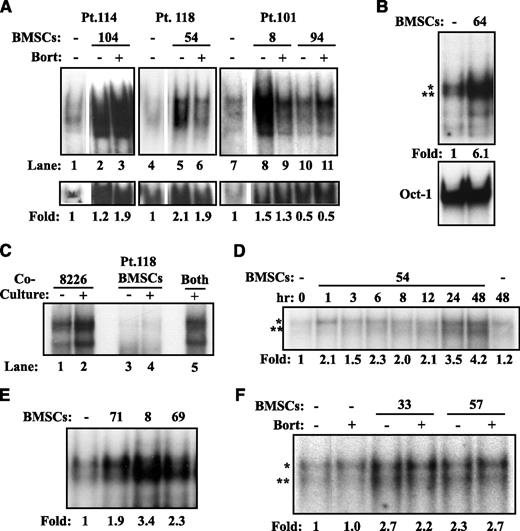

To gain insight into the significance of BMSC-induced NF-κB activation, we next turned to the more experimentally amenable RPMI8226 MM cell model. We placed RPMI8226 cells on top of BMSCs for 24 h as in the case with the primary MM cells and then did EMSA analysis using cell extracts obtained from the RPMI8226 cells. This analysis revealed enhanced NF-κB activity (up to 6-fold over basal activity; Fig. 3B). Oct-1 DNA binding was used as a loading control for all experiments (Fig. 3B, not shown in subsequent subpanels). Because removal of MM cells from BMSCs can be incomplete or possibly contaminated with BMSCs, we did a control experiment in which RPMI8226 cells and BMSCs either alone or in coculture for 24 h were collected either separately by mechanically tapping the plate to free RPMI8226 cells or by scraping all the cells together. We then did EMSA on RPMI8226 cells, BMSCs left behind, and those collected together. The NF-κB activity was observed in MM cell fractions and those collected together, but not in BMSC fractions (Fig. 3C). Thus, the bulk of the NF-κB activity comes from MM cells, which is not contaminated with that in BMSCs.

Time course analysis indicated that NF-κB DNA-binding activity was induced as early as 1 h but the peak activity was seen after 24 to 48 h of coculture (Fig. 3D). Interestingly, we observed variable degrees of increased NF-κB activity in RPMI8226 cells when they were cocultured with BMSCs derived from different MM patients (Fig. 3E). This indicated that different patient-derived BMSCs have differential NF-κB–inducing activity. Importantly, 100 nmol/L bortezomib failed to appreciably inhibit BMSC-enhanced NF-κB activity (Fig. 3F). Two other human MM cell lines, U266 and H929, also displayed inducible NF-κB activation when cocultured with MM-BMSCs, but the Jurkat human T-cell leukemia line did not respond to MM-BMSCs with respect to NF-κB activation (data not shown), suggesting the possibility of cell type selectivity of BMSC-inducible NF-κB activation.

To determine if the observed increases in NF-κB DNA-binding activity in RPMI8226 cells when cocultured with BMSCs were functionally relevant, we transiently transfected a κB-GFP reporter gene into RPMI8226 cells, cocultured them with BMSCs, and evaluated NF-κB–dependent green fluorescent protein (GFP) expression (Fig. 4). GFP expression was significantly increased by the presence of BMSCs derived from MM patients (P = 0.01; Fig. 4B). To evaluate if this NF-κB–dependent reporter gene induction is sensitive to inhibition by bortezomib, we next established the dose of bortezomib required to abrogate TNFα-induced activation. Incubation of MM cells with 7.5 nmol/L bortezomib was sufficient to nearly completely block activation (Fig. 4A). This concentration of bortezomib failed to significantly inhibit NF-κB–driven GFP expression in RPMI8226 cells grown on top of BMSCs (P = 0.33), with the exception of Pt.147 BMSCs where transcriptional activity was blocked by ∼50% (Fig. 4B). This patient BMSCs also induced NF-κB activation as measured by EMSA that was partially bortezomib sensitive (data not shown). These findings together showed that certain MM patient-derived BMSCs have the capacity to induce NF-κB activation in RPMI8226 cells as measured by both EMSA and a κB-driven reporter assay.

Because NF-κB activity can increase drug resistance in several human cancer cell lines, including MM cells (27), we evaluated the relationship between the extent of NF-κB activation and that of bortezomib resistance induced by BMSCs. We exposed RPMI8226 cells to varying doses of bortezomib for 24 h in the presence or absence of five patient BMSCs with different NF-κB–inducing potentials and analyzed the extent of apoptosis by determining the fraction of cells that displayed nuclear apoptotic morphology (Fig. 5A). As a control for effective drug concentration, we measured remaining proteasome activity in RPMI8226 cells alone or in the context of BMSCs to show that increasing concentrations of bortezomib inhibit the proteasome to a similar degree in both situations (Supplementary Fig. S1A). Our results show that BMSC-enhanced NF-κB activity strongly correlated with increased resistance of RPMI8226 to bortezomib-induced apoptosis (Fig. 5B). Simple linear regression analysis of the % protection of apoptosis conferred by each patient versus the fold NF-κB activity induced by each patient BMSC reveals a statistically significant correlation (P = 0.001). Thus, we conclude that BMSCs obtained from MM patients induced bortezomib resistance in RPMI8226 cells in part by inducing bortezomib-resistant NF-κB activation.

Many different molecular mechanisms of NF-κB activation have been described thus far, with the canonical and noncanonical pathways being the most widely studied (1). Indeed, in the context of MM, two recent reports found that ∼20% of MM patients harbor one or more genetic aberrations in components of the NF-κB pathway, leading to constitutive canonical and/or noncanonical NF-κB activation (28, 29). Both groups began their studies with an unbiased, genetic screening approach to identify genetic aberrations in MM, and both uncovered targets primarily within the NF-κB signaling pathway. These seminal studies thus solidly implicated the NF-κB signaling system as one of the major targets of deregulation in MM pathogenesis.

The proteasome inhibitor bortezomib shows overall response rates in MM ranging from ∼30% as a single agent to ∼70% in combination with other targeted and traditional therapies (30). Given the extensive role of proteasomes in regulating intracellular processes, it is not surprising that the precise mechanism (or mechanisms) that mediates clinical efficacy of bortezomib in MM is not clearly defined. Previous metabolic labeling studies have shown that the vast majority of intracellular proteins are degraded by proteasomes (31), including many that regulate the activity of important transcription factors, including p53/MDM2, c-Jun NH₂-terminal kinase, hypoxia-inducible factor 1, c-Myc, and Notch (32-35). These pathways along with NF-κB have been implicated in mediating bortezomib effects on malignant cells (20, 36).

Unique among the various NF-κB activation mechanisms, the PIR pathway is highly resistant to bortezomib and other proteasome inhibitors (13, 15). If MM cells harbor constitutive NF-κB activity maintained by the PIR pathway, it is possible that this could contribute to the observed initial and/or developed clinical resistance to bortezomib. To gain initial insight into this possibility, we examined the presence of constitutive NF-κB activity in primary MM samples. We were surprised to find that a significant fraction of the samples analyzed showed the lack of inhibition of constitutive NF-κB activity by bortezomib, although bortezomib (a) nearly completely blocked proteasome activity in patient samples and (b) NF-κB activation by a canonical inducer, TNFα. Thus, we favor the notion that the lack of constitutive NF-κB inhibition in primary MM cells by bortezomib is not due to ineffective inhibition of proteasome activity in MM cells but rather this NF-κB activity is maintained by a mechanism that is independent of proteasomes. Alternatively, in the presence of a potent proteasome inhibitor, a bypass pathway may be invoked to overcome the inhibition of proteasome activity. The PIR mechanism might represent one such bypass mechanism in MM cells. Moreover, in multiple cases, we observed paradoxical increases in NF-κB activity after treatment with bortezomib. Although NF-κB proteins are degraded by proteasomes (37-39), our limited Western blot analyses did not reveal any increases in p50, p65, and RelB protein levels in several MM patient samples analyzed.⁷

Because the role of the bone marrow microenvironment in providing a setting for MM tumor cell growth and survival is well documented (23), we also evaluated the effect of the presence of MM patient-derived BMSCs on the regulation of NF-κB. Previous studies have shown that these cells secrete factors, such as interleukin-6, TNFα, stromal cell–derived factor-1, insulin-like growth factor-I, B-cell–activating factor of the TNF family, and a proliferation-inducing ligand, which can mediate the protective effect on MM cells (22). Indeed, some of these factors have been shown to cause NF-κB activation in MM cells (23). Similarly, MM cells also secrete factors that can induce NF-κB activity in BMSCs to in turn produce MM supporting factors (23). Immunomodulatory drugs, such as thalidomide and Revlimid, are believed to modulate these MM-stromal interactions to induce clinical efficacy (23). Bortezomib has also been shown to block these mutual interactions by blocking NF-κB activation in BMSCs by interfering primarily with canonical and noncanonical pathways of NF-κB activation. Our current results introduce yet another possibility that involves the PIR pathway. We found that BMSCs derived from MM patients were capable of activating NF-κB in MM cell lines and primary cells to variable degrees in a manner that was largely resistant to bortezomib. Our preliminary studies suggest that the critical mediator (or mediators) of this inducible PIR activity is soluble and likely a peptide based on the presence of the activity in the soluble fraction of BMSC conditioned medium following 100,000 × g ultracentrifugation for 2 h, and its sensitivity to proteinase K and heat treatment. We have also tentatively eliminated the involvement of aforementioned factors by means of neutralizing antibodies. Further studies are thus required to elucidate the molecular mediator(s) of BMSC-induced PIR NF-κB activity. Identification of such a factor may provide deeper insight into both the signaling mechanism and biological role of the PIR pathway in MM pathobiology and other PIR-involving systems in general. This extracellular factor(s) could also represent a novel and useful biomarker for MM as well as a novel drug target for the treatment of this universally fatal disease.

RPMI8226, U266, Jurkat, and H929 cell lines (American Type Culture Collection) were cultured in 37°C incubators with 5% CO₂ using DMEM (RPMI8226; Mediatech, Inc.) supplemented with 10% fetal bovine serum, 1,250 units of penicillin G (Sigma-Aldrich, Inc.), 0.5 mg of streptomycin sulfate (Sigma-Aldrich), and other supplements as per the American Type Culture Collection recommendations. DMEM with 20% fetal bovine serum and 1% l-glutamine (“BMSC medium”) was used in coculture assays. p65 (C20) and RelB (C19) antibodies were purchased from Santa Cruz Biotechnology, p50 and p52 antibodies were purchased from Upstate Biotechnology, and the cRel antibody was obtained from Biomol. Bortezomib was commercially obtained from Millennium Pharmaceuticals, Inc. for experimental purposes. Human recombinant TNFα was purchased from Calbiochem. Perillyl alcohol was obtained from Sigma-Aldrich. BAPTA-AM was purchased from Merck.

Primary human BMSCs were derived from deidentified fresh whole bone marrow aspirates. The aspirates were collected under the University of Wisconsin Institutional Review Board exemption protocol M-2004-1315 and thus were accompanied only by the patients' diagnosis of active myeloma (>10% plasma cells on Wright Giemsa–stained aspirate smears; analysis provided by Dr. C.P. Leith and other University of Wisconsin staff pathologists). Disease stage, treatment history and/or response, and other identifying patient characteristics are not available for the samples analyzed in this study. Mononuclear cells were isolated from aspirates as detailed in the Miltenyi Biotec MidiMACS bone marrow mononuclear cell protocol. Briefly, whole bone marrow is diluted with Iscove's modified Dulbecco's medium supplemented with heparin sulfate and DNase I and centrifuged with lymphocyte separation medium (Cellgro) to isolate the mononuclear population. Mononuclear cells were plated in BMSC medium and cultured at 37°C/5% CO₂. After 2 wk, nonadherent cells were washed off and one-half volume medium exchange was done every 3 d until a confluent layer of adherent stromal cells had formed. These cells were expanded and cryopreserved in liquid nitrogen. Repeated analysis of cryopreserved BMSCs from 22 patients, the NF-κB–inducing activity on RPMI8226 cells remained relatively constant over seven passages.

To obtain primary MM cells, mononuclear cells isolated from patient bone marrow aspirates as described above were positively sorted using anti-CD138 magnetic microbeads and the MidiMACS cell sorting system following the manufacturer's protocol (Miltenyi Biotec) to >95% purity as determined by anti-CD138-PE staining and fluorescence-activated cell sorting analysis and cultured in 37°C/5% CO₂ incubators in BMSC medium.

BMSCs (6 × 10⁴ per well) were plated in six-well dishes and allowed to form an adherent monolayer over 24 h. Media were aspirated, and 10⁶ RPMI8226 cells or 5 × 10⁵ primary MM cells were plated over the monolayer. Where appropriate, 100 nmol/L bortezomib was added for the last 4 h of coculture. After 24 h, MM cells were mechanically detached from stromal cells, leaving ∼5% of MM cells behind, mostly along the perimeter of the dish [as determined by immunofluorescence staining with anti-CD138 antibody (Miltenyi Biotec)]. The BMSC monolayer was undisturbed. For apoptosis assays, after 24 h of coculture, cells were treated with various doses of bortezomib for an additional 24 h before MM cells were removed for analysis.

Chymotryptic proteasomal activity was measured using the Proteasome-Glo Assay (Promega Corp.). Cells (10,000 per well) were plated in a black-walled 96-well tissue culture dish, allowed to rest for 3 h, and treated with increasing doses of bortezomib for 105 min before addition of the luminescent reagent as directed by the manufacturer. Luminescence was read on a Victor³V 1420 Multilabel Counter from Perkin-Elmer. Relative light units for the no drug control were designated 100% proteasome activity, and the ratio of relative light units for each dose of bortezomib over control was used to determine the percentage decrease in chymotryptic activity.

EMSAs for cell lines were done as described previously (16). For primary MM cells, mini-EMSA was done by using the Mini-Protean 3 system (Bio-Rad Laboratories), 1-mm-thick gel, and 15-well comb to accommodate small amounts of protein obtained from primary MM cells. Briefly, CD138⁺ cells were washed in 1× PBS and centrifuged in 200 μL PCR tubes at 5,000 rpm for 3 min at room temperature, and pellets were frozen at −70°C for later analysis. Frozen cell pellets were thawed on ice, lysed in Totex buffer with protease inhibitors (16) at 2.0 × 10⁴ cells/μL, incubated on ice for 30 min with occasional tapping, and spun at 13,000 rpm for 10 min at 4°C. The resultant extracts in the supernatants were used for mini-EMSAs. Extract (1.5 μL) was incubated with 5× binding buffer, 0.1 mmol/L DTT, and 0.5 μL of radioactive probe on ice for 20 min as described in ref. 16. ³²P-labeled probe was added and samples were incubated at room temperature for 20 min. For each sample, one reaction with Igκ-κB probe and one with Oct-1 probe were run using Oct-1–binding levels as a loading control. Gels were run at 120 V for ∼45 min, dried onto Whatman filters under vacuum, exposed to phosphoimage screen, and quantified using ImageQuant software. The volume of intensity using local area average background correction was calculated for cumulative NF-κB bands and the Oct-1 band.

RPMI8226 cells (5 × 10⁶) were transiently transfected using nucleofection (Amaxa, Inc.) with 3 μg of the 3×-κB-GFP reporter construct as described previously (42) with solution T, program G15. After a 24-h rest period, cells were split equally into culture alone or on top of 3 × 10⁴ BMSC cells/mL plated 24 h previously and treated with 7.5 nmol/L bortezomib and/or 1 ng/mL TNFα where indicated. GFP expression was visualized 24 h later. Three random 10× fields of view were recorded through a GFP filter on a Zeiss Axiovert 200 M microscope using Axiovision 3.1 software and a Zeiss Axiocam to produce images. A 486-ms exposure time was used for each condition. The contrast of each of the images was adjusted to the exact same value using Adobe Photoshop (Adobe Systems, Inc.) to visualize GFP expression above untreated control levels. The remaining fluorescent cells were counted and displayed as a percentage of the total live cells counted in phase-contrast images of the same field. Representative 10× images were colored and adjusted with identical Photoshop methods for each, eliminating Photoshop bias.

Following culture and treatment as described in the Coculture Assays section, MM cells were cytospun onto microscope slides, fixed with 4% paraformaldehyde, and stained with Hoechst 33342 to label DNA. Slides were visualized through a 4′,6-diamidino-2-phenylindole filter. Cells (1,800) were counted for each condition (3 × 200 for each of three slides), and the percentage of apoptotic nuclei among them was quantified. Examples of what was considered normal versus apoptotic nuclei are presented.

Fold induction of NF-κB activity was determined by phosphoimage quantification of enhanced NF-κB activity over constitutive activity, which was assigned an arbitrary value of 1. The change in NF-κB–dependent GFP expression induced by BMSC coculture was tested for significance using a two-sided Mann-Whitney test with a 95% confidence interval. Significant changes in GFP expression with and without bortezomib were determined by the Student's t test using a 95% confidence interval. The difference in bortezomib-induced apoptosis between RPMI8226 cells alone and coculture with different patient BMSCs is plotted as a function of bortezomib dose. A simple linear regression model was applied to analyze the correlation between % difference apoptosis and fold NF-κB activation, which is defined by the following equation: (apoptosis difference) = −8.2 + 5.8*(fold NF-κB activation), where the slope coefficient was significant (P = 0.001).
