DNA-PK Inhibitor Peposertib Amplifies Radiation-Induced Inflammatory Micronucleation and Enhances TGFβ/PD-L1 Targeted Cancer Immunotherapy Open Access

This article is featured in Highlights of This Issue, p. 499

Double-strand breaks (DSB) are the most lethal lesions in DNA and their repair has been considered an attractive intervention point for developing new or potentiating established cancer therapeutics (1–3). Non-homologous end joining (NHEJ) is the main molecular pathway for DSB repair, used 80% to 90% of the time in cancer cells (4, 5). Although error-prone, it is a quick and efficient way for restoring the integrity of the affected chromosomes and preventing the potentially detrimental consequences in actively proliferating cells (6–8). NHEJ is driven by DNA-dependent protein kinase (DNA-PK) in association with several other molecular components, Ku70, Ku80, XRCC4, ligase IV, and artemis, assuring proper resection and resealing of the broken DNA strands in a timely manner (8–10). DNA-PK kinase activity is critical for the execution of its important DNA repair function (11) and several small-molecule inhibitors have been reported to suppress NHEJ repair and potentiate ionizing radiation (IR) and DSB-inducing chemotherapy (2, 12).

Peposertib (M3814) is a potent and selective DNA-PK inhibitor with optimized pharmacologic properties currently in early clinical development in combination with radiotherapy (13, 14). It effectively suppresses the repair of DSBs induced by IR or chemotherapeutic agents, strongly enhances cancer cell killing and improves therapy outcome in preclinical tumor models of radiotherapy (13). In cancer cells expressing wild-type p53, M3814 boosts ATM/p53 signaling and reinforces p53-mediated cell-cycle checkpoint control, leading to premature senescence of irradiated cancer cells. This overactivation of the natural p53 response effectively protects p53 wild-type cancer cells from the lethal consequences of proliferation with persistent DSBs. However, in the absence of functional p53 this protective mechanism is lost, and cancer cells enter into replication and mitosis with unrepaired DSBs, resulting in aberrant division and ultimately cell death (15).

It is well established that inhibition of NHEJ by targeting DNA-PK potentiates the antitumor activity of DSB-inducing agents, including radiation (13), but the mechanisms driving these effects have not been well characterized (2, 3). Using M3814 as a selective molecular tool, we investigated the main cellular events leading to enhanced killing of irradiated p53-deficient cancer cells. Our data reveal that cancer cells cycling with persistent DNA DSB damage, promoted by M3814, suffer severe chromosome abnormalities, misalignment, missegregation, and intense micronucleation leading to strong activation of cGAS/STING-mediated inflammatory response. These findings combined with the elevated expression of PD-L1 protein in irradiated cancer cells provided a clear rationale for combination with PD-1 checkpoint targeted immunotherapy. Triple combination of M3814, IR and bintrafusp alfa (BA, M7824), a bifunctional fusion protein targeting TGFβ and PD-L1, demonstrated superior efficacy and survival benefit in three syngeneic murine tumor models. Our results revealed that selective DNA-PK inhibition by M3814 not only effectively enhances cancer cell killing but also provides a powerful mechanism for induction of inflammatory micronucleation thus offering a new combination approach to more efficacious radioimmunotherapy of cancer.

Peposertib was synthesized at Merck KGaA. Bintrafusp alfa and the isotype control were manufactured by EMD Serono, Inc. MRT67307 was obtained from MilliporeSigma. RO3306 and nocodazole were purchased from SelleckChem. ON-TARGETplus Non-targeting siRNA Control pool (D-001810-10-05) and ON-TARGETplus Human TMEM173 siRNA pool (L-024333-00-0005) were purchased from Dharmacon. Human and murine cell lines were obtained from ATCC if not indicated otherwise. Cell line identity was confirmed by short tandem repeat analyses and Mycoplasma infection was excluded by PCR-based testing. HeLa, A549, MC38, and B16F10 cells were cultured in DMEM and H1299 and 4T1 cells were cultured in RPMI1640 media. All media were supplemented with 10% heat-inactivated FCS (Corning). HeLa NucLight cells were cultured according to the manufacturer's recommendations. A549 p53-null cell clone was generated by CRISPR as described previously (15). HeLa-GFP-H2B cells (16) were provided by Geoffrey Wahl, Salk Institute for Biological Studies (San Diego, CA). The MC38 murine colon carcinoma cell line was a gift from the Scripps Research Institute. siRNA transfections were performed using Lipofectamine RNAiMax (Invitrogen) according to the manufacturer's instructions.

RNA was isolated by RNeasy Mini Kit with on column DNase digestion (Qiagen). RNA purity and concentration were determined using a Nanodrop spectrophotometer (Thermo Fisher Scientific). For NanoString analysis, RNA samples (50 ng) were hybridized using the nCounter Human v1.1 PanCancer Immune Panel (NanoString) in accordance with the manufacturer's protocol. For quantitative PCR analysis, cDNA was synthesized using Superscript IV VILO Master Mix (Thermo Fisher Scientific) as described by manufacturer. qPCR was performed (on 10–100 ng input cDNA) using TaqMan Fast Advanced Master Mix and a QuantStudio 7 Flex Real-Time PCR instrument (Applied Biosystems). TaqMan probes used are listed in the Supplementary Materials and Methods. Relative fold-change (ΔΔC_t) gene expression was normalized to GAPDH.

Cells were lysed in RIPA buffer (Cell Signaling Technology, #9806) supplemented with protease and phosphatase inhibitors (Roche Diagnostics), as described in manufacturer's protocol. Protein concentration of extracts was quantified by the BCA assay (Pierce, #23227). Western samples were prepared using NuPAGE LDS sample buffer and reducing Agent. Samples were resolved on NuPAGE 4% to 12% Bis-Tris Midi Gels and transferred to nitrocellulose membranes via iBlot Dry Blotting System (Thermo Fisher Scientific). Membranes were treated and imaged with a LI-COR Odyssey CLx imaging system in accordance with the LI-COR Near-Infrared Western Blot Detection Protocol (LI-COR). Antibodies used are listed in the Supplementary Materials and Methods. Cytokine/chemokine concentration in media was determined by sandwich immunoassay using U-Plex Assays and a Sector Imager 1300 (Meso Scale Discovery, MSD) in accordance with the manufacturer's protocol. Protein concentrations were normalized to RNA content for each treatment condition and calculated as fold change compared with DMSO controls.

Cells were harvested and fixed in cold 70% ethanol overnight at 4°C prior to staining with Propidium iodide/RNase Staining buffer (BD Biosciences, 550825) for 15 minutes at room temperature. For two-dimensional analysis, FITC BrdU Flow Kit (BD Biosciences, 559619) was used as described previously (15). Cell-cycle profiles were analyzed using a BD FACS Canto flow cytometer (BD Biosciences) and data were processed with FlowJo software.

HeLa NucLight cells (Essen BioScience, 4490) were seeded in 96-well plates and incubated overnight at 37°C and 5% CO₂. The next day, cells were treated with M3814 for 1 hour followed by IR (5 Gy). IncuCyte Cytotox red reagent (Essen BioScience, 4632) was added to the medium to label dead cells in real time. Images were taken every 2 hours using an IncuCyte ZOOM (Essen BioScience). Cell growth curve was quantified by counting the number of fluorescent green nuclei. Relative cell death is determined by the number of IncuCyte Cytotox red counts normalized to total number of green counts per well. To track individual cell undergoing mitosis, HeLa NucLight and HeLa GFP-H2B cells were treated as indicated, cells were imaged at 10 minutes intervals using the 20× objective for 7 days. Analysis was carried out using ImageJ software (NIH, Bethesda, MD).

Cells were plated in T75 flasks overnight and pretreated with M3814 (1 μmol/L) for 1 hour before IR (5 Gy). After 48 hours, 150 nmol/L nocodazole was added and the cells were incubated for additional 18 hours. Metaphase cells were collected by shake-off and exposed to a hypotonic buffer (0.57% KCl) at 37°C for 30 minutes. Cells were fixed with fresh ice-cold methanol:acetic acid (3:1), dropped onto slides, stained with Giemsa, and >60 metaphase spreads/condition were scored for chromosomal aberrations. For spectral karyotyping, fixed cells were processed and analyzed at the Molecular Cytogenetic Core, Albert Einstein College of Medicine, Bronx, NY as described previously (17). Ten randomly picked metaphase spreads were imaged/analyzed for each treatment condition.

A total of 6 × 10⁴ cells/well were seeded in 6-well plates on day 0, and preincubated in 1 μmol/L M3814 or DMSO 1 hour before IR (5 Gy). Cells were fixed with methanol and blocked with MAXblock (Active Motif, 15252) for 1 hour. Samples were incubated with primary antibodies for 1 hour, washed and incubated with secondary antibodies and DAPI (Invitrogen, D1306) for 1 hour. Coverslips were then mounted with ProLong Gold Antifade Mountant (Invitrogen, P36934). Image acquisition and analysis were performed with Zeiss MIC-074. Antibodies used are listed in the Supplementary Materials and Methods.

C57BL/6 and BALB/c mice were obtained from The Jackson Laboratory and Charles River Laboratories, respectively. All mice used for experiments were 6 to 12 week old females. Mice were housed with ad libitum access to food and water in pathogen-free facilities. Detailed protocols of tumor studies and CD8 IHC are described in the Supplementary Materials and Methods.

All statistical analyses were performed using GraphPad Prism Software, version 7.0. Experimental data were analyzed with Student t test unless indicated otherwise. Tumor volume data are presented graphically as mean ± SEM by symbols or as individual mice by lines. Other statistical methods are described in the figure legends. Statistically significant differences are labeled with *, P < 0.05; **, P < 0.01; ***, P < 0.001; ****, P < 0.0001.

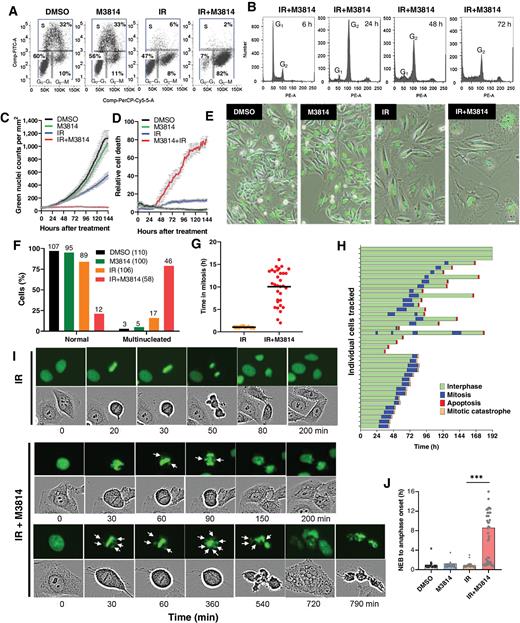

We have shown that M3814 dramatically enhances the killing of irradiated HeLa NucLight cells (15), in which p53 is functionally disabled by HPV16-encoded E6 oncoprotein (18). This cellular model expresses GFP in the nuclear lamina, allowing improved live imaging and analysis of changes in nuclear and cellular morphology. In the following experiments, HeLa NucLight and other cancer cells were exposed to IR (5 Gy) and M3814 (1 μmol/L) previously shown to inhibit DNA-PK activity over 80% in multiple cell lines (13, 15). We first examined the effects of radiation, M3814, and the combination thereof on cell-cycle progression in proliferating HeLa cells 24 hours posttreatment (Fig. 1A). M3814 alone had an insignificant effect on cell-cycle distribution and growth. IR partially arrested cells in G₁–S and G₂–M phase, while the combination of IR+M3814 shifted the arrest to predominantly G₂–M. The reduced mitotic cell count indicated that the arrest is in G₂-phase (15). The G₂ arrest is likely due to elevated CHK1 and CHK2 activity resulting from increased DSB damage in the presence of M3814 (15). However, the arrest was transient and within the next 24 hours cells entered mitosis in the presence of M3814 (Supplementary Fig. S1A video). At 72 hours, the cell-cycle profile indicated a substantial increase of cell populations undergoing apoptosis (sub-G₁) or polyploidy (>4n; Fig. 1B). Live imaging of cell growth confirmed that the effect of M3814 was practically indistinguishable from the control (Fig. 1C). Radiation alone only partially affected cell growth/viability (Fig. 1C) while IR+M3814 was very effective at restricting HeLa cell growth (Fig. 1C) and produced a significant fraction of dead cells which progressively increased over 6 days (Fig. 1D). Only a slight increase in relative cell death was induced by IR alone. These results indicated that M3814 is a potent cell death enhancer in irradiated HeLa cells.

Live-cell imaging for 6 days (Fig. 1E) showed that 17% of the cells exposed to IR alone had multiple/fragmented nuclear morphology (Fig. 1E and F). This fraction increased to 78% in response to IR+M3814 treatment (Fig. 1F). The small fraction of surviving cells at was predominantly multinucleated and exhibited a typical senescence-like morphology (Fig. 1E; Supplementary Fig. S1A). Time-lapse videos (Supplementary Fig. S1A) revealed that most of the cells had undergone abnormal mitoses with substantially prolonged duration, frequent tripolar spindles, cytokinesis failure, polyploidy, and recurrent cell death either in mitosis or interphase (Supplementary Fig. S1B and S1C). The length of mitosis increased from 1.5 hours in the IR-only cells to 10 hours in the IR+M3814-treated cells suggesting engagement of the spindle checkpoint and/or defects in chromosome attachment and segregation (Fig. 1G). Detailed analyses of cell morphology indicated two primary cell fates in IR+M3814-treated cells (Fig. 1H). Nearly half of the tracked cells (16/39) died in mitosis and 16/39 cells underwent mitotic arrest, followed by slippage and died in interphase (Supplementary Fig. S1B and S1C-video). A relatively small fraction (4/39) died without entering mitosis and 3/39 cells remained alive without entering mitosis and developed a senescence-like phenotype. Although heterogeneous in nature, the treatment outcome in the population of HeLa cells exposed to IR+M3814 suggested that most cells suffered from an inability to perform normal mitotic division.

We next examined chromosome behavior during mitosis. For this purpose, we used a HeLa cell model with histone H2B fused GFP, allowing live imaging of chromosomes and their movement during mitosis (16). HeLa-GFP-H2B cells were exposed to IR or IR+M3814 treatment and time-lapse videos were recorded (Supplementary Fig. S2A). Analysis showed that most cells exposed to vehicle or M3814 underwent normal mitoses, with all chromosomes aligned at the metaphase plate and normal chromosome separation at anaphase (DMSO: n = 50/50, M3814: n = 48/50). The majority of examined mitoses in cells exposed to IR alone were also normal (Fig. 1I; Supplementary Fig. S2A) though 27% (n = 14/52) exhibited some degree of chromosome misalignment and missegregation. The limited fraction of affected cells with high degree of aberrations in the IR-treated samples allowed the bulk of the cell population to continue proliferating over the 7-day period (Supplementary Fig. S2B). IR+M3814 treatment led to prolonged mitoses in most cells and multiple chromosome misalignment/missegregation events in 88% (n = 44/50) of the examined mitoses (Fig. 1I and J; Supplementary Fig. S2C). The average time from nuclear envelope breakdown to anaphase in the tracked cells exposed to IR+M3814 was 8 hours, compared with approximately 1 hour for all other conditions (Fig. 1J), indicating severe problems in chromosome attachment and/or segregation. Time-lapse imaging detected multiple examples of chromosomes unable to attach to the spindle (Fig. 1I; Supplementary Fig. S2C). Because of the smaller fraction of cells with chromosome alignment/segregation defects, IR-exposed samples showed increased proportions of seemingly normal cells in the population over the course of the experiment. The balance of cell growth/death was dramatically shifted in the IR+M3814-treated samples, where the bulk of the initial cell population underwent cell death, leaving a small fraction of surviving cells with a senescence-like phenotype and aberrant (multinucleated/fragmented) nuclear structure (Fig. 1E). These results revealed that impaired chromosome attachment, alignment, and/or segregation at the mitotic spindle are the main mechanism behind M3814-enhanced death in irradiated HeLa cells.

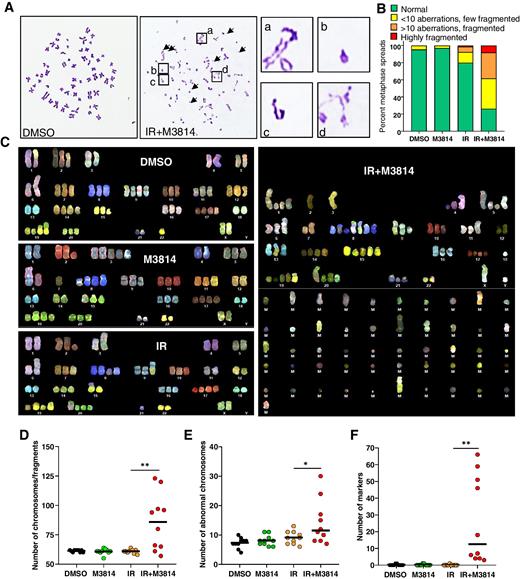

Chromosome misalignment and mis-segregation during mitosis have been shown to correlate with structural chromosomal aberrations (19–21). We therefore examined the effect of M3814 on metaphase chromosomal morphology in irradiated cells. For this purpose, we chose a p53-null clone of the widely used A549 cellular model (A549p53KO), that was previously generated by CRISPR knockout (KO) to assess the role of p53 in response to M3814 (15). A549 cells express wild-type p53 and undergo complete cell-cycle arrest and premature senescence when irradiated in the presence of M3814. Deletion of p53 removes this protective barrier and allowed to examine the consequences of cycling with DSBs (15).

A549p53KO cells were exposed to IR and/or M3814 for 48 hours followed by nocodazole for an additional 18 hours to enrich in metaphase cells. Metaphase chromosome spreads were prepared, and chromosome morphology examined. Relatively few visible chromosome abnormalities could be seen in the vehicle or M3814 treated cells (Fig. 2A). The fraction of cells with chromosome aberrations increased significantly in the irradiated cells but was dramatically higher in the cells undergoing the combination treatment where examples of chromosome fusion (a), ring (b), breaks/loss (c, d) were identified, frequently together with many chromosome fragments (Fig. 2A, arrows). Quantitative analyses of the images from at least 60 metaphase spreads indicated that vehicle and M3814-treated controls have a small percentage of aberrations (<5%) and no chromosome fragmentation (Fig. 2B). The fraction of metaphase spreads with aberrant chromosomes increased to 20% (including 7% fragmented) in the irradiated cells. In response to the combination treatment, approximately 75% of the spreads exhibited aberrant chromosome morphology, of which 38% were fragmented (Fig. 2B).

To better understand the type and magnitude of chromosomal damage, cells treated as above were subjected to spectral karyotyping analyses. Ten randomly selected metaphase spreads from each treatment were stained with chromosome-specific probes and their karyotypes examined (Fig. 2C; Supplementary Figs. S3 and S4). The analyses indicated that IR+M3814 treatment caused a marked increase in chromosomal abnormalities compared with radiation alone. Both the average number of chromosomes and/or fragments (Fig. 2D) and overall number of abnormal chromosomes (Fig. 2E) were substantially higher. The most dramatic difference was in the number of unidentifiable chromosome fragments known as markers (19, 22), which were present only in IR+M3814-treated samples (Fig. 2F). These findings indicated that by inhibiting the repair of IR-induced DSBs, M3814 promoted severe structural abnormalities and chromosome fragmentation.

Chromosome analysis in the p53-null A549 cells revealed that by extending the life of IR-induced DSBs M3814 can amplify the effect of radiation resulting in structural changes in most metaphase chromosomes. These changes, especially the high degree of fragmentation, could adversely affect the ability of chromosomes to properly attach to the mitotic spindle and segregate during anaphase. As a result, lagging chromosomes may form that remain outside of the newly assembled daughter nuclei as independent micronuclei (MN; ref. 23). We investigated these events using the A549p53KO cells. As shown previously (15), A549 cells are completely arrested in G₁ and G₂ phases and acquired premature senescence. The p53-null cells underwent partial and transient G₂ arrest allowing a substantial cell fraction to replicate and divide with unrepaired DSBs and ultimately die from the consequences (15). A549p53KO cells exposed to IR plus/minus M3814 were enriched in mitotic cells with the help of the CDK1 inhibitor RO-3306 (24) and examined by immunofluorescent microscopy (Fig. 3A). The bulk of cells exposed to IR formed relatively normal mitotic figures; however, multiple IR+M3814-treated cells were captured undergoing aberrant mitosis. Examples of a cell in metaphase with grossly misaligned chromosomes and multiple γH2AX foci and a cell captured in anaphase with several lagging chromosomes were shown (Fig. 3A).

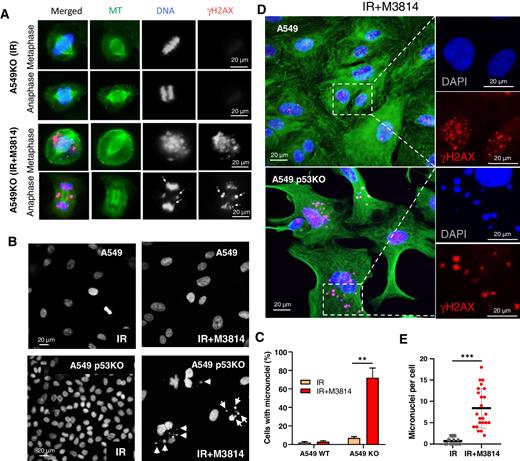

We next looked for the presence of MN. No identifiable MN were found in the A549 cells under combined treatment (Fig. 3B and C). A549p53KO cells had at least one MN in 4% of IR-exposed cells but 72% in the cells under IR+M3814 treatment (Fig. 3B and C). A high MN number was also observed in response to IR+M3814 in the p53KO line of another isogenic cell line cell pair, HT1080 (Supplementary Fig. S5A and S5B; ref. 15). Immunofluorescent staining of the A549 cell lines at day 7 under IR+M3814 showed single nuclei in the senescent A549p53WT cells with multiple γH2AX foci contained in the nuclear structure (Fig. 3D; Supplementary Fig. S5B). A549p53KO cells exhibited multiple MN with strong staining for γH2AX (Fig. 3D), indicating that MN are formed predominantly around heavily damaged chromosomes or chromosomal fragments (Fig. 3A). Similar results were obtained in the HT1080 cell line pair after IR+M3814 at day 7 (Supplementary Fig. S5C). Seven days after radiation, A549p53KO cells showed sporadic MN, with 1 MN in 10% (2/20) and 2 MN in 20% (4/20) of examined cells (Fig. 3E). In contrast, the combined treatment induced numerous MN (3 to18 per cell, average 8) in all examined cells (23/23; Fig. 3E).

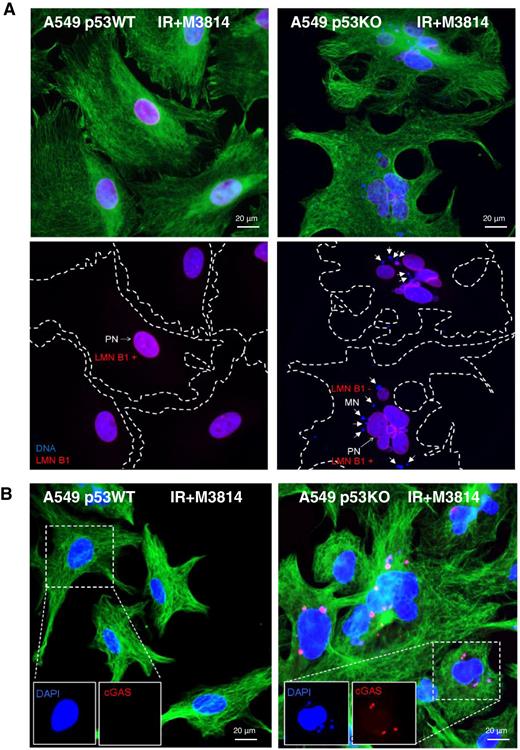

Chromosomes that cannot properly attach and segregate during mitosis are spontaneously enveloped by nuclear lamina, which is frequently deficient in lamin B1, a marker for structural membrane integrity (25). We assessed the nuclear morphology and status of lamin B1 in the A549p53WT/A549p53KO cell lines at day 7 after IR+M3814. As described previously (15), the proliferation of A549 cells was arrested, acquired premature senescence with single, well-shaped nuclei. A549p53KO cells showed multinucleated morphology with multiple detectable MN (Fig. 4A). Lamin B1 staining was seen consistently in the nuclear lamina of both cell lines but no signal was detected in most micronuclei identifiable by DNA staining. We then tested a parallel set of IR+M3814-treated A549 and A549p53KO samples for cGAS protein, a sensor of cytosolic DNA, and found intense staining colocalized with DAPI-stained micronuclei (Fig. 4B). These experiments indicated that the nuclear lamina of many micronuclei induced by the IR+M3814 combination in A549p53KO cells were lamin B1-deficient allowing cGAS to detect cytosolic DNA. Our studies revealed that continuous exposure of p53-deficient A549 cells to DNA-PK inhibitor, suppresses the repair of IR-induced DSBs and promotes severe structural defects in chromosomes resulting in aberrant mitotic division, massive micronucleation, and cytosolic exposure of chromosomal DNA. Given the role of cGAS in triggering inflammatory responses our experiments suggested that M3814 may greatly potentiate inflammatory signaling in irradiated cancer cells.

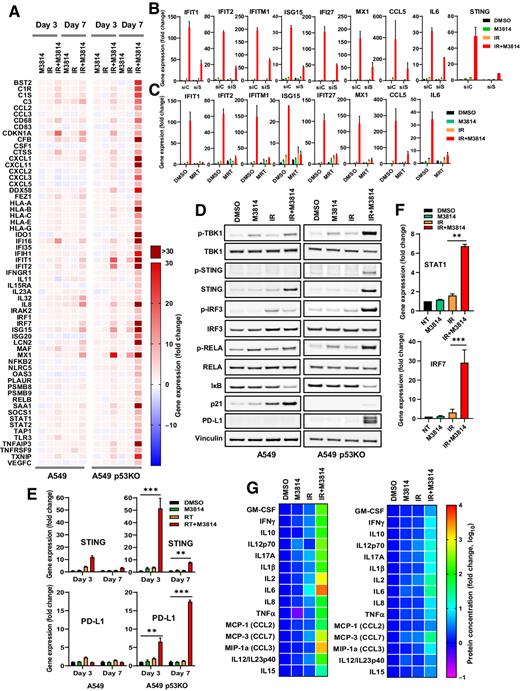

To test the effect of M3814 on inflammatory signaling, A549 and A549p53KO clones were exposed to IR, M3814, or the combination and gene expression was analyzed via NanoString nCounter PanCancer Immune Profiling Panel at days 3 and 7. Relative to IR alone, IR+M3814 treatment induced markedly greater expression of a multitude of immune-related genes in both cell lines (Fig. 5A). However, much stronger gene induction was observed in the A549p53KO cells. M3814 treatment alone had little impact on gene expression. The greater immune-related gene activation observed in A549p53KO cells relative to the parental cells supported the hypothesis that MN formation resulting from aberrant mitosis is driving the strong inflammatory gene response. Furthermore, the higher levels of gene expression observed at day 7 relative to day 3 agree with our findings regarding the kinetics of M3814-induced senescence and micronucleation in A549p53WT and A549p53KO cells. The more aberrant mitotic cycles A549p53KO cells underwent the higher number of MNi were formed. At day 7 after IR+M3814 treatment, the surviving cell population had multiple MN per cell (Fig. 3D and E).

Among the markedly upregulated genes in IR+M3814-treated A549p53KO cells were numerous IFN-stimulated genes as well as various chemokines and cytokines associated with inflammatory response (Fig. 5A). The expression levels of activated genes in the cells exposed to IR+M3814 at day 7 were 5 to 300-fold higher than the DMSO controls and markedly higher than the IR controls (Supplementary Fig. S6A) indicating a remarkably strong potentiation of radiation-induced inflammatory signaling in the surviving population of cells with multiple MN. The milder version of inflammatory gene response in A549p53WT cells is indicative of gradual acquisition of senescence and senescence-associated secretory phenotype (SASP) induced by exposure to IR+M3814 (15).

IFN-stimulated genes were well represented in the set of activated genes, supporting the hypothesis that cGAS/STING signaling is a major player in the response to M3814 in irradiated A549p53KO cells. Knockdown of STING expression by siRNA substantially reduced the IR+M3814-induced expression of a subset of IFN-stimulated genes and cytokines (Fig. 5B). Similarly, inhibition of the downstream STING pathway mediator TANK-binding kinase 1 (TBK1), effectively prevented their activation, confirming that M3814 activated STING signaling in irradiated A549p53KO cells (Fig. 5C).

The changes in the protein levels of STING and several key members of its downstream pathway components in the isogenic A549 cell pair exposed to IR+M3814 at day 7 were analyzed by Western blotting (Fig. 5D). Phospho-TBK1, phospho-STING, and phospho-IRF3 levels were substantially elevated in agreement with the activation of the cGAS/STING signaling. Upregulation of phospho-RELA and downregulation of its negative regulator IkB kinase indicated engagement of NFκB in the response to M3814 treatment in irradiated A549p53-null cells. Similar but much less pronounced changes were observed in the p53 wild-type cells which were arrested and exhibited a fully developed premature senescence phenotype at day 7 in the combined IR+M3814 treatment (15). These changes result from senescence-induced inflammatory response to cytosolic DNA also dependent on activation of the STING/NFκB signaling (26). High levels of p21, a transcriptional target of p53, responsible for the complete cell-cycle arrest in the p53 wild-type A549 cells exposed to IR+M3814 (27) was seen only in A549 but absent in the p53-null clone, as expected.

Although the activity of STING is primarily regulated at a posttranslational level where TBK1-mediated phosphorylation plays an important role, our Western analyses revealed a strong upregulation of the total STING protein, suggesting that additional circuits of regulation might be involved. STING gene expression was elevated over 50-fold at day 3 in IR+M3814-treated A549 p53KO cells but approximately 10-fold in the p53 wild-type cells. STAT1 and IRF7 were also found significantly elevated by IR+M3814 exposure at day 7 (Fig. 5F), consistent with the reported secondary activation loop in which STAT1 can activate STING gene transcription (28).

The Western analyses showed a strong upregulation of PD-L1 protein levels in the A549p53KO cells surviving the combined IR+M3814 treatment (Fig. 5D). Under the same treatment conditions, PD-L1 gene expression was found highly elevated on day 7 and moderately on day 3 in the p53-null cells (Fig. 5E). PD-L1 upregulation correlated with the IR+M3814 induced STING expression and activation, pointing to the recently established regulatory loop between STING and PD-L1 (29) as the likely mechanism behind the M3814-induced PD-L1 accumulation. STING signaling was effectively activated in two additional p53 dysfunctional cell lines, HeLa and H1299, albeit at variable levels (Supplementary Fig. S6B), suggesting that M3814 could serve as a universal enhancer of STING signaling in irradiated epithelial cancer cells lacking functional p53.

Inflammatory signaling includes a plethora of secreted proteins that function in a paracrine fashion to regulate the immune response. We looked at the levels of a set of 15 secreted proteins associated with inflammatory responses. Proliferating A549p53KO cells were exposed to IR plus/minus M3814 and protein concentrations were measured in the culture media at day 7 (Fig. 5G, left). Protein levels were largely unchanged by the M3814 alone. IR treatment significantly elevated the concentration of most proteins. The IR+M3814 combination showed a substantial increase over IR-induced levels in practically all tested proteins. Cells were replated following media removal at day 7 and cultured for an additional 7 days in drug-free media and protein concentrations were measured again as above (Fig. 5G, right). Though at reduced concentrations, a similar pattern was observed with significantly higher levels detected in IR+M3814-treated samples as compared with IR. These experiments indicated that the cells exposed to IR+M3814 continue to express and secrete immunomodulatory proteins. Our findings indicated that, once established, the M3814-enhanced secretory phenotype of irradiated A549p53KO cells retains the potential to affect tumor environment. Altogether, our studies demonstrated that the selective DNA-PK inhibitor peposertib is a powerful inducer of inflammatory micronucleation in irradiated cancer cells, leading to strong activation of cGAS/STING-driven inflammatory signaling with the potential to modulate the antitumor immune response. In addition, exposure of cancer cells to IR and M3814 caused a substantial upregulation of the PD-L1 immune checkpoint protein, a well-established cancer immunotherapy target (30).

To evaluate the potential of M3814 as an enhancer of cancer immune therapy, we chose the recent addition to the anti-PD-L1 arsenal, bintrafusp alfa (31). This bifunctional fusion protein simultaneously targets the PD-L1 immune checkpoint protein and the immune-suppressive cytokine TGFβ involved in multiple tumor-promoting pathways (32), activated by IR (33) and implicated in radiation resistance (34).

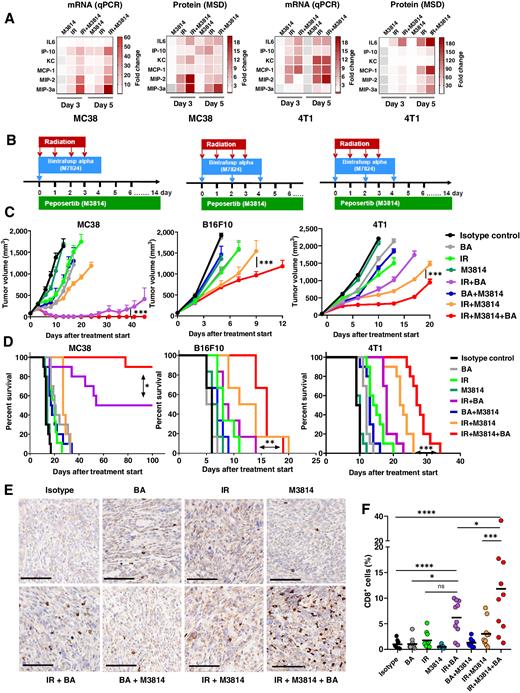

We first assessed the inflammatory signaling in two p53-mutant mouse tumor cell lines, MC38 and 4T1. Gene expression levels and extracellular concentrations of a small panel of inflammatory cytokines were analyzed. As observed in the human cancer cells (Fig. 5; Supplementary Fig. S6), IR+M3814 induced substantially greater levels of both inflammatory cytokine mRNA and secreted proteins as compared to IR alone (Fig. 6A). These experiments extended the validity of our observations to mouse cells.

We previously reported enhanced antitumor activity with the combination of radiation and BA in mice bearing MC38 tumors, a highly immunogenic model (31). Therefore, we used similar scheduling scheme in which radiation was given once daily for the first 4 days. BA was given once on day 0 and M3814 was applied orally once a day for 14 days (Fig. 6B). In MC38 tumor-bearing C57BL/6 mice, M3814 showed no single-agent activity as expected (Fig. 6C). IR and BA alone slightly reduced tumor growth. M3814 enhanced the efficacy of radiation but not BA. IR+BA showed strong antitumor activity (P < 0.0001, day 17). However, the triple combination IR+M3814+BA resulted in superior tumor regression relative to IR+M3814 (P < 0.0001, day 17), or IR+BA (P < 0.0001, day 45). In fact, all mice treated with the triple combination had complete tumor regression over the duration of the experiment. In comparison, complete tumor regression was only observed in one other treatment group, IR+BA (56%, 5/9 mice). The triple combination extended survival to a greater degree than any other treatment (Fig. 6D). At the end of the experimental time course (100 days), 90% of mice in that group were still alive exceeding the median survival of IR+M3814 (27 days, P < 0.0001), IR+BA (77 days, P = 0.04), or M3814+BA (17.5 days, P < 0.0001).

We next examined the combination in the poorly immunogenic B16F10 model (35). BA monotherapy did not affect tumor growth in this model (Fig. 6C). IR alone and IR+BA slightly but significantly decreased tumor volume relative to the control (P < 0.0001, day 5; Fig. 6C). M3814 enhanced IR efficacy (P = 0.06, day 5). However, triple combination of IR+M3814+BA significantly further reduced tumor volume relative to IR+BA (P < 0.0001, day 7), or IR+M3814 (P = 0.003, day 9). Triple combination therapy also extended median survival (16 days) to a greater degree than the dual combination IR+M3814 (12.5 days), BA+M3814 (7 days), and BA+IR (8.5 days; Fig. 6D).

Finally, we evaluated the efficacy of the triple combination in Balb/C mice bearing 4T1 mammary tumors, an immune-excluded tumor model. IR or BA alone decreased tumor volume relative to isotype control (P < 0.0001 and P < 0.0001, day 10, respectively; Fig. 6C). Again, M3814 enhanced IR efficacy (P < 0.0001, day 10), confirming that M3814 is a universal booster of radiation activity. Combining IR+BA also resulted in enhanced tumor growth inhibition relative to either IR or BA alone (P < 0.0001, day 10). These antitumor effects were further significantly enhanced by M3814 in the triple combination relative to dual combinations M3814+BA (P < 0.0001, day 13), IR+BA (P < 0.0001, day 17), or IR+M3814 (P < 0.0001, day 20; Fig. 6D). Furthermore, M3814 increased median survival of the triple combination (28 days) relative to IR+BA (18 days), IR+M3814 (23 days), or IR alone (15 days).

To elucidate the involvement of the immune response in the efficacy of the triple combination IR+M3814+BA, we measured tumor-infiltrating CD8⁺ T cells in 4T1 tumors 7 days after the last IR dose using IHC (Fig. 6E and F). The combination of IR+BA significantly increased the density of intratumoral CD8⁺ cells (6.17% of nucleated cells) relative to isotype control (P < 0.0001), BA (P = 0.036), but not IR alone (P = 0.093). The triple combination further increased intratumoral CD8⁺ cell density (11.8% of nucleated cells) relative to isotype control (P < 0.0001), IR+BA (P = 0.017), and IR+M3841 (3.0% of nucleated cells; P < 0.001; Fig. 6F). These data indicate that the triple combination therapy enhances the antitumor immune response over that of the respective dual combination or monotherapies.

Radiotherapy is the mainstay of cancer therapy with nearly 60% of all patients undergoing radiation treatment during the course of their disease (36, 37). Despite continuous improvements in the delivery of radiation to the tumor, the development of effective new radiation combination therapies is still lagging (38). The antitumor activity of IR is primarily derived from the generation of DSBs in DNA, the most lethal lesions that, if left unrepaired, could induce cancer cell death by diverse mechanisms. Therefore, targeting DSB repair machinery in tumors is an emerging field in cancer therapy with several new therapeutic modalities in clinical development (3, 5). Peposertib is a potent and selective inhibitor of DNA-PK kinase activity that effectively suppresses NHEJ repair of DNA DSBs, potentiates radiation and regresses human xenograft tumors (13). In the absence of functional p53, checkpoint control in irradiated cancer cells is attenuated, cells with unrepaired DSBs enter replication and mitosis leading to mitotic catastrophe and enhanced cell death (15).

The data presented here show that most catastrophic events in irradiated cancer cells exposed to DNA-PK inhibitor arise from failure of the mitotic machinery to cope with the severe abnormalities in metaphase chromosomes. Misalignment and mis-segregation of damaged/fragmented chromosomes yielded multiple lagging chromosomes and high degree of micronucleation. Cancer cells surviving several days after irradiation in the presence of M3814 had a multinuclear morphology, frequently with fragmented appearance. Numerous MN with intense γH2AX staining indicated a high concentration of unrepaired DSBs. Gene expression analysis of these cells showed a strong activation of inflammatory signaling. Analyses of our data demonstrated a clear correlation between strong STING pathway activation and M3814-induced micronucleation in irradiated A549p53KO cells. In the course of our studies, two independent reports documented a clear mechanistic link between micronucleation and cGAS/STING pathway activation (39, 40). Our results highlight that MN formation is a key mechanism for activation of inflammatory signaling by M3814 and identify DNA-PK inhibition as a powerful generator of inflammatory micronucleation in irradiated p53-deficient cancer cells. In addition, DNA-PK inhibitor substantially enhanced PD-L1 expression in irradiated cancer cells, providing a clear rationale for combination with PD-L1 targeted immunotherapy.

Triple combination of radiation, peposertib, and bintrafusp alfa demonstrated superior efficacy compared with either IR+M3814 or IR+BA in three syngeneic murine tumor models. Addition of M3814 led to complete tumor regression in all MC38 tumor-bearing mice and significant enhancement of activity in the poorly immunogenic B16F10 and immune-excluded 4T1 model. The improved efficacy and survival by M3814 correlated with substantially elevated CD8⁺ T-cell infiltration in the 4T1 tumors treated with IR, peposertib, and BA, supporting the contribution of the immune system to tumor clearance. These effects were demonstrated in a model system in which BA administration was limited to only three injections within 4 days to minimize mouse immune response to the humanized antibody (31). Such schedule likely underestimates the combination potential in the clinic where radiotherapy and immunotherapy are given over extended periods of time. Nevertheless, even under this suboptimal scheduling, the consistent efficacy boost by M3814 in the triple combination studies supports the hypothesis that DNA-PK inhibitor can serve as a strong immunotherapy enhancer in the clinical setting of combined radio and immunotherapy of locally advanced tumors. This is on top of the demonstrated effective potentiation of radiation-induced cancer cell death in preclinical mouse models (13).

Radiotherapy is a widely used treatment for local or locally advanced malignancies across a wide spectrum of indications (37). However, its effectiveness is limited by normal tissue toxicity. Radiation-induced fibrosis is a debilitating side effect in lung and other normal tissues in the radiation path (41). The mechanisms behind are complex and not completely understood but it is well established that TGFβ signaling plays a key role (41, 42) and it has been identified as a target for pharmacologic intervention (43). Bintrafusp alfa is a bifunctional fusion protein that simultaneously inhibits two nonredundant immunosuppressive pathways, TGFβ and PD-L1 (31). It is composed of the extracellular domain of TGFβRII (TGFβ “trap”) fused via a flexible linker to the C-terminus of each heavy chain of an IgG1 antibody blocking PD-L1. It traps TGFβ in the tumor environment and could inhibit its paracrine effects while suppressing PD-1 immune checkpoint blockade, making it a desirable combination partner to any radiosensitizer therapy.

Therapeutic radiation contributes to the generation of cytosolic DNA, activation of the STING pathway, and engagement of antitumor immunity to suppress tumor growth (39, 44, 45). Recent mechanistic insights helped to understand how defects in DNA damage response may lead to accumulation of DSBs and activation of IFN signaling and other immune-related cytokines (39, 40, 46). It is becoming clear that cytosolic DNA exposure is an effective mechanism for activation of the cGAS/STING pathway and the inflammatory response in cancer cells (45, 47, 48). Central to this is the generation of MN emerging from chromosome misalignment and missegregation at the mitotic spindle (21, 39). Their lamin B1-deficient nuclear envelope is prone to rupture and exposes chromosomal material in the cytosol to start the cGAS/STING cascade of events (40). The STING pathway is believed to contribute to the efficacy of radiotherapy and immunotherapy (48, 49). Therefore, STING has emerged as a promising target for activation and several STING agonists are in early stages of development for cancer treatment (50). However, tumor targeted approaches are likely needed because systemic activation of STING signaling may have unwanted consequences, including cytokine storm induction.

Radiotherapy alone causes DSBs, chromosome misalignment/missegregation, MN formation, and cGAS/STING activation. However, these effects are limited because of the relatively rapid repair of DSBs via NHEJ, reducing the number of catastrophic cellular events, MN-containing cells, and the level of IFN signaling. By extending the life of radiation-induced DSBs peposertib treatment allows for a much larger population of cancer cells to enter mitosis with severe chromosome abnormalities, resulting in enhanced cell death, extensive MN formation and strong induction of cGAS/STING signaling in the surviving cancer cells. Therefore, peposertib treatment offers a powerful new way for simultaneous enhancement of cell killing and activation of STING-mediated inflammatory response in irradiated cancer cells. At the same time, due to its unique mechanism of intervening in the cellular response to radiation by overactivation of ATM/p53 signaling axis, DNA-PK inhibitor reinforces p53-dependent protection of proliferating normal cells from mitotic death (15). Peposertib is well tolerated in humans as a single agent (14) and its radiosensitizing effects are limited to a relatively small irradiated body area thus STING activation will likely have limited systemic effect.

Cancer cells with a functional p53 pathway may also benefit from combined radiation and M3814 therapy via a different mechanism where ATM/p53 overactivation reinforces cell-cycle arrest and acquisition of durable premature senescence (15). M3814-induced senescence not only halts cancer cell growth but has the potential to modulate the immune environment via their SASP (51). The senescent p53 wild-type A549 cells generated by the IR+M3814 treatment (15) exhibited activated immune signaling albeit at lower levels than A549p53KO cells (Fig. 5A and D) without micronucleation (Fig. 3B and C) and showed immunomodulatory effects that support combination with cancer immunotherapeutic agents (manuscript in preparation). However, the ability of M3814 in p53-negative cells to induce strong cell killing and intense micronucleation, the most efficient mechanism for cGAS/STING activation, in p53-negative cells makes p53-defficient/mutant tumors a preferred choice for triple combination therapy.

Taken together, our studies identified the selective DNA-PK inhibitor peposertib as a powerful enhancer of radiation-induced cGAS/STING signaling and a potential combination partner of bintrafusp alfa in the radioimmunotherapy of p53 dysfunctional cancers. Over 50% of newly diagnosed solid tumors have p53 mutations and this percentage increases with the progression of the disease (52). Planned clinical combination studies of peposertib and bintrafusp alfa in patients undergoing locoregional radiotherapy will be assessing the potential of this novel approach to combined radioimmunotherapy of human cancer.
