Tumor cell dormancy is a significant clinical problem in breast cancer. We used a three-dimensional (3D) in vitro model of the endosteal bone niche (EN), consisting of endothelial, bone marrow stromal cells, and fetal osteoblasts in a 3D collagen matrix (GELFOAM), to identify genes required for dormancy. Human triple-negative MDA-MB-231 breast cancer cells, but not the bone-tropic metastatic variant, BoM1833, established dormancy in 3D-EN cultures in a p38-MAPK–dependent manner, whereas both cell types proliferated on two-dimensional (2D) plastic or in 3D collagen alone. “Dormancy-reactivation suppressor genes” (DRSG) were identified using a genomic short hairpin RNA (shRNA) screen in MDA-MB-231 cells for gene knockdowns that induced proliferation in the 3D-EN. DRSG candidates enriched for genes controlling stem cell biology, neurogenesis, MYC targets, ribosomal structure, and translational control. Several potential DRSG were confirmed using independent shRNAs, including BHLHE41, HBP1, and WNT3. Overexpression of the WNT3/a antagonists secreted frizzled-related protein 2 or 4 (SFRP2/4) and induced MDA-MB-231 proliferation in the EN. In contrast, overexpression of SFRP3, known not to antagonize WNT3/a, did not induce proliferation. Decreased WNT3 or BHLHE41 expression was found in clinical breast cancer metastases compared with primary-site lesions, and the loss of WNT3 or BHLHE41 or gain of SFRP1, 2, and 4 in the context of TP53 loss/mutation correlated with decreased progression-free and overall survival.

Implications:

These data describe several novel, potentially targetable pathways controlling breast cancer dormancy in the EN.

The progression of breast cancer at metastatic sites continues to be the largest contributor to patient mortality (1, 2). There has been renewed focus on identifying the mechanisms governing the establishment of dormancy in specific peripheral sites and the reawakening of dormant cells as major contributors of this cancer's lethal phenotype (3), especially because only a fraction of disseminated tumor cells, and even fewer circulating tumor cells, give rise to clinical macrometastases (4–6). Both estrogen receptor (ER)-positive and triple-negative breast cancers (TNBC: ER/PR/Her2) metastasize to and enter dormancy in the bone, with ER+ tumors often exhibiting a longer-lasting dormancy (7). Importantly, dormant versus active growth depends on which bone niche is colonized (8). Colonization of the endosteal niche (EN), enriched in osteoblasts and marked by low oxygen and high calcium levels, results in dormancy, whereas colonization of the perivascular niche, enriched in hematopoietic stem cells, results in active proliferation and formation of macrometastases (7, 9). Signaling pathways in tumor cells define whether disseminated tumor cells will remain dormant or become proliferative: activation of the p38 MAPK pathway in the absence of ERK1/2 MAPK activity favors quiescence (10). In addition, long-term survival of dormant cells is likely to require adoption of stem-like quiescence properties through increased activity of lineage plasticity pathways. Although several groups identified genes and pathways differentially regulated in dormant versus proliferating breast cancer metastatic cells (8, 11–16), few studies have addressed possible causative roles for these genes, especially in the context of p38 control (16, 17), confounding attempts at therapeutic targeting.

Using a novel 3D-EN culture system developed by Marlow and colleagues (18), in which otherwise aggressive MDA-MB-231 human breast cancer cells become dormant for up to 60 days due to direct contact with EN environmental cells, we show here that the knockdown of p38-MAPK induced proliferation, confirming the notion that dormancy is p38-dependent. To identify genes that promote or maintain dormancy, we used a high-stringency genomic short hairpin RNA (shRNA) screen to identify gene knockdowns that induced proliferation of MDA-MB-231 in 3D-EN cultures. Identification of the top hits, BHLHE41, a known p38 target required for induction of quiescence (19), and LSP1, a suppressor of ERK1/2 activity (20) increased confidence in the screen's validity. Other gene hits grouped into several regulatory categories not previously identified as suppressors of dormancy. These include genes involved in neurogenesis, translation, and noncanonical WNT signaling, all of which play roles in regulating the maintenance of cancer stem cells. These data strengthen the notion that breast cancer dormancy in the EN is promoted by p38-MAPK–controlled stem cell pathways.

Cell culture

MDA-MB-231 (ATCC HTB-26), MDA-MB-231 BoM1833 (gift from Joan Massague, Memorial Sloan Kettering Cancer Center; ref. 21), HEK293T (ATCC CRL-11268), Phoenix 293T (ATCC CRL-3213), and HS-5 (ATCC CRL-11882) were cultured in DMEM supplemented with 10% FBS and 1% penicillin–streptomycin and incubated at 37°C and 5% CO2. Human fetal osteoblasts (hFOB; ATCC CRL-11372) were cultured with DMEM/F12 (1:1) media without phenol red and supplemented with 15% FBS and G418 (0.3 mg/mL) and incubated at 32°C and 5% CO2. Human umbilical vein endothelial cell (HUVEC; Lonza C2517A) were cultured to no more than five passages with EBM-2 media (Lonza CC-3156) supplemented with a SingleQuot pack (Lonza CC-4176) and grown at 37°C and 5% CO2.

Three-dimensional cultures

Three-dimensional (3D) cultures recapitulating growth in the EN or control 3D collagen matrix growth were produced as described previously (18). Briefly, GELFOAM (Pfizer) discs were cut (5-mm diameter and 3-mm thickness) using a sterile hole punch and scalpel and then UV treated for 2 hours (1.2 × 105 μ J/CM2) using a UV cross linker. GELFOAM discs were placed into a low attachment 96-well plate (Eppendorf Microplate 96/F-PP, Sigma-Aldrich #C150179G) using sterile forceps. Discs were incubated in 200 μL of 1× Dulbecco PBS at 37°C/5% CO2 for 20 minutes. EN cultures were produced by seeding HS-5, hFOB, and HUVECs onto GELFOAM discs (4 × 104 cells/5 μL each) via capillary action, incubating for 2 hours, and then topped off with 200-μL niche media. After 24 hours, media were removed and MDA-MB-231 cells (transduced with RFP-expressing shRNA libraries) were seeded onto EN cultures (104 cells/10 μL) and grown for 7 days, with niche media (100 μL) replaced daily. MDA-MB-231 cells grown on tissue culture plates (2D) or in GELFOAM alone (3D) served as negative controls. Bone-tropic MDA-MB-231 (BoM1833) cells, infected with pGIPZ (GFP-expressing) lentivirus vector, served as a positive control for 3D-EN growth. MDA-MB-231 growth was monitored every other day via fluorescence microscopy using a Nikon Eclipse TS100 inverted microscope and SPOT Insight Fire Wire Camera and SPOT 5.2 software. Cell numbers were quantified using ImageJ software (NIH) from five different fields containing >100 cells/field.

shRNA and expression vectors

Lentivirus shRNA clones (pGIPZ-based; Supplementary Table S2), Cellecta Human DECIPHER RFP screening libraries (Table 1), and DNA expression vectors (ORFeome 8.1) were provided by the Roswell Park Comprehensive Cancer Center Gene Modulation Core (I.H. Gelman, Director). Plasmids were propagated in Stbl3 bacteria (Thermo Fisher Scientific) in LB media supplemented with 100 μg/mL ampicillin for 18 hours at 37°C at a constant speed of 200 rpm. Plasmids were extracted using QIAprep Spin Miniprep Kit (Qiagen catalog no. 27104) according to the manufacturer's protocol. Relative plasmid concentrations were quantified using a Nanodrop 2000 (Thermo Fisher Scientific).

Table 1.

shRNA library and screening criteria

Human moduleGene targets# of target mRNAsshRNA complexity
Signaling pathway targets 5,043 27,500
Disease-associated targets 5,412 27,500
Cell surface, extracellular, DNA-binding targets 4,922 27,500
Hit criteria Definition Module # # of hits
Fold increase ≥1.55 65
# clones ≥3 139
Replicates ≥2 of 3 198
p38 regulated Up- or down-regulated
Metastasis Involved?
Human moduleGene targets# of target mRNAsshRNA complexity
Signaling pathway targets 5,043 27,500
Disease-associated targets 5,412 27,500
Cell surface, extracellular, DNA-binding targets 4,922 27,500
Hit criteria Definition Module # # of hits
Fold increase ≥1.55 65
# clones ≥3 139
Replicates ≥2 of 3 198
p38 regulated Up- or down-regulated
Metastasis Involved?

Transfection

HEK293T cells were transfected with LipoD293/DNA mixtures as described previously (22).

Lentivirus packaging and infection

Polytropic lentiviruses were packaged in HEK293T cells using psPAX2 and pMD2.G packaging constructs as described previously (23). For infection of target cells plated the previous day at confluency in 6-well dishes, 150 μL of lentiviral supernatant and 4 μg/mL polybrene (Sigma) was added to the cells along with 1–2 mL DMEM (10% FBS, 1% penicillin/streptomycin) until cells were completely covered. Cells were then incubated for 30 minutes at 37°C with 5% CO2, centrifuged at 1,800 rpm for 45 minutes, and then incubated overnight again at 37°C/5% CO2. The cultures were split at a 1:5 ratio in DMEM containing 10% FBS, 1% penicillin/streptomycin, 2 mg/mL puromycin.

PCR

RNA was extracted using TRIzol (Life Technologies) according to the manufacturer's protocol. One microgram of total RNA/reaction was used in qRT-PCR reactions (50 μL total volume) containing High Capacity cDNA Reverse Transcriptase Kit reagents (Life Technologies/Applied Biosystems #4368814). qPCR was performed using Power SYBR green PCR Mastermix (Life Technologies #4367659) on a Step One Plus thermocycler (Applied Biosystems). GAPDH housekeeping gene was used as the loading control. qRT-PCR reactions were performed in triplicate and relative concentrations were determined using the 2−ΔΔCt method (StepOne software).

Immunoblot analysis

Immunoblot analysis was performed, as described previously (24), using the following antibodies: primary—V5 tag (Thermo Fisher Scientific, #37-7500), GAPDH (Santa Cruz Biotechnology, #sc-25778), α-tubulin (Santa Cruz Biotechnology, #sc-5286), p38-MAPK (Cell Signaling Technology, #9212), p38poT180/Y182 (Cell Signaling Technology, #9211), ERK1/2 (Cell Signaling Technology, #9102S), ERK1/2poT202/Y204 (Cell Signaling Technology, #9101S); secondary—Alexa Fluor700 anti-mouse Ig (1:1,000) or Alexa Fluor800 anti-rabbit Ig (1:10,000).

High-throughput sequencing and gene identification

DNA was isolated from 7-day 2D and 3D-EN cultures using phenol/chloroform/isoamyl (25:24:1). Cells in the 3D culture were isolated by removing GELFOAM discs with cells and incubating on a rotator for 1 hour at 37°C in 5 mL 1× collagenase/hyaluronidase solution (STEMCELL Technologies). After vigorous mixing, cells were pelleted and washed three times with PBS. First-round and nested PCR were performed according to the Cellecta shRNA library manual (http://www.cellecta.com/resources/product-manuals-and-certificates/), as we described previously (23) using primers described in Supplementary Table S3. All experiments were conducted in triplicate. The PCR products were cleaned using QIAquick Gel Extraction Kits, and then subjected to single-end rapid mode sequencing on an Illumina HiSeq2500 as performed by the Roswell Park Comprehensive Cancer Center Genomics Shared Resource (Sean Glenn, Director). Using FASTQ sequencing data files, barcodes were trimmed from flanking sequence using the ShortRead package from Bioconductor (25). The isolated barcode sequences were aligned to a reference file matching shRNA clones to gene targets using the DECIPHER BarCode Deconvoluter program (Cellecta), which allows for up to two incorrect base changes for accurate barcode identification. Individual sequence read counts were normalized by total reads sequenced, and top hits were filtered on the basis of a threshold determined by luciferase shRNA-negative controls (16 clones). An analysis of row sums was performed to identify genes targeted by multiple shRNA clones and across replicates.

Statistical analysis

Statistical analysis was performed on the fold-change between the cell counts from day 1 to 7 using the Student two-tailed t test. Error bars indicate SEM. Significant differences between experimental groups had a P value lower than 0.05.

Using a novel 3D model of dormancy for bone-metastatic breast cancer (18), we endeavored to identify genes that suppress tumor cell quiescence in a cultured microenvironment recapitulating bone EN. In this model, the human TNBC cell line MDA-MB-231 proliferates in a GELFOAM biomatrix, whereas it is growth-arrested in EN conditions (hFOBSs, HUVECs, and HS-5 diploid fibroblasts in GELFOAM; Fig. 1A). Importantly, the inclusion of bone marrow origin fibroblasts (HS-5) and human endothelial cells (HUVEC) promoted the long-term survival of hFOB osteoblasts even after these cells reached initial confluence after 24 hours of growth. This EN culture condition was previously shown to induce growth arrest of ER-positive (MCF7, T47D, ZR75-1, and BT474) and ER-negative (SUM149, SUM159, MDA-MB-231, and MDA-MB-453) human breast cancer cell lines, whereas these lines could proliferate in either GELFOAM alone, or in GELFOAM seeded with primary human bone marrow stem cells, representing a perivascular niche (18). In contrast, the bone-metastatic MDA-MB-231 variant, BoM1833, which was selected in vivo for increased bone growth (26), proliferates in either niche (Fig. 1B). Consistent with the notion that activated p38 MAPK in the absence of MEK-ERK activation favors dormancy, we showed that the knockdown of p38 by shRNA (shRNA clones #15 and #18) also induced MDA-MB-231 proliferation in the EN (Fig. 1C), consistent with previous data (18) using the p38 kinase inhibitor, SB203580.

Figure 1.

Dormancy induction in 3D-EN is p38-MAPK–dependent. Relative cell numbers of MDA-MB-231 (A), MDA-MB-231[BoM1833] (B), or MDA-MB-231 cells with p38 knockdown (vs. shCont.; C) grown for either 1 or 7 days in 3D-EN or 3D, or in 2D (control) conditions (N = independent replicates; error bars, SEM; **, P < 0.001).

Figure 1.

Dormancy induction in 3D-EN is p38-MAPK–dependent. Relative cell numbers of MDA-MB-231 (A), MDA-MB-231[BoM1833] (B), or MDA-MB-231 cells with p38 knockdown (vs. shCont.; C) grown for either 1 or 7 days in 3D-EN or 3D, or in 2D (control) conditions (N = independent replicates; error bars, SEM; **, P < 0.001).

Close modal

To identify the suppressors of tumor cell proliferation in a bone niche, MDA-MB-231 cells were transduced with a genomic shRNA library (Cellecta DECIPHER library covering 15,377 human genes with 82,500 independent shRNA clones, divided into 3 modules; Table 1) and clones that proliferated in EN cultures were enriched. Genes that are potentially required for MDA-MB-231 dormancy within the EN were identified by performing next-generation sequencing of shRNA clone barcodes from DNA taken from triplicate screen aliquots of freshly infected cells (24 hours) and from infected cells incubated for 7 days in 3D-EN. The barcode sequences were trimmed from flanking sequences and shRNA-targeted genes then identified using Cellecta's BarCode Deconvoluter software. We selected gene targets (shRNA barcodes) that were found in ≥2 of three independent screens, identified by ≥3 independent shRNA clones/gene, each at >1.5-fold increase over background (normalized against the relative abundance of each clone in the library; Table 1). This analysis identified 416 potential “dormancy-reactivation suppressor” genes (DRSG) in the 3 shRNA clone modules (Table 1).

One of the ways we established statistical significance for potential DSRG candidates was to compare the relative frequency of shRNA clones with the 16 luciferase shRNA controls (shLuc) contained within each module. For example, 2 module-2 genes, DOLK and MICALL2, had at least 2 independent shRNA clones with fold-change sequence reads over the 1.55-fold shLuc threshold (Supplementary Fig. S1A), yet when compared between screening replicates, only the MICALL2 clones showed consistent statistical significance over the luciferase clones (Supplementary Fig. S1B) in ≥2 replicates. Indeed, the knockdown of DOLK using independent shRNAs failed to induce increase MDA-MB-231 proliferation in 3D-EN cultures (Table 2).

Table 2.

DSRG candidates subjected to secondary validation

Gene targetsHuman moduleFold increase in proliferation at d7P
MAPK14 – 2.4 ± 0.4 <0.001
HBP1 1.8 ± 0.16 <0.01
WNT3 2.9 ± 0.4 <0.001
NES 0.9 ± 0.2 N.S.
BHLHE41 2.2 ± 0.2 <0.001
TIAL1 1.1 ± 0.2 N.S.
HTATIP2 1.06 ± 0.032 N.S.
DOLK 1.04 ± 0.06 N.S.
Gene targetsHuman moduleFold increase in proliferation at d7P
MAPK14 – 2.4 ± 0.4 <0.001
HBP1 1.8 ± 0.16 <0.01
WNT3 2.9 ± 0.4 <0.001
NES 0.9 ± 0.2 N.S.
BHLHE41 2.2 ± 0.2 <0.001
TIAL1 1.1 ± 0.2 N.S.
HTATIP2 1.06 ± 0.032 N.S.
DOLK 1.04 ± 0.06 N.S.

Many studies have shown that metastatic dormancy is controlled by the simultaneous upregulation of p38MAPK and downregulation of ERK activation (27), yet little is known about mediators of dormancy downstream of p38MAPK. Thus, DSRG were subjected to Ingenuity Pathway Analysis and PubMed search to bin them based on a predicted or known relationship to p38MAPK signaling and metastasis. An example is shown in Table 3 for the 65 potential DSRGs from module-1, relative to their relationship to p38MAPK signaling and metastasis. Of these candidates, 14 genes were associated with both p38MAPK signaling and metastasis (ADRB2, BHLHE41, CASR, CD63, CDC2L1, FLT1, HBP1, KEAP1, LSP1, NOB1, NRG1, P11, TTF1, WNT3), 12 genes were associated with metastasis but not with p38MAPK signaling (BIK, BRD4, CLDN2, EIF4A1, FUBP1, HSPD1, KIF11, NES, NOX1, RELN, SERPIN1, WNT8A), and 5 genes were associated with p38MAPK signaling alone (CACNB3, EHF, NNAT, OASL, TAC4). As a whole, there was a selection for DSRG candidates in module-1 that are involved in the regulation of neurogenesis or stem cell biology (Table 3), and/or protein translation (Tables 3 and 4). Loss of differentiation (neurogenesis) or stem cell induction genes resulting in active breast cancer cell growth in the 3D-EN is consistent with the notion that disseminated tumor cells exhibit stem cell–like properties (28, 29). Differential expression of genes controlling ribosome biogenesis are known to control stem cell homeostasis (30), and indeed, the antagonism of this process was shown to inhibit tumor formation induced by CD44+/CD24 human breast cancer stem cells (31).

Table 3.

Module-1 DSRG candidates

GeneFold increase*# Of hitsp38-Related**MetastasisPathway
ADCY8 1.81 No no Neuro/stem
ADK 1.90 No no Neuro/stem
ADRB2 2.19 Yes Yes Neuro/stem
ARG1 1.64 No No Neuro/stem
ATG2A 2.00 No No Autophagy
ATP2B1 1.91 No No Ca transport
BHLHE41a 2.3 Yes Yes p38/dormancy
BIK 1.56 No Yes Apoptosis
BRD4 1.78 No Yes Neuro/stem
CACNA1B 1.75 No No Neuro/stem
CACNB3 2.70 Yes No Neuro/stem
CASR 1.76 Yes Yes Neuro/stem
CD63 1.62 Yes Yes β-catenin signal
CDC2L1 1.84 Yes Yes Translation
CFD 2.23 No No
CHRND 1.80 No No Neuro/stem
CIP29 2.31 No No Translation
CLDN2 1.88 No Yes Neuro/stem
CLK3 1.64 No No Translation
EHF/ESE3 2.33 Yes No Neuro/stem
EIF2S3 2.45 No No Translation
EIF4A1 1.82 No Yes Translation
EME2 1.71 No No DNA repair
F10 1.68 No No Coagulation
FLT1 (VEGFR1) 1.74 Yes Yes Met. promoter
FUBP1 2.39 No Yes Translation
GABRG3 1.70 No No Neuro/stem
GCGR 1.60 No No Neuro/stem
GFPT2 1.82 No No Metabolism
GHRL 1.70 No No Metabolism
GPD2 1.85 No No Metabolism
HBP1a 1.85 Yes Yes Neuro/stem
HMGB2 1.84 No No Neuro/stem
HSPD1 1.71 No Yes Chaperone
IL2RG 1.84 No No Survival
IREB2 1.60 No No Iron metabolism
KEAP1 2.26 Yes Yes Neuro/stem
KIF11 2.22 11 No Yes Met. promoter
KREMEN1 1.69 No No Survival
LSP1 2.20 Yes Yes ERK1/2 supp
NEDD8 1.81 No No Neuro/stem
NES 1.76 No Yes Neuro/stem
NNAT 2.63 Yes No Neuro/stem
NOB1 2.67 Yes Yes Translation
NOX1 1.86 No Yes Neuro/stem
NRG1 1.97 Yes Yes Neuro/stem
OASL 2.84 Yes No Translation
OGG1 1.85 No No DNA repair
P11 (s100A10) 1.79 Yes Yes Breast cancer adhesion
PDE6H 1.91 No No cAMP metabol
PLLP 2.20 No No Metabolism
PSMB4 2.03 No No Neuro/stem
PSMC6 2.29 No No Neuro/stem
PSMD7 1.68 No No Neuro/stem
RELN 1.96 No Yes Neuro/stem
SCN7A 1.63 No No Na channel
SERPIN1 1.55 No Yes Invasion
SHC3 2.02 No No Neuro/stem
SUOX 1.98 No No Metabolism
TAC4 2.27 Yes No Neuro/stem
TTF1 2.26 Yes Yes Neuro/stem
VARS 2.02 No No Translation
WNT3a 1.91 Yes Yes β-catenin signal
WNT8A 2.23 No Yes β-catenin signal
YARS 1.62 No No Translation
GeneFold increase*# Of hitsp38-Related**MetastasisPathway
ADCY8 1.81 No no Neuro/stem
ADK 1.90 No no Neuro/stem
ADRB2 2.19 Yes Yes Neuro/stem
ARG1 1.64 No No Neuro/stem
ATG2A 2.00 No No Autophagy
ATP2B1 1.91 No No Ca transport
BHLHE41a 2.3 Yes Yes p38/dormancy
BIK 1.56 No Yes Apoptosis
BRD4 1.78 No Yes Neuro/stem
CACNA1B 1.75 No No Neuro/stem
CACNB3 2.70 Yes No Neuro/stem
CASR 1.76 Yes Yes Neuro/stem
CD63 1.62 Yes Yes β-catenin signal
CDC2L1 1.84 Yes Yes Translation
CFD 2.23 No No
CHRND 1.80 No No Neuro/stem
CIP29 2.31 No No Translation
CLDN2 1.88 No Yes Neuro/stem
CLK3 1.64 No No Translation
EHF/ESE3 2.33 Yes No Neuro/stem
EIF2S3 2.45 No No Translation
EIF4A1 1.82 No Yes Translation
EME2 1.71 No No DNA repair
F10 1.68 No No Coagulation
FLT1 (VEGFR1) 1.74 Yes Yes Met. promoter
FUBP1 2.39 No Yes Translation
GABRG3 1.70 No No Neuro/stem
GCGR 1.60 No No Neuro/stem
GFPT2 1.82 No No Metabolism
GHRL 1.70 No No Metabolism
GPD2 1.85 No No Metabolism
HBP1a 1.85 Yes Yes Neuro/stem
HMGB2 1.84 No No Neuro/stem
HSPD1 1.71 No Yes Chaperone
IL2RG 1.84 No No Survival
IREB2 1.60 No No Iron metabolism
KEAP1 2.26 Yes Yes Neuro/stem
KIF11 2.22 11 No Yes Met. promoter
KREMEN1 1.69 No No Survival
LSP1 2.20 Yes Yes ERK1/2 supp
NEDD8 1.81 No No Neuro/stem
NES 1.76 No Yes Neuro/stem
NNAT 2.63 Yes No Neuro/stem
NOB1 2.67 Yes Yes Translation
NOX1 1.86 No Yes Neuro/stem
NRG1 1.97 Yes Yes Neuro/stem
OASL 2.84 Yes No Translation
OGG1 1.85 No No DNA repair
P11 (s100A10) 1.79 Yes Yes Breast cancer adhesion
PDE6H 1.91 No No cAMP metabol
PLLP 2.20 No No Metabolism
PSMB4 2.03 No No Neuro/stem
PSMC6 2.29 No No Neuro/stem
PSMD7 1.68 No No Neuro/stem
RELN 1.96 No Yes Neuro/stem
SCN7A 1.63 No No Na channel
SERPIN1 1.55 No Yes Invasion
SHC3 2.02 No No Neuro/stem
SUOX 1.98 No No Metabolism
TAC4 2.27 Yes No Neuro/stem
TTF1 2.26 Yes Yes Neuro/stem
VARS 2.02 No No Translation
WNT3a 1.91 Yes Yes β-catenin signal
WNT8A 2.23 No Yes β-catenin signal
YARS 1.62 No No Translation

aConfirmed by independent shRNA knockdown.

*Fold increase in 7-day vs. 1-day growth in 3D-EN, in triplicate samples.

**Pubmed evidence as either a p38 substrate, expression regulated by p38 or modulation of p38 expression or activity.

Table 4.

Translation-controlling potential DSRG

GeneGene nameFunction
60S Subunit
RPL3 Ribosomal protein L3 Ribosome, structural
RPL4 Ribosomal protein L4 Ribosome, structural
RPL6 Ribosomal protein L6 Ribosome, structural
RPL7 Ribosomal protein L7 Ribosome, structural
RPL8 Ribosomal protein L8 Ribosome, structural
RPL10 Ribosomal protein L10 Ribosome, structural
RPL12 Ribosomal protein L12 Ribosome, structural
RPL13A Ribosomal protein L13A Ribosome, structural
RPL14 Ribosomal protein L14 Ribosome, structural
RPL21 Ribosomal protein L21 Ribosome, structural
RPL23 Ribosomal protein L23 Ribosome, structural
RSL24 Ribosomal protein L24 Ribosome, structural
RPL32 Ribosomal protein L32 Ribosome, structural
RPL37A Ribosomal protein L37A Ribosome, structural
40S Subunit
RPS4X Ribosomal protein S4X Ribosome, structural
RPS14 Ribosomal protein S14 Ribosome, structural
RPS15AP17 Ribosomal protein S15a pseudogene 17
RPS20 Ribosomal protein S20 Ribosome, structural
RPS26 Ribosomal protein S26 Ribosome, structural
RPS27AP5 Ribosomal protein S27a pseudogene 5
RPL36P14 Ribosomal protein L36 pseudogene 14
Elongation factors
EIF2B5 Eukaryotic translation initiation factor 2B subunit ϵ Elongation factor
EIF2S2 Eukaryotic translation initiation factor 2B subunit β Elongation factor
EIF2S3 Eukaryotic translation initiation factor 2B subunit γ Elongation factor
EIF3A Eukaryotic translation initiation factor 3 subunit A Elongation factor
EIF4A1 Eukaryotic translation initiation factor 4A1 Elongation factor
Misc. regulators
CLK3 CDC-like kinase 3 Regulates splicing factors
FCF1 rRNA-processing protein Ribosome formation
KARS Lysyl tRNA synthase Codon usage
NARS2 Asparaginyl-tRNA synthetase 2 Codon usage
NOB1 NIN1 binding protein 1 rRNA processing
TSFM Ts translation elongation factor, mitochondrial Mitochondrial translation
VARS Valyl-tRNA synthetase Codon usage
YARS Tyrosyl-tRNA synthetase Codon usage
GeneGene nameFunction
60S Subunit
RPL3 Ribosomal protein L3 Ribosome, structural
RPL4 Ribosomal protein L4 Ribosome, structural
RPL6 Ribosomal protein L6 Ribosome, structural
RPL7 Ribosomal protein L7 Ribosome, structural
RPL8 Ribosomal protein L8 Ribosome, structural
RPL10 Ribosomal protein L10 Ribosome, structural
RPL12 Ribosomal protein L12 Ribosome, structural
RPL13A Ribosomal protein L13A Ribosome, structural
RPL14 Ribosomal protein L14 Ribosome, structural
RPL21 Ribosomal protein L21 Ribosome, structural
RPL23 Ribosomal protein L23 Ribosome, structural
RSL24 Ribosomal protein L24 Ribosome, structural
RPL32 Ribosomal protein L32 Ribosome, structural
RPL37A Ribosomal protein L37A Ribosome, structural
40S Subunit
RPS4X Ribosomal protein S4X Ribosome, structural
RPS14 Ribosomal protein S14 Ribosome, structural
RPS15AP17 Ribosomal protein S15a pseudogene 17
RPS20 Ribosomal protein S20 Ribosome, structural
RPS26 Ribosomal protein S26 Ribosome, structural
RPS27AP5 Ribosomal protein S27a pseudogene 5
RPL36P14 Ribosomal protein L36 pseudogene 14
Elongation factors
EIF2B5 Eukaryotic translation initiation factor 2B subunit ϵ Elongation factor
EIF2S2 Eukaryotic translation initiation factor 2B subunit β Elongation factor
EIF2S3 Eukaryotic translation initiation factor 2B subunit γ Elongation factor
EIF3A Eukaryotic translation initiation factor 3 subunit A Elongation factor
EIF4A1 Eukaryotic translation initiation factor 4A1 Elongation factor
Misc. regulators
CLK3 CDC-like kinase 3 Regulates splicing factors
FCF1 rRNA-processing protein Ribosome formation
KARS Lysyl tRNA synthase Codon usage
NARS2 Asparaginyl-tRNA synthetase 2 Codon usage
NOB1 NIN1 binding protein 1 rRNA processing
TSFM Ts translation elongation factor, mitochondrial Mitochondrial translation
VARS Valyl-tRNA synthetase Codon usage
YARS Tyrosyl-tRNA synthetase Codon usage

In contrast, several gene candidates had roles that might directly control known dormancy functions. For example, BHLHE41 has been reported to play a role in p38MAPK-mediated dormancy (19), ADRB2 suppresses prostate cancer proliferation in bones by downregulating osteoblast-expressed GAS6 (32), LSP1 negatively controls ERK signaling (20), and P11 (S110A10) controls breast cancer adhesion to endothelial cells in the metastatic niche (33). Finally, gene set enrichment analysis of all the module-1 genes showed that 18 of 65 genes (27.7%) were likely MYC targets (Fig. 2A). Although a role of MYC as a driver of dormancy reawakening has not been addressed, MYC amplification is associated with high-grade breast cancer and worse prognosis (34), and in several non-breast cancer models, the forced reexpression of MYC rescues proliferation in dormant tumor cells (35).

Figure 2.

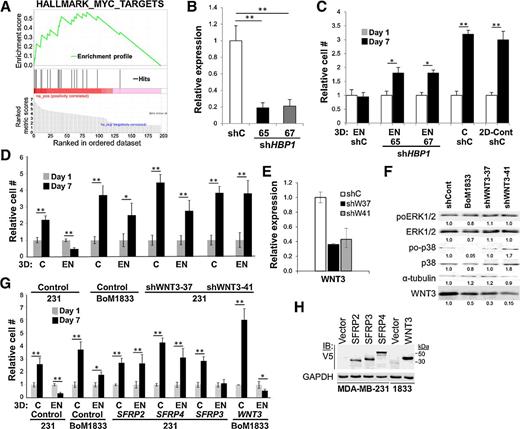

Analysis of HBP1 and WNT3 as potential DSRG. A, Gene set enrichment analysis of module-1 DSRG candidates identified 18 of 65 hits as being MYC target genes. B, qRT-PCR showing knockdown of HBP1 in MDA-MB-231 cells. Knockdown of HBP1 (C) or WNT3 (D) induces proliferation in 3D-EN versus 3D (“C”) or 2D cultures. Error bars, SEM of three independent replicates; *, P < 0.01; **, P <0.001. E, Confirmation of WNT3 knockdown by qRT-PCR. Error bars, SEM of three independent replicates. F, Immunoblot of lysates of MDA-MB-231 or BoM1833 transduced with scramble shRNA (“shCont”), or WNT3-knockdown MDA-MB-231 cells probed for total or activated (poT202/Y204) ERK1/2, total or activated (poT180/Y182) p38-MAPK or α-tubulin (as a loading control). Digital quantifications are shown as normalized to the shCont. This blot is typical of three independent experiments. G, Overexpression of SFRP2 or 4, but not SFRP3, in MDA-MB-231 induces proliferation in 3D-EN cultures, whereas the overexpression of WNT3 in BoM1833 suppresses 3D-EN proliferation. Error bars, SEM of three independent replicates; *, P < 0.01; **, P <0.001. H, Immunoblot of MDA-MB-231 lysates transduced with lentivirus expressing V5-tagged SFRP2, 3, or 4 (or empty vector), or BoM1833 (“1833”) cells transduced with WNT3 (or empty vector), probed for V5 or GAPDH. Molecular weight markers are at right.

Figure 2.

Analysis of HBP1 and WNT3 as potential DSRG. A, Gene set enrichment analysis of module-1 DSRG candidates identified 18 of 65 hits as being MYC target genes. B, qRT-PCR showing knockdown of HBP1 in MDA-MB-231 cells. Knockdown of HBP1 (C) or WNT3 (D) induces proliferation in 3D-EN versus 3D (“C”) or 2D cultures. Error bars, SEM of three independent replicates; *, P < 0.01; **, P <0.001. E, Confirmation of WNT3 knockdown by qRT-PCR. Error bars, SEM of three independent replicates. F, Immunoblot of lysates of MDA-MB-231 or BoM1833 transduced with scramble shRNA (“shCont”), or WNT3-knockdown MDA-MB-231 cells probed for total or activated (poT202/Y204) ERK1/2, total or activated (poT180/Y182) p38-MAPK or α-tubulin (as a loading control). Digital quantifications are shown as normalized to the shCont. This blot is typical of three independent experiments. G, Overexpression of SFRP2 or 4, but not SFRP3, in MDA-MB-231 induces proliferation in 3D-EN cultures, whereas the overexpression of WNT3 in BoM1833 suppresses 3D-EN proliferation. Error bars, SEM of three independent replicates; *, P < 0.01; **, P <0.001. H, Immunoblot of MDA-MB-231 lysates transduced with lentivirus expressing V5-tagged SFRP2, 3, or 4 (or empty vector), or BoM1833 (“1833”) cells transduced with WNT3 (or empty vector), probed for V5 or GAPDH. Molecular weight markers are at right.

Close modal

We then sought to independently confirm that the downregulation of several DSRG candidates leads to MDA-MB-231 proliferation in 3D-EN cultures. Thus, MDA-MB-231 cells were transduced with 2 independent shRNA clones/gene, and following confirmation of gene knockdown by either qRT-PCR or immunoblotting, the cells were assessed for proliferation (vs. scrambled shRNA controls) in 3D-EN cultures as in Fig. 1. For this analysis, we chose three predicted DSRG from module-1, BHLHE41, HBP1, and WNT3, which were both p38- and metastasis-associated (Table 3), and 1 gene, NES, not known to be p38-regulated. As well, we chose two negative controls (not predicted to be DSRG): DOLK, which was neither p38- nor metastasis-associated (Supplementary Table S1) and that was likely not significant due to lack of replicate hits (Supplementary Fig. S1B), and HTATIP2, a module-2 gene that failed to make the cut because it had only 2 shRNA hits in one of three replicates. BHLHE41, HBP1, and WNT3 were validated as DSRG, that is, their knockdown resulted in significantly increased proliferation in EN over controls (BHLHE41:Table 2, HBP1 and WNT3:Fig. 2C and D), whereas DOLK, NES, and HTATIP2 knockdown failed to induce MDA-MB-231 proliferation in the 3D-EN (Table 3).

WNT signaling largely has been linked to metastatic progression, especially in models of TNBC (36). However, recent data suggest that specific WNT family members, such as WNT5A, might promote either metastatic progression or dormancy, depending on whether signaling is through canonical or noncanonical pathways (37). Therefore, we sought to follow-up our finding that WNT3 knockdown induced MDA-MB-231 proliferation in our 3D-EN assay. First, we confirmed that WNT deficiency caused proliferation (Fig. 2D), using two independent WNT3-specific shRNAs, which knocked down the WNT3 expression in MDA-MB-231 cells approximately 2.5-fold over scrambled controls (shCont; Fig. 2E). Interestingly, WNT3 levels were relatively decreased in BoM1833 cells, consistent with the notion that WNT3 loss facilitates proliferation in the 3D-EN (Fig. 2F). However, WNT3 knockdown in MDA-MB-231 cells had no effect on relative p38poT180/Y182 levels, indicating that the increased proliferation of MDA-MB-231 cells after WNT3 deficiency was not a result of loss of p38 activation. Although this finding would be consistent with WNT3 being a downstream mediator of p38 signaling, we cannot rule out that the WNT3 effect is p38-independent. In contrast, the BoM1833 variant, which failed to growth-arrest in the 3D-EN cultures (Fig. 1B), exhibited decreased relative p38 activation levels.

Secreted forms of frizzled-related proteins (SFRP) are thought to antagonize WNT/β-catenin signaling by directly binding WNT members (38), and more specifically, SFRP2 and 4, but not SFRP3, are known to bind WNT3 at high affinity (39). We therefore transduced MDA-MB-231 cells with V5-epitope tagged SFRP2, 3, or 4 expressing vectors, confirmed ectopic expression versus an empty vector control (Fig. 2H), and tested these cells for proliferation in 3D-EN cultures. Figure 2G shows that SFRP2 and 4, but not 3, could release MDA-MB-231 cells from dormancy. Similarly, the overexpression of WNT3 in BoM1833 suppressed proliferation in 3D-EN, but not in 3D-control cultures (Fig. 2G). Taken together, these data strongly suggest that WNT3 promotes dormancy in our 3D-EN model. This is consistent with a report showing that increased Hedgehog-mediated Sfrp1 expression in liver stroma increased the metastatic potential of human Capan-1 pancreatic tumor cells through the suppression of WNT3 signaling, and that the overexpression of WNT3A in Capan-1 cells decreased experimental metastasis formation (40).

To address this in a clinical context, we compared the relative WNT3 expression levels in primary-site versus metastatic breast cancers in The Cancer Genome Atlas (TCGA) and Radvanyi Oncomine datasets (41). These data show lower levels of WNT3 in clinical macrometastases compared with primary-site breast cancer (Fig. 3A), suggesting that WNT3 deficiency promotes active metastatic progression. One drawback, however, is that both studies have very few metastatic cases (three each), with none derived from bone, confounding the determination of statistical significance. We then analyzed how the loss of WNT3 correlates with either progression-free or overall survival using the TCGA Breast and METABRIC (42, 43) datasets in cBioPortal (http://www.cbioportal.org). We noted that WNT3 loss, either due to gene deletion or transcriptional downregulation, occurred in 31% and 21% of all breast cancer cases in TCGA and METABRIC, respectively, and that these cases showed strong cooccurrence with the loss/mutation of TP53 (P values of 1.36e-21 and 2.98e-58, respectively). Indeed, clinical cases of TNBC are marked by specific TP53 mutations (44). We then sought to determine whether the loss of WNT3 and/or TP53 predicted poorer clinical survival, or whether any survival correlation associated with WNT3 loss was potentiated in a background of ER, progesterone receptor (PR) and HER2 loss (encoded by ESR1, PGR, and ERBB2, respectively), reflecting TNBC. Indeed, a large portion of the WNT3-deficient cases in the TCGA breast dataset had coincident losses of ESR1, PGR, and ERBB2 (Fig. 3B). Figure 3C shows that in the TCGA dataset, poorer progression-free survival was only detected in cases with combined losses of WNT3, TP53, ESR1, PGR, and ERBB2; the loss of any of these genes alone or the combined loss of ESR1, PGR, and ERBB2 did not affect survival (WNT3 loss alone: P = 0.652; TP53 loss alone: P = 0.125; WNT3 plus TP53 loss: P = 0.0855; ESR1, PGR, and ERBB2 combined loss: P = 0.300). It is noteworthy that BRCA1 mutational status, which represents fewer than 3% of all the WNT3-deficient cases in the TGCA Breast database, has no effect on survival (WNT3 loss + BRCA1 mutation: P = 0.693). In contrast, loss of only WNT3 and TP53 in the METABRIC dataset showed poorer survival (Fig. 3D). Taken together, these data show that WNT3 loss contributes to poorer survival, especially in the context of TP53 loss. The superior powering of the METABRIC dataset, and the fact that it includes many more cases of disease recurrence/progression associated with metastasis, allows for the conclusion that WNT3/TP53 loss is sufficient for poorer survival, a value that worsens in the context of what are likely triple-negative cases (ESR1, PGR, and ERBB2 loss). These data correlate with the fact that TNBC dormancy in the bones is shorter in duration than that of ER-positive breast cancer (7), suggesting that the combined loss of ER, PR, and HER2 might sensitize dormant breast cancer cells toward WNT3 loss. It is important to note that we only studied the role of WNT3 signaling in tumor cells in the context of a 3D-EN microenvironment. Although secreted factors are likely to play an important role, it should be noted that cell–cell contact was required for MDA-MB-231 dormancy in this 3D-EN (18). The exact roles played by each EN niche cell type, whether in its direct interaction to breast cancer cells or through its secretome, remains to be elucidated. In addition, the role of WNT3 in controlling tumor dormancy in the bone may be cancer type–dependent because Nandana and colleagues (45) showed that prostate cancer invasiveness and bone colonization required TBX2-regulated WNT3A expression.

Figure 3.

WNT3 expression in clinical breast cancer (BrCa) datasets and correlation with survival. A, Oncomine TCGA Breast and Radvanyi datasets showing relative WNT3 expression in primary (1°) versus metastatic breast cancer cases. N = number of cases. B, Copy number variations, mutations, and expression changes of TP53, WNT3, ERBB2, PGR, and ESR1 in the TCGA Breast dataset produced through cBioPortal, with vertical bars representing a single patient, and the percentages representing the total changes for a given gene. Progression-free (C) and overall survival (D) for TGCA Breast and METABRIC datasets, respectively, based on combined TP53, WNT3, ERBB2, PGR, and ESR1 losses in the TGCA data, and TP53 and WNT3 losses in the METABRIC dataset. The number of cases with or without these gene changes, as well as the median number of disease-free months, are shown below. E, Copy number variations, mutations, and expression changes of TP53, SFRP1, 2, and 4 in the TCGA Breast dataset produced through cBioPortal. Progression-free (F) and overall survival (G) for TGCA Breast and METABRIC datasets, respectively, based on combined TP53, SFRP1, 2, and 4 losses, with numbers of cases with or without changes (below).

Figure 3.

WNT3 expression in clinical breast cancer (BrCa) datasets and correlation with survival. A, Oncomine TCGA Breast and Radvanyi datasets showing relative WNT3 expression in primary (1°) versus metastatic breast cancer cases. N = number of cases. B, Copy number variations, mutations, and expression changes of TP53, WNT3, ERBB2, PGR, and ESR1 in the TCGA Breast dataset produced through cBioPortal, with vertical bars representing a single patient, and the percentages representing the total changes for a given gene. Progression-free (C) and overall survival (D) for TGCA Breast and METABRIC datasets, respectively, based on combined TP53, WNT3, ERBB2, PGR, and ESR1 losses in the TGCA data, and TP53 and WNT3 losses in the METABRIC dataset. The number of cases with or without these gene changes, as well as the median number of disease-free months, are shown below. E, Copy number variations, mutations, and expression changes of TP53, SFRP1, 2, and 4 in the TCGA Breast dataset produced through cBioPortal. Progression-free (F) and overall survival (G) for TGCA Breast and METABRIC datasets, respectively, based on combined TP53, SFRP1, 2, and 4 losses, with numbers of cases with or without changes (below).

Close modal

We performed a similar analysis on the two other validated DSRG, which indicated that BHLHE41, but not HBP1, exhibited decreased expression in breast cancer metastases compared to levels in primary tumors (Fig. 4A; Supplementary Fig. S1C). In the TCGA Breast dataset, 11% of cases exhibited partial or full loss of BHLHE41 (Fig. 4B). As with WNT3 loss, the loss of BHLHE41 had a statistical cooccurrence with mutation/loss of TP53 (q = 0.0242) in this dataset. Moreover, the combined loss of BHLHE41 and TP53 correlated with decreased progression-free or overall survival, respectively, in the TCGA Breast and METABRIC datasets (TCGA: P = 0.0379; METABRIC: P = 6.669e-5). In contrast, loss of BHLHE41 alone did not correlate with decreased survival in TCGA Breast (P = 0.568). Interestingly, the combined loss of WNT3, BHLHE41, and TP53 did significantly change the rate of progression-free survival in TCGA Breast cases, strongly suggesting that the WNT3/TP53 and BHLHE41/TP53 loss cohorts were independent groups, and that either loss of WNT3 or BHLHE41 was individually capable of initiating reawakening in the context of TP53 loss. This also suggests that TP53 loss is the main driver of the poorer prognosis. In regards to possible mechanisms underlying BHLHE41 as a DSRG, the gene product, BHLHE41 (also known as DEC2 and SHARP1), functions as a transcriptional repressor of epithelial-to-mesenchymal transition and invasion factors, SNAI1, SNAI2, and TWIST (46). In addition, Adorno and colleagues (47) showed that breast cancer cases with higher levels of BHLHE41 and CCNG2, two p63-induced genes, correlated with lower metastatic risk. Interestingly, specific sets of p53 mutations abrogate p63 activity, likely leading to BHLHE41 loss (48).

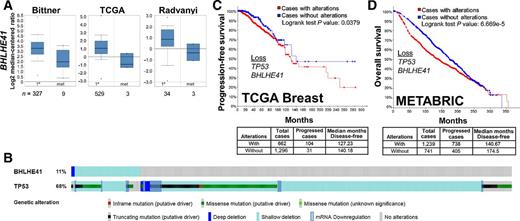

Figure 4.

BHLHE41 expression in clinical breast cancer datasets and correlation with survival. A, Oncomine Bittner, TCGA Breast, and Radvanyi datasets showing relative BHLHE41 expression in primary (1°) versus metastatic breast cancer cases. N = number of cases. B, Copy number variations, mutations, and expression changes of TP53 and BHLHE41 in the TCGA Breast dataset produced through cBioPortal, with vertical bars representing a single patient, and the percentages representing the total changes for a given gene. Progression-free (C) and overall survival (D) for TGCA Breast and METABRIC datasets, respectively, based on combined TP53 and BHLHE41 losses in the METABRIC dataset. The number of cases with or without these gene changes, as well as the median number of disease-free months, are shown below.

Figure 4.

BHLHE41 expression in clinical breast cancer datasets and correlation with survival. A, Oncomine Bittner, TCGA Breast, and Radvanyi datasets showing relative BHLHE41 expression in primary (1°) versus metastatic breast cancer cases. N = number of cases. B, Copy number variations, mutations, and expression changes of TP53 and BHLHE41 in the TCGA Breast dataset produced through cBioPortal, with vertical bars representing a single patient, and the percentages representing the total changes for a given gene. Progression-free (C) and overall survival (D) for TGCA Breast and METABRIC datasets, respectively, based on combined TP53 and BHLHE41 losses in the METABRIC dataset. The number of cases with or without these gene changes, as well as the median number of disease-free months, are shown below.

Close modal

In conclusion, this study marks a novel method to identify and validate potential DSRG based on an in vitro 3D-EN dormancy model for breast cancer. Our data suggest several therapeutic avenues, but these would likely be divided into treatments that either secure dormancy, that is, antagonize reawakening, or that induce large-scale reawakening in a neoadjuvant setting, linked to standard chemotherapies prescribed for TNBC. Examples of reawakening suppressors might include small-molecule inhibitors of MYC (49) or Nutlin-3a to normalize mutant p53 function (50), whereas inducers of reawakening might include inhibitors of WNT3 signaling (51, 52) or p38 kinase activity (53).

I.H. Gelman is a consultant/advisory board member for Gerson Lehman Group and Kinex LLC (now Athenex Inc.). No potential conflicts of interest were disclosed by the other authors.

Conception and design: I.H. Gelman

Development of methodology: J.E. McGrath, R. Ransom

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): J.E. McGrath, L. Panzica, H.G. Withers

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): J.E. McGrath, L. Panzica, H.G. Withers

Writing, review, and/or revision of the manuscript: L. Panzica, H.G. Withers, I.H. Gelman

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): L. Panzica, H.G. Withers

Study supervision: I.H. Gelman

The authors thank G. Dontu for critical discussion regarding the 3D bone growth models. This work was supported by the Roswell Park Alliance Foundation and by NCI grant P30-CA016056 involving the use of Roswell Park Comprehensive Cancer Center's Genomics, Bioinformatics, and Gene Modulation Shared Resource. This work was also supported by grant CA94108 (NIH/NCI) and by an Alliance Foundation grant (to I.H. Gelman), and in part, through NCI Comprehensive Cancer funds (P30-CA016056) involving the use of Roswell Park Comprehensive Cancer Center's Genomics and Gene Modulation Shared Resources.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.

1.
Zhang
XH
,
Giuliano
M
,
Trivedi
MV
,
Schiff
R
,
Osborne
CK
. 
Metastasis dormancy in estrogen receptor-positive breast cancer
.
Clin Cancer Res
2013
;
19
:
6389
97
.
2.
Banys
M
,
Hartkopf
AD
,
Krawczyk
N
,
Kaiser
T
,
Meier-Stiegen
F
,
Fehm
T
, et al
Dormancy in breast cancer
.
Breast Cancer
2012
;
4
:
183
91
.
3.
Sosa
MS
,
Bragado
P
,
Aguirre-Ghiso
JA
. 
Mechanisms of disseminated cancer cell dormancy: an awakening field
.
Nat Rev Cancer
2014
;
14
:
611
22
.
4.
Yu
M
,
Bardia
A
,
Wittner
BS
,
Stott
SL
,
Smas
ME
,
Ting
DT
, et al
Circulating breast tumor cells exhibit dynamic changes in epithelial and mesenchymal composition
.
Science
2013
;
339
:
580
4
.
5.
Broersen
LH
,
van Pelt
GW
,
Tollenaar
RA
,
Mesker
WE
. 
Clinical application of circulating tumor cells in breast cancer
.
Cell Oncol
2014
;
37
:
9
15
.
6.
Banys
M
,
Krawczyk
N
,
Fehm
T
. 
The role and clinical relevance of disseminated tumor cells in breast cancer
.
Cancers
2014
;
6
:
143
52
.
7.
Ottewell
PD
,
O'Donnell
L
,
Holen
I
. 
Molecular alterations that drive breast cancer metastasis to bone
.
Bonekey Rep
2015
;
4
:
643
.
8.
Kim
RS
,
Avivar-Valderas
A
,
Estrada
Y
,
Bragado
P
,
Sosa
MS
,
Aguirre-Ghiso
JA
, et al
Dormancy signatures and metastasis in estrogen receptor positive and negative breast cancer
.
PLoS One
2012
;
7
:
e35569
.
9.
Chen
YC
,
Sosnoski
DM
,
Mastro
AM
. 
Breast cancer metastasis to the bone: mechanisms of bone loss
.
Breast Cancer Res
2010
;
12
:
215
.
10.
Sosa
MS
,
Avivar-Valderas
A
,
Bragado
P
,
Wen
HC
,
Aguirre-Ghiso
JA
. 
ERK1/2 and p38α/β signaling in tumor cell quiescence: opportunities to control dormant residual disease
.
Clin Cancer Res
2011
;
17
:
5850
7
.
11.
Ghajar
CM
,
Peinado
H
,
Mori
H
,
Matei
IR
,
Evason
KJ
,
Brazier
H
, et al
The perivascular niche regulates breast tumour dormancy
.
Nat Cell Biol
2013
;
15
:
807
17
.
12.
Wang
N
,
Docherty
F
,
Brown
HK
,
Reeves
K
,
Fowles
A
,
Lawson
M
, et al
Mitotic quiescence, but not unique "stemness," marks the phenotype of bone metastasis-initiating cells in prostate cancer
.
FASEB J
2015
;
29
:
3141
50
.
13.
Patel
P
,
Chen
EI
. 
Cancer stem cells, tumor dormancy, and metastasis
.
Front Endocrinol
2012
;
3
:
125
.
14.
Ogba
N
,
Manning
NG
,
Bliesner
BS
,
Ambler
SK
,
Haughian
JM
,
Pinto
MP
, et al
Luminal breast cancer metastases and tumor arousal from dormancy are promoted by direct actions of estradiol and progesterone on the malignant cells
.
Breast Cancer Res
2014
;
16
:
489
.
15.
Lawson
DA
,
Bhakta
NR
,
Kessenbrock
K
,
Prummel
KD
,
Yu
Y
,
Takai
K
, et al
Single-cell analysis reveals a stem-cell program in human metastatic breast cancer cells
.
Nature
2015
;
526
:
131
5
.
16.
Gao
H
,
Chakraborty
G
,
Lee-Lim
AP
,
Mavrakis
KJ
,
Wendel
HG
,
Giancotti
FG
. 
Forward genetic screens in mice uncover mediators and suppressors of metastatic reactivation
.
Proc Natl Acad Sci U S A
2014
;
111
:
16532
7
.
17.
Sosa
MS
,
Parikh
F
,
Maia
AG
,
Estrada
Y
,
Bosch
A
,
Bragado
P
, et al
NR2F1 controls tumour cell dormancy via SOX9- and RARbeta-driven quiescence programmes
.
Nat Commun
2015
;
6
:
6170
.
18.
Marlow
R
,
Honeth
G
,
Lombardi
S
,
Cariati
M
,
Hessey
S
,
Pipili
A
, et al
A novel model of dormancy for bone metastatic breast cancer cells
.
Cancer Res
2013
;
73
:
6886
99
.
19.
Adam
AP
,
George
A
,
Schewe
D
,
Bragado
P
,
Iglesias
BV
,
Ranganathan
AC
, et al
Computational identification of a p38SAPK-regulated transcription factor network required for tumor cell quiescence
.
Cancer Res
2009
;
69
:
5664
72
.
20.
Zhang
H
,
Wang
Y
,
Liu
Z
,
Yao
B
,
Dou
C
,
Xu
M
, et al
Lymphocyte-specific protein 1 inhibits the growth of hepatocellular carcinoma by suppressing ERK1/2 phosphorylation
.
FEBS Open Bio
2016
;
6
:
1227
37
.
21.
Zhang
XH
,
Jin
X
,
Malladi
S
,
Zou
Y
,
Wen
YH
,
Brogi
E
, et al
Selection of bone metastasis seeds by mesenchymal signals in the primary tumor stroma
.
Cell
2013
;
154
:
1060
73
.
22.
Su
B
,
Zheng
Q
,
Vaughan
MM
,
Bu
Y
,
Gelman
IH
. 
SSeCKS metastasis-suppressing activity in MatLyLu prostate cancer cells correlates with VEGF inhibition
.
Cancer Res
2006
;
66
:
5599
607
.
23.
Su
B
,
Gao
L
,
Baranowski
C
,
Gillard
B
,
Wang
J
,
Ransom
R
, et al
A genome-wide RNAi screen identifies FOXO4 as a metastasis-suppressor through counteracting pi3k/akt signal pathway in prostate cancer
.
PLoS One
2014
;
9
:
e101411
.
24.
Akakura
S
,
Nochajski
P
,
Gao
L
,
Sotomayor
P
,
Matsui
S
,
Gelman
IH
. 
Rb-dependent cellular senescence, multinucleation and susceptibility to oncogenic transformation through PKC scaffolding by SSeCKS/AKAP12
.
Cell Cycle
2010
;
9
:
4656
65
.
25.
Morgan
M
,
Anders
S
,
Lawrence
M
,
Aboyoun
P
,
Pages
H
,
Gentleman
R
. 
ShortRead: a bioconductor package for input, quality assessment and exploration of high-throughput sequence data
.
Bioinformatics
2009
;
25
:
2607
8
.
26.
Zhang
XH
,
Wang
Q
,
Gerald
W
,
Hudis
CA
,
Norton
L
,
Smid
M
, et al
Latent bone metastasis in breast cancer tied to Src-dependent survival signals
.
Cancer Cell
2009
;
16
:
67
78
.
27.
Aguirre-Ghiso
JA
,
Bragado
P
,
Sosa
MS
. 
Metastasis awakening: targeting dormant cancer
.
Nat Med
2013
;
19
:
276
7
.
28.
Muzes
G
,
Sipos
F
. 
Metastatic cell dormancy and re-activation: an overview on series of molecular events critical for cancer relapse
.
Anticancer Agents Med Chem
2016
;
17
:
472
82
.
29.
Linde
N
,
Fluegen
G
,
Aguirre-Ghiso
JA
. 
The relationship between dormant cancer cells and their microenvironment
.
Adv Cancer Res
2016
;
132
:
45
71
.
30.
Brombin
A
,
Joly
JS
,
Jamen
F
. 
New tricks for an old dog: ribosome biogenesis contributes to stem cell homeostasis
.
Curr Opin Genet Dev
2015
;
34
:
61
70
.
31.
Erol
A
,
Acikgoz
E
,
Guven
U
,
Duzagac
F
,
Turkkani
A
,
Colcimen
N
, et al
Ribosome biogenesis mediates antitumor activity of flavopiridol in CD44(+)/CD24(-) breast cancer stem cells
.
Oncol Lett
2017
;
14
:
6433
40
.
32.
Decker
AM
,
Jung
Y
,
Cackowski
FC
,
Yumoto
K
,
Wang
J
,
Taichman
RS
. 
Sympathetic signaling reactivates quiescent disseminated prostate cancer cells in the bone marrow
.
Mol Cancer Res
2017
;
15
:
1644
55
.
33.
Myrvang
HK
,
Guo
X
,
Li
C
,
Dekker
LV
. 
Protein interactions between surface annexin A2 and S100A10 mediate adhesion of breast cancer cells to microvascular endothelial cells
.
FEBS Lett
2013
;
587
:
3210
5
.
34.
Blancato
J
,
Singh
B
,
Liu
A
,
Liao
DJ
,
Dickson
RB
. 
Correlation of amplification and overexpression of the c-myc oncogene in high-grade breast cancer: FISH, in situ hybridisation and immunohistochemical analyses
.
Br J Cancer
2004
;
90
:
1612
9
.
35.
Bellovin
DI
,
Das
B
,
Felsher
DW
. 
Tumor dormancy, oncogene addiction, cellular senescence, and self-renewal programs
.
Adv Exp Med Biol
2013
;
734
:
91
107
.
36.
Pohl
SG
,
Brook
N
,
Agostino
M
,
Arfuso
F
,
Kumar
AP
,
Dharmarajan
A
. 
Wnt signaling in triple-negative breast cancer
.
Oncogenesis
2017
;
6
:
e310
.
37.
Asem
MS
,
Buechler
S
,
Wates
RB
,
Miller
DL
,
Stack
MS
. 
Wnt5a signaling in cancer
.
Cancers
2016
;
8
:pii:
E79
.
38.
Taciak
B
,
Pruszynska
I
,
Kiraga
L
,
Bialasek
M
,
Krol
M
. 
Wnt signaling pathway in development and cancer
.
J Physiol Pharmacol
2018
;
69
:
10
.
39.
Wawrzak
D
,
Metioui
M
,
Willems
E
,
Hendrickx
M
,
de
GE
,
Leyns
L
. 
Wnt3a binds to several sFRPs in the nanomolar range
.
Biochem Biophys Res Commun
2007
;
357
:
1119
23
.
40.
Huelsken
J
. 
Tumor-stroma crosstalk via Hedgehog and Wnt pathways bypasses resident immune cells to enable liver metastases
.
Cancer Res
2016
;
76
.
Available from
: https://www.aacr.org/Meetings/Pages/Program-Detail.aspx?EventItemID=55&DetailItemID=299&Day=12012015.
41.
Radvanyi
L
,
Singh-Sandhu
D
,
Gallichan
S
,
Lovitt
C
,
Pedyczak
A
,
Mallo
G
, et al
The gene associated with trichorhinophalangeal syndrome in humans is overexpressed in breast cancer
.
Proc Natl Acad Sci U S A
2005
;
102
:
11005
10
.
42.
Curtis
C
,
Shah
SP
,
Chin
SF
,
Turashvili
G
,
Rueda
OM
,
Dunning
MJ
, et al
The genomic and transcriptomic architecture of 2,000 breast tumours reveals novel subgroups
.
Nature
2012
;
486
:
346
52
.
43.
Pereira
B
,
Chin
SF
,
Rueda
OM
,
Vollan
HK
,
Provenzano
E
,
Bardwell
HA
, et al
The somatic mutation profiles of 2,433 breast cancers refines their genomic and transcriptomic landscapes
.
Nat Commun
2016
;
7
:
11479
.
44.
Curigliano
G
,
Goldhirsch
A
. 
The triple-negative subtype: new ideas for the poorest prognosis breast cancer
.
J Natl Cancer Inst Monogr
2011
;
2011
:
108
10
.
45.
Nandana
S
,
Tripathi
M
,
Duan
P
,
Chu
CY
,
Mishra
R
,
Liu
C
, et al
Bone metastasis of prostate cancer can be therapeutically targeted at the TBX2-WNT signaling axis
.
Cancer Res
2017
;
77
:
1331
44
.
46.
Asanoma
K
,
Liu
G
,
Yamane
T
,
Miyanari
Y
,
Takao
T
,
Yagi
H
, et al
Regulation of the mechanism of TWIST1 transcription by BHLHE40 and BHLHE41 in cancer cells
.
Mol Cell Biol
2015
;
35
:
4096
109
.
47.
Adorno
M
,
Cordenonsi
M
,
Montagner
M
,
Dupont
S
,
Wong
C
,
Hann
B
, et al
A mutant-p53/Smad complex opposes p63 to empower TGFbeta-induced metastasis
.
Cell
2009
;
137
:
87
98
.
48.
Piccolo
S
,
Enzo
E
,
Montagner
M
. 
p63, Sharp1, and HIFs: master regulators of metastasis in triple-negative breast cancer
.
Cancer Res
2013
;
73
:
4978
81
.
49.
Chen
H
,
Liu
H
,
Qing
G
. 
Targeting oncogenic Myc as a strategy for cancer treatment
.
Signal Transduct Target Ther
2018
;
3
:
5
.
50.
Yee-Lin
V
,
Pooi-Fong
W
,
Soo-Beng
AK
. 
Nutlin-3, A p53-Mdm2 antagonist for nasopharyngeal carcinoma treatment
.
Mini Rev Med Chem
2018
;
18
:
173
83
.
51.
Zheng
S
,
Liu
J
,
Wu
Y
,
Huang
TL
,
Wang
G
. 
Small-molecule inhibitors of Wnt signaling pathway: towards novel anticancer therapeutics
.
Future Med Chem
2015
;
7
:
2485
505
.
52.
Lee
HJ
,
Bao
J
,
Miller
A
,
Zhang
C
,
Wu
J
,
Baday
YC
, et al
Structure-based discovery of novel small molecule wnt signaling inhibitors by targeting the cysteine-rich domain of frizzled
.
J Biol Chem
2015
;
290
:
30596
606
.
53.
Igea
A
,
Nebreda
AR
. 
The stress kinase p38alpha as a target for cancer therapy
.
Cancer Res
2015
;
75
:
3997
4002
.
