Agonist-induced CXCR4 and CB2 Heterodimerization Inhibits Gα13/RhoA-mediated Migration

G-protein–coupled receptors (GPCR) represent a large family of cell surface signaling proteins that are involved in multiple physiologic functions and diseases (1, 2). In classical GPCR signaling, the binding of an agonist to a GPCR induces a conformational change of the receptor that catalyzes the exchange of guanosine diphosphate (GDP) from the Gα subunit for guanosine triphosphate (GTP), and the dissociation of Gα from Gβϒ subunits (2). Both Gα and Gβϒ subunit complexes stimulate several downstream effectors leading to diverse physiologic outcomes (2, 3). While the conventional theory of GPCR signaling has been that GPCRs can exist and function as monomers, homodimers, or as larger oligomeric complexes, a number of GPCRs have been identified to form functionally relevant heterodimers after translation (4–7). GPCR heterodimerization has slowly been accepted as a means by which new signaling entities can be created to amplify or desensitize signaling mechanisms that would otherwise result from each individual receptor leading to diverse pharmacologic outcomes (4). Therefore, GPCR heterodimers have emerged as novel targets for therapeutic development (3, 4, 7, 8).

CXCR4 is a chemokine receptor, subclass of GPCR, which is defined by its ability to induce directional migration of cells toward a chemotactic gradient (chemotaxis; refs. 9–11). The role of CXCR4, and its natural ligand CXCL12, has expanded beyond leukocyte recruitment to include critical processes such as tissue remodeling, angiogenesis, hematopoiesis, cell proliferation, and most notably, cell migration (10, 12). Its ability to regulate multiple functions over the lifespan of neoplastic and malignant cells makes CXCR4 a critical driver of tumorigenesis, the progression of cancer, and metastasis (9, 10, 12, 13). Clinically, overexpression of CXCR4 correlates with increased tumor growth, invasion, angiogenesis, metastasis, and therapeutic resistance while CXCR4 antagonism has been shown to sensitize cancer cells to cytotoxic drugs, reduce tumor growth, and metastatic burden (10, 14), thus making CXCR4 an attractive target for early- and late-stage disease management.

The cannabinoids system consists of lipophilic cannabinoids (endocannabinoids and exocannabinoids), cannabinoid receptors (CB1 or CB2) and their enzymes for synthesis and degradation (15–18). Delta-9-tetrahydrocannabinol (Δ9-THC), the major psychoactive and immunomodulatory component of marijuana, is the most notable cannabinoid (18, 19), and clinically, is used for its antipalliative effects. However, emergent data demonstrates that cannabinoids possess antiproliferative capabilities and regulate key cell signaling pathways that promote cell survival, invasion, angiogenesis, and metastasis in various cancer models, propelling cannabinoids to the forefront of cancer therapeutics research (3, 20).

Allosteric interactions within chemokine receptor heterodimers inhibit receptor activation in some instances, while other receptor pairings cause enhanced signaling and trigger entirely new responses downstream of receptor activation (3, 21, 22). For example, Décaillot and colleagues demonstrated that CXC chemokine receptors CXCR4 and CXCR7 form heterodimers that enhance cell migration in response to CXCL12 through recruitment of β-arrestin to the heterodimeric complex. In addition, extensive evidence points to heterodimerization between chemokine receptors with nonchemokine GPCRs or non-GPCR receptors (21, 22). In cancer, we (3) and our colleagues (5, 6) demonstrated that CXCR4-mediated functions were abrogated by simultaneous, agonist-induced heterodimerization of CXCR4 with GPCRs, such as we have demonstrated with CB2 (3), whereby heterodimers reduced cellular migration and the metastatic potential of tumor cells. However, the underlying signaling mechanisms governing the observed reduction in cellular migration were not elucidated.

The Rho family of GTPases are small GTP-binding proteins that function as molecular switches controlling a wide spectrum of signal transduction pathways in eukaryotic cells (23–26). They regulate actin cytoskeleton dynamics, and modulate cell polarity, microtubule dynamics, membrane transport pathways, and transcriptional activity (8, 21, 23–25). Expression of the GTPase, RhoA, is implicated in increased tumor aggressiveness in multiple cancer types, and loss of RhoA prevents proliferation and cellular migration both in vitro and metastasis in vivo (23). Furthermore, the CXCL12/CXCR4 signaling axis stimulates RhoA activation through Gα13, leading to phosphorylation of myosin light chain (MLC) by Rho-associated protein kinase (ROCK), which is required for directional cell migration, the promotion of invasive protrusions, and remodeling of the extracellular matrix (26–28).

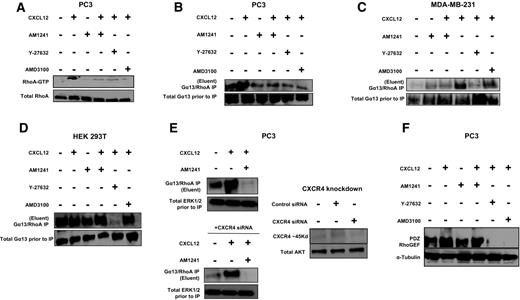

We tested whether a physical heterodimeric association between CXCR4 and CB2 results in decreased CXCR4-mediated cell migration via reduction of the Gα₁₃–RhoA signaling axis. First, we analyzed RhoA activation upon heterodimerization, and expression of downstream targets of RhoA signaling. Second, we investigated alterations to cellular invasion, adhesion, and morphology as a result of reduced RhoA expression upon CXCR4/CB2 heterodimerization. Finally, to correlate the relationship between the effects of CXCR4 heterodimerization, reduced RhoA expression, and the migratory ability of cancer cells, we probed for expression of metastatic markers. We observed that CXCR4/CB2 heterodimerization antagonized expression of Gα₁₃, followed by reduced activity of RhoA and further downstream targets. The resultant signaling blockade interfered with cancer cells developing a metastatic phenotypic and functionally migrating through an endothelial cell layer in a RhoA-dependent manner. Altogether, our results further support agonist-induced CXCR4/CB2 heterodimerization as an emerging approach to inhibiting the metastatic spread of cancer.

Human metastatic prostate cancer cell line (PC3), human metastatic breast cancer cell line (MDA-MB-231), and human embryonic kidney cells (HEK 293T) were purchased from ATCC. PC3 and MDA-MB-231 cells were grown in RPMI1640 and HEK239T cells were grown in DMEM-F-12; all lines were supplemented with 10% FBS, 1% nonessential amino acids, and 1% antibiotic/antimycotic in a humidified incubator (5% CO₂) at 37°C. Human umbilical vein endothelial cells (HUVEC) were purchased from ATCC and maintained in endothelial growth medium-2 [Lonza; 2% FBS, human endothelial growth factor (hEGF), hydrocortisone, GA-1000 (gentamicin, amphotericin-B), human fibroblast growth factor-B (hFGF-B), R³-IGF-1, ascorbic acid, and VEGF)] in a humidified incubator (5% CO₂) at 37°C. Cell lines were authenticated using a short tandem repeat (STR) DNA profiling by ATTC at time of purchase, and every 6 months thereafter. Mycoplasma was monitored using the MycoAlert Detection Kit (Lonza). Human CXCR4 agonist, CXCL12 (100ng/mL working concentration), was purchased from PeproTech, Inc. Human AM1241 ligand (CB2 agonist; 1 μmol/L) was purchased from Cayman Chemicals. The CXCR4 antagonist, AMD3100 (1 μg/mL), and Rho-associated kinase inhibitor (ROCK), Y-27631 (10 μmol/L) were purchased from Sigma-Aldrich. Human CXCR4-siRNA and control-siRNA (60 nmol/L) was from Santa Cruz Biotechnology. Prior to treatment with agonists and antagonists, cells were serum-starved for 24 hours in media only (0% FBS, 0% nonessential amino acids, and 0% antibiotic/antimycotic) for 24 hours in 5% CO₂ at 37°C. Samples denoted as “control” or “untreated” received fresh media supplemented with corresponding vehicles (e.g., 0.1%PBS/BSA, DMSO, etc.) for each agonist or antagonist.

Activated RhoA was detected using a RhoA Activity Assay Kit (Cell Biolabs, Inc.) as per the manufacturer's instructions. Briefly, 1.5 × 10⁶ cells were cultured to 80% confluence then serum-starved for 24 hours. Cells were pretreated with antagonists for 1 hour prior to stimulation with various agonists for 1 minute 5% CO₂ at 37°C. Cells were harvested as described by the kit, and 1 mg of protein from each sample was immunoprecipitated with Rhotekin-RBD beads at 4°C overnight with gentle agitation. The beads were pelleted, washed thrice, and boiled in Laemmeli sample buffer for 5 minutes. Samples were separated by 15% SDS-PAGE, transferred to a polyvinylidene difluoride (PVDF) membrane, and blocked in 3% BSA in 1× TBST. Rho-A was detected by anti-RhoA antibody (1:100) in 3% BSA/TBST overnight at 4°C and harvested for Western blot analysis. RhoA activity was normalized to total RhoA protein expression via Western blot analysis.

Transient transfection of CXCR4-specific human siRNA (Santa Cruz Biotechnology; sc-35421) was performed on PC3 cells using Lipofectamine 2000 (Invitrogen). Cells (1 × 10⁶) were plated in 10% FBS/RPMI in 100-mm culture dishes and then transfected with 60 μmol/L CXCR4-siRNA or scramble/control-siRNA (Santa Cruz Biotechnology) in Opti-MEM at 37°C/5% CO₂ for 12 hours. Cells recovered in 10% FBS/RPMI for 24 hours, starved for 24 hours, followed by treatment with 100 ng/mL CXCL12 and/or 1 μmol/L AM1241, and then were harvested for immunoprecipitation and/or Western blot analysis.

A total of 1.5 × 10⁶ cells per sample were serum starved for 24 hours prior to pretreatment with 1 μg/mL AMD3100 or 10 μmol/L Y-27632, followed by treatment with 100 ng/mL CXCL12, 1 μmol/L AM1241, or CXCL12 and AM1241 simultaneously for 1 (PC3 and HEK 293) or 10 (MDA-MB-231) minutes. Cells were lysed in Rho A lysis buffer from above, sonicated, then followed by incubation on ice for 30 minutes. Lysates were centrifuged at maximum speed for 10 minutes at 4°C, then 500–750 μg of protein from each sample was incubated with Gα13 antibody (1:100; Abcam) overnight at 4°C on a rocking platform. Protein A/G PLUS Agarose Beads (1:10, Santa Cruz Biotechnology) were added to each sample for 2 hours at 4°C with gentle agitation. Cell lysates were washed twice in 1× PBS (maximum speed for 5 minutes at 4°C), boiled in Laemelli sample buffer for 5 minutes, followed by 12% SDS-PAGE. Protein was transferred to a PVDF membrane, blocked in 5% milk/TBST, immunoblotted in 5% BSA/TBST with an anti-RhoA (1:1,000; Cell Signaling Technology). Primary antibodies were detected with corresponding horseradish peroxidase (HRP)-conjugated secondary antibodies (1:1,000; Jackson) and enhanced chemiluminescence (Luminata; Thermo Fisher Scientific).

PDZ-RhoGEF and LKB1 antibodies were purchased from Santa Cruz Biotechnology. F-actin was purchased from Abcam. Phosphorylated myosin light chain (pMLC), integrin αV, and integrin β3 were purchased from Cell Signaling Technology. A total of 2.0 × 10⁶ cells per sample were serum starved for 24 hours prior to pretreatment with 1 μg/mL AMD3100 or 10 μmol/L Y-27632 followed by treatment with 100 ng/mL CXCL12, 1 μmol/L AM1241, or CXCL12 and AM1241 simultaneously for various time points. Cells were lysed and sonicated in 1× Cell Signaling Technology lysis buffer prior to incubation on ice for 30 minutes. Lysates were centrifuged at maximum speed for 10 minutes at 4°C, and then equal amounts of protein per sample were separated by SDS-PAGE and transferred to PVDF membrane. Protein-bound membranes were blocked in 3% BSA/1× TBST, (1× TBST for pMLC), and subsequently incubated with primary antibodies: RhoA (1:500, Cell Signaling Technology); F-actin (1:1,000, Abcam); pMLC (1:500, Cell Signaling Technology); LKB1 (1:100, Santa Cruz Biotechnology); integrin α5 (1:1,000, Cell Signaling Technology); integrin β3 (1:1,000, Cell Signaling Technology); total AKT (1:1,000, Cell Signaling Technology); or total ERK1/2 (1:1,000, Cell Signaling Technology) overnight at 4°C in 3% BSA/TBST; (1× TBST alone for pMLC). Primary antibodies were detected by HRP-conjugated secondary antibodies at 1:5000–1:10,000 diluted in 3% BSA/1× TBST (1× TBST alone for pMLC) and enhanced chemiluminescence (SuperSignal West Pico Chemiluminescent Substrate or Lumniglo).

Cells were seeded on glass coverslips at a density of 2 × 10⁵ cells/well and incubated for 72 hours at 5% CO₂ at 37°C until they were approximately 80% confluent. Cells were then serum starved for 24 hours, then pretreated with 1 μg/mL of AMD3100 or 10 μmol/L of Y-27632 for 1 hour prior to treatment with 100 ng/mL CXCL12 or 1 μmol/L AM1241 each alone, or combined CXCL12/AM1241 at 5% CO₂ and 37°C in serum-free media for 90 minutes. Coverslips were rinsed twice with ice-cold 1× PBS, fixed with 4% paraformaldehyde for 10 minutes, and washed again with 1× PBS. Cells were blocked with 1% BSA/TBST and incubated with FITC-conjugated phalloidin (100 nmol/L in 1× PBS, Enzo Life Science) to detect F-actin for 1 hour at room temperature with gentle agitation. Cells were then washed thrice with 1× PBS and counterstained with DAPI for nuclear visualization. Slides were visualized and images were captured using a Zeiss LSM 700 confocal microscope. Scale bar = 50 μm.

MDA-MB-231 cells (1 × 10⁶ per sample) were plated in p-100 tissue culture plates and serum-starved for 24 hours. Cells were detached with 1× Citric Saline, washed in 1× PBS, pelleted by centrifugation at 3,000 × g for 5 minutes, and then counted to prepare 50,000 cells per sample in 150 μL of media. Transwell inserts were prepared by precoating the outer membrane with 50 μL rat tail collagen (50 μg/mL in 0.02N acetic acid; BD Biosciences) for cell adherence to the transwell insert, and incubating at 4°C overnight. The next day, the inner membrane was coated as above, and incubated for 1 hour at room temperature. Inserts were washed thrice in 1× PBS prior to use for assay. Treatment (100 ng/mL CXCL12 and 1 μmol/L AM1241 each or in combination, 1 μg/mL AMD3100 or 10 μmol/L Y-27632) were calculated for a final concentration of 500 μL each, but prepared in 350 μL per sample, and placed into the bottom well of each chamber. Fifty-thousand cells per sample were resuspended in 150 μL of media and were seeded into the transwell insert of 24-well transmigration chambers (8-μm pore; BD Falcon), bringing the total volume of each chamber to 500 μL. To allow for migration, plates were incubated in 5% CO₂ and 37°C for 6 hours, and the inner-top chambers were cleaned with a cotton swab. Cells attached to the outer-top chambers were fixed with 10% formalin for 15 minutes at room temperature, washed thrice in 1 × PBS, stained with 0.05% crystal violet for 15 minutes, then washed 6 times in water. Five representative fields of each insert were counted under a light microscope, and the migration index was calculated and graphed as the x-fold change in migration observed over control cells or CXCL12-treated cells. Experiments were performed at least thrice, and significant significance was analyzed via GraphPad Prism (*, P < 0.05; **, P < 0.001).

Migration though an endothelial cell barrier was performed via a Transwell Migration Assay Kit (Cell Biolabs, Inc.) per the manufacturer's instructions. Briefly, 1 × 10⁵ HUVECS per well were seeded inside of Transwell inserts in 500-μL complete EGM-2 media at 5% CO₂ and 37°C for 72 hours to allow formation of a cell monolayer. In the interim, 1 × 10⁶ of PC3, MDA-MB-231, or HEK293T cells were preincubated with 1× CytoTracker (kit provided) allowing each cell to become fluorescently labeled, then were pelleted and washed 3× in serum-free media and resuspended in 500 μL of serum-free media. EGM-2 media was removed from inside each HUVEC transwell and replaced with 300 μL each of PC3, MDA-MB-231, or HEK293T serum-free RPMI cell suspension. Transwell inserts were transferred to fresh plates containing serum-free media supplemented with combinations of 100 ng/mL CXCL12, 1 μmol/L of AM1241, 1 μg/mL of AMD3100, and/or 10 μmol/L Y-27632 and the plate was incubated in 5% CO₂ at 37°C for 24 hours. Fluorescently labeled cells that transmigrated were lysed in 1× Cell Lysis Buffer (Cell Biolabs, Inc.) and analyzed using a plate reader at OD 480 nm/520 nm. Experiment was repeated thrice, and statistical significance was analyzed via GraphPad Prism (*, P < 0.05; **, P < 0.001).

A total of 1 × 10⁶ cells per sample were seeded in a 6-well culture plate overnight, and then serum-starved for 24 hours. Cells were pretreated with 1 μg/mL of AMD3100 or 10 μmol/L of Y-27632 for 1 hour, removed, and then plates were stored on ice. One milliliter of 1× PBS was added to each well, a vertical wound was made across each well using a micropipette tip, and nonadherent cells were removed by washing with 1× PBS. Serum-free media with supplements of 100 ng/mL CXCL12, and 1μmol/L of AM1241 each or in combination, along with 1 μg/mL AMD3100, or 10 μmol/L Y-27632. Wound closure was allowed for up to 6 hours at 5% CO₂ and 37°C, with pictures captured at 0, 2, 4, and 6 hours. The wound area of each sample was quantified using ImageJ software. Experiments were repeated thrice; statistical significance was analyzed via GraphPad Software (*, P < 0.05; **, P < 0.001).

The adhesion of cells to components of the extracellular matrix (ECM) was quantified using the CytoSelect Adhesion Assay (ECM Array, Colorimetric Format; Cell Biolabs, Inc.). A total of 1.5 × 10⁶ cells per sample were seeded and grown to approximately 80% confluence. Cells were serum-starved for 24 hours and then harvested by 0.25% trypsin/EDTA for 5 minutes. Trypsin was removed after centrifugation (2,000 × g for 5 minutes) and cells were resuspended in serum-free RPMI at a concentration of 1.0 × 10⁶ cells/mL. The cell suspension was preincubated with 1 μg/mL AMD3100 or 10 μmol/L Y-27632 in serum-free media for 1 hour in 5% CO₂ at 37°C. Thereafter, additional treatments of 100 ng/mL of CXCL12 alone, 1 μmol/L of AM1241 each, or combination was added to the cell suspension. A total of 150 μL of each cell suspension was plated onto a 48-well culture plate precoated with various ECM components (fibronectin, collagen I, and laminin I), and then incubated for 2 hours in 5% CO₂ at 37°C to allow attachment. Cells were washed carefully with 1× PBS to remove unbound cells, and adherent cells were incubated in 200 μL of Cell Stain Solution for 10 minutes on an orbital shaker (Cell Biolabs, Inc). Thereafter, each well was gently washed 4× with 500 μL of double deionized water, followed by incubation in 200 μL Extraction Solution (Cell Biolabs, Inc.) for 10 minutes on an orbital shaker. Following extraction, 150 μL of each sample was transferred to a 96-well plate and measured using a spectrophotometer at OD 560 nm. Each experiment was repeated thrice and statistical significance via GraphPad Prism (*, P < 0.05; **, P < 0.001).

Student t test, two-way ANOVA, or Bonferroni multiple comparison test were performed to determine statistically significant differences between groups. Statistical analysis was performed via GraphPad Prism.

We have shown formation of a physical heterodimer between CXCR4 and CB2 upon simultaneous (combined) treatment with agonists CXCL12 and AM1241, respectively (3). This heterodimer between CXCR4 and CB2 impeded cellular migration; however, a mechanism was not defined. Independent studies have demonstrated that CXCR4-mediated migration occurs via the RhoA–PRG–Gα13 pathway (27, 28). Therefore, we first investigated whether heterodimerization of CXCR4/CB2 decreased RhoA activation in the malignant human prostate cancer cells (PC3). Isolating active forms (GTP-bound) of RhoA with Rhotekin-glutathione beads demonstrated that CXCL12 caused an increase in expression of RhoA-GTP compared with control (untreated) cells (Fig. 1A). However, simultaneous treatment with CXCL12 and AM1241, which induced the heterodimer (3), resulted in decreased protein expression of RhoA-GTP, indicating a decrease in activation of RhoA compared with CXCL12-stimulated cells (Fig. 1A). The decrease in activated Rho-A expression levels was consistent in cells pretreated with AMD3100 (CXCR4 antagonist) or Y-27632 (RhoA/ROCK inhibitor) prior to treatment with CXCL12 (Fig. 1A).

Tan and colleagues demonstrated that CXCR4-mediated activation of RhoA, and resulting directional cellular migration, was specifically mediated by the small G protein Gα13 (27). Consistent with the pattern for RhoA activity, we observed that CXCL12 led to increased expression Gα13, as determined by expression of RhoA via Gα13/RhoA immune complexes, compared with untreated cells in PC3 and the human breast cancer cell line, MDA-MB-231 (Fig. 1B and C). Conversely, simultaneous stimulation of PC3 or MDA-MB-231 cells with CXCL12 and AM1241 resulted in decreased expression of Gα13, which was consistent with expression levels of Gα13 in cells treated with AMD3100 or Y-27632 (Fig. 1B and C).

To support our premise that a dimer between CXCR4 and CB2 inhibits the action of CXCR4 to activate Gα13-RhoA, we used the human embryonic kidney cell line, HEK 293T, as we (3) and others have published is CXCR4-null. Pretreatment with the RhoA/ROCK inhibitor Y-27632 visibly reduced Gα13/RhoA immune complexes. However, RhoA protein levels displayed consistent expression among all other treatment groups, with no visible induction by CXCL12 (Fig. 1D); the basal level of Gα13–RhoA immune complexes could have been mediated by any other GPCR. Likewise, we used siRNA targeting CXCR4 to further show that the dimer between CXCR4 and CB2 has similar antagonistic effects as would a knockdown of the CXCR4 receptor (Fig. 1E). In PC3 cells, we observed reduction of Gα13/RhoA immune complexes in CXCL12-treated cells transfected with CXCR4-siRNA compared with cells without siRNA. However, the reduction in Gα13/Rho A immune complexes in cells was more robust in cells treated CXCL12 and AM1241 (both with and without siRNA), suggesting that the heterodimer is an efficient way to manage CXCR4 signaling (Fig. 1E).

In breast cancer cells stimulated with CXCL12, Struckhoff and colleagues demonstrated that PDZ-RhoGEF (PRG) guanine nucleotide exchange factor was required for RhoA-dependent cell migration (28). We, too, observed that CXCL12 increased PRG protein expression levels in PC3 cells (Fig. 1C). Contrastingly, when PC3 cells were treated with CXCL12 and AM1241 simultaneously, expression levels of PRG protein expression decreased compared with that of CXCL12 treatments, further supporting that agonist-induced heterodimerization is an effective mechanism to antagonize CXCR4-mediated signaling that leads to cell migration. As a control, PC3 cells treated with AMD3100 or Y-27632 virtually abolished PRG protein expression in the presence of CXCL12 (Fig. 1F), indicating that the observed results were specifically mediated by CXCR4–RhoA signaling. Collectively, coinciding with our previously observed decrease in cellular migration (3), an induced GPCR heterodimer between CXCR4 and CB2 antagonizes CXCR4-mediated cell migration via the RhoA–Gα13–PRG pathway.

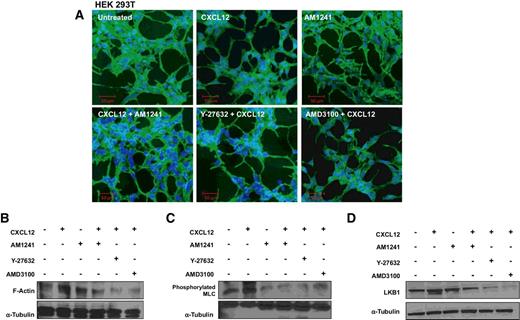

RhoA plays a critical role in cell migration through its intimate relationship with the actin cytoskeleton, which has long been implicated in generating the contractile forces needed for membrane blebbing, lamellae formation, and membrane ruffling at the leading edge and retraction of the trailing edge of migratory cells (29–32). To evaluate whether our induced heterodimer could inhibit RhoA-mediated changes in the actin cytoskeleton that are necessary for migration, we first examined phenotypic changes in filamentous actin (F-actin) in response to independent (CXCL12) and combinatory (CXCL12/AM1241) agonist stimulation in PC3 and MDA-MB-231 cell lines. CXCL12 produced expected promigratory alterations in cell morphology such as membrane ruffling, lamellae formation, and membrane protrusions in cancer cell lines compared with untreated cells that remained characteristically smooth at the cell membrane (Fig. 2 and 3). However, cells simultaneously stimulated with CXCL12 and AM1241 also exhibited a smooth cell membrane, similar to untreated cells, and indicated little-to-no changes in cytoskeletal rearrangement; this same phenotype was observed for cells pretreated with AMD3100 (Fig. 2 and 3). Contrastingly, pretreatment with Y-27632 resulted in apoptotic phenotypes with an overall decrease in volume of cell cytoplasm and membrane blebbing in PC3 and MDA-MB-231 cells (Fig. 2 and 3), which is confirmed in literature (33, 34). In HEK 293T cells, as expected, we did not observe phenotypic changes in response to CXCL12, AM1241, or the agonist combined (Fig. 4A) as they are CXCR4-null.

We examined protein expression levels of F-actin to support the phenotypic changes observed above where expression of F-actin in PC3 cells, simultaneously stimulated with CXCL12 and AM1241, was comparable with untreated cells, further supporting that the CXCR4/CB2 heterodimer prevents the promigratory phenotype necessary for cellular migration (Fig. 4B). Likewise, AMD3100 and Y-27632 displayed markedly reduced F-actin protein levels (Fig. 4B). RhoA regulates actomyosin contraction in part by stimulating phosphorylation of myosin light chain (p-MLC; refs. 27, 28, 35) which is also required for phenotypic changes associated with cellular migration. Therefore, we determined whether agonist-induced CXCR4/CB2 heterodimerization led to downstream attenuation of p-MLC expression in PC3 cells. CXCL12 increased expression of p-MLC protein levels compared with the untreated control; however, protein levels of p-MLC in simultaneously treated samples were reduced compared with both untreated control and CXCL12-treated cells (Fig. 4C). Taken together, these results further support that an induced CXCR4/CB2 heterodimer effectively attenuates signaling pathways that leads to a migratory phenotype in cancer.

Failed directional migration is usually a consequence of loss of cell polarity as marked by decreased expression of human tumor suppressor and serine-threonine kinase LKB1 (29). Therefore, we harvested treated samples and immunoblotted for LKB1, an established regulator of RhoA-dependent cell polarity (30, 31). Simultaneous stimulation of PC3 cells with CXCL12 and AM1241 decreased protein expression levels of LKB1 compared with untreated control and CXCL12, as did treatment with Y-27632 and AMD3100 (Fig. 4D), indicative of reduced polarity for migration.

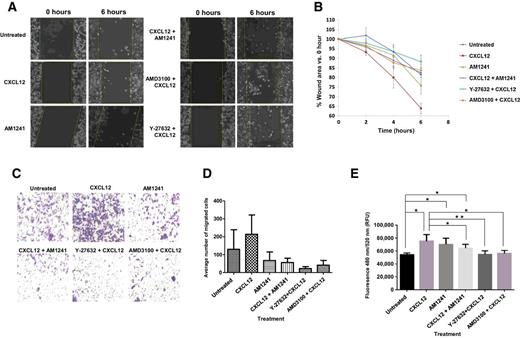

To attribute the reduction in RhoA-mediated signaling, as a result of heterodimerization, to migratory behavior and events (Fig. 5A and B), we observed that CXCL12 significantly stimulated wound closure of PC3 cells compared with untreated cells (Fig. 5B, P = 0.0462). CXCL12 and AM1241 combined were deficient in stimulating migration across the wound area when compared with CXCL12 alone (Fig. 5A and B; P = 0.042). Likewise, pretreatment of cells with AMD3100 (P = 0.0099) or Y-27632 decreased wound closure efficiency compared with CXCL12, lending more credence that GPCR heterodimerization attenuates RhoA signaling associated with cancer-progressing activities.

Via simple Transwell migration, CXCL12-treated MDA-MB-231 cells exhibited significantly increased migration compared with untreated migrating cells (P = 0.043; Fig. 5C and D). Likewise, CXCL12 and AM1241 combined exhibited significantly decreased migratory capacity compared with CXCL12 alone (P < 0.0001; Fig. 5C and D). In addition, both Y-27632 (P < 0.0001) and AMD3100 (P < 0.0001) significantly reduced transmigration when compared with cells migrating toward CXCL12 alone (Fig. 5C and D). To effectively metastasize from a primary tumor site to a distal organs, aggressive cancer cells must demolish and migrate through an endothelial cell barrier, which is characteristic of intravasation and extravasation in vivo (25, 32), and CXCL12-driven transendothelial migration of metastatic tumor cells has been shown to be Rho-dependent (20, 33, 34). As such, we observed that CXCL12 resulted in significantly increased transmigration compared with untreated transmigrating cells (P = 0.0296; Fig. 5E). Likewise, CXCL12 and AM1241 combined exhibited significantly decreased transendothelial migratory capacity compared with CXCL12 alone (P = 0.0476; Fig. 5E). In addition, both Y-27632 (P = 0.0054) and AMD3100 (P = 0.0187) significantly reduced transmigration when compared with cells migrating toward CXCL12 alone (Fig. 5E).

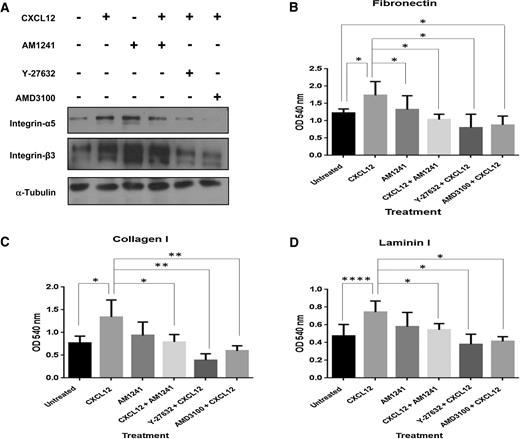

Rho GTPase molecules regulate cell adhesion (36, 37) further implicating its role in tumor cell invasion and migration (26). Multiple studies report that CXCR4 signaling leads to enhanced expression of α5 integrin and β3 integrin, which trigger persistent adhesion of tumor cells to immobilized laminin, collagen, and fibronectin (38). In PC3 cells, CXCL12 alone stimulated increased expression levels of α5 integrin compared with the untreated control, while AM1241 in combination with CXCL12 reduced expression (Fig. 6A). Although we observed an increase in β3 expression upon CXCL12 treatment, which aligns with observations in literature, heterodimerization of CXCR4 with CB2 caused no significantly observable reduction of β3 protein levels when compared with CXCL12; chemical inhibition with AMD3100 and Y-27632 resulted in reduced levels of both α5 integrin and β3 integrin (Fig. 6A).

Finally, we confirmed whether CXCR4/CB2 heterodimerization regulates adherence to components of the extracellular matrix (ECM). Using in vitro models of ECM components, we observed that CXCL12 led to a significant increase in adhesion to fibronectin (P = 0.0484), collagen I (P = 0.0287) and laminin I (P < 0.0001) in PC3 cells when compared with untreated cells (Fig. 6B–D). CXCL12 and AM1241 combined significantly reduced cellular adhesion to fibronectin (P = 0.0171), collagen I (P = 0.0354), and laminin I (P = 0.0317) compared with CXCL12 alone; likewise, Y-27632 (fibronectin; P = 0.0154), (collagen I; P = 0.0031), and (laminin I; P = 0.005), and AMD3100 (fibronectin; P = 0.0322), (collagen I; P = 0.0086), and (laminin I; P = 0.0264), both yielded reduced adhesion of cells to ECM components (Fig. 6B–D). These results suggest that a physical CXCR4/CB2 heterodimer is sufficient to decrease tumor cell adhesion, likely due to decreased expression of integrin alpha and subsequent inhibition of RhoA activation.

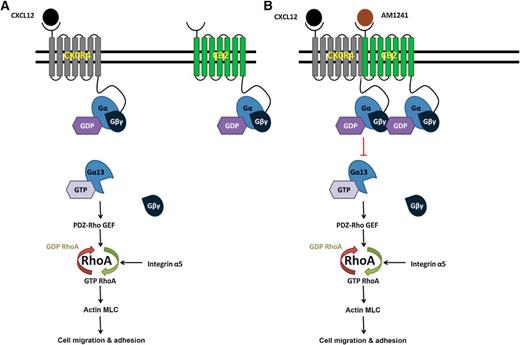

Our results provide mechanistic insight into our previous observation that a physical CXCR4/CB2 heterodimer reduces cell migration via antagonism of the RhoA pathway (Fig. 7A and B). CXCL12 binds to CXCR4 and activates RhoA specifically through activation of the small G protein, Gα13 (27), which leads to the subsequent activation of PRG, and is required for directional cell migration (ref. 35; Fig. 7A). Once activated, RhoA induces changes in the actin cytoskeleton through phosphorylation of myosin light chain (26, 27), increased F-actin protein levels, and changes in integrin expression (39–41). Molecular signaling events initiated by the CXCL12/CXCR4 cascade enhances cellular functionality by increasing cell migration and adhesion, ultimately contributing to tumor progression (Fig. 7A). We demonstrated that the physical heterodimer between CXCR4/CB2 reduced Gα13 recruitment of PRG and subsequent RhoA activation (Fig. 7B). We also demonstrated that reduced migration, adhesion, and other coordinating events that encourage tumor cell migration was specifically attributed to the RhoA pathway as reduction upon heterodimerization was parallel to treatment with RhoA/ROCK inhibitor, Y-27632.

RhoGTPases are key regulators of cytoskeletal dynamics that lead to cell adhesion, polarity, and directional movement. Across several studies, CXCR4 was shown to induce cell migration via signaling through Rho GTPases, which therefore suggests this group of proteins as a treatment target for tumors that express CXCR4 (27, 42). During cell movement, Rho is important for regulating the formation of contractile actin–myosin filaments and stress fibers, and maintaining focal adhesions at the rear of the migrating cells, whereas Rac is involved in forming actin-rich membrane ruffles, or lamellipodia formation, at the leading edge of the migrating cells, which is required to determine directional movement (42). Therefore, the collective events resulting in Rho GTPases represent a key regulatory event for the intentional chemotaxis of cancer cells (27). Our findings, that heterodimerization reduced CXCR4-mediated RhoA signaling and phenotypic changes associated with cell migration, may have broad implications as the CXCL12/CXCR4 signaling axis is critical to a successful metastatic tumor.

Receptor dimerization is becoming a key paradigm in GPCR biology and cancer therapeutics. It has been reported for most aspects of GPCR function: trafficking, internalization, and pharmacologic antagonism and signal transduction (3, 36, 43–45). Although the functional consequences of receptor heterodimerization are still emerging, physical heterodimers amplify or antagonize signals that would otherwise result from each receptor individually, and change the signaling profile or direction to favor one downstream pathway over another (43, 44). When CXCR4/CB2 heterodimerize, the receptor pair reduces signals that would come from CXCR4 alone, strongly supporting our global results that inhibiting the action of CXCR4 whether via: (i) induced receptor heterodimerization; (ii) chemical antagonism of CXCR4 with AMD3100; or (iii) reduced translation of CXCR4 protein via siRNA will reduce the propensity of CXCR4-mediated signaling to activate cell migration.

GPCR heterodimers also alter ligand selectivity where physical heterodimerization resulted in negative binding cooperativity—only one chemokine ligand binds with high affinity to the receptor dimer pair (36–38). Considering the overwhelming clinical and social support for medical cannabinoids in cancer treatment, our current and previous (3) studies mechanistically demonstrate cannabinoid applications, and opens avenues for considering antagonizing CXCR4 via induced CXCR4/CB2 heterodimers to slow the metastatic process. What's more, we use agonists, instead of antagonists, which currently result in severe immune dysfunction due to inhibition of CXCR4 (46). The established role of CXCR4 in metastasis and the broad role for cannabinoids in cancer metastasis treatment, pain management, palliative care, bioavailability, and noninvasive administration (47, 48) present this specific heterodimer as a target for metastasis intervention.
