Abstract
Promoter methylation status of O-6-methylguanine-DNA methyltransferase (MGMT), a DNA repair enzyme, is a critical biomarker in glioblastoma (GBM), as treatment decisions and clinical trial inclusion rely on its accurate assessment. However, interpretation of results is complicated by poor interassay reproducibility as well as a weak correlation between methylation status and expression levels of MGMT. This study systematically investigates the influence of tumor purity on tissue subjected to MGMT analysis. A quantitative, allele-specific real-time PCR (qAS-PCR) assay was developed to determine genotype and mutant allele frequency of telomerase promoter (pTERT) mutations as a direct measure of tumor purity. We studied tumor purity, pTERT mutation by Sanger sequencing, MGMT methylation by pyrosequencing, IDH1 mutation status, and clinical parameters in a cohort of high-grade gliomas (n = 97). The qAS-PCR reliably predicted pTERT genotype and tumor purity compared with independent methods. Tumor purity positively and significantly correlated with the extent of methylation in MGMT methylated GBMs. Extent of MGMT methylation differed significantly with respect to pTERT mutation hotspot (C228T vs. C250T). Interestingly, frontal lobe tumors showed greater tumor purity than those in other locations. Above all, tumor purity was identified as an independent prognostic factor in GBM. In conclusion, we determined mutual associations of tumor purity with MGMT methylation and pTERT mutations and found that the extent of MGMT methylation reflects tumor purity. In turn, tumor purity is prognostic in IDH1 wild-type GBM.
Implications: Tumor purity is an independent prognostic marker in glioblastoma and is associated with the extent of MGMT methylation. Mol Cancer Res; 15(5); 532–40. ©2017 AACR.
Introduction
O-6-Methylguanine-DNA methyltransferase (MGMT) promoter methylation is currently the most important biomarker in glioblastoma (GBM), as it informs treatment options and is used as an inclusion criterion in clinical trials. Quantitative assays (such as bisulfite pyrosequencing) use a defined threshold to identify methylated cases. Yet, the high variability of the extent of MGMT promoter methylation (i.e., the percentage of methylated alleles) has generated debate regarding its origin. Sources of intratumoral heterogeneity may include phenotypic plasticity of tumor cells (such as cancer stem cells vs. non-stem cells) and tumor purity (caused by sampling bias or immune infiltration). Importantly, a prognostic value is suggested not only for a dichotomous MGMT promoter methylation status but also for the extent of methylation (1). It is therefore critical to standardize tumor purity of the input material for reproducible results (2). However, systematic investigation of tumor purity has been hindered by the lack of scalable assays. Here, we use a novel tumor purity assay to investigate the correlation between tumor purity and MGMT methylation.
Defining tumor purity
Cancer, although etiologically a disease of the genome, involves a complex ecosystem of stromal and immune cell populations interacting with and sometimes supporting tumor cells. Accordingly, solid tumors are cellularly heterogeneous. Compared with grade 2 and grade 3 astrocytomas, immune infiltration [mainly by microglia and tumor-associated macrophages (TAM)] is a hallmark of GBM, which is the most frequently occurring primary malignant brain tumor in adults. This poses the theoretical and practical challenge to unequivocally delineate putative tumor cells (defined as the progeny of a genetically distinct most recent common ancestor cell) from normal or reactive cells in the tumor microenvironment. Distinction has historically been made histologically by morphologic features, such as nuclear atypia. However, a systematic pan-cancer comparison found poor correlation of a hematoxylin–eosin (H&E) stain–based tumor purity measure with gold standard genome-wide approaches (3).
With the advent of next-generation sequencing technologies, a map of the landscape of structural genetic alterations, mutated genes, and signaling pathways has been sketched to facilitate identification of driver mutations on a population level. Meanwhile, within an individual tumor, it remains challenging to identify the defining features of a most recent common ancestor. Current tumor purity assays rely on whole-genome, exome, or transcriptome data that are complex and expensive.
Noncoding mutations in the telomerase promoter (pTERT) region have recently been identified with high prevalence in solid tumors, especially GBM (4–10). Importantly, they have been shown to be clonal mutations in gliomas (11) and are likely to play a role in tumor initiation (12). Using clonal pTERT mutations as the defining characteristic of a GBM tumor cell, we established a convenient PCR-based assay to systematically study clinical and molecular consequences of varying tumor purity.
Materials and Methods
Cell lines and patient samples
The generation of primary glioma cell lines was approved by the local ethics committee (Charité – Universitätsmedizin Berlin, Berlin, Germany; EA1/265/12). The study has been registered in compliance with ICMJE guidelines (German Clinical Trials Register ID: DRKS00004577, UTN trial number: U1111-1137-4400). Surgical and blood samples were deposited after written informed consent in the tumor and biobank at the Charité Comprehensive Cancer Center (Berlin, Germany). Glioma samples were divided immediately after surgical removal: For histology and nucleic acid extraction, specimens were snap frozen within one hour after surgery; for cell culture, specimens were kept sterile in Hank's Balanced Salt Solution (HBSS, Life Technologies) on ice until tissue dissociation.
Tumor specimens were first dissociated mechanically, washed in HBSS, and then digested enzymatically using Liberase DH (Roche) for 30 minutes at 37°C. The enzyme blend was inactivated by DMEM + 20% FCS. A single-cell suspension was prepared by gentle trituration and filtering the suspension through a 40-μm cell strainer (BD Biosciences). After washing in PBS, erythrocytes were lysed by incubation on ice with EasyLyse buffer (Dako) for 10 minutes. Cells were washed twice in PBS and resuspended in complete neural stem cell medium with growth factors. Glioma cell lines have been deposited at the German Collection of Microorganisms and Cell Cultures (Leibniz Institute, Braunschweig, Germany, http://www.dsmz.de). Cell lines were authenticated using SNP profiles generated from the same RNA sequencing (RNA-seq) data used for expression analysis and purity estimation.
Ninety-seven consecutive cases of high-grade gliomas diagnosed from 2014 to 2015, in which DNA samples [extracted from formalin-fixed paraffin-embedded (FFPE) tissue] had been subjected to clinical routine MGMT analysis, were selected retrospectively for study. All tissue samples had been macrodissected to select for viable tumor, aiming at >80% tumor nuclei as estimated visually in H&E stains where possible.
Cell culture
Cells were grown in Neurobasal Medium (Life Technologies) supplemented with 0.5× N2 supplement (Life Technologies) and 0.5× B27 (Life Technologies) as described previously (13), but with 20 ng/mL EGF (PeproTech), 20 ng/mL bFGF (PeproTech). Spheroids were dissociated using Accutase (Life Technologies). For cryopreservation, neurospheres were dissociated and resuspended in complete medium with 10% DMSO. The cell suspension was transferred to cryotubes and kept at −80 °C for 24 hours, then moved to liquid nitrogen tanks for long-term storage. For thawing, cells were quickly brought to room temperature. Cells were washed once in growth medium before being transferred to cell culture flasks.
Quantitative allele-specific real-time PCR
Real-time PCR was performed on a realplex epGradient S PCR cycler (Eppendorf). For a 20-μL reaction, 10 μL 2× QuantiTect SYBR Green Master Mix (Qiagen), 1 μL of a 10 μmol/L forward and reverse primer mix, and 1 μL template DNA (normalized to 25 ng/μL) were used. Fifty cycles of 15-second denaturation at 94°C, 30-second annealing and 30-second extension at 72°C were performed. Melting curve analysis was used to exclude primer–dimer formation and ensure proper amplification. Primers and annealing temperatures are listed in Supplementary Table S2. All reactions were performed in duplicates. For quantification, standard curves for each primer pair were generated using serial dilutions of a heterozygous DNA sample to determine absolute copies. Mutant allele frequency (MAF) was then calculated as follows:
The majority of GBM cases (81%) retain a diploid TERT locus as determined from GISTIC2 threshold copy number data in TCGA GBMs (data not shown). In addition, most pTERT mutations (190/197; 96% of cases in one study) are reported to be heterozygous (8). Thus, generally, tumor purity can be calculated as 2× MAF. However, we chose to report MAF instead of purity to avoid these assumptions. Where information about the homozygous versus heterozygous nature of the pTERT mutation was available from matched cell lines, actual tumor purity was calculated, taking into account zygosity.
Sanger sequencing
The pTERT region flanking the C228 and C250 loci was amplified from 50 ng genomic DNA using 1 U Phusion polymerase (Life Technologies), 0.5 μmol/L forward and reverse primers, 200 μmol/L dNTPs, 10 μL 5× HF buffer, and 5% DMSO in a total volume of 50 μL. The following primers were used: forward 5′-TGT AAA ACG ACG GCC AGT GGC CGA TTC GAC CTC TCT-3′, reverse 5′-AGC ACC TCG CGG TAG TGG-3′ (5). The PCR program consisted of 10-minute initial denaturation at 98°C, 40 cycles of 1-minute denaturation at 98°C, 30-second annealing at 65°C, and 30-second elongation at 72°C, followed by a final 10-minute elongation step. Sequencing was performed using a M13 universal primer (5′-TGT AAA ACG ACG GCC AGT-3′, Eurofins Genomics).
MGMT promoter methylation assay
Quantitative analysis of MGMT methylation was performed using bisulfite pyrosequencing. A total of 500 ng of genomic DNA was subjected to bisulfite conversion using the EZ DNA Methylation Kit (Zymo Research) according to the manufacturer's protocol. PCR amplicons covering five CpG islands in the MGMT locus (hg19 coordinates: chr10:131,265,507 - 534, CGCTTTGCGTCCCGACGCCCGCAGGTCC) were generated using commercially available primers (Qiagen; cat. number 972032) and subjected to pyrosequencing on an automated PyroMark Q24 System (Qiagen) following the manufacturer's instructions. Data were analyzed and quantified with the PyroMark Q24 Software 2.0 (Qiagen). The mean percentage of methylated alleles at all five loci was used for analysis. We defined a cut-off value of 10% to classify MGMT methylated versus nonmethylated cases, which is commonly used (18) and has been validated internally for routine clinical diagnostics.
RNA-seq
RNA was extracted from tumor tissue using the mirVana RNA Isolation Kit (Life Technologies) or using TRIzol (Life Technologies) and RNeasy columns (Qiagen) following the manufacturer's instructions. RNA quantity and quality were determined using a Bioanalyzer RNA Nano Assay (Agilent), and an RIN > 7.0 was required for use in sequencing. Poly(A)-enriched RNA-seq libraries were generated using NEXTflex RNA-Seq Kits and Barcodes (Bioo Scientific) and sequenced on a HiSeq instrument (Illumina). Sequence data have been deposited at the European Genome-phenome Archive (EGA, http://www.ebi.ac.uk/ega) under accession number EGAD00001002893. For expression analysis, reads were aligned to the hg38 reference genome using STAR aligner 2.4.1d (19) and gene-level expression values were generated and normalized for library size using cufflinks (20).
Tumor purity estimation from RNA-seq data
RNA-seq raw data were reprocessed using PRADA (21) after removal of unpaired reads. Transcripts were filtered for size and protein-coding genes. Expression data normalized to reads per kilobase per million reads (RPKM) were then subjected to the ESTIMATE algorithm to deconvolute bulk tumor gene expression profiles with respect to stromal and immune cell infiltration and derive an estimate of tumor purity as described before (22).
Public datasets
Survival data, MGMT, and IDH1 status for the 2013 glioblastoma cohort of The Cancer Genome Atlas (TCGA) were retrieved from the supplementary data of the lead publication (23). Preprocessed Affymetrix platform gene expression data (compiled August 8, 2014) were downloaded from the UCSC Cancer Genome Browser (24). Tumor purity was calculated using the R implementation of the ESTIMATE algorithm (version 1.0.11). The subset of 275 IDH wild-type cases with complete information on survival, tumor purity, MGMT status, and age was used for all subsequent analyses.
Results
A mutation-specific telomerase promoter PCR quantifies tumor purity
Although allele-specific PCR has been used qualitatively for genotyping glioma (25), it can also be performed quantitatively for allele frequency estimation (26). To sensitively detect telomerase promoter mutations, we established an allele-specific quantitative real-time PCR (qAS-PCR) assay for the two commonly observed hotspot mutations (chr5:1,295,228G>A and chr5:1,295,250G>A) in the TERT promoter (Fig. 1A), which is able to discriminate mutant and wild-type alleles (Fig. 1B and C). In a panel of 13 human GBM and 9 matched GBM stem cell lines, qAS-PCR and Sanger sequencing identified identical pTERT genotypes for all cell lines and parental tumors for which data from both methods were available (Supplementary Table S1).

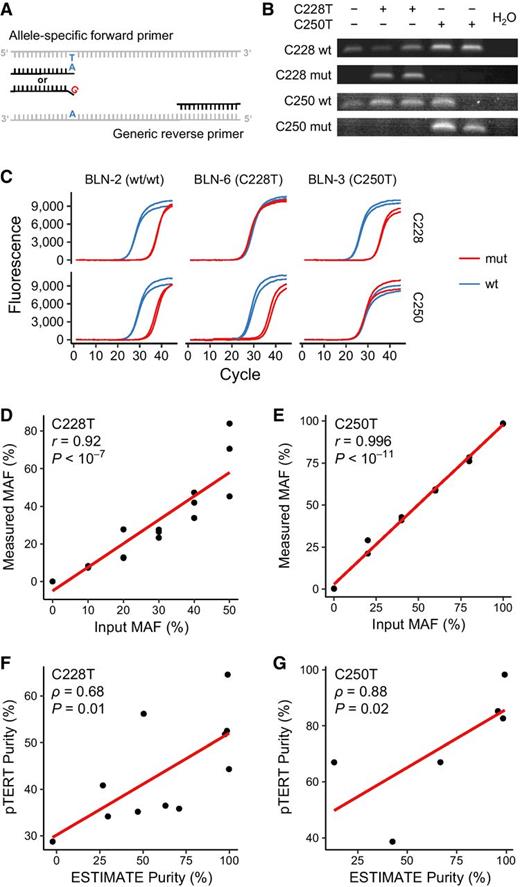

qAS-PCR of pTERT mutations quantifies tumor purity. A, Schematic illustration of AS-PCR. Allele-specific primers discriminate single nucleotide differences to quantify the abundance of wild-type versus mutant alleles. B, Example gel electrophoresis of PCR products generated by AS-PCR from GBM cell lines with different pTERT genotypes. Note the missing wild-type band in a homozygously C250T mutated sample (lane 5). A no-template reaction is run along as negative control. C, Amplification curves for C228 and C250 quantitative AS-PCR illustrate the discrimination of wild-type and mutant alleles in GBM cell lines. The ratio between amplification of the targeted versus nontargeted is approximately 1,000-fold (∼10 cycles). D and E, Validation of assay linearity using artificial mixtures of mutant and wild-type DNA. F and G, Orthogonal validation of qAS-PCR by deconvolution of bulk gene expression profiles.
qAS-PCR of pTERT mutations quantifies tumor purity. A, Schematic illustration of AS-PCR. Allele-specific primers discriminate single nucleotide differences to quantify the abundance of wild-type versus mutant alleles. B, Example gel electrophoresis of PCR products generated by AS-PCR from GBM cell lines with different pTERT genotypes. Note the missing wild-type band in a homozygously C250T mutated sample (lane 5). A no-template reaction is run along as negative control. C, Amplification curves for C228 and C250 quantitative AS-PCR illustrate the discrimination of wild-type and mutant alleles in GBM cell lines. The ratio between amplification of the targeted versus nontargeted is approximately 1,000-fold (∼10 cycles). D and E, Validation of assay linearity using artificial mixtures of mutant and wild-type DNA. F and G, Orthogonal validation of qAS-PCR by deconvolution of bulk gene expression profiles.
Quantitative interpretation of AS-PCRs for both wild-type and mutated alleles enables determination of the MAF (26). Based upon MAF, we estimated the percentage of cells carrying a pTERT mutation (i.e., tumor purity).
We validated the linearity of the assay using serial dilutions of mutant and wild-type DNA at defined ratios (Fig. 1D and E). Both the C228T assay (Pearson r = 0.92, P < 10−7) and the C250T assay (Pearson r = 0.996, P < 10−11) showed strong correlation between theoretical and observed MAF.
Notably, we also evaluated primers with a locked nucleic acid modified 3′ base to improve discrimination (27, 28). Although this greatly improved specificity for qualitative applications (i.e., genotyping), it reduced the dynamic performance of the assay with poor linearity (data not shown). Accordingly, we selected conventional primers for all subsequent experiments.
To cross-validate pTERT MAF-derived tumor purity using an independent method, we used deconvolution of gene expression profiles using the ESTIMATE algorithm (22). In the panel of GBMs used for cell line generation, DNA for pTERT qAS-PCR and RNA for RNA-seq and subsequent deconvolution were extracted from adjacent fresh tissue sections for parental tumors or similar passages in case of cell lines, respectively (total number of matched DNA/RNA pairs: n = 17). The use of cell lines enabled unequivocal discrimination of heterozygous versus homozygous mutations, which was taken into account for tumor purity calculation. We observed a robust positive correlation between the two orthogonal methods with both the C228T (Spearman ρ = 0.68, P = 0.01) and C250T (Spearman ρ = 0.88, P = 0.02) assay, respectively (Fig. 1F and G). In addition, both methods sufficiently discriminated bulk tumor tissue from their matched cell line by identifying greater tumor purity in cell lines (pTERT qAS-PCR 5/6, ESTIMATE 6/6; Supplementary Fig. S1).
pTERT qAS-PCR enables genotyping of clinical routine samples
We next selected 97 consecutive cases of high-grade gliomas from 2014 to 2015 in which clinical routine DNA samples (extracted from FFPE tissue after macrodissection of viable tumor tissue) were subjected to MGMT analysis. Histologic diagnosis was GBM in 78% (76/97) of cases, 4% (4/97) were anaplastic oligodendroglioma, 8% (8/97) anaplastic astrocytoma, 5% (5/97) anaplastic oligoastrocytoma, and 2% (2/97) gliosarcoma. Two cases with final diagnosis of primitive neuroectodermal tumor and pilocytic astrocytoma, respectively, were excluded from analysis. MGMT methylation status was determined by pyrosequencing, IDH1 mutation status by IHC or sequencing was available for 93 of 97 cases, and telomerase promoter mutations were identified by Sanger sequencing for 88 of 97 cases. In GBM, a mutually exclusive pattern of pTERT mutations and IDH mutations was observed (Fig. 2A). The frequency of pTERT mutations in GBM was 77.1% (54/70 cases, 95% confidence interval, 67.3–86.9), which is comparable with published prevalences (5–7). One case carried both pTERT hotspot mutations as determined by both Sanger sequencing and qAS-PCR. Notably, GBM patients with wild-type pTERT and wild-type IDH1 significantly differed with respect to age (Fig. 2B). A single-nucleotide variant (SNP) in the TERT promoter region known to disrupt an ETS transcription factor–binding motif, rs2853669, was assessed in 96 of 100 samples.

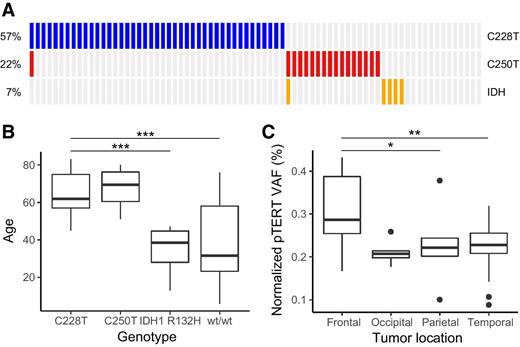

Molecular and clinical characteristics of glioblastoma cases. A, Mutual exclusivity of pTERT hotspot and IDH1 mutations in GBM. Percentages indicate the prevalence of the corresponding alteration in the GBM subset of the cohort (n = 76). B, Age differences in GBM patients with respect to pTERT and IDH1 genotype. C, Tumor purity with respect to neuroanatomical location. Cases with ambiguous clinical information regarding the affected lobe (e.g., parieto-occipital) were excluded. Boxplots show group median (thick lines), quartile range (boxes), 1.5× interquartile range (whiskers), and outlier samples (dots). Asterisks indicate significant group differences as determined by linear regression (*, P < 0.05; **, P < 0.01; ***, P < 0.001).
Molecular and clinical characteristics of glioblastoma cases. A, Mutual exclusivity of pTERT hotspot and IDH1 mutations in GBM. Percentages indicate the prevalence of the corresponding alteration in the GBM subset of the cohort (n = 76). B, Age differences in GBM patients with respect to pTERT and IDH1 genotype. C, Tumor purity with respect to neuroanatomical location. Cases with ambiguous clinical information regarding the affected lobe (e.g., parieto-occipital) were excluded. Boxplots show group median (thick lines), quartile range (boxes), 1.5× interquartile range (whiskers), and outlier samples (dots). Asterisks indicate significant group differences as determined by linear regression (*, P < 0.05; **, P < 0.01; ***, P < 0.001).
We also determined pTERT genotypes using qAS-PCR. qAS-PCR called identical pTERT hotspot mutations in 86 of those 88 cases (98%) where Sanger sequencing data of the telomerase promoter region were available as well.
Extent of MGMT hypermethylation reflects tumor purity
We investigated relationships between MGMT promoter methylation and tumor purity (Fig. 3). In all analyses, we used quantile-normalized pTERT-MAF as tumor purity measure. Mean tumor purity did not differ between MGMT methylated (pTERT MAF 0.26 ± 0.06) and unmethylated (0.26 ± 0.08) cases.

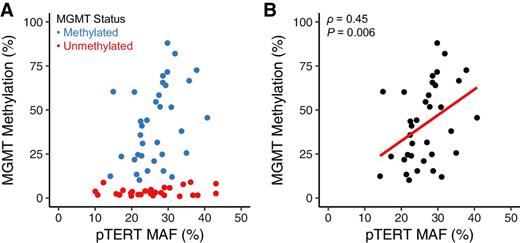

Correlation of tumor purity and extent of MGMT methylation. A, Scatter plot of pTERT MAF as a direct measure of tumor purity versus mean MGMT methylated allele frequency across five CpG islands per tumor in pTERT mutant gliomas (n = 65). B, Correlation of pTERT-MAF and mean MGMT methylated allele frequency in MGMT methylation positive gliomas (n = 35) using Spearman ρ.
Correlation of tumor purity and extent of MGMT methylation. A, Scatter plot of pTERT MAF as a direct measure of tumor purity versus mean MGMT methylated allele frequency across five CpG islands per tumor in pTERT mutant gliomas (n = 65). B, Correlation of pTERT-MAF and mean MGMT methylated allele frequency in MGMT methylation positive gliomas (n = 35) using Spearman ρ.
Importantly, we found a robust positive correlation between tumor purity and extent of MGMT methylation (Spearman ρ = 0.45, P = 0.006) in MGMT methylated tumors (Fig. 3B). The effect was even more pronounced when restricting the correlation to GBM samples (Spearman ρ = 0.50, P = 0.008). No significant correlation was observed for cases classified as MGMT unmethylated.
Tumor purity itself is prognostic for overall survival
Extent of MGMT methylation has previously been reported to predict survival in patients receiving temozolomide (1). Given the strong association between tumor purity and the extent of MGMT methylation, we investigated the effect of tumor purity itself on overall survival in IDH1 wild-type GBM cases from TCGA (23). Tumor purities for TCGA GBMs were determined using ESTIMATE (22). For MGMT status, we used methylation calls from the original publication using the STP27 model from microarray-based methylation data (29). In univariate analysis, tumor purity was a significant positive predictor (HR = 0.30, P = 0.012) of overall survival (Table 1). MGMT status and age, both of which are known prognostic factors, also had significant impact in univariate analysis. In multivariate analysis, however, only tumor purity (HR = 0.28, P = 0.011) and age (HR = 1.04, P < 10−8) emerged as independent prognostic factors (Table 1). TCGA data thus suggest that high purity confers a more favorable overall survival.
Overall survival analysis in TCGA glioblastoma cohort.
. | Univariate analysis (n = 275) . | Multivariate analysis (n = 275) . | ||
---|---|---|---|---|
Factor . | HR (95% CI) . | Significance level . | HR (95% CI) . | Significance level . |
ESTIMATE tumor purity (continuous) | 0.30 (0.12–0.76) | P = 0.012 | 0.28 (0.10–0.75) | P = 0.011 |
MGMT status (methylated vs. unmethylated) | 0.74 (0.56–0.99) | P = 0.043 | 0.78 (0.58–1.04) | P = 0.088 |
Age (years) | 1.04 (1.03–1.05) | P < 10−9 | 1.04 (1.03–1.05) | P < 10−8 |
. | Univariate analysis (n = 275) . | Multivariate analysis (n = 275) . | ||
---|---|---|---|---|
Factor . | HR (95% CI) . | Significance level . | HR (95% CI) . | Significance level . |
ESTIMATE tumor purity (continuous) | 0.30 (0.12–0.76) | P = 0.012 | 0.28 (0.10–0.75) | P = 0.011 |
MGMT status (methylated vs. unmethylated) | 0.74 (0.56–0.99) | P = 0.043 | 0.78 (0.58–1.04) | P = 0.088 |
Age (years) | 1.04 (1.03–1.05) | P < 10−9 | 1.04 (1.03–1.05) | P < 10−8 |
NOTE: Information on overall survival, tumor purity, MGMT status, and age was available for n = 275 IDH1 wild-type cases from the 2013 TCGA GBM cohort. A Cox proportional hazards model was fit for both univariate and multivariate analysis. Tumor purity was computed from cDNA microarray gene expression data using ESTIMATE. Bold font indicates a significance level of P < 0.05.
Abbreviation: 95% CI, 95% confidence interval.
MGMT methylation varies across pTERT genotypes
Next, we correlated MGMT methylation with genotypes for pTERT and IDH1. The frequency of MGMT methylated cases was not significantly different between genotypes both for all tumor entities (Fisher exact test, P = 0.08, Fig. 4C) and GBM only (P = 0.53, Fig. 4D). The extent of methylated alleles, however, differed significantly between C228T and C250T pTERT mutations for pooled entities (linear regression model, P = 0.004, Fig. 4A) and GBM alone (P = 0.046, Fig. 4B).

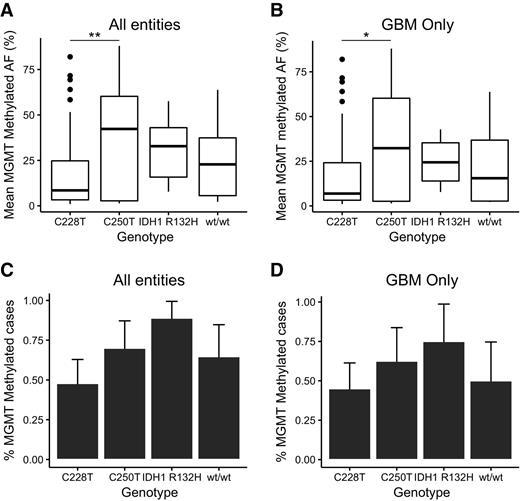

Differences in MGMT methylation with respect to pTERT and IDH status. A and B, Aggregated mean MGMT methylated allele frequency (AF) across pTERT and IDH1 mutation status. C and D, Frequency of MGMT methylated cases across pTERT and IDH1 mutation status. Error bars, 95% confidence intervals. Either all high-grade gliomas (A and C) or GBM cases only (B and D) are shown. Cases with concurrent C228T and C250T mutation or pTERT and IDH1 mutation, respectively, were excluded. Asterisks indicate significant group differences as determined by linear regression (*, P < 0.05; **, P < 0.01).
Differences in MGMT methylation with respect to pTERT and IDH status. A and B, Aggregated mean MGMT methylated allele frequency (AF) across pTERT and IDH1 mutation status. C and D, Frequency of MGMT methylated cases across pTERT and IDH1 mutation status. Error bars, 95% confidence intervals. Either all high-grade gliomas (A and C) or GBM cases only (B and D) are shown. Cases with concurrent C228T and C250T mutation or pTERT and IDH1 mutation, respectively, were excluded. Asterisks indicate significant group differences as determined by linear regression (*, P < 0.05; **, P < 0.01).
TERT expression and MGMT methylation
Distinct levels of transcriptional activity have been attributed to different pTERT mutations (30). We therefore compared levels of TERT mRNA expression in GBM cell lines and their matched parental tumors. Although nonsignificant and subject to careful interpretation given the low sample numbers, higher telomerase levels were found in cell lines with C228T versus C250T mutations as described before (Fig. 5A). In contrast, TERT expression in bulk tumor material with varying degrees of tumor purity showed higher levels in C250T-mutated tumors (Fig. 5B). We then correlated TERT mRNA expression with levels of MGMT methylation. No significant correlation (Pearson r = −0.53, P = 0.22) was present in cell lines (Fig. 5C), but a positive correlation (Pearson r = 0.88, P = 0.0016) was found in pTERT-mutant tumors (Fig. 5D), possibly a spurious relationship due to collinearity of both factors with tumor purity.

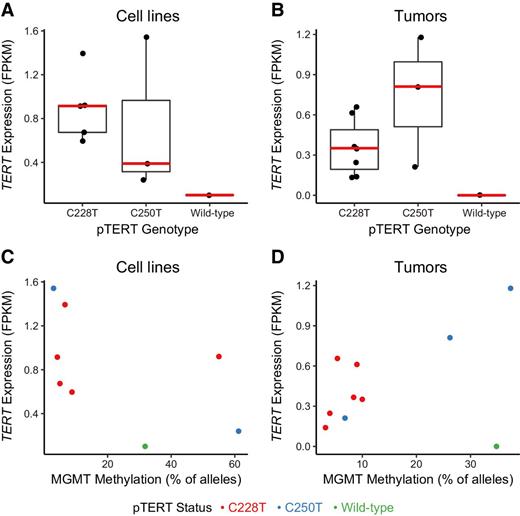

Telomerase expression with respect to pTERT genotype and MGMT methylation. TERT mRNA expression levels in a panel of matched GBM cell lines and parental tumors (Supplementary Table S1) as determined by RNA-seq (fragments per kilobase of exon per million reads, FPKM). A and B, Boxplots show expression levels for each pTERT genotype (group median indicated in red). C and D, Correlation between MGMT methylated allele frequency (%) and TERT expression. Pearson product–moment correlation coefficients were calculated for the subset of pTERT-mutant samples only.
Telomerase expression with respect to pTERT genotype and MGMT methylation. TERT mRNA expression levels in a panel of matched GBM cell lines and parental tumors (Supplementary Table S1) as determined by RNA-seq (fragments per kilobase of exon per million reads, FPKM). A and B, Boxplots show expression levels for each pTERT genotype (group median indicated in red). C and D, Correlation between MGMT methylated allele frequency (%) and TERT expression. Pearson product–moment correlation coefficients were calculated for the subset of pTERT-mutant samples only.
Regional differences in tumor purity
We explored differences in tumor purity with respect to tumor location. Clinical annotation that allowed unequivocal attribution of tumor location to a single brain lobe and tumor purity information was available for 40 of 59 pTERT-mutant GBM cases. Frontal lobe tumors revealed significantly greater tumor purity compared with temporal lobe (pTERT-MAF 0.3 ± 0.09 vs. 0.22 ± 0.1; P < 0.01) and occipital lobe (0.3 ± 0.09 vs. 0.21 ± 0.03; P = 0.027) locations (Fig. 2C).
Technical considerations
Finally, we pondered whether or not low tumor purity limits the sensitivity of clinical routine molecular diagnostics and perhaps generates false-negative results. Accordingly, we investigated whether or not MGMT methylated cases occurred more frequently in samples with high purity, which would implicate tumor purity as a confounder of assay sensitivity. No significant differences could be identified using a logistic regression model (MGMT status ∼ pTERT-MAF, P > 0.05).
We also examined MGMT methylation of matched tumor and cell lines in the BLN panel. In 7 of 8 cases, MGMT status was identical between pairs. In the discordant sample pair (BLN-11), the parental tumor was classified negative using the clinical routine threshold of 10% for MGMT pyrosequencing, while the corresponding cell line showed clearly positive MGMT methylation (Supplementary Table S1). Tumor purity was comparably low in this sample (ESTIMATE 36th percentile, C228T MAF 29th percentile). In summary, low tumor purity might generate false-negative results in exceptional cases.
Discussion
Using a novel tumor purity assay, we identified clinically relevant associations between tumor purity, pTERT hotspot mutations, and MGMT methylation.
We first identified tumor purity as a relevant contributor to the observed variability of the extent of MGMT promoter methylation reported by all quantitative methods. This finding is supported by a series of 10 tumors and matched gliomasphere cell lines, which revealed concordant MGMT methylation status with increased methylated allele frequency in 9 of 10 pairs (31). Extent of methylation differed especially in tumor samples with infiltration by CD68+ cells (i.e., macrophages and microglia). Although tumor purity is recognized as a critical confounder when distinguishing nonmethylated versus methylated tumors (2), the source of variability in distinctly positive samples has been a matter of debate. Importantly, the extent of MGMT methylation has itself been reported to have prognostic value. Using pyrosequencing, Dunn and colleagues found a survival advantage of highly methylated tumors in a cohort of 109 patients homogeneously treated with temozolomide and standard radiotherapy (1). Similarly, another study reported an intermediate overall survival for patients with tumors producing a faint band in methylation-specific PCR compared with both unmethylated and distinctly methylated cases (32). Our analysis of TCGA data suggests that tumor purity is a predictor of survival, raising the question of which biological mechanism is responsible for this phenomenon.
Tumor purity is a reciprocal measure of the contribution of cellular microenvironment components, namely immune cells, endothelial cells, and normal brain tissue. As the largest contribution likely arises from tumor-associated microglia and macrophages, perhaps there is a negative prognostic influence of immune cell infiltration that is supported by a large body of preclinical evidence suggesting that TAMs support tumor growth in glioma (33). Angiogenesis, yielding increased numbers of endothelial cells and possibly pericytes, might also contribute negatively to tumor purity; however, whether or not they alter tumor purity in a relevant manner has not been studied quantitatively.
Heterogeneity of MGMT methylation within the tumor cell population has been reported as another source of variability of MGMT promoter methylation. One study observed the presence of both methylated and unmethylated clones in gliomaspheres derived from single cells of the same parental tumor by analyzing both protein expression and promoter methylation (34). Notably, neither MGMT methylation nor protein expression correlated with temozolomide resistance in this study.
Temporal heterogeneity of MGMT methylation is conceivable; however, matched primary GBM and their recurrences have largely revealed identical MGMT status, and retesting is currently discouraged in clinical guidelines (35). Loss of chromosome 10q has also been considered a factor influencing MGMT methylation, but recent studies found no correlation between MGMT copy number and extent of methylation in GBM (32) or low-grade gliomas (36).
In summary, tumor purity explains part of the variability observed in the levels of MGMT methylation. We can only speculate about the biological causes of tumor purity that explain its prognostic significance, especially the role of immune cells. From a clinical perspective, it would be interesting to investigate whether tumor purity differentially predicts response to chemotherapy versus radiation and whether modulation of the tumor microenvironment is by treatment is reflected in tumor purity.
We also identified differences in the extent of MGMT methylation between pTERT hotspot mutations. The frequency of MGMT methylation was not statistically different, although we are mindful that the study was underpowered with respect to the observed group differences. To our knowledge, all studies of pTERT mutations in GBM to date do not differentiate MGMT status between the two exact point mutations. For example, although Simon and colleagues found no differences in frequency of MGMT methylation between pTERT mutant and wild-type tumors, the researchers did not differentiate between C228T and C250T mutations (9).
This is perhaps reasonable as both hotspot mutations are known to generate an identical Ets/TCF transcription factor–binding motif (37–39). Very recently, however, functional differences between the C228T and C250T mutations with respect to NF-κB pathway activation has been reported (40). Profound biological differences, for example, in tumor purity, between tumors carrying the C228T versus the C250T point mutation are thus likely. We were unable to test whether or not the observed differences in the extent of MGMT methylation actually reflect differences in tumor purity because of the required quantile normalization between the C228 and C250 qAS-PCR assays. Similarly, several studies have shown differences in TERT mRNA expression levels between the two hotspot mutations with higher expression in C250T-mutated GBM samples (23, 40). We observed the same trend in our data, but we instead propose attributing this finding to collinearity with tumor purity. At the same time, an exogenous C228T mutation previously showed higher promoter activity in a luciferase reporter assay (30), a finding that we recapitulated in glioma cell lines where tumor purity does not confound readouts. Taken together, we propose that on the bulk tumor level, it is most likely tumor purity that explains best variability in telomerase expression in pTERT-mutant GBM, while distinct pTERT mutations dictate different promoter activity.
Finally, we report tumor purity differences with respect to tumor location. Frontal lobe tumors show substantially greater tumor content than all other locations. Whether or not this is due to a heterogeneous cellular composition with respect to immune infiltration, angiogenesis, resident glial architecture, or even a systematic sampling bias caused by surgical accessibility remains a matter of speculation.
It is important to note that all analyses involving pTERT MAF–based tumor purity were restricted to pTERT-mutated cases, so we cannot exclude a selection bias (largely IDH mutant and pTERT/IDH double wild-type cases). In addition, absolute quantification of tumor purity, while feasible using qAS-PCR, will require further optimization of the method to circumvent cross-assay normalization.
In conclusion, we describe a convenient assay for the systematic investigation of tumor purity in GBM as a tool for studying cellular composition and quality control in molecular diagnostics. We report clinically relevant mutual associations between tumor purity, MGMT methylation status, and pTERT mutations. Although beyond the scope of the current study, investigation of the underlying biological causes is warranted. With respect to prognosis, we argue for a qualitative readout of MGMT methylation and prospective evaluation of tumor purity as an independent predictor of survival.
