Interactions in CSF1-Driven Tenosynovial Giant Cell Tumors Open Access

This article is featured in Highlights of This Issue, p. 4833

Tenosynovial giant cell tumor (TGCT) occurs in the synovial tissue within joints or tendon sheaths. While they do not metastasize, they can destroy cartilage and bone and can lead to debilitating effects on joint function. Moreover, TGCTs often aggressively recur after surgery (1). Our group previously described a small subpopulation of cells within the tumor that carry a translocation involving CSF1. These neoplastic cells express high levels of CSF1 that is known to attract and induce proliferation of the monocytes expressing the receptor for CSF1 (CSF1R) on their surface (2, 3). In this way, the neoplastic cells have a “landscaping effect” on their microenvironment that results in the accumulation of large numbers of the nonneoplastic macrophages that form the majority of cells in the tumor (3, 4). Initially, we identified COL6A3 as the fusion partner for CSF1 but others have subsequently identified a range of other translocation partners for CSF1 in TGCT (5, 6). The findings suggested that the chemoattractant and proliferative effect of CSF1 on bystander macrophages could be inhibited by drugs that interfered with the CSF1 pathway. Studies using mAbs and small-molecule inhibitors for the CSF1 pathway have shown a significant clinical effect (6–13) and a decrease in tumor size as seen by an imaging measurement specifically designed for TGCT (14). It was hypothesized that the CSF1-expressing neoplastic cells might be activated through an autocrine loop by CSF1R expressed on their surface (3). However, the effect that drugs targeting the CSF1 pathway have on the neoplastic cells has not been studied. Understanding whether the anti-CSF1R therapies also target the neoplastic compartment will help rationalize the duration of the therapy administration, and asses the risk of the recurrence. Here, we used single-cell RNA sequencing (scRNA-seq) combined with a long-read mRNA sequencing of 3 TCGT tumors and analysis of patient samples before and after anti-CSF1R therapy. We established a new formalin-fixed, paraffin-embedded (FFPE)-compatible IHC marker to detect the neoplastic cells in the TGCT. We show that inhibitors of the CSF1R are unlikely to directly affect growth of the neoplastic cells because CSF1R in the TGCT is mainly expressed on the myeloid compartment. We show that CSF1R targeting in TGCT causes a relative increase in neoplastic cell frequency in the tumor. We identify two pathways that suggest new candidates for treatment of these cells. In addition, we further provide insight into the relationship between the neoplastic cells and synoviocytes and into the features that define the giant cells in this tumor.

Tumor material from three TGCT cases (diffuse type) and two cases of giant cell tumor of bone (GCTB) were used for scRNA-seq; written informed consent was obtained from the patients and the studies were conducted in accordance with recognized ethical guidelines (U.S. Common Rule). Six Stanford TGCT cases were used for validation and three TGCT cases from the Leiden University Medical Center with material from before and after CSF1R inhibitor treatment were included. A tissue microarray containing 24 scorable TGCT cases was used to validate RNA-ISH findings. All parts of the study were approved by the Stanford University Institutional Review Board (IRB-58498). Material from the Leiden University Medical Center was derived from the bone and soft-tissue tumor biobank and coded according to the ethical guidelines described in “Code for Proper Secondary Use of Human Tissue in the Netherlands” of the Dutch Federation of Medical Scientific Societies as approved by the Medical Ethical Board (B22.010).

To dissociate fresh tumor tissue for scRNA-seq 250 mg of tissue was minced and dissociated according to the protocol for the Tumor Dissociation Kit (130–095–929; Miltenyi Biotec) using a GentleMACS Octo Dissociator with heaters (130–095–937; Miltenyi Biotec) using TDK setting 3. The dissociated cell suspension was then applied to a 70-μm MACS SmartStrainer (130–098–462; Miltenyi Biotec). The quality of the suspension was checked by first generating a hematoxylin and eosin (H&E) slide from a smear of the suspension. Secondly, the sample was analyzed using an automated cell counter (TC10; Bio-Rad). Samples were further processed by the Stanford Functional Genomics Facility. Single-cell libraries were sequenced on the NovaSeq6000 platform (Illumina) on a S1 Flow Cell (Illumina).

RNA was isolated from TGCT1–3 using the RNeasy Plus Mini Kit according to the manual (74134; Qiagen). The three samples were pooled into one cDNA library and sequenced on one SMRT cell (PacBio). PacBio Iso-Seq sequencing was performed on the Sequel 2 machine (PacBio).

For both IHC and immunofluorescence (IF), 4-μm paraffin sections were deparaffinized with xylene. Slides were rehydrated using decreasing concentrations of ethanol. Antigen retrieval was performed at 121°C with the slides in either EDTA Ph9 or Citrate Ph6. Primary antibodies for GFPT2 (1:500; ph9; ab190966; Abcam), PU.1 (1:50; ph6; 554268; BD Biosciences), CD68 mouse (1:200; ph9; ab955; Abcam), CD68 rabbit (1:200; ph9; 76437S; Cell Signaling Technology), MMP9 (1:1,000; ph9; HPA001238; Millipore Sigma), YAP1 (1:1,200; ph6; sc-101199; Santa Cruz), desmin (1:40; D33 Dako), PDPN (D2–40 Dako) and Ki67 (1:50; ph9; Cell Signaling Technology) were used. For IHC immunodetection was completed using the Vectastain ABC kit (Vector Laboratories) and DAB chromogen (Abcam), according to the manufacturer's specifications. For IF a secondary mouse or rabbit Alexa488, Alexa555 or Alexa657 labeled antibodies were used (ThermoFisher). IHC and IF sections were scanned using the Keyence Fluorescence Microscope (BZ-X; Keyence) with the 40x lens, either using the fluorescent filter cube or the brightfield setting.

FISH for CSF1 was performed as previously described (3). BACs (CSF1: 354C7, 19F3 and 96F24) from the Human BAC Library RPCI-11 (BACPAC Resources Center, Children's Hospital Oakland Research Institute) were used.

RNA-ISH was combined with IHC using the RNA Protein Co Detection Assay (323180; ACD Bio) combined with RNAscope 2.5 HD Detection Kit - RED (322360; ACD Bio) according to the provided protocol. GFTP2 antibody was used at a concentration of 1:50 and CSF1R and CSF1 probes were ordered from ACD Bio.

R (v4.1.0) and Python (v3.9.7) were used for bioinformatic analysis. Plots were generated with Seurat, ggplot, Seaborn, or Prism (v9.3.1; GraphPad).

Raw scRNA-seq data was preprocessed using the Cell Ranger workflow (v6.1.2; 10X Genomics). The raw_feature_bc_matrix object was imported into Seurat (v4.1.0; ref. 15). Low-quality cells were excluded; cells with fewer than 200 features or less than 10% mitochondrial RNA were removed. The data was normalized using the NormalizeData function in Seurat. The single-cell expression data was clustered using the UMAP algorithm RunUMAP in Seurat. Seurat was used to identify clusters with a resolution setting of 0.4. The clusters were named by identifying the differentially expressed genes in each cluster using the FindAllMarkers function in Seurat. Only upregulated genes were identified that had at least a 0.25 log2fold change and an adjusted P < 0.05. The differentially expressed genes were manually screened for known cell-differentiation in the literature.

After normalizing the different RNA-seq libraries anchor points were identified using the FindIntegrationAnchors function in Seurat and the data was integrated using the IntegrateData function. Using the RunUMAP and FindClusters functions the new dataset was analyzed for cell clusters.

The R package scPred (v1.9.2; ref. 16) was used to create a Support Vector Machine (SVM) to identify synoviocytes subtypes 1 and 2. The SVM classifier was subsequently applied to the neoplastic cell clusters.

Monocle3 (v3.1; ref. 17) was used to infer development trajectories between macrophages and osteoclasts in GCTB and macrophages and giant cells in TGCT samples. The relevant cells were subset and re-clustered using the cluster_cells function with a resolution setting of 1e-4. Development paths were identified using the learn_graph function. Using order_cells the pseudotime was inferred.

CellphoneDB (v3; ref. 18) was used to identify cell–cell interaction in the scRNA-seq data. The read counts and metadata were exported from the Seurat object. Receptor–ligand interactions were filtered for significant (P < 0.05) interactions involving neoplastic cells and other cell types.

PacBio Iso-Seq data was aligned to hg38 (UCSC) using Minimap2 (v2.24; ref. 19) with the recommended settings for Iso-Seq data. Squanti3 (v4.3; ref. 20) was used to extract fusion genes from the aligned bam files. Identified fusions were manually screened using IGV (v2.4.1; Broad).

The sequences for the identified fusions identified in TGCT cases 1–3 were used to create a Bowtie 2 (v2.4.5; ref. 21) reference genome. The reads from the scRNA-seq experiments were aligned to the custom fusion references using Bowtie 2. Samtools view (v1.15.1) was used isolate break-point spanning reads and these reads were further validated by hand using the IGV.

Scanned images were analyzed using OpenCV-python (v4.5.5.64). To quantify IF signals first an Otsu threshold was used on the DAPI channel to identify the nuclei locations and determine the number of cells. The intensity of staining in the corresponding cytoplasm was determined by dilating the nucleus location and subtracting the area of the nucleus. IF signal intensity was determined for the different IF markers in the cytoplasm or nucleus masks applied to the corresponding IF stain imaging data.

The data generated in this study are publicly available in Gene Expression Omnibus at GSE210750.

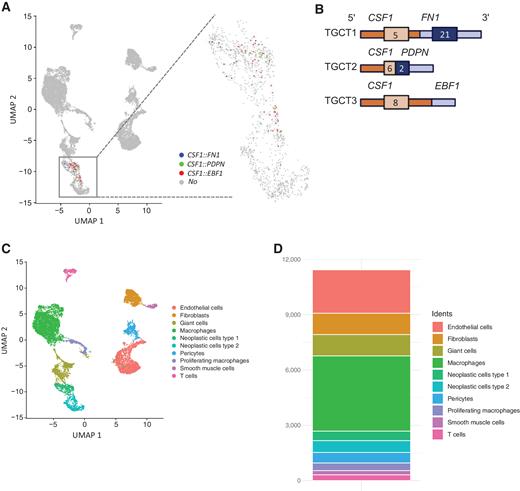

To define the cellular interactions in TGCT, fresh tumor material was collected from 3 patients with TGCT (TGCT1–3). The presence of the characteristic translocations involving CSF1 were confirmed on FFPE material by FISH (Supplementary Fig. S1A) in each case. Five 10x barcoded libraries were generated from the three cases and used for scRNA-seq resulting in a total of 11,430 cells for analysis. The cells clustered in 10 distinct groups by Umap analysis (Fig. 1A). To determine the exact site of the translocation within the CSF1 gene and the fusion partners, full-length mRNA was profiled using long-read RNA-seq (PacBio Iso-Seq; Fig. 1B). The known fusion sequence from each case was used as a custom reference genome and scRNA reads were aligned to these reference genomes to identify the neoplastic cells that contain the CSF1 translocation. In total, 79 cells were identified that contained split reads (253 split reads in total) involving CSF1. Cells with CSF1 translocations were identified for CSF1::FN1 in 11 cells (TGCT1). In TGCT2, CSF1::PDPN was detected in 22 cells (TGCT2). The fusion breakpoint is halfway exon 6 of CSF1 and connects to exon 2 of PDPN. The transmembrane domain for CSF1 is lost but the fusion partner (PDPN) donates an in-frame transmembrane domain. In TGCT3, CSF1::EBF1 was detected in 46 cells (TGCT3). The 79 cells with confirmed fusion were restricted to two clusters in the Umap analysis that also showed high expression of CSF1 and other unique markers (Fig. 1A, insert, Supplementary Fig. S2). The remaining cell clusters were identified on the basis of expression of canonical marker genes (Supplementary Fig. S2) resulting in distinct cell populations consisting of macrophages, proliferating macrophages, giant cells, T lymphocytes, fibroblasts, smooth muscle cells, pericytes, endothelial cells, and the two clusters with neoplastic cells (Fig. 1C). Concordant with previous findings, the cells that carry the CSF1 translocation as found by long-read RNA-seq represent a minority of cells within the tumor mass. These cells map to 2 clusters that together make up 10% of the total cells on average. It cannot be fully excluded that the two neoplastic cell clusters also contain normal cells. As reported previously, the largest cell population of cells within TGCT consist of macrophages (35%, Fig. 1D). Cell-cycle state analysis with Seurat showed that the proliferating cell cluster in this analysis consisted exclusively of macrophages (Supplementary Figs. S2 and S3A) and was absent from the tumor cells as confirmed by Ki67 IF (Supplementary Fig. S3B).

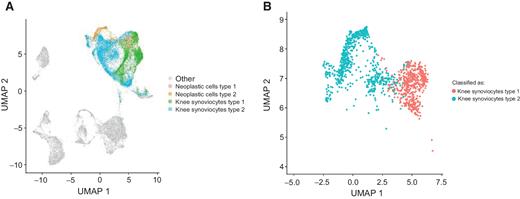

Previous studies already suggested that the neoplastic cells in TGCT are derived from synoviocytes but this was based on expression of relatively few markers (clusterin and desmin) by IHC without confirmation of the neoplastic nature of the cells (22, 23). To further study the two neoplastic cell clusters, we compared the neoplastic cells with a publicly available scRNA dataset on synovial tissue samples from patients with rheumatoid arthritis (RA) by Stephenson and colleagues (24). Despite a difference in technologies used, there was a significant overlap between macrophages, endothelial cells, and smooth muscle cells from the two studies after integration using Seurat (data not shown). In addition, the two synoviocyte subpopulations found in the RA data clustered closely with the neoplastic cell clusters identified in the TGCT cases (Fig. 2A). To further compare the synoviocytes from both datasets a SVM classifier was trained to characterize the two types of RA synoviocytes. With this classifier it was found that the majority of cells within each of the two neoplastic cell types clustered together in either of the two synoviocyte clusters from Stephenson and colleagues (Fig. 2B).

A gene expression analysis showed that the cells in the two neoplastic clusters uniquely expressed GFPT2 and high levels of CSF1 as compared with the nonneoplastic cell types in TGCT. Comparison between the two neoplastic clusters showed that type 1 had higher expression of CD68, CD55, CLU, and TREM1 while neoplastic cells in cluster 2 were characterized by high levels of expression of COL6A3, POSTN, FGF7, PODN, RARRES1, CTHRC1, SLIT3, LAMB1, and ADAM12 (Supplementary Fig. S4). Combined with the results from long mRNA profiling, our data shows that the CSF1 translocation for each of the 3 patients occurs in both synoviocyte subtypes and stresses the high similarity between the neoplastic cells in TGCT and normal synoviocytes.

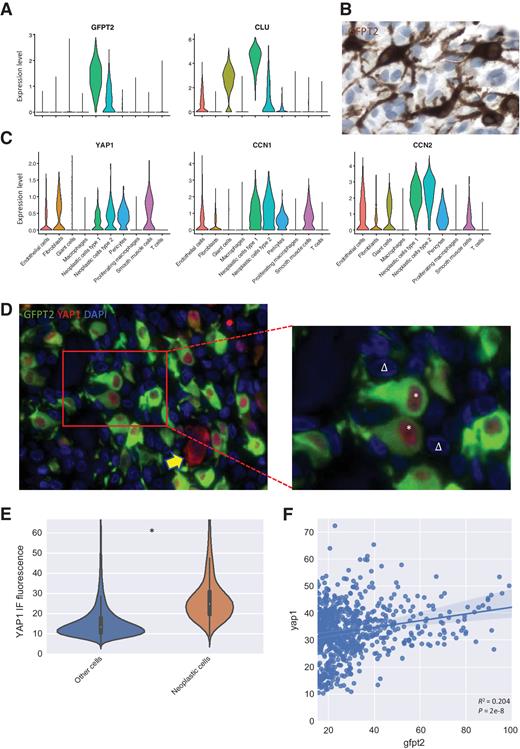

GFPT2 mRNA was found to be highly expressed in both neoplastic cell types (Fig. 3A) with the highest level of expression in type 1 neoplastic cells. In contrast to two other genes CLU and PDPN that were previously reported in TGCT (22), GFPT2 is specific for the neoplastic cells in TGCT and, unlike CLU or PDPN, is not expressed in giant cells (Fig. 3A; Supplementary Fig. S5A). Others have reported expression of desmin in TGCT (22, 23) but no desmin mRNA expression was found in the neoplastic cell clusters (Supplementary Fig. S5A). IHC against desmin was negative and PDPN IHC was positive (Supplementary Fig. S5B). The lack of desmin IHC staining might be explained by differences in antibodies used in different laboratories.

IHC for GFPT2 showed that the neoplastic cells have a dendrite like morphology (Fig. 3B) and cells with a remarkable dendritic appearance were also noted in the single-cell preparations for the scRNA-seq libraries (Supplementary Fig. S5C). GFPT2 is a rate-limiting enzyme in the hexokinase pathway but also functions as a regulator of the HIPPO signaling pathway (25). YAP1, the most important transcription factor in the HIPPO signaling pathway, is localized to the nucleus when activated. YAP1 mRNA is expressed in the neoplastic cells cluster and downstream genes from the HIPPO signaling pathway (CCN1 and CCN2) were also found to be upregulated in the neoplastic cells (Fig. 3C). IF showed nuclear localization of YAP1 protein in the GFPT2 positive cells (Fig. 3D, see asterisk), indicating activation of the pathway (25). Many GFPT2-negative cells had no YAP1 expression, (Fig. 3D, see ∆). While some GFPT2-negative cells can show YAP1 mRNA expression (Fig. 3C), the majority of these cells showed cytoplasmic staining only (Fig. 3D, arrow) indicating non-activated YAP. Quantification of the nuclear IF signal intensity for YAP1 confirmed significantly higher intensity in the neoplastic (GFPT2-positive) cells than in nonneoplastic cells (P < 0.05, Fig. 3E). Within the GFPT2-positive cell population there also was a significant correlation between GFPT2 and nuclear YAP1 IF signal (Fig. 3F, R² = 0.204, P = 2e-8).

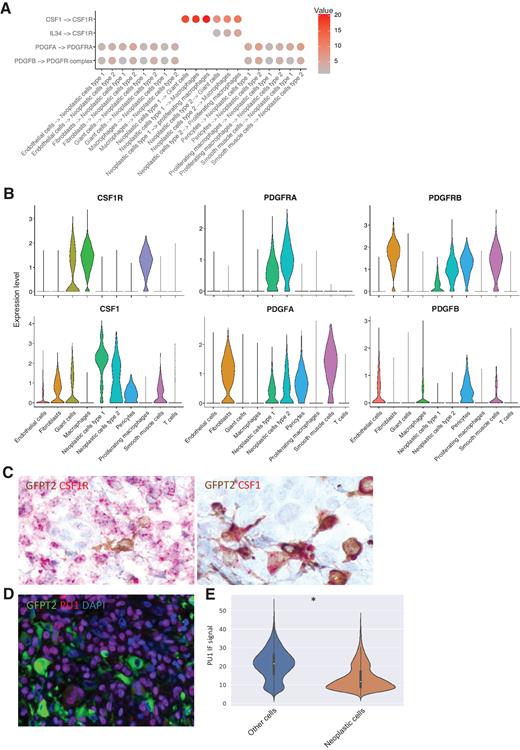

In our previous studies, we suggested that neoplastic cells in TGCT could be stimulated through secreted CSF1 via an autocrine loop (3). CellphoneDB was used in the current study to identify ligand–receptor interactions between the two neoplastic cell subtypes and other cell types for CSF1, IL34, and platelet-derived growth factor (PDGF)A and -B. Significant interactions were identified between neoplastic cell subtypes 1 and 2 and the macrophages and giant cells involving CSF1 and CSF1R (Fig. 4A). Neoplastic cell subtype 2 also interacted with the macrophage giant cell populations through IL34 signaling (Fig. 4A). In contrast, no interactions were found in CellphoneDB to suggest an effect of CSF1 on the neoplastic cells themselves. High expression of CSF1 localized to both neoplastic cell subtypes (Fig. 4B). IL34 was expressed in neoplastic cells in cluster 2 but not in cluster 1. CSF1R is highly expressed in the giant cells, macrophages, and proliferating macrophages but is absent from the neoplastic cells and other cell populations (Fig. 4B).

Two additional orthogonal approaches were used to confirm that the neoplastic cells do not express detectable CSF1R. First, GFPT2 IHC combined with RNA-ISH for CSF1R showed that GFPT2 and CSF1R were not present in the same cell populations in the three cases (Fig. 4C) validating the scRNA findings. In contrast, IHC for GFPT2 combined with RNA-ISH for CSF1 showed co-localization of GFPT2 and CSF1. This finding was further confirmed on a Tissue Micro Array (TMA) that contained 24 scorable TGCT cases. In all 24 cases GFPT2 and CSF1R were not present in the same cell populations while GFPT2 and CSF1 were co-expressed on the same cells (Supplementary Fig. S6A). Second, SPI1, a gene in the regulatory network of the CSF1R receptor showed high expression in the macrophages and giant cells. PU.1, the protein corresponding to SPI1, was not present in the nucleus of the GFPT2-positive neoplastic cells but showed nuclear localization in the surrounding cells (Fig. 4D). Quantification of the PU.1 IF signal intensity showed significantly higher expression in the GFPT2-negative cells (Fig. 4E). These findings indicate the absence of an autocrine CSF1 signaling loop in the neoplastic cells and suggest that drugs that interfere with the CSF1 pathway may affect the bystander macrophages and giant cells in TGCT but not the neoplastic cells.

Previous studies have shown that tyrosine kinase inhibitors such as imatinib that have a relatively broad target spectrum can inhibit TGCT. A major target of imatinib is KIT but there is no significant expression of this gene in TGCT (Supplementary Fig. S6B). Other targets of Imatinib are CSF1R, PDGFRA and -B. Interaction analysis (CellphoneDB) for PDGFA and -B indicated interactions between PDGF receptors on the neoplastic cells and other cell types in TGCT (Fig. 4A). ScRNA expression levels for these 4 genes validated the interaction analysis findings. The receptors for PDGFA and -B are expressed on both types of neoplastic cells with PDGFRA being exclusive for the neoplastic cells in TGCT. Other components of the microenvironment express measurable levels of PDGFA, -B or a combination of the two (Fig. 4B). These findings suggest a supportive effect from the nonneoplastic cells in the microenvironment on the neoplastic cells and raise the possibility for a combination therapy targeting CSF1 to inhibit macrophages and PDGFRA to inhibit the neoplastic cells.

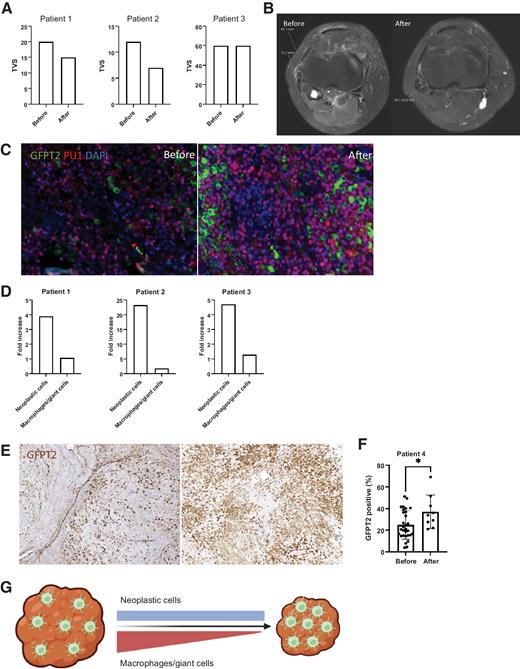

To study the effect of CSF1R inhibition on TGCT tumors in vivo, material from four patients was analyzed (clinical detail in Supplementary Table S1). Two patients (Patient 1, 2) had been treated with pexidartinib, a small molecule inhibitor of CSF1R. One patient (Patient 3) was treated with nilotinib, another small molecule inhibitor for CSF1R. The two patients that were treated with pexidartinib showed a reduction in tumor volume according to the tumor volume score (TVS) and the TVS for the Nilotinib treated patient remained the same (Fig. 5A and B). For these patients samples were available prior to treatment and from variable periods after treatment (Supplementary Table S1). The patient samples were stained for GFPT2, PU.1 and DAPI. A representative image shows an apparent increase in the percentage of GFPT2-positive neoplastic cells compared with PU.1-postive macrophages in the specimens after treatment with pexidartinib or nilotinib (Fig. 5C). The number of GFPT2-positive (neoplastic cells), PU.1-positive (macrophages and giant cells) and double negative (other) cells were quantified by measuring IF signal for each cell in representative 2.94-mm² areas. The total number of cells was used to determine the fraction of neoplastic cells, and macrophages and giant cells in each representative area. For all three cases, the fraction of macrophages remained relatively stable while the fraction of neoplastic cells increased (Fig. 5D).

A fourth patient was treated with Cabiralizumab, a humanized monoclonal antibody directed against CSF1R. No pretreatment biopsy was available for this patient but a surgical specimen obtained 25 months after cessation of therapy showed a marked increase in the percentage of GFPT2 positive cells that are the neoplastic cells (Fig. 5E, right) when compared with representative TGCT specimens from untreated patients (Fig. 5E, left). Image analysis of 9 microscopic fields that combined covered an area of 0.88 mm² of the fourth patient's specimen compared with 30 fields (2.94 mm²) obtained from 5 different untreated specimens confirmed a marked increase in the percentage of GFPT2-positive cells (Fig. 5F). Taken together, the findings in the 4 patients suggest that CSF1R inhibitors target the macrophages and giant cells that leads to a decrease in tumor volume. The neoplastic cells are not targeted by the CSF1R inhibitor treatment but are concentrated in a smaller area (Fig. 5G).

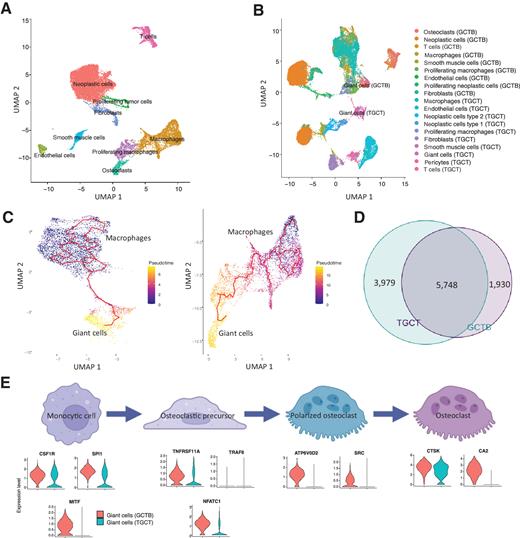

The giant cell population in TGCT is often referred to as “osteoclast-like”, a description that is primarily based on their morphology. To further investigate the giant cells in TGCT, we compared their phenotype with giant cell scRNA data that we generated from two GCTB, a tumor with significant osteolytic activity. Like TGCT, GCTB is a neoplasm where a subpopulation of neoplastic cells is associated with bystander cells consisting of macrophages and giant cells. Combined scRNA-seq data from two GCTB cases yielded a total of 7,358 cells for analysis. The H3F3A mutation (G34W) that is pathognomonic for the neoplastic cells was identified in 30 cells (Supplementary Fig. S7A) and was used to identify the cluster containing the neoplastic cells. The presence of the H3F3A mutation corresponded with expression of TP63 and TNFSF11 (Supplementary Fig. S7B and S7C; ref. 26) further confirming the identity of the neoplastic cell cluster. The RANK receptor (TNFRSF11A) was highly expressed in the osteoclasts and macrophages (Supplementary Fig. S7C) as described previously (27, 28). Canonical marker genes were used to identify the remaining clusters (Fig. 6A). A cell-cycle scoring analysis performed with Seurat was used to identify a clusters of proliferating tumor cells and macrophages (Supplementary Fig. S7D). CSF1R was upregulated in the macrophages, giant cells and proliferating macrophages. Moreover, CSF1 was highly expressed by the neoplastic cell population in GCTB (Supplementary Fig. S7C), suggesting that CSF1-CSF1R signaling could be an important pathway in GCTB.

Integrating the GCTB and TGCT scRNA data and performing a UMAP cluster analysis shows that the giant cell clusters from the two tumor types do not overlap (Fig. 6B), indicating significant differences between the giant cells from both tumor types. The giant cell clusters from the GCTB and TGCT scRNA samples shared high expression of SPP1, MMP9, and CTSK (Supplementary Fig. S8A), and IHC for SPP1, MMP9, and CTSK confirmed that all three genes are highly expressed in the giant cell populations of GCTB and TGCT (Supplementary Fig. S8B).

While the giant cells from both tumors showed no overlap in UMAP cluster analysis, a trajectory analysis identified development trajectories from macrophages to giant cells in both TGCT and GCTB (Fig. 6C). There is a significant overlap between the genes that change over pseudotime in TGCT and GCTB (Fig. 6D). These findings suggest that macrophages can develop to giant cells in both TGCT and GCTB through similar developmental mechanisms. Genes associated with osteoclast differentiation were investigated in both GCTB and TGCT giant cells. The giant cells of GCTB were positive for all but one (TRAF6) of the canonical markers that have been described to be associated with osteoclast differentiation (29). The giant cells of TGCT were positive for a smaller but significant subset of these markers with elevated expression of CSF1R, SPI1, TNFRSF11A, NFATC1, and CTSK (Fig. 6E). IHC further confirmed CTSK expression in the giant cells of GCTB and TGCT (Supplementary Fig. S8B). CTSK is a known canonical marker gene for osteoclasts (30) and its high expression in TGCT giant cells could explain the bone destruction that is observed in some patients.

TGCT is a rare soft-tissue tumor characterized by the presence of a small population of neoplastic cells that harbor a translocation in the CSF1 gene and that express high levels of CSF1 mRNA. These cells attract and stimulate a large population of bystander macrophages (3). A number of studies have shown that these tumors react to inhibition of the CSF1 pathway (6–13, 31). To better understand the “landscaping effect” caused by the neoplastic cells on the tumor microenvironment we used scRNA-seq and long-read RNA-seq. Our data show that there is no CSF1R expression in the neoplastic cells and suggest that the CSF1R inhibitor treatment does not target the neoplastic cells but rather the bystander monocytes. Analysis of patient material from before and after CSF1R inhibitor treatment showed features consistent with a lack of response to CSF1 inhibitors in the neoplastic cells.

Using long-read RNA-seq from three TCGT cases we found three different translocations involving CSF1. We mapped the scRNA-seq data to the discovered translocations and found 79 cells that contained the translocations that were distributed in two clusters. The two neoplastic clusters contained 1,160 cells. The relatively low rate of detection of the translocation sequences in scRNA-seq data can be explained by the fact that the scRNA-seq libraries are generated by amplification of a variable length mRNA fragments at the 3′ end of genes that may not reach the gene fusion sites in all mRNA strands analyzed. Nevertheless, all cells identified by translocation-specific sequences located to the two cell clusters and thus provided a reliable indicator of the neoplastic nature of the majority of the cells in these clusters. However, we cannot fully exclude that a small subset of the cells in these clusters that could be normal synoviocytes, given the high levels of similarity between these cells. The identity of the neoplastic cells in the two clusters was further confirmed by the high levels of CSF1 mRNA in the majority of cells. Canonical markers assigned differentiation states to the remaining clusters. A cell-cycle state analysis with Seurat was used to identify proliferating cells and showed that the proliferating cell component consisted almost entirely of macrophages, consistent with the known chemoattractant and proliferative effect of CSF1 on these cells.

Analysis of highly expressed genes in neoplastic cells revealed GFPT2 as a marker with a higher specificity for these cells than clusterin. GFPT2 is the rate-limiting enzyme in the hexosamine biosynthesis pathway (32). It is expressed in tumor-associated fibroblasts in lung cancer (33) and is associated with poor clinical outcome in uterine leiomyosarcoma (34). We showed that GFPT2 co-localized with CSF1 expression, indicating the presence of the CSF1 fusion (3). The vast majority of the cells in the neoplastic cell cluster express high levels of GFPT2 that is known to lead to activation of the HIPPO signaling pathway (25). The GFPT2-positive neoplastic cells in TGCT show nuclear localization of YAP1 and expression of two downstream genes, indicating activation of the HIPPO signaling pathway. This finding suggests the possibility that the neoplastic cells in TGCT could be directly targeted with HIPPO pathway inhibitors such as verteporfin (35).

We used IHC for GFPT2 to highlight the neoplastic cell in FFPE material and showed that the neoplastic cells have a marked “dendrite-like” morphology. A dendritic appearance of a subset of cells in TGCT was previously reported for clusterin-positive cells (22) and other markers but the dendritic appearance is more pronounced by staining for GFPT2. Previous studies of the CSF1 fusion pointed to the loss of the 3′-UTR as a possible mechanism for CSF1 upregulation (5, 6). The 3′-UTR contains a negative regulatory sequence that would be lost in translocations involving CSF1 (5, 6), leading to high levels of expression. The dendritic morphology might facilitate cell–cell integrations and we hypothesize that this could involve a membrane-bound form of CSF1 on the neoplastic cells and CSF1R on the bystander macrophages. CSF1 contains a cleavage site in exon 6 followed by a transmembrane domain. This cleavage site is used to release CSF1 from the cell surface, without this cleavage site CSF1 is membrane bound (36). In our three cases, long-read RNA-seq elucidated the exact translocation break points and translocation partners for the CSF1 gene. In two cases the transmembrane domain and cleavage sites were lost but the translocation partner donated either a transmembrane domain (in case of PDPN) or a fibronectin domain that likely binds to the cell surface (in case of FN1; ref. 37). The third TGCT case had a translocation involving the 3′-UTR of CSF1. In this case, 20% of the reads show a splice variant that lacks the exon 6 transmembrane domain (Supplementary Fig. S1B). The sequences from CSF1 translocations reported by Tap and colleagues (6) also point to the loss of the CSF1 transmembrane domain and cleavage site but also the potential gain of other transmembrane domains from the translocation partners, for example in the translocations involving CD99 and CD101 as fusion partners. The presence of the membrane bound CSF1 could explain the advantage of a dendritic morphology in the neoplastic cells to facilitate interaction with the macrophages but further studies are required to address this issue.

To further study the relations between the different cell types that comprise TGCT, receptor–ligand interaction analysis was performed for CSF1 and PDGF pathways and this suggested a strong interaction between CSF1 produced by neoplastic cells and the CSF1R present on macrophages and giant cells. No interaction between CSF1 and CSF1R on the neoplastic cells was found and indeed no CSF1R expression was found on the neoplastic cells, providing no support for an autocrine loop using the CSF1 pathway. We showed the lack of CSF1R on the neoplastic cells on all 27 TGCT cases studied, but cannot fully exclude the possibility that there might be CSF1R expression on neoplastic cells in rare cases. Clinical trials showed that CSF1R inhibitors such as pexidartinib are effective targeted therapies for TGCT and show a reduction in tumor mass measured by MRI according to the Response Evaluation Criteria in Solid Tumors or TVS criteria (6, 12, 14). The lack of CSF1R on the neoplastic cells suggests that the CSF1R inhibitors target the bystander macrophages and giant cells but not the neoplastic cells. Patient samples from before and after CSF1R inhibitor treatment were studied by identifying the neoplastic cells, macrophages, and giant cells on FFPE sections. We showed an increase in the fraction of neoplastic cells while the fraction of macrophages remained stable measured in comparably sized histological sections. The radiologically measured TVS decreased (2/3) or remained stable (1/3). On the basis of our data, it seems likely that the bystander macrophages and giant cells are targeted by the CSF1R inhibitor treatment causing a significant shrinkage of the tumor and concentrating the neoplastic cell population within a smaller volume. The increase in fraction of neoplastic cells could also be caused by proliferation but in untreated samples, we were unable to find expression of proliferation markers in the neoplastic cells. It is not possible to quantify the absolute number of neoplastic cells in the tumor before and after treatment as we are limited to histological sections. Our analysis is also limited by the fact that there were only three usable cases for which there was tissue available from before and after CSF1R inhibitor treatment from the same patient. The clinical observations are in line with our molecular findings, but the sample size is small. The analysis of the few cases for which samples from before and after kinase inhibitor treatment was available is further complicated by the fact that there was significant variation in the time between cessation of therapy and the resection of the posttreatment sample. Another variable is the different response rates to CSF1 pathway inhibitors seen in patients. It is not unlikely that after stopping CSF1R inhibitor treatment the neoplastic cells would attract new macrophage and giant cell populations and over time would regain the volume. Tap and colleagues describe a future trial that will look at the long-term effects of discontinuation and retreatment with CSF1R inhibitor treatment (6) that may address this issue. We show that there is expression of PDGFR on the neoplastic cells in TGCT. Imatinib, a CSF1R inhibitor, also targets PDGFR among other tyrosine kinases. Treatment with imatinib might therefore target both the neoplastic cells and the bystander macrophages and giant cells.

In addition to macrophages, TGCT also contain multinucleated giant cells. These cells have not been well characterized but are referred to as “osteoclast-like” based on their morphology. To our surprise, the cell size restrictions for the 10X Genomics Chromium microfluidics did not exclude giant cells from our single-cell sequencing library and we were able to identify a cluster of multinucleated giant cells in our scRNA-seq data. Studying H&E-stained smears that were prepared after tumor dissociation and size filtering for cells that would pass through the 10X Genomics Chromium microfluidics showed the presence of the giant cells on these slides (Supplementary Fig. S5C, right), showing that the giant cells could pass through the filter. In our scRNA data we found further convincing support for the successful analysis of giant cells. First, levels of MMP9, SPP1, and C1QA mRNA correspond to IHC findings on giant cells in TGCT. Second, in the GCTB specimens we could identify the giant cells by their expression of TNFRSF11A, a characteristic marker for these cells in this tumor. Third, while the giant cells in TGCT and GCTB appear quite large in histologic images, the giant cells in GCTB have been measured as having a broad size range of 10 to 300 μm (38). Finally, other groups were also able to study giant cells using single-cell sequencing, such as the single-cell study of GCTB (39, 40). The presence of giant cells in the TGCT scRNA data allowed us to compare them with those found in GCTB that has several similarities with TGCT. Both are characterized by a population of neoplastic cells driving formation of a tumor consisting mainly of macrophages and giant cells (41). In GCTB destruction of bone is very common but this is usually not a prominent finding in TGCT. Recent single-cell studies of GCTB showed how monocytes developed into osteoclasts (39). In TGCT the giant cell population are described as “osteoclast-like giant cells” but it is unknown to what extend the multinucleated giant cells are similar to osteoclasts or to those giant cells found in GCTB. In addition, the possible path for development from TGCT monocytes into giant cells has not been studied. Trajectory analysis showed such a path for development to multinucleated giant cells in TGCT that is similar but not identical to what was recently reported for giant cells in GCTB (39). There were significant differences between the giant cells found in TGCT as compared with GCTB. The giant cells did not cluster together when the data was integrated and there were differences in expression of osteoclast development markers showing that there are significant differences between the two giant cell populations. However, both giant cell clusters from TGCT and GCTB express high levels of CTSK, as seen with scRNA-seq and IHC, which is a specific marker and important functional protein in osteoclast development (30). CTSK is a potential target on the giant cell population for which inhibitors have been developed (42, 43).

In conclusion, we used scRNA-seq to perform a detailed study of the tumor landscape of TGCT. By integrating our data with a published scRNA dataset derived from the synovium of patients with RA we found a remarkable overlap between the two neoplastic cell clusters in TGCT and the two types of synoviocytes providing proof that the neoplastic cells in TGCT are derived from synoviocytes. We found that GFPT2 is a sensitive and specific biomarker for the neoplastic cells in TGCT. We show that the neoplastic cells stimulate bystander macrophages and giant cells through CSF1-CSF1R signaling, possibly through direct cell contact rather than secreted CSF1. There is no evidence of an autocrine feedback loop and it is unlikely that the CSF1R inhibitor treatment targets the neoplastic cells, this was further supported by findings in patient material from before and after treatment with CSF1R inhibitors. This observation has significant clinical consequences as the risk for recurrence after cessation of treatment may be high. Very little data on the rate of recurrence is currently known. The giant cell population was characterized and compared with the giant cells in GCTB. Our data further shows that inhibiting the HIPPO signaling and PDGF pathways could directly target the neoplastic cell population in TGCT and that the giant cell population could respond to CTSK inhibitors.
