Intravenous delivery of oncolytic viruses often leads to tumor vascular shutdown, resulting in decreased tumor perfusion and elevated tumor hypoxia. We hypothesized that using 3TSR to normalize tumor vasculature prior to administration of an oncolytic Newcastle disease virus (NDV) would enhance virus delivery and trafficking of immunologic cell subsets to the tumor core, resulting in systemically enhanced immunotherapy and regression of advanced-stage epithelial ovarian cancer (EOC).
Using an orthotopic, syngeneic mouse model of advanced-stage EOC, we pretreated mice with 3TSR (4 mg/kg per day) alone or followed by combination with fusogenic NDV(F3aa) (1.0 × 108 plaque-forming units).
Treatment with 3TSR normalized tumor vasculature, enhanced blood perfusion of primary EOC tumors, and induced disease regression. Animals treated with combination therapy had the greatest reduction in primary tumor mass, ascites accumulation, and secondary lesions (50% of mice were completely devoid of peritoneal metastases). Combining 3TSR + NDV(F3aa) led to enhanced trafficking of immunologic cells into the primary tumor core.
We have shown, for the first time, that NDV, like other oncolytic viruses, is a potent mediator of acute vascular shutdown and that preventing this through vascular normalization can promote regression in a preclinical model of advanced-stage ovarian cancer. This challenges the current focus on induction of intravascular thrombosis as a requisite for successful oncolytic virotherapy.
See related commentary by Bykov and Zamarin, p. 1446
Ovarian cancer is a disease for which treatment efficacy has not changed appreciably in decades. This article describes a therapeutic approach that could dramatically improve our ability to treat women with advanced-stage ovarian cancer. We have shown that treatment with the TSP-1 peptide 3TSR induces tumor regression and promotes vascular normalization. The resultant improvement in tumor tissue perfusion and reduced tumor hypoxia decreased the immunosuppressive tumor environment and increased oncolytic viral-induced uptake of immune cells. 3TSR inhibited the vascular shutdown induced by Newcastle disease virus (NDV) and combination therapy with 3TSR and NDV(F3aa) reduced primary tumor growth and metastatic disease compared with controls and each treatment as a monotherapy. We anticipate rapid translation of this approach into a clinical trial in women with advanced-stage ovarian cancer. NDV has a rich history of efficacy in gynecologic malignancies and, combined with 3TSR, offers the opportunity to dramatically improve survival from this disease.
Ovarian cancer is the leading cause of death among all malignancies affecting the female reproductive tract (1). Known as “The Whispering Disease,” ovarian cancer presents with vague symptoms, such as abdominal pain, swelling, and indigestion, and lacks effective screening techniques (2). This lack of specific symptomology typically results in diagnosis at late stages, when the 5-year survival rate is as low as 26%, and clinical treatment strategies have reduced efficacy (1). The standard of care for late-stage disease has remained unchanged for decades and involves surgical cytoreduction followed by platinum- and taxane-based chemotherapy (3). The high propensity of chemoresistance to these agents reflects the need for innovative therapies to reduce the high mortality associated with this silent killer (4).
The idea of whether an immune response can be produced against neoplastic cells to eliminate cancer has long been contemplated (5). The role of the immune system in tumorigenesis was initially suggested based on observations of a greater incidence of cancer in immunodeficient mice and the unveiling of tumor-associated antigens (TAA; ref. 6). In recent years, immunotherapy—a group of treatments aimed at enhancing the body's immune system to fight cancer—has emerged as a new pillar of cancer treatment (7). A number of agents, such as PD-1–specific monoclonal antibodies to block inhibitory pathways downstream of antigen recognition (Keytruda, Merck) or personalized therapeutic vaccines aimed at reprogramming the immune system against cancer (Sipuleucel-T, Dendreon), have acquired FDA approval in the treatment of lung and prostate cancers, respectively (8, 9). Although no FDA-approved immunotherapy for ovarian cancer exists, research correlating increased progression-free survival with greater influx of T cells in tumors of patients with advanced ovarian carcinoma, and the emergence of epithelial ovarian cancer (EOC)–associated antigens, reflect the candidacy of EOC for immune-based treatments (10, 11).
The recent approval of a modified herpes virus (T-Vec, Amgen) as a drug for the treatment of melanoma has increased interest in the field of oncolytic virotherapy and the potential immunostimulatory roles of these agents (12). Oncolytic viruses (OV) preferentially infect and kill tumor cells while leaving normal somatic cells intact (12). In the process, these agents also instigate innate immunologic cell trafficking in response to viral and cell death–associated proteins, resulting in enhanced cross-priming of adaptive immune cells against TAAs (13). Newcastle disease virus (NDV) is an avian paramyxovirus with longstanding benefit as an oncolytic agent in animal models (14). NDV has the longest history of clinical trial testing of any OV and has demonstrated efficacy against a variety of cancers including advanced colorectal (15), breast (16), ovarian (17), and metastatic renal cell (18) cancers, with partial or complete responses reported in each. NDV has been shown to overcome the immunosuppressive tumor microenvironment and can directly lead to the induction of immune responses due to increased production of cytokines, especially interferon (IFN; ref. 13). Cleavability of the fusion protein of NDV is a major determinant of its virulence, lending potential for the modification of this protein to enhance therapeutic efficacy (19).
Although a number of studies have demonstrated the effectiveness of intratumoral delivery of OVs to treat primary tumors, the location of some tumors and/or dissemination of metastases makes it an impractical route of delivery (20). OVs can be delivered systemically, which allows for virus-mediated lysis of microscopic secondary tumors that cannot be resected during cytoreductive surgery. However, a consequence of systemic OV therapy is the initiation of vascular shutdown within the tumor following uptake (21–23). Initially, this vascular shutdown was viewed as a potential benefit of OV therapy, by sequestering virus and therefore maximizing direct oncolysis (22, 24). However, the maximum impact of OVs is now thought to result from their use as cancer vaccines using repeat dosages to induce greater intratumoral immunity (25). If OVs induce vascular disruption, uptake of subsequent doses of OV, or trafficking of immune cells to the tumor will be significantly impaired. Our approach to normalizing the tumor vasculature and preventing the OV-induced vascular shutdown represents a paradigm shift in OV tumor therapy.
In order to meet oxygen and nutrient demands, tumors initiate a crude version of the process of angiogenesis by secreting factors such as vascular endothelial growth factor (VEGF) in response to hypoxia, oncogenes, and loss-of-tumor suppressor genes (26). The resultant vessels are plagued by structural abnormalities such as irregular branching, loss of basement membrane integrity, and inadequate or absent perivascular cells, cumulating in heterologous flow and increased vessel permeability (27). The inefficiency of these vessels hinders delivery of cancer therapies, such as chemotherapy, to the tumor core (28). This limited vascular perfusion also selects for hypoxia and acidity in the tumor microenvironment, which have been shown to limit drug effectiveness and exacerbate metastasis (29). The current therapeutic strategy of “vascular normalization” uses molecules that inhibit proangiogenic factors or upregulate antiangiogenic factors to restore a proper balance of these signals and repair tumor vasculature (30). Blocking VEGF is the most common method to achieve vascular normalization, and anti-VEGF agents such as bevacizumab have had clinical success against cancer, primarily when combined with chemotherapy (31). However, anti-VEGF therapies have been associated with side effects such as gastrointestinal perforation and venous thromboembolism (32).
Thrombospondin-1 is a naturally occurring inhibitor of angiogenesis found on the cell surface and extracellular matrix of various cell types (33). This protein contains three homologous thrombospondin type 1 repeat domains (3TSR) that harbor the majority of its antiangiogenic properties through association of the CD36 receptor on endothelial cells, leading to inhibition of endothelial cell proliferation and migration (34, 35). As an antiovarian cancer agent, 3TSR also has the added benefit of directly inhibiting tumor cell proliferation and migration through TGFβ activation (36). As a small bioactive recombinant peptide, 3TSR has been shown to have significant antitumor effects in various models either alone or in combination with chemotherapy (35, 37). 3TSR potently induces vascular normalization in a murine model of advanced-stage EOC and enhances tumoral uptake of chemotherapy drugs delivered intraperitoneally (37).
We hypothesized that pretreatment with 3TSR ahead of NDV delivery would abate the vascular shutdown common with oncolytic virus therapy and increase the quantity of viruses and immunologic cells that infiltrate the tumor, leading to regression of advanced-stage EOC.
Materials and Methods
Reagents and cell lines
Spontaneously transformed murine ovarian surface epithelial cells (ID8; generously donated by Drs. K. Roby and P. Terranova, Kansas State University, Manhattan, KS) and human progressive ovarian epithelial adenocarcinoma cells (CAOV-3; ATCC) were cultured in Dulbecco's modified Eagle medium (DMEM, Gibco) with 10% FBS and 1% antibiotic/antimycotic (ABAM; Gibco). Normal human ovarian surface epithelial (NOSE) cells (generously donated by Dr. J. Liu, MD Anderson Cancer Center, Houston, TX) were cultured in DMEM (Gibco) with 10% FBS, 1% antibiotic/antimycotic (ABAM; Gibco) and 2% l-glutamine. 3TSR was generated with recombinant versions of the 3 Type I repeats of Thrombospondin-1 as previously described (37).
All mice were purchased from the Charles River Laboratories and housed in accordance with the Canadian Council on Animal Care and approved by the Animal Care Committee at the University of Guelph. Tumors were induced as described previously (38), in generation of an orthotopic, syngeneic, immunocompetent mouse model of EOC. Briefly, ID8 cells (1.0 × 106 in 6 μL) were injected directly under the left ovarian bursa of C57Bl-6 mice using a Hamilton syringe (Fisher Scientific). At 60 days after tumor induction (PTI), mice form large ovarian masses, numerous secondary peritoneal lesions, and accumulate abdominal ascites, which replicates the symptoms of women with stage III (advanced) EOC. Mice (n = 12–15 per group) were left untreated or treated with either 3TSR (4 mg/kg, intraperitoneal injection, once daily starting at day 60), NDV(F3aa; 1.0 × 108 PFU, intravenous injection, one time on day 74), or a combination of both. Mice were euthanized 90 days after tumor induction. Immediately, primary tumors were collected, and the peritoneum was assessed for metastatic spread using a lesion scoring system that was previously reported (38). Briefly, abdomens with no visible secondary tumors were scored a 0, presence of one or two secondary lesions scored a 1, three to 10 lesions were scored 2, and >10 lesions received a score of 3.
Production of NDV
NDV(F3aa) carrying a transgene encoding full-length enhanced green fluorescent protein (GFP) was rescued using plasmids kindly provided by Dr. Peter Palese (Mount Sinai School of Medicine, New York, NY) and a recombinant modified vaccinia virus (Ankara strain) expressing T7 RNA polymerase and amplified in specific pathogen-free embryonated chicken eggs as previously reported (39). NDV(F3aa)-GFP-containing allantoic fluid was harvested and clarified by centrifugation (1,500 × g). The virus was first filtered using Supracap TM 50 Depth Filter Capsules (Pall), followed by purification and concentration by tangential flow filtration using a Centramate LV holder (Pall) and a 100 kDa Omega Screen channel-cassette. Next, NDV underwent a sucrose gradient centrifugation using a SW41 rotor at 120,000 × g for 3.5 hours to remove contaminating chicken host proteins, where the virus was collected between the 40% and 50% sucrose band. Finally, viruses were dialyzed in PBS using a 10-kDa Slide-A-Lyzer dialysis cassette (Thermo Fisher Scientific) to remove any remaining sucrose. Purified viruses were aliquoted and directly frozen (−80°C) until use. Viruses were titrated using DF-1 cells by the 50% tissue culture infective dose (TCID50) method and calculated using the Spearman–Karber method (40). For each treatment, virus aliquots were taken from the −80°C freezer, thawed on ice, and diluted to the appropriate volume with PBS.
Cell viability assays
ID8, CAOV-3, and NOSE cells were seeded in 96-well plates (1 × 104 cells/well). The next day, cells were infected in triplicate with the indicated viruses at various multiplicities of infection (MOI; 0.2–50 PFU/cell). Following a 48-hour incubation, resazurin (resazurin sodium salt; Millipore-Sigma) was added to a final concentration of 20 μg/mL. After a 4-hour incubation, the fluorescence was read at excitation and emission wavelengths of 535/25 nm and 590/35 nm, respectively. These assays were repeated in triplicate.
Cell growth curve
ID8 (2.5 × 104 cells/well), CAOV-3 (2.5 × 104 cells/well), and NOSE (5 × 104 cells/well) cells were seeded into 12-well plates. The next day, cells were infected in triplicate with an MOI of 0.5 or mock infected (1× PBS). Cells were harvested at 24, 48, and 72 hours after infection (p.i.) and counted. Dead cells were excluded by trypan blue staining.
ID8 (2.5 × 104 cells/well), CAOV-3 (2.5 × 104 cells/well), and NOSE (5 × 104 cells/well) cells were seeded into 12-well plates. The next day, cells were infected in triplicate with an MOI of 0.1 or mock infected (1× PBS). Cells were harvested at 24 hours p.i. and stained for Annexin V (Thermo Fisher Scientific) and 7-aminoactinomycin D (7AAD; Thermo Fisher Scientific) and analyzed by fluorescence-activated cell sorting (FACS).
One-step viral growth curves
Cells were infected with NDV(F3aa)-GFP at an MOI of 0.5 in basal DMEM for 1 hour, rocking at room temperature. Cells were then washed 2× with PBS and incubated at 37°C. Aliquots (500 μL) were taken in triplicate at 8, 12, 24, and 48 hours p.i., and titers were assessed by TCID50 in DF-1 cells.
ID8 cells were seeded in 96-well plates (1 × 104 cells/well). Cells were pretreated with or without an anti-IFNAR antibody (Bio X Cell) at a concentration of 10 μg/mL. An hour later, cells were pretreated with increasing amounts of recombinant murine IFNβ (eBioscience) ranging from 0 to 6,000 pg/mL for 2 hours coupled with or without infection with NDV(F3aa)-GFP (MOI = 12.5). Viability was assessed after 72 hours using the previously described resazurin assay. The percentage of live cells was determined by normalization to mock-infected controls. This assay was repeated in triplicate.
ID8 (2.5 × 104 cells/well), CAOV-3 (2.5 × 104 cells/well), and NOSE (5 × 104 cells/well) cells were seeded in a 12-well plate and left to adhere overnight. The next day, cells were infected in triplicate at an MOI of 0.5, and supernatant was collected at 12, 24, 48, and 72 hours p.i. A mock-infected control was included, and supernatant was collected at 72 hours. LumiKine Xpress mIFNβ and hIFNβ kits (InvivoGen) were used according to the manufacturer's protocols, and quantities of mIFNβ and hIFNβ were calculated using a standard curve.
Primary ovarian tumors collected 90 days PTI were fixed in 10% neutral buffered formalin overnight, washed with 70% ethanol for 24 hours, and transferred to PBS. Tissues were embedded in paraffin wax and cut into 5-μm sections using a rotary microtome. Prior to staining, tissues were deparaffinized using reagent-grade xylene and subjected to a series of decreasing ethanol concentrations for rehydration. Endogenous peroxidase activity was quenched through a 10-minute incubation period in 3% hydrogen peroxide followed by antigen retrieval using citrate buffer with Tween 20. To reduce nonspecific binding of antibodies, samples were blocked in 5% bovine serum albumin (with 0.02% sodium azide) for 10 minutes at room temperature. Tumor sections were exposed to the following primary antibodies overnight at 4°C to assess infiltration of immunologic cell subpopulations: anti-CD68 (1:100, Novus), anti-CD8 (1:200, Novus), anti-CD4 (1:1,000, Abcam), anti-NKG2D (1:200, Abcam), anti-Foxp3 (1:1,000, Abcam), anti-CD138 (1:400, Stemcell), and antineutrophil (1:200, Abcam). Biotin-conjugated secondary antibodies (1:100; Invitrogen) were added for 2 hours at room temperature, followed by treatment with ExtrAvidin (1:50, Sigma-Aldrich) for 1 hour. Tissues were exposed to SigmaFast 3,3′-diaminobenzidine (DAB; Sigma-Aldrich) for visualization of staining and counterstained using Carazzi's hematoxylin. For each slide, areas of greatest positive staining within the tumor core were captured (n = 8 tumors per experimental group, 3–4 areas of interest per section). Histologic analysis was performed by manual count of cell nuclei and reported as a percentage against total cell nuclei.
Immunofluorescence: Vascular normalization
Tumors from each of the 4 treatment groups [PBS, 3TSR only, NDV(F3aa) only, and 3TSR + NDV(F3aa)] were collected at day 90, embedded in cryomatrix, and flash frozen. Cryosections (5 μm) were mounted on slides. Sections were fixed using reagent-grade acetone and stored at −20°C. Frozen sections were washed with PBS, and nonspecific binding was blocked using 5% bovine serum albumin in PBS for 10 minutes. Sections (n = 4 tumors per experimental group, 3–4 areas of interest per section) were subjected to immunofluorescence colocalization, in which they were simultaneously stained overnight using anti-CD31 (1:50, Abcam) to detect vascular endothelial cells and anti-alpha-smooth muscle actin (α-SMA; 1:600, Sigma) to identify vascular pericytes. Slides were stained with secondary antibodies against anti-CD31 (Alexa Fluor594nm, red, 1:100) and α-SMA (Alexa Fluor488nm, green, 1:100) for 1 hour at room temperature. Slides were counterstained and cured using Prolong Gold anti-fade mountant with DAPI. Representative images (3–4 per section, 200× magnification) were obtained under both the 594-nm and 488-nm channels using an inverted fluorescent microscope (Olympus) and Metamorph imaging software (Burlingame). These images were overlaid using Metamorph, and normalized vasculature was reported as the percentage of blood vessels exhibiting CD31 and α-SMA double-positive staining in each treatment group.
Immunofluorescence: Tissue hypoxia
Primary tumors from each treatment group were collected during necropsy at 90 days PTI and processed as described for IHC. Sequential tumor sections were mounted on slides (2 sections per slide) and deparaffinized as described. Endogenous peroxidase activity and nonspecific binding were blocked using 0.02% sodium borohydride in PBS for 12 minutes and 5% bovine serum albumin for 15 minutes, respectively. Sections were subjected to immunofluorescence colocalization, in which they were stained with anti-CD31 (1:25) and anti-α-SMA (1:600) simultaneously, at 4°C overnight. Sections were stained with secondary antibodies against anti-CD31 (Alexa Fluor594nm, red, 1:100) and α-SMA (Alexa Fluor488nm, green, 1:100) for 1 hour at room temperature. Tissues were once again blocked with 5% bovine serum albumin for 5 minutes and exposed to antihypoxyprobe-1 antibody (1:25, Hypoxyprobe) at 4°C overnight. Sections were stained with a secondary antibody against hypoxyprobe-1 (Alexa Fluor594nm, red, 1:150) for 1 hour at room temperature. Slides were counterstained and cured using Prolong Gold antifade mounting medium. Representative images (N = 4 tumors per experimental group, 3–4 areas of interest per section, 200× magnification) were obtained for both the CD31/ α-SMA colocalized sections and hypoxyprobe-1–stained sections. Sequential sections were overlaid, and hypoxia was pseudocolored blue using Metamorph software.
Western blot analysis: Expression of immunosuppressive cytokines
Tumor tissues were collected at 90 days PTI from mice treated with PBS control (n = 3) or 3TSR (4 mg/kg/day IP starting at 60 days PTI; n = 3) and were prepared in RIPA lysis buffer containing protease and phosphatase inhibitors and protein concentrations were determined using a DC protein assay (Bio-Rad Laboratories). Samples (40 μg of total protein) were boiled in a denaturing SDS sample buffer and subjected to SDS-PAGE using either 8% or 15% resolving gels. Proteins were transferred to polyvinylidene difluoride PVDF membranes (Bio-Rad Laboratories) and blocked at room temperature for 1 hour in 5% skim milk with TBST. Membranes were probed overnight at 4°C for anti-VEGF (1:600 Abcam), anti-CCL22 (1:600; Abcam), anti-IL6 (1:1,000; Cell Signaling Technology), anti-IL-10 (1:500; Abcam), or anti-TGFβ1 (1:800; Abcam). Following washes with TBST, membranes were incubated for 1 hour at RT with appropriate IgG HRP-linked secondary antibodies (Cell Signaling Technology, Inc.). Antibody expression was visualized with Western Lightning Chemiluminescence Reagent Plus (PerkinElmer BioSignal, Inc.). To ensure equal loading of samples, blots were probed with GAPDH (1:1,000; Cell Signaling Technology) for 1 hour at room temperature followed by anti-rabbit IgG secondary antibody for 1 hour at room temperature. Computer-assisted densitometry was performed using AlphaEase FC software (AlphaInnotech), and results were quantified and reported as integrated densitometry values relative to GAPDH.
GraphPad Prism v7 software (Prism v7; GraphPad Software, Inc.) was used for statistical analysis and graph preparation. Each in vitro treatment group was represented by at least 3 biological replicates (repeated in triplicate) in all experiments. Data from the in vitro model were analyzed using a one-way ANOVA, and a Tukey test was used to determine statistical differences among treatment group means. A two-way ANOVA was performed for in vivo data and was also followed by a Tukey post hoc test. Differences among treatment groups were considered significant if P < 0.05. Graphs are presented as means per group ± SEM.
Combination antiangiogenic (3TSR) and oncolytic virus [NDV(F3aa)] therapy induces regression of advanced-stage ovarian cancer in vivo
In our orthotopic, syngeneic mouse model of EOC, we started treatment with 3TSR at 60 days PTI to replicate the stage of disease progression in which the majority of women are diagnosed. Compared with saline controls, mice treated with 3TSR or NDV(F3aa) alone had significantly (P < 0.01) reduced primary tumor size at endpoint (90 days PTI). Mice undergoing combination therapy yielded the greatest reduction in primary disease at endpoint compared with saline controls (P < 0.0001) as well as either treatment alone (Fig. 1A). Consistent with our hypothesis that vascular normalization using 3TSR would abate the vascular shutdown caused by an oncolytic virus, primary tumors retrieved from NDV(F3aa)-only–treated mice were highly blanched and appeared to have reduced vascular perfusion (Fig. 1, arrow), whereas this was not observed in mice treated with 3TSR.
The effect of 3TSR and NDV(F3aa) on the extent of secondary lesions was also evaluated. At necropsy, the peritoneal cavities of mice were examined for visible secondary lesions, and each mouse was scored according to a grading system previously described (39). All treatments resulted in a significant decrease in the number of secondary lesions compared with sham-treated controls (P < 0.01). Animals treated with combination therapy had less secondary lesions than all other groups tested, and 50% of animals in the 3TSR + NDV(F3aa) group were completely devoid of visible secondary lesions at endpoint (Fig. 1B). Ascites fluid was collected, and the volume of fluid was measured for each mouse. There was a significant reduction in ascites volume in animals treated with both 3TSR and NDV(F3aa) compared with controls (Supplementary Fig. S1).
3TSR induces a potent vascular normalization, which is associated with significantly reduced tumor tissue hypoxia
We characterized the vascular density and maturity in tumors collected from the various treatment groups. CD31 and α-SMA were evaluated in cryosections of primary tumors at 90 days PTI by immunofluorescence microscopy to quantify the extent of tumor vascularization and the proportion of mature vessels. Quantification of the total number of CD31- and α-SMA–positive blood vessels per field of view revealed a significantly greater proportion of pericyte-covered vessels in groups treated with 3TSR (P < 0.0001). NDV(F3aa)-only–treated animals presented with primary tumor vessels that had phenotypic loss of structure and focal necrosis. Combining NDV(F3aa) with 3TSR yielded luminal, pericyte-covered vessels more characteristic of those found in normal capillary beds (Fig. 2A).
We evaluated tumor tissue perfusion with and without 3TSR-induced vascular normalization. At 90 days PTI, mice were injected with 60 mg/kg weight hypoxyprobe-1 i.p. 2 hours prior to endpoint. Hypoxyprobe-1 distributes to all tissues, causing formation of thiol adducts in cells with an oxygen concentration of less than 14 μmol/L (41, 42). IHC was then performed on primary tumor sections to probe for these hypoxic adducts as an indirect measure of vascular blood perfusion. Quantification of staining intensity per field of view revealed significantly (P < 0.01) decreased hypoxia, resulting from enhanced vascular perfusion in primary tumors of all mice treated with 3TSR compared with PBS or NDV(F3aa) alone (Fig. 2B). Further, we performed immunofluorescence colocalization imaging of vascular endothelial cells and vascular pericytes, followed by immunofluorescence imaging of hypoxyprobe-1 on sequential tumor sections to localize tumor hypoxia in the context of vascular maturity. Indeed, vessels within fields of view of low hypoxia had a significantly (P < 0.01) greater proportion of CD31- and α-SMA–positive vessels compared with highly hypoxic tissues (Fig. 2C). In order to further validate that normalized vasculature reduces hypoxia in tumors and increases oxygen diffusion distance, the average distance between vessels and the edge of hypoxic regions was measured. The average distance between normalized vessels and hypoxic regions was 113.76 μm, whereas this value for nonnormalized (αSMA-negative vessels) was 19.10 μm (Fig. 2D).
NDV(F3aa) significantly reduces the viability of ovarian cancer cells in vitro, while leaving normal cells intact
The direct oncolytic effects of NDV(F3aa)-GFP, assessed by a decrease in cell viability, were investigated in spontaneously transformed murine ovarian cancer cells (ID8) and human ovarian adenocarcinoma cells (CAOV-3). Cells were treated with NDV(F3aa)-GFP at increasing MOIs from 0 to 50 PFU/cell, and cytotoxicity was quantified using a resazurin cell viability assay. In our in vivo efficacy studies, we never observed signs of NDV(F3aa)-induced toxicity in any mice. Therefore, to investigate the safety of NDV(F3aa) in greater detail, NOSE cells, a minimally transformed human cell line that survives multiple passages, but does not form tumors in mice, were also included in the assay. At each MOI, NOSE cells were the least susceptible to cell death (Fig. 3A). At an MOI of 0.1 only ID8 and CAOV-3 cells showed a drop in viability to 52% and 77% (P < 0.0001; Fig. 3B and C), whereas there was no significant change at this MOI in the NOSE cells (Fig. 3A). Additionally, the mean 50% effective concentration (EC50) for each of these cell lines was calculated. CAOV-3 which were most susceptible to NDV(F3aa)-GFP-mediated oncolysis, reached an EC50 with an MOI of 0.12, the ID8 cells required almost a 10-fold higher amount of virus at an MOI of 1.1, while NOSE cells did not reach an EC50 in this assay. Cytotoxicity was confirmed by microscopy, noted by the presence of cytopathic effect, floating cells and cell counting using trypan blue exclusion at 24, 48, and 72 hours after infection of NDV at an MOI of 0.5. Cell growth curve results showed a 2-fold decrease in cell numbers in ID8 cells (P < 0.05) and significant drop in CAOV-3 cells (P < 0.01), while no notable changes were seen in NOSE cells (Fig. 3A). Annexin V staining of ID8, CAOV-3, and NOSE cells also confirmed significant cell death by apoptosis in CAOV-3 cells treated with NDV (P < 0.01; Supplementary Fig. S2).
Ovarian cells support low levels of NDV(F3aa)-GFP viral protein expression and replication
To evaluate the onset and duration of viral protein expression, ID8 and CAOV-3 cell lines were infected with NDV(F3aa)-GFP at an MOI of 0.5 and expression of the GFP transgene was visualized at various time points p.i. There was restricted expression in ID8 cells at all of the time points as evidenced by the limited number of GFP-positive cells (Fig. 4A). Conversely, infection of CAOV-3 cells with NDV(F3aa)-GFP yielded much higher expression of GFP as early as 8 hours p.i. (Fig. 4B). To investigate the extent to which ID8, CAOV-3, and NOSE cell lines are able to support NDV(F3aa) replication, and viral spread, we generated a single-step viral growth curve. The kinetics of viral replication did not differ between the three cell lines (Fig. 4C).
Lytic and replicative efficacy of NDV(F3aa) in ID8 cells is hindered by sensitivity to interferon
It is well documented that NDV is sensitive to type I IFNs and that defective antiviral signaling is one of the mechanisms that contribute to the tumor selective replication of NDV (43–46). To examine whether treatment with IFN would render ID8 cells refractory to NDV(F3aa) infection, these cells were treated with increasing amounts of recombinant mouse IFN (rIFNβ; 0–6,000 pg/mL) 2 hours prior to infection with NDV(F3aa)-GFP at an MOI of 12.5, and cell viability was assessed. To confirm that protection by IFNβ occurs through the IFN receptor, a second experiment was conducted where cells were pretreated with a type I IFN receptor (IFNAR)–blocking antibody for 1 hour prior to treatment with rIFNβ and NDV(F3aa). Assessment of cell viability after 72 hours revealed that ID8 cells are responsive to IFNβ and increased concentrations protected ID8 cells from the cytolytic effects of NDV(F3aa)-GFP (Fig. 4D). Furthermore, this protective effect was ablated in the presence of IFNAR-blocking antibodies. To determine whether pretreatment with rIFNβ also blocks viral protein expression and not just cytotoxic effects of NDV(F3aa)-GFP, we evaluated expression of the GFP transgene at 48 hours p.i. in rIFNβ-treated cells with and without IFNAR blockade. For the rIFNβ-responsive ID8 cell lines, pretreatment with rIFNβ also led to cessation of NDV-mediated transgene expression (Fig. 4E). To assess the extent to which ID8, CAOV-3, and NOSE cells are impaired in their ability to produce IFNβ, cells were infected with NDV(F3aa)-GFP at an MOI of 0.5 and supernatant was collected 12, 24, 48, and 72 hours p.i., and the levels of IFNβ were measured by ELISA. In transformed CAOV-3 and ID8 cells, production of IFNβ peaked at 24 hours p.i. releasing 161 pg/mL and 2,880 pg/mL, respectively (Fig. 4F). Although ID8 cells were able to produce IFNβ in response to NDV(F3aa)-GFP, they did so at a much lower extent than the NOSE cells. CAOV-3 cells produced the lowest amount of IFNβ in response to viral infection. At 72 hours p.i., CAOV-3 cells produced 30× less IFNβ than the NOSE cells (P < 0.05).
3TSR-induced vascular normalization enhances trafficking of immunologic cells into primary EOC tumors, especially when combined with NDV(F3aa) treatment

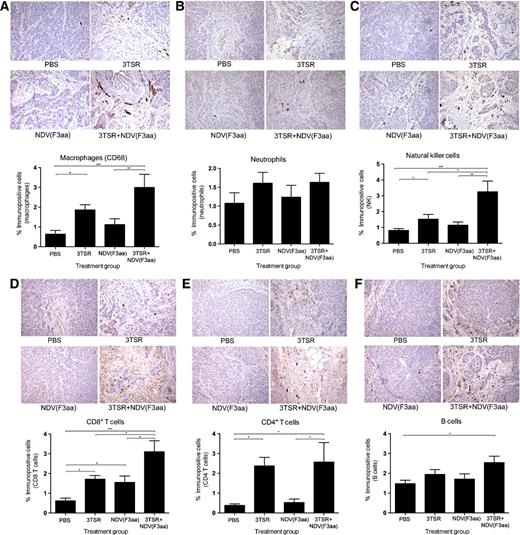

As type I IFNs are potent activators of the immune system, we sought to investigate whether the disease regression seen with 3TSR + NDV(F3aa) treatment correlated with tumor-infiltrating leukocytes. We used IHC analysis against classic immunologic cell markers to investigate the relative intratumoral immune cell trafficking between treatment groups. Compared with controls, treatment with 3TSR alone significantly (P < 0.05) enhanced the infiltration of macrophages (Fig. 5A), natural killer (NK) cells (Fig. 5C), and T cells (Fig. 5D and E) into the tumor core. Although NDV(F3aa) treatment alone only improved infiltration of CD8+ leukocytes compared with controls, combining 3TSR + NDV(F3aa) resulted in greater intratumoral influx of macrophages, NK cells, cytotoxic T cells, and T-helper cells compared with either treatment alone (Fig. 5). Combination therapy did not enhance primary tumor infiltration of neutrophils (Fig. 5B) or B cells (Fig. 5F) compared with single treatments.
Effector immune cells induced by 3TSR + NDV(F3aa) treatment are active and proliferating in the tumor core
Given that leukocytes face a number of obstacles to activation within the tumor microenvironment, we wanted to confirm that the increased number of immunologic cells trafficking to the tumor core as a result of 3TSR + NDV(F3aa) were proliferating or expressed markers of activation. We chose to investigate T-cell proliferation and NK cell function, given the significant influx of these lymphocytes into the tumors of our ID8 mouse model following combination treatment (11, 47, 48). Immunofluorescence colocalization on primary tumors revealed a greater proportion of activated NK cells (based on their expression of the early activation marker CD69) in tumors of mice treated with NDV(F3aa; P < 0.05), compared with controls or mice treated with 3TSR alone (Fig. 6A). The proportion of activated NK cells was significantly (P < 0.05) enhanced in primary tumors of mice treated with 3TSR + NDV(F3aa; Fig. 6A). Likewise, immunofluorescence colocalization of CD8+ T cells and the proliferation marker Ki67 confirmed enhanced influx of proliferating CD8+ T cells in all treatment groups compared with controls (Fig. 6B).
3TSR treatment reduces intratumoral levels of immunosuppressive cytokines
As TSP-1 has been implicated in regulating the tumor microenvironment, we sought to determine whether 3TSR treatment may inhibit the immunosuppressive environment in ovarian tumors. Tumors from control (PBS) mice or mice treated at 60 days PTI were evaluated for the expression of immunosuppressive cytokines VEGF, CCL22, IL6, IL10, and TGFβ1. 3TSR treatment resulted in reduced (P < 0.05) levels of all of the immunosuppressive cytokines, compared with PBS controls (Fig. 6C).
In the present study, we show a novel opportunity for combination therapy using 3TSR (vascular normalization) and an oncolytic virus to enhance infiltration of leukocytes into primary tumors. In our mouse model of advanced EOC, daily treatment with 3TSR in combination with a one-time intravenous injection of oncolytic NDV(F3aa) resulted in significant disease regression compared with either treatment alone, as evidenced by lower primary tumor size and reduced burden of secondary disease (Fig. 1). As predicted, 3TSR treatment alone did yield some tumor regression in our model, likely as a result of the inhibition of tumor cell proliferation and migration through TGFβ activation via the RFK sequence of 3TSR (49) and direct tumor cell apoptosis via signaling through the CD36 receptor (37). Interestingly, 3TSR treatment on its own increased the number of tumor-infiltrating leukocytes in primary ovarian tumors. Although thrombospondin-1 has been implicated in regulating inflammatory responses (50), its role in tumor immunity has not been studied. This immunogenic effect, combined with its ability to induce tumor cell and tumor endothelial cell apoptosis, may be responsible for its ability to induce regression of advanced-stage ovarian cancer as a single agent (37). NDV(F3aa) injection alone also resulted in tumor regression, which we predicted was likely due to direct oncolysis of tumor cells by the virus. Blanched tumors retrieved from mice treated only with NDV(F3aa) insinuated the phenomenon of vascular shutdown in these tumors. OV-induced vascular shutdown has been established as a consequence of systemic OV therapy with vaccinia virus (a poxvirus) and vesicular stomatitis virus (a rhabdovirus; refs. 22, 51). Our results have extended the phenomenon of vascular shutdown to a third virus, namely, NDV, which is a paramyxovirus. All of these viruses are in human clinical trials and, collectively, suggest that vascular shutdown may be a relatively common phenomenon among OVs. This OV-induced vascular shutdown is likely to lead to reduced tumor perfusion and increased hypoxia, which are often associated with negative sequelae such as metastases. Further, vascular shutdown would be expected to inhibit recruitment of effector leukocytes into the tumor microenvironment in the hours and days following OV-mediated activation of the immune system.
Through analysis of tumor vasculature in treated mice, we determined that treatment with 3TSR induced vascular normalization, as indicated by the presence of luminal, pericyte-covered vessels with significantly enhanced perfusion and reduced tumor hypoxia (Fig. 2). The formation of this normalized vasculature was not hindered by addition of NDV(F3aa) in the combination group. Whereas high VEGF expression in the tumor microenvironment mediates immunosuppression and sensitizes tumor endothelial cells to oncolytic virus infection (21), the reduced VEGF levels brought about by 3TSR intervention may have hindered the ability of NDV(F3aa) to infect tumor vessels and deterred vascular shutdown that results following OV therapy (52). We have shown previously that 3TSR can induce potent tumor vascular normalization and can enhance uptake of chemotherapy drugs (37). In addition to the anti-VEGF effects of 3TSR, vascular pruning and tumor regression was induced by direct binding to its cell-surface receptor CD36, which promotes apoptosis and decreases VEGFR-2 phosphorylation by increasing the expression of SHP-1 (37, 53). As such, 3TSR has multimodal antiangiogenic and antitumor effects and has significant advantage over other antiangiogenic therapies that only target VEGF ligand or receptor. 3TSR is derived from an endogenous glycoprotein and has shown no toxicities. Current work is evaluating the role of Fc-3TSR, a 3TSR fusion protein with a significantly longer half-life in circulation in vivo. These characteristics make 3TSR (Fc-3TSR) an attractive compound to be tested clinically.
Treatment with 3TSR also reduced tumor hypoxia significantly, which could improve the efficiency of anticancer agents relying on adequate oxygen levels. Hypoxia has been shown to contribute to immunosuppression in tumors by favoring immune tolerance through enhanced T-regulatory cell differentiation (54, 55). The hypoxic conditions of the tumor microenvironment have also been implicated in inducing tumor cell resistance to cytotoxic T-cell attack (56) and in the suppression of T effector cell function (57). This is relevant considering that in our study, NDV(F3aa) OV monotherapy resulted in reduced vascular supply, as evidenced by blanched tumors, immature vasculature, and increased expression of the hypoxia marker (Fig. 2). By enhancing tumor perfusion ahead of oncolytic virus delivery, 3TSR creates a tumor environment that is optimized for OV efficacy and creates a hospitable environment for immune cells to initiate intratumoral immunity.
In light of the significant tumor inhibition seen in vivo with combination 3TSR + NDV(F3aa) therapy, we predicted that the tumoricidal effects of NDV(F3aa) were due, in part, to direct oncolysis. We sought to investigate the oncolytic potential of NDV(F3aa) in vitro using spontaneously transformed murine EOC cells (ID8)—the same cell type used in the tumor induction in our mouse model (38). Generally speaking, OVs preferentially replicate in cancerous cells, while sparing normal tissue, due to cancer-specific defects in IFN signaling and other innate antiviral responses (46, 58, 59). Indeed, our own results further demonstrate the ability of an OV to preferentially infect and kill malignant cells, especially in the case of human CAOV-3 cells, which cannot produce IFNβ in response to NDV(F3aa) infection (Figs. 3 and 4). We determined that NDV(F3aa) is a strong inducer of apoptosis in transformed cells, although attempts to titer the virus in tumors were below the limit of detection after 36 hours (not shown).
IFN is critically involved in alerting the cellular immune system to immunogenic mutant cells and thus is one of the most well-established impairments in cancer. Defects in this cytokine pathway include an inability to produce and secret IFN, thereby permitting tumor selective replication of NDV (43–46, 60). In light of work by others showing that infection of transformed cells with NDV(F3aa) is a strong inducer of interferon as a warning signal for imminent threat to surrounding uninfected cells (13, 46), we predicted that the hindered replication of NDV(F3aa) in ID8 cells was likely due to activation of antiviral mechanisms. Indeed, we and others have shown that pretreatment with recombinant IFNβ can abrogate NDV oncolysis and provide complete protection (46, 61–63). This suggests that the susceptibility of ID8 cells in a monoculture to NDV(F3aa)-mediated lysis is likely due to a partial defect in their production of type I IFNs (Fig. 4D and F), although the cells have retained the potential to respond relatively well to IFNs in the extracellular milieu.
It is becoming increasingly clear that the tumor-lysing properties of OVs only partially contribute to the reduction of tumor burden observed in both preclinical and clinical settings (20). In reality, it is the combination of oncolysis and the ability of OVs to initiate systemic antitumor immunity that contributes to the efficacy of this therapeutic modality. Indeed, both in vitro and in vivo we found there to be limited replication of NDV(F3aa)-GFP (Fig. 4C). These results suggest that the immunostimulatory properties of NDV, rather than direct oncolysis and acute tumor debulking, are likely the dominant mechanism of action contributing to efficacy in this model. When testing the efficacy of NDV(F3aa)-GFP in the ID8 orthotopic syngeneic mouse model of EOC, we did not detect evidence of infectious viruses (the amount of virus present in the tumor was below the limit of detection for this assay) in the tumor at 36 hours p.i. Based on our in vitro data, we would anticipate that viral infection led to stimulation of pattern recognition receptors and induction of IFN, which in turn incited an in situ antitumor response causing tumor cell death and release of tumor antigens (64, 65). The type I IFN pathway is emerging as a key player in the induction of antitumor immunity, including innate immune recognition and activation of adaptive immunity, particularly with respect to activation of CD8+ T-cell responses (13, 66, 67), macrophages (68–70), dendritic cells (71), and NK (72) cells. These key responses are likely to have contributed to the reduction in primary tumor size (Fig. 1A), ascites fluid production (Supplementary Fig. S1), and secondary lesion formation (Fig. 1B) observed in this study.
We viewed this sensitivity of NDV(F3aa) to interferon as a benefit for the viral platform, given that this sensitivity is likely the reason NDV is limited to causing pathogenesis in avian species (73). In confirmation of the high safety profile of NDV(F3aa), we showed that NOSE cells, which are able to produce IFNβ (Fig. 4F), are refractory to viral oncolysis at lower, clinically relevant doses of NDV in vitro (Fig. 3A). The fact that NDV failed to replicate well in ID8 and CAOV-3 cells is interesting in the context of the remarkable efficacy that could be achieved with this virus in conjunction with vascular normalization. We showed that cell death and viral protein expression was much better in human CAOV-3 cells (Figs. 3C and 4A), and this was likely due to the significant impairment in IFNβ production (Fig. 4F) and predict that the efficacy of our novel therapeutic strategy would be potentiated in tumors that better support direct viral oncolysis and immune activation. In fact, significant therapeutic efficacy of NDV(F3aa) in vivo, despite mediocre NDV(F3aa)-mediated cell lysis in vitro, suggested to us that the effects of 3TSR and NDV(F3aa) on disease regression in advanced-stage EOC might be immune-mediated, rather than predominantly oncolytic. In accordance with this idea, we observed enhanced infiltration of macrophages, NK cells, and T-helper cells in the tumor cores of mice treated with 3TSR only, and also enhanced cytotoxic T-cell and B-cell infiltration when 3TSR was combined with NDV(F3aa; Fig. 5). The ability of 3TSR to increase infiltration of leukocytes could be due to the enhanced perfusion with blood-borne cells as a direct result of vascular normalization (74). In addition, VEGF is a potent inhibitor of adhesion molecules such as ICAM-1 and VCAM-1 on the surface of endothelial cells, and leukocytes tend to utilize these molecules for extravasation into the tumor (75). Therefore, the significantly improved influx of leukocytes into 3TSR-treated tumors may not only reflect greater perfusion but also enhanced diapedesis through tumor vasculature.
The combination of 3TSR and NDV(F3aa) therapy also increased the activation of NK cells within primary tumors. This heightened activation may have been due to a direct response to the virally infected cells, given that the proportion of activated NK cells was lessened in tumors of mice treated with 3TSR or PBS alone. Treatment with NDV(F3aa) also enhanced the proliferation of CD8+ T cells recruited to primary tumors. Interestingly, proliferation of cytotoxic T cells was also enhanced with 3TSR treatment alone, which appears to be a novel consequence of treatment with the TSP-1 type I repeat region. One mechanism by which 3TSR may facilitate recruitment and uptake of cytotoxic leukocytes is by reducing the intratumoral immunosuppressive environment. Many tumors, including ovarian, are known to upregulate the expression of immunosuppressive cytokines in order to inhibit immune cell recruitment and destruction of tumor cells (76). 3TSR treatment resulted in decreased expression of potent immunosuppressive cytokines such as VEGF, CCL22, IL10, IL6, and TGFβ (Fig. 6C). TSP-1 has been shown to have a direct anti-inflammatory effect, inhibiting expression of cytokines such as VEGF and IL6. Also, vascular normalization and decreased tumor hypoxia inhibits immunosuppression within the tumor microenvironment and results in tumor immunostimulation (77). By reducing the immunosuppressive environment, 3TSR treatment may act to facilitate immune cell recruitment by NDV(F3aa) and enhanced tumor uptake of these cells via vascular normalization. Given the high propensity of chemoresistance in advanced-stage ovarian cancer, combined 3TSR and NDV(F3aa) therapy may have important clinical implications by increasing immunogenic cell death and inhibiting the immunosuppressive tumor environment to resensitize chemoresistant ovarian cancer cells (78). Our ability to enhance uptake and activation of leukocytes and increase the CD8+/regulatory T-cell ratio could reduce the chemoresistance seen in advanced-stage ovarian cancer.
The data presented here further establish the ability of 3TSR to induce vascular normalization and facilitate delivery of anticancer agents to solid tumors. We have used an immunocompetent murine mouse model of EOC that has similarities to human ovarian cancer and relevance to guide clinical development of human therapies. In this study, we have shown that 3TSR improves the trafficking of leukocytes into EOC primary tumors and causes significant disease regression of advanced-stage EOC when combined with an oncolytic virus. We have also extended previous findings that NDV(F3aa) is a useful immunotherapeutic agent, given its broad safety margin and potent immunostimulatory effects. Clinical benefit has been observed by several investigators, and our studies have shown efficacy in advanced metastatic disease, including patients with chemotherapy-resistant ovarian carcinoma (17). The combined ability of 3TSR and NDV(F3aa) to target multiple aspects of the tumor microenvironment makes this therapeutic approach attractive for the treatment of advanced-stage ovarian cancer, which typically overcomes single-agent therapy and becomes chemoresistant. There are no current effective strategies for overcoming chemoresistant disease, and novel combination therapies are needed. This study provides proof of principle that vascular normalization can potentiate OV-based immunotherapy for the treatment of both primary and metastatic EOC. Further, it challenges the common hypothesis in the field of oncolytic virotherapy that vascular shutdown is a requisite or desired consequence for effective treatment of cancers. Importantly, this therapeutic approach has excellent translational potential because it is based on an oncolytic virus platform that has an extremely long history of testing in human patients (79) combined with a polypeptide that is highly amenable to cost-effective manufacturing under Good Manufacturing Practice conditions.
