Purpose:

Genetically engineered T cells are powerful anticancer treatments but are limited by safety and specificity issues. We herein describe an MHC-unrestricted modular platform combining autologous T cells, transduced with a targetable synthetic agonistic receptor (SAR), with bispecific antibodies (BiAb) that specifically recruit and activate T cells for tumor killing.

Experimental Design:

BiAbs of different formats were generated by recombinant expression. T cells were retrovirally transduced with SARs. T-cell activation, proliferation, differentiation, and T-cell–induced lysis were characterized in three murine and human tumor models in vitro and in vivo.

Results:

Murine T cells transduced with SAR composed of an extracellular domain EGFRvIII fused to CD28 and CD3ζ signaling domains could be specifically recruited toward murine tumor cells expressing EpCAM by anti-EGFRvIII × anti-EpCAM BiAb. BiAb induced selective antigen-dependent activation, proliferation of SAR T cells, and redirected tumor cell lysis. Selectivity was dependent on the monovalency of the antibody for EGFRvIII. We identified FAS ligand as a major mediator of killing utilized by the T cells. Similarly, human SAR T cells could be specifically redirected toward mesothelin-expressing human pancreatic cancer cells. In vivo, treatment with SAR T cells and BiAb mediated antitumoral activity in three human pancreatic cancer cell xenograft models. Importantly, SAR activity, unlike CAR activity, was reversible in vitro and in vivo.

Conclusions:

We describe a novel ACT platform with antitumor activity in murine and human tumor models with a distinct mode of action that combines adoptive T-cell therapy with bispecific antibodies.

Translational Relevance

Adoptive T cell therapy (ACT) using chimeric antigen receptor–transduced T cells is an effective strategy to treat hematologic malignancies. Our modular MHC-unrestricted platform with dependence on monovalent bispecific antibodies (BiAb) triggering can overcome antigen loss as an evasion mechanism of solid tumors and off-target cytotoxicity. Synthetic agonistic receptor (SAR)-mediated T cell activation occurs only in the vicinity of tumor cells and is restricted by the BiAb half-life. This provides an effective means of control, via BiAb dosing, for the further development of this platform. In summary, we provide evidence for the potential for clinical development and translation of this platform.

Therapeutic use of genetically engineered T cells has been pioneered in hematologic indications (1, 2). Chimeric antigen receptor (CAR)-based adoptive T cell therapy (ACT) is currently the main clinically used avenue (3). CAR-transduced T cells specific for CD19 have proven effective against treatment-refractory B cell-associated malignancies (4–6). CAR T cell therapy can be accompanied by cytokine release syndrome and other toxicities originating from excessive T cell activation (7), which frequently require intensive care and limit their applicability (8).

We have recently shown that combining ACT with a bispecific antibody (BiAb) targeting a tumor-associated antigen and a marker antigen unique to the tumor-specific T cells results in enhanced antitumor efficacy (9). An advantage of this strategy would be the dependence on a BiAb with a defined half-life. Potential toxicity would vanish with antibody clearance, and efficacy could be sustained through repeated dosing of the antibody.

We now hypothesized that a synthetic agonistic receptor (SAR) constituted of an extracellular domain—itself inert and not present on any naturally occurring T cell—fused to intracellular T cell–activating domains could be specifically triggered by a BiAb. Triggering would be conditional on binding of the second specificity to a tumor-associated antigen on the tumor cell. This strategy has the advantage that T cell activation can occur only in the presence of the BiAb and only in the vicinity of the antibody-targeted tumor cell. We generated two proof-of-concept synthetic proteins for murine and human studies together with the respective BiAb. Both receptors bear the advantage of comprising as the extracellular domain, an antigen not present on normal cells and restricted to particular tumor entities such as glioblastoma (10).

We herein describe a novel platform for adoptive T cell therapy combining advantages of CAR T cells and antibody-based therapies with the potential for clinical translation (Supplementary Fig. S1A).

Statistical analysis

The FACS data were analyzed with FlowJo V10.3 software. Statistical analysis was performed by using GraphPad Prism software 7.0. Differences between experimental conditions were analyzed using the unpaired two-tailed Student t test. In all in vivo experiments, two-way ANOVA with correction for multiple testing by the Bonferroni method was used to analyze differences between the groups. P values < 0.05 were considered to be significant. All statistical tests are two-sided. Data are shown as mean values ± SEM of a minimum of three biological replicates or independent experiments, as indicated.

Cell lines

The ovalbumin overexpressing murine pancreatic cancer cell line Panc02-OVA and the murine melanoma cell line B16F10 (11) were stably transduced with the pMXs vector (12) containing the full-length murine epithelial cell adhesion molecule (EpCAM, UNIPROT entry Q99JW5) cDNA to generate the EpCAM overexpressing cell lines Panc02-OVA-EpCAM and B16-EpCAM. The hepatocellular carcinoma cell line RIL-175 was kindly provided by Prof. Tim Greten, Center for Cancer Research at the National Cancer Institute (USA), and Nicolas Melin, University of Bern (Switzerland). The hepatocellular carcinoma cell lines Hepa1-6 and Hep3B were kindly provided by Dr. Mike Helms, Sanofi (Germany), while Hep-55.1C was provided by CLS Cell Lines Service (Germany). The murine mammary carcinoma cell line 4T1 (11) has a high endogenous EpCAM expression. The Platinum-E packaging cell line was purchased from Cell Biolabs Inc. (Hoelzel Diagnostika). The MIA PaCa human pancreatic cancer and A375 human melanoma cell lines were purchased from DSMZ. The SUIT-2 cell line was previously described (13). The Flp-In-HEK293 human embryonic kidney epithelial cells were purchased from Life Technologies. Human mesothelin overexpressing cell lines MIA PaCa-MSLN, SUIT-2-MSLN, and Flp-In-HEK293-MSLN (HEK-MSLN) were generated by transduction with pMXs (14) containing full-length human mesothelin (MSLN, UNIPROT entry Q13421) cDNA. Likewise, the human glioblastoma cell line U251 (purchased from ATCC) was generated to express full-length human EGFRvIII (Uniprot Entry P00533 AA 1-29, 298-646). The cell line MSTO-mesothelin-luciferase (MSTO-MSLN-LUC) was generated by transducing the MSTO-211H cells with lentiviruses (VSV-G pseudotyped) encoding full-length human MSLN and full-length firefly luciferase (ffLuc) sequentially. The cells were transduced with lentivirus encoding hMSLN. The gene encoding full-length human MSLN was cloned into the MCS of the lentiviral vector obtained from System Bioscience, pCDH-EF1a-MCS-T2A-Puro cDNA. The cells were then selected with puromycin at 5 μg/mL for 2 to 3 days. Surviving cells were stained and confirmed with surface expression of hMSLN. The generated MSTO-MSLN cells were then transduced with lentivirus encoding ffLuc. The gene encoding full-length ffLuc was cloned into the MCS of the lentiviral vector obtained from System Bioscience, pCDH-CMV-MCS-EF1a-Neo. The cells were then selected with 5 mg/mL of G418 for 2 to 3 days. The packaging cell line Platinum-A has been previously described (9). All cells were cultured in DMEM with 10% fetal bovine serum (FBS, Life Technologies), 1% penicillin/streptomycin (PS), and 1% L-glutamine (all from PAA). Puromycin (10 μg/mL) and 1 μg/mL blasticidin selection antibiotics (Sigma) were added to the Plat-A and Plat-E medium. Primary murine T cells were cultured in RPMI-1640 (Lonza) containing 10% FBS, 1% PS, 1% L-glutamine, 1% sodium pyruvate, and 1 mmol/L HEPES (T cell medium, TCM). β-Mercaptoethanol (50 μmol/L) was added to the T cell medium before culturing the cells. The cell lines used in experiments were regularly checked every 4 weeks for mycoplasma species with the commercial testing kit MycoAlert (Lonza). All human cell lines were short tandem repeat profiled in house to verify their origin. Cells were used for a time period no longer than 2 months.

Generation of T-cell–activating fusion constructs

The constructs were generated by overlap extension PCR and recombinant expression cloning into the retroviral pMP71 vector. The murine EGFRvIII–CD28–CD3ζ fusion receptor (E3) consists of human EGFRvIII (Uniprot Entry P00533 AA 1-29, 298-646), murine CD28 (Uniprot Entry P31041 AA 151-218), and murine CD3ζ (Uniprot Entry P24161 AA 52-164). The Crypto-1–CD28–CD3ζ fusion receptor (C3) consists of human cryptic antigen 1 (Uniprot Entry P13385 AA 31-150), murine CD8a (Uniprot Entry P01731 AA 153-196), murine CD28 (AA 178-218), and murine CD3ζ (AA 52-164). The human EGFRvIII–CD28–CD3ζ fusion receptor (hE3) consists of human EGFRvIII (Uniprot Entry P00533 AA 1-29, 298-646), human CD28 (Uniprot Entry P10747 AA 153-220), and human CD3ζ (Uniprot Entry P20963 AA 52-164). The control constructs E3del and C3del are lacking the intracellular signaling domains CD28 and CD3ζ.

Construction of 2 + 2 and 2 +1 BiAb

The construction of expression vectors for BiAb was performed by standard recombinant DNA technologies. All antibody chain genes were separately inserted into expression vectors under control of an MPSV or an SV40E hCMV promoter. The plasmids were cotransfected and transiently expressed in HEK293 or CHO cells. The 2 + 2 antibody was based on a muEpCAM-binding murine IgG2a antibody (clone G8.8). Disulfide-stabilized single-chain Fv (ScFv) specific for hEGFRvIII (clone MR1.1) or hCripto-1 (LC020 H3L2D1) were fused with a 3 × G4S connector to the C-terminus of the heavy chain. The 2 + 1 antibody contained two Fabs for muEpCAM or mesothelin (clone SS1) and one Fab for EGFRvIII which was N-terminally fused to one arm of the muEpCAM or mesothelin IgG. In order to obtain high yields of correctly paired molecules the “knobs-into-holes” technology was used for heterodimerization. P329G, L234A, and L235A (PG LALA) mutations were inserted in CH3 and CH2 domains to prevent binding to FcγRs and C1q (15). To ensure correct pairing of the different chains, the CrossMAbVH-VL technology (anti-EGFRvIII) and charged residues (anti-muEpCAM) were used (16).

Expression, purification, and quality control

All antibodies (unless commercially available) were transiently transfected and expressed at Roche Innovation Center Munich or Zurich, where they were purified. The secreted proteins were first purified by protein A affinity chromatography, followed by size-exclusion chromatographic steps. The protein concentration of purified protein samples was determined by measuring the optical density at 280 nm divided by the molar extinction coefficient calculated on the basis of the amino acid sequence. Purity and molecular weight of the molecules after the final purification step were analyzed by CE–SDS gel electrophoresis in the presence or absence of a reducing agent, using the Caliper LabChip GXII system (Caliper Lifescience) according to the manufacturer's recommendation. The aggregate content of the molecules was analyzed using a TSKgel G3000 SW XL analytical size-exclusion column (Tosoh) in 25 mmol/L K2HPO4, 125 mmol/L NaCl, 200 mmol/L L-arginine monohydrochloride, 0.02% (w/v) NaN3, pH 6.7 running buffer at 25°C. All antibodies had a purity of over 95%.

Animal experiments

Wild-type C57BL/6RJ and BALB/cJ mice were purchased from Janvier or Charles River. NSG mice (NOD.Cg-Prkdcscid Il2rgtm1WjI/SzJ) were purchased from Charles River. The transgenic mouse strain B6Smn.C3- Fasl<gld>/J was purchased from The Jackson Laboratory. Perforin-deficient C57BL/6-Prf1tm1Sdz mice were bred at the University of Zurich, Switzerland. The granzyme B knockout splenocytes were a gift from J. Pardo (Zaragoza, Spain). Suit-2-MSLN and MIA PaCa-MSLN xenograft models were established by subcutaneously injecting 5 × 105 cells into the right flank. MSTO-MSLN-LUC xenograft model was established by subcutaneously injecting 106 cells in a 1:1 ratio of PBS and Matrigel (Corning Life Sciences) into the right flank. BiAb and 107 T cells were given intravenously as indicated. For the BiAb depletion, redosing schedule and antibody dosage were carried out as indicated. A total of six BiAb treatments were injected per mouse at 3, 6, 9, 13, 17, and 19 days after tumor injection. Mice were bled 6 hours after antibody redosing.

For T cell depletion, C57BL/6RJ mice were injected intravenously with 107 T cells followed by intravenous injection of 1 mg cetuximab each 6 hours after T cell transfer. All animal experiments were approved by the local regulatory agency (Regierung von Oberbayern) and adhered to the NIH guide for the care and use of laboratory animals. Endpoints were registered by an observer blinded to the treatment groups as previously defined (9, 12, 17). IVIS Lumina X5 (PerkinElmer) was used to acquire in vivo images. The Living Image Software 4.7.2 was used for analysis.

Cytotoxicity assays

T cells were incubated with tumor cell lines and BiAb at indicated effector-to-target ratios and concentrations. Transduced T cells were added to the adherent tumor cells and cocultured as indicated. Lactate dehydrogenase (LDH) levels were measured according to the manufacturer's protocol (Promega). For impedance-based real-time killing assays the xCELLigence instrument (ACEA Bioscience) was used. The parameter termed cell index is a measure of the relative change in the electrical impedance at a certain frequency (ƒn), to represent the cell status. All the described calculations are based on the RTCA software version 1.

T-cell transduction and expansion

The transduction and expansion of primary human and murine T cells were conducted following previously described protocols (9, 12).

IFNγ and IL2 release assays

Human and murine T cell stimulation assays were set up at indicated antibody concentrations and effector-to-target ratios. IFNγ and IL2 release was quantified by enzyme-linked immunosorbent assay (ELISA, BD Biosciences).

Flow cytometry

Flow cytometry was performed according to previously published protocols (9, 17, 18). For saturation curve analysis, cells were incubated with increasing concentrations (0.01, 0.1, 0.5, 1, 5, 10, 20, or 25 μg/mL) of either the tetra- or trivalent BiAb and stained with the secondary antibody (tetravalent BiAb: Cy2-conjugated affinity pure goat-anti mouse IgG; trivalent BiAb: FITC-conjugated affinity pure goat-anti human IgG, both The Jackson Laboratory).

For phenotype analysis surface staining was performed by anti-mouse CD8a (FITC, clone 53- 6.7, BioLegend), anti-mouse CCR7 (PerCP/Cy5.5, clone 4B12, BioLegend), anti-mouse CD62L (Pacific Blue, clone MEL-14, BioLegend), anti-mouse CD69 (PE, clone H1.2F3, BioLegend), anti-mouse LAG3 (PerCP/Cy5.5, clone C9B7W, BioLegend), anti-mouse PD1 (PE/Cy7, clone 29F.1A12, BioLegend), and anti-human EGFR (APC, clone AY13, BioLegend). Intracellular staining was performed by anti-mouse Ki67 (PE, clone 16A8, BioLegend). For T cell immunophenotyping and tumor infiltrate analysis, surface staining was performed using anti-human CD45 (PacBlue, clone 2D1, BioLegend), anti-human CD3 (AlexaFluor700, clone HIT3a, BioLegend), anti-human CD4 (BV605, clone OKT4, BioLegend), anti-human CD8 (PercP-Cy5.5, clone SK1, BioLegend), and anti-human EGFR (APC, clone AY13, BioLegend). A Fixable Viability Dye (eFluorTM 780, eBioscience) was also included. Cells were washed and resuspended in PBS containing CountBright absolute counting beads (Life Technologies). Samples were analyzed with a BD FACSCanto II or Fortessa (BD Biosciences).

BiAb depletion in vitro assay

T cell and tumor cell coculture was set up at indicated antibody concentrations and effector-to-target ratios. SAR T cells were coincubated with BiAb before being added to the tumor cells. For the assays with human cells aMSLN-CD28-CD3ζ CAR T cells were used as a control and cocultured with tumor cells following the same procedure (no BiAb was added). For the assays with murine cells, an aEPCAM-CD28-CD3ζ CAR was used. After 24 hours, supernatants were collected and T cells transferred onto a new plate with seeded tumor cells. T cells were either resuspended with medium only or redosed with BiAb to control for the depletion. Four sequential assay depletions were performed. IFNγ concentration in the supernatants was quantified by ELISA.

Confocal microscopy

E3 T cells were stained with the PKH 26 red, untransduced T cells with PKH 67 green fluorescent cell membrane labeling dye (both Sigma-Aldrich) according to the manufacturer's protocol. Labeled cells were mixed in a ratio of 1:1, preloaded with 1 μg/mL BiAb and coincubated with 4T1 tumor cells in a 96-well plate for 8 to 10 hours. Upon cluster formation, cells were imaged with a Leica TCS SP5 confocal system (Leica Microsystems). A cluster was predefined as a tumor cell surrounded by ≥ 9 T cells.

Impact of BiAb on SAR T cells

We generated SARs constituted either of the extracellular domains of human EGFRvIII or of human Cripto-1 fused to the murine CD28 and CD3ζ domains (later referred to as E3 and C3, respectively). Proteins devoid of the intracellular domains were created as controls (referred to as E3del and C3del). All constructs could be transduced into murine cytotoxic T cells with comparable efficiencies (Supplementary Fig. S1B and S1C). Tetravalent 2 + 2 BiAb targeting EGFRvIII or Cripto and murine EpCAM were recombinantly generated (Fig. 1A). We analyzed T cell activation by the BiAb and found a marked and specific activation for both C3 and E3 murine T cells (referred to as C3 or E3 T cells) but not for C3del or E3del T cells measured by IFNγ release (Fig. 1B).

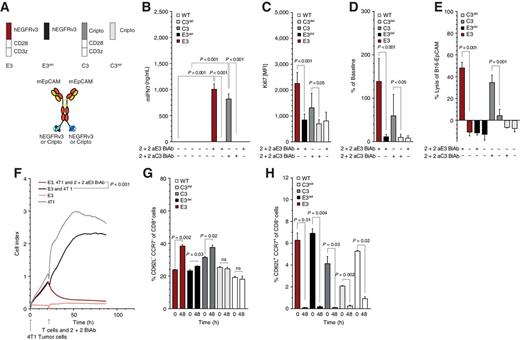

Figure 1.

SAR T cells can be triggered by BiAb to induce T-cell activation, proliferation, and tumor cell lysis. A, Schematic overview of the constructs used in experiments for B to H: tetravalent 2 + 2 anti-EpCAM × anti-EGFRvIII (or anti-Cripto) BiAb and receptor constructs E3, E3del, C3, and C3del. B, Quantification of E3, E3del, C3, C3del, and untransduced murine T-cell activation when cultured in 96-well plates, coated with the corresponding 2 + 2 BiAb (10 μg/mL). C, D, G, H, Transduced T cells were cocultured with Panc02-OVA-EpCAM+ tumor cells and 2 + 2 BiAb (1 μg/mL). The absolute number and the proliferation rate of the T cells were determined by staining cells for intracellular Ki67 before and after coculture. For phenotypic analysis, T cells were stained for CD8, CCR7, and CD62L surface expression. CD8+CCR7+CD62L+ T cells were defined as central memory T cells and CD8+CCR7CD62L T cells as effector memory T cells. E, Quantification of B16-EpCAM tumor cell lysis when cocultured with E3, E3del, C3, or C3del T cells (E:T 10:1). F, Real-time lysis of 4T1 tumor cells when cultured with E3 T cells with or without 1 μg/mL of BiAb (E:T 10:1). All graphs show mean values ± SEM of at least triplicates. Experiments in C, D, G, and H were performed in duplicates for technical reasons. Each experiment shown is representative of at least three independent experiments. P values by a two-sided unpaired t test are indicated. For impedance-based cytotoxicity assays, the total curve over time was compared. P < 0.05 was considered statistically significant. ns, not significant.

Figure 1.

SAR T cells can be triggered by BiAb to induce T-cell activation, proliferation, and tumor cell lysis. A, Schematic overview of the constructs used in experiments for B to H: tetravalent 2 + 2 anti-EpCAM × anti-EGFRvIII (or anti-Cripto) BiAb and receptor constructs E3, E3del, C3, and C3del. B, Quantification of E3, E3del, C3, C3del, and untransduced murine T-cell activation when cultured in 96-well plates, coated with the corresponding 2 + 2 BiAb (10 μg/mL). C, D, G, H, Transduced T cells were cocultured with Panc02-OVA-EpCAM+ tumor cells and 2 + 2 BiAb (1 μg/mL). The absolute number and the proliferation rate of the T cells were determined by staining cells for intracellular Ki67 before and after coculture. For phenotypic analysis, T cells were stained for CD8, CCR7, and CD62L surface expression. CD8+CCR7+CD62L+ T cells were defined as central memory T cells and CD8+CCR7CD62L T cells as effector memory T cells. E, Quantification of B16-EpCAM tumor cell lysis when cocultured with E3, E3del, C3, or C3del T cells (E:T 10:1). F, Real-time lysis of 4T1 tumor cells when cultured with E3 T cells with or without 1 μg/mL of BiAb (E:T 10:1). All graphs show mean values ± SEM of at least triplicates. Experiments in C, D, G, and H were performed in duplicates for technical reasons. Each experiment shown is representative of at least three independent experiments. P values by a two-sided unpaired t test are indicated. For impedance-based cytotoxicity assays, the total curve over time was compared. P < 0.05 was considered statistically significant. ns, not significant.

Close modal

Activation of C3 or E3 but not of C3del or E3del T cells by BiAb induced mitotic activity in the transduced T cells (Fig. 1C), resulting in enhanced T cell proliferation (Fig. 1D). When coculturing C3 or E3 T cells with EpCAM+ tumor cells, SAR-transduced but not control-transduced T cells induced lysis of tumor cells (Fig. 1E). In long-term assays, E3 T cells mediated complete lysis of 4T1 (Fig. 1F), Panc02-EpCAM+ and B16-EpCAM+ tumor cells (data not shown). Activation of T cells in coculture with various tumor cells drove T cell differentiation toward an effector memory phenotype (Fig. 1G and H), which was comparable to differentiation seen with a second-generation anti-EpCAM-CAR (Supplementary Fig. S1D–S1J). Coculture with tumor cells resulted in clustering of E3 T cells only in the presence of the BiAb (Supplementary Fig. S2A).

Influence of BiAb valency on antigen-specific T-cell activation

To further analyze the requirements for T cell activation upon SAR T cell engagement, we made use of the natural ligands of EGFR. Soluble EGFR ligands did not trigger activation of the E3 T cells when used under physiologic conditions (Fig. 2A and B and Supplementary Fig. S2B and S2C). Further, following the inhibition of EGFR ligand shedding from the tumor cell surface via the addition of the matrix metalloprotease inhibitor batimastat, SAR T cells were not activated by the upregulated membrane bound ligands compared with the positive control, though basal activation—lower by more than a 100-fold—was observed (Supplementary Fig. S2D). In contrast, Fc-tagged EGF immobilized to the well induced similar activation to EGFR-binding antibodies immobilized in the same way. This indicates that T cell activation is mediated by cross-linking of the SAR. The BiAb used for the experiments in Fig. 1 is bivalent for the SAR and may be able to crosslink receptors on its own. Soluble tetravalent 2 + 2 BiAb was indeed able to trigger T cell activation in the absence of tumor cells (Fig. 2C). We hypothesized that this activation might be due to the bivalency of the BiAb for the SAR. We therefore generated a trivalent heterodimeric 2 + 1 BiAb with only one binding moiety for the agonistic receptor E3 (Fig. 2A). When immobilized, the 2 + 1 BiAb induced similar levels of T cell activation to the 2 + 2 format (Fig. 2D). In contrast, soluble 2 + 1 BiAb failed to induce T cell activation when compared with its tetravalent 2 + 2 format (Fig. 2D). Cross-linking of T cells is therefore abolished when using a trivalent format monovalent for the fusion protein on the T cell. Off-target lysis of EpCAM tumor cells occurred with the 2 + 2 but not the 2 + 1 BiAb (Fig. 2E). Crucially, on-target lysis of EpCAM+ tumor cells was not altered by the 2 + 1 BiAb format and was comparable for all cell lines tested (Fig. 2F and Supplementary Fig. S2E and S2F). Similarly, dose response curves were comparable using the 2 + 1 and 2 + 2 BiAb for all cell lines tested (Fig. 2G and Supplementary Fig. 2G and H).

Figure 2.

Antibodies monovalent (vs. bivalent) for binding SAR avoid tumor-antigen independent T-cell activation. A, Schematic overview of the constructs used in B to G: trivalent (2 + 1 format) and a tetravalent (2 + 2 format) anti-EpCAM × anti-EGFRvIII BiAb as well as the constructs E3 and E3del. B, Quantitative analysis of E3, E3del, or untransduced T-cell activation when cultured with coated or soluble human EGF or different anti-EGFR antibodies (cetuximab or panitumumab, all at 10 μg/mL) for 48 hours. C, Culture of E3 T with either immobilized or soluble 2 + 2 BiAb in increasing concentrations (0, 0.1, 1, or 10 μg/mL). D, Quantification of E3 T-cell activation when cultured with either coated or soluble 2 + 2 BiAb or 2 + 1 BiAb in increasing concentrations (0, 0.1, 1, or 10 μg/mL). E and F, Coculture of Panc02-OVA (E) or Panc02-OVA-EpCAM+ (F) tumor cells with E3 T cells (E:T 5:1) preloaded with decreasing amounts (1, 0.5, 0.25, 0.125, or 0.062 μg/mL) of either 2 + 2 BiAb or 2 + 1 BiAb. G, Saturation curve analysis of E3 T cells for 2 + 2 BiAb and 2 + 1 BiAb BiAb in relation to the lysis curves of Panc02-OVA-EpCAM+ tumor cells. All graphs show mean values ± SEM of at least triplicates. Cytotoxicity analyses E and F were performed in quadruplicates. Experiments shown are representative of at least three independent experiments. P values by two-sided unpaired t test are indicated. P < 0.05 was considered statistically significant.

Figure 2.

Antibodies monovalent (vs. bivalent) for binding SAR avoid tumor-antigen independent T-cell activation. A, Schematic overview of the constructs used in B to G: trivalent (2 + 1 format) and a tetravalent (2 + 2 format) anti-EpCAM × anti-EGFRvIII BiAb as well as the constructs E3 and E3del. B, Quantitative analysis of E3, E3del, or untransduced T-cell activation when cultured with coated or soluble human EGF or different anti-EGFR antibodies (cetuximab or panitumumab, all at 10 μg/mL) for 48 hours. C, Culture of E3 T with either immobilized or soluble 2 + 2 BiAb in increasing concentrations (0, 0.1, 1, or 10 μg/mL). D, Quantification of E3 T-cell activation when cultured with either coated or soluble 2 + 2 BiAb or 2 + 1 BiAb in increasing concentrations (0, 0.1, 1, or 10 μg/mL). E and F, Coculture of Panc02-OVA (E) or Panc02-OVA-EpCAM+ (F) tumor cells with E3 T cells (E:T 5:1) preloaded with decreasing amounts (1, 0.5, 0.25, 0.125, or 0.062 μg/mL) of either 2 + 2 BiAb or 2 + 1 BiAb. G, Saturation curve analysis of E3 T cells for 2 + 2 BiAb and 2 + 1 BiAb BiAb in relation to the lysis curves of Panc02-OVA-EpCAM+ tumor cells. All graphs show mean values ± SEM of at least triplicates. Cytotoxicity analyses E and F were performed in quadruplicates. Experiments shown are representative of at least three independent experiments. P values by two-sided unpaired t test are indicated. P < 0.05 was considered statistically significant.

Close modal

Mechanism underlying tumor cell killing by SAR T cells

We next investigated the mode of lysis used by SAR T cells triggered through 2 + 1 BiAb. We found killing by SAR T cells to be independent of granzyme and perforin release (Fig. 3B and C). In contrast, T cells transduced with an EpCAM-specific CAR relied on the release of perforin for efficient killing (Supplementary Fig. S3A). FasL was essential for T cell–mediated lysis in the context of SAR activation for all cell lines tested (Fig. 3D and E and Supplementary Fig. S3B and S3C). In turn, IFNγ stimulation of tumor cells resulted in upregulation of FAS expression on all tumor cells (Supplementary Fig. S3D). FasL was, however, dispensable for EpCAM-CAR T cells to efficiently lyse their target (Supplementary Fig. S3E–S3G). As observed for E3 T cells, C3 T cells also killed their target cells in a FasL-dependent manner (Supplementary Fig. S3H).

Figure 3.

Tumor cell killing by SAR T cells relies on Fas–FasL interactions and is independent of granzyme and perforin release. A, Schematic overview of the constructs used in B to E: the trivalent antibody and the constructs E3. B, Real-time Panc02-OVA-EpCAM+ tumor cell killing with either E3 wild-type or granzyme B knockout murine T cell (E:T 10:1). C, Quantification of Panc02-OVA-EpCAM+ tumor cell lysis mediated by either E3 wild-type or perforin knockout murine T cells (E:T 10:1). D, Impact of T-cell–induced tumor cell apoptosis blocking antibodies [anti-CD178 (anti-FasL) or anti CD253 (anti-TRAIL); each at 10 μg/mL] on Panc02-OVA-EpCAM+ tumor cell lysis by E3 T cells (E:T 10:1). E, Real-time Panc02-OVA-EpCAM+ tumor cell killing by either E3 wild-type or Fas ligand knockout murine T cells (E:T 10:1). All graphs show mean values ± SEM of at least triplicates. Impedance-based cytotoxicity assays were performed in duplicates for technical reasons. Experiments shown are representative of at least three independent experiments. P values by a two-sided unpaired t test are indicated. For impedance-based cytotoxicity assays, the total curve over time was compared. P < 0.05 was considered statistically significant.

Figure 3.

Tumor cell killing by SAR T cells relies on Fas–FasL interactions and is independent of granzyme and perforin release. A, Schematic overview of the constructs used in B to E: the trivalent antibody and the constructs E3. B, Real-time Panc02-OVA-EpCAM+ tumor cell killing with either E3 wild-type or granzyme B knockout murine T cell (E:T 10:1). C, Quantification of Panc02-OVA-EpCAM+ tumor cell lysis mediated by either E3 wild-type or perforin knockout murine T cells (E:T 10:1). D, Impact of T-cell–induced tumor cell apoptosis blocking antibodies [anti-CD178 (anti-FasL) or anti CD253 (anti-TRAIL); each at 10 μg/mL] on Panc02-OVA-EpCAM+ tumor cell lysis by E3 T cells (E:T 10:1). E, Real-time Panc02-OVA-EpCAM+ tumor cell killing by either E3 wild-type or Fas ligand knockout murine T cells (E:T 10:1). All graphs show mean values ± SEM of at least triplicates. Impedance-based cytotoxicity assays were performed in duplicates for technical reasons. Experiments shown are representative of at least three independent experiments. P values by a two-sided unpaired t test are indicated. For impedance-based cytotoxicity assays, the total curve over time was compared. P < 0.05 was considered statistically significant.

Close modal

The impact and functionality of human SAR T cells combined with BiAb

To further assess the impact and functionality of the SAR platform, we generated a fully human version of E3 (Fig. 4A). This construct as well as its deletion construct E3del and the cripto SAR C3 could also be transduced into human T cells with comparable efficiencies (Supplementary Fig. S4A and S4B). We also generated a 2 + 1 BiAb targeting EGFRvIII with one specificity and the tumor-associated antigen mesothelin (MSLN) with the other specificity (Fig. 4A). Again, plate-bound BiAb but not soluble BiAb activated E3 T cells (Fig. 4B). MSLN-expressing tumor cells were targeted by BiAb and activated E3 but not E3del or untransduced T cells (Fig. 4C). E3 T cells mediated lysis of MSLN-expressing tumor cells (Fig. 4D and Supplementary Fig. S4C–S4F). In NSG mice, anti-MSLN CAR T cells were ineffective against a Suit-2-MSLN pancreatic cancer model (Supplementary Fig. S4G). In contrast, E3 T cells plus BiAb mediated antitumor responses in three tumor models (Fig. 4E–G). In addition, mice were challenged at two tumor sizes (<10 mm2 and <25 mm2), with a therapeutic benefit still being observed when larger tumors were treated (Fig. 4G and Supplementary Fig. S4H). In the MSTO-MSLN-LUC xenograft model, we could observe significant infiltration and persistence of E3 T cells in the treated mice 23 days following adoptive transfer, which was not seen in control groups (Fig. 4H and I). This tumor T cell infiltrate consisted predominantly of CD4+ SAR T cells, though CD8+ SAR T cells were also present (Supplementary Fig. S4I). In the MSTO-MSLN-LUC cell line, a luciferase signal could be used to quantify and show tumor cell persistence at experimental end-point (Supplementary Fig. S4J). LDH, urea, AST, and ALT serum levels remained within the normal range for both E3 T cell plus BiAb and E3del T cell plus BiAb-treated mice, showing no systemic parameters of kidney or liver damage in the treated models (Supplementary Fig. S4K–S4N).

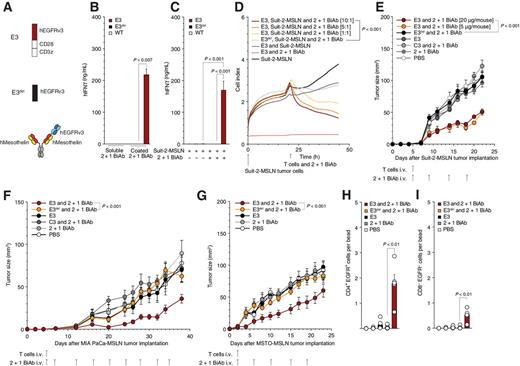

Figure 4.

Anti-human mesothelin × anti-EGFRvIII 2 + 1 BiAb specifically stimulates SAR T cells and mediates tumor killing only in the presence of mesothelin-positive cells. A, Schematic overview of the constructs used in experiments for B to E: Trivalent BiAb as well as the constructs E3 and E3del. B, E3, E3del, or untransduced T-cell activation when cultured with either coated or soluble 2 + 1 BiAb (5 μg/mL). C, Quantification of E3, E3del, and untransduced T-cell activation in coculture with Suit-2-MSLN tumor cell (E:T 10:1). D, Real-time Suit-2-MSLN tumor cell lysis by E3 or E3del T cells with indicated E:T. E, NSG mice inoculated s.c. with Suit-2-MSLN were treated with a single i.v. injection of E3 T cells only (n = 5), E3 T cells + 20 μg BiAb (n = 10), E3 T cells + 5 μg BiAb (n = 5), E3del T cells + 20 μg BiAb (n = 5), C3 T cells + 20 μg BiAb (n = 5), 20 μg BiAb only (n = 5), and PBS (n = 5), followed by a total of four BiAb injections as indicated. F, NSG mice inoculated s.c. with MIA PaCa-MSLN were treated with a single i.v. injection of E3 T cells only (n = 6), E3 T cells + 10 μg BiAb (n = 10), E3del T cells + 10 μg BiAb (n = 6), C3 T cells + 10 μg BiAb (n = 6), 10 μg BiAb only (n = 6), and PBS (n = 6), followed by a total of 10 BiAb injections as indicated. G, NSG mice inoculated s.c. with MSTO-MSLN-LUC were treated with a single i.v. injection of E3 T cells only (n = 5), E3 T cells + 10 μg BiAb (n = 5), 10 μg BiAb only (n = 5), and PBS (n = 5), followed by a total of four BiAb injections as indicated. H and I, Tumors from the mice in experiment 4G were FACS analyzed for T-cell infiltration. Following a drill down through the CD45 and CD3 gates, the EGFR+ CD4 (H) and CD8 (I) T-cell populations were quantified and are depicted as a ratio of cells per bead. In vitro experiments show mean values ± SEM of at least triplicates and are representative of at least three independent experiments. P values are based on two-sided unpaired t test. Impedance-based cytotoxicity assays were performed in duplicates for technical reasons. For impedance-based cytotoxicity assays, the total curve over time was compared. In vivo experiments shown are representative of two independent experiments. Analysis of differences between groups for the tumor growth curves was performed using two-way ANOVA with correction for multiple testing by the Bonferroni method. P < 0.05 was considered statistically significant.

Figure 4.

Anti-human mesothelin × anti-EGFRvIII 2 + 1 BiAb specifically stimulates SAR T cells and mediates tumor killing only in the presence of mesothelin-positive cells. A, Schematic overview of the constructs used in experiments for B to E: Trivalent BiAb as well as the constructs E3 and E3del. B, E3, E3del, or untransduced T-cell activation when cultured with either coated or soluble 2 + 1 BiAb (5 μg/mL). C, Quantification of E3, E3del, and untransduced T-cell activation in coculture with Suit-2-MSLN tumor cell (E:T 10:1). D, Real-time Suit-2-MSLN tumor cell lysis by E3 or E3del T cells with indicated E:T. E, NSG mice inoculated s.c. with Suit-2-MSLN were treated with a single i.v. injection of E3 T cells only (n = 5), E3 T cells + 20 μg BiAb (n = 10), E3 T cells + 5 μg BiAb (n = 5), E3del T cells + 20 μg BiAb (n = 5), C3 T cells + 20 μg BiAb (n = 5), 20 μg BiAb only (n = 5), and PBS (n = 5), followed by a total of four BiAb injections as indicated. F, NSG mice inoculated s.c. with MIA PaCa-MSLN were treated with a single i.v. injection of E3 T cells only (n = 6), E3 T cells + 10 μg BiAb (n = 10), E3del T cells + 10 μg BiAb (n = 6), C3 T cells + 10 μg BiAb (n = 6), 10 μg BiAb only (n = 6), and PBS (n = 6), followed by a total of 10 BiAb injections as indicated. G, NSG mice inoculated s.c. with MSTO-MSLN-LUC were treated with a single i.v. injection of E3 T cells only (n = 5), E3 T cells + 10 μg BiAb (n = 5), 10 μg BiAb only (n = 5), and PBS (n = 5), followed by a total of four BiAb injections as indicated. H and I, Tumors from the mice in experiment 4G were FACS analyzed for T-cell infiltration. Following a drill down through the CD45 and CD3 gates, the EGFR+ CD4 (H) and CD8 (I) T-cell populations were quantified and are depicted as a ratio of cells per bead. In vitro experiments show mean values ± SEM of at least triplicates and are representative of at least three independent experiments. P values are based on two-sided unpaired t test. Impedance-based cytotoxicity assays were performed in duplicates for technical reasons. For impedance-based cytotoxicity assays, the total curve over time was compared. In vivo experiments shown are representative of two independent experiments. Analysis of differences between groups for the tumor growth curves was performed using two-way ANOVA with correction for multiple testing by the Bonferroni method. P < 0.05 was considered statistically significant.

Close modal

Selective activation, applied safety switches, and reversibility of SAR T cells

To ensure no off-target effects or organ damage was being caused by SAR T cells, we cultured preactivated SAR T cells with hepatocellular carcinoma cell lines, as in vitro models for hepatocytes. Furthermore, with additional dosing of the BiAb, no further SAR T cell activation could be observed (Supplementary Fig. S5A and S5B). We could also show that glioblastoma cells, expressing EGFRvIII on their surface, were not specifically targeted by SAR T cells (Supplementary Fig. S5C and S5D) nor could they induce SAR T cell activation (Supplementary Fig. S5E and S5F).

Next, we aimed at demonstrating the intrinsic safety switches of the SAR platform. Activity of SARs unlike CARs is dependent on the presence of the BiAb and should resolve with BiAb elimination. In cocultures either with human Suit-2-MSLN or murine Panc-EpCAM tumor cells, SAR T cells triggered by the respective BiAb had limited activity over time unlike human anti-MSLN CAR or murine anti-EpCAM-CAR T cells. Repeated redosing of BiAb in the assay maintained SAR T cell activity at levels comparable with CAR T cells (Fig. 5A and B). We next compared tumor growth in mice that were redosed with BiAb with mice that received a single dose. Despite transient tumor control (P = 0.026 on day 12), nonredosed mice lost tumor control compared with redosed mice (Fig. 5D). To link these findings to limited T cell activation, mice were bled repeatedly, and serum IFNγ concentration levels were quantified. We found T cell stimulation was reversible in nonredosed versus redosed mice as a function of time (Fig. 5E). In summary, we could show that SAR T cell activity is limited to the continued presence of the BiAb, which unlike for CAR T cells could prevent unwanted prolonged T cell activation.

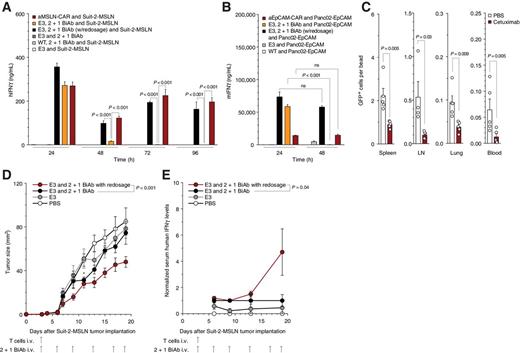

Figure 5.

E3-MSLN BiAb selectively activates E3 T cells while its depletion results in rapid and complete reversibility of SAR T-cell stimulation. A, B, For BiAb depletion, Suit-2-MSLN (A) or Panc02-OVA-EpCAM (B) tumor cells were repeatedly cocultured with E3 T cells with or without readjustment of the BiAb concentration (5 μg/mL). Control condition utilized anti-MSLN-CAR or anti-EpCAM-CAR T cells, respectively (E:T 10:1). C, Analysis of remaining E3-GFP T cells in spleen, lymph node, blood, and lung after cetuximab administration. D and E, NSG mice inoculated s.c. with Suit-2-MSLN (n = 5/group) were treated with a single i.v. injection of E3 T cells only, E3 T cells + 10 μg BiAb—redosed, E3 T cells + 10 μg BiAb—single dose, and PBS, followed by a total of six BiAb injections as indicated. Significance of nonredosed group versus E3 only at day 12 (P = 0.026; E). Mice were bled 3, 6, 10, and 16 days after T-cell transfer to quantify T-cell activation by IFNγ serum levels. Data are reported normalized to the values obtained from the single-dose group. In vitro and in vivo experiments show mean values ± SEM and are representative of at least two independent experiments. P values are based on two-sided unpaired t test. Analysis of differences between groups for the tumor growth curves was performed using two-way ANOVA with correction for multiple testing by the Bonferroni method. P < 0.05 was considered statistically significant. ns, not significant.

Figure 5.

E3-MSLN BiAb selectively activates E3 T cells while its depletion results in rapid and complete reversibility of SAR T-cell stimulation. A, B, For BiAb depletion, Suit-2-MSLN (A) or Panc02-OVA-EpCAM (B) tumor cells were repeatedly cocultured with E3 T cells with or without readjustment of the BiAb concentration (5 μg/mL). Control condition utilized anti-MSLN-CAR or anti-EpCAM-CAR T cells, respectively (E:T 10:1). C, Analysis of remaining E3-GFP T cells in spleen, lymph node, blood, and lung after cetuximab administration. D and E, NSG mice inoculated s.c. with Suit-2-MSLN (n = 5/group) were treated with a single i.v. injection of E3 T cells only, E3 T cells + 10 μg BiAb—redosed, E3 T cells + 10 μg BiAb—single dose, and PBS, followed by a total of six BiAb injections as indicated. Significance of nonredosed group versus E3 only at day 12 (P = 0.026; E). Mice were bled 3, 6, 10, and 16 days after T-cell transfer to quantify T-cell activation by IFNγ serum levels. Data are reported normalized to the values obtained from the single-dose group. In vitro and in vivo experiments show mean values ± SEM and are representative of at least two independent experiments. P values are based on two-sided unpaired t test. Analysis of differences between groups for the tumor growth curves was performed using two-way ANOVA with correction for multiple testing by the Bonferroni method. P < 0.05 was considered statistically significant. ns, not significant.

Close modal

Furthermore, we addressed whether T cells expressing a SAR that can be targeted by the depleting monoclonal antibody cetuximab could be efficiently removed in vivo. Mice transferred with E3 T cells were treated with cetuximab. A single dose of cetuximab efficiently depleted most SAR T cells in the lymph node, blood, lungs, and spleen (Fig. 5C). Together, these data demonstrate that SAR T cell action is limited by the half-life of the BiAb and that these cells can be effectively removed from circulation by depleting antibodies.

Here, we could demonstrate that BiAb can selectively activate T cells transduced with novel SAR and mediate MHC-independent tumor cell lysis. The specificity of this process is dependent on the valency of the used BiAb, as only BiAb monovalent for the T cell SAR mediated tumor-associated antigen-specific recognition. We also show, that while T cell degranulation is important for CAR T cell functionality, FasL on the T cell is necessary for SAR T cells to mediate antitumoral activity. The activity of SAR T cells is self-limiting due to antibody half-life, while cells can be effectively removed from circulation if needed (19).

Our report demonstrates that an otherwise inert molecule introduced in a T cell can be selectively triggered in vitro and in vivo through binding of a BiAb and subsequent cross-linking of the T cell with a tumor cell. Cross-linking ability of the 2 + 1 BiAb is restored in the presence of an immobilizing tumor-associated binding moiety for the other arm of the BiAb. Earlier work from our group and others could already demonstrate the synergy between ACT and BiAbs (9, 20). However, our present study went beyond these approaches by combining a trivalent 2 + 1 BiAb format, as described for clinical stage CD3 BiAbs [also known as T cell bispecific (TCB); refs. 21, 22] with SAR T cells. This platform can be adapted to different tumor types by altering either the BiAb tumor antigen target or the SAR.

Choosing the extracellular portion of the SAR will be central to the clinical translation of this therapeutic platform. The antigen must be restricted to the transduced T cells to avoid unwanted binding of the BiAb to nontumor tissues. There is a lack of truly cancer-specific surface antigens. Introducing one of the few cancer-specific mutations in a surface antigen (EGFR variant 3) or an embryonic antigen (Cripto-1) might be a promising approach (23, 24). EGFRvIII is known to mediate a constitutive, ligand-independent signaling due to the formation of transient homodimers which are stabilized by disulfide bonds of free amino-terminal cysteines C16. Although we have not observed ligand-independent signaling in our studies, the dimerization can be abolished by mutating the respective cysteine residue (25). The C16 is not involved in the BiAb engagement and thus could be mutated if any spontaneous dimerization of the SAR occurs.

Currently, most developmental efforts and clinical studies for cell-based immunotherapy focus on CAR T cell therapy (1). CAR T cells kill cancer cells through granzyme- and perforin-mediated lysis (26, 27). Given that the signaling moieties used by the SAR in our study are similar to those used by CARs, an identical mode of action would have been expected. Surprisingly, we found FasL to be an essential molecule for SAR T cell efficacy, and is further supported by reports on FasL activity as the mode of action for T cell–mediated killing (28). The exact underlying mechanism remains unclear, thus further investigation into the precise mechanism of killing is still needed, especially with regard to the influence of the BiAb on immune synapse formation and cell–cell interactions. It needs to be kept in mind that Fas–FasL interactions have been reported to promote tumor growth (29, 30); thus, under certain conditions, FasL involvement might be a detrimental mode of action.

Modular approaches include “universal CAR” (UniCAR) and “switch CAR” which consist of a classic CAR targeting a decoy antigen linked to a tumor targeting nanobody or ScFv against a tumor-associated antigen (31–33), CD16-CAR targeting monoclonal antibodies (34), or anti-FITC and antibiotin CAR targeting FITC-tagged antibodies (35) or biotinylated molecules (36, 37). These approaches may face immunogenicity issues as a result of the haptens used and require posttranslational modification of the antibody or molecules, or, in the case of CD16, they can be triggered by circulating or tissue-bound antibodies, limiting their applicability. Moreover, CARs are utilizing scFvs for antigen recognition and are fully functional in their own right upon on-target or even potential off-target engagement. Additionally, as CARs by definition do not require additional signals to trigger T cells once engaged, autonomous or tonic signaling that has been reported for several CARs remains a risk with the outlined strategies as well (38). In contrast, SARs are functionally inert molecules which rely on the external trigger of the BiAb for T cell activation. Some of these approaches, such as the antibiotin CAR, utilize molecule interactions that are up to 106 times stronger than conventional ScFv interactions, thus questioning if target engagement and disengagement would happen in a similar fashion as reported for CARs or BiAbs, which is important for efficacy. The platform we describe approximates the CAR approach in terms of efficacy and mode of action and combines, for the first time, modular activation with a target for T cell depletion.

A prerequisite for CAR strategies is tumor cell expression of the targeted antigen. CAR T cells bear the risk of toxicities due to attraction to healthy tissue that expresses the antigen or resistance to natural T cell brakes. These risks cannot be adequately predicted from preclinical data (39, 40). To avoid potentially lethal side effects, “safety switches” have been incorporated into therapeutically administered T cells. A major advantage of the platform we describe is its reversibility with the elimination of the BiAb. The BiAb can also be engineered for modified half-lives according to needs. SAR T cell activity could thus be restored upon redosing of the BiAb including the use of different tumor-targeted BiAbs. In a clinical setting, the adoptive transfer of SAR T cells should be administered first, with repeated dosing of the BiAb following, thus allowing for the careful monitoring of patients for the potential emergence of side effects. Moreover, the BiAb concentration could then be adjusted accordingly, to maintain T cell efficacy and manage possible toxicity. Further, the capacity of this platform to selectively activate SAR T cells without impacting all T cells differentiates the approach from pan-T cell–activating bispecific antibodies (41).

This property is in contrast to currently used safety switches for CAR T cell–based treatments which rely on the elimination of the transferred T cells through depleting antibodies or drugs, inducing selective cell death (19, 42). The speed and depth of T cell depletion remain to be established for these approaches, particularly whether they are sufficient to counteract severe toxicities. As of yet, no successful depletion of CAR T cells upon occurrence of toxicities has been reported in a clinical setting.

In addition, depleting agents may come with side effects of their own (43). Total depletion of the transferred T cells may result in disease relapse. It may make redosing of active T cells difficult as an anticell product immune response might be generated. These limitations call for safety switches that do not deplete the causing agent but rather tune down their activity. The platform we describe has this potential, as T cell activity will vanish with diminishing levels of BiAb and will resume upon redosing. Should the BiAb decay not be sufficient for limiting toxicities, SAR T cells could also be depleted using the clinical-grade antibody cetuximab, further enhancing the safety profile of the strategy.

The use of both CD4+ and CD8+ T cell subpopulations has been shown to be required for efficient and durable clinical responses to ACT (44). The SAR used in this study could be successfully transduced in CD4+ and CD8+ human T cells with great efficiency. Higher tumor infiltration and longer persistence in vivo by CD8+, and especially CD4+ SAR T cells emphasize the necessity of both cell types for the observed antitumoral responses.

Advanced T cell–based therapies have had limited success against solid tumors. This has mainly resulted from an impaired migration to and activation of the T cells within the tumor tissue (2). SAR T cells achieved long-lasting tumor control in vivo but failed to completely eradicate established tumors. Exchange of the signaling endodomains or equipment with additional structural components was observed to boost the in vivo performance of various CARs. As such, the impact of further modifications to SAR design must be investigated in search of further improvement in SAR T cell performance, crucially their in vivo functionality.

Moreover, exchanging the intracellular signaling domain CD28 might have an impact on the in vivo persistence and differentiation of SAR T cells (1). The additional engineering of SAR T cells with selected chemokine receptors might overcome their limited infiltration into tumor tissue (17). Further, the use of dominant-negative TGFβ receptors (45) or PD-1-CD28 (12) switch receptors could help shield the modified T cells from the immunosuppressive tumor microenvironment.

In conclusion, we describe a novel modular platform for MHC-unrestricted SAR T cell–based therapy with properties distinct from current approaches and combining advantages from the CAR T cell and antibody worlds. Further preclinical investigations will be needed to demonstrate its translational potential and to further optimize its components.

G. Niederfellner is an employee of Beoro Therapeutics GmbH and is listed as a co-inventor on a patent on combining bispecific antibody molecules with antigen-transfected T cells for use in cancer therapy, owned by Roche. S. Endres has ownership interests (including patents) at TCR 2 Ltd. Cambridge. C. Klein has ownership interests (including patents) at Roche. S. Kobold is a consultant/advisory board member for Celyad SA and reports receiving commercial research grants from TC2 Inc. M. Geiger, R. Murr, G. Niederfellner, C. Sustmann, and C. Klein are employees and stock owners at Roche. M. Geiger, G. Niederfellner, C. Sustmann, S. Endres, C. Klein, and S. Kobold are listed as co-inventors on two patents applications on the use of bispecific antibodies to enable adoptive T cell therapy, co-owned by the Ludwig-Maximilians-Universität and Roche; these applications are not licensed. No potential conflicts of interest were disclosed by the other authors.

Conception and design: C.H. Karches, M.-R. Benmebarek, M.L. Schmidbauer, M. Kurzay, F. Rataj, B.L. Cadilha, G. Niederfellner, C. Sustmann, C. Klein, S. Kobold

Development of methodology: C.H. Karches, M.-R. Benmebarek, M.L. Schmidbauer, M. Kurzay, B.L. Cadilha, D. Lamp, C. Klein, S. Kobold

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): C.H. Karches, M.-R. Benmebarek, M.L. Schmidbauer, M. Kurzay, R. Klaus, B.L. Cadilha, S. Lesch, C. Heise, J. vom Berg, D. Lamp

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): C.H. Karches, M.-R. Benmebarek, M.L. Schmidbauer, R. Klaus, B.L. Cadilha, M. Jastroch, D. Lamp, S. Kobold

Writing, review, and/or revision of the manuscript: C.H. Karches, M.-R. Benmebarek, B.L. Cadilha, S. Lesch, P. Duewell, C. Sustmann, S. Endres, C. Klein, S. Kobold

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): M.-R. Benmebarek, M.L. Schmidbauer, R. Klaus, M. Geiger, B.L. Cadilha, C. Heise, R. Murr, M. Jastroch, D. Lamp, J. Ding, P. Duewell, S. Kobold

Study supervision: S. Kobold

This study was supported by grants from the international doctoral program “i-Target” funded by the Elite Network of Bavaria, the Melanoma Research Alliance (grant numbers N269626 and 409510), the Marie-Sklodowska-Curie “Training Network for the Immunotherapy of Cancer (IMMUTRAIN)” funded by the H2020 program of the European Union, the Else Kröner-Fresenius-Stiftung, the German Cancer Aid, the Ernst-Jung-Stiftung, the Bundesministerium für Bildung und Forschung VIP+ grant ONKATTRACT, and the European Research Council Starting Grant (grant number 756017). Parts of this work have been performed for the doctoral theses of C. H. Karches, M.-R. Benmebarek, M. L. Schmidbauer, M. Kurzay, M. Geiger, and R. Murr at the Ludwig-Maximilians-Universität München.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
