The Intersection between Tumor Angiogenesis and Immune Suppression Free

Angiogenesis and immune tolerance are both normal physiologic mechanisms that are hijacked by tumors. Angiogenesis involves the formation of new vessels from preexisting ones during development and wound healing (1). The modulation of angiogenesis is highly regulated by proangiogenic and antiangiogenic factors, a process that becomes disrupted and dysregulated in cancer (2). Tumor-driven hypoxia increases the expression of proangiogenic factors leading to the formation of new vessels that are vital to the tumor survival and proliferation (3). The VEGF family, consisting of six growth factors (VEGFA-F), plays the most critical role in angiogenesis by binding to their receptors VEGFR1-3 and neuropilin (4). Angiogenesis can also be mediated by the angiopoietin (Ang1-2)/Tie-2 pathway, independent from the VEGF pathway. Angiopoietin-1 is constitutively expressed in many adult tissues and is required for normal vascular homeostasis, whereas Ang-2 is predominantly expressed in tissues undergoing vascular remodeling and in hypoxic tumor microenvironments (5, 6). Ang-2 plays a critical role in regulating blood vessel maturation and is complementary to the VEGF pathway in later stage of vascular formation (7). Elevated levels of VEGF and Ang-2 are associated with a worse prognosis in a number of different tumor types (8, 9). Accordingly, drug development was heavily focused on antiangiogenesis in the past decade as a strategy to deprive tumor's nutrition and inhibit tumor growth. However, despite the modest activities of these agents as single agents or in combination with chemotherapy, tumors can overcome their effects and become resistant (10).

Cancer immunotherapy has emerged as a modality that can effectively treat a variety of cancers with the discovery of immune checkpoints (11). A plethora of investigations with immune checkpoint inhibitors (ICI) has demonstrated a long-lasting clinical activity against many malignancies (12). ICIs block another mechanism hijacked by tumor “immune exhaustion,” unleashing the effector immune cells against cancer (13). Primary resistance to ICIs is described in tumors that lack tumor-infiltrating lymphocytes. In addition, tumors that initially respond to ICIs can develop secondary resistance due to defects in antigen-presenting machinery and the overexpression of coinhibitory molecules among other factors (14).

The cancer immunotherapy field is currently heavily focused on discovering factors that drive resistance to ICIs. Angiogenesis plays a major role in immune suppression and can lead to both primary and secondary resistance to ICIs (15). Accordingly, these two phenomena (angiogenesis and immune exhaustion) could unleash the potential of effective combination (16).

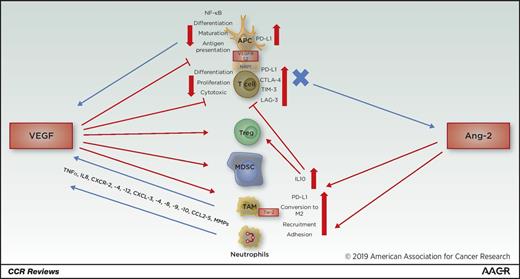

VEGF-driven angiogenesis and immune suppression interact at many different levels (Fig. 1). The VEGF family plays a key role in suppressing tumor immune response by negatively affecting the antigen-presenting cells (APC) and effector T cells while augmenting the effects of immune suppressive cells such as regulatory T cells (Treg) and myeloid-derived suppressor cells (MDSC). The binding of VEGF factors to their receptors (mainly VEGFR2) inhibits the differentiation of monocytes into dendritic cells (DC), drives immune evasion by decreasing DC maturation and antigen presentation (an effect that is mediated by the inhibition of nuclear factor NF-κB; ref. 17), and leads to PD-L1 expression on DCs (18). Likewise, the suppressive effect of VEGF on T cells is driven by the inhibition of the progenitor cells differentiation to CD4⁺ and CD8⁺ lymphocytes (19), decreasing T cells' proliferation and cytotoxic effects (20), and increasing T cells' exhaustion by increasing PD-L1, CTLA-4, TIM3, and LAG3 expression on T cells (21). In addition, VEGF-driven angiogenesis creates a barrier for T cells' infiltration by decreasing the endothelial intercellular adhesion molecule-1 expression (22). On the other hand, VEGF-driven angiogenesis leads to the expansion of suppressive immune cells including Tregs and MDSCs (23, 24) and increase the infiltration of tumor-associated macrophages (TAM) to the tumor sites (25). The immune-suppressive effects of angiogenesis have been shown to be reversible using antiangiogenesis, which could suggest that the activity of these agents is immune-driven. For example, the use of bevacizumab (IgG1 antibody that targets VEGF-A) has been shown to normalize the vasculature (26), restore DC maturation, and reduce Tregs in patients with colon cancer (27, 28) and decrease MDSCs in renal cell carcinoma (RCC) mouse model (29).

The modulation effect of angiogenesis on the immune microenvironment is a two-way process as both the innate and adaptive immune cells can lead to endothelial proliferation (Fig. 1; ref. 30). DCs express VEGFR-1 and 2 and can promote angiogenesis when activated (31). Tumor-driven inflammation secretes proangiogenic factors, which facilitates the migration of more inflammatory cells to the tumor site. Monocytes are thought to be the main driver of neovascularization. Both neutrophils and TAMs promote angiogenesis by secreting proangiogenic factors, such as VEGF, TNFα, IL8, and various chemokines including CXCR-2, 4 and 12, CXCL3,4,8,9,10, and CCL2-5 (32, 33). In addition, TAMs secrete metalloproteinases (MMP) that can destabilize the vasculature leading to tumor migration and metastases (34). Although T cells do not directly secrete VEGF, they facilitate its effect by acquiring neuropilin 1 (NRP1) during interaction with DCs, which binds to VEGFA to promote angiogenesis (35).

Ang-2 is an autocrine cytokine that is produced by endothelial cells and functions as an antagonist of Ang1/Tie2 signaling that is involved in vasculature remodeling, which facilitates VEGF-dependent angiogenesis (7). Tie-2 is expressed on a proangiogenic subpopulation of myeloid cells in circulation and tumors called Tie-2–expressing monocytes/macrophages (TEM; refs. 36, 37). The interaction of Ang2/Tie2 leads to immune suppression by distinct mechanism compared with VEGF. Ang-2 increases the neutrophil recruitment and adhesion of both neutrophils and TEMs to endothelium (38), and increases the conversion to M2-like macrophage phenotype (39). However, unlike VEGF, Ang-2 has no direct effect on T cells but it can stimulate TEMs to secrete IL10, which can promote the expansion of Tregs and the inhibition of effector T cells (38, 39; Fig. 1).

The Ang-2 pathway is another potential angiogenic mechanism for ICI resistance. Treatment with ICIs can induce functional Ang-2 antibodies especially in patients who derive clinical benefits from ICIs. In addition, patients treated with CTLA-4 and PD-1 blockade with high pretreatment serum Ang-2 and increased Ang-2 titers posttreatment were found to have worse clinical outcomes compared with patients with lower pretreatment titers (40, 41). Interestingly, the magnitude of Ang-2 titers increase correlated with worse clinical outcomes. In addition, there was a correlation between the increase in Ang-2 expression and tumor infiltration by CD68⁺ and CD163⁺ macrophages with Ang-2 promoting the expression of PD-L1 on macrophages. This suggests that the Ang-2 immune resistance mechanism is driven by monocytes and inhibiting Ang-2 and immune checkpoints is potentially synergistic. On the other hand, the combination of ipilimumab and bevacizumab was found to be associated with decreased Ang-2 tumor expression, which could explain the role of VEGF in driving Ang-2 upregulation on tumors, a process that is blocked by bevacizumab (40). Accordingly, this combination could potentially reverse the immune resistance to ipilimumab through TAM suppression. On the basis of these findings, we initiated a clinical trial of anti–Ang-2 inhibitor (trebananib) in combination with PD-1 inhibitor (pembrolizumab). The trial is currently enrolling patients with melanoma and renal cell cancer following PD-1 therapy, and ovarian and colorectal cancer (NCT03239145). The primary objectives of this study are to test the safety of the combination and whether PD-1 resistance driven by angiogenesis and macrophages could be overcome by blocking Ang-2. In summary, Ang-2 is an important component of the angiogenesis process that could drive immune resistance through myelocytes recruitment and targeting the Ang-2 pathway may overcome such resistance.

Many clinical trials have been conducted to test the efficacy of ICIs and antiangiogenesis combinations to reverse the immune suppression–driven by vasculopathy. Table 1 summarizes some of these clinical trials with available preliminary or final results.

Both checkpoint blockade and vaccination strategies have reported severe tumor vasculopathy accompanied by perivascular and intramural lymphoid infiltrates in patients with melanoma (42). This observation led to phase I trial of the combination of bevacizumab and ipilimumab in patients with unresectable stage III or IV melanoma. The results of this trial provided the first experience of combining antiangiogenesis with immune checkpoint blockade (43). The combination revealed promising activity, including a 19.6% best overall response rate (ORR) and a disease control rate (DCR) of 67.4% with an overall survival (OS) of 25 months. Immune-related adverse events included giant cell arteritis, hepatitis, and uveitis. Several notable observations were made in correlative laboratory and pathologic investigations in this trial. Marked infiltration with CD3⁺, CD4⁺, and CD8⁺ T cells as well as CD163⁺ cells (monocyte/macrophage lineage) were observed after treatment with ipilimumab plus bevacizumab. In contrast, patients treated only with ipilimumab demonstrated less immune cell infiltration, while on therapy. In a subset of pathologic samples, tertiary lymphoid aggregates were noted in posttreatment biopsies, similar to that noted for high endothelial venules in lymph nodes. In addition to morphologic changes of endothelia suggesting activation, biochemical changes in the endothelia were also witnessed including E-selectin, ICAM, and VCAM upregulation as a function of treatment. Flow cytometry analysis on peripheral PBMCs indicated a marked increase in the number of patients exhibiting a ≥50% increase in levels of circulating CD4⁺ and CD8⁺ memory cells (CD45RO), suggesting that antiangiogenesis may have an effect on circulating immune memory populations. This trial provided a proof of concept for the enhanced immunologic effect provided by adding an antiangiogenic agent to immune checkpoint blockade and provided the basis for future combinational studies. A randomized phase II trial investigating ipilimumab with or without bevacizumab in patients with advanced melanoma finished accrual (ECOG 3612, NCI 01950390).

Few trials investigated the combinations of PD-1 or PD-L1 antibodies and bevacizumab showing promising activities. The first study investigated atezolizumab (anti–PD-L1) in combination with bevacizumab in advanced RCC compared with atezolizumab or sunitinib, another antiangiogenesis targeting VEGFR2 (44). The ORRs were 32% including 7% complete response (CR) and 25% partial response (PR) with atezolizumab + bevacizumab, 25% (11% CR, 14% PR) with atezolizumab, and 29% (5% CR, 24% PR) with sunitinib. Median progression-free survival (PFS) was 11.7 months in the intention-to-treat population and 14.7 months in PD-L1⁺ population in the combination arm compared with 8.4 with sunitinib and 6.1 months with atezolizumab. Although the trial was not designed to compare the efficacy between the three arms but rather to estimate the efficacy of each arm, it shed a light on the important role of targeting angiogenesis to overcome immune suppression. The investigators correlated the clinical activity of these agents with RNA-sequencing gene expression data focusing on three gene signatures (angiogenesis, preexisting immunity or effector immunity, and immunosuppressive myeloid inflammation). While atezolizumab was more effective in tumors with high preexisting immunity and low myeloid inflammation gene signature, the addition of bevacizumab to atezolizumab improved outcomes in tumors with immune-suppressed myeloid signature compared with atezolizumab alone highlighting the role of targeting angiogenesis to overcome the immune-suppressive microenvironment. The combination of bevacizumab and atezolizumab was well tolerated and did not show an increase in immune-related adverse event compared with single-agent atezolizumab. These data confirm prior activity of anti-VEGF and immunotherapy combination in RCC using IFNα. This combination improved PFS compared with IFNα alone leading to its approval in the first-line setting of metastatic RCC (45).

Building on this concept, the same combination of atezolizumab and bevacizumab was tested in the first-line setting of metastatic non–small cell lung cancer (NSCLC) with chemotherapy of carboplatin and paclitaxel. This combination demonstrated an improved PFS and OS compared with the bevacizumab–chemotherapy group, 8.3 months versus 6.8 months (P < 0.001) and 11.3 months versus 6.8 months (P < 0.001), respectively (46). All subgroups including patients with low or negative PD-L1 expression and most interestingly low T-effector gene signature expression benefited from the atezolizumab–bevacizumab combination providing another evidence for the role of antiangiogenesis in reprograming the immune-suppressive microenvironment. However, the data regarding the group who received atezolizumab and bevacizumab in combination with chemotherapy were not reported in comparison with the group who received atezolizumab in combination with chemotherapy precluding making any conclusion regarding the role of adding bevacizumab to atezolizumab and chemotherapy.

This combination is currently being tested in hepatocellular carcinoma (HCC) with promising preliminary activity (over 60% PR) in treatment-naïve patients (47) and moved to phase III trial compared with sorafenib (NCT03434379). Other indications where this combination is currently being tested are: cervical, endometrial, microsatellite stable colon cancer, glioblastoma, and pancreatic cancer (Table 2).

Axitinib, a tyrosine kinase (TKI) targeting VEGFR1-3, has been recently combined with both PD-1 (pembrolizumab; refs. 48, 49) and PD-L1 inhibitors (avelumab) in RCC (50, 51) demonstrating striking activities in the first-line setting. The primary objectives were PFS and OS in the intention-to-treat population for the pembrolizumab/axitinib trial (49) and in PD-L1⁺ tumors for the avelumab/axitinib trial (51). Both combinations increased the overall response rate (ORR) by 2-fold compared with single-agent sunitinib (from 25%–35% to 51%–58%) with most responders enjoying durable responses. Most importantly both combinations demonstrated activities in RCC regardless of PD-L1 status or risk group. This observation is unique considering the proven activity of nivolumab and ipilimumab in the intermediate and high-risk RCC groups compared with sunitinib, which was found to be more effective in the good risk group (52).

Although median OS has not been reached, the 12-month OS reported to increase from 78.3% for sunitinib to 89.9% with the pembrolizumab/axitinib combination. If this improvement in OS remains persistent in longer follow-up, it would confirm the survival advantage of combining PD-1 inhibitors and antiangiogenesis in RCC where anti-VEGF–targeted therapies alone were not as effective in prolonging OS. Furthermore, the randomization design of both trials will allow robust correlatives to further understand the immune modulation role of antiangiogenesis and whether tumors with less immune activation at baseline could benefit from the combination as seen in the atezolizumab/bevacizumab studies. The safety profile of these combinations was comparable with each drug safety profile without significant increase in adverse events except for transaminitis in the pembrolizumab/axitinib combination.

The combination of nivolumab and sunitinib or pazopanib (both TKIs targeting VEGFR1-3) in RCC resulted in 82% of patients developing grade 3–4 treatment-related adverse events leading to the discontinuation of further development (53). The most common grade 3–4 side effects were hypertension, transaminitis, which is mainly related to pazopanib or sunitinib, diarrhea, and fatigue. The overall response rate of these combinations was comparable with what was seen with axitinib and pembrolizumab or avelumab combinations including 54.5% and 45 for nivolumab + sunitinib and nivolumab + pazopanib, respectively.

Additional ongoing studies testing the combination of ICIs and antiangiogenesis are summarized in Table 2.

The role of the Ang-2 pathway in the adoptive resistance to VEGF inhibition has been demonstrated in preclinical models. The inhibition of VEGF resulted in the upregulation of Ang-2 and Tie-2 and increased Tie-2-expressing macrophages in the pancreatic neuroendocrine tumors (PNET), while dual Ang-2/VEGFR2 inhibition was effective in delaying PNETs progression and suppressing revascularization (54). Dual blockade of Ang-2 and VEGF has been also shown to be an effective strategy in glioblastoma animal model through TAMs reprograming (55). This concept was tested in clinic using vanucizumab, a bispecific antibody targeting VEGF-A and Ang-2. Vanucizumab was shown to cause treatment-related grade 3 toxicities in 41% of patients including one fatal pulmonary hemorrhage initially in a phase I trial with preliminary activity demonstrated in RCC (56). Vanucizumab is currently investigated in combination with atezolizumab (NCT01688206) and CD40 agonist in solid tumors (NCT02665416).

Endothelial adhesion proteins including integrins and matrix MMPs play a critical role in angiogenesis and influence cancer immunity. Integrins are a family of 24 transmembrane cell-matrix α-β heterodimeric adhesion receptors that bind extracellular matrix proteins to the cell cytoskeleton (57). Many integrins are overexpressed on endothelial cells during the process of angiogenesis making it an attractive target to inhibit angiogenesis for cancer therapeutics (58). However, targeting integrin has not shown promising anticancer activities due, in part, to the integrin switching expression between different subsets (59). Integrins have complex interactions involving the anchoring and transmigration across the endothelia of immune cells from the circulation into tissues (60). In addition, integrins play critical roles in antigen presentation and immune-regulatory cellular interactions (61). Kwan and colleagues demonstrated that integrin-binding peptide combined with albumin/IL2 Fc fusion in combination with PD-1 inhibitor can elicit an innate and adaptive immune response and increase survival in syngeneic mouse models (62). Their significance in immunity is highlighted by the successful targeting of integrins in the treatment of inflammatory conditions including autoimmune diseases such as multiple sclerosis (63).

MMPs are also attractive targets given their role in degrading the extracellular matrix, which is required for vascular basement membrane invasion during angiogenesis and their presence in the epithelial–mesenchymal transition processes (64). These proteinases are expressed on endothelial and inflammatory cells (including DCs, macrophages, and lymphocytes; ref. 65). In addition, there is a cross interaction between MMP-2 and integrin αvβ3 leading to an enhanced mesenchymal cell-invasive activity (66). On another hand, the inflammatory response at the tumor microenvironment driven by neutrophils and macrophages can lead to an inactivation of MMPs (67), making the interaction between endothelial adhesion proteins and the immune microenvironment even more complex. Similar to integrins, targeting MMPs in clinic has not been successful, in part, due to the lack of specificity to their targets (68). More preclinical data are needed to have a better understanding of the role that integrins and MMPs may play in immune modulation and whether combinational approach with ICIs is warranted.

In summary, angiogenesis plays a critical role in modulating the tumor immune microenvironment. Both VEGF and Ang-2 families contribute to this process by inhibiting the proliferation and differentiation of activated immune effector cells, while recruiting suppressive tumor-associated immune cells. As detailed in this review, the interaction between angiogenesis and immune regulation is very dynamic and a two-way process.

There is mounting evidence to support the strategy of combining antiangiogenesis and ICIs with promising clinical activities. Such activities remain to be confirmed in a number of currently ongoing randomized studies with longer follow up. As described above, angiogenesis has been targeted in combination with ICIs using both antibodies and TKIs; however, the clinical activities of these two approaches have not been compared head to head. Angiogenesis-targeted TKIs block multiple VEGF receptors, while bevacizumab, for example, is directed to a single receptor (VEGFA). Therefore, TKIs may provide a broader biological activity against angiogenesis. This mechanism of action raises the question of resistance to antiangiogenesis, which makes the approach of targeting multiple pathways including VEGFA-D, PDGF, and Tie-Ang-2 an appealing one. Furthermore, combinatorial approaches raise safety concerns and questions regarding the unique mechanism of action of each agent, and the need to identify the optimal dose, sequence, and duration of therapy.

It is important to note that most of the promising data of ICIs/antiangiogenesis combination has been mainly generated in RCC, a tumor with both high angiogenic and immunogenic properties. RCC is highly immunogenic due to relatively high mutational load and predominant tumor-infiltrating immune cells (69). In addition, RCC is a highly vascularized tumor with high expression of VEGF (70), which is associated with tumor progression and poor outcomes (71) and a highly responsive to antiangiogenesis. Accordingly, it is not surprising that RCC is one of the first tumors where the ICIs/antiangiogenesis combination was validated. Indeed, it remains to be determined whether this combination would be proven to be as effective in other tumor types.

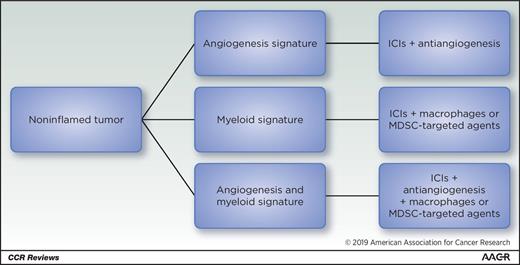

Interestingly, the addition of bevacizumab to atezolizumab improved outcomes in tumor subgroups with low effector and high immune suppressive myeloid signature, a subset of tumors that are unlikely to respond to ICIs alone. This observation confirms the role of targeting angiogenesis to overcome primary or secondary resistance to ICIs and pave the way for future combinational studies incorporating tumor biomarkers prospectively. One approach maybe a prospective biomarker-based trial design where pretreatment samples are sequenced to identify noninflamed tumors with myeloid and angiogenesis signature expression. Those patients could be then treated with the combination of ICIs and antiangiogenesis if their gene signature is consistent with angiogenesis expression or macrophages/MDSCs-targeted agents if they lack the angiogenesis signature, but they express the myeloid signature. However, if they express both the angiogenesis and myeloid signatures, triplet combination could be used including ICIs, antiangiogenesis, and myeloid-targeted agents (Fig. 2).

The effect of ICIs/antiangiogenesis could be either synergistic or additive. Given the interplay of angiogenesis and immune suppression as discussed above, it is highly likely that the effectiveness of the combination is due to synergy of the two approaches. On the other hand, it is also possible that the combination targets two different tumor cell populations—one that responds to ICIs and another that respond to antiangiogenesis. The later hypothesis is supported by the Checkmate 214 trial, which demonstrated the effect of nivolumab and ipilimumab in intermediate and poor risk RCC group, while the group with good risk benefited from sunitinib rather than ipilimumab and nivolumab (52).

While many of the clinical study efforts have combined with chemotherapy or attempted to demonstrate a superiority to anti-VEGFA alone, the potential for multiple antiangiogenesis combinations with immune therapy has not been explored to a significant degree to improve mechanistic understandings in patients. The rationale of using chemotherapy as a backbone for those combinations has been speculated as “inducing immunogenic cell death.” However, the effect of chemotherapy on the tumor immune microenvironment and angiogenesis is not well studied and may vary from chemotherapy to another. Neoadjuvant design may help answer these questions and provide a rationale to which chemotherapy to be used as backbone in future trials.

With countless ongoing clinical trials using PD-1/PD-L1 or CTLA-4 inhibitors as a backbone in combination with another immunotherapy, chemotherapy, or antiangiogenesis, the only way we could identify a valuable combination to improve efficacy is by deep understanding of how each of these targets change the biology of the tumor microenvironment. Indeed, angiogenesis is a crucial element of this microenvironment that we yet need to explore and understand more.
