For the development of new anticancer therapeutic radiopharmaceuticals, including alpha particle emitters, it is important to determine the contribution of targeted effects in irradiated cells, and also of nontargeted effects in nonirradiated neighboring cells, because they may affect the therapeutic efficacy and contribute to side effects.
Here, we investigated the contribution of nontargeted cytotoxic and genotoxic effects in vitro and in vivo (in xenografted mice) during alpha (212Pb/212Bi, 213Bi) and Auger (125I) radioimmunotherapy (RIT).
Between 67% and 94% (alpha RIT) and 8% and 15% (Auger RIT) of cancer cells were killed by targeted effects, whereas 7% to 36% (alpha RIT) and 27% to 29% (Auger RIT) of cells were killed by nontargeted effects. We then demonstrated that the nontargeted cell response to alpha and Auger RIT was partly driven by lipid raft–mediated activation of p38 kinase and JNK. Reactive oxygen species also played a significant role in these nontargeted effects, as demonstrated by NF-κB activation and the inhibitory effects of antioxidant enzymes and radical scavengers. Compared with RIT alone, the use of RIT with ASMase inhibitor (imipramine) or with a lipid raft disruptor (e.g., methyl-beta-cyclodextrin or filipin) led to an increase in clonogenic cell survival in vitro and to larger tumors and less tissue DNA damage in vivo. These results were supported by an inhibitory effect of pravastatin on Auger RIT.
Cell membrane–mediated nontargeted effects play a significant role during Auger and alpha RIT, and drugs that modulate cholesterol level, such as statins, could interfere with RIT efficacy.
This study shows that alpha radioimmunotherapy activity is mediated by targeted and nontargeted effects. Nontargeted effects and, to a lesser extent, targeted effects are modulated by the formation of ceramide-enriched large platforms and the subsequent activation of p38- and JNK-mediated signaling pathways. Nontargeted effects contribute to the cytotoxic and genotoxic effects beyond the particle range and may also counterbalance the heterogeneity in vector distribution. As targeted effects but not the nontargeted effects are dose related, these results have consequences on the planning and prediction of the therapeutic efficacy and side effects of targeted radionuclide therapy (TRT) using alpha particles. Moreover, patients undergoing treatment to modify lipid metabolism could respond differently to TRT.
During the last decade, several new radiopharmaceuticals were approved for targeted radionuclide therapy (TRT) of solid tumors or evaluated in clinical trials (1–6). These radiopharmaceuticals are obtained by coupling a radionuclide to a peptide or an mAb (for radioimmunotherapy, RIT). Once administered to patients, they specifically recognize tumor cells and produce targeted irradiation to eradicate them. Although conventional external beam radiotherapy (EBRT) is mostly dedicated to localized tumors, TRT can be used for treating diffuse, metastatic disease or tumors close to organs at risk (7). DNA has been for long considered as the main, if not the only, target of radiation; however, it is today admitted that other subcellular targets, including mitochondria and cell membrane, should be considered during radiotherapy (8, 9). The cell membrane contains proteins, alcohols, such as sterols, and lipids (e.g., sphingolipids, glycolipids, phospholipids) that are structured in a bilayer to provide variable fluidity. We know from EBRT studies that radiation-induced reactive oxygen species (ROS) react with polyunsaturated fatty acids (10), leading to the generation of breakdown molecules, such as malondialdehyde, acrolein, and 4-hydroxy-2-nonenal, that can react with cellular biomolecules (e.g., DNA, RNA, and also amino acids) to generate adducts. Irradiation also induces rapid formation of ceramide through the activation of acidic sphingomyelinases (ASMases) and the subsequent sphingomyelin hydrolysis at the plasma membrane (11, 12). Ceramide could be considered as a mediator of radiation that has an effect on the plasma membrane via the generation of ceramide-enriched microdomains termed rafts, but also on intracellular signaling molecules (8, 13, 14).
Moreover, besides its direct response to radiation (defined as a targeted effect), cell membrane can also be involved in secondary intercellular communications that will further alter the biological functions of neighboring cells (15–18). When observed in cells that were not directly irradiated, these effects are defined as nontargeted effects of radiotherapy. Nontargeted effects have been predominantly described after low dose (<0.5 Gy) of EBRT, when the probability of cells to be hit by particles (targeted effect) is low (19–27). They may contribute to tumor eradication; however, they could also affect treatment planning because they are not dose-related and lead to unexpected side effects. As most of the vectors used in TRT bind to cell surface receptors, the probability for the cell membrane to be hit is much higher than during EBRT. This is even more marked when radionuclides used in clinical trials emit high linear energy transfer (high-LET) particles, namely alpha particles or Auger electrons (3, 5, 6, 28). This radiation type produces dense ionization in tissues over a short range (<100 μm), leading to unrepairable complex lesions in biological constituents and possibly generating deleterious signals toward neighboring cells. Therefore, in association with strong dose heterogeneity and protracted exposure, nontargeted effects involving the cell membrane might play a significant role in the final therapeutic outcome of TRT.
Here, we investigated in vitro and in vivo the role of the cell membrane and of drugs that modulate cholesterol metabolism in targeted and nontargeted effects of RIT using alpha particle emitters, namely 212Pb/212Bi and 213Bi (alpha RIT), and the Auger emitter 125I (Auger RIT).
Materials and Methods
Cell lines and antibodies
The A-431 vulvar squamous carcinoma, SK-OV-3 ovarian carcinoma, AN3CA endometrial carcinoma, and HCT116 colon adenocarcinoma human cell lines were obtained from the American Type Culture Collection (ATCC). HER2-positive A-431 cells were transfected with constructs encoding carcinoembryonic antigen (CEA, expressed by colorectal carcinoma cancer) and luciferase (29) to obtain the A-431CEA cell line. AN3CA cells naturally express Müllerian-inhibiting substance receptor II (MISRII), whereas SK-OV-3 cells were transfected with a construct to express MISRII (SK-OV-3MISRII cells). HCT116 cells naturally express CEA. Cell line identities were confirmed using Powerplex 21 Kit (Promega). Mycoplasma test was routinely performed using the MycoAlert Mycoplasma Detection Kit (Lonza).
Then, SK-OV-3MISRII and AN3CA cells were chosen because they mimic ovarian peritoneal carcinomatosis when grafted i.p. in mice. Similarly, HCT116 and 431CEA cells were chosen because they mimic colorectal peritoneal carcinomatosis. Small-volume peritoneal carcinomatosis originating from ovarian or colorectal cancer are suitable candidates for TRT using radionuclides that emit short-range particles (Auger, alpha; refs. 2, 30).
Parental and A-431CEA and SK-OV-3MISRII cells were grown in DMEM, and HCT116 cells in RPMI 1640 medium. Media were supplemented with 10% (v/v) FCS, 2 mmol/L l-glutamine, 0.1 U/mL penicillin and 100 μg/mL streptomycin, and 1% geneticin (only for A-431CEA and SK-OV-3MISRII cells). AN3CA cells were cultured in MEM medium with 10% FCS, 1% penicillin, 0.1% streptomycin, 1% sodium pyruvate, and 1% nonessential amino acids. Cells were kept at 37°C in a humidified atmosphere containing 5% CO2. The murine IgG1k mAb 35A7 against the CEA Gold 2 epitope and the anti-HER2 mAb trastuzumab (Herceptin, Genentech) were used to target CEA- and HER2-expressing cells, respectively. The murine IgG1 anti-MISRII mAb 16F12 produced by our team was used to target MISRII (31). The nonspecific PX IgG1 mAb from the mouse myeloma MOPC 21 (32) was used for control in vivo experiments.
The anti-CEA, anti-MISRII, and PX mAbs were purified from mouse hybridoma ascitic fluids by ammonium sulfate precipitation followed by ion exchange chromatography on DE52 cellulose (Whatman).
Antibody conjugation and radiolabeling with 212Pb, 213Bi, or 125I
The anti-HER2, 35A7 and PX mAbs were conjugated with TCMC (Macrocyclics) prior to radiolabeling at the specific activity of 37MBq/mg with 212Pb (Orano Med), as described in ref. 33 (Supplementary Fig. S1). The anti-MISRII mAb was conjugated with 2-(P-SCN-benzyl)-cyclohexyl acid A-diethylenetriaminepentaacetic (CHX-A”- DTPA) and radiolabeled with 213Bi (JRC) at the specific activity of 37 MBq/mg, as described in ref. 31. The anti-CEA mAb was radiolabeled also with 125I (Perkin Elmer) at the specific activity of 370 MBq/mg, as described in ref. 34.
In vivo RIT using 212Pb-, 125I-, and 213Bi-labeled antibodies
Female athymic nude Foxn1nu mice (6–8 weeks old; Envigo RMS Laboratories) were acclimated for 1 week. They were housed at 22°C and 55% humidity with a light-dark cycle of 12 hours, and food and water ad libitum. Body weight was determined weekly, and mice were clinically examined throughout the study. All animal experiments were performed in compliance with the French government guidelines and the INSERM standards for experimental animal studies (agreement B34-172-27). They were approved by the ethics committees of the Institut de Recherche en Cancérologie de Montpellier (IRCM/INSERM) and the Languedoc Roussillon region (CEEA LR France No. 36) for animal experiments (reference number: 1056).
To establish intraperitoneal tumor xenografts, 1 × 106 A-431CEA or 4.5 × 106 AN3CA cells in 0.3 mL DMEM or 0.3 mL DMEM/Matrigel (1:1), respectively, were i.p. grafted in mice. Six days after A-431CEA graft, mice received (i) one-single i.p. injection of 1.48 MBq 212Pb-anti-CEA, 212Pb-anti-HER2, or 212Pb-PX mAbs (n = 10, 7, and 6 mice; alpha RIT). The survival of these mice was previously reported (33); or (ii) 125I-anti-CEA mAb (Auger RIT: two i.p. injections of 37 MBq at days 8 and 11); or methyl-β–cyclodextrin (MBCD, lipid raft disruptor; 300 mg/kg; daily, from days 6 to 15); or both 125I-anti-CEA mAb and MBCD (n = 10 mice). Tumor growth was followed by bioluminescence (Xenogen, Perkin Elmer) measurement.
Mice xenografted with AN3CA cells (7 mice/group) were treated with (i) NaCl; or (ii) daily i.p. injections of 300 mg/kg MBCD from days 7 to 13 after graft; or (iii) one injection of 213Bi-anti-MISRII mAb (37 MBq) at day 11; or (iv) both 213Bi-anti-MISRII mAb and MBCD. At day 30 after graft, mice were sacrificed, tumors collected, and the tumor mass was determined.
To investigate the role of pravastatin in Auger RIT, mice (8 mice/group) were s.c. xenografted with 1 × 106 A-431CEA cells in Matrigel and treated with (i) NaCl; or (ii) daily i.p. injections of 40 mg/kg pravastatin from day 10 before graft until day 18 after graft; or iii) one injection of 125I-anti-CEA mAb (37 MBq) at day 8 and one at day 11; or (iv) both 125I-anti-CEA mAb and pravastatin. Tumor growth was followed by caliper measurement.
Ex vivo autoradiography and DNA damage assessment after RIT
At various times (4, 17, and 22 hours) following alpha (212Pb/212Bi) or 24 hours after Auger RIT, mice bearing i.p. A-431CEA tumor cell xenografts were anesthetized, bled, and dissected. Tumors were collected and frozen after inclusion in OCT embedding matrix. Two consecutive 10-μm-thick frozen sections were analyzed by digital autoradiography (DAR) or by immunodetection of 53BP1, as described in ref. 34.
In vitro determination of targeted and nontargeted cytotoxic effects of alpha RIT
SK-OV-3MISRII (100 to 1,500 cells/well) and A-431CEA (100 to 5,000 cells/well) cells were plated in 6-well plates with 2 mL of medium. The following day, cells were incubated with 213Bi-anti-MISRII mAb (SK-OV-3MISRII cells) or 212Pb-anti-CEA mAb and 212Pb-anti-HER2 mAb (A-431CEA cells; 0–0.5 MBq/mL), or the corresponding unlabeled mAbs (0–27 μg/mL) for 90 minutes (donor cells). Culture medium was then removed, and cells were washed twice with 4 mL PBS. For investigating the nontargeted cytotoxic response, fresh medium (2 mL) was added to donor cells for 2 hours and then transferred to recipient cells that had been plated the day before (100 to 300 cells/well in 6-well plates).
For standard clonogenic assays, donor and recipient cells were then grown for 12 days, and colonies stained with crystal violet [2.5 g/L in 45:5 30% (v/v) methanol/paraformaldehyde (PFA)]. Colonies containing 50 or more cells were scored, and the surviving fraction was calculated.
In vitro measurement of DNA damage
A-431CEA and SK-OV-3MISRII donor cells were seeded on coverslips in 6-well plates. The following day, they were incubated with 0.5 MBq/mL of 212Pb-mAbs (A-431CEA cells) or 0.5 MBq/mL of 213Bi-mAbs (SK-OV-3MISRII cells) for 90 minutes. After radiolabeled antibody removal, fresh medium (2 mL) was added to donor cells for 2 hours and then transferred to recipient cells. Both donor and recipient cells were fixed with PFA and permeabilized, as described in ref. 34 (and Supplementary Methodology) for γ-H2AX/53BP1 foci detection.
The formation of micronuclei was determined in A-431CEA donor cells exposed to 0.5 MBq/mL 212Pb-mAbs for 90 minutes and in recipient cells, as described in ref. 35.
ASMase and ceramide measurement, detection of lipid rafts
Cells were incubated with 213Bi-anti-MISRII mAb (0.5 MBq/mL) for 90 minutes or H2O2 (25 mmol/L) at 37°C for 30 minutes. After three PBS washes, they were fixed in 3.7% (v/v) PFA for 15 minutes and then washed 3 times in PBS. Cells were then incubated with a polyclonal rabbit anti-ASMase antibody (2 μg/mL; Santa Cruz Biotechnology, Inc.) and the anti-ceramide 15B4 mAb (1:50; Alexis Biochemicals) at 37°C for 1 hour. After three washes in PBS/2% FCS, cells were incubated with Alexa Fluor 555–conjugated anti-rabbit (1:500; Invitrogen) or with Alexa Fluor 488–conjugated anti-mouse IgM (1:200; Invitrogen) in the dark for 1 hour. After three washes and resuspension in PBS, cells were analyzed by flow cytometry (Muse, Merck Millipore), and the G mean value (arbitrary units) was determined. To confirm ASMase role in RIT cytotoxicity, SK-OV-3MISRII cells were preincubated with 50 μmol/L imipramine (ASMase inhibitor) for 30 minutes following addition of 213Bi-anti-MISRII mAb (0.5 MBq/mL) at 37°C for 90 minutes.
To visualize lipid rafts, SK-OV-3MISRII cells were plated on 12-mm glass coverslips in culture dishes. After treatment, they were fixed in 3.7% (v/v) PFA and incubated with Alexa-488–conjugated cholera toxin B (Molecular Probe) at 37°C for 45 minutes. After three washes in PBS, cells were fixed again in PFA for 10 minutes, and coverslips were then mounted in Mowiol and analyzed using a 63 × NA objective and a Leica (Leica Microsystems) inverted microscope.
In vitro role of lipid rafts in alpha RIT cytotoxic effects
The role of lipid raft integrity in 213Bi-mAb–induced nontargeted cytotoxic effects was investigated by preincubating SK-OV-3MISRII cells with 4 mmol/L MBCD (Sigma-Aldrich) or 2.5 μg/mL filipin (Sigma-Aldrich) for 30 minutes before adding 213Bi-anti-MISRII mAb for another 90 minutes in the presence of these lipid raft inhibitors. MBCD effect on cholesterol concentration in SK-OV-3MISRII cells incubated with MBCD was determined using a Cholesterol Quantification Kit (Sigma-Aldrich).
Proteome kinase analysis and Western blotting
A Human Phospho-Kinase Array (Proteome Profiler Array, R&D Systems) was used to detect the relative phosphorylation levels of 46 kinases in cell extracts of SK-OV-3MISRII donor (incubated with 0.5 MBq/mL 213Bi-anti-MISRII mAb, or with 0.5 MBq/mL 213Bi-anti-MISRII mAb and 4 mmol/L MBCD or 2.5 μg/mL filipin) and recipient cells, according to the manufacturer's protocol.
For Western blotting, HCT116, AN3CA, and SK-OV-3MISRII cell membrane, cytosolic protein fractions, and total lysates (40 μg of each) were separated by SDS–PAGE and electrotransferred to polyvinylidene difluoride membranes (Amersham Pharmacia Biotech). After incubation with anti-phosphorylated (p) ERK, -p-SAP/JNK, -p-p38, and -p-NF-κB (p65) primary antibodies (Cell Signaling Technology), immune reactions were detected with horseradish peroxidase–conjugated goat anti-mouse or anti-rabbit (Sigma-Aldrich) secondary antibodies and the ECL detection system (Amersham Biosciences).
In vitro analysis of p38 and JNK role
SK-OV-3MISRII donor cells were preincubated with 10 μmol/L SP600125 (JNK inhibitor) or 10 μmol/L SB203580 (p38 inhibitor) for 30 minutes before addition of 0 to 0.5 MBq/mL 213Bi-anti-MISRII mAb in the presence of the inhibitors for another 90 minutes. Then, medium was removed and the standard medium transfer protocol to donor cells described before was used.
Analysis of oxidative stress
SK-OV-3MISRII donor cells were preincubated with 20 μg/mL catalase (Sigma-Aldrich) or 0.5% DMSO (Sigma-Aldrich) for 20 minutes before RIT with 213Bi-anti-MISRII mAb in the presence of catalase or DMSO for 90 minutes. Next, cells were washed twice with PBS, and new medium was added, and cells cultured until the appearance of colonies.
Apoptosis induction and proliferation
Apoptosis was measured in SK-OV-3MISRII donor cells preincubated with SP600125 (JNK inhibitor), SPB203580 (p38 inhibitor), imipramine (ASMase inhibitor), or MBCD (lipid raft disruptor) for 30 minutes before addition of 0 to 0.5 MBq/mL 213Bi-anti-MISRII mAb for 90 minutes. Then, radioactivity was removed, cells were washed with PBS, and apoptosis was measured at 48 hours after treatment using the TUNEL Detection Kit (Promega) according to the manufacturer's instructions.
Cell proliferation was measured in SK-OV-3MISRII cells using the EdU Cell Proliferation Assay (Merck Millipore). Briefly, EdU was added to the culture medium at a final concentration of 10 μmol/L immediately after RIT and left for 24 hours. Then, cells were fixed with 3.7% PFA and permeabilized with 0.1% Triton X-100. Fluorescent EdU was detected according to the manufacturer's instructions, and cells were analyzed using a 63 × NA objective and a Leica (Leica Microsystems) inverted microscope.
All in vitro data were obtained from four independent experiments in triplicate. Data were analyzed using the Stata software v.13 (StataCorp) and described using mean, SD, median, and range. Comparisons between radiolabeled antibodies and control were performed using the nonparametric Kruskal–Wallis test (significance level set at 0.05). Pairwise comparisons were performed using the nonparametric Mann–Whitney test (considering a significance threshold at 0.013 to account for multiple testing). For in vivo experiments, radioactivity (cpm)-related DNA damage (number of foci) was modeled by linear regression.
Nontargeted effects could contribute to the 212Pb-anti-CEA mAb efficacy

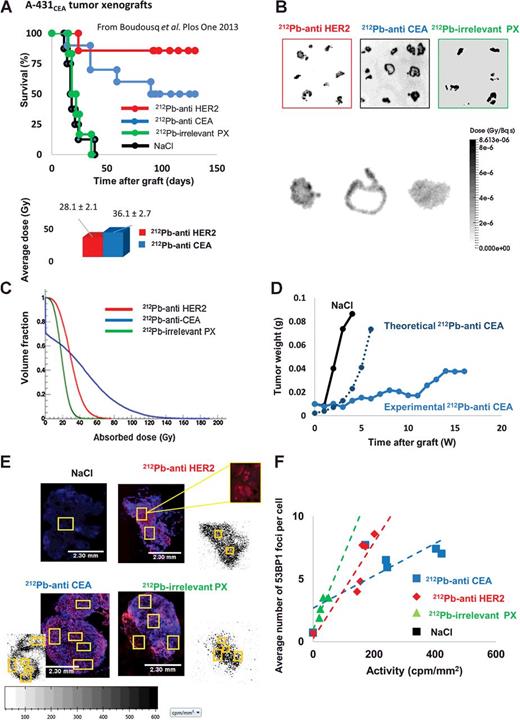

The Kaplan–Meier analysis in our previous study (33) showed a significantly higher survival rate (P < 0.05) in mice bearing intraperitoneal A-431CEA tumors and treated with 212Pb-anti-HER2 mAb compared with 212Pb-anti-CEA mAb (Fig. 1A). The absence of antitumor effect of the nonspecific 212Pb-PX mAb (P = 0.85 vs. NaCl) demonstrated the absence of in vivo cytotoxic effects when 212Pb is not targeted to tumor cells. The higher therapeutic efficacy of the 212Pb-anti-HER2 mAb could not be explained by a higher mean tumor uptake, because the mean doses were 28.1 ± 2.1 Gy and 36.1 ±2.7 Gy for the 212Pb-anti-HER2 and 212Pb-anti-CEA mAb, respectively (Supplementary Methodology). Conversely, DAR analysis (Fig. 1B) showed that compared with tumors treated with 212Pb-anti-HER2 mAb, some tumor regions incorporated very low or no 212Pb-anti-CEA mAb. Voxel dosimetry (Supplementary Methodology) indicated that about 30% of the tumor volume from 212Pb-anti-CEA mAb–treated mice received 0 Gy (Fig. 1C). Conversely, in the 212Pb-anti-HER2 mAb group, all regions received some radioactivity, although the maximal voxel dose was about 2 times lower (77 for 212Pb-anti-HER2 mAb vs. 140 Gy for 212Pb-anti-CEA mAb).
Based on these observations, we hypothesized that in the absence of nontargeted effects, tumor cells that received 0 Gy in the 212Pb-anti-CEA mAb–treated group should grow as fast as those in the NaCl group. Then, we established a theoretical growth curve using exponential tumor growth parameters of the NaCl-treated group and considering an initial tumor volume corresponding to 30% of the volume of NaCl-treated tumors measured at day 5 (Fig. 1D). According to this theoretical curve, the 30% of tumor volume that received 0 Gy in the 212Pb-anti-CEA mAb–treated group should have grown much faster than what experimentally observed (Fig. 1D). The slower experimental growth rate of 212Pb-anti-CEA mAb–treated tumors could be explained by the presence of molecular signals (i.e., nontargeted cytotoxic effects) between irradiated and nonirradiated tumor regions.
212Pb-anti-CEA mAbs produce similar DNA damage levels in irradiated and nonirradiated tumor regions
To test the in vivo occurrence of nontargeted effects associated with the 212Pb-anti-CEA mAb treatment, we asked whether genotoxic effects were present also in nonirradiated tumor regions. To this aim, we investigated in tumor sections from mice treated with 212Pb-mAbs the relationship between the number of 53BP1 foci, a protein that rapidly relocalizes to nuclear foci upon DNA damage, and radioactivity level in the tumors collected at 17 hours post-RIT, when the mean dose rate was still about 50% of the initial dose rate (1.1 vs. 2.1 Gy.h−1 at 4 hours post-RIT, data not shown; Fig. 1E). The number of 53BP1 foci per mm2 tumor was relatively constant in 212Pb-anti-CEA mAb–treated tumors, independently of the radioactivity level calculated by DAR (between 5.9 ± 0.2 and 7.6 ± 0.3 foci/cpm/mm2), and the slope of the corresponding regression curve was not different from zero (P = 0.072). Conversely, 53BP1 foci were proportional to the radioactivity level in 212Pb-anti-HER2 mAb and 212Pb-PX–treated tumors (Fig. 1F), and the slope was significantly different from zero (P = 0.012 and P = 0.023, respectively). The number of 53BP1 foci per cell ranged from 4.0 ± 0.3 to 8.6 ± 0.4 for 212Pb-anti-HER2 mAb, from 1.9 ± 0.1 to 3.5 ± 0.2 for 212Pb-PX mAb, and was above the background level of 0.8 ± 0.1 foci per cell in NaCl-treated tumors.
Nontargeted cytotoxic effects are observed after alpha RIT

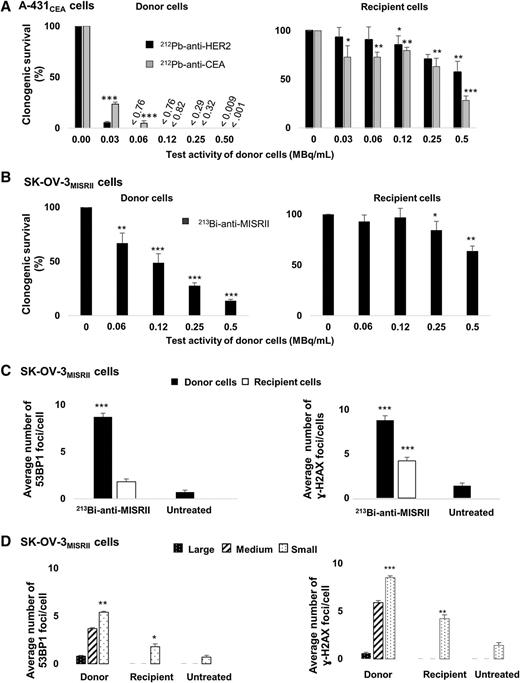

To confirm in vitro the contribution of targeted and nontargeted cytotoxic effects during alpha RIT, we determined the clonogenic cell survival of A-431CEA and SK-OV-3MISRII donor cells exposed to radiolabeled antibodies and of the corresponding recipient cells. In donor A-431CEA cells, 212Pb-mAbs strongly reduced clonogenic cell survival at test activities as low as 0.03 MBq/mL (Fig. 2A). Beyond 0.06 MBq/mL, clonogenic cell survival was lower than 1%. Although less pronounced than in donor cells (targeted effect), clonogenic cell survival was reduced also in recipient cells (nontargeted effects). Targeted and nontargeted cytotoxic effects were also observed in SKOV3MISRII donor cells exposed to the 213Bi-anti-MISRII mAb and in recipient cells (Fig. 2B). In both cell models, neither targeted nor nontargeted cytotoxic effects were detected after exposure to unlabeled antibodies (Supplementary Fig. S2).
DNA double-strand breaks induced by targeted and nontargeted effects of alpha RIT are associated with different types of 53BP1 and γ-H2AX foci
We then evaluated the expression of 53BP1 and γH2AX, two DNA double-strand break (DSB) markers, in SK-OV-3MISRII donor cells exposed to 213Bi-anti-MISRII mAbs for 90 minutes and in recipient cells (Fig. 2C and D; Supplementary Fig. S3A). Quantification of the mean number of 53BP1 and γH2AX foci per cell showed that upon irradiation, DNA DSBs were produced in both donor and recipient cells compared with untreated control (Fig. 2C), confirming the occurrence of nontargeted genotoxic effects. Moreover, we could classify foci in three subgroups according to their size (arbitrarily defined as large, medium, and small) in donor cells, but we only detected small foci in recipient and control cells (Fig. 2D). Foci sizes are reported in Supplementary Fig. S3A. The mean number of large, medium, and small 53BP1 foci per donor cell was 0.8 ± 0.1, 3.7 ± 0.2, and 5.4 ± 0.3, respectively (Fig. 2D). Conversely, the mean number of 53BP1 small foci was 1.8 ± 0.3 in recipient cells, and 0.7 ± 0.1 in untreated cells. We obtained similar results for γH2AX foci (Fig. 2D, right plot), and in A-431CEA cells exposed to 212Pb-mAbs (Supplementary Fig. S3B; only for 53BP1 foci for technical reasons). We hypothesized that large foci were caused by the recruitment of a higher number of γ-H2AX and 53BP1 proteins compared with medium and small foci, and that consequently, they corresponded to more complex lesions. As a consequence of misrepaired DNA DSBs, the number of micronuclei was significantly increased in both donor and recipient A-431CEA cells after exposure to 212Pb-mAbs (Supplementary Fig. S3C).
Lipid rafts participate in the targeted and nontargeted cytotoxic effects

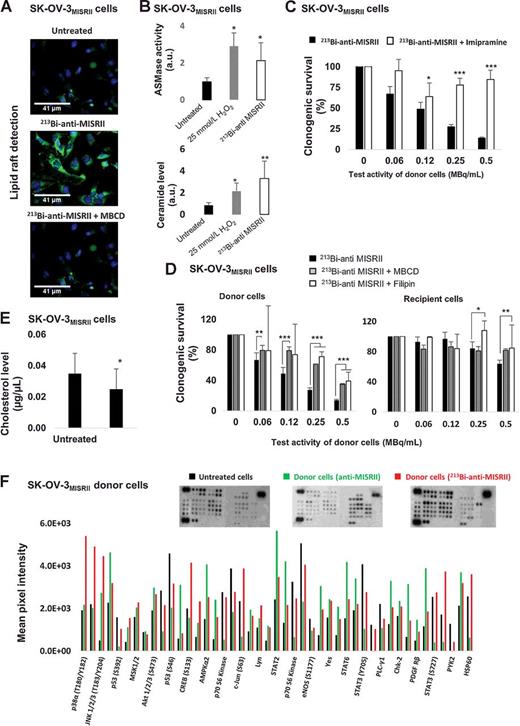

As radiolabeled mAbs bind to cell surface receptors, the cell membrane is the first target of irradiation. We investigated whether cell membrane modifications could be involved in alpha RIT–targeted and nontargeted effects. Using cholera toxin B, we first showed the formation of lipid raft domains in SK-OV-3MISRII cells exposed to 213Bi-mAbs (Fig. 3A). Ceramide, a class of cell membrane sphingolipids, can be formed by sphingomyelin hydrolysis catalyzed by ASMase. With cholesterol and proteins, ceramide can contribute to the formation of ceramide-enriched large domains that can be identified as lipid rafts. We found that compared with untreated cells, ASMase activation (Fig. 3B, top) and ceramide production (Fig. 3B, bottom) were increased in SK-OV-3MISRII cells exposed to 213Bi-mAbs. To test the role of ASMase and of lipid rafts in alpha RIT cytotoxic effects, we incubated SK-OV-3MISRII cells with 213Bi-anti-MISRII mAb alone or with imipramine, an ASMase inhibitor (Fig. 3C), or with lipid raft disruptors (Fig. 3D): filipin that sequesters cholesterol, or MBCD that depletes cholesterol. Clonogenic cell survival of both donor and recipient cells was increased in the presence of imipramine or of lipid raft disruptors. We confirmed that the cholesterol level of cells treated with MBCD was lower than in untreated cells (Fig. 3E).
The MAP kinases p38 and JNK1/2 are activated during alpha RIT and contribute to cell death
As lipid raft are known to activate intracellular signaling pathways, we analyzed SK-OV-3MISRII donor (i.e., exposed to the 213Bi-anti-MISRII mAb) and recipient cells extracts using a phosphoprotein kinase array (Fig. 3F; Supplementary Fig. S4A). Compared with untreated cells or cells exposed to unlabeled anti–MISRII mAb, several kinases were activated in cells exposed to 213Bi-anti-MISRII mAb. p38-α kinase, c-JUN N terminal kinases 1/2/3 (JNK 1/2/3), and the downstream c-JUN transcription factor were among the most significantly activated phosphorylation pathways. Some growth factors also were activated, such as ERK1/2, AKT1/2, CREB, GSK3, and MSK1/2. Yes, Fyn, and Fgr of the SrcA family of protein tyrosine kinases, LCK, WNK, STAT 3 and 6, HSP60, and HSP27 also were activated (Fig. 3F).
We obtained similar results in recipient cells. Among the most notable differences was the activation of proline-rich AKT1 substrate 1 (PRAS40) and 5′-AMP–activated protein kinase (AMPK) subunit α1 (Supplementary Fig. S4A).

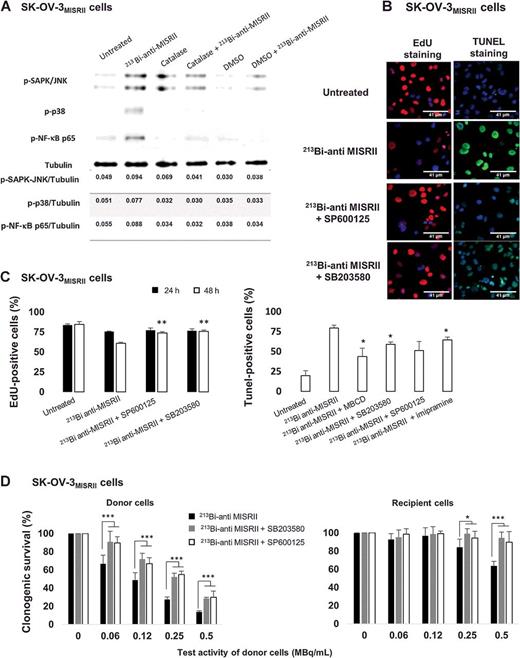

We confirmed the increased phosphorylation of p38, JNK1/2/3 in vitro by Western blotting using protein lysates of untreated and donor and recipient SK-OV-3MISRII and AN3CA cells (Fig. 4A; Supplementary Fig. S4B).
We showed using EdU that cell proliferation was reduced in SK-OV-3MISRII cells exposed to 213Bi mAbs and that apoptosis (using TUNEL assay) was induced (Fig. 4B and C; Supplementary Fig. S5A). Conversely, cell proliferation was restored at 48 hours and apoptosis reduced when pharmacologic inhibitors of p38 (SB203580) and of JNK1/2/3 (SP600125; and also MBCD or imipramine) were used (Fig. 4B and C).
Finally, compared with exposure to 213Bi-mAbs alone, clonogenic cell survival was increased in both donor and recipient cells when SK-OV-3MISRII donor cells were incubated with 213Bi-mAbs in the presence of SB203580 or SP600125. These results indicate that the p38 and JNK1/2/3 signaling pathways contribute to the targeted and nontargeted cytotoxicity of 213Bi-mAbs (Fig. 4D).
Lipid raft disruption is accompanied by loss of alpha RIT–induced p38 and JNK1/2/3 phosphorylation

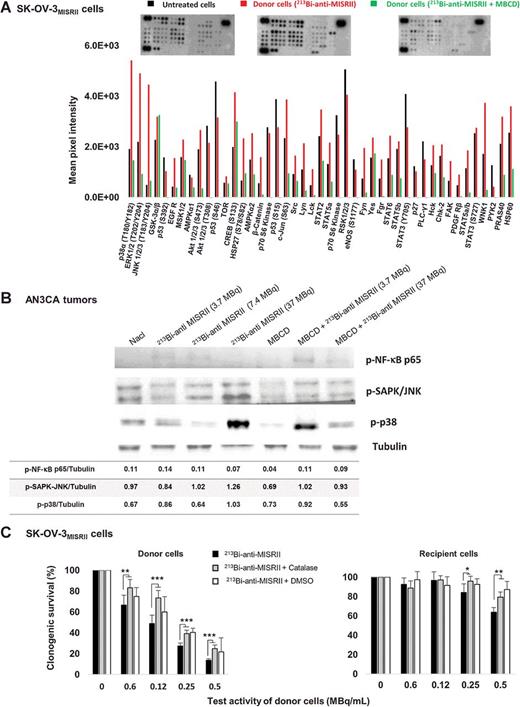

To investigate the role of lipid raft integrity on the RIT-induced expression of the previously identified signaling pathways, we performed a phosphoprotein kinase array analysis using donor and recipient cells exposed to 213Bi-anti-MISRII mAb in the presence of MBCD (Fig. 5A; Supplementary Fig. S5B), which decreased the mean cholesterol levels (Fig. 3E), or filipin (Supplementary Fig. S6). Phosphorylated p38 and JNK1/2/3 expression levels were strongly reduced in both donor and recipient cells exposed to 213Bi-anti-MISRII mAb + MBCD or filipin compared with cells incubated only with 213Bi-anti-MISRII mAb. Western blot analysis of tumors collected from mice treated with 37 MBq 213Bi-anti-MISRII mAb confirmed the decreased phosphorylation of p38 and SAPK/JNK in the presence of MBCD treatment (Fig. 5B) in vivo.
Oxidative stress is involved in the nontargeted response to alpha RIT
As ROS can activate ASMase, we assessed the role of oxidative stress in the targeted and nontargeted effects of alpha RIT by incubating donor cells with catalase or DMSO (two radical scavengers) during exposure to 213Bi-anti-MISRII mAb (Fig. 5C). Compared with cells exposed to 213Bi-anti-MISRII mAb alone, coincubation with catalase led to a significant increase in clonogenic cell survival of donor (P < 0.001) and recipient cells (P < 0.05). For DMSO, survival was only statistically increased in donor cells exposed to 0.25 MBq/mL (P < 0.001) and in recipient cells incubated with medium from donor cells exposed to 0.25 and 0.5 MBq/mL of 213Bi-anti-MISRII mAb (P < 0.05 and P < 0.01, respectively). Catalase and DMSO also reduced the level of p-p38, p-SAPK/JNK, and p-NF-κB p65 (Fig. 4A). However, comparison of the catalase and DMSO effects in donor and recipient cells indicated that the relative contribution of ROS to the cytotoxic effect was much lower in donor than in recipient cells (Fig. 5C).
Then, we used an oxidative stress membrane array to analyze the expression of proteins involved in redox mechanisms (Supplementary Methodology). In SK-OV-3MISRII cells, few proteins (Cited-2, HIF1α, HSP60, and SIRT2) were overexpressed in donor cells exposed to 213Bi-anti-MISRII mAb compared with untreated cells (Supplementary Fig. S7A). Conversely, in recipient cells, additional proteins were induced: ADAMTS1, BCL2, carbonic anhydrase IX, COX-2, DKK-4, FAB-P1, HIF2α, phosphorylated HSP27, indoleamine-pyrrole 2, 3-dioxygenase (IDO), NFK-B, p21, paraoxonase 2 and 3 (PON2, PON3), and SOD2. Conversely, in HCT116 cells, the same proteins were induced in donor cells exposed to 125I-anti-CEA mAb (Auger RIT) and in recipient cells (nontargeted effect; Supplementary Fig. S7B).
Western blot analysis confirmed the role of oxidative stress, as demonstrated by the increase in phosphorylated NF-κB expression after in vitro Auger and alpha RIT (Fig. 4A; Supplementary Fig. S7C). However, this increase was not confirmed in vivo in tumors collected at 6 hours after alpha-RIT (Fig. 5B).
MBCD and pravastatin reduce RIT efficacy in vivo

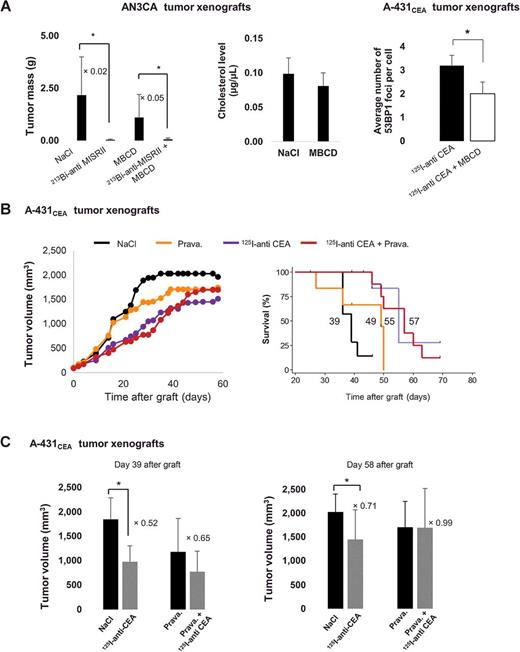

Then, to assess the role of lipid rafts in 213Bi-mAb therapeutic efficacy in vivo, we treated mice harboring intraperitoneal AN3CA cell tumor xenografts with NaCl, MBCD alone, 213Bi-anti-MISRII mAb alone, or 213Bi-anti-MISRII mAb + MBCD. At day 30 post-RIT, tumor mass was significantly reduced in the 213Bi-anti-MISRII mAb group (RIT) compared with the NaCl group (P = 0.0321, RIT-treated to untreated tumor mass ratio = 0.02; Fig. 6A, left). Although not statistically significant, cholesterol levels tended to be lower in MBCD-treated than in NaCl-treated tumors (Fig. 6A, middle). Although MBCD alone was effective in reducing tumor mass and 213Bi-anti-MISRII mAb + MBCD showed a therapeutic efficacy, the combination was less effective than RIT (P = 0.0284, RIT + MBCD to MBCD tumor mass ratio = 0.05; Fig. 6A), confirming in vivo the involvement of lipid rafts in alpha RIT therapeutic efficacy. We also observed a similar trend, although not significant, when we used lower activities (12.5 MBq and 7.4 MBq) of 213Bi-anti-MISRII mAb (Supplementary Fig. S8), at earlier time point (day 14) post-RIT.
Moreover, the number of 53BP1 foci per cell was lower in tumors from mice harboring A-431CEA tumor cell xenografts after combined treatment with 125I-anti-CEA mAb and MBCD compared with 125I-anti-CEA mAb alone (Fig. 6A, right).
Similarly, pravastatin modulated Auger RIT efficacy in mice harboring subcutaneous A-431CEA tumor cell xenografts (Fig. 6B). Compared with the NaCl-treated group, pravastatin delayed tumor growth and increased survival (median survival: 49 vs. 39 days for control; P = 0.17; Fig. 6B). Survival was comparable in mice treated with 125I-anti CEA mAb alone or 125I-anti CEA mAb + pravastatin (median survival = 55 vs. 57 days, respectively; P = 0.92; Fig. 6B). However, at day 39 (at a time where most of the mice were still monitored) or at day 58 (end of the follow-up period), the highest tumor mass reduction (NaCl to RIT tumor mass ratio = 0.52 and 0.71, respectively) was observed with RIT alone, whereas it was comparable for the pravastatin and pravastatin + RIT groups (pravastatin to pravastatin + RIT tumor mass ratio = 0.5 and 0.99, respectively; Fig. 6C).
Relative contribution of targeted and nontargeted cytotoxicity in alpha and Auger RIT
Using the present experimental data in donor and recipient cells (Figs. 2 and 4C) and previous data we described for Auger RIT and 125I-UdR targeting of the nucleus (34), we could determine the relative contribution of targeted and nontargeted cytotoxicity (Supplementary Methodology and Fig. 7). We found that alpha RIT–targeted cytotoxicity was responsible for 67% to 94% of cell death (Fig. 7), and was much higher than the cell death induced by Auger RIT (<18%). However, when the emitter was located in the DNA, for instance when using 125I-UdR (34), Auger and alpha RIT–targeted effects were similar (i.e., 69.6% of cell death). Although the nontargeted cytotoxic effects of the 212Pb-anti-HER2 mAb killed only about 7% of cells, those of the 212Pb-anti-CEA and 213Bi-anti-MISRII mAbs caused 30% to 36% of cell death (Fig. 7), which means that about 50% of killing by alpha particles is due to nontargeted effects. We obtained similar nontargeted effect values for Auger RIT using the 125I-anti CEA mAb (28.8%), indicating that Auger RIT nontargeted effects kill about twice more cells than the corresponding targeted effects.
Moreover, for alpha RIT, lipid rafts contributed significantly to killing and in a similar proportion for targeted and nontargeted cytotoxic effects (Fig. 7), which represents a contribution of about 25% to 33% (i.e., 21%–24% of 67%–94%) of targeted effects and about 50% of nontargeted effects (i.e., 17.6%–20.9% of 7%–36%). For Auger RIT, the contribution of lipid rafts was higher: about 50% for targeted effects (9.2%–9.4% of 18%) and higher (65%–72%) for nontargeted effects (18.9%–21.6% of 27%–29%).
In this study, we demonstrated that cell membrane–mediated nontargeted effects play a significant role (up to 50% depending on situations) during Auger and alpha RIT, and that drugs regulating cholesterol level, such as MBCD, filipin, and statins, could interfere with RIT efficacy.
We first showed in mice bearing small-volume peritoneal carcinomatosis and treated with 212Pb-anti-CEA mAbs that nontargeted effects occur and could limit the negative effect of the antibody distribution heterogeneity by producing similar levels of damage in both irradiated and nonirradiated tumor areas, contributing to the therapeutic efficacy. It must be noted that we showed previously that unlabeled used here antibodies had no therapeutic efficacy under RIT conditions (33). As DNA damage (DNA DSBs) increases proportionally with the irradiation dose (a feature of targeted effects; refs. 36, 37), in the absence of nontargeted signals, the level of DNA lesions in nonirradiated areas should be similar to that measured in NaCl-treated tumors (Fig. 1D).
Conversely, for the 212Pb-anti-HER2 mAb, the relative contribution of targeted effects was higher than that of nontargeted effects, and the yield of DNA damage ex vivo was proportional to the dose (36). We then confirmed the nontargeted cytotoxic and genotoxic effects of alpha RIT in vitro using conditioned medium transfer experiments (Fig. 2).
As during RIT the cell membrane is subject to high energy deposition, we hypothesized that it could actively participate in targeted and nontargeted effects. Relatively few studies have investigated the effects of irradiation on the cell membrane (38, 39). We found that ceramide production was increased during alpha RIT through ASMase activation (Fig. 3B and C). Ceramide is known to be a second messenger of apoptosis, a cell death process observed during alpha-RIT (Fig. 4C). Moreover, sphingolipids, such as ceramide, interact with each other via hydrophilic interactions between the sphingolipid head groups, and form complexes that are stabilized by cholesterol that fills the gaps between large sphingolipid molecules. These complexes constitute very small floating domains in the membrane (called lipid rafts) that are in a liquid ordered phase and are insoluble in cold nonionic detergents (40, 41). We confirmed the formation of lipid raft during alpha-RIT (Fig. 3A) which corroborated a previous study showing also their formation during Auger RIT (34). Upon irradiation, ceramide production leads to aggregation of lipid raft domains that are converted into larger membrane platforms. These platforms represent lateral subcompartments that participate in the segregation of molecules and the reorganization of receptor molecules, membrane signaling, and trafficking. Ceramide also interacts and activates the serine/threonine phosphatases PP2A and PP1 that in turn act on different signaling proteins, including MAPKs (AKT, c-JUN), PKC isoforms (PKCα and ζ), kinase suppressor of Ras (KSR), pRB, and BCL-2 (8, 42–44). Here, we found that p38 and JNK 1/2/3 are activated during alpha RIT and play a significant role in targeted and nontargeted effects in vitro (Figs. 3F, 4, and 5A) and in vivo (Fig. 5B). However, phosphorylation of p38 and JNK1/2/3 was lost, and clonogenic cell survival was increased when cell cultures and mice bearing tumor cell xenografts were treated with the combination of alpha RIT and MBCD (and also filipin in vitro), a drug that disrupts lipid rafts by cholesterol depletion (Fig. 5A and B).
We showed that MBCD and filipin reduced the efficacy of alpha-RIT in vitro (Fig. 3D) and also in vivo (Fig. 6A; Supplementary Fig. S8). In vivo, DNA damage level (53BP1 foci) was reduced in tumors of mice treated with RIT + MBCD. Similarly, Auger RIT efficacy was decreased when performed in the presence of pravastatin, an inhibitor of hydroxymethylglutaryl-CoA reductase (involved in cholesterol synthesis) and also of low-density lipoprotein synthesis. This result is important because older patients undergoing alpha RIT are often also treated for hypercholesterolemia.
Moreover, our results suggest a role for ROS during alpha-RIT (Fig. 4A; Supplementary Fig. S7). Besides producing DNA lesions (45), HO° could participate in the oxidation of cysteine 629 in ASMase C-terminus, leading to ASMase activation (46–48).
We showed that catalase and DMSO limited the nontargeted and also targeted (to a lower extent) cytotoxic effects of alpha RIT (Fig. 5C) and also reduced the level of p-p38, p-JNK1/2/3, and p-NF-κB in vitro (Fig. 4A). We did not observe any change in p-NF-κB level in tumors (Fig. 5B). However, overall, p-NF-κB expression was very low and was not correlated with any treatment. It would be of interest in further experiments to use NF-κB knockout mice to better delineate the role of the latter transcription factor in vivo. In recipient cells, ROS production could lead to simple DNA DSBs that recruit a lower number of DNA repair proteins, as shown by the presence of small 53BP1 and γH2AX foci only. Conversely, ROS seems to be less implicated in alpha RIT–targeted effects that generate dense DNA ionization, leading to more complex lesions and the recruitment of a higher number of DNA repair proteins, as suggested by the larger 53BP1 and γH2AX foci (Fig. 2C and D).

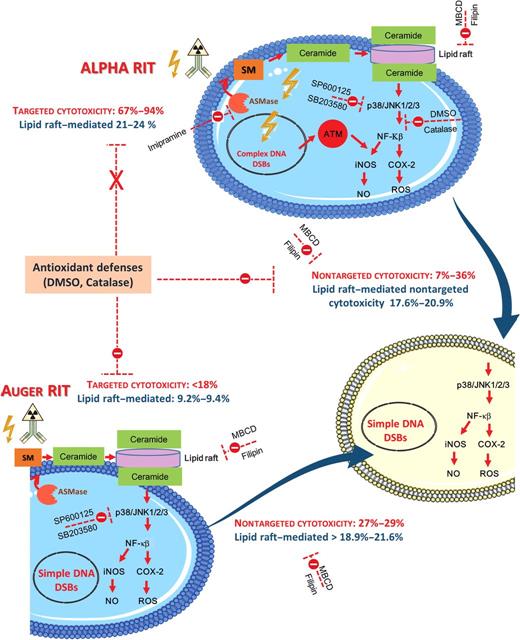

Therefore, these results indicate that Auger and alpha RIT, which have been described as potential therapeutic tools mainly dedicated to the treatment of microscopic diseases, can also be efficient for small volume (several mm in size) tumors, far beyond the expected range of Auger and alpha particles. This is also relevant for radionuclide therapy in which radiolabeled vectors cannot gain access to all tumor cells. Nontargeted effects could thus contribute to the observed therapeutic efficacy of the new radiopharmaceuticals currently under evaluation (49, 50).
Finally, it must be noted that nontargeted effects of radiation might also include abscopal and systemic effects that are measured at a distance from the irradiated tumor area and that are mediated by the immune system (51, 52). Although these effects have been poorly studied during RIT, they might contribute to RIT effectiveness and require the development of dedicated immunocompetent preclinical models (53).
This study showed that alpha RIT is mediated by targeted and nontargeted effects. Depending on the radiopharmaceuticals, nontargeted effects contribution can be high. Upon radiolabeled mAb binding to cell surface receptors, the formation of ceramide-enriched large platforms and the subsequent activation of p38- and JNK-mediated signaling pathways are partly responsible for the nontargeted effects and, to a lower extent, for targeted effects. As targeted effects are dose-related but not nontargeted effects, these results have consequences on the planning and prediction of the therapeutic efficacy and side effects of TRT using alpha particles. Moreover, they suggest that patients undergoing treatment to modify lipid metabolism could respond differently to TRT.
