Purpose: Cancer-initiating cells (C-IC) have been described in multiple cancer types, including colorectal cancer. C-ICs are defined by their capacity to self-renew, thereby driving tumor growth. C-ICs were initially thought to be static entities; however, recent studies have determined these cells to be dynamic and influenced by microenvironmental cues such as hypoxia. If hypoxia drives the formation of C-ICs, then therapeutic targeting of hypoxia could represent a novel means to target C-ICs.
Experimental Design: Patient-derived colorectal cancer xenografts were treated with evofosfamide, a hypoxia-activated prodrug (HAP), in combination with 5-fluorouracil (5-FU) or chemoradiotherapy (5-FU and radiation; CRT). Treatment groups included both concurrent and sequential dosing regimens. Effects on the colorectal cancer-initiating cell (CC-IC) fraction were assessed by serial passage in vivo limiting dilution assays. FAZA-PET imaging was utilized as a noninvasive method to assess intratumoral hypoxia.
Results: Hypoxia was sufficient to drive the formation of CC-ICs and colorectal cancer cells surviving conventional therapy were more hypoxic and C-IC-like. Using a novel approach to combination therapy, we show that sequential treatment with 5-FU or CRT followed by evofosfamide not only inhibits tumor growth of xenografts compared with 5-FU or CRT alone, but also significantly decreases the CC-IC fraction. Furthermore, noninvasive FAZA-PET hypoxia imaging was predictive of a tumor's response to evofosfamide.
Conclusions: Our data demonstrate a novel means to target the CC-IC fraction by adding a HAP sequentially after conventional adjuvant therapy, as well as the use of FAZA-PET as a biomarker for hypoxia to identify tumors that will benefit most from this approach. Clin Cancer Res; 24(9); 2116–27. ©2018 AACR.
Despite decades worth of research and clinical trials, targeting hypoxia has yet to become a standard part of cancer treatment. In this study, we show that pretreatment with a 4-day course of 5-fluorouracil (5-FU) resulted in colorectal cancer cells being driven into a hypoxic cancer-initiating cell (C-IC) state, which was exquisitely sensitive to the hypoxia-activated prodrug evofosfamide. Using limiting dilution assays, we demonstrate that sequential treatment with either 5-FU or chemoradiotherapy (CRT) followed by evofosfamide specifically targeted the colorectal C-IC fraction. Furthermore, we identify FAZA-PET as a biomarker for hypoxia that can be used to identify colorectal cancers that will benefit most from the addition of evofosfamide. Future clinical trials are warranted to validate our findings in the context of colorectal cancer patients.
Hypoxia is a common feature of many solid tumors and is often associated with tumor aggressiveness and therapeutic resistance (1–4). More recently, tumor hypoxia was linked to increased self-renewal capacity, the canonical feature defining cancer-initiating cells (C-IC; refs. 5, 6). Aside from increasing the self-renewal capacity of existing C-ICs, hypoxia was shown to promote the acquisition of a C-IC like phenotype in a wide range of solid tumors (7, 8). In the context of colorectal cancer, exposure to hypoxia results in increased nuclear localization and expression of β-catenin, a marker of the colorectal cancer–initiating cell (CC-IC) fraction (9). Hypoxia has also been shown to block cellular differentiation by suppressing expression of CDX1, a differentiation marker in colorectal cancer, and inducing expression of BMI-1, a key regulator of CC-IC self-renewal (10). Functional assessment of C-ICs in glioblastoma and breast cancers have also shown that exposure to hypoxia results in increased C-IC numbers as measured by in vivo limiting dilution assays, the gold standard assay for self-renewal (11–14). Collectively, these studies indicate that hypoxia is sufficient to drive acquisition of self-renewal capacity in a number of solid tumor-initiating cell subsets.
A canonical feature of C-ICs is decreased response to standard-of-care chemotherapy regimens in a range of solid tumors. In the context of colorectal cancer, we and others have demonstrated that standard-of-care chemotherapy agents, such as 5-fluorouracil (5-FU) and oxaliplatin, target more differentiated cancer cells while relatively sparing the CC-IC fraction (2, 3, 15–18). In addition to chemoresistance, C-ICs have also been shown to be relatively radioresistant. Previous work by Bao and colleagues demonstrated that glioblastoma C-ICs are highly radioresistant compared with the non-C-IC fraction and as a result have increased survival postradiotherapy (19, 20). Interestingly, it is well established that like C-ICs, hypoxic cancer cells also demonstrate chemoresistance and radioresistance (2, 4, 21, 22). These similarities led us to question whether C-ICs could be specifically targeted using the hypoxia-activated prodrug (HAP; refs. 21, 23) evofosfamide (previously known as TH-302). Evofosfamide is a HAP composed of 2-nitroimidazole conjugated to the cytotoxin bromo-isophosphoramide mustard that is selectively activated under hypoxic conditions (24, 25), and increases the antitumor activity of multiple chemotherapeutic agents in various preclinical human tumor xenograft models (26–29). Interestingly, the concept of utilizing HAPs for cancer is not new and despite decades worth of research, hypoxia-targeting agents are still not used as standard of care in cancer treatment (4, 21–23). One of the major hurdles in the field of HAP research and its clinical application is to understand how to combine HAPs with standard-of-care therapies to maximize therapeutic response (23, 26). Another major hurdle is the selection of patients that will benefit most from targeting hypoxia (4, 21, 30). It is evident that there is a wide range of hypoxia at baseline in solid tumors. Therefore, identifying a clinical biomarker of hypoxia that predicts response to HAPs could help predict outcome and determine the optimal treatment course.
Evidence suggests that hypoxia could be a driver of the C-IC phenotype in colorectal cancer, with CC-ICs preferentially surviving in the hypoxic niche (6, 9, 10). Therefore, we questioned whether CC-ICs that survive chemotherapy are also characterized by a relative increase in hypoxia. If this is the case, then chemotherapeutic agents could be utilized to drive cancer cells into a “hypoxic CC-IC state,” which in turn could be exploited to augment the response to HAPs such as evofosfamide.
Materials and Methods
Colorectal cancer patient-derived xenografts
Human colorectal cancer tissue was obtained with informed patient consent, as approved by the Research Ethics Board at the University Health Network in Toronto, and processed as described previously (31). A summary of patient samples used in this study is provided in Supplementary Table S1. To establish and maintain PDX models, cells from freshly dissociated colorectal cancer tissue or freshly thawed previously frozen xenograft samples (31) were mixed (1:1) with high concentration Matrigel (Corning) and injected subcutaneously (s.c.) into the flanks of NOD-SCID mice (male or female, 6–8 weeks of age). All animal experiments were reviewed and approved by the Animal Care Committee at the University Health Network in Toronto.
Primary cell culture and treatments
Patient-derived cell lines established from xenografts (32) or directly from patient tissue were cultured as previously described (31). For hypoxic conditions, cells were maintained at 2% O2 for 7 or 10 days. All cell lines were authenticated using short tandem repeat profiling, and proven to be negative for mycoplasma. For in vitro studies, 5-fluorouracil (5-FU, Sigma) and evofosfamide (Threshold Pharmaceuticals) were dissolved in DMSO and used at the concentration indicated in the figure legend for 4, 7, or 10 days. Cells were irradiated using an X-RAD 225Cx preclinical irradiator (Precision X-Ray). X-rays were collimated using a 4 × 4 cm collimator (tube voltage of 225 kV, tube current of 13 mA; dose rate of 3.215 Gy/min).
Generation of TCF-GFP reporter cells and flow cytometry
Real-time PCR was performed as described previously (32), using SensiFAST SYBR Hi-ROX qPCR kit (FroggaBio) to amplify cDNA. Housekeeping genes 18S rRNA and TBP were used for normalization. Primer sequences are listed in Supplementary Material and Methods.
Limiting dilution assays
LDAs were performed as described previously (31). For in vitro LDAs, live cells were sorted into 96-well plates at 100, 10, or 1 cell per well, using FACSAria cell sorters and SYTOX Blue (Thermo Fisher Scientific) to exclude dead cells. Plates were incubated in normoxia or hypoxia for 3–5 weeks, and then wells containing spheres were counted. For in vivo LDAs, cells either from cultures grown in normoxia or hypoxia for 7 days, or from in vivo–treated xenografts were dissociated into single cells, serially diluted, and injected subcutaneously into the flanks of NSG mice (male, 6–8 weeks of age) at doses indicated in the figure legend. Sphere- and cancer-initiating cell frequencies and probability estimates were calculated using ELDA software (http://bioinf.wehi.edu.au/software/elda/).
Caspase-3/7 activity and viability assays
Caspase-3/7 activity and viability assays were performed on cells seeded in 96-well plates at 2,500 or 5,000 cells/well, in quadruplicate. Caspase-Glo 3/7 reagent (Promega) or CellTiter-Glo 3D reagent (Promega) was added, plates were shaken for 5 minutes, and then incubated at room temperature for 1 hour (caspase) or 25 minutes (viability). Luminescence was measured in a CLARIOstar microplate reader (BMG LABTECH).
In vitro immunofluorescence staining, image acquisition, and quantification of γH2AX foci
Cells were prepared for immunofluorescence as described previously (32), using primary antibodies for γH2AX (1:500, Millipore) and nonphosphorylated (active) β-catenin (1:400, Cell Signaling Technology). Cells were imaged using a 60× Plan-Apochromat/1.4 NA oil immersion objective on an inverted laser-scanning confocal microscope (LSM700; Carl Zeiss), and images were captured using LSM Zen 2012 Software (Zeiss). The number of γH2AX foci per nucleus was quantified using Z-Series projections of confocal images combined from 16 optical sections acquired at 0.9-μm intervals, and ImagePro Plus Software (Media Cybernetics). A minimum of 50 nuclei per sample were counted.
In vivo dosing of chemotherapy and chemoradiotherapy
Tumor cell suspensions (2.5 × 105 for POP92 or 1 × 106 for CSC91 and POP74) were mixed (1:1) with high concentration Matrigel (Corning) and injected subcutaneously into upper left and right flanks of female Ncr/nude mice (Taconic), 8–10 weeks of age (2 injections per mouse, 7 mice per treatment group). When the average tumor volume reached 100 mm3, tumor-bearing mice were randomized into control and treatment groups based on tumor volumes, and dosing commenced on day 0. For in vivo studies, 5-FU and evofosfamide were dissolved in saline and administered by intraperitoneal (i.p.) injection. Individual treatment regimens were as follows: saline (control), 5-FU (30 mg/kg × 5 days), CRT (20 mg/kg + 2 Gy × 5 days), evofosfamide (50 mg/kg × 10 days); combination therapies were given either concurrently (both started on day 0, evofosfamide administered 4 hours before 5-FU or CRT) or sequentially (5-FU or CRT started on day 0, and evofosfamide started on day 4). For radiotherapy, mice were anesthetized with isoflurane and placed onto the stage of an X-RAD 225Cx small-animal image-guided irradiator (Precision X-Ray), in prone position. A cone beam CT scan was taken of the tumor region, and used to plan a dose of 1 Gy each administered from the dorsal and ventral sides. A 1-cm circular collimator was chosen to provide uniform dose across the tumor while minimizing normal tissue exposure. No detectable skin or normal tissue toxicity was observed over the course of therapy. Body weights were measured every 1–3 days over the course of treatment, and tumor growth was monitored by caliper measurements every 2–7 days until endpoint was reached.
In vivo pimonidazole immunofluorescence staining, image acquisition, and quantification
Mice were administered pimo (60 mg/kg; Hypoxyprobe) by intraperitoneal injection 90 minutes prior to sacrifice. Tumors were embedded in O.C.T. compound (Tissue-Tek) and snap frozen, or fixed in 10% neutral buffered formalin, dehydrated, and embedded in paraffin. Heat-induced epitope retrieval was performed on formalin-fixed paraffin-embedded tissue sections in citrate buffer. Tissue sections (5-μm) were stained with FITC-conjugated α-pimo antibody (1:100, Hypoxyprobe) and DAPI to label nuclei. Images were acquired using a TissueScope confocal fluorescence whole slide scanner (Huron Digital Pathology) at 10× magnification (1-μm resolution). Images were analyzed using TissueStudio 3.51 software (Definiens) as described previously (33).
[18F]-fluoroazomycin arabinoside positron emission tomography hypoxia imaging
FAZA-PET/CT imaging was used to estimate baseline hypoxia in approximately 100 mm3 xenografts one day before the treatment commenced. Mice were injected intravenously with 10–15 MBq of [18F]-FAZA in <150 μL saline containing ≤10% (v/v) ethanol. After 2 hours, mice were anesthetized and scanned for 20 minutes as described previously (33). FAZA-PET images were fused with CT images, and quantified by measuring the maximum % injected dose/gram (%ID/g) in the tumor region, using a 100 mm3 region of the paraspinal muscle as a control. FAZA uptake was expressed as tumor maximum (Tmax) to muscle mean (Mmean) (T/M) ratios (%ID/g).
For all experiments except LDAs, statistical analysis was performed using Prism 6 Software (GraphPad). P values were derived using two-tailed Student t tests, one-way ANOVA followed by Tukey multiple comparisons test, or log-rank test. For LDAs, frequency determinations and P values were generated using ELDA software (Walter and Eliza Hall Institute). For all comparisons, a P value of <0.05 was considered statistically significant.
Hypoxia activates Wnt/β-catenin signaling and enriches for CC-ICs
Previous studies have shown that hypoxic stem cells have enhanced Wnt/β-catenin signaling (34) and that high Wnt activity functionally designates the CC-IC population (35). To confirm that our patient-derived colorectal cancer spheroid cultures maintain these properties when grown in vitro under conditions that enrich for CC-ICs, we stably transduced three models with a lentiviral TCF/LEF promoter-driven GFP reporter (TCF-GFP) and cultured cells under normoxic (21% O2) and hypoxic (2% O2) conditions. Exposure to hypoxia for 10 days significantly increased TCF-GFP reporter activity (2.2- to 4.7-fold) in all three models (Fig. 1A and B). In addition, hypoxic exposure also upregulated expression of stem genes c-MYC and KLF4 (Supplementary Fig. S1A), and stabilized hypoxia-inducible factor (HIF) proteins (Supplementary Fig. S1B). To evaluate the effects of hypoxia on CC-IC function, we performed in vitro LDAs under normoxic and hypoxic conditions. Exposure to hypoxia significantly increased sphere formation (1.6- to 7-fold) in all three models tested (Fig. 1C; Supplementary Table S2). To confirm our in vitro results, we performed in vivo LDAs using spheres cultured in normoxia or hypoxia for 7 days, injected at limiting dilution into NSG mice. Both models preexposed to hypoxia displayed a significant increase in CC-IC frequency (3.1- and 14-fold) compared with normoxic controls (Fig. 1D; Supplementary Table S3). Collectively, these data show that culturing colorectal cancer cells under hypoxic conditions results in an increased number of phenotypic and functional CC-ICs.
Chemotherapy enriches for the CC-IC phenotype and hypoxic tumor cells

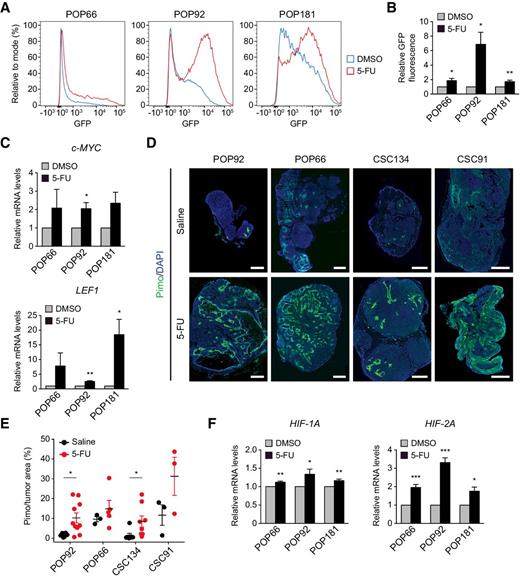

As both CC-ICs and hypoxia are thought to contribute to chemotherapy resistance (1–4, 18), we tested the effect of the chemotherapy drug 5-FU on the CC-IC phenotype and tumor hypoxia. Colorectal cancer cells treated in vitro with 5-FU (at the IC50 for each model) for 10 days showed a statistically significant increase in TCF-GFP reporter activity (1.7- to 6.9-fold) in all three models tested (Fig. 2A and B). Consistently, cells cultured in the presence of 5-FU also showed upregulated expression of Wnt target genes c-MYC and LEF1 (Fig. 2C) and their corresponding proteins (Supplementary Fig. S2A). In addition, we observed increased expression of CC-IC surface marker CD133 for both spheroid models that express this CC-IC phenotypic marker (Supplementary Fig. S2B and S2C).
To determine whether exposure to 5-FU enriches for hypoxic tumor cells, we injected colorectal cancer spheroid cultures or patient-derived xenografts (PDX) subcutaneously into immunodeficient nude mice. Once tumors were approximately 100 mm3, mice were treated with saline or 5-FU for 5 days, then subsequently injected with the 2-nitroimidazole hypoxia tracer pimonidazole (pimo) and sacrificed 24 hours after the last treatment. We observed an increase in the pimo-positive hypoxic fraction of cancer cells in tumors exposed to 5-FU (1.6- to 6.4-fold), as compared with control tumors in all four models tested (Fig. 2D and E). Consistently, cells cultured in the presence of 5-FU also showed significantly upregulated expression of HIFs (Fig. 2F; Supplementary Fig. S2D) and HIF target genes CXCR4, GLUT1, and OCT4 (Supplementary Fig. S2E). Taken together, these data demonstrate that treatment with 5-FU increases the proportion of both hypoxic tumor cells and those with high levels of Wnt/β-catenin signaling.
Evofosfamide increases the efficacy of chemotherapy or radiation in vitro
As 5-FU–treated tumors showed an enrichment of the hypoxic fraction and hypoxia is known to contribute to chemotherapeutic resistance (1–4), we asked whether the addition of a HAP would increase the efficacy of conventional therapy. 5-FU is a pyrimidine analogue that causes DNA damage by inhibiting thymidylate synthase, which disrupts DNA synthesis and repair, whereas ionizing radiation directly induces DNA double-strand breaks. Under hypoxic conditions, evofosfamide is converted to the active drug bromo-isophosphoramide mustard, which cross-links DNA and renders cells unable to replicate their DNA and divide. To assess whether evofosfamide enhances 5-FU- or radiation-induced DNA damage in vitro, POP92 spheroid cultures were treated with 5-FU, radiation (X-RAD), or either agent in combination with evofosfamide. After 4 days, spheres were fixed and labeled with immunofluorescent antibodies for γH2AX to mark sites of DNA damage (Fig. 3A). In the vehicle control group (DMSO), there were no γH2AX foci in approximately 50% of cells and one or more foci per cell for the remaining half. As expected, treatment with the single agents alone increased the proportion of cells with γH2AX foci (Fig. 3B; 87% for 5-FU, 71% for X-RAD, or 71% for evofosfamide vs. 51% for DMSO). Treatment with 5-FU or X-RAD in combination with evofosfamide resulted in a further increase in the proportion of cells with γH2AX foci (97% for 5-FU + evofosfamide or 91% for X-RAD + evofosfamide). This included a 2.0- to 5.2-fold increase in the proportion of cells with >50 foci compared with either agent given alone (49% for 5-FU + evofosfamide vs. 24% for 5-FU alone, or 31% for X-RAD + evofosfamide vs. 6% for X-RAD alone). Importantly, in the groups receiving evofosfamide in combination with 5-FU or X-RAD, costaining with antibodies for active β-catenin revealed the presence of high-level nuclear β-catenin in cells with >50 γH2AX foci, suggesting that CC-ICs were not being spared in these groups (Fig. 3A). Consistent with increased DNA damage, colorectal cancer cells treated in vitro with the combination of 5-FU + evofosfamide for 4 days had increased levels of caspase-3/7 activity compared with 5-FU alone (Fig. 3C), indicating enhanced apoptosis in the combination group. Together, these data demonstrate that evofosfamide increases the in vitro efficacy of conventional chemotherapy or radiation.
Sequential dosing with evofosfamide potentiates standard-of-care agents in vivo
To validate our in vitro results, we injected POP92 spheroid cultures into nude mice and monitored the growth of tumor xenografts in the absence or presence of standard-of-care therapies, either alone or in combination with evofosfamide. Once tumors reached an average volume of approximately 100 mm3, mice were randomized into the following treatment groups: saline (control), 5-FU or chemoradiotherapy (CRT), evofosfamide + 5-FU or CRT + evofosfamide. In addition, each combination group included two different dosing regimens: concurrent, in which 5-FU and evofosfamide were administered on the same day, and sequential, where evofosfamide was administered 4 days after the start of 5-FU (Fig. 4A). We observed minimal effects on growth of tumors treated with 5-FU, evofosfamide, or the combination given concurrently, as indicated by similar growth plots and time to reach 500 mm3 (Supplementary Fig. S3; Fig. 4B). In contrast, mice treated sequentially with the combination exhibited tumor growth inhibition, as indicated by a significantly longer time for tumors to reach 500 mm3. There was an even more dramatic tumor growth inhibition when CRT and Evo (evofosfamide) were dosed sequentially (Fig. 4C; Supplementary Fig. S3). Strikingly, the median time to reach 500 mm3 for the CRT and evofosfamide sequential group was 47 days compared with 19 days for the combination given concurrently or 17 days for CRT alone. These data demonstrate that introducing a HAP in a sequential dosing regimen after standard-of-care therapy further inhibits tumor growth of colorectal cancer xenografts, which is consistent with our finding that in vivo treatment with 5-FU resulted in a relative increase in the hypoxic fraction after 5 days (Fig. 2D and E).
Evofosfamide combined with conventional therapy increases targeting of the CC-IC fraction
To determine whether the addition of evofosfamide in the sequential dosing regimen provides a survival benefit compared with conventional therapies alone in other colorectal cancer models, we selected two samples from a panel of established colorectal cancer xenograft models exhibiting a wide range of baseline intratumoral hypoxia for further in vivo testing. Relative to our other PDX models, POP74 (colon cancer) and CSC91 (rectal cancer) exhibit high and medium baseline levels of hypoxia, respectively (Supplementary Fig. S4). For the colon tumor model (POP74), Kaplan–Meier analysis showed that treatment with evofosfamide either alone or in combination with standard-of-care agent 5-FU resulted in a longer time to 500 mm3 compared with 5-FU alone or saline groups (Supplementary Fig. S5; Fig. 5A, median survival time of 24 days for evofosfamide alone or 28.5 days for 5-FU + evofosfamide versus 20 days for 5-FU alone or 13 days for the saline group). Interestingly, unlike the previous sample, there was no statistically significant difference in the tumor growth inhibition between evofosfamide alone versus 5-FU + evofosfamide treatment groups. The increased sensitivity to evofosfamide observed for POP74 likely reflects the finding that this PDX model possesses the highest baseline hypoxia of all colorectal cancer xenografts tested in this study (Supplementary Fig. S4). For the rectal tumor model (CSC91), an endpoint of 400 mm3 was used due to the markedly slower growth compared with the previous models. Kaplan–Meier analysis showed that combining standard-of-care treatment CRT + evofosfamide resulted in a longer time to 400 mm3 compared with either agent alone (Supplementary Fig. S5; Fig. 5B, median survival time >125 days for CRT + evofosfamide vs. 67 days for evofosfamide alone, 54 days for CRT alone, or 34 days for the saline group). Of note, although we observed that the single agents alone also increased the median survival time to 400 mm3, only the combination treatment yielded a long-term survival benefit for this sample over the course of the experiment. In total, only 3 of 8 (37.5%) xenografts in the combined therapy group reached 400 mm3 by the end of the study (125 days).
To assess the effect of sequential dosing of the combination treatments on the CC-IC fraction, we performed in vivo LDAs using colorectal cancer cells isolated from xenografts described above. For each sample, one (POP74) or two (CSC91) mice per treatment group were sacrificed 24 hours posttreatment and cells were injected at limiting dilution into NSG mice. POP74 tumors treated with the combination of 5-FU + evofosfamide had a significantly impaired ability to repopulate secondary tumors compared with those treated with 5-FU alone (Fig. 5C; Supplementary Table S4; CC-IC frequency 1/30,415 vs. 1/2,644) or evofosfamide alone (1/7,275). Similarly, CSC91 tumors treated with the combination of CRT + evofosfamide showed a significant reduction in CC-IC frequency compared with CRT alone (Fig. 5D; Supplementary Table S5; CC-IC frequency 1/52,140 vs. 1/9,491) or evofosfamide alone (1/3,417). Collectively, these data demonstrate that addition of evofosfamide to 5-FU or CRT provides a survival benefit over conventional therapies alone and increases targeting of the CC-IC fraction.
FAZA-PET identifies tumors that benefit most from the addition of evofosfamide to standard-of-care therapies
Hypoxia is associated with poor prognosis across multiple cancers including tumors of the head and neck, breast, cervix, and prostate (4, 21). To determine whether hypoxia is prognostic for clinical outcome of colon cancer patients, we tested whether existing hypoxia multi-gene sets correlate with overall survival across primary colon adenocarcinoma samples from The Cancer Genome Atlas dataset. Using three published hypoxia gene sets, each encompassing multiple genes that exhibit differential expression in hypoxia versus normoxia (36–38), we found that colon cancer patients with high hypoxia gene expression have a significantly worse overall survival compared with those with low hypoxia gene expression (Supplementary Fig. S6).
We next tested whether we could use noninvasive hypoxia imaging to identify those tumors that would benefit most from addition of evofosfamide to standard-of-care therapies. [18F]-FAZA-PET/CT imaging was used to determine the baseline intratumoral hypoxia level for a subset of mice from in vivo studies of colorectal cancer xenografts POP74 and CSC91 described above. One day before treatment commenced, mice from the 5-FU or CRT and 5-FU or CRT + evofosfamide groups were injected with [18F]-FAZA and imaged by PET/CT (Fig. 6A). For the colon tumor model (POP74), we observed a trend of faster growth rates for tumors with higher FAZA uptake for the 5-FU alone group (Fig. 6B), suggesting that the more hypoxic tumors had a decreased response to 5-FU. When 5-FU was given in combination with evofosfamide, this trend was absent, with greater therapeutic benefit in tumors that had high FAZA uptake at baseline. Indeed, when comparing the four tumors with the lowest FAZA uptake (FAZAlow) to the four with the highest FAZA uptake (FAZAhigh), only the FAZAhigh group showed a statistically significant decrease in tumor growth rate upon addition of evofosfamide (Fig. 6C).
We observed similar results for the rectal tumor model (CSC91), where tumors with higher baseline FAZA uptake generally grew faster compared with those with lower baseline FAZA uptake in the CRT alone group but not in the CRT + evofosfamide group (Fig. 6D), suggesting the more hypoxic tumors responded less to CRT and greater therapeutic benefit could be seen in the tumors that had high FAZA uptake at baseline. Consistent with the previous model, only the FAZAhigh group showed a statistically significant decrease in tumor growth rate upon addition of evofosfamide (Fig. 6E). Taken together, these studies indicate that FAZA-PET imaging prior to therapy initiation may serve as an effective clinical biomarker to identify those patients who would benefit most from the addition of evofosfamide to standard-of-care therapies.
Despite a significant body of evidence linking intratumoral hypoxia to poor prognosis, therapeutic resistance, and enrichment of C-ICs, targeting hypoxia has yet to become standard of care in cancer treatment (1, 4, 22). Approaches to targeting hypoxia include the use of bioreductive HAPs and inhibitors of hypoxia signaling molecules (4). HAPs have been used in preclinical studies and clinical trials both as a single agent and in combination with chemotherapy and/or radiotherapy (21, 23). The goal of combination studies has been to use chemotherapy or radiotherapy to target the oxygenated tumor cells and a HAP to target the hypoxic compartment (26–28, 39, 40). Here, we show that sequential addition of evofosfamide after 5-FU or CRT is a novel and highly effective method to target the hypoxic CC-IC fraction.
Numerous reports demonstrate an additive or synergistic effect between evofosfamide and chemotherapy in a wide range of preclinical cell line–derived xenograft models of solid tumors including: melanoma (26), osteosarcoma (29), colorectal (26), non–small cell lung (26, 27), prostate (28), and pancreatic (41) cancer. In these studies, the antitumor activity of cisplatin (26), docetaxol (26), doxorubicin (26, 28, 29), irinotecan (26), gemcitabine (26, 41), and temozolomide (26) was increased when combined with evofosfamide in most cancer models tested. In the context of colorectal cancer, Liu and colleagues showed that in the HT29 xenograft model, administration of evofosfamide 2–8 hours before cisplatin yielded superior growth suppression compared with evofosfamide given 2–8 hours after cisplatin or simultaneous administration (26). The authors hypothesized that administration of cisplatin prior to evofosfamide may have caused reoxygenation of the hypoxic compartment; therefore, when evofosfamide was administered after cisplatin, its activity was reduced due to a smaller hypoxic fraction. It is difficult to make a direct comparison between our results and those of Liu and colleagues because we used different chemotherapies and PDX models are more heterogeneous than cell line–derived xenografts. We selected 5-FU because it represents the backbone of chemotherapy regimens for colorectal cancer. We found that pretreatment with 5-FU resulted in an enrichment of the hypoxic fraction, which sensitized tumors to evofosfamide. The effect on tumor growth inhibition was significantly greater when evofosfamide was added after a 4-day course of 5-FU or CRT, compared with concurrent dosing. One caveat is that we used immunodeficient mice with incomplete tumor microenvironment. However, similar results were reported by Benito and colleagues using a syngeneic model of acute myeloid leukemia to show that leukemic bone marrow cells surviving chemotherapy remain hypoxic and can be targeted by the addition of evofosfamide one week after chemotherapy (40). Our results, as well as those of Benito and colleagues, are supported by recent evidence that C-ICs reside in hypoxic niches protected from chemotherapies (5, 6, 42), and result in disease recurrence. Together, these findings strongly suggest that targeting the hypoxic fraction represents a novel means to target CC-ICs.
Intratumoral hypoxia is a known factor contributing to radioresistance; this is driven in part by the involvement of oxygen in the initial production of DNA damage and by additional complex and multifactorial molecular mechanisms (43). The “oxygen-effect” was established over 50 years ago, and describes the involvement of oxygen in the initial formation of DNA breaks caused by low LET radiation (44). Hypoxic cells are up to 3-fold more resistant in terms of the radiation dose needed to cause equivalent levels of DNA damage and cell death. It is well established that chronically hypoxic tumors also display decreased DNA repair, which results in increased mutation rates and exacerbation of tumor aggressiveness (45). Numerous other mechanisms are involved in hypoxia-driven radioresistance, including stabilization of HIF-1α and HIF-2α, oxygen-dependent epigenetic changes, and effects on cancer cell metabolism (43). There is significant literature demonstrating that hypoxic cells are also less sensitive to chemotherapy (1–4). This relative chemoresistance has been explained by the fact that hypoxic cells are non- or slowly proliferating and as such do not respond well to chemotherapy. In addition, hypoxic regions within a tumor are less accessible to chemotherapy resulting in decreased drug exposure. The relative increase in the hypoxic fraction that we observed after 5-FU could be the result of nonhypoxic cells being targeted, thereby resulting in a relative enrichment in the hypoxic fraction. Another possible explanation is that 5-FU can induce colon cancer cells to undergo metabolic reprogramming toward OXPHOS (46). Genes regulating OXPHOS are upregulated in chemotherapy-treated tumors, and in response to chemotherapy, colonospheres can survive by engaging a SIRT1/PGC1α-dependent shift from glycolysis to OXPHOS (47). Increased oxygen requirements through OXPHOS could result in increased tumor hypoxia. Further work is required to fully elucidate the mechanisms driving the relative increase in hypoxic cells following treatment with 5-FU.
In support of our findings that hypoxia enriches for CC-ICs, Mao and colleagues have shown that the majority of CC-ICs (CD133+ population) in colon cancer samples stain positive for the hypoxia marker pimo, whereas non-CC-ICs (CD133− population) do not (42). Furthermore, following chemotherapy-induced stress, CD133+ cells in colon cancer xenografts were spared, resulting in a relative enrichment of the hypoxic CC-IC fraction. The authors concluded that the hypoxic state of the CD133+ cells renders them resistant to chemotherapy, lending further rationale for using a HAP to target CC-ICs. Lohse and colleagues have previously shown that combining radiotherapy with evofosfamide in pancreatic cancer PDX model–targeted C-ICs (39). Similarly, our serial passage in vivo LDA results demonstrate that evofosfamide combined with 5-FU or CRT is an effective way to target CC-ICs. Although the sequential combination treatments had the most significant effect, 5-FU and CRT alone also decreased CC-ICs, suggesting that these agents did target a subset of CC-ICs. It is known that different subclasses of C-ICs exist within colorectal cancer, and that these subclasses display differential responses to treatment with oxaliplatin ranging from sensitive to resistant (48). The basis of the differential response was hypothesized to be related to the proliferative versus quiescent states of individual CC-ICs. However, another possible explanation is that CC-ICs exist in both the hypoxic and nonhypoxic fractions of a tumor; 5-FU and CRT may target CC-ICs in the normoxic zones while sparing CC-ICs in the hypoxic zones (39). Alternatively, it is possible that only CC-ICs that can switch their metabolism from glycolysis to OXPHOS are able to survive and give rise to hypoxic CC-ICs (46, 47). Although the molecular mechanisms remain to be elucidated, it is evident from our work that the addition of evofosfamide to 5-FU or CRT increases targeting of CC-ICs.
Heterogeneity in oxygenation exists within and between patient tumors in every cancer type evaluated (4, 49), and plays a key role in therapeutic response to HAPs (4, 25). We also found considerable intra- and intertumoral heterogeneity in the hypoxic fraction of our colorectal cancer PDX models. For example, POP74 xenografts expressed the highest level of baseline hypoxia of all the models tested, and they were the most responsive to treatment with evofosfamide alone. This suggests that at high levels of intratumoral hypoxia there is a benefit to treating with evofosfamide as a monotherapy, and identification of these cancers prior to starting treatment will likely single out patients that will benefit most from a HAP. In our panel of 8 unique colorectal cancer PDX models, only 2 samples consistently demonstrated a high level of hypoxia at baseline. Importantly, since we show that treatment with 5-FU enriches for hypoxic cancer cells, this could potentiate response to evofosfamide even in samples with lower baseline hypoxia.
Finally, we demonstrate the use of FAZA-PET as a clinical biomarker to predict response to evofosfamide based on intratumoral hypoxia. In both PDX models tested, we found that tumors with higher baseline intratumoral hypoxia, as determined by FAZA-PET/CT imaging, generally exhibited faster growth rates in the presence of 5-FU or CRT. Importantly, the growth of high hypoxia (FAZAhigh) tumors was significantly reduced in the 5-FU or CRT + evofosfamide combination groups compared with 5-FU or CRT alone, whereas the growth of low hypoxia (FAZAlow) tumors was not changed by the addition of evofosfamide. Interestingly, to date clinical trials of evofosfamide have not stratified patients based on intratumoral hypoxia, and according to our data this likely represents a confounding factor influencing the trial results. Other studies have also demonstrated the utility of hypoxia PET tracers including [18F]-FAZA, [18F]-HX4, and [18F]-FMISO to accurately measure intratumoral hypoxia in preclinical models (30, 50, 51). Collectively, these findings indicate that FAZA-PET represents a noninvasive biomarker of intratumoral hypoxia that should be utilized in the clinical setting to identify patients that will benefit from the addition of evofosfamide.
