Epigenome-Wide Tumor DNA Methylation Profiling Identifies Novel Prognostic Biomarkers of Metastatic-Lethal Progression in Men Diagnosed with Clinically Localized Prostate Cancer

Prostate cancer is a biologically and clinically heterogeneous disease with 180,890 new cases and 26,120 cancer-specific deaths expected in the United States for 2016 and over 300,000 deaths worldwide each year (1, 2). Prostate cancer most often has an indolent course, but a subset of patients progress to metastasis and eventually die from prostate cancer (3, 4). The single most important predictor of prostate cancer prognosis is Gleason sum; however, Gleason grading is frequently inaccurate (5). By comparing the Gleason sum of the diagnostic biopsy to subsequent prostatectomy, upgrading and downgrading occurs in 14% to 51% and 9%, respectively (5–7). Furthermore, although a tumor with Gleason sum ≤ 6 is low risk and Gleason sum ≥8 is high risk, tumors that are Gleason sum = 7 (i.e., grades 3+4 or 4+3) are heterogeneous and comprise the majority of tumors (8). Thus, better prognostic biomarkers that can improve upon Gleason sum for stratification of higher-risk patients most likely to benefit from targeted therapies are needed (4, 9–11).

Several recent biomarker studies of altered gene expression have led to development of mRNA signatures of tumor aggressiveness (9, 11, 12). Epigenetic alterations in tumor DNA may also provide valuable prognostic information (13, 14), and because DNA is 100-fold more stable than RNA, it may be a more reliable biological material to use for tissue-based biomarkers. The most widely studied epigenetic alteration is DNA methylation, which occurs at CpG sites across the genome and regulates gene expression (15, 16). To date, most studies of DNA methylation and prostate cancer progression have been limited to small sets of candidate genes in relation to biochemical (i.e., PSA) recurrence (14, 17–19). Although patients with biochemical recurrence are at higher risk of cancer-specific death, most will not die from their prostate cancer. Studies of patients with biochemical recurrence after radical prostatectomy found that only 17% to 22% died of prostate cancer after a median follow-up of 10 years (20, 21). Therefore, rather than focusing on PSA recurrence alone, biomarker studies of more serious clinical endpoints indicating metastatic progression and lethal prostate cancer are needed.

We investigated epigenome-wide DNA methylation profiles in primary prostate cancers. The study includes patients derived from a population-based radical prostatectomy cohort with long-term follow-up for metastatic progression and cancer-specific survival. The goal of this study was to identify differentially methylated biomarkers that could distinguish patients with metastatic-lethal prostate cancer from those with less-aggressive tumors. The most robust methylation biomarkers identified were then tested in an independent validation cohort.

The Fred Hutchinson (FH) cohort includes 430 European-American prostate cancer patients who underwent radical prostatectomy as primary therapy for clinically localized adenocarcinoma of the prostate. These patients were previously enrolled in population-based (multi-institutional) studies (22, 23), and their clinical characteristics (e.g., age at diagnosis, Gleason sum, stage, PSA level) are similar to the larger group of European-American patients interviewed for the prior studies and who were treated surgically. The first study included men ages 40 to 64 years who were diagnosed between January 1993 and December 1996, and in the second study, men were ages 35 to 74 years and were diagnosed between January 2002 and December 2005. Gleason grade (primary and secondary patterns) and sum, diagnostic PSA, and pathologic tumor stage were collected and centrally coded by the Seattle-Puget Sound Surveillance, Epidemiology, and End Results Program cancer registry. Vital status and underlying cause of death were also obtained from the cancer registry, and cause of death was confirmed by centralized review of death certificates. Prostate cancer–specific deaths included those with underlying cause of death attributed to ICD-9 code 180.0 or ICD-10 code C61.9. Prostate cancer recurrence status was determined from prospectively collected information from follow-up surveys that were completed by patients in 2004–2005 and in 2010–2011, review of medical records, and/or physician follow-up as needed. Metastatic progression was confirmed by positive bone scan, MRI, CT, or biopsy. Patients who developed metastases or died from prostate cancer were combined in a metastatic-lethal phenotype category. Over the follow-up period, 317 patients had no evidence of recurrence and 113 had recurred, including 86 PSA recurrences and 27 metastatic-lethal events. For the present analysis, patients with the metastatic-lethal phenotype were compared with patients who had not recurred. The FH Institutional Review Board approved the study, and all participants signed informed consent statements.

The validation dataset includes 80 patients diagnosed with localized stage prostate cancer who underwent radical prostatectomy at Eastern Virginia (EV) Medical School. The study population includes men who experienced disease progression to metastatic or lethal prostate cancer (n = 31) and a similar number of patients (n = 49) selected on the basis of having no evidence of recurrence during 5 or more years after diagnosis (nested case–control design). Metastatic-lethal events were identified as described in the FH cohort, and all patients were European-Americans. The patients in the EV cohort were diagnosed in 1992–2009.

Formalin-fixed paraffin-embedded prostate tumor tissue blocks were obtained from radical prostatectomy specimens for both cohorts and used to make hematoxylin and eosin–stained slides, which were reviewed by pathologists to confirm the presence and location of adenocarcinoma. For each patient, two 1-mm tumor tissue cores from the dominant lesion that were enriched with ≥75% tumor cells were taken for DNA and two cores for RNA purification. The RecoverAll Total Nucleic Acid Isolation Kit (Ambion/Applied Biosciences) was used to extract DNA, which was then quantified (PicoGreen), aliquoted onto 96-well plates, and shipped to Illumina (Illumina, Inc.) for DNA methylation profiling.

The EZ DNA Methylation Kit (Zymo Research) was used to bisulfite convert tumor DNA samples. Controls on the array were used to track the bisulfite conversion efficiency. The Infinium HumanMethylation450 BeadChip (Illumina) was used to measure epigenome-wide methylation using beads with target-specific probes designed to interrogate individual CpG sites (>485,000; ref. 24). Samples from the FH cohort were assayed as one batch (7 plates), and the EV samples were assayed as a second batch (2 plates). Across the 96-well plates, we incorporated blind duplicate (FH, n = 16; EV, n = 7) and replicate (FH, n = 2; EV, n = 3) samples for each cohort. All plates also contained Illumina controls and two negative controls. Prostate cancer outcome events were randomly distributed across plates, and laboratory personnel were blinded to the location of duplicate and replicate samples.

Failed samples were identified by using the detection P value metric (probability of a CpG being detected above the background level defined by negative control probes) according to Illumina protocols. A sample was excluded if less than 95% of the CpG sites for that sample on the array were detected with a detection P value <0.05, resulting in removal of 17 FH and 15 EV samples. The final number of patients in the FH cohort and EV cohort was 327 (303 nonrecurrent, 24 metastatic-lethal) and 65 (41 nonrecurrent, 24 metastatic-lethal), respectively. Further, CpG sites with a detection P value of >0.01 were excluded. After data filtering, 478,998 CpGs were available in the FH cohort and 479,103 in the EV cohort (477,460 overlapped). Correlation coefficients for duplicate samples in the FH and EV cohorts were 0.96–0.99 and 0.99, respectively. The correlation coefficients for replicate samples in FH and EV were 0.99 and 0.98, respectively.

The same FH and EV patients' tumor samples used for DNA methylation profiling were also utilized for mRNA expression profiling using the Whole-Genome DASL HT Assay (Illumina), with the HumanHT-12 v4 BeadChip. Transcript correlations between duplicated samples (19 pairs) ranged from 0.96–0.99. In addition, replicate tumor RNA samples (6 pairs) were included, and the transcript correlations across plates were 0.95–0.99. There were 353 patients (FH: n = 288; EV: n = 65) with both tumor DNA methylation and mRNA expression data.

The methylation data were normalized using subset-quantile within array normalization (25), and batch effects were removed using Combat (26). Methylation β- and M-values were calculated, where β-values represent the percentage of DNA methylation at a CpG site. Methylation M-values are the logit transformed β-values that are approximately normally distributed. M-values were used for statistical testing and β-values to represent methylation differences between patient groups. Genome annotation of the CpGs was based on the Illumina protocol (27).

DNA methylation biomarkers for prognosis were identified using the FH cohort, following an a priori decision to select the top-ranked 5% of the CpGs based on their classification performance. First, for all individual CpG sites, the AUC and partial AUC (pAUC) for predicating metastatic-lethal versus nonrecurrent prostate cancer outcomes were calculated. The pAUC evaluates performance at a fixed high (95%) specificity as we aimed to select biomarkers with a low false-positive rate, providing more confidence that patients classified as high risk by the biomarker indeed have high-risk tumors. Accordingly, we selected the top-ranked 4% of biomarkers based on pAUC and the top-ranked 1% based on AUC, yielding 22,290 CpGs for further analysis.

Next, we identified the subset of the 22,290 biomarkers that showed the greatest improvement in predicting metastatic-lethal prostate cancer compared with Gleason sum alone. Because Gleason sum is the most widely used measure of tumor aggressiveness, we aimed to identify CpGs that could improve the prognostic discrimination of patients beyond that provided by Gleason sum alone. Other potential prognostic classifiers were also considered in models, including age at diagnosis, diagnostic PSA level, and pathologic tumor stage (local = pT2, N0/NX, M0; regional = pT3/T4 and/or N1, M0), but these factors did not improve the prediction of metastatic-lethal prostate cancer compared with models with Gleason sum only (P >0.05), and were therefore not considered in further analyses.

A logistic regression model for discriminating patients with metastatic-lethal versus nonrecurrent prostate cancer was fit containing Gleason sum as the only predictor. Based on that model, forward model selection was done using three selection criteria: AUC, pAUC (95% specificity), and P value (Wald test). For each criterion, we identified the CpG that showed the greatest improvement, i.e., was the most significant in predicting metastatic-lethal prostate cancer, compared with the base model with Gleason sum alone; the identified biomarker was then added to the model with Gleason. Forward selection was continued, each time selecting one additional CpG to be included in the model, until a prespecified stopping criterion was met: for AUC, this was an increment of AUC <0.005; for pAUC, this was an increment of pAUC <0.0005; and for P value, this was >0.05. This entire process was repeated 100 times with bootstrap samples. The biomarkers that were selected multiple times in the different bootstrap cohorts (≥3 when considering AUC; ≥3 when considering pAUC; ≥4 when considering P value) were chosen for further evaluation.

The methylation biomarkers that were most predictive for metastatic-lethal disease in the FH cohort were then tested in the EV cohort for validation. For each biomarker, we calculated the AUC and pAUC (95% specificity) for distinguishing patients with metastatic-lethal versus nonrecurrent prostate cancer. P values for AUC and pAUC were computed using 10,000 permutations, and 95% confidence intervals for AUC and pAUC were calculated using 2,000 stratified bootstrap replicates. Likelihood ratio tests were also computed to compare models fit with Gleason sum and a CpG biomarker compared with a model with Gleason sum only. All statistical analyses were conducted using R.

There was no difference in mean age between patients with metastatic-lethal prostate cancer compared with those who did not recur in either cohort (Table 1). In both cohorts, Gleason sum, pathologic stage, and PSA level at diagnosis were higher in men with the metastatic-lethal phenotype relative to men with no evidence of recurrence (all P values <0.01). The FH cohort had a mean follow-up time of 8.1 years for recurrence and 12.2 years for survival. The EV cohort was followed for outcomes on average for 9.0 years.

Table 2 shows the 42 DNA methylation biomarkers that were most predictive for metastatic-lethal prostate cancer in the FH cohort. These CpGs were identified based on their ability to improve the prognostic discrimination beyond Gleason sum alone (Supplementary Table S1). Half of the 42 biomarkers showed higher methylation in patients with metastatic-lethal prostate cancer compared with those with nonrecurrent disease (Table 2). The 42 biomarkers had a mean methylation difference between patient groups (metastatic-lethal vs. nonrecurrent) that ranged from 1% to 22% (average = 6.1%), and pAUC and AUC values for metastatic-lethal prostate cancer ranged from 0.006 to 0.018 and 0.54 to 0.84, respectively. DNA methylation levels of the 42 biomarkers were not strongly correlated (all pairwise r² <0.5).

We next evaluated the 42 top-ranked biomarkers in the EV replication cohort. For 30 of the CpGs, the difference in methylation level between patients with metastatic-lethal versus nonrecurrent prostate cancer was in the same direction in the EV as in the FH cohort. Eight of these biomarkers demonstrated a significant AUC or pAUC in the EV cohort (all P values <0.05; Table 3). One of the biomarkers had both a significant AUC and pAUC (ATP11A cg21513610). The CpG with the largest mean methylation difference was cg01135464 (P = 0.008). The biomarker with the highest AUC was KLHL8 cg16713292 (0.75), and the largest pAUC was for ATP11A cg21513610 (0.009). We next investigated whether methylation levels of these CpGs were correlated with methylation levels of adjacent CpGs in the same gene or intergenic region. For five of the CpGs, the methylation levels were correlated (pairwise r² >0.5) with methylation levels of nearby CpG sites [79 of 347 CpGs in ATP11A; 1 of 33 CpGs in FHAD1; 3 of 6 CpGs in PI15; 2 of 2 CpGs near cg01135464 (Chr. 17, OpenSea); and 1 of 2 CpGs near cg22501793 (Chr. 1, S_Shore)].

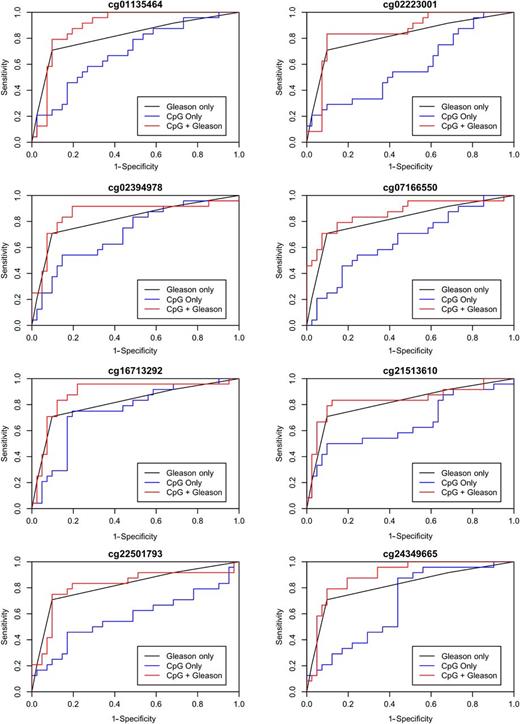

We then evaluated the performance of the eight validated biomarkers for classifying patients with metastatic-lethal prostate cancer when combined with Gleason sum (Table 4). Figure 1 shows the ROC curves for Gleason sum alone, the eight individual CpGs, and each CpG plus Gleason sum. The AUC for Gleason sum alone in the EV cohort was 0.82. This is higher than what has been reported in other studies and likely reflects our nested case–control study design, which involved selecting patients with metastatic-lethal prostate cancer and a similar number of patients without evidence of recurrence. For comparison, in the FH cohort that is unselected for patient outcomes, Gleason sum alone has an AUC of 0.75 for metastatic-lethal prostate cancer. Gleason sum had a pAUC for predicting metastatic-lethal prostate cancer of 0.010 in the EV dataset. Likelihood ratio tests were then performed comparing the model with Gleason sum only with a model that included both Gleason sum and one of the eight CpGs. This test was significant for four of the CpGs (P <0.05): ALKBH5 cg07166550, FHAD1 cg02394978, KLHL8 cg16713292, and PI15 cg24349665, providing further evidence that these biomarkers are complementary to Gleason sum for the prognostic discrimination of high-risk patients. Further adjustment for pathologic stage (in addition to Gleason sum) increased the level of significance based on the likelihood ratio test for the three CpGs with the highest AUC values (AUC = 0.89), including the intergenic CpG on chr. 17 (P = 0.023) and the CpGs in KLHL8 (P = 0.0015) and PI15 (P = 0.004).

In a final analysis, we evaluated tumor mRNA expression in the same FH and EV patients' tumor tissues that were used for methylation profiling. For two of the five genes that encompassed a validated CpG biomarker, DNA methylation levels were significantly correlated with transcript levels: ATP11A (Pearson's r = –0.29, P = 2.78E–18) and PI15 (Pearson's r = –0.28, P = 5.77E–08). ATP11A cg21513610 is located in the gene body, whereas cg24349665 is in the promoter region of PI15.

Our results demonstrate that DNA methylation biomarkers measured in primary tumor tissue can distinguish patients with metastatic-lethal prostate cancer from those men at least 5 years after radical prostatectomy without disease recurrence. Of the 42 top-ranked differentially methylated CpG sites that stratified patients with aggressive tumors in our discovery cohort, and improved the prognostic discrimination beyond that provided by Gleason sum alone, eight were subsequently validated to predict metastatic-lethal outcomes in an independent patient cohort.

Prior studies of tumor DNA methylation in prostate cancer mainly used biochemical recurrence as the outcome event (14, 18, 28, 29). Hypermethylation of CpGs in the promoter region of two genes, PITX2 and GSTP1, was previously associated with PSA recurrence (14, 29, 30). However, most men who have a rising PSA after surgery will not develop life-threatening disease (31), making biochemical recurrence less relevant than metastatic-lethal prostate cancer outcomes as a study endpoint. A few prior candidate gene studies did assess lethal prostate cancer (32–37), although the analyses were limited by both small sample sizes and short durations of follow-up for survival. Those studies highlighted a few differentially methylated genes (e.g., APC, PITX2), but our results do not provide further support for aberrant methylation of these genes being biomarkers for progression to metastatic-lethal prostate cancer.

The eight novel differentially methylated CpG sites validated in our study for the metastatic-lethal phenotype are located in five genes (ALKBH5, ATP11A, FHAD1, KLHL8, and PI15) and three intergenic regions (Chr. 1, 16, and 17). The five genes are involved in regulatory functions, response to hypoxia, protein-binding, developmental processes, and ion transport (38–42). The oxidative DNA demethylase ALKBH5, which is upregulated under hypoxia and also plays a role in spermatogenesis, belongs to the same gene family as ALKBH3 (Prostate Cancer Antigen 1), which is highly expressed in prostate tumors and is a potential therapeutic target for prostate cancer (43). In a previous study, expression of ATP11A, which belongs to an extended family of adenosine triphosphate-binding cassette transporters, was associated with colorectal cancer mortality (41). A small study found that PI15 (peptidase inhibitor 15) was amplified and overexpressed in 11% of advanced prostate tumors (44). The PI15 gene was also identified as a candidate oncogene in colorectal cancer (45), and has been implicated in regulating drug resistance in ovarian cancer (46). Interestingly, we also found that the DNA methylation alterations in PI15 and ATP11A were significantly correlated with mRNA expression of these genes in the same patients' tumors. For PI15, the correlation was in the expected direction (i.e., promoter hypermethylation and reduced expression). Specific molecular mechanisms whereby differential methylation of CpG sites in these five genes and three intergenic regions may enhance metastatic progression are unclear. There is biological plausibility for several of these genes contributing to more aggressive tumor biology; however, further studies are needed to elucidate potential mechanisms.

Strengths of the current study include its relatively large sample size, the epigenome-wide approach for biomarker discovery, the population-based nature of the discovery cohort, with long-term prospective follow-up of patients diagnosed with clinically localized prostate cancer, and a focus on the most serious clinical endpoint of metastatic-lethal disease. Validation of the DNA methylation biomarkers in an independent patient cohort is also critical and confirms that these CpGs have added value to Gleason sum for predicting adverse patient outcomes. A potential weakness of our study is the limited number of patients with metastatic-lethal events, but these are not frequent outcomes in men diagnosed with clinically localized tumors that are treated surgically. Use of adjuvant therapy or salvage therapy may improve prognosis. In the FH cohort, adjuvant therapy use after radical prostatectomy was not frequent in nonrecurrent (7.9%) or metastatic-lethal (16.7%) patients, making it unlikely that such therapies had a major impact on outcomes. As expected, most patients (94%) with metastatic progression received salvage therapy. Neither use of adjuvant nor salvage therapy, however, would affect methylation profiles in primary tumor tissue obtained at the time of surgery.

Prostate cancer is a heterogeneous disease, and a combination of biomarkers may perform better than individual CpGs for prognostic classification. However, we did not intend to validate the combination of CpG biomarkers in our replication dataset due to the desire to avoid overfitting the data. Additional independent patient cohorts will be needed to build and test whether the combination of all or a subset of the eight CpG sites can further improve the prognostication for patients with more aggressive tumors. Further, additional investigation is needed to see if these biomarkers are predictive of patient outcomes in men not choosing radical prostatectomy as primary therapy.

In conclusion, we identified and then validated a novel panel of DNA methylation biomarkers in primary prostate tumor tissue that provide prognostic information, which improves upon Gleason sum for predicting metastatic-lethal patient outcomes. The methylation biomarkers replicated in this study have potential for improving clinical decision making by identifying patients likely to have a more aggressive cancer and who thereby are good candidates for adjuvant therapy or novel therapeutic clinical trials and who should be monitored more closely for metastatic progression. Future studies are needed to further evaluate the performance of our panel of prognostic DNA methylation biomarkers and to investigate if combining these epigenetic biomarkers may further improve their prognostic discrimination in early stage prostate cancer patients. Investigations to elucidate the underlying molecular mechanisms through which these alterations in DNA methylation may enhance tumor aggressiveness are also needed.

R. Lance reports receiving speakers bureau honoraria from Medivation. No potential conflicts of interest were disclosed by the other authors.

Conception and design: J.L. Wright, J.-B. Fan, Z. Feng, J.L. Stanford

Development of methodology: S. Zhao, M.S. Geybels, M. Bibikova, A. Hurtado-Coll, J.-B. Fan, Z. Feng, J.L. Stanford

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): S. Kolb, B. Klotzle, M. Bibikova, A. Hurtado-Coll, D. Troyer, R. Lance, D.W. Lin, J.L. Wright, E.A. Ostrander, J.-B. Fan, J.L. Stanford

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): S. Zhao, M.S. Geybels, A. Leonardson, R. Rubicz, Q. Yan, B. Klotzle, J.L. Wright, Z. Feng, J.L. Stanford

Writing, review, and/or revision of the manuscript: S. Zhao, M.S. Geybels, A. Leonardson, R. Rubicz, D. Troyer, R. Lance, D.W. Lin, J.L. Wright, E.A. Ostrander, Z. Feng, J.L. Stanford

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): J.L. Stanford

Study supervision: J.-B. Fan, Z. Feng, J.L. Stanford

The authors thank Drs. Beatrice Knudson and Xiaotun Zhou for their assistance with the pathology, and the GU Tumor Biorepository, Eastern Virginia Medical School. They also thank all the men who participated in these studies.

This work was supported by grants from the NCI (R01 CA056678, R01 CA092579, K05 CA175147, and P50 CA097186), with additional support provided by the Fred Hutchinson Cancer Research Center, the Intramural Program of the National Human Genome Research Institute, the National Institute of Environmental Health Sciences, and the Prostate Cancer Foundation. Illumina, Inc. provided and performed the methylation arrays. M.S. Geybels is the recipient of a Dutch Cancer Society Fellowship (BUIT 2014–6645).

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
