Cisplatin-Induced Renal Injury Is Independently Mediated by OCT2 and p53 Free

Cisplatin is among the most widely used chemotherapeutic agents for the treatment of various cancer types. Despite its extensive clinical use, therapy with cisplatin is limited by the onset of several detrimental side effects, of which the responsible mechanisms remain poorly understood. Kidney damage to the S3 segment of the renal proximal tubules is of particular concern, as it affects more than 40% of patients, and this is considered the major dose-limiting toxicity associated with cisplatin treatment (1). Current evidence suggest that the organic cation transporter 2 (OCT2), encoded by the solute carrier gene SLC22A2, facilitates the renal secretion of cisplatin and various other, structurally diverse compounds, at the basolateral membrane of the proximal tubules (2–6). This is borne out by data indicating that the urinary excretion of cisplatin is drastically reduced in mice lacking the murine ortholog transporters Oct1 and Oct2 (Oct1/2^−/−) compared with wild-type animals, and that these animals are simultaneously resistant to severe cisplatin-induced renal tubular necrosis (7, 8). Similarly, patients carrying a genetic variant of OCT2 that is associated with reduced function appear to be protected from cisplatin-induced nephrotoxicity (7, 9, 10). On the basis of these findings, strategies involving the use of OCT2 inhibitors, such as cimetidine, in combination with cisplatin-based therapy have been explored and have provided promising results both in vitro and in vivo (10–13).

Although the severity of cisplatin-induced nephrotoxicity is reduced following genetic or pharmacologic knockout of Oct1 and Oct2, renal tubular damage is not completely abolished. This suggests the existence of a secondary pathway that contributes, independently of Oct1/Oct2-mediated renal tubular drug uptake, to cisplatin-induced renal damage. A proper understanding of additional mechanisms contributing to cisplatin nephrotoxicity in Oct1/2^−/−mice is of fundamental relevance to the discovery and development of translational strategies that are completely renoprotective and in turn improve treatment outcome. The aim of the current study was to identify common genetic factors contributing to cisplatin-induced kidney damage in both wild-type mice and Oct1/2^−/−mice. We further sought to assess whether inhibition of the identified multiple molecular regulators of renal tubular damage could completely abolish cisplatin-induced nephrotoxicity.

Male adult wild-type mice (8–12 weeks old), and sex- and age-matched mice with a deficiency of Oct1 and Oct2 (Oct1/2^−/−), or p53 (p53^−/−), all on an FVB background strain, were obtained from Taconic and bred inhouse. The p53^−/−mice were cross-bred with Oct1/2^−/−mice to generate mice deficient of p53, Oct1, and Oct2 (p53^−/−/Oct1/2^−/−).Animals were housed in a temperature-controlled environment with a 12-hour light cycle and given a standard diet and water ad libitum. All animals were housed and handled in accordance with the Institutional Animal Care and Use Committee of St. Jude Children's Research Hospital or approved by a governmental committee overseeing animal welfare at the University of Münster (Münster, Germany) and performed in accordance with national animal protection laws.

For experiments involving collection of urine, animals were single-housed in metabolic cages in a temperature-controlled environment with a 12-hour reverse light cycle. Following acclimation, a 24-hour baseline urine sample was collected, after which mice received administration of cisplatin (15 mg/kg, i.p.) and urine was collected for up to 72 hours. Platinum concentrations were determined by a validated assay based on flameless atomic absorption spectrometry (7).

Frozen urine samples were thawed at room temperature, centrifuged at 16,000 × g for 10 minutes, and 20 μL of supernatant was injected for analysis. Concentrations of the glutathione–monoplatinum conjugate (GSH2) and glutathione–diplatinum conjugate (GSH1) were assessed with a Waters 2692 separation system and Micromass Quattro LC triple-quadrupole system. Separation was achieved on a Synergi 4 μm Polar-RP 80A column [150 × 4.6 mm using a column heater operating at 40°C with a Waters X-Terra RP₁₈ guard column (3.5 μm, 10 × 2.1 mm)]. The gradient mobile phase was composed of 0.1% formic acid in acetonitrile and 10 mmol/L ammonium acetate in water (pH 3.8). The flow rate was 0.9 mL/min and the separation was completed within 10 minutes. The retention times for GSH1 and GSH2 were 4.95 and 5.05 minutes, respectively. The mass spectrometer was operated in the positive mode, and controlled by Masslynx 4.1 software. The analysis was performed in MRM mode and the following mass ions (m/z) were used for detection: m/z 835 > 778.1 for GSH1 and m/z 572 > 554 for GSH2. The tandem mass spectrometry conditions were as follows: capillary voltage, 3.5 kV; cone voltage, 45 V; source temperature, 130 °C; desolvation temperature, 350 °C; cone gas flow, 10 L/h; desolvation gas flow, 900 L/h; and collision energy, 15 V.

Kidneys from wild-type or Oct1/2^−/−mice were harvested either before or 72 hours posttreatment with cisplatin, after which RNA was isolated for gene expression using the RNeasy mini kit (Qiagen). Gene expression was analyzed using the Mouse 430v2.0 GeneChip array (Affymetrix) and significance analysis of microarrays, using the criteria of a false discovery rate of 5%, to identify altered expression with an average fold change of ≥2.0. Kyoto Encyclopedia of Genes and Genomes (KEGG) analyses were performed to interrogate potentially affected pathways. Confirmation of alterations in the p53 pathway was assessed using the Mouse p53 Signaling Pathway RT² Profiles PCR Array System (SABiosciences), and evaluation of transporter gene expression was done using the Mouse Transporter RT² Profiles PCR Array System (SABiosciences). Relative gene expression was determined using the ΔΔC_t method, and normalized to a housekeeping gene (Gapdh or PPC).

Mice received a single dose of saline, cisplatin (15 mg/kg, i.p.), or a combination of cisplatin and pifithrin-α (2.2 mg/kg, i.p.; Enzo Life Sciences). Pifithrin-α was solubilized in 1% ethanol to circumvent the protective effects observed when cisplatin is administered in the presence of its commonly used solvent, DMSO (14). After 72 hours, kidneys were collected, fixed overnight in 10% neutral-buffered formalin, embedded in paraffin, sectioned (4 μm), and stained with hematoxylin and eosin (Lab Vision). Microscopic evaluation of nephrotoxicity was done independently by an experienced veterinary pathologist who was blinded to the treatment of the animals, as described (7). Nephrotoxicity was assessed from the percentage of observed damaged tubules and graded on a five-point scale as 0 (<10%, absent), 1 (11%–25%, minimal), 2 (26%–50%; mild), 3 (51%–75%, moderate), and 4 (>75%, severe). Blood urea nitrogen (BUN) and serum creatinine were measured as described (11).

Activation of p53, caspase-3, and p21 was assessed using formalin-fixed, paraffin-embedded sections of kidneys after deparaffinization in xylene, and stained as previously described (15) using the primary rabbit anti-p53 antibody (1:200 for 90 minutes; Vector Laboratories), the primary rabbit anti-mouse cleaved caspase-3 antibody (1:100 for 60 minutes; BioCare Medical), or the primary rabbit anti-p21 antibody (1:400 for 30 minutes; Abcam). Ten random high-power fields (10×) were selected per slide for immunohistochemistry scoring.

HEK293 cells obtained from Invitrogen (Aug 2006; no authentication was conducted by the authors upon receipt) and transfected with human OCT2, mouse Oct1, mouse Oct2, or a control vector were seeded in 6-well plates with complete DMEM containing 10% FBS and hygromycin B (100 μg/mL) at 37°C. Wells were washed once with warm PBS then preincubated for 15 minutes with DMEM containing pifithrin-α (0–100 μmol/L), followed by a 30-minute incubation with the inhibitor and [¹⁴C]TEA (0.5, 1.0, and 2 μmol/L), or cisplatin (500 μmol/L). After incubation, cells were washed twice with cold PBS, collected, and solubilized in 1 N sodium hydroxide. Radioactivity was assessed by liquid scintillation counting and platinum concentration was measured using atomic absorption spectroscopy. Uptake data were normalized to protein concentration, determined using a bicinchoninic acid protein-assay kit (Pierce Biotechnology).

Normal human kidney samples were obtained from a patient undergoing resection of a kidney tumor, as described (16). The procedure was approved by the ethics commission of the Universitätsklinikum Münster (Münster, Germany), and written consent was obtained from the patient. Proximal tubules from the human kidney sample or from wild-type mice were isolated for functional analyses (16). Organic cation transporter function and its sensitivity to inhibitory properties of pifithrin-α were evaluated according to an established protocol (16).

The contribution of OCT2 to the intracellular uptake of pifithrin-α or pifithrin-β (1 and 10 μmol/L) was assessed using HEK293 cells transfected with OCT2 or an empty vector at pH 7.4 or 6.0 in the presence or absence of 125 mmol/L NaCl. After incubation, cells were washed twice with cold PBS, collected, and lysed in 1 N sodium hydroxide. Levels of pifithrin-α and -β were measured using liquid chromatography-tandem mass spectrometry (17).

Data are presented as mean values ± SE, with n referring to the number of animals, cell monolayers, or isolated tubules used in the experiments. An unpaired two-sided Student t test, and ANOVA (with Tukey post-test) were used to demonstrate statistical significance of the effects, where P < 0.05 was considered statistically significant. Statistical analyses were performed using GraphPad Prism 5.0 (GraphPad Software Inc.).

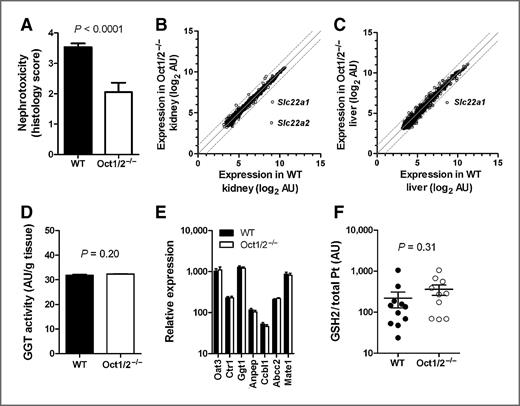

Since tubular necrosis is not completely absent in Oct1/2^−/−mice treated with cisplatin (Fig. 1A), we hypothesized that alternate pathways are involved in the observed injury. Analysis of livers and kidneys from Oct1/2^−/−mice revealed that the expression of 84 ATP-binding cassette transporter and solute carrier genes was not substantially changed compared with tissues obtained from wild-type animals, with the exception of a downregulation of Slc22a1 and Slc22a2 “transcripts” (Fig. 1B and C). In addition, γ-glutamyltranspeptidase (GGT; Ggt1 in mice) activity (Fig. 1D) and expression levels of the GGT pathway genes Ggt1, Anpep (diaminopeptidase N), and Ccbl1 (cysteine-S-conjugate-β-lyase), previously implicated in cisplatin nephrotoxicity (Supplementary Fig. S1; ref. 18), were unaffected by Oct1/Oct2 deficiency (Fig. 1E). Expression levels of other putative cisplatin transporters, such as Abcc2 (Mrp2), Slc31a1 (Ctr1), Slc47a1 (Mate1), or the glutathione transporter Slc22a8 (Oat3), were also not altered in kidneys of Oct1/2^−/−mice (Fig. 1E). In line with this finding, urinary ratios of the cisplatin-glutathione metabolite GSH2 to total platinum were unchanged in Oct1/2^−/− mice compared with wild-type mice (Fig. 1F). These observations suggest that the GGT pathway is not differentially contributing to cisplatin nephrotoxicity in wild-type mice and Oct1/2^−/−mice.

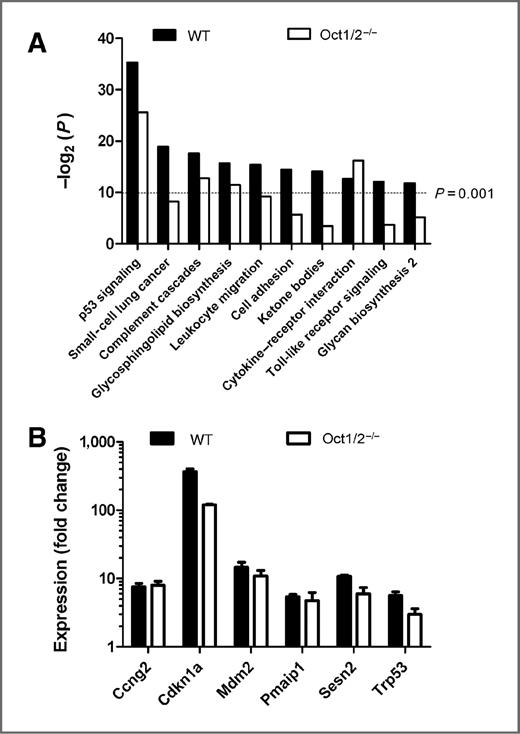

As a next step toward understanding the molecular mechanisms contributing to cisplatin-induced nephrotoxicity in Oct1/2^−/−mice, we performed microarray analyses on kidney biopsies following cisplatin administration in vivo. Transcriptional profiling identified complex gene expression changes and a drug response signature comprising of 1,063 upregulated and 1,072 downregulated genes in wild-type mice that was largely qualitatively similar in Oct1/2^−/−mice, albeit not quantitatively. Further characterization of the expression signature using a gene ontology analysis identified 10 of 193 analyzed pathways that showed significant (P < 0.001) alteration in wild-type mice exposed to cisplatin (Fig. 2A). These changes were largely absent in Oct1/2^−/− mice, although the most significantly altered pathway in both wild-type mice (P = 2.40 × 10⁻¹¹) and Oct1/2^−/−mice (P = 1.92 × 10⁻⁸) involved genes associated with the p53 signaling network. This pathway has been implicated previously as a central component in DNA damage in response to cisplatin in various tissues, including the kidney (19).

Using a p53 signaling pathway array, we confirmed renal expression changes of Trp53 (p53) itself and found strong induction of multiple other well-characterized p53-dependent genes, including Ccng2 (cyclin G1), Cdnk1a (p21), Mdm2, Pmaip1 (NOXA), and Sesn2, in response to cisplatin (Fig. 2B; Supplementary Table S1). None of the genes with altered expression in response to cisplatin differed among mouse genotypes in the absence of treatment. This suggests that the ability to mount an effective p53 response following cisplatin accumulation in renal tubular cells influences treatment sensitivity both in wild-type mice and Oct1/2^−/−mice.

To confirm that p53 acted as a mediator of cisplatin-induced nephrotoxicity, we first assessed renal tubular damage by histology scores following 3 days of cisplatin administration in p53-null mice (p53^−/−). C57BL/6 mice, the most commonly used strain for p53 knockout, are relatively resistant to cisplatin-induced nephrotoxicity compared with FVB mice, the strain used for Oct1/2 knockout (Supplementary Fig. S2A and S2B), presumably due to reduced renal expression of Oct1/2 and impaired urinary excretion of cisplatin (Supplementary Fig. S2C and S2D). A similar strain dependence has been reported for bromodichloromethane-induced nephrotoxicity, which is more severe in FVB mice than C57BL/6 mice (20). Therefore, p53^−/−mice on a FVB background were used in further studies and to generate a line lacking p53 as well as Oct1 and Oct2 (p53^−/−/Oct1/2^−/−). These animals were phenotypically normal, with the exception of slightly increased alkaline phosphatase, as well as slightly reduced calcium and phosphorous levels (Supplementary Fig. S3A). As anticipated (21), the life span of p53^−/−and p53^−/−/Oct1/2^−/− mice was significantly shorter compared with Oct1/2^−/−mice due to the short latency period for malignant tumors in these animals (Supplementary Fig. S3B).

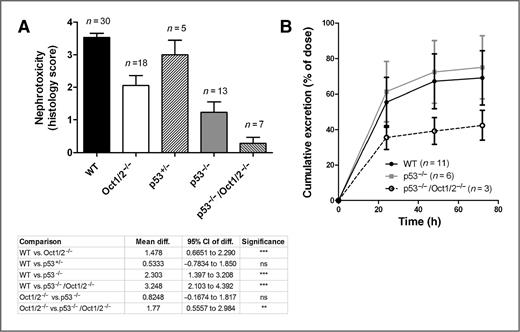

In regards to nephrotoxicity, wild-type mice and mice lacking one copy of p53 (p53+/− mice) experienced severe acute renal tubular necrosis following administration of cisplatin, whereas Oct1/2^−/− and p53^−/− mice experience only mild damage (Fig. 3A). Renal tubular necrosis was found to be entirely absent in p53^−/−/Oct1/2^−/− mice (Fig. 3A), suggesting that Oct1/2-mediated transport and p53 signaling are independently contributing to cisplatin-induced nephrotoxicity. As expected, loss of p53 by itself was not associated with altered urinary excretion of cisplatin (Fig. 3B).

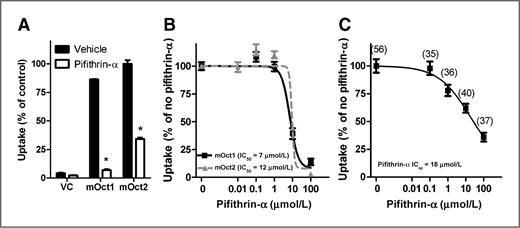

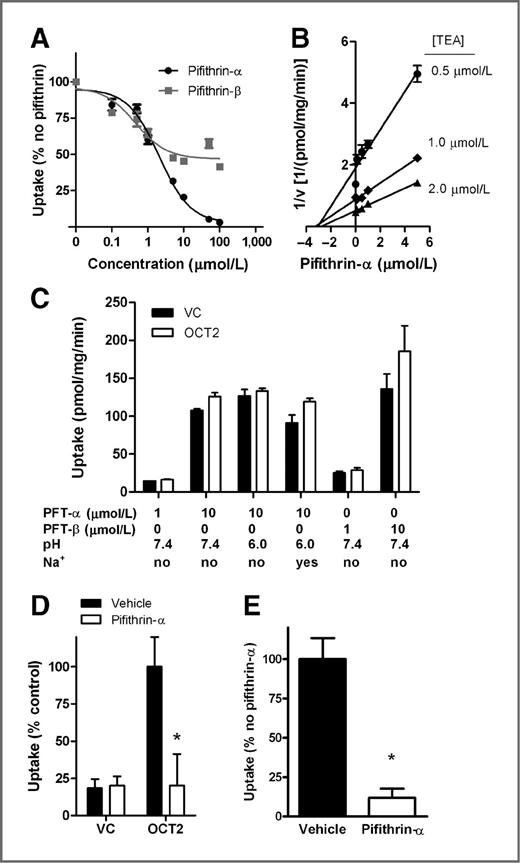

During the course of a recently performed library screen aimed at identifying novel inhibitors of OCT2 (22), we made the serendipitous observation that the organic cation pifithrin-α, a small-molecule inhibitor of p53-dependent transcriptional activation (23), also inhibits OCT2 function as determined by its ability to reduce uptake of the OCT2 substrate, 4-[4-(dimethylamino)styryl]-N-methylpyridinium-iodide (ASP⁺) in HEK293 cells engineered to overexpress OCT2. We confirmed this observation by showing that pifithrin-α and its planar tricyclic degradation product pifithrin-β (24) inhibit OCT2-mediated transport of tetraethylammonium (TEA) in the same model (Fig. 4A). To identify the mechanism of this interaction, kinetic analyses were performed with and without pifithrin-α using varying concentrations of TEA as the OCT2 substrate. The resulting Dixon plot revealed that data for each substrate concentration fall on straight lines that intersect on the abscissa, suggesting that pifithrin-α is a noncompetitive inhibitor of OCT2 function with an inhibition constant (K_i) of 3.0 μmol/L (Fig. 4B). In line with this inhibitory mechanism, we found that neither pifithrin-α nor pifithrin-β were transported substrates of OCT2, irrespective of concentration, pH, or the presence of Na⁺ (Fig. 4C).

Pifithrin-α was also capable of completely blocking the cellular accumulation of cisplatin mediated by OCT2 in HEK293 cells (Fig. 4D). Moreover, to confirm the translational potential of these findings, we found that pifithrin-α inhibits uptake of ASP⁺ in freshly isolated human proximal tubular cells (Fig. 4E). Similar results were observed in murine-based models, where pifithrin-α reduced uptake of TEA in Oct1- and Oct2-overexpressing HEK293 cells (Fig. 5A) and impeded uptake of ASP⁺ in proximal tubular cells isolated from wild-type mice (Fig. 5B).

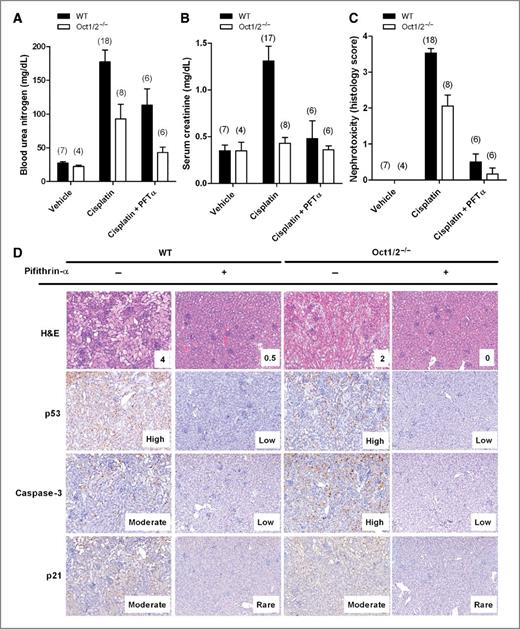

To explore pifithrin-α further as a dual p53/OCT2-targeted agent for preventing cisplatin-induced nephrotoxicity, it was administered concomitantly with cisplatin in wild-type and Oct1/2^−/− mice. Pifithrin-α was formulated in ethanol, since even relatively small amounts of its common solvent dimethylsufoxide (DMSO) can strongly reduce the cytotoxicity of cisplatin (14). BUN (Fig. 6A) and serum creatinine (Fig. 6B), two commonly used markers of cisplatin nephrotoxicity, were significantly reduced in wild-type and Oct1/2^−/− mice when pifithrin-α was administered in combination with cisplatin compared with cisplatin given alone. In accordance with these findings, histologic examination of kidney biopsies confirmed that cisplatin-induced nephrotoxicity could be completely abolished by pifithrin-α (Fig. 6C). This renoprotective phenomenon was also seen in Oct1/2^−/−mice, which typically experience moderate renal tubular damage following administration of cisplatin (Fig. 6C). As expected, activation of p53 and p21, as well as cleavage of caspase-3 was observed in wild-type mice following exposure to cisplatin, but not in animals that also received pifithrin-α (Fig. 6D).

The current study identified the p53 signaling network as an important contributor to cisplatin-induced renal damage, which occurs despite loss of Oct1- and Oct2-dependent uptake of cisplatin into tubular cells. Our results show that mice with a deficiency of p53 are protected from severe cisplatin-induced nephrotoxicity, but renal damage is only completely abolished in mice with a concurrent deficiency of Oct1 and Oct2. In addition, we found that pifithrin-α, an investigational inhibitor of p53-dependent transcriptional activation and apoptosis, is a potent inhibitor of organic cation-mediated transport of cisplatin, and that concomitant use of pifithrin-α with cisplatin completely abrogates renal tubular damage by simultaneously inhibiting both drug transport and hindering the cisplatin-induced p53 activation.

The identification of the p53 pathway as a regulator of cisplatin-induced nephrotoxicity was not unanticipated, considering that p53 is the central mediator of DNA damage response which can be triggered by cisplatin (25). In fact, recent studies have reported that inflammation, oxidative stress, and p53-related apoptosis in part explain the damage to proximal tubules caused by exposure to cisplatin (26–28). However, similar to Oct1/2^−/−mice, loss of p53 alone provides only partial renoprotection, and damage to kidneys remains detectable. This suggests that strategies to inhibit the collective function of Oct1, Oct2, and p53 are necessary to completely alleviate the renal damage. Translational approaches aimed at inhibiting OCT2 function in humans are certainly attractive given the abundant evidence showing that the transporter is absent in the majority of human tumors, and that use of OCT2 inhibitors does not compromise antitumor activity or systemic levels of cisplatin in vitro or in vivo (7, 11–13).

In contrast, attempts to ameliorate renal tubular necrosis via inhibition of p53 signaling may be potentially worrisome based on the current understanding that the antitumor efficacy of cisplatin may be partially dependent on p53-mediated apoptosis in cancer cells. Nonetheless, it should be noted that p53 is either lost or mutated in 50% of tumors, and previous reports have shown that loss of p53 function does not necessarily alter sensitivity to cisplatin chemotherapy (29). In addition, p53 can actually function as a survival factor against various chemotherapeutics (30) and therefore, intentional inhibition of p53 as a strategy to ameliorate nephrotoxicity is unlikely to alter antitumor efficacy. Furthermore, while p53^−/−mice are genetically predisposed to rapid tumor development (31), temporal blockade of p53 function with pifithrin-α is not known to be associated with an increased incidence in tumorigenesis (23).

Our findings concerning the ability of pifithrin-α to offer protection against cisplatin-induced nephrotoxicity is consistent with previous results reported by Wei and colleagues in C57BL/6 mice (32). A careful examination of these authors' data reveals that the degree of renoprotection in wild-type mice receiving cisplatin with pifithrin-α is greater than that observed in p53^−/−mice receiving cisplatin alone. This suggests that in this mouse model pifithrin-α can also affect cisplatin-induced nephrotoxicity by an additional, p53-independent mechanism, and it is possible that inhibition of cisplatin uptake into tubular cells by pifithrin-α contributed to the agent's renoprotective properties. These collective data suggest that pifithrin-α could potentially be explored further as a unique dual OCT2/p53 inhibitor for prevention of cisplatin nephrotoxicity. In this context, it is worth pointing out that pifithrin-α has also shown potential to reduce cisplatin-dependent hair cell loss in cochlear and utricular cultures (33), suggesting that pifithrin-α use may ameliorate other side effects caused by cisplatin that are associated with OCT2, such as ototoxicity (8).

The notion that combinational inactivation of the p53 pathway and OCT function is necessary to offer complete protection from cisplatin-induced renal damage raises new questions. First of which concerns the p53-independent mechanism responsible for renal tubular damage that appears to occur downstream of Oct1/2-mediated intracellular accumulation of cisplatin. A candidate mechanism involved is the activation of PKCδ by cisplatin in renal tubular cells, which process leads to kidney cell apoptosis and tissue damage independently of p53 (34). The second involves the identity of the regulators that modulate cisplatin accumulation in the absence of Oct1 and Oct2 that are upstream of p53. Compensatory mechanisms involving putative cisplatin transporters are unlikely since their expression levels are unchanged in Oct1/2^−/−mice. However, the possibility remains that other transporters regulate accumulation of cisplatin, which in turn generates a p53-mediated response. Indeed, Ctr1 has been implicated in cisplatin-induced renal toxicity and is known to mediate a p53-response (35), although its involvement as a carrier of cisplatin has recently been brought into question (36). Interestingly, probenecid has been shown to significantly reduce the tubular secretion of cisplatin without affecting glomerular filtration, and has been shown to reduce the severity of nephrotoxicity (37–40). Although the underlying mechanism is unclear, it is conceivable that platinum-sulfhydryl complexes formed in the GGT pathway accumulate into kidney cells through an organic anion transport mechanism that is probenecid-sensitive (41). Additional studies are currently ongoing to definitively address these possibilities.

In conclusion, the results of our study indicate that p53 plays a crucial role in the kidney in response to cisplatin independently of OCT2. This finding suggests that clinical exploration of OCT2 inhibitors as an adjunct to cisplatin-based chemotherapy is unlikely to lead to complete renoprotection unless the p53 pathway is simultaneously antagonized. Future investigation will focus on the exploration of pifithrin-α, and structurally related compounds with improved pharmaceutical properties (42), as dual OCT2/p53 inhibitors for prevention of cisplatin nephrotoxicity.

No potential conflicts of interest were disclosed.

None of the funding bodies had a role in the preparation of the article.

Conception and design: J.A. Sprowl, A. Sparreboom

Development of methodology: J.A. Sprowl, A.A. Gibson

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): J.A. Sprowl, C.S. Lancaster, E. Hermann, A.M. Kosloske, A.A. Gibson, E. Schlatter, G. Ciarimboli

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): J.A. Sprowl, C.S. Lancaster, N. Pabla, E. Hermann, A.A. Gibson, D. Zeeh, E. Schlatter, L.J. Janke, G. Ciarimboli, A. Sparreboom

Writing, review, and/or revision of the manuscript: J.A. Sprowl, N. Pabla, A. Sparreboom

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): L. Li, D. Zeeh

Study supervision: A. Sparreboom

Basic lab bench research: A.M. Kosloske
