Abstract
Purpose: The transcription factor Forkhead box protein M1 (FOXM1) plays critical roles in cancer development and progression. However, the regulatory role and underlying mechanisms of FOXM1 in cancer metabolism are unknown. In this study, we characterized the regulation of aerobic glycolysis by FOXM1 and its impact on pancreatic cancer metabolism.
Experimental Design: The effect of altered expression of FOXM1 on expression of glycolytic enzymes and tumor development and progression was examined using animal models of pancreatic cancer. Also, the underlying mechanisms of altered pancreatic cancer glycolysis were analyzed using in vitro molecular biology. The clinical relevance of aberrant metabolism caused by dysregulated FOXM1 signaling was determined using pancreatic tumor and normal pancreatic tissue specimens.
Results: We found that FOXM1 did not markedly change the expression of most glycolytic enzymes except for phosphoglycerate kinase 1 (PGK-1) and lactate dehydrogenase A (LDHA). FOXM1 and LDHA were overexpressed concomitantly in pancreatic tumors and cancer cell lines. Increased expression of FOXM1 upregulated the expression of LDHA at both the mRNA and protein level and elevated LDH activity, lactate production, and glucose utilization, whereas reduced expression of FOXM1 did the opposite. Further studies demonstrated that FOXM1 bound directly to the LDHA promoter region and regulated the expression of the LDHA gene at the transcriptional level. Also, elevated FOXM1–LDHA signaling increased the pancreatic cancer cell growth and metastasis.
Conclusions: Dysregulated expression and activation of FOXM1 play important roles in aerobic glycolysis and tumorigenesis in patients with pancreatic cancer via transcriptional regulation of LDHA expression. Clin Cancer Res; 20(10); 2595–606. ©2014 AACR.
We used two pancreatic cancer tissue microarrays and molecular biologic and animal models to evaluate the activation and function of the Forkhead box protein M1 (FOXM1)/lactate dehydrogenase A (LDHA) pathway in human pancreatic cancer cells. Our clinical and mechanistic findings indicated that LDHA is a direct transcriptional target of FOXM1 and that dysregulated FOXM1 expression, which occurs frequently in pancreatic cancer, leads to aberrant LDHA expression. Moreover, FOXM1 positively regulates pancreatic cancer cell aerobic glycolysis and growth, suggesting a novel molecular basis for the critical role of FOXM1 overactivation in pancreatic cancer metabolism and that dysregulated FOXM1–LDHA signaling is a promising new molecular target for novel preventive and therapeutic strategies for this malignancy. Therefore, our findings have a significant effect on clinical management of pancreatic cancer.
Introduction
Pancreatic cancer is the seventh leading cause of cancer-related deaths worldwide, and its incidence is increasing annually, especially in industrialized countries (1). In the United States, researchers estimated that 45,220 new pancreatic cancer cases would be diagnosed and that 38,460 patients would die of the disease in 2013 (2). Although early diagnosis of and surgery and systemic chemotherapy for pancreatic cancer have improved, the overall 5-year survival rate in patients with pancreatic cancer remains below 5% (3). Thus, a better understanding of the underlying mechanisms that promote the pathogenesis of pancreatic cancer is urgently needed (4).
The Warburg effect, also known as aerobic glycolysis, is a shift from oxidative phosphorylation to glycolysis, a feature of which is increased lactate production even at normal oxygen concentrations, and is considered to be the root of cancer development and progression (5, 6). In pancreatic cancer cases, investigators found that glycolytic flux was elevated and that uptake of glucose increased; thus, 18F-labeled fluorodeoxyglucose positron emission tomography can be used for diagnosis of and prognosis for pancreatic cancer (7, 8). However, the molecular mechanism of increased glycolysis in pancreatic cancer cells is largely unknown. Recent studies demonstrated that many key oncogenic signaling pathways and factors play critical roles in the regulation of pancreatic cancer metabolism, including Kras, phosphoinositide 3-kinase/AKT, c-Myc, p53, and hypoxia-inducible factor-1 (HIF-1; ref. 9).
Forkhead box protein M1 (FOXM1) is an oncogenic transcription factor belonging to the Forkhead transcription factor superfamily. Human FOXM1 has three isoforms—FOXM1A, FOXM1B, and FOXM1C—as a result of differential splicing of exons Va and VIIa. FOXM1B and FOXM1C are transcriptionally active, whereas FOXM1A is transcriptionally inactive (10). FOXM1 plays essential roles in regulation of the cancer cell cycle, angiogenesis, invasion, and metastasis by directly promoting its target gene expression and networking with other factors (11). In previous studies, we found that FOXM1 was overexpressed in pancreatic cancer cells and promoted pancreatic cancer development and progression (12, 13). Researchers also found evidence that FOXM1 participates in regulation of metabolism. For example, in leptin-knockout mice, overexpression of FOXM1 was related to elevated consumption of glucose, whereas low expression of it was not (14). However, the role of FOXM1 expression in pancreatic cancer aerobic glycolysis and the underlying mechanisms are unknown. Therefore, in the present study, we sought to determine the role of FOXM1 in regulation of the Warburg effect and its mechanism about this role in pancreatic cancer cases. We discovered that FOXM1B transcriptionally upregulated LDHA expression; increased LDH activity, lactate production, and glucose utilization; and promoted pancreatic tumorigenesis and tumor metastasis.
Materials and Methods
Human tissue specimens and immunohistochemical analysis
Expression of FOXM1 and LDHA was analyzed using two tissue microarrays (TMA): one (TMA) containing 57 primary pancreatic ductal adenocacinoma, 10 normal tumor-adjacent pancreatic tissue, and 10 normal pancreatic tissue specimens (US Biomax) and the other (TMA-P) containing 154 human pancreatic ductal adenocacinoma specimens obtained from the Pancreatic Cancer Tissue Bank at Shanghai Jiaotong University Affiliated First People's Hospital (Shanghai, People's Republic of China). The primary pancreatic cancers in the patients represented in TMA-P were diagnosed and later confirmed by at least two pathologists, and the patients were accepted for the patients underwent surgery at the Affiliated First People's Hospital, Jiangsu Province Hospital (Jiangsu, People's Republic of China) and Shanghai East Hospital (Shanghai, People's Republic of China) from 2004 to 2011. Tumor staging for the specimens was carried out using the American Joint Committee on Cancer staging criteria. The use of human specimens was approved by the proper Institutional Review Boards. After hematoxylin and eosin staining of slides containing sections of optimal pancreatic tumor, normal tumor-adjacent pancreatic tissue up to 2 cm from the tumor, and normal pancreatic tissue up to 5 cm from the tumor, TMA-P slides were constructed (in collaboration with Shanghai Outdo Biotech, Shanghai, People's Republic of China). Two punch cores 2 mm in greatest dimension were taken from nonnecrotic areas of each formalin-fixed, paraffin-embedded (FFPE) tumor, matched normal tumor-adjacent tissue, and normal tissue specimen. Primary tumor and matched normal tumor-adjacent tissue specimens obtained from 34 of these 154 patients were included in TMA-P; primary tumor and matched normal tumor-adjacent and normal tissue specimens from 22 of these patients were included. Sections (4-μm thick) of FFPE tumor specimens were prepared and processed for immunostaining using anti-FOXM1 (Santa Cruz Biotechnology) and anti-LDHA (Santa Cruz Biotechnology) antibodies. The staining results were scored by two investigators blinded to the clinical data as described previously (15).
Cell lines and reagents
The human pancreatic adenocarcinoma cell lines PANC-1, MiaPaCa-2, AsPC-1, BxPC-3, and PA-TU-8902 were purchased from the American Type Culture Collection (ATCC). The pancreatic cancer cell line MDA Panc-28 was a gift from Dr. Paul J. Chiao (The University of Texas MD Anderson Cancer Center, Houston, TX). The human pancreatic adenocarcinoma cell line FG was obtained from Michael P. Vezeridis (The Warren Alpert Medical School of Brown University, Providence, RI; ref. 16). The human metastatic pancreatic adenocarcinoma cell line COLO357 and its fast-growing liver metastatic variant in nude mice, L3.7, were described previously (12). All of these cell lines were maintained in plastic flasks as adherent monolayers in Eagle's Minimal Essential Medium supplemented with 10% FBS, sodium pyruvate, nonessential amino acids, L-glutamine, and a vitamin solution (Flow Laboratories). PANC-1, MiaPaCa-2, AsPC-1, BxPC-3, and PA-TU-8902 were characterized or authenticated by the ATCC using short tandem repeat profiling and passaged in our laboratory for fewer than 6 months after receipt. A competitive LDHA inhibitor, oxamate sodium, was purchased from Sigma-Aldrich (17).
Plasmids and siRNAs
The plasmid pcDNA3.1–FOXM1 (pcDNA3.1–FOXM1B) and control vector pcDNA3.1 were described previously (18). An siRNA targeting FOXM1 (siFOXM1) consisted of a pool of three target-specific 20- to 25-nt siRNAs designed to knockdown FOXM1 expression was obtained from Santa Cruz Biotechnology.
Transient transfection
Transfection of plasmids and siRNAs into pancreatic cancer cells was performed using the transfection reagents Lipofectamine LTX and Lipofectamine 2000 CD, respectively (Invitrogen). For transient transfection, cells were transfected with plasmids or siRNAs at different concentrations as indicated for 48 hours before the performance of functional assays. Pancreatic cancer cells treated with the transfection reagents alone were included as mock controls.
Reverse transcription-PCR
Total RNA was extracted from tumor cells using a PureLink RNA Mini Kit (Life Technologies). Next, 2 μg of total RNA was reverse transcribed using a First Strand cDNA Synthesis Kit (Promega) to synthesize cDNA specimens. Subsequently, 2 μL of the cDNA product was subjected to PCR amplification with Taq DNA polymerase (Qiagen) using a thermal cycler with PCR primers to detect each factor (Supplementary Table S1). β-Actin and α-tubulin were used as internal controls. The PCR products were loaded onto 2% agarose gels and visualized using ethidium bromide under ultraviolet light.
Western blot analysis
Standard Western blotting was carried out using whole-cell protein lysates and primary antibodies against FOXM1 and LDHA (Santa Cruz Biotechnology) and LDHB (Abcam) and a secondary antibody [anti-rabbit IgG (immunoglobulin G) or anti-mouse IgG; Santa Cruz Biotechnology]. Equal protein specimen loading was monitored using an anti-α-tubulin antibody (Oncogene).
LDH activity, lactate production, and glucose utilization assay
Pancreatic tumor cells (1 × 106) were transfected with plasmids and siRNAs and prepared for LDH activity and lactate production assay using a LDH Activity Assay Kit and Lactate Assay Kit (Sigma) according to the manufacturer's protocol. For glucose utilization assay, tumor cells were transfected with plasmids and siRNAs, and cultures were incubated for 24 hours. The culture media were replaced with phenol-red free RPMI with 1% FBS or phenol-red free RPMI with 1% FBS and 20 mmol/L oxamate sodium in continuous culture for 3 days. Medium specimens were collected each day. Glucose concentrations in the media were measured using a Colorimetric Glucose Assay Kit (BioVision) and normalized according to cell number (19).
Construction of LDHA promoter reporter plasmids and mutagenesis
A 1.48-kb fragment containing LDHA 5′ sequences from −1,330 to +150 bp relative to the transcription initiation site was subcloned into the pGL3-basic vector (Promega). The final full-length reporter plasmid, which contained multiple FOXM1-binding sites, was designated pLuc–LDHA-1480. The deletion mutation reporter for this plasmid, pLuc–LDHA-493, was then generated. Both constructs were verified by sequencing the inserts and flanking regions of the plasmids.
Promoter reporter and dual luciferase assay
Pancreatic cancer cells were transfected with the indicated LDHA promoter reporter, siFOXM1, or expression plasmid. The LDHA promoter activity was normalized via cotransfection of a β-actin/Renilla luciferase reporter containing a full-length Renilla luciferase gene (20). The luciferase activity in the cells was quantified using a dual luciferase assay system (Promega) 24 hours after transfection.
The chromatin immunoprecipitation assay
Tumor cells (2 × 106) were prepared for the chromatin immunoprecipitation (ChIP) assay using a ChIP Assay Kit (Millipore) according to the manufacturer's protocol. The resulting precipitated DNA specimens were analyzed using PCR to amplify a 341-bp region of the LDHA promoter with the primers 5′-TATCTCAAAGCTGCACTGGGC-3′ (forward) and 5′-TGCTGATTCCATTGCCTAGC-3′ (reverse) and a 282-bp region of the LDHA promoter with the primers 5′-CTGCAGGAAGCCATGATCA-3′ (forward) and 5′-TCCCACTCACAGTGAAGCCT-3′ (reverse). The PCR products were resolved electrophoretically on a 2% agarose gel and visualized using ethidium bromide staining.
Animals
Pathogen-free female athymic nude mice were purchased from the National Cancer Institute. The animals were maintained in facilities approved by the Association for Assessment and Accreditation of Laboratory Animal Care International in accordance with the current regulations and standards of the U.S. Department of Agriculture and Department of Health and Human Services.
Tumor growth and metastasis
Pancreatic tumor cells (1 × 106) in 0.1 mL of Hank balanced salt solution were injected subcutaneously into the right scapular region of nude mice. The tumor-bearing mice were killed when they became moribund or on day 35 after inoculation, and their tumors were removed and weighed. Also, tumor cells (1 × 106) were injected intravenously into a separate group of mice via the ileocolic vein. The mice were killed on day 21 after inoculation or when they seemed to be moribund. Their livers were then removed, and surface metastases on them were counted after dissection of the livers into their individual lobes. Every surface was examined by two investigators who were unaware of the experimental protocol and scored separately (21).
Statistical analysis
The matching and significance of the patient specimen data were assessed using the Mann–Whitney U test and Pearson correlation coefficient. A two-tailed χ2 test and the Fisher exact test were used to determine the significance of the differences among the covariates. The significance of the in vitro and in vivo data was determined using the Student t test (two-tailed) or one-way ANOVA. In all of the tests, P values less than 0.05 were considered statistically significant. The SPSS software program (version 13.0; IBM Corporation) was used for all statistical analysis.
Results
FOXM1-enhanced glycolysis in pancreatic cancer cells
Aerobic glycolysis is the primary aspect of altered cancer metabolism, so we focused on the effect of FOMX1 regulation of pancreatic cancer metabolism on glycolysis. Recent studies revealed that many key types of oncogenic signaling regulate cancer metabolism by regulating the expression and/or activity of metabolic enzymes. To further investigate the mechanism of FOXM1 regulation of glycolysis, we assessed the effect of FOXM1 on the expression of glycolytic enzymes. We treated PANC-1 cells with siFOXM1 and measured the levels of glycolytic enzyme mRNA expression using reverse transcription-PCR (RT-PCR; Fig. 1A). We found that knockdown of FOXM1 expression did not change the expression of most of the enzymes except for phosphoglycerate kinase 1 (PGK-1) and LDHA.

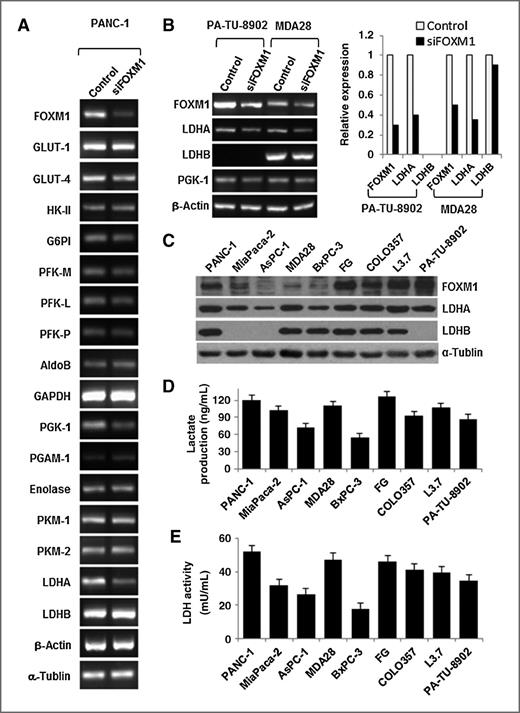

We then sought to confirm the effect of FOXM1 expression on PGK-1, LDHA, and LDHB mRNA expression in PA-TU-8902, MDA Panc-28, MiaPaCa-2, and COLO357 cells (Fig. 1B and Supplementary Fig. S1). LDHA mRNA expression decreased significantly, and PGK-1 mRNA expression decreased, but LDHB mRNA expression did not change. PGK-1 catalyzes 1,3-bisphosphoglycerate and ADP to form 3-phosphoglycerate and ATP, a reversible reaction primarily regulated by the ratio of ATP to ADP. In comparison, LDHA, a major subunit of LDH, converts pyruvate to lactate, which is the key characteristic of aerobic glycolysis. Furthermore, we observed that LDHA was overexpressed in pancreatic cancer cells and that inhibition of LDHA expression induced cancer cell oxidative stress and suppressed tumor growth (22, 23). In the present study, we focused on the effect of FOXM1 expression on glycolysis by regulation of LDHA expression. We then analyzed the association of FOXM1 expression with LDHA and LDHB expression, lactate production, and LDH activity in pancreatic cancer cell lines. We found that expression of FOXM1 was closely correlated with expression of LDHA, production of lactate, and activity of LDH but was not significantly correlated with expression of LDHB (Fig. 1C–E).
FOXM1 promotion of the Warburg effect in pancreatic cancer cells

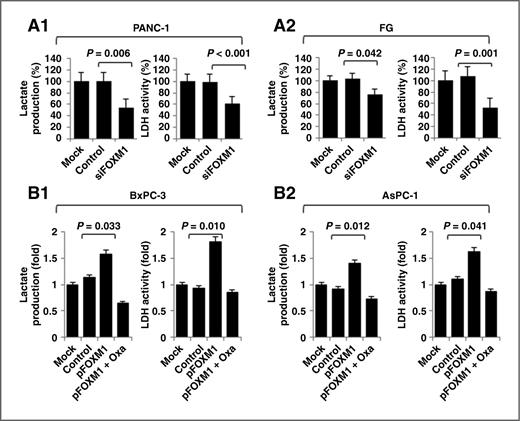

Given that, we observed that FOXM1 expression was associated with lactate production and LDH activity, to further explore the impact of FOXM1 on the Warburg effect in pancreatic cancer cells, we evaluated the correlation of altered FOXM1 expression with glucose utilization, lactate production, and LDH activity. We did so by knocking down FOXM1 expression in PANC-1 and FG cells, which had relatively high levels of FOXM1 and LDHA expression. We found significant decreases in glucose utilization, lactate production, and LDH activity (Fig. 2A and Supplementary Fig. S2). In comparison, FOXM1 overexpression markedly increased glucose utilization, lactate production, and LDH activity in BxPC-3 and AsPC-1 cells, which had relatively low levels of FOXM1 and LDHA expression (Fig. 2B and Supplementary Fig. S2). Furthermore, elevated glucose utilization, lactate production, and LDH activity induced by FOXM1 were dependent on LDHA, as specific inhibition of LDHA activity by oxamate sodium attenuated the increasing effect of FOXM1 on glucose utilization, lactate production, and LDH activity. These data indicated that FOXM1 may affect the utilization of glucose and production of lactate, which are the main features of the Warburg effect, via regulation of the activity of LDH.
Transcriptional activation of LDHA expression by FOXM1 in pancreatic cancer cells

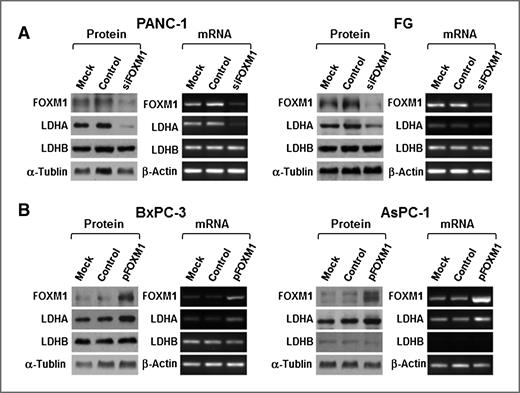

Our study demonstrated a direct association of FOXM1 expression with LDH activity and that FOXM1 knockdown can decrease LDHA mRNA expression. To further explore the mechanisms of FOXM1 regulation of LDH expression, we examined the effects of altered expression of FOXM1 on expression of LDHA and LDHB, the main subunits of LDH, at both the mRNA and protein level in the pancreatic cancer cell lines PANC-1, FG, BxPC-3, and AsPC-1. Silencing of FOXM1 expression significantly downregulated LDHA expression in PANC-1 and FG cells (Fig. 3A), whereas restored FOXM1 expression markedly upregulated LDHA expression in BxPC-3 and AsPC-1 cells (Fig. 3B). The expression of LDHB did not change with either overexpression or silencing of FOXM1. These data revealed that FOXM1 regulates LDH activity by regulating the expression of LDHA rather than LDHB.

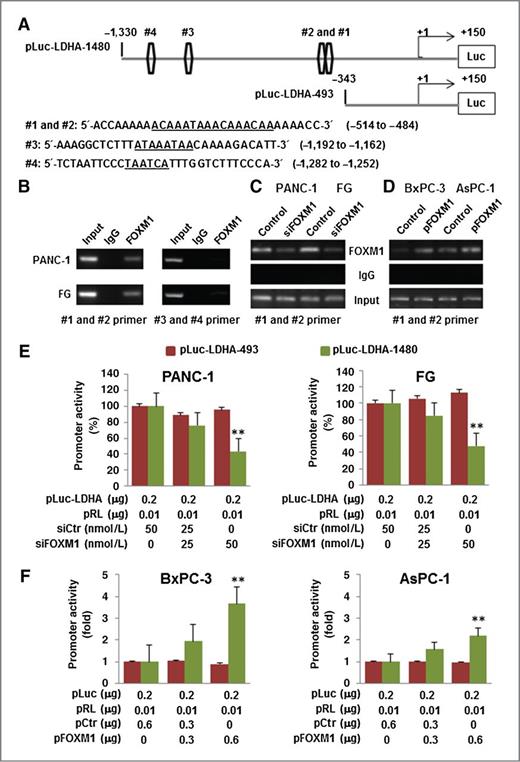

To identify the mechanism of the regulation of FOXM1 of LDHA expression, we analyzed the sequence of the LDHA promoter for the potential FOXM1-binding elements 5′-A(C/T)AAA(C/T)AA-3′, 5′-TAATCA-3′, and 5′-AGATTGAGTA-3′ (20, 24, 25). We identified four putative FOXM1-binding elements in the LDHA promoter region (Fig. 4A). We then generated two LDHA promoters—pLuc–LDHA-1480 and pLuc–LDHA-493—(Fig. 4A) and cotransfected the reporters with FOXM1 expression vectors or siFOXM1 into PANC-1, FG, BxPC-3, and AsPC-1 cells. As shown in Fig. 4E and F, overexpression of FOXM1 elevated the LDHA promoter activity, whereas knockdown of expression of FOXM1 decreased the LDHA promoter activity in the pLuc–LDA-1480 groups, and altered expression of FOXM1 did not change the promoter activity in the pLuc–LDHA-493 groups, which did not contain the potential FOXM1-binding site. To provide evidence that FOXM1 bound directly to the LDHA promoter, we conducted a ChIP assay using chromatins prepared from PANC-1 and FG cells. The results suggested that FOXM1 bound to all of the putative binding sites but mainly did so to sites #1 and #2 (Fig. 4B). To confirm these results, we knocked down FOXM1 expression in PANC-1 and FG cells, which led to decreased FOXM1 recruitment to the LDHA promoter (Fig. 4C), and induced FOXM1 overexpression in BxPC-3 and AsPC-1 cells, which led to increased FOXM1 recruitment to the LDHA promoter (Fig. 4D). These data strongly suggested that FOXM1 bound to the LDHA promoter and transcriptionally regulated LDHA expression.
Direct impact of altered FOXM1–LDHA signaling on pancreatic tumor growth and metastasis in vivo

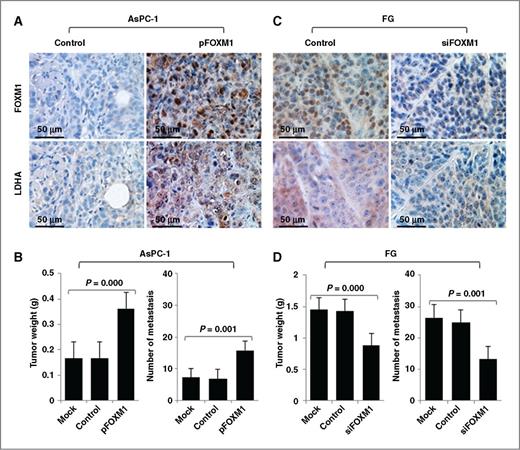

To determine the effect of altered FOXM1–LDHA signaling on pancreatic cancer biology, we induced overexpression of FOXM1 in AsPC-1 cells and knocked down expression of FOXM1 in FG cells and evaluated the ability of the cells with altered FOXM1 expression to grow and metastasize in animal models. Overexpression of FOXM1 significantly elevated the expression of LDHA in vivo (Fig. 5A), which was consistent with in vitro results, and promoted tumor growth and metastasis (Fig. 5B). Conversely, downregulation of expression of FOXM1 markedly inhibited the expression of LDHA (Fig. 5C) and tumor growth and metastasis (Fig. 5D). These data suggested that FOXM1–LDHA signaling regulated pancreatic cancer development and progression.
Direct correlation of concomitant expression of FOXM1 and LDH with pathologic features of pancreatic cancer
We provide evidence that FOXM1 transcriptionally regulated LDHA expression and glycolysis in pancreatic cancer cells. To further confirm our hypothesis, we investigated the expression of FOXM1 and LDHA in pancreatic tumor specimens using the TMA and TMA-P microarrays with different patient ethnicities. The clinicopathologic characteristics of the two arrays are described in Supplementary Tables S2 and S3. We used the Mann–Whitney U test to analyze the matching of the clinicopathologic characteristics for the two arrays and found that most of the characteristics did not match (Supplementary Table S4). Thus, we analyzed TMA and TMA-P separately.

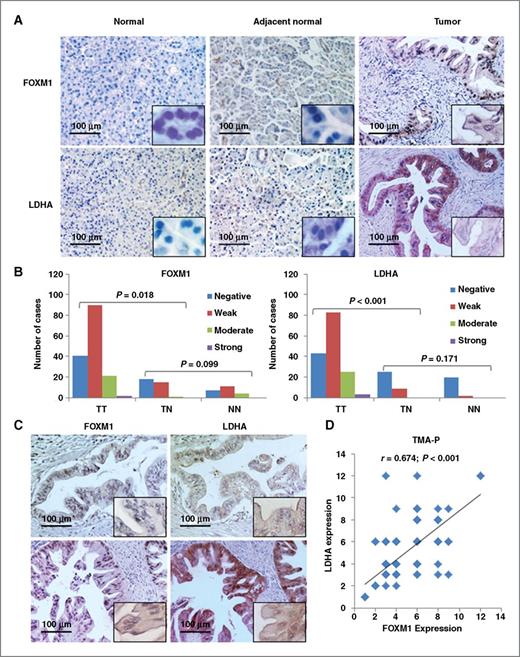

Using a specific anti-FOXM1 antibody, we observed FOXM1-positive staining in the nuclei and/or cytoplasm of pancreatic tumor cells and FOXM1-negative or weak FOXM1-positive staining in the cytoplasm of normal tumor-adjacent and normal pancreatic cells in TMA-P and TMA (Fig. 6A, top plots; Fig. 6B, left; Supplementary Fig. S4A). We then analyzed the relationship between clinicopathologic characteristics and FOXM1 expression in pancreatic tumors. We observed that in TMA-P, FOXM1 expression was positively associated with pT classification (P < 0.001), regional lymph node metastasis (P < 0.001), TNM (tumor–node–metastasis) stage (P < 0.001; Supplementary Fig. S3A1 and S3A2), and tumor differentiation (P = 0.005; Supplementary Fig. S3B1 and S3B2; Supplementary Table S7). In TMA, FOXM1 expression was positively associated with regional lymph node metastasis (P = 0.035) and TNM stage (P = 0.015) but not other clinicopathologic characteristics (Supplementary Table S5), which may have resulted from the limited number of specimens. However, these data strongly suggested that elevated expression of FOXM1 played a critical role in pancreatic cancer development and progression.
Using the same cohort of TMA-P and TMA specimens, we analyzed the expression of LDHA and observed LDHA-positive staining in the cytoplasm of the cancer cells. We also saw increasingly LDHA-positive staining in normal pancreatic tissue, normal tumor-adjacent pancreatic tissue, and primary pancreatic tumor specimens (Fig. 6A, bottom plots; Fig. 6B, right; Supplementary Fig. S4B). Expression of LDHA was also positively associated with pT classification (P = 0.001), TNM stage (P = 0.008; Supplementary Fig. S3C1 and S3C2), and tumor differentiation (P = 0.018; Supplementary Fig. S3D1 and S3D2; Supplementary Table S8) in TMA-P but positively associated only with TNM stage (P = 0.020; Supplementary Table S6) in TMA.
Furthermore, we found direct correlations between FOXM1 and LDHA expression in both TMA-P and TMA, which were consistent with our findings for pancreatic cancer cell lines. In analyzing consecutive pancreatic tumor sections, we observed that pancreatic cancer cells expressed both FOXM1 and LDHA (Fig. 6C) and that FOXM1 expression was significantly correlated with LDHA expression in both TMA-P (r = 0.674, P < 0.001; Fig. 6D) and TMA (r = 0.985, P < 0.001; Supplementary Fig. S4C).
Discussion
In the present study, we determined the roles of FOXM1 in pancreatic cancer aerobic glycolysis and of FOXM1–LDHA signaling in pancreatic tumorigenesis. We provided four lines of evidence supporting a critical role for FOXM1 in regulation of aerobic glycolysis by the transcriptionally activated LDHA gene. First, we found that FOXM1 and LDHA were concomitantly overexpressed in pancreatic tumor specimens and cell lines. Also, the expression of FOXM1 and LDHA in pancreatic cancer cells was positively associated with lactate production and LDH activity. Second, overexpression of FOXM1 increased the expression of LDHA at both mRNA and protein level and increased glucose utilization, lactate production, and LDH activity, whereas reduced expression of FOXM1 did the opposite. These data indicated that FOXM1 regulated aerobic glycolysis by regulating the expression of LDHA. Third, FOXM1 bound directly to the LDHA promoter region and regulated expression of the LDHA gene at the transcriptional level. Fourth, increased FOXM1–LDHA signaling promoted pancreatic tumor cell growth and metastasis in vivo, whereas decreased FOXM1–LDHA signaling did the opposite. Thus, this novel FOXM1–LDHA signaling critically contributed to the Warburg effect in pancreatic cancer cells and to pancreatic cancer development and progression.
The oncogenic transcription factor FOXM1 is a key regulator of M-phase progression and G1–S- and G2–M-phase transition (26–29). Besides its essential roles in cell-cycle regulation, FOXM1 is involved in tumor angiogenesis, epithelial–mesenchymal transition, invasion, and metastasis (11). FOXM1 is overexpressed in many types of cancer cells, including liver cancer, prostate cancer, lung cancer, glioma, breast cancer, gastric cancer, and pancreatic cancer cells, and its overexpression is associated with tumor development and progression (18, 30–35). In the present study, we used two pancreatic cancer TMAs with different patient ethnicities (TMA and TMA-P) and found that FOXM1 was overexpressed in pancreatic tumors and that its overexpression was correlated with T stage, N stage, TNM stage, and tumor differentiation, which was consistent with results of our previous studies (12, 13).
We have demonstrated the critical role of FOXM1 in cancer development and progression, but the literature contains little evidence revealing the function of FOXM1 in cancer metabolism. The Warburg effect, which researchers proposed more than 90 years ago, is considered a hallmark of cancer (36). Compared with normal cells, cancer cells take up and consume larger amounts of glucose and maintain much higher rates of glycolysis and lactate production even at normal oxygen concentrations (37). One of the explanations for the Warburg effect is overexpression of glucose transporters and the enzymes in the glycolytic pathway as a consequence of oncogene activation (9). In the present study, we found that knocking down expression of FOXM1 did not change the expression of most glycolytic enzymes except for PGK-1 and LDHA. Because LDHA mainly converts pyruvate to lactate, which is the key characteristic of aerobic glycolysis, we focused on the function of FOXM1 in glycolysis by regulating LDHA expression in this study.
LDHA is a major subunit of LDH, which is a tetrameric enzyme comprising the major subunits A and B, results in five isozymes: A4 (LDH5), A3B1 (LDH4), A2B2 (LDH3), A1B3 (LDH2), and B4 (LDH1). Recent studies revealed that LDHA favors catalysis of the conversion of pyruvate to lactate, whereas LDHB converts lactate to pyruvate; also, researchers linked an isozyme shift from LDH1 to LDH5 with cancer progression (38–40). Authors have reported that LDHA is overexpressed in many kinds of cancer cells, including breast, gynecologic, colorectal, and non–small cell lung cancer cells, and suggested that this overexpression promotes cancer development and progression (39, 41–43). In patients with pancreatic cancer, the serum LDH level is elevated, and this elevation is an independent unfavorable prognostic factor (44). In the present study, we used the same cohorts of pancreatic tumor specimens used to analyze FOXM1 expression and found that LDHA expression was correlated with T stage, TNM stage, and tumor differentiation. These results suggested that LDHA expression was associated with pancreatic cancer development and progression. We then found that expression of LDHA was associated with that of FOXM1 in both TMA and TMA-P pancreatic tumor specimens regardless of patient ethnicity and type of cell lines, whereas we did not find a significant correlation between FOXM1 and LDHB expression. Furthermore, FOXM1 expression correlated with LDH activity and lactate production in pancreatic cancer cell lines. Next, we evaluated the effect of altered FOXM1 expression on LDHA and LDHB expression, glucose utilization, lactate production, and LDH activity. We found that FOXM1 overexpression led to a marked increase in LDHA expression, glucose utilization, lactate production, and LDH activity, whereas knockdown of FOXM1 expression did the opposite. Altered FOXM1 expression had no effect on LDHB expression. These data indicated that FOXM1 influenced the Warburg effect by regulating the expression of LDHA, which changed the activity of LDH.
Given the important roles of FOXM1 and LDHA expression in pancreatic cancer glycolysis, we sought to determine the underlying mechanisms responsible for coexpression of FOXM1 and LDHA in pancreatic cancer cells. Authors have reported that LDHA is the downstream target gene of HIF and c-Myc (45, 46), and because FOXM1 is a transcription factor, we further studied FOXM1 to determine whether it regulates LDHA expression via transcription in the present study. We observed that FOXM1 bound directly to the LDHA promoter region and regulated the promoter activity of LDHA. Because LDHA is reported to promote the growth of pancreatic cancer cells (22), we further analyzed altered FOXM1–LDHA signaling to determine whether it regulates pancreatic tumor growth and metastasis in vivo. We found that elevated FOXM1–LDHA signaling increased both growth and metastasis, whereas decreased FOXM1–LDHA signaling did the opposite. Therefore, our results provide clinical and mechanistic evidence that FOXM1 regulates the Warburg effect and pancreatic cancer development and progression by transcriptionally regulating the expression of LDHA. Although our study demonstrated the role of FOXM1 in pancreatic cancer glycolysis and the mechanism of FOXM1 regulation of LDHA expression, further studies should be carried out to determine the role of FOXM1 in pancreatic cancer metabolism, including the pentose phosphate pathway and glutamine, which also play key roles in cancer development and progression (47, 48).
In summary, this study for the first time provided critical insight into the role of FOXM1 in pancreatic cancer glycolysis and identified a role for novel FOXM1–LDHA signaling in pancreatic cancer development and progression. We not only identified a novel molecular mechanism underlying mechanism of pancreatic cancer glycolysis and progression but also found that a new form of FOXM1–LDHA signaling is a promising molecular target for new therapeutic strategies for controlling pancreatic cancer.
