Changes in Gene Transcription Underlying the Aberrant Citrate and Choline Metabolism in Human Prostate Cancer Samples Free

This article is featured in Highlights of This Issue, p. 3207

Altered metabolism is a hallmark of cancer cells (1). In prostate cancer, metabolic changes present as a reduction in citrate and an increase in choline-containing compound (ChoCC) compared with normal prostate cells (2). These metabolites can be analyzed in vivo using magnetic resonance spectroscopy (MRS) during an MRI examination (3, 4). Thus, reduced citrate and increased ChoCC metabolite levels can aid discrimination of cancerous from noncancerous areas (5), and studies indicate that they also have the potential to identify tumors with varying levels of aggressiveness (6).

The application of a high magnetic field strength (14.1 T) to a tissue sample using high-resolution magic angle spinning (HR-MAS) MRS may be used for ex vivo assessment of the metabolic status (7). This technique gives a more detailed metabolic profile compared with in vivo MRS, and the samples remain intact, allowing for further molecular analyses. The ChoCCs, observed as a broad signal in vivo, are separated into choline (Cho), phosphocholine (PC), and glycerophosphocholine (GPC) in the HR-MAS spectra. The ChoCCs constitute important building blocks in cell membranes and are elevated, in several malignancies (8, 9), including prostate cancer (10), due to altered phospholipid metabolism. When using gene therapy to silence the enzyme choline kinase converting Cho to PC, a reduction of cell proliferation and tumor growth was shown in breast cancer cell lines (11). The prostate is highly specialized for the production and secretion of citrate, which is used as an energy supply for sperm. Thus, the normal prostate contains high levels of citrate, with decreasing levels accompanying the malignant transformation (12). For the malignant cells to proliferate, they must adapt their metabolism and use the citrate for de novo lipid synthesis (13). Inactivation of enzymes, such as ATP citrate lyase (ACLY), has been shown to limit cell proliferation in vitro and to reduce tumor growth in vivo in numerous tumors including the prostate cancer cell line PC3 (14).

A better understanding of the underlying mechanisms governing the citrate and ChoCC metabolism has the potential of revealing novel therapeutic targets in prostate cancer. To integrate information from several sources could be a key element in achieving this goal (15). Because expression of genes involved in intermediate metabolism is small compared with the expression levels of structural or secretory genes, such an integrated approach will contribute in finding genes whose altered expression, although perhaps small, will lead to important metabolic deviations. The main objective of this study was to explore the molecular mechanisms underlying the changes in citrate and ChoCC metabolism in prostate cancer. We combined data from histopathologic evaluation, gene expression analysis, and metabolic profiling from the same sample to identify those genes whose expression covariates with the altered levels of citrate and ChoCC.

At our institution, a transversal tissue slice (thickness 2 mm) is routinely removed for research from all patients undergoing radical prostatectomy, provided the appropriate consent form has been signed. The slice is removed from the middle of the gland with a double bladed knife and immediately fresh frozen in liquid nitrogen. The 2 remaining halves of the prostate gland are stitched to a cork board with the cut surface downward, as this minimizes the tendency for the capsule to retract during the fixation period in 4% buffered formaldehyde. After fixation the prostate is covered with India ink and cut in 4 mm thick transversal slices, which are subsequently embedded in paraffin and cut into 4-μm thick sections for hematoxylin and eosin staining and microscopic examination. This study comprises fresh frozen samples from 48 patients operated with open radical prostatectomy, fulfilling the following criteria: no previous treatment for prostate cancer, an estimated tumor volume of more than 5% of the gland and tumor represented in both hematoxylin-eosin-saffron (HES) sections adjacent to the frozen slice. Several samples from each slice were selected from locations corresponding to cancerous and noncancerous areas identified in the adjacent paraffin sections. For finding these areas, a fused image of the digital photo of the fresh slice and the adjacent HES section are overlaid on the frozen slice (16). Cryosections (4 μm) from each sample were stained with HES and evaluated by a pathologist trained in uropathology. The cellular composition of the section (percentage of area occupied by benign epithelium, stroma, and cancer) was visually assessed, and Gleason grading was carried out in all cases of malignancy. In 2 slices, no cancer was found in any of the extracted samples, and in 5 additional slices the RNA extracts showed low concentration or reduced quality (low RIN score), both supposedly due to a high share of stroma. These 7 slices were therefore excluded. Thus, the statistical analysis is based on the remaining 133 samples from 41 patients, all of which gave rise to successful gene expression profiling after HR-MAS MRS.

The frozen slice was laid on an aluminum plate in contact with liquid nitrogen and 3 × 2 mm samples (weight 16–20 mg) were removed from the slice with a specially designed drill. Cryosections were cut for histopathologic evaluation from each sample before HR-MAS. Thereafter, the sample was transferred to a disposable insert for the zirconium HR-MAS rotor (50 μL, 4 mm diameter) together with 3 μL D₂O (deuterium oxide) containing TSP (sodium-3′-trimethylsilylpropionate-2,2,3,3-d₄). To fit the insert, the sample was cut into smaller pieces using a punch biopsy tool. HR-MAS was carried out with a 14.1 T (600 MHz for ¹H) Bruker Avance DRX spectrometer (Bruker BioSpin GmbH) equipped with a 4-mm ¹H/¹³C HR-MAS probe. Spectra were acquired at 4°C with a spin rate of 5000 Hz. A Carr-Purcell-Meiboom-Gill (CPMG) spin echo sequence [90° − (τ −180° − τ)_n − acquisition] was acquired to suppress signals from overlapping lipids and macromolecules (128 transients, effective echo time = 60 milliseconds, acquisition time = 3.27 seconds). A spectral region of 10 KHz was collected into 64,000 data points, and a line broadening of 0.30 Hz was applied to the raw data before Fourier transformation. After 36 minutes of HR-MAS analysis, the sample was immediately refrozen before RNA isolation.

After HR-MAS analysis, the sample was homogenized for 10 to 20 seconds in 400 L tissue lysis buffer using a rotor-stator homogenizer (Omni TH, Tissue Homogenizer; Omni International). The RNA was extracted manually with a mirVana miRNA Isolation Kit (Ambion). The RNA concentration and purity were determined by a NanoDrop Spectrophotometer (NanoDrop Technologies). The RNA integrity was determined by a 2100 Bioanalyzer (Agilent Technologies), according to the manufacturers' instructions, and the results are presented as RNA Integrity Number (RIN) scores.

An Illumina TotalPrep RNA Amplification Kit (Ambion Inc.) was used to amplify RNA for hybridization on Illumina BeadChips. To synthesize first-strand cDNA with reverse transcription, total RNA from each sample was used. Following the second-strand cDNA synthesis and cDNA purification steps, cRNA was synthesized via in vitro transcription for 12 hours. The gene expression profiles were measured with Illumina Human HT-12 v4 Expression BeadChip (Illumina), which enables genome-wide expression analysis (more than 47,000 transcripts) of 12 samples in parallel on a single microarray. The individual transcripts with a detection P > 0.01 for all samples were filtered out. The remaining 23,444 transcript values were log₂ transformed and quantile normalized to adjust for technical artifacts between samples (17). This normalization will enable differentiation between biological variations in gene expression levels and variation due to measurement processes. The microarray data were prepared in a format that conforms to the Minimum Information About a Microarray Gene Experiment (MIAME) guidelines and published in Array Express with accession number: E-MTAB-1041.

Partial least square (PLS) multivariate regression was used as the statistical model to investigate the relationship between the HR-MAS spectra and Gleason score and for finding genes whose expression level covariate with the selected metabolites. Each metabolite intensity value was found on the HR-MAS spectrum at the specific ppm value for the included metabolites. For the integration of metabolite and gene data, the highest intensity spectral value for citrate, creatine, Cho, PC, and GPC (found at 2.73, 3.04, 3.22, 3.23, and 3.24 ppm, respectively) was used as dependent values in the PLS model, whereas the gene expression data were used as independent values. This model identifies 2 orthogonal planes (PC1 and PC2) which maximize the variance between the samples. Individual genes, whose expression levels covariate with the above defined metabolites, were identified from the size and variance of the regression coefficients. Testing whether regression coefficients were significantly different from zero gave a P value for the association of each gene to each of the metabolites.

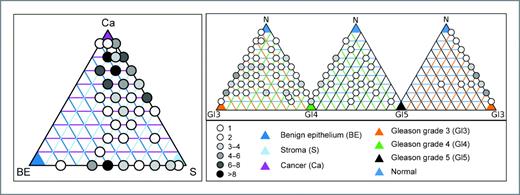

Patient characteristics and histopathologic evaluations of the prostate gland are presented in Table 1. The percentage of the different tissue types within each sample is presented in Fig. 1. In 35 of the samples, only benign histology was found. Of the remaining 98 samples containing cancer, 24 showed low-grade tumor (Gleason score = 6), whereas 41 samples showed intermediate grade (Gleason score = 7) and 33 samples contained highly aggressive cancer (Gleason score ≥ 8). RNA extracts with high purity, indicated by a 260 of 280 ratio of 2.0 (SD 0.03) and 260 of 230 ratio of 1.94 (SD 0.39), were isolated from all samples. The average RIN score was 9.1 (SD 1.2). All gene transcripts (n = 23.444) and selected metabolites (n = 5) serve as variables for finding genes whose expression level significantly can predict a response in the metabolites. To illustrate the variance of the samples included in the PLS model integrating genes and metabolites, a score plot depicting each sample (n = 133) as a pie chart is shown in Fig. 2. The first principal component (PC1) distinguishes malignant from benign samples, whereas the second principal component (PC2) separates the cancer samples according to their aggressiveness in terms of Gleason score.

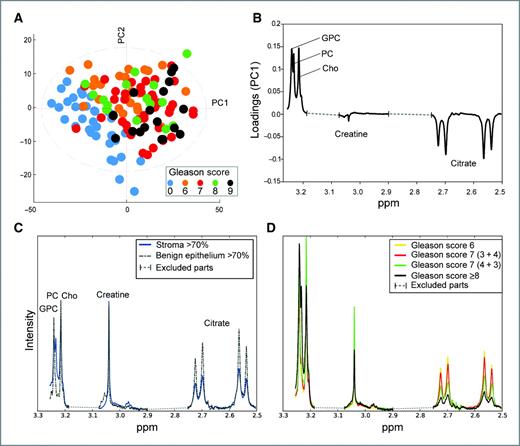

Results from HR-MAS MRS analysis are shown in Fig. 3. The PLS model (Fig. 3A) shows HR-MAS spectra (region 3.25–2.5 ppm) with a strong correlation to the Gleason score (R² = 0.52), thereby discriminating benign from cancerous samples. Cancer samples have a reduced level of citrate and an increased ChoCC level compared with normal samples (Fig. 3B and D). In Fig. 3D, the samples with a Gleason score of 7 and an equal amount of benign and stromal tissues are divided between Gleason grades 3 + 4 and 4 + 3. The MR spectra show decreasing citrate signals when going from a less aggressive Gleason grade (3 + 4) to a more aggressive variant (4 + 3) within the same Gleason score. Prostate stromal cells only produce citrate to a small extent, and samples with a high proportion of stroma (in Fig. 3C selected as samples with >70% stroma) mimic a malignant spectrum in this respect. However, they are separated from the latter by their lower level of ChoCC. The mean ChoCC level is increased in malignant samples compared with normal and all the individual components of the ChoCC contribute to the increased signal.

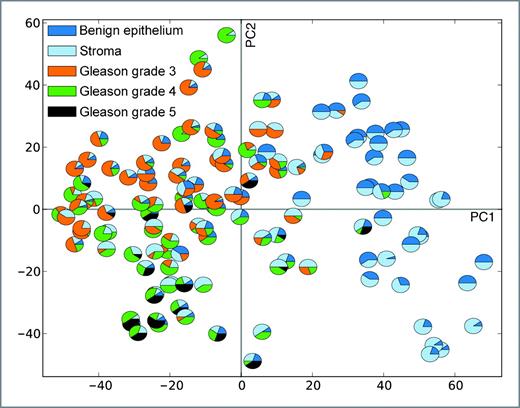

We identified a 3-dimensional predictive subspace, as visualized in Fig. 2, using gene expression data, metabolic profiling and sample histopathology. The PLS regression model was used to find gene expression with high covariance with citrate and ChoCC levels. To evaluate the possible influence of gene expression changes on the selected metabolites in this study, we do not present the results as up or downregulation of the gene, but as a measurement of how these variables change together, their covariance. We explored all gene expression values involved in the metabolic pathways of citrate and ChoCC to find out which genes significantly predict a response in the selected metabolites. The enzymes with possible regulatory effects on citrate production (Fig. 4) with significant covariance were ACLY P = 0.003 and m-aconitase (ACON) P = < 0.001 (Fig. 6). ACON also has a significant covariance with GPC (P = 0.003). The ChoCC and their metabolic pathway are more complex and involve several enzymes in the regulation of the different metabolites (Fig. 5). The gene transcripts with the most significant covariance to GPC were PLA2G7 (P < 0.001), a member of the arachidonic acid releasing PLA2 family, and choline kinase α (CHKA) P = 0.002. PLA2G7 (P = 0.05) and cholinephosphotransferase 1 (CHPT1, P = 0.05) showed significant covariance with the increased Cho levels. To illustrate the covariance between the genes ACON, ACLY, PLA2G7, CHKA and the metabolites citrate, Cho and GPC, the results are presented in Fig. 6 with accompanying P values.

This study shows the successful integration of histologic, metabolic, and transcriptomic data from the same human prostate tissue samples. Even though the RNA extraction was carried out after HR-MAS MRS, the RNA integrity was very high, which is important for generating a robust integrated model. We identified genes whose expression showed a high covariance to the aberrant levels of citrate and ChoCC metabolites and which can thereby possibly act as molecular targets for therapy. A small alteration in the expression of a gene which codes for a rate limiting enzyme can result in significant changes in the activity of the corresponding metabolic pathway and thereby a change in the levels of the affected metabolite (18). Finding genes with profound effects on cellular and metabolic functions is highly relevant for the development of targeted therapies and for improving diagnostics (19). Metabolic genes are at greater risk of being erroneously eliminated in microarray analyses because the level of expression is often only slightly changed compared with the expression level in a normal state. A small increase (2-fold) in a metabolic regulatory gene can be of greater importance for cancer progression than a 50-fold change in expression of a structural protein.

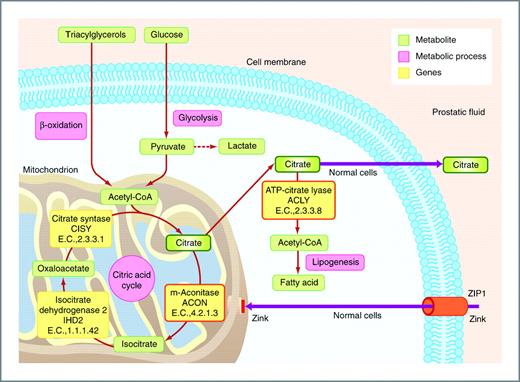

The concern of missing important metabolic genes by simply studying the level of gene expression has been addressed by Costello and colleagues (20) and exemplified by the enzyme ACON, which is a key enzyme for converting citrate to isocitrate. There is no detectable difference in the expression of ACON between normal and malignant tissue by immunhistochemistry (21). Whereas in normal cells ACON is effectively inhibited by zinc (Fig. 4), malignant cells have a reduced capability to store zinc, leading to a reduced inhibition of ACON and thus citrate is oxidized in the citric cycle and consequently citrate levels will sink. The importance of ACON in prostate cancer metabolism could have been missed by a pure genetic/proteomic approach. However, in our study, ACON is a highly significant predictor of the citrate level in cancer samples. The other gene transcript that showed significant covariance with citrate levels was ACLY. ACLY is the key enzyme of de novo lipogenesis as it converts citrate to cytosolic acetyl CoA thus linking tumor-associated glycolysis to enhanced lipogenesis, as the acetyl-CoA is utilized in fatty acid and cholesterol synthesis (13). Inhibition of this gene by siRNA has been shown to suppress the growth and survival of tumor cells (14). ACLY inhibition resulted in the inhibition of tumor cell growth in vitro and in vivo and the effect seems to be enhanced by combining ACLY knockdown and statin treatment (22). ACLY overexpression is correlated with poorer prognosis of non–small cell lung carcinoma and is therefore suggested to be an attractive target for RNA interference in a clinical setting (23). Studies suggesting obesity being a risk factor for the development of larger tumors and more aggressive cancers also support the involvement of lipogenic enzymes in prostate cancer pathophysiology (24, 25). Rapidly proliferating cancer cells require phospholipids for cell membrane synthesis, which may explain the increase in ChoCC in many cancers. The gene most significantly predicting an increase in ChoCC, especially an increase in GPC levels, was PLA2G7, a member of the PLA2 gene family. The arachidonic acid pathway is implicated in prostate carcinogenesis (26). Vainio and colleagues showed that PLA2G7 was highly overexpressed in prostate cancer, especially in Ets Related Gene (ERG) oncogene-positive cancers suggesting that PLA2G7 could be a therapeutic target in these cancers (27). CHKA (P = 0.002) was the second most significant gene to explain the increase in ChoCC, and it has been shown to be overexpressed in prostate cancer (28). CHKA protein expression levels have been shown to decrease following treatment with PI-103 (class 1 PI3K and mTOR inhibitor) in prostate and colon carcinoma cell lines (29) and inhibition of CHKA was identified as a factor for the observed decrease in phophocholine levels. The authors examined the response in choline metabolism by MRS of aqueous extracts from the cells concluding that MRS can provide a noninvasive method to monitor changes in choline levels and potential tumor response following treatment. However, results from in vitro experiments must always be corroborated using other methods to assess their validity in the intact organism. Our study, using fresh frozen human tissue samples, confirms CHKA as a relevant gene to target in prostate cancer treatment.

The strength of our study is the stringent and validated method of fresh tissue harvesting resulting in material of high molecular quality, allowing microscopic examination, gene expression mapping, and analysis of small molecular metabolites to be carried out using the same sample. Although many prostate biobanks storing fresh tissue have been established, this paper is the first to present results from an integrative design bringing together transcript and metabolite profiles. The benefit of using human tissue is the possibility to overcome the limitations of using immortalized cell models with “normal” physiologic phenotypes (30). However, the histopathologic evaluation was carried out on cryosections of each sample and was somewhat impaired by freezing artifacts, which were prominent in some samples. Another limitation is the definition of a sample with benign histopathology as normal although it has been removed from a slice containing cancer. There may well be molecular changes in the surroundings of a tumor, so to minimize this possible effect we selected our “normal” samples in the radical prostatectomy specimens as far away from the tumor area as possible. In addition, some low aggressive samples were extracted from a slice with a higher total Gleason score, which might conceivably affect the metabolism in that sample. Nevertheless, there was a clustering of low aggressive samples, as visualized in Fig. 2.

Although not the main objective of this study, we present results supporting the inverse correlation between the citrate signal and the Gleason score (6, 31, 32). In cancer samples with equal amounts of benign epithelium and stroma, we observed lower citrate levels in high-risk samples (Gleason score >8) than in low-risk samples (Gleason score = 6; Fig. 3D). Furthermore, there is a trend toward a difference of citrate within the intermediate-risk group (Gleason score = 7), separating the Gleason grade 3 + 4 from 4 + 3, a separation which is clinically highly relevant due to its impact on the prognosis (33).

In summary, our study has unraveled gene transcripts that expand the understanding of the mechanisms underlying aberrant citrate (ACLY and ACON) and ChoCC levels (PLA2G7 and CHKA) in prostate cancer, by integration of data from histologic, transcriptomic, and metabolomic analysis of the same samples removed from radical prostatectomy specimens. These genes deserve attention as possible prostate cancer specific targets for therapy.

No potential conflicts of interest were disclosed.

The authors thank medical laboratory technicians Toril Rolfseng, Unn Granli, and Borgny Ytterhus for excellent assistance with the laboratory work; Jørn-Ove Sæternes for the design and development of equipment used to harvest and handle frozen prostate tissue; and urologists Jan Gerhard Mjønes and Dag Halvorsen for an essential contribution to the material collection. The microarray service was provided by the Genomics Core Facility, Norwegian University of Science and Technology, and NMC - a national technology platform supported by the functional genomics program (FUGE) of the Research Council of Norway.

The study was supported by grants from the Cancer Foundation of St. Olavs Hospital, University Hospital of Trondheim, Unimed Innovation St. Olavs Hospital, the Norwegian Cancer Society, and the Functional Genomics Program (FUGE) in the Research Council of Norway. The Illumina service was provided by NMC (Norwegian Microarray Concortium) at the National Technology Platform and supported by FUGE.
