Rap1 Stabilizes β-Catenin and Enhances β-Catenin–Dependent Transcription and Invasion in Squamous Cell Carcinoma of the Head and Neck Free

Rap1 is a Ras-like protein that has two isoforms, Rap1A and Rap1B, which are encoded by different genes on chromosomes 1 and 12, respectively. The ubiquitously expressed Rap1 protein is closely related to Ras proteins in the GTP-binding region, the effector domain, and the membrane attachment site. Rap1 switches from an inactive GDP-bound form to an active GTP-bound form. This switch is regulated by several guanine nucleotide exchange factors (GEF), including C3G, Epac, CalDAG-GEF, smgGDS, PDZ, DOCK4, phospholipase Cϵ, and Mr-GEF (1, 2). Inactivation of Rap1A and Rap1B is regulated by GTPase-activating proteins (RapGAP), which activate endogenous GTPase activity. Two Rap1GAP families have been identified: RapGAP (I and II) and SPA-1 (3–5). Rap1 is a key player in cell adhesion and migration. Active Rap1 modulates cellular functions by regulating the translocation of other proteins or by shuttling between intracellular compartments (6, 7). We previously showed that Rap1 is linked to tumor growth and invasion in malignant oral keratinocytes (8, 9). In another study, we showed that active GTP-bound Rap1 is localized in the nucleus, whereas inactive GDP-bound Rap1 was trapped in the cytoplasm (10).

Aberrant activation of the Wnt/β-catenin signaling cascade has been linked to tumor development and invasion in various settings (11–13). β-Catenin, a central molecule in the Wnt pathway, translocates from a free cytosolic form to the nucleus where, as a cofactor with T-cell factor/lymphoid enhancer factor (TCF/LEF), it triggers gene transcription (14–16). The cytosolic pool of β-catenin is tightly regulated by interaction with a protein complex of adenomatous polyposis coli (APC), axin, and glycogen synthase kinase 3β (GSK3β) that facilitates phosphorylation and proteasomal degradation of β-catenin (17, 18). In contrast, activated Wnt signaling, which is initiated by specific ligands binding to their cognate frizzled receptors, inhibits phosphorylation and stabilizes cytosolic β-catenin (19). Wnt-induced signaling inhibits phosphorylation of β-catenin by inhibiting GSK3β (16).

In normal keratinocytes, E-cadherin binds β-catenin during the formation of adherens junctions, thereby sequestering a major fraction of the pool of β-catenin protein and ensuring low cytosolic concentrations (16, 20). Mutations in the NH₂-terminal regulatory domain of β-catenin or in key components of the APC/axin/GSK3β destruction complex lead to accumulation of free β-catenin in the cytosol (16, 20). In various types of cancer, mutations in key phosphorylation sites in the NH₂-terminal region of β-catenin confer resistance to ubiquitination and subsequent degradation, thereby increasing the amount of free/cytosolic β-catenin available for nuclear translocation (20). Previous studies have investigated changes in the adherens junctions relative to Rap1 activation (21–24). However, the role of Rap1 in β-catenin–mediated transcription and invasion has not been investigated. In the current study, we investigated the role of Rap1 in stabilization of β-catenin, induction of its transcriptional targets, and in β-catenin–mediated invasion of head and neck squamous cell carcinoma (HNSCC) cells.

UM-SCC-1, UM-SCC-5, UM-SCC-14A, UM-SCC-17B, UM-SCC-22B, UM-SCC-74A, UM-SCC-81B, OSCC3, DLD-1 colon cancer cells, and human embryonic kidney 293 (HEK293) cells were grown to 60% to 80% confluence in DMEM (Life Technologies, Inc.) containing 10% fetal bovine serum (FBS), 100 μg/mL penicillin, 100 μg/mL streptomycin, and 50 μg/mL l-glutamine. UM-SCC-1, UM-SCC-5, UM-SCC-14A, UM-SCC-17B, UM-SCC-22B, UM-SCC-74A, and UM-SCC-81B were developed by and obtained from T. Carey and were validated by genotyping in his laboratory during use for these studies. UM-SCC-1/Neo, UM-SCC-1/β-catenin, and HEK293 cells were obtained from C-Y. Wang. UM-SCC-1/Neo and UM-SCC-1/β-catenin were transfected by C-Y. Wang (13) and genotyped in T. Carey's laboratory during this study. OSCC3 and DLD-1 colon cancer cells were obtained from Drs. Peter Polverini and E.R. Fearon (University of Michigan) and have not been genotyped during use for this study.

The wild-type (Wt) FLAG-tagged β-catenin construct has been previously described (25). Hemagglutinin (HA)–tagged Rap1A G12V and Rac1 G12V were purchased from the University of Missouri-Rolla cDNA Resource Center (Rolla, MO). Dominant-negative TCF4 was a generous gift from Dr. Benjamin Alman (Hospital for Sick Children, Toronto, Ontario, Canada). pTOPflash and pFOPflash were purchased from Upstate Biotechnology. TOPflash is a reporter construct that contains three repeats of the Wt TCF4-binding site upstream of a thymidine kinase minimal promoter and the luciferase reporter gene. FOPflash, the negative control plasmid, has a mutated TCF4-binding site.

Whole-cell lysates were prepared as described previously (10). Proteins were quantified using the Bio-Rad protein assay and electrophoresed and transferred to nitrocellulose membranes (Schleicher and Schuell). Primary antibodies and concentrations were the following: mouse anti–β-catenin monoclonal antibody (1:1,000; BD Transduction Laboratories), mouse anti-Rap1 monoclonal antibody (1:1,000; BD Transduction Laboratories), anti-HA monoclonal antibody (1:1,000; Covance Research Products, Inc.), anti-FLAG M2 monoclonal antibody (1: 5,000; Sigma), and mouse anti–glyceraldehyde-3-phosphate dehydrogenase (GAPDH) monoclonal antibody (1:10,000; Chemicon, Inc.). Membranes were washed in TBS containing 0.1% Tween 20. Horseradish peroxidase–conjugated, affinity-purified goat anti-mouse IgG (1:10,000; Jackson ImmunoResearch Laboratories) was used for immunodetection. Immunoreactive proteins were visualized by SuperSignal West Pico chemiluminescence system (Pierce) and exposed to X-ray film.

Immunoprecipitation with HA was done using ProFound HA Tag IP/Co-IP Assay system (Pierce) following the manufacturer's instructions.

The free β-catenin pool in cell lysates was quantified as described previously (26). Briefly, cell lysates were precleared with unbound glutathione-Sepharose 4B beads (Amersham Biosciences) followed by incubation with glutathione S-transferase (GST)–E-cadherin fusion protein, which contains the COOH-terminal region of E-cadherin, bound to glutathione beads. Free β-catenin was identified by Western blot analysis.

Active Rap1 was retrieved by the Rap1-binding domain of ralGDS (gift from Dr. Johannes L. Bos, University Medical Center Utrecht, Utrecht, the Netherlands), as described previously (8, 10, 27). Equivalency of Rap1 protein expression was verified by immunoblot analysis of whole-cell lysates.

Rap1A was downregulated by small interfering RNA (siRNA). ON-TARGETplus SMARTpool was used for endogenous Rap1A knockdown and ON-TARGETplus siCONTROL Nontargeting Pool (Dharmacon) was used as a negative control. HNSCC cells were nucleofected with siRNAs using the Nucleofector Device (Amaxa, Inc.) and Cell Line Nucleofector Kit V (Amaxa) according to the manufacturer's protocol.

HEK293 cells were seeded at a density of 5 × 10⁵ per well (6-well plates) or 1 × 10⁵ per well (24-well plates) in triplicate and cultured in DMEM supplemented with 10% FBS. After 24 h, the cells were transfected using FuGENE 6 transfection reagent (Roche Applied Science) according to the manufacturer's instructions. Cells were transfected with test DNA (total 2.0 μg/well for six-well plates and 0.5 μg/well for 24-well plates) together with an internal control plasmid pRL-CMV (15 ng/well for 6-well plates and 3 ng/well for 24-well plates) and either pTOPflash or pFOPflash (0.5 μg/well for 6-well plates and 0.1 μg/well for 24-well plates).

For knockdown studies, HNSCC cells cultured in 100-mm dishes were nucleofected using the Nucleofector Device and Cell Line Nucleofector Kit V according to the manufacturer's protocol. Briefly, cells were nucleofected with 2.0 μg siRNAs together with 15 ng pRL-CMV and either 1.0 μg pTOPflash or pFOPflash in 3 × 10⁶ cells.

Twenty-four hours later, transcription was assayed according to the manufacturer's protocol using the Dual-Luciferase Reporter Assay System (Promega) with a luminometer, LMax II³⁸⁴ (Molecular Devices). Results were expressed as an average of the firefly luciferase activity normalized to the Renilla luciferase activity and presented as relative luciferase units. The error bars represent the SD of triplicate samples. The data are representative of three independent experiments.

UM-SCC cells cultured on Lab-Tek slides were fixed in a mixture of methanol and acetone and air dried. Slides were incubated with mouse anti–β-catenin monoclonal antibody (1:3,000; BD Transduction Laboratories). Primary antibody binding was detected using biotinylated goat anti-mouse IgG (Biocare Medical) followed by incubation with biotin-streptavidin conjugated to peroxidase and the chromogen DAB500 (Biocare Medical). Immunodetection was followed by hematoxylin counterstaining.

Formalin-fixed, paraffin-embedded human HNSCC tissue microarray sections (5 μm) were deparaffinized and rehydrated. Antigen retrieval was done with 10 mmol/L sodium citrate buffer (pH 6.0) at 95°C for 15 min. Duplicate sections were stained with mouse anti–β-catenin and mouse anti-Rap1 monoclonal antibodies (BD Transduction Laboratories). Immunodetection was done as described (10). Detection of active Rap1 was done as described (9). Institutional Review Board approval was obtained before use of human tissue.

For immunofluorescence studies, HEK293 cells cultured on Lab-Tek slides were transfected with FLAG-tagged β-catenin and/or HA-tagged Rap1A G12V or empty vector. After 24 h, cells were fixed in ice-cold methanol followed by blocking with 1% bovine serum albumin. Immunodetection was done with mouse anti-FLAG M2 monoclonal antibody (Sigma) followed by FITC-conjugated goat anti-mouse IgG (Jackson ImmunoResearch Laboratories). Nuclei were identified with 4′,6-diamidino-2-phenylindole (Invitrogen), and the cells were visualized on a laser scanning confocal microscope (FV-500, Olympus). Nuclear and cytoplasmic expression of exogenous (FLAG tagged) β-catenin was quantified in cells in 20 fields.

Cell invasion was evaluated with the BD BioCoat Invasion Assay system (BD Biosciences) as described (9). Briefly, HNSCC cells stably transfected with HA-tagged β-catenin or control vector (NeoV; ref. 13) were transfected with HA-tagged Rap1A G12V or control vector using Lipofectamine 2000 (Invitrogen). Twenty-four hours later, the cells suspended in DMEM were seeded on Matrigel and control inserts (5 × 10⁴ per well) and incubated in DMEM/5% FBS as a chemoattractant in the lower chamber. After 24 h, HNSCC cells that had migrated to the lower surface of the membrane were fixed in methanol and stained with hematoxylin. To verify protein expression in transfected cells, whole-cell lysates were generated from duplicate plates.

As described previously (9), after appropriate Institutional Review Board approval, a tissue microarray was constructed from pretreatment tissue specimens of a randomized clinical trial (28). This was a clinical trial of stage III/IV squamous cell carcinoma of the oral cavity and oropharynx that compared concurrent chemotherapy/radiation in tumors that shrank >50% in response to induction chemotherapy with surgery/radiation in those whose tumors had <50% response to induction chemotherapy (28). Included in this group are squamous cell carcinomas with T stage of I and II with nodal involvement (N1, N2, N3), which are considered clinical stage III or IV.

Statistical analysis of in vitro assays was done using a Student's t test. For analysis of tissue microarray data, interpretation and scoring were done by a board-certified pathologist, as described previously (9). The covariates of interest were T stage and N stage, which were analyzed as ordinal data. The outcomes of interest were overall survival, disease-specific survival, time to indication of surgery at primary site, and time to recurrence or second primary. For time to indication of surgery at primary site, the events were stable disease or disease progression after induction chemotherapy that required surgery at the primary site, local recurrence after chemoradiation therapy that required surgery at the primary site, and never disease-free. For the outcome of time to recurrence or second primary, the events included recurrences, second primaries, and never disease-free. The Spearman correlation coefficient was used to evaluate univariate associations between markers and ordinal variables of interest.

The Cox proportional hazards model was used to relate time-to-event outcomes to marker levels and other covariates. Proportional odds model was used to assess the association between N stage and the interaction of Rap1 and β-catenin.

Statistical analyses of tissue microarray data were done using Statistical Analysis System version 9.0 (SAS). A two-tailed P value of ≤0.05 was considered to be statistically significant.

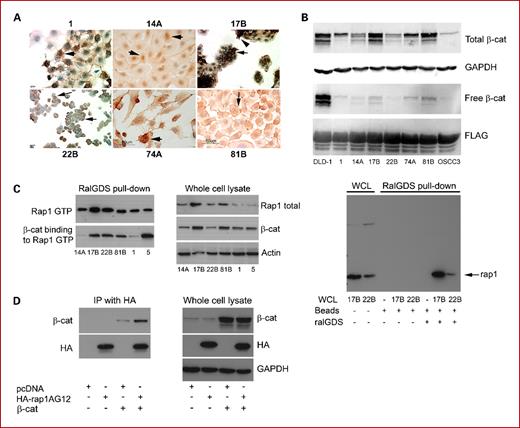

Due to conflicting reports about the levels and subcellular localization of β-catenin in HNSCC (29, 30), we investigated whether increased cytosolic and nuclear β-catenin are found in HNSCC. Immunohistochemical studies on HNSCC cell lines revealed β-catenin staining in the cytosol and nucleus of UM-SCC-1, UM-SCC-17B, UM-SCC-74A, and UM-SCC-81B lines (Fig. 1A, arrows), whereas in UM-SCC-22B only membrane-bound β-catenin was observed (Fig. 1A, arrows). UM-SCC-14A exhibited primarily nuclear staining (Fig. 1A, arrows).

The presence of free β-catenin in HNSCC cells was verified with a pull-down assay using a recombinant protein containing GST sequences fused upstream of the FLAG-tagged cytoplasmic tail of E-cadherin (25, 26). The samples were analyzed by immunoblotting for β-catenin, and a FLAG antibody against the epitope present in the GST-E-cadherin fusion protein was used as a control for loading. Among the HNSCC cell lines, the strongest signal for total β-catenin was observed in UM-SCC-17B followed by UM-SCC-81B, UM-SCC-74A, and UM-SCC-1 (Fig. 1B, top). Free β-catenin was observed in all HNSCC cell lines except UM-SCC-22B and OSCC3 (Fig. 1B, bottom middle). DLD-1, a colon cancer cell line carrying defects in the APC tumor suppressor gene, was used as a positive control. Relative to total β-catenin, the free β-catenin represented only a small fraction of the protein in whole-cell lysates.

Because a previous study suggested that Rap1A may bind proteins with armadillo repeats (31, 32), we investigated whether Rap1 interacts with β-catenin. Proteins recovered from HNSCC cell lysates by binding to ralGDS were electrophoresed and blotted first with Rap1 (Fig. 1C, top left) and then with β-catenin antibodies (Fig. 1C, bottom left). As shown in Fig. 1C (left), β-catenin bound to active, GTP-bound Rap1 was recovered with the ralGDS pull-down assay. A strong β-catenin signal was detected in UM-SCC-17B, UM-SCC-22B, UM-SCC-81B, and UM-SCC-5 (Fig. 1C, left). Weaker signals were detected in UM-SCC-14A and UM-SCC-1. Total β-catenin and total Rap1 were variably expressed in these cell lines (Fig. 1C, middle). No cross-reactive signals are observed with either GST beads alone or GST beads coupled to ralGDS or GST beads with whole-cell lysates in the absence of ralGDS (Fig. 1C, right). Unlike immunoprecipitation assays, the pull-down assay uses a “bait” protein rather than IgG to specifically retrieve active Rap1 and its binding partners.

The protein interaction between β-catenin and Rap1 was also investigated by immunoprecipitation of Rap1. HEK293 cells were transfected with HA epitope-tagged Rap1A and β-catenin. Extracts were immunoprecipitated with anti-HA agarose, and the immunoprecipitates were immunoblotted with anti–β-catenin and anti-HA antibodies. As shown in Fig. 1D, immunoprecipitated HA-tagged Rap1A interacted with β-catenin (left, lane 4). A faint cross-reactive signal is observed in cells transfected with β-catenin alone (left, lane 3). As shown in the immunoblot of the corresponding whole-cell lysates, β-catenin was equivalently expressed in both samples (Fig. 1D, right, lanes 3 and 4).

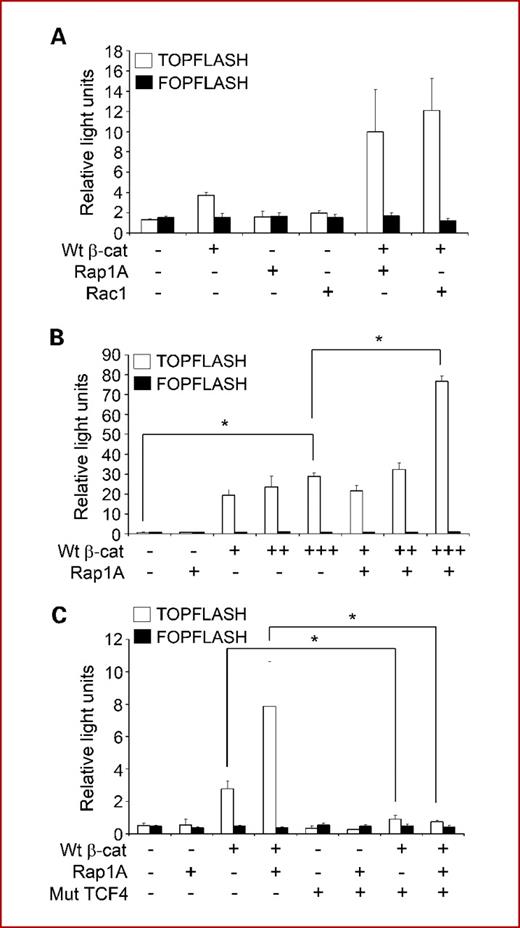

To determine if Rap1 induces nuclear translocation of β-catenin, HEK293 cells were cotransfected with a constitutively active form of Rap1A (Rap1A G12V) and β-catenin (Fig. 2A). Because these cells have a functionally intact but unstimulated β-catenin pathway, aberrant expression of exogenous β-catenin induces target gene transcription (33). The luciferase-based TOPflash/FOPflash assay system was used to quantify TCF4/LEF-dependent transcriptional activity. Rap1A G12V induced a 2-fold increase in β-catenin–mediated transcription (Fig. 2A). Rac1, another small GTP-binding protein that promotes nuclear transport of β-catenin (33), was used as a positive control (Fig. 2A). The effect of Rap1A on β-catenin–mediated transcription was dependent on the concentration of β-catenin (Fig. 2B).

To determine if Rap1A induces β-catenin–dependent transcription via TCF4/LEF transcription factor, transcription was evaluated in the presence or absence of a dominant-negative mutant form of TCF4 (34). Rap1A-induced, β-catenin–dependent transcription was completely blocked by a mutant TCF4 protein lacking its β-catenin–binding domain (Fig. 2C). As expected, the transcriptional activity of ectopically expressed β-catenin was also completely blocked by the mutant TCF4 protein. Thus, Rap1A-induced, β-catenin–dependent transcription occurs via a TCF-dependent pathway.

To verify whether Rap1 promotes nuclear translocation of β-catenin, immunofluorescence studies were done (Fig. 3A). HEK293 cells were transfected with FLAG-tagged β-catenin alone or with Rap1A G12V and β-catenin. As shown in Fig. 3A (right), Rap1 increased the nuclear localization of β-catenin by >35% compared with cells transfected with β-catenin and vector control.

To investigate whether Rap1 promotes the functional effects of β-catenin in HNSCC, we determined whether Rap1 enhanced β-catenin–induced invasion. HNSCC cells stably expressing HA-tagged β-catenin (UM-SCC-1/β-cat) or empty vector (UM-SCC-1/NeoV) were transfected with HA-tagged Rap1A G12V or pcDNA vector control (Fig. 3B). Overexpression of exogenously expressed β-catenin and Rap1 was confirmed by blotting with HA antibody (Fig. 3B, top). Total β-catenin and Rap1 expression were confirmed by blotting with the respective antibodies (Fig. 3B, middle). GAPDH confirmed equivalency of loading.

To determine whether the effects of Rap1 may be attributable to an increase in free β-catenin, the latter was evaluated by binding to the COOH-terminal domain of E-cadherin. As expected, cells transfected with β-catenin showed significantly more free β-catenin than control cells in the presence or absence of Rap1 (P < 0.05; Fig. 3C, top and bottom). However, there was no difference in free β-catenin in HNSCC cells stably expressing HA-tagged β-catenin (Fig. 3C, top and bottom) in the presence or absence of Rap1A G12V. Rap1AG12 alone increased free β-catenin in HNSCC cells. FLAG was used as a loading control for the pull-down protein (COOH-terminal domain of E-cadherin).

Transfected cells were subsequently seeded on Matrigel and invasion was assayed. Overexpression of Rap1A G12V upregulated invasion in UM-SCC-1/β-catenin by ∼50% compared with UM-SCC-1/β-catenin cells (Fig. 3D, experiments 1 and 2). As reported previously (13), UM-SCC-1/β-catenin cells were more invasive than UM-SCC-1/NeoV cells (Fig. 3D). Of note, the effect of Rap1A G12V on β-catenin–mediated invasion was dependent on a threshold level of free β-catenin because they were not observed in control cells transfected with Rap1AG12 alone, although there was an increase in free β-catenin in these cells (Fig. 3C, lane 2 versus lane 4). A similar threshold effect was observed in Fig. 2B, which showed that the effect of Rap1A on β-catenin–mediated transcription was dependent on the concentration of β-catenin.

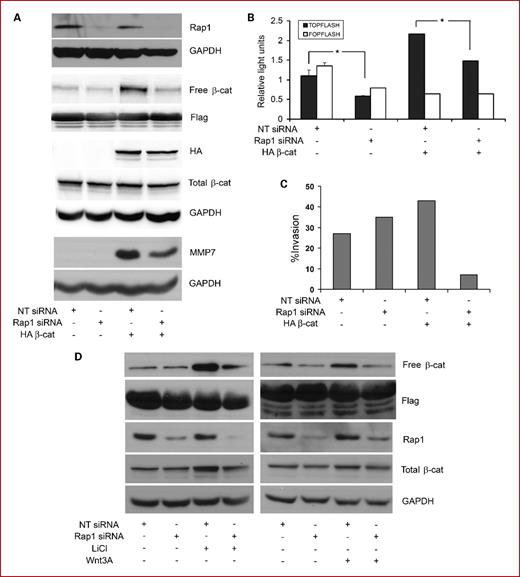

To determine whether inhibition of endogenous Rap1 downregulates β-catenin–mediated invasion, UM-SCC-1/Neo and UM-SCC-1/β-catenin cells were nucleofected with siRNAs. As verified in whole-cell lysates, Rap1 expression was reduced in UM-SCC-1/Neo and UM-SCC-1/β-catenin cells nucleofected with siRNA Rap1A compared with the corresponding cells nucleofected with nontargeting (control) siRNA (Fig. 4A). Moreover, knockdown of Rap1A led to markedly reduced levels of free β-catenin in UM-SCC-1/β-catenin cells (Fig. 4A). FLAG was used as a loading control for the pull-down protein (COOH-terminal domain of E-cadherin), used to retrieve free β-catenin. Immunoblots with HA antibody confirmed exogenously expressed β-catenin in stably transfected cells (Fig. 4A). Total β-catenin remained unchanged. GAPDH was used as a loading control. There was increased expression of matrix metalloproteinase 7 (MMP7), a transcriptional target of β-catenin/TCF (35), in cells transfected with β-catenin, and levels of MMP7 expression were reduced in the presence of siRNA Rap1 (Fig. 4A). MMP7 expression was not detected in the absence of HA–β-catenin.

In corresponding luciferase assays, siRNA Rap1A inhibited TCF-dependent luciferase activity in the presence or absence of overexpressed β-catenin (P < 0.03; Fig. 4B). As predicted, and as shown in Fig. 4C, invasion was upregulated in UM-SCC-1/β-catenin cells compared with corresponding UM-SCC-1/Neo control cells. Furthermore, siRNA Rap1A inhibited invasion in UM-SCC-1/β-catenin cells compared with UM-SCC-1/β-catenin cells nucleofected with nontargeting siRNA (Fig. 4C). To confirm whether downregulation of Rap1 reduces free β-catenin, HNSCC cells nucleofected with siRNA Rap1A were treated with lithium chloride. HNSCC cells treated with 40 mmol/L lithium chloride (Alexis Biochemicals) for 6 hours showed an increase in free β-catenin (Fig. 4D, left). This increase was abrogated in the presence of siRNA Rap1A. Similar results were observed in HNSCC cells treated with Wnt3A (50 ng/mL; R&D Systems) for 6 hours (Fig. 4D, right). The Wnt3A-induced increase in free β-catenin was reduced in cells nucleofected with siRNA Rap1A (Fig. 4D, right). As determined by densitometry of lithium chloride–treated sample, the total β-catenin normalized to GAPDH is decreased by ∼21% in the presence of siRNA Rap1A. In contrast, the free β-catenin is decreased by ∼54% in the presence of siRNA Rap1A. In the presence of Wnt3A, the total β-catenin normalized to GAPDH shows a slight increase of ∼7%. In contrast, the free β-catenin is decreased by ∼42% in the presence of siRNA Rap1A. Together, these studies support a decrease of at least 30% in free β-catenin in cells transduced with siRNA Rap1A.

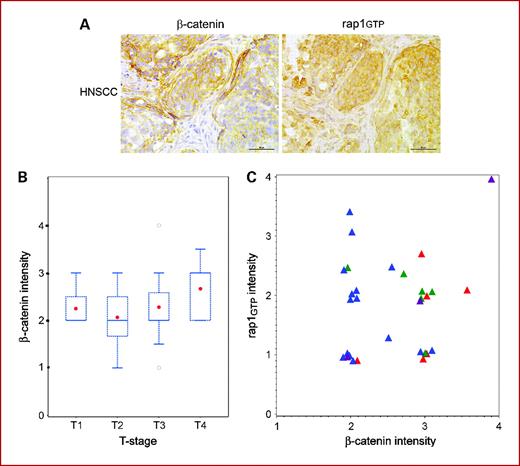

Immunohistochemical studies using a tissue microarray of pretreatment tissue specimens from primary oropharyngeal SCCs showed that increased β-catenin intensity was correlated with higher tumor stage, as assessed by the Spearman correlation coefficient (P < 0.05; Fig. 5B). Membrane and cytoplasmic stainings for β-catenin were observed in tumor cells (Fig. 5A, left). Multivariate analysis (proportional odds model) showed that the association of active Rap1 on tumor N stage depended on the expression of cytosolic β-catenin. When β-catenin expression was high, higher active Rap1 intensity (Fig. 5A) was associated with more advanced N stage; when β-catenin expression is low, lower active Rap1 intensity is associated with more advanced N stage (P < 0.013; Fig. 5C). These finding are consistent with our in vitro data showing that HNSCC cells expressing high β-catenin and high active Rap1 were more invasive (Rap1AG12, +; β-catenin, +; Fig. 3D) than cells expressing high β-catenin and low Rap1 (Rap1AG12, −; β-catenin, +; Fig. 3D). Also consistent were the in vitro findings showing that HNSCC cells expressing low β-catenin and low active Rap1 (Rap1AG12, −; β-catenin, −; Fig. 3D) were more invasive than cells expressing low β-catenin and high active Rap1 (Rap1AG12, +; β-catenin, −; Fig. 3D). There were no significant immunohistochemical correlations between β-catenin intensity and other survival outcomes, such as disease-specific survival and time to recurrence or second primary tumor, as assessed by a univariate Cox proportional hazard model.

In HNSCC, invasion of tumor cells leads to extension into the underlying tissues and metastasis to regional lymph nodes and distant sites, which affect adversely patient survival (36). Various Wnt ligands increase the levels of the free pool of β-catenin (16). β-Catenin, a central molecule in the Wnt pathway, translocates to the nucleus where it triggers the transcription of genes that facilitate invasion and migration (20). Many β-catenin–regulated target genes have been identified and include MMPs (35, 37–41), cyclin D1, and c-myc (42, 43). We have previously shown that downregulation of active Rap1 by Rap1GAP, a regulatory protein, promoted invasion of HNSCC cells via effects on secretion of MMP9 and MMP2 (9). Furthermore, Rap1 translocates between the nucleus and cytoplasm in HNSCC cells. In the present study, we show that upregulation of active, GTP-bound Rap1 promotes invasion, perhaps via β-catenin–mediated effects on MMP7 secretion.

Using the pull-down assay to retrieve active, GTP-bound Rap1, we observed that β-catenin was also retrieved. We also showed by immunoprecipitation of exogenously expressed, HA-tagged Rap1 that β-catenin binds to Rap1. To investigate whether this association might affect β-catenin function in the nucleus, we did transcriptional assays with TOPflash and FOPflash luciferase reporter genes. The TOPflash reporter construct contains three repeats of the Wt TCF4-binding site upstream of a thymidine kinase minimal promoter and the luciferase gene. Together with β-catenin, TCF4 induces transcription of specific genes. Consistent with a possible role in nuclear translocation of β-catenin, we observed that Rap1 significantly enhanced β-catenin–mediated transcription. The findings were supported by immunofluorescence studies showing nuclear translocation of β-catenin. Furthermore, we showed that the effects of Rap1 on β-catenin/TCF transcription were inhibited by a dominant-negative mutant of TCF4.

MMP7 (matrilysin), which has a TCF-binding site in its promoter, is a transcriptional target of β-catenin (35, 44). Consistent with this role, MMP7 was upregulated in HNSCC cells stably overexpressing β-catenin and was downregulated in the presence of siRNA Rap1. MMPs are zinc-dependent proteolytic enzymes that remodel the extracellular matrix. MMPs facilitate invasion and tumor progression by destroying the basement membrane (45). Using tissue microarrays, MMP7 has been previously shown to be upregulated in HNSCC (45).

Rap1 was originally identified as a tumor suppressor gene in ras-transformed NIH 3T3 fibroblasts (46). Rap1A was later shown to facilitate cell proliferation by inducing DNA synthesis (47). In Drosophila and in osteosarcoma cell lines, Rap1 facilitates cell adhesion, thereby inhibiting cell migration (21–23). In the case of work in Drosophila, adherens junctions were uniformly distributed around the circumference of cells with Wt Rap1 but were clustered on one side of cells with inactivating Rap1 mutations (48). The mutant cell clones randomly invaded surrounding tissues, suggesting a role for Rap1 in appropriate maintenance of cell-cell contacts and inhibition of invasion. In a recent study, we showed that overexpression of Rap1GAP, which inactivates Rap1, promotes invasion in HNSCC cells (9). In the present study, HNSCC cells with siRNA-mediated downregulation of Rap1A were more invasive than control cells. Consistent with these findings, osteosarcoma cells with inactive DOCK4 and reduced levels of active Rap1 do not form adherens junctions and are invasive (49). Similarly, overexpression of Rap1 in Madin-Darby canine kidney epithelial cells facilitates cell-cell junction formation (24).

In contrast, in human breast cancer and mouse thyroid cells, disruption of cell contacts with endocytosis of E-cadherin initiates Rap1 activation (22, 23, 50) via rap1GEFs (GTP-GDP exchange factors; ref. 50). These apparently contradictory effects in Rap1 function may be related to concurrent expression of other significant regulatory proteins. Our findings support this notion. Previously (9) and in the current study, downregulation of Rap1 promotes invasion of HNSCC cells. However, in the presence of free β-catenin, Rap1 promotes invasion in HNSCC cells and β-catenin–mediated transcription in HEK293 cells. Furthermore, Rap1 stabilizes free β-catenin that is increased by lithium chloride or Wnt3A, a secreted factor. Taken together, these findings are consistent with a dual role for Rap1 in invasion (Fig. 6).

There are conflicting reports about nuclear β-catenin in HNSCC (29, 30). In one study with formalin-fixed HNSCC tissue (29), β-catenin was localized in the nucleus and cytoplasm of cells at the invasive front. In another study on frozen tissue with an antibody from a different source, nuclear β-catenin staining was not observed (30). In the current study, we showed cytosolic and nuclear localization of β-catenin in HNSCC cell lines and human tissue specimens. We show that high β-catenin intensity is prognostic of late tumor stage. Additionally, the association between active Rap1 and tumor progression was dependent on the level of cytosolic β-catenin. Together, high β-catenin and high active Rap1 are associated with a more advanced N stage. Taken together, these results from a small group of patients suggest that pretreatment screening for active Rap1 and free β-catenin in early-stage lesions may identify those patients who are more likely to show progression to more advanced N-stage lesions.

The exact mechanism of Rap1-mediated effects on β-catenin is unknown but may in part be due to an increase in free β-catenin to a threshold level. In the luciferase assay, when overexpression of β-catenin is constant (0.6 μg cDNA), an increase in Rap1 facilitated a significant increase in luciferase activity (Fig. 2B, lanes 5 and 8). However, overexpression of Rap1 did not enhance β-catenin–mediated transcription in cells transfected with 0.2 or 0.4 μg of β-catenin cDNA. In β-catenin–overexpressing cells, transfection with Rap1 did not further increase free β-catenin (Fig. 3C), but it did enhance the invasion (Fig. 3D). Together, the results presented in Figs. 3C and D and 2B suggest a threshold ratio for the interaction between Rap1 and β-catenin.

Because free β-catenin translocates to the nucleus to induce target genes that regulate invasion, proliferation, and metastasis (16, 20), elucidation of the mechanism of nuclear transport would identify an important therapeutic target. Rac1, another Ras-like protein, binds armadillo proteins, such as smgGDS, in the cytosol, transporting them to the nucleus (32). Rac1 has a COOH-terminal polybasic region, a series of adjacent lysines and arginines that act as a canonical nuclear localization signal (Lys-Arg/Lys-x-Arg/Lys, where x is Pro, Lys, Arg, Val, Ala; refs. 32, 51). Our previous studies showing localization of active Rap1GTP primarily in the nucleus and inactive Rap1GDP primarily in the cytoplasm of HNSCC suggest that Rap1 shuttles between these two compartments (10). Given the prominent nuclear localization of Rap1 in HNSCC, and its putative nuclear localization sequence (Lys-Lys-Pro-Lys), it is reasonable to speculate that Rap1 regulates nuclear transport of β-catenin in addition to upregulating free β-catenin. Consistent with this hypothesis, a recent study has shown that Rac1 regulates the nuclear translocation of β-catenin and upregulates β-catenin–mediated transcription via the polybasic region (33). Future studies will explore whether Rap1 mediates nuclear transport of β-catenin.

No potential conflicts of interest were disclosed.

We thank Wei Ao for excellent technical assistance.

Grant Support: National Institute of Dental and Craniofacial Research grants K02-DE019513 and R01-DE018512; and project and developmental grants from National Cancer Institute P50-CA97248 (University of Michigan Head and Neck Specialized Program of Research Excellence; N.J. D'Silva).
