Overexpression of Phospho-eIF4E Is Associated with Survival through AKT Pathway in Non–Small Cell Lung Cancer Free

Lung cancer remains the leading cause of cancer-related deaths in the world; the overall 5-year survival is only 16% (1). More than 75% to 85% of lung cancers are non–small cell lung carcinoma (NSCLC) at diagnosis (2).

The AKT pathway regulates many diverse biological functions. It is activated by tyrosine kinase receptor growth factors, such as the epidermal growth factor receptor, that lead to the generation of membrane-bound phosphoinositides, which then recruit and phophorylate AKT (3–5). Phosphorylated AKT results in gain or loss of function of its downstream proteins and contributes to cell proliferation, cell survival, cell size, and response to nutrient availability (3–5). The deregulation of these proteins promotes tumorigenesis in many cancers (3–5). Investigators have recently reported frequent activation of AKT kinases in a variety of tumor types, such as brain, breast, prostate, and endometrium (6–10). They also point out that the investigation of this pathway is critical because its various proteins provide attractive targets for therapy, and several inhibitors are being developed and tested in early clinical trials (4, 11, 12).

The mammalian target of rapamycin (mTOR) has been proposed to play a central role in tumor progression in the downstream signaling of the AKT pathway (13–15). mTOR has also been recognized as a promising therapeutic target because its activation can be inhibited by rapamycin or its homologue (4, 12). However, the status of mTOR and its relationship with the proteins of the AKT pathway in lung cancer are still unclear (16–18). It is known that mTOR can be activated directly by phosphorylated AKT or indirectly through the tuberous sclerosis complex, which consists of hamartin (TSC1) and tuberin (TSC2; refs. 13, 14).

Few reports describe that the loss of heterogeneity of either TSC1 or TSC2, whose gene mutations are responsible for the multiorgan syndrome lymphoangioleiomyomatosis, can be found in atypical adenomatous hyperplasia and adenocarcinoma of lung (19, 20). Little is known about the status of TSC1 or TSC2 in NSCLC and their relationships with AKT and mTOR.

Two major signaling pathways downstream of mTOR are the ribosomal S6 kinase and the 4E-binding protein 4EBP-1, both of which have been implicated in control of protein translation (21). The phosphorylation of 4EBP-1 by mTOR results in the release of a cap-binding protein eukaryotic translation initiation factor complex 4E (eIF4E), which is held inactive when bound to the hypophosphorylated 4EBP-1 complex (14, 15, 22). It is reported that many transformed cell lines express higher levels of eIF4E (23), and a variety of human cancers, such as breast, bladder, colorectum, uterine cervix, non-Hodgkin lymphoma, and head and neck cancers, overexpress eIF4E (24). Although overexpression of phosphorylated eIF4E in lung adenocarcinoma has been reported, studies dealing with its relationship with AKT or mTOR have not been fully explored (25–30). Phosphorylation of ribosomal S6 kinase and eIF4E is controlled directly and indirectly by mTOR, but their roles in the development of lung cancer remains unclear (14, 15, 22, 31).

The RAS/MEK/ERK pathway, which is one of the epidermal growth factor receptor downstream pathways, regulates cell proliferation and cell survival as the AKT pathway does (32, 33). Erk1/2, which is one of the members of this pathway, can lead to cell proliferation and protein synthesis (32, 33). A few publications have reported Erk1/2 activation in 22% to 63% of lung cancers in vivo and its association with advanced disease (25, 34–37). However, no study has reported the relationship between phosphorylated Erk1/2 overexpression and the downstream mediators of the AKT pathway in NSCLC.

Because most of the current knowledge of the AKT pathway in NSCLC is based on cancer cell lines, this study used a tissue microarray (TMA) of human NSCLC with sufficient clinical information to investigate the expression status of different proteins in the AKT pathway and their prognostic significance.

Three hundred surgically resected lung cancer cases were selected from the files of the Department of Pulmonary and Mediastinal Pathology of the Armed Forces Institute of Pathology (Washington, DC). All tumor samples are from the primary lung cancer at the time of original surgical resection. No patients received neoadjuvant therapy. The clinical characteristics of the patients previously published and summarized below were updated (refs. 38, 39; Supplementary Table S1). Cases included 150 adenocarcinomas and 150 squamous cell carcinomas, along with 100 adjacent normal pulmonary tissues in the same block. The detail of the assembly of the tissue microarray and gathering of the clinical information of these patients is described in previous reports (38, 39). The survival time and outcome data were available for 252 patients, with a median follow-up of 3.4 y (range, 0.1-13.6 y). The tumors were staged according to the International Union Against Cancer's tumor-node-metastasis classification and subclassified and graded histologically according to WHO guidelines (2, 40). Approval for use of the tissue in research was obtained from the Institutional Review Board of the Armed Forces Institute of Pathology and the Office of Human Subjects Research of the NIH.

Antibodies were selected to represent key elements of the different pathway functions. Staining was done using following antibodies: phosphorylated AKT (p-AKT; clone S473; Cell Signaling Technology; 1:100 dilution), PTEN (clone 6H2.1; Cascade BioScience; 1:75 dilution), phosphorylated TSC2 [p-TSC2; polyclonal antibody; generated by Ma et al. (41); 1:500 dilution], phosphorylated mTOR (p-mTOR; clone Ser2448; Cell Signalling Technology; 1:100 dilution), phosphorylated S6 (p-S6; clone 5G10; Cell Signalling Technology; 1:250 dilution), phosphorylated eIF4E (p-eIF4E; clone 87; BD Transduction Laboratories; 1:250 dilution), phosphorylated Erk1/2 (p-Erk1/2; clone 20G11; Cell signaling Technology; 1:100 dilution).

The sections were deparaffinized with xylene, rehydrated in graded alcohols, and rinsed in distilled water. Endogenous peroxidase was blocked with 3% H₂O₂ in PBS for 15 min, followed by three PBS washes. Antigen retrieval was done with high citrate buffer (DAKO Cytomation) for 30 min using a decloaking chamber (Biocare Medical) or for 15 min using a microwave oven. Sections were blocked with 10% normal serum diluted in 2% bovine serum albumin-PBS for 30 min at room temperature. The sections were incubated overnight at 4°C with the specific primary antibodies. Sections were washed three times with PBS, then incubated for 30 min with a biotinylated secondary antibody (Vector Laboratories). They were then incubated for 30 min with avidin-biotin complex (Vectastain Elite ABC Kit, Vector Laboratories). The slides were washed thrice in PBS, placed in 0.5% Triton-PBS, and then developed in 3,3-diaminobenzidine (Sigma) for 3 to 10 min. Finally, the sections were counterstained with Harris hematoxylin, dehydrated and cleared in xylene, and mounted.

Before scoring, specimens with no tumor cells, specimens with questionable cells from inflammatory cells, and specimens with only necrotic tissue were excluded from analysis. The scoring system used in this study was described in previous studies (38, 39). Scoring of all phosphorylated antibodies was based on distribution and intensity of staining. Distribution was scored as 0 (0%), 1 (1-50%), and 2 (51-100%) to indicate the percentage of positive cells of interest in a single core. The intensity of the signal was scored as 0 (no signal), 1 (mild expression), 2 (intermediate expression), and 3 (strong expression). According to previous studies, alveolar epithelial cells in tissues adjacent to primary tumors were referred to as internal controls. Aberrant expressions of p-AKT, p-S6, and p-Erk1/2 were judged by cytoplasmic and/or nuclear staining, whereas aberrant expressions of p-TSC2, p-eIF4E, and p-mTOR were judged by cytoplasmic staining (Fig. 1). The distribution score and intensity score were then summed into a total score of TS0 (sum = 0), TS2 (sum = 2), TS3 (sum = 3), TS4 (sum = 4), and TS5 (sum = 5). In this study, TS0 and TS2 were regarded as a negative reaction, whereas TS3, TS4, and TS5 were regarded as overexpression of p-AKT, p-mTOR, p-TSC2, p-S6, p-eIF4E. For p-Erk1/2, only TS0 was regarded as a negative reaction, in accordance with previous papers (25, 34–37). Distribution of PTEN staining was assessed in the same way as phosphorylated antibodies. TS0 or TS2 of PTEN was regarded as underexpressed when differences with clinical variables were assessed statistically. As in our previous reports (38, 39), staining was scored independently by two individuals (A. Yoshizawa and S. Shimizu) who were blinded to the clinical information. Equivocal or borderline cases were re-examined, and final total score was reached by review with WDT.

Pearson's χ² test or Fisher's exact test was used to examine the association of expression of proteins with clinical characteristics such as sex, age, tumor grade, tumor size, tumor stage, and histologic subtype. To assess the correlation between any two protein expressions, Spearman's rank test was used. Univariate analysis was done using the Kaplan-Meier method to estimate survival, and log-rank tests were used to assess survival differences between groups separated by sex, age, histologic subtype, tumor grade, tumor size, tumor stage, expression of proteins, and cluster group. All P values were determined from two-sided tests. To avoid chance associations due to multiple variable correlations, we used a P value of <0.01 rather than <0.05 for significance for associations between antibody staining and clinical factors, as well as between phosphorylated proteins. Hierarchical cluster analysis was done using the Ward method. Multivariate analysis was done with a Cox regression model, including only the clinical and antibody expression markers that showed significance in univariate analysis. Tissue samples were clustered based by marker protein expression profiles. Data analysis and summary graphs were produced by the JMP statistical software package, version 8 (SAS Institute) and SPSS for Windows, version 17 (SPSS, Inc.).

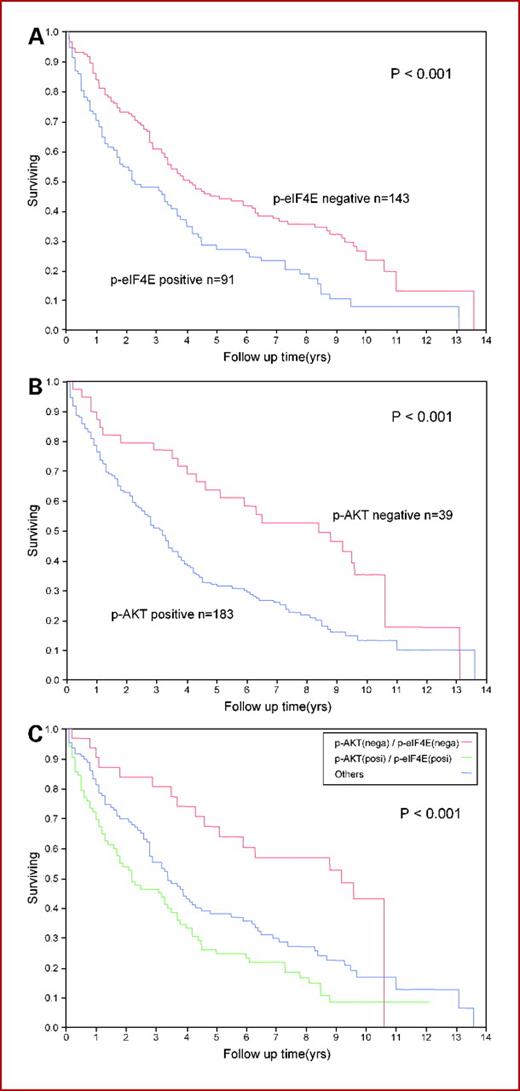

The 5-year survival rate for the entire cohort was 38.1%, and there was a trend for reduced survival in males compared with females (35.2% versus 44.2%; P = 0.018). Overall data characteristics, such as sex, age, tumor grade, tumor size, and stage, and which of these show significant survival differences are summarized in Supplementary Table S1. The univariate relationship between clinical variables and immunophenotypes of the analyzed pathway proteins was investigated (Supplementary Table S2), finding that the expression of p-Erk1/2 was inversely associated with tumor size in NSCLC (P = 0.010).

An assessment for p-eIF4E, p-AKT, p-TSC2, p-mTOR, p-S6, and p-Erk1/2 was available in the TMA sections for 278, 265, 274, 276, 277, and 283 cores, respectively. Identification of a positive phenotype for p-eIF4E, p-AKT, p-TSC2, p-mTOR, p-S6, and p-Erk1/2 in total NSCLC was found in 39.9% (111 of 278), 78.8% (209 of 265), 5.1% (14 of 274), 46.7% (129 of 276), 27.1% (75 of 277), and 16.6% (47 of 283) of tumors analyzed, respectively (Table 1; Fig. 1). p-mTOR overexpression was more frequently observed in squamous cell carcinoma than adenocarcinoma (P = 0.006), whereas p-Erk1/2 overexpression was more frequently observed in adenocarcinoma than squamous cell carcinoma (P = 0.002). Among these phosphorylated proteins, the 5-year survival rate was significantly lower in NSCLC patients whose tumors overexpressed p-eIF4E and p-AKT (log-rank P < 0.001 and P < 0.001, respectively), as well as in adenocarcinoma patients (log-rank P = 0.004 and P = 0.003, respectively; Table 2; Fig. 2A and B). In addition, patients with overexpression of p-AKT and p-eIF4E had significantly worse prognosis than other combinations of p-AKT and p-eIF4E (log-rank P < 0.001; Fig. 2C). Overexpression of p-S6 showed a trend for association with worse prognosis (p-S6, log-rank P = 0.012) Cases with underexpression of PTEN were limited (6.4%), and these cases did not correlate with any clinical variables.

Using multivariate analysis with a Cox regression model that included sex, stage, p-eIF4E, p-AKT, and p-S6, we found that only p-eIF4E and stage were independent prognostic factors (P = 0.006 and P = 0.005, respectively; Table 3). p-AKT only showed a trend.

The correlation between the expressions of semiquantitative biomarkers was explored using the Spearman's rank test (Supplementary Table S3). In this analysis, significant differences were found in many pairs of proteins, and its Spearman's coefficients (r) were all positive values. Expression of p-AKT and p-Erk1/2 correlated with expression of p-TSC2 (r = 0.202, P = 0.001; r = 0.252, P < 0.001) and p-S6 (r = 0.248, P < 0.001; r = 0.360, P < 0.001). Expression of p-eIF4E strongly correlated with expression of p-AKT, p-TSC2, and p-S6 (r = 0.375, P < 0.001; r = 0.208, P < 0.001; r = 0.366, P < 0.001). Expression of mTOR correlated with expression of p-S6 (r = 0.156, P = 0.010), although no correlation was observed between p-mTOR and p-TSC2 or p-AKT expression (P = 0.078 and P = 0.513, respectively).

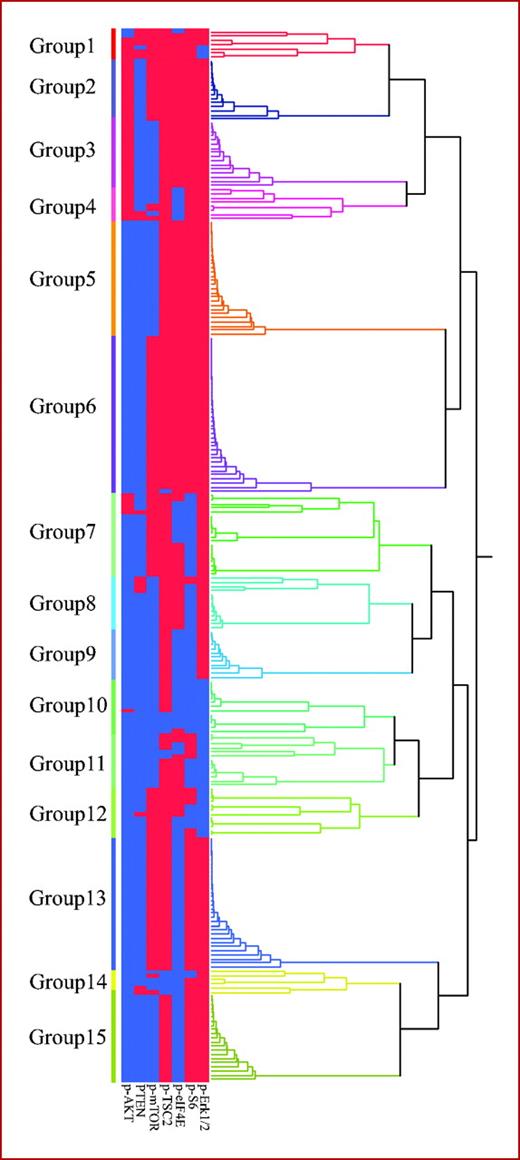

Hierarchical clustering analysis was done using p-AKT, PTEN, p-mTOR, p-TSC2, p-S6, p-eIF4E1, and p-Erk1/2 long scores (Fig. 3). Fifteen groups emerged from the analysis, which had similar protein expression patterns according to the dendrogram. Among these groups, group 9 (median survival time, 0.7 years), group 10 (median survival time, 2.2 years), and group 11 (median survival time, 1.2 years) had relatively lower survival rates compared with the overall survival rates of the other groups (log-rank; group 9, P = 0.006; group 10, P = 0.010; group 11, P = 0.040), whereas group 3 (median survival time, 9.4 years) had relatively higher survival rates compared with the overall survival rates of the other groups (log-rank P = 0.019; Supplementary Fig. S1; Supplementary Table S4). All tumors in groups 9, 10, and 11 showed a positive p-AKT and p-mTOR phenotype. Furthermore, all tumors in groups 9 and 10 showed positive phenotype for p-S6 and p-eIF4E, and all tumors in groups 10 and 11 showed a positive p-Erk1/2 phenotype. Conversely, all tumors in group 3 showed a negative phenotype for p-AKT, p-TSC2, p-eIF4E, p-S6, and p-Erk1/2, although they showed a positive phenotype for PTEN and p-mTOR.

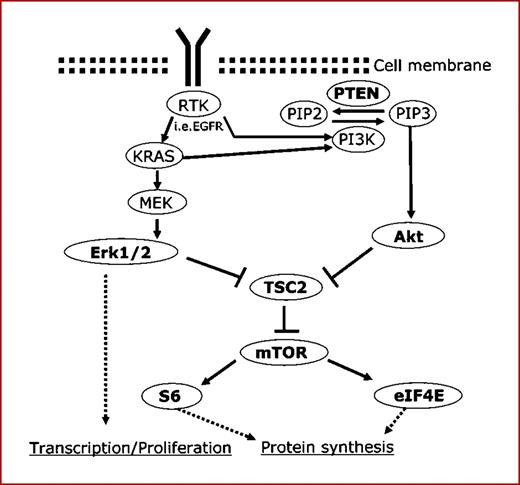

The AKT pathway (Fig. 4) has been reported to contribute to cell proliferation, cell survival, cell size, and response to nutrient availability (3–5). Its aberrant expression has also been known to promote tumorigenesis in many cancers (5). By evaluating expression of multiple components of the AKT pathway in a large number of NSCLC using a TMA, this study was able to show for the first time the interaction between various members of the AKT pathway, including elF4E, S6, and their significance in the clinical outcome of NSCLC patients. We found that overexpression of p-eIF4E is an independent prognostic factor in NSCLC. Although it was not independent of stage, very few biological markers are found to be stronger predictors of survival than stage. It also shows the status of Erk1/2 expression in NSCLC and its relationship with the downstream mediators of the AKT pathway.

This study shows a p-AKT–positive phenotype in 78.8% of NSCLC. Tsurutani et al. (39) summarized that the reported frequency of p-AKT overexpression in NSCLC ranges between 20% and 89%. This study also found that AKT activation correlates with poor prognosis in NSCLC, confirming data from several previous studies (34, 42, 43), including a previous analysis of this same cohort of patients (39). Balsara et al. (16) reported that prevalence of p-AKT expression was similar in low stage and high stage. However, our data showed no correlation between AKT activation and tumor stage. On the other hand, p-mTOR expression was observed in 46.7% (129 of 277) of total NSCLC. Interestingly, a positive phenotype was observed in squamous cell carcinoma when compared with adenocarcinoma. These results are the first that suggest that mTOR activation may contribute to tumor progression in lung squamous cell carcinoma.

The protein coexpression section of this study found that the expression of p-AKT correlated significantly with expression of p-TSC2, p-S6, and p-eIF4E, but the expression of p-AKT did not correlate with expression of p-mTOR. The p-TSC2 phenotype strongly corresponded with expression of p-eIF4E.

In cluster analysis, groups 9 and 10, with phenotypes characterized by showing positive for p-AKT, p-mTOR, p-S6, and p-eIF4E, had significantly lower survival rates than the overall survival rates of all cases. Conversely, group 3, which showed negative for p-AKT, p-TSC2, p-eIF4E, and p-S6 but positive for p-mTOR, had significantly higher survival rates than the overall survival rates of all cases. These findings indicate that there could be a pathway in which AKT regulates TSC2 and eIF4E, dependent or independent of mTOR, and that an AKT-mTOR-S6-eIF4E–positive phenotype correlates with poor prognosis. Much literature supports the premise that mTOR is activated, either directly p-AKT or indirectly through tuberous sclerosis complex, in many types of tumors (5, 13, 14).

About lung cancer, specifically, Balsara et al. (16) described that positive staining for p-mTOR was associated with significant activation of AKT based on immunohistochemical experiments. Han et al. (17) reported that AKT small interfering RNA and rapamycin, which inhibit AKT and mTOR functions, respectively, inhibit fibronectin-induced phosphorylation of p70S6K and 4E-BP1 and lung carcinoma cell proliferation. These reports indicate that AKT might contribute to proliferation of NSCLC through mTOR activation in NSCLC. In contrast, some in vitro studies have questioned the central role of mTOR as the main downstream mediator of AKT signaling, suggesting that the tuberous sclerosis complex might mediate S6K activation independent of mTOR or that S6K might directly phosphorylate mTOR (44, 45). Sun et al. (18) interestingly reported that rapamycin induces phosphorylation of AKT and eIF4E, and they seem to attenuate the growth-inhibitory effects of rapamycin in NSCLC. In the immunohistochemical observations of this study, correlations were lacking between p-mTOR and p-TSC2 and between p-mTOR and p-AKT. Taken together, these results indicate that there could be an unknown pathway through which AKT activates S6 and eIF4E independent of mTOR function or that mTOR may be influenced by additional signaling pathways in response to genetic changes or metabolic changes independently of AKT in NSCLC (14). Anagnostou et al. (46) recently reported high expression of mTOR was associated with better outcome in early-stage lung adenocarcinoma; however, we did not observe this in our data set.

Regulation of translation is important for the accurate expression of a broad variety of genes that function in critical processes, such as cell cycle progression and differentiation (21, 24). Deregulation at protein synthesis is associated with aberrant gene expression, leading to altered cell growth and possibly cancer. Translational initiation is controlled by multiple eukaryotic initiation factors (21, 24). Eukaryotic initiation factor 4E (eIF4E) plays a central role in the regulation of translation with a strong correlation between phosphorylation of eIF4E, eIF4F complex formation, rate of protein synthesis, and cell growth (21, 24). eIF4E exists in both phosphorylated (active) and nonphosphorylated (inactive) forms. Phosphorylation of eIF-4E is controlled by 4E-BP1, which is preferentially phosphorylated by the mTOR. mTOR thus controls protein translation, which, in turn, is crucial for proper control of cell growth and cell cycle progression (21, 24). In human and experimental cancers, function of eIF4E is enhanced either as a result of signaling through the PI3 kinase/AKT/mTOR pathway and or the RAS/MEK/ERK pathway (26, 29). The mechanism of eIF4E overexpression, however, is still under investigation.

Recently, many studies have found overexpression of eIF4E in a variety of human cancers, such as breast, bladder, colorectum, uterine cervix, non-Hodgkin lymphoma, and head and neck cancers, showing that overexpression of eIF4E is well correlated with clinical outcomes and histologic malignancy (24). Rosenwald et al. (28) have observed overexpression of p-eIF4E in bronchioloalveolar carcinoma but not in squamous cell carcinoma. Seki et al. (27) also showed that eIF4E seems increased in peripheral lung adenocarcinomas and suggests a correlation between the magnitude of the eIF4E increase and the invasiveness of the tumors. On the other hand, Yang et al. (47) reported that there was no significant difference of eIF4E expression level between adenocarcinoma and squamous cell carcinoma of lung. In this study, p-eIF4E was overexpressed in 39.9% (111 of 278) of NSCLC, but it did not find a difference between overexpression in adenocarcinoma compared with squamous cell carcinoma. Yang et al. (47) also observed the moderate correlation of eIF4E with VEGF and cyclin D1 in NSCLC, which supports a role for eIF4E in translational regulation of proteins related to angiogenesis and growth. This study found that p-eIF4E is overexpressed predominantly in stage III or IV NSCLC cases compared with stage I or II. In addition, overexpression of eIF4E was strongly associated with worse prognoses in NSCLC patients. These results provide the first clinical documentation supporting previous molecular studies that eIF4E may contribute to tumor progression in NSCLC.

Erk1/2, which is one of the members of the RAS/MEK/ERK pathway, is known to contribute to tumorigenesis in many cancers (32, 33). Erk1/2 activation in 22% to 63% of NSCLC is reported in a few studies (25, 34–37). However, there are no reports in NSCLC correlating Erk1/2 activation with the status of the downstream mediators of the AKT pathway. This study found overexpression of p-Erk1/2 in 16.6% (47 of 281) of NSCLCs. Expression of p-Erk1/2 strongly correlated with expression of p-TSC2 and p-S6 (P < 0.001 and P < 0.001 respectively), but it did not correlate with expression of p-eIF4E (P = 0.382). Recent studies suggest that phosphorylation by Erk suppresses TSC2 function toward S6 kinase and cellular proliferation and transformation independently of AKT function (48, 49). Taken together, the findings of this study indicate that S6 may be regulated by Erk through TSC2 in NSCLC. Conversely, p-S6 correlated strongly not only with p-Erk1/2 (P < 0.001) but also with p-mTOR (P = 0.010), whereas p-Erk1/2 expression correlated weakly with p-mTOR (P = 0.014), suggesting that Erk1/2 seems to regulate S6 through mTOR.

It is striking that an association between p-AKT expression and p-Erk1/2 expression was not observed, although p-AKT and p-Erk1/2 strongly correlated with p-TSC2 and p-S6, which was shown to be an independent predictive factor in our study. These results suggest that AKT and Erk1/2 may independently contribute to tumorigenesis and survival through TSC2 in NSCLC. In cluster analysis, group 3, which included cases with loss of expression of p-AKT and p-Erk1/2, showed a more favorable prognosis (median survival time, 9.4 years; 5-year overall survival rate, 75.0%) than the other groups, suggesting that AKT and Erk1/2 are very important factors for survival in NSCLC.

In summary, these results show for the first time that TSC2, eIF4E, and S6, which are proposed downstream mediators in the AKT signaling pathway, are more likely to be phosphorylated in tumors with AKT phosphorylation in NSCLC, whereas no correlation of mTOR phosphorylation with AKT and TSC2 phosphorylation was seen. In addition, we showed that eIF4E overexpression is an independent prognostic factor in NSCLC. These findings indicate that TSC2, eIF4E, and S6 are likely regulated by AKT independent of mTOR in NSCLC. Taken together, these data lend further support that dysregulation of the AKT pathway plays an important role in the development of NSCLC but that activation of the AKT signaling pathway in NSCLC may not be an appropriate selection criterion for including patients in mTOR inhibitor treatment because Erk1/2 phosphorylation could also contribute to expression of the downstream factors in the AKT pathway, especially p-TSC2 and p-S6.
