Rapid Identification of Clinical Relevant Minor Histocompatibility Antigens via Genome-Wide Zygosity-Genotype Correlation Analysis Free

Purpose: Identification of minor histocompatibility antigens (mHag) with classic methods often requires sophisticated technologies, determination, and patience. We here describe and validate a nonlaborious and convenient genetic approach, based on genome-wide correlations of mHag zygosities with HapMap single-nucleotide polymorphism genotypes, to identify clinical relevant mHags within a reasonable time frame.

Experimental Design: Using this approach, we sought for the mHag recognized by a HLA-DRB1*1501–restricted T-cell clone, isolated from a multiple myeloma patient during a strong graft-versus-tumor effect associated with acute graft-versus-host disease grade 3.

Results: In a period of 3 months, we determined the mHag phenotype of 54 HapMap individuals, deduced the zygosity of 20 individuals, defined the mHag locus by zygosity-genotype correlation analyses, tested the putative mHag peptides from this locus, and finally showed that the mHag is encoded by the arginine (R) allele of a nonsynonymous single-nucleotide polymorphism in the SLC19A1 gene.

Conclusions: We conclude that this powerful and convenient strategy offers a broadly accessible platform toward rapid identification of mHags associated with graft-versus-tumor effect and graft-versus-host disease. (Clin Cancer Res 2009;15(23):7137–43)

HLA-matched allogeneic stem cell transplantation (allo-SCT) is an effective treatment for hematologic malignancies. After allo-SCT, donor T cells directed at the minor histocompatibility antigens (mHag) of the recipient mediate graft-versus-tumor (GvT) effects, but they can also cause graft-versus-host disease (GvHD). mHags are polymorphic peptides derived from intracellular proteins and presented by HLA molecules (1–4). Pioneering studies indicated that mHags expressed exclusively in hematopoietic cells can serve as excellent tools to separate GvT effects from GvHD (5). Currently, one of the important bottlenecks toward broad application of mHag-based immunotherapy strategies is the speed of identifying relevant hematopoietic mHags. Classic identification methods such as peptide elution and cDNA library screening are complex, time-consuming, and offer a moderate chance of success (3, 4, 6). Recently introduced pairwise linkage analyses are also time-consuming, require advanced genetic know-how, and are not always successful in identifying the precise mHag locus (7–10). We recently identified the CD19^L-encoded mHag by combining pairwise linkage analysis with a novel fine-mapping strategy, called zygosity-genotype correlation analysis (11). In retrospective computational analyses, the genome-wide approach of zygosity-genotype correlation analysis seemed powerful enough to be applied as stand-alone identification strategy for mHags with 10% to 85% population frequency. Because this method was hypothesized to be more rapid and accessible than other (genetic) approaches, we now explored its actual speed and ease, using a CD4⁺ T-cell clone recognizing a novel HLA-DRB1*1501 restricted mHag. Within only 3 months, we succeeded in identifying the HLA class II mHag as a polymorphic peptide encoded by the SLC19A1^R gene.

The HLA-DRB1*1501 restricted CD4⁺ T-cell clone 1GF5 was previously isolated from a multiple myeloma patient (12). It was expanded using a feeder cell cytokine mixture as previously described (13). EBV-transformed lymphoblastoid cell lines (EBV-LCL) and the Phoenix packaging line were cultured in RPMI 1640 and DMEM (Invitrogen), respectively, both supplemented with 10% fetal bovine serum (Integro) and antibiotics.

Serial dilutions of effector T-cell clone 1GF5 were incubated with luciferase-transduced multiple myeloma cell lines in the presence of 125 μg/mL beetle luciferin (Promega) in white opaque flat-bottomed 96-well plates (Costar). After 6 h, the light signal emitted from surviving multiple myeloma cells was determined using a luminometer (Molecular Devices), and the percentage lysis was calculated compared with medium control (set to 0%) as described (14).

The pMX-HLA-DRB1*1501-IRES-GFP and the pMX-SLC19A1^27R-IRES-GFP vectors were generated by cloning commercially synthesized genes, HLA-DRB1*1501 and SCL19A1^27R (GenScript), into the pMX-vector as described (13). Generation of retroviral supernatants and retroviral transductions were described elsewhere (13).

Commercially synthesized and purified 15-mer peptides (Pepscan) were dissolved in DMSO to 100 mmol/L and diluted in PBS to 6 mmol/L for use in functional assays.

The phenotyping procedure has been described previously (11). In short, HLA-DRB1*1501–positive (naturally positive or positive after retroviral transduction) EBV-LCLs from HapMap individuals were used as antigen-presenting cells to stimulate T-cell clone 1GF5. IFN-γ release in supernatants was determined using ELISA (Invitrogen). EBV-LCLs were judged mHag⁺ if the mean absorbance value at 450 nm of triplicate cultures was >0.250, about three times the background absorbance value, as described (11).

mHag zygosities (+/+, +/−, or −/−) of HapMap individuals were deduced from the Mendelian segregation pattern of the mHag phenotypes in the father-mother-child trios as previously described (11). Zygosity-genotype correlation analysis was done using a modified version of the open source software ssSNPer (15) with embedded HapMap single-nucleotide polymorphism (SNP) genotypes for the CEU population⁴

(16, 17). The complete Linux-based analysis package is available online for download.⁵ Information about the SLC19A1 gene and relevant SNPs was derived from Ensembl.⁶

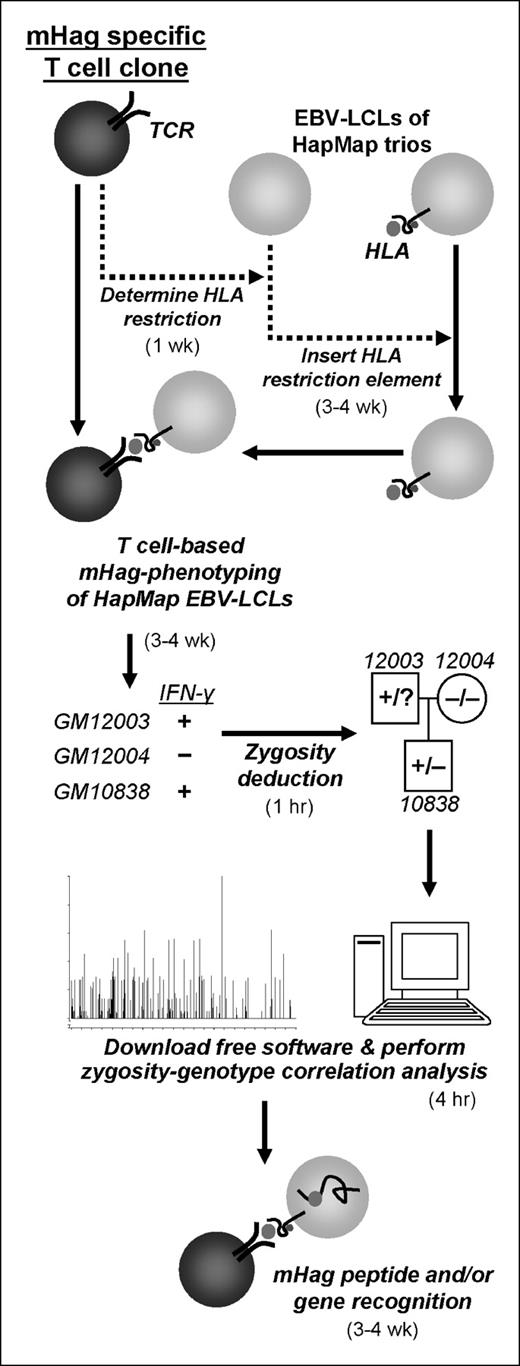

To validate the genome-wide zygosity-genotype correlation approach (Fig. 1) and to evaluate its speed, we used the HLA-DRB1*1501 restricted mHag-specific CD4⁺ T-cell clone 1GF5. The HLA class II restriction of this clone was ideal for validation of our approach because identification of HLA class II restricted mHags is usually more difficult as compared with HLA class I restricted antigens. Furthermore, the mHag could have clinical relevance because the clone 1GF5 was isolated from a multiple myeloma patient during a strong GvT effect associated with acute GvHD grade 3 and showed high IFN-γ release as well as strong cytotoxic activity against an allogeneic multiple myeloma cell line in a mHag-specific fashion (Fig. 2A and B).

The genetic correlation analyses in our approach use mHag zygosities, which can be deduced using inheritance of mHag phenotypes. Therefore, to identify the mHag recognized by 1GF5, we first determined the mHag phenotypes of several HapMap trios (father-mother-child) by testing the reactivity of 1GF5 toward EBV-LCLs derived from these individuals. In total, we phenotyped 54 EBV-LCLs, of which 42 (78%) were mHag positive (Table 1). Using these data, we could deduce the mHag zygosity (+/+, +/−, or −/−) of 20 of 54 individuals (see Table 1 and Fig. 1 for an example). Correlating this zygosity information to the genotypes of almost four million SNPs in the whole genome using a freely available software⁷

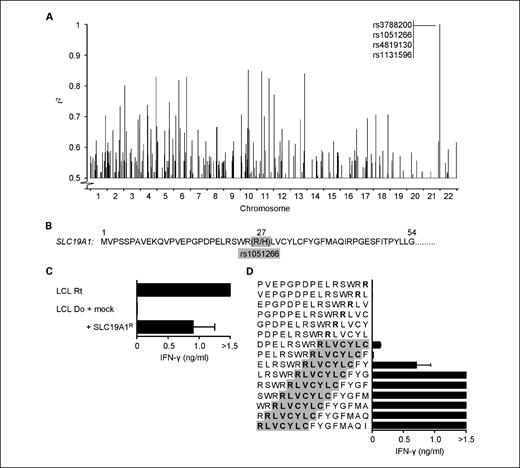

revealed 100% correlation (r² = 1) with four SNPs (rs3788200, rs1051266, rs4819130, and rs1131596; Fig. 3A), located within one linkage disequilibrium block on chromosome 21. This indicated that this linkage disequilibrium block could contain the SNP encoding for the mHag. Supporting this idea, the four SNPs also showed 100% correlation with the mHag phenotypes of the remaining 34 mHag⁺ EBV-LCLs whose mHag zygosities could not be deduced.

One of the four 100% correlating SNPs (rs1051266) was nonsynonymous, encoding for a histidine (H) to an arginine (R) substitution at position 27 of SLC19A1 (Fig. 3B), suggesting that SLC19A1^R could be encoding the mHag. Supporting this possibility, the original SCT patient, but not the donor, carried the SLC19A1^R-encoding allele (data not shown), and donor EBV-LCLs were recognized by 1GF5 on transduction with the SLC19A1^R gene but not with an empty vector (Fig. 3C). Finally, 1GF5 recognized several synthetic 15-mer peptides containing the SLC19A1^R-derived sequence RLVCYLC, illustrating that the HLA class II restricted mHag was indeed a polymorphic peptide derived from SLC19A1^R (Fig. 3D). Analysis of all other CD4⁺ mHag-specific T-cell clones isolated from the patient revealed the recognition of SLC19A1^R peptides by five additional clones using at least two different T-cell receptors. All these clones also recognized the mHag⁺ multiple myeloma cell line UM9 (data not shown).

In this study, we describe and validate a nonlaborious and convenient genetic approach to identify clinical relevant mHags. Using this genome-wide zygosity-genotype correlation approach, we identified the mHag recognized by a CD4⁺ T-cell clone as a polymorphic peptide derived from the SLC19A1^R gene, which encodes a transmembrane protein functioning as a transporter for natural folate compounds (18). The SNP encoding for the SLC19A1^R mHag is polymorph in all HapMap populations, with a phenotype frequency between 39% and 88%,⁸

implying that a mismatch for this new mHag will be frequently encountered in an allo-SCT setting. It is likely that this HLA class II restricted mHag can contribute to the GvT effect after allo-SCT because multiple SLC19A1^R mHag-specific T cells were isolated from our patient who manifested a strong GvT effect, and all of these T cells were capable of recognizing a mHag⁺ multiple myeloma cell line. To date, two other autosomal HLA class II restricted mHags are known: the ubiquitously expressed PI4K2B^S mHag presented by HLA-DQ6 and the hematopoietic restricted CD19^L mHag presented by HLA-DQ2 (11, 19). Both mHags are suggested to be involved in GvT effects. On the other hand, because microarray data⁹ indicate that SLC19A1 is expressed not only in hematopoietic cells but also in lung and liver, the mHag derived from SLC19A1 may also contribute to the development of GvHD after allo-SCT.

In a retrospective evaluation, we determined that the whole mHag identification procedure took only 3 months. It should be stressed that the whole procedure for the identification of the SLC19A1^R mHag was extremely rapid because one of the SNPs identified by the correlation analysis encoded for the searched mHag. We think that such cases will be encountered frequently because HapMap includes 25% to 35% of common SNP variation in the human genome (17). However, even if the searched SNP is not identified directly, additional exploration may not take too long because the regions identified with this method usually contain only a few candidate genes (11, 20). Thus, the strategy is indeed much faster than many other strategies described thus far and therefore likely to overcome the most important bottleneck toward efficient identification of clinical relevant mHags. Technically, in our strategy, it is important to realize that errors in mHag phenotyping will negatively influence the outcome of the analysis. Although our previous calculations indicate that 10% of phenotyping errors can be tolerated, the analyses will become more complicated, and therefore phenotyping should be done with great care. Still, the correlation analyses may fail in ∼7% of the cases because HapMap estimates that their SNPs can currently capture ∼93% of all SNPs with minor allele frequency of >0.05 within CEU populations (17). Furthermore, our approach may be less suitable for the identification of mHags that are only frequent in limited ethnical populations because our approach is based on the use of trios, and the International HapMap Project does not include trios for all ethnicities.

With the rapid identification of mHags now possible, the remaining question is “How many new mHags presented by which HLA molecules should be identified for wide-scale application of mHag-based immunotherapy?” Several mHags identified thus far have little significant clinical value because they are presented by infrequent HLA alleles (6, 21). It seems easy to tackle this issue by focusing on frequent HLA-A and HLA-B alleles. However, focusing on both HLA types does not increase population coverage significantly because frequent HLA-A and HLA-B alleles are inherited together as common haplotypes (22, 23). Therefore, focusing either on the most frequent HLA-A alleles or on the most frequent HLA-B alleles is a better strategy to make significant progress. HLA-A alleles seem a better choice for different populations. For instance, it is known that >92.5% of the European population expresses at least one of the HLA-A alleles (HLA-A1, HLA-A2, HLA-A3, HLA-A11, and HLA-A24; ref. 22). In contrast, more than 10 HLA-B alleles are necessary to achieve a similar coverage in the same population. Similarly, for HLA class II alleles, >95% of the population is covered by only three HLA-DP alleles (HLA-DPB1*0201, HLA-DPB1*0401, and HLA-DPB1*0402). We calculated that approximately 14 mHags per aforementioned HLA-A or HLA-DP allele are needed to establish at least one mHag mismatch in >75% of sibling transplantations (Fig. 4A and B). This number decreases to eight in case of a matched unrelated donor (MUD) setting and only to a couple if MUDs could be a priori selected for a mHag mismatch (Fig. 4A and B). Thus, broad application of mHag-based strategies will be possible with, in total, ∼40 HLA-A or ∼24 HLA-DP restricted mHags, and we believe that our identification strategy can significantly contribute to achieve this goal.

No potential conflicts of interest were disclosed.
