Abstract
Defects in the Fanconi anemia (FA) pathway occur in subsets of diverse human cancers. The hypersensitivity of FA pathway-deficient cells to DNA interstrand cross-linking and possibly other agents renders these genes attractive targets for a genotype-based, individualized anticancer therapy. A prerequisite before clinical trials is the validation and quantification of this hypersensitivity in suitable preclinical pharmacogenomic models. In addition, the effects of combinational therapy need to be evaluated and novel agents sought. We discuss here the pitfalls and limitations in the interpretation of common FA models when applied to the validation of FA gene defects as therapeutic targets. In general, all preclinical models are prone to certain artifacts and, thus, promising results in a single or few models rarely translate into clinical success. Nevertheless, the extraordinary robustness of FA pathway-deficient cells to interstrand cross-linking agents, which are observable in virtually any model independent of species, cell type, or technique used to engineer the gene defect, in various in vitro and in vivo settings, renders these gene defects particularly attractive for targeted therapy. Clinical trials are now under way.
Background
The Fanconi anemia (FA) gene family consists of at least 12 genes (FANCA, FANCB, FANCC, BRCA2/FANCD1, FANCD2, FANCE, FANCF, FANCG, FANCI, FANCJ, FANCL, FANCM; refs. 1–12). Biallelic mutations of these genes cause FA, a rare recessive disorder comprising congenital skeletal abnormalities, progressive bone marrow failure, and increased cancer risk (13). FA gene defects also occur in solid tumors among the general population; BRCA2 is mutated in pancreatic, breast, ovarian, and other cancers (8); FANCC and FANCG are mutated in some pancreatic cancers (14–16); and epigenetic gene silencing of FANCF occurs in a variety of tumors (17–19).
The FA proteins act in a common pathway, distal parts of which interact with regulators of cell cycle control and DNA repair, especially the repair of DNA interstrand cross-links and double-strand breaks (Fig. 1). The formation of the nuclear FA core complex, comprising Fanca, Fancb, Fancc, Fance, Fancf, Fancg, Fancl, Fancm, and one yet unidentified 100-kDa protein (Faap100), depends on the integrity of all proteins involved (11, 20, 21). The FA complex becomes activated on DNA damage, as coordinated by DNA damage sensor proteins such as ataxia telangiectasia mutated (ATM) or ataxia telangiectasia mutated and Rad3-related (ATR) (13, 22–25). This activation causes the monoubiquitination of Fancd2 (26), which is subsequently targeted to nuclear foci. Fancd2 colocalizes and interacts with Brca2 (27, 28) and several other DNA repair proteins, including Blm, Brca1, Nbn, Pcna, Rad51, and Rpa2 (29–34). A direct function of the FA pathway in DNA repair is further supported by Fancj being identical to the DNA helicase Brip1 (Brca1-interacting protein; refs. 10, 35, 36) and Fancm representing the human orthologue of the bacterial DNA repair protein Hef (11, 37).

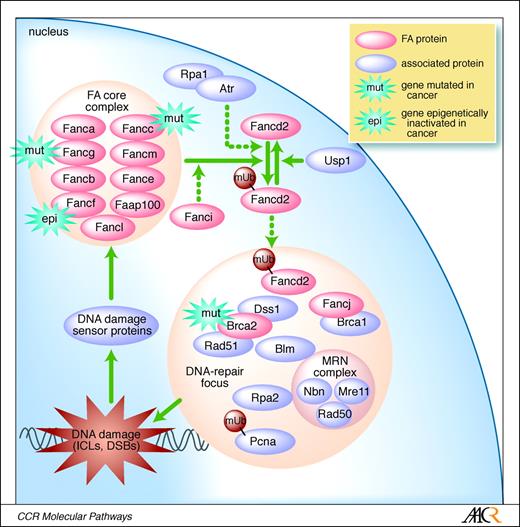

Schematic representation of the FA pathway. For clarity, interactions of FA core complex proteins with DNA repair focus proteins (99) are not depicted.
Schematic representation of the FA pathway. For clarity, interactions of FA core complex proteins with DNA repair focus proteins (99) are not depicted.
Clinical Translational Advances
In contrast to tumors of FA patients, FA pathway-deficient tumors arising in the general population have a biallelic FA gene defect whereas the patients' other cells do not, thus representing a tumor-specific absolute biochemical difference (38). FA pathway-deficient cells are hypersensitive to certain therapeutics, particularly interstrand cross-linking agents (13) and some poly(ADP-ribose) polymerase inhibitors (39–44). Their sensitivity to irradiation remains controversial (45, 46). An important challenge will be the identification and development of novel agents to which FA pathway-deficient cells are hypersensitive. If those agents elicited hypersensitivity via a different mechanism of action than interstrand cross-linking agents, they might permit synergistic effects when used in combination. This would allow a reduction of dosage and thus of the harmful side effects of interstrand cross-linking agents. Likewise, combinational uses of the known agents exerting hypersensitivity deserve investigation.
Potential options for genotype-specific anticancer therapies arising from FA pathway inactivation in tumors will require suitable preclinical models, for which stringent and universal validation criteria have not yet been established (47). Various models of FA gene defects have been developed, each of which has certain limitations when used for pharmacogenomic studies.
Pharmacogenomic FA models
Human versus other species. The progress in understanding the molecular functions of the FA genes is largely owed to the successful development and analysis of models of FA gene defects in a variety of species (including human, mouse, hamster, chicken, frog, and zebrafish). For pharmacogenomic studies, the use of human cells may be desirable to eliminate any artifacts attributable to interspecies variability, as most proximal FA genes (constituting the FA core complex) are structurally and functionally not highly conserved. As an example, the chicken FANCG gene sequence shares only 39% similarity to human FANCG, and its function is not complemented by the human gene (48). In contrast, the more distal FANCD2 is better conserved (9) and BRCA2 is highly conserved within the BRC-repeat regions (49).
Malignant versus nonmalignant cells. The FA genes are involved in the regulation of cell cycle controls, DNA repair, and genome maintenance, features that are expected to differ between malignant and nonmalignant cells. FA models that use cancer cells may therefore be preferable for pharmacogenomic studies because it is uncertain whether the FA phenotype of nonmalignant cells can be fully extrapolated to malignant cells (46). Table 1 lists many of the presently available human cancer FA lines.
Human FA cancer cell models
Cell line . | Tissue . | Gene defect . | Origin of null state . | Available controls . | Limitations . | Ref. . |
---|---|---|---|---|---|---|
RKO FANCC−/− | Colorectal adenocarcinoma | FANCC (homozygous Δexon 10) | Engineered in vitro | Parental/heterozygote clones (physiologic gene expression) | Defect not naturally selected, microsatellite unstable cancer cells | (46) |
RKO FANCG−/− | Colorectal adenocarcinoma | FANCG (homozygous Δexon 8) | Engineered in vitro | Parental/heterozygote clones (physiologic gene expression) | Defect not naturally selected, microsatellite unstable cancer cells | (46) |
Hs766T | Pancreatic adenocarcinoma | FANCG (313G>T + LOH*) | Somatically acquired in vivo | Derivatives overexpressing FANCG or other lines | Either gene overexpression or lack of isogenic controls | (15, 86) |
PL11 | Pancreatic adenocarcinoma | FANCC (homozygous deletion) | Somatically acquired in vivo | Derivatives overexpressing FANCC or other lines | Either gene overexpression or lack of isogenic controls | (15, 86) |
CAPAN1 | Pancreatic adenocarcinoma | BRCA2 (6174ΔT + LOH*) | Somatically acquired in vivo | Derivatives overexpressing BRCA2 or other lines | Either gene overexpression or lack of isogenic controls | (15, 86, 88, 89) |
TOV-21G | Ovarian adenocarcinoma | FANCF (epigenetic silencing) | Unknown | Derivatives overexpressing FANCF or other lines | Either gene overexpression or lack of isogenic controls | (19) |
OHSU-974 | Head and neck squamous cell carcinoma | FANCA?† | Germ line (i.e., before tumorigenesis) | Other lines | Lack of isogenic controls | (100) |
VU1365 | Head and neck squamous cell carcinoma | FANCA‡ | Germ line (i.e., before tumorigenesis) | Derivatives overexpressing FANCA or other lines | Either gene overexpression or lack of isogenic controls | (100) |
VU1131 | Head and neck squamous cell carcinoma | FANCC (67ΔG) | Germ line (i.e., before tumorigenesis) | Derivatives overexpressing FANCC or other lines | Either gene overexpression or lack of isogenic controls | (100) |
FA-AML1 | Acute myeloic leukemia cells | BRCA2 (8415G>T, 8732C>A, reverting mutation 8731T>G) | Somatically reverted germ line null state during tumorigenesis | Other lines | No FA phenotype due to reversion of the null state | (101) |
SB1690CB | Acute myeloic leukemia cells | BRCA2 (3827ΔGT, IVS7 + 2T>G) | Germ line (i.e., before tumorigenesis) | Other lines | Lack of isogenic controls | (102) |
Cell line . | Tissue . | Gene defect . | Origin of null state . | Available controls . | Limitations . | Ref. . |
---|---|---|---|---|---|---|
RKO FANCC−/− | Colorectal adenocarcinoma | FANCC (homozygous Δexon 10) | Engineered in vitro | Parental/heterozygote clones (physiologic gene expression) | Defect not naturally selected, microsatellite unstable cancer cells | (46) |
RKO FANCG−/− | Colorectal adenocarcinoma | FANCG (homozygous Δexon 8) | Engineered in vitro | Parental/heterozygote clones (physiologic gene expression) | Defect not naturally selected, microsatellite unstable cancer cells | (46) |
Hs766T | Pancreatic adenocarcinoma | FANCG (313G>T + LOH*) | Somatically acquired in vivo | Derivatives overexpressing FANCG or other lines | Either gene overexpression or lack of isogenic controls | (15, 86) |
PL11 | Pancreatic adenocarcinoma | FANCC (homozygous deletion) | Somatically acquired in vivo | Derivatives overexpressing FANCC or other lines | Either gene overexpression or lack of isogenic controls | (15, 86) |
CAPAN1 | Pancreatic adenocarcinoma | BRCA2 (6174ΔT + LOH*) | Somatically acquired in vivo | Derivatives overexpressing BRCA2 or other lines | Either gene overexpression or lack of isogenic controls | (15, 86, 88, 89) |
TOV-21G | Ovarian adenocarcinoma | FANCF (epigenetic silencing) | Unknown | Derivatives overexpressing FANCF or other lines | Either gene overexpression or lack of isogenic controls | (19) |
OHSU-974 | Head and neck squamous cell carcinoma | FANCA?† | Germ line (i.e., before tumorigenesis) | Other lines | Lack of isogenic controls | (100) |
VU1365 | Head and neck squamous cell carcinoma | FANCA‡ | Germ line (i.e., before tumorigenesis) | Derivatives overexpressing FANCA or other lines | Either gene overexpression or lack of isogenic controls | (100) |
VU1131 | Head and neck squamous cell carcinoma | FANCC (67ΔG) | Germ line (i.e., before tumorigenesis) | Derivatives overexpressing FANCC or other lines | Either gene overexpression or lack of isogenic controls | (100) |
FA-AML1 | Acute myeloic leukemia cells | BRCA2 (8415G>T, 8732C>A, reverting mutation 8731T>G) | Somatically reverted germ line null state during tumorigenesis | Other lines | No FA phenotype due to reversion of the null state | (101) |
SB1690CB | Acute myeloic leukemia cells | BRCA2 (3827ΔGT, IVS7 + 2T>G) | Germ line (i.e., before tumorigenesis) | Other lines | Lack of isogenic controls | (102) |
Natural selection versus artificial engineering. Gene defects conferring a selective cellular advantage can cause coincidental detrimental effects (“reduction of fitness”), which, if evolving naturally, must be outweighed by the gained advantage. The mutational profile of a cancer thus represents the balance of selective pressures for and against any given mutation; both directions of selection can operate on a given mutated gene (50, 51).1
Gallmeier E, Hucl T, Calhoun ES, et al. Gene-specific selection against fanconi anemia gene inactivation in human cancer cells. Submitted for publication, 2006.
On-target versus off-target effects. On-target effects need to be distinguished from off-target effects, although a specific FA gene defect defines the model. Whereas on-target effects are immediate and directly caused by the FA gene defect, off-target effects comprise artifacts resulting from the particular technique applied to manipulate FA gene function, including unintended drug interferences, oligonucleotide interactions, squelching, threshold effects, etc. Whereas on-target effects are reproducible, off-target effects can seem to be random and are not reliably reproducible. FA models using random chemical mutagenesis, small interfering RNA technology, or nonphysiologic exogenous gene overexpression seem to be particularly prone to off-target effects.
Options for manipulating FA gene function in isogenic cells. The development of isogenic cell lines, in which a gene defect is artificially created or, conversely, the function of a defective gene is artificially restored, overcomes the problem of managing uncontrolled variation inherent to nonisogenic models. Nevertheless, the confirmation of a relationship using outbred nonisogenic cells provides a useful assurance of robustness and argues against the results being dominated by idiosyncratic phenomena.
Gene overexpression. Some FA models compare conditions of constitutive gene overexpression to null expression. In neither condition is physiologic gene function necessarily assessed, for it may be exaggerated, mitigated, or not present at all. In addition, when using human lymphocytes or fibroblasts from FA patients, even the immortalization step, which involves viral tumorigenic proteins, could introduce nonphysiologic influences. Despite these concerns, robust FA phenotypes, such as deficient Fancd2 monoubiquitination, loss of Fancd2 focus formation, and hypersensitivity to interstrand cross-linking agents, are routinely reversed by complementation through gene overexpression.
Specific (targeted) gene knockout and knock-in. The preferable comparison of physiologic to null expression of FA genes can be achieved by either endogenously creating a gene defect in cells proficient (knockout) or reverting a gene defect in cells deficient for the respective gene (knock-in). As these defects are artificially created, there is little opportunity for compensatory evolution in these models and, thus, effects due to a reduction of fitness sometimes predominate, depending on the gene of interest. In addition, somatic cell gene targeting is mainly done in (diploid) cancer cells having microsatellite instability. Microsatellite unstable cells, however, do not display chromosomal instability and therefore do not reflect the majority of tumors. Furthermore, the mismatch repair defect of microsatellite unstable cells might complicate the interpretation of DNA repair-related FA phenotypes. Another largely neglected problem of knockout models, which is particularly obvious in cancer cells, is clonal variability. “Isogenic” derivatives can comprise variable genotypes among different clones. Thus, more than one gene knockout clone needs to be created and compared with parental and heterozygous control cells. Technical improvements have recently simplified this formerly highly laborious approach (73–75).
Unspecific (random) gene knockout. Models using chemical random mutagenesis have lesser gene specificity than single gene knockout models. For example, N-ethyl-N-nitrosurea–mutagenized Chinese hamster cells having defects in the hamster homologues of FANCA, FANCG, and BRCA2 (76–82) are expected to involve many, perhaps hundreds of thousands, simultaneous genetic mutations. Thus, gene specificity of a phenotypic alteration can only be inferred when multiple independent clones can be analyzed. Even then, the magnitude of these phenotypic alterations can potentially be misleadingly high (82).
RNA interference. RNA interference models, comparing physiologic gene expression to acutely reduced, but not absent, gene expression (75, 83), have become increasingly popular, but might not be the best choice for pharmacogenomic studies. A major disadvantage is that any effects dependent on the complete absence of a gene will be missed. Another concern is that methods using transient transfections will examine unselected cells. Therefore, compensatory evolution cannot occur and a reduction of fitness may predominate, depending on the gene of interest. Furthermore, it is difficult to apply suitable controls for RNA interference, especially because off-target effects are common (84) and cannot be predictably recreated or monitored by matched RNA reagents. Finally, off-target effects frequently induce a toxic phenotype (29% probability according to ref. 85) and therefore interfere with cell survival read-outs of pharmacogenomic studies. RNA interference techniques have only been rarely used to mimic FA gene defects, partly due to the fact that nonmalignant cells having “true” FA gene defects are readily available from FA patients.
The robust hypersensitivity of FA pathway-deficient cells to interstrand cross-linking agents
Pharmacogenomic FA models differ with regard not only to the above features but also to where the FA defect evolved (in vitro or in vivo) and whether the cellular drug sensitivity was tested in vitro or in vivo through the xenografting of cell lines in mice (86, 87). Each combination offers a different constellation of effects and artifacts. Notably, despite the huge variety of unique FA models, which are all prone to different artifacts, the hypersensitivity of FA pathway-deficient cells to interstrand cross-linking agents holds true in virtually all of these models. The extent of hypersensitivity is best described by the IC50 ratios between FA pathway-proficient and FA pathway-deficient cells, here termed the pharmacogenomic window. The width of this pharmacogenomic window depends on the specific interstrand cross-linking agent used and might reflect the proportional contribution of interstrand cross-links to the overall toxicity of the drug (46). IC50 ratios of ≥10-fold, generally regarded as promising for further clinical evaluation, can be achieved in preclinical FA cancer models on treatment with several interstrand cross-linking agents (e.g., melphalan, mitomycin C, and carboplatin; ref. 46).
The particular problem of modeling BRCA2 defects in tumors
CAPAN1, the only BRCA2-deficient human cancer cell line. Only one cancer cell line identified to date harbors a naturally selected, inactivating BRCA2 mutation (6174ΔT and loss of the second allele). The pancreatic cancer line CAPAN1 is cumbersome for pharmacogenomic studies because it has low transfectability, poor clonogenicity, and slow growth in culture, the latter presumably representing an on-target, reduction-of-fitness phenotype. Perhaps for similar reasons, CAPAN1 cells are more sensitive towards a variety of agents than other pancreatic cancer lines,2
Unpublished observations.
BRCA2 knockout models in nonhuman species. No engineered human gene knockout model exists for BRCA2, probably because the BRCA2-null state usually is lethal (46, 51).1 BRCA2 knockout models in mouse, hamster, and chicken cells do exist, but are of unclear relevance for pharmacogenomic studies of human cancers. In mice, null mutations of BRCA2 are embryonic lethal, a phenotype seeming to be less severe in a p53-null background (61). In contrast, truncating mutations that retain certain BRC repeats can confer a viable phenotype (58–64). In hamster cells, the compound heterozygote BRCA2 line V-C8, derived from (random) chemical mutagenesis of V79 cells, harbors two different nonsense BRCA2 mutations (82). In chicken DT40 cells, the complete disruption of BRCA2 did not yield viable clones (90), whereas truncating mutations, which spared the first two BRC repeats, only decreased the cell growth rate in these cells (91). Engineered BRCA2 loss thus variably affects different species, presumably due to the different balance of cellular selection, reduction of fitness, and compensatory evolution, which operates after gene targeting.
A model mimicking a non-FA patient having a BRCA2-deficient cancer. A model that might closely reflect non-FA patients having BRCA2-deficient cancers was established by Ludwig et al. (92). BRCA2−/− mammary tumors in BRCA2-proficient mice were obtained through conditional tissue-specific gene targeting. This model has not yet been applied to pharmacogenomic studies.
Requirement of rapid diagnostic assays for FA defects in cancer
Defects in the distal FA pathway are diagnosed by direct sequencing for germ line mutations in blood samples, which are commercially available for BRCA2 (such as Myriad Genetics, Salt Lake City, UT). Screening for proximal FA pathway inactivation in tumors remains problematic. As a clinical test, direct sequencing would be laborious and expensive due to the number and size of the many proximal FA genes. Furthermore, one would miss large deletions (especially relevant for FANCA; ref. 93) or epigenetic inactivation (especially relevant for FANCF; refs. 17–19, 94). Chromosome breakage on treatment with diepoxybutane, which is the clinical test applied for the diagnosis of FA, is only feasible for pure and actively growing cancer cells (i.e., cell lines). Similarly, Fancd2 immunoblots using primary cancer tissue are hampered by contaminating normal tissue and therefore also require cell lines. Cell lines, however, cannot yet be quickly and reliably grown from primary tumors. Thus, other techniques to enable screening for proximal FA gene defects in tumors need to be developed.
Conclusions
Despite increasing interest in targeted therapies in recent years, there are few examples of successful genotype-based anticancer therapy, including imatinib (Gleevec) for the treatment of chronic myeloid leukemia (95, 96) and gefitinib (Iressa) for the treatment of non–small-cell lung cancers harboring EGFR mutations (97, 98). As discussed in this review, any preclinical pharmacogenomic model has limitations and is prone to certain artifacts. Most pharmacogenomic findings are therefore strongly model-dependent and are rarely generalizable over several models. Thus, they often translate poorly into clinical success. In stark contrast, the hypersensitivity of FA pathway-deficient cells to interstrand cross-linking agents holds true in virtually any FA model, using different species, cell types, and techniques, in various in vivo and in vitro settings. This extremely robust pharmacogenomic phenomenon might therefore represent one of the most promising avenues for individualized anticancer therapy to date. Clinical trials are now under way.
Acknowledgments
We thank Jonathan R. Brody, Eric S. Calhoun, Tomas Hucl, and Jordan M. Winter for critically reading the manuscript.
