Lifetime Occurrence of Brain Metastases Arising from Lung, Breast, and Skin Cancers in the Elderly: A SEER-Medicare Study

This article is featured in Highlights of This Issue, p. 833

Brain metastases (BM) are associated with significant morbidity and may impart a median survival of two to fourteen months following simultaneous diagnosis of BM and various primary cancers (1). Estimates of its frequency in the United States vary by orders of magnitude depending on study-specific characteristics, but some of this variation in epidemiologic measures of BM may also reflect medical advances in primary cancer control or metastasis detection. These, combined with an aging population and subsequent increase in absolute numbers of patients with BMs, suggest that detailed population-level evidence of BM occurrence in the elderly is more and more relevant to clinical practice and the decision to screen for cranial disease (2, 3).

In 2016, the Surveillance, Epidemiology, and End Results (SEER) Program helped address the need for such studies by releasing data on BM diagnosed during staging workup for primary cancer, called “synchronous brain metastases” (SBM) (4). Synchronous metastasis evaluation is helpful to many treatment decisions, and SEER SBM studies performed with these recently-available data contribute valuable information to the pressing need for such work (5, 6).

Metastasis following primary cancer staging may also be studied using Medicare claims, which offer long-term evidence of patient characteristics and may be linked to SEER data. The SEER-Medicare linkage further allows SEER data to serve as a referent to compare with Medicare claims, the classification performance of which may inform Medicare claims-based estimates of lifetime BMs (LBM).

This work examines cases of lung cancer, breast cancer, and melanoma due to their increased incidence of BM (7). Motivated by the availability of new data and a need for estimates over the patient's lifetime, our aim was twofold: to (i) evaluate Medicare claims BM identification algorithms against SEER SBM data, and (ii) report incidences of SEER SBM and Medicare claims-identified LBM for lung cancers, breast cancers, and melanoma.

This study was approved as exempt of review by the University Hospitals Cleveland Medical Center Institutional Review Board, and assigned the study number “EM-17-05.”

The National Cancer Institute SEER Program offers cancer registry data covering approximately 28% of the U.S. population; these data may be linked to Medicare claims data to further investigate patient characteristics. Because Medicare is the primary insurer for the vast majority of patients age 65 years or older, the results of SEER-Medicare studies are highly generalizable to the elderly population (8).

Data for primary cancers diagnosed in the years 2008 to 2012 were linked to Medicare data from 2007 to 2014. SEER SBM data are only available for the year 2010 and onwards, therefore only those years were used to compare Medicare claims identification algorithms. This yielded a total of three diagnosis years for SEER SBM comparison to Medicare identification algorithms and five diagnosis years for Medicare LBM estimates (Fig. 1).

Four types of claims files offered as part of SEER-Medicare were used: Part A inpatient, carrier, outpatient, and durable medical equipment files. Each record in these files contains a date of service, International Classification of Diseases, ninth revision, Clinical Modification (ICD-9-CM) diagnosis codes, and Current Procedural Terminology (CPT) procedure codes.

The 2010 to 2013 SEER Collaborative Staging brain metastases variable uses clinical or pathologic evidence from staging workup (but not thereafter) to identify “distant metastatic involvement of the brain at the time of diagnosis…. This includes only the brain, not spinal cord or other parts of the central nervous system (CNS) (9).” In contrast, the closest ICD-9-CM code (198.3X) refers to metastases to any part of the CNS and is not specific to the brain. Therefore, Medicare LBM was defined as the presence of diagnosis codes for secondary cancer of the CNS (ICD-9 code: 198.3X) and procedure codes for a brain or head imaging study (CPT codes 70450–70470, 70551–70553, 78607–78608) each within 60 days of the other, at any time throughout Medicare claims data.

To inform the reliability of Medicare LBM estimates, classification performance metrics (Cohen's Kappa, predicted and true counts, sensitivity, specificity, and positive predictive value) are presented for both the Medicare LBM algorithm and a Medicare SBM algorithm based on the same codes with the additional requirement that codes occurred within 60 days of primary cancer diagnosis. This duration of 60 days was chosen as an approximation of the time required to clinically establish extent of disease, after which registry data regarding metastases are not updated (4). Classification performance measures for a modified Medicare LBM algorithm that relies only on diagnosis codes are also provided for comparison.

The use of Medicare data has several implications for population selection. Exclusion criteria included age less than 65 years, Medicare qualification not due to age, lack of insurance, or unknown insurance status, any record of Healthcare Management Organization (HMO) use, or presence of other primary cancer diagnosis in a different site. Before exclusion, there were 198,730 lung, 208,909 breast, and 98,299 melanoma cases. After exclusion, 120,405 lung, 110,983 breast, and 35,268 melanoma cases remained (Supplementary Fig. S1). In the cohort of patients diagnosed in 2010 to 2012, there were 70,974 lung, 67,096 breast, and 21,860 melanoma cases.

Age and race were described across BM status. Age was summarized both as a continuous and categorical variable, where categories were age groups 65–69, 70–79, 80–89, and 90+ years. Race was categorized as Asian/Pacific Islander, African American, Native American, White, or other. “White” was further categorized as “White Non-Hispanic” (WNH) or “White Hispanic” (WH) using the North American Association of Central Cancer Registries’ Hispanic Identification Algorithm. For breast cancers, Native American and Asian/Pacific Islander race were collapsed into an “other” category; for melanoma, Native American/American Indian, Black/African American, and Asian race categories were collapsed.

Histology was categorized according to the International Classification of Diseases, Oncology, 3, (ICD-O-3; ref. 10; https://seer.cancer.gov/icd-o-3/sitetype.icdo3.20180117.pdf). The five most frequent histology labels among each cancer site were identified, and less frequent labels were considered “other” categories. For lung cancer, the most frequent histology was adenocarcinoma (8140–8141, 8144), followed by squamous cell carcinoma (8070–8075, 8078), small cell carcinoma (SCLC, 8041–8045), and non–small cell carcinoma (NSCLC, 8046), and carcinoma (8010–8014). Among breast cancers, the most frequent histology was duct carcinoma (8500–8504, 8507), followed by lobular and other ductal carcinoma (8520–8525), mucinous adenocarcinoma (8480–8481), and adenoid cystic and cribriform carcinoma (8200–8201). Melanoma histology was categorized as nevi and melanomas (8720–8723) and malignant melanoma in junctional nevus (8740–8745) due to a lack of observations of other histology groups.

The derived SEER Summary Stage 2000 data element was used to classify extent of disease at primary diagnosis as in situ, localized, regional with direct extension, regional with extension to lymph nodes only, regional with direct and lymph node extension, regional not otherwise specified (NOS), distant, or unknown.

Breast cancer subtypes were categorized using the 2010+ breast subtype SEER data element, which is a combination of estrogen receptor (ER) status, progesterone receptor (PR) status, and HER2 (also called CD340, neu, ERBB2, or erb-b2 receptor tyrosine kinase 2) values. It has six categories: Her2+/HR+, Her2+/HR−, Her2−/HR+, triple negative, unknown, or not 2010+ Breast, where HR represents ER and PR status. For measures of incidence, categories were consolidated into Her2+, Her2−/HR+, triple negative, and unknown.

For privacy and confidentiality purposes, statistics are suppressed or levels collapsed for categorical values representing data from 1 to 11 subjects (11).

Concordance was measured using Cohen's κ. Sensitivity, specificity, and positive predictive value (PPV) are presented for further detail, along with predicted and true counts of BM cases.

Incidence proportion (IP) was defined as the ratio of BMs case counts to the total number of cases, presented for each primary cancer and its associated strata. Strata were histologic for lung cancer and melanoma, and based on molecular subtype for breast cancers. Because molecular subtype was only available from cases in 2010 onwards, stratified estimates of Medicare LBM were restricted to the 2010 to 2012 diagnosis years (Fig. 1). Additionally, analysis included estimates of the IP of primary cancer later associated with Medicare LBM diagnosed in 2008 to 2012, stratified by SEER Summary Stage 2000. Descriptive statistics of demographic and clinical characteristics are presented for the overall population, patients diagnosed with SEER SBM, and patients classified as having Medicare LBM.

The average annual age-adjusted incidence rate (AAIR) was calculated as an age-weighted sum over each year using census values from 2010 for each 5-year interval of ages starting at 65 and combining ages 90 or greater into a single interval (12). Crude incidence rates are presented for breast cancer strata where fewer than 11 cases per annum were observed.

This study was conducted with the goal of providing open, reproducible, and replicable results (13). Analyses reported here were performed using R version 3.4.3 (2017-11-30) and managed using GNU make (14, 15); reproducibility materials are available online at http://doi.org/10.5281/zenodo.1336604 (16), and two authors independently used these materials to arrive at the same conclusions presented herein.

There were 6,789 cases of SBM among lung cancer subjects, 203 among breast cancers, and 230 melanoma SBM cases using the SEER gold standard data, whereas 5,100, 196, and 152 subjects were found to have Medicare SBM, respectively.

Using the Medicare claims algorithm intended to identify SBM based on both diagnosis and cranial imaging codes, Kappa concordance with SEER-reported SBM was found to be 0.63 (95% CI, 0.62–0.64) for lung cancer, 0.46 (95% CI, 0.40–0.53) for breast cancers, and 0.66 (95% CI, 0.60–0.71) for melanomas (Table 1).

The least restrictive algorithm, relying on the presence of a diagnosis code for central nervous system metastases at any time throughout the patients’ Medicare claims history, yielded concordance of 0.73 (95% CI, 0.72–0.74) for lung cancers, 0.49 (95% CI, 0.43–0.54) for breast cancers, and 0.78 (95% CI, 0.73–0.82) for melanomas (Table 2).

A total of 120,405 lung cancer cases diagnosed between 2008 and 2012 were selected for inclusion (Supplementary Fig. S1), 70,974 of which were diagnosed in 2010 to 2012.

For cases of primary lung cancer diagnosed in 2010 to 2012, the AAIR of SBM was 9,422 per 100,000 cases (95% CI, 9,034–9,825) with an IP of 9.6% (Table 3). Medicare LBM was calculated for the 120,405 patients with primary diagnosis from 2008 to 2012. the LBM AAIR was 13,255 per 100,000 cases (95% CI, 12,798–13,727) and the IP of Medicare LBM in lung cancer overall was 13.5%.

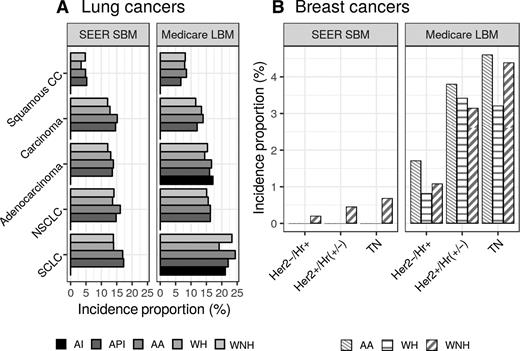

The IP of SEER SBM among adenocarcinoma lung cancer patients was 11.8%, whereas the corresponding Medicare LBM value was 15.5%. For patients with carcinoma histology lung cancer, the SEER SBM IP was 11.1%, compared with Medicare LBM at 11.9%. The proportions of SEER SBM and Medicare LBM among squamous cell lung cancer patients were 4.6% and 8.1%, respectively.

Patients with NSCLC had a SEER SBM IP of 13.4%, whereas the corresponding LBM proportion was 15.3%. Lung cancer cases with SCLC histology had an SBM IP of 13.5%, with the IP of LBM in these cases being 23.1%.

When stratified by stage at primary cancer diagnosis, the IP of Medicare LBM was 18.8% among lung cancer cases with distant metastasis; 10.5% among cases with metastasis to lymph nodes only; and 4.8% among cases that were restricted to tissue local to the disease (Supplementary Table S4).

A total of 110,983 subjects with breast cancer were selected for inclusion (Supplementary Fig. S1), of whom 67,362 were diagnosed in 2010 to 2012.

The AAIR of SEER SBM was 309 per 100,000 cases (95% CI, 239–397), and the IP of cases with SBM diagnosis was 0.3% (Table 3).

A total of 110,983 patients were diagnosed with primary breast cancer from 2008 to 2012. The Medicare LBM AAIR for primary breast cancer diagnoses in this population was 1,790 per 100,000 cases (95% CI, 1,618–1,979), whereas the overall IP of primary cancer diagnosis that is associated with Medicare LBM is 1.8%.

The IP of SEER SBM was 0.2% among subjects with Her2−/HR+ breast cancer, compared with 0.5% for Her2+/ HR(+/−) and 0.7% for triple negative cancers. The IPs of Medicare LBM were greater, at 1.1%, 3.1%, and 4.2% for each of Her2−/HR+, Her2+/HR(+/−), and triple negative breast cancer, respectively.

The incidence proportion of Medicare LBM among patients with distant disease at primary diagnosis was 13.6%, compared with 4.0% in patients with lymph node or regional involvement; 2.0%, with only regional tissue involvement; 2.4% with only lymph node involvement; and 0.9% with localized disease (Supplementary Table S4).

A total of 35,268 subjects diagnosed with melanoma in 2008 to 2012 met inclusion criteria (Supplementary Fig. S1), 21,860 of these subjects were diagnosed in 2010 through 2012 (Supplementary Table S3).

The AAIR of SBM in the 2010 to 2012 cohort was 1,049 per 100,000 cases (95% CI, 826–1,318), and the IP of cases with SBM diagnosis was 1.1% (Table 3). The Medicare LBM AAIR in the 2008 to 2012 melanoma cohort was 3,583 per 100,000 cases (95% CI, 3,154–4,059), whereas the IP of primary cancer diagnosis later associated with Medicare LBM was 3.6%.

When stratified by stage at primary diagnosis, 30.4% of cases with distant disease at primary diagnosis were later associated with Medicare LBM; 15.2%, regional and lymph node involvement; 13.2%, lymph node involvement only; 7.8%, regional tissue involvement; and 2.5% among cases with localized disease at primary diagnosis (Supplementary Table S4).

This study offers population-based estimates of BM incidence at two intervals during the course of disease, while also describing the reliability of the estimates and providing full reproducibility thereof. Given continued advances in primary site control coupled with the use of therapies that may affect metastatic behavior, such a snapshot may prove a valuable reference (17, 18).

In addition, population-based estimates of BM occurrence among Medicare recipients are useful because the 9.7% increase in the U.S. population 65 years of age or older between 2000 and 2010 may continue with concomitant increases in absolute measures of cancer and therefore BM incidence (2). The convergence of biomedical advances with an aging population underscores the need for studies of secondary cancer.

Using the SEER population whose primary cancer diagnosis was made in the years 2010 to 2013, Cagney and colleagues report that the IP of SEER SBM in SCLC was 15.8%; adenocarcinoma, 14.4%; and NSCLC, 12.8% (1). Similarly, the corresponding SEER SBM IP for this study's 2010 to 2012 Medicare population were 13.5%, 11.8%, and 13.4%, for SCLC, adenocarcinoma, and NSCLC, respectively. Although these differences in IP may be attributable to population selection procedure, the most notable of which is our restriction to the elderly population due to the use of Medicare claims, their approximate similarity lends credence to each estimate.

The greatest difference between synchronous and lifetime BM incidence proportions was observed in SCLC, for which the Medicare LBM IP was 21.7%. In contrast, the Medicare LBM IP among NSCLC patients was found to be 15.3%; relative to each other, these proportions are consistent with literature describing the occurrence of SCLC and NSCLC metastases (19). Further, these increased proportions support National Comprehensive Cancer Network (NCCN) guidelines that suggest brain MRI with contrast should be a part of pretreatment evaluation for people diagnosed with stage II to IV and high-risk stage 1B NSCLC (20). Moreover, 4.8% of cases considered localized and 10.5% of cases with lymph node involvement were found to be associated with Medicare LBM, supporting the use of MRI to evaluate patients prior to treatment (Supplementary Table S4).

For patients not diagnosed with SBM, Nussbaum and colleagues (1996) report that the median durations from NSCLC and SCLC diagnosis to presentation with BM were 3 and 6 months, respectively, with a median 10 months from BM presentation to death for each histology (21, 22). This progression is not untreatable, however, and prophylactic cranial irradiation following lung cancer diagnosis has been shown to reduce later risk of BM (23, 24).

Still, at present, deferred occurrence of BM does not address concern regarding the benefit to survival of PCI versus close monitoring and quick response (25–27). Ideally, improved detection of potentially cancerous tissue combined with precision nonsurgical treatment such as stereotactic radiosurgery will lower the threshold to benefit from prophylactic cranial irradiation.

Previous work has also shown that ethnic minorities have been more likely to present with late-stage lung cancer (28, 29). In NSCLC and SCLC, Black/African American cases had greater IPs of SEER SBM compared with WNH or WH, though this did not extend to Medicare LBM (Fig. 2A). Males had a greater IP of SEER SBM in both NSCLC and SCLC (Fig. 3A), which is notable given the median survival following brain metastasis diagnosis has been reported to be decreased among males (30).

Previous work shows that IP of SEER SBM in the overall population of patients with breast cancer is estimated to be 0.41%, which is higher than the observed IP of SEER SBM in the Medicare breast cancer population here (0.3%; refs. 5, 6). This difference is likely multifactorial, however one explanation could be that it reflects differences in study populations. Excluding patients younger than 65 years of age removes a population that is at greater risk of BM, as Barnholtz-Sloan and colleagues note: “the highest IP% for BMs in individuals with primary breast cancer occurred in the youngest age category (IP%, 10%; age at diagnosis, 20–39 years) (31).”

Although not restricted to the Medicare population, Martin and colleagues report that 361 of 162,078 (0.22%) Her2-negative breast cancer cases had SBM (6), which is very similar to the corresponding proportion observed here, 0.2% (Table 3). Combining their reported Her2+/HR+ and Her2+/HR− categories, Martin and colleagues report 242 of 32,095 (0.75%) Her2-positive subjects developed BMs in the overall SEER population, which is slightly greater than the corresponding 31 of 5,900 (0.5%) found in the SEER-Medicare Her2+ population examined here (Supplementary Table S2; ref. 6).

Such associations with hormonal receptor expression status are well-documented (32, 33). In our elderly population, 13.4% of cases were ER negative; in contrast, ER-negative breast cancers comprised 28.4% of cases in the SEER SBM and 34.6% in the Medicare LBM populations. Extending this effect seen in cancers lacking hormone receptor expression, the greatest LBM rates were observed among patients with the triple negative (Her2−/ER−/PR−) molecular subtype: the SEER SBM IP among triple negative patients was 0.7%, whereas the Medicare LBM IP was about five times greater at 4.2% (Fig. 2B). Multiple sources report patients with triple negative cancer diagnosed with SBM have median survival of about 6 months (95% CI, 2.0–20.0), in contrast to median survival following HER2−/HR+ and HER2+/HR+ SEER SBM at 14.0 and 21.0 months, respectively (6, 34, 35).

Previous studies have demonstrated that male sex is associated with a greater IP of melanoma BM, which was the case for IP of both SEER SBM and Medicare LBM in the population studied here (Fig. 3B; ref. 36). Kromer and colleagues showed that the IP of SEER SBM in melanoma cases was 1.2% for the general population, which is slightly greater than the IP observed in the elderly population here (1.1%; ref. 5).

Although NCCN guidelines recommend cranial MRI for stage III (regional) and IV (metastatic) melanoma (37), our results suggest cranial evaluation may be warranted even for localized disease. Of Medicare LBM cases, 34.6% were considered localized at the time of primary cancer diagnosis (Supplementary Table S3). Considering the broader population, 2.6% of localized melanoma cases later had evidence of Medicare LBM, a proportion that increases to 30.4% among patients with distant disease (Supplementary Table S4).

Because the ICD code 198.3 describes metastasis to the CNS rather than the brain, we used this CNS metastasis code coupled with an intracranial imaging procedure to help ensure localization to the brain. The use of claims data are also problematic because BM is not itself tied to reimbursement, although some investigators report excellent classification performance compared with retrospective chart review (38). This work reports several BM identification algorithms that yield either sensitivity or PPV exceeding 0.8, but none with both sensitivity and PPV that simultaneously exceeding 0.8 (Tables 1 and 2). Although insufficient for precise, individual-level prediction, estimates of frequency appeared consistent or comparable across data sources, suggesting claims data may reasonably be used to evaluate incidence of metastatic disease.

Two significant limitations to this study are (i) generalizability of the Medicare population to the population at large and (ii) accuracy of CNS metastasis diagnosis and imaging procedure codes to detecting BM.

Because BM IP peaks for cancers diagnosed at around 60 years of age, our estimates in the population that was age-eligible for Medicare must be cautiously applied to future work (36, 39). Further, the occurrence of BM arising from breast cancers can greatly exceed the average four years of Medicare claims follow-up available here, although the interval from lung cancer primary diagnosis to BM is well-covered by available claims follow-up. Despite these potential issues, confirmation of the decreased IP of SBM in elderly patients is itself a generalizable conclusion because Medicare covers approximately 97% of the population 65 years or older (8, 40).

Careful consideration must be given to the use of claims data for metastasis research (40–42). This work addresses this need by purposefully omitting statistical tests of difference, and by providing concordance estimates of Medicare algorithms identifying BM. This is the first study to examine Medicare concordance with a SEER gold standard for BM, thus providing context for many future Medicare claims-driven studies of cranial disease following cancer diagnosis, but such highly-reliable data as SEER are not always available. Studies of Medicare claims (part of what is now widely-agreed to be “real-world” data; ref. 43) may benefit from similar evaluation of codes used to derive patient characteristics.

One significant strength of this work is the availability of documented analysis code, ideally enabling study replication with a single command (“make”; Ref. 15). To the best of our knowledge, this is the first such open and reproducible SEER-Medicare work.

The results of this study approximately agree with previous population-based estimates of BM incidence, and rigorously shed light on which disease may warrant closer monitoring. Despite increases in the incidence of BMs, the majority of primary cancer diagnoses have no standard of care for brain metastasis screening (4). The development of screening guidelines based on such population-level evidence could help to identify many patients’ cranial disease sooner in its progression, ultimately allowing earlier treatment and improved patient outcomes.
