Background: 1,3-Butadiene (BD) is an important carcinogen in tobacco smoke that undergoes metabolic activation to DNA-reactive epoxides. These species can be detoxified via glutathione conjugation and excreted in urine as the corresponding N-acetylcysteine conjugates. We hypothesize that single nucleotide polymorphisms (SNPs) in BD-metabolizing genes may change the balance of BD bioactivation and detoxification in White, Japanese American, and African American smokers, potentially contributing to ethnic differences in lung cancer risk.

Methods: We measured the levels of BD metabolites, 1- and 2-(N-acetyl-L-cysteine-S-yl)-1-hydroxybut-3-ene (MHBMA) and N-acetyl-S-(3,4-dihydroxybutyl)-L-cysteine (DHBMA), in urine samples from a total of 1,072 White, Japanese American, and African American smokers and adjusted these values for body mass index, age, batch, and total nicotine equivalents. We also conducted a genome-wide association study to identify genetic determinants of BD metabolism.

Results: We found that mean urinary MHBMA concentrations differed significantly by ethnicity (P = 4.0 × 10−25). African Americans excreted the highest levels of MHBMA followed by Whites and Japanese Americans. MHBMA levels were affected by GSTT1 gene copy number (P < 0.0001); conditional on GSTT1, no other polymorphisms showed a significant association. Urinary DHBMA levels also differed between ethnic groups (P = 3.3 × 10−4), but were not affected by GSTT1 copy number (P = 0.226).

Conclusions:GSTT1 gene deletion has a strong effect on urinary MHBMA levels, and therefore BD metabolism, in smokers.

Impact: Our results show that the order of MHBMA levels among ethnic groups is consistent with their respective lung cancer risk and can be partially explained by GSTT1 genotype. Cancer Epidemiol Biomarkers Prev; 26(7); 1034–42. ©2017 AACR.

Cigarette smoking is a leading cause of lung cancer (1), with 14%–28% of male smokers and 13%–28% of female smokers above the age of 35 at risk for developing the disease in the United States (1). Smoking is responsible for 87% and 70% of lung cancer–related deaths in men and in women, respectively (2). However, the risk for the development of lung cancer in smokers varies greatly between ethnic groups, with African American and Native Hawaiian smokers having the highest risk, followed by White, Japanese American, and Latino smokers (3). These ethnic differences remain after adjustment for reported smoking history (3). While the exact origins of the pronounced ethnic differences in smoking-induced lung cancer risk remain to be established, the frequencies of genetic polymorphisms in xenobiotic metabolism genes differ significantly between racial groups, potentially affecting the extent of carcinogen bioactivation to DNA-reactive species (4–11).

The mechanism of smoking-induced lung cancer involves irreversible binding of metabolically activated tobacco carcinogens to DNA, forming covalent DNA adducts which cause mutations in critical genes (12). Cigarette smoke contains 69 known carcinogens, including 1,3-butadiene (BD; 20–75 mg and 205–360 mg per cigarette in mainstream and side stream smoke, respectively; refs. 13, 14). BD is a multi-site carcinogen in laboratory rats and mice (15–18). Epidemiologic studies have uncovered an association between occupational exposure to BD and the development of leukemia and lymphoma in humans, leading to its classification as a Group 1 agent by International Agency for Research on Cancer (IARC) and as a known human carcinogen by the National Toxicology Program (19–26).

BD is metabolically activated to several DNA-reactive species, including 3,4-epoxybut-1-ene (EB), 1,2,3,4-diepoxybutane (DEB), hydroxymethylvinyl ketone (HMVK), and 3,4-epoxy-1,2-butanediol (EBD; Fig. 1; refs. 27–29). Epoxidation of BD to EB is catalyzed by cytochrome P450 monooxygenases 2E1 and 2A6 (CYP2E1 and 2A6; ref. 30). Epoxide hydrolase (EH)-mediated hydrolysis of EB gives rise to 1-butene-3,4-diol (EB-diol), which is subsequently converted to HMVK by alcohol dehydrogenase (ADH; refs. 29, 31). Alternatively, EB can be further epoxidized by CYP2E1 to 1,2,3,4-diepoxybutane (DEB; ref. 28), which in turn can be hydrolyzed to epoxy-1,2-butanediol (EBD; refs. 32, 33).

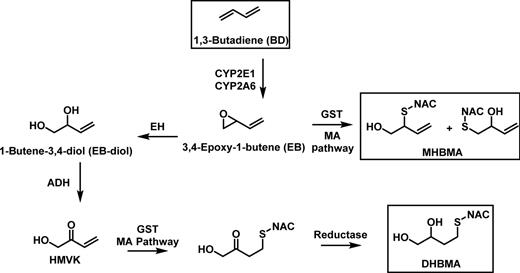

Figure 1.

Metabolism and detoxification of BD.

Figure 1.

Metabolism and detoxification of BD.

Close modal

Analysis of urinary BD-mercapturic acids can be employed to monitor human exposure to BD and the extent of its bioactivation to electrophilic species. EB, HMVK, EBD, and DEB can be conjugated with glutathione (GSH) and further processed via the mercapturic acids pathway to form 2-(N-acetyl-L-cystein-S-yl)-1-hydroxybut-3-ene and 1-(N-acetyl-L-cystein-S-yl)-1-hydroxybut-3-ene; together referred to as MHBMA; Fig. 1), N-acetyl-S-(3,4-dihydroxybutyl)-L-cysteine (DHBMA), 4-(N-acetyl-L-cystein-S-yl)-1,2,3-trihydroxybutane (THBMA), and 1,4-bis-(N-acetyl-L-cystein-S-yl)butane-2,3-diol (bis-BDMA), respectively (Fig. 1; refs. 34–39). It has been proposed that glutathione S-transferases theta 1 and mu 1 (GSTT1 and GSTTM1) can catalyze this reaction (40, 41); however, direct biochemical evidence for their involvement was not provided. Urinary concentrations of MHBMA and DHBMA are elevated in smokers as compared with nonsmokers and decrease upon smoking cessation; of the two, MHBMA is more strongly associated with smoking (35, 42, 43).

Significant interspecies differences in response to butadiene have been observed, with laboratory mice being significantly more sensitive than rats towards BD-induced cancer (16, 17). Mice developed lung tumors following BD exposure to as low as 6.25 ppm, while rats developed only minor tumors at BD exposures as high as 1,000 ppm (16, 17). These differences are thought to be a result of more efficient bioactivation of BD to EB and DEB and less efficient detoxification of BD-epoxides in mice (27, 44–46). Similarly, the balance of BD bioactivation and detoxification in a given individual is likely to be dependent upon competing enzymatic reactions mediated by CYP2E1, CYP2A6, EH, ADH, and GST proteins (Fig. 1). Specifically, SNPs in genes encoding for butadiene metabolism genes may affect the metabolic pathways of BD in smokers and workers occupationally exposed to BD, potentially modifying lung cancer risk (47–50).

The main goals of the current study were to compare urinary excretion of butadiene metabolites MHBMA and DHBMA in a large cohort of African American, White, and Japanese American smokers and to examine the associations between urinary MHBMA and DHBMA excretion and specific genetic variants via a large-scale genome-wide association study (GWAS). By identifying variants associated with MHBMA and DHBMA excretion, we can begin to establish the mechanisms by which differences in BD metabolism may modify the risk of smoking-induced lung cancer.

Materials

MHBMA, DHBMA, 2H6-MHBMA, and 2H7-DHBMA were purchased from Toronto Research Chemicals. Recombinant human GSTT1 and GSTT2 were purchased from MyBioSource. Liquid chromatography/mass spectrometry (LC/MS) grade formic acid was obtained from Sigma Aldrich, and LC/MS grade water and acetonitrile were acquired from Thermo Fisher Scientific. All other reagents were purchased from Sigma Aldrich. Oasis HLB 96-well plates were procured from Waters Corporation.

Study population

Subjects for this study were participants in the Multiethnic Cohort Study (MEC), which consists of 215,251 men and women from five ethnic groups: Whites, African Americans, Hawaiians, Japanese Americans, and Latinos (3). Participants, aged 45–75 years old, from Hawaii and California enrolled in the MEC between 1993 and 1996 by completing a detailed questionnaire that outlined dietary habits, demographic factors, education level, occupation, personal behavior, prior medical conditions, and family history of cancer.

This specific study employed urine samples from Japanese American, African American, and White individuals who were current smokers at time of urine collection and had no personal history of cancer. Blood and first morning urine samples were collected from participants in California; blood and an overnight urine samples were collected from participants in Hawaii. All urine samples were kept on ice until processing; aliquots were stored at −20°C until analysis.

Data collection

A total of 1,072 samples were analyzed for MHBMA and DHBMA (n = 327 African Americans, 396 Whites, and 349 Japanese Americans). MHBMA and DHBMA concentrations were adjusted for age at urine collection, sex, total nicotine equivalents (TNE), and in some cases, for urinary creatinine. The methods of measuring creatinine and TNE (the sum of nicotine, cotinine, 3′-hydroxycotinine and their glucuronides, and nicotine N-oxide) have been previously described (7, 51, 52).

HPLC-ESI-MS/MS analysis of MHBMA and DHBMA in human urine

Urinary concentrations of MHBMA and DHBMA were determined using previously published high-performance liquid chromatography/electrospray ionization tandem/mass spectrometry (HPLC-ESI-MS/MS) methods described in Supplement S1 (9, 53). Samples that showed no MHBMA or DHBMA signal were assigned a value corresponding to the limit of detection divided by 2 [0.1 ng/mL urine for MHBMA (9 samples) and 2.5 ng/mL urine for DHBMA (2 samples)].

Sixteen sets of quality control samples (48 samples total) were included in the analyses. These positive controls were used to account for inter-batch variation. When necessary, data were adjusted for batch variations using the values for urinary MHBMA and DHBMA concentration in these samples. Overall, the mean coefficient of variation for these replicates was 8.87% and 8.49% for MHBMA and DHBMA, respectively.

In addition to calculating urinary MHBMA and DHBMA concentrations, a metabolic ratio [MHBMA/(MHBMA + DHBMA)] was calculated. For this investigation, the metabolic ratio can be representative of a fraction of nonhydrolyzed EB and may provide an understanding into the extent of metabolic activation and detoxification of BD in a given individual.

Genotyping and quality control

DNA was extracted from blood leukocytes using a QIAamp DNA blood extraction kit (Qiagen). Samples were genotyped using the Illumina Human1M-Duo BeadChip (1,199,187 SNPs) as described previously (54). The genotyping quality control consisted of removing individual samples with ≥2% of genotypes not called, removing SNPs ≤98% call rate and known duplicate samples, excluding samples with close relatives (as determined by estimated IBD status), and samples with conflicting or indeterminate sex. Imputation was performed using SHAPEIT and IMPUTE2 to a reference panel from the 1000 Genomes Project (1KGP; March, 2012; refs. 55, 56). We included SNPs with an IMPUTE2 info score of ≥0.30 and minor allele frequency (MAF) >1% in any MEC ethnic group. A total of 11,892,802 SNPs/indels with a frequency >1% in any single ethnic population (1,131,426 genotyped and 10,761,376 imputed) were included in the analysis.

GSTT1 and GSTM1 gene copy number assays were run using TaqMan copy number assays Hs00010004_cn and Hs02575461_cn, respectively. The assays were run on the 7900HT FAST Real-Time PCR System (Life Technologies) and the copy number calls were determined using the CopyCaller v2.0 software (Life Technologies). Approximately 5% blind duplicate samples were included for quality control. Genotyping of the GSTT1 and GSTM1 deletion polymorphisms was successful in 1,009, and 1,068 individuals, respectively. For the purposes of this study, the deletion or null genotype is represented as (0/0), one copy of the gene is represented as (1/0), and two copies of the gene is represented as (1/1).

Statistical analysis

Association of each variant with geometric means of MHBMA, DHBMA, or metabolic ratio [MHBMA/(MHBMA + DHBMA)] was evaluated using linear regression models, with adjustment for age at urine collection, sex, race, TNE, body mass index (BMI) and the first 10 principal components. Principal components were estimated using 19,059 randomly selected autosomal SNPs with frequency ≥ 2% in the combined multiethnic sample (57). A P value cutoff of 5 × 10−8 was used for genome-wide significance. In regions with multiple associated variants, conditional models were used to evaluate individual signals at P < 5 × 10−8. In a like manner, ethnic-specific analyses were performed in each of the three individual populations. Percentage variation of MHBMA, DHBMA, or the metabolic ratio was assessed using R2 values. To further assess associations with variants located in the deleted region, analyses among subjects homozygous for the GSTT1 non-null alleles were performed. We further examined associations of MHBMA, DHBMA, and metabolic ratio with variants in candidate gene regions known to be involved in butadiene metabolism and DNA repair (e.g., EPHX1, CYP2E1, and RAD51).

GSTT1 and GSTT2 catalyzed conjugation of EB with glutathione

3,4-epoxybut-1-ene (EB; final concentration: 2 mmol/L) was incubated with glutathione (GSH; final concentration: 5 mmol/L) in the presence or in the absence of GSTT1 or 2 (0, 2.5, or 5 μg) in 0.1 mol/L phosphate buffer, pH 7.4 (50 μL total volume). The mixtures were allowed to incubate for 2 hours at 37°C and quenched with 15% (w/w) trichloroacetic acid (50 μL). Reaction mixtures were filtered using Amicon Ultra Centrifugal Filters (0.5 mL, 10K; EMD Millipore), and the filters were subsequently washed with 100-μL water.

HPLC-ESI+-MS/MS analyses were performed using an Agilent 1100 Series HPLC (Agilent Technologies) coupled to an Agilent 1100 Series LC/MSD Trap SL (Agilent Technologies). An Agilent Zorbax SB300 C18 column (150 × 0.5 mm, 5 μm) was maintained at 25°C and eluted with 15 mmol/L ammonium acetate (A) and methanol (B) with a linear gradient of (time, %B): 0–20 minutes, 2%–20% B. Under these conditions, the epoxybutene–glutathione conjugate (EB-GSH) eluted at approximately 3.8 minutes. Extracted ion chromatograms of the conjugate, m/z 317.2, were used to determine the fold increase in EB-GSH formation as compared with the corresponding nonenzymatic reaction.

A total of 1,072 smokers (327 African Americans, 349 Japanese Americans, and 396 Whites) were included in the analysis (Table 1). Overall, there were significant differences in smoking habits between these groups, with Whites smoking the greatest numbers of cigarettes per day (CPD), followed by Japanese Americans and African Americans (Table 1). Racial/ethnic differences were observed also for TNE, with, however, a different ordering: African American smokers had the highest levels, followed by Whites and Japanese Americans (Table 1). These trends with respect to CPD and TNE were the same when the smokers were categorized by sex. Significant differences were also seen in the creatinine levels between the groups, with African Americans having much higher levels than Japanese Americans and Whites (Table 1). Because of this large variability, MHBMA and DHBMA levels can appear artificially low for African Americans when adjusted for creatinine (Supplementary Table S1). Therefore, unadjusted values (ng/mL urine) were employed in our final analyses.

Table 1.

Summary of study population stratified by race/ethnicity and sex

Median [interquartile range]
African AmericansJapanese AmericansWhites
All n = 327 n = 349 n = 396
 Age (years) 64 [59–69] 63 [59–69] 62 [59–68]
 BMI (kg/m226.9 [23.2–30.7] 24.3 [21.9–26.6] 24.8 [22.0–28.1]
 Creatinine (mg/dL) 88 [54–138] 54 [33–81] 53 [33–83.2]
 Cigarettes per day 10 [5–18] 13 [10–20] 17 [10–20]
 Total nicotine equivalents (nmol/mL) 44.2 [26.8–73.8] 26.5 [15.4–41.2] 35.8 [21.9–60.8]
Males n = 94 n = 181 n = 169
 Age (years) 63 [58–66] 63 [59–68] 62 [59–67]
 BMI (kg/m225.7 [23.0–28.2] 25.0 [23.0–26.9] 25.8 [23.3–27.9]
 Creatinine (mg/dL) 124.5 [81.5–165.1] 66 [40–95] 71.0 [46.3–104.0]
 Cigarettes per day 10 [6–20] 15 [10–20] 20 [12.5–20]
 Total nicotine equivalents (nmol/mL) 54.4 [29.2–95.5] 29.3 [17.9–45.6] 39.9 [24.6–73.0]
Females n = 233 n = 168 n = 227
 Age (years) 65 [60–71] 64 [59–70.5] 62 [58–69]
 BMI (kg/m227.5 [23.6–31.6] 23.4 [20.6–26.5] 24.0 [21.0–28.3]
 Creatinine (mg/dL) 79 [50–126] 44.5 [28.0–63.5] 46 [29–65]
 Cigarettes per day 10 [5–15] 10 [7.5–20] 15 [7–20]
 Total nicotine equivalents (nmol/mL) 41.3 [26.1–65.3] 22.5 [13.0–35.0] 31.2 [20.2–50.5]
Median [interquartile range]
African AmericansJapanese AmericansWhites
All n = 327 n = 349 n = 396
 Age (years) 64 [59–69] 63 [59–69] 62 [59–68]
 BMI (kg/m226.9 [23.2–30.7] 24.3 [21.9–26.6] 24.8 [22.0–28.1]
 Creatinine (mg/dL) 88 [54–138] 54 [33–81] 53 [33–83.2]
 Cigarettes per day 10 [5–18] 13 [10–20] 17 [10–20]
 Total nicotine equivalents (nmol/mL) 44.2 [26.8–73.8] 26.5 [15.4–41.2] 35.8 [21.9–60.8]
Males n = 94 n = 181 n = 169
 Age (years) 63 [58–66] 63 [59–68] 62 [59–67]
 BMI (kg/m225.7 [23.0–28.2] 25.0 [23.0–26.9] 25.8 [23.3–27.9]
 Creatinine (mg/dL) 124.5 [81.5–165.1] 66 [40–95] 71.0 [46.3–104.0]
 Cigarettes per day 10 [6–20] 15 [10–20] 20 [12.5–20]
 Total nicotine equivalents (nmol/mL) 54.4 [29.2–95.5] 29.3 [17.9–45.6] 39.9 [24.6–73.0]
Females n = 233 n = 168 n = 227
 Age (years) 65 [60–71] 64 [59–70.5] 62 [58–69]
 BMI (kg/m227.5 [23.6–31.6] 23.4 [20.6–26.5] 24.0 [21.0–28.3]
 Creatinine (mg/dL) 79 [50–126] 44.5 [28.0–63.5] 46 [29–65]
 Cigarettes per day 10 [5–15] 10 [7.5–20] 15 [7–20]
 Total nicotine equivalents (nmol/mL) 41.3 [26.1–65.3] 22.5 [13.0–35.0] 31.2 [20.2–50.5]

Geometric means for urinary concentrations of MHBMA and DHBMA in African American, Japanese American, and White smokers (ng/mL urine) are given in Table 2.

Table 2.

Geometric means (95% confidence limits) for urinary MHBMA and DHBMA by race/ethnicity and sex

AllAfrican AmericansJapanese AmericansWhites
Geometric meansa (95% CL)aGeometric meansa (95% CL)aGeometric meansa (95% CL)aGeometric meansa (95% CL)aPb
All
N 1072 327 349 396
 MHBMA 4.8 (4.5–5.2) 6.4 (5.9–7.0) 3.3 (3.0–3.6)c 5.7 (5.2–6.1) 4.0 × 10−25
 DHBMA 308.8 (292.8–325.8) 362.0 (332.5–394.1)c 292.7 (270.1–317.3) 294.6 (274.1–316.7) 3.3 × 10−4
 MHBMA/(MHBMA + DHBMA) 0.017 (0.016–0.018) 0.018 (0.016–0.019) 0.012 (0.011–0.012)c 0.020 (0.018–0.021) 1.7 × 10−14
Males
N 444 94 181 169
 MHBMA 5.3 (4.9–5.7) 7.6 (6.5–8.9) 3.9 (3.4–4.3)c 6.4 (5.7–7.2) 7.5 × 10−11
 DHBMA 345.3 (322.3–370) 411.5 (355.8–475.8)c 335.0 (300.5–373.4) 341.5 (306.7–380.3) 0.07
 MHBMA/(MHBMA + DHBMA) 0.016 (0.015–0.018) 0.019 (0.016–0.023) 0.012 (0.011–0.014)c 0.020 (0.017–0.022) 2.2 × 10−6
Females
N 628 233 168 227
 MHBMA 4.6 (4.3–4.8) 5.6 (5.0–6.2) 2.9 (2.5–3.2)c 5.1 (4.6–5.7) 1.7 × 10−15
 DHBMA 287.2 (271.2–304.1) 322.6 (291–357)c 258.2 (299.1–291.1) 257.7 (233.7–284.1) 4.1 × 10−3
 MHBMA/(MHBMA + DHBMA) 0.017 (0.016–0.018) 0.018 (0.016–0.021) 0.012 (0.010–0.014)c 0.021 (0.019–0.023) 2.8 × 10−9
AllAfrican AmericansJapanese AmericansWhites
Geometric meansa (95% CL)aGeometric meansa (95% CL)aGeometric meansa (95% CL)aGeometric meansa (95% CL)aPb
All
N 1072 327 349 396
 MHBMA 4.8 (4.5–5.2) 6.4 (5.9–7.0) 3.3 (3.0–3.6)c 5.7 (5.2–6.1) 4.0 × 10−25
 DHBMA 308.8 (292.8–325.8) 362.0 (332.5–394.1)c 292.7 (270.1–317.3) 294.6 (274.1–316.7) 3.3 × 10−4
 MHBMA/(MHBMA + DHBMA) 0.017 (0.016–0.018) 0.018 (0.016–0.019) 0.012 (0.011–0.012)c 0.020 (0.018–0.021) 1.7 × 10−14
Males
N 444 94 181 169
 MHBMA 5.3 (4.9–5.7) 7.6 (6.5–8.9) 3.9 (3.4–4.3)c 6.4 (5.7–7.2) 7.5 × 10−11
 DHBMA 345.3 (322.3–370) 411.5 (355.8–475.8)c 335.0 (300.5–373.4) 341.5 (306.7–380.3) 0.07
 MHBMA/(MHBMA + DHBMA) 0.016 (0.015–0.018) 0.019 (0.016–0.023) 0.012 (0.011–0.014)c 0.020 (0.017–0.022) 2.2 × 10−6
Females
N 628 233 168 227
 MHBMA 4.6 (4.3–4.8) 5.6 (5.0–6.2) 2.9 (2.5–3.2)c 5.1 (4.6–5.7) 1.7 × 10−15
 DHBMA 287.2 (271.2–304.1) 322.6 (291–357)c 258.2 (299.1–291.1) 257.7 (233.7–284.1) 4.1 × 10−3
 MHBMA/(MHBMA + DHBMA) 0.017 (0.016–0.018) 0.018 (0.016–0.021) 0.012 (0.010–0.014)c 0.021 (0.019–0.023) 2.8 × 10−9

NOTE: Values are given in ng/mL urine.

aP values and geometric least square means have been adjusted for BMI, age at urine collection, batch, TNE (and sex where appropriate).

bP values are comparing overall differences across ethnic groups.

cP values across ethnic groups (with Whites as the reference) were indicated where significant with P < 0.05.

Urinary levels of MHBMA were significantly different between the three ethnic groups overall (P = 4.0 × 10−25) in both genders (males: P = 7.5 × 10−11, females: P = 1.7 × 10−15). African American smokers excreted the highest amounts of MHBMA (6.4 ng/mL urine), followed by White (5.7 ng/mL urine) and Japanese American smokers (3.3 ng/mL urine). Urinary levels of DHBMA also differed across ethnic groups (P = 3.3 × 10−4), with African Americans excreting the highest amounts of the metabolite, followed by White and Japanese American smokers (362.0, 294.6, and 292.7 ng/mL urine, respectively). These overall differences were less significant in males (P = 0.07) as compared with females (P = 4.1 × 10−13). However, DHBMA levels in African American males were significantly higher than in White males (P < 0.05). Similarly, female African American smokers excreted significantly higher amounts of DHBMA than White females (P < 0.05). The ethnic differences for the metabolic ratio [calculated as MHBMA/(MHBMA + DHBMA)] were statistically significant (P = 1.7 × 10−14) and followed the same overall trend as MHBMA (Table 2). Ethnic differences in the extent of metabolic activation and detoxification of BD were observed for each sex (males: P = 2.2 × 10−6, females: P = 2.8 × 10−9). For both sexes, the metabolic ratio was significantly lower in Japanese Americans as compared with Whites (P < 0.05), while no differences were observed for other ethnic groups.

GST-catalyzed glutathione conjugation is the major metabolic pathway leading to MHBMA and DHBMA (Fig. 1). Therefore, MHBMA and DHBMA concentrations across ethnic groups were stratified by GSTT1 copy number (Table 3). Of the three ethnic groups, Japanese Americans had the highest frequency of the null genotype (48%), followed by African Americans (23%) and Whites (19%; Table 3). For all ethnic groups, both MHBMA levels and metabolic ratios were strongly associated with GSTT1 deletion copy number genotype (P < 0.0001). Individuals with two copies of the gene (1/1) excreted the highest amount of MHBMA (6.9 ng/mL urine), followed by those with one copy of GSTT1 (1/0, 5.4 ng/mL urine) and those with null deletion genotype (0/0; 3.1 ng/mL urine; Table 3). Among individuals null for GSTT1, Japanese American smokers had significantly lower urinary MHBMA levels than Whites (P < 0.05). No significant association between GSTT1 deletion and excretion of DHBMA was seen in any of the ethnic groups (Table 3).

Table 3.

Geometric means (95% CI) of BD metabolites stratified by GSTT1 and GSTM1 CNV and race/ethnicity

AllWhitesAfrican AmericansJapanese Americans
GSTT1 copy number genotypeaNGeometric means (95% CL)bNGeometric means (95% CL)bNGeometric means (95% CL)bNGeometric means (95% CL)bP
MHBMA (ng/mL)
 1/1 232 6.9 (6.3–7.6) 126 7.6 (6.8–8.6) 78 9.7 (8.4–11.2)c 28 4.1 (3.0–5.6)c 1.6 × 10−3
 1/0 482 5.4 (5.1–5.8) 187 5.7 (5.1–6.2) 155 8.2 (7.4–9.1)c 140 3.6 (3.1–4.1)c 3.2 × 10−6
 0/0 295 3.1 (2.9–3.4) 72 3.0 (2.6–3.5) 71 5.1 (4.4–5.9) 152 2.0 (1.8–2.3)c 2.8 × 10−6
  P <0.0001 <0.0001 <0.0001 <0.0001
DHBMA (ng/mL)
 1/1 232 293.9 (266.7–323.8) 126 284.8 (250.2–324.2) 78 406.2 (341.6–483.0) 28 222.3 (172.6–286.2) 0.28
 1/0 482 322.4 (302.1–344.1) 187 302.3 (272.0–335.9) 155 455.1 (402.3–514.7)c 140 241.1 (215.3–270.0) 1.7 × 10−3
 0/0 295 325.5 (290.0–354.4) 72 337.7 (284.6–400.7) 71 425.4 (355.5–509.1) 152 244.6 (219.5–272.6) 0.19
  P 0.226 0.293 0.536 0.790
MHBMA / (MHBMA + DHBMA) ratio
 1/1 232 0.025 (0.022–0.027) 126 0.028 (0.024–0.032) 78 0.025 (0.021–0.030) 28 0.020 (0.014–0.027)c 9.0 × 10−3
 1/0 482 0.018 (0.017–0.019) 187 0.020 (0.018–0.022) 155 0.019 (0.017–0.022) 140 0.016 (0.014–0.018)c 0.04
 0/0 295 0.010 (0.009–0.011) 72 0.010 (0.008–0.011) 71 0.013 (0.010–0.015) 152 0.009 (0.008–0.010) 4.7 × 10−3
  P <0.0001 <0.0001 <0.0001 <0.0001
 All Whites African Americans Japanese Americans
GSTM1 copy number genotype N Geometric means (95% CL)b N Geometric means (95% CL)b N Geometric means (95% CL)b N Geometric means (95% CL)b P
MHBMA (ng/mL)
 1/1 137 5.5 (4.8–6.2) 207 7.4 (5.8–9.3) 75 7.7 (6.6–9.0) 27 3.0 (2.1–4.1)c 4.2 × 10−3
 1/0 452 5.3 (5.0–5.7) 153 6.4 (5.7–7.2) 157 7.6 (6.8–8.5) 142 3.2 (2.7–3.6)c 1.3 × 10−11
 0/0 479 4.4 (4.1–4.8) 35 4.9 (4.4–5.4) 94 7.6 (6.6–8.7)c 178 2.6 (2.3–3.0)c 1.6 × 10−12
  P <0.0001 <0.0001 0.986 0.134
DHBMA (ng/mL)
 1/1 137 310.7 (274.8–351.3) 207 294.0 (230.1–375.5) 75 412.5 (347.4–489.9) 27 245.9 (190.1–318.1) 0.39
 1/0 452 318.3 (297.7–340.4) 153 302.1 (268.6–339.7) 157 434.1 (383.8–490.1)c 142 245.7 (219.7–274.7) 0.01
 0/0 479 315.4 (295–337.3) 35 300.1 (271.2–332.1) 94 436.1 (370.9–512.6)c 178 244.5 (221.3–270.1) 0.05
  P 0.94 0.098 0.868 0.997
MHBMA/(MHBMA + DHBMA) ratio
 1/1 137 0.019 (0.014–0.016) 207 0.026 (0.020–0.035) 75 0.020 (0.016–0.024) 27 0.013 (0.009–0.018)c 8.8 × 10−4
 1/0 452 0.018 (0.016–0.019) 153 0.022 (0.019–0.025) 157 0.018 (0.016–0.021)b 142 0.014 (0.012–0.016)c 5.8 × 10−8
 0/0 479 0.015 (0.014–0.016) 35 0.017 (0.015–0.019) 94 0.018 (0.015–0.022) 178 0.011 (0.010–0.013)c 1.1 × 10−6
  P <0.0001 <0.0001 0.808 0.157
AllWhitesAfrican AmericansJapanese Americans
GSTT1 copy number genotypeaNGeometric means (95% CL)bNGeometric means (95% CL)bNGeometric means (95% CL)bNGeometric means (95% CL)bP
MHBMA (ng/mL)
 1/1 232 6.9 (6.3–7.6) 126 7.6 (6.8–8.6) 78 9.7 (8.4–11.2)c 28 4.1 (3.0–5.6)c 1.6 × 10−3
 1/0 482 5.4 (5.1–5.8) 187 5.7 (5.1–6.2) 155 8.2 (7.4–9.1)c 140 3.6 (3.1–4.1)c 3.2 × 10−6
 0/0 295 3.1 (2.9–3.4) 72 3.0 (2.6–3.5) 71 5.1 (4.4–5.9) 152 2.0 (1.8–2.3)c 2.8 × 10−6
  P <0.0001 <0.0001 <0.0001 <0.0001
DHBMA (ng/mL)
 1/1 232 293.9 (266.7–323.8) 126 284.8 (250.2–324.2) 78 406.2 (341.6–483.0) 28 222.3 (172.6–286.2) 0.28
 1/0 482 322.4 (302.1–344.1) 187 302.3 (272.0–335.9) 155 455.1 (402.3–514.7)c 140 241.1 (215.3–270.0) 1.7 × 10−3
 0/0 295 325.5 (290.0–354.4) 72 337.7 (284.6–400.7) 71 425.4 (355.5–509.1) 152 244.6 (219.5–272.6) 0.19
  P 0.226 0.293 0.536 0.790
MHBMA / (MHBMA + DHBMA) ratio
 1/1 232 0.025 (0.022–0.027) 126 0.028 (0.024–0.032) 78 0.025 (0.021–0.030) 28 0.020 (0.014–0.027)c 9.0 × 10−3
 1/0 482 0.018 (0.017–0.019) 187 0.020 (0.018–0.022) 155 0.019 (0.017–0.022) 140 0.016 (0.014–0.018)c 0.04
 0/0 295 0.010 (0.009–0.011) 72 0.010 (0.008–0.011) 71 0.013 (0.010–0.015) 152 0.009 (0.008–0.010) 4.7 × 10−3
  P <0.0001 <0.0001 <0.0001 <0.0001
 All Whites African Americans Japanese Americans
GSTM1 copy number genotype N Geometric means (95% CL)b N Geometric means (95% CL)b N Geometric means (95% CL)b N Geometric means (95% CL)b P
MHBMA (ng/mL)
 1/1 137 5.5 (4.8–6.2) 207 7.4 (5.8–9.3) 75 7.7 (6.6–9.0) 27 3.0 (2.1–4.1)c 4.2 × 10−3
 1/0 452 5.3 (5.0–5.7) 153 6.4 (5.7–7.2) 157 7.6 (6.8–8.5) 142 3.2 (2.7–3.6)c 1.3 × 10−11
 0/0 479 4.4 (4.1–4.8) 35 4.9 (4.4–5.4) 94 7.6 (6.6–8.7)c 178 2.6 (2.3–3.0)c 1.6 × 10−12
  P <0.0001 <0.0001 0.986 0.134
DHBMA (ng/mL)
 1/1 137 310.7 (274.8–351.3) 207 294.0 (230.1–375.5) 75 412.5 (347.4–489.9) 27 245.9 (190.1–318.1) 0.39
 1/0 452 318.3 (297.7–340.4) 153 302.1 (268.6–339.7) 157 434.1 (383.8–490.1)c 142 245.7 (219.7–274.7) 0.01
 0/0 479 315.4 (295–337.3) 35 300.1 (271.2–332.1) 94 436.1 (370.9–512.6)c 178 244.5 (221.3–270.1) 0.05
  P 0.94 0.098 0.868 0.997
MHBMA/(MHBMA + DHBMA) ratio
 1/1 137 0.019 (0.014–0.016) 207 0.026 (0.020–0.035) 75 0.020 (0.016–0.024) 27 0.013 (0.009–0.018)c 8.8 × 10−4
 1/0 452 0.018 (0.016–0.019) 153 0.022 (0.019–0.025) 157 0.018 (0.016–0.021)b 142 0.014 (0.012–0.016)c 5.8 × 10−8
 0/0 479 0.015 (0.014–0.016) 35 0.017 (0.015–0.019) 94 0.018 (0.015–0.022) 178 0.011 (0.010–0.013)c 1.1 × 10−6
  P <0.0001 <0.0001 0.808 0.157

a(0/0) is equivalent to the gene deletion.

bAdjusted for age at urine collection, sex, BMI, batch, and TNE.

cP < 0.05 when compared with Whites.

To confirm that GSTT proteins can catalyze conjugation of EB glutathione, EB was incubated with glutathione in the presence of increasing amounts of recombinant human GSTT1 and GSTT2 enzymes, and the conjugation products were analyzed by HPLC-ESI-MS/MS (Supplementary Fig. S1). We found that both enzymes can catalyze this reaction, with GSTT1 exhibiting a faster rate, confirming the mechanistic involvement of these genes in MHBMA/DHBMA formation. In addition, MHBMA values were associated with GSTM1 genotype, suggesting that another isoform of glutathione S-transferase may be involved in metabolism of butadiene (Table 3).

Additional analyses were conducted to identify factors responsible for the variability noted in BD metabolite excretion. We examined the associations of urinary MHBMA and DHBMA concentrations in relation to smokers' sex, age, BMI, batch, TNE, and CPD (Table 4). We found that all together, these factors explained 44.23% of the variability in MHBMA and 32.12% of the variability in DHBMA concentrations. For both MHBMA and DHBMA models, significant differences in adjusted means were observed for Japanese Americans (P < 0.0001) when compared with Whites. The same factors explained 11.05% of the variance in the metabolic ratio and were also significant for Japanese Americans as compared with the Whites (P < 0.0001).

Table 4.

Percent variation explained

MHBMA (ng/mL)Overall percentWhitesAfrican AmericansJapanese Americans
N = 1,009variation explainednMeananMeananMeana
Sex + Age + BMI + Batch + TNE + CPD 44.23% 385 5.73 304 6.15 320 3.29
P  — 0.27 <0.0001
+ GSTT1_deletion 7.30% 385 5.30 304 5.95 320 3.76
P  — 0.05 <0.0001
+ GSTM1_deletion 0.88% 385 5.56 304 5.92 320 3.91
P  — 0.29 <0.0001
DHBMA (ng/mL)
N = 1,009
Sex + Age + BMI + Batch + TNE + CPD 32.12% 385 306.1 304 352.2 320 294.7
P  — 0.02 0.506
+ GSTT1_deletion 0.16% 385 306.7 304 350.3 320 288.3
P  — 0.03 0.31
+ GSTM1_deletion 0.00% 385 305.3 304 349.2 320 286.8
P  — 0.03 0.29
MHBMA/(MHBMA + DHBMA)
N = 1,009
Sex + Age + BMI + Batch + TNE + CPD 11.05% 385 0.020 304 0.018 320 0.012
P  — 0.32 <0.0001
+ GSTT1_deletion 11.40% 385 0.018 304 0.018 320 0.014
P  — 0.77 <0.0001
+ GSTM1_deletion 1.12% 385 0.019 304 0.018 320 0.015
P  — 0.28 <0.0001
MHBMA (ng/mL)Overall percentWhitesAfrican AmericansJapanese Americans
N = 1,009variation explainednMeananMeananMeana
Sex + Age + BMI + Batch + TNE + CPD 44.23% 385 5.73 304 6.15 320 3.29
P  — 0.27 <0.0001
+ GSTT1_deletion 7.30% 385 5.30 304 5.95 320 3.76
P  — 0.05 <0.0001
+ GSTM1_deletion 0.88% 385 5.56 304 5.92 320 3.91
P  — 0.29 <0.0001
DHBMA (ng/mL)
N = 1,009
Sex + Age + BMI + Batch + TNE + CPD 32.12% 385 306.1 304 352.2 320 294.7
P  — 0.02 0.506
+ GSTT1_deletion 0.16% 385 306.7 304 350.3 320 288.3
P  — 0.03 0.31
+ GSTM1_deletion 0.00% 385 305.3 304 349.2 320 286.8
P  — 0.03 0.29
MHBMA/(MHBMA + DHBMA)
N = 1,009
Sex + Age + BMI + Batch + TNE + CPD 11.05% 385 0.020 304 0.018 320 0.012
P  — 0.32 <0.0001
+ GSTT1_deletion 11.40% 385 0.018 304 0.018 320 0.014
P  — 0.77 <0.0001
+ GSTM1_deletion 1.12% 385 0.019 304 0.018 320 0.015
P  — 0.28 <0.0001

aAll means are expressed as geometric least squares means adjusted for age, gender, BMI, batch, TNE (CPD, GSTT1, and GSTM1 where appropriate).

After adjusting for age at urine collection, gender, batch, BMI, and race, MHBMA and DHBMA showed a strong correlation with TNE (r = 0.55 and 0.47, respectively; Table 5), while the metabolic ratio showed a moderate association (r = 0.14, Table 5). Upon adjustment for the same variables and TNE, CPD accounted for only 0.48%, 1.27%, and 0.09% of the variability in MHBMA concentration, DHBMA concentration, and the metabolic ratio, respectively (Table 5). This suggests that measured TNE is a better predictor of urinary BD metabolites than self-reported CPD. These correlations did not differ greatly when categorized by ethnic group or by GSTT1 copy number (Table 5).

Table 5.

Partial correlations

NMHBMA & TNEaNDHBMA & TNEaNMHBMA/(MHBMA + DHBMA) & TNEa
Overall 1,072 0.55 1,072 0.47 1,072 0.14
African Americans 327 0.60 327 0.54 327 0.03
Whites 396 0.59 396 0.41 396 0.23
Japanese Americans 349 0.48 349 0.46 349 0.12
GSTT1 = 1/1 232 0.70 232 0.51 232 0.25
GSTT1 = 1/0 482 0.56 482 0.44 482 0.15
GSTT1 = 0/0 295 0.54 295 0.54 295 0.07
NMHBMA & TNEaNDHBMA & TNEaNMHBMA/(MHBMA + DHBMA) & TNEa
Overall 1,072 0.55 1,072 0.47 1,072 0.14
African Americans 327 0.60 327 0.54 327 0.03
Whites 396 0.59 396 0.41 396 0.23
Japanese Americans 349 0.48 349 0.46 349 0.12
GSTT1 = 1/1 232 0.70 232 0.51 232 0.25
GSTT1 = 1/0 482 0.56 482 0.44 482 0.15
GSTT1 = 0/0 295 0.54 295 0.54 295 0.07

aAll partial correlations have been adjusted for age, gender, batch, BMI (and race where appropriate).

Aside from the GSTT1 deletion (which explains 7.3% of the variability in MHBMA levels), we also investigated the association between the metabolites and the GSTM1 deletion, which explains 0.88% of the variability in MHBMA and 1.1% of the variability in the metabolic ratio (P < 0.0001, Table 4). The GSTT1 deletion explained 0.16% of variability in DHBMA and the GSTM1 explained close to zero percent of the variability in DHBMA (0.01%). The GSTT1 deletion explains 11.4% of the variability in metabolic ratio values, with an additional 1.12% of the variability explained by the GSTM1 deletion.

Table 4 also provides tests for ethnic differences in metabolite levels before and after adjustment for the two deletion genotypes. For MHBMA, tests for heterogeneity gave a t-statistic value of 1.15 for African Americans before adjustment for the two deletion genotypes, and 1.05 after adjustment, a 9% variability attributed to racial groups provided by the deletion genotypes. Importantly, strong differences in MHBMA excretion between Japanese and White smokers remained even after adjustment for GSTT1 deletion (P < 0.0001), suggesting that additional factors contribute to ethnic differences in BD metabolism.

Besides GSTT1 and GSTM1 deletions, GWAS analyses were conducted to identify any other genomic determinants of BD metabolism (Supplementary Figs. S2–S6). For the GWAS of MHBMA (Supplementary Figs. S2–S7), we detected associations at P < 5 × 10−8 with 136 variants. However, all of them were located between 24.2–24.4 Mb near the GSTT1 gene on chromosome 22q11. Although there was one other rare association on 2p22.3 that was globally significant, this was a potentially unreliable rare variant that was not further considered. The significant associations at 22q11 were fully explained by the GSTT1 deletion, as no secondary signal was detected after conditioning on the GSTT1 deletion genotype (Supplementary Fig. S3). The deletion allele was significantly associated with lower MHBMA levels, found to be lowest among Japanese Americans (Table 3).

In ethnic-specific analyses, 108 globally significant associations were observed in Whites near GSTT1 (Supplementary Fig. S6). As in the overall analyses, the significance of the SNP associations was greatly diminished when the analyses were conditioned on the GSTT1 deletion genotype. The strongest remaining ethnic-specific association after conditioning on the GSTT1 deletion was in Whites for rs62241865 (P = 6.6 × 10−5). The neighboring gene for this SNP is SYN3. The minor allele frequency of this SNP was 6 percent in Whites and 1 percent or less in the other ethnic groups. A single association in Japanese Americans in rs6004031 (our topmost significant SNP in overall analysis) near GSTT1 was noted to be globally significant at P = 5.13 × 10−9 (Supplementary Fig. S5), and four globally significant associations were observed for African Americans (Supplementary Fig. S4). None of these associations remained strongly significant after conditioning on GSTT1.

For DHBMA levels (Supplementary Fig. S8), no genome-wide significant associations were observed in either overall or ethnic-specific analyses for any of the genotyped GWAS variants, or for SNPs and other variants that were imputed based on the GWAS.

For the metabolic ratio [MHBMA/(MHBMA+DHBMA)], there were 144 associations at P < 5 × 10−8 located between 24.2–24.4 Mb near GSTT1 gene on chromosome 22q11 (Supplementary Fig. S9). As was the case for MHBMA, these associations were explained by the GSTT1 deletion, and no secondary signal was noted after conditioning on the deletion in any ethnic group. In ethnic-specific analyses, 54 globally significant associations in Whites were observed near GSTT1. A single association in Japanese Americans in rs6004031 (our topmost significant SNP in overall analysis) near GSTT1 was noted to be globally significant at P = 1.37 × 10−9. No globally significant associations were observed for African Americans. Again, the associations observed near GSTT1 were explained by the GSTT1 deletion genotype.

Of over 60 known carcinogens present in tobacco smoke, BD has the highest cancer risk index (14, 58). BD inhalation induces tumors in laboratory mice and rats (15–18), and there is a strong association between occupational exposure to BD and the development of lymphoma and leukemia in humans (19, 21–24, 26). However, epidemiologic studies have reported a weak association between lung cancer cases in women and occupational exposure to BD (59, 60), and the potential role of BD in smoking induced lung cancer has yet to be fully understood.

We quantified urinary BD-mercapturic acids MHBMA and DHBMA (Fig. 1) as biomarkers of BD exposure and metabolic activation in African American, White, and Japanese American smokers (42, 43). Our results show significant ethnic differences in the excretion of MHBMA, with African American smokers excreting the highest levels, followed by Whites and Japanese Americans (Table 2). These results correlate with the high lung cancer risk of African Americans and low lung cancer risk of Japanese Americans as compared with Whites, suggesting that BD could play a role in the differences in lung cancer etiology seen between these groups (3). Interestingly, a similar trend was recently reported for mercapturic acids derived from acrolein, crotonaldehyde, and benzene (51, 61). Furthermore, levels of the mercapturic acid formed from benzene were strongly influenced by GSTT1 deletion, highlighting the important role of this GST gene in the detoxification of structurally distinct carcinogens (61).

In the current study, individuals with the GSTT1 deletion excreted the lowest levels of MHBMA, followed by individuals with one copy of the gene and those with two copies (Table 3). This is consistent with our recent small study of White, Native Hawaiian, and Japanese American smokers, which also reported the lowest MHBMA levels from individuals with the GSTT1 deletion, followed by those with one and two copies of the gene (9). Adjusting for GSTT1 deletion explained the difference in urinary MHBMA between Japanese Americans and Whites; however, the difference between Whites and African Americans remained (Table 4).

The effect of GSTM1 deletion on urinary MHBMA concentrations was also investigated, and among null individuals, the same trend was seen, with African Americans excreting the most MHBMA, followed by Whites and Japanese Americans (Table 3). Other glutathione S-transferases, such as GSTT2, could contribute to MHBMA formation (Supplementary Fig. S1) and account for the differences in MHBMA excretion between African Americans and Whites. However, we did not see evidence supporting a role of other GST genes in our GWAS, which found no additional signal after conditioning on GSTT1 deletion genotype.

To the best of our knowledge, this study is the first to employ a GWAS to identify SNPs or other genetic variants associated with MHBMA and DHBMA excretion. With regard to MHBMA, the GWAS showed significant associations of 136 SNPs located near the GSTT1 gene. However, when the GWAS was conditioned on GSTT1 deletion, these SNPs were no longer detected in any ethnic group. Similar results were seen in the GWAS for the metabolic ratio, which was significantly associated with 144 SNPs near the GSTT1 gene; these SNPs were also explained by the GSTT1 deletion. Experiments with recombinant GSTT1 and GSTT2 have confirmed the ability of these enzymes to catalyze glutathione conjugation with EB (Supplementary Fig. S1).

The strong relationship between the GSTT1 deletion and MHBMA levels may potentially complicate the use of MHBMA as a biomarker of BD exposure as this protein is required for MHBMA formation. However, in our study, the ethnic differences in MHBMA excretion remained regardless of GSTT1 genotype (Table 3). For studies where genotyping is not available, biomarkers directly reflecting BD-induced cellular damage, such as a BD-DNA adducts, might be a better choice to evaluate cancer risk specifically caused by BD.

Urinary concentrations of DHBMA also differed by ethnic group, with African Americans excreting the highest amounts, followed by Whites and Japanese Americans (Table 2). With respect to GSTT1, individuals with the deletion excreted the highest amounts of DHBMA, followed by individuals with one and two copies of GSTT1 (Table 3), but these differences were not significant (P = 0.226). These findings are analogous to those reported by Fustinoni and colleagues, who did not see a difference in urinary DHBMA levels between occupationally exposed workers with the GSTT1 or GSTM1 deletion genotype and workers containing one or more copies of either gene (40).

Overall, this study is the first of its kind to use a GWAS to identify potential SNPs associated with urinary MHBMA and DHBMA levels, clearly showing an association between GSTT1 genotype and MHBMA levels in smokers from three different ethnic groups. Furthermore, our results reveal that MHBMA levels, expressed in ng/mL urine, are highest in African Americans and lowest in Japanese Americans as compared with Whites, which is consistent with their respective lung cancer risks.

No potential conflicts of interest were disclosed by the other authors.

Conception and design: N. Tretyakova, D.O. Stram

Development of methodology: S. Kotapati, N. Tretyakova

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): S. Kotapati, M. Tiirikainen, L. Le Marchand, N. Tretyakova

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): E.J. Boldry, Y.M. Patel, A. Esades, S.L. Park, M. Tiirikainen, D.O. Stram, L. Le Marchand

Writing, review, and/or revision of the manuscript: E.J. Boldry, Y.M. Patel, S.L. Park, M. Tiirikainen, L. Le Marchand, N. Tretyakova

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): S.L. Park, L. Le Marchand

Study supervision: N. Tretyakova

Other (conducted sample biochemical analysis): A. Esades

The authors thank Robert Carlson for preparing figures for the manuscript and his editorial assistance.

This study was supported by NIH grants 5P01CA138338 and R01 CA85997. This work is also funded in part by NIH grants P-30 CA014089 to the USC Norris Comprehensive Cancer Center and P-30 CA071789 to the UH Cancer Center Genomics Shared Resource. The MEC study is supported by U01 CA164973. Mass spectrometry was carried out in the Analytical Biochemistry Shared Resource of the Masonic Cancer Center, supported in part by National Cancer Institute Cancer Center Support grant CA-77598.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.

1.
U.S. Department of Health and Human Services
. 
The Health Consequences of Smoking–50 Years of Progress
.
A Report of the Surgeon General; 2014
.
Atlanta, GA
,
U.S. Department of Health and Human Services, Centers for Disease Control and Prevention, National Center for Chronic Disease Prevention and Health Promotion, Office on Smoking and Health
.
2.
American Cancer Society
. 
Cancer facts and figures 2014
.
Atlanta, GA
:
American Cancer Society
; 
2014
.
3.
Haiman
CA
,
Stram
DO
,
Wilkens
LR
,
Pike
MC
,
Kolonel
LN
,
Henderson
BE
, et al
Ethnic and racial differences in the smoking-related risk of lung cancer
.
N Engl J Med
2006
;
354
:
333
42
.
4.
Kato
S
,
Shields
PG
,
Caporaso
NE
,
Sugimura
H
,
Trivers
GE
,
Tucker
MA
, et al
Analysis of cytochrome P450 2E1 genetic polymorphisms in relation to human lung cancer
.
Cancer Epidemiol Biomarkers Prev
1994
;
3
:
515
8
.
5.
Kihara
M
,
Kihara
M
,
Noda
K
. 
Risk of smoking for squamous and small cell carcinomas of the lung modulated by combinations of CYP1A1 and GSTM1 gene polymorphisms in a Japanese population
.
Carcinogenesis
1995
;
16
:
2331
6
.
6.
Le Marchand
L
,
Sivaraman
L
,
Pierce
L
,
Seifried
A
,
Lum
A
,
Wilkens
LR
, et al
Associations of CYP1A1, GSTM1, and CYP2E1 polymorphisms with lung cancer suggest cell type specificities to tobacco carcinogens
.
Cancer Res
1998
;
58
:
4858
63
.
7.
Murphy
SE
,
Park
SS
,
Thompson
EF
,
Wilkens
LR
,
Patel
Y
,
Stram
DO
, et al
Nicotine N-glucuronidation relative to N-oxidation and C-oxidation and UGT2B10 genotype in five ethnic/racial groups
.
Carcinogenesis
2014
;
35
:
2526
33
.
8.
Park
JY
,
Chen
L
,
Elahi
A
,
Lazarus
P
,
Tockman
MS
. 
Genetic analysis of microsomal epoxide hydrolase gene and its association with lung cancer risk
.
Eur J Cancer Prev
2005
;
14
:
223
30
.
9.
Park
SL
,
Kotapati
S
,
Wilkens
LR
,
Tiirikainen
M
,
Murphy
SE
,
Tretyakova
N
, et al
1,3-Butadiene exposure and metabolism among Japanese American, Native Hawaiian, and White smokers
.
Cancer Epidemiol Biomarkers Prev
2014
;
23
:
2240
9
.
10.
Schneider
J
,
Bernges
U
,
Philipp
M
,
Woitowitz
HJ
. 
GSTM1, GSTT1, and GSTP1 polymorphism and lung cancer risk in relation to tobacco smoking
.
Cancer Lett
2004
;
208
:
65
74
.
11.
Stephens
EA
,
Taylor
JA
,
Kaplan
N
,
Yang
CH
,
Hsieh
LL
,
Lucier
GW
, et al
Ethnic variation in the CYP2E1 gene: polymorphism analysis of 695 African-Americans, European-Americans and Taiwanese
.
Pharmacogenetics
1994
;
4
:
185
92
.
12.
Hecht
SS
. 
Tobacco smoke carcinogens and lung cancer
.
J Natl Cancer Inst
1999
;
91
:
1194
210
.
13.
Brunnemann
KD
,
Kagan
MR
,
Cox
JE
,
Hoffmann
D
. 
Analysis of 1,3-butadiene and other selected gas-phase components in cigarette mainstream and sidestream smoke by gas chromatography-mass selective detection
.
Carcinogenesis
1990
;
11
:
1863
8
.
14.
International Agency for the Research on Cancer (IARC)
. 
Tobacco smoke and involuntary smoking
.
IARC Monographs on the Evaluation of Carcinogenic Risk to Humans
.
Lyon, France: IARC
; 
2004
.
15.
Huff
JE
,
Melnick
RL
,
Solleveld
HA
,
Haseman
JK
,
Powers
M
,
Miller
RA
. 
Multiple organ carcinogenicity of 1,3-butadiene in B6C3F1 mice after 60 weeks of inhalation exposure
.
Science
1985
;
227
:
548
9
.
16.
Melnick
RL
,
Huff
J
,
Chou
BJ
,
Miller
RA
. 
Carcinogenicity of 1,3-butadiene in C57BL/6 x C3H F1 mice at low exposure concentrations
.
Cancer Res
1990
;
50
:
6592
9
.
17.
Owen
PE
,
Glaister
JR
,
Gaunt
IF
,
Pullinger
DH
. 
Inhalation toxicity studies with 1,3-butadiene. 3. Two year toxicity/carcinogenicity study in rats
.
Am Ind Hyg Assoc J
1987
;
48
:
407
13
.
18.
Owen
PE
,
Glaister
JR
. 
Inhalation toxicity and carcinogenicity of 1,3-butadiene in Sprague-Dawley rats
.
Environ Health Perspect
1990
;
86
:
19
25
.
19.
Sathiakumar
N
,
Graff
J
,
Macaluso
M
,
Maldonado
G
,
Matthews
R
,
Delzell
E
. 
An updated study of mortality among North American synthetic rubber industry workers
.
Occup Environ Med
2005
;
62
:
822
9
.
20.
International Agency for the Research on Cancer (IARC)
. 
1,3-butadiene, ethylene oxide, and vinyl halides (vinyl fluoride, vinyl chloride and vinyl bromide)
.
IARC Monographs on the Evaluation of Carcinogenic Risk to Humans
.
Lyon, France
:
International Agency for Research on Cancer
; 
2008
.
21.
Macaluso
M
,
Larson
R
,
Delzell
E
,
Sathiakumar
N
,
Hovinga
M
,
Julian
J
, et al
Leukemia and cumulative exposure to butadiene, styrene and benzene among workers in the synthetic rubber industry
.
Toxicology
1996
;
113
:
190
202
.
22.
Matanoski
G
,
Francis
M
,
Correa-Villasenor
A
,
Elliott
E
,
Santos-Burgoa
C
,
Schwartz
L
. 
Cancer epidemiology among styrene-butadiene rubber workers
.
IARC Sci Publ
1993
;
127
:
363
74
.
23.
Matanoski
G
,
Elliott
E
,
Tao
X
,
Francis
M
,
Correa-Villasenor
A
,
Santos-Burgoa
C
. 
Lymphohematopoietic cancers and butadiene and styrene exposure in synthetic rubber manufacture
.
Ann N Y Acad Sci
1997
;
837
:
157
69
.
24.
Meinhardt
TJ
,
Lemen
RA
,
Crandall
MS
,
Young
RJ
. 
Environmental epidemiologic investigation of the styrene-butadiene rubber industry. Mortality patterns with discussion of the hematopoietic and lymphatic malignancies
.
Scand J Work Environ Health
1982
;
8
:
250
59
.
25.
National Toxicology Program (NTP)
. 
Report on Carcinogens, Thirteenth Edition
.
Research Triangle Park, NC
:
U.S. Department of Health and Human Services, Public Health Service, National Toxicology Program
; 
2014
.
26.
Sathiakumar
N
,
Delzell
E
,
Hovinga
M
,
Macaluso
M
,
Julian
JA
,
Larson
R
, et al
Mortality from cancer and other causes of death among synthetic rubber workers
.
Occup Environ Med
1998
;
55
:
230
5
.
27.
Csanady
GA
,
Guengerich
FP
,
Bond
JA
. 
Comparison of the biotransformation of 1,3-butadiene and its metabolite, butadiene monoepoxide, by hepatic and pulmonary tissues from humans, rats and mice
.
Carcinogenesis
1992
;
13
:
1143
53
.
28.
Krause
RJ
,
Elfarra
AA
. 
Oxidation of butadiene monoxide to meso- and (+/-)-diepoxybutane by cDNA-expressed human cytochrome P450s and by mouse, rat, and human liver microsomes: evidence for preferential hydration of meso-diepoxybutane in rat and human liver microsomes
.
Arch Biochem Biophys
1997
;
337
:
176
84
.
29.
Sprague
CL
,
Elfarra
AA
. 
Mercapturic acid urinary metabolites of 3-butene-1,2-diol as in vivo evidence for the formation of hydroxymethylvinyl ketone in mice and rats
.
Chem Res Toxicol
2004
;
17
:
819
26
.
30.
Duescher
RJ
,
Elfarra
AA
. 
Human liver microsomes are efficient catalysts of 1,3-butadiene oxidation: evidence for major roles by cytochromes P450 2A6 and 2E1
.
Arch Biochem Biophys
1994
;
311
:
342
9
.
31.
Krause
RJ
,
Sharer
JE
,
Elfarra
AA
. 
Epoxide hydrolase-dependent metabolism of butadiene monoxide to 3-butene-1,2-diol in mouse, rat, and human liver
.
Drug Metab Dispos
1997
;
25
:
1013
5
.
32.
Adler
ID
,
Cochrane
J
,
Osterman-Golkar
S
,
Skopek
TR
,
Sorsa
M
,
Vogel
E
. 
1,3-Butadiene working group report
.
Mutat Res
1995
;
330
:
101
14
.
33.
Boogaard
PJ
,
Bond
JA
. 
The role of hydrolysis in the detoxification of 1,2:3,4-diepoxybutane by human, rat, and mouse liver and lung invitro
.
Toxicol Appl Pharmacol
1996
;
141
:
617
27
.
34.
Bechtold
WE
,
Strunk
MR
,
Chang
IY
,
Ward
JB
 Jr
,
Henderson
RF
. 
Species differences in urinary butadiene metabolites: comparisons of metabolite ratios between mice, rats, and humans
.
Toxicol Appl Pharmacol
1994
;
127
:
44
9
.
35.
Carmella
SG
,
Chen
M
,
Han
S
,
Briggs
A
,
Jensen
J
,
Hatsukami
DK
, et al
Effects of smoking cessation on eight urinary tobacco carcinogen and toxicant biomarkers
.
Chem Res Toxicol
2009
;
22
:
734
41
.
36.
Kotapati
S
,
Matter
BA
,
Grant
AL
,
Tretyakova
NY
. 
Quantitative analysis of trihydroxybutyl mercapturic acid, a urinary metabolite of 1,3-butadiene, in humans
.
Chem Res Toxicol
2011
;
24
:
1516
26
.
37.
Kotapati
S
,
Sangaraju
D
,
Esades
A
,
Hallberg
L
,
Walker
VE
,
Swenberg
JA
, et al
Bis-butanediol-mercapturic acid (bis-BDMA) as a urinary biomarker of metabolic activation of butadiene to its ultimate carcinogenic species
.
Carcinogenesis
2014
;
35
:
1371
8
.
38.
Sabourin
PJ
,
Burka
LT
,
Bechtold
WE
,
Dahl
AR
,
Hoover
MD
,
Chang
IY
, et al
Species differences in urinary butadiene metabolites; identification of 1,2-dihydroxy-4-(N-acetylcysteinyl)butane, a novel metabolite of butadiene
.
Carcinogenesis
1992
;
13
:
1633
8
.
39.
van Sittert
NJ
,
Megens
HJ
,
Watson
WP
,
Boogaard
PJ
. 
Biomarkers of exposure to 1,3-butadiene as a basis for cancer risk assessment
.
Toxicol Sci
2000
;
56
:
189
202
.
40.
Fustinoni
S
,
Soleo
L
,
Warholm
M
,
Begemann
P
,
Rannug
A
,
Neumann
HG
, et al
Influence of metabolic genotypes on biomarkers of exposure to 1,3-butadiene in humans
.
Cancer Epidemiol Biomarkers Prev
2002
;
11
:
1082
90
.
41.
Wiencke
JK
,
Pemble
S
,
Ketterer
B
,
Kelsey
KT
. 
Gene deletion of glutathione S-transferase theta: correlation with induced genetic damage and potential role in endogenous mutagenesis
.
Cancer Epidemiol Biomarkers Prev
1995
;
4
:
253
9
.
42.
Roethig
HJ
,
Munjal
S
,
Feng
S
,
Liang
Q
,
Sarkar
M
,
Walk
RA
, et al
Population estimates for biomarkers of exposure to cigarette smoke in adult U.S. cigarette smokers
.
Nicotine Tob Res
2009
;
11
:
1216
25
.
43.
Urban
M
,
Gilch
G
,
Schepers
G
,
van Miert
E
,
Scherer
G
. 
Determination of the major mercapturic acids of 1,3-butadiene in human and rat urine using liquid chromatography with tandem mass spectrometry
.
J Chromatogr B Analyt Technol Biomed Life Sci
2003
;
796
:
131
40
.
44.
Henderson
RF
,
Thornton-Manning
JR
,
Bechtold
WE
,
Dahl
AR
. 
Metabolism of 1,3-butadiene: species differences
.
Toxicology
1996
;
113
:
17
22
.
45.
Thornton-Manning
JR
,
Dahl
AR
,
Bechtold
WE
,
Griffith
WC
 Jr
,
Henderson
RF
. 
Comparison of the disposition of butadiene epoxides in Sprague-Dawley rats and B6C3F1 mice following a single and repeated exposures to 1,3-butadiene via inhalation
.
Toxicology
1997
;
123
:
125
34
.
46.
Thornton-Manning
JR
,
Dahl
AR
,
Bechtold
WE
,
Henderson
RF
. 
Gender and species differences in the metabolism of 1,3-butadiene to butadiene monoepoxide and butadiene diepoxide in rodents following low-level inhalation exposures
.
Toxicology
1996
;
113
:
322
5
.
47.
Fernandez-Salguero
P
,
Hoffman
SM
,
Cholerton
S
,
Mohrenweiser
H
,
Raunio
H
,
Rautio
A
, et al
A genetic polymorphism in coumarin 7-hydroxylation: sequence of the human CYP2A genes and identification of variant CYP2A6 alleles
.
Am J Hum Genet
1995
;
57
:
651
60
.
48.
Gsur
A
,
Zidek
T
,
Schnattinger
K
,
Feik
E
,
Haidinger
G
,
Hollaus
P
, et al
Association of microsomal epoxide hydrolase polymorphisms and lung cancer risk
.
Br J Cancer
2003
;
89
:
702
6
.
49.
Nakajima
M
,
Fukami
T
,
Yamanaka
H
,
Higashi
E
,
Sakai
H
,
Yoshida
R
, et al
Comprehensive evaluation of variability in nicotine metabolism and CYP2A6 polymorphic alleles in four ethnic populations
.
Clin Pharmacol Ther
2006
;
80
:
282
97
.
50.
Yoshikawa
M
,
Hiyama
K
,
Ishioka
S
,
Maeda
H
,
Maeda
A
,
Yamakido
M
. 
Microsomal epoxide hydrolase genotypes and chronic obstructive pulmonary disease in Japanese
.
Int J Mol Med
2000
;
5
:
49
53
.
51.
Park
SL
,
Carmella
SG
,
Chen
M
,
Patel
Y
,
Stram
DO
,
Haiman
CA
, et al
Mercapturic acids derived from the toxicants acrolein and crotonaldehyde in the urine of cigarette smokers from five ethnic groups with differing risks for lung cancer
.
PLoS One
2015
;
10
:
e0124841
.
52.
Wang
J
,
Liang
Q
,
Mendes
P
,
Sarkar
M
. 
Is 24h nicotine equivalents a surrogate for smoke exposure based on its relationship with other biomarkers of exposure?
Biomarkers
2011
;
16
:
144
54
.
53.
Kotapati
S
,
Esades
A
,
Matter
B
,
Le
C
,
Tretyakova
N
. 
High throughput HPLC-ESI-MS/MS methodology for mercapturic acid metabolites of 1,3-butadiene: biomarkers of exposure and bioactivation
.
Chem Biol Interact
2015
;
241
:
23
31
.
54.
Patel
YM
,
Stram
DO
,
Wilkens
LR
,
Park
SS
,
Henderson
BE
,
Le Marchand
L
, et al
The contribution of common genetic variation to nicotine and cotinine glucuronidation in multiple ethnic/racial populations
.
Cancer Epidemiol Biomarkers Prev
2015
;
24
:
119
27
.
55.
Delaneau
O
,
Marchini
J
,
Zagury
JF
. 
A linear complexity phasing method for thousands of genomes
.
Nat Methods
2012
;
9
:
179
81
.
56.
Howie
BN
,
Donnelly
P
,
Marchini
J
. 
A flexible and accurate genotype imputation method for the next generation of genome-wide association studies
.
PLoS Genet
2009
;
5
:
e1000529
.
57.
Yang
J
,
Lee
SH
,
Goddard
ME
,
Visscher
PM
. 
GCTA: a tool for genome-wide complex trait analysis
.
Am J Hum Genet
2011
;
88
:
76
82
.
58.
Fowles
J
,
Dybing
E
. 
Application of toxicological risk assessment principles to the chemical constituents of cigarette smoke
.
Tob Control
2003
;
12
:
424
30
.
59.
Sathiakumar
N
,
Delzell
E
. 
A follow-up study of mortality among women in the North American synthetic rubber industry
.
J Occup Environ Med
2009
;
51
:
1314
25
.
60.
Sathiakumar
N
,
Brill
I
,
Delzell
E
. 
1,3-butadiene, styrene and lung cancer among synthetic rubber industry workers
.
J Occup Environ Med
2009
;
51
:
1326
32
.
61.
Haiman
CA
,
Patel
YM
,
Stram
DO
,
Carmella
SG
,
Chen
M
,
Wilkens
LR
, et al
Benzene uptake and glutathione S-transferase T1 status as determinants of S-phenylmercapturic acid in cigarette smokers in the multiethnic cohort
.
PLoS One
2016
;
11
:
e0150641
.
