Longitudinal Study of Mammographic Density Measures That Predict Breast Cancer Risk Free

How well a measure of interest is maintained over time within an individual is called “tracking” (1) and can be assessed by the correlations between measures taken at different time points. Risk prediction biomarkers with strong tracking are particularly important because they allow characterizing an individual's risk well before the onset of disease.

For women of the same age and body mass index (BMI), mammographic density, the amount of white radiographic appearance of dense tissue as seen on a mammogram, is an established risk factor for breast cancer both as an absolute (dense area; DA) and as a relative (percent dense area; PDA) measure (2–4). The association between the absolute amount of nonwhite appearance of breast tissue (nondense area; NDA) and risk of breast cancer remains controversial (3). Mammographic density measures are also associated with the sensitivity of mammography by “masking” tumors (5–7). Therefore, the extent to which a woman's risk-associated mammographic density measures (i.e., mammographic density measures adjusted for age and BMI) change over time (i.e., “track”) is important. If tracking is high from early adulthood, it might be possible to identify at young ages women at increased risk of breast cancer and/or of having tumors “masked” and offer appropriate screening and prevention strategies.

When considering mammographic density as a risk factor for breast cancer, we need to adjust for age and BMI. This is because both age and BMI are negative confounders of the association between mammographic density and risk; increasing age is associated with lower mammographic density (in terms of both DA and PDA), and increasing BMI is associated with lower PDA, whereas increasing age and BMI (at least postmenopausal BMI) are associated with higher risk. Therefore, when investigating the changes over time in the risk-predicting mammographic density measures, we need to first adjust the mammographic density measures for age and BMI.

In terms of change in mean values over time, studies have found that DA and PDA decreased with age (8–10) whereas NDA increased with age (9, 11) after adjusting for BMI. NDA was also found to increase with age without adjusting for BMI (12). Another study, which had investigated the effects of menopause, found that DA and PDA decreased with menopause and NDA increased with menopause after adjusting for height and weight (13). Two studies found that, after adjusting for age, PDA decreased as BMI increased but found that DA did not vary with change in BMI (11, 14).

In terms of tracking, for mammographic density measures adjusted for age and BMI, the Australian Mammographic Density Twin Study (15) found the correlations between measures taken on average 8 years apart were about 0.8. Similarly, a UK longitudinal study (9) found correlations of about 0.8 for mammographic density measures taken about 9 years apart, but this estimate was obtained without adjusting for age and BMI. Both studies were of women older than 40 years, and to our knowledge, no previous study has considered tracking for women younger than 40 years.

In this study, we have quantified the degree of tracking of the mammographic density measures that predict breast cancer risk (i.e., the age- and BMI-adjusted mammographic density measures) using a longitudinal set of mammograms from a sample of Australian women.

The Melbourne Collaborative Cohort Study (MCCS), established in 1990–1994, includes 24,469 women living in Melbourne aged between 27 and 76 years at recruitment when information about lifestyle and demographic characteristics were obtained through administered structured questionnaires and weights and heights were measured (16). Participants were followed up from 1995–2002 by a postal questionnaire in which weights were self-reported and from 2003–2007 with face-to-face interviews when weights were measured. The Cancer Council Victoria's Human Research Ethics Committee approved the study protocol.

In 2009, we conducted a linkage between female MCCS participants and BreastScreen Victoria (BSV), the government-funded mammographic screening program. We identified 20,444 (84%) participants who had attended BSV at least once. These women were eligible for a nested case–control mammographic density study (4). We randomly sampled 884 women from the nested case–control study (182 cases, 702 controls). After excluding mammograms taken after the end of follow-up at December 31, 2007 (288 mammograms from 7 women) and those taken within 2 years before diagnosis of breast cancer (173 mammograms from 31 women), there were 3,954 mammograms from 846 women.

The Australian Breast Cancer Family Registry (ABCFR), initiated in 1992, includes a population-based case–control-family study conducted in Melbourne and Sydney (17–19). Cases with first primary invasive breast cancer were recruited from the respective population-based state cancer registries. Controls were sampled through electoral rolls and frequency matched for age. Cases and controls acted as probands for recruitment of relatives. Demographic and lifestyle characteristics and heights and weights were self-reported through questionnaires. At 10-year follow-up, weight was again self-reported. The Institutional Ethics Committees of The University of Melbourne (Victoria, Australia), Cancer Council Victoria, and the New South Wales Cancer Council approved the study protocol.

Mammograms were retrieved from BSV, breast clinics, and the ABCFR participants themselves. A total of 855 mammograms from 301 women (89 cases, 212 controls) were identified. After excluding mammograms taken at/after diagnosis for cases (75 mammograms from 73 women) and mammograms taken within 2 years before diagnosis of breast cancer (11 mammograms from 10 women), 769 mammograms from 218 women remained.

The combined sample included 4,714 mammograms from 1,064 women (9 mammograms were dropped because they were taken within the same year for the same woman). Details of this sample are presented in Table 1. After removing women for whom there was no information on their BMI, there were 4,320 mammograms from 970 women. Both of these datasets, before and after excluding missing BMI, were used to fit models to mammographic density measures unadjusted for, and adjusted for BMI, respectively. For the 970 women, all mammograms were taken between the ages of 24 and 83 years (83% of the mammograms were taken between 50 to 74 years, the target age group for screening in Australia). Women had between 1 and 14 mammograms (average, 4.5) and for those who had more than one mammogram, the time between the first and last mammogram ranged from 1.2 to 19.6 years (average, 8.7 years).

Mammograms were taken between years 1988 and 2009, 99% were craniocaudal views and 84% were of the right breast. For all but 4 women, their mammograms were of the same breast. Mammograms were digitized and measured by the Australian Mammographic Density Research Facility (AMDRF) at The University of Melbourne. Lumysis 85 and Array scanners were used to digitize mammograms from the ABCFR and MCCS, respectively. Mammographic density was measured for the MCCS and ABCFR by three readers (K. Krishnan, J. Stone, C.F. Evans) and one reader (J. Stone), respectively, using the Cumulus software (Imaging Research Program, Sunnybrook Health Sciences Centre, University of Toronto, Toronto, Canada), with readers blinded to participants' information. For each study, mammograms were randomized into read sets of about 100 mammograms each with about 10% repeated within each read set, and mammograms repeated in the first read set were repeated across every fifth read set to estimate reliability within and between read sets. For MCCS mammograms, the between-reader reliabilities were 0.86 for DA and 0.99 for total breast area. For ABCFR mammograms, the within-reader reliabilities were 0.97 for DA and 0.98 for total breast area. As the reliabilities of MCCS were high, we used the average measures of all three readers for the analyses.

The Box–Cox method (20) was used to identify the appropriate transformations to achieve approximate normal distributions; DA and PDA were transformed to (DA^0.2 − 1)/0.2 and (PDA^0.2 − 1)/0.2, respectively, whereas NDA was transformed to (NDA^0.4 − 1)/0.4. We have transformed the mammographic measures to ensure that the assumption of the mixed-effects model that the residuals have an approximately normal distribution is met.

Normalized variables, DA, PDA, and NDA, were modeled as a function of age at mammogram. We considered 5 functions of age: (i) linear, (ii) quadratic, (iii) cubic, (iv) logistic (with four parameters), and (v) Gompertz. The Gompertz function is described by 4 parameters: l, u, d, and scale; for example, Normalized DA = l + ((u − l)/exp(dexp(−scale(age-60)))), where age is the age at mammogram (centralized about the mean age at mammogram of 60 years), l is the lower asymptote approached as age decreases, u is the upper asymptote approached as age increases, d is the displacement along the age axis, scale is the rate of change in the measure, and d and scale are constrained to be positive.

The best fitting model, according to the Bayesian information criteria (BIC), was the Gompertz function (results not shown). Consequently, we fitted the Gompertz function to each measure using a mixed-effects model, allowing: (i) the asymptotes to vary across women (i.e., allowing random effects for the lower and upper asymptotes) and (ii) the between-women variances of the lower and upper asymptotes to be correlated (i.e., the random effects for the asymptotes were allowed to depend on each other). Random effects for d and scale were not estimated given the limited number of women with mammograms taken within the age range during which the change occurred.

BMI at time of mammogram was estimated by linear interpolation and extrapolation of BMI measures available at study entry and follow-ups. BMI and other covariates (menarche, parity, family history, and study) were fitted as fixed effects to explain the woman-to-woman variation in both the asymptotes.

A sensitivity analysis was done by restricting analyses to controls only.

The within-individual correlation for measures taken 2, 4, 6, 8, and 10 years apart was defined as Correlation (u) = 1 − [Variogram(u)]/σ², where Variogram(u) is the average of the half-squared differences across all pairs of residuals corresponding to u, the time between mammograms, and σ² is the variance (1).

Nonparametric bootstrapping was applied to obtain the 95% confidence interval (CI) for each within-individual correlation estimate. For each measure, we ran 1,115 bootstrap replicates for each model. The number of bootstrap replicates that converged for each model and the 95% CIs derived using the bootstrap percentile method are reported in Tables 2 to 4.

Lowess (i.e., smoothed) curves were fitted and visually compared with the fitted Gompertz curves derived from the mixed-effects models. Lowess curves (bandwidth, 0.5) were plotted on the basis of smoothed y variables obtained by applying separate weighted regression for each point (x_i, y_i) in the data. In the weighted regression at each point, regression is based on the point of interest and several points around the main point by giving the highest weight to the point of interest and decreasing weights for the points that are further away based on their distance on the x axis to the point of interest (21).

Statistical analyses were performed using R 3.0.2 (R Foundation for Statistical Computing) and Stata 12.1 (Stata Corporation).

Table 1 shows the characteristics of the study sample. The average ages at first and last mammogram were 55 and 63 years, respectively. The average time interval between mammograms was 2.2 years (SD, 1.0). The median time between the first and last mammogram was 8 years (SD, 5.0).

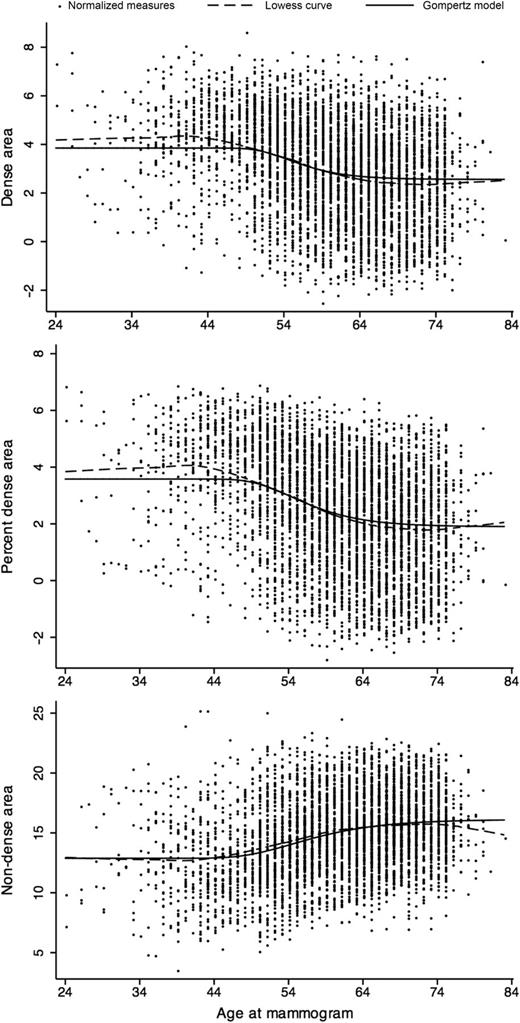

Figure 1 shows that, for all 3 mammographic measures, the fitted Gompertz curve was close to the smoothed Lowess curve. Both DA and PDA had a similar change in pattern over time; estimated mean DA and PDA were constant up to about the early 40s, decreased thereafter and became constant again from about the mid-60s onward. NDA had a reversed pattern compared with DA and PDA; estimated mean NDA was constant up to the mid-30s, increased thereafter and became constant again from the early 70s onwards.

Table 2 shows estimates of normalized DA from fitting the Gompertz model. After back transformation, the estimated mean DA was constant at 17 cm² until the early 40s, decreased over the next 2 decades and slowly plateaued to almost a constant of about 8 cm² from the mid-60s onwards. From the age of 44 to 64 years, mean DA decreased at 0.44 cm²/year, and from the age of 65 to 83 years, it decreased at 0.03 cm²/year. Mean DA at the younger (i.e., early 40s and younger) and older ages (i.e., older than 83) varied across women (SD for normalized DA lower and upper asymptotes = 2.0).

The correlation over time intervals between mammograms for normalized DA measures, adjusted for age, BMI, and other confounders (menarche, parity, and family history), was 0.94 (95% CI, 0.91–0.94) over 2 years and decreased slightly, as the time between mammograms increased to be 0.91 (95% CI, 0.82–0.95) for mammograms taken 10 years apart.

BMI and being parous were negatively associated with DA asymptotes at the younger and older ages. Women with a family history of breast cancer had on average a slightly higher DA at younger ages (by an average of 2 cm²), although 92% of the mammograms before age 45 came from the ABCFR women and all had a family history of breast cancer.

The association of normalized PDA with age was similar to that above for DA (Table 3). Mean PDA was constant at 15% until age 40 years. From the age of 41 to 67 years, mean PDA decreased at a rate of 0.36%/year, and from the age of 68 to 83 years, it decreased at 0.03%/year. The correlation over time intervals between normalized and adjusted PDA measures decreased slightly as the time between mammograms increased and was 0.91 (95% CI, 0.80–0.95) for mammograms taken 10 years apart. Adjusting for BMI and the other confounders did not materially change the correlations. Higher BMI and parity were associated with lower PDA asymptotes at both the younger (i.e., 40 and younger) and older ages (i.e., older than 83). Later age at menarche was associated with a higher PDA asymptote at older ages and, similar to DA, women with family history had on average a higher PDA at younger ages.

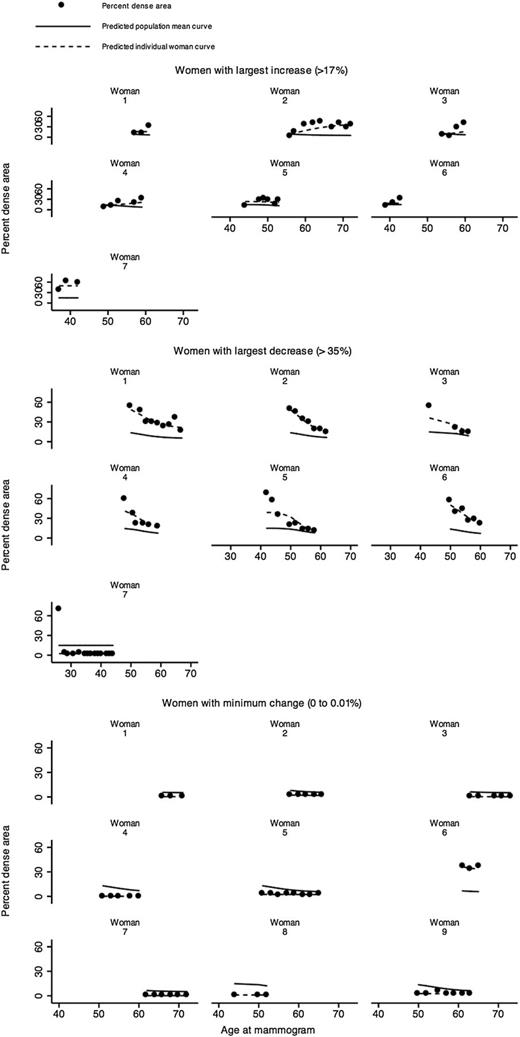

Figure 2 represents data for women who had the largest increase (>17%), largest decrease (>35%), and minimum change (0% to 0.01%) in PDA from their first to last mammograms. Only women with 3 mammograms or more were chosen. The figure shows the population mean curve and the individual predicted curve over time on the basis of the fitted model. For these women, the individual predicted PDA measures over time based on the fitted model were close to the corresponding observed measures, regardless of a marked increase or decrease in PDA, or almost stable PDA.

For NDA, the pattern of association with age was generally in the opposite direction to that for DA and PDA (Table 4). Mean NDA was constant at 94 cm² until 36 years of age, increased over the next 4 decades and slowly plateaued to be almost a constant of about 151 cm² by the age of 84 years. From the age of 37 to 71 years, mean NDA increased at 1.54 cm²/year, and from the age of 72 to 83 years, it increased at 0.33 cm²/year. Mean NDA at the younger (i.e., mid 30s and younger) and older ages (i.e., older than 83) varied more than that of DA across women (SD for lower and upper asymptotes corresponding to normalized NDA: 3.54 and 3.19, respectively).

The correlation over time intervals between mammograms for normalized NDA measures, adjusted for all the measured confounders, decreased slightly as the time between mammograms increased and was 0.96 (95% CI, 0.93–0.98) for mammograms taken 10 years apart.

BMI explained 30% and 18% of the variation across women in the NDA asymptotes at younger and older ages, respectively (SD for lower and upper asymptotes corresponding to normalized NDA dropped to 2.97 and 2.88, respectively, after adjusting for BMI). BMI was positively associated with the NDA asymptotes at the younger and older ages. Women whose age at menarche was earlier, and those who were parous, had higher NDA asymptotes at the older ages. There was no association between family history and NDA. Overall, the estimates of the parameters and the correlations over time intervals did not change considerably after adjusting for BMI and all the other confounders.

There was no evidence for heterogeneity of associations with age, or for correlations over time intervals, by study. Women in the ABCFR had lower NDA asymptotes at older ages than women in the MCCS. Restricting the analyses to controls did not change the results substantially.

This study found that all of the 3 mammographic measures implicated in predicting breast cancer risk—DA, PDA, and NDA adjusted for age and BMI—track strongly with age. The predicted correlations for mammograms taken 2 years apart were high, and the correlations attenuated only gradually as the time interval between measures increased, by about 0.4% per year, with correlations over 10-year intervals in excess of 0.9. If this rate of attenuation was maintained over 40 years, and under the Markov assumption that the changes over nonoverlapping intervals are independent of one another, this would equate to a decrease of 15% to give a correlation in excess of 0.8 over that time interval. Given that the correlations do not differ across women of different ages, this means that the correlation between a woman's mammographic density measures at age 30 and 70 years could be higher than the correlation between monozygotic twin pairs measured at the same time (22–24). This strong tracking raises the possibility that mammographic density measures (adjusted for age and BMI) could be used to identify young adult women who are at increased absolute breast cancer risk in later life and subsequently offer risk-appropriate prevention and screening strategies that might reduce mortality.

Our mean mammographic density measures are virtually constant with age up until the menopausal years. Previous studies of women from their 40s through to mid-60s and older have generally fitted a linear association. Figure 1 shows that, while this is not necessarily a poor description of the relationships over that age interval, the fitted straight line does not extrapolate well to younger (e.g., 40s or younger) or older (mid-60s or older) ages. Furthermore, this shape for the age relationship is unaltered after adjusting for BMI.

This is consistent with mammographic density, as a breast cancer risk factor, being established at least by early adulthood. A cross-sectional study has shown that, after adjusting for age and BMI, other breast cancer risk factors explain little variance in the mammographic density risk-predicting measures (24). These observations suggest that mammographic density as a risk factor might not be consistent with the Pike's model of tissue ageing (9).

Strengths of our study are the inclusion of a substantial number of young women (74 women had at least one mammogram taken before age 40 years), the wide range in the ages of mammograms (24–83 years), and the high proportion of women with multiple mammograms (71% had 3 or more mammograms). Almost all the mammograms were craniocaudal views which means that NDA is a reliable measure of adipose tissue in the breast with minimal influence from body fat (4). There is also minimal chance of differences in mammographic measures due to laterality and view of the mammogram influencing the mammographic readings of each woman because, for all but 4 of the women, all mammograms were of the same breast and 99% of the mammograms were of CC view.

A limitation was that there were insufficient women with mammograms taken from the ages of 40s to 60s, the age range during which changes in mammographic density occurred, to estimate random-effects (or between-women variation) for d and scale. BMI was not available at the time of each mammogram so we assigned a value obtained from the linear interpolation/extrapolation of the measures available; this procedure was justified by the strong correlation of BMI with age: in MCCS, the spearman's rank correlation for BMI was 0.90 for measures taken at study entry and at the first follow-up 4 years later and 0.70 for measures taken at study entry and second follow-up occurring on average 11 years apart. In any case, any imprecision in interpolation/extrapolation would result in lower correlation estimates over time (i.e., weaker tracking), so the bias is if anything conservative. That is, if we had BMI measures at each mammogram, the correlation estimates will only be higher. The mammogram machines may have varied over time and location, and this would also only serve to weaken the correlations in mammographic measures of the breast over time. Therefore, the tracking could even be greater than we have estimated. The mammographic measures were also not adjusted for other potential variables that might have influenced the change in the measures, for example, menopausal status and hormone replacement therapy. However, adjusting for these variables would likely make the tracking greater than observed.

Our results are consistent with a prospective Australian twin study (15) and a longitudinal UK study (9) that reported correlations of about 0.8 between the mammographic density measures taken about 8 or 9 years apart. It has been speculated that the strong tracking with age may be because around 50% of the variance in mammographic density and NDA appears to be explained by inherited genetic variants (22, 25, 26) that would have contributed to variation in mammographic density measures before mid life (15).

Most screening programs invite women from age 50 years onward. Our data show that mammographic density–based measures of risk track strongly with age, and from an age younger than when screening usually starts (such as before the age of 40 years). This has implications for etiologic research. It also raises the possibility that a mammogram taken early in adulthood could help identify women at increased risk of breast cancer later in life who might benefit from early prevention strategies or commencement of screening at a younger age.

No potential conflicts of interest were disclosed.

The content of this article does not necessarily reflect the views or policies of the National Cancer Institute or any of the collaborating centers in the Breast Cancer Family Registry (BCFR), nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. government or the BCFR.

Conception and design: L. Baglietto, G. Severi, G.G. Giles, J.L. Hopper

Development of methodology: L. Baglietto, J. Stone, J.A. Simpson, J.L. Hopper

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): K. Krishnan, G. Severi, G.G. Giles, J.L. Hopper, C. Apicella, C.F. Evans

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): K. Krishnan, L. Baglietto, J.A. Simpson, R.J. MacInnis, J.L. Hopper

Writing, review, and/or revision of the manuscript: K. Krishnan, L. Baglietto, J. Stone, J.A. Simpson, G. Severi, R.J. MacInnis, G.G. Giles, J.L. Hopper, C. Apicella, C.F. Evans

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): K. Krishnan, G.G. Giles, J.L. Hopper, C. Apicella

Study supervision: L. Baglietto, J. Stone, J.L. Hopper

We thank the Victorian Cancer Registry, BreastScreen Victoria, and the Australian Mammographic Density Research Facility.

The MCCS was supported by the Victorian Breast Cancer Research Consortium, the National Health and Medical Research Council (251533, 209057, and 504711), the Victorian Health Promotion Foundation, and the National Breast Cancer Foundation and was further supported by infrastructure provided by the Cancer Council Victoria. The ABCFR was supported by grant UM1 CA164920 from the U.S. National Cancer Institute. K. Krishnan is supported by the John and Allan Gilmour Research Award and May Stewart Bursary scholarships. L. Baglietto is supported by a Marie Curie International Incoming Fellowship within the 7th European Community Framework Programme. J.L. Hopper is a Principal Research Fellow of the National Health and Medical Research Council. J. Stone is supported by a Postdoctoral Research Fellowship from the National Breast Cancer Foundation.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
