Human Papillomavirus DNA Methylation as a Potential Biomarker for Cervical Cancer Free

The development of cervical cancer is linked to persistent infection with at least 1 of 13 types (i.e., HPV16, 18, 31, 33, 35, 39, 45, 51, 52, 56, 58, 59, 68) of human papillomavirus (HPV) from the genus Alphapapillomavirus (hereafter HPV refers to these 13 types; ref. 1). HPV infections are very common, yet cervical cancer and its immediate precursor lesion, cervical intraepithelial neoplasia grade 3 (CIN3, precancer) are relatively uncommon. Approximately 90% of incident HPV infections become undetectable using standard test methods within a few years (2), whereas persistent infections are significantly associated with progression to CIN3 lesions (3, 4), of which approximately 30% will progress to invasive cancer over 3 decades (5). Although current vaccines for HPV16/18 hold great promise, the predominant mechanism for cervical cancer prevention for the foreseeable future will continue to be screening and treating women with precancerous lesions. The transition between clearance and progression represents the critical dichotomy between benign HPV infection and substantial cancer risk that requires clinical attention (6).

The new cervical cancer screening guidelines in the United States recommend HPV cotesting among women 30 years and older (7). Although more sensitive than cytology, HPV testing has modest specificity and positive predictive value for detection of precancer, and cannot distinguish infections that will resolve from those that will progress (6). Thus, an important question is how to triage HPV-positive women. This public health need warrants further research on the mechanisms of, and the development and validation of novel biomarkers associated with, HPV-induced transformation and progression to precancer.

HPV viral methylation has emerged as a novel biomarker that may help distinguish benign HPV infections from those that progress to precancer (8–28). Detection of epigenetic changes, specifically if related to development of cervical precancer, may serve as a predictive or diagnostic biomarker for risk of cervical cancer among HPV-positive women. In this review, we describe molecular methods used to detect CpG methylation, and summarize the current state of knowledge on HPV DNA methylation in cervical carcinogenesis. We also identify important gaps in our knowledge required to decide how detection of HPV viral genome methylation could be used to prevent cervical cancer.

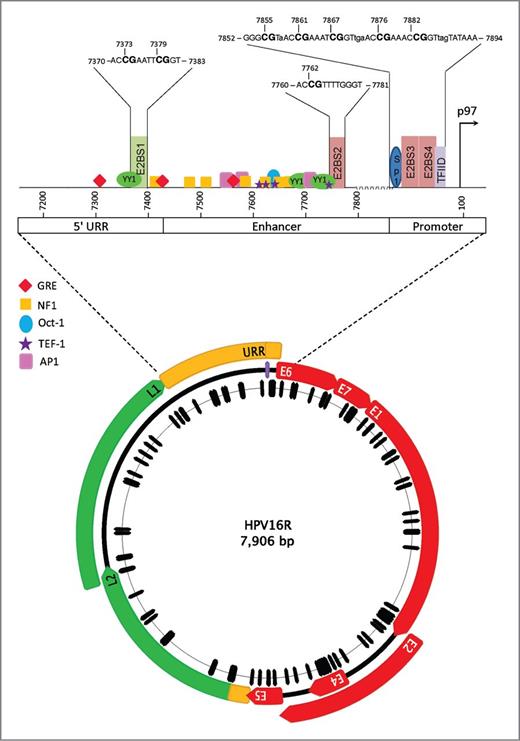

HPV is a double-stranded, circular DNA virus approximately 8,000 base pairs in size. The distribution of CpG sites is uneven throughout the viral genome (Fig. 1). All oncogenic HPV types code for 6 early genes (E6, E7, E1, E2, E4, and E5) involved in viral gene expression and replication, and 2 late genes [L2 and L1 gene of human papillomavirus (L1)] involved in capsid formation (3). The L1 protein self-assembles into viral-like particles and is the active component in the currently licensed HPV vaccines. The upstream regulatory region (URR) located between the L1 and E6 genes, contains the E6 promoter and an enhancer region with cis-responsive elements that regulate viral gene expression, replication, and packaging into viral particles (Fig. 1; refs. 29, 30). The primary HPV oncogenes, E6 and E7, interact with a large number of cellular targets, including the cellular tumor suppressor proteins p53 and pRb, which are central regulators of apoptosis and cell cycle, respectively (for reviews, see refs. 31–34). During productive infection, E6 and E7 are expressed at relatively low levels, in part due to transcriptional repression by E2 gene of human papillomavirus (E2). During the carcinogenic process, transcription of E6 and E7 is deregulated, leading to their overexpression (33). This deregulation may be mediated by the integration of HPV DNA into the host genome, often resulting in disruption of the E2 gene with increased E6 and E7 transcripts spliced into host sequences, causing increased HPV oncogene expression (35, 36). However, HPV integration is not a necessary step in malignant transformation, and other mechanisms, such as alterations of the E2 binding sites in the URR or altered expression of E2, may be implicated (14, 16, 37). On the basis of these molecular mechanisms of HPV oncogenesis, a number of biomarkers have been developed including those associated with HPV oncogene activity (i.e., E6 and E7 mRNA expression) and with cell-cycle deregulation (38, 39). The most extensively studied biomarker is p16^INK4a, a cyclin-dependent kinase inhibitor that correlates with increased expression of the oncogenic E7 protein (40–45).

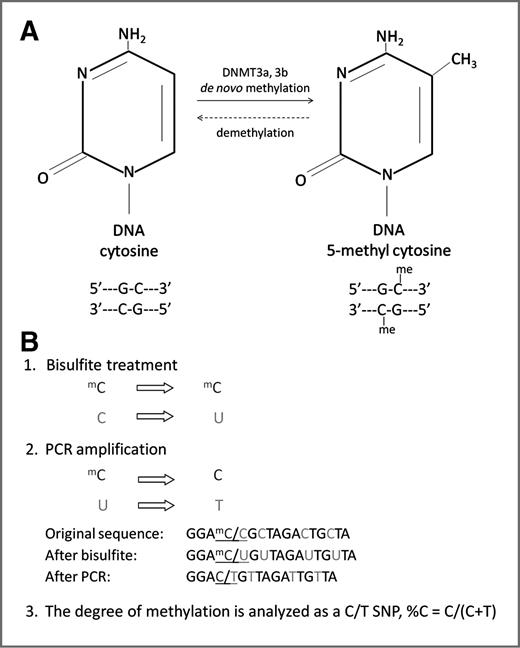

In humans, DNA methylation is facilitated by a family of DNA methyltransferases that catalyze the addition of a methyl group to cytosines at the 5′ position of a CpG dinucleotide pair and is typically detected by bisulfite modification of DNA (methods discussed later; Fig. 2A and B; refs. 46, 47). The methyl group can alter chromatin conformation and DNA topology resulting in displacement of transcription factors and alterations in expression (48, 49). Methylation of CpG-rich stretches of human DNA located in promoter regions of genes, termed “CpG Islands,” are essential for normal biologic processes (50). Disruption of CpG island methylation has been documented in malignant cellular transformation (51).

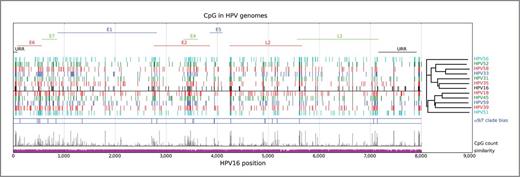

Although there are no classical CpG islands within the HPV genome, regions of high density and conservation of CpG sites (52) suggest the potential for a functional role (Fig. 3). The molecular basis and covalent alterations of methylation at individual CpG sites is poorly understood. Targeted methylation of CpG sites may represent a mechanism by which HPV switches from a productive infection to one leading to transformation (16). Alternatively, methylation of HPV DNA may serve as a host defense mechanism for silencing viral replication and transcription.

Recent studies have shown that methylation of HPV viral DNA may distinguish the presence of CIN2+ from an acute and clearing HPV infection (Table 1; ref. 8–27). Similar associations between HPV methylation and other HPV-associated anogenital and head and neck cancers have also been reported (53–56).

Earlier studies of HPV methylation used methylation-sensitive restriction digestion assays that involved pairs of methylation-sensitive and methylation-insensitive restriction endonucleases (or isochizomers), for example HpaII and MspI, respectively (10–12, 21). Following digestion, methylation status can be determined by Southern blotting or PCR. This method is simple, relatively inexpensive, and does not require bisulfite treatment of DNA, which is prone to DNA degradation and incomplete conversion (methods discussed later). However, limitations include the large amount of DNA required to conduct the assay and the limited availability of methylcytosine-sensitive restriction sites in the HPV genome (26). This approach lacks the ability to survey multiple sites and is not quantitative.

Sodium bisulfite deaminates cytosine residues on single-stranded DNA molecules and converts them to uracils, whereas 5-methyl cytosines remain protected from conversion. When bisulfite-modified DNA is subjected to PCR, the uracil residues are converted to thymidines by DNA polymerase in the amplified products (57). The ratio of C/C+T indicates the proportion of methylated cytosines at each C in the assayed sample (Fig. 2B). The methylation status of bisulfite-treated DNA can be determined by several methods.

Methylation-specific PCR (MSP) uses primers designed to distinguish methylated from unmethylated DNA, taking advantage of the sequence differences generated from bisulfite modification (58). This technique is sensitive and specific; however, it does not provide quantitative information and does not allow for determination of methylation status at the nucleotide level (57). Quantitative MSP (Q-MSP) is a rapid, high-throughput technique based on the fluorescent analysis of PCR products. Individual probes specific for each methylation-dependent sequence (i.e., C or T) at CpG sites allow for a fluorescent-based quantitative assay for methylation patterns (59).

Analysis of PCR products by direct sequencing can be used to study HPV DNA methylation at individual CpG sites indicated by C/T nucleotides. Many studies have relied on sequencing of cloned PCR products from bisulfite-treated DNA, and sequencing of several individual clones to estimate percentage methylation (13, 16, 17, 19–22, 24, 25, 54–56). Although this technique can provide information on multiple CpG sites in a region, it is labor intensive, insensitive to low levels of methylation, and inadequate for the analysis of large numbers of samples (60). The introduction of next-generation, single-molecule sequencing makes cloning and sequencing obsolete (see later).

One of the newer high-throughput techniques, pyrosequencing, involves the photon-based detection of released inorganic phosphate (PPi) during nucleotide incorporation (61, 62). Recent studies have successfully designed pyrosequencing assays for the study of HPV DNA methylation (8, 23, 26–28). Pyrosequencing allows for quantitative assessment of methylation status at multiple CpG sites within relatively short reads (∼30 nucleotides) and provides an average estimate of methylation levels at a specific site by providing percentage incorporation of C (methylated) versus T (unmethylated) in bisulfite-treated DNA (60). Other methods include the EpiTYPER assay, which involves subsequent base-specific cleavage of RNA (i.e., cleaves at uracils and cytosines) generated from the PCR products by T7 polymerase and mass spectrometry (8, 26), combined bisulfite restriction analysis (COBRA; ref. 16), and the Luminex xMap system, a bead-based assay that involves the hybridization and fluorescent detection of C/T at the C position of the CpG site using specific probes (14).

Next-generation sequencing techniques can be used to analyze the methylation status of single CpG sites in individual HPV DNA molecules and to assess the relative heterogeneity of HPV DNA methylation in cervical cell samples by sequencing a particular amplicon at greater depth (i.e., thousands of single molecules from a single bisulfite-treated sample). Technologies such as the Illumina HiSeq 2000 enable multiplex, parallel sequencing of bisulfite-treated and amplified HPV DNA fragments, and are more accurate than pyrosequencing in deciphering homopolymeric (i.e., stretches of identical nucleotides) regions of the DNA template (63). Even more novel “third generation” sequencing technologies, such as PacBio (Pacific Biosciences), are being adapted for methylation analyses (64).

Overall, studies have suggested an association between methylation of CpG sites in the HPV genome and detection of cervical precancer and cancer. The positive relationship between methylation in the L1 gene and CIN2+ seems to be relatively consistent in most studies (8, 9, 19, 20, 24–26, 28); however, the association between methylation in the URR and CIN2+ is less clear. Some studies have found decreased methylation of CpG sites in the URR in samples with CIN2+ (10–13, 15, 23), yet others report an association between increased methylation of CpG sites in the URR and CIN2+ (14, 16, 21, 22). Data for HPV16 and other HPV types are reviewed later.

Kalantari and colleagues studied CpG methylation in fragments containing the 3′ end of the L1 open reading frame (ORF) through the URR in 115 clinical samples (17). They found increased methylation in cervical carcinomas (n = 47), particularly in the L1 gene, whereas methylation was relatively reduced in low grade cervical intraepithelial neoplasia (CIN; n = 17) and cytologically normal samples (n = 51; ref. 17). This finding was confirmed in 2 follow-up studies, one using laser capture microdissection to evaluate 3 cancer samples (19) and the other, a pilot study of L1 DNA methylation and chromosomal integration in a very small set of abnormal Pap smear samples (18). On the basis of these studies and others at extracervical sites (54, 55), the authors speculated that L1 genes may be hypermethylated as a result of integration into the cellular DNA (18).

The first study to map the whole HPV16 genome was conducted by Brandsma and colleagues (24). Using bisulfite sequencing, they mapped 113 CpG sites from a small collection of 13 cervical (nonmalignant) samples at different stages of progression (24). Their results indicated a pattern of increased methylation, particularly in the E5, L2, and L1 region with increasing disease severity. Fernandez and colleagues, mapped 110 CpG sites in the HPV16 genome using bisulfite sequencing, and detected hypermethylation of L1 and L2 with increased lesion severity in samples from a small group of women with briefly described cervical diagnoses of normal cytology (n = 10), CIN1 (n = 17), CIN2/3 (43), cervical cancer (n = 17), and a set of cervical cancer cell lines (20). In a more recent publication using pyrosequencing, Sun and colleagues, examined 32 sites in the L1 ORF and URR and found an association between increased DNA methylation and CIN3+ exclusively in the L1 region in 85 samples (26). Using pyrosequencing, Mirabello and colleagues, investigated the association between HPV16 DNA methylation and cervical disease with serial samples from a prospective cohort study, covering all gene regions and 67 CpG sites in the HPV16 genome (8). In prediagnostic HPV16 samples (taken before onset of disease or HPV clearance), a CpG site in L2 (position 4261) showed increased methylation associated with development of incident CIN3 (n = 20). In diagnostic samples (collected at the time of diagnosis), increased methylation at CpG sites in the E2, L2, and L1 region was associated with risk of CIN3 (n = 30) compared with women who cleared their HPV16 infections (n = 34). An independent replication study of a larger number of samples (n = 273) including CIN2 and cancer cases, conducted by Mirabello and colleagues (28), confirmed higher methylation in L2, L1, and E2–E4 regions among cases with CIN2+. This study also showed that viral load did not affect methylation levels and that women older than the median age of 28 years tended to have higher methylation levels compared with women <28 years. The analysis of serial CIN3 samples before CIN3 diagnosis suggested that most regions of the HPV16 genome increased methylation over time, particularly in the L1 and L2 genes.

The URR is a region of interest in HPV16 methylation studies as viral transcription is regulated by binding of the HPV E2 protein to 4 conserved binding sites (E2BS, 5′-ACCN₆CGT-3′; ref. 65) throughout the URR (Fig. 1). E2 has the ability to both stimulate and repress oncogene transcription; depending on which site it binds (66, 67). Because they contain conserved CpG sites, E2BSs are of particular interest; however, the distinct functional roles of these and other transcription factor binding sites in the URR make simple mechanistic interpretations difficult.

The following studies suggest that decreased methylation of the HPV16 URR is associated with increased severity of cervical neoplasia. One of the earliest reports on HPV16 DNA methylation conducted by Badal and colleagues (11) analyzed the methylation status of the enhancer and promoter region of the URR in samples from women with normal Pap smears (n = 25), CIN1–CIN3 (n = 23), and cancers (n = 33). They found an overall greater proportion of methylation in samples from women with normal cytology compared with women with CIN1–CIN3 and cancer. In a small subset of 15 samples, they mapped methylation at 11 CpG sites in the URR enhancer/promoter region using bisulfite Sanger sequencing of PCR products and found that, in addition to the normal samples showing methylation at all 11 sites, 1 CIN3, and 2 cancer samples showed complete promoter and enhancer methylation, whereas additional cancer samples showed methylation in the promoter region, but not the enhancer. Taken together, these results weakened their main finding, indicating that methylation in the enhancer and promoter region of the URR was heterogenous in a subset of CINs and cancers. A study conducted by Hublarova and colleagues (12) evaluated methylation status in a group of samples composed of normal cytology (n = 21), CIN1 (n = 8), CIN2/3 (n = 89), and cancers (n = 23) using restriction digestion and PCR. They observed higher methylation frequencies of the enhancer and promoter region of the URR in normal cytologic specimens (81%) and decreased methylation in CIN3s and cancers (31.5% and 43.4%, respectively). Methylation within the URR was also associated with reduced E6 expression. Although their results indicated a trend toward decreased methylation in the URR with severity of cervical neoplasia, methylation was present in nearly half of the cancers. Mazumder and colleagues (15) showed that methylation of the URR gradually decreased from CIN to cervical cancer, irrespective of whether the DNA was in an episomal or integrated state in more than 200 cancers and 34 CIN1–CIN3 samples. It is difficult to interpret these findings however, as the group of CINs was heterogeneous, the major difference in methylation status was seen between cancers of different stages, and their methylation assays were not quantitative.

More recent studies have used bisulfite sequencing assays to determine the methylation status of CpG sites within the URR. Piyathilake and colleagues (23) studied HPV16 methylation of the URR promoter region and 1 CpG site (7862) in the enhancer region in 45 women with ≤CIN1 and 30 women with CIN2+. After adjusting for demographic and lifestyle risk factors for cervical cancer, they found that increased methylation of CpG sites in the promoter and URR enhancer site 7862 was associated with a reduced likelihood of being diagnosed with CIN2+ (23). A recent article by Xi and colleagues (13) studied the relationship between the number of methylated CpG sites in the URR (i.e., 0, 1, 2–3, ≥4) using bisulfite sequencing of cloned molecules from 211 samples. Their findings indicated a lower overall frequency of methylation of ≥4 of the 11 CpG sites within the URR in the 94 women with CIN2/3 compared with the 107 women without CIN2/3. The likelihood of being diagnosed with CIN2/3 was significantly inversely related to having ≥4 methylated CpGs in the URR region, regardless of covariates such as age, race, and HPV16 variant. Compared with the other mentioned studies, the outcome in this analysis was CIN2/3, and only 2 cancers were included.

In contrast to the earlier reports, other studies using different methods have indicated that increased methylation, particularly in CpG sites overlapping E2BSs, is associated with increased severity of CIN. One of the first studies to look specifically at methylation of all 16 CpGs within the URR was conducted by Bhattacharjee and Sengupta (21) using methylation-sensitive restriction enzyme digestion in 57 invasive cervical cancer and 15 cytologically normal samples and bisulfite Sanger sequencing of PCR products in a subset of cancers. Their results indicated that methylation of the promoter region in the URR, which contains 2 E2 binding sites, was increased in cancer cases compared with cytologically normal controls. This association was particularly significant for site 58 that overlaps with E2BS4 (Fig. 1). Hong and colleagues studied methylation of the HPV16 URR in a small group of samples, focusing specifically on CpG sites within the promoter and enhancer regions (27). Using pyrosequencing of bisulfite-treated DNA, they observed that the proportion of methylated samples was highest among cancer cases (n = 22, 85% methylated), followed by specimens with normal cytology (n = 10, 71% methylated) and CIN3s (n = 6, 46% methylated). Methylation levels were lowest among cases with CIN1/2 (n = 5, 29% methylated). Ding and colleagues investigated the methylation patterns of 15 CpG sites within the URR in a small set of clinical specimens ranging from low-grade cytology low-grade intraepithelial lesion (LSIL; n = 17), high-grade cytology high-grade intraepithelial lesion (HSIL; n = 21), and squamous cell carcinoma (SCC; n = 15; ref. 22). Using bisulfite sequencing of 5 cloned fragments per sample, they found low frequencies of methylation at CpG sites in the 5′ URR in samples with LSIL, whereas in HSIL specimens, more frequent methylation was observed in the enhancer and the 5′ URR region. Cervical cancer samples showed the highest frequency of methylation, with differences in the promoter region being the most pronounced. A recent study by Vinokurova and von Knebel Doeberitz (16) analyzed the methylation status of the HPV16 URR in distinct stages of epithelial differentiation (i.e., basal, intermediate, and superficial layers of the epithelium) in microdissected tissue from 3 samples. Using a combination of cloning and sequencing of bisulfite-treated DNA and a modified version of the COBRA assay (Table 2; ref. 68), they reported complete methylation of all 16 CpGs in the URR in cytologically normal, so called “latent” samples. This finding was consistent for all 3 epithelial cell layers. In low-grade lesions with productive HPV infection (characterized by expression of L1), the promoter region was only methylated in cells from the superficial layer of the epithelium, whereas the enhancer region was only methylated in cells from the basal and intermediate cell layers. The 5′URR was unmethylated in all layers. In HPV-transformed cells from CIN3 lesions, the basal and intermediate layers displayed methylation in the 5′ URR and enhancer regions only, with consistent methylation present in 2 CpG sites overlapping an E2 binding site (E2BS1; Fig. 1). Through a series of functional studies, they reported that methylation of CpG sites within the E2BS1 was associated with increased E6 promoter activity and that the methylated E2BS1 may recruit additional, uncharacterized protein complexes that regulate transcription in transforming infections. Finally, Snellenberg and colleagues focused specifically on E2BS methylation using the Luminex xMap system (14). They determined the methylation status of 3 E2BSs (excluding E2BS2 in the enhancer region) in 29 cervical SCCs, 38 CIN3s, and 17 cytologically normal cervical scrapes. Methylation frequencies of all 3 E2BSs were significantly higher in cancer cases compared with both CIN3s and controls. Moreover, all cancer cases showed methylation of at least 1 E2BS, compared with 58% of CIN3s and 24% of controls.

One of the first studies on HPV18, conducted by Badal and colleagues, used bisulfite sequencing of cloned molecules to investigate methylation of the L1-URR region in 5 cytologically normal and 6 cervical cancer samples (10). They observed increased methylation in L1 among both cancers and normal samples. Methylation in the URR was less consistent, with hypomethylation observed in the enhancer region and increased methylation in the promoter region in normal samples compared with cancer cases. Turan and colleagues studied HPV18 DNA methylation in a total of 11 samples with no cytologic abnormalities, 8 with low-grade cytologic changes, 4 with high-grade cervical changes, and 14 cancers using bisulfite sequencing of the 3′ region of the L1 gene and URR (25). They found low levels of methylation distributed throughout the URR among all samples. Methylation levels were low in cytologically normal samples, with only sporadic methylation observed in the L1 region, whereas 2 high-grade lesions and most cancer samples showed hypermethylation in L1. A report by Fernandez and colleagues, analyzed all 168 CpG sites in the HPV18 genome using cell lines and bisulfite sequencing of cloned fragments from a few samples without evidence of neoplasia and some primary cervical cancers and found increased methylation of HPV 18 L1 in cancers compared with specimens with no detectable disease (20); however, the clinical/epidemiologic details of the samples were not presented in detail. Using methylation-specific PCR, they analyzed methylation of the HPV18 E2 gene in a small set of specimens consisting of 6 cytologically normal infections, 7 CIN1, 9 CIN2/3, and 10 carcinomas and found increasing E2 methylation with disease severity.

In a recent study, Wentzensen and colleagues conducted whole genome methylation analysis using pyrosequencing of CpG sites in HPV31, HPV18, and HPV45 (9). Methylation levels in women with CIN3 compared with women with infections with <CIN2 (controls) were analyzed for all 3 HPV types. Increased methylation in E2, L2, and L1 was observed in specimens from women with CIN3 compared with controls in all 3 HPV types. Although patterns of viral methylation were dominated by high methylation levels in L1, distinct patterns of inter- and intragene methylation correlation for α-9 types (HPV16 and HPV31) compared with α-7 types (HPV18 and 45) were observed. These findings indicate that the association of viral methylation with precancer is a feature of the 4 most important oncogenic HPV types, which together cause about 90% of all cervical cancers.

The finding of increased CpG methylation in the HPV16 and HPV18 L1 ORFs in cancers compared with cells from women without reported lesions is consistent in the literature. However, there are conflicting results with regard to level of methylation of the URR and cervical precancer and cancer. A critical source of discrepancy arises from the variability in the CpG methylation assays used in different studies (Table 2). For example, studies using methylation-sensitive restriction digestion assays and bisulfite cloning and sequencing are only able to obtain qualitative (i.e., yes/no) data on CpG methylation status and have insufficient sensitivity for detecting HPV DNA methylation at low levels (57). Furthermore, methylation-sensitive restriction digestion, as evidenced by Badal and colleagues (11), has limited sensitivity for detecting methylation at specific CpG sites. Several of the studies that used cloning and sequencing of bisulfite-treated DNA were also limited by analyzing a small number of molecules per sample (26).

Case definitions are also very important. Most studies identified for this review analyzed samples representative of the entire HPV-related disease spectrum, from normal cytology to invasive cervical cancer. However, we caution against drawing conclusions when outcomes are differentially ascertained and defined (i.e., histology vs. cytology). Moreover, most of the studies had small sample groups for each categorical diagnostic state and many used convenience samples and did not report the criteria used to classify cases.

Sampling differences influence HPV DNA methylation analyses, as many of the reviewed studies are based on exfoliated cervical cell specimens collected for cytology that often contain diverse cell types. Detection of methylated HPV CpG sites may be diluted by the presence of multifocal and heterogeneous populations with different epigenetic patterns. Laser capture microdissection should enable validation of methylation status for women who have heterogeneous disease (i.e., CIN1, CIN3) and multiple type infections to see whether topographic comparisons recapitulate observed case–control differences.

Despite conflicting results, several consistent findings about methylation in the HPV16 URR emerged from the published data. In general, most studies showed very low methylation levels at CpG site 7,862 in the enhancer region in the HVP16 URR, even among cases that had high methylation at other proximal CpG sites. Notably, this site overlaps an E2 binding site (E2BS2; Fig. 1) and is located in between 2 nucleosomes that form part of the HPV16 origin of replication (11, 16, 17, 21, 22, 27). Methylation of the promoter region in cervical cancers was also consistent, even in studies where increased methylation in the URR among cervical cancers was not the main finding (11, 13, 14, 21–23, 27). The HPV16 promoter region contains 2 E2 binding sites (E2BS3 and E2BS4) that, if modified by methylation, may block E2 from binding and enhance transcription of the E6 and E7 oncogenes (Fig. 1). These consistencies highlight the need for future hypothesis-driven studies to analyze the presence and functional relevance of CpG site and region-specific methylation in the HPV16 URR.

Carefully chosen statistical methods can sharpen evaluation of specific scientific or clinical hypotheses in HPV DNA methylation studies. For example, a global statistical test addresses whether overall HPV DNA methylation or methylation of particular HPV gene regions is important. When the goal is identification of individual CpG sites associated with disease, then a site-specific analysis is required. Also when the distribution of methylation level at CpG sites is not normal, a nonparametric test, such as Mann–Whitney test for 2 groups or Kruskal–Wallis test for more than 2 groups should be used to identify differentially methylated sites. The high number of CpG sites in the HPV genome, and numerous potential methylation-based data points available to analyze, inevitably raises the question of multiple comparisons-related false discovery; whereas Bonferroni-corrected significance levels are common, discovery-phase projects warrant more liberal thresholds. Graphic visualizations of correlations between methylation of different CpG sites will be important for informing the development of a panel of biomarkers and for comparing methylation patterns across HPV types (9). Incorporation of genomic information such as HPV ORFs, splice sites, and transcription factor binding sites may lead to hypotheses about the functional significance of the DNA methylation changes that can be tested through more fundamental studies. Analyses that incorporate the correlation between adjacent CpG sites, focusing on haplotypes rather than on specific CpG sites, may provide better understanding of the underlying mechanism.

Methylation has the potential to serve as a predictive biomarker if it is present before the diagnosis of precancer. This determination requires specific attention to serial changes in methylation levels, as in many molecular studies of time-varying biomarkers. Thus far, preliminary data indicates that methylation at most regions of the HPV16 genome, particularly in the L2 and L1 genes, is higher in CIN3 at the time of diagnosis (8, 28). Nevertheless, the temporal changes in HPV CpG methylation from exposure to persistence to subsequent precancer and cancer require further study. As of now, it is not clear whether methylation of HPV DNA reflects an early event that can be measured as a prognostic biomarker of later CIN2+, or whether it is a late event that will serve only as a diagnostic biomarker. Carefully designed studies need to consider intervals between specimen collections; the analytic challenge will be finding the best way to examine changes in methylation levels over time, including appropriate case/control definitions, potential covariates, and the range and depth of serial data (i.e., how many time points) needed to understand the natural history of HPV DNA methylation.

If the observation of increased CpG methylation in the L1 ORFs among precancers and cancers remains consistent across most carcinogenic HPV types, it should be possible to develop a multiplex assay that measures CpG methylation at sites that are highly discriminatory for CIN3 versus transient infections. Such an assay will need to identify and then pool individual CpG sites into 1 test. This type of assay will be crucial for the triage of HPV-positive women, so that 1 test could be used regardless of the type of HPV infection. Selecting too many sites could increase the complexity and cost of the assay, and may increase the risk of false positive results. Nevertheless, optimal discrimination may only be achieved when multiple, less correlated sites are measured for a specific viral type. Additional studies to address the architecture of HPV methylation and the correlation among CpG sites across different HPV types will be needed to optimize an assay. Furthermore, it will be important to have some redundancy of coverage, to account for genomic variants, viral integration, and/or assay complexity.

Determining the HPV type responsible for a lesion has historically been a challenge when multiple HPV genotypes are detected. Multiple lesions may be caused by different types or a single type may be responsible for a precancerous lesion, but may be surrounded by transient infections of other HPV types (69). Wentzensen and colleagues evaluated the methylation levels in cases and controls by infection status with multiple versus single (18, 31, 45) carcinogenic HPV types (9). Single-type infections were distinguished by higher methylation levels compared with multiple-type infections, where causal attribution was less clear.

Only a few studies have analyzed whether demographic and lifestyle factors affect HPV DNA methylation and/or modify the association between HPV DNA methylation and carcinogenesis (8, 13, 15, 22, 23, 28). One study found that oral contraceptive use was associated with lower methylation of the URR (22) while, Piyathilake and colleagues (23), found that reported healthy eating was associated with increased methylation in the enhancer region of the URR. One large study suggested that older women had higher methylation levels and increased risk compared with younger women (28). In summary, it seems that the association between cervical neoplasia and HPV DNA methylation is not easily explained by demographic and other risk factors. More definitive studies are needed with larger sample sizes, particularly to analyze the relationship between demographics, cofactors, HPV methylation, and cervical cancer development.

Although the primary focus of this review is on viral methylation in cervical cells and HPV progression to precancer/cancer, it is important to note that epigenetic changes occur in both the host and viral genome of cells during neoplastic transformation (for a review, see ref. 70).

On the basis of future studies expanding the oncogenic types and the association of CpG methylation with precancer, it is likely that HPV viral methylation will have a role as a candidate biomarker for translation to clinical use. Because HPV methylation can be measured from the same specimen used for an HPV test, the most likely scenario will be as a triage test for women screening HPV-positive. The methylation assay could guide decisions about immediate intervention and future follow-up and identify women who need to undergo further evaluation.

Millions of women are still at risk of cervical cancer and an enormous public health challenge remains, particularly for women infected before the vaccine, and for those oncogenic types not included in the current vaccines. The future demands additional scientific breakthroughs in managing oncogenic cervical infections to prevent cervical cancer.

No potential conflicts of interest were disclosed.

Conception and design: M.A. Clarke, N. Wentzensen, L. Mirabello, M. Schiffman, R.D. Burk

Development of methodology: L. Mirabello, A. Tibor Lorincz, M. Schiffman, R.D. Burk

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): M.A. Clarke

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): M.A. Clarke, L. Mirabello, A. Ghosh, A. Harari, A. Tibor Lorincz, M. Schiffman, R.D. Burk

Writing, review, and/or revision of the manuscript: M.A. Clarke, N. Wentzensen, L. Mirabello, A. Ghosh, S. Wacholder, A. Harari, A. Tibor Lorincz, M. Schiffman, R.D. Burk

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): R.D. Burk

Study supervision: R.D. Burk

This research was supported (in part) by the Intramural Research Program of the NIH and the National Cancer Institute (5U01CA078527 to R.D. Burk).
