In chronic liver diseases (CLD), p53 is constitutively activated in hepatocytes due to various etiologies as viral infection, ethanol exposure, or lipid accumulation. This study was aimed to clarify the significance of p53 activation on the pathophysiology of CLDs. In Kras-mutant liver cancer model, murine double minute 2 (Mdm2), a negative regulator of p53, was specifically deleted in hepatocytes [Alb-Cre KrasLSL-G12D Mdm2fl/fl (LiKM; KrasG12D mutation and Mdm2 loss in the liver)]. Accumulation of p53 and upregulation of its downstream genes were observed in hepatocytes in LiKM mice. LiKM mice showed liver inflammation accompanied by hepatocyte apoptosis, senescence-associated secretory phenotype (SASP), and the emergence of hepatic progenitor cells (HPC). More importantly, Mdm2 deletion promoted non–cell autonomous development of liver tumors. Organoids generated from HPCs harbored tumor-formation ability when subcutaneously inoculated into NOD/Shi-scid/IL2Rγ (null) mice. Treatment with acyclic retinoid suppressed growth of HPCs in vitro and inhibited tumorigenesis in LiKM mice. All of the phenotypes in LiKM mice, including accelerated liver tumorigenesis, were negated by further deletion of p53 in hepatocytes (Alb-Cre KrasLSL-G12D Mdm2fl/fl p53fl/fl). Activation of hepatic p53 was noted in liver biopsy samples obtained from 182 patients with CLD, in comparison with 23 normal liver samples without background liver diseases. In patients with CLD, activity of hepatic p53 was positively correlated with the expression of apoptosis, SASP, HPC-associated genes and tumor incidence in the liver after biopsy. In conclusion, activation of hepatocyte p53 creates a microenvironment prone to tumor formation from HPCs. Optimization of p53 activity in hepatocytes is important to prevent patients with CLD from hepatocarcinogenesis.

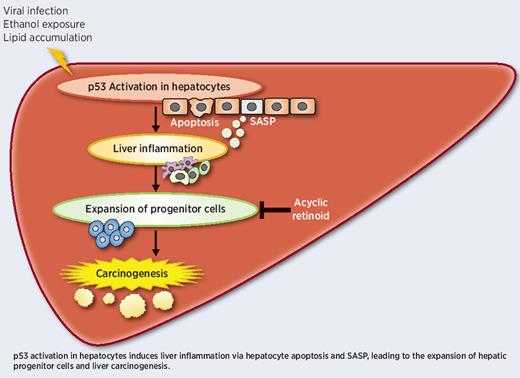

This study reveals that activation of p53 in hepatocytes promotes liver carcinogenesis derived from HPCs, which elucidates a paradoxical aspect of a tumor suppressor p53 and novel mechanism of liver carcinogenesis.
p53, encoded by the TP53 gene, is one of the most important tumor suppressors and is called “a guardian of the genome” (1). The activity of p53 is generally regulated at the protein level through posttranslational modifications (2). Under unstressed conditions, p53 protein levels are usually kept low through continuous degradation (2, 3). The degradation of p53 is mainly mediated by the E3 ubiquitin ligase murine double minute 2 (Mdm2), which ubiquitinates p53 for proteasomal degradation (3). In response to cellular stress, such as DNA damage and oncogene signals, p53 is phosphorylated by several kinases (2, 3). Phosphorylation of p53 inhibits the p53–Mdm2 interaction, resulting in the accumulation of p53 (2, 3). Accumulated p53 acts as a transcription factor and upregulates downstream genes such as p21, bax, and noxa (1–3). Thus, when p53 is activated, it induces cell-cycle arrest, apoptosis, senescence, and DNA repair to prevent carcinogenesis (1–3).
Dysfunction of p53 is involved in a large spectrum of cancer types (1–3). TP53 gene mutation is observed in no less than 50% of human cancers. In hepatocellular carcinoma (HCC), the TP53 gene mutation rate is approximately 30%, representing the second most frequent gene mutation in HCC (4, 5). This mutation prevents the p53 protein from binding to the response elements of its target genes. Accumulating evidence suggests that p53 is constitutively activated in hepatocytes in chronic liver disease (CLD) patients with various etiologies (6–15). Every causative agent of CLDs could be involved in p53 activation. The X protein of hepatitis B virus binds to the ubiquitin-binding domain of p53 and prevents p53 degradation (10). The core protein of hepatitis C virus can interact with p53 to enforce its transcriptional activity (11, 12). Ethanol exposure can activate p53 in hepatocytes through reactive oxygen species production (13). Fat accumulation in the liver causes hepatocyte toxicity through excess free fatty acids, oxidative stress, and lipid peroxidation, which could cause activation of hepatocyte p53 (14, 15). Moreover, the influence of p53 activation on the pathophysiology of CLDs has not been sufficiently elucidated thus far.
In the current study, we deleted Mdm2 to constitutively activate hepatocyte p53 in hepatocyte-specific Kras-mutated mice (16). We found that activation of hepatocyte p53 provoked an inflammatory response, accompanied by an increase in hepatocyte apoptosis and a senescence-associated secretory phenotype (SASP). Expansion of hepatic progenitor cells (HPC), a stem-like cell type in the liver (17, 18), was noted in the liver. p53 activation in hepatocytes accelerated the development of liver tumors originating from HPCs, as evidenced by the tumor-formation ability of HPC-derived organoids. In patients with CLD, patients with higher hepatic p53 activity showed increased apoptosis/SASP/HPC-associated gene expression and tumor incidence in the liver. These findings demonstrated that constitutive activation of the tumor suppressor p53 in hepatocytes paradoxically promotes liver carcinogenesis.
Materials and Methods
Liver samples were collected by percutaneous biopsy of nontumorous liver tissues. Collected liver tissues were examined for pathologic diagnosis, and surplus samples were used to extract total RNA. Among 266 patients with chronic liver injury who underwent percutaneous liver biopsy from January 2014 to March 2016 and agreed to participate in this study, 84 patients with inadequate specimen amounts for RNA extraction were excluded. The remaining 182 patients with CLD were included, and their clinical background is presented in Supplementary Table S1. Among 51 patients with liver biopsy without underlying liver diseases from June 2014 to August 2019 who agreed to participate in this study, 28 cases without sufficient sample amounts for RNA extraction were excluded. The remaining 23 subjects were included as control normal liver cases, who were patients with metastatic liver tumors (N = 18), cholangiocellular carcinoma (N = 1), inflammatory pseudotumor (N = 1), focal nodular hyperplasia (N = 1), a hepatic nodule proven to be normal tissue by biopsy (N = 1), and a liver transplantation donor (N = 1). Written informed consent was obtained from all subjects. Surgically resected nontumorous liver samples were obtained from patients with HCC or liver metastasis from colorectal cancer and used for IHC as CLD or normal liver samples, respectively. The study protocol followed the ethical guidelines of the Declaration of Helsinki. The use of these samples was approved by the Institutional Review Board (IRB) Committees at Osaka University Hospital (IRB No. 13556 and 15267).
C57BL/6/129 background mice carrying a transcription termination sequence (loxP-stop-loxP; LSL) followed by the KrasG12D point mutation allele (KrasLSL-G12D/+) were kindly provided by the NCI (Bethesda, MD). By mating KrasLSL-G12D/+ mice and heterozygous Alb-Cre transgenic mice that expressed Cre recombinase under the control of the albumin promoter, hepatocyte-specific Kras-mutated mice [KrasLSL-G12D/+Alb-Cre; called LiK (KrasG12D mutation specifically in the liver) mice] were generated as previously reported (16). C57BL/6 background mice carrying two floxed mdm2 alleles (mdm2fl/fl) and p53 alleles (p53fl/fl) have been previously described (9). Hepatocyte-specific mdm2-knockout Kras-mutated mice [mdm2fl/fl KrasLSL-G12D/+Alb-Cre; called LiKM (KrasG12D mutation and Mdm2 loss in the liver) mice] were generated by mating LiK mice and mdm2-floxed mice. The genotyping of wild-type p53, p53Δexons2–10, p53fl, wild-type Mdm2, Mdm2Δexons5–6, and Mdm2fl alleles was carried out as previously described (19, 20). Hepatocyte-specific mdm2 and p53-double knockout Kras-mutated mice [p53fl/fl mdm2fl/fl KrasLSL-G12D/+Alb-Cre; called LiKMP (KrasG12D mutation and Mdm2/p53 double loss in the liver) mice] were generated by mating LiKM mice and p53-floxed mice. ROSA26-LacZ mice with a C57BL/6 background, which carries LSL-LacZ allele in ROSA26 locus, were purchased from The Jackson Laboratory. To analyze the expression of Cre recombinase in the liver, KrasG12D Mdm2–/– ROSA26-LacZ mice (ROSA26-LacZ mdm2fl/fl KrasLSL-G12D/+Alb-Cre) were generated by mating hepatocyte-specific mdm2-knockout KrasG12D mice and ROSA26-LacZ mice. In these mice, Cre recombinase removes the transcriptional stop codon upstream of LacZ gene. Cre-expressing cells thus express LacZ and are positive for β-galactosidase staining. In addition, LiKMP mice were mated with ROSA26-LacZ mice to generate KrasG12D Mdm2–/– p53–/– ROSA26-LacZ mice (ROSA26-LacZ mdm2fl/fl p53fl/fl KrasLSL-G12D/+Alb-Cre). NOD/Shi-scid/IL2Rγ (null; NOG) mice were previously reported (16, 21). Only male mice were used for all experiments, except for the experiment of KrasG12D Mdm2del/del p53 del/del ROSA26-LacZ mice. Mice were maintained in a specific pathogen-free environment and were treated humanely under the approval of the Animal Care and Use Committee of Osaka University Medical School.
The protocol for murine HPC-derived organoid culture has been previously described (22). For organoid isolation, 0.50 g of nontumorous liver specimens without macroscopic tumors were minced immediately after removal from 6- to 10-week-old mice and digested in DMEM/F-12 (Thermo Fisher Scientific) supplemented with liberase (Roche) and DNase I. After centrifugation of the digestion mixture and washing with Earle's Balanced Salt Solution (Thermo Fisher Scientific), the cell pellet was dissolved in Cultrex PathClear Reduced Growth Factor BME (R&D Systems) and seeded onto a suspension culture microplate (IWAKI). Cells were incubated in isolation culture medium for 10 to 15 days to grow organoids. Organoids were thereafter passaged every 3 to 7 days and cultured in expansion medium. Expansion medium consisted of DMEM/F-12 supplemented with l-glutamine (Thermo Fisher Scientific), 1% antibiotics, B-27 supplement (Thermo Fisher Scientific), N-2 supplement (Thermo Fisher Scientific), N-acetylcysteine (WAKO, Tokyo, Japan), Rspo1 conditioned medium, nicotinamide (Sigma-Aldrich), recombinant mouse EGF (Thermo Fisher Scientific), recombinant human FGF-10 (PeproTech), recombinant human HGF (PeproTech), A83-01 (Sigma-Aldrich), and Y-27632 (FUJIFILM Wako Pure Chemical Corporation). Isolation medium was composed of 70% expansion medium and 30% wnt-3a conditioned medium supplemented with recombinant human noggin (R&D Systems). Organoids were dissociated into single cells by TrypLE Express (Thermo Fisher Scientific) treatment and repeated pipetting for subsequent experiments.
Raw data and processed data of RNA sequencing (RNA-seq) presented were deposited in Gene Expression Omnibus database (GSE201151 (nontumorous liver tissues of LiK and LiKM mice), GSE201593 (AFP-positive or AFP-negative liver tissues of LiKM mice), and GSE201067 [nontumorous liver tissues of LiK and LiKM mice fed normal diet or acyclic retinoid (ACR) diet)]. Other data generated in this study are available within the article and its Supplementary Data files.
Deletion of hepatocyte Mdm2 accelerated liver carcinogenesis in LiK mice

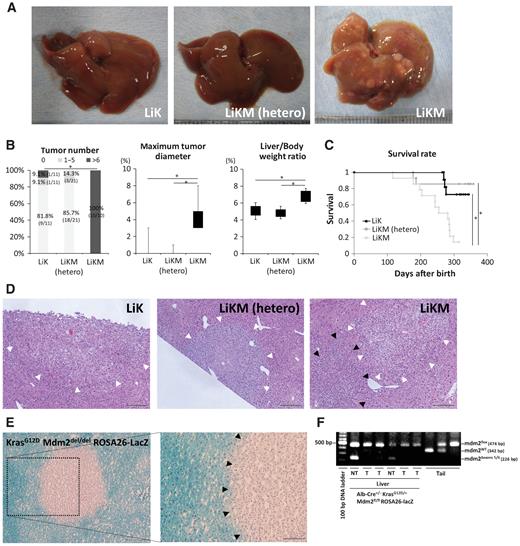

To analyze the influence of constitutive activation of p53 in hepatocytes, we genetically ablated Mdm2 in LiK mice (mdm2fl/fl KrasLSL-G12D/+Alb-Cre; Fig. 1). At 4 months of age, all KrasG12D Mdm2del/del (LiKM) mice developed multiple liver tumors, whereas most KrasG12D Mdm2+/+ (LiK) mice and KrasG12D Mdm2+/del [LiKM (hetero)] mice did not show macroscopic liver tumors (Fig. 1A and B). The tumor number, maximum diameter of macroscopic liver tumors, and liver/body weight ratio were significantly increased in the LiKM group in comparison with the other two groups (Fig. 1A and B). The median survival periods of LiK, LiKM (hetero), and LiKM mice were 319 ± 79, 343 ± 181, and 267.5 ± 199 days, respectively, which was the shortest in the LiKM group (Fig. 1C). Tumors were histologically well- to moderately differentiated HCC (Fig. 1D), as we previously reported in LiK mice (16). In 6 tumors in 3 mice, the DNA sequence of the hotspots of mutations in the Trp53 gene (exons 5, 6, 7, and 8) was identical to that of spleens, indicating no mutation. mRNA expression of Trp53 and its target genes in liver tumors was not different from that in surrounding nontumorous liver tissues in LiKM mice (Supplementary Fig. S1). LiKM mice were crossed with ROSA26-LacZ mice to generate KrasG12D Mdm2del/del ROSA26-LacZ mice. In these mice, cancer cells were negative for β-galactosidase staining, whereas surrounding nontumorous hepatocytes were positive (Fig. 1E). In genotyping PCR, nontumorous liver tissues in KrasG12D Mdm2del/del ROSA26-LacZ mice harbored DNA fragments of Mdm2Δexons 5/6 (Fig. 1F). This is the recombination product of the Mdm2-floxed allele by Cre recombinase (19). Tumorous tissues in these mice showed little appearance of this band (Fig. 1F). This result indicated that liver tumors in LiKM mice retained Mdm2 gene. Liver tumors developed in LiKM mice were originated from a cell type that is negative for Cre expression.
LiKM mice showed p53 activation and liver inflammation accompanied by upregulation of cytokines and chemokines in the liver

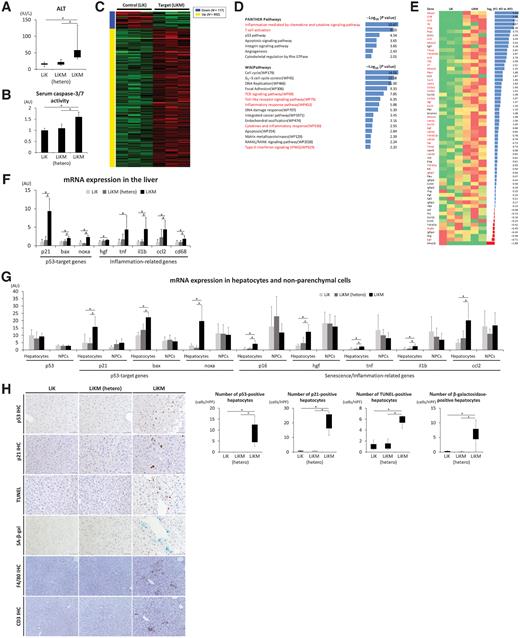

To investigate the mechanisms underlying the accelerated hepatocarcinogenesis in LiKM mice, the phenotypes were analyzed at 6 weeks of age before macroscopic tumor formation. Serum alanine aminotransferase (ALT) and caspase-3/7 activity were elevated in the LiKM mice, indicating liver injury (Fig. 2A and B). RNA-seq identified 952 upregulated genes and 117 downregulated genes in the livers of target (LiKM) mice in comparison with control (LiK) mice (Fig. 2C). On the basis of these genes, “inflammation mediated by chemokine and cytokine signaling pathway” was the most enriched pathway in the PANTHER pathway database (Fig. 2D). The apoptosis signaling pathway and p53 pathway were also enriched (Fig. 2D). WikiPathways revealed the enrichment of several inflammation-associated pathways in the livers of LiKM mice (Fig. 2D). Various inflammation-associated molecules were upregulated in the livers of LiKM mice (Fig. 2E). In accordance with these findings, qPCR demonstrated that expression of p53 target genes and inflammation-related genes was elevated in the livers of LiKM mice (Fig. 2F). Hepatocytes and nonparenchymal cells (NPC) isolated from the livers of LiKM mice showed that p53 target genes were specifically upregulated in the hepatocyte fraction, whereas p53 mRNA expression was not affected (Fig. 2G). p16, a marker of senescence, was also upregulated in hepatocytes from LiKM mice, together with inflammation-related cytokines such as HGF, TNF, IL1β, and Ccl2 (Fig. 2G; ref. 23). LiKM mice showed the increase of positive hepatocytes in p53 and p21 IHC, TUNEL staining, and senescence-associated β-galactosidase (SA-β-gal) staining (Fig. 2H). IHC for F4/80 and CD3 showed the infiltration of macrophages and T cells, respectively (Fig. 2H). Hepatocyte-specific Mdm2 deletion in LiK mice thus induced hepatocyte apoptosis and senescence and provoked liver inflammation.
LiKM mice showed the emergence of HPCs

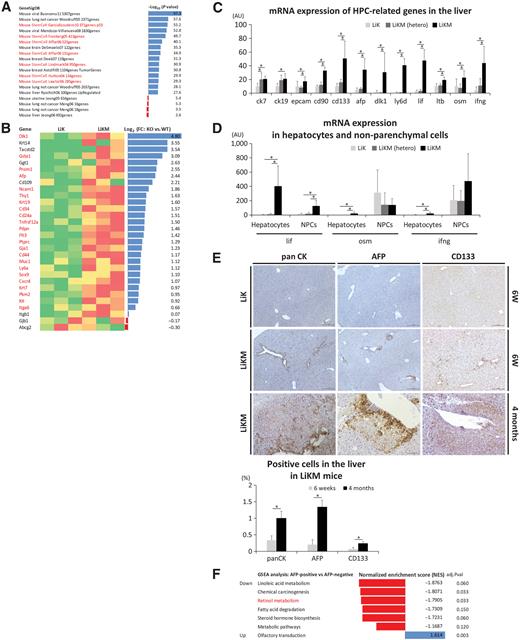

RNA-seq demonstrated that LiKM mice had enrichment of several stem cell–related pathways in the GeneSigDB database, which especially focuses on cancer and stem cell gene signatures (Fig. 3A; ref. 24). Regarding stem cell–related molecules in the liver, several biliary and stem cell–related markers, which are characteristic of HPCs, were upregulated in LiKM mice (Fig. 3B). qRT-PCR validated the upregulation of these markers in the livers of LiKM mice, together with various humoral factors known to enhance the expansion of HPCs, such as leukemia inhibitory factor (LIF), oncostatin M (OSM), and IFNγ (Fig. 3C). Hepatocytes isolated from the livers of LiKM mice revealed that these factors were upregulated mainly in the hepatocyte fraction (Fig. 3D). IHC showed the appearance of cells expressing HPC markers such as CK, AFP, and CD133 in the perivascular areas of the livers of LiKM mice at 6 weeks of age, whereas these cells were not apparent in LiK littermates (Fig. 3E). At 4 months of age, IHC showed the expansion of these cells and liver tumors in LiKM mice expressed the characteristic markers of HPCs (Fig. 3E). AFP-positive and negative cells were extracted from liver tissues of LiKM mice at 4 months of age for RNA-seq. In AFP-positive cells, Kyoto Encyclopedia of Genes and Genomes pathway gene set enrichment analysis revealed downregulation of Retinol metabolism, which is often observed in the early process of carcinogenesis (25), compared with AFP-negative cells (Fig. 3F). These findings suggested the possibility that HPCs were the origin of liver tumors in LiKM mice.
Hepatocyte-specific Mdm2 deletion induced hepatocarcinogenesis, even in the absence of Kras mutation
To examine the impact of hepatocyte-specific deletion of Mdm2 alone, we analyzed the phenotypes of Kraswild Mdm2del/del mice (Mdm2 loss specifically in the liver with wild-type Kras; LiM mice) by comparison with Kraswild Mdm2+/+ (wild) mice, which were littermates of the KrasG12D groups analyzed in Figs. 1,2–3. Macroscopic liver tumors were not observed at all, either in the wild group or the LiM group at 4 months of age (Supplementary Fig. S2A and S2B), which was different from the KrasG12D littermates (Fig. 1A and B). At 6 weeks of age, serum ALT and caspase-3/7 activity were elevated in LiM mice (Supplementary Fig. S2C and S2D). qPCR demonstrated the upregulation of p53 target genes and HPC-related genes in the livers of LiM mice (Supplementary Fig. S2E). Among the inflammation-related genes, namely, hgf, tnf, il-1b, ccl2, and cd68, all of which were upregulated in the livers of LiKM mice (Fig. 2F), only ccl2 was upregulated in LiM mice (Supplementary Fig. S2E). Histologic analysis showed an increase in p53-, p21-, TUNEL-, and β-galactosidase–positive hepatocytes; CK-positive HPCs; and CD3-positive T cells in LiM mice, whereas F4/80-positive macrophages were not increased (Supplementary Fig. S2F). We evaluated liver tumorigenesis in wild, Mdm2+/del [LiM (hetero)], and LiM littermates at 2 years of age. Whereas the wild and LiM (hetero) groups showed no tumor development, macroscopic liver tumors were observed in 70% (14/20) of LiM mice (Supplementary Fig. S2G and S2H). Similar to the liver tumors in LiK mice at 4 months of age, liver tumors were histologically well- to moderately differentiated HCC and positive for markers characteristic of HPCs, such as AFP, cytokeratin, and CD133 (Supplementary Fig. S2I). Genotyping PCR showed that liver tumors retained Mdm2 gene, in contrast to nontumorous liver tissues (Supplementary Fig. S2J). Hepatocyte-specific Mdm2 deletion thus promoted liver carcinogenesis even in the absence of the KrasG12D mutation in hepatocytes. KrasG12D mutation in hepatocytes was suggested to augment the inflammatory response and promote liver carcinogenesis induced by Mdm2 deletion.
HPCs in LiKM mice were tumorigenic

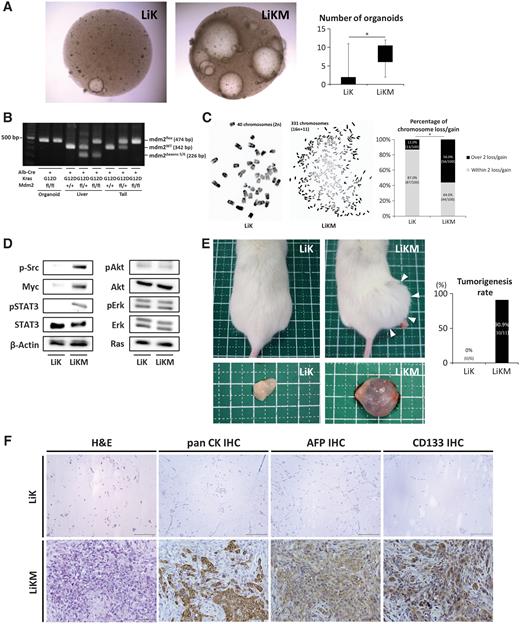

We next investigated the tumor-forming ability of HPCs in LiKM mice. Because liver stem/progenitor cells, including HPCs and their precursor of liver “resident” stem cells, can be cultured ex vivo as organoids (18, 22), we next generated organoids from nontumorous livers in LiK and LiKM mice. The number of organoids generated from nontumorous liver tissues of LiKM mice was larger than that of LiK littermates (Fig. 4A). Compared with isolated hepatocytes, organoids showed extremely high expression of biliary markers and little expression of hepatocyte markers (Supplementary Fig. S3A), which represents the characteristic gene expression pattern of HPCs. Genotyping PCR showed that LiKM organoids retained Mdm2 gene (Fig. 4B), indicating the absence of Alb-Cre expression, similar to liver tumors (Fig. 1E and F). In karyotyping, the percentage of cells with more than 2 lost or gained chromosomes was significantly higher in LiKM organoids in comparison with LiK organoids, suggesting a higher level of chromosomal instability (Fig. 4C). Expression of p-Src and Myc oncogenes and pSTAT3 was elevated in organoids from LiKM mice, whereas pErk and pAkt expression, which are downstream of Ras signaling, was not different (Fig. 4D). Whereas trp53 expression was lower in LiKM organoids, there was no significant difference in the expression of Trp53-target genes, suggesting no altered p53 activity (Supplementary Fig. S3B). Organoids were subcutaneously allografted to NOG mice, and tumor formation was evaluated 21 days after inoculation. Allografts of LiK organoids were small with a transparent and slightly flesh-colored appearance and were nontumorigenic (Fig. 4E). On the other hand, 90.9% (10/11) of LiKM organoids developed large, reddish subcutaneous tumors containing bloody fluid (Fig. 4E). Allografts of LiK organoids were mostly composed of gel matrix with little cellular component either by hematoxylin and eosin staining or IHC (Fig. 4F). In contrast, allografts of LiKM organoids showed proliferating epithelial-like cells (Fig. 4F). Immunohistochemically, these cells were positive for several markers characteristic of HPCs (Fig. 4F), which was similar to the liver tumors of LiKM mice (Fig. 3E).
ACR induced apoptosis and differentiation of HPCs in vitro
ACR is a synthetic oral retinoid with a vitamin A–like structure that binds to retinoid nuclear receptors to activate the transcription of target genes. Because ACR was reported to induce the differentiation and apoptosis of HPCs in vitro and to suppress the expansion of HPCs and liver carcinogenesis in vivo (26, 27), we analyzed the influence of ACR on tumor development in LiKM mice. In vitro, stimulation with ACR upregulated retinoic acid receptors and cell death–related genes and downregulated biliary markers in two cell lines of HPC, WB-F344 and LPC (Supplementary Fig. S4A). The proliferation of these cell lines was suppressed by ACR (Supplementary Fig. S4B), accompanied by the elevation of caspase-3/7 activity in supernatant (Supplementary Fig. S4C). In LiKM organoids, ACR treatment also upregulated retinoid receptor rara and the cell death–related genes p21 and bax (Supplementary Fig. S4D). In addition, ACR downregulated biliary markers and upregulated the hepatocyte marker hnf4a (Supplementary Fig. S4D). In vitro proliferation was attenuated by ACR (Supplementary Fig. S4E). ACR administration also suppressed the growth of allograft tumors derived from LiKM organoids (Supplementary Fig. S4F). ACR thus induced apoptosis and differentiation in HPCs and to suppress their proliferation.
ACR suppressed expansion of HPCs and tumor development in LiKM mice

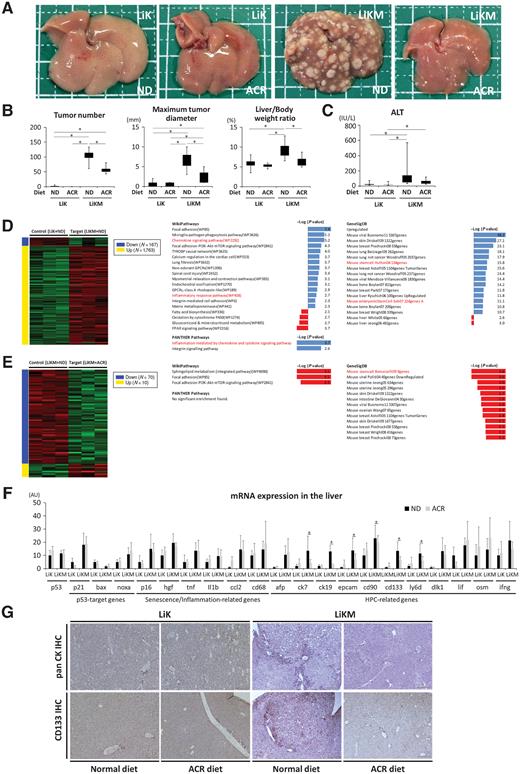

For in vivo experiments, LiK or LiKM mice were fed ACR diet or normal diet. In the LiK groups, the ACR diet did not affect liver tumorigenesis (Fig. 5A and B). In contrast, the ACR diet decreased the tumor number, maximum tumor diameter, and liver/body weight ratio in the LiKM groups (Fig. 5A and B). Serum ALT levels were not changed by ACR diet (Fig. 5C). To analyze the influence of ACR diet, we performed RNA-seq of the nontumorous liver tissues. In normal diet groups, RNA-seq identified 1763 upregulated genes and 167 downregulated genes in the livers of target (LiKM) mice in comparison with control (LiK) mice (Fig. 5D). On the basis of these genes, inflammation-related pathways and stem cell–related pathways were enriched in Wikipathways/PANTHER pathways and GenesigDB, respectively, which were similar to the analysis at 6 weeks of age (Figs. 2D and 3A). In LiKM groups, 10 and 70 genes were up- and downregulated in the liver of the ACR group compared with the normal diet group (Fig. 5E). In enrichment analysis, a stem cell–related pathway in the GenesigDB database were downregulated in ACR diet group, whereas inflammation-related pathways were not affected (Fig. 5E). In qPCR analysis, p53-related genes and senescence/inflammation-related genes in nontumorous liver tissues were not altered by the ACR diet (Fig. 5F). Specifically, ACR treatment downregulated several markers that are characteristic of HPCs, including CK7, CK19, EpCAM, CD133, and ly6d, in the LiKM groups, whereas factors known to enhance the expansion of HPCs, such as LIF, OSM, and IFNγ, were not affected (Fig. 5F). IHC showed a decrease in HPCs in LiKM mice fed the ACR diet (Fig. 5G). ACR thus attenuated HPC expansion and suppressed liver tumorigenesis in LiKM mice.
Constitutive activation of hepatocyte p53 was responsible for the promotion of tumorigenesis in Mdm2-knockout KrasG12D mice

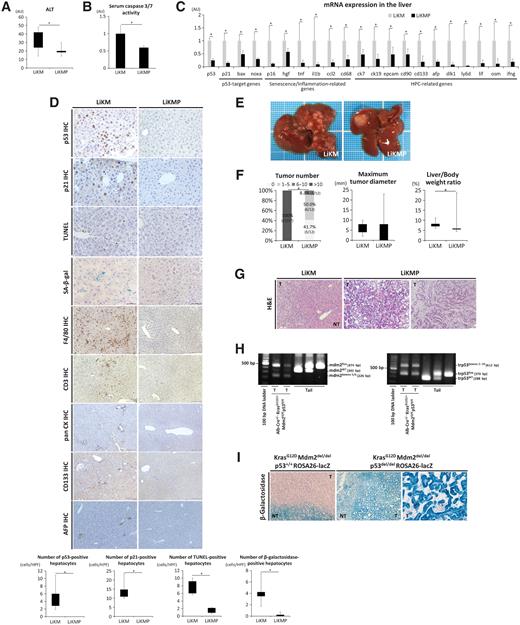

To address whether the acceleration of liver carcinogenesis in LiKM mice was due to p53 activation, we further deleted hepatocyte p53 in LiKM mice (LiKMP mice). Hepatocyte p53 was also knocked out in LiK mice as a reference (LiKP mice). In the LiK groups, hepatic p53 and p21 expression was decreased by p53 knockout in hepatocytes (Supplementary Fig. S5A). The development of liver tumors was promoted in LiKP mice at 4 months of age (Supplementary Fig. S5B and S5C). Histologically, whereas liver tumors in LiK mice were well- to moderately differentiated HCC, those in LiKP mice were poorly differentiated tumors or cholangiocellular carcinoma composed of tubular and glandular structures (Supplementary Fig. S5D). In the LiKM groups, serum ALT and caspase-3/7 activity were decreased by p53 knockout at 6 weeks of age (Fig. 6A and B). The expression of p53 and its target genes, senescence/inflammation-related genes, and HPC-related genes was decreased in the livers of LiKMP mice (Fig. 6C). IHC showed a decrease in positive TUNEL and SA-β-gal staining and IHC for p53, p21, F4/80, CD3, pan CK, CD133, and AFP (Fig. 6D). At 4 months of age, tumor development was suppressed by the knockout of p53 in the LiKM groups (Fig. 6E and F), which was quite opposite to that of the LiK groups (Supplementary Fig. S5B and S5C). Whereas liver tumors in LiKM mice were well- to moderately differentiated HCC, those in LiKMP mice were poorly differentiated or cholangiocellular carcinoma (Fig. 6G), which was the same as those in LiKP mice (Supplementary Fig. S5D). Genotyping PCR showed that liver tumors in LiKMP mice harbored a DNA fragment of p53Δexons2–10, which was the recombination product of the p53-floxed allele (Fig. 6H; ref. 20). A DNA fragment of Mdm2Δexons 5/6 was also observed in liver tumors in LiKMP mice (Fig. 6H). LiKMP mice were crossed with ROSA26-LacZ mice, and the liver tissues in offspring KrasG12D Mdm2del/del ROSA26-LacZ p53+/+ and p53del/del mice were subjected to β-galactosidase staining. In KrasG12D Mdm2del/del ROSA26-LacZ p53+/+ mice, tumor cells of well- to moderately differentiated HCC were negative for β-galactosidase staining, suggesting the absence of Cre expression (Fig. 6I). On the other hand, tumor cells both in poorly differentiated tumors and cholangiocellular carcinoma in KrasG12D Mdm2del/del p53del/del ROSA26-LacZ mice were positive for β-galactosidase staining (Fig. 6I). This finding suggested that both Mdm2 and p53 were deleted in liver tumors in LiKMP mice. Collectively, all of the phenotypes in LiKM mice, including hepatocyte apoptosis, SASP, liver injury, and increased liver carcinogenesis, were negated by further deletion of hepatocyte p53. Activation of hepatocyte p53 accelerated liver carcinogenesis derived from Cre-negative cell types.
Hepatic p53 activity was correlated with apoptosis, SASP, HPCs and tumor incidence in patients with CLD

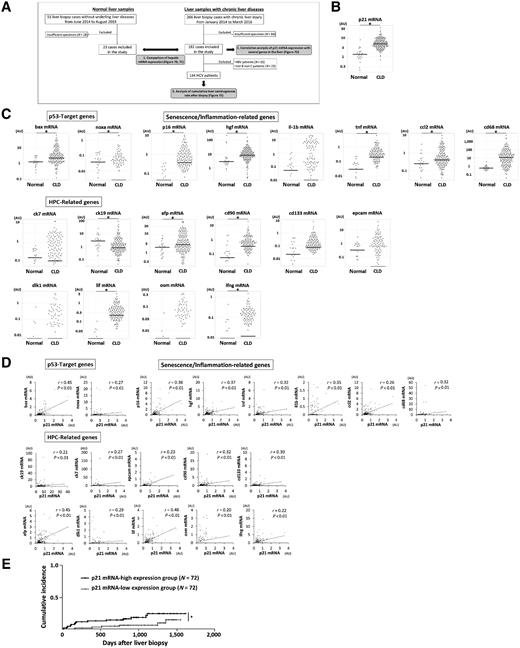

We finally analyzed hepatic p53 activity and its significance in CLDs using liver specimens obtained through percutaneous biopsy from patients with CLD and normal liver samples. The flow chart of patient selection is presented in Fig. 7A. In accordance with our previous report (9), we adopted p21, one of the most representative p53 target genes, as a marker of p53 activation. The expression of hepatic p21 was elevated in 182 patients with CLD in comparison with 23 patients with normal liver (Fig. 7B). Together with p21, a p53 target gene (bax), senescence/inflammation-related genes (p16, hgf, tnf, ccl2, and cd68), and HPC-related genes (cd90, afp, lif, and ifng) were also upregulated in the livers of patients with CLD (Fig. 7C). We next performed IHC for HPC markers in the liver samples obtained from surgical hepatectomy for liver metastasis from colorectal cancer (normal liver) or HCC (CLD). Whereas AFP-positive cells were not apparent in normal liver, AFP-positive epithelial cells were present in CLD liver tissues (Supplementary Fig. S6). EpCAM was positive only in cholangiocytes in normal liver (Supplementary Fig. S6). In CLD liver tissues, we observed EpCAM-positive epithelial cells proliferating into liver parenchyma (Supplementary Fig. S6). These findings suggested the presence of HPCs in CLD liver samples. In 182 patients with CLD who underwent percutaneous liver biopsy, p21 mRNA expression was positively correlated with the expression of several p53 target genes (bax and noxa), senescence/inflammation-related genes (p16, hgf, tnf, il-1b, ccl2, and cd68) and HPC-related genes (ck7, ck19 epcam, cd90, cd133, afp, dlk1, lif, osm, and ifng; Fig. 7D). Among 182 patients with CLD, we further focused on 144 patients with HCV-related CLDs to analyze the relationship between hepatic p21 expression and tumor incidence after biopsy. These patients were divided into a p21 mRNA-high expression group (N = 72) and a p21 mRNA-low expression group (N = 72) according to the median p21 mRNA expression value. The cumulative HCC incidence rate after biopsy in the p21-high expression group was significantly higher than that in the p21-low expression group (Fig. 7E). Collectively, hepatic p53 activity was increased in patients with CLD and was associated with apoptosis, SASP, HPCs, and liver carcinogenesis.
In the current study, we revealed that constitutive activation of hepatocyte p53 accelerated liver carcinogenesis, which is completely opposite to its well-known tumor-suppressive property. Moreover, it should be noted that it was a non–cell autonomous liver carcinogenesis. It was not p53-activated cells that transformed into cancer cells because the cancer cells lacked Cre recombinase expression or Mdm2 deletion (Fig. 1E and F). Activated p53 executed its intrinsic action as a cell-cycle regulator in hepatocytes, leading to the induction of apoptosis and senescence. By provoking inflammation, activated p53 produces tumorigenic conditions in the liver, where cell types other than p53-activated hepatocytes are likely to malignantly transform. Whereas hepatocytes are the primary epithelial cell population that constitutes almost 80% of the total liver volume, the liver also consists of NPCs such as hepatic stellate cells, macrophages, and endothelial cells. Among the various cell types composing the liver, two cell types have been considered to be tumor-initiating cells of HCC: hepatocytes and HPCs (28, 29).
We demonstrated that p53 activation in hepatocytes provoked the emergence of HPCs (Figs. 3 and 6). Although the origin of HPCs is not clearly understood, they are believed to be mainly derived from “resident” stem cells in the liver (17, 18). Whereas HPCs are difficult to observe in the healthy liver, resident stem cells become highly proliferative and expand when regenerative proliferation of mature hepatocytes is impaired under prolonged or extensive liver injury (17, 18). HPCs can differentiate into hepatocytes or cholangiocytes and contribute to liver regeneration (17, 18). Furthermore, the detailed cellular and molecular mechanisms of HPC appearance are not well understood to date. In our experiments, p53 activation in hepatocytes caused liver injury, accompanied by hepatocyte apoptosis and senescence (Figs. 2 and 6). Both apoptosis and senescence are irreversible blockades of hepatocyte replication, which could lead to the emergence of HPCs in the case of liver injury. These conditions could have provided the chance for HPCs to expand in LiKM mice. Correlations between p53 activation and apoptosis, senescence, and HPC expansion were also observed in human samples (Fig. 7). Our study is the first to demonstrate the association between hepatocyte p53 and HPC expansion. Our findings clarified a part of the cellular and molecular mechanisms of HPC expansion in CLDs.
HPCs were considered to be the origin of liver tumors in LiKM mice on the basis of the following findings. Similar to liver tumors in LiKM mice, liver organoids generated from the stem/progenitor cell population were also negative for Cre expression (Fig. 4B) and possessed tumor-formation ability (Fig. 4E and F). In addition, liver tumorigenesis was suppressed by ACR (Fig. 5), which induced the differentiation and apoptosis of HPCs (Supplementary Fig. S4). Downregulation of retinol signaling in AFP-positive cells in LiKM mice (Fig. 3F) might have suggested the rationale for ACR treatment. Recent accumulating evidence suggests that HPCs can malignantly transform and develop HCC. Several clinical studies revealed that some HCCs were positive for HPC markers and originated from HPCs (30). In several experimental studies, HPCs isolated from both humans and animals were shown to have tumor-formation ability when inoculated into immune-deficient mice (31–33). Regarding genetic abnormalities that underlie their tumor-formation ability, all of these reports demonstrated abnormal karyotypes in tumorigenic HPCs. Our study also showed chromosomal abnormalities in LiKM organoids (Fig. 4C), together with tumor-formation ability (Fig. 4E and F). These findings suggested that HPCs in LiKM mice extracted as organoids harbored characteristics of cancer cells. Chromosomal abnormalities are one of the most common forms of genomic instability in cancers (34). This instability could substantially affect cell physiology and phenotypes, including cell-cycle regulation, metabolism, and protein homeostasis, which might drive carcinogenesis (34). Whereas chromosomal abnormalities might contribute to the tumorigenicity of LiKM organoids, little is known to date about the genetic drivers of HPC-derived HCC (29). HPCs are likely to acquire genetic abnormalities because they are long-lived and highly proliferating cells (17, 18). Similar to previous studies that demonstrated liver carcinogenesis derived from HPCs (31, 35), our LiKM organoids showed increased phosphorylation of STAT3 and Src (Fig. 4D), which might provide tumor-formation ability. Nevertheless, further study is needed to identify the critical drivers that induce malignant transformation of HPCs.
Genetic abnormalities can be induced by various environmental stresses. One of the most important factors is chronic inflammation, which is usually accompanied by abundant soluble mediators. In our study, cytokine and chemokine production was revealed to be enriched in p53-activated livers in LiKM mice and patients with CLD (Figs. 2 and 7). Among several inflammatory cytokines, TNF is the most studied molecule and has been shown to facilitate tumorigenesis of HPCs (31, 35). In addition to TNFα, multiple humoral factors, such as LT-β, IFNγ, LIF, OSM, HGF, and Ccl2, all of which were upregulated in the livers of LiKM mice (Figs. 2 and 3), could accelerate HPC proliferation (36–38). Abundant cytokine production in the liver might contribute to HPC-derived liver carcinogenesis caused by Mdm2 deletion in Kras-mutant mice. Kras mutation activates downstream signaling, such as the Mek/Erk or PI3K/Akt pathways, to enhance cell proliferation and survival, leading to cancer development. Whereas Kras mutation is observed only in 5% to 7% of human HCC (39), the downstream Mek/Erk and Akt/PI3K signaling pathways is activated in more than half of the cases (40, 41). Our hepatocyte-specific KrasG12D mice is a model to activate these pathways and develop liver cancer. Recent studies featured another consequence of Kras activation (42). Kras activation can upregulate various proinflammatory cytokines via activation of the STAT3/NF-kB pathway or enhancement of the SASP, leading to the facilitation of a protumorigenic microenvironment (42). In our model, interestingly, the KrasLSL-G12D transgene was not considered to be a carcinogenic driver in LiKM mice, because liver tumors did not express Cre recombinase (Fig. 1E and F). However, the onset of tumor development was accelerated in the presence of KrasG12D mutation in hepatocytes on the basis of the phenotypes of LiM mice at 4 months and 2 years of age (Fig. 1; Supplementary Fig. S2). The mechanisms might be partly explained by the enhancement of cytokine production from hepatocytes. Whereas hepatocyte apoptosis and senescence and HPC expansion were observed in LiM mice, some soluble mediators, such as hgf, tnf, il-1b, and ifng, were not upregulated in the livers of LiM mice (Supplementary Fig. S2E), in contrast to LiKM mice. Upregulation of these molecules, especially TNF, might have promoted the tumorigenicity of HPCs to accelerate liver carcinogenesis in LiKM mice. From these findings, constitutive activation of hepatocyte p53, especially in combination with KrasG12D mutation, upregulated various inflammation-associated molecules and created a favorable environment for HPCs to expand and malignantly transform.
In conclusion, whereas loss of the tumor suppressor p53 in hepatocytes increased hepatocarcinogenesis, constitutive activation of p53 also accelerated non–cell autonomous liver tumorigenesis via increased hepatocyte apoptosis, SASP, and progenitor cell activation. It is important to optimize p53 activity in hepatocytes to prevent hepatocarcinogenesis in patients with CLDs.
