Immune therapies have had limited efficacy in high-grade serous ovarian cancer (HGSC), as the cellular targets and mechanism(s) of action of these agents in HGSC are unknown. Here we performed immune functional and single-cell RNA sequencing transcriptional profiling on novel HGSC organoid/immune cell co-cultures treated with a unique bispecific anti-programmed cell death protein 1 (PD-1)/programmed death-ligand 1 (PD-L1) antibody compared with monospecific anti-PD-1 or anti-PD-L1 controls. Comparing the functions of these agents across all immune cell types in real time identified key immune checkpoint blockade (ICB) targets that have eluded currently available monospecific therapies. The bispecific antibody induced superior cellular state changes in both T and natural killer (NK) cells. It uniquely induced NK cells to transition from inert to more active and cytotoxic phenotypes, implicating NK cells as a key missing component of the current ICB-induced immune response in HGSC. It also induced a subset of CD8 T cells to transition from naïve to more active and cytotoxic progenitor-exhausted phenotypes post-treatment, revealing the small, previously uncharacterized population of CD8 T cells responding to ICB in HGSC. These state changes were driven partially through bispecific antibody-induced downregulation of the bromodomain-containing protein BRD1. Small-molecule inhibition of BRD1 induced similar state changes in vitro and demonstrated efficacy in vivo, validating the co-culture results. Our results demonstrate that state changes in both NK and a subset of T cells may be critical in inducing an effective anti-tumor immune response and suggest that immune therapies able to induce such cellular state changes, such as BRD1 inhibitors, may have increased efficacy in HGSC.
This study indicates that increased efficacy of immune therapies in ovarian cancer is driven by state changes of NK and small subsets of CD8 T cells into active and cytotoxic states.
High-grade serous ovarian cancer (HGSC) is the fifth leading cause of cancer death in women in the United States (1). Patients are diagnosed at late stage due to limited early detection methods, and are typically treated with combinations of surgery and chemotherapy (2). Though immune checkpoint blockade (ICB) agents demonstrate success in other solid tumor types, monospecific ICB antibodies exhibit minimal efficacy in HGSC (3, 4). Many theories explore the contributions of different immune cell types to HGSC outcome and possibly ICB response. Poor HGSC outcomes associate with an increased proportion of tumor-associated macrophages (5). Positive outcomes associate with increased ratios of CD8 T cells to CD4 Tregs (6, 7) and increased fractions of natural killer (NK) cells in ascites (8, 9). Limited mechanistic data explain these findings. On the basis of work in ICB-responsive solid tumor types, it is likely that the quality of the T and NK cells, rather than their quantity, matters in eliciting ICB activity (10, 11).
In most solid tumors, the tumor microenvironment induces dysfunction in T and possibly NK cells (12, 13). In CD8 T cells, this dysfunction, called “exhaustion,” is mediated by stable epigenetic reprogramming producing subsets of differentially functional cells including progenitor-exhausted and terminally exhausted T cells (10, 14, 15). The contribution of naïve versus exhausted CD8 T-cell subsets to ICB response, and the mechanism of NK-cell dysfunction and ICB-triggered response, are still being defined in all solid tumor types, including HGSC (10, 11, 13, 16).
A better understanding of cells critical for ICB response in HGSC and the effect of cell state on their response to ICB agents is needed. Organoid co-cultures containing patient-matched tumor and all intratumoral immune cells represent a human model that can be studied over time using ICB treatments to ask questions about ICB efficacy and mechanism of action (17, 18).
Here we utilize short-term patient-derived HGSC organoid co-cultures containing tumor organoids and the full complement of intratumoral immune cells to functionally assess the mechanism of action of ICB agents in every type of immune cell in the culture. To detect key cellular and mechanistic targets evading current therapies, we compared the action of a novel bispecific anti-programmed cell death protein 1 (PD-1)/programmed death-ligand 1 (PD-L1) ICB antibody (19) with its monospecific anti-PD-1 and anti-PD-L1 controls. We show that the bispecific antibody uniquely induces state changes in NK cells from inert to active states and most strongly induces a state change in CD8 T cells from naïve to cytotoxic progenitor-exhausted states, with neither target previously demonstrated as critical for ICB response in HGSC. We demonstrate that both state changes are driven partially through downregulation of the bromodomain-containing protein BRD1. BRD1 inhibition by a small-molecule inhibitor, BAY-299, recapitulates these state changes for T and NK cells in vitro and in vivo, and demonstrates efficacy in vivo, thereby validating the co-culture results and suggesting BRD1 as a possible immune therapy target. Taken together our data indicate that efficacy of immune therapies in HGSC can be driven by transition of NK-cell and CD8 T-cell subsets into active and cytotoxic states likely through epigenetic changes driven, in part, by BRD1 downregulation or inhibition removing some tumor microenvironment driven dysfunction.
Materials and Methods
For additional and detailed materials and methods, please see Supplementary Materials and Methods.
HGSC tumor tissue was collected from 12 patients undergoing primary debulking surgery at Brigham and Women's Hospital (BWH, Boston, MA) and Dana-Farber Cancer Institute (DFCI, Boston, MA) for organoid co-culture generation and functional testing between December 2019 and April 2020. Tumor tissue from patient 20-22 was obtained under BWH/Partners Institutional Review Board (IRB)–approved discarded tissue protocol 2016P000559. Written informed consent was obtained for the remaining subjects on either BWH/Partners IRB–approved protocol 2016P002819 or DFCI IRB–approved protocol 02-051. All studies in this work were conducted in accordance with the U.S. Common Rule and Belmont Report and approved by the DFCI and BWH/Partners IRBs.
Tumors were mechanically dissociated, diluted in DMEM (Life Technologies, catalog no. 11965-092), 10% FBS (Sigma, catalog no. F2442-500), 1% penicillin streptomycin (Life Technologies, catalog no. 15140-122), and 2.5 mg/mL Type II Collagenase (Life Technologies, catalog no. 17101015), and shaken on a horizontal platform for 20 minutes at 37°C. The homogenate was filtered through a 100 μm filter (Corning, catalog no. 352360), pelleted, and washed in 1× Red Blood Cell Lysis Buffer (BioLegend, catalog no. 420301). The cells were then resuspended in DMEM/10% FBS, counted, and diluted to a concentration of 6 × 106 cells (or organoids)/mL in DMEM, 10% FBS, 1% Pen/Strep, and 30 ng/mL of IL2 (PeproTech, catalog no. 200-02) mixed with 15% Matrigel (Corning, catalog no. 356231). This cell suspension was then plated into 48-well plates (USA Scientific, catalog no. CC7672-7548) at 40 μL per well and incubated at 37°C to allow for settling, then drug containing media was added to each well. All drug preparations were prepared in DMEM, 10% FBS, 1% Pen/Strep, and 30 ng/mL of IL2. Drugs included Anti-PD-1 (Selleck, catalog no. A2005), IgGEn Isotype Control (provided by Eli Lilly), anti-PD-L1 (LY3300054), bispecific anti-PD-1/PD-L1 (LY3434172; all antibodies used at 10 μg/mL), and BAY-299 (MedChemExpress, catalog no. HY-107424; used at 1 μmol/L). Co-cultures were harvested 96 hours after plating for all functional assays detailed in the Supplementary Methods.
Single-cell RNA sequencing
Single-cell RNA sequencing (scRNA-seq) experiments were performed by the BWH Single Cell Genomics Core. For scRNA-seq analysis of the organoid co-cultures, viable CD45+ cells from organoid co-cultures were isolated by FACS. Cells were stained with a distinct barcoded antibody (Cell Hashing antibody, TotalSeq-A, BioLegend) as described previously (20). Next, 7,000 cells from each condition were resuspended in 0.4% BSA in PBS at a concentration of 1,000 cells per μL, pooled together, then loaded onto a single lane (Chromium chip, 10× Genomics), followed by encapsulation in a lipid droplet (Single Cell 3′kit V3, 10× Genomics), followed by cDNA and library generation according to the manufacturer's protocol. For the scRNA-seq analysis of the parent tumor, 6,000 viable CD45+ cells and 4,000 CD45− (tumor and stromal cells) were pooled together and resuspended in 0.4% BSA in PBS at a concentration of 1,000 cells per μL. A total of 10,000 cells were loaded onto a single lane (Chromium chip, 10× Genomics), followed by encapsulation in a lipid droplet (Single Cell 3′kit V3, 10× Genomics), followed by cDNA and library generation according to the manufacturer's protocol.
mRNA libraries were sequenced to an average of 50,000 reads per cell and HTO (Cell Hashing antibodies) libraries sequenced to an average of 5,000 reads per cell, both using Illumina Novaseq. Please see Supplementary Materials and Methods for scRNA-seq data analysis methods.
In vivo study
Massachusetts General Hospital Institutional Care and Use Committee protocol 2017N0000236 was used for this study. STOSE cells were cultured and expanded as described previously (21). Twenty 7–9 week-old FVB-N mice obtained from Jackson Labs were intraperitoneally injected with 1 × 107 STOSE cells in 250 μL of PBS. Eighteen days post-injection, mice were weighed and randomized into two arms (10/arm). Randomization was done so that the average weights, weight gained compared with day 0, and SDs were close between the two arms upon starting treatment. The mice were treated with either vehicle [10% NMP (Thermo Fisher Scientific, catalog no. 390682500), 90%PEG400 (Sigma, catalog no. 202398-500G)] or 150 mg/kg BAY-299 (MedChemExpress, HY-107424) by oral gavage once per day for 18 days. Animals were monitored by weight every 3 to 4 days and dosing was adjusted by weight. At the end of the study, mice were euthanized, and ascites and tumors were harvested. Preparation of ascites and tumor cell suspensions for analysis is described in Supplementary Methods.
The sequencing data discussed in this study have been deposited in NCBI's Gene Expression Omnibus (GEO) database and are accessible through GEO Series accession number GSE160755.

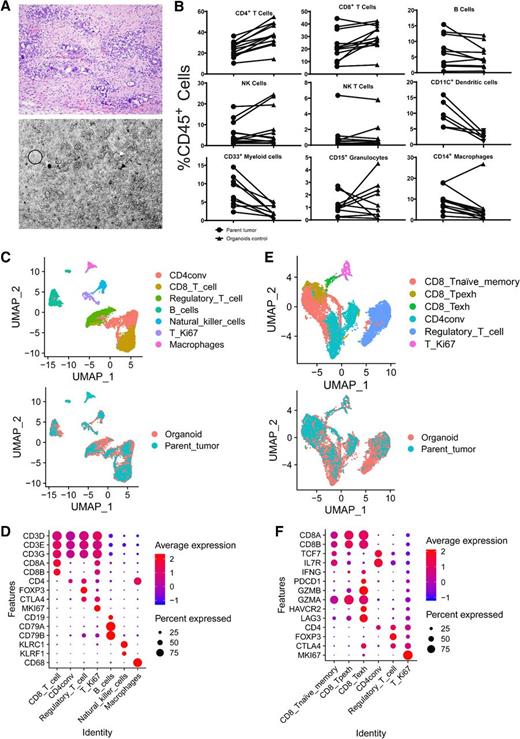

HGSC organoid–immune cell co-cultures resemble the immune microenvironment of their parent tumors
Short-term co-cultures containing tumor organoids and the full complement of intratumoral immune cells were generated from solid tumors from 12 patients with HGSC, with two sites for 1 patient, making 13 total cultures (Fig. 1; Supplementary Fig. S1A). Co-cultures were maintained in a limited growth matrix with minimal growth factor enrichment of the media; experiments occurred immediately after surgery and only lasted 96 hours. These strategies help prevent confounding alterations to the microenvironment, which might occur in longer cultures such as clonal selection of T cells (22, 23). Co-cultures were validated as matching parent tumors through visual, flow cytometry, and sequencing methods.
Bright-field microscopy revealed the co-cultures “look” similar to their parent tumors and contain psammoma body calcifications and groups of tumor spheres permeated by sheets and clusters of immune cells (Fig. 1A). Flow cytometry analysis of the parent tumors revealed a significant population of T cells with CD4 cells comprising the majority in most cases, similar to other HGSC studies (24), and revealed a significant population of NK and NK T cells (Supplementary Figs. S1B, S1C and S2A). Flow cytometry comparison of the organoids and parent tumors revealed similar amounts of each immune cell type present in the co-cultures with overall proliferation of T and NK cells and an expected drop in myeloid cells over time (Fig. 1B; Supplementary Figs. S1C, S2A and S2B). Significant PD-1, PD-L1, and TIM3 expression was found on relevant immune populations and tumor cells in the co-cultures (Supplementary Figs. S3A–S3D, S4A–S4C and S5A–S5C).
scRNA-seq analysis comparing a single matched parent tumor and control-treated organoid co-culture (20-11) revealed similar annotation of all immune cell types (Fig. 1C) defined by standard immune markers (Fig. 1D) with a decrease in macrophages mirroring flow cytometry (Fig. 1B; Supplementary Fig. S1C). Standard T-cell subsets were detected (Fig. 1E) using common subset markers (Fig. 1F).
Overall, these flow cytometry and scRNA-seq results confirm that the organoid co-cultures authentically model the parent tumor immune microenvironment.
ICB antibodies reproducibly induce IFNγ production in co-cultures
We next tested the immune activation capacity of ICB antibodies in our system. We sought to compare the efficacy and mechanism of action of a novel bispecific anti-PD-1/PD-L1 antibody (LY3434172; ref. 19) to its monospecific controls, anti-PD-1 (pembrolizumab) and anti-PD-L1 (LY3300054; Supplementary Fig. S6A; ref. 25). Monospecific ICB antibody combinations demonstrate some clinical success (26), but bispecific antibodies are hypothesized to be more effective given their ability to engage two different ICB receptors in close proximity (19, 27). Indeed, compared with monospecific controls, the bispecific anti-PD-1/PD-L1 antibody (LY3434172) has been shown to increase T-cell stimulation in a different in vitro system and anti-tumor efficacy in vivo in humanized ovarian and other tumor xenograft mouse models through unclear mechanisms (19). On the basis of this, we hypothesized that studying the function of the bispecific anti-PD-1/PD-L1 antibody, compared with controls, in our co-culture system could help dissect critical targets not being affected by available monospecific ICB antibodies.
To measure overall immune response, we performed IFNγ ELISA analysis on media from the 13 co-cultures post-treatment with a physiologic dose of each of the four antibodies individually. Pilot ELISA studies indicated 96 hours post-treatment as the best timepoint (Supplementary Fig. S6B). In six cases, media containing anti-PD-1 and anti-PD-L1 combined or an equivalent amount of IgG (IgG+IgG) was tested to determine whether increased bispecific antibody efficacy was due to an additive effect.

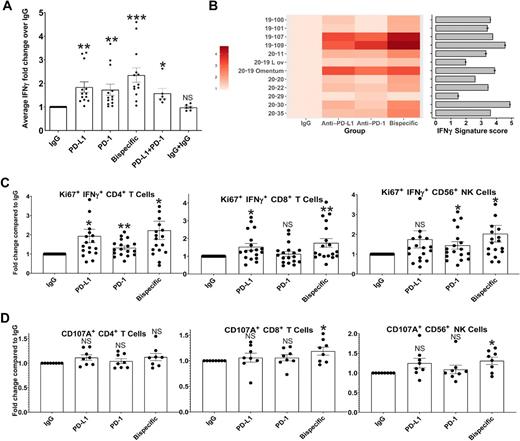

For every tumor analyzed, all three ICB antibodies induced significantly increased IFNγ production compared with the isotype control (Fig. 2A and B; Supplementary Fig. S6C). The bispecific antibody induced the strongest IFNγ production, not attributable to an additive effect as evidenced by the lower IFNγ production for the anti-PD-1+anti-PD-L1 combination (Fig. 2A; Supplementary Fig. S6D).
To compare the aggregate immune activation state of the parent tumors and co-cultures, we generated IFNG expression signature scores for each parent tumor as a measure of the bulk tumor immune state, and compared the scores with the co-culture ELISA results as a measure of bulk organoid immune state (Fig. 2B; ref. 28). The co-cultures with the highest IFNγ ELISA signals derived from parent tumors with the highest IFNG scores (19-107, 19-109, 20-19 omentum), those with medium IFNγ ELISA signals were from parent tumors with medium scores (19-100, 19-101, 20-11, 20-20, 20-22, and 20-35), and the cultures with low IFNγ ELISA signal derived from the lowest scoring parent tumors (20-29 and 20-19, left ovary; Fig. 2B). Patient 20-30 is an outlier with a parent tumor with a high IFNG score but co-cultures with a medium IFNγ signal by ELISA (Fig. 2B), potentially due to sampling discrepancies between tissue used for culture and sequencing. Overall, these results indicate that the parent tumor immune activation state is largely matched by the co-cultures and supports the hypothesis that the quality of the immune cells in a tumor rather than the quantity dictate ICB response.
Given our ability to detect immune responses in the co-cultures, we next asked which cells each antibody targets to induce this response.
Different ICB antibodies induce varying degrees of activation in unique immune cell types
Treated organoid co-cultures were analyzed by flow cytometry to determine which cell population(s) each antibody affected by searching for changes in cell numbers and activation markers.
Cell numbers for each lineage were unaffected by the antibodies. There were no changes in T- or NK-cell numbers, CD69+ active T-cell numbers, or the ratio of CD4:CD8 T cells across all treatments (Supplementary Fig. S7A–S7C). There were no changes in any myeloid cell type except for a small but statistically significant decrease in CD14+ macrophages induced by the bispecific antibody compared with the isotype control (Supplementary Fig. S7A).
We assessed all cell types for markers of proliferation (Ki67), antigen stimulation (IFNγ), and cytotoxic phenotype [granzyme B (GZMB) and CD107A; Fig. 2C and D; Supplementary Fig. S8A–S8D]. All three ICB antibodies induced a statistically significant increase in antigen-stimulated proliferating Ki67/IFNγ double-positive CD4 and CD8 T cells and NK cells, with the bispecific antibody induction the strongest for all three cell types (Fig. 2C). Only the bispecific antibody induced an increased percentage of CD107A+ CD8 T cells and NK cells over the IgG control (Fig. 2D). Finally, the bispecific antibody induced a small but discernible increase in GZMB-positive CD4 and CD8 T cells and NK cells (Supplementary Fig. S8D). Taken together with the ELISA results, these data indicate that the bispecific antibody induces both an increase in T- and NK-cell activation and cytotoxicity more efficiently than the controls. To better understand the mechanism of ICB antibody-driven immune activation in these cell types, we performed scRNA-seq analysis.
scRNA-seq of treated organoid co-cultures reveals differential expression in all immune lineages after multiple treatment modalities

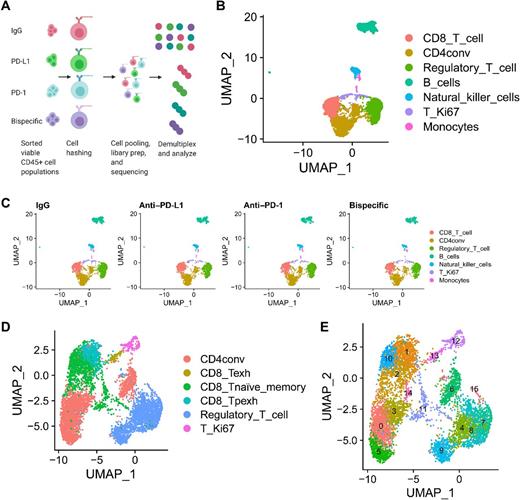

To study the effects of each ICB antibody on every kind of immune cell in a tumor, we performed scRNA-seq analysis on organoid co-cultures from an untreated HGSC omental metastasis (20-11) 96 hours post-treatment, with isotype control, anti-PD-1, anti-PD-L1, or the bispecific antibody (Fig. 3A). Viable CD45+ cells from each treatment were sorted, hashed (20), harvested for library preparation, and sequenced (Fig. 3A).
Analysis and cell type annotation of the pooled samples revealed every immune cell type was detectable (Fig. 3B) with equal numbers of each immune cell type present across all four treatment groups (Fig. 3C). All T-cell subtypes were present (Fig. 3D), and unsupervised clustering by Seurat (29) identified 15 unique T-cell subsets/clusters each with distinct transcriptional states (Fig. 3E). All immune cell types showed differential expression across treatments (Supplementary Figs. S9A–S9N, S10A–S10D and S11A–S11K; Supplementary Tables S1–S4).
Gene expression analysis reveals increased cytotoxicity in T and NK cells and decreased exhaustion in T cells induced most strongly by the bispecific antibody

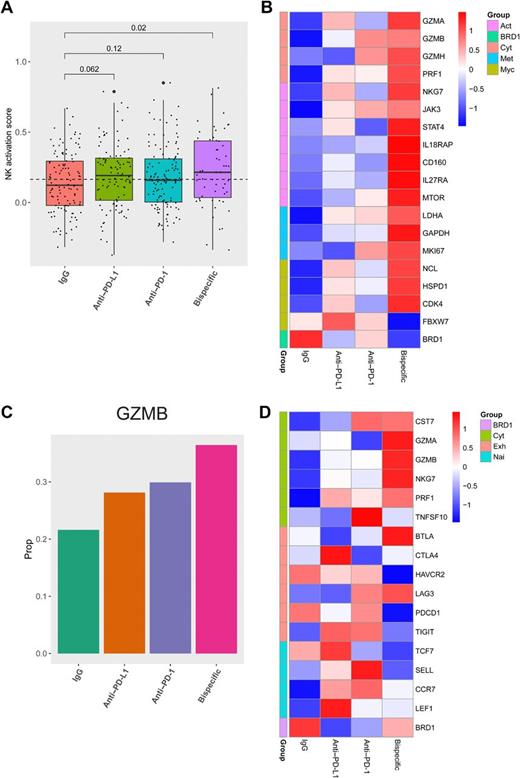

We analyzed CD8 T and NK cells for activity or cytotoxicity marker expression. For NK cells, we analyzed expression across a panel of 22 NK-cell activation genes to generate activation scores for each treatment (Fig. 4A; Supplementary Table S5; ref. 30). The highest and only statistically significant score was for the bispecific antibody compared with the isotype control. Furthermore, we analyzed expression of genes associated with NK-cell cytotoxicity, activation, metabolism, and Myc signaling (30–33). Upregulation of c-Myc or its targets and downregulation of Myc degraders (FBXW7) cause NK-cell expansion and metabolic activation (32, 34). The bispecific antibody induced the greatest increase in expression of all cytotoxicity, activation, metabolism, and Myc targets and the strongest decrease of FBXW7 (Fig. 4B). Bispecific antibody upregulation of GZMB was independently verified in sorted NK cells from a different patient's treated organoid co-cultures (Supplementary Fig. S10D). These results suggest a state change from inert to highly active. Neither monospecific antibody induced NK-cell activation, suggesting that NK-cell activation is a unique bispecific antibody target.
Gene expression analysis of bulk CD8 T cells revealed that all ICB agents induced GZMB expression, most strongly the bispecific antibody (Fig. 4C), validating flow cytometry findings (Supplementary Fig. S8D). The bispecific antibody induced a larger increase in expression of multiple cytotoxicity markers, including GZMA, GZMB, and PRF1 (Fig. 4D). GZMB upregulation was validated in CD8 T cells sorted from organoid co-cultures from a different patient (Supplementary Fig. S11G). In addition, the bispecific antibody induced an overall decrease in expression of a subset of exhaustion markers (PDCD1 = PD-1 and HAVCR2 = TIM3) and naïve T-cell markers (TCF7 and SELL), suggesting a shift of the CD8 T cells from naïve and exhausted states to active (Fig. 4D). However, shifts in the bulk CD8 T-cell analysis were small and sometimes inconsistent across functional groups (Fig. 4D). In other tumor types, small subsets of CD8 T cells respond to ICB therapies (10, 11), prompting us to reexamine activation and exhaustion marker expression in each CD8 subset to determine the reason for the smaller shifts we were observing in the bulk CD8 T-cell analysis and if this also occurs in HGSC (Fig. 4C and D).
CD8 T-cell trajectory analysis suggests a state transition induced by ICB antibodies

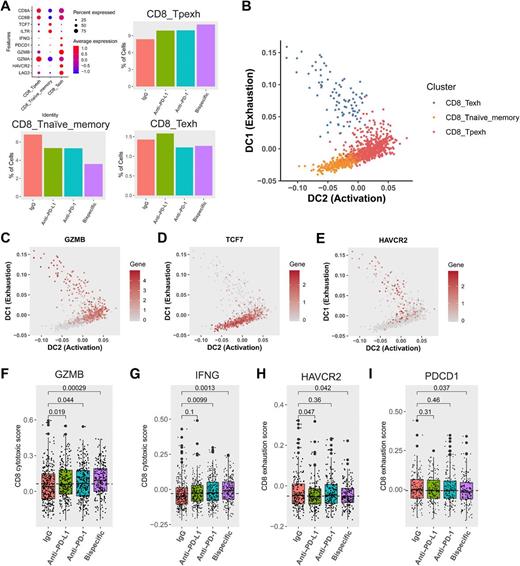

To identify which CD8 T cells respond to ICB agents, we focused on three subsets including naïve, progenitor exhausted, and terminally exhausted, all defined by varying expression of activation, naivety, and exhaustion markers (Fig. 5A; refs. 10, 11). Examination of these subsets across the four treatment groups reveals (i) an increase in progenitor exhausted and a decrease in naïve groups both most prominent after bispecific antibody treatment, and (ii) small decreases within the terminally exhausted group after anti-PD-1 and bispecific antibody treatment (Fig. 5A). This suggested a state transition within these groups in response to ICB (10, 11).
To define the direction of the dynamic state shifts between these three CD8 T-cell groups in response to treatment, we utilized diffusion maps of activation (GZMB, PRF1, IFNG), naivety (TCF7, SELL), and exhaustion [HAVCR2 (TIM3)] markers ordered in pseudotime (Fig. 5B–E; Supplementary Fig. S11H–S11J; refs. 11, 35). The activation markers increase between naive and progenitor exhausted, and terminally exhausted and progenitor-exhausted cells (Fig. 5B; Supplementary Fig. S11H and S11J), the naivety markers decrease from naïve into progenitor-exhausted cells (Fig. 5D; Supplementary Fig. S11I), and the exhaustion markers decrease from terminally exhausted into progenitor-exhausted cells and from progenitor exhausted into naïve cells (Fig. 5E). These transitions are most significantly induced by the bispecific antibody (Fig. 5A). Overall, this suggests that naïve CD8 T cells might give rise to the progenitor-exhausted active subset, and that some terminally exhausted cells shift to the more active progenitor-exhausted state (Fig. 5B), both changes observed in other tumor types in response to ICB (10, 11).
Having defined the naïve and progenitor-exhausted groups as the ICB responders, we reexamined the exhaustion and activation marker gene panels, which revealed only small shifts in the bulk CD8 T cells (Fig. 4D). By assessing expression of the top 50 genes associated with either GZMB (Fig. 5F) or IFNG (Fig. 5G) in the combined progenitor-exhausted and naïve CD8 T-cell groups, we generated activation scores for these cells across treatments and found the largest statistically significant increases were for the bispecific antibody over the isotype control for both GZMB and IFNG (Fig. 5F and G). Similarly, we assessed expression across the top 50 genes associated with either HAVCR2 (TIM3; Fig. 5H) or PDCD1 (PD-1; Fig. 5I) in the same combined CD8 groups to generate exhaustion scores across treatments. We found a statistically significant decrease for anti-PD-L1 and the bispecific antibody over the isotype control for HAVCR2-associated genes (Fig. 5H) and for the bispecific antibody for PDCD1-associated genes (Fig. 5I). These results validated our findings regarding the decreased exhaustion and overall active state changes the bispecific antibody in particular induced within these CD8 groups (Fig. 5B).
We next sought to determine the mechanism of how the bispecific and other ICB antibodies induce these changes.
The bispecific antibody induces decreased T- and NK-cell exhaustion by downregulating BRD1 expression in immune cells

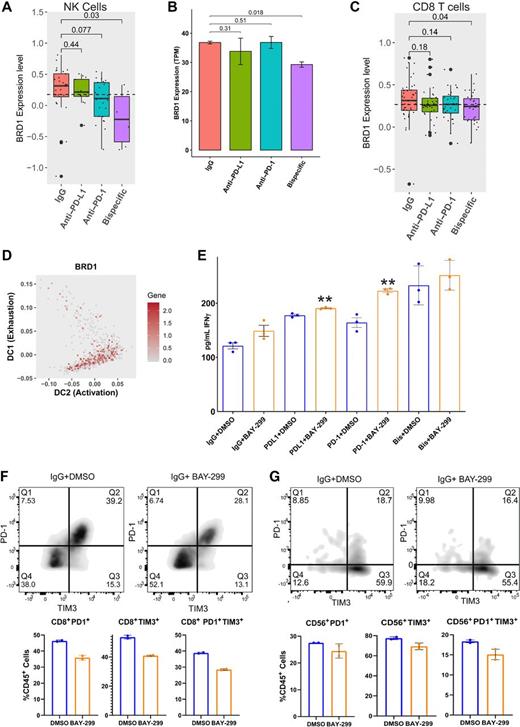

We examined the differentially expressed genes for the bispecific antibody compared with the controls in the CD8 T- and NK-cell populations, searching for cell state control genes with small-molecule therapies. We focused on the bromodomain-containing protein BRD1, which is known to regulate CD8 T and other cell development (36, 37) and has a small-molecule inhibitor, BAY-299 (38). BRD1 expression was downregulated by the bispecific antibody in NK cells in the scRNA-seq data (Figs. 4B and 6A; Supplementary Fig. S10A; Supplementary Table S4) and in bulk RNA seq of sorted NK cells from treated organoid co-cultures from a different patient (Fig. 6B). All ICB antibodies induced a decrease in BRD1 expression in bulk (Fig. 4D) and combined ICB-responding progenitor-exhausted and naïve CD8 T cells (Fig. 6C), and by anti-PD-L1 in terminally exhausted CD8 T cells (Supplementary Fig. S11K). In diffusion analysis over pseudotime, BRD1 expression decreased from naïve into progenitor exhausted cells and progenitor into terminally exhausted cells (Fig. 6D), suggesting the depletion was leading to an increase in activation and decrease in exhaustion. On the basis of these data, we hypothesized that BRD1 may negatively regulate T and NK cells and that BRD1 downregulation or inhibition may lead to enhanced anti-tumor immune function.
We examined BRD1 expression in Tumor Immune Estimation Resource, a compilation of expression profiling of immune cells across multiple tumor types to determine whether BRD1 expression in HGSCs in vivo correlates with immune cell inhibition (39). We found that BRD1 expression is low in tumor cells and high in immune cells in HGSC (Supplementary Fig. S12). High BRD1 expression correlated with significant downregulation of T- and NK-cell activity markers (GZMA, GZMB, IFNG, and NKG7) and upregulation of the naïve T-cell marker TCF7 supporting our hypothesis that BRD1 is a negative regulator of T- and NK-cell activity (Supplementary Fig. S12).
To confirm that BRD1 is a negative immune regulatory gene, we tested the BRD1 inhibitor BAY-299 (38) in HGSC organoid co-cultures. We observed that BAY-299 combined with isotype control, anti-PD-1, or anti-PD-L1 leads to a statistically significant increase in IFNγ levels over any antibody alone, indicating increased immune activation (Fig. 6E). BAY-299 addition generated only a small increase in IFNγ levels over bispecific antibody alone (Fig. 6E), as expected, given the bispecific antibody-induced depletion of BRD1 in key cell types (Fig. 6A–C).
Given the state transitions induced by the bispecific antibody (Figs. 4 and 5), we wondered whether BRD1 inhibition caused increased immune efficacy through a cell state change. We examined exhaustion markers TIM3 and PD-1 (40) on T- and NK-cell populations from HGSC organoid co-cultures treated with our ICB antibody panel ± BAY-299 by flow cytometry. BAY-299 treatment decreased the number of TIM3 or PD-1 single-positive and TIM3/PD-1 double-positive CD3, CD4, and CD8 T cells and NK cells (Fig. 6F and G; Supplementary Fig. S13A and S13B), indicating that BRD1 inhibition may indeed be leading to a cell state change from an exhausted to an active phenotype as observed for all ICB antibodies, most significantly the bispecific antibody (Figs. 4–6). Thus, an underlying mechanism of action for the increased efficacy of the bispecific antibody is potentially an induction of BRD1 depletion in NK and T cells, promoting active states (Figs. 5 and 6). The next question was how BRD1 depletion induces this state change and if it increases tumor cell killing.
BRD1 inhibition leads to increased NK-cell activation and tumor cell killing partially through altering chromatin access for key immune transcription factors
To study the mechanism of BRD1 inhibition–induced immune cell state changes, we applied BAY-299 to an NK-cell line, KHYG1 (41). BAY-299 caused a small decrease in BRD1 protein levels in the KHYG1 cells after a 96-hour exposure (Supplementary Fig. S14A). In a growth rate–corrected sensitivity analysis, BAY-299 was not overtly toxic to HGSC tumor, NK-, or T-cell or HGSC organoid lines (Supplementary Fig. S14B; ref. 42).
Assay for transposase-accessible chromatin using sequencing (ATAC-seq) analysis of BAY-299–treated KHYG1 cells revealed significant alterations to chromatin accessibility across the genome (Fig. 7A; Supplementary Fig. S14C). The major chromatin alterations showed significant overlap with binding sites for key NK-cell development regulatory transcription factors such as GATA3, TBX21, and TBXT, which were all associated with down peaks (Fig. 7B; ref. 43). Several genes linked to these transcription factors with important biological functions were in altered peaks. For example, BAY-299 caused alterations in the chromatin accessibility of the promoter region of CDK9 (Fig. 7C, bottom). CDK9 is, in part, recruited to immune genomic loci by TBX21 as part of the PTef-b complex (44), and CDK9 inhibition allows global reactivation of epigenetically silenced genes, leading to increased IFNγ activity and sensitivity to ICB agents in tumor cells (45). In addition, BAY-299 reduces chromatin accessibility of EMB (Fig. 7C, top), another TBX21-regulated gene recently identified as a marker of immature NK cells and as part of an immature NK-cell signature (46). Taken together, these findings suggest that a possible BRD1 inhibitor mechanism of action is altering chromatin accessibility for major NK-cell regulatory transcription factors at key immune modulatory genes to allow for a mature (EMB) active and cytotoxic (CDK9) state.
To test for this possibility, we functionally assessed BAY-299–treated NK-tumor cell co-cultures. BAY-299 led to increased IFNγ production by the NK cells alone and at even higher levels when in co-culture with the HGSC cell line OVCAR8 or organoid line 17-116 (47), indicating increased immune activity (Fig. 7D; Supplementary Fig. S14D). Accordingly, paired flow cytometry analysis of the NK cells after BAY-299 treatment either alone or in co-culture demonstrated increased IFNγ+, Ki67+/IFNγ+ double-positive cells, and CD107A+ NK cells, more pronounced when these cells were cultured with OVCAR8 or organoid tumor cells (Fig. 7E; Supplementary Fig. S14E). Finally, BAY-299 increased tumor cell killing over vehicle in KHYG1 and OVCAR8 cell co-cultures (Fig. 7F). Altogether, these results indicate that BAY-299 induced chromatin remodeling causes a more cytotoxic and active state in NK cells in vitro and begs the question of whether BAY-299 can lead to enhanced anti-tumor killing by NK and possibly other cytotoxic immune cells in vivo.
BRD1 inhibition by BAY-299 shows efficacy in vivo

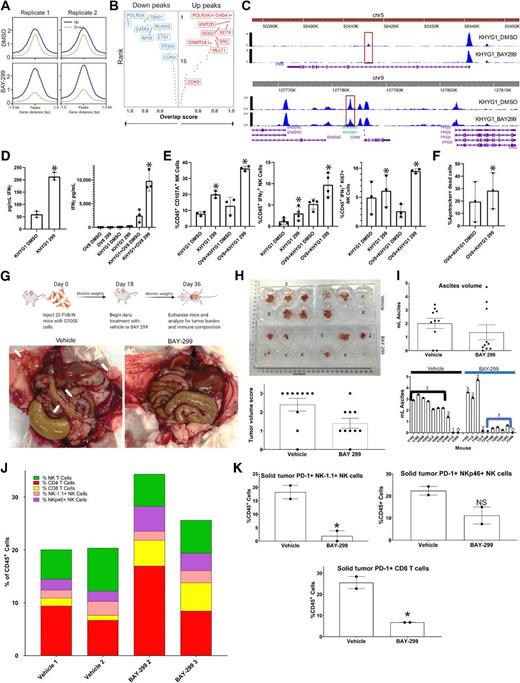

To assess BRD1 inhibitor efficacy in vivo, BAY-299 was tested in a syngeneic PAX8-positive ovarian cancer mouse model generated with STOSE cells (21). A MTD study was performed in female FVB/N mice. The drug was well tolerated with no side effects at the maximum dose.
For the in vivo experiment (Fig. 7G, top), 20 FVB/N female mice were injected with STOSE cells on day 1, and 18 days later, daily vehicle or BAY-299 treatments were initiated. Eighteen days after treatment initiation the mice were weighed, euthanized, and the tumor burden and immune composition analyzed (Fig. 7G).
Final animal weights were similar in both treatment groups (Supplementary Fig. S15A). Grossly visible solid tumor was dissected from all animals and appeared histologically similar in both groups forming sheets and clusters of neoplastic epithelioid cells with cytomorphologic features consistent with a poorly differentiated Müllerian carcinoma (Supplementary Fig. S15B). Tumor volumes were given a score of 0–3 (3 being highest), and most of the vehicle-treated mice scored highest while the majority of the BAY-299 scored lowest (Fig. 7H). Most of the vehicle-treated animals had high volume ascites correlating with high solid tumor burden, while most of the BAY-299–treated animals had little to no ascites correlating with low tumor burden (Fig. 7I).
We characterized solid tumors, ascites, and spleens for immune composition (T- and NK-cell quantity), exhaustion marker expression (TIM3, PD-1, and PD-L1), and activation marker expression (IFNγ, GZMB, Ki67; Fig. 7J; and K; Supplementary Fig. S15C–S15I). Given the low tumor burden and ascites volume in BAY-299–treated animals, samples were combined from multiple animals for analysis for each individual tissue/treatment type. Flow cytometry analysis of the spleens did not demonstrate shifts in T- or NK-cell populations (Supplementary Fig. S15C and S15E).
Flow cytometry analysis of the solid tumors demonstrated an increase in NK cells and CD8 T cells after BAY-299 treatment (Fig. 7J). NK-cell antibodies for markers NK-1.1 and NKp46 were utilized (48) with limited overlap in the CD3−/NK-1.1+ and CD3−/NKp46+ groups. The NKp46+ NK cells expanded after BAY-299 treatment in the solid tumors (Fig. 7J; Supplementary Fig. S15F). Assessment of exhaustion markers post-treatment demonstrated a decrease in PD-1 expression on CD8 T and both NK-1.1 and NKp46+ NK cells (Fig. 7K) similar to bispecific antibody (Fig. 5) and BAY-299 treatments (Fig. 6) in organoid co-cultures. TIM3 and PD-1/TIM3 coexpression and activation and killing marker expression was similar between treatments.
Conversely, in the ascites, only two BAY-299–treated samples showed CD8 T-cell expansion and NK-1.1+ NK cells expanded post-treatment (Supplementary Fig. S15D and S15G). TIM3 expression decreased post-treatment on both NK-1.1 and NKp46+ NK cells (Supplementary Fig. S15H) similar to the bispecific antibody (Fig. 5) and BAY-299 treatments (Fig. 6) in organoid co-cultures. TIM3 and PD-1/TIM3 coexpression was similar between treatments. Activation and killing markers were assessed, and CD107A mildly increased in both the NK-1.1 and NKp46+ NK cells post-treatment (Supplementary Fig. S15I).
Altogether, these results suggest that BRD1 depletion is likely an underlying mechanism for the superiority of the bispecific antibody and that, like the bispecific antibody, BRD1 inhibition leads to decreased immune exhaustion and increased immune activation, particularly in NK cells, which may make it an effective immune target in HGSC.
The major cellular and mechanistic targets of ICB therapies in HGSC have not been defined making designing more effective therapies and identifying patients who might benefit from immune therapy difficult. Using real-time functional analysis of novel HGSC organoid-immune cell co-cultures treated with a novel bispecific antibody and its monospecific controls, we identified three critical cellular and mechanistic immune therapy targets in HGSC. This led to the identification of two novel immune therapies that may have increased activity in patients with HGSC, a bispecific anti-PD-1/PD-L1 antibody and BRD1 inhibitor, both of which show in vivo anti-tumor efficacy, suggesting further therapeutic exploration of these agents may be merited (Fig. 7 and ref. 19).
Key to understanding the molecular functions of ICB agents in HGSC was our ability to gain a comprehensive appreciation of the effects of these agents on every cell in the tumor in novel HGSC organoid co-cultures (Figs. 2–6). Our most striking findings were in NK and T cells. Mechanisms of tumor microenvironment–induced NK-cell dysfunction and NK response to ICB agents are undefined (8, 16). We found that the bispecific antibody and the BRD1 inhibitor BAY-299 induced strong NK-cell activation through induction of a state change from an inert and exhausted to a more active and cytotoxic phenotype, which correlated with in vivo efficacy of these agents (Figs. 2, 4–7; ref. 19). In so doing, we define NK-cell activation as a key component of therapeutic efficacy for immune therapy agents in HGSC that is lacking with currently used ICB agents.
In addition, our analysis demonstrated which CD8 T cells are most critical for ICB response in HGSC. We find that all three ICB agents, particularly the bispecific antibody, induced a transition from (i) naïve to cytotoxic progenitor-exhausted groups, and (ii) terminally exhausted to progenitor-exhausted cytotoxic groups (Fig. 5). This suggests that the ICB-driven naïve to cytotoxic progenitor transition may drive response in the long term and suggest that identifying therapies that can induce this state change may be important.
We determined that these state changes were being driven, in part, by bispecific antibody downregulation of BRD1 expression (Fig. 6). Bromodomain proteins such as BRD1 and BRD4 play roles in immune and hematologic cell development and modulation of tumor inflammation (36, 37, 49) but are often targeted with the goal of affecting changes within the tumor cells as a means of therapeutic efficacy (38, 49, 50). Our findings led us to explore the novel role of BRD1 and BRD1 inhibitors in the immune cells instead.
Here we show BRD1 inhibition induces NK and some CD8 T cells into more active states by reducing exhaustion, and that this can enhance the activity of ICB agents like pembrolizumab in vitro (Fig. 6). The mechanism of action of BRD1 inhibition in these changes likely involves key epigenetic alterations (Fig. 7A–C); however, further work will be needed to fully understand this complex process. In addition, BAY-299 demonstrated increased efficacy in decreasing tumor burden in vivo through decreasing exhaustion of NK and CD8 T cells (Fig. 7). Overall, these findings suggest that BRD1 inhibition may be effective at enhancing the anti-tumor immune response and merit further exploration as a therapeutic option either alone or in relevant combinations in HGSC. In addition, this discovery in organoid co-cultures highlights the importance of studying the effects of any agent, even those thought to target intrinsic tumor cell properties, on every cell in a tumor. This may lead to unexpected discoveries that open up a broader array of small-molecule therapies in the immune space due to unanticipated effects of therapeutic agents on the immune compartment.
Overall, this work suggests the potential for HGSCs to be effectively targeted with immune therapies if the therapies engage the correct mechanistic pathways in the right immune cell types. These findings highlight a common immune therapy problem across HGSCs. It is not a tumor cell genomic or molecular defect making only some HGSCs responsive to these agents, rather it is a state of dysfunction in different subsets of CD8 T cells and NK cells driven by the solid tumor microenvironment blocking current ICB response across HGSCs. By gaining a better understanding of the mechanisms driving these dysfunctional states and how to overcome them, as we have begun to do here using a novel model system and novel therapeutic tool, we have identified available therapies to offer patients with HGSC, like BRD1 inhibitors, which effectively target these pathways. Mechanism-driven therapies have the potential to someday make immune therapy effective in HGSC, a deadly disease where it has not been effective before.
