miRNAs that translocate from the nucleus to mitochondria are referred to as mitochondrial microRNAs (mitomiR). mitomiRs have been shown to modulate the translational activity of the mitochondrial genome, yet their role in mitochondrial DNA (mtDNA) transcription remains to be determined. Here we report that the mitomiR-2392 regulates chemoresistance in tongue squamous cell carcinoma (TSCC) cells by reprogramming metabolism via downregulation of oxidative phosphorylation and upregulation of glycolysis. These effects were mediated through partial inhibition of mtDNA transcription by mitomiR-2392 rather than through translational regulation. This repression required specific miRNA–mtDNA base pairing and Argonaute 2. mitomiR-2392 recognized target sequences in the H-strand and partially inhibited polycistronic mtDNA transcription in a cell-specific manner. A retrospective analysis of TSCC patient tumors revealed a significant association of miR-2392 and regulated mitochondrial gene expression with chemosensitivity and overall survival. The clinical relevance of targeted mitochondrial genes was consistently validated by The Cancer Genome Atlas RNA sequencing in multiple types of cancer. Our study revealed for the first time the role of mitomiR in mtDNA transcription and its contribution to the molecular basis of tumor cell metabolism and chemoresistance.
Significance: These findings uncover a novel mechanism by which mitomiRNA regulates mitochondrial transcription and provide rationale for use of mitomiRNA and mtDNA-encoded genes to predict chemosensitivity and patient clinical prognosis.
The “Warburg effect” was discovered in the 1920s and consists of an increase in glycolysis that is maintained under high oxygen tension conditions (“aerobic glycolysis”) and gives rise to enhanced lactate production (1). The enhanced glucose uptake for glycolytic adenosine triphosphate (ATP) generation and anabolic reactions that convey an advantage to cancer cells have been well studied. First, cancer cells can live under fluctuating oxygen tension conditions under the condition of aerobic glycolysis. Second, cancer cells generate bicarbonic and lactic acids through aerobic glycolysis. Third, tumors can generate NADPH to defend against a hostile microenvironment and chemotherapeutic agents (2). Fourth, cancer cells use intermediates of the glycolytic pathway for anabolic reactions (2). Metabolic alterations in cancer cells are intricately linked to the principal hallmarks of cancer. Warburg originally hypothesized that cancer cells develop a defect in their mitochondria that leads to impaired aerobic respiration and a subsequent reliance on glycolytic metabolism. However, numerous studies have shown that mitochondrial function is not impaired in most cancer cells, and the presence of a dynamic equilibrium between glycolytic and oxidative phosphorylation (OXPHOS) has been found in different types of cancer cells (3, 4). Therefore, aerobic glycolysis and mitochondria function together during cancer progression, and this metabolic flexibility allows a given cell to alternate between aerobic glycolysis and OXPHOS to arrest the traits of malignant phenotypes, such as chemoresistance (5). However, the precise mechanisms of metabolic reprogramming remain elusive.
Mitochondria are dynamic double-membrane organelles that generate ATP via OXPHOS and are at the heart of other critical metabolic pathways. Mammalian mitochondrial DNA (mtDNA) is approximately 16.6 kb and encodes 13 mRNAs for key subunits of the OXPHOS pathway (6). Twelve OXPHOS mitochondrial genes are sequentially transcribed from the H-strands, and only ND6 is transcribed from the L-strand (7). Mitochondrial RNA synthesis and processing is a highly regulated, coordinated, multistep process, although it has not been fully characterized (8). mtDNA transcription is entirely dependent on three factors encoded by nuclear genes, namely, mitochondrial RNA polymerase (POLRMT), mitochondrial transcription factor B2 (TFB2M), and mitochondrial transcription factor A (TFAM; refs. 9, 10). There is an ongoing debate as to whether all three of these components are required for basal, promoter-specific transcription initiation (11, 12), and it has also been suggested that there may be differential regulation by the mitochondrial transcription factors TFAM and TFB2M (13, 14). Therefore, these data suggest the possibility that other molecules trigger mitochondrial transcription, but this hypothesis needs to be verified.
The biological functions and mechanisms of miRNAs have been widely studied in eukaryotic cells. The primary miRNA machinery is known to act in the cytoplasm though binding to target mRNAs via partial base-pairing within RNA-induced silencing complexes (RISC) and regulation of both mRNA stability and translation (15, 16). In addition to their primary function in translational repression, miRNAs have also been implicated in enhancing (17) or inhibiting transcription under specific cellular conditions (18–20). Furthermore, miRNAs have also been detected in membrane-bound compartments, such as secreted vesicles and mitochondria (21–26), and mitochondrial miRNAs have been termed mitochondrial microRNAs (mitomiR). Both mitomiRs and the slicing-competent Argonaute 2 (AGO2) protein have been investigated for their important roles in translation of mitochondrial transcripts (25, 26). However, the transcriptional regulation effects of mitomiRs on the mitochondrial genome remain unknown.
Here, we investigated the function of mitomiRs in chemoresistance and metabolic balance in tongue squamous cell carcinoma (TSCC). Notably, we found that one of the mitomiRs, miR-2392, could reverse chemoresistance and reprogram metabolism by partially regulating mitochondrial gene transcription.
Materials and Methods
The human TSCC cell lines CAL-27 and SCC-9 were purchased from the ATCC. The stable cisplatin-resistant lines CAL-27-res and SCC-9-re were established by exposing CAL-27 or SCC-9 cells to cisplatin (Sigma), ranging from 10−7M to 10−5M (27). All cell lines were routinely tested for Mycoplasma, and the genetic identity of the cell lines was confirmed by short tandem repeat (STR) profiling (ATCC). The cell lines were used for experiments within 10 passages after thawing. The establishment of primary cell cultures from surgical specimens was performed as previously described (28). The primary cultured cells were used for isolation of mitochondria within five passages.
Isolation of mitochondrial, cytoplasmic, and nuclear fractions
Subcellular fractions were prepared as described previously (29, 30). Briefly, the cells were washed twice with cold PBS, and the pellet was suspended in 0.2 mL of lysis buffer containing a protease inhibitor cocktail. Then, the cells were homogenized, followed by centrifugation twice at 750 g for 5 minutes at 4°C to collect the nuclei and debris. The mitochondria-enriched heavy membrane pellet was collected with further centrifugation at 10,000 × g for 15 minutes at 4°C whereas the supernatants were collected as the cytosolic fractions.
Quantification of mtDNA and miR-2392
For quantification of mtDNA, we used a pair of primers that target the ND5 gene for qPCR analysis. To quantify nDNA, we used a pair of primers that target the nuclear PECAM1 gene for qPCR analysis. According to The Cancer Genome Atlas (TCGA) database, ND5 and PECAM1 do not have any genetic alteration in head and neck cancer.
To quantify the copy number of miR-2392 per nucleus or per mitochondrial genome, we generated a standard curve by RT-qPCR using a series dilution of synthetic miR-2392 from Ribobio and then performed quantitative analysis of miR-2392 in whole-cell lysate or purified mitochondria.
The miRNA microarrays were performed by Shanghai Biotechnology with Agilent human miRNA (8*60K) V19.0 microarrays. The detected RNA included cytosolic RNA, mitochondrial RNA, and total RNA.
Evaluation of mtDNA transcripts stability
The effect of miR-2392 on the stability of mtDNA-encoded transcripts was determined by adding the transcriptional inhibitor actinomycin D to the cultures at a final concentration of 5 μg/mL. After 24 hours, either control or miR-2392 mimics transfection, the total RNA and mitochondrial RNA was isolated at indicated times under actinomycin D treatment and processed for qRT-PCR.
RNA immunoprecipitation was performed using a Magna RIP RNA-Binding Protein Immunoprecipitation Kit (17-700; Millipore) according to the manufacturer's instructions. Briefly, mitochondria were washed twice with PBS at room temperature followed by IP lysis buffer for 20 minutes at 4°C. When the complex was removed from the dish, it was centrifuged for 15 minutes at 12,000 × g and 4°C. The supernatant was divided into two parts, and then, anti-AGO2 antibody (Abcam, ab57113) and IgG were added, followed by rotation at 20 rpm for 1 hour. Protein beads were added to each tube followed by rotation at 20 rpm for 0.5 hour. A magnetic frame was applied to remove the supernatant, followed by three washes with a lysis buffer. Protease K and RNase inhibitor were added to the lysis buffer, followed by rotation for 30 minutes at 55°C to remove the protein. TRIzol LS was added to the remaining solution, and RNA was then extracted from it. qRT-PCR was applied to assess miR-2392 and miR-135b-5p expression in the immunocomplex.
Biotinylated pull-downs assay
Pull-downs of miR-2392 targets were carried out as previously described, with slight modifications. Briefly, 80 nmol of biotin-labeled oligos were used to transiently transfect CAL-27 cells and the mitochondria were isolated and fixed in 1% formaldehyde at 37 °C for 10 minutes, followed by crosslinking reaction and sonication to shear the DNA. Then, the lysate was centrifuged, followed by binding with M-280 Streptavidin Dynabeads. The binding of DNA fragments to miRNAs was analyzed with qPCR.
Dual luciferase assays were performed at 48 hours after plasmid transfection using the Luciferase Assay Kit from Promega. SD was based on triplicated experiments. The miR-2393 targeting sequence was synthesized and cloned into HindIII restrict endonuclease of the pGL3-Control plasmid.
A TSCC xenograft mouse model was used to evaluate in vivo cisplatin sensitivity. When BALB/c-nu mice were 4 to 6 weeks old, a 5 × 106 cells resuspension in 150 μL of PBS was injected subcutaneously into the flanks of the nude mice (n = 6 for each group). One week after implantation, when the tumor became palpable at a size of approximately 2 mm in diameter, cisplatin (5 mg/kg) or equivolume saline was administered via intraperitoneal injection every 3 days from days 8 to 32.
Patients and samples
Specimens of locally advanced TSCCs (n = 115) were obtained before neoadjuvant chemosensitivity between January 1, 2004, and December 31, 2010. The patients with locally advanced resectable TSCC (stage III or IVA) underwent one or two cycles of neoadjuvant chemotherapy (TPF induction chemotherapy; ref. 31), and the tumor response to neoadjuvant chemotherapy was assessed by CT/MRI imaging studies prior to radical resection.
Patient study was conducted in accordance with the principles of the Declaration of Helsinki. Ethics approval was provided by the Sun Yat-sen University Committee for Ethical Review of Research Involving Human Subjects. Patients with TSCC were identified and provided written informed consent under 2014114 from Sun Yat-sen Memorial Hospital. The animal experiments were performed in accordance with the Institutional Authorities' guidelines and formally approved by the Animal Ethics Committee of Sun Yat-sen University.
Experiments were carried out with three or more replicates. Statistical analyses were performed using Student t test unless otherwise stated. Values with P < 0.05 are considered statistically significant.
Addition methods are provided in the Supplementary Information.

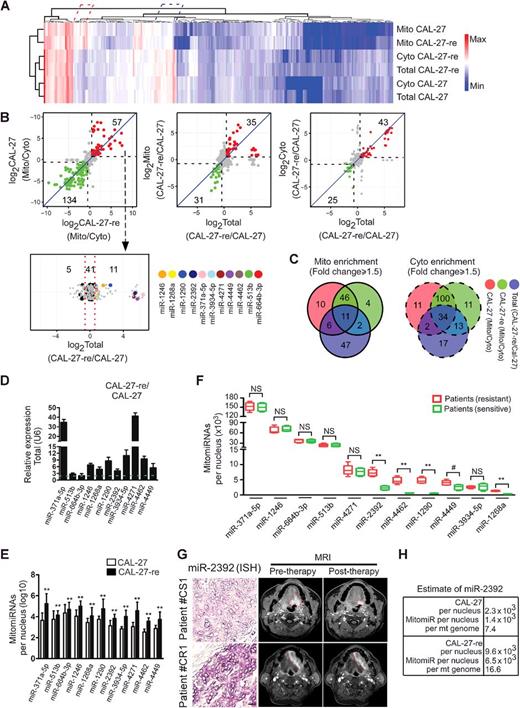

mitomiRs expression in TSCC cisplatin-resistant cells and their parental cell line
To investigate mitomiR regulation of mitochondrial OXPHOS and chemoresistance, we analyzed the differential expression of mitomiRs in TSCC cisplatin-resistant cells and their parental cells. We extracted RNAs from the mitochondria, cytoplasm, and total cells of the cisplatin-resistant CAL-27 cells (CAL-27-re; ref. 27) and parent cell lines. We first confirmed the purity of the mitochondria at the protein, mRNA, and DNA levels (Supplementary Fig. S1A–S1C). Then, microarray approach was performed and 263 miRNAs were detected in all six components with significantly upregulated or downregulated clusters (Fig. 1A). We identified 57 mitochondria-enriched miRNAs and 134 cytoplasm-enriched miRNAs in both cell lines when comparing miRNAs in the mitochondria and cytosolic fractions (≥1.5-fold; Fig. 1B). Compared with the total miRNA, 35 mitomiRs and 43 cytoplasmic miRNAs were upregulated in CAL-27-re cells, whereas 31 mitomiRs and 25 cytoplasmic miRNAs were upregulated in CAL-27 cells (≥1.5 fold; Fig. 1B). Moreover, 11 mitomiRs and 34 cytoplasmic miRNAs were found upregulated in the resistant cells (≥1.5 fold; Fig. 1B and C; Supplementary Fig. S1D and S1E).
Quantification of mitomiRs expression in the mitochondria of TSCC cells
Because isolated mitochondria are often contaminated with cytoplasmic RNA (25), we applied RNase T1 (RN T1) and micrococcal nuclease (MNase) to treat the mitochondria before RNA extraction. We found that both nuclear U6 and cytoplasmic GAPDH mRNA were largely removed from purified mitochondria, and any residual amounts could be fully degraded by a combination of RN T1 and MNase whereas mitochondrial 16S rRNA and 12S rRNA present a similar nuclease sensitivity (Supplementary Fig. S2A).
Next, we validated our microarray data in our purified mitochondria using quantitative real-time PCR (qRT-PCR). We confirmed that 11 mitomiRs were mainly localized in the mitochondria of both cells (Supplementary Fig. S2B) and were upregulated in CAL-27-re cells compared with CAL-27 cells (Fig. 1D). The other 34 cytoplasmic miRNAs were predominantly localized to cytoplasm (Supplementary Fig. S2C). Then, we wanted to quantitatively determine the levels of 11 mitomiRs in the mitochondria by using the standard curve (Supplementary Fig. S2D). As a cancer cell may contain more than one nucleus, we determined the copy number of nuclear DNA (nDNA) by qPCR to calculate the number of mitomiRs molecules per nuclear genome (Fig. 1E). However, the expression profiles of these 11 mitomiRs were different in the other paired cells; three mitomiRs showed no significant difference in SCC-9 and SCC-9-re cells (Supplementary Fig. S2E and S2F). In an attempt to identify these mitomiRs required for cisplatin resistance, we tested primary cultured cells from chemosensitive and chemoresistant patients (Supplementary Table S1) for further screening. From the 11 significant expressions of mitomiRs validated in TSCC cells, five mitomiRs were significantly upregulated in the chemoresistant patients whereas miR-2392 presented the highest copy number (Fig. 1F). Importantly, the expression of miR-2392 determined by locked nucleic acid (LNA)-based ISH was markedly increased in chemoresistant patient tumors (Fig. 1G; Supplementary Fig. S2G). Interestingly, analyses of GEO databases showed that miR-2392 expression was also significantly upregulated in cisplatin-resistant pancreatic ductal adenocarcinoma cells (Supplementary Fig. S2H). Then, we focused on mitomiR-2392 in the cellular system. We also determined the ratio of mitochondrial and nuclear DNA in our cell models, revealing a ratio of 189 in CAL-27 cells and 391 in CAL-27-re cells (Supplementary Fig. S2I), which is similar to the previous studies that cisplatin-resistant cells had a greater number of mitochondria than parental cells (32, 33). Finally, we determined the amount of miR-2392 in the mitochondria, revealing 1.4 × 103 and 6.5 × 103 mitomiR-2392 per nDNA in CAL-27 and CAL-27-re cells, respectively; and 1.4 × 103/189 = 7.4 per mtDNA in CAL-27 and 6.5 × 103/391 = 16.6 per mtDNA in CAL-27-re; and a total amount of 1.4 × 103/2.3 × 103 = 60.9% in CAL-27 mitochondria whereas 6.5 × 103/9.6 × 103 = 67.7% in CAL-27-re mitochondria (Fig. 1H). Therefore, we concluded that miR-2392 is a mitomiRs and increased in cisplatin-resistant TSCC cells and tumors.
mitomiR-2392 regulate cisplatin resistance by reprogramming metabolism
Studies have shown a shift from mitochondrial respiration to glycolysis in chemoresistant cells (5, 34). We first found reduced activity of mitochondrial complexes and ATP level along with elevated mitochondrial superoxide (MitoSOX) and lactate production in TSCC-resistant cells (Supplementary Fig. S3A–S3E). Next, we wondered whether mitomiRs could regulate cisplatin resistance by rebuilding metabolic balance. Among the 11 identified mitomiRs, we focused on miR-2392 as it had the highest and most significant expression in the tumor screening and has been implicated in the prediction or modulation of tumor behavior (35, 36). We also found that miR-2392 predominantly localized in the mitochondria and was upregulated in SCC-9-re cells compared with parental cells (Supplementary Fig. S2E and S2F; Supplementary Fig. S4A). miRNA mimics are artificial double-stranded miRNA-like RNA fragments designed for gene-silencing approaches, whereas miRNA sponges are RNA transcripts containing multiple high-affinity binding sites that associate with and sequester-specific miRNAs to reduce their expression and prevent them from interacting with their target mRNAs (16, 25, 27). First, we found that 80 nmol miR-2392 mimic significantly increased miR-2392 expression in CAL-27 and SCC-9 cells, whereas stable expression of a miR-2392 sponge dramatically reduced miR-2392 in CAL-27-re and SCC-9-re cells (Supplementary Fig. S4B). Furthermore, we found that miR-2392 mimic reduced apoptosis under cisplatin treatment in CAL-27 and SCC-9 cells, whereas downregulation of miR-2392 increased apoptosis in CAL27-re and SCC9-re cells (Fig. 2A). Meanwhile, some other mitomiRs, including miR-371a-5p, miR-4271, miR-4462, miR-1290, and miR-4449, had no effect on apoptosis in both TSCC cell lines (Supplementary Fig. S4C). In validating whether miR-2392 had an effect on metabolic balance, we found that overexpression of miR-2392 downregulated the activity of mitochondrial complexes I, III, and IV in both CAL-27 and SCC-9 cells (Fig. 2B), whereas mitochondrial ROS (Fig. 2C; Supplementary Fig. S4D) were significantly increased, and ATP production was reduced (Supplementary Fig. S4E). However, miR-2392 downregulation restored the activities of mitochondrial complexes and ATP level (Fig. 2B; Supplementary Fig. S4E), and decreased mitochondrial ROS levels (Fig. 2C; Supplementary Fig. S4D) in both resistant cells lines. To further evaluate whether mitomiRs and miR-2392 could regulate mitochondrial gene expression, we focused on 13 polypeptides encoded by mtDNA, all of which are core components of the mitochondrial respiration-OXPHOS system. Surprisingly, we found that miR-2392 mimic significantly reduced ND2, ND4, ND5, CYTB, and COX1 mRNA and protein expression in CAL-27 cells and ND4, CYTB, COX1, and COX2 mRNA and protein expression in SCC-9 cells (Fig. 2D and E). By contrast, silencing miR-2392 led to a reverse effect on resistant cells (Fig. 2D and E). The other genes of the 13 polypeptides were not significantly changed by modulation of miR-2392 expression (Supplementary Fig. S4F). The differential expression of 13 polycistronic transcripts encoded by mtDNA were also found by RNA-sequencing data of TCGA tumors (37). In addition, lactate production (Fig. 2F) and the specific glycolytic enzymes HK2 and PKM2 (38) were also upregulated by overexpression miR-2392 in CAL-27 and SCC-9 cells, and reduced by silencing miR-2392 expression in resistant cells (Fig. 2E). Moreover, we explored the use of a heterogeneous mixture of siRNAs against mtDNA-encoded CYTB or COX1 to determine their contributions to mitochondrial function and cell apoptosis. We found that siRNA treatment led to the specific downregulation of mitochondrial targets at both the mRNA (Supplementary Fig. S4G) and protein (Supplementary Fig. S4H) levels. As expected, ROS levels were significantly increased in siRNA-treated CAL-27 and SCC-9 cells, whereas apoptosis was attenuated by siRNAs in cisplatin-treated cells (Supplementary Fig. S4I and S4J). Overall, our data suggest that the mitomiR-2392 regulates chemoresistance by rebuilding the balance between mitochondrial respiration-OXPHOS and glycolysis, and that potential mechanism contributes to transcriptional regulation rather than translation (25, 26).
mitomiR-2392 partially regulates mitochondrial gene transcription
To begin exploring these possibilities, we first investigated whether miR-2392 could regulate mitochondrial replication and the expression of the mitochondrial transcription factors POLRMT, TFB2M, and TFAM. However, we found that miR-2392 had no effect on mtDNA copy number and mitochondrial transcription factor expression in CAL-27 and CAL-27-re cell lines (Supplementary Fig. S5A and S5B). We were curious as to whether miR-2392 affects mitochondrial transcript stability. However, no significant reductions in half-life were observed with mitomiR-2392–targeted mtDNA-encoded ND2, ND4, ND5, CYTB, and COX1 in CAL-27 cells or ND4, CYTB, COX1, and COX2 in SCC-9 cells, which were treated with actinomycin D along with transfection of miR-2392 mimics (Fig. 3A).
Given the previous observations that miRNAs were reported to be involved in transcriptional regulation of nuclear genes through complementary gene promoters (17–20), we reasoned that mitomiR-2392 might account for mitochondrial transcription that has yet to be demonstrated. Therefore, we analyzed human mitochondrial genome promoters and the whole gene body, including H- and L-strands, using computational target prediction (RNAhybrid), and found that there were optimal binding sites for miR-2392 from 4379 to 4401 in the H-strand (Fig. 3B and C; Supplementary Table S2). Frequent mutations have been reported in mtDNA (39), but we did not find any changed sequences in the miR-2392 target sites in CAL-27 and CAL27-re cell lines (Supplementary Table S3). A WebLogo analysis of the multiz alignment of 12 mammalian species further revealed that this region of the H strand is highly conserved in six primates, suggesting that the target sequence is of biological importance in primates (Fig. 3D).
Then, we validated the specific effects of each segment of complementarity on gene silencing, and we designed mutant miRNA mimics that contained three base changes in the 3′ region of miR-2392 (3′-mut), two base changes in the middle region of complementarity (mid-mut), or seven base changes in the 5′ region of complementarity (5′-mut; Fig. 3E; Supplementary Fig. S5C). Another two mitomiRNAs, mitomiR-513b and mitomiR-1290, without optimal binding sites for mtDNA were selected as the negative controls (Supplementary Table S2). We used qRT-PCR to measure the expressions of ND2, ND4, ND5, CYTB, and COX1 mRNA in CAL-27 cells following treatment with each mutant miRNA mimic. Meanwhile, ND4, CYTB, COX1, and COX2 were detected in SCC-9 cells. Mutating the seed sequence of the 3′ region and the middle region did not significantly affect silencing activity, while mutating the 5′ region of complementarity abolished silencing (Fig. 3F; Supplementary Fig. S5D). In addition, mitomiR-513b and mitomiR-1290 had no effect on gene expression. Moreover, miR-2392 is enriched in the mitochondria but is also found in the nucleus with limited expression (Fig. 3G) in CAL-27 cells. To test whether miR-2392 has the potential to regulate nuclear gene transcription, we compared the mRNA profile of CAL-27 and CAL-27-re cells and predicted the binding sites within 1 kb upstream of the transcription start site (TSS) of the first 50 downregulated mRNAs in CAL-27-re cells (Table S2). Notably, the sequence analysis revealed that miR-2392 also had optimal binding sites at the nuclear genes RGCC and STAT1, but miR-2392 had no effect on RGCC and STAT1 expression (Supplementary Fig. S5E and S5F). These results demonstrated that mitomiR-2392 partially regulates mitochondrial transcriptional activities based on specific seed sequences, but the mechanism that determines miRNA target recognition may be different from that in nucleus.
mitomiR-2392 regulates mitochondrial gene transcription through an AGO2-dependent manner
To understand how mitomiR-2392 represses mitochondrial transcription, we first asked if there is interaction of miR-2392 and AGO2 in our cellular system since Argonaute-miRNA complex has been demonstrated to modulate nuclear gene transcription (19, 20) and AGO2 has been revealed in the mitochondria and regulates mitochondrial gene expression at the translational level in association with miRNA (22, 25).
We first validated the presence of AGO2 in mitochondria in CAL-27 and CAL-27-re cells (Fig. 4A and B). We then found that miR-2392 was coimmunoprecipitated by AGO2 in mitochondrial pellet, while the occupancy of miR-2392 in CAL-27-re cells was significantly higher than in CAL-27 cells or the occupancy of cytoplasmic miR-135b-5p (Fig. 4C). Moreover, we used biotin-labeled miR-2392 and mutants to identify the association between miR-2392 and AGO2 and validate the base-pair binding between miR-2392 and specific regulatory regions of mtDNA (Supplementary Fig. S6A). We found that AGO2 coimmunoprecipitates with both miR-2392 and its negative control (Fig. 4D), whereas biotin-labeled miRNA coimmunoprecipitates with AGO2 (Supplementary Fig. S6B). Importantly, the occupancy of miR-2392 was significantly higher in the mtDNA region (4379–4401) rather than at other poorly matched binding site (10104–10126), and the mutation decreased the recruitment of miR-2392, particularly, in the 5′ end mutants (Fig. 4E). Furthermore, we found that the target sites cloned downstream of the promoter and upstream of the luciferase gene-mediated transcription repression in the nucleus, whereas 5′-mut miR-2392 lost the effect, which could be reversed by reverting the target sequences in the reporter to restore base pairing (Fig. 4F).
To further evaluate the necessity of AGO2 protein for inhibiting mitochondrial gene transcription via interaction with miR-2392, we used siRNAs to knock down AGO2 expression (Supplementary Fig. S6C) along with miR-2392 mimic addition in CAL-27 and SCC-9 cells. Knockdown of AGO2 caused a more than a 2-fold increase in miR-2392 target mtDNA-encoded genes expression and attenuated the inhibition of miR-2392 on target genes (Fig. 4G and H; Supplementary Fig. S6D and S6E). In addition, the occupancy of miR-2392 was significantly decreased in the mtDNA binding region by AGO2 knockdown (Fig. 4I), which was consistent with luciferase assay (Fig. 4J). Together, these results suggest that the AGO2-miR-2392 interaction is potentially required to inhibit mitochondrial gene transcription, similar to its requirement in the nucleus (20).

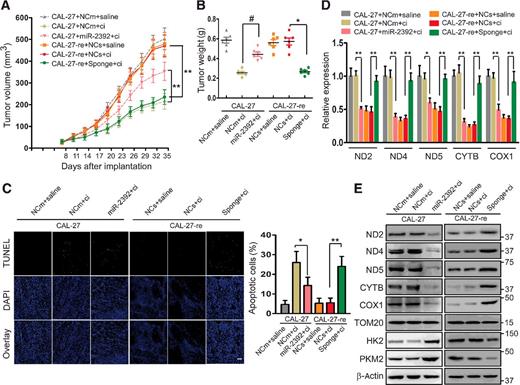

miR-2392 regulates cisplatin sensitivity in tongue squamous cell carcinoma xenografts
To further confirm the relationship between miR-2392 and metabolic balance in the regulation of cisplatin resistance, we established TSCC xenografts to investigate miR-2392 function in vivo. CAL-27 cells with stable expression of miR-2392 (Supplementary Fig. S7A and S7B) showed enhanced tumor growth in the presence of cisplatin and fewer apoptotic cells whereas the miR-2392 sponge had a reverse effect on CAL-27 xenografts (Fig. 5A–C; Supplementary Fig. S7C). We also found that after cisplatin treatment the expression levels of ND2, ND4, ND5, CYTB, and COX1(Fig. 5D) were downregulated but those of HK2 and PKM2 (Fig. 5E) were upregulated in CAL-27 xenografts that stably expressed miR-2392,but the miR-2392 sponge increased targeted mtDNA-encoded genes whereas HK2 and PKM2 was downregulated in CAL-27-re xenografts (Fig. 5D and E). In addition, PCNA expression was not found to be significantly changed in each group, indicating that the influence of miR-2392 was not secondary to impaired proliferation (Supplementary Fig. S7D and S7E). These results suggest that miR-2392 overexpression inhibits apoptosis and cisplatin sensitivity in vivo by partially regulating mitochondrial gene expression and reprogramming metabolic balance.

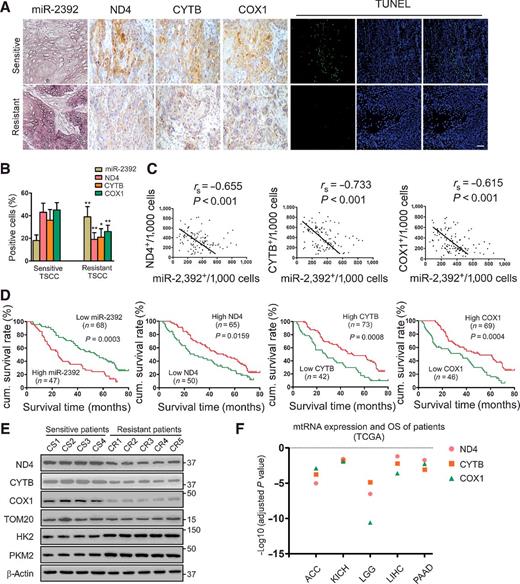

Low miR-2392 expression and high ND4, CYTB, and COX1 expression are associated with chemosensitivity and favorable patient prognosis
To evaluate the clinical relevance of miR-2392 and the expression of its commonly targeted mitochondrial genes, ND4, CYTB, and COX1, in CAL-27 and SCC-9 cells with regard to chemosensitivity and patient prognosis in TSCC. We performed a retrospective analysis of TSCC samples from 115 patients. ISH demonstrated that miR-2392 expression was lower and IHC staining showed higher ND4, CYTB, and COX1 expression in chemosensitive TSCC tumors than in resistant tumors (Fig. 6A). Consequently, chemosensitive TSCC cells had a higher percentage of apoptotic cells than resistant cells (Fig. 6A). There was a significant difference in the expression profiles of chemosensitive and resistant TSCC tumors, as determined by the percentage of positive cells (Fig. 6B). Additionally, a Spearman order correlation analysis showed that miR-2392 expression was inversely correlated with ND4, CYTB, and COX1 levels (Fig. 6C).
Next, we analyzed the association of miR-2392, ND4, CYTB, and COX1 expression with TSCC patients' clinicopathological characteristics (Supplementary Table S4). No significant correlation was observed between miR-2392, ND4, CYTB, and COX1 expression and sex, age, lymph node status, or clinical stage. However, miR-2392, ND4, CYTB, and COX1 expression were significantly associated with chemoresistance. Moreover, the cumulative survival rate at 60 months was 42.64%, 44.62%, 45.21%, or 46.38% in patients with low miR-2392 expression or high ND4, CYTB, or COX1 expression, respectively; this rate was only 23.40%, 22.00%, 16.67%, or 17.39% in those with high miR-2392 expression or low ND4, CYTB, or COX1 expression, respectively (Supplementary Table S4). A univariate Cox regression analysis indicated that patients with TSCC with low miR-2392 expression levels or high ND4, CYTB, and COX1 levels had a longer overall survival (OS; Supplementary Table S4; Fig. 6D). Furthermore, a multivariate Cox regression analysis revealed that low-level miR-2392 expression and high-level ND4 and COX1 expression was an independent prognostic factor for good OS in patients with TSCC (Supplementary Table S5). We also confirmed that the commonly targeted mitochondrial gene had higher expressions in the primary cultured cells from chemosensitive patients comparing with that in chemoresistant ones (Fig. 6E). Interestingly, TCGA RNA-sequencing data also identified higher ND4, CYTB, and COX1 expression levels, which were associated with increased OS in five cancer types, including pancreatic adenocarcinoma, liver hepatocellular carcinoma, adrenocortical carcinoma, kidney chromophobe, and low-grade glioma (Fig. 6F). Together, these data suggest that miR-2392 expression may inversely correlate with chemosensitivity and OS, whereas its direct transcriptional targets, ND4, CYTB, and COX1, are associated with increased chemosensitivity and OS in patients with TSCC.
Chemoresistance is a major obstacle to the successful application of chemotherapy for the treatment of malignant disease and has been shown to be caused by multiple mechanisms (40). Ongoing studies have revealed that inhibition of OXPHOS along with enhanced glycolysis contribute to chemoresistance (3, 5) and the molecular mechanisms underlining the metabolic reprogramming of cancer cells are complicated (1, 41). Among these studies, miRNAs-mediated gene silencing pathways have been studied extensively and multiple epigenetic and posttranscriptional mechanisms have been identified to attribute to chemoresistance (42). In this study, for the first time, analysis of cell lines and surgically removed tumors contributes to our understanding of the molecular mechanism(s) underlying chemoresistance of carcinoma cells. This effect is mediated by an upregulation of mitomiRNA-2392, which reprograms cell metabolism including OXPHOS downregulation and glycolysis upregulation, through partial regulation of mitochondrial transcription (Fig. 7).
Gene expression regulation by noncoding RNAs (ncRNA) has become a new paradigm in biology. A few studies reported the role of miRNAs in direct regulation of gene transcription. Computational methods have been developed to identify potential miRNA target sites within gene promoters. miRNAs complementary to gene promoters are potent silencers (18–20) and activators (17) of target gene expression in cis (19) and in trans (18, 20) in mammalian cells. Although the precise mechanism of activating or silencing transcription remains unclear, it is clear that miRNAs can recognize and overlap nuclear gene promoters and regulate transcription. Our present study further explores the functions of the miRNA machinery in mitochondria. We found that one mitomiR, miR-2392 overlaps with specific sequences in the H-strand body, but only partially regulates downstream gene transcription in the H-strand. Also, the downstream genes regulated by miR-2392 are different between two TSCC cell lines. There are several possible reasons. First, miRNAs mainly function as micromanagers, and we cannot exclude the possibility that other mitomiRs that were not detected by the microarray are involved in the transcription, along with their undiscovered functions. Second, other mitomiRs may inhibit target mitochondrial mRNA translation but also stimulate a compensatory increase in synthesis of the H2 strand (22) and mitochondrial transcription. Third, although we did not find that miR-2392 had any effect on mitochondrial replication and transcription factor (POLRMT, TFB2M, and TFAM) expression, the mechanism of mammalian mitochondrial transcription and epigenetic modification remain controversial. The exact hierarchy of mitochondrial RNA processing (43), posttranscriptional regulation (44), and mtDNA methylation (45) may result in uneven steady-state abundances of polycistronic transcripts in mitochondria (44). We cannot absolutely exclude the possibilities that miR-2392 may regulate nuclear genes other than RGCC and STAT1 and indirectly influence these issues in mitochondria. Fourth, the AGO2–miR-2392 complex was validated to bind mtDNA gene body instead of promoter in this study. Some evidence identified the recruitment of a particular molecule within gene bodies that is required to induce nuclear gene repression, such as H2A.Z (46) but little is known about its function in the mitochondria. Fifth, the single study to date that has examined the expression of the 13 mtRNAs based on TCGA RNA-sequencing data, also found differential expression of mtRNA across different cancer types, such as encoding subunits of Complex I and Complex IV and V (37). Sixth, miRNAs transcriptionally regulate nuclear gene expression under specific cellular conditions (17–20), and our data are consistent with previous studies showing that transcriptional regulation of miR-2392 is cell specific in our current cellular models.
Concerning target recognition by miRNAs, it has been reported that miRNAs do not require full complementarity to be active in transcriptional silencing (20), and we found that miR-2392 had a few mismatched bases with its target sequences. However, basic base-pairing and binding energy are required because miR-2392 specifically binds to the mtDNA at region (4379–4401) rather than binding to a poorly matched binding site (10104–10126); another mitomiRNAs, miR-513b and miR-1290, did not show transcriptional activity. Moreover, other groups have reported the involvement of AGO2 in small RNA-induced transcriptional gene silencing (47). In a series of rigorously controlled experiments, we also found that mitomiR-2392 silences mtDNA transcription through an AGO2-dependent mechanism, even though other AGO2 binding elements may directly or indirectly modulate this phenomenon in our cellular system. Our results suggest that the principles of mitomiR function in mtDNA transcription are possibly consistent with the corresponding principles in the nucleus. However, other important questions await future studies, such as how AGO2 and miRNAs are able to selectively enter the mitochondria. Importantly, most nuclear DNA-encoded mitochondrial proteins do not contain any identifiable mitochondrial targeting sequences (25). Although 5S rRNA and tRNA can be actively imported into the mitochondria and other preliminary mitochondrial import assay indicates that multiple specific and nonspecific miRNAs were able to enter purified mitochondria without the need for ATP hydrolysis (25), we found that efficient entry of miR-2392 into the mitochondria could not be explained as a sequence-dependent manner, because similar enrichment of expression was detected after transfection of three types of mutant miR-2392 mimics. Therefore, how exactly miRNAs selectively enter the mitochondria remains elusive thus far. Another unaddressed issue is that miR-2392 shows no similar effect on a nuclear DNA fragment although it has a 17–19nt DNA complementary to miR-2392. We hypothesize that it might be the different secondary and tertiary structure between nuclear DNA and mirochondria DNA that leads to this difference. Given the completely opposite regulation of miRNAs between mitochondria and cytoplasm as the defect of GW182 along by induction of translational enhancement in the mitochondria (25), we speculate that the transcriptional modulation by miRNA requires other chaperones that may be differently expression between mitochondria and cytoplasm. Further exploration of the potential mechanism are needed.
Hallmarks of cancer, such as self-sufficiency in growth signals, sustained angiogenesis, tissue invasion, metastasis, and avoidance of immune surveillance, have been linked to metabolic changes (1). The molecular mechanisms that underlie the metabolic reprogramming of cancer cells are complex. Regulation of these processes and molecular switching that is involved in metabolic programming may have a dramatic effect on tumors, not only by limiting cancer cell-specific bioenergetic flow and anabolic reactions but also by reversing the neoplastic phenotype and hence stopping growth, inducing apoptosis, and/or blocking chemoresistance, angiogenesis, and invasion (1). Generally, a sufficiently large reduction in the levels of proteins encoded by mtDNA, will precipitate a drop in the rate of energy generation via respiration. In these cases, cancer cells can partially compensate by increasing flux through glycolysis (i.e., the Warburg effect). Ongoing studies have revealed the presence of a dynamic balance between aerobic glycolysis and mitochondria respiration-OXPHOS in cancer cells (5, 34). Disturbances in metabolic balance may be attributed to chemoresistance at several levels, which has widely been discussed (48). Many reports have examined changes in metabolic gene expression in cancer, but one study has examined the expression of the 13 mRNAs encoded by the mitochondrial genome (37). Reznik and colleagues, re-aligned TCGA RNA-sequencing data and estimated the differential expression of mtRNA transcripts in tumor versus normal tissues for each of 13 cancer types with adequate numbers of tumor and normal samples. They found that the majority of cancer types have a tendency for lower levels of mtRNAs. More interestingly, they identified five cancer types in which higher mtRNA expression levels were associated with increased OS (37), including ND4, CYTB, or COX1, which has further identified the significant clinical relevance in our present study. We hope our study can echo similar findings by others which further investigate the clinical importance of expression and regulation of mtRNA.
In conclusion, our findings expand upon the current understanding of mitomiR and imply that the mitomiRNA triggers chemoresistance by reprogramming metabolism of carcinoma cells through partially regulating mitochondrial transcription with an AGO2-dependent manner rather than translation regulation. Moreover, evidence from mitomiR-2392 and the regulated mitochondrial genome strongly suggest that these molecules may have the ability in predicting chemosensitivity and patient clinical prognosis.
