Tumor hypoxia and aerobic glycolysis are well-known resistance factors for anticancer therapies. Here, we demonstrate that tumor-associated macrophages (TAM) enhance tumor hypoxia and aerobic glycolysis in mice subcutaneous tumors and in patients with non–small cell lung cancer (NSCLC). We found a strong correlation between CD68 TAM immunostaining and PET 18fluoro-deoxyglucose (FDG) uptake in 98 matched tumors of patients with NSCLC. We also observed a significant correlation between CD68 and glycolytic gene signatures in 513 patients with NSCLC from The Cancer Genome Atlas database. TAM secreted TNFα to promote tumor cell glycolysis, whereas increased AMP-activated protein kinase and peroxisome proliferator-activated receptor gamma coactivator 1-alpha in TAM facilitated tumor hypoxia. Depletion of TAM by clodronate was sufficient to abrogate aerobic glycolysis and tumor hypoxia, thereby improving tumor response to anticancer therapies. TAM depletion led to a significant increase in programmed death-ligand 1 (PD-L1) expression in aerobic cancer cells as well as T-cell infiltration in tumors, resulting in antitumor efficacy by PD-L1 antibodies, which were otherwise completely ineffective. These data suggest that TAM can significantly alter tumor metabolism, further complicating tumor response to anticancer therapies, including immunotherapy.

Significance:

These findings show that tumor-associated macrophages can significantly modulate tumor metabolism, hindering the efficacy of anticancer therapies, including anti-PD-L1 immunotherapy.

Tumor hypoxia and glycolysis have long been recognized as major resistance factors contributing to failures of chemo- and radiotherapy (1, 2). Traditionally, tumor hypoxia is known to occur by two mechanisms: chronic or acute hypoxia (2). Chronic hypoxia occurs as a result of rapid proliferation of cancer cells and hence being constantly forced away from blood vessels beyond the oxygen diffusion distance of approximately 150 μm (2). Acute hypoxia on the other hand occurs by a temporary cessation of the blood flow due to highly disorganized tumor vasculature (2). Regardless of the mechanism, tumor hypoxia has been extensively documented for their contribution to resistance to all anticancer therapies including chemotherapy (2), surgery (3), radiotherapy (2), and recently immunotherapy (4).

Aerobic glycolysis, also known as Warburg effect, is a phenomenon whereby many types of tumors exhibit a preference of glucose over the oxygen for their energy substrate (5), and this has allowed us to track solid tumors in patients with PET using 18fluoro-deoxyglucose (FDG) radioactive tracer (6). Although several mechanisms for Warburg effect have been suggested including mitochondrial defects, adaptation to hypoxia [hence activation of hypoxia-inducible factor (HIF)], and oncogenic signals such as MYC and RAS (7), the exact mechanism is still controversial. Tumor glycolysis has also been reported to influence the therapy outcome (8). Preclinical studies have suggested that glycolysis can increase DNA repair enzyme expressions including Rad51 and Ku70, which can facilitate radiation-induced DNA double-strand break repair (9). Lactate, a major byproduct of glycolysis, has recently been shown to be utilized as a fuel source for oxidative phosphorylation in nearby cancer cells (10), which can promote the tumor recurrence following anticancer therapies.

Tumor-associated macrophages (TAM) are bone marrow–derived immune cells recruited to tumors and have been extensively reported for their protumoral role (11). Recruited to tumors by various tumor-secreting factors including stromal cell–derived factor-1 (SDF1; ref. 12), VEGF (13), semaphorin 3A (14), and colony-stimulating growth factor-1 (CSF1; ref. 15), TAMs have been shown to produce various growth factors and proteases necessary for tumor survival (11) or immunosuppressive cytokines inhibiting antitumor immune responses (16). Macrophages in general are known to be polarized to either classically activated M1 macrophages or alternatively activated M2 phenotype depending on the cytokine milieu in which they are exposed (17). Bacterial-derived products such as lipopolysaccharide have been shown to polarize macrophages toward M1 phenotype (17), while parasite-associated signals such as IL4 and IL13 can lead to M2-polarized macrophages with increased tissue repair abilities (17). It has been suggested that TAMs are M2-like, although various subpopulations of TAM have been also identified including TIE2-positive macrophages (18), programmed cell death protein-1 (PD-1)–expressing TAM (19), and C-C chemokine receptor type-2 (CCR2)–expressing TAM (20).

In this study, we demonstrate clinically and preclinically that TAMs are a novel contributor to tumor hypoxia and aerobic glycolysis by competing oxygen and glucose with cancer cells. We further observed that TAM can significantly interfere with T-cell infiltration thereby masking programmed death-ligand 1 (PD-L1) expression in the tumors. We believe that our results have an important clinical implication such that patients with high infiltration of TAM in their tumors may poorly respond to all anticancer therapies, including the latest immunotherapy.

CD68 immunostaining and PET index analysis in patients with non–small cell lung cancer

Immunohistochemistry for TAM was performed in 98 patients with non–small cell lung cancer (NSCLC) biopsy samples collected at Seoul National University Hospital (SNUH) by using CD68 antibodies (PG-M1; DakoCytomation) with Bond-Max autostainer. The slides were scanned by virtual microscopy (Aperio Technologies). For enumeration of immune cells, ten different fields per tumor were captured from virtual microscopic images (an area of 1 mm2). The average number of CD68+ TAM per unit area (mm2) was then counted manually. Median values of the numbers in CD68-positive TAM were used as a cutoff to divide CD68low versus CD68Hi tumors. This study followed the World Medical Association Declaration of Helsinki recommendations and was approved by the Institutional Review Board (IRB) of SNUH (IRB No. 1404-100-572). Informed consent for participation in the study was waived by the IRB of SNUH on the basis that this study was a retrospective study using archived material and did not pose increased risk to the patients.

The Cancer Genome Atlas analysis

Genomic analyses were performed to examine the correlation between CD68 (CD68), TNFα (TNF), HIF1α (HIF1A), and glycolysis-related molecules, including glucose transporter 1 [GLUT1 (solute carrier family 2 member, SLC2A1)] and hexokinase 2 [HK2 (HK2)]. The level 3 data of The Cancer Genome Atlas (TCGA), which were downloaded from the UCSC Cancer Browser (https://genome-cancer.ucsc.edu) on June 3, 2015, were used for analysis. We used mRNA expression data of the Lung Adenocarcinoma dataset, which included 513 tumor samples. mRNA expression data generated using the Illumina HiSeq V2 platform were presented as reads per kilobase per million and transformed into log 2 values for analysis. All statistical analyses were performed using SPSS software (version 21; IBM Corp.), and images were created by the GraphPad Prism 5 software. For TCGA data, the statistical significance of two continuous variables, such as mRNA level of CD68 (CD68), TNFα (TNF), HIF1α (HIF1A), GLUT1 (SLC2A1), and HK2 (HK2), was calculated by Pearson and Spearman correlation analysis. Two-sided P values <0.05 were considered statistically significant.

Mice and in vivo experiments

Four- to six-week-old C57BL/6 or BALB/c-nude female mice (OrientBio Inc.) were maintained in germ-free environment and had access to food and water ad libitum. All animal procedures were approved by Institutional Animal Care and Use Committee at POSTECH. Lewis lung carcinoma (LLC; provided by Dr. J. Martin Brown, Stanford University, Stanford, CA) cells were routinely maintained (up to 20 passages) in DMEM (Welgene) supplemented with 10% FBS (Omega Scientific, Inc.). Metformin (Sigma-Aldrich), oligomycin (Sigma-Aldrich), or 2-deoxyglucose (2-DG; Sigma-Aldrich) was injected to tumor-bearing mice at 25 mg/kg (at every 12 hours), 0.5 mg/kg (at everyday), or 500 mg/kg (at every 48 hours), respectively. Purified anti-mouse CD8α antibody clone 53-6.7 (BioLegend) was injected intraperitoneally at 150 μg at 48 hours before tumor harvest. PD-L1 Ab clone 10F.9G2 or control IgG (BioXCell) was injected intraperitoneally at 100 μg every other day. Clodronate or vehicle liposome (Encapsula Nano Science) was injected intravenously twice at 24-hour interval, 24 hours prior to the tumor harvest. For combination with metformin, 2-DG, oligomycin, or PD-L1 Ab, clodronate or vehicle liposome was intravenously injected every second day. To detect tumor hypoxia, pimonidazole (Hypoxyprobe-1; HPI Inc.) was intraperitoneally injected at 60 mg/kg at 1 hour prior to the tumor harvest. Hoechst 33342 (Sigma-Aldrich) was administered intravenously at 50 mg/kg at 20 minutes before sacrificing mice.

In vitro experiments

LLC cells expressing 5 × HRE-GFP were generated by transfecting 5 × HRE-GFP plasmid (provided from Dr. J. Martin Brown in Stanford University) using TransIT-X2 (Mirus) according to the manufacturer's protocol. After 48 hours, stably transfected cells were selected by G418 (A. G. Scientific, Inc.) at 1 mg/mL over 2 weeks. HRE-GFP expression in stably transfected cells was confirmed by monitoring GFP signals from cells treated with 400 μmol/L of CoCl2 for 24 hours under a fluorescent microscope (EVOS Cell Imaging Systems; Thermo Fisher Scientific) or by FACS using cells that had been incubated in a hypoxic chamber (BACTRON Anaerobic Chamber; Shel Lab) for up to 48 hours. Bone marrow–derived macrophages (BMDM) were prepared as described previously (21). Murine recombinant proteins TNFα, IFNγ, CXCL1, CXCL2, IL1β, IL6, and IL10 were all purchased from Peprotech and for glucose uptake experiment they were treated at the following concentrations with low glucose-supplemented medium for 24 hours: TNFα at 20 ng/mL, IFNγ at 80 ng/mL, CXCL1 at 100 ng/mL, CXCL2 at 100 ng/mL, IL1β at 50 ng/mL, IL6 at 20 ng/mL, or IL10 at 10 ng/mL. BMDM were treated with AICAR (Tocris) at 1 mmol/L prepared in culture medium supplemented with 1% serum for 2 hours. For Western blot analyses, BMDM were treated with 10 mmol/L metformin in low glucose media for 2 hours. For in vitro coculture system, lower compartment of a 12-well plate was seeded with either LLC or BMDM at 4 × 105 cells per well density. After 12 hours, medium was replaced by low glucose medium, and a transwell insert (modified Boyden chamber with 0.4 μm pore size; Corning) containing BMDM or LLC at 4 × 105 cells was placed and further incubated for 24 hours. For glucose add back experiment, glucose was added to the lower compartment of the Boyden chamber, which was originally low glucose medium (1 g/L; Thermo Fisher Scientific) so that the final concentration of the glucose after adding back becomes 4.5 g/L, which was equivalent to commercially available high glucose medium (Welgene). For LLC; HRE-GFP and BMDM coculture experiment, BMDM at 5 × 105 cells were seeded directly onto a 6-well plate in 1% serum-supplemented media for 12 hours after LLC; HRE-GFP at 5 × 105 cells had been plated. After 24-hour further incubation, cells were harvested and GFP signals from LLC; HRE-GFP were detected by FACS after negative selection using CD11b and F4/80 markers to exclude BMDM.

FACS analysis

LLC tumors were harvested when the tumor size reached approximately 150 mm3, followed by enzyme digestion using a cocktail consisting of collagenase (Worthington), pronase (Calbiochem), and DNase I (Sigma-Aldrich). Tumors prepared in single-cell suspensions were then filtered through 100 μm Cell Strainer (Corning) and further incubated in 1 × BD Pharm Lyse (BD Biosciences) in PBS for 10 minutes on ice. Cells were then washed in FACS buffer (Ca2+-free PBS containing 3% FBS) and following antibodies were added: PE-Cy7 anti-CD11b (eBioscience), APC anti-F4/80 (eBioscience), Keratin 4.62 antibody (Sigma-Aldrich), anti-pimonidazole (PAb2627AP; HPI Inc.), FITC anti-CD45 (BioLegend), PE-Cy7 anti-CD4 (BioLegend), Pacific Blue anti-CD8α (BioLegend), PE-Cy7 anti-CD8α (BioLegend), APC anti-CD44 (eBioscience), PerCP-Cy5.5 anti-CD62L (BioLegend), PE anti-IFNγ (eBioscience), or Pacific Blue anti-Granzyme B (BioLegend) antibodies. Secondary antibodies were anti-mouse Alexa 488 antibodies (Life Technologies) or anti-rabbit Alexa 488 (Life Technologies). For aerobic versus hypoxic tumor cell quantification, HoechstbrightKeratin+ cells were regarded as aerobic cells, whereas HoechstdimKeratin+ cells or pimonidazole+ cells were quantified as hypoxic cells where appropriate. HoechstbrightKeratin+ aerobic cancer cells were sorted freshly every time from a different batch of tumor-bearing animals in order to perform any individual functional/biochemical assay. For T-cell stimulation to quantify granzyme B (GzmB) and IFNγ, tumor cells made in single-cell suspension were incubated with eBioscience Cell Stimulation Cocktail containing protein transport inhibitors (Invitrogen) for 4 hours before antibody staining. For function analysis of mitochondria in BMDM, 5 × 105 cells in prewarmed PBS were stained with 500 nmol/L Mitotracker (Thermo Fisher Scientific) or 200 nmol/L tetramethylrhodamine, ethyl ester (TMRE; Abcam) for 30 minutes. After washing, samples were introduced to MoFlo XPD (Beckman Coulter) for sorting or LSR Fortessa 5 cell analyzer (BD Biosciences) for analysis.

Statistical analysis

Statistical comparisons of the data sets were performed by two-tailed Student t test, one-way ANOVA with Tukey post test, or two-way ANOVA with Bonferroni correction using Prism software (Version 4.00; GraphPad Inc.). Data were considered statistically significant when P < 0.05.

Additional information is available in Supplementary Methods.

Clinical correlation between TAM infiltration and glycolysis in patients with NSCLC

To investigate whether TAMs play a role in tumor glycolysis, we first examined TAM in 98 biopsy samples taken from patients with stage I and II NSCLC (48 adenocarcinomas and 50 squamous cell carcinomas) whom had also been imaged for FDG PET by immunostaining for TAM using CD68 antibodies. We observed that there was a significant correlation between FDG uptake and TAM counts in tumors (Fig. 1A and B), as measured both by FDG maximal standardized uptake value (SUVmax; Fig. 1B) and 40% total lesion glycolysis (Fig. 1B). Reciprocal analyses by categorizing tumors into CD68low versus CD68Hi also revealed a significant difference in FDG SUVmax (Fig. 1C). Further examination into subgroup analyses revealed that the significance correlation between FDG uptake and TAM infiltration existed in adenocarcinomas but not in squamous cell carcinomas (Fig. 1D), perhaps due to the distinctly higher glucose uptake and glycolysis in squamous cell carcinomas, as reported recently (22). By analyzing TCGA database in 513 patients with adenocarcinoma NSCLC, we also found a strong correlation between CD68 and glycolysis signatures, including SLC2A1, also known as GLUT1, (Fig. 1E) and HK2 (Fig. 1E).

Figure 1.

Strong correlations between TAM infiltration and glycolysis in patients with NSCLC. A, Representative PET/CT images for FDG uptake (top) and immunostaining of CD68 (bottom) from paired tumors of patients with NSCLC. Top, yellow circles, location of tumors. Bottom, red arrowheads, CD68-positive TAM. Scale bar, 100 μm. B, Correlation between glycolysis and CD68-positive TAM in 98 patients with NSCLC paired results as in A. Glycolysis was analyzed as FDG maximal standardized uptake value (FDG SUVmax; left) or 40% total lesion glycolysis (TLG; right). C, FDG SUVmax values for CD68low (n = 49) or CD68Hi (n = 49) NSCLC tumors. D, Subgroup analyses of FDG uptake in adenocarcinomas (n = 48; left) or squamous cell carcinomas (n = 50; right) of NSCLC. *, P < 0.05; ***, P < 0.001 in C and D as determined by the Student t test. Data are the mean ± SEM. E, TCGA analysis between CD68 and SLC2A1 (left) or HK2 (right) in 513 patients with adenocarcinoma NSCLC. P values are indicated in each plot.

Figure 1.

Strong correlations between TAM infiltration and glycolysis in patients with NSCLC. A, Representative PET/CT images for FDG uptake (top) and immunostaining of CD68 (bottom) from paired tumors of patients with NSCLC. Top, yellow circles, location of tumors. Bottom, red arrowheads, CD68-positive TAM. Scale bar, 100 μm. B, Correlation between glycolysis and CD68-positive TAM in 98 patients with NSCLC paired results as in A. Glycolysis was analyzed as FDG maximal standardized uptake value (FDG SUVmax; left) or 40% total lesion glycolysis (TLG; right). C, FDG SUVmax values for CD68low (n = 49) or CD68Hi (n = 49) NSCLC tumors. D, Subgroup analyses of FDG uptake in adenocarcinomas (n = 48; left) or squamous cell carcinomas (n = 50; right) of NSCLC. *, P < 0.05; ***, P < 0.001 in C and D as determined by the Student t test. Data are the mean ± SEM. E, TCGA analysis between CD68 and SLC2A1 (left) or HK2 (right) in 513 patients with adenocarcinoma NSCLC. P values are indicated in each plot.

Close modal

TAMs make tumors more glycolytic

To determine the molecular mechanism, we implanted LLC subcutaneously in mice and depleted TAM by intravenously administering clodronate liposome (Clod; Supplementary Fig. S1A), a liposomal preparation of bisphosphonate causing apoptosis selectively in macrophages (23). We first validated our clinical findings in a preclinical model by measuring FDG uptake in LLC tumors by PET (Fig. 2A) and found that Clod significantly lowered FDG signals (Fig. 2A and B). Moreover, we observed that ferumoxytol uptake, previously reported as an magnetic resonance (MR) contrast agent for TAM (24), was significantly reduced by Clod (Fig. 2A) and that this ferumoxytol uptake was colocalized with CD68-positive areas in tumors by IHC staining (Supplementary Fig. S1B). We then wished to examine genetic and functional changes of glycolysis in LLC modulated by TAM. To do this, we perfused the tumors with Hoechst 33342, a vascular perfusion dye, and sorted aerobic cells by FACS according to the brightness of Hoechst 33342 dye (25) in conjunction with Keratin-19 antibodies to label cancer cells (Supplementary Fig. S1C). By performing qRT-PCR, we observed that aerobic cancer cells (HoechstbrightKeratin+; Fig. 2C) depleted for TAM exhibited a significantly decreased gene expression in glycolytic pathways including Slc2a1 (also known as Glut1), pyruvate dehydrogenase kinase-1 (Pdk1), pyruvate dehydrogenase (Pdh), phosphoglycerate kinase (Pgk), Hk2, glucose-6-phosphate dehydrogenase (G6pd) as well as those in HIF signaling such as Vegfa, carbonic anhydrase 9 (Ca-9), and nitric oxide synthase-2 (Nos2; Fig. 2D). There was no significant change in DNA repair gene such as Parp1, whereas C-X-C motif chemokine ligand-12 (Cxcl12), a well-known HIF1-downstream target gene (26), was significantly increased in aerobic cancer cells depleted for TAM (Fig. 2D). To determine whether the gene expression changes would also reflect functional changes, we measured glucose uptake using 14C-deoxyglucose as well as lactate production in the sorted cells. We observed that aerobic cancer cells depleted for TAM as above not only took up less glucose (Fig. 2E) but also produced a significantly reduced amount of lactate (Fig. 2E) and decreased GLUT1 protein expression (Fig. 2F). Furthermore, aerobic cancer cells depleted for TAM exhibited faster oxygen consumption kinetics (Fig. 2G), although mitochondrial potential (Supplementary Fig. S1D) or the total mitochondrial mass (Supplementary Fig. S1E) was not changed. These results thus indicate that depletion of TAM could switch the tumor metabolism from aerobic glycolysis to oxidative phosphorylation (OXPHOS). To prove this hypothesis, we sought to inhibit OXPHOS by administering metformin (27) or glycolysis by administering 2-DG (28) in LLC tumor–bearing mice that had been depleted for TAM with Clod. We found that the tumor growth inhibition was the most significant when depleted for TAM in combination with metformin (Fig. 2H) but not with 2-DG (Fig. 2I). Consistent with this result, we observed that oligomycin, another OXPHOS inhibitor (29), also resulted in a significant tumor growth inhibition (Supplementary Fig. S2A). Collectively, these results together suggest that TAM can significantly alter the tumor metabolism.

Figure 2.

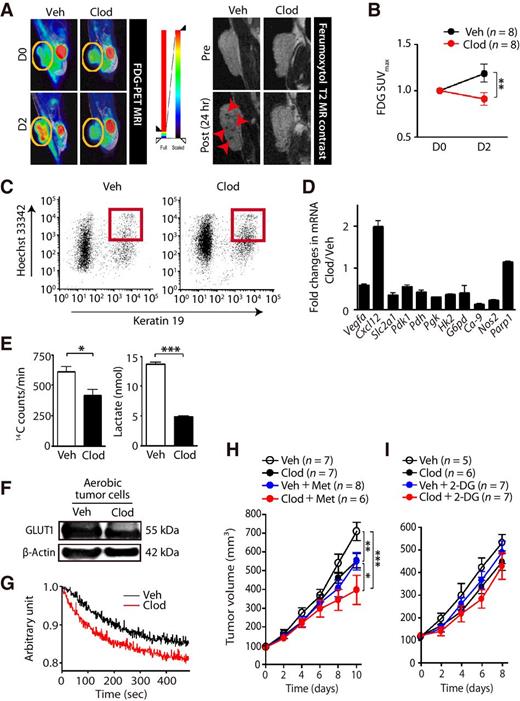

TAMs make tumors more glycolytic. A, Left, PET/MRI images for FDG uptake in LLC tumors in mice before (D0, top) and after (D2, bottom) Veh or Clod treatment. Yellow circles, tumors. Right, T2-weighted MR images of LLC tumors treated with Veh or Clod pre (top)- or post (bottom)- contrast. Red arrowheads in Veh tumor, ferumoxytol-labeled TAM. B, FDG uptake SUVmax in A. **, P < 0.01, determined by two-way ANOVA. C, FACS plot indicating HoechstbrightKeratin+ (red boxes) population of cells sorted as aerobic cancer cells. D, Fold changes in gene expression in FACS-sorted aerobic cancer cells from LLC tumors treated with Clod or Veh. E, Glucose uptake (left) and lactate production (right) from the sorted aerobic cancer cells as in C. Data in D and E are the mean ± SEM from at least triplicate samples. *, P < 0.05; ***, P < 0.001 by the Student t test. F, Western blot of FACS-sorted aerobic cancer cells in C for GLUT1. β-Actin was used as the loading control. G, Oxygen consumption kinetics in FACS-sorted aerobic cancer cells as described in C. H, LLC tumor growth in mice treated with Veh, Clod, Veh + metformin (Veh + Met), or Clod + metformin (Clod + Met). *, P < 0.05; **, P < 0.01; ***, P < 0.001, determined by two-way ANOVA. I, LLC tumor growth in mice treated with Veh, Clod, Veh + 2-DG, or Clod + 2-DG. Data in H and I are the mean ± SEM, with number of animals indicated in the graphs.

Figure 2.

TAMs make tumors more glycolytic. A, Left, PET/MRI images for FDG uptake in LLC tumors in mice before (D0, top) and after (D2, bottom) Veh or Clod treatment. Yellow circles, tumors. Right, T2-weighted MR images of LLC tumors treated with Veh or Clod pre (top)- or post (bottom)- contrast. Red arrowheads in Veh tumor, ferumoxytol-labeled TAM. B, FDG uptake SUVmax in A. **, P < 0.01, determined by two-way ANOVA. C, FACS plot indicating HoechstbrightKeratin+ (red boxes) population of cells sorted as aerobic cancer cells. D, Fold changes in gene expression in FACS-sorted aerobic cancer cells from LLC tumors treated with Clod or Veh. E, Glucose uptake (left) and lactate production (right) from the sorted aerobic cancer cells as in C. Data in D and E are the mean ± SEM from at least triplicate samples. *, P < 0.05; ***, P < 0.001 by the Student t test. F, Western blot of FACS-sorted aerobic cancer cells in C for GLUT1. β-Actin was used as the loading control. G, Oxygen consumption kinetics in FACS-sorted aerobic cancer cells as described in C. H, LLC tumor growth in mice treated with Veh, Clod, Veh + metformin (Veh + Met), or Clod + metformin (Clod + Met). *, P < 0.05; **, P < 0.01; ***, P < 0.001, determined by two-way ANOVA. I, LLC tumor growth in mice treated with Veh, Clod, Veh + 2-DG, or Clod + 2-DG. Data in H and I are the mean ± SEM, with number of animals indicated in the graphs.

Close modal

TAMs secrete TNFα to promote tumor glycolysis

We next sought what molecule(s) would be secreted from TAM to facilitate glycolysis in cancer cells. To do this, we set up a modified Boyden chamber coculturing LLC cancer cells and BMDM and examined gene expression changes in LLC cancer cells. We found that LLC cocultured with BMDM exhibited a significantly increased gene expression in many glycolytic genes including Slc2a1, Pdk1, Pgk, Hk2, and lactate dehydrogenase A (Ldha; Fig. 3A), although Pdh and G6pd did not exhibit such an increase (Fig. 3A). Moreover, LLC cocultured with BMDM took up more glucose (Fig. 3B) and produced more lactate (Fig. 3B) compared with LLC cultured alone, suggesting that this system well reflects tumors in vivo. Importantly, when we introduced glucose back to the LLC compartment of the coculture system with BMDM, glucose uptake to LLC returned to the basal level of LLC cultured alone (Fig. 3C), indicating that it was indeed glucose competition between cancer cells and macrophages. To identify TAM-secreted factor(s), we harvested supernatant from the coculture systems and exposed them to antibody array or luminex-based cytokine array. We observed that TNFα was significantly increased from both antibody array (Fig. 3D; Supplementary Fig. S2B) and luminex-based cytokine array (Fig. 3E), although there were several other cytokines including ILβ, CXCL1, CXCL2, IL10, and IL6 whose expression was upregulated in BMDM cocultured with LLC compared with BMDM alone (Fig. 3D; Supplementary Fig. S2B and S2C). To investigate which cytokines facilitate glucose uptake in LLC, we treated the above cytokines individually to LLC and found that glucose uptake was significantly increased when the cells were treated with TNFα (Fig. 3F; Supplementary Fig. S2E and S2F), but not with IL1β, CXCL1, nor CXCL2, the cytokines observed to be increased in cytokine array (Fig. 3D; Supplementary Fig. S2E) or with IL10 nor IL6 from luminex-based cytokine array (Supplementary Fig. S2C and S2F). Treatment of TNFα to LLC cancer cells increased GLUT1 and HK2 protein expression (Fig. 3G) while decreasing peroxisome proliferator-activated receptor gamma coactivator 1-alpha (PGC-1α) expression (Fig. 3G) in a dose-dependent manner, suggesting that TNFα can facilitate glycolysis and inhibit mitochondrial biogenesis. To determine whether TNFα is mainly secreted from macrophages, we measured TNFα concentrations from the coculture system and found that TNFα was detectable in BMDM but not LLC (Fig. 3H) and more so when BMDM were cocultured with LLC (Fig. 3H). By examining LLC tumors grown in mice, we observed that TNFα was indeed expressed in CD68-expressing TAM (Fig. 3I) and that CD11b- and F4/80-double positive TAM sorted from these tumors secreted significant amount of TNFα into the medium (Fig. 3J). To further validate our preclinical results, we went back to TCGA database and found a strong correlation between CD68 and TNF (Fig. 3K) and between TNF and HK2 (Fig. 3K), indicating that TAMs produce TNFα and that this facilitates glycolysis in tumors.

Figure 3.

Macrophages secrete TNFα to facilitate glycolysis in cancer cells. A, Gene expression changes in LLC cocultured with (LLC+BMDM) or without (LLC) BMDM. Data are the mean ± SEM from at least triplicate determinations. B, Glucose uptake (left) and lactate production (right) in LLC cocultured with or without BMDM. Data are the mean ± SEM for triplicate samples per group. **, P < 0.01 by Student t test. C, Glucose uptake in LLC cultured alone, cocultured with BMDM, or cocultured with BMDM with glucose added back to the LLC compartment of the coculture system. Data are the mean ± SEM for n = 4 replicates per group. *, P < 0.05; **, P < 0.01 by one-way ANOVA. D, Antibody cytokine arrays in the supernatant obtained from BMDM culture with (BMDM+LLC) or without (BMDM) LLC. Red boxes indicate those cytokines whose expressions were increased in BMDM cocultured with LLC compared with BMDM alone. Blue box, CXCL1, a cytokine produced by LLC cancer cells themselves (Supplementary Fig. S2D). E, Luminex cytokine assays for TNFα in the supernatant from culture media, LLC alone, BMDM alone, or BMDM cocultured with LLC. Data are the mean ± SEM for n = 3 replicates per group. ***, P < 0.001 by one-way ANOVA. F, Glucose uptake in LLC alone (none), LLC cocultured with BMDM (+BMDM), or LLC treated with TNFα (+TNFα) or with IFNγ (+IFNγ). Data are the mean ± SEM from n = 3 samples per group. **, P < 0.01; ***, P < 0.001 by one-way ANOVA. G, Western blot for LLC cells treated with increasing concentrations of recombinant TNFα protein for GLUT1, HK2, or PGC-1α. β-Actin was used as the loading control. H, TNFα concentrations in the supernatant from LLC cultured with (+BMDM) or without (alone) BMDM, or in BMDM cultured with (+LLC) or without (alone) LLC, measured by ELISA. BD, below the detection limit. **, P < 0.01 by Student t test. I, Immunostaining of TNFα (red) and CD68 (green) in LLC tumors grown in mice. Nuclei are shown in blue with DAPI counterstaining. The inset shows magnified regions where indicated with the asterisk (*). White arrowheads, CD68-positive TAM-expressing TNFα. Scale bar, 100 μm. J, TNFα concentrations measured by ELISA in the supernatant from CD11b and F4/80 double-positive TAM sorted by FACS. Data are the mean ± SEM from triplicate determinations. ***, P < 0.001, determined by one-way ANOVA. K, TCGA analysis of clinical correlations between CD68 and TNF (left) or between TNF and HK2 (right) in 513 patients with adenocarcinoma NSCLC. P values are indicated in each plot.

Figure 3.

Macrophages secrete TNFα to facilitate glycolysis in cancer cells. A, Gene expression changes in LLC cocultured with (LLC+BMDM) or without (LLC) BMDM. Data are the mean ± SEM from at least triplicate determinations. B, Glucose uptake (left) and lactate production (right) in LLC cocultured with or without BMDM. Data are the mean ± SEM for triplicate samples per group. **, P < 0.01 by Student t test. C, Glucose uptake in LLC cultured alone, cocultured with BMDM, or cocultured with BMDM with glucose added back to the LLC compartment of the coculture system. Data are the mean ± SEM for n = 4 replicates per group. *, P < 0.05; **, P < 0.01 by one-way ANOVA. D, Antibody cytokine arrays in the supernatant obtained from BMDM culture with (BMDM+LLC) or without (BMDM) LLC. Red boxes indicate those cytokines whose expressions were increased in BMDM cocultured with LLC compared with BMDM alone. Blue box, CXCL1, a cytokine produced by LLC cancer cells themselves (Supplementary Fig. S2D). E, Luminex cytokine assays for TNFα in the supernatant from culture media, LLC alone, BMDM alone, or BMDM cocultured with LLC. Data are the mean ± SEM for n = 3 replicates per group. ***, P < 0.001 by one-way ANOVA. F, Glucose uptake in LLC alone (none), LLC cocultured with BMDM (+BMDM), or LLC treated with TNFα (+TNFα) or with IFNγ (+IFNγ). Data are the mean ± SEM from n = 3 samples per group. **, P < 0.01; ***, P < 0.001 by one-way ANOVA. G, Western blot for LLC cells treated with increasing concentrations of recombinant TNFα protein for GLUT1, HK2, or PGC-1α. β-Actin was used as the loading control. H, TNFα concentrations in the supernatant from LLC cultured with (+BMDM) or without (alone) BMDM, or in BMDM cultured with (+LLC) or without (alone) LLC, measured by ELISA. BD, below the detection limit. **, P < 0.01 by Student t test. I, Immunostaining of TNFα (red) and CD68 (green) in LLC tumors grown in mice. Nuclei are shown in blue with DAPI counterstaining. The inset shows magnified regions where indicated with the asterisk (*). White arrowheads, CD68-positive TAM-expressing TNFα. Scale bar, 100 μm. J, TNFα concentrations measured by ELISA in the supernatant from CD11b and F4/80 double-positive TAM sorted by FACS. Data are the mean ± SEM from triplicate determinations. ***, P < 0.001, determined by one-way ANOVA. K, TCGA analysis of clinical correlations between CD68 and TNF (left) or between TNF and HK2 (right) in 513 patients with adenocarcinoma NSCLC. P values are indicated in each plot.

Close modal

TAMs exacerbate tumor hypoxia

We then wished to examine whether TAM could compete for oxygen with cancer cells thereby contributing to tumor hypoxia. To test our hypothesis, we first examined the distribution of TAM with respect to hypoxic regions in tumors by performing immunostaining of LLC tumors grown in mice for TAM and hypoxia using S100A8 antibodies and pimonidazole, respectively. We observed that numerous TAMs were positive for pimonidazole (Fig. 4A), indicating that TAM may be hypoxic. Immunophenotyping analysis further revealed that CD11b- and F4/80-double positive TAMs in LLC tumors were positive for pimonidazole (Fig. 4B). We then sorted CD11b- and F4/80-double positive TAM and analyzed the gene expression profile and found that TAM exhibited a significantly increased gene expression in the following pathways: hypoxic signaling including Vegfa, Slc2a1, Pdk1, and C-X-C motif chemokine receptor-4 (Cxcr4); macrophage M1 polarization such as Nos-2 as well as M2 polarization such as arginase-1 (Arg1); and immunosuppressive cytokines such as Tnf and Il10 compared with BMDM (Fig. 4C). Other genes known to be regulated by HIF including Cxcl12 (26), Il6 (30), Tgfb1 (31), toll-like receptor 4 (Tlr4; ref. 32), Csf1r (33), or fms related tyrosine kinase 1 (Flt1; ref. 34) did not exhibit such an increase (Fig. 4C). To determine whether TAM can directly contribute to the tumor hypoxia, we sorted TAM by FACS as described above, labeled them with a cell tracker dye (Supplementary Fig. S3A), and injected them directly underneath a dorsal window chamber in nude mice, in which LLCs transfected with 5 times hypoxia-responsive element (5 × HRE)-GFP (35) were implanted. By two-photon microscopic imaging, we were able to observe that TAM injection significantly increased GFP signal in tumors (Fig. 4D), indicating that TAM can directly contribute to the tumor hypoxia.

Figure 4.

TAMs directly contribute to tumor hypoxia. A, Immunostaining of LLC tumors grown in mice for TAM by using S100A8 (red) and hypoxia by using pimonidazole (PIMO; green) antibodies. Nuclei are shown in blue with DAPI counterstaining. B, FACS analysis demonstrating that CD11b and F4/80 double-positive TAMs are pimonidazole-positive. C, Gene expression in CD11b and F4/80 double-positive TAM isolated from LLC tumors compared with those in cultured BMDM. Data are the mean ± SEM from triplicate determinations. D, Two-photon microscopy images of the dorsal window chamber whereby 5 × HRE-GFP–expressing LLC tumors had been implanted. Images were taken at 24 hours after a single intratumoral injection of PBS (+PBS) or PBS containing FACS-sorted TAM (+TAM). Scale bars in A and D, 100 μm. E, Representative FACS plots demonstrating HoechstbrightKeratin+ as aerobic tumor cells (red boxes) and HoechstdimKeratin+ as hypoxic tumor cells in LLC tumors grown in mice treated with Veh or Clod. F, Quantification of aerobic or hypoxic tumor cells in E. Data are the mean ± SEM for n = 6 mice per group. *, P < 0.05 by Student t test. G, TCGA analysis between CD68 and HIF1A in 513 patients with adenocarcinoma NSCLC. P value is indicated in the graph. H, Growth of LLC tumor treated with Veh or Clod immediately prior to a single dose of 20 Gy ionizing irradiation. *, P < 0.05 by two-way ANOVA.

Figure 4.

TAMs directly contribute to tumor hypoxia. A, Immunostaining of LLC tumors grown in mice for TAM by using S100A8 (red) and hypoxia by using pimonidazole (PIMO; green) antibodies. Nuclei are shown in blue with DAPI counterstaining. B, FACS analysis demonstrating that CD11b and F4/80 double-positive TAMs are pimonidazole-positive. C, Gene expression in CD11b and F4/80 double-positive TAM isolated from LLC tumors compared with those in cultured BMDM. Data are the mean ± SEM from triplicate determinations. D, Two-photon microscopy images of the dorsal window chamber whereby 5 × HRE-GFP–expressing LLC tumors had been implanted. Images were taken at 24 hours after a single intratumoral injection of PBS (+PBS) or PBS containing FACS-sorted TAM (+TAM). Scale bars in A and D, 100 μm. E, Representative FACS plots demonstrating HoechstbrightKeratin+ as aerobic tumor cells (red boxes) and HoechstdimKeratin+ as hypoxic tumor cells in LLC tumors grown in mice treated with Veh or Clod. F, Quantification of aerobic or hypoxic tumor cells in E. Data are the mean ± SEM for n = 6 mice per group. *, P < 0.05 by Student t test. G, TCGA analysis between CD68 and HIF1A in 513 patients with adenocarcinoma NSCLC. P value is indicated in the graph. H, Growth of LLC tumor treated with Veh or Clod immediately prior to a single dose of 20 Gy ionizing irradiation. *, P < 0.05 by two-way ANOVA.

Close modal

To examine whether TAM depletion can alter the extent of tumor hypoxia, we administered Clod followed by Hoechst 33342 dye to LLC tumor–bearing mice and analyzed aerobic (HoechstbrightKeratin+) or hypoxic (HoechstdimKeratin+) cancer cells (Fig. 4E). We found that Clod significantly decreased hypoxic tumor cell fractions (Fig. 4F), whereas aerobic cells were not affected (Fig. 4F). We observed similar results when we utilized pimonidazole in the place of Hoechst 33342 (Supplementary Fig. S3B). TCGA analyses further revealed that there was a significant correlation between CD68 and HIF1A in 513 patients with adenocarcinoma NSCLC (Fig. 4G). Given that tumor hypoxia is a major resistance factor for radiotherapy (2), we examined whether the depletion of TAM could sensitize tumors to ionizing radiation. We found that only transient administration of Clod prior to ionizing radiation could result in a small but significant sensitization of LLC tumors to a single high dose of 20 Gy of irradiation (Fig. 4H). These results thus suggest that TAMs exacerbate tumor hypoxia.

AMP-activated protein kinase and PGC-1α activation in TAM promotes tumor hypoxia

To determine how TAMs contribute to tumor hypoxia, we first measured the oxygen consumption of BMDM or BMDM mixed with LLC in 1:5 or 1:10 ratio. We found that BMDM oxygen consumption rate became significantly slowed if they were mixed with cancer cells (Fig. 5A). Furthermore, ATP production was significantly decreased in BMDM if they were mixed with cancer cells at 1:5 or 1:10 ratio (Fig. 5B), indicating that BMDM competed oxygen with cancer cells. Exposure of cells to hypoxic conditions may activate AMP-activated protein kinase (AMPK), a nutrient-sensing signaling pathway (36). To examine whether AMPK activation would be involved in TAM contributing to the tumor hypoxia, we sorted TAM from LLC tumor–bearing animals and examined phospho-AMPK levels by Western blot. We found that there was a strong expression of phospho-AMPK protein in TAM but not in M1- or M2-polarized BMDM (Fig. 5C). Furthermore, we observed a strong expression of PGC-1α, a master regulator for mitochondrial biogenesis activated by AMPK (37) in TAM (Fig. 5C), suggesting that the activation of AMPK therefore PGC-1α would lead to an increased mitochondrial biogenesis in TAM responsible for the oxygen consumption. To test this hypothesis, we used AICAR, a compound that can activate AMPK and PGC-1α (38) because metformin, an AMPK activator (39), failed to increase PGC-1α expression in BMDM (Fig. 5C). We observed that AICAR resulted in an increased expression of phospho-AMPK and PGC-1α in BMDM (Fig. 5D) as well as mitochondrial biogenesis including the increased oxygen consumption rate (Fig. 5E), maximal and spare respiration capacity (Fig. 5F), and mitochondrial membrane potential (Fig. 5G). We found that AICAR-treated BMDM when cocultured with LLC expressing 5 × HRE-GFP increased GFP signals compared with BMDM treated with vehicle (Fig. 5H). These results suggest that TAM may exacerbate tumor hypoxia by activated AMPK signaling.

Figure 5.

AMPK and PCG-1α activation in TAM increases tumor hypoxia. A, Oxygen consumption kinetics in the BMDM alone (BMDM) or with LLC mixed in 1:5 (BMDM+LLC 1:5) or 1:10 (BMDM+LLC 1:10) ratio. B, ATP production from BMDM described in A. Data are the mean ± SEM from triplicate measurements. **, P < 0.01 by one-way ANOVA. C, Western blot for phospho-AMPK (p-AMPK), AMPK, or PGC-1α in FACS-sorted TAM, BMDM polarized to M1 or M2, or metformin (Met)-treated BMDM. D, Western blot of BMDM treated with or without AICAR. β-Actin was used as the loading control in C and D. E and F, Oxygen consumption rate (OCR; E) and its quantifications as basal respiration, maximal respiration, and spare respiratory capacity (F) in BMDM treated with or without AICAR. Data are the mean ± SEM for n ≥ 10 replicates per group. ***, P < 0.001, determined by Student t test. G, FACS histogram demonstrating mitochondrial membrane potential in BMDM with or without AICAR, as measured by TMRE. H, FACS histogram demonstrating GFP signal intensity in LLC cells expressing 5 × HRE-GFP. These LLC cells were either cultured alone (LLC; HRE-GFP), cocultured with BMDM (LLC; HRE-GFP + BMDM), or cocultured with AICAR-treated BMDM (LLC; HRE-GFP + BMDM + AICAR).

Figure 5.

AMPK and PCG-1α activation in TAM increases tumor hypoxia. A, Oxygen consumption kinetics in the BMDM alone (BMDM) or with LLC mixed in 1:5 (BMDM+LLC 1:5) or 1:10 (BMDM+LLC 1:10) ratio. B, ATP production from BMDM described in A. Data are the mean ± SEM from triplicate measurements. **, P < 0.01 by one-way ANOVA. C, Western blot for phospho-AMPK (p-AMPK), AMPK, or PGC-1α in FACS-sorted TAM, BMDM polarized to M1 or M2, or metformin (Met)-treated BMDM. D, Western blot of BMDM treated with or without AICAR. β-Actin was used as the loading control in C and D. E and F, Oxygen consumption rate (OCR; E) and its quantifications as basal respiration, maximal respiration, and spare respiratory capacity (F) in BMDM treated with or without AICAR. Data are the mean ± SEM for n ≥ 10 replicates per group. ***, P < 0.001, determined by Student t test. G, FACS histogram demonstrating mitochondrial membrane potential in BMDM with or without AICAR, as measured by TMRE. H, FACS histogram demonstrating GFP signal intensity in LLC cells expressing 5 × HRE-GFP. These LLC cells were either cultured alone (LLC; HRE-GFP), cocultured with BMDM (LLC; HRE-GFP + BMDM), or cocultured with AICAR-treated BMDM (LLC; HRE-GFP + BMDM + AICAR).

Close modal

TAMs dampen PD-L1 expression in tumors and inhibit T-cell infiltration

Tumor hypoxia and glycolysis have recently reported to inhibit cytotoxic T-cell functions (40, 41). Upon RNA sequencing analyses with the sorted aerobic cancer cells isolated from LLC treated with or without Clod, we found that the gene transcripts in defense response pathway were significantly downregulated in tumors depleted for TAM (Fig. 6A). To determine how TAMs affect the defense response, we analyzed tumor-infiltrating T cells in LLC grown in mice and observed that CD4 and CD8α T-cell infiltration was significantly increased in tumors depleted for TAM (Fig. 6B). Further analyses revealed that Clod treatment did not affect IFNγ, GzmB, or CD62L expression in CD8α T cells (Fig. 6C), indicating that TAM may inhibit T-cell infiltration to tumors but not activation. To examine whether the increased T-cell infiltration may increase tumor glycolysis similarly as to TAM, we administered anti–CD8α-neutralizing antibodies to tumor-bearing mice and examined glucose uptake (Fig. 6D). We found that depletion of CD8α T cells did not change glucose uptake into aerobic cancer cells (Fig. 6E). We next examined PD-L1 expression in aerobic cancer cells isolated from tumors depleted for TAM. We found that aerobic cancer cells depleted for TAM exhibited a significantly increased PD-L1 expression (Fig. 6F), and this may be caused by increased T-cell infiltration to tumors as T-cell–secreted IFNγ is known to induce PD-L1 expression in cancer cells (42). These results suggest TAM depletion could sensitize tumors to PD-L1 blockade, and we indeed observed that anti–PD-L1 antibodies were effective in reducing the tumor growth only when combined with TAM depletion by Clod (Fig. 6G).

Figure 6.

Depletion of TAM increases tumor-infiltrating T cells and PD-L1 expression in tumors. A, Gene ontology (GO) biological process from RNA sequencing analyses in FACS-sorted aerobic cancer cells isolated from LLC tumors treated with Clod or Veh. B, FACS analysis of the number of CD4+ or CD8α+ tumor-infiltrating T cells in LLC tumors treated with Veh (n = 8) or Clod (n = 7). *, P < 0.05; **, P < 0.01, by Student t test. C, FACS analysis for IFNγ+, GzmB, or CD44+CD62L cells among CD8α+ T cells in LLC tumors treated with Veh (n = 9) or Clod (n = 9). GzmB is presented by mean fluorescence intensity (MFI). D, Representative FACS plots for CD4+ or CD8α+ T cells (red boxes) in LLC tumors treated with (+anti-CD8α Ab) or without (-anti-CD8α Ab) anti-CD8α antibodies (Ab). Percentages are CD4+ or CD8α+ T cells among the total CD45+ lymphocytes in tumors. E, Glucose uptake in the sorted aerobic cancer cells isolated from LLC treated with Veh, Clod, or anti-CD8α Ab. Data are the mean ± SEM from at least triplicate samples per group. F, Western blot for PD-L1 expression in FACS-sorted aerobic cancer cells isolated from tumors treated with Veh or Clod. β-Actin was used as the loading control. G, LLC tumor growth in mice treated with Veh, Clod, Veh + PD-L1 Ab, or Clod + PD-L1 Ab. Data are the mean ± SEM with number of animals indicated in the graphs. *, P < 0.05 by two-way ANOVA.

Figure 6.

Depletion of TAM increases tumor-infiltrating T cells and PD-L1 expression in tumors. A, Gene ontology (GO) biological process from RNA sequencing analyses in FACS-sorted aerobic cancer cells isolated from LLC tumors treated with Clod or Veh. B, FACS analysis of the number of CD4+ or CD8α+ tumor-infiltrating T cells in LLC tumors treated with Veh (n = 8) or Clod (n = 7). *, P < 0.05; **, P < 0.01, by Student t test. C, FACS analysis for IFNγ+, GzmB, or CD44+CD62L cells among CD8α+ T cells in LLC tumors treated with Veh (n = 9) or Clod (n = 9). GzmB is presented by mean fluorescence intensity (MFI). D, Representative FACS plots for CD4+ or CD8α+ T cells (red boxes) in LLC tumors treated with (+anti-CD8α Ab) or without (-anti-CD8α Ab) anti-CD8α antibodies (Ab). Percentages are CD4+ or CD8α+ T cells among the total CD45+ lymphocytes in tumors. E, Glucose uptake in the sorted aerobic cancer cells isolated from LLC treated with Veh, Clod, or anti-CD8α Ab. Data are the mean ± SEM from at least triplicate samples per group. F, Western blot for PD-L1 expression in FACS-sorted aerobic cancer cells isolated from tumors treated with Veh or Clod. β-Actin was used as the loading control. G, LLC tumor growth in mice treated with Veh, Clod, Veh + PD-L1 Ab, or Clod + PD-L1 Ab. Data are the mean ± SEM with number of animals indicated in the graphs. *, P < 0.05 by two-way ANOVA.

Close modal

Clinically, it has been recognized for some time that the presence of inflammation confounds FDG-positive signals in PET images of patients with cancer (43). Recently, Lee and colleagues (44) have demonstrated that depletion of macrophages by Clod resulted in a significant reduction of FDG signals in the heart following acute myocardial infarction in mice, indicating that macrophages can take up significant amount of glucose, well supporting our results present in this study. In this study, we found that TAM can contribute to tumor hypoxia and glycolysis. Previous studies have demonstrated that TAMs migrate toward hypoxic areas of tumors, and their motility slows once trapped in those regions via semaphorin 3A acting as a stop signal (14). In our study, we found that TAMs were hypoxic themselves (Fig. 4B) and exhibited a strong expression of phospho-AMPK (Fig. 5C). AMPK activation in cells has been suggested to skew their cell metabolism toward oxidative phosphorylation (45), consistent with our results demonstrating that AMPK activation in BMDM leads to an increased oxygen consumption ratio and mitochondrial membrane potential (Fig. 5E–G). We also found in our study that macrophage-secreted TNFα resulted in an increase in glycolysis in cancer cells (Fig. 3F). TNFα can be produced from macrophages by activation of TLR4, leading to NF-κB signaling pathways (46) and that various danger-associated molecular pattern molecules, including heat shock proteins, and high-mobility group box-1 secreted from apoptotic or necrotic tumor cells can activate TLR4 on macrophages (47).

TAMs are extensively documented for their roles in inhibiting antitumor cytotoxic T-cell responses for example by secreting immunosuppressive cytokines such as TGFβ (48). Recently, recent imaging study (49) has elegantly demonstrated that TAMs hijack PD-1 antibodies that had been initially bound to cytotoxic T cells hence abrogating its antitumor efficacy. Chang and colleagues (40) have further suggested that tumor glycolysis can restrict T-cell activation necessary for antitumor immune responses. We have demonstrated that depletion of TAM makes tumors less hypoxic and glycolytic and that this may have resulted in an increased T-cell infiltration, leading to an increased PD-L1 expression in tumors (Fig. 6). The latter has a tremendously important clinical implication because patients’ eligibility criteria PD-L1 blockade therapies are based on PD-L1 expression in their tumor biopsy samples (50). Our results thus demonstrate that TAM can modulate tumor metabolism as well as PD-L1 expression in tumors, compromising the tumor response to various anticancer therapies, including the latest immunotherapy.

J.S. Lee is CEO at Brightonix Imaging Inc. I.L. Weissman is co-founder, director at, and is a consultant/advisory board member for Forty Seven Inc. No potential conflicts of interest were disclosed by the other authors.

Conception and design: H. Jeong, B.-J. Hong, P. Tessier, M. Pelletier, J.H. Ju, S. Kim, I.H. Kim, H.J. Kim, J.-W. Park, G.J. Cheon, Y.K. Jeon, G.-O. Ahn

Development of methodology: H. Jeong, B.-J. Hong, C.-J. Lee, M.S. Lee, S. Kim, J.S. Lee, G.J. Cheon

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): H. Jeong, S. Kim, Y.-E. Kim, S. Bok, J.-M. Oh, S.-H. Gwak, M.Y. Yoo, M.S. Lee, S.-J. Chung, J. Defrêne, H. Jeon, T.-Y. Roh, B. Kim, K.H. Kim, J.H. Ju, Y.-J. Lee, H.J. Kim, J.S. Lee, G.J. Cheon, D.H. Chung, Y.K. Jeon, G.-O. Ahn

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): H. Jeong, S. Kim, B.-J. Hong, C.-J. Lee, Y.-E. Kim, S. Bok, J.-M. Oh, S.-H. Gwak, M.S. Lee, J. Defrêne, P. Tessier, M. Pelletier, H. Jeon, T.-Y. Roh, B. Kim, K.H. Kim, J.H. Ju, D.-W. Kim, I.H. Kim, H.J. Kim, G.J. Cheon, I.L. Weissman, Y.K. Jeon, G.-O. Ahn

Writing, review, and/or revision of the manuscript: H. Jeong, D.-W. Kim, G.J. Cheon, I.L. Weissman, Y.K. Jeon, G.-O. Ahn

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): B.-J. Hong, C.-J. Lee, S.-J. Chung, J.H. Ju, H.J. Kim, J.-W. Park, G.J. Cheon, Y.K. Jeon, G.-O. Ahn

Study supervision: G.J. Cheon, Y.K. Jeon, G.-O. Ahn

We would like to thank Dr. J. Martin Brown (Stanford University) for LLC cell line and 5 × HRE-GFP construct, Drs. Mark Dewhirst and Gregory Palmer (Duke University) for sharing in vivo dorsal window chamber techniques, and Drs. Andrew Minchinton and Kevin Bennewith (British Columbia Cancer Research Centre) for in vivo Hoechst 33342 FACS protocol. We are grateful to Kook-Chan Heo at GENIA Inc. and Sang-Kwon Lee at Hana BioTech for arranging animal housing and transportation between POSTECH and Seoul National University College of Medicine. Geun Bae Ko and Kyeong Yun Kim at the Department of Nuclear Medicine, Seoul National University College of Medicine, are also acknowledged for their contributions for developing the small animal PET/MRI instrument used in this study. We also appreciate help from Narae Park (Seoul St. Mary's Hospital) for reagents, Ji Yong Park (the Department of Nuclear Medicine, Seoul National University College of Medicine) with ferumoxytol preparation and technical information, A-Ram Kim (KIRAM) for a mouse lung cancer model, and Hyung-Seok Choi (POSTECH) for sharing a protocol analyzing T cells in tumors. Special thanks go to the staffs at the FACS core and animal facility at POSTECH for their technical and maintenance support; staffs at the Department of Pathology at Seoul National University College of Medicine for handling and preparing patients’ specimen. This work was supported by grants from the National R&D Program for Cancer Control, the Ministry of Health and Welfare (1320220 to G.-O. Ahn); the Ministry of Science, ICT, and Future Planning Korea (grant numbers NRF-2017M2A2A7A01015968 and NRF-2018R1A2B6004453 to G.-O. Ahn; NRF-2017M2A2A7A01070925 to H.J. Kim); 4th Green Science grant from Pohang Steel Company (POSCO) to G.-O. Ahn; Ludwig Cancer Foundation to I.L. Weissman; and BK21 Plus program from the Ministry of Education Korea (Grant No. 10Z20130012243). B.-J. Hong (NRF-2013H1A2A1032808) and Y.-E. Kim (NRF-2012H1A2A1002871) are Global PhD fellows supported by the Ministry of Science, ICT, and Future Planning Korea; H. Jeong is a recipient of TJ Park CheongAm POSCO Science Fellowship.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
