Inhibition of Dipeptidyl Peptidase-4 Accelerates Epithelial–Mesenchymal Transition and Breast Cancer Metastasis via the CXCL12/CXCR4/mTOR Axis

Invasion and metastasis are the final common steps in the progression of any type of human malignancy (1). Breast cancer is the most commonly diagnosed cancer in women worldwide (2). Most breast cancer–related deaths are caused by metastasis rather than the primary tumor itself (3). However, the molecular mechanisms that underlie breast cancer metastasis have not been completely elucidated.

Epithelial–mesenchymal transition (EMT) is a molecular program whereby epithelial cells undergo reprogramming from a polarized, differentiated phenotype with numerous cell–cell junctions to a mesenchymal phenotype (4). During EMT, cancer cells lose their cell–cell adhesion properties and acquire invasive and migratory properties (5). EMT has shown to be associated with increased potential for cancer cell motility, metastasis, and chemotherapy resistance (6).

Dipeptidyl peptidase (DPP)-4, a membrane glycoprotein, has been shown to affect multiple biological processes, such as cell differentiation, adhesion, immunomodulation, and apoptosis (7). Accumulating evidence indicates that DPP-4 plays an important role in cancer progression (8–10). A recent study confirmed that a DPP-4 inhibitor does not increase tumor incidence but may promote the metastasis of multiple cancer cell lines (11). DPP-4 catalytically regulates the activity of biopeptides by proteolytically cleaving a number of peptides, cytokines, and chemokines (12). C-X-C motif chemokine 12 (CXCL12), also known as stromal cell–derived factor 1 (SDF1), is a confirmed substrate of DPP-4 (13). CXCL12 binds to C-X-C receptor 4 (CXCR4) and CXCR7 and thus regulates tumor growth and metastasis (14). In breast cancer, the CXCL12/CXCR4 axis plays an important role in directing the metastasis of CXCR4⁺ cancer cells to organs that express high CXCL12 levels, such as the lungs, bone marrow, and lymph nodes (15). Therefore, an increase in CXCL12 levels in response to DPP-4 inhibitor treatment could be relevant to the metastasis of CXCR4-positive cancer (16).

mTOR, a major effector of the PI3K/Akt pathway, is associated with mRNA translation, glucose metabolism, and autophagy and is involved in malignant transformation (17). mTOR exists in two complexes: mTORC1 (containing mTOR, Raptor, etc.) and mTORC2 (containing mTOR, Rictor, etc.). mTORC1 is somewhat sensitive to rapamycin treatment, whereas mTORC2 is believed to be rapamycin insensitive (18). A recent finding implicated mTORC1 and mTORC2 as key regulators of EMT. Knockdown of mTORC1 and mTORC2 induced mesenchymal–epithelial transition (MET), and inhibition of mTOR signaling suppressed cancer cell migration and invasion (19). Furthermore, cross-talk between the mTOR pathway and CXCL12/CXCR4 axis suggests that mTORC1 knockdown is sufficient to decrease CXCR4-mediated migration, and inhibition of mTORC1 by rapamycin decreases primary tumor growth and CXCR4-mediated lymph node metastasis (20).

Here, we hypothesize that activation of the CXCL12/CXCR4/mTOR signaling pathway in response to DPP-4 suppression plays a key role in the regulation of EMT and metastasis in breast cancer.

KR62436 hydrate (KR, K4264), AMD3100 (A5602), rapamycin (R8781), and recombinant mouse CXCL12α (SRP4388) were purchased from Sigma. Recombinant TGFβ1 was purchased from PeproTech (100-21). The following antibodies were purchased from Abcam: rabbit polyclonal anti-αSMA (1:1,000, ab5694, RRID: AB_2223021), mouse monoclonal anti-vimentin (1:2,000, ab8978, RRID: AB_306907), rabbit polyclonal anti-TGFβR2 (1:1,000, ab61213, RRID: AB_945809), goat polyclonal anti-CXCR4 (1:1,000, ab1670, RRID: AB_302470), and rabbit polyclonal anti-CXCL12 (1:1,000, ab18919, RRID: AB_444705). The rabbit polyclonal anti-Smad3 (1:1,000, CST9513, RRID: AB_2286450), rabbit polyclonal anti-phospho-mTOR (1:1,000, 2974, RRID: AB_2262884), rabbit polyclonal anti-mTOR (1:1,000, 2983, RRID: AB_2105622), and rabbit polyclonal anti-GFP (1:1,000, 2555, RRID: AB_ 10692764) antibodies were purchased from Cell Signaling Technology. The mouse monoclonal anti–β-actin (1:10,000, A2228, RRID: AB_476697), rabbit anti-TGFβR1 (1:500, SAB4502958, RRID: AB_10746304), and goat polyclonal anti-DPP-4 (1:500, SAB2500328, RRID: AB_10603974) antibodies were obtained from Sigma. A rat monoclonal anti–E-cadherin antibody was purchased from GeneTex (1:2,000, GTX11512, RRID: AB_381324). A rabbit polyclonal anti-phospho-Smad3 (s423 and s425) antibody (1:1,000, 600-401-919, RRID: AB_2192878) was purchased from Rockland Immunochemicals. The neutralizing TGFβ (1, 2, 3) antibody (MAB1835, RRID: AB_357931), recombinant mouse DPP-4 (954-SE) and neutralizing CXCL12 antibody (MAB310, RRID: AB_2276927) was purchased from R&D Systems. Fluorescein (FITC)-conjugated anti-rat IgG (1:200,112-095-003, RRID: AB_2338189) and Cy-conjugated anti-rabbit IgG (1:200, 111-166-047, RRID: AB_2338010) secondary antibodies were obtained from Jackson Immuno Research. Mounting medium containing DAPI (H-1200, RRID: AB_2336790) was obtained from Vector Laboratories.

The experimental cell lines were obtained from ATCC. Some in vitro experiments were performed using cell lines obtained from the ATCC and cryopreserved for more than 6 months. In addition, some results were confirmed using cell lines obtained from the ATCC within 6 months. Identities of the cells were confirmed by following methods: COI assay for human MCF 10A mammary epithelial cells (CRL-10317, RRID: CVCL_0598), human MCF7 breast cancer cells (HTB-22, RRID: CVCL_0031), human MDA-MB-231 breast cancer cells (HTB-26, RRID: CVCL_0062), and mouse 4T1 breast cancer cells (CRL-2539, RRID: CVCL_0125; GFP-expressing cells), and short tandem repeat analysis for MCF7 cells and MCF10A cells. All cell lines were grown at 37°C in a 5% CO₂ atmosphere, used for 10 passages after reviving from the frozen vials and regularly stained with DAPI (Vector Labs) to test for Mycoplasma contamination every 3 months. Also, we confirmed negative test for Mycoplasma by PCR (test no.18Q397, 21st Nov. 2018, ICLAS Monitoring Center, Japan). MCF10A cells were cultured in MEBM supplemented with MEGM (BPE, hEGM, insulin, hydrocortisone, and GA-1000; Lonza). MCF7 cells (HTB-22, RRID: CVCL_0031) were cultured in ATCC-formulated Eagle minimum essential medium with 0.01 mg/mL human recombinant insulin and 10% (final concentration) FBS. MDA-MB-231 cells were cultured in ATCC-formulated Leibovitz L-15 medium with 10% FBS. A mixture of CO₂ and air is detrimental to cells when using this medium for cultivation. 4T1 cells were cultured in RPMI1640 medium with 10% FBS. When the cells reached 70%–80% confluence, KR (50 μmol/L), AMD3100 (30 μmol/L), TGFβ1 (5 ng/mL), neutralizing TGFβ (1, 2, 3) antibody (1.0 μg/mL), rapamycin (1 μmol/L), recombinant mouse DPP-4 (1 μg/mL), recombinant mouse CXCL12α (0.2 μg/mL), or neutralizing CXCL12 antibody (200 μg/mL) was added to the experimental medium.

4T1 cells were transfected with siRNA (100 nmol/L) targeting mouse DPP-4 (5′-CCGUGCCAAUAGUUCUGCU-3′; AM16704, Invitrogen). MCF 10A, MCF7, and MDA-MB-231 cells were transfected with siRNA (100 nmol/L) targeting human DPP-4 (5′-GGAAUGCCAAGGAGGAAGGAAUCUUU-3′; HSS102892, Invitrogen). The transfection reagent Lipofectamine 2000 (Invitrogen) was used according to the manufacturer's instructions. Cells were incubated with Lipofectamine 2000 and siRNA in serum-free medium for 6 hours. Then, the medium was replaced with experimental medium. For DPP-4 siRNA transfections, 4T1 cells were treated with or without TGFβ1 (1.0 g/mL) for 48 hours. The mouse DPP-4 shRNA vectors were constructed in the pSIH vector (System Biosciences) using synthetic oligonucleotides against mouse DPP-4 antisense sequences (shDPP-4-1: 5′-TAGAAGGAGTATTCAATGAGC-3′ or shDPP-4-2, 5′-AATAGTCAGCTA-GTGAATACG-3′ or shDPP-4-3: 5′-ATAGTAGAGGATATTTCTTGG -3′) with loop 5′-CTCGAG-3′. Lentivirus particles were propagated in HEK293TN cells (System Biosciences) following transfection with the pM2.G envelope vector and the packaging psPAX2 vector (deposited by Didier Trono, Laboratory of Virology and Genetics, Ecole Polytechnique Federale de Lausanne, Switzerland; Addgene plasmid #12259 and #12260, respectively, Addgene). Supernatants from 48-hour cultures were collected, and then lentiviral particles were concentrated using PEG-it solution (System Biosciences). Lentivirus transduction efficiencies were then determined according to numbers of GFP-positive 4T1 cells at 48 hours posttransduction. Lentivirus experiments were approved by the Kanazawa Medical University Safety Committee for Recombinant DNA experiment (protocol number: 2018-11).

Female BALB/c mice (8 weeks old; CLEA Japan, Inc., Japan, RRID: MGI: 3586693) were anesthetized. Incisions (0.5 cm each) were made on the mouse abdomen between the 1st and 2nd sets of nipples counting from the hind leg of the animal. Cultured 4T1 cells (5 × 10⁵ cells in 20 μL of PBS) were injected into the mammary fat pad of each mouse using a Hamilton syringe fitted with a 25G needle. At 20 days posttumor cell injection, the primary tumor measured approximately 500 mm³. At this point, the mouse breast cancer model was treated with PBS orally, KR (0.02 mg/g/day, orally), AMD3100 (0.0075 mg/g/day i.p), or KR and AMD3100. Seven days after initiating treatment, the mice were sacrificed, and the primary tumor tissues and lungs were removed. The shRNA-control or shRNA-DPP-4–transduced 4T1 cells were injected into the mammary fat pad of each mouse. Twenty-seven days after tumor cells injection, the mice were sacrificed, and the primary tumors and lungs were analyzed. The experiments described herein were conducted in accordance with the animal protocols of Kanazawa Medical University (protocol numbers 2014-89, 2013-114, and 2014-101, lentivirus shRNA in vivo experiment protocol number 2018-17).

Proteins were harvested using RIPA lysis buffer containing phenylmethylsulfonylfluoride, protease inhibitor cocktail, and sodium orthovanadate (Santa Cruz Biotechnology). Protein lysates were boiled in SDS sample buffer at 100°C for 6 minutes, separated on SDS-polyacrylamide gels, and then transferred onto polyvinylidene difluoride membranes (Pall Corporation) using the semidry method. After blocking, the membranes were incubated overnight with primary antibodies at 4°C, followed by incubation with the corresponding peroxidase-conjugated secondary antibody for 1 hour at room temperature. The blots were developed with an enhanced Chemiluminescence Detection System (Pierce Biotechnology) and visualized using an ImageQuant LAS 400 Camera System (GE Healthcare Life Sciences).

Treated 4T1 cells were cultured on 8-well culture slides (354630, BioCoat) for 48 hours. The cells were then fixed with 100% methanol for 10 minutes at −20°C and with acetone for 1 minute at −20°C. After being blocked with 2% BSA/PBS for 30 minutes at room temperature, the cells were incubated with primary antibody for 1 hour, washed with PBS, and incubated with the corresponding secondary antibody for 30 minutes. The cells were then extensively washed three times with PBS and mounted with mounting medium containing DAPI. The images were analyzed by confocal microscopy (LSM710, Carl Zeiss).

Paraffin slides were deparaffinized in 2 changes of xylene for 5 minutes each and transferred to 100%, 95%, and 70% alcohol for 3 minutes each. Then, the slides were stained with hematoxylin and eosin (H&E) solution. After being incubated in 3% H₂O₂ solution for 10 minutes to block endogenous peroxidase activity, the slides were incubated in 300 mL of 10 mmol/L citrate buffer (pH 6.0) at 100°C for 1 hour. The slides were incubated with primary antibody for 1 hour, washed with TBST, and incubated with the corresponding secondary antibody for 30 minutes. Then, the slides were incubated with reactive fluorophores (Opal 520, Opal 570, and Opal 670; Opal 4-Color Automation IHC Kit, NEL801001KT, Perkin Elmer). The proteins were stained sequentially. Finally, the slides were mounted with spectral DAPI, and the images were analyzed by confocal microscopy (LSM710, Carl Zeiss).

Paraffin slides were deparaffinized in 2 changes of xylene for 5 minutes each and transferred to 100%, 95%, and 70% alcohol for 3 minutes each. After being incubated in 3% H₂O₂ at room temperature for 10 minutes to block endogenous peroxidase activity, the slides were incubated in 300 mL of 10 mmol/L citrate buffer (pH 6.0) at 100°C for 1 hour. The slides were then incubated with primary antibody for 1 hour, washed with PBS, and incubated with the corresponding secondary antibody for 30 minutes. The slides were incubated with 100 μL of DAB substrate solution (SK-4100, Vector Laboratories). After being stained with hematoxylin for 2 minutes, the tissue slides were dehydrated through 4 changes of alcohol (95%, 95%, 100%, and 100%) for 5 minutes each and hyalinized in 3 changes of xylene. The images were analyzed by the NanoZoomer Digital Pathology System.

Matrigel (BD, No. 356234) was thawed on ice overnight at 4°C. Cell culture inserts (0264, BD Falcon) were coated with Matrigel and incubated at 37°C for 1 hour. MCF 10A, MCF7, MDA-MB-231, and 4T1 cells were placed in the top chamber of a cell culture insert with serum-free medium, and complete media were added to the bottom chambers of the inserts in 6-well plates. Following treatment with control siRNA, DPP-4 siRNA, KR, AMD3100 or KR, and AMD3100 for 24 hours, the cells that migrated through the membrane were stained with hematoxylin and counted. Migration was analyzed by microscopy (Carl Zeiss Microscopy). Images of 6 different fields of view were obtained at 200× magnification, and the results were quantified.

MCF 10A, MCF7, MDA-MB-231, and 4T1 cells were incubated in 6-well plates (cell culture–treated multidishes; 140675, Thermo Fisher Scientific) and treated with control siRNA or DPP-4 siRNA. Morphologic changes were analyzed by microscopy (Carl Zeiss Microscopy).

To identify metastasis on the lung surface, lung specimens were perfused with 10% formaldehyde and then fixed in the same solution after dissection. Next, the lungs were placed in Bouin buffer (10% formaldehyde: 0.9% picric acid: 5% acetic acid = 15:5:1) for at least 24 hours after dehydration in 100% ethanol. Surface lung metastasis was quantitated by counting the number of metastatic nodules.

Primary tumor, lung, and plasma samples were homogenized in 4 volumes of DPP-4 Assay Buffer (DPP-4 Activity Fluorometric Assay Kit, K779-100, BioVision) and centrifuged at 13,000 × g for 10 minutes to remove insoluble material. Plasma samples were directly diluted in DPP-4 Assay Buffer. The samples were adjusted to a final volume of 50 μL in a 96-well plate using DPP-4 Assay Buffer. Reaction mix (40 μL) was added to each well, and the 96-well plate containing samples was incubated at 37°C for 30 minutes. DPP-4 activity was analyzed by Fluoroskan Ascent (Thermo Fisher Scientific).

A mouse CXCL12 ELISA kit was used to detect CXCL12 (DY460, R&D Systems). CXCL12 was quantitated according to the manufacturer's instructions, and the results are presented in ng/mL.

In vitro MTT-based Assay Kit (TOX-1, Sigma) was used for proliferation detection. Cells were incubated with reconstituted MTT in an amount equal to 10% of the culture medium volume for 2 hours. MTT assay was performed following the manufacturer's protocol. The absorbance was measured by spectrophotometric assay at a wavelength of 570 nm.

Total RNA was isolated from small pieces of primary tumor tissue and 4T1 cells using a Qiagen RNeasy Mini Kit (Qiagen). Complementary DNA (cDNA) was generated by using SuperScript (Invitrogen). qPCR was performed in a 7900HT Fast Real-time PCR System (Life Technologies) using SYBR Green (miScript SYBR Green PCR Kit, Qiagen) and 3 ng of cDNA, and the data were quantified using the delta–delta threshold cycle (C_t) method (ΔΔC_t). All experiments were performed in triplicate, and β-actin was utilized as an internal control.

The data are presented as the mean ± SEM. One-way ANOVA followed by Tukey multiple comparison test was used to determine significance, which was defined as P < 0.05, unless otherwise noted. GraphPad Prism software (ver. 5.0f; RRID: SCR_002798) was used for the statistical analysis.

To study the effects of DPP-4 inhibition on EMT, we utilized siRNA-mediated knockdown of DPP-4. Western blot analysis revealed that DPP-4 knockdown decreased expression of the epithelial marker E-cadherin and increased expression of the mesenchymal markers αSMA and vimentin in the human MCF 10A normal mammary epithelial cell line and in the MCF7 and MDA-MB-231 cancer cell lines (Fig. 1A), suggesting that EMT is induced by DPP-4 suppression. Interestingly, the induction of EMT was significantly greater in metastatic cancer cells (MDA-MB-231) than in other cells (Fig. 1A).

We treated the mouse 4T1 breast cancer cell line with an EMT inducer, TGFβ1, and found that DPP-4 knockdown augmented EMT in the presence of TGFβ1 (Fig. 1B). There was no significant morphologic alteration in DPP-4-knockdown MCF 10A cells, but DPP-4-knockdown MCF7 or MDA-MB-231 cells adopted an elongated or spindle shape compared with control siRNA–transfected cells (Fig. 1C). Transwell assays revealed that DPP-4 inhibition accelerated cell migration (Fig. 1D).

To determine the pathologic significance of DPP-4 inhibition in vivo, we analyzed 4T1 tumor–bearing female BALB/c mice. Primary tumors and lungs were collected from these mice after 7 days of treatment with PBS or KR, a DPP-4 inhibitor. KR-treated tumor-bearing mice exhibited increased primary tumor growth and weight compared with control tumor-bearing mice (Fig. 2A). The lungs of KR-treated mice had significantly more visible metastatic nodules detected by Bouin buffer staining (Fig. 2B). We also analyzed stable shRNA-DPP-4–transduced 4T1 cells and confirmed that shRNA-DPP-4–transduced 4T1 cells displayed same phenotype as KR-treated or DPP-4 siRNA–transfected 4T1 cells (Supplementary Fig. S1). Also, shRNA-DPP-4–transduced 4T1 cells displayed tumor growth and lung metastasis (Supplementary Fig. S2). We also found that primary tumors in KR-treated mice had a more invasive phenotype, with more metastatic nodules in the lung, as analyzed by H&E staining (Fig. 2C). The coimmunolabeling study with GFP, E-cadherin, and αSMA revealed that 4T1 primary tumors and metastatic lung nodules in KR-treated mice had mesenchymal characteristics (Fig. 2D). Immunoblotting analysis of primary tumor tissues revealed that KR treatment suppressed E-cadherin levels and increased the levels of mesenchymal markers such as αSMA and vimentin (Fig. 2E). Smad3 phosphorylation was induced by KR treatment in primary tumor tissues (Fig. 2F).

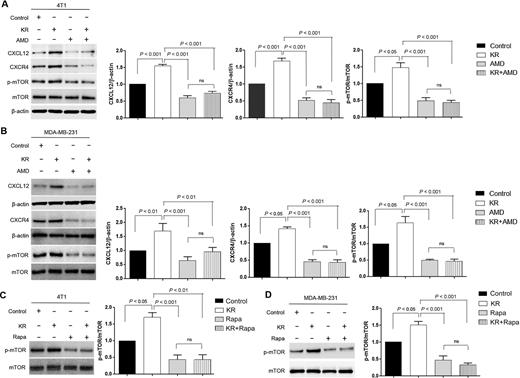

In the presence of KR, CXCL12/CXCR4 expression and mTOR phosphorylation were increased in 4T1 and MDA-MB-231 cells (Fig. 3A and B). This KR-induced induction of CXCL12/CXCR4 expression and mTOR phosphorylation was inhibited by the CXCR4 inhibitor AMD3100 (Fig. 3A and B). KR-induced mTOR phosphorylation was inhibited by rapamycin (Fig. 3C and D).

Next, we investigated the role of the CXCL12/CXCR4/mTOR axis in EMT induced by DPP-4 suppression. Treatment with the KR suppressed E-cadherin and increased αSMA, suggesting the induction of EMT (Fig. 4A and B), similar to the result of the siRNA knockdown experiments in 4T1 and MDA-MB-231 cells (Fig. 1A and B); cotreatment with AMD3100 suppressed KR-induced EMT (Fig. 4A and B). As expected, the mTOR inhibitor rapamycin inhibited KR-induced EMT in both 4T1 and MDA-MB-231 cells (Fig. 4C and D). We performed CXCL12 incubation on the 4T1 cells and found that CXCL12 induced CXCR4 and mTOR activation associated with EMT. Such effects of CXCL12 were enhanced in DPP-4 siRNA–transfected 4T1 cells (Supplementary Fig. S3A). Furthermore, CXCL12-neutralizing antibody reduced DPP-4 siRNA- or KR-induced CXCR4 levels associated with suppression of mTOR activation and EMT (Supplementary Fig. S3B and S3C); CXCL12 cotreatment with AMD3100 or rapamycin suppressed CXCL12 stimulation–induced EMT (Supplementary Fig. S3D and S3E). Transwell assays revealed that KR-mediated suppression of DPP-4 increased the migration of both 4T1 cells and MDA-MB-231 cells compared with control cells (Fig. 4E); this effect on migration was suppressed by either AMD3100 or rapamycin (Fig. 4E). KR-induced EMT was confirmed by gene expression analysis of Snail, Slug, and ZEB1, key molecules for the induction of EMT; AMD3100 and rapamycin suppressed the expression of these EMT-associated proteins in 4T1 cells (Supplementary Fig. S4).

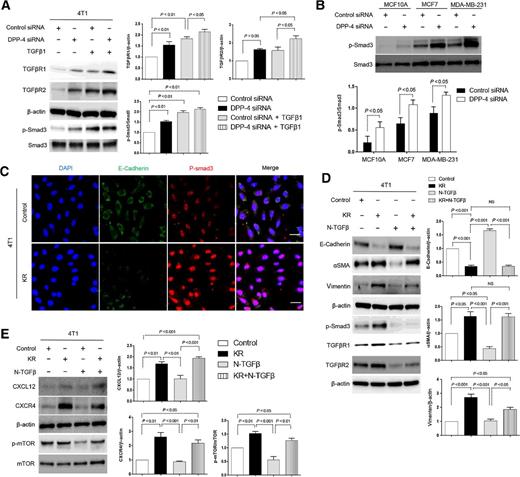

TGFβ signaling is a vital player in EMT (21). To understand the role of the interaction between DPP-4 and TGFβ/Smad signaling in EMT, we investigated the levels of TGFβ receptors and downstream signaling molecules. Western blot analysis revealed that DPP-4 knockdown induced TGFβ receptor (TGFβR) 1 and TGFβR2 expression, and Smad3 phosphorylation in 4T1 cells (Fig. 5A). Similarly, DPP-4 knockdown induced Smad3 phosphorylation in MCF 10A normal breast epithelial cells as well as in both breast cancer cells, MCF7 and MDA-MB-231, yet Smad3 phosphorylation levels were associated with the aggressiveness of cancer cells (Fig. 5B). We also confirmed Western blot analysis of TGFβ1, TGFβ2, TGFβ3, and BMP2, 4. Basically, TGFβ1 was dominantly induced by DPP-4 inhibition (Supplementary Fig. S5). Confocal immunofluorescence images revealed that KR-induced suppression of E-cadherin expression was associated with increased nuclear localization of phosphorylated Smad3 compared with control (Fig. 5C).

To confirm the role of TGFβ signaling in KR-induced EMT, we suppressed TGFβ signaling with a TGFβ-neutralizing antibody (N-TGFβ). N-TGFβ nearly completely suppressed Smad3 phosphorylation (Fig. 5D), but KR-induced EMT was not inhibited by cotreatment with N-TGFβ (Fig. 5D). Moreover, KR-induced expression of CXCL12 and CXCR4 and phosphorylation of mTOR were not suppressed by N-TGFβ (Fig. 5E). However, TGFβR induction and Smad3 phosphorylation by KR were suppressed by AMD3100 (Supplementary Fig. S6).

Finally, to confirm whether CXCL12/CXCR4 axis plays a critical role in DPP-4 suppression–induced cancer metastasis, we performed AMD3100 intervention study in KR-treated 4T1 tumor–bearing mouse. Compared with PBS-treated mice, DPP-4 activity in all primary tumor, lung, and plasma was suppressed markedly in either KR or KR with AMD3100-treated mice (Fig. 6A). As expected, KR treatment increased the level of CXCL12 in the primary tumor, lung, or plasma (Fig. 6B). Compared with KR treatment alone, KR with AMD3100 inhibited body weight reduction during the course of the experiment (Fig. 6C). MTT assay revealed that AMD3100 suppressed KR-induced proliferation of 4T1 cells (Fig. 6D). AMD3100 treatment also reduced volume (Fig. 6E), weight (Fig. 6F), and invasive phenotype of primary tumor (Fig. 6G) in KR-treated mice. Furthermore, AMD3100 inhibited KR-induced lung metastasis (Fig. 6H and I). The Opal triple immunolabeling revealed that either in primary tumor or lung metastasis, AMD3100 suppressed KR-induced EMT in 4T1 cells that was labelled by GFP (Fig. 6J and K). IHC analysis of primary tumor indicated that KR-treated mice exhibited higher levels of the expression of CXCR4 and mTOR phosphorylation; AMD3100 blocked the KR-induced CXCR4 and mTOR phosphorylation (Fig. 6L). AMD3100 also suppressed the EMT-associated gene expression of Snail, Slug, and ZEB1 in primary tumor tissues (Supplementary Fig. S7).

Patients with diabetes have a higher incidence of cancer than the general population, and some antidiabetes drugs could be relevant for the biology of cancer in the context of diabetes (22). Therefore, establishing the safety and potential detrimental effects of diabetes drugs in terms of carcinogenesis and cancer biology is essential for diabetes research. In this study, we focused on the pleiotropic effects of DPP-4 inhibitors, which are in general thought to be beneficial for human health, to better understand the pathologic significance of DPP-4 inhibitors in cancer biology. In brief, we report the following findings: (i) DPP-4 suppression by siRNA, shRNA, or an inhibitor induced EMT in human and mouse breast cancer cells. This induction was more significant in aggressive cancer cells such as 4T1 and MDA-MB-231 cells. (ii) The DPP-4 inhibition increased expression of both CXCL12 and its receptor CXCR4 and phosphorylation of the downstream signaling molecule mTOR. (iii) The CXCR4 inhibitor AMD3100 and the mTOR inhibitor rapamycin each abolished the induction of EMT by DPP-4 suppression. (iv) Unexpectedly, EMT induced by the DPP-4 inhibitor was independent of TGFβ signaling. (v) In vivo, the DPP-4 inhibition enhanced the metastasis of 4T1 breast cancer allografts to the lung in a CXCL12/CXCR4–dependent manner. These data provide clear evidence that DPP-4 negatively regulates cancer metastasis via cleavage of CXCL12, and that a DPP-4 inhibitor could potentially facilitate this endogenous metastasis mechanism in patients with cancer.

Currently, it remains unclear whether DPP-4 inhibitors are detrimental to patients with diabetes with existing tumors. In general, patients with cancer are excluded from drug development and clinical trial of diabetes therapies. Furthermore, the notion that metastasis in patients with cancer could be associated with a prescribed drug is rarely considered. Wang and colleagues reported that the DPP-4 inhibitors saxagliptin and sitagliptin increased the migration and invasion of multiple cancer cell lines through nuclear factor E2–related factor 2 (NRF2) in a KEAP1-C151–dependent manner (23). In our analysis of the molecular mechanism by which DPP-4 inhibition promotes cancer metastasis, we focused on DPP-4 biology in chemokine processing. DPP-4 cleaves a number of chemokines and cytokines, such as CXCL12, GM-CSF and granulocyte colony-stimulating factor (G-CSF; ref. 24). CXCL12 is inactivated by exopeptidases, such as DPP-4, matrix metalloproteinase (MMP)-2, and MMP-9 (24). CXCL12 and its specific receptor CXCR4 play important roles in hematopoiesis, angiogenesis, stem cell homing, and tumor development and behavior (25). Furthermore, a recent report showed that disruption of mTORC1 is sufficient to decrease cell proliferation and CXCR4-mediated migration in HeLa cells, and blockade of mTORC1 by rapamycin decreases primary tumor growth and CXCR4-mediated lymph node metastasis and increases animal survival (26). Evidence has shown that mTOR knockdown in SW480 colon cancer cells increases E-cadherin levels and decreases vimentin and αSMA levels (27). The results we present here indicate that DPP-4 suppression induces the CXCL12/CXCR4 axis and the subsequent activation of mTOR, which are associated with the induction of EMT. Interestingly, these pathways could underlie a beneficial effect of DPP-4 inhibitors in terms of wound healing in patients with diabetes (28). The effects of DPP-4 on CXCL12 cleavage are well known; the data suggest that these effects of DPP-4 inhibitors on CXCR4-positive cancer cells are potentially universal for any DPP-4 inhibitors.

Epithelial cells and endothelial cells can transform into mesenchymal cells in response to certain types of stress or insults (29). Indeed, we have shown that DPP-4 suppression in endothelial cells represses TGFβ2–induced EndMT (30–32). Such effects of DPP-4 inhibition are thought to associate with the induction of antifibrotic miRs such as let-7 and miR-29, which have been shown to inhibit TGFβ signaling (33). In contrast, surprisingly, our findings revealed that DPP-4 suppression is sufficient to induce EMT and cell migration in normal mammary epithelial cells and cancer cells. With regard to this, DPP-4 inhibition increased TGFβ/Smad signaling in breast cancer, but neutralization of TGFβ had absolutely no effect on the induction of EMT by DPP-4 inhibition. This DPP-4 inhibitor–stimulated TGFβ signaling pathway was dependent on CXCL12/CXCR4 in breast cancer cells. Furthermore, inhibiting DPP-4 in TGFβ-treated cells further stimulated the induction of EMT. These data suggest that the effects of DPP-4 inhibition on mesenchymal transformation of either epithelial cells or endothelial cells could rely on cell type and the degree of dependence on the TGFβ signaling pathway.

Recently, studies have confirmed that there is cross-talk between the TGFβ and CXCL12 pathways. Evidence indicates that TGFβ induces CXCR4 in tumor cells (34), enhancing the response to CXCL12 to promote invasion and metastasis (35). We also revealed that DPP-4 suppression induces TGFβ/Smad signaling, but the TGFβ-induced CXCR4 cascade was not relevant for DPP-4–induced EMT and metastasis because the KR-induced CXCL12/CXCR4/mTOR axis and EMT were not suppressed by the TGFβ-neutralizing antibody. These findings further confirm that KR-induced EMT via the CXCL12/CXCR4/mTOR axis is independent of TGFβ/Smad signaling. The role of TGFβ/Smad signaling–dependent CXCL12/CXCR4 pathway activation by DPP-4 suppression in cancer biology is not clear, and further study is absolutely needed.

In conclusion, we show here that DPP-4 inhibition accelerates breast cancer metastasis by inducing EMT through CXCL12/CXCR4–mediated mTOR activation. These data indicate that DPP-4 inhibitors, in general thought to be safe, could be harmful in a select population of patients with CXCR4-positive cancer. Further study is necessary to monitor the effects of DPP-4 inhibitors on human tumorigenesis. Moreover, these biological characteristics of DPP-4 in cancer cells could lead to the identification of novel therapeutic targets for cancer.

K. Kanasaki is a consultant/advisory board member for Japan Boehringer Ingelheim and Japan Eli Lilly and reports receiving speakers’ bureau honoraria from Japan Eli Lilly, Japan Boehringer Ingelheim, Tanabe Mitsubishi, Ono Pharmaceutical, Novartis, and Takeda Pharmaceutical Company. No potential conflicts of interest were disclosed by the other authors.

Conception and design: F. Yang, Y. Takagaki

Development of methodology: F. Yang, Y. Takagaki, J. Li, K. Kanasaki

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): Y. Takagaki, T. Ikeda, A. Kumagai, E. Kawakita

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): F. Yang

Writing, review, and/or revision of the manuscript: F. Yang, A. Kumagai

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): Y. Takagaki, Y. Yoshitomi, J. Li, M. Kitada, S. Shi

Study supervision: K. Kanasaki, D. Koya

Others (discussion of data): M. Kitada

This work was partially supported by grants from the Japan Society for the Promotion of Science (23790381 and 26460403 to K. Kanasaki; 25282028 and 25670414 to D. Koya), a grant for Collaborative Research (C2011-4 and C2012-1 to D. Koya), a grant for Promoted Research (S2016-3 and S2017-1 to K. Kanasaki), a grant for Assist KAKEN (K2017-16 to Y. Takagaki) from Kanazawa Medical University, and Lilly-Incretin Basic Research Grant from the Japan Diabetes Foundation (to Y. Takagaki). F. Yang is supported by the Japanese Government MEXT (Ministry of Education, Culture, Sports, Science, and Technology) Fellowship Program (142309) and S. Shi is supported by foreign scholar grants from Kanazawa Medical University. Boehringer Ingelheim (Japan), Mitsubishi Tanabe Pharma, and Ono Pharmaceutical contributed to establishing the Division of Anticipatory Molecular Food Science and Technology. K. Kanasaki is under a consultancy agreement with Boehringer Ingelheim.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
