New targets are required for treating prostate cancer, particularly castrate-resistant disease. Previous studies reported that calcium/calmodulin-dependent protein kinase kinase 2 (CAMKK2) expression is increased in human prostate cancer. Here, we show that Camkk2 deletion or pharmacologic inhibition protects against prostate cancer development in a preclinical mouse model that lacks expression of prostate-specific Pten. In contrast, deletion of AMP-activated protein kinase (Ampk) β1 resulted in earlier onset of adenocarcinoma development. These findings suggest for the first time that Camkk2 and Ampk have opposing effects in prostate cancer progression. Loss of CAMKK2 in vivo or in human prostate cancer cells reduced the expression of two key lipogenic enzymes, acetyl-CoA carboxylase and fatty acid synthase. This reduction was mediated via a posttranscriptional mechanism, potentially involving a decrease in protein translation. Moreover, either deletion of CAMKK2 or activation of AMPK reduced cell growth in human prostate cancer cells by inhibiting de novo lipogenesis. Activation of AMPK in a panel of human prostate cancer cells inhibited cell proliferation, migration, and invasion as well as androgen-receptor signaling. These findings demonstrate that CAMKK2 and AMPK have opposing effects on lipogenesis, providing a potential mechanism for their contrasting effects on prostate cancer progression in vivo. They also suggest that inhibition of CAMKK2 combined with activation of AMPK would offer an efficacious therapeutic strategy in treatment of prostate cancer.

Significance:

These findings show that CAMKK2 and its downstream target AMPK have opposing effects on prostate cancer development and raise the possibility of a new combined therapeutic approach that inhibits CAMKK2 and activates AMPK.

Prostate cancer is the most common cancer in men in the United Kingdom and United States, and accounts for almost 20% of all new cancer cases in men in the United States (1). Prostate cancer development is thought to proceed through a series of defined stages, including prostatic intraepithelial neoplasia (PIN), adenocarcinoma, and metastatic cancer (2). Standard therapies include androgen ablation therapy, and although 80% of patients initially respond favorably, most relapse within 1 to 2 years of developing castrate-resistant disease (3). Given the high prevalence and mortality rates associated with prostate cancer, novel drug targets are needed. Two previous studies (4, 5) reported that calcium/calmodulin-dependent protein kinase kinase 2 (CAMKK2) gene expression is upregulated at all stages of human prostate cancer, with evidence that gene expression positively correlates with grade. Both studies provided convincing evidence that the CAMKK2 gene is androgen responsive in human prostate cancer cell lines, providing a potential direct molecular mechanism for upregulation of CAMKK2 in prostate cancer. Inhibition of CAMKK2 was shown to block androgen-stimulated growth, migration, and invasion in vitro (4, 5), and CAMKK2 inhibition reduced tumor growth in a prostate cancer xenograft model (5). CAMKK2 is one of two upstream kinases (the other being LKB1) that phosphorylates AMP-activated protein kinase (AMPK) on threonine 172 (T172) within the α subunit, leading to its activation (6, 7). AMPK is a key regulator of energy homeostasis in eukaryotic cells, and activation of AMPK leads to inhibition of protein and lipid synthesis, inhibiting cell growth, and so supporting the hypothesis that AMPK acts as a tumor suppressor (8–12). However, there is also evidence that suggests that under certain circumstances AMPK might help cancer cells survive under adverse nutritional conditions and so support tumor growth (13–17). At the present time, the role of AMPK in prostate cancer remains unclear, and whether AMPK is involved in mediating the downstream effects of CAMKK2 signaling in prostate cancer remains enigmatic.

Here, we use a mouse model of prostate cancer in which the tumor suppressor, Pten, is deleted specifically in prostate epithelial cells (18) in order to investigate the effect of Camkk2 and Ampk in disease progression in vivo. This model accurately recapitulates the different stages seen in the human disease albeit on a more rapid time scale making it an excellent model for the human disease. Consistent with the findings from human prostate cancer, Camkk2 expression is significantly increased in mouse prostate following deletion of Pten. We show that CAMKK2 is required for driving protein expression of lipogenic enzymes, leading to increased de novo lipogenesis in prostate cancer cells. Conversely, AMPK activation inhibits de novo lipogenesis. Genetic deletion of Camkk2 in vivo slows prostate cancer development, whereas deletion of Prkab1 (the gene encoding Ampkβ1) leads to earlier onset of adenocarcinoma. Our findings suggest that CAMKK2 and AMPK have opposing effects on prostate cancer progression, mediated at least in part by their antagonistic effects on de novo lipogenesis.

Animal models

All in vivo studies were performed in accordance with the United Kingdom Animals (Scientific Procedures) Act (1986) and approved by the Animal Welfare and Ethical Review Board at Imperial College London. All experimental animals were maintained on a C57BL/6J genetic background and fed a chow-standard breeding diet number 3 (Special Diets Services). Mice with prostate-specific deletion of Pten were generated by crossing female Ptenfl/fl mice (stock number 006440, Jackson Laboratories) with male mice expressing cre-recombinase under the control of a modified rat probasin promoter (Pbsn-Cre4; stock number 026662, Jackson Laboratories). Mice with a global deletion of Camkk2 (deletion of exon 5) were as described previously (19). Prkab1-floxed mice were generated by crossing Prkab1tm1a(KOMP)Wtsi [“knockout first” mice generated by the trans-NIH Knock-Out Mouse Project (KOMP)] and obtained from the KOMP Repository (www.komp.org) with mice expressing Flp-recombinase (stock number 003946, Jackson Laboratories). To generate mice with global deletion of Camkk2 and prostate-specific deletion of Pten, female Ptenfl/fl;Camkk2−/− mice were crossed with male Pbsn-cre4+; Ptenfl/; Camkk−/ transgenic mice. To generate prostate-specific deletion of Pten and Prkab1, female Ptenfl/fl; Prkab1fl/fl mice were crossed with male Pbsn-cre4+;Ptenfl/;Prkab1fl/ transgenic mice.

Histology

Prostates were fixed in 4% paraformaldehyde overnight, wax embedded in paraffin, and sectioned to a thickness of 4 μm. Sections were stained with hematoxylin and eosin (H&E) and assessed for disease grading. For Ki-67 and cleaved-caspase-3 staining, sections were deparaffinized and rehydrated using Acquaclear, 100% then 70% ethanol, and boiled in sodium citrate antigen retrieval solution for 5 minutes in a pressure cooker. Sections were incubated with 0.3% H2O2 to block endogenous peroxidase activity, washed with PBS, and blocked for 1 hour with 10% normal goat serum in PBS at room temperature. Sections were incubated overnight at 4°C with primary antibody (rabbit anti-Ki-67; Abcam16667 or rabbit cleaved-caspase-3; CST#9661 both at a 1:250 dilution). Sections were washed with PBS-tween (0.1%) and incubated with biotinylated goat secondary antibody for 1 hour at room temperature. Sections were then washed with PBS-tween (0.1%) and incubated for 30 minutes with avidin–biotin complex (VECTASTAIN Elite ABC Kit, Vector Laboratories) according to manufacturer's instructions. Sections were washed with PBS and stained using the DAB Substrate Kit (Vector Laboratories) according to the manufacturer's instructions before counterstaining with Gill hematoxylin (Sigma). Sections were then dehydrated and mounted using DPX mountant (Sigma).

In vivo studies with STO-609

Osmotic minipumps (Models 2004/2006, Alzet Osmotic Pumps) were filled with varying concentrations (6, 15, and 30 mg/mL) of STO-609 (Enzo Life Sciences) in 200 mmol/L NaOH. Addition of STO-609 lowered the pH of the solution to approximately pH 12.8, making it compatible with the minipump specifications. As a vehicle control, 200 mmol/L NaOH was adjusted to pH 12.8 by the addition of HCl. Minipumps were primed at least 48 hours before surgery and submersed in PBS at 37°C for several hours to allow the pump to begin operating before implantation. C57BL/6J male mice were anesthetized with isoflurane (Abbott), the interscapular region shaved, and an osmotic minipump inserted subcutaneously. Pump model 2004 (flow rate of 0.25 μL/h; 4-week duration) was used for the initial dosing studies in wild-type mice. Two weeks after surgery, blood samples were collected into heparinized microvettes (Sarstedt), and the resulting plasma fraction stored at −80°C before analysis for STO-609 levels. After 4 weeks, liver and prostate tissue was collected. Plasma and tissue STO-609 accumulation was analyzed by mass spectrometry as described previously by PK/Bioanalytics Core Facility, Cancer Research UK Cambridge Institute, UK. For the intervention studies in Pten-null mice, pump model 2006 (flow rate of 0.15 μL/h; 6-week duration) was used. Pumps were filled with vehicle (200 mmol/L NaOH, pH adjusted to 12.8) or 30 mg/mL STO-609 in 200 mmol/L NaOH and implanted into male mice, aged 13 weeks. Six weeks after implantation, animals were sacrificed and prostates removed for subsequent analysis.

Tissue homogenization

Immediately following dissection, tissues were snap frozen in liquid nitrogen. Frozen tissue was homogenized using an Ultra-Turrax homogenizer in 10× (w/v) ice-cold homogenization buffer containing 50 mmol/L Tris, 50 mmol/L NaF, 5 mmol/L Napyrophosphate, 1 mmol/L EDTA, 0.25 mol/L mannitol, 1 mmol/L dithiothreitol, 157 μg/mL benzamidine, 4 μg/mL trypsin inhibitor, and 0.1 mmol/L phenylmethylsulphonyl fluoride. Homogenates were centrifuged at 13,000 x g for 15 minutes to remove insoluble material. Protein content of the soluble fraction was quantified using a BCA assay kit (ThermoScientific).

Western blotting

Proteins were resolved by SDS-PAGE (Novex bis-tris 4%–12% gradient gels) and transferred to polyvinylidene difluoride membrane. Primary antibodies were used at a 1/1,000 dilution. The following antibodies were from Cell Signaling Technology: rabbit anti-AMPKα1 (#2795), rabbit anti-AMPKα2 (#2757), mouse anti-AMPKα1/2 (#2793), rabbit anti-AMPKβ1/2 (#4150), rabbit anti-ACC (#3676), rabbit anti-pACC (#3661), rabbit anti-AMPKγ1 (#4187), rabbit anti-pThr172 (#2535), and rabbit anti-Histone H3 (#4499). Mouse anti–β-actin was from Sigma-Aldrich (A3853). Rabbit anti-AR was from Millipore (06-680). Mouse anti-FASN was from BD laboratories (610963). Rabbit anti-CAMKK2 was from Atlas, and mouse monoclonal anti-CAMKK2 antibody was a generous gift from Professor Grahame Hardie (Dundee University, Dundee, Scotland). Primary antibodies were detected using LI-COR IRDye Infrared Dye secondary antibodies and visualized using an Odyssey Infrared Imager (LI-COR Biotechnology). Quantification of results was performed using Odyssey software and expressed as a ratio of the signal relative to the signal obtained using an appropriate loading control antibody (either β-actin or tubulin), unless otherwise stated. For AMPK and ACC phosphorylation, blots were quantified relative to total AMPKα or total ACC expression. For capillary Western blotting, cell lysates were diluted in HEPES lysis buffer to 0.4 mg/mL. Samples were prepared and analyzed according to the manufacturer's instructions (Protein Simple).

Proteomic studies using mass spectrometry

Protein lysates from the anterior lobes of mouse prostate were subjected to overnight digestion with trypsin. Total protein digest was applied to a Thermo Scientific LTQ Orbitrap XL hybrid FTMS (Fourier Transform Mass Spectrometer) operating in positive polarity. Raw data files were analyzed using MaxQuant software (www.maxquant.org), and data were searched against the Uniprot mouse database (up-to-date at the time of analysis). In each case, lysates from 3 independent animals, aged 17 weeks, were analyzed in duplicate. Proteins with a fold change >2 and P < 0.05 were determined to be significantly changed between genotypes.

Cell culture

All prostate cancer cell lines (LNCaP, PC3, DU145, and 22Rv1) were obtained from the ATCC in 2012. Androgen responsiveness of LNCaP cells was confirmed. No further authentication was performed. Cells were cultured in RPMI 1640 medium, GlutaMAX (Gibco-61870), and supplemented with 10% FBS (Sigma-Aldrich), 100 U/mL penicillin, and 100 μg/mL streptomycin. All cells were maintained at 37°C and 5% CO2 and tested for Mycoplasma using MycoAlert (most recently in May 2018; all cell lines tested were negative). For all studies, passage number was kept below 25. In some cases, cells were treated with 991 (a kind gift from Dr. Jon Read, AstraZeneca) or mibolerone (PerkinElmer). Specific conditions and concentrations are indicated in individual figure legends. Cells were serum starved at least 4 hours before treatment. Before lysis, cells were washed rapidly 3 times with ice-cold PBS before the addition of lysis buffer [50 mmol/L (4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid), pH 7.4, 50 mmol/L sodium fluoride, 5 mmol/L sodium pyrophosphate, 1 mmol/L ethylenediaminetetraacetic acid, 10% (v/v) glycerol, 1% (v/v) Triton X-100, 1 mmol/L dithiothreitol, 0.1 mmol/L phenylmethylsulfonyl fluoride, 4 μg/mL trypsin inhibitor, and 0.1 mmol/L benzamidine]. Cell lysates were centrifuged at 13,000 × g for 15 minutes to remove insoluble material. Protein concentration in the supernatant fraction was determined by the Bradford Protein Assay using BSA standards (Bio-Rad), according to the manufacturer's protocol.

For investigating the effects of androgen on androgen-responsive LNCap cells, “starvation media” were used consisting of phenol red–free RPMI supplemented with 5% charcoal-stripped FBS (First Link), 100 U/mL penicillin, and 100 μg/mL streptomycin. For culturing cells in the presence of palmitate–BSA complex, palmitic acid (Sigma) was complexed to fatty acid–free BSA (Roche). Briefly, 40 volumes of a 4% BSA solution in starvation media were added to 1 volume of 50 mmol/L palmitic acid in ethanol and incubated at 37°C for 4 hours, to obtain a 1 mmol/L stock solution of BSA-complexed palmitate. As a control, 4% fatty acid–free BSA was used in place of the BSA-complexed palmitate.

Cytosolic/nuclear fractionation

Cells were lysed in buffer A (40 mmol/L (4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid), pH 7.4, 150 mL NaCl, 2 mmol/L EDTA, 0.4% glycerol, 10 mmol/L β-glycerophosphate, and 0.4% Triton). Samples were centrifuged at 1,270 × g for 10 minutes at 4°C. The cytosolic supernatant fraction was collected on ice. The nuclear pellet was resuspended in buffer A and centrifugation repeated. The supernatant was discarded, and the pellet was resuspended in nuclear extraction buffer (10 mmol/L Tris-HCl, pH 7.4, 1.5 mmol/L NaCl, 1% Triton X-100). Nuclear samples were briefly sonicated. Nuclear and cytosolic samples were centrifuged at 13,000 x g for 10 minutes at 4°C. Supernatant fractions were collected and analyzed, or stored at −80°C for further use.

CAMKK2 deletion via CRISPR

LNCaP cells were transfected with plasmids containing Cas9 linked to GFP via a self-cleaving peptide and guide sequences targeting the first exon of CAMKK2 (GCTAGAGACACATGATGACA, GCAGGGCCTCACAGGGCTTC, GGTGGATGCTCAAGGATGAG, GGGCATGGAGTCCTTCATTG, AGCACAGCCCGGCTCACACT; Horizon Discovery). At 24 hours after transfection, cells were sorted based on GFP expression, and individual colonies were analyzed by Western blotting to determine CAMKK2 protein expression. Cells lacking CAMKK2 expression were maintained for subsequent studies and used within 10 passages from isolation.

RNA isolation and quantitative PCR

RNA was isolated from human prostate cancer cells and mouse prostates by homogenization in Trizol reagent (Invitrogen) according to the manufacturer's instructions, followed by purification on an RNeasy column (Qiagen). First-strand cDNA synthesis using Superscript II (Invitrogen) according to the manufacturer's instructions and quantitative PCR was done with SensiMix Plus SYBR kit (Quantace) using the primer detailed in Supplementary Table S1. In mouse prostate tissue, mRNA expression was normalized to an averaged housekeeper gene set (Rps14, Hmbs, Ppia), whereas in human cell lines, expression was normalized to 36B4.

AMPK assay

AMPK complexes were immunoprecipitated from prostate cancer cell lysates using a rabbit pan-AMPKβ antibody bound to protein A-Sepharose (20), and activity present in the immune complexes was determined by phosphorylation of the SAMS peptide, as previously described (21).

Proliferation assay

Depending on cell line, 5,000 to 7,000 cells were seeded per well in a 96-well plate and left to adhere for 24 hours. Cell media were changed, and fresh media added containing 50 μmol/L BrdUrd (Sigma) and 991 (at the concentration indicated in the legend) or vehicle control (5% DMSO). After 16 hours, cells were washed twice with PBS and fixed using 4% (w/v) paraformaldehyde in PBS. Permeabilization of the membrane was achieved by incubation with 0.2% Triton X-100 in PBS for 10 minutes, and cells were then washed with PBS and blocked for 1 hour with blocking solution (1% BSA/0.2% fish gelatin in PBS). Cells were incubated for 30 minutes with a 1/2,000 dilution of anti-BrdUrd antibody (BD Pharmingen 555627), 20 U/μL DNase1 (Sigma), and 1 mmol/L MgCl2 in blocking solution. Cells were washed 3 times with PBS and then incubated with secondary antibody (goat anti-mouse; Alexa Fluor 488 conjugate) at a 1/500 dilution in blocking solution for 30 minutes. Cells were then washed a further 3 times and counter stained with 4′,6-diamidino-2-phenylindole (1 μg/mL) for 30 minutes. Image acquisition was achieved on the INCell Analyser 1000 Cell Imaging System (GE Healthcare, Life Sciences) using the 20×/0.45 Plan Fluor objective. Image acquisition was automated, and 16 frames were taken per well. Images were analyzed using the INCell 1000 Image Analysis Software.

Cell-cycle analysis

Cells were treated with DMSO or 991 for 16 hours, trypsinized, and counted using the Guava ViaCount assay. Note that 1 × 106 cells in 0.5 mL were then added to 4.5 mL of ice-cold 70% ethanol and left to fix overnight at 4°C. Cells were washed twice with PBS and redissolved in 300 μL of propidium iodide/RNase Staining Solution (CST) for 30 minutes at room temperature in the dark before being analyzed on BD LSR II Flow Cytometer (BD Biosciences).

Cell viability assay

Cells were trypsinized, and 10 μL of cell suspension was mixed with 190 μL ViaCount assay reagent (Merck) and incubated for 5 minutes at room temperature. Viability data were acquired on a Guava easyCyte instrument (Merck) using GuavaSoft 3.1.1 software.

Migration assay

Cells were plated in a 6-well plate and grown until confluent. Using a pipette tip, a scratch was created in the confluent monolayer of cells. The cells were then washed twice with serum-free media, and fresh media containing 991 (at the concentration indicated in the legend) or vehicle control (5% DMSO) were added. Six regions-of-interest were picked per well, and images were taken every 30 minutes using an UltraVIEW Live Cell Imaging System (20× objective; PerkinElmer). Cells were maintained at 37°C and 5% CO2 for the duration of image acquisition. Quantification of the datasets generated was performed using a program developed in collaboration with the LMS MRC microscopy facility. Briefly, the software developed calculated the area covered by cells based on a texture algorithm. As cells migrated to fill the scratch, the textured area increased, and this was used as a read-out of cell migration.

Invasion assay

Invasion assays were performed on the xCELLigence RTCA DP (ACEA Biosciences, Inc.), and data analyzed using the RTCA 2.0 Software. CIM-plates (Cambridge BioScience) were coated with Matrigel (BD Biosciences) using a 1/40 dilution (1 Matrigel:40 SFM) and performed according to the manufacturer's instructions. Note that 40,000 cells were plated and invaded down a serum gradient of 0% to 10%. Assays were performed over 48 hours with readings taken every 15 minutes.

Lipogenesis assay

Wild-type and CAMKK2 KO LNCaP cells were incubated in serum-free RPMI media in the presence and absence of 1 nmol/L mibolerone for 24 hours prior to labeling. Media were then changed to media containing 2 mmol/L sodium acetate and 5 μCi/mL [3H] sodium acetate (Perkin Elmer) in the presence and absence of mibolerone (1 nmol/L) and/or 991 (10 μmol/L) and incubated for 24 hours. Cells were washed gently with PBS and harvested in PBS containing 2 mmol/L EDTA. Cell pellets were then resuspended in PBS and split into two for lipid analysis and protein concentration determination. Lipid was extracted from cell pellets using the Folch method (22), and the lipid containing fraction evaporated to dryness before determining 3H incorporation by scintillation counting.

Cell growth assay

For palmitic acid rescue experiments, cells were seeded in either a 24- or 96-well plate at a density of 1.5 × 104 (24-well) or 3.5 × 103 (96-well) cells per well, and left to adhere overnight before treatment. 96-well plates were coated with poly lysine before seeding. After 3 days, cell growth was assayed using alamarBlue reagent (ThermoFisher), according to the manufacturer's instructions. Briefly, alamarBlue reagent was added as 10% of sample volume and incubated for 2 hours at 37°C before fluorescence was read. No difference in fluorescence intensity was seen between wild-type and CAMKK2 KO LNCaP cells before treatment.

Statistical analysis

Unless otherwise stated, data are expressed as mean ± SEM. Graphpad Prism software was used for graphing and statistical analysis. For comparison between two groups, datasets were analyzed using Student t test, with a statistically significant difference defined as P < 0.05. To compare three or more data sets, a one-way ANOVA was used, followed by Bonferroni range test to measure significance between means. Multiple comparisons were compared using two-way ANOVA with post hoc Tukey test.

Camkk2 expression regulates prostate cancer progression in vivo

To investigate the role of Camkk2 in prostate cancer, we made use of the previously characterized Pten mouse model of prostate cancer (18). In this model, Cre-recombinase is under the control of a modified rat prostate-specific probasin promoter (PB-Cre4; ref. 23) that drives deletion of the floxed Pten allele in the epithelial cells of the mouse prostate. Camkk2 mRNA and protein were significantly increased in the Pten knockout (KO) mice (hereafter, referred to as Pten mice) compared with wild-type controls (Fig. 1A), recapitulating the increase in CAMKK2 expression in human prostate cancer (4, 5). Pten mice were crossed with mice with global deletion of Camkk2 (19) to generate mice lacking both Pten and Camkk2 in the prostate (hereafter, referred to as Pten;Camkk2). As anticipated, Camkk2 gene expression was significantly reduced in the Pten;Camkk2 mice, with undetectable levels of Camkk2 mRNA and protein in the prostate (Fig. 1A and B). Prostate cancer development was monitored in the Pten and Pten;Camkk2 mice at 12, 17, and 26 weeks of age. Prostate tissue weight was significantly decreased in the Pten;Camkk2 mice compared with the Pten mice at all three time points (Fig. 1C; Supplementary Fig. S1A), indicating that Camkk2 deletion was reducing disease progression. To confirm this, histopathologic analysis was performed on H&E-stained prostate sections from 26-week-old animals. Prostates from the Pten;Camkk2 mice were found to display significantly less grade 4 PIN relative to the Pten mice (Fig. 1D). This lesion is the most severe PIN grade preceding invasive adenocarcinoma development. Representative images of prostate tissue sections highlighting the different grades are shown in Supplementary Fig. S1B. To investigate whether Camkk2 deletion affected cell proliferation, prostate tissue sections from 26-week-old animals were stained for Ki-67, a marker of cell proliferation. Ki-67 staining was significantly reduced in prostate from the Pten;Camkk2 mice compared with Pten mice (Fig. 1E; Supplementary Fig. S2A). We also noted an increase in the number of apoptotic cells, as determined by increased reactivity for cleaved-caspase-3 (Supplementary Fig. S2B), together with increased desmoplasia. These results suggest Camkk2 is required to support increased cellular proliferation and cell survival in Pten prostate tissue. Prostate sections stained with Masson's trichrome revealed significantly less collagen deposition in Pten;Camkk mice compared with Pten mice (Supplementary Fig. S2C).

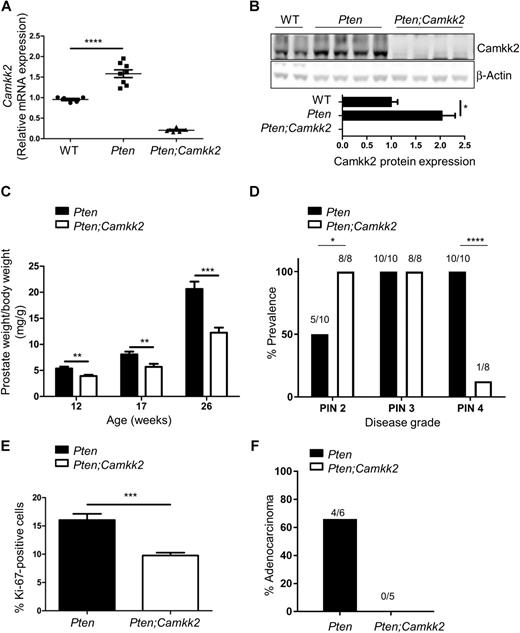

Figure 1.

Camkk2 deletion protects against prostate cancer development in the Pten prostate cancer mouse model. A,Camkk2 mRNA from wild-type (WT), Pten, and Pten;Camkk2 prostate of mice aged 17 weeks (n = 5–7 mice per genotype) was determined. Significant difference between WT and Pten-null mice is shown. ****, P < 0.0001. B, Representative Western blot showing Camkk2 expression in prostates from WT, Pten, and Pten;Camkk2 mice aged 17 weeks together with graph of quantification. *, P < 0.05, significant difference in expression between WT and Pten-null samples (n = 5–7 mice per genotype). C, Wet weight of whole prostate relative to bodyweight (n = 7–15 per genotype). **, P < 0.01; ***, P < 0.005, significant differences between genotypes. D, Quantification of pathologic grading from 26-week-old mice. A range of PIN grades were found within a prostate section and so may appear in more than one category (n = 10 for Pten and 8 for Pten;Camkk2 mice). Significant differences using Fisher exact test (two-sided P value) are indicated as *, P < 0.05 and ****, P < 0.0001. E, Percentage of Ki-67–positive cells in prostate sections of 26-week-old mice (n = 3–4 mice for each genotype; 5,000 cells per lobe). ***, P < 0.005, significant differences between genotypes. F, H&E-stained sections from 40-week-old mice were scored for adenocarcinoma (n = 5–6 per genotype). Two-sided P value using Fisher exact test is 0.06.

Figure 1.

Camkk2 deletion protects against prostate cancer development in the Pten prostate cancer mouse model. A,Camkk2 mRNA from wild-type (WT), Pten, and Pten;Camkk2 prostate of mice aged 17 weeks (n = 5–7 mice per genotype) was determined. Significant difference between WT and Pten-null mice is shown. ****, P < 0.0001. B, Representative Western blot showing Camkk2 expression in prostates from WT, Pten, and Pten;Camkk2 mice aged 17 weeks together with graph of quantification. *, P < 0.05, significant difference in expression between WT and Pten-null samples (n = 5–7 mice per genotype). C, Wet weight of whole prostate relative to bodyweight (n = 7–15 per genotype). **, P < 0.01; ***, P < 0.005, significant differences between genotypes. D, Quantification of pathologic grading from 26-week-old mice. A range of PIN grades were found within a prostate section and so may appear in more than one category (n = 10 for Pten and 8 for Pten;Camkk2 mice). Significant differences using Fisher exact test (two-sided P value) are indicated as *, P < 0.05 and ****, P < 0.0001. E, Percentage of Ki-67–positive cells in prostate sections of 26-week-old mice (n = 3–4 mice for each genotype; 5,000 cells per lobe). ***, P < 0.005, significant differences between genotypes. F, H&E-stained sections from 40-week-old mice were scored for adenocarcinoma (n = 5–6 per genotype). Two-sided P value using Fisher exact test is 0.06.

Close modal

In the studies described above, mice were studied up to 26 weeks of age. At this time point, we observed grade 4 PIN in 100% of the Pten mice (10/10) compared with 12.5% of the Pten;Camkk mice (1/8). However, we did not detect adenocarcinoma at this time point. We therefore bred another cohort of animals and maintained these for 40 weeks. During this time, 3 of the 9 Pten mice had to be culled prematurely, as they displayed obvious signs of ill health. In contrast, none of the Pten;Camkk2 mice showed any signs of adverse health. At 40 weeks, 67% (4/6) of the remaining Pten mice had adenocarcinoma, compared with none (0/5) of the Pten;Camkk2 mice (Fig. 1F). Although these results did not reach statistical significance (Fisher exact test gave two-sided P value = 0.06), the findings suggest a strong trend for protection against adenocarcinoma at 40 weeks of age.

Camkk2 inhibition is a promising therapeutic strategy to treat prostate cancer

To investigate whether CAMKK2 inhibition has a beneficial effect following disease onset, Pten mice were treated with STO-609, an inhibitor of CAMKK2 (24). We used osmotic minipumps to administer STO-609 in vivo, and our preliminary studies showed that steady-state plasma levels of STO-609 reached a plateau of approximately 1 μmol/L with concentrations ≥15 mg/mL in the minipump reservoir (Fig. 2A). This steady-state plasma concentration is similar to the peak plasma concentration measured in a previous study following dosing via either i.v. or i.p. injection (5). We also confirmed STO-609 accumulation in both prostate and liver tissue (Fig. 2B). Pten mice were treated with STO-609 (15 mg/mL) or vehicle for 6 weeks from 13 weeks of age. Prostates from STO-609–treated mice were significantly smaller than vehicle-treated controls, with an average reduction in weight of over 30% (Fig. 2C and D). Immunohistochemical analysis of the anterior lobes revealed that STO-609 treatment reduced progression from PIN3 to PIN4 (Fig. 2E). These results support the hypothesis that CAMKK2 inhibition can be used as a therapeutic intervention to slow the development of prostate cancer.

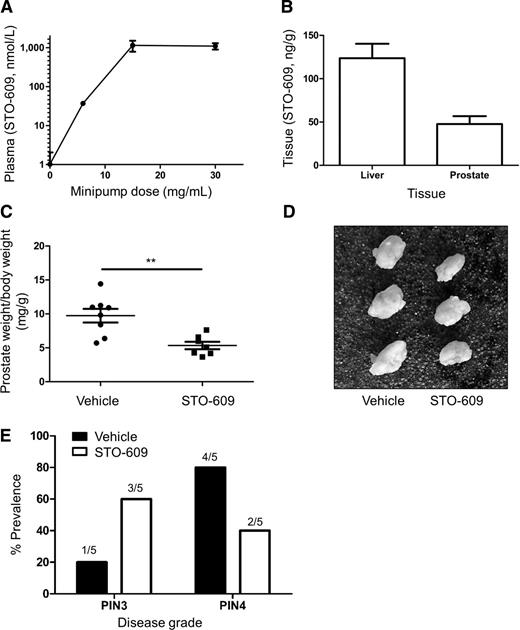

Figure 2.

Effect of STO-609 in the Pten prostate cancer mouse model. A, Steady-state levels of plasma STO-609. B, Tissue levels after 4-week treatment with 30 mg/mL STO-609. Data for A and B are mean ± SEM (n = 3). C, Wet weight of prostate normalized to body weight following 6 weeks of STO-609 treatment (n = 7–8 mice for each condition). Data are mean ± SEM; **, P < 0.01. D, Representative images of anterior prostate lobe from vehicle and STO-609–treated mice. E, Quantification of pathologic grading from vehicle and STO-609–treated mice. The graph shows the highest grade lesion observed in each prostate section (n = 5 mice per condition).

Figure 2.

Effect of STO-609 in the Pten prostate cancer mouse model. A, Steady-state levels of plasma STO-609. B, Tissue levels after 4-week treatment with 30 mg/mL STO-609. Data for A and B are mean ± SEM (n = 3). C, Wet weight of prostate normalized to body weight following 6 weeks of STO-609 treatment (n = 7–8 mice for each condition). Data are mean ± SEM; **, P < 0.01. D, Representative images of anterior prostate lobe from vehicle and STO-609–treated mice. E, Quantification of pathologic grading from vehicle and STO-609–treated mice. The graph shows the highest grade lesion observed in each prostate section (n = 5 mice per condition).

Close modal

Prkab1 deletion leads to early onset of adenocarcinoma

Because CAMKK2 is upstream of AMPK, previous studies investigating the role of CAMKK2 in prostate cancer have attempted to link its role to signaling through AMPK (4, 5). However, the precise molecular mechanism by which AMPK activation might lead to an increase in prostate cancer cell growth remains unclear. Ampk expression and phosphorylation of T172 are markedly increased in prostate tissue from Pten mice compared with wild-type controls (Fig. 3A and B). These increases were significantly reduced in the Pten;Camkk2 tissue (Fig. 3A). Deletion of Pten caused a greater increase in Ampkβ1 expression relative to Ampkβ2 (Fig. 3A). A previous study reported that AMPKβ1 was required for prostate cancer cell survival (25). To investigate further the role of AMPK, and in particular AMPKβ1, in prostate cancer, we generated prostate-specific Pten;Prkab1 (encoding Ampkβ1) null mice by crossing Pten and Prkab1-floxed mice with mice expressing PB-Cre4 (hereafter referred to as Pten;Prkab1). We were unable to use the global Prkab1 KO as these mice displayed an adverse phenotype including hemolytic anemia and splenomegaly (Supplementary Fig. S3A–S3C) that would confound the study. Although this phenotype was not reported previously for the global Prkab1 KO (26), a similar phenotype has been reported for both the Prkaa1 (27) and Prkag1 (28) global KO mouse models.

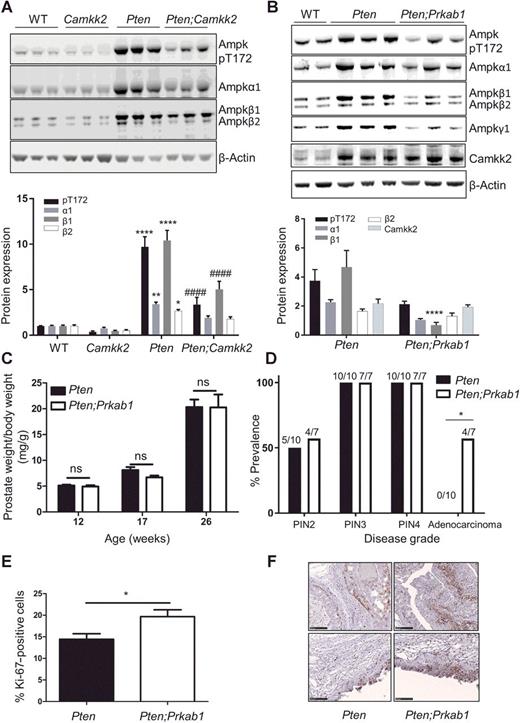

Figure 3.

Ampkβ1 deletion accelerates prostate cancer development in the Pten-null prostate cancer mouse model. A, Western blot analysis of Ampk subunits in lysates from anterior lobes of prostates isolated from wild-type (WT), Camkk2, Pten, and Pten;Camkk2 mice aged 17 weeks. B, Western blot analysis from WT, Pten, and Pten;Prkab1 mice aged 12 weeks. Quantification is shown underneath the respective blots. Expression was normalized to β-actin, and values shown are fold changes relative to expression in the WT tissue. Significant differences between WT and Pten samples are shown as *, P < 0.05; **, P < 0.01; ****, P < 0.0001, and between Pten and Pten;Camkk2 or Pten;Prkab1 are shown as ####, P < 0.0001. No significant differences were observed between WT and Camkk2 prostate tissue. C, Prostate wet weight normalized to bodyweight (n = 7–15 mice per genotype). Data are means ± SEM; ns, no significant difference. D, Quantification of pathologic grading from 26-week-old mice. A range of PIN grades were found within a prostate section and so appear in more than one category (n = 7–10 per genotype). Significant difference using Fisher exact test (two-sided P value) between genotypes is shown, *, P < 0.05. E, Percentage of Ki-67–positive cells in prostate sections of 26-week-old mice (n = 3–4 mice for each genotype; 5,000 cells per lobe). Data are presented as mean ± SEM; *, P < 0.05. F, Representative images of Ki-67–stained sections for each genotype are shown.

Figure 3.

Ampkβ1 deletion accelerates prostate cancer development in the Pten-null prostate cancer mouse model. A, Western blot analysis of Ampk subunits in lysates from anterior lobes of prostates isolated from wild-type (WT), Camkk2, Pten, and Pten;Camkk2 mice aged 17 weeks. B, Western blot analysis from WT, Pten, and Pten;Prkab1 mice aged 12 weeks. Quantification is shown underneath the respective blots. Expression was normalized to β-actin, and values shown are fold changes relative to expression in the WT tissue. Significant differences between WT and Pten samples are shown as *, P < 0.05; **, P < 0.01; ****, P < 0.0001, and between Pten and Pten;Camkk2 or Pten;Prkab1 are shown as ####, P < 0.0001. No significant differences were observed between WT and Camkk2 prostate tissue. C, Prostate wet weight normalized to bodyweight (n = 7–15 mice per genotype). Data are means ± SEM; ns, no significant difference. D, Quantification of pathologic grading from 26-week-old mice. A range of PIN grades were found within a prostate section and so appear in more than one category (n = 7–10 per genotype). Significant difference using Fisher exact test (two-sided P value) between genotypes is shown, *, P < 0.05. E, Percentage of Ki-67–positive cells in prostate sections of 26-week-old mice (n = 3–4 mice for each genotype; 5,000 cells per lobe). Data are presented as mean ± SEM; *, P < 0.05. F, Representative images of Ki-67–stained sections for each genotype are shown.

Close modal

Expression of Ampk subunits (α1, β1, and γ1), as well as T172 phosphorylation, was reduced in the Pten;Prkab1 mice relative to Pten mice prostate tissue (Fig. 3B). Note that in this model there is still Ampk expression in prostate from the Prkab1-deleted mice because Ampkβ2 expression is not affected, and because Ampkβ1 is expressed in nonepithelial cells present within the tissue, which is not affected by the PB-Cre4–mediated deletion. There was no significant difference in prostate weight between Pten and Pten;Prkab1 mice (Fig. 3C). However, histopathologic analysis of serial H&E-stained sections revealed that by 26 weeks of age nearly 60% (4/7) of prostates from Pten;Prkab1 mice had invasive adenocarcinoma, whereas none of the prostates from Pten mice had developed adenocarcinoma (Fig. 3D). Consistent with Ampkβ1 acting as a tumor suppressor, prostates from Pten;Prkab1 mice were found to have significantly increased Ki-67 staining, indicative of increased cell proliferation (Fig. 3E and F). These results suggest for the first time that Ampkβ1 plays a protective role in prostate cancer progression, implying that Ampk and Camkk2 have opposing roles in prostate cancer.

CAMKK2 increases fatty acid synthesis through upregulation of lipogenic enzyme protein expression

Our findings support the hypothesis that increased CAMKK2 expression drives prostate cancer progression. In order to gain insight into the mechanisms underlying this effect, we carried out an unbiased proteomic screen on prostate tissue from Pten and Pten;Camkk2 mice aged 17 weeks. Fifty-one proteins were found to be significantly downregulated, and 23 significantly upregulated, (>2-fold change, P < 0.05) in the Pten;Camkk2 mice relative to Pten mice (Table 1). Fatty acid synthase (Fasn) was one of the significantly downregulated proteins in the Pten;Camkk2 mice. Previous studies have shown that increased de novo lipogenesis acts as a key driver of prostate cancer (29, 30), and that increased expression of FASN is a prominent feature in human cancers (31). In order to validate the change in Fasn, we measured its expression in prostate tissue from wild-type, Camkk2, Pten and Pten;Camkk2 mice by Western blotting (Fig. 4A). Pten deletion caused a 5-fold increase in Fasn expression relative to wild-type mice, and deletion of Camkk2 significantly decreased expression in both Pten-expressing and Pten-null prostate tissue (Fig. 4A). In human tumors, acetyl-CoA carboxylase 1 (ACC1) expression is increased in conjunction with FASN to upregulate lipid synthesis. Acc1 was absent from our dataset, but Western blotting showed that Acc1 expression followed a similar pattern to Fasn (Fig. 4A).

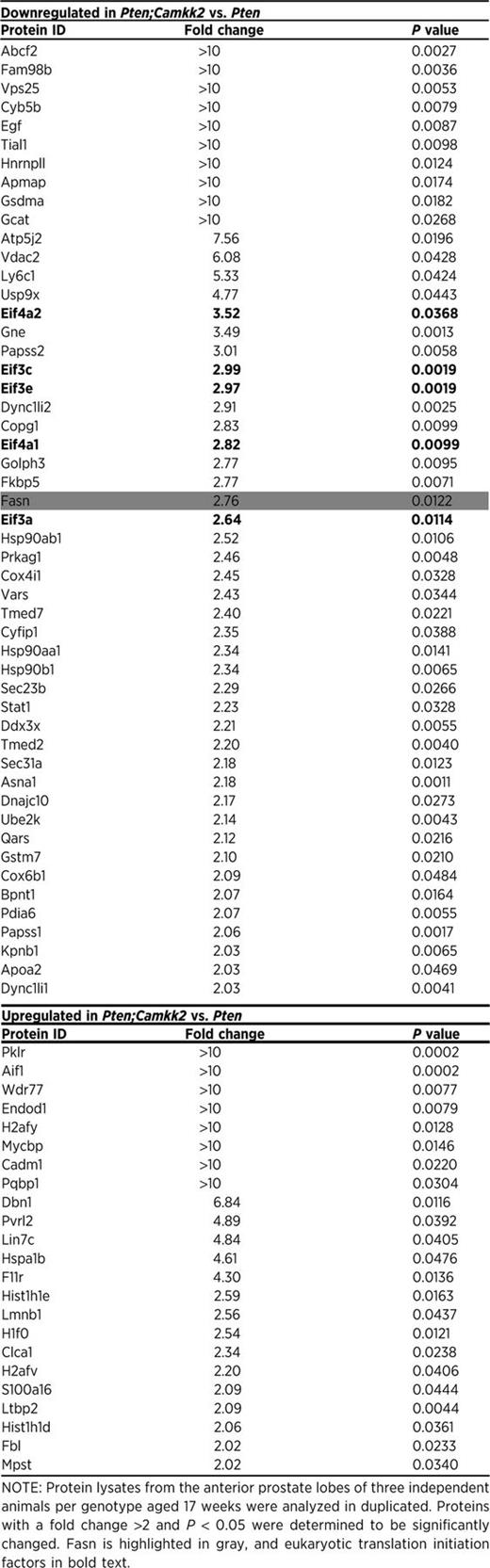

Table 1.

Proteins identified by mass spectrometry with significantly changed expression in anterior lobe of prostate tissue from Pten;Camkk2 vs. Pten mice

Proteins identified by mass spectrometry with significantly changed expression in anterior lobe of prostate tissue from Pten;Camkk2 vs. Pten mice
Proteins identified by mass spectrometry with significantly changed expression in anterior lobe of prostate tissue from Pten;Camkk2 vs. Pten mice

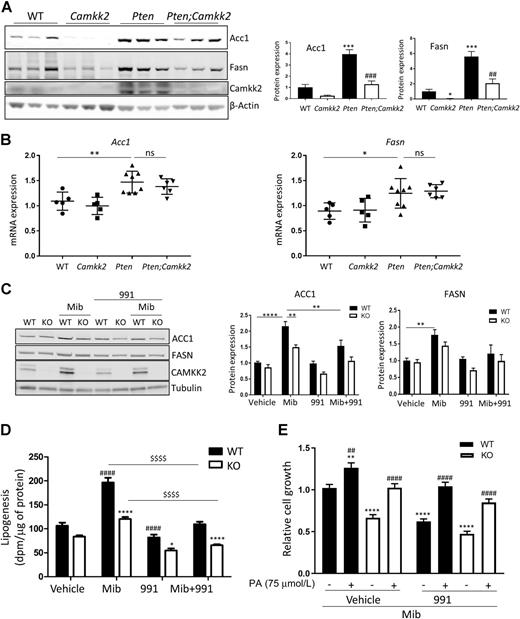

Figure 4.

Camkk2 deletion downregulates de novo lipogenesis. A, Western blot analysis of Acc1 and Fasn in lysates from the anterior lobe of prostates isolated from wild-type (WT), Camkk2, Pten, and Pten;Camkk2 mice aged 17 weeks, and quantification is shown. Values shown are fold changes relative to expression in the WT tissue. Data are mean ± SEM (n = 6 mice per genotype), and significant differences from WT are shown as *, P < 0.05; ***, P < 0.005, and between Pten and Pten;Camkk2 as ##, P < 0.01; ###, P < 0.005. *, P < 0.05 and ***, P < 0.005 relative to WT; ##, P < 0.01 relative to Pten-null genotype. B,Acc1 and Fasn mRNA expression in WT, Pten, and Pten;Camkk2 mice aged 17 weeks. Data are mean ±SEM (n = 5–7 mice per genotype). *, P < 0.05; **, P < 0.01; ns, not significant. C, WT and CAMKK2 KO LNCaP cells were treated ± mibolerone (Mib; 1 nmol/L) and ± 991 (15 μmol/L) for 24 hours, and ACC1, FASN, and CAMKK2 protein expression determined. Quantification of the data is shown alongside the blot. Values shown are fold changes relative to expression in vehicle-treated WT cells. Data are mean ± SEM of 5 to 8 independent experiments, and significant differences are shown as **, P < 0.01; ****, P < 0.0001. D, Incorporation of 3H-acetate into lipids following treatment of WT and CAMKK2 KO LNCaP cells with mibolerone (1 nmol/L) and/or 991 (10 μmol/L) for 24 hours. Data are mean ± SEM (n = 5). Significant differences between WT and CAMKK2 KO cells under the same conditions are shown as *, P < 0.05; ****, P < 0.0001; differences between vehicle-treated WT and WT treated are shown as ####, P < 0.0001; $$$$, P < 0.0001. E, WT and CAMKK KO LNCaP cells were grown in the presence of mibolerone (1 nmol/L) ± 991 (15 μmol/L) and ± palmitic acid (PA). Relative cell growth was measured after 3 days. Data shown are the mean ±SEM (n = 5 independent experiments; 6 replicates per experiment) and plotted relative to cell growth in the vehicle-treated WT cells. Significant differences to vehicle-treated WT cells are shown as **, P < 0.001; ****, P < 0.0001 and between cells grown in the absence of palmitic acid compared with the presence of palmitic acid, ##, P < 0.001 and ####, P < 0.0001.

Figure 4.

Camkk2 deletion downregulates de novo lipogenesis. A, Western blot analysis of Acc1 and Fasn in lysates from the anterior lobe of prostates isolated from wild-type (WT), Camkk2, Pten, and Pten;Camkk2 mice aged 17 weeks, and quantification is shown. Values shown are fold changes relative to expression in the WT tissue. Data are mean ± SEM (n = 6 mice per genotype), and significant differences from WT are shown as *, P < 0.05; ***, P < 0.005, and between Pten and Pten;Camkk2 as ##, P < 0.01; ###, P < 0.005. *, P < 0.05 and ***, P < 0.005 relative to WT; ##, P < 0.01 relative to Pten-null genotype. B,Acc1 and Fasn mRNA expression in WT, Pten, and Pten;Camkk2 mice aged 17 weeks. Data are mean ±SEM (n = 5–7 mice per genotype). *, P < 0.05; **, P < 0.01; ns, not significant. C, WT and CAMKK2 KO LNCaP cells were treated ± mibolerone (Mib; 1 nmol/L) and ± 991 (15 μmol/L) for 24 hours, and ACC1, FASN, and CAMKK2 protein expression determined. Quantification of the data is shown alongside the blot. Values shown are fold changes relative to expression in vehicle-treated WT cells. Data are mean ± SEM of 5 to 8 independent experiments, and significant differences are shown as **, P < 0.01; ****, P < 0.0001. D, Incorporation of 3H-acetate into lipids following treatment of WT and CAMKK2 KO LNCaP cells with mibolerone (1 nmol/L) and/or 991 (10 μmol/L) for 24 hours. Data are mean ± SEM (n = 5). Significant differences between WT and CAMKK2 KO cells under the same conditions are shown as *, P < 0.05; ****, P < 0.0001; differences between vehicle-treated WT and WT treated are shown as ####, P < 0.0001; $$$$, P < 0.0001. E, WT and CAMKK KO LNCaP cells were grown in the presence of mibolerone (1 nmol/L) ± 991 (15 μmol/L) and ± palmitic acid (PA). Relative cell growth was measured after 3 days. Data shown are the mean ±SEM (n = 5 independent experiments; 6 replicates per experiment) and plotted relative to cell growth in the vehicle-treated WT cells. Significant differences to vehicle-treated WT cells are shown as **, P < 0.001; ****, P < 0.0001 and between cells grown in the absence of palmitic acid compared with the presence of palmitic acid, ##, P < 0.001 and ####, P < 0.0001.

Close modal

To determine whether the changes in protein expression were correlated to gene expression, mRNA levels were determined. As shown in Fig. 4B, loss of Pten caused a significant increase in the expression of both Acc1 and Fasn mRNA. However, this increase was not affected by deletion of Camkk2 (Fig. 4B), suggesting that the changes in protein expression are mediated by posttranscriptional mechanisms. We noted that 5 of the most highly downregulated proteins in the Pten;Camkk2 mice corresponded to eukaryotic initiation factors (Eif3a, Eif3c, Eif3e, Eif4a1, Eif4a2; see Table 1), and gene set enrichment analysis revealed eukaryotic protein translation as the most significantly altered pathway between Pten and Pten;Camkk2 mice. These changes suggest that Camkk2 may play a role in regulating protein translation, and that this could account for the reduced expression of Fasn and Acc1 in mice lacking Camkk2.

In order to investigate functional significance, we deleted CAMKK2 from LNCaP cells, an androgen-sensitive human prostate cancer cell line, using the CRISPR/Cas 9 system. Similar to previous studies (4, 5), we observed an increase in CAMKK2 protein in wild-type LNCaP cells treated with a synthetic androgen, mibolerone, whereas CAMKK2 was not detectable in the CAMKK2 KO cells (Fig. 4C). Mibolerone increased protein levels of both ACC1 and FASN, but to a lesser extent in cells lacking CAMKK2 (Fig. 4D). Activation of AMPK by 991, a direct activator of AMPK, also reduced ACC1 and FASN protein expression in mibolerone-treated cells (Fig. 4C). In both cases, the effects on ACC1 expression tended to be greater than on FASN. In parallel with the decreased expression of ACC1 and FASN, lipogenesis was reduced in the CAMKK2 KO cells relative to the wild-type cells in all conditions tested (Fig. 4D). Androgen treatment caused a significant increase in lipogenesis in wild-type cells (1.8-fold) and, to a lower extent, in CAMKK2 KO cells (1.4-fold). The effect of CAMKK2 deletion on both lipogenic enzyme expression and lipogenesis was more pronounced in androgen-stimulated cells. Under these conditions, CAMKK2 expression is increased in wild-type cells. Consistent with a previous study (32), activation of AMPK in LNCaP cells inhibited lipogenesis, and this effect was seen in both wild-type and CAMKK2 KO cells, in the absence or presence of androgen (Fig. 4D). CAMKK2 deletion or activation of AMPK reduced cell growth of the LNCaP cells by a similar degree, and in both cases, this effect was rescued by addition of exogenous palmitic acid to the cell media (Fig. 4E). Treatment of the CAMKK2 KO cells with 991 caused a further small reduction in cell growth, which also was reversed by addition of palmitic acid (Fig. 4E). These results suggest strongly that the reduction in cell growth caused by deletion of CAMKK2, or by activation of AMPK, is mediated by a reduction in de novo lipogenesis.

AMPK activation reduces prostate cancer cell proliferation, migration, and invasion

Our results support the hypothesis that activation of AMPK would be beneficial in treating prostate cancer. Previous studies investigating the role of AMPK in prostate cancer used indirect AMPK activators such as metformin and 5-aminoimidazole-4-carboxamide riboside (AICAR), which are known to have AMPK-independent effects (13, 33). In order to circumvent these issues, we used the highly selective and direct AMPK activator, 991 (34), to activate AMPK and assess its effect on proliferation, migration, and invasion in a panel of human prostate cancer cell lines. The prostate cancer cell line panel included cell lines with a range of driver mutations and androgen receptor (AR) responsiveness, and displaying different migratory and invasive capacities, allowing us to determine the efficacy of AMPK activation in different genetic contexts. In all cell lines used, 991 caused a dose-dependent increase in AMPK activity and increased phosphorylation of T172 and ACC1 (Fig. 5A and B; Supplementary Fig. S4). AMPK activation was found to significantly inhibit cell proliferation in all prostate cancer cell lines (Fig. 5C), leading to a 30% to 40% reduction in proliferation over 16 hours. Flow cytometry analysis revealed a greater population of cells in G1 phase after AMPK activation, implying AMPK activation was inhibiting S phase entry (Fig. 5D). Treatment with 991 had no effect on cell viability (Fig. 5E). AMPK activation led to a significant decrease in cell migration. The results for 22Rv1 cells, which showed the highest level of migration, are shown in Fig. 5F. Similar results were observed in DU145 and PC3 cells (Supplementary Fig. S5); LNCaP cells did not migrate appreciably under these conditions. Finally, AMPK activation was found to drastically reduce cell invasion in 22Rv1 cells (Fig. 5G). Taken together, these results indicate that AMPK activation lowers prostate cancer cell tumorigenicity.

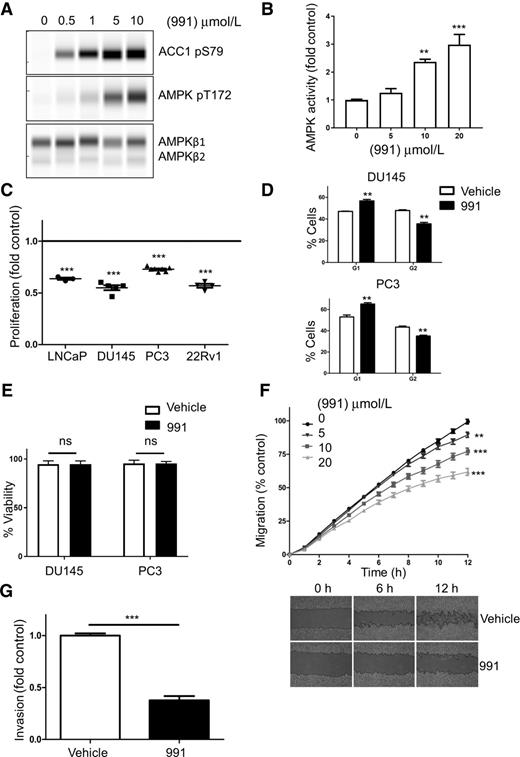

Figure 5.

Effect of AMPK activation on human prostate cancer cell proliferation, migration, and invasion. A, LNCaP cells treated for 16 hours with varying concentrations of 991 and phosphorylation of AMPK (T172) and ACC1 (S79) determined. B, AMPK activity in immune complexes isolated from cells treated as in A. Results were normalized to the DMSO control condition. Data are presented as fold activity relative to AMPK activity in the absence of 991 and are plotted as the mean ± SEM. **, P < 0.01; ***, P < 0.005, significantly different between control and 20 μmol/L 991 treated cells. C, Cell proliferation in LNCaP, DU145, PC3, and 22Rv1 was measured over 16 hours ± 991 (10 μmol/L). Results shown are relative to proliferation in the absence of 991. ***, P < 0.005 shows significant differences between control and 991 treated cells. D, Cell-cycle analysis of DU145 and PC3 cells grown ±991 (10 μmol/L). Data are mean ± SEM (n = 3). **, P < 0.01, significantly different between vehicle and 991 treated cells. E, Cell viability was measured ±991 (10 μmol/L). Data shown are the mean ± SEM for 6 samples per condition. ns, not significant. F, Migration of 22Rv1 cells was measured over 12 hours ± varying concentrations of 991. Below the graph, representative images are shown for 0 and 10 μmol/L 991. G, Invasion of 22Rv1 cells was measured ± 991 (10 μmol/L). Results shown are the invasion rates measured from 30 to 60 hours after plating the cells and are plotted relative to the invasion rate measured in the absence of 991. Data shown in F and G are mean ± SEM (n = 4). **, P < 0.01; ***, P < 0.005.

Figure 5.

Effect of AMPK activation on human prostate cancer cell proliferation, migration, and invasion. A, LNCaP cells treated for 16 hours with varying concentrations of 991 and phosphorylation of AMPK (T172) and ACC1 (S79) determined. B, AMPK activity in immune complexes isolated from cells treated as in A. Results were normalized to the DMSO control condition. Data are presented as fold activity relative to AMPK activity in the absence of 991 and are plotted as the mean ± SEM. **, P < 0.01; ***, P < 0.005, significantly different between control and 20 μmol/L 991 treated cells. C, Cell proliferation in LNCaP, DU145, PC3, and 22Rv1 was measured over 16 hours ± 991 (10 μmol/L). Results shown are relative to proliferation in the absence of 991. ***, P < 0.005 shows significant differences between control and 991 treated cells. D, Cell-cycle analysis of DU145 and PC3 cells grown ±991 (10 μmol/L). Data are mean ± SEM (n = 3). **, P < 0.01, significantly different between vehicle and 991 treated cells. E, Cell viability was measured ±991 (10 μmol/L). Data shown are the mean ± SEM for 6 samples per condition. ns, not significant. F, Migration of 22Rv1 cells was measured over 12 hours ± varying concentrations of 991. Below the graph, representative images are shown for 0 and 10 μmol/L 991. G, Invasion of 22Rv1 cells was measured ± 991 (10 μmol/L). Results shown are the invasion rates measured from 30 to 60 hours after plating the cells and are plotted relative to the invasion rate measured in the absence of 991. Data shown in F and G are mean ± SEM (n = 4). **, P < 0.01; ***, P < 0.005.

Close modal

AMPK activation inhibits AR activity

Previous studies reported that AMPK activation inhibits AR function in prostate cancer cells (35). On the other hand, AR increases CAMKK2 expression, leading to increased AMPK activity (4, 5). These findings suggest the possibility of a negative-feedback loop involving AR-mediated induction of CAMKK2 expression, with the subsequent activation AMPK leading to inhibition of AR function (35). Since we found that CAMKK2 and AMPK have opposing effects in prostate cancer, we decided to revisit their effects on AR signaling in AR-responsive human LNCaP cells. Consistent with previous studies (4, 5), we found that CAMKK2 expression is significantly increased in wild-type LNCaP cells following treatment with androgen (Fig. 4D). In wild-type cells, phosphorylation of AMPK and ACC1 was increased following androgen stimulation, and these were markedly reduced in CAMKK2 KO cells (Fig. 6A). These results suggest that AMPK activation downstream of AR signaling is dependent on CAMKK2.

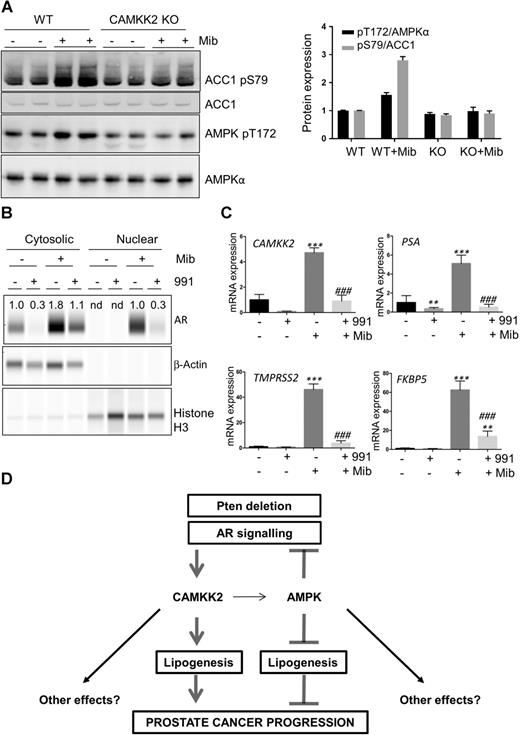

Figure 6.

Activation of AMPK significantly inhibits androgen signaling in LNCaP cells. A, Western blot analysis of ACC1 (S79) and AMPK (T172) phosphorylation in wild-type (WT) and CAMKK2 KO LNCaP cells treated with mibolerone (Mib; 1 nmol/L) for 24 hours. Quantification of phosphorylation shown. B, LNCaP cells were treated with vehicle, mibolerone (1 nmol/L), or mibolerone (1 nmol/L) and 991 (10 μmol/L) for 24 hours. AR expression in the cytosolic and nuclear fractions was determined. AR expression was normalized to β-actin (cytosolic) or histone H3 (nuclear). Values for AR expression are indicated on the blots and are shown relative to the nontreated condition for cytosolic samples and the mibolerone-treated condition for the nuclear samples. nd, not determined. C, Expression of AR-regulated genes (CAMKK2; PSA, prostate specific antigen; TMPRSS2, transmembrane protease, serine 2; FKBP5, FK506 binding protein 5) in LNCaP cells treated ± mibolerone (1 nmol/L), ± 991 (10 μmol/L), for 24 hours is shown. Results shown are mean ± SEM (n = 5). Significant differences from vehicle control are shown as **, P < 0.01; ***, P < 0.005; ###, P < 0.005 between mibolerone alone and mibolerone + 991– treated cells. D, Model showing opposing role of CAMKK2 and AMPK in prostate cancer progression.

Figure 6.

Activation of AMPK significantly inhibits androgen signaling in LNCaP cells. A, Western blot analysis of ACC1 (S79) and AMPK (T172) phosphorylation in wild-type (WT) and CAMKK2 KO LNCaP cells treated with mibolerone (Mib; 1 nmol/L) for 24 hours. Quantification of phosphorylation shown. B, LNCaP cells were treated with vehicle, mibolerone (1 nmol/L), or mibolerone (1 nmol/L) and 991 (10 μmol/L) for 24 hours. AR expression in the cytosolic and nuclear fractions was determined. AR expression was normalized to β-actin (cytosolic) or histone H3 (nuclear). Values for AR expression are indicated on the blots and are shown relative to the nontreated condition for cytosolic samples and the mibolerone-treated condition for the nuclear samples. nd, not determined. C, Expression of AR-regulated genes (CAMKK2; PSA, prostate specific antigen; TMPRSS2, transmembrane protease, serine 2; FKBP5, FK506 binding protein 5) in LNCaP cells treated ± mibolerone (1 nmol/L), ± 991 (10 μmol/L), for 24 hours is shown. Results shown are mean ± SEM (n = 5). Significant differences from vehicle control are shown as **, P < 0.01; ***, P < 0.005; ###, P < 0.005 between mibolerone alone and mibolerone + 991– treated cells. D, Model showing opposing role of CAMKK2 and AMPK in prostate cancer progression.

Close modal

Translocation of AR to the nucleus following ligand binding is a key step in AR regulation of transcription (36). In addition to a significant increase in AR expression, mibolerone treatment caused an increase in AR nuclear localization (Fig. 6B). Activation of AMPK resulted in decreased AR expression in both basal and mibolerone-treated cells. Strikingly, AMPK activation almost completely blocked AR expression in the nucleus in the presence of mibolerone (Fig. 6B). Consistent with the reduction of AR protein and nuclear exclusion, AMPK activation was found to drastically reduce expression of AR-induced genes (Fig. 6C), including CAMKK2. These results suggest that AMPK activation antagonizes AR signaling in human prostate cancer cells, and so support our findings that they have opposing effects on prostate cancer development in vivo in a mouse model (Fig. 6D).

In castration-resistant patients, AR signaling is often reactivated in the absence of androgens (2, 3, 37, 38). Targeting pathways downstream of the AR therefore provides an attractive additional strategy to combat advanced prostate cancer. Here, we show for the first time that genetic deletion or pharmacologic inhibition of CAMKK2 reduces prostate cancer progression in vivo in a preclinical mouse model. In contrast, inhibition of AMPK, via genetic deletion of AMPKβ1, increases disease progression. Supporting the in vivo studies, we show that CAMKK2 and AMPK have opposing effects on de novo lipogenesis and cell growth in human prostate cancer cells. Taken together, our results raise the possibility of a dual combination therapy of CAMKK2 inhibition together with AMPK activation as an efficacious treatment for prostate cancer.

Although the evidence supporting a tumor-promoting role for CAMKK2 in prostate cancer is strong, the mechanism by which CAMKK2 exerts its effect remains unclear. CAMKK2 is upstream of AMPK, and two previous studies have implicated AMPK downstream of CAMKK2 in promoting prostate cancer cell growth (4, 5). One of these studies reported that AMPK activation partially rescued the growth-inhibitory effect of CAMKK2 inhibition in LNCaP cells (5), whereas the other showed that depletion of AMPK decreased LNCaP cell migration (4). Two other studies reported that inhibition of AMPK reduced prostate cancer cell growth in vitro (25, 39). Other studies, however, reported that AMPK activation decreases cell growth of LNCaP cells, and this was associated with decreased expression of FASN (32, 40). It is difficult to reconcile these findings, but the differences are likely due in part to the use of nonspecific compounds to activate and/or inhibit AMPK (33, 41). These conflicting findings leave unresolved the issue of whether or not CAMKK2 promotes prostate cancer growth via activation of AMPK in vivo. We observed a marked increase in expression of Ampk subunits, as well as increased phosphorylation of T172, in the Pten mouse model. In human prostate cancer tissues, increased phosphorylation of AMPK T172 (42) and ACC1 (39) has been reported.

In order to gain understanding of the role of AMPK in prostate cancer in vivo, we investigated the effect of deletion of Prkab1 in the prostate-specific Pten-null model. We focused on deletion of Prkab1 because AMPKβ1 was identified from an siRNA screen as a specific candidate required for prostate cancer cell growth (25). In addition, we found that Ampkβ1 expression, but not Ampkβ2, is increased in prostate tissue following Pten deletion, and this increase is reduced by deletion of Camkk2. Deletion of Prkab1 led to an earlier onset of invasive adenocarcinoma in the Pten model, combined with significantly increased cell proliferation. These results demonstrate that Ampkβ1 plays a protective role in prostate cancer progression in vivo. We would suggest that the increase in AMPK observed in human prostate cancer (39, 42) is part of a protective cellular mechanism.

Acc1 and Fasn expression were markedly reduced in prostate from Pten;Camkk2 mice compared with Pten mice, and a similar effect was seen upon CAMKK2 deletion in human prostate cancer cells. Many cancer cells have increased rates of de novo lipogenesis, and this is associated with high levels of ACC1 and FASN expression. Increased de novo lipogenesis is now recognized as a common feature of highly proliferating cancer cells (30, 43). The effect of Camkk2 on Acc1 and Fasn expression appears to occur at a posttranscriptional level because there was no effect of Camkk2 deletion on their mRNA levels. At present, we do not know the exact mechanism by which Camkk2 leads to increased Acc1 and Fasn protein expression. However, we did note that several translation initiation factors were among the proteins downregulated in the Pten;Camkk2 model, suggesting that changes in protein translation could be affected. It is now appreciated that the translational landscape is drastically altered in prostate cancer (44), although the regulation and importance of this is only poorly understood. CAMKK2 has been shown to regulate protein synthesis in hepatocellular carcinoma (45) and in neurons (46, 47). In hepatocellular carcinoma, signaling was reported to be via CAMKIV (42), although CAMKI was found to be important for regulating translation initiation in neurons (47). Intriguingly, a recent study reported that CAMKK2 activates Akt in ovarian cancer cells by directly phosphorylating threonine 308 in Akt, and that this activation promoted many of the downstream effects of Akt, including increased protein synthesis (48). It is possible that CAMKK2 plays a wider role in regulating protein synthesis in other types of cancer and/or in other cells types such as neurons.

A key finding from the present study is that deletion of CAMKK2 reduces de novo lipogenesis and cell growth in human prostate cancer cells. Interestingly, two recent independent studies (49, 50) show a critical role for increased lipogenesis in prostate cancer progression using the same mouse model as in the current study. The stimulatory role of CAMKK2 on lipogenesis could provide part of the mechanism underlying our finding that Camkk2 and Ampk have opposing effects on prostate cancer progression in vivo. AMPK is a well-established negative regulator of lipogenesis, and activation of AMPK has been shown to reduce prostate cancer cell proliferation via inhibition of lipogenesis (32). We show that the reduced cell growth resulting from loss of CAMKK2, or activation of AMPK, is due to decreased lipogenesis, because addition of exogenous palmitic acid rescues this effect. A likely target for both CAMKK2 and AMPK is ACC1. It is well established that AMPK phosphorylates and inhibits ACC1, and we show here that CAMKK2 deletion leads to a reduction in ACC1 expression, in both human and mouse models. In two previous studies (32, 51), it was shown that inhibition of ACC1 using 5-(tetradecyloxy)-2-furoic acid reduced lipogenesis and cell growth in LNCaP cells. In conjunction with the results of our present study, these combined findings suggest that inhibiting lipogenesis through different signaling pathways could provide attractive strategies for treating prostate cancer. Treatment with 991 reduced lipogenesis and cell growth in CAMKK2 KO cells demonstrating that AMPK is still responsive to activation in the absence of CAMKK2. This is presumably mediated via phosphorylation of AMPK T172 by LKB1 and/or allosteric activation by 991. These findings have significant implications as they suggest that CAMKK2 and AMPK regulate lipogenesis through independent mechanisms.

In Fig. 6D, we propose a model in which CAMKK2 and AMPK have antagonistic effects on de novo lipogenesis and prostate cancer progression. Our data show that CAMKK2 activates AMPK in response to androgen signaling, and AMPK inhibits AR function, forming a negative-feedback loop, consistent with a previous study (35). In addition, AMPK has been reported to inhibit the calcium/calmodulin-independent activity of CAMKK2 by directly phosphorylating CAMKK2 on T144 (52). At the current time, it is unclear as to how these negative-feedback loops function in vivo. Both CAMKK2 and AMPK represent attractive druggable targets for which tool compounds are already available. Although our findings support a role for AMPKβ1 in slowing prostate cancer progression, they do not rule out the possibility that AMPKβ2-containing complexes could have different effects in prostate cancer. An important consideration in this regard is that AMPKβ1-specific activators have been generated (53). The availability of AMPKβ1-specific activators would avoid any potential complications that might arise with activation of AMPKβ2 complexes. We observed an additive effect of CAMKK2 deletion and AMPK activation in reducing lipogenesis in human prostate cancer cells, suggesting that a dual combination therapy of CAMKK2 inhibition and AMPK activation could provide a more efficacious strategy for treatment of prostate cancer.

No potential conflicts of interest were disclosed.

Conception and design: L. Penfold, A. Woods, D. Carling

Development of methodology: L. Penfold, A. Woods, S. Zhang, D. Carling

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): L. Penfold, A. Woods, P. Muckett, T.R. Kent, S. Zhang, R. Graham, A. Pollard

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): L. Penfold, A. Woods, A.Y. Nikitin, R. Graham, D. Carling

Writing, review, and/or revision of the manuscript: L. Penfold, A. Woods, D. Carling

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): L. Penfold, A. Woods, T.R. Kent

Study supervision: L. Penfold, A. Woods, D. Carling

This work was funded by grant MC-A654-5QB10 from the Medical Research Council UK (to D. Carling) and grants from the NIH and NCI (CA197160), and NYSTEM (C029155 to A.Y. Nikitin). L. Penfold received an Imperial Beit Fellowship from Imperial College London and an MRC PhD studentship from the Medical Research Council UK. We are grateful to the Flow Cytometry, Mass Spectrometry and Proteomics, and Microscopy Facilities at the London Institute of Medical Sciences for their invaluable assistance. We would like to thank Daisy Luff, Lizzie Sandham, Berengere Snyers, and Emma Battell for their help with some of the experiments.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
