Abstract
KRAS is one of the most frequently mutated oncogenes in cancer, being a potent initiator of tumorigenesis, a strong inductor of malignancy, and a predictive biomarker of response to therapy. Despite the large investment to understand the effects of KRAS activation in cancer cells, pharmacologic targeting of KRAS or its downstream effectors has not yet been successful at the clinical level. Recent studies are now describing new mechanisms of KRAS-induced tumorigenesis by analyzing its effects on the components of the tumor microenvironment. These studies revealed that the activation of KRAS on cancer cells extends to the surrounding microenvironment, affecting the properties and functions of its constituents. Herein, we discuss the most emergent perspectives on the relationship between KRAS-mutant cancer cells and their microenvironment components. Cancer Res; 78(1); 7–14. ©2017 AACR.
Introduction
Cancer is a major health concern and a leading cause of death, surpassed only by heart diseases, an order that is expected to reverse in the foreseeable future (1). Cancer prognosis is intimately linked to disease stage. At the most advanced stages, when metastases occur, prognosis is generally aggravated, and treatments are most likely to fail (2).
In 2000, Hanahan and Weinberg established the fundamental pillars of cancer as the resistance against cell death, sustainment of proliferative signaling, evasion of growth suppressors, activation of invasion and metastasis, replicative immortality, and angiogenesis (3). Genomic instability and mutations were pointed out as the main mechanisms underlying the acquisition of these hallmark features. More recently, these hallmarks were reviewed in light of accumulating evidence that awarded a fundamental role in tumor progression to the tumor microenvironment, being tumor-promoting inflammation, in particular, proposed as an emergent mechanism underlying the acquisition of certain hallmark traits (4). Nevertheless, besides inflammatory and immune cells, other resident or recruited stromal cells, such as fibroblasts, endothelial cells, adipocytes, pericytes, and components of the extracellular matrix (ECM), actively contribute to the induction of these hallmark capabilities (5) through direct interaction or diffused secreted factors. In fact, in advanced cancer stages, the microenvironment is considered as a central modulator of features such as cancer cell invasion, intravasation, and extravasation from surrounding blood vessels, and capacity to home and colonize new niches, forming metastases (6). The microenvironment induces transient changes in gene profile, with impact on the metastatic features of cancer cells by promoting metabolic, proliferative, migratory, or differentiation shifts (7–9). Notably, the tumor microenvironment also participates in the tight regulation of quiescent metastases, as alterations on stromal cells and ECM components inhibit cancer cell elimination by the immune system and promote escape from immune surveillance, promoting awakening from dormancy (10). However, at early stages of cancer development, the microenvironment may exert a negative pressure, which, through interaction with cancer cells, is frequently overcome, shifting the balance from an antitumorigenic to a protumorigenic microenvironment (11). As such, cancer cells and tumor microenvironment are seen as interactive units that evolve together in time rather than separate entities (12). In this scenario, cancer cell alterations acquire a key role by conferring a fitness advantage in a given environment or by providing tools to modulate the surrounding repressive environment.
One of the most frequently mutated oncogenes in cancer is KRAS. KRAS gene encodes a small GTPase, which cycles between GDP and GTP-bound states as a consequence of the stimulation of certain cell surface receptors, such as the EGFR. Notably, when mutated, KRAS remains permanently activated (13–15). RAS signaling networks are built at the membrane of cells, bridging extracellular cues into cellular events, such as cell growth, proliferation, differentiation, and survival (16), having a decisive role in the transition of healthy cells to cancer (17–20). All these findings have led the scientific community to exploit RAS or its downstream effectors as therapeutic targets, hoping to impair tumor growth and survival (13, 21). However, no effective KRAS-directed signaling inhibition has been until now successfully achieved until now.
In this work, we review the effect of KRAS signaling in several components of the tumor microenvironment, from ECM changes to endothelial cell signals or the modulation of cancer-associated fibroblasts and inflammatory/immune cells, which translate into critical events to sustain tumor growth, and ultimately lead to the invasion and migration of cancer cells. Although discussing the effect of KRAS-mutant cancer cells on tumor microenvironment components in separate sections, it is important to keep in mind that all the components are intimately connected and regulate each other's properties (22). As such, by affecting one of the components, KRAS-mutant cancer cells are likely affecting the entire microenvironment in a snowball-like effect. This comprehensive dissection might enlighten the way to properly deal with mutant KRAS signals so as to prevent cancer cells from disseminating through the organism.
Immunomodulatory Effects of KRAS-Mutant Cancer Cells
Immune cells, such as CD4+ T cells, regulatory T lymphocytes (Treg), B cells, CD8+ T lymphocytes (also known as cytotoxic T lymphocytes), Th17 cells (Th17), natural killer (NK) cells, macrophages, myeloid-derived suppressor cells (MDSC), neutrophils, dendritic cells, mast cells, and platelets, often infiltrate the tumor stroma. Whereas cells with professional cytotoxic activity, as CD8+ T lymphocytes and NK cells, generally exert antitumorigenic activities, MDSCs, mast cells, and platelets are mainly protumorigenic. Notably, the remaining cell types, although exhibiting antitumorigenic properties, may, upon microenvironment subversion, acquire mitogenic, proinvasive, prometastatic, proangiogenic, or prosurvival properties (5).
Usually, tumors are densely infiltrated by immune cells, even those that are not epidemiologically related to inflammation (23). In these situations, escape from their negative regulatory action is paramount for cancer establishment and maintenance (24). The interplay between cancer and immune cells seems to play a key role in this process, and several studies have now pointed out the pivotal role of KRAS activation in mediating this cross-talk, promoting the switch from an antitumorigenic to a protumorigenic response. In fact, regulation of tumor-associated immune responses by KRAS-mutant cancer cells has been reported to occur at the level of recruitment, activation, and differentiation of immune cells, impacting not only on the promotion the protumorigenic properties of immune cells but also on the induction of cancer cell evasion from immunosurveillance.
Regulation of Myeloid Cell Populations by Oncogenic KRAS
Myeloid cells, such as macrophages, dendritic cells, neutrophils, monocytes, and granulocytes, frequently populate the tumor stroma (25). Little evidence can be found in the literature regarding the association of KRAS-mutant cancer cells and myeloid cells, in particular macrophages and neutrophils infiltration.
In mouse models, it has been shown that inflammation potentiates the growth and progression of KRAS-mutant lesions (26, 27). These growth advantages result from the combination of the highly proliferative potential of Kras-mutant cancer cells with their capacity to modulate the nature of the inflammatory response. Accordingly, activation of KRAS in mouse pancreatic acinar cells triggered a local inflammatory response enriched on macrophage infiltration, promoting progression toward a more advanced duct-like phenotype. This activation occurred as a result of KRAS-induced upregulation of intercellular adhesion molecule expression in acinar cells, which served as a chemoattractant to macrophages. Counterintuitively, it specifically promoted the recruitment of the inflammatory, antitumorigenic M1-like macrophages. However, secretion of proinflammatory cytokines and proteases, such as TNF and matrix metalloprotease-9 (MMP-9), respectively, by M1 macrophages cooperated with KRAS activation to promote progression from acinar to ductal metaplasia, accelerating the pathogenesis of pancreatic cancers (Fig. 1A; refs. 28–30).

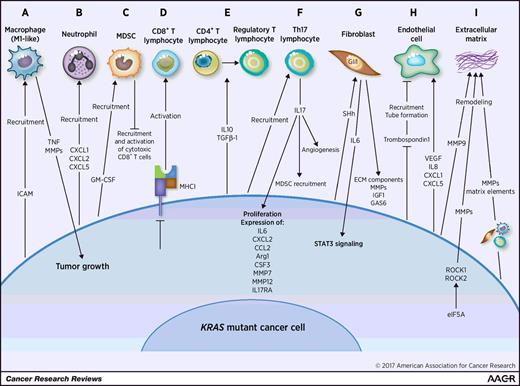

Paracrine effects of KRAS-mutant cancer cells on tumor microenvironment components. Depending on the tumor model, activation of KRAS in cancer cells has been shown to promote cancer progression by influencing the properties of several tumor microenvironment components. KRAS-mutant cancer cells secrete molecules that will promote the recruitment of M1 macrophages (A) and neutrophils (B). The induction of a less reactive and more tolerogenic environment is achieved through recruitment of MDSCs (C), inhibition of CD8+ cytotoxic lymphocyte activation (D), and induction of Treg differentiation (E). Th17 recruitment (F), fibroblast activation (G), endothelial cell recruitment, and blood vessel formation (H) as well as ECM remodeling (I) represent other microenvironment alterations led by mutant KRAS cells.
Paracrine effects of KRAS-mutant cancer cells on tumor microenvironment components. Depending on the tumor model, activation of KRAS in cancer cells has been shown to promote cancer progression by influencing the properties of several tumor microenvironment components. KRAS-mutant cancer cells secrete molecules that will promote the recruitment of M1 macrophages (A) and neutrophils (B). The induction of a less reactive and more tolerogenic environment is achieved through recruitment of MDSCs (C), inhibition of CD8+ cytotoxic lymphocyte activation (D), and induction of Treg differentiation (E). Th17 recruitment (F), fibroblast activation (G), endothelial cell recruitment, and blood vessel formation (H) as well as ECM remodeling (I) represent other microenvironment alterations led by mutant KRAS cells.
Other studies have shown that KRAS may also be responsible for determining the specificities of the immune responses among cancer subtypes. This may be the case of lung tumors in which the analysis of the host inflammatory immune response in small-cell lung cancers and adenocarcinomas revealed that adenocarcinomas were more densely infiltrated by cells from the myeloid lineage (macrophages, neutrophils, and eosinophils), whereas small-cell lung cancers predominantly showed T-cell infiltration (31). Knowing that KRAS mutations are more frequently found in adenocarcinomas, these results suggest an association between KRAS signaling activation and inflammatory immune cell infiltration. Nevertheless, it is important to take into consideration that not all inflammatory immune cells present within the tumor tissue may be a direct consequence of the presence of mutant KRAS. One study (32) has demonstrated that macrophages were preferentially localized on the periphery of the tumor, whereas neutrophils infiltrated the tumor stroma. A more detailed analysis revealed that, in fact, KRAS-mutant tumor cells secreted high levels of neutrophil chemokines, as CXCL2, CXCL5, and CXCL1, but very low levels of macrophage chemokines (Fig. 1B). These data establish a direct link between KRAS activation and neutrophil recruitment in lung tumorigenesis and suggest that macrophage recruitment may not be directly associated with the presence of a KRAS mutation.
Besides the direct protumorigenic effects that myeloid cell–derived secreted factors have on cancer cells, the recruitment of specific populations by mutant KRAS cancer cells may also indirectly impact on tumor growth and development through the capacity that these cells have to modulate the response and activation T lymphocytes (25). This was demonstrated in a KRAS/p53 mouse model of pancreatic cancer, in which granulocyte macrophage colony-stimulating factor (GM-CSF) derived from KRAS-mutant cells promoted the expansion of MDSCs. On their turn, MDSCs suppressed the antitumor activity of CD8+ cytotoxic T cells Fig. 1C; ref. 33). The same effect is likely to occur in the colorectal cancer model as GM-CSF was shown to be upregulated by mutant KRAS (34).
Despite the topic being still very unexplored, altogether, the results described award to KRAS activation a role on the modulation of tumor-associated immune responses. Because tumor-associated myeloid cells are known to interfere with virtually all of the current anticancer treatments, and myeloid cells targeting is becoming an appealing therapeutic strategy (35), further studies are needed to better understand how KRAS-mutant cancer cells affect these immune cell populations.
Direct Regulation of T-cell Populations by Mutant KRAS and Its Implication on Immune Evasion
Paradoxically, it has long been known that cancer cells harboring KRAS mutations, although escaping elimination by the immunesystem, produce high amounts of the mutant neoantigens with potential to be recognized by CD8+ and CD4+ T cells. In accordance, several studies have shown that it is possible to generate specific antitumoral T-lymphocyte responses upon adoptive cell transfer of T cells previously challenged with different KRAS-mutant epitopes (36–40). As such, attenuation or even suppression of the adaptive immune response against KRAS-mutant tumor cells is therefore an essential requirement for them to escape the tight immune control, survive, and develop into a cancer. Several mechanisms through which KRAS-mutant cancer cells mitigate the antitumoral T-cell response have been described. It was reported that KRAS activation mediates immune evasion by downregulating MHC class I antigen presentation at the cell surface, therefore decreasing cancer cell recognition by CD8+ cytotoxic T cells (Fig. 1D). This effect is mediated through the modulation of the processing machinery of MHC class I proteins rather than affected by mRNA expression levels (41, 42). Accordingly, knockdown of mutant KRAS in a highly immunogenic mouse cell line enhanced T-cell–mediated tumor cell clearance, leading to a decrease in tumor burden, an increase in the lag time, and induction of tumor regression. This effect was attributed to an increase in cell surface expression of H-2Kd MHC class I protein, and to an increase in the expression and secretion of the immune-stimulatory cytokine IL18, upon KRAS silencing (43). In addition, the capacity of KRAS-mutant cells to convert CD4+ Th cells into functional Tregs was also described as another mechanism by which mutant KRAS suppresses T-cell activation, promoting a tolerogenic microenvironment. At the molecular level, activation of MEK–ERK–AP1 pathway by mutant KRAS induced expression and secretion of the suppressive cytokines IL10 and TGFβ1 by cancer cells, identified as the main promoters for Treg induction of differentiation (Fig. 1E; ref. 38). Supporting a functional role for Tregs in cancer, these immunosuppressive cells have been described to infiltrate the stroma of several solid and hematologic cancers (44), and to act as important partners in the tumorigenic process driven by mutant KRAS (45). Besides Treg induction, activation of KRAS in mouse lung and pancreatic epithelium was also reported to increase the number of Th17 cells, a proinflammatory subset of Th cells, as well as of γδTCR+ inflammatory cells, which were shown to accelerate tumor formation (46–48). These cells produce high levels of IL17 cytokine, which in turn promote tumor cell proliferation, angiogenesis, production of proinflammatory cytokines (IL6, CXCL2, CCL2, ARG1, and CSF3), metalloproteases (MMP-7 and MMP-12), and stimulate the recruitment of MDSCs (47). An increase in IL17 expression was also observed in KRAS-mutant colorectal cancers (34). In the pancreatic cancer model, it was also shown that, besides recruiting IL17-producing cells, KRAS activation induces the expression of IL17A receptor in the neoplastic cells, establishing a hematopoietic-to-epithelial IL17 signaling axis important for the initiation and progression of pancreatic intraepithelial lesions (Fig. 1F; ref. 48).
In addition, a comparison between the immune cell content of KRAS- and EGFR-mutant lung adenocarcinomas revealed that KRAS-mutant tumors exhibit an enhanced infiltration of CD8+ Tcells, Tregs, and IL17A-producing lymphocytes and reduced NK cells (31). Although not establishing a causal relationship, this work further supports the role of KRAS in controlling the immune cell landscape of tumors in the human context and suggests that, even within the same tumor subtype, cancer cell mutational profile may strongly impact on the immune landscape.
Clinical Implications of the Immunomodulatory Capacity of KRAS-Mutant Cancer Cells
The studies referred above illustrate the effect of KRAS mutations in the construction of a favorable immune microenvironment that supports escape from immunosurveillance and promotes disease progression. At the clinical viewpoint, these observations are of critical importance as they pave the way to better understand in which way KRAS activation affects the response to immunotherapeutic approaches. For instance, this would be relevant in the case of current antibody-mediated blockage of the signaling between programmed cell death protein 1 (PD-1), an immune checkpoint receptor upregulated in activated T cells to induce immune tolerance, and its ligand, the programmed cell death ligand 1 (PD-L1), frequently overexpressed in tumor cells (49).
Recent works performed in lung cancer revealed that PD-L1 expression is associated with KRAS mutations, smoking, and wild-type EGFR, and that PD-L1 upregulation occurs through KRAS-mediated ERK signaling (50, 51). Nevertheless, some authors revealed that the association of KRAS and PD-L1 expression levels is dependent on the association with other lung cancer–associated gene mutations, such as TP53 and STK11/LKB1 (52–54). In accordance, the highest levels of PD-L1 as well as elevated PD-L1+/CD8+ cell ratio was found in KRAS and TP53 comutated lung tumors. In addition, TP53, KRAS, and specially TP53/KRAS comutated patients were the ones that when treated with pembrolizumab, a humanized antibody targeting PD-1, showed a significant prolonged progression-free survival compared with wild-type patients (52). On its turn, inactivation of STK11/LKB1 in a KRAS-mutant background was associated with lower levels of PD-L1 expression (53). Corroborating this work, another group found, in a mouse model of KRAS-driven NSCLC, that the downregulation of the tumor suppressor STK11/LKB1 resulted in accumulation of neutrophils with T-cell–suppressive effects and reduced PD-L1 expression (54). In addition, anti–PD-1 therapy enhanced the effects of radiotherapy in radiation-naïve KRAS-mutant mouse tumors. However, this synergistic effect was lost upon additional inactivation of STK11 (55), further supporting that retention of normal STK11/LKB1 protein is essential for the establishment of a mutant KRAS-driven immunosuppressive environment.
The associations between KRAS activation and the expression of PD-L1 and PD-1 were also studied in pancreatic and colorectal cancers, the other two cancer models in which KRAS mutations are highly prevalent, although the data available are still scarce. In the case of pancreatic cancer, KRAS activation was shown to be associated with increased PD-1 expression (56). In contrast to lung and pancreatic cancers, in colorectal cancer, the available data show that KRAS mutations predict low PD-L1 expression and poor immune infiltration (57–59).
The positive associations observed between KRAS mutations and the expression of PD-1/PD-L1 immunosuppressive axis in lung and pancreatic cancers indicate that these therapeutic strategies are likely to impair progression of these KRAS-mutant tumors. These results represent a good example of how to target this group of tumors by abrogating their interaction with microenvironment components. In colorectal cancer, however, the presence of KRAS mutations may be indicative of lack of anti–PD-1/PD-L1 therapy efficacy.
Modulation of the Properties of Cancer-Associated Fibroblasts by Mutant KRAS Cancer Cells
Fibroblasts are one of the most abundant cell types present within the tumor stroma and, given their plasticity, may become promptly activated through the interaction with tumor cells. Cancer-associated fibroblasts are thereby able to promote tumor initiation and progression as they function as master promoters of epithelial-to-mesenchymal transition, cancer cell migration, invasion and metastasis as well as regulators of ECM remodeling and dynamics, and angiogenesis (60, 61). As such, the capacity of cancer cells to modulate the properties of fibroblasts is predicted to have a major impact on the characteristics of the tumor microenvironment. Studies using pancreatic cancer models have been pointing out a role for KRAS in mediating the activation of fibroblasts through the Hedgehog (Hh) signaling. The deregulation of Hh signaling is long known to have an impact in cancer (62), but the mechanisms through which it happens remained unresolved. The Hh pathway, through the Sonic Hedgehog (SHh) protein, is known to promote myofibroblast expansion (63, 64), and its depletion was shown to reduce pancreatic ductal carcinoma (PDAC) stroma (65). Supporting these observations, another group showed that when SHh was activated in pancreatic epithelia, transgenic mice would develop undifferentiated carcinoma (66). However, these mice did not completely mimic human pancreatic carcinogenesis unless RAS was simultaneously activated. This was one of the first suggestions that RAS and SHh cooperated in the promotion of pancreatic carcinoma development. Still within pancreatic models, Ji and colleagues hypothesized that oncogenic KRAS would promote tumorigenesis by activating the SHh pathway (67). In accordance, they identified an increase of GLI1 activity downstream of the RAF/MEK/MAPK pathway. GLI1 was later found to bind to IL6 promoter in fibroblasts of the tumor microenvironment, increasing IL6 expression. On its turn, fibroblasts-derived IL6 was shown to be a modulator of STAT3, a transcriptional factor required for the development of premalignant lesions and the progression into pancreatic cancer (Fig. 1G; ref. 68). These studies hinted at a modulation of cancer-associated fibroblasts by KRAS mutational changes. Tape and colleagues resorted to cell-specific proteome labeling combined with multivariate phosphoproteomics to study mutant KRAS signaling in pancreatic adenocarcinoma cells (69). This study evidenced that SHh originated from cancer cells was responsible for changes on the fibroblast proteome, promoting the synthesis of ECM components, such as collagen, and MMPs. Cancer-derived SHh also promoted the expression of growth factors such as IGF1 and GAS6 by fibroblasts, which reflected back on cancer cells (nonautonomous cell signaling; Fig. 1G). This reciprocal signaling was further demonstrated by comparing the phosphoproteomes of KRAS-mutated and KRAS wild-type PDAC cells with those of PDAC cells treated with conditioned media from SHh-activated fibroblasts. This comparison demonstrated that fibroblast-derived signals significantly alter the phosphoproteome of PDAC cells, promoting not only an increase of the usual cell-autonomous alterations but also activating pathways that are not autonomously triggered. Recently, it was shown that the conditioned medium of KRASV12-overexpressing colorectal cells strongly increased migration of intestinal fibroblasts without affecting their proliferation rate and their differentiation status. The observed effect was found to be mediated by the heparin-binding EGF-like growth factor (HB-EGF) upregulated by KRAS-mutated cells and activation of HB-EGF receptors, and ERK 1/2 and JNK signals in fibroblasts (70).
All these evidences show the interaction between mutant KRAS cancer cells and local fibroblasts. Literature, however, does not exclude the possibility of a systemic effect of KRAS-mutant cancer cells on fibroblast properties. Recent data have shown that α6β4 integrin present in exosomes secreted by primary, lung-tropic tumor cells is uptaken by lung fibroblasts, promoting their reprogramming to support the formation of a premetastatic niche (71). A proteomic analysis done on exosomes secreted from KRAS-mutant colorectal cancer cell lines revealed an enrichment in α6β4 integrin (72), rising the hypothesis that KRAS-mutant cancer cells may affect the properties and activation state of fibroblasts residing in distant organs.
Together, these studies demonstrated that KRAS mutations in cancer cells can alter the behavior of fibroblasts, which in return affects the microenvironment through ECM changes and growth factor signaling, contributing to tumor progression.
Effects of Mutant KRAS Cancer Cells on the Properties of Endothelial Cells
It is well known that to grow, solid tumors need to induce the formation of new blood vessels and the development of an intact tumor vasculature, in a process called angiogenesis. In this sense, RAS promotion of tumor-associated angiogenesis is already old news, having the topic been reviewed in 2004 (73). Nonetheless, evidences supporting the different mechanisms underlying RAS stimulation of endothelial cells and its role on the molecular basis of angiogenesis continued to accumulate.
The impact of KRAS on the regulation of the most potent angiogenesis inducer VEGF has been extensively studied in different models (74–76). Notably, in pancreatic cancer cells, silencing of mutant KRAS in two different cell lines reduced the angiogenic potential. Different mechanisms underlying the observed effect were described: Panc-1 cells increased the expression level of thrombospondin-1, an endogenous inhibitor of angiogenesis, whereas MiaPaca-2 cells decreased the production of VEGF (Fig. 1H; ref. 77). Furthermore, using mouse fibroblasts transfected with oncogenic KRAS, the impact on angiogenesis through the regulation of VEGF is distinct, depending on the mutation. Transfectants with codon 13 mutation had higher VEGF expression and secretion than the ones with codon 12 mutation, which was then translated in a more complex vascular structure in subcutaneous tumors. It is noteworthy this difference was a consequence of VEGF differential transcriptional activity orchestrated by RAS–RAF–ERK–AP2/Sp1 signaling, independently of hypoxia-dependent elements (78).
Highlighting the role of KRAS activation in the modulation of the microenvironment to promote angiogenesis is the observation that hypoxia is capable of increasing KRAS activation levels in colon cancer cells harboring wild-type KRAS through c-Src activation. The increase in KRAS activation results in AKT phosphorylation and induction of VEGF expression, blocking apoptosis in hypoxic conditions (79). These data support the essential role of the tumor–stroma cross-talk for disease progression, and that, even in the absence of mutated KRAS, the microenvironment is capable of orchestrating changes that support KRAS-induced angiogenesis and survival.
RAS proteins have also been implicated in the regulation of inflammatory cytokines that promote neovascularization. For instance, in Hela cells, IL8 has been shown to be a transcriptional target of H and KRAS, MAPK, and PI3K signaling pathways (Fig. 1H). RAS-induced IL8 secretion was required for tumor inflammation as well as recruitment and growth of endothelial cells. Supporting its relevance on tumorigenesis, IL8 ablation leads to a decrease on tumor vasculature and promoted extensive necrosis (80). This KRAS effect on the regulation of IL8 production/secretion has been further supported using colon (81), ovarian (82), and lung (83) cancer models. Also, another report demonstrated that, in pancreatic cells, oncogenic KRAS is responsible for the promotion of the production of CXC chemokines, CXCL1 and CXCL5, in addition to IL8 and VEGF, resulting in enhanced invasion and tube formation of human umbilical vein endothelial cells (Fig. 1H; ref. 84). These data show that KRAS acts through a multitude of concerted mechanisms to achieve a balance between pro- and antiangiogenic factors to recruit endothelial cells and to form new vessels sustaining tumor growth.
Nevertheless, besides promoting angiogenesis, mutant KRAS cancer cells also affect endothelial cell properties that will influence other aspects of cancer progression. For instance, Bartolini and colleagues (85) found that the cell adhesion molecule BCAM is overexpressed in in vivo models and clinical samples of KRAS-mutant colorectal cancer hepatic metastasis. Moreover, the authors also found that KRAS-mutant cancer cells induced and increase of LAMA 5 expression in endothelial cells, and that BCAM/LAMA5 interaction was important for vascular adhesion of colorectal cancer cells, and consequently for the growth of intrahepatic lesions.
Overall, the data here described pinpoint KRAS as a modulator of endothelial cells, facilitating tumor angiogenesis and cancer cell dissemination.
Modulation of ECM Composition and Structure by Mutant KRAS Cancer Cells
Although frequently underestimated, the ECM is one the most abundant elements at the tumor microenvironment. It consists of a highly dynamic and complex network of macromolecules, acting as a reservoir of numerous bioactive domains and arrested growth factors involved in the regulation of several cancer cell activities (86, 87).
The most recent literature supports the existence of discrete connections between KRAS activation and the modulation of the ECM, through induced secretion of both matrix components and matrix remodeling enzymes. One of the mechanisms is likely to happen through the previously referred role of mutant KRAS cancer cells in promoting the activation of tumor stromal fibroblasts, the recruitment of M1 macrophages and Th17 cells, which on their turn, impact on ECM composition and structure by secreting ECM components and MMPs (Fig. 1I).
Besides this indirect link, a direct role of mutant KRAS on the modulation of ECM properties has also been described. In lung cancer, for example, epithelial cells expressing KRAS G12V mutation secreted higher levels of activated MMP-9, a significant player in ECM remodeling (Fig. 1I; ref. 88). In pancreatic cancer mouse models, increased expression of MMP3 cooperates with KRAS activation to shape the stromal microenvironment, not only by stimulating immune cell influx but also as a primary proteolytic activator of MMP-9 (89). Also in pancreatic cancer cells, mutational activation of KRAS induced the expression of the eukaryotic translation initiation factor 5A (eIF5A) and consequent stimulation of ROCK1 and ROCK2 (90). Cell-based assays demonstrated that ROCK activation and signaling drives a gene expression program that results in ECM remodeling and collagen degradation by MMPs, thereby enabling invasive tumor growth through elimination of physical restraints (Fig. 1I; ref. 91). Besides local induced ECM changes, conditional activation of KRAS G12D in the mouse urothelium triggered lung ECM defects, particularly abnormalities in some constituents of the basement membrane, laminin and nidogen, as a consequence of ECM degradation (92).
The described local and systemic KRAS-mediated effects on ECM are likely to impact on the motility, invasive, and metastatic capacity of tumor cells. As such, it illustrates another possibility to impair KRAS-mutant cancer cell dissemination, neutralizing tumor progression.
Concluding Remarks and Perspectives
The evidence linking KRAS signaling to tumor microenvironment modulation increases our understanding of the function of KRAS in cancer. Still, further studies are essential for a comprehensive understanding of the interactions between these cells and their microenvironment. For example, the specific literature focuses mainly on pancreatic and lung cancers, overlooking other types of cancers such as colorectal cancer, in which KRAS mutations are also frequent. A complete characterization of the paracrine effects of KRAS-mutant cancer cells in the tumor models with mutant KRAS would be valuable to obtain an overall view of these effects and to identify tumor specificities. This knowledge would be crucial to stratify and pinpoint the patients that may benefit from KRAS signaling–directed therapies or from its combination with stromal modulatory approaches. In addition, because metastatic outgrowth relies on the recruitment of noncancer cells, such as myeloid cells, endothelial cells, fibroblasts (93), and ECM remodeling (10), it would be relevant to address the role played by mutant KRAS cancer cells in the regulation of these stromal components in the target organ, and how this would impact on the establishment of the metastatic lesions. Also, because it is known that different KRAS mutations have distinct transforming potential and activate different transcriptional profiles (94), it would be relevant to understand whether they also induce different effects on the interaction between cancer cells and the microenvironment, and which signaling pathways are used. This would be relevant for the development of mutation-specific therapeutic approaches. In addition, and adopting the concept of “dynamic reciprocity” proposed by Bissel and colleagues to describe the mutual regulation of cancer cells and ECM (meaning that cancer cell communication with the microenvironment is not a unidirectional process; ref. 95), it would also be relevant to study the role of mutant KRAS on the integration of external signaling and on the subsequent cancer cell response. Ultimately, the identification of key molecules mediating this cross-talk will have a major impact on the design of new therapeutic strategies aiming to target KRAS-mutant cancer cells by abrogating their interactions with the microenvironment.
Disclosure of Potential Conflicts of Interest
No potential conflicts of interest were disclosed.
Acknowledgments
This article is a result of the project NORTE-01-0145-FEDER-000029, supported by Norte Portugal Regional Programme (NORTE 2020), under the PORTUGAL 2020 Partnership Agreement, through the European Regional Development Fund (ERDF), and FEDER through Programa Operacional Factores de Competitividade – COMPETE (POCI-01-0145-FEDER-016390) as well as national funds through FCT – Fundação para a Ciência e a Tecnologia. IPATIMUP is part of i3S, which is financed by FEDER - Fundo Europeu de Desenvolvimento Regional funds through the COMPETE 2020 - Operacional Programme for Competitiveness and Internationalisation (POCI), Portugal 2020, and by Portuguese funds through FCT - Fundação para a Ciência e a Tecnologia/ Ministério da Ciência, Tecnologia e Inovação in the framework of the project “Institute for Research and Innovation in Health Sciences” (POCI-01-0145-FEDER-007274). PDC fellowship was funded through project NORTE-01-0145-FEDER-000029; APC fellowship was funded through project POCI-01-0145-FEDER-016390; M.J. Oliveira and S. Velho were funded by FCT Investigator programme (IF/01066/2012 and IF/00136/2013, respectively), A.M. Costa by a FCT post-doctoral fellowship (SFRH/BPD/109446/2015) – European Social Fund and Programa Operacional Potencial Humano (POPH).
