Abstract
Resistance to xenobiotic nucleosides used to treat acute myeloid leukemia (AML) and other cancers remains a major obstacle to clinical management. One process suggested to participate in resistance is reduced uptake into tumor cells via nucleoside transporters, although precise mechanisms are not understood. Through transcriptomic profiling, we determined that low expression of the ergothioneine transporter OCTN1 (SLC22A4; ETT) strongly predicts poor event-free survival and overall survival in multiple cohorts of AML patients receiving treatment with the cytidine nucleoside analogue cytarabine. Cell biological studies confirmed OCTN1-mediated transport of cytarabine and various structurally related cytidine analogues, such as 2′deoxycytidine and gemcitabine, occurs through a saturable process that is highly sensitive to inhibition by the classic nucleoside transporter inhibitors dipyridamole and nitrobenzylmercaptopurine ribonucleoside. Our findings have immediate clinical implications given the potential of the identified transport system to help refine strategies that could improve patient survival across multiple cancer types where nucleoside analogues are used in cancer treatment. Cancer Res; 77(8); 2102–11. ©2017 AACR.
Introduction
All endogenous and xenobiotic nucleosides are polar hydrophilic compounds that are poorly membrane permeable and require functional transporters to enter cells. The two major classes of mammalian nucleoside transporters consist of equilibrative nucleoside transporters (ENT) and concentrative nucleoside transporters (CNT). Two proteins of the former class, ENT1 (SLC29A1) and ENT2 (SLC29A2), mediate the transport of purine and pyrimidine nucleosides down their concentration gradients. These transporters exhibit broad permeant selectivity and are subdivided on the basis of their sensitivity (ENT1) or resistance (ENT2) to inhibition by nanomolar amounts of nitrobenzylmercaptopurine ribonucleoside (NBMPR; ref. 1).
One of the first pyrimidine nucleoside to be developed as an anticancer drug was cytarabine (cytosine arabinoside; Ara-C), a derivative of 2′-deoxycytidine (2). Intracellular accumulation of cytarabine depends on plasma concentrations of the drug and the compound enters cells exclusively by transporter-mediated processes (3). Once cytarabine has entered cells, it is phosphorylated by deoxycytidine kinase to the monophosphorylated, 5′-derivative Ara-CMP and subsequently by nucleotide kinases to the pharmacologically active, triphosphorylated metabolite Ara-CTP (4). Cytarabine is used clinically in the treatment of hematologic malignancies, in particular in acute myeloid leukemia (AML), although intrinsic insensitivity and/or the development of resistance remains a major obstacle to successful long-term treatment outcome (5). Reduced uptake into leukemic cells has been proposed as a process underlying most instances of clinical resistance to cytarabine, although the responsible mechanism remains poorly understood (6).
Previous investigations demonstrated that low cytarabine uptake in AML cells predicts poor response to therapy (7), that cytarabine uptake is required for its conversion to Ara-CTP by leukemic blast cells, and that myeloblasts form more Ara-CTP than lymphoblasts because of higher nucleoside transport (8). Interestingly, cytarabine uptake in AML cells is completely inhibited by nanomolar concentrations of NBMPR and dipyridamole (9). Because the uptake of cytarabine in leukemic blasts is highly sensitive to NBMPR, it has been assumed and asserted for several decades that cytarabine enters cells through an ENT1-dependent mechanism (1). This conclusion is supported by some (10, 11) but not all statistical association studies (12–14), indicating that increased ENT1 mRNA abundance is correlated with increased cellular sensitivity or clinical responsiveness to cytarabine. More importantly, however, published studies to date employing heterologous expression systems have shown that cytarabine is either very weakly transported by ENT1 (<2-fold vs. control; refs. 15, 16), or is not transported by ENT1 at all (17). Against this background, the elucidation of novel, ENT1-independent transport mechanisms leading to antileukemic effects following cytarabine treatment is considered of high clinical relevance. In the current study, we report that the ability of cytarabine and several structurally related nucleosides to enter cells is facilitated by the ergothioneine uptake transporter OCTN1 (SLC22A4; ETT), and that low expression of OCTN1 in leukemic cells is a strong predictor of poor survival in multiple cohorts of patients with AML treated with cytarabine-based regimens.
Materials and Methods
Additional details of materials and methods are reported in the Supplementary Methods.
Clinical association studies
Gene expression data were collected from 168 pediatric patients with de novo AML enrolled on the AML02 trial (18, 19), of whom 134 were included in the analysis [2 were not randomized; 14 were excluded due to lack of induction I minimal residual disease (MRD) assessment; 1 was excluded due to lack of FLT3-ITD status; and 17 were excluded due to lack of French-American-British (FAB) classification status]. Total RNA was isolated from primary blast samples, as described previously (18, 19). Data on all 392 SLC (uptake) transporter probe sets from the Affymetrix U133Av2 expression array were extracted, log2 transformed, normalized by Z-score, visualized using R software package (R Studio v0.98.1091), and tested for statistical association with overall survival (OS) and event-free survival (EFS). Of the transporter probe sets, 22 were associated with both OS and EFS (P < 0.05), among which 14 were associated with a HR < 1 and improved survival. After exclusion of genes encoding transporter proteins not localized to the outer membrane, SLC22A4 (OCTN1) was identified as the top-ranking gene for further consideration (Supplementary Table S1). The association between SLC22A4 expression and OS and EFS was tested by 3 different Cox regression models. The first model was only stratified by treatment arms, the second was adjusted by risk and stratified by treatment arms, and the third was adjusted by age, MRD, FLT3-ITD, core binding factor (CBF), FAB category AML-M7 without t(1;22) and other 11q23, and stratified by treatment arm. To illustrate the association between gene expression and survival outcome in Kaplan–Meier plots, SLC22A4 expression values were categorized into 3 groups based on quantile ranking. Other cut-off points for grouping were considered, for example, on the basis of possible gaps within the dataset after plotting expression data within their empirical distribution function. However, no gaps were observed, suggesting that quantile ranking is an appropriate strategy to cluster expression values. Complete remission (CR) status was designated as less than 5% of blasts in the bone marrow, and induction failure was defined as the absence of CR within 3 months of the start of treatment.
External validation was performed on published data from 54 pediatric patients with AML receiving cytarabine-based chemotherapy on whom gene expression (Affymetrix U95Av2 microarray) and clinical data (EFS and CR) were available (see Supplementary Table S2 in ref. 14). Gene expression values provided in the published report were transformed to percentiles such that the HR can be explained as a change of event rate per one percentile change of expression from the lowest expression value observed. Additional external validation studies on OS and EFS involved gene expression analyses on the AML gene expression dataset from The Cancer Genome Atlas (TCGA), consisting of RNAseq data from Illumina Hi-seq analyses on 172 samples from adult patients with de novo AML (20). The information of interest was extracted using the cBioPortal for Cancer Genomics (21, 22).
Source of cell lines
The human embryonic kidney cell line HEK293 (Invitrogen), HeLa, and Chinese hamster ovary (CHO; ATCC) were obtained from commercial sources and used without further authentication by the authors. The PK15 and PK15NTD cell lines were provided by Chung-Ming Tse (Johns Hopkins University, Baltimore, MD). The AML cell line CHRF288-11 cell line was obtained from Tanja Gruber (St. Jude Children's Research Hospital, Memphis, TN); CMS from Yubin Ge (Karmanos Cancer Institute, Detroit, MI); M07e, MOLM-13, ML-2, and NB4 from DSMZ; MV4-11, HL-60, KG-1, THP-1, and U937 from ATCC; and OCI-AML3 from Brian Sorrentino (St. Jude Children's Research Hospital, Memphis, TN). All cell lines were tested regularly for mycoplasma contamination using a commercially available kit (Lonza). Passages were kept to a minimum and the cells were not used beyond passage 30.
Transfection of HEK293 cells
HEK293 was used for the generation of OCTN1- and ENT1-overexpressing models, because these cells had the lowest native uptake of cytarabine compared with other cells commonly used for transfection, such as the cervical cancer cell line HeLa or CHO cells (0.94 vs. 5.4 vs. 4.6 pmol/mg/min, respectively). Interestingly, OCTN1 has been immune-detected in HeLa cells (23), and the relatively high uptake of cytarabine in CHO cells was previously connected with the number of NBMPR-binding sites (24). Reconstructed OCTN1 and ENT1 cDNAs (Origene) with a Flag-tag were subcloned into the pMIG II vector, engineered from a MSCV-IRES-GFP vector. Empty vector (VC) or the vector encoding OCTN1-Flag or ENT1-Flag were cotransfected with pEQ-Pam3(-E) and pVSVg into 293T cells using Fugene transfection reagent (Roche). Virus-containing medium was collected at 72 hours and used to infect HEK293 cells in the presence of hexadimethrine bromide (polybrene; 6 μg/mL). Seven to 10 days after infection, GFP-positive cells were sorted by FACS to approximately 95% purity. Cells were maintained in DMEM (Life Technologies) supplemented with 10% FBS (Hyclone) at 37°C with 5% CO2.
The expression levels of OCTN1 in the transfected HEK293 cells were confirmed by RT-PCR and Western blot analysis (Supplementary Fig. S1A), and plasma membrane localization of OCTN1 was demonstrated by confocal microscopy (Supplementary Fig. S1B). Additional characterization of the model system with gene expression arrays revealed detectable transcripts in HEK293 cells of other putative cytarabine transporter genes, including those encoding CNT1, CNT2, CNT3, ENT1, ENT2, ENT3, and ENT4 (Supplementary Fig. S1C), as well as OCTN1-related genes, including those encoding OAT1, OAT2, OAT3, OCTN2, OCT1, OCT2, and OCT3 (Supplementary Fig. S1D). Quantitative RT-PCR with Transporter RT2 Profiles PCR arrays (Supplementary Fig. S1E), Western blot analysis (Supplementary Fig. S1F), and functional analysis (Supplementary Fig. S1G), using uridine as a substrate for ENT1 and carnitine as a substrate for OCTN2, confirmed that these transporters were not differentially expressed in cells transfected with VC as compared with cells overexpressing OCTN1. Functionally, the OCTN1-overexpressed HEK293 cells were further characterized by their ability to efficiently accumulate the known OCTN1 substrates, ergothioneine, a naturally occurring thiourea derivative of histidine (25), as well as 14C-labeled tetraethylammonium (TEA), a small-molecule organic cation (26). The observed transport efficiencies for ergothioneine (62 ± 8 μL/mg/min) and TEA (1.1 ± 0.12 μL/mg/min) were similar to those reported previously (25). Phenotypic characterization of the heterologous expression model of ENT1 indicated efficient accumulation of the known substrates uridine (3.3-fold vs. control cells) and gemcitabine (1.5-fold). These observations suggest that the overexpressed HEK293 cells represent a bona fide model to evaluate a possible contribution of OCTN1 and ENT1 to the transport of AML-directed chemotherapeutics, such as cytarabine.
Real-time PCR
RNA was reverse transcribed using SuperScript III First Strand Synthesis supermix for real-time RT-PCR (Invitrogen), according to manufacturer's recommendations. Gene transcripts were quantified using SYBR Green PCR mastermix (Qiagen) and primers obtained from Applied Biosystems that were specific to OCTN1, ENT1, and other transporters of interest. Reactions were carried out in triplicate, with transcripts normalized to GAPDH.
Gene-chip arrays
RNA was extracted from HEK293 cells using the RNEasy Mini Kit (Qiagen), samples were amplified, and then analyzed using the Affymetrix GeneChip arrays. Data on 293 solute carrier genes were extracted, normalized by the RMA algorithm, and analyzed using the Partek Genomics Suite 6.4 software.
Immunoblot analysis
For protein expression of select transporters, cells were lysed, and crude membrane fractions were prepared using the ProteoExtract Native Membrane Protein Extraction Kit (Calbiochem), according to the manufacturer's protocol. Protein concentration of the membrane preparations were determined using the Pierce Bicinchoninic Acid (BCA) Protein Assay Kit (Thermo Fisher Scientific) in microplates. Membrane samples (20 μg) were separated by SDS-PAGE and transferred to polyvinylidene difluoride (PVDF). Western blot analysis was performed using α-OCTN1 (1:500; Thermo Fisher Scientific), α-ENT1 (1:1,000, Invitrogen), α-OCTN2 (1:1,000, Invitrogen), or α-transferrin receptor (TfR1; 1:1,000; Invitrogen). Secondary α-rabbit or α-mouse antibodies (1:2,000) conjugated to peroxidase (Jackson ImmunoResearch) were used and proteins were visualized by chemiluminescence using the SignalFire ECL Reagent (Cell Signaling Technology) on an Odyssey Fc Imaging System (LI-COR). Immunoblots were performed a minimum of two times on samples collected from different experiments.
Site-directed mutagenesis
The QuikChange II XL Site-Directed Mutagenesis Kit (Agilent) was utilized to generate the OCTN1 variant rs1050152 (c.1507C>T; L503F), according to suggested methods. The mutagenesis primers were designed using the QuikChange Primer Design program and synthesized by Integrated DNA Technologies. The plasmid was sequenced to confirm successful mutagenesis and then used to generate stably transfected HEK293 cells.
Cellular accumulation studies
Cells were seeded at 5 × 105 cells/well in 6-well plates. At 70% confluence, cells were washed with PBS and replaced with fresh, serum-free medium containing varying concentrations of radiolabeled or unlabeled compound. At the end of the incubation period, the medium was removed, and cells were washed twice with ice-old PBS. A 25-μL aliquot of the lysate was used to estimate protein concentration using a BCA Protein Assay Kit. Radioactivity was measured on a Perkin Elmer Topcount or a Beckman LS 6500 liquid scintillation counter, after mixing the sample with Scintisafe 30% scintillation fluid (PerkinElmer). Cytarabine and phosphorylated metabolites were measured in cell extracts by LC/MS-MS, as described previously (27). Cellular accumulation was expressed as pmol per mg of protein (pmol/mg), as a percentage of control cells (%VC) with vector set to 100%, or as a concentration-normalized transport efficiency (μL/mg/min). At least two independent experiments were performed using multiple replicates.
Cytotoxicity assays
To evaluate cytotoxicity in response to cytarabine and related nucleoside analogues, HEK293 cells were seeded at 2,000 cells per well in 96-well plates and cultured for 20 hours. Cells were then treated with nucleosides of interest at increasing concentrations (0.313–100 μmol/L). Cell viability was determined using a CellTiter-Glo luminescent cell viability assay at 72 hours (Promega). The concentration of drug that inhibited cell proliferation by 50% (IC50) was determined using the software program GraphPad Prism version 5.0 (GraphPad Software).
Silencing of OCTN1 expression
The on-target plus SMART pool human SLC22A4 siRNA for OCTN1 silencing (Dharmacon) and the Mission siRNA Negative Nontargeting Control (NT) #1 siRNA (Sigma) were used in all experiments. OCI-AML3 cells were transfected with OCTN1 siRNA or negative control siRNA using Nucleofector II and Nucleofector Kit T (Amaxa), according to the manufacturer's protocol. Briefly, OCI-AML3 cells (3 × 106) were treated with 3 μg of siRNA for each sample, and OCTN1 suppression was evaluated using crude membrane fractions extracted 48 hours later using ProteoExtract Native Membrane Protein Extraction Kit (Calbiochem). Next, immunoblots were performed with 10 μg membrane samples using SDS-PAGE and then transferred to PVDF membranes. The membrane was probed using OCTN1 (1:500; Thermo Fisher Scientific) or α-transferrin receptor (1:1,000; Invitrogen), and a secondary α-rabbit or α-mouse IgG conjugated to peroxidase (Jackson ImmunoResearch) was used at 1:10,000 or 1:1,000. Proteins were visualized by chemiluminescence with the Signal Fire ECL Reagent (Cell Signaling Technology), and quantitated by ImageJ software. Immunoblots were performed a minimum of two times on samples collected from different experiments.
Cellular uptake assay in OCI-AML3 cells was also determined after 48-hour transfection with OCTN1 siRNA or control. Cells were preincubated with DMSO or NBMPR (10 μmol/L) for 15 minutes, followed by addition of [3H]cytarabine (1 μmol/L), and uptake assays were performed with 5-minute incubation times. After incubation, cells were washed three times with ice-cold PBS, lysed with 1 N NaOH, and agitated for 1 hour. Lysate aliquots of 25 μL were used to estimate protein concentration using a BCA Protein Assay Kit (Thermo Fisher Scientific). Radioactivity was measured on a liquid scintillation analyzer Tri-Carb 4810 TR (Perkin Elmer) after mixing the sample with 4,000 μL of Emulsifier-Safe scintillation fluid (Perkin Elmer). Cytarabine uptake levels were normalized to total protein levels in each group, and expressed relative to the uptake observed in cells transfected with the NT siRNA.
Statistical analysis
Data are presented as mean values and SEM, unless stated otherwise. An unpaired two-sided Student t test or one-way ANOVA with a Tukey post hoc test were used to evaluate statistical significance, using P < 0.05 as a cutoff.
Results and Discussion
Identification of OCTN1 as a predictor of survival in AML
As the commonly held contention of ENT1 playing an important or even exclusive role in cytarabine transport into AML cells is poorly supported by experimental evidence, we postulated the existence on myeloblasts of a currently unknown, highly efficient cytarabine carrier. To identify such a new putative cytarabine uptake transporter, we performed comprehensive transcriptomic profiling of blast samples from patients with AML receiving cytarabine-based chemotherapy. This analysis was based on the expectation that such an approach would identify genes that, when overexpressed on AML blasts, increase mediated intracellular accumulation of cytarabine, and consequently associate with improved responsiveness. Using the Affymetrix U133Av2 platform, we interrogated 392 transporter probe sets, captured on the microarray in 134 pediatric patients with de novo AML treated on the AML02 multicenter trial (18, 19). After adjusting for known prognostic factors, including age, risk group, and treatment arm, the gene most significantly associated with both OS (P = 0.0074; HR, 0.56) and EFS (P = 0.024; HR, 0.67) was SLC22A4, a gene encoding the ergothioneine uptake transporter OCTN1 (ETT; Fig. 1A and B; Table 1). In particular, we observed that increased expression of SLC22A4 (probe set ID, 205896_at) was associated with reduction in the rate of relapse, resulting in an improved survival rate. This finding was independently replicated in a second cohort of 54 pediatric patients with AML for whom EFS data were available (P = 0.0074; HR, 0.50), and who received a similar cytarabine-based treatment regimen (Fig. 1C; ref. 14). In addition, increased expression of SLC22A4 was associated with improved OS (P = 0.0048) and EFS (P = 0.0091) in 172 clinically annotated adult cases of de novo AML (Fig. 1D and 1E). Recent genetic association studies have revealed the molecular genetic heterogeneity of AML and have shown that mechanisms of resistance are highly heterogeneous (28). In this connection, it is of interest to point out that the expression of SLC22A4 was significantly higher in patients entering CR as compared with those experiencing induction failure or relapse within the first year of CR in both the AML02 trial (P = 0.029) and the pediatric replication cohort (P = 0.0014). This finding suggests that the observed association of OCTN1 with survival is unrelated to heterogeneity of the disease but rather with it being a predictor of treatment response.

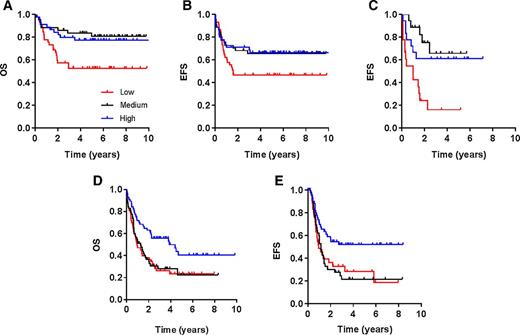

Association of OCTN1 gene expression with survival in AML. Kaplan–Meier plots show rates of OS and EFS, according to leukemic blast expression of the OCTN1 transporter gene SLC22A4, in a cohort of 134 pediatric patients with AML (A and B), an independent cohort of 54 pediatric patients with AML (C), and a cohort of 172 adult patients with AML (D and E), all receiving cytarabine-based chemotherapy. Gene expression ranks represent low expressors (bottom 1/3, red), intermediate expressors (middle 1/3, black), and top expressors (top 1/3, blue).
Association of OCTN1 gene expression with survival in AML. Kaplan–Meier plots show rates of OS and EFS, according to leukemic blast expression of the OCTN1 transporter gene SLC22A4, in a cohort of 134 pediatric patients with AML (A and B), an independent cohort of 54 pediatric patients with AML (C), and a cohort of 172 adult patients with AML (D and E), all receiving cytarabine-based chemotherapy. Gene expression ranks represent low expressors (bottom 1/3, red), intermediate expressors (middle 1/3, black), and top expressors (top 1/3, blue).
Correlation of SLC22A4 expression with survival in AML
Modela . | P . | HR (95% CI) . |
---|---|---|
OS | ||
1 | 0.0077 | 0.5939 (0.4048–0.8712) |
2 | 0.0033 | 0.5540 (0.3738–0.8212 |
3 | 0.0074 | 0.5611 (0.3677–0.8562) |
EFS | ||
1 | 0.0184 | 0.6645 (0.4731–0.9333) |
2 | <0.0001 | 0.2089 (0.1000–0.4368) |
3 | 0.0240 | 0.6694 (0.4724–0.9484) |
Modela . | P . | HR (95% CI) . |
---|---|---|
OS | ||
1 | 0.0077 | 0.5939 (0.4048–0.8712) |
2 | 0.0033 | 0.5540 (0.3738–0.8212 |
3 | 0.0074 | 0.5611 (0.3677–0.8562) |
EFS | ||
1 | 0.0184 | 0.6645 (0.4731–0.9333) |
2 | <0.0001 | 0.2089 (0.1000–0.4368) |
3 | 0.0240 | 0.6694 (0.4724–0.9484) |
Abbreviation: CI, confidence interval.
aModel 1 is only stratified by treatment arms; Model 2 is adjusted by risk and stratified by treatment arms; Model 3 is adjusted by age, MRD, FLT3-ITD, CBF, M7 without t(1;22) and other 11q23, which are the factors that were found to be statistically significant in the original association analyses (18, 19), and stratified by treatment arm. Note that independent of the model, SLC22A4 expression is significantly associated with both OS and EFS outcomes, with higher expression levels being associated with better survival outcomes (i.e., HR significantly less than 1).
Identification of OCTN1 as a high-affinity cytarabine transporter
In the gene expression association study that led to the identification of SLC22A4 as a predictor of survival in AML, patients received combination chemotherapy involving cytarabine, daunorubicin, etoposide, and mitoxantrone (19). An initial examination of these 4 compounds in our heterologous expression model revealed that cytarabine uptake was increased by 60- to 70-fold in HEK293 cells engineered to overexpress OCTN1 compared with control cells, whereas the increases ranged only 1.1- to 1.5-fold for the 3 other drugs (Fig. 2A). The weak interaction observed here between OCTN1 and etoposide or mitoxantrone is in line with previously reported uptake data (29, 30), and with the notion that etoposide can competitively inhibit the specific binding of NBMPR to an unidentified cytarabine carrier on AML blasts (31). Importantly, in a comparative analysis, we found that the efficiency of cytarabine transport by OCTN1 was greater than that observed for ENT1 (Fig. 2B) in the same HEK293 cell–based model system. Subsequent studies indicated that OCTN1-mediated cytarabine transport was time-dependent (Fig. 2C), sensitive to temperature, pH-dependent as observed for TEA transport by OCTN1 (32), saturable (Fig. 2D), and was associated with a Michaelis–Menten constant (Km) of 1.95 ± 0.37 μmol/L and a maximum velocity (Vmax) of 193 pmol/mg/min (Fig. 2E). In addition, an Eadie–Hofstee analysis revealed that the transporter interaction with cytarabine involved a single, saturable binding-site on the OCTN1 protein (Fig. 2F). Interestingly, whereas the OCTN1-mediated transport of ergothioneine is dependent on sodium (33), no pH dependence was found for the transport of cytarabine by OCTN1, although the absolute intracellular drug uptake was decreased in the absence of sodium (Fig. 2C). However, a proportionally similar decrease in cytarabine uptake was observed in vector control cells in the absence of sodium, indicating that the net OCTN1-mediated uptake is independent of sodium. This unusual phenomenon has been reported previously for pyrilamine, verapamil, and etoposide in cells transfected with OCTN2 (29), although the mechanism underlying this phenomenon remains unclear.

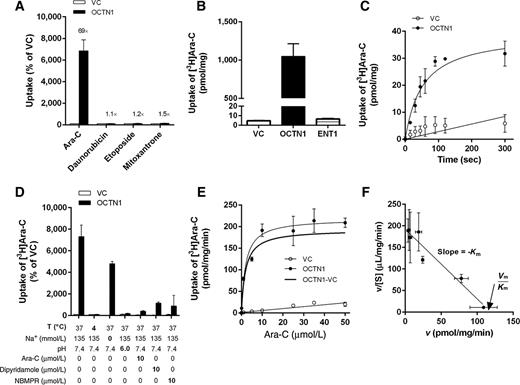

In vitro transport of cytarabine by OCTN1. A, Characterization of the transport of various AML-directed therapeutics (concentration, 1 μmol/L; 5-minute uptake) was performed in HEK293 cells transfected with an VC or OCTN1. B, A comparison of OCTN1- and ENT1-mediated transport of cytarabine was done in HEK293 cells. C, Time-dependence of cytarabine (Ara-C) transport by OCTN1 at early time points (range, 10–300 seconds). D, Sensitivity of OCTN1-mediated cytarabine transport to temperature, sodium, pH, and inhibitors. E and F, Concentration-dependent transport of cytarabine (1–50 μmol/L; 5-minute uptake) by OCTN1 (E), and these data shown as an Eadie–Hofstee transformation (F). Data are shown as mean values (symbols) and SEM (error bars), using 9–60 observations per group. Solid lines represent a fit of the experimental data to a nonlinear maximum-effect model or linear regression. v, transport velocity; [S], substrate concentration.
In vitro transport of cytarabine by OCTN1. A, Characterization of the transport of various AML-directed therapeutics (concentration, 1 μmol/L; 5-minute uptake) was performed in HEK293 cells transfected with an VC or OCTN1. B, A comparison of OCTN1- and ENT1-mediated transport of cytarabine was done in HEK293 cells. C, Time-dependence of cytarabine (Ara-C) transport by OCTN1 at early time points (range, 10–300 seconds). D, Sensitivity of OCTN1-mediated cytarabine transport to temperature, sodium, pH, and inhibitors. E and F, Concentration-dependent transport of cytarabine (1–50 μmol/L; 5-minute uptake) by OCTN1 (E), and these data shown as an Eadie–Hofstee transformation (F). Data are shown as mean values (symbols) and SEM (error bars), using 9–60 observations per group. Solid lines represent a fit of the experimental data to a nonlinear maximum-effect model or linear regression. v, transport velocity; [S], substrate concentration.
Next, we found that OCTN1-mediated transport of cytarabine was highly sensitive to a 10- to 50-fold molar excess of cytarabine, its structurally related endogenous nucleoside, 2′-deoxycytidine, or the classic nucleoside transporter inhibitors, NBMPR and dipyridamole (Fig. 3A). The transport of cytarabine could also be inhibited by NBMPR in the Sus scrofa epithelial kidney cell line PK15 (34), Flp-In 293 cells engineered to overexpress OCTN1, and several AML cell lines (Fig. 3B). However, cytarabine transport was insensitive to the presence of the known OCTN1 substrates ergothioneine and TEA, or to the known OCTN1 inhibitor cimetidine (Fig. 3A; ref. 35). The notion that compounds such as ergothioneine and TEA do not competitively inhibit cytarabine transport suggests the possible existence of a substrate recognition site on OCTN1 for cytarabine that is distinct from that used by ergothioneine and other low molecular weight cations. This is consistent with the observation that even high micromolar concentrations of NBMPR did not inhibit OCTN1-mediated transport of ergothioneine in HEK293 cells or in human primary epidermal keratinocytes (Fig. 3C), cells that are known to take up nucleosides such as cytarabine and clofarabine (36), and that functionally express OCTN1 (37). Further examination in HEK293 cells revealed that the NBMPR- and dipyridamole-mediated inhibition of cytarabine transport by OCTN1 was associated with low nanomolar IC50 values (Fig. 3D), which are in the same range as levels required to inhibit ENT1 function or cytarabine uptake in human myeloblasts (38).

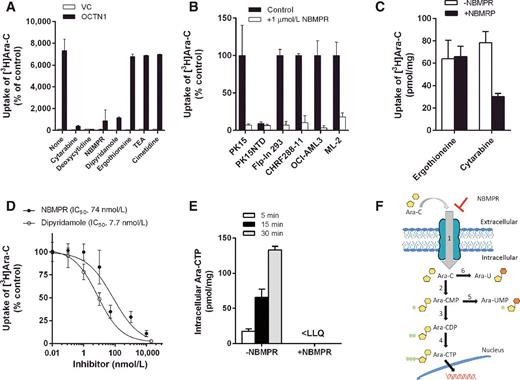

Inhibition of OCTN1-mediated cytarabine transport. A, Characterization of the transport of cytarabine (Ara-C; concentration, 1 μmol/L; 5-minute uptake) in the absence or presence of putative OCTN1 inhibitors (concentration, 10–50 μmol/L) was performed in HEK293 cells, transfected with an VC or OCTN1. B and C, Influence of NBMPR on the transport of cytarabine in various cell lines (B) and primary human epidermal keratinocytes (C). D, Concentration-dependence of the inhibitory properties of NBMPR and dipyridamole on OCTN1-mediated transport of cytarabine was assessed over a 0.01–10 μmol/L concentration range (5-minute uptake). E, The time-dependent influence of NBMPR (10 μmol/L) on the formation of the pharmacologically active metabolite cytarabine triphosphate (Ara-CTP) in cells exposed to cytarabine (10 μmol/L; 5- to 30-minute uptake) was determined by LC/MS-MS. Data are shown as mean values (bars or symbols) and SEM (error bars), using 6–15 observations per group. Solid lines represent a fit of the experimental data to an inverse nonlinear maximum-effect model (D). IC50, concentration required to inhibit OCTN1-mediated cytarabine transport by 50%; <LLQ, lower than the lower limit of quantitation of the analytic assay. A schematic of OCTN1-mediated transport, metabolism, and (in)activation of cytarabine in cells is shown in F. 1, NBMPR-sensitive transport by OCTN1; 2, deoxycytidine kinase; 3, deoxycytidine monophosphate kinase; 4, nucleoside diphosphate kinase; 5, cytoplasmic 5′-nucleotidase; 6, cytidine deaminase.
Inhibition of OCTN1-mediated cytarabine transport. A, Characterization of the transport of cytarabine (Ara-C; concentration, 1 μmol/L; 5-minute uptake) in the absence or presence of putative OCTN1 inhibitors (concentration, 10–50 μmol/L) was performed in HEK293 cells, transfected with an VC or OCTN1. B and C, Influence of NBMPR on the transport of cytarabine in various cell lines (B) and primary human epidermal keratinocytes (C). D, Concentration-dependence of the inhibitory properties of NBMPR and dipyridamole on OCTN1-mediated transport of cytarabine was assessed over a 0.01–10 μmol/L concentration range (5-minute uptake). E, The time-dependent influence of NBMPR (10 μmol/L) on the formation of the pharmacologically active metabolite cytarabine triphosphate (Ara-CTP) in cells exposed to cytarabine (10 μmol/L; 5- to 30-minute uptake) was determined by LC/MS-MS. Data are shown as mean values (bars or symbols) and SEM (error bars), using 6–15 observations per group. Solid lines represent a fit of the experimental data to an inverse nonlinear maximum-effect model (D). IC50, concentration required to inhibit OCTN1-mediated cytarabine transport by 50%; <LLQ, lower than the lower limit of quantitation of the analytic assay. A schematic of OCTN1-mediated transport, metabolism, and (in)activation of cytarabine in cells is shown in F. 1, NBMPR-sensitive transport by OCTN1; 2, deoxycytidine kinase; 3, deoxycytidine monophosphate kinase; 4, nucleoside diphosphate kinase; 5, cytoplasmic 5′-nucleotidase; 6, cytidine deaminase.
The formation of Ara-CTP in HEK293 cells overexpressing OCTN1 increased in a time-dependent manner, and could be completely prevented by NBMPR (Fig. 3E), suggesting that its mechanism of interaction involves a restriction of cytarabine access to the intracellular compartment (Fig. 3F). In contrast, the presence of MK571, an inhibitor of ATP-binding cassette transporters involved in the cellular efflux of cytarabine and its monophosphorylated metabolite Ara-CMP (39), did not substantially influence the extent of radioactivity accumulating following a 5-minute exposure of OCTN1-expressing HEK293 cells to cytarabine (Supplementary Fig. S2A). The lack of substantial efflux occurring during the experimental conditions applied was confirmed by measuring the time-course of extracellular cytarabine–derived radioactivity after loading of cells with cytarabine (Supplementary Fig. S2B).
OCTN1 expression in myeloid cells affects cytarabine uptake
Before evaluating the contribution of OCTN1 to cytarabine transport in AML cells, we confirmed that SLC22A4 was present on AML blasts, and found that it was highly variable between patients and among different AML subtypes (Fig. 4A). Moreover, the OCTN1 protein was expressed in a majority of commonly used AML cell lines (Fig. 4B). We next compared the uptake of cytarabine in one of these cells lines with reduced OCTN1 expression after siRNA. Compared with cells transfected with a nontargeting control siRNA, partial silencing of OCTN1 resulted in significantly decreased uptake of cytarabine (Fig. 4C). These results are consistent with the involvement of OCTN1 as an uptake transporter of cytarabine that can confer drug sensitivity in AML cells.

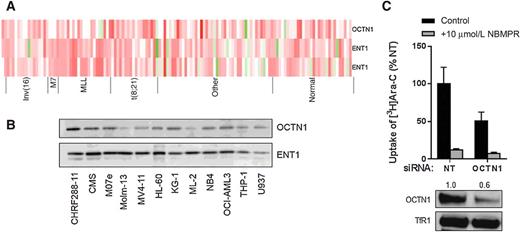

Influence of OCTN1 on cytarabine uptake in AML cells. A, Gene expression of OCTN1 and ENT1 (two probe sets) in primary AML blast samples from pediatric patients used in the survival analysis shown in Fig. 1A and B, as determined by microarray analysis. Each column represents an individual primary sample, and columns are categorized by cytogenetic AML subtypes of prognostic relevance. B, Protein expression of OCTN1 in a panel of 12 AML cell lines. C, Cellular uptake of cytarabine (Ara-C; 1 μmol/L; 5-minute uptake) with or without NBMPR preincubation was measured in OCI-AML3 cells, 48 hours after transfection with a nontargeting (NT) control siRNA or a siRNA-targeting OCTN1. Results are shown as cytarabine uptake as compared with cells transfected with NT siRNA. Data are representative of two independent experiments done in triplicate. OCTN1 protein expression was determined by Western blot analysis from membrane extraction of OCI-AML3 cells 48 hours posttransfection, and the transferrin receptor served as loading control. The relative expression difference of OCTN1 after RNAi is indicated by the numbers above the lanes.
Influence of OCTN1 on cytarabine uptake in AML cells. A, Gene expression of OCTN1 and ENT1 (two probe sets) in primary AML blast samples from pediatric patients used in the survival analysis shown in Fig. 1A and B, as determined by microarray analysis. Each column represents an individual primary sample, and columns are categorized by cytogenetic AML subtypes of prognostic relevance. B, Protein expression of OCTN1 in a panel of 12 AML cell lines. C, Cellular uptake of cytarabine (Ara-C; 1 μmol/L; 5-minute uptake) with or without NBMPR preincubation was measured in OCI-AML3 cells, 48 hours after transfection with a nontargeting (NT) control siRNA or a siRNA-targeting OCTN1. Results are shown as cytarabine uptake as compared with cells transfected with NT siRNA. Data are representative of two independent experiments done in triplicate. OCTN1 protein expression was determined by Western blot analysis from membrane extraction of OCI-AML3 cells 48 hours posttransfection, and the transferrin receptor served as loading control. The relative expression difference of OCTN1 after RNAi is indicated by the numbers above the lanes.
Interestingly, we recently reported that the presence of a functional polymorphic germline variant in SLC22A4 (rs1050152; c.1507C>T; L503F; ref. 40) is significantly correlated with febrile neutropenia, the major dose-limiting toxicity of cytarabine, in a cohort of 164 pediatric patients with AML receiving cytarabine-based therapy (41). Expression of this mutant OCTN1 in HEK293 cells (Supplementary Fig. S3A and S3B) revealed that, compared with the reference OCTN1, this variant is associated with increased transport of TEA and increased formation of Ara-CTP after exposure to cytarabine (Supplementary Fig. S3C and S3D). This finding is consistent with the contention that OCTN1 transports cytarabine into normal bone marrow and blood cells where it is phosphorylated, that these phosphorylated metabolites accumulate in these cells, and produce dose-limiting hematologic toxicities.
Role of OCTN1 in cellular sensitivity to nucleoside analogues
Previous investigations demonstrated that certain antiviral nucleosides, including azidothymidine, ganciclovir, and acyclovir, as well as the anticancer nucleosides 2-chloro-2′-deoxyadenosine (cladribine) and cytarabine itself, can be transported to a moderate extent (1.5 to 4-fold vs. control cells) by other SLC22A family members that show similarity to OCTN1, such as rat OCT1 (SLC22A1; refs. 42, 43). In heterologous expression models analogous to the one developed for OCTN1, we found, however, that cytarabine was not a transported substrate of the human organic cation transporters OCT1, OCT2 (SLC22A2), and OCT3 (SLC22A3; Supplementary Fig. S4A), or the carnitine transporter OCTN2 (SLC22A5; Supplementary Fig. S4B). This suggests that OCTN1 may be unique among human SLC22A family of transporters in its ability to interact with cytarabine.
To evaluate the selectivity of OCTN1 for the transport of nucleoside analogues, we initially performed pharmacologic profiling of the NCI60 cell panel, which comprises 60 different human tumor cell lines, representing leukemia, melanoma, and cancers of the lung, colon, brain, ovary, breast, prostate, and kidney. The 60–cell line dose response produced by a given compound results in a biological response pattern that can be utilized in a recognition algorithm known as COMPARE. Applying this algorithm on 118 well-characterized anticancer drugs, Pearson correlation coefficients (R) were calculated for assessment of OCTN1–drug relationships. Using a cutoff R > 0.25, corresponding to P < 0.03, we found that the cytotoxicity of 18 anticancer drugs of different classes was statistically significantly associated with OCTN1 expression (Fig. 5A). Among these were 8 antimetabolites, including FDA-approved nucleoside analogues (fludarabine, decitabine, and cytarabine), nucleoside dialdehyde derivative (inosine dialdehyde), and nucleobase analogues (ftorafur and fluorouracil). Confirmatory validation studies performed in our transfected HEK293 cells revealed that OCTN1 can transport a remarkably broad range of nucleosides with variable efficiency, primarily depending on the 2′ and 5′ sugar positions, including all tested antimetabolites identified as hits in our COMPARE analysis (Fig. 5B).

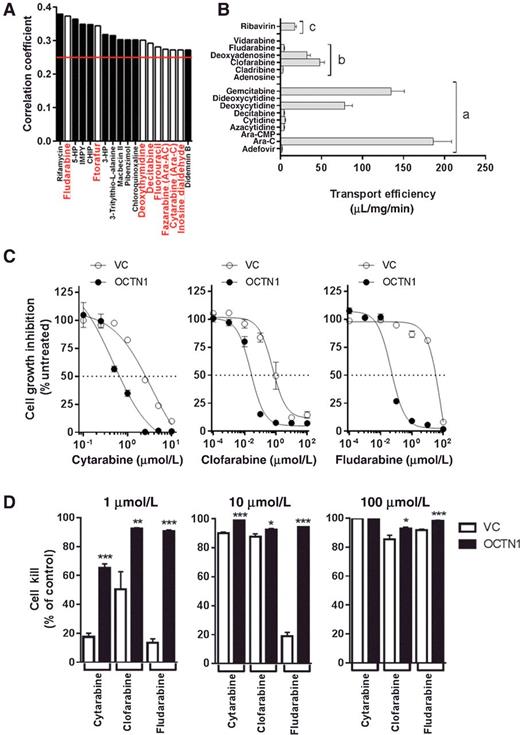

Transport of nucleosides by OCTN1. A, Expression of OCTN1 was evaluated in the NCI60 cancer cell line panel, and rank-ordered by observed correlation coefficients (R) between gene expression and cytotoxic potencies of 118 drugs (antimetabolites are in red bold and underlined). Compounds (N = 18) with positive values of R > 0.25 (indicated by red bar) and corresponding to P < 0.03 are shown. B, The transport of nucleoside analogues (concentration, 1 μmol/L; 5-minute uptake; 9–30 observations per group) by OCTN1 was further evaluated in transfected HEK293 cells. Bars represent normalized transport divided by substrate concentration. a, cytidine analogues; b, adenosine analogues; c, guanosine analogue. The contribution of OCTN1 to nucleoside-induced cytotoxicity was evaluated in HEK293 cells transfected with OCTN1 or VC after continuous drug exposure, followed by CellTiter-Glo analysis at 72 hours (12 observations per concentration, per group) with increasing concentrations (C) and at low (1 μmol/L), intermediate (10 μmol/L), and high doses (100 μmol/L; D). Data are shown as mean values (bars or symbols) and SEM (error bars). Solid lines represent a fit of the experimental data to an inverse nonlinear maximum-effect model. *, P < 0.03; **, P < 0.003; *** P < 0.0001.
Transport of nucleosides by OCTN1. A, Expression of OCTN1 was evaluated in the NCI60 cancer cell line panel, and rank-ordered by observed correlation coefficients (R) between gene expression and cytotoxic potencies of 118 drugs (antimetabolites are in red bold and underlined). Compounds (N = 18) with positive values of R > 0.25 (indicated by red bar) and corresponding to P < 0.03 are shown. B, The transport of nucleoside analogues (concentration, 1 μmol/L; 5-minute uptake; 9–30 observations per group) by OCTN1 was further evaluated in transfected HEK293 cells. Bars represent normalized transport divided by substrate concentration. a, cytidine analogues; b, adenosine analogues; c, guanosine analogue. The contribution of OCTN1 to nucleoside-induced cytotoxicity was evaluated in HEK293 cells transfected with OCTN1 or VC after continuous drug exposure, followed by CellTiter-Glo analysis at 72 hours (12 observations per concentration, per group) with increasing concentrations (C) and at low (1 μmol/L), intermediate (10 μmol/L), and high doses (100 μmol/L; D). Data are shown as mean values (bars or symbols) and SEM (error bars). Solid lines represent a fit of the experimental data to an inverse nonlinear maximum-effect model. *, P < 0.03; **, P < 0.003; *** P < 0.0001.
The newly identified OCTN1 substrates include endogenous nucleosides (e.g., 2′-deoxycytidine) and xenobiotic cytidine analogues (e.g., gemcitabine), adenosine analogues (e.g., clofarabine and fludarabine), and guanosine analogues (e.g., ribavirin; Supplementary Fig. S5). Among the tested nonnucleoside antimetabolites, we found that compared with xenobiotic nucleosides, OCTN1 demonstrated modest transport of fluorouracil (6.5-fold vs. control), but this was not observed for hydroxyurea (1.1×), mercaptopurine (1.3×), methotrexate (1.1×), or a host of anticancer drugs from other therapeutic classes (Supplementary Fig. S6). It should be pointed out that a previous investigation that correlated the expression patterns of SLC transporters (including SLC22A4) with growth inhibition data for 1,429 compounds in the NCI60 cell line panel failed to identify cytarabine as a hit (30). The reasons underlying these discrepant findings are not entirely clear, but they may relate to differences in the experimental models and specific conditions applied to the COMPARE analysis.
In addition to increasing accumulation of multiple xenobiotic nucleosides, overexpression of OCTN1 in HEK293 cells was associated with increased sensitivity to cytarabine and other related nucleoside analogues, used in the treatment of AML (Fig. 5C), including clofarabine (44) and fludarabine (45). In particular, we observed that the IC50 values decreased from 2.57 to 0.66 μmol/L (3.9-fold increased sensitivity) for cytarabine, from 0.82 to 0.028 μmol/L (29-fold) for clofarabine, and from 34 to 0.056 μmol/L (608-fold) for fludarabine, respectively. These findings are consistent with the ability of HEK293 cells to activate nucleosides through phosphorylation (Fig. 3E), and confirm that OCTN1 can sensitize cells to xenobiotic nucleoside analogues. Likewise, we observed that deficiency in OCTN1 expression could be overcome at intermediate (10 μmol/L) and high (100 μmol/L) doses of cytarabine and related nucleoside analogues (Fig. 5D). Although the mechanism(s) of drug uptake under these conditions require further investigation, these findings are consistent with the observed Km value of 1.95 μmol/L, where at higher concentrations OCTN1 is saturated and not contributing to mechanisms of uptake.
Collectively, our findings indicate that OCTN1, a transporter thought to function primarily as a carrier of ergothioneine, can facilitate the intracellular accumulation of cytarabine, a prerequisite to drug-induced antileukemic activity. These results identified OCTN1 as an important, previously unrecognized, contributor to the cellular uptake and efficacy of cytarabine, and this process may be relevant for other related nucleoside analogues used in the treatment of AML, such as clofarabine and fludarabine. Our results also suggest a role of OCTN1 in cellular sensitivity to a range of nucleoside analogues with broad implications to additional diseases.
