The tumor microenvironment is highly heterogeneous. For gliomas, the tumor-associated inflammatory response is pivotal to support growth and invasion. Factors of glioma growth, inflammation, and invasion, such as the translocator protein (TSPO) and matrix metalloproteinases (MMP), may serve as specific imaging biomarkers of the glioma microenvironment. In this study, noninvasive imaging by PET with [18F]DPA-714 (TSPO) and [18F]BR-351 (MMP) was used for the assessment of localization and quantification of the expression of TSPO and MMP. Imaging was performed in addition to established clinical imaging biomarker of active tumor volume ([18F]FET) in conjunction with MRI. We hypothesized that each imaging biomarker revealed distinct areas of the heterogeneous glioma tissue in a mouse model of human glioma. Tracers were found to be increased 1.4- to 1.7-fold, with [18F]FET showing the biggest volume as depicted by a thresholding-based, volumes of interest analysis. Tumor areas, which could not be detected by a single tracer and/or MRI parameter alone, were measured. Specific compartments of [18F]DPA-714 (14%) and [18F]BR-351 (11%) volumes along the tumor rim could be identified. [18F]DPA-714 (TSPO) and [18F]BR-351 (MMP) matched with histology. Glioma-associated microglia/macrophages (GAM) were identified as TSPO and MMP sources. Multitracer and multimodal molecular imaging approaches may allow us to gain important insights into glioma-associated inflammation (GAM, MMP). Moreover, this noninvasive technique enables characterization of the glioma microenvironment with respect to the disease-driving cellular compartments at the various disease stages. Cancer Res; 77(8); 1831–41. ©2017 AACR.
Gliomas are highly dynamic, complex, and heterogeneous tissues in which cancer cells themselves stimulate their proliferation, neoangiogenesis, and immune escape to serve their microenvironment (1). In particular, tumor-associated inflammation has been linked to angiogenesis, metastatic potential, and poor prognosis in patients (2). An abundant number of microglia/macrophages are recruited into the tumor, and growing evidence demonstrates that glioma-associated microglia/macrophages (GAM) contribute to glioma growth and invasion, angiogenesis, and immune suppression and represent a pivotal target for therapy (1, 3). In order to better understand the role of glioma-associated inflammation on tumor progression and to follow its impact during treatment, new imaging approaches are crucial to characterize the inflammatory component of the tumor microenvironment. This is even more important in view of new therapeutic approaches for glioma treatment, requiring imaging approaches to allow noninvasive assessment of treatment efficacy and follow-up, as well as detection of a potential therapy-induced switch from a proliferative to an invasive glioma phenotype (4).
Most glioma cells express the 18 kDa translocator protein TSPO. Different studies demonstrated a positive correlation between TSPO expression and grade of malignancy and a negative correlation with survival (5, 6). Within the heterogeneous glioma tissue, different cell types, neoplastic cells, GAMs, and astrocytes also express TSPO (7, 8). Among the current (pre-)clinical PET tracers targeting TSPO, the second-generation tracer, N,N-diethyl-2-(2-(4-(2-[18F]fluoroethoxy)phenyl)-5,7-dimethylpyrazolo[1,5-a]pyrimidin-3-yl)acetamide ([18F]DPA-714) has been validated in several models of glioma (7–9) and other neurological diseases (10, 11). Besides being an excellent marker for glioma growth and infiltration, [18F]DPA-714 has shown promise for the detection of GAM activation (8, 12).
Another target for imaging of gliomas are matrix metalloproteinases (MMP). MMPs have been linked to increased cell proliferation, tumor invasion, migration, and poor prognosis in glioma patients (5, 13, 14). Moreover, MMPs facilitate microglia-mediated glioma invasion (15), as for example invasion of glioma cells is reduced in cultured brain slices in the absence of microglia cells (16) or promoted through the increase of MMP-2 expression and activity (17). Besides that MMPs affect the neuroinflammatory milieu by modulating the expression and activity of chemokines, inflammatory cytokines, growth factors, receptor turnover, and by affecting cellular migration (18).
For imaging of activated MMPs, the radiofluorinated MMP inhibitor (R)-2-(N-benzyl-4-(2-[18F]fluoroethoxy)phenylsulphonamido)-N-hydroxy-3-methylbutanamide ([18F]BR-351), a derivative of CGS 25966, has successfully been used for PET imaging of microglia-derived MMPs in a model of ischemic stroke (10). [18F]BR-351 effectively binds to the activated forms of MMP-2, -8, -9, and -13, whereas the latent forms of MMPs are not recognized (19).
Here, we used noninvasive PET imaging of TSPO and MMPs in a mouse model of human orthotopic glioma aiming at detecting specific molecular patterns of glioma pathogenesis in vivo. Tumor growth, tumor-associated microglial activation, and MMP activation were studied and related to MRI and PET together with O-(2-[18F]fluoroethyl)-L-tyrosine ([18F]FET) (20) as the clinical imaging biomarker for assessing glioma extent. The aim of this study was to investigate the combined use of [18F]DPA-714 and [18F]BR-351 as new PET imaging biomarkers of tumor cell signals and the tumor microenvironment. The hypothesis of the study was that each imaging biomarker reveals distinct areas of glioma activity within the heterogeneous glioma tissue.
Materials and Methods
A multitracer, multimodality approach was used to investigate the feasibility to image TSPO and active MMPs in relation to tumor growth in a mouse model of human glioma.
All experiments were conducted in accordance with the German Law on the Care and Use of Laboratory Animals and approved by the Landesamt für Natur, Umwelt und Verbraucherschutz of North Rhine-Westphalia and the ARRIVE guidelines (https://www.nc3rs.org.uk/arrive-guidelines; ref. 21).
Female NMRI nu/nu mice (Janvier, France), 8 to 11 weeks old, were housed at constant temperature (23°C) and relative humidity (40 %) under a regular light/dark schedule. Food and water were available ad libitum.
In total, n = 27 mice were orthotopically (intra-striatal injection, coordinates in relation to bregma: lateral −2.0 mm, anterior–posterior +0.5 mm, dorsal–ventral −3.0 mm) implanted with 2 × 105 human Gli36dEGFR-LITG cells in 2 μL PBS. As controls, sham animals (n = 6) were injected with 2 μL of PBS only. During anesthesia, body temperature was maintained at physiological level with a custom built heating pad. Mice were imaged 12 to 14 days after orthotopic implantation of glioma cells. First, T2-weighted (T2w) MRI was conducted at day 12 post-implantation, followed by PET acquisition with [18F]DPA-714 on the same day and [18F]BR-351, and [18F]FET on consecutive days (days 13 and 14, respectively; Sequence 1).
A subgroup of mice (n = 4) was imaged first with T2w MRI and [18F]FET on the same day, followed by [18F]BR-351 and [18F]DPA-714 on consecutive days (Sequence 2; Supplementary Fig. S1). All imaging experiments were performed within 48 hours.
[18F]DPA-714, [18F]BR-351, and [18F]FET PET, as well as T2w MRI data were available in the same animal. All mice with successful multimodal imaging were included in the data (n = 20).
Gli36dEGFR glioma cells were obtained from Dr. David Louis (Molecular Neurooncology Laboratory, Massachusetts General Hospital, Boston, MA; refs. 22, 23). Glioma cells were carefully cultured and observed. Tumor cells displayed typical growth patterns and phenotypes in vitro and in vivo. The cells were not further genetically authenticated. Cells were cultured as adherent monolayer in DMEM (life Technologies) with high glucose and GlutaMAX (Gibco) supplemented with 10% FBS (Invitrogen), and 1% penicillin/streptomycin (PAA Laboratories) at 37°C in a 5% CO2/95% air atmosphere.
[18F]DPA-714 was prepared following the procedure described in the literature with a radiochemical purity of 99% and a decay corrected radiochemical yield (rcy) of 17.7 ± 8 % (24). The synthesis and quality control of [18F]BR-351 was performed as described previously (19). [18F]BR-351 had a radiochemical purity of 95.5% and a rcy of 7.0 ± 3.4 % due to a small impurity that could not be separated during the last HPLC purification step. [18F]FET was prepared as described previously with a radiochemical purity of 99% and rcy of 23.9 ± 4.3% (25). [18F]DPA-714, [18F]FET, and [18F]BR-351 were formulated in saline/EtOH 17/3 (v/v), water for injection/citrate-puffer/EtOH 19/4/1 (v/v/v) and saline/EtOH 9/1 (v/v), respectively.
During all experimental procedures, mice were anesthetized with 1.5% to 2% isoflurane (Abbott Animal Health) in 100% O2. Mice were subjected to PET imaging using the radiotracers [18F]DPA-714, [18F]BR-351, and [18F]FET for assessment of TSPO expression, MMP activity, and amino acid transport, respectively. PET images were acquired on a high-resolution small animal PET scanner (32 module quadHIDAC, Oxford Positron Systems Ltd.) with uniform spatial resolution (<1 mm FWHM). PET data were reconstructed using one-pass list mode expectation maximization algorithm with resolution recovery (26). [18F]DPA-714 PET images were acquired 45 to 75 minutes post-intravenous injection of 17.7 ± 2.6 MBq [18F]DPA-714. [18F]BR-351 PET images were acquired 95 to 110 minutes post-intravenous injection of 22.4 ± 2.7 MBq [18F]BR-351. [18F]FET PET images were acquired 20 to 30 minutes post-intravenous injection of 10.7 ± 0.7 MBq of [18F]FET (7, 8, 10, 27). After each PET acquisition, the animal bed was transferred into the computed tomography (CT) scanner (Inveon, Siemens Medical Solutions) for anatomic coregistration with the PET images using the image analysis software VINCI (Version: 4.19.0; http://www.nf.mpg.de/vinci3/; refs. 10, 28).
A three step coregistration regimen was applied to assure exact image coregistration. First, PET and CT images were coregistered employing three molecular sieve spheres, (Acros Organics; two on the left side and one at the right side of the animal bed), rinsed in radiotracer solution and taped onto the animal bed, being visible on CT and PET images. The automated “Landmark tool” was used to superimpose CT images to PET images. The “Magic tool” was further applied to correct for minor mismatches (Step 1, Supplementary Fig. S2). Second, CT images were coregistered to MR images using the “Contour-“ and “Fusion-tool” provided by the VINCI software, assisting in delineating the skull and bone of the mice. Several anatomic landmarks were used as quality measures of coregistration: the paraflocculus region (MR) and its respective bone structure (CT), the temporomandibular joint region, the sphenoidal bone, the bulbus olfactorius region, and the lambda region (thickening of the skull dividing the visual cortex from midbrain and cerebellum on top of the inferior colliculus; Step 2, Supplementary Fig. S2). The reslicing parameters of the CT were transferred to the PET, resulting in fused PET-MR images (Step 3, Supplementary Fig. S2). A thorough quality check of image registration in all 3 image planes was performed after PET/CT/MR coregistration. The quality of coregistration was judged and confirmed by three independent experts in the field (B. Zinnhardt, A. Winkeler, and A.H. Jacobs).
MRI was performed with a 9.4 T small animal MR scanner (Bios-Spec 94/20; BrukerBioSpin MRI GmbH). The system was operated using the software ParaVision 5.1. Anatomical 2D T2w rapid acquisition with relaxation enhancement (RARE) brain images were obtained with a helium-cooled Cryoprobe (BrukerBioSpin MRI GmbH) in three imaging planes (TR 3000-5500 ms, TE 50 ms, Rare factor 16, 6 averages, 14–28 contiguous slices, slice thickness 0.5 mm, field of view 20 mm², 256 matrix, in plane resolution 78 μm², scan time 5–9 minutes, respectively). MRI was conducted for identification of glioma location, and coregistration to PET images.
Image data were analyzed using the in-house developed software MEDgical. Two different volumes of interest (VOI) were defined: (i) an elliptical control VOI covering the striatum (volume 6 mm³) was drawn on the axial MR images and adjusted on the other imaging planes. This control VOI was reused for every mouse; (ii) a second glioma-covering elliptical VOI (volume 45 mm³) was drawn in the tumor-affected brain hemisphere, excluding the cerebellum. For quantification, a thresholding approach was applied by multiplying the standard deviation of the control VOI by a factor of 2.5. The resulting counts were added to the mean values of the control region. This was used as minimal threshold level of the affected hemisphere and calculated for all three tracers individually (Supplementary Fig. S3). Tumor-to-background ratios (T/B) were calculated between the glioma VOI (mean and max values) and the contralateral control VOI (mean values). The control VOI constituted a standardized elliptical VOI placed over the left striatum (Supplementary Fig. S3). For volumetric analysis, the resulting volumes of [18F]DPA-714 and [18F]BR-351 were compared with the clinical standard [18F]FET biomarker. First, the combined tracer volumes (union) of [18F]DPA-714 with [18F]FET and [18F]BR-351 with [18F]FET were calculated using the MEDgical software tool. Based on the union of the two tracer volumes the percentage of overlap was calculated. In a next step, the exclusive [18F]DPA-714 and [18F]BR-351 uptake volumes were calculated by subtracting the overlapping volumes of [18F]FET∩[18F]DPA-714 and [18F]FET∩[18F]BR-351 from the total [18F]DPA-714 or [18F]BR-351 signal volume, respectively. The volumetric data were further analyzed comparing the two different sequences of the multitracer approach for assessment of tumor growth effects on volumetry (Supplementary Fig. S4). The intrarater test–retest reproducibility of coregistration was investigated by repeated coregistration on two repeated coregistrations (coreg2 and coreg3) and compared with the initial coregistration procedure (coreg1) in an exemplary set of n = 6 mice for the relation of [18F]DPA-714 and [18F]FET (Supplementary Fig. S5).
After the last imaging examination, mice were sacrificed and perfused with 0.9% NaCl and 4% paraformaldehyde. Brains were fixed and embedded in paraffin. The sections were incubated over night with antibodies for microglia (1:2,000, goat anti-Iba-1, ab107159, Abcam), MMP-9 (1:200, rabbit anti-mouse MMP-9, ab38889, Abcam), and TSPO (1:250, rabbit, anti TSPO, NBP1-95674, Novus Biologicals). Immunohistochemistry for human and murine TSPO was done using the Vector M.O.M. Immunodetection Kit (Vector Laboratories), the specific anti-human TSPO antibody Mab 8D7 (1:500, generously provided by Dr. E. Bribes of Sanofi-Aventis, France; ref. 29) and the specific anti-murine TSPO antibody (1:1,000, generously provided by Dr. M. Higuchi, NIRS, Japan), in 0.5% PBS-TWEEN with 5% BSA for 1 hour at room temperature, followed by incubation with Alexa Fluor 488-conjugated anti-rabbit secondary antibody (1:800, A-21206, Life Technologies), or Alexa Fluor 555 conjugated anti-goat (1:800, A-21432, Life Technologies). Nuclei were stained with DAPI (0.2 μg/mL in PBS, 6335.1, Roth). Conventional histology for TSPO and MMP-9 was performed using biotinylated goat anti-rabbit (1:800, B21078, Life Technologies), followed by HRP–streptavidin incubation (1:600, K1016, DAKO). The staining was visualized by incubation with 3,3-diaminobenzidine (D-5637, Sigma). Images were acquired with a combined fluorescence-light microscope (Nikon Eclipse NI-E, Nikon).
Mice were transcardially perfused with ice-cold PBS to get rid of excess blood for 2 minutes; brains were immediately harvested afterward. Subsequently, the tumor and the contralateral hemisphere were dissected and snap frozen in liquid nitrogen. The samples were homogenized in a cooled micro dismembrator (Sartorius). Tissue extracts were incubated for 10 minutes in lysis buffer (50 mmol/L TRIS-HCl, 75 mmol/L NaCl, 1 mmol/L phenylmethylsulfonyl fluoride) and centrifuged (4°C, 20 minutes, 1,3000 rpm). An 8% sodium dodecyl sulfate gel containing 0.1% fish skin gelatin (Sigma Aldrich) was prepared. Ten micrograms of total protein were loaded on the gel. Samples were stacked for 20 minutes at 60 V followed by 2 hours at 125 V. The gel was washed in 2.5% Triton-X (30 minutes, room temperature), followed by incubation over night with zymogram developing buffer [50 mmol/L Tris-HCl, 0.2 mol/L NaCl, 5 mmol/L CaCl2, 0.02% Brij 35, in distilled and deionized water (AD)]. The zymogram was stained (1 g Coomassie blue, 90 mL methanol, 20 mL acetic acid, 90 mL AD, 2 hours) and destained (50% methanol, 10% acetic acid, 40% AD, 15 minutes).
In situ zymography
Brains (n = 2) were harvested and 15 μm cryosections of the affected brains were sliced. After drying (30 minutes), slices were preincubated with 1× buffer (5 minutes, EnzChek, Life Technologies), and further incubated in a humidified chamber (8 hours, 37°C) with 10× in situ zymography reaction buffer (EnzChek), 7× MMP inhibitor (MMPi; cOmplete, Roche), fish skin gelatin (1 mg/mL), and DQ gelatin (EnzChek) in AD. Slices were mounted in DAPI containing mounting medium (Vectashield, H-1500, Vector Laboratories). As controls, slides were additionally incubated with 10 mmol/L of the broad spectrum MMP inhibitor 1,10-phenanthroline (EnzChek) in zymography reaction buffer to block MMP-derived gelatinolytic activity (30).
All statistical analyses were performed using Sigma Plot 13.0 software package (Systat Software). All comparisons were tested for normality and variance homogeneity using the Sigma Plot software. Differences in radiotracer uptake ratios between experimental and sham animals were tested using a t test, eventually followed by Mann–Whitney U test on ranks. The inter-hemispheric difference in the sham group was analyzed using paired t tests. Differences in tracer signal volumes and intrarater coreproducibility were tested using a one way repeated measures ANOVA (RM ANOVA), followed by pairwise multiple comparisons using the Holm–Sidak method. Differences between the two groups of different tracer sequences were tested by a one-way ANOVA. Data are shown in Tukey box plots and bar graphs. Significance levels were set at P < 0.05.
[18F]DPA-714, [18F]BR-351, and [18F]FET uptake is increased within and around the glioma

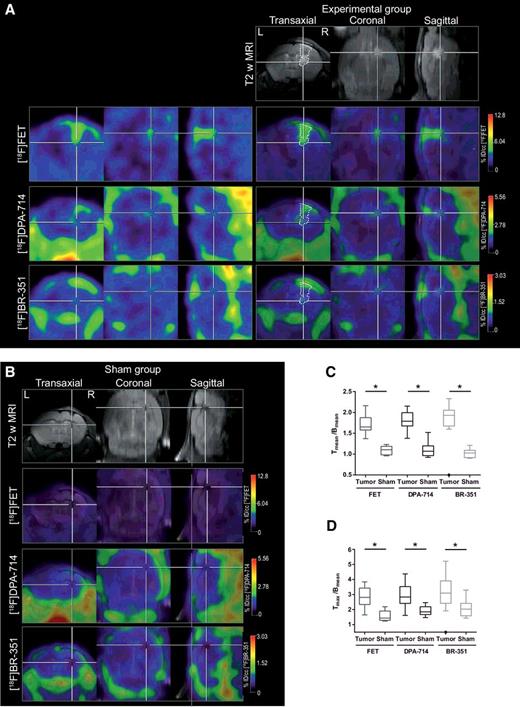

Multimodality imaging in a mouse model of glioma for TSPO, MMPs, and amino acid transport revealed increased uptake of all three tracers within and around the tumor as compared with the healthy brain (Fig. 1A). Tumor-to-background (Tmean/Bmean; Fig. 1C), as well as maximum tumor to mean background (Tmax/Bmean) ratios (Fig. 1D) of all three radiotracers were increased.
[18F]FET signal exceeded the hyperintense tumor area as depicted by T2w MRI. T/B uptake ratios for [18F]FET were also increased compared with sham animals (Tmean/Bmean: 1.71± 0.21; Tmax/Bmean 2.87 ± 0.65, t test, P < 0.05 vs. Tmean/Bmean: 1.09 ± 0.11; Tmax/Bmean 1.57 ± 0.37; Fig. 1). [18F]DPA-714 uptake was located within the tumor and adjacent brain parenchyma. Comparison of [18F]DPA-714 T/B ratios with sham operated animals showed significantly increased uptake (Tmean/Bmean: 1.82 ± 0.21; Tmax/Bmean 2.98 ± 0.73, t-test, P < 0.05 vs. Tmean/Bmean: 1.11 ± 0.21; Tmax/Bmean 1.91 ± 0.34).
[18F]BR-351 uptake was restricted to the core of the tumor lesion. [18F]BR-351 uptake was increased compared with sham animals (Tmean/Bmean: 1.83 ± 0.48; Tmax/Bmean 3.19 ± 1.19, t test, P < 0.05 vs. Tmean/Bmean: 1.02 ± 0.11; Tmax/Bmean: 2.09 ± 0.65). Within the experimental group, only one animal showed no detectable [18F]BR-351 uptake after application of the thresholding.
For all three tracers, sham operated animals did not show any tracer uptake around the lesion (L) in comparison with the contralateral hemisphere (B) (L/BDPA-714 1.11 ± 0.21; L/BBR-351 1.02 ± 0.11; L/BFET 1.09 ± 0.11; Fig. 1B and C).
Volumetric analysis and spatial comparison of tracer volumes
Based on the applied thresholding, the resulting volumes of [18F]DPA-714 and [18F]BR-351 were compared with the clinical standard [18F]FET biomarker, respectively (Fig. 2A).
[18F]FET signal showed the largest mean number of voxel (493.3 ± 134.3; RM ANOVA; P < 0.05) compared with [18F]DPA-714 (316.0 ± 105.4) and [18F]BR-351 (179.5 ± 131.5; Fig. 2B).

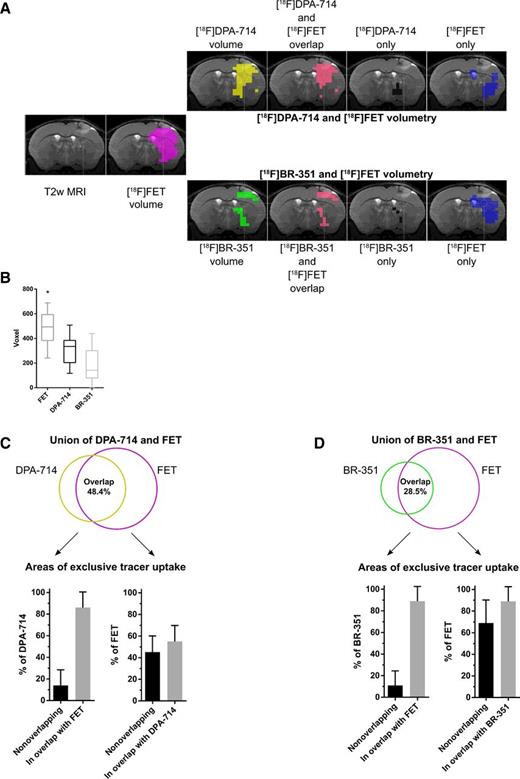

Comparison of the combination of both tracer volumes (union) of [18F]DPA-714 and [18F]FET uptake volumes showed an overlap of 48.4 ± 11.1% for both tracers.
In order to define volumes of exclusive tracer signal for [18F]DPA-714, the nonoverlapping regions of [18F]DPA-714 were further analyzed by subtracting the overlap of [18F]DPA-714 and [18F]FET from the total [18F]DPA signal. 14 ± 14.5% of the [18F]DPA-714 volumes were nonoverlapping with [18F]FET. 45.1 ± 15.0% of the [18F]FET volumes were nonoverlapping with [18F]DPA-714 (Fig. 2C).
The union of [18F]BR-351 derived signal together with the [18F]FET signal showed an overlap of 28.5 ± 18.0%. Calculation of exclusive [18F]BR-351 signal indicated 11 ± 13.5% of [18F]BR-351 signal as nonoverlapping with [18F]FET, whereas 68.8 ± 21.4% of [18F]FET was nonoverlapping with [18F]BR-351 (Fig. 2D). Areas of exclusive [18F]DPA-714 and [18F]BR-351 were observed at the outer borders of the tumor volume (Fig. 2A). No significant effect on volumetric parameters obtained could be observed when comparing the two different imaging sequences (Supplementary Fig. S4). Exemplary analysis of the volumetric relation of [18F]DPA-714 and [18F]FET to address possible intrarater variability did not reveal significant changes, except for the percentage of [18F]DPA-714 signal for one coregistration (coreg 1 vs. coreg 3: 11.0% ± 3.8 vs. 15.5% ± 5.5; RM ANOVA; P < 0.05; Supplementary Fig. S5).
Spatial agreement of radiotracers with histology

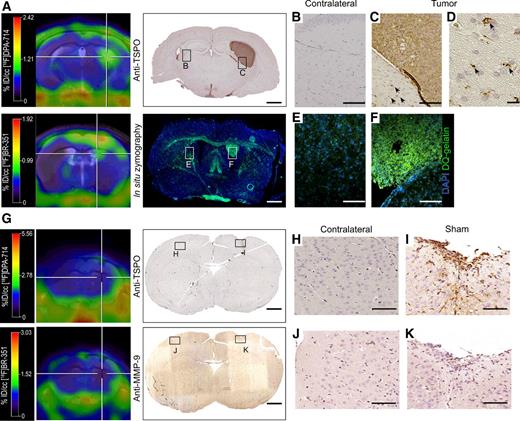

Comparison of [18F]DPA-714 and [18F]BR-351 showed spatial agreement of PET volumes with histology for TSPO and in situ zymography, respectively (Fig. 3A). Higher magnification images highlight TSPO reactivity arising from tumor cells (Fig. 3C). However, cells of extra-tumoral tissue also displayed TSPO immunoreactivity (Fig. 3C and D). In situ zymography signal resulting from gelatinolytic activity revealed MMP activity arising from the tumor tissue (Fig. 3E and F). Sham operated animals display minor TSPO and MMP-9 immunoreactivity along the injection tract (Fig. 3G–K).
Microglia as pivotal TSPO source in glioma

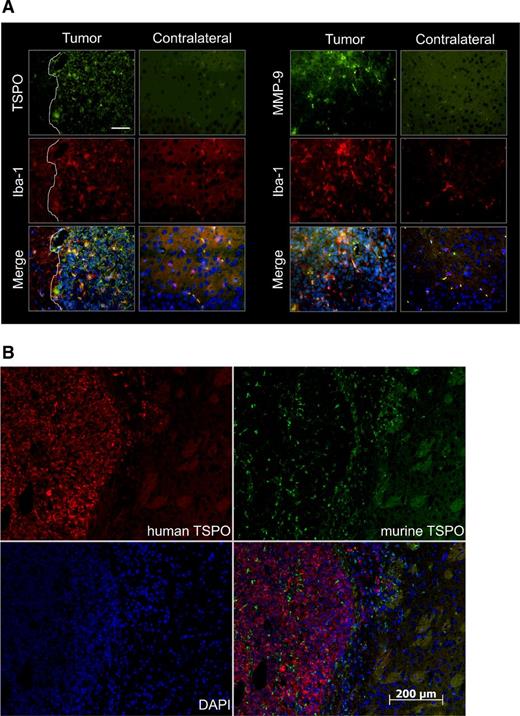

Double immunohistochemistry of TSPO and MMP-9 with Iba-1 (red) indicated infiltrating glioma-GAMs (red) as important source of TSPO and MMP expression, respectively (Fig. 4A). Specific human and murine antibodies against TSPO highlighted human TSPO, hence glioma cells, as important source of TSPO. A fraction of tumor infiltrating cells of murine origin, likely GAMs, also represent a significant source of TSPO (Fig. 4B).
Characterization of MMP activity

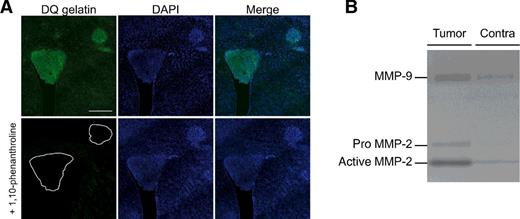

In situ zymography depicted gelatinolytic activity (green) arising from tumor cells (blue). Coincubation with the MMP-specific inhibitor 1,10-phenanthroline inhibited gelatinolytic activity within the tumor, suggesting MMP-specific gelatinolytic activity (Fig. 5A). In addition, gel zymography revealed upregulation of MMP-2 and MMP-9 (Fig. 5B).
This is the first in vivo study validating two new radiotracers targeting GAMs (TSPO) and MMP activation in comparison to the clinically established marker for endothelial amino acid transport ([18F]FET) in a murine model of glioma. [18F]DPA-714 uptake was increased in and around the MRI detectable glioma area (∼1.8-fold) mostly related to TSPO-expressing glioma cells. [18F]BR-351 uptake was mostly increased within the core of the tumor to a similar extent as DPA-714 (∼1.8-fold). [18F]FET showed the largest area with increased uptake (∼1.7-fold). Immunohistochemistry and zymography indicated that GAMs may serve as an important source for TSPO and MMP activity. A thresholding approach allowed to depict tumor areas that may not be detected by a single tracer and/or MRI parameter alone. Combining the three radiotracers provides in vivo insights into the heterogeneous tissue composition of gliomas with regards to amino acid transport (FET), invasion (BR-351), neoangiogenesis (FET), and inflammation (DPA-714). These biomarkers shall provide the basis for the development of dedicated therapies targeting various tissue compartments within gliomas (e.g., GAMs).
Previous studies in glioma bearing rats have highlighted [18F]DPA-714 as a suitable imaging marker for glioma-associated TSPO expression (7–9, 12). In line with these studies, we show, in a murine model of human glioma, a strong increase in [18F]DPA-714 uptake in the tumor region compared with a contralateral region 13 days after implantation of glioma cells. Approximately 50% of the sum of the TSPO signal and the [18F]FET signal overlapped. 14% of [18F]DPA-714 positive glioma tissue was exclusive for [18F]DPA-714 and did not reveal [18F]FET uptake, whereas about half of the [18F]FET volumes was not seen by [18F]DPA-714. It should be noted that the tumor growth as well as the intrarater variability may partially have influenced quantitative volumetric numbers. Nevertheless, our observations underline that unique areas of [18F]DPA-714 and [18F]FET are detectable within a comparable range, with no influence by the sequence of image acquisition of the various radiotracers and only minor influence by test–retest variability for the coregistration procedure. Exclusive areas of [18F]DPA-714 uptake in relation to [18F]FET may have been underestimated due to the ongoing tumor growth over the period of image data acquisition.
We specifically chose a sequential imaging approach over a randomized approach potentially reducing bias, as this method yields comparable data with a relatively high sensitivity and relevance with regards to clinical observations (31). In a comparable sequential imaging approach by Jensen and colleagues with GBM patients, the authors combined [125I]CLINDE (TSPO) SPECT followed by [18F]FET and MRI and found similar overlaps of CLINDE and FET (12–42%, n = 3), whereas [125I]CLINDE yielded more exclusive areas than [18F]FET compared with MR.
The unique tissue areas at the tumor margins are of high interest, because other research suggested that areas of increased TSPO expression might be related to sites of glioma infiltration (12, 31) and the combination of both might improve therapy decisions.
Sham-operated animals displayed mild TSPO expression, which could not be confirmed by [18F]DPA-714 PET, indicative of a TSPO threshold level, as observed previously (10). Correlative histology for TSPO revealed spatial agreement with [18F]DPA-714 radiotracer uptake. Detailed analysis of TSPO sources in conjunction with the marker Iba-1 for microglia/macrophages indicated glioma cells as main source of TSPO expression. In addition, GAMs also contributed to the signal whereas others have shown that normal astrocytes did not seem to play a role (8). Immunohistochemistry with specific antibodies distinguishing human and murine TSPO allowed to depict the different sources of TSPO, indicating that GAMs contributed to the overall [18F]DPA-714 signal. However, it should be noted that the relative contribution of GAMs to glioma TSPO expression may be small (12, 32). Nevertheless GAMs are particularly important, because a significant nonneoplastic part of gliomas consists of infiltrating GAMs (4). They are known to acquire an alternatively activated phenotype and generate an anti-inflammatory, tumor promoting environment, and therefore represent an attractive target for imaging-guided therapy (4). GAM polarization is a highly versatile process in vivo (4). Thus, TSPO imaging might be a potential way to monitor GAMs and may help to understand GAM function under normal and treatment conditions.
In line with our data, several studies have shown increased TSPO expression in human glioma biopsies (33–35), experimental glioma (7, 8, 12, 36), but also in GAMs (8). This is of particular importance, because TSPO has been proposed as a marker of glioma invasiveness (37) and elevated levels have been described depending on the tumor grade using in vivo imaging (12).
Further research is needed to investigate the suitability of [18F]DPA-714 PET for noninvasive glioma grading and investigation of treatment effects on tumor cells and GAMs. Treatment approaches targeting GAMs in combination with antineoplastic therapies need further attention, because GAMs were shown to be involved in escape from antiangiogenic therapy and represent a potential biomarker for treatment resistance (38).
MMPs have been shown to be highly upregulated in glioma (39). Accordingly, we show spatial colocalization of [18F]BR-351 with in situ zymography, as well as elevated levels of activated MMP-2 and MMP-9 indicated by gel zymography, which are likely the major sources of [18F]BR-351 signal. The elevated expression of the gelatinases, MMP-2, and to a lower extent MMP-9, is indicative of enhanced intracerebral invasion and neoangiogenesis (40). Likewise to [18F]DPA-714, parts of the [18F]BR-351-derived volume were not detected by [18F]FET and thus might hint toward regions of glioma invasion (40). Remarkably, GAMs were found to express MMP-9 on the histologic level. Interestingly, this expression of MMP-9 can be attributed to MMP-2 expressing tumor cells, and is capable of activating infiltrating immune cell derived gelatinases (39). Another link between GAMs and MMPs is the activation of the latent form of MMP-2 through glioma-mediated membrane type-1 MMP expression by microglial cells. This increased expression facilitates glioma invasion (15).
It will be interesting to see whether [18F]BR-351 can be used in other models with enhanced invasiveness and/or neoangiogenesis (41), which are expected to express even higher levels of MMPs to distinguish and characterize different growth patterns in vivo.
Besides the gelatinases, [18F]BR-351 can also bind to MMP-13. Although this work did not focus on MMP-13, it should be noted that MMP-13 is also upregulated in glioma. Elevated levels of MMP-13 have been linked to patient survival rates, and are reported as a marker for cancer stem cells (42, 43). Further studies may decipher the potential of [18F]BR-351 in imaging tumor stem cells in glioma.
[18F]FET is a valuable marker for active tumor volume with significantly higher sensitivity and specificity in diagnosis of brain tumors over, for example, contrast enhanced MRI, [18F]FDG or [18F]FLT PET imaging (20, 44–46). In line with these findings, it has been reported that [18F]FET can be used as prognostic marker of therapy response and it helps to distinguish active tumor volume from therapy-induced tissue alterations or pseudoprogression (47).
However, there is an increasing debate to what extent the glioma-associated inflammatory response affects [18F]FET uptake (48–50). Therefore, a combination of specific tracers targeting the neuroinflammatory response, for example, [18F]DPA-714, with [18F]FET and biopsies may provide a useful tool to depict the relative contribution of inflammation to [18F]FET uptake. We report that [18F]DPA-714 and [18F]FET volumes partially overlap (∼50%), which might be an indication that inflammation may be an important contributor to [18F]FET uptake in this model. The overlap may also represent a mixture of cellular compartments (i.e., tumor cells and microglial cells).
In conclusion, multimodal combined PET/MRI has been shown to be superior in delineating active tumor tissue with higher sensitivity and specificity (45, 51). Multitracer and multisequence PET/MRI opens a new avenue for the detailed noninvasive characterization of the heterogeneous glioma tissue with respect to the disease-driving cellular compartments at various disease stages and their response to therapy (vasculature-FET, tumor and inflammatory cells-DPA-714, and proteases-BR-351). Especially, the noninvasive identification of GAMs may represent a fundamental step toward immune cell directed therapies in combination with various targeted or nontargeted anti-neoplastic agents (4). The detailed characterization of the tumor microenvironment before and after therapy should improve the imaging-guided management of patients.
