Multiomics experiments are increasingly commonplace in biomedical research and add layers of complexity to experimental design, data integration, and analysis. R and Bioconductor provide a generic framework for statistical analysis and visualization, as well as specialized data classes for a variety of high-throughput data types, but methods are lacking for integrative analysis of multiomics experiments. The MultiAssayExperiment software package, implemented in R and leveraging Bioconductor software and design principles, provides for the coordinated representation of, storage of, and operation on multiple diverse genomics data. We provide the unrestricted multiple ‘omics data for each cancer tissue in The Cancer Genome Atlas as ready-to-analyze MultiAssayExperiment objects and demonstrate in these and other datasets how the software simplifies data representation, statistical analysis, and visualization. The MultiAssayExperiment Bioconductor package reduces major obstacles to efficient, scalable, and reproducible statistical analysis of multiomics data and enhances data science applications of multiple omics datasets. Cancer Res; 77(21); e39–42. ©2017 AACR.

Multiassay experiments collect multiple, complementary data types for a set of specimens. Bioconductor (1) provides classes to ensure coherence between a single assay and patient data during data analysis, such as eSet and SummarizedExperiment (2). However, novel challenges arise in data representation, management, and analysis of multiassay experiments (3) that cannot be addressed by these or other single-assay data architectures. These include (i) coordination of different assays on, for example, genes, miRNAs, or genomic ranges; (ii) coordination of missing or replicated assays; (iii) sample identifiers that differ between assays; (iv) reshaping data to fit the variety of existing statistical and visualization packages; (v) doing the above in a concise and reproducible way that is amenable to new assay types and data classes.

The need for a unified data model for multiomics experiments has been recognized in other projects, such as MultiDataSet (4) and CNAMet (5). Our developments are motivated by an interest in bridging effective single-assay application program interface (API) elements, including endomorphic feature and sample subset operations, to multiomic contexts of arbitrary complexity and volume (Supplementary Table S1). A main concern in our work is to allow data analysts and developers to simplify the management of both traditional in-memory assay stores for smaller datasets, and out-of-memory assay stores for very large data in such formats as HDF5 (6), tabix-indexed variant call format (VCF; ref. 7), or Google BigTable (8).

MultiAssayExperiment provides data structures and methods for representing, manipulating, and integrating multiassay genomic experiments. It integrates an open-ended set of R and Bioconductor single-assay data classes, while abstracting the complexity of back-end data objects and providing a sufficient set of data manipulation, extraction, and reshaping methods to interface with most R/Bioconductor data analysis and visualization tools. We demonstrate its use by representing unrestricted data from The Cancer Genome Atlas as a single MultiAssayExperiment object per cancer type and demonstrating greatly simplified multiassay analyses with these and other public multiomics datasets.

MultiAssayExperiment (https://bioconductor.org/packages/MultiAssayExperiment) introduces a Bioconductor object-oriented S4 class, defining a general data structure for representing multiomics experiments. This data class has three key components: (i) colData, a “primary” dataset containing patient or cell line–level characteristics, such as pathology and histology; (ii) ExperimentList, a list of results from complementary experiments; and (iii) sampleMap, a map that relates these elements (Fig. 1A). ExperimentList data elements may be of any data class that has standard methods for basic subsetting (single square bracket “[”) and dimension names and sizes [“dimnames()” and “dim()”]. Key methods available for manipulating the MultiAssayExperiment data class include:

  • (i) A constructor function and associated validity checks that simplifies creating MultiAssayExperiment objects while allowing for flexibility in representing complex experiments.

  • (ii) Subsetting operations allowing data selection by genomic identifiers or ranges, clinical/pathologic variables, available complete data (subsets that include no missing values), and by specific assays.

  • (iii) Robust and intuitive extraction and replacement operations for components of the MultiAssayExperiment.

Figure 1.

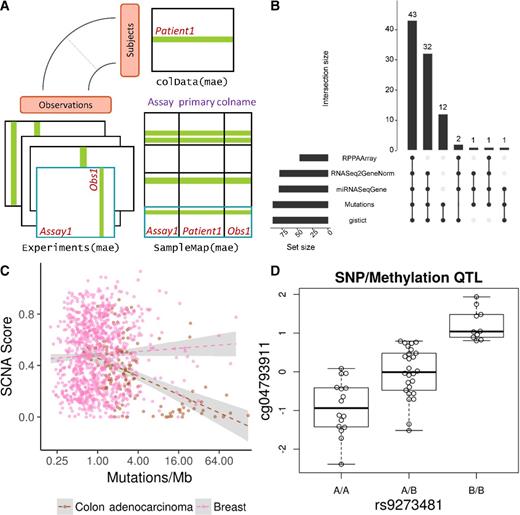

Figure 1. MultiAssayExperiment design and applications. A, The MultiAssayExperiment object schematic shows the design of the infrastructure class, detailed in Supplementary Table S3. The colData provides data about the patients, cell lines, or other biological units, with one row per unit and one column per variable. The experiments are a list of assay datasets of arbitrary class, with one column per observation. The sampleMap links a single table of patient data (colData) to a list of experiments via a simple but powerful table of experiment:patient edges (relationships) that can be created automatically in simple cases or in a spreadsheet if assay-specific sample identifiers are used. sampleMap relates each column (observation) in the assays (experiments) to exactly one row (biological unit) in colData; however, one row of colData may map to zero, one, or more columns per assay, allowing for missing and replicate assays. Green stripes indicate a mapping of one subject to multiple observations across experiments. B, The UpSetR (9) graphic represents a complex Venn diagram of assay availability for patients in a MultiAssayExperiment. This reduced adrenocortical carcinoma object is provided as an example dataset in the MultiAssayExperiment package. The barplot on the left shows sample size of each experiment; links to its right indicate combinations of one to four experiments, with top bars showing the number of patients having exactly those data types. C, Extent of copy number alteration versus somatic mutation burden. Cancer types with high levels of aneuploidy often show a positive correlation of mutation load and chromosomal instability (10), perhaps due to a higher tolerance of deleterious mutations, as shown here in pink for breast cancer. Tumors with a hypermutator phenotype rarely display extensive chromosomal instability, resulting in a negative correlation of mutation load and chromosomal instability in cancer types where hypermutation is common (shown in brown for colon adenocarcinoma). D, Methylation quantitative trait locus identified from an on-disk representation of VCF files of the 1000 Genomes Project integrated with 450K methylation array data as a MultiAssayExperiment.
View largeDownload slide

MultiAssayExperiment design and applications. A, The MultiAssayExperiment object schematic shows the design of the infrastructure class, detailed in Supplementary Table S3. The colData provides data about the patients, cell lines, or other biological units, with one row per unit and one column per variable. The experiments are a list of assay datasets of arbitrary class, with one column per observation. The sampleMap links a single table of patient data (colData) to a list of experiments via a simple but powerful table of experiment:patient edges (relationships) that can be created automatically in simple cases or in a spreadsheet if assay-specific sample identifiers are used. sampleMap relates each column (observation) in the assays (experiments) to exactly one row (biological unit) in colData; however, one row of colData may map to zero, one, or more columns per assay, allowing for missing and replicate assays. Green stripes indicate a mapping of one subject to multiple observations across experiments. B, The UpSetR (9) graphic represents a complex Venn diagram of assay availability for patients in a MultiAssayExperiment. This reduced adrenocortical carcinoma object is provided as an example dataset in the MultiAssayExperiment package. The barplot on the left shows sample size of each experiment; links to its right indicate combinations of one to four experiments, with top bars showing the number of patients having exactly those data types. C, Extent of copy number alteration versus somatic mutation burden. Cancer types with high levels of aneuploidy often show a positive correlation of mutation load and chromosomal instability (10), perhaps due to a higher tolerance of deleterious mutations, as shown here in pink for breast cancer. Tumors with a hypermutator phenotype rarely display extensive chromosomal instability, resulting in a negative correlation of mutation load and chromosomal instability in cancer types where hypermutation is common (shown in brown for colon adenocarcinoma). D, Methylation quantitative trait locus identified from an on-disk representation of VCF files of the 1000 Genomes Project integrated with 450K methylation array data as a MultiAssayExperiment.

Figure 1.
Figure 1. MultiAssayExperiment design and applications. A, The MultiAssayExperiment object schematic shows the design of the infrastructure class, detailed in Supplementary Table S3. The colData provides data about the patients, cell lines, or other biological units, with one row per unit and one column per variable. The experiments are a list of assay datasets of arbitrary class, with one column per observation. The sampleMap links a single table of patient data (colData) to a list of experiments via a simple but powerful table of experiment:patient edges (relationships) that can be created automatically in simple cases or in a spreadsheet if assay-specific sample identifiers are used. sampleMap relates each column (observation) in the assays (experiments) to exactly one row (biological unit) in colData; however, one row of colData may map to zero, one, or more columns per assay, allowing for missing and replicate assays. Green stripes indicate a mapping of one subject to multiple observations across experiments. B, The UpSetR (9) graphic represents a complex Venn diagram of assay availability for patients in a MultiAssayExperiment. This reduced adrenocortical carcinoma object is provided as an example dataset in the MultiAssayExperiment package. The barplot on the left shows sample size of each experiment; links to its right indicate combinations of one to four experiments, with top bars showing the number of patients having exactly those data types. C, Extent of copy number alteration versus somatic mutation burden. Cancer types with high levels of aneuploidy often show a positive correlation of mutation load and chromosomal instability (10), perhaps due to a higher tolerance of deleterious mutations, as shown here in pink for breast cancer. Tumors with a hypermutator phenotype rarely display extensive chromosomal instability, resulting in a negative correlation of mutation load and chromosomal instability in cancer types where hypermutation is common (shown in brown for colon adenocarcinoma). D, Methylation quantitative trait locus identified from an on-disk representation of VCF files of the 1000 Genomes Project integrated with 450K methylation array data as a MultiAssayExperiment.
View largeDownload slide

MultiAssayExperiment design and applications. A, The MultiAssayExperiment object schematic shows the design of the infrastructure class, detailed in Supplementary Table S3. The colData provides data about the patients, cell lines, or other biological units, with one row per unit and one column per variable. The experiments are a list of assay datasets of arbitrary class, with one column per observation. The sampleMap links a single table of patient data (colData) to a list of experiments via a simple but powerful table of experiment:patient edges (relationships) that can be created automatically in simple cases or in a spreadsheet if assay-specific sample identifiers are used. sampleMap relates each column (observation) in the assays (experiments) to exactly one row (biological unit) in colData; however, one row of colData may map to zero, one, or more columns per assay, allowing for missing and replicate assays. Green stripes indicate a mapping of one subject to multiple observations across experiments. B, The UpSetR (9) graphic represents a complex Venn diagram of assay availability for patients in a MultiAssayExperiment. This reduced adrenocortical carcinoma object is provided as an example dataset in the MultiAssayExperiment package. The barplot on the left shows sample size of each experiment; links to its right indicate combinations of one to four experiments, with top bars showing the number of patients having exactly those data types. C, Extent of copy number alteration versus somatic mutation burden. Cancer types with high levels of aneuploidy often show a positive correlation of mutation load and chromosomal instability (10), perhaps due to a higher tolerance of deleterious mutations, as shown here in pink for breast cancer. Tumors with a hypermutator phenotype rarely display extensive chromosomal instability, resulting in a negative correlation of mutation load and chromosomal instability in cancer types where hypermutation is common (shown in brown for colon adenocarcinoma). D, Methylation quantitative trait locus identified from an on-disk representation of VCF files of the 1000 Genomes Project integrated with 450K methylation array data as a MultiAssayExperiment.

Close modal

The MultiAssayExperiment API is based wherever possible on SummarizedExperiment while supporting heterogeneous multi-omics experiments. MultiAssayExperiment design, constructor, subsetting, extraction, and helper methods, as well as methods and code for the examples demonstrated here, are detailed in the Supplementary Methods.

The MultiAssayExperiment class and methods (Table 1) provide a flexible framework for integrating and analyzing complementary assays on an overlapping set of samples. It integrates any data class that supports basic subsetting and dimension names, so that many data classes are supported by default without additional accommodations. The MultiAssayExperiment class (Fig. 1A) ensures correct alignment of assays and patients, provides coordinated subsetting of samples and features while maintaining correct alignment, and enables simple integration of data types to formats amenable to analysis by existing tools. Basic usage is outlined in Supplementary Video S1 (https://www.youtube.com/watch?v=w6HWAHaDpyk&feature=youtu.be) and in the QuickStartMultiAssay vignette accompanying the package.

Table 1.

Summary of the MultiAssayExperiment API

Category and functionDescriptionReturned class
Constructors
 MultiAssayExperiment Create a MultiAssayExperiment object MultiAssayExperiment
 ExperimentList Create an ExperimentList from a List or list ExperimentList
Accessors
 colData Get or set data that describe the samples DataFrame
 experiments Get or set the list of experimental data objects as original classes ExperimentList
 assays Get the list of experimental data numeric matrices SimpleList
 assay Get the first experimental data numeric matrix Matrix, matrix-like
 sampleMap Get or set the map relating observations to subjects DataFrame
 metadata Get or set additional data descriptions List
 rownames Get row names for all experiments CharacterList
 colnames Get column names for all experiments CharacterList
Subsetting
 mae[i, j, k] Get rows, columns, and/or experiments MultiAssayExperiment
  mae[i, ,] GRanges, character, integer, logical, List, list MultiAssayExperiment
  mae[,j,] Character, integer, logical, List, list MultiAssayExperiment
  mae[,,k] Character, integer, logical MultiAssayExperiment
 mae[[i]] Get or set object of arbitrary class from experiments (Varies)
  mae[[i]] Character, integer, logical
 mae$column Get or set colData column Vector (varies)
Management
 complete.cases Identify subjects with complete data in all experiments Vector (logical)
 duplicated Identify subjects with replicate observations per experiment List of LogicalLists
 mergeReplicates Merge replicate observations within each experiment MultiAssayExperiment
 intersectRows Return features that are present for all experiments MultiAssayExperiment
 intersectColumns Return subjects with data available for all experiments MultiAssayExperiment
 prepMultiAssay Troubleshoot common problems when constructing main class List
Reshaping
 longFormat Return a long and tidy DataFrame with optional colData columns DataFrame
 wideFormat Create a wide DataFrame, one row per subject DataFrame
Combining
 c Concatenate an experiment MultiAssayExperiment
Category and functionDescriptionReturned class
Constructors
 MultiAssayExperiment Create a MultiAssayExperiment object MultiAssayExperiment
 ExperimentList Create an ExperimentList from a List or list ExperimentList
Accessors
 colData Get or set data that describe the samples DataFrame
 experiments Get or set the list of experimental data objects as original classes ExperimentList
 assays Get the list of experimental data numeric matrices SimpleList
 assay Get the first experimental data numeric matrix Matrix, matrix-like
 sampleMap Get or set the map relating observations to subjects DataFrame
 metadata Get or set additional data descriptions List
 rownames Get row names for all experiments CharacterList
 colnames Get column names for all experiments CharacterList
Subsetting
 mae[i, j, k] Get rows, columns, and/or experiments MultiAssayExperiment
  mae[i, ,] GRanges, character, integer, logical, List, list MultiAssayExperiment
  mae[,j,] Character, integer, logical, List, list MultiAssayExperiment
  mae[,,k] Character, integer, logical MultiAssayExperiment
 mae[[i]] Get or set object of arbitrary class from experiments (Varies)
  mae[[i]] Character, integer, logical
 mae$column Get or set colData column Vector (varies)
Management
 complete.cases Identify subjects with complete data in all experiments Vector (logical)
 duplicated Identify subjects with replicate observations per experiment List of LogicalLists
 mergeReplicates Merge replicate observations within each experiment MultiAssayExperiment
 intersectRows Return features that are present for all experiments MultiAssayExperiment
 intersectColumns Return subjects with data available for all experiments MultiAssayExperiment
 prepMultiAssay Troubleshoot common problems when constructing main class List
Reshaping
 longFormat Return a long and tidy DataFrame with optional colData columns DataFrame
 wideFormat Create a wide DataFrame, one row per subject DataFrame
Combining
 c Concatenate an experiment MultiAssayExperiment

NOTE: Assay refers to a procedure for measuring the biochemical or immunologic activity of a sample, e.g., RNA-seq, segmented copy number, and somatic mutation calls would be considered three different assays. Experiment refers to the application of an assay to a set of samples. In general, it is assumed that each experiment uses a different assay type, although an assay type may of course be repeated in different experiments. mae refers to a MultiAssayExperiment object. Subject refers to patient, cell line, or other biological unit. Observation refers to results of an assay, e.g., gene expression, somatic mutations, etc. Features refer to measurements returned by the assays, labeled by row names or genomic ranges.

View Large

We coordinated over 300 assays from over 11,000 patients of 33 different cancer types from The Cancer Genome Atlas as one MultiAssayExperiment per cancer type (Supplementary Table S2). These data objects link each assay to their patient of origin, allowing more straightforward selection of cases with complete data for assays of interest, and integration of data across assays and between assays and clinical data. We demonstrate applications of MultiAssayExperiment for visualizing the overlap in assays performed for adrenocortical carcinoma patients (Fig. 1B), confirming recently reported correlations between somatic mutation and copy number burden in colorectal cancer and breast cancer (Fig. 1C), identifying an SNP/methylation quantitative trait locus using remotely stored tabix-indexed VCF files for the 1000 genomes project (Fig. 1D), multiassay gene set analysis for ovarian cancer (Supplementary Figs. S1 and S2), and calculating correlations between copy number, gene expression, and protein expression in the NCI-60 cell lines (Supplementary Fig. S3). Demonstrative code chunks and fully reproducible scripts are given to demonstrate the simple and powerful flexibility provided by MultiAssayExperiment.

MultiAssayExperiment enables coordinated management and extraction of complex multiassay experiments and clinical data, with the same ease of user-level coding as for a single experiment. Its extensible design supports any assay data class meeting basic requirements, including out-of-memory representations for very large datasets. We have confirmed “out-of-the-box” compatibility with on-disk data representations, including the DelayedMatrix class via an HDF5 backend (6), and the VcfStack class based on the GenomicFiles infrastructure. Future work will focus on higher level visualization, integration, and analysis tools using MultiAssayExperiment as a building block. This project will receive long-term support as a necessary element of multiassay data representation and analysis in Bioconductor.

No potential conflicts of interest were disclosed.

Conception and design: M. Ramos, L. Schiffer, P. Chapman, D. Gomez-Cabrero, K.D. Hansen, M. Morgan, V. Carey, L. Waldron

Development of methodology: M. Ramos, L. Schiffer, T. Chan, P. Chapman, K.D. Hansen, M. Morgan, V. Carey, L. Waldron

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): M. Ramos, S.R. Davis, H. Kodali, V. Carey

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): A. Re, R. Azhar, A. Basunia, P. Chapman, S.R. Davis, A.C. Culhane, B. Haibe-Kains, A.S. Mer, M. Riester, V. Carey, L. Waldron

Writing, review, and/or revision of the manuscript: M. Ramos, L. Schiffer, A. Re, P. Chapman, S.R. Davis, D. Gomez-Cabrero, A.C. Culhane, B. Haibe-Kains, H. Kodali, A.S. Mer, M. Riester, V. Carey, L. Waldron

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): M. Ramos, A. Basunia, C. Rodriguez, T. Chan, H. Kodali, M.S. Louis

Study supervision: V. Carey, L. Waldron

This work was also supported by the CUNY High Performance Computing Center, which is operated by the College of Staten Island and funded, in part, by grants from the City of New York, State of New York, CUNY Research Foundation, and National Science Foundation grants CNS-0958379, CNS-0855217, and ACI 1126113.

The authors' work was funded by the NCI of the NIH (U24CA180996 to M. Morgan).
