Disrupting Hypoxia-Induced Bicarbonate Transport Acidifies Tumor Cells and Suppresses Tumor Growth Free

Hypoxia (low oxygen) and acidosis are key physiologica features commonly associated with solid tumors. Hypoxia results from high metabolic demand and proliferative rates, combined with poor tumor perfusion. These factors increase oxygen requirements while reducing oxygen availability (1). Clinically, hypoxia is associated with poor patient prognosis and resistance to chemotherapy and radiotherapy (2). Developing new strategies to target the hypoxic microenvironment is critical for improving patient outcome. Furthermore, antiangiogenic therapy induces tumor hypoxia in approximately half of cases (where the remainder of the tumors exhibit no vascular response or vascular normalization for a period at the start of therapy), and combination strategies that induce apoptosis in the hypoxic microenvironment would be effective in this context (3). Hypoxia results in stabilization of the transcription factors hypoxia inducible factors (HIF) 1α and 2α, via reduced hydroxylation of HIF proteins, preventing ubiquitination pVHL (protein Von Hippel–Lindau), which precedes HIF proteasomal degradation (4). Many HIF-regulated genes trigger more aggressive tumor growth, invasion, metabolic adaptation, and survival (3).

The extracellular microenvironment of hypoxic tumors is acidic (5) because of increased production of metabolic acids (CO₂ and lactic acid) and longer diffusion distances to the nearest functional blood capillary for acid venting. A mismatch between acid production and venting can profoundly change steady-state intra- and extracellular pH, which could have major effects on cell survival because H⁺ ions are highly reactive and target essentially all protein-dependent processes (6). This is exacerbated by the fact that the optimal range of intracellular pH (pH_i) is very narrow. In most cells, a mildly alkaline pH_i supports growth and function, and this condition is normally maintained by transporter proteins at the cell membrane that handle H⁺ ions or their chemical equivalents (e.g., HCO₃⁻ or OH⁻). This homeostatic mechanism is challenged by the low extracellular pH (pH_e) of tumors because extracellular acidity can reduce acid–extrusion flux allosterically (7) and thermodynamically (i.e., pumping against a steeper [H⁺] gradient). The pH_i-regulatory apparatus in cancer cells must therefore maintain a transmembrane pH gradient through active transport of adequate flux magnitude (6). The characteristic distribution of H⁺ ions across tumor aqueous compartments is dually favorable for cancer progression. While the mildly alkaline pH_i supports proliferation and reduces sensitivity to apoptosis, the more acidic pH_e favors increased extracellular matrix degradation, facilitating invasion and metastasis (8, 9).

HIF1α-regulated CA9 (10) facilitates CO₂ venting from diffusion-limited tissue by augmenting its extracellular diffusion as its hydration products (H⁺ and HCO₃⁻; ref. 11). In spheroid models, we have demonstrated that this CA9-driven mechanism regulates the intracellular and extracellular pH (12). Clinically, CA9 is a marker for poor clinical outcome in most cancer types (13–16) and recent work has identified the importance of CA9 in tumor growth, metastasis, and response to antiangiogenic therapy (17–19). However, in order for CA9 to operate in the direction of net hydration, cells must release CO₂ (20). Under hypoxic conditions, this requires cellular uptake of bicarbonate, which can be sourced from the extracellular CA9 reaction. The bicarbonate uptake process represents the active transport mechanism that drives uphill acid efflux, and is therefore essential for pH homeostasis, an inherently energy-demanding process.

Bicarbonate transporters are grouped into the SLC4 and SLC26 protein families (21–23). These can be subdivided into two classes. The Na⁺-independent anion exchangers include SLC4A 1-3 and SLC26A 2-4, 7, 9, and 11, and many of these proteins are nominally acid loaders. The second major class is the Na⁺-driven bicarbonate transporters (NDBT), including Na⁺-HCO₃⁻ cotransporters (NBC) SLC4A4 (electrogenic NBCe1), SLC4A5 (electrogenic NBCe2), SLC4A7 (electroneutral NBCn1), and SLC4A10 (NBCn2), and the Na⁺-driven anion exchangers SLC4A8 (Na⁺-driven Cl⁻/HCO₃⁻ exchange) and, putatively, SLC4A9 (AE4; refs. 21, 24). SLC4A4 and 7 are well-characterized acid extruders. SLC4A9 has been controversial, with differing reports of its functional role, possibly because of the use of the SLC4A9 gene from different species in heterologous expression systems (21). Amino acid sequence analysis showed that SLC4A9 has substantial similarity with the NBCs (21). Functional studies of human SLC4A9 showed it produced a Na⁺-driven pH_i recovery from a CO₂-induced acidosis (24).

In several cancer cell lines, we showed a shift in pH regulation toward bicarbonate-dependent transport occurs in hypoxia (25). The importance of pH regulation for survival in the hypoxic tumor microenvironment presents an opportunity to induce synthetic lethality by disrupting acid/base balance. Hypoxia has been shown to increase SLC4A4 expression in the Ls174T colon cancer cell line (26). That study also demonstrated that knockdown of SLC4A4 slowed the recovery of intracellular pH from an intracellular acid load, reduced two-dimensional (2D) growth, increased cell mortality in acidic conditions, and reduced spheroid growth (26). Intriguingly, increased levels of bicarbonate transporters have been reported in several types of tumors (27, 28).

Here, we investigated the expression of all major bicarbonate transporters of the SLC4 and SLC26 families in response to hypoxia. We examined the role of HIF in hypoxic induction of bicarbonate transporters. We analyzed the specific role of hypoxia-induced SLC4A9. The physiologic role of this protein has not been recognized in cancer, and we present data for its critical role in pH regulation and growth. We show that SLC4A9 is important for spheroid growth, pH regulation and survival, and growth of xenografts in vivo.

Furthermore, to inhibit bicarbonate transport pharmacologically, we used S0859, a drug developed over a decade ago as an inhibitor of sodium dependent bicarbonate co-transporters. This small molecule inhibitor blocks the bulk of acid extrusion carried by sodium-driven bicarbonate transport (7, 29, 30), but other proteins have been shown to be sensitive to S0859 including lactate transporters ectopically expressed in oocytes (31). We used S0859 to explore the role of sodium driven bicarbonate transporters on 3D spheroid growth and intracellular pH regulation. This study demonstrates the importance of bicarbonate transport in pH homeostasis and tumor growth, and identifies new molecular targets that disrupt these essential physiologic processes.

Cell lines were available from ATCC (T98G, MDA-MB-468, MDA-MB-231, MCF7), Clare Hall Laboratories (HCT116, SCC25, U87), or were a kind gift from Prof. Walter Bodmer (Weatherall institute of Molecular Medicine, Oxford, United Kingdom; DLD-1, Ls174T, and SW480). Cell line authentication was carried out by STR analyses (LGC Standards) 6 months prior to the first submission of the manuscript. Cells were maintained in a humidified incubator at 5% CO₂ and 37°C. For hypoxic exposure, cells were grown in a humidified atmosphere of 0.1% O₂, 5% CO₂ at 37°C. All cell lines were maintained in DMEM supplemented with 10% FBS except HCT116 (McCoy 5A supplemented with 10% FBS) and SCC25 (DMEM:Ham F12 supplemented with 400 ng/mL hydrocortisone and 10% FBS). CyQUANT (Invitrogen) was used to determine differences in viable cell counts. For spheroid culture, aggregation was initiated by plating 1,000–5,000 cells into ultra-low–adherent round-bottom 96-well plates (VWR) and centrifuging these at 2,000 × g. Size-matched spheroids for IHC were produced by seeding different number of cells and thus preparing different spheroid sizes and treating for the same amount of time. Media at pH 7.4 and 6.4 were prepared as described previously (26).

S0859 was produced by Peter Seden (University of Oxford, Oxford, United Kingdom) as described previously (30) or from Sigma-Aldrich.

Cells were transfected with HiPerFect reagent (Qiagen) according to manufacturer's instructions. Nontargeting controls were purchased from Dharmacon (D-001210-02-05) and Qiagen (1027281). siRNA oligonucleotide pools containing three sequences targeting HIF-1α (5′-CAAGCAACTGTCATATATA-3′, 5′-TGCCACCACTGATGAATTA-3′, 5′-TGACTCAGCTATTCACCAA-3′) or HIF2α (5′-TAACGACCTGAAGATTGAA-3′, 5′-CAAGCCACTGAGCGCAAAT-3′, 5′-TGAATTCTACCATGCGCTA-3′) were purchased from Eurogentec.

To knockdown SLC4A4 or SLC4A9 in Ls174T and MDA-MB-231, shRNA lentivirus was purchased from Sigma-Aldrich. To knockdown SLC4A9 inducibly in U87 cells, the shRNA sequence against SLC4A9 (CCGGGCTGAACTTGACCCATACCTACTCGAGTAGGTATGGGTCAAGTTCAGCTTTTTG) was cloned into Tet-pLKO-neo (Addgene plasmid 21916; ref. 32). The CA9 knockdown in U87 is described previously (19). Lentivirus was produced using the trans-lenti shRNA packaging kit (TLP4615), and cells transduced according to the manufacturer's instructions (Thermo Scientific). Cells were grown under selective pressure; Ls174T 0.6 mg/mL G418 (Invitrogen); U87, 0.5 mg/mL G418 (Invitrogen), and 1 μg/mL puromycin (Invitrogen); and MDA-MB-231, 2 μg/mL puromycin (Invitrogen) until no untransfected cells remained. Pools of transfected cells were used in the Ls174T and MDA-MB-231 experiments. To increase the knockdown efficiency and doxycycline control of U87 knockdown clones derived from single cells were selected for these isogenic investigations.

Cell lysates were separated on 10% SDS-PAGE and transferred to PVDF membrane. Primary antibodies were used at 1:1,000. Rabbit anti-SLC4A9 (Sigma) anti-HIF1α (BD Biosciences), anti-HIF2α (Cell Signaling Technology) and actin-HRP (Sigma). Appropriate secondary horseradish peroxidase–linked antibodies were used (Dako). Immunoreactivity was detected with chemiluminescence (Amersham).

RNA extraction and the quantitative PCR protocol have been described previously (19). Data were normalized to expression of the three control genes ACTB, RPL11, and HRPT1. Primer sequences were: CA9 forward: CTTGGAAGAAATCGCTGAGG; CA9 reverse: TGGAAGTAGCGGCTGAAGTC; ACTB forward: ATTGGCAATGAGCGGTTC; ACTB reverse: GGATGCCACAGGACTCCAT; RPL11 forward: CTTTGGCATCCGGAGAAAT; RPL11 reverse: TCCAAGATTTCTTCTGCCTTG; HPRT1 forward: CCAGTCAACAGGGGACATAAA; HPRT1 reverse: CACAATCAAGACATTCTTTCCAGT. Assay on demand were purchased from Applied Biosystems for SLC4A1 (Hs00978603_m1), SLC4A2 (Hs01586776_m1), SLC4A3 (Hs00192595_m1), SLC4A4 (Hs00186798_m1), SLC4A5 (Hs00253626_m1), SLC4A7 (Hs00186192_m1), SLC4A8 (Hs00191516_m1), SLC4A9 (Hs00324675_m1), SLC4A10 (Hs00222849_m1), SLC4A11 (Hs00230695_m1), SLC26A3 (Hs00230798_m1), SLC26A4 (Hs01070620_m1), SLC26A6 (Hs00370470_m1), SLC26A7 (Hs01104163_m1), SLC26A9 (Hs00369451_m1), and ACTB (Hs99999903_m1).

This was carried out as described previously (12).

Procedures were carried out under a Home Office license. Cells were trypsinized, neutralized, and washed twice in serum-free medium prior to inoculation in mice. Female 6- to 7-week-old, 16–18 g, BALB/c SCID mice (CB17/IcrHsd-Prkdc^scid, Harlan) were injected orthotopically in the mammary fat pad with 25-μL Matrigel (BD Biosciences) and 2.5 × 10⁶ cells suspended in 25-μL of serum-free medium or subcutaneously in the lower flank with 100-μL Matrigel (BD Biosciences) and 1 × 10⁷ cells suspended in 100-μL of serum-free medium. Tumor growth was monitored three times per week measuring the length (L), width (W), and height (H) of each tumor using calipers. Volumes were calculated from the formula 1/6 × π × L × W × H. When tumors reached 1.44 cm³, mice were sacrificed by cervical dislocation. Ninety minutes prior to sacrifice, mice were injected intraperitoneally with 2 mg of pimonidazole (Hypoxyprobe-1; Chemicon International).

IHC was carried out as described previously (19). Cleaved caspase-3 (R&D Systems), Ki67 (Dako), or CA9 (M75) was incubated for 1 hour. Slides were incubated with the anti-rabbit secondary antibody (Dako) for 30 minutes. DAB (Dako) was applied to the sections for 7 minutes. The slides were counterstained with hematoxylin solution (Sigma-Aldrich) and mounted with Aquamount (VWR). Slides were analyzed quantitatively by image analysis in ImageJ as described previously (19).

Statistical analysis including unpaired Student t test, one-way ANOVA, and linear regression of log-transformed growth data were carried out as appropriate using GraphPad Prism 4.0b.

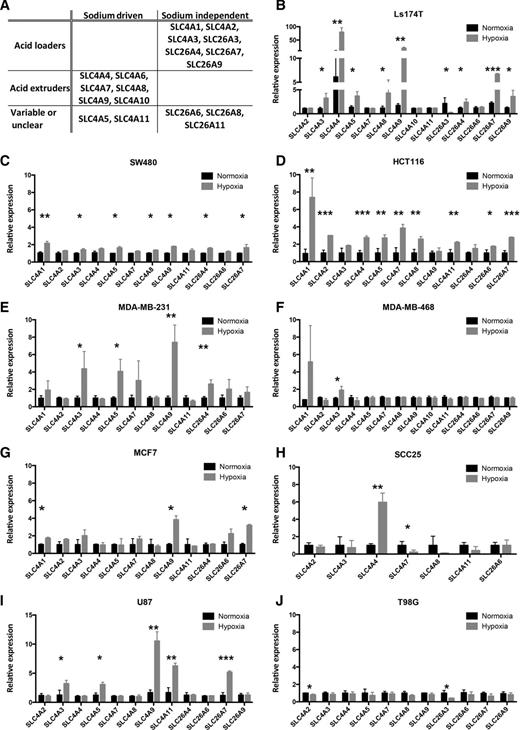

The expression of the bicarbonate transporters of the SLC4 and SLC26 family members in normoxia and hypoxia (0.1% O₂ at 72 hours) was investigated by qRT-PCR. The expression of these genes was investigated in 10 cell lines derived from colon cancer (Ls174T, HCT116, SW480, and DLD-1), breast cancer (MDA-MB-231, MDA-MB-468, and MCF7), head and neck cancer (SCC25), and glioblastoma (U87 and T98G; Fig. 1). This revealed 38 cases of significantly increased expression of the genes encoding bicarbonate transporters in response to hypoxia, and only 4 cases of significantly decreased expression (Fig. 1). Two cell lines (T98G and DLD-1) did not show significantly increased expression of any of the bicarbonate transporters (Fig. 1J and Supplementary Fig. S1I and S1J).

The pattern of hypoxia-induced expression varied between the cell lines and there did not appear to be any tissue-specific pattern, in this limited panel of cell lines. The bicarbonate transporters with the highest and most frequently observed hypoxic induction were SLC4A4 (3/10 lines), SLC4A9 (5/10), and SLC4A5 (5/10). SLC4A4 was upregulated >100-fold in Ls174T (P < 0.01, n = 3), >3-fold in HCT116 (P < 0.001, n = 3), and >7-fold in SCC25 (P < 0.01, n = 3). SLC4A9 was increased >20-fold in Ls174T (P < 0.01, n = 3), >7-fold in MDA-MB-231 (P < 0.01, n = 3), >3-fold in MCF7 (P < 0.05, n = 3), and >10-fold in U87 (P < 0.01, n = 3; Fig. 1).

Expression levels of the bicarbonate transporters for each cell line were calculated relative to β-actin (Supplementary Fig. S1). This highlights the heterogeneous pattern of bicarbonate transporter expression in each of the cell lines studied, as expected from RNA array data presented previously (28). The timing of hypoxic induction of bicarbonate transporters was investigated at 24, 48, 72, and 96 hours for all those upregulated in hypoxia for Ls174T and U87 (Supplementary Figs. S2 and S3). In the case of U87 cells, all changes identified at 72 hours were also observed at the other time points. For Ls174T, SLC4A4 was induced at all time points, whereas SLC4A3, SLC4A5, SLC4A8, SLC4A9, and SLC26A4 were upregulated at 48–72 hours. The most frequently upregulated genes SLC4A4, SLC4A5, and SLC4A9 were also investigated at 1% O₂ in Ls174T, U87, and MDA-MB-231 (Supplementary Fig. S4). SLC4A4 was significantly upregulated at 1% O₂, but increases in SLC4A5 and SLC4A9 were not significant.

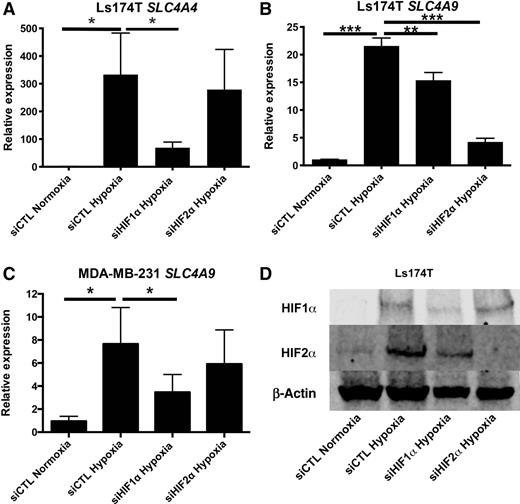

HIF1α and HIF2α were knocked down by siRNA pools and the expression of SLC4A4 and SLC4A9 was analyzed by qRT-PCR. The increase in SLC4A4 expression induced by hypoxia was ablated by HIF1α knockdown in Ls174T (P < 0.05, n = 3; Fig. 2A). Hypoxic induction of SLC4A9 expression was significantly reduced by HIF1α (P < 0.01, n = 3) or HIF2α (P < 0.001, n = 3) knockdown in Ls174T with HIF2α knockdown having a greater effect on SLC4A9 hypoxic inducibility in Ls174T (>75%, compared with <25% with HIF1α knockdown; Fig. 2B). In MDA-MB-231, HIF1α knockdown significantly reduced hypoxic induction of SLC4A9 (P < 0.05, n = 3; Fig. 2C) but no significant effect was observed with HIF2α knockdown. The siRNA knockdown was validated by qRT-PCR quantification and immunoblot of the expression of both HIF1α and HIF2α and also by measuring CA9 RNA levels, which has been previously shown to be dependent on HIF1α but not HIF2α (Fig. 2D and Supplementary Fig. S5 and previously published; ref. 33). HIF-binding site sequences (RCGTG) are found in the promoter regions of both SLC4A4 (−786, −1690) and SLC4A9 (−692, −1865, −1921).

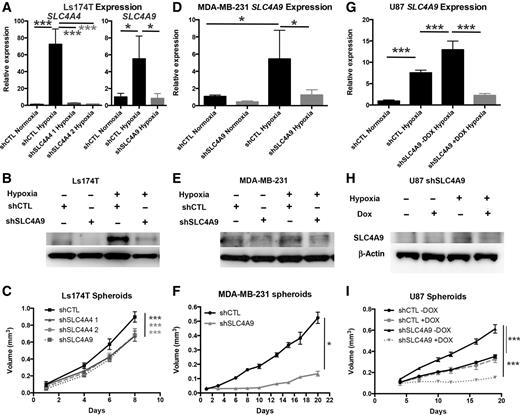

SLC4A4 was knocked-down in Ls174T with two different shRNAs, which significantly reduced expression of SLC4A4 in response to hypoxia (P < 0.001, n = 3; Fig. 3A). SLC4A9 protein levels were increased by hypoxia in Ls174T, MDA-MB-231, and U87 (Fig. 3B, E, and H). SLC4A9-targeting shRNA significantly reduced hypoxic induction of SLC4A9 expression at both the mRNA and protein levels (Fig. 3A, B, D, E, G, and H), in Ls174T, MDA-MB-231, and U87, compared with controls. A full representative SLC4A9 blot is shown in Supplementary Fig. S6 (MDA-MB-231).

SLC4A4 knockdown reduced Ls174T spheroid growth rate by 30% compared with shCTL controls (P < 0.001, n = 4; Fig. 3C). SLC4A9 knockdown reduced spheroid growth rate compared with controls in Ls174T (30% reduction, P < 0.001, n = 4), MDA-MB-231 (39% reduction, P < 0.05, n = 3) and U87 (60% reduction, P < 0.001, n = 3; Fig. 3C, F, and I). In U87 stable doxycycline-inducible shRNAs were used to knockdown SLC4A9, followed by clone selection. The clone with the best knockdown also had a higher level of SLC4A9 expression in hypoxia than the control cells (Fig. 3G; P < 0.001, n = 3). In 3D culture, the shSLC4A9 cells without doxycycline grew significantly faster as spheroids than the shCTL cells with or without doxycycline induction of the shRNA (P < 0.001, n = 3).

In 2D culture, knockdown of SLC4A4 or SLC4A9 did not reduce the number of viable cells in Ls174T, MDA-MB-231, or U87 (Supplementary Fig. S6A–S6C) in normoxia or hypoxia at either pH 7.4 or 6.4 (26).

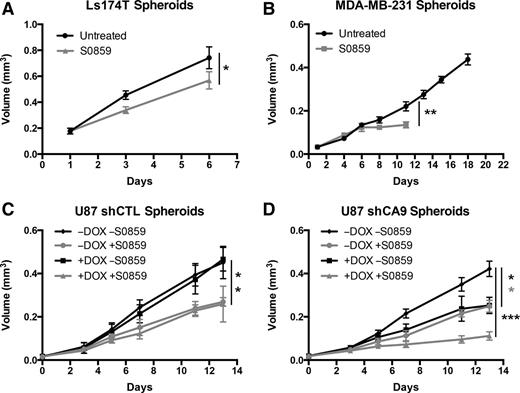

S0859 (100 μmol/L) reduced spheroid growth in Ls174T (13%, P < 0.05, n = 3), MDA-MB-231 (48%, P < 0.01, n = 3), and U87 (37%, P < 0.05, n = 3) cell lines (Fig. 4A–C). The results for S0859 treatment of MDA-MB-231 are truncated at day 11 as these spheroids consistently disintegrated at day 12. As shown previously (19), doxycycline-inducible CA9 knockdown reduced U87 spheroid growth rate (37%, P < 0.05, n = 3). S0859 treatment in combination with CA9 knockdown further reduced spheroid growth in U87 (70%, P < 0.001, n = 3; Fig. 4D). S0859 treatment did not reduce the growth rate of DLD-1 (a cell line that lacked hypoxic induction of bicarbonate transporters) spheroids; however, S0859 did affect the gross appearance of DLD-1 spheroids (Supplementary Fig. S7).

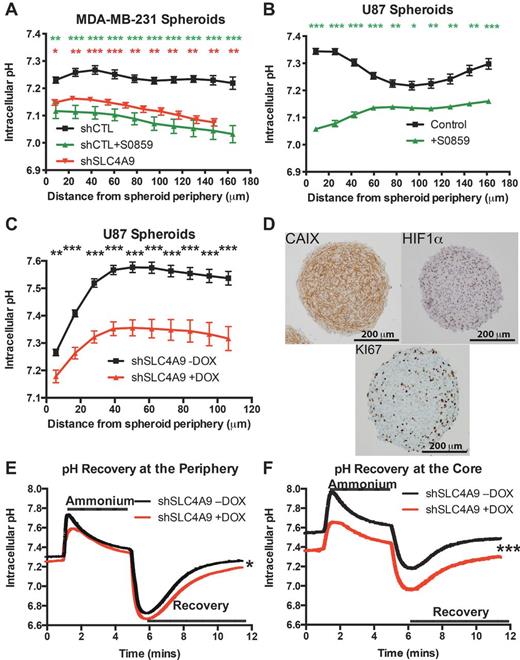

SLC4A9 knockdown resulted in more acidic steady-state intracellular pH in MDA-MB-231 spheroids (P < 0.05, n = 10 at the periphery and P < 0.01, n = 10 at the core of spheroids, pH difference −0.08 at the periphery and −0.14 at the core; Fig. 5A). S0859 (100 μmol/L) treatment resulted in lower steady-state intracellular pH in spheroids of MDA-MB-231 (P < 0.01, n = 10 at the periphery and P < 0.001, n = 10 at the core of spheroids, pH difference −0.11 at the periphery and −0.19 at the core; Fig. 5A) and U87 (P < 0.001, n = 20 at the periphery and the core of spheroids, pH difference −0.08 at the periphery and −0.29 at the core; Fig. 5B). In MDA-MB-231 spheroids, either SLC4A9 knockdown or S0859 treatment resulted in a steeper radial gradient of intracellular pH across the spheroid (S0859; P < 0.05, n = 10 and shSLC4A9; P < 0.05, n = 10) (Supplementary Fig. S8).

In U87 spheroids, the effect of S0859 on intracellular pH was greatest at the periphery rather than the core (Fig. 5B). To explore the reasons for this effect, size-matched U87 spheroids were immunostained for HIF1α, CA9, and Ki67 (a marker for proliferation; Fig. 5D). This revealed that HIF1α is stabilized throughout most of the U87 spheroid, except a single-cell rim at the periphery. Accordingly, the pattern of CA9 expression was similar to that of HIF1α. Ki67 positivity was greater at the periphery of spheroids compared with the core (Fig. 5C). Investigation of the impact of S0859 on the Ki67 positivity (Supplementary Fig. S7) showed a significant reduction (from 24% to 2% P < 0.001) for Ki67 positivity. The reliance on CA9 and bicarbonate transport for pH control is likely to be greatest where the cells are undergoing active proliferation and produce greater quantities of metabolic acid. In U87 spheroids, SLC4A9 knockdown had a similar effect on intracellular pH as with MDA-MB-231 spheroids, where the greatest effect was observed at the core of the spheroid (P < 0.01, ΔpH = pH_periphery–pH_core = −0.09 at the periphery and P < 0.001, ΔpH = −0.22 at the core of spheroids; Fig. 5C). Measurements of the dynamics of intracellular pH recovery demonstrated that SLC4A9 is a key acid-extruding protein, particularly important at the core of the spheroid (P < 0.001, ΔpH = −0.20; P < 0.05, ΔpH = −0.04; Fig. 5E and F).

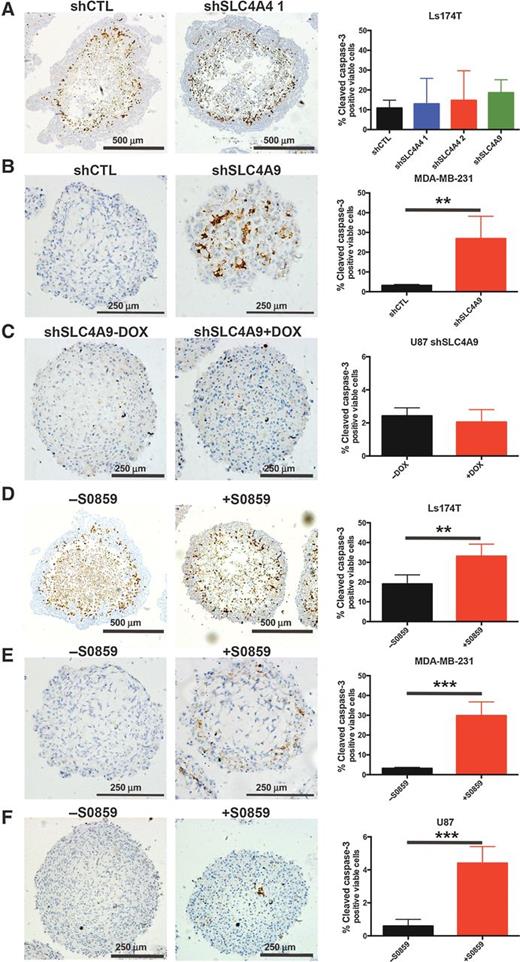

NDBT knockdown or S0859-treated spheroids were stained for cleaved caspase-3 (a marker for apoptosis). SLC4A4 knockdown did not increase apoptosis in Ls174T (Fig. 6A). In contrast, SLC4A9 knockdown increased apoptosis in MDA-MB-231 (P < 0.01, n = 3) but not in Ls174T or U87 (Fig. 6A–C). S0859 increased apoptosis in Ls174T (P < 0.01, n = 3), MDA-MB-231 (P < 0.001, n = 3), and U87 (P < 0.001, n = 3; Fig. 6D–F).

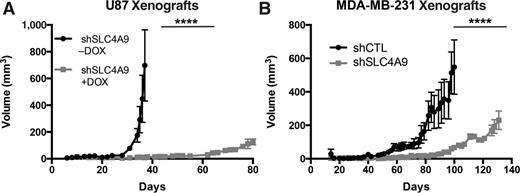

Doxycycline-inducible SLC4A9 knockdown reduced the growth of U87 xenografts by 92% (P < 0.0001, n = 7; Fig. 7). There was no effect of doxycycline on U87 shCTL control xenograft growth rates (Supplementary Fig. S8). SLC4A9 knockdown reduced the growth rate of MDA-MB-231 orthotopic xenografts by 79% (P < 0.0001, n = 6; Fig. 7).

The increased acidity associated with the hypoxic tumor microenvironment places additional stress on cells already under metabolic adaptation to low oxygen. HIF increases the expression of many pH-regulating proteins (34–36). Cells within the hypoxic microenvironment may then become sensitive to inhibition or knockdown of pH-regulatory proteins resulting in induced essentiality or context-dependent lethality (37).

Here, we identify increased expression of several bicarbonate transporters in response to hypoxia across a panel of cell lines from four different cancer types. 0.1% O₂ was used in these investigations as the physiologically relevant oxygen partial pressure for tumors, based on in vivo oxygen electrode measurements. For example, approximately 25% of head and neck, breast, and uterine cervix tumors have a pO₂ of ≤2.5 mmHg equivalent to 0.32% oxygen (38). Investigations at 1% oxygen identified fewer statistically significant changes. We tested whether the hypoxic induction of SLC4A4 and SLC4A9 was dependent on HIF1α or HIF2α (Fig. 2). SLC4A9 was most profoundly regulated by HIF2α in Ls174T and by HIF1α in MDA-MB-231. Similar examples from different cell lines of other genes that are regulated by alternate HIF proteins have been identified previously. For example, VEGF is primarily regulated by HIF1α in MCF7 cells and by HIF2α in RCC4 cells (39). Indeed, the hypoxic regulation of gene expression by HIF1α and HIF2α is complex and dependent upon cofactors and epigenetics. This regulatory complexity may explain the heterogeneity in patterns of expression for the bicarbonate transporters. Nonetheless, we have been able to identify a general upregulation of one or more functionally related NDBTs in the majority of cell lines investigated. Further investigations would be required to identify if factors in addition to HIF are involved in the regulation of the hypoxic induction of these bicarbonate transporters. SLC4A7 had high relative levels of expression, but was only significantly upregulated in HCT116 and was downregulated in SCC25. SLC4A7 has been investigated previously and was found to be regulated by ErbB1, 2, and 3 in breast cancer cell lines (28). The significance of SLC4A7 in cancer has been reviewed in ref. 28.

We show that knockdown or inhibition of sodium-driven bicarbonate transporters acidifies the pH of cells in spheroids. For SLC4A9 knockdown in MDA-MB-231 and U87 and for S0859 treatment in MDA-MB-231, this effect was greatest at the spheroid core. Similarly, measurements of intracellular pH recovery in U87 spheroids demonstrated clearly that SLC4A9 had a more substantial effect on pH regulatory fluxes at the core. In U87, the effect of S0859 treatment was present across the spheroid with most pronounced pH_i difference at the spheroid periphery. Given the increased hypoxic expression of sodium-driven bicarbonate transporters and the exacerbated acid stress in the hypoxic microenvironment, we expected a greater effect of knockdown/inhibition at the core of spheroids. The surprising effects on pH in U87 spheroids can be explained in terms of greater cell proliferation, and hence metabolic acid production, near the periphery, which is already considerably hypoxic (based on HIF and CA9 staining). S0859 markedly reduces Ki67 positivity (proliferation) at the periphery of U87 spheroids, and therefore the associated metabolic acid production. An effect on the intracellular pH in peripheral regions would also be consistent with inhibition of a membrane transporter active throughout the spheroid, responsible for setting steady-state intracellular pH. Thus, ablation of such an acid-extruding transporter would result in a drift toward the acidic direction of steady-state pH across all spheroid regions. The difference in the effects of SLC4A9 knockdown versus S0859 treatment on intracellular pH in U87 is likely due to the breadth of targeting: knockdown eliminates a specific NDBT gene product, whereas S0859 targets multiple bicarbonate transporters.

We showed that knockdown or inhibition of sodium-driven bicarbonate transport reduced spheroid growth rate, in agreement with reduced intracellular pH, a known suppressor of proliferation (8, 19). Furthermore, we showed that S0859 treatment had a greater effect on spheroid growth when combined with CA9 knockdown. This suggests that combined bicarbonate transporter and CAIX targeting may provide the greatest therapeutic impact. Bicarbonate transport is important for regulating the intracellular pH (hence growth) not only in hypoxic but also normoxic tumor microenvironment. However, increased bicarbonate transporter expression in hypoxia would offer an advantage, particularly if coupled with a stimulated rate of metabolic acid production. However, in the case of cell lines with high normoxic (i.e., baseline) levels of bicarbonate transport, additional hypoxic induction may not yield an advantage, as for the case for DLD-1 (Supplementary Fig. S1).

SLC4A4 knockdown in Ls174T cells, and SLC4A9 knockdown in LS174T, MDA-MB-231, and U87 did not reduce the number of viable cells in 2D culture in normoxia or hypoxia at pH 7.4 or 6.4 (26). This suggests that studies in 2D do not recapitulate the properties of 3D tissue, in which SLC4A4 and SLC4A9 clearly play a major homeostatic role. These additional properties, evident only in 3D tissue, may relate to stresses associated with the hypoxic microenvironment, such as metabolic stress and expanded diffusion distances.

A key result from this study is the increased apoptosis identified in spheroids with SLC4A9 knockdown in MDA-MB-231 or S0859 treatment in MDA-MB-231, U87, and Ls174T. The large increase in apoptosis at the core of MDA-MB-231 spheroids is the probable cause of spheroid disintegration at day 12. In contrast, the degree of apoptosis seen with S0859 in U87 spheroids is small and unlikely to have as significant a clinical impact (regression) as the effect seen upon reducing proliferation for these cells. The absence of an increase in apoptosis in U87 and Ls174T with knockdown of a single bicarbonate transporter may be due to a compensatory effect by one or more other transporters that are also increased in hypoxia. In MDA-MB-231, we showed a similar effect with knockdown of SLC4A9 alone and treatment with S0859. Like most pharmacologic inhibitors, recent data identified possible off-target effects of S0859 including inhibition of lactate transporters ectopically expressed in oocytes (31). Given the similarities in responses between S0859 and the NDBT knockdown studies, it is likely that the NDBT are the major targets here as described previously (7, 29, 30).

Finally, we show that SLC4A9 is important for xenograft growth in vivo, and that this effect was more substantial than in 3D in vitro models. This protein has not been studied in the context of cancer, and therefore is a novel target. The dependency on one type of transporter argues that these can specialize to an extent that cannot be compensated for by other proteins in these cells. Knockdown of NDBT transporters with additional shRNA sequences or reexpression of NDBT after the shRNA knockdown would provide extra validation to the approaches utilized here.

A recent publication highlighted the possible impact of doxycycline on mitochondrial gene expression (40). In our experiments, we included doxycycline-treated controls for both the in vivo (Supplementary Fig. S8B) and in vitro (Figs. 3I and 4C) studies and no effect of doxycycline alone was identified. Furthermore we have combined the treatment of U87 shCTL cells with doxycycline and the NBDT inhibitor S0859 in long-term spheroid experiments (Fig. 4C). There was no additional impact on growth when doxycycline treatment is combined with NDBT inhibition compared with NDBT inhibition alone. These data suggest that the possible mitochondrial impact of doxycycline is unlikely to be producing a combination effect in our studies. However it is possible that when doxycycline is combined with drugs/gene knockdown that reduce the rate of glycolysis the interpretation of the results would become more difficult. The NBDT inhibitor S0859 used here also inhibits other pH regulators such as MCT1 (at 10 μmol/L), MCT2 (at 4 μmol/L), and MCT4 (at 5 μmol/L) (31) and these may also contribute to its effectiveness, although no greater effect than the knockdown of a single transporter was seen.

Further to the effect of hypoxia on the expression of acid-extruding bicarbonate transporters, acid-loading bicarbonate transporters also showed increased expression in at least one cell line. Acid-extruders generate flux in the acidic range of intracellular pH; whereas acid-loaders are activated at high intracellular pH. The fluxes are balanced (i.e., equal but opposite) at resting intracellular pH. An increase in the expression (hence activity) of acid extruders will protect cells more effectively from acid challenges. However, if acid extruders alone were upregulated, steady-state intracellular pH would drift towards more alkaline values, which may not be permissive for cells. Thus, to bring steady state (i.e., setpoint) intracellular pH to normal levels, acid loaders would need to be upregulated concurrently. Thus, higher acid extrusion and acid-loading fluxes, attained by hypoxia-induction of their genes, produces a homeostatic system that protects intracellular pH better (faster) without shifting steady-state (set-point) intracellular pH. The functional significance of this observed effect at expression levels merits further investigation with detailed flux analyses.

The lack of strong correlation between the expression of bicarbonate transporters and hypoxic markers (e.g., CA9; ref. 28) is consistent with the isoform-dependent hypoxic regulation of bicarbonate transporters across cell lines. Thus, there is considerable heterogeneity in how tumor cells regulate their pH, and this will be essential to study in clinical studies, where pH can be measured by MRS, and NDBT and CA9 expression can be analyzed by PCR and IHC.

Given the probable utility of targeting sodium-driven bicarbonate transport in cancer, it is important to consider toxicity. Gene knockout studies in mice provide further insight into likely toxicity of systemic NDBT inhibition. SLC4A4 knockout mice have multiple abnormalities including: metabolic acidosis, growth retardation, and death before weaning (41). Human patients with homozygous SLC4A4-inactivating mutations exhibit ocular abnormalities and renal tubular acidosis (42, 43). Homozygous SLC4A5 mutation in mice resulted in metabolic acidosis and arterial hypertension (44). Mice lacking SLC4A7 develop blindness and auditory impairment (45). SLC4A9 knockout mice have no obvious phenotypic abnormalities (46). SLC4A10 plays a role in control of neuronal pH and excitability and cerebrospinal fluid secretion (47, 48). The majority of effects, but not all, associated with NDBT gene knockouts or homozygous deletions is developmental in pathogenesis, suggesting that targeting one or more of these may be viable. In particular, the striking effects of SLC4A9 knockdown on tumor growth in vivo and the lack of reported phenotypic abnormalities in SLC4A9 knockout mice make it an ideal candidate for specific inhibition. Alternatively, given the dependence of cells in the hypoxic microenvironment on NDBT for survival, utilizing a hypoxia-activated prodrug would enable targeting tumor cells in the hypoxic therapy–resistant microenvironment in combination treatments (49). Targeting NDBT has the advantage over targeting CA9 as inhibition or knockdown induces increased apoptosis, whereas CA9 inhibition/knockdown decreases apoptosis (19). The mechanism here is significantly different to that proposed for buffer therapy (50). Buffer therapy increases systemic bicarbonate with the aim to neutralize extracellular acidosis (50). In contrast, blocking bicarbonate transport disrupts intracellular acid–base homeostasis. Interestingly, inhibition of cellular bicarbonate uptake may, in fact, raise extracellular buffering by transferring bicarbonate out of the acidified intracellular compartment (that, when alkaline, stores most of the tissue's bicarbonate). Effectively, this may improve buffer therapy efficacy.

In summary, we identified hypoxic regulation of tumor pH, via sodium-driven bicarbonate transporters in a panel of cell lines across four tumor types. We showed profound effects of inhibition of SLC4A9 in vivo showing the importance of this transporter in the tumor microenvironment. Targeting sodium-driven bicarbonate transport should be an effective useful strategy for combination with hypoxia inducing antiangiogenic therapy.
