Spatially Resolved Metabolic Phenotyping of Breast Cancer by Desorption Electrospray Ionization Mass Spectrometry

Breast cancer is the most common cancer in women; approximately 12.3% of women in the United States will be diagnosed with breast cancer at some point in their lifetime. It is a heterogeneous disease with disparate patient outcomes dependant on multiple factors, including tumor size, nodal status, histologic grade and type, peritumoral vascular invasion, HER2, and hormone receptor (HR) status. A proportion of breast cancers will benefit from systemic chemotherapy, endocrine, and HER2-based therapies. HR and HER2 receptor expression are strongly predictive biomarkers for the response to targeted therapies. Results of these tests alone are key determinants of which adjuvant treatment the patient receives. There is, however, evidence of variability in assay results with discordance between laboratories, as there is no gold standard immunohistochemical assay available (1). Furthermore, these traditional pathologic prognostic categories are currently not sufficient to fully elucidate which patients will see the greatest benefit from these treatments. As such, further research into improving the management of breast cancer by early diagnosis, accurate characterization of disease, focused, personalized treatment, and risk stratification is essential. Significant progress has been made in the development of tissue-based tests that aim to predict risk of recurrence in patients with early-stage breast cancer and ductal carcinoma in situ. These include gene expression profiling assays such as Oncotype Dx (2), MammaPrint (3), PAM50 (4), and expanded immunohistochemistry tests such as IHC4 (5), and Mammostrat (6).

Both genetic/epigenetic (7–9) and metabolic (10) changes have been demonstrated in the histologically normal tissue surrounding invasive breast cancer compared with distant tissue, or that which has been excised for completely benign disease. These changes support the still incompletely understood theory of field cancerization. There is growing evidence that peritumoral microenvironmental changes may represent underlying mechanisms that affect tumor cell initiation, progression, and disease prognosis (11) and may affect surgical margins and risk of recurrence. Dynamic contrast enhanced magnetic resonance imaging has been used to identify this tumor-associated stroma (12).

Over the last decade, mass spectrometry imaging (MSI) has been increasingly applied to investigate the spatial distribution of biomolecules in tissue sections (13–15). Its potential to reveal the distribution of hundreds of molecules in a single measurement, without prior derivatization, is especially useful for the clinicopathologic analysis of cancer (16–18). Desorption electrospray ionization (DESI) MSI allows the detection of small metabolites and complex lipids within a tissue sample (19, 20). DESI MSI is not per se a quantitative method, but allows for relative quantification when the same tissue type is compared. It may be applied to fresh or frozen tissue sections without the need for further sample preparation, and as such may be readily incorporated into the operating theater and/or histopathologic workflow as recently demonstrated for the intraoperative determination of margin status in brain tumor surgery (21–23).

This study applied DESI MSI to the analysis of breast cancer to determine whether this technique can provide further information on the metabolic changes in breast tumor tissue and peritumoral tissue, which may provide novel biomarkers for stratification and prognostication of the disease and improve our understanding of tumor/microenvironment metabolomics and field cancerization. Moreover, we investigate the association between the metabolomic profile of the tissue and clinical factors such as cancer type, grade, and HR status.

This was a single center, prospective observational study performed at Charing Cross Hospital (London, United Kingdom; REC 11/LO/0686). Female patients undergoing breast surgery for benign and malignant disease were recruited on the day of surgery, having previously agreed to contribute tissue to this study, which was approved by the local Ethical Review Board. Patients who had undergone neoadjuvant therapy were included, and this was documented in the corresponding clinical dataset, as was medical history, drug history, menopausal state, ethnicity, smoking, alcohol status, and lifetime use of HR such as the oral contraceptive pill or hormone replacement therapy. Intraoperative biopsies were taken from the lesion (28 patients, 28 samples) and tumor bed (22 patients, 98 samples), flash frozen, and stored at −80°C. The “tumor bed” in this context is used to describe healthy tissue in the cavity beyond the surgical resection margin. Tissue was sampled intraoperatively using a disposable core biopsy gun (Tru-Core II 14G × 10 cm). One biopsy sample was taken from each tumor and 4 to 5 biopsy samples were taken from the tumor bed; at 3, 6, 9, and 12 o'clock and, from the posterior/deep cavity wall where possible. Demographic and clinicopathologic characteristics of the patient cohort are summarized in Table 1.

Frozen tissue sections (thickness, 15 μm) were prepared from each sample and subjected to DESI MSI. After measurement, tissue sections were hematoxylin and eosin (H&E) stained and underwent histologic examination. For DESI analysis, tissue sections were brought to room temperature. DESI MSI was carried out using a home-built DESI ion source coupled to a high-resolution orbital trapping mass spectrometer (Exactive, Thermo Scientifc GmbH). The DESI ion source was operated at a spatial resolution of 100 μm using nitrogen pressure of 4 bar, high voltage of 4.5 kV, a solvent mixture of methanol and water in a ratio 95:5 and a flow rate of 1.5 μL/minute. The mass analysis was carried out in negative ion mode in the mass range m/z = 200–1,000 at a nominal mass resolution of 100,000 at m/z = 200 and a mass accuracy of ± 2 ppm.

Raw mass spectrometric data were converted to imzML format (24) via imzML Converter (version 1.0.5) and imported into MATLAB (R2013a) for preprocessing (described in the Supplementary Material and Methods) and analysis. Preprocessed data were subjected to multivariate statistical data analysis. Recursive maximum margin criterion (RMMC) analysis was used for supervised discrimination and classification (25, 26). Tissue types in each sample and their spatial distribution were determined by histologic examination by an independent consultant histopathologist. This information was then used to select a small number of representative mass spectra per tissue type from the MSI image to build a sample-specific RMMC model and to classify all pixels of the MSI image via this model. One hundred of the correctly classified mass spectra were randomly selected and used to calculate an averaged mass spectrum for the tissue types present in the sample. If several tumor bed samples were measured per patient, average spectra for the tissue types present in the samples were calculated. After this step, each patient was represented by a set of average mass spectra corresponding to each tissue type found in the samples taken from this patient. This reduced dataset was then subjected to RMMC analysis to answer global questions regarding the differentiation of tissue types, tumor, and nontumor tissue, cancer type, cancer grade, and receptor status. Numbers of patients and samples per group of the reported models are given in Supplementary Table S1. The histopathologic data were retrieved from patient records and were used for data grouping in the corresponding models. Discriminating models were validated using 10-fold cross validation (described in Supplementary Materials and Methods). Confusion matrices were used to show the accuracy of a classification result. In case of two classes, the receiver operating characteristic (ROC) curve and corresponding area under the curve (AUC) were further employed for discriminative model diagnostics. The contributions of m/z features into multivariate models (component weights) were used for ranking of discriminant-related features. In addition, the univariate ANOVA analysis was employed to identify discriminatory m/z variables. The derived P values were adjusted with the false discovery rate of 0.003 for the tumor/tumor bed model, 0.005 for the tumor/glandular tissue model, and 0.01 for the stroma/tumor stroma and grade/HR model. After identification of class separating m/z bins via contributions plots and based on P values, exact m/z values were retrieved from the raw data. These values and isotopic patterns were used for compound identification via database search [Metlin (27), Lipid maps (28), HMDB (29)].

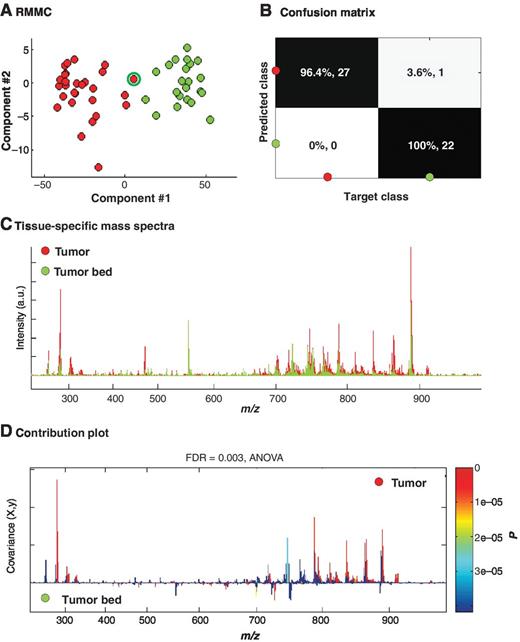

We first determined the ability of DESI MSI to identify the presence of breast cancer based on its global metabolic profile from 126 tissue biopsy samples derived from 50 patients. Data extracted from DESI MSI measurements were separated in two groups (tumor from 28 patients and tumor bed from 22 patients) and subjected to multivariate statistical analysis. Tumor bed samples were used as the normal control and were confirmed as morphologically normal tissue by histologic examination. RMMC analysis demonstrated significant class separation in the cross-validated score plot (Fig. 1A). The predictive power of the model was good, with 98.2% of data points correctly classified as tumor and tumor bed (Fig. 1B). One tumor sample was incorrectly classified as histologically normal tissue by the model (highlighted by an additional circle in green in Fig. 1A). Figure 1C shows the raw summary mass spectrometric profiles of the two groups (tumor and tumor bed). Both tissue profiles feature a high number of peaks (3,500 were used to build the model), especially in the mass range of fatty acids (m/z = 200–400) and phospholipids (m/z = 650–950). Although the majority of features were found in both tissue profiles, the abundance of the individual features differed for the two groups. The contribution plot shown in Fig. 1D indicates that fatty acids in general and phospholipids with a mass greater than 760 Da are more abundant in tumor tissue, while a small number of features in the mass range 700–760 Da are significantly higher in the morphologically normal breast tissue. Free fatty acid and phospholipid markers that have a high contribution to the class separation are summarized in Table 2 and will be described in detail in the discussion section.

The main advantage of DESI MSI is that it allows spatially resolved profiling of tissue sections. This requires sophisticated statistical analysis, but allows biochemical changes, for example due to cancer initiation and histologic variation, to be visualized and objectively analyzed. Breast tissue is microscopically composed of adipose tissue (approximately 60%), glandular tissue (approximately 30%), and stroma. These were the main tissue components identified during histologic evaluation of samples in this study. Accordingly, mass spectrometric profiles for each of these tissue subclasses were extracted per sample and patient. Within our study, we examined conventional “breast cancer,” that is, cases of malignancy in which the neoplastic cells demonstrates an epithelial (glandular) phenotype.

Tumors, in the macroscopic sense, contain multiple tissue types in addition to tumor cells; often in the form of stroma and rarely as adipose tissue. For the purpose of analysis, histologically normal stroma and adipose tissue directly associated with malignant cells (macroscopically intratumoral) was extracted separately from this same tissue type located within the tumor bed. Some samples featured blood vessels and nerves with diameters of >100 μm. Because of the low number of samples these were excluded from statistical data analysis. Figure 2A shows the cross-validated RMMC scores plot for the tissue type–specific analysis of the dataset, differentiating six tissue subclasses: adipose tissue from tumor bed, stroma from tumor bed, glandular tissue from tumor bed, tumor-associated stroma, tumor-associated adipose tissue, and tumor itself (neoplastic glandular cells). There was 83.8% overall correct classification (Fig. 2B), and despite significant metabolic homogeneity in these tissue type subclasses, only a single tumor sample (the same as in the previous model) was incorrectly classified. This demonstrates that tumor tissue has a distinctly different metabolomic profile in comparison with benign tissues. Of particular note is that tumor demonstrates a different profile to benign glandular tissue. Interestingly tumor-associated stroma was also found to clearly separate from tumor bed stroma. This highlights the fact that stromal tissue within the tumor microenvironment also undergoes a detectable metabolic change. The most significant mass spectrometric differences were observed between stromal tissue and all other tissue types, most likely due to the low abundance of phospholipids in collagen-rich tissue.

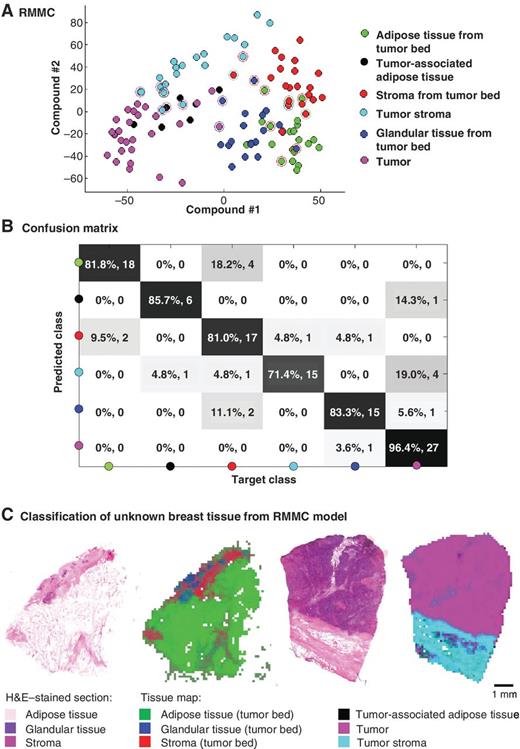

The observed differences in metabolomic tissue profiles were sufficient for the classification of unknown tissue types using multivariate statistical methods. Figure 2C shows the results for biopsies taken from two patients. It compares the H&E–stained tissue section (stained after DESI MSI measurement) with a tissue map that was reconstructed after classification of each pixel of the DESI MSI measurements using multivariate statistical analysis. For purposes of classification, a model was built based on the metabolomic tissue profiles extracted from all samples leaving out the data of the sample to be classified. The probability of a pixel to belong to a specific tissue type within the model is visualized by intensity of the color representative of that tissue type. Further details of model generation and classification can be found in the Supplementary Material. On the left of the figure, an H&E–stained tumor bed biopsy with histologically normal stromal, glandular, and adipose tissue and the associated DESI MSI tissue map is shown. On the right, an H&E–stained tissue section of grade 3, HR negative, invasive ductal carcinoma (IDC; with necrosis and a large amount of tumor invading stroma in the superior aspect of the tissue section, and histologically normal stroma and adipose tissue in the inferior aspect). The associated DESI MSI tissue map is adjacent. Tissue types, as identified in the H&E–stained section, were also accurately classified with low lateral resolution by multivariate statistical analysis of the metabolomic data, thus showing the potential of this method for the detection of tumor tissue without histologic staining. The method shown here is proof-of-concept and could be improved by adding more tissue types and samples to the model.

To further investigate the previously described peritumoral metabolomic changes associated with breast cancer, glandular tissue was specifically examined by statistical data analysis. This tissue-specific comparison allows any direct changes in the metabolome of the glandular tissue due to cancer development to be characterized, without interference by the metabolome of adjacent tissue, as often observed in bulk tissue analysis. DESI MSI as performed here is not a quantitative method, but allows for relative quantification when, as shown below, if data from the same tissue type are compared. In this study, mass spectrometric profiles of morphologically normal glandular tissue (18 patients) were compared with those of tumor tissue (28 patients). The contribution of each signal to the separation of the groups was calculated. The vast majority of peaks were found to be more abundant in the tumor tissue. The most intense peaks (with a P value <1 × 10⁻⁵) are summarized in Table 2 with tentative identifications along with mean values and fold change for the morphologically normal glandular breast tissue and tumor tissue. Among the highly significant peaks identified were several fatty acids (FA), phosphatidylethanolamines (PE), phosphatidylcholines (PC) and phosphatidylinositols (PI). Fold changes between 2 and 14 were observed (mean fold change = 5), which is close to fold changes reported in the literature (30, 31). Only a small number of peaks with medium significance for tissue separation were found in greater abundance in the morphologically normal glandular tissue. These signals were identified as the ether lipids p-PE(36:4), p-PE(38:4), p-PE(38:5) and PA(36:1).

To elucidate the metabolomic changes associated with cancer progression and invasion as found in DESI MS spectra in more detail, stroma was examined independently by statistical data analysis. In our study, mass spectrometric profiles of morphologically normal stroma from the tumor bed (20 patients) were compared with stroma directly associated with the tumor (20 patients). Again, there was a greater abundance of signals from fatty acids and lipids in “tumor associated” stroma compared with stroma from histologically normal tissue. The most intense peaks, with a P value < 2 × 10⁻⁵, are summarized in Table 3. Very high fold changes (26–37) were found for signals associated with lactate and calcidiol. Lactate was found as a dimer and in form of several sodium chloride clusters (M+Na₄Cl₄, M+Na₃Cl₃, M+Na₂Cl₂). Salt clusters are likely to be observed in stroma, as this tissue serves as a water and salt depot for the surrounding tissues (32). The monomer, however, was not accessible in the given measurement range.

Finally, the group of tumor samples was divided into subgroups (see Table 1) according to a range of clinical factors employed in the prognostication and management of breast cancer. Among these were the histologic grade and type of tumor, lymph node status, HR [estrogen (ER) and progesterone (PR)] status and HER2 receptor status. Each of these clinical factors was tested individually (independently of all other clinical factors) to fit the metabonomic differences observed in the data of the tumor tissue. Patients were excluded from the dataset when no data for the tested clinical factor were available. Differences in the metabolic data were best explained by tumor grade (Fig. 3) and HR status (Fig. 4) and slightly less accurately by tumor type (see Supplementary Fig. S1).

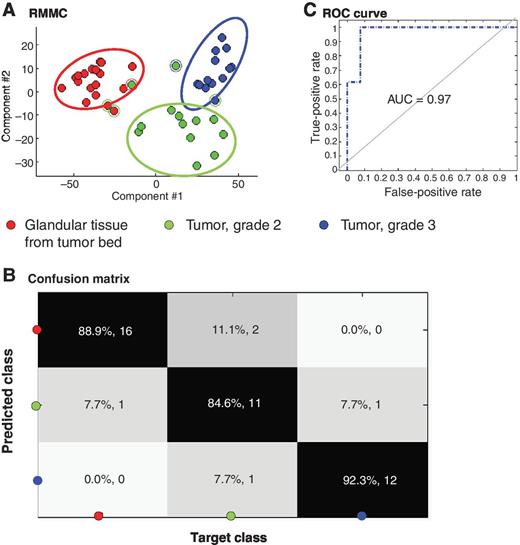

The correlation of the metabonomic data with the tumor grade is shown in Fig. 3 for tumor grade 3, tumor grade 2, and morphologically normal glandular tissue. The cross-validated RMMC score plot for this dataset is shown in Fig. 3A. The corresponding confusion matrix is given in Fig. 3B. An overall classification accuracy of 88.6% was achieved. The ROC curve shows the potential to use the metabolomic data for the discrimination of grade 2 and grade 3 tumors (Fig. 3C). The probability for correct discrimination was 97% (AUC = 0.97).

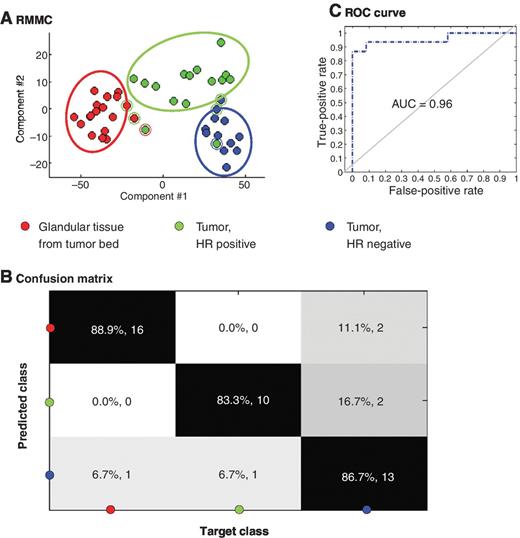

The correlation of the metabonomic data with HR status of the tumor tissue is shown in Fig. 4 for tumors with positive HR status, tumors with negative HR status, and morphologically normal glandular tissue. An overall classification accuracy of 86.7% was achieved for this model (Fig. 4A and B). The probability for correct discrimination of HR-positive and HR-negative tumors was 96% (AUC = 0.96, Fig. 4C).

Tumor grade and HR status fitted the metabolomic data with similar quality due to the 86% overlap of the two clinical factors. Hence, a combination of tumor grade and HR was used for further interpretation.

Supplementary Figure S2 shows intensity distribution plots of 8 compounds with P values < 2 × 10⁻⁴. Supplementary Figure S3 shows the distribution of FA(20:2) in a tumor bed sample (a), in a grade 2 HR-positive tumor sample (b) and a grade 3 HR-negative tumor sample (c). From a clinical point of view, a separation between grade 2, HR-positive tumors and grade 3, HR-negative tumors is relevant, as the former are generally associated with a better response to adjuvant therapy and a better prognosis, while the opposite is true of the latter (33).

Results correspond well with previous measurements of the metabolic profile of breast cancer. Studies using both using mass spectrometry (30) and NMR spectroscopy (34) have documented an increase in both FA and phospholipid concentrations in breast cancer tissue in comparison with morphologically normal breast tissue. The single misclassified sample in our study showed lower overall intensity in the average spectrum when compared with the other tumor samples. Lower overall intensity might be related to the low density of malignant cells in the tissue section. No clinical (tumor type, tumor grade, ER, PR, HER2, lymph node status, preoperative treatment) or demographic (age, ethnicity, lifestyle) features were found that explain the misclassification.

Cancer is generally associated with a loss of differentiation, unregulated growth, and increased cell mobility. Research into the mechanisms involved in the transformation of normal epithelial cells into cancer cells has already determined dramatic changes in the genome (35, 36), proteome (37, 38), and metabolome (39, 40) of these cells. Among these changes, an alteration in the glucose metabolism (41), in the fatty acid (31, 34) as well as in the lipid composition of the cells (30) has been observed. In particular, fatty acids from de novo synthesis were found in greater abundance. These findings were replicated in our dataset where five of the seven fatty acids found to be increased in tumor tissue can be generated via de novo synthesis. Higher PC and PE levels have been reported previously in breast cancer (31, 42, 43) and these could be associated with the loss of differentiation and, more specifically, a loss of epithelial polarity. Previous studies have shown that PEs and PCs were upregulated, while p-PEs were downregulated in Madin–Darby canine kidney cells (a cell culture model for epithelial polarization) after the cells underwent epithelial–mesenchymal transition (42).

There are similarities in the immune response toward wounds and toward tumors, such as the activation of extracellular matrix remodeling, cell motility, and angiogenesis (44). Furthermore, there is increasing evidence that the tumor environment plays an active role in tumor development and progression (45). Tumor cells are known to interact with their surrounding tissue and may manipulate the function of cells such as fibroblasts, endothelial cells, and pericytes (46, 47). Fibroblasts are highly abundant in the tumor environment (47). They have been shown to undergo differentiation to cancer-associated fibroblasts (CAF) and to produce lactate and pyruvate through aerobic glycolysis, prompting tumor cells to overcome energy depletion (reverse Warburg effect; ref. 48). However, tumor cells themselves are also known to provide for their increased energy consumption by producing lactate (Warburg effect). The increased levels of lactate found within the tumor stroma in our study can thus be explained by invading cancer cells or CAFs. In addition, we found in our study an upregulation of fatty acids and phospholipids in the intratumoral stroma. This may be explained by the increased cellularity of the tumor-associated stroma due to immune response and inflammation, as well as malignant cell invasion. Fatty acids and lipids showed similar fold changes to those observed in the tumor tissue itself, which may be an indication that these signals are mainly from invading tumor cells.

Our findings were consistent with a high-performance liquid chromatography-electrospray ionization-mass spectrometry (HPLC-ESI-MS) study of 257 breast cancer samples and 10 control samples (30). Seven of the 11 lipids that we found to be upregulated in cancer tissue were also found by the HPLC-ESI-MS study. Furthermore, these lipids showed the same association to tumor grade and HR status in terms of relative compound concentrations in our data as described in the HPLC-ESI-MS study.

In conclusion, using DESI MSI, we were able to differentiate between tumor tissue and morphologically normal breast tissue with an overall accuracy of 98.2%. In comparison with morphologically normal glandular tissue, tumor tissue had increased levels of fatty acids and showed an increase in the concentration of the majority of measured phospholipids. These findings support the theory of de novo lipogenesis in tumor tissue and were associated with loss of differentiation and increased levels of tumor cell proliferation. In addition, we demonstrated changes in tumor-associated stroma that correlate with findings that tumor supporting stroma may be associated with disease prognosis by playing a role in angiogenesis and extracellular matrix remodeling. We found that tumor grade and HR status accounted for the greatest differences in the metabolic profiles of tumor tissue, with tumor type being less significant. The combination of tumor grade and HR status allowed for the differentiation of normal glandular tissue, grade 2 tumors with a positive HR status and grade 3 tumors with negative HR status with an overall accuracy of 87.7%. Therefore, DESI MSI may prove to be a useful tool in the future diagnosis of breast cancer and spatially resolved characterization of tumor-associated changes in lipid biochemistry.
