Maintaining Tumor Heterogeneity in Patient-Derived Tumor Xenografts

Despite remarkable advances in our understanding of the progression of human malignancies and the molecular events that underpin tumor survival, new therapies often fail to show significant efficacy in clinical trials. Projects such as The Cancer Genome Atlas and METABRIC have demonstrated the remarkable heterogeneity across tumors previously believed to be of the same subtype (1). It could be argued that clinical trials fail to sufficiently stratify patients based on relevant biomarkers of drug response: the response rate of an unscreened population to a molecularly targeted therapy typically lies between 10% and 20% (2). Patient stratification based on molecular determinants of drug efficacy and tumor heterogeneity allows for significantly greater responses—exemplified by the success of ALK kinase inhibitors in EML4-ALK–positive non–small cell lung cancers (3). However, even with patient stratification, clinical responses can be fleeting, often adding only 6 to 12 months before disease progression (2). Thus, understanding intertumor heterogeneity is the first step toward improved drug efficacy and diminishing tumor relapse.

Intratumor heterogeneity is governed by both cell-autonomous (e.g., genomic and epigenomic heterogeneity) and non–cell-autonomous (e.g., stromal heterogeneity) factors. This heterogeneity has clinical implications in patient-specific responses to therapy and the rapid emergence of resistance to targeted therapies (4). By capturing intra and intertumor heterogeneity, patient-derived tumor xenograft (PDX) models have a clear advantage over traditional models, supporting their use in oncologic drug discovery and preclinical development. PDX models largely recapitulate cell-autonomous drivers of heterogeneity: exhibiting genomic clonal dynamics reminiscent of their originating tumor sample (5, 6). Moreover, phenotypically distinct isogenic cellular clones have been shown to drive resistance to chemotherapy in colorectal PDX models (7). The tumor microenvironment has long been known to play an essential role in tumor progression and its role in drug response is becoming apparent (8, 9). Although PDXs retain the 3D architecture found in human tumors, stromal and immune interactions may be altered by inter-species compatibility and cellular component deficiencies in host models.

The poor performance of so many investigational drugs suggests that preclinical tumor models lack clinical predictive power. Indeed, one of the most often cited reasons for clinical failure is a lack of preclinical models that recapitulate the complexity of human cancers. It is with this in mind that many research and pharmaceutical groups have turned to PDX models (10, 11). The establishment and predictive power of PDXs have been reviewed recently elsewhere (11). This review will focus on the limitations of current PDX models and how these can be addressed in the future, specifically in terms of maintaining the heterogeneous nature of human cancers (summarized in Table 1). PDXs are arguably the best models of tumor heterogeneity, and therefore perhaps the most powerful tools for investigating tumor biology. However, they may fail to fully account for many non–cell-autonomous drivers of heterogeneity (Fig. 1A), and should be adapted if they are to reach their full potential as predictors of clinical efficacy in cancer drug development.

Through the course of tumor initiation and progression, cancerous cells undergo repeated mutational events that may or may not result in increased fitness relative to neighboring cells. Dramatic increases in fitness are seen with the acquisition of key driver mutations early in a tumor's evolution, for example the loss of TP53 may lead to clonal dominance. However, selection operates on phenotypes in response to stress-inducing events, which may be stable or transient (12). A gain of fitness in one clone relative to another does not necessarily imply the loss of the latter in favor of the former. Rather, clonal populations within the tumor exist dynamically in space and time: competing, and perhaps cooperating, to further increase fitness of the tumor population as a whole (13). Clonal dynamics derived from tumors' inherent heterogeneity are thus extremely complex and can play key roles in tumor progression and development.

This conceptual framework of clonal evolution in cancer predicts several clinically observable features (14). First, every mutation or copy number aberration (CNA) present in the bulk tumor need not be present in all cells; indeed, spatial variation exists in a tumor's clonal composition. The existence of multiple subclones explains variable response rates to therapy, even within a single tumor mass, and the rapid emergence of drug resistance. For instance, the presence of a minor KRAS-mutant clone can predict colorectal cancer patients who will develop resistance to epidermal growth factor receptor (EGFR)–targeted therapy (4).

Our group has previously shown that breast cancer consists of at least 10 distinct molecular subtypes with significant differences in disease outcome and treatment responses (1). Furthermore, we have helped delineate the diverse, variable clonal composition of triple-negative breast cancers (TNBC; ref. 15). By allelic frequency measurements of 2,414 somatic mutations in 104 TNBCs, a complete spectrum of molecular and clonal compositions was characterized at diagnosis. Aside from the prognostic features of specific rare subclones (4), there is an association between clonal diversity and treatment resistance for at least some tumor types—notably ovarian (16) and esophageal (17). Basal-like TNBCs have previously been linked with shorter disease-free survival compared with nonbasal-like TNBCs and tend to be associated with higher clonal diversity (15). Furthermore, integration of genomic and drug response data from breast cancer PDX models generated in our laboratory shows that polygenomically engrafted tumors are more resistant to therapy than monogenomically engrafted tumors (Bruna and colleagues, manuscript in preparation). Clearly more work is still to be done, but it seems likely that the clonal composition of tumors will have future utility in predicting disease outcome and informing treatment choice.

Multiple groups have attempted to define clonal dynamics based on either lentiviral barcoding (cellular clones) or mutational clustering (genomic clones) by population and single cell–based computational approaches (5, 18). For example, Eirew and colleagues (5) reconstructed the genomic clonal dynamics of a panel of breast cancer PDX models using PyClone: a Bayesian clustering method for grouping somatic mutations. In each of the 15 cases examined, clonal diversity was reduced by xenotransplantation. This varied from extreme engraftment bias, selecting minor clones present in the sample of origin, to only moderate clonal selection. Remarkably, similar clonal dynamics were observed in parallel xenografts established from the same sample. In a separate study, Ding and colleagues (19) found that PDX models established from a basal-like breast cancer were more representative of the patient's metastatic lesion than the primary tumor. These observations suggest that deterministic mechanisms underline the clonal selection found on engraftment. Eirew and colleagues (1, 5) further observed variable clonal dynamics between PDXs established from different molecular subtypes, underscoring the need for better representation of tumor molecular subtypes. In summary, PDX models can, at least partially, recapitulate the complex clonal dynamics of human malignancies and engraftment biases may represent nonstochastic selection events, which define a PDX model rather than limit its utility. The variable tumor- and subtype-dependent engraftment rates (low for some tumor types) and frequencies in the population mean that PDX programs representative of intertumor heterogeneity may require large multicenter collaborative efforts (such as the EuroPDX consortium; ref. 10) and centralization of models.

Clonal evolution is a continuous process, and may be substantially altered by the selective pressures applied during chemo- and targeted therapy. Coupled with spatial heterogeneity within the tumor, this may result in the need for multiple-site repeat biopsies to decipher the clonal composition and dynamics of a tumor and inform treatment choice. Clearly these procedures will be highly invasive and may not be technically possible; it is with this in mind that many researchers have turned to liquid biopsies (14, 20). If our hypotheses are correct, modeling of clonal evolution in patient and matched PDX by computational approaches [such as PyClone (5) or CloneHD (18)] will allow unprecedented basic and translational research into clonal drivers of tumor progression and treatment response. Such studies will also be necessary to determine the longevity of PDX models of each cancer subtype, as it is unlikely that PDXs will remain patient-relevant and genomically stable in perpetuity.

It has been proposed that aberrant DNA methylation patterns in cancer can blur the lines between distinct phenotypic “attractor states” (21). Thus, it may be important to consider cellular clones as drivers of malignant progression, independent of their genetic background. To track these isogenic cellular clones, lentiviral tagging has been used to mark individual cells, and their progeny, in breast and colorectal PDX models (6, 7). In an elegant study by Kreso and colleagues (7), it was found that minor “type IV” subclones in colorectal PDXs were able to repopulate the tumor bulk after treatment with chemotherapy. These quiescent cell populations were genetically similar to their highly proliferative counterparts, and were later linked to the BMI1+ population thought to act as reserve stem cells of the intestinal and colonic crypts (22). As the cellular clones defined in this study were isogenic, their phenotype may have been driven by microenvironmental cues capable of modulating cellular transition between distinct gene expression patterns or epigenetic attractor states (23). Hence, the microenvironment's composition could profoundly alter both a cells propensity to malignancy and the heterogeneity we hope to preserve in PDX models. Regardless, we should not underestimate the significance of even a partial translation of vastly heterogeneous human diseases into experimental model systems.

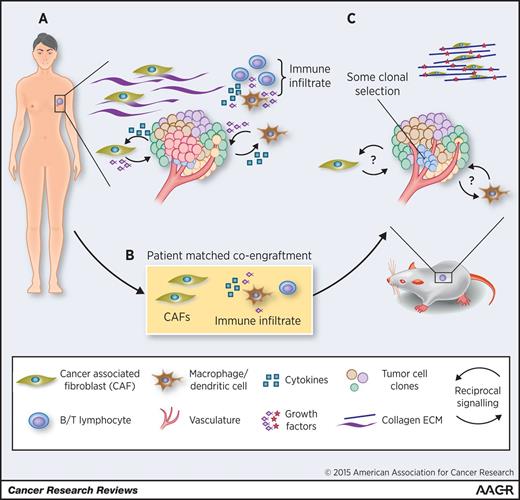

Aside from clonal dynamics driven by intrinsic differences in a cell's genetic or epigenetic background, intratumor heterogeneity can be influenced by tumor-extrinsic factors in the non–cell-autonomous compartment (Fig. 1A and Table 1; ref. 23). Cellular interactions with the extracellular matrix (ECM) can alter gene expression programs, drive differentiation, and profoundly alter cell behavior. As cancers develop, tight regulation of the ECM is lost and tissue architecture begins to degrade (8). A recent study by Wang and colleagues (24) provides direct evidence that ECM-dependent signaling confers dynamic switching between TGFBR3 (transforming growth factor β receptor 3)- and JUND (jun D proto-oncogene)–related expression signatures. ECM-driven oscillations between signaling pathways such as those described could have profound effects on propensity to malignancy. Furthermore, solid-state ECM interactions are necessary for cells to maintain stem cell properties and regulated ECM helps maintain the stem cell niche (25). As cancer is often associated with a blurring of the boundaries between stem and differentiated cells, it is possible that a loss of structured ECM is essential for the stability of multiple subdominant cellular clones within a tumor (21). In PDX models, Matrigel is often used to increase the engraftment efficiency; however, it is worth noting that this is a murine basement membrane extract and suitable synthetic human alternatives are available. The presence of growth factors in Matrigel may favor the engraftment of one cell type over another. Finally, as ECM structure is tissue specific (25), researchers should consider the use of orthotopic transplantations where possible.

The tumor microenvironment is further characterized by an influx of stromal cells. Infiltrating cancer-associated fibroblasts (CAF) can often confer resistance to cytotoxic and targeted therapies (9); however, recent studies confer on fibroblasts a degree of plasticity, with antitumor properties observed in some populations (26). Because of the high levels of CAF infiltrates seen in some tumor types, heterogeneity within their population would undoubtedly confer differential properties to the tumor bulk. We, and others, have found that human stromal cells are gradually replaced by murine equivalents upon engraftment in the mouse, suggesting that implanted human cancer cells retain the ability to recruit murine accessory cells to their niche. However, it should be noted that some differences exist between ligand repertoires of human and murine fibroblasts (27). Clearly stromal architecture and activity is mimicked in the murine host; however, it is currently unclear how this reflects human stroma with regards to supporting tumor growth and development.

It is with this in mind that many have begun to investigate the coengraftment of human mesenchymal stem cells (MSC) or CAF cell lines in PDXs (Fig. 1B and C). Here, care must be taken; the role of MSCs in tumor development is still controversial and may represent patient (or tissue)-specific differences (28). If non–patient-matched sources of stromal cells are implanted, heterogeneity between tumors derived from different patients could be lost. Moreover, fibroblast cell lines vary considerably in their ability to confer resistance to cytotoxic therapies through hepatocyte growth factor (HGF)/c-Met signaling (9, 27). Patient-derived fibroblasts can be isolated from tumor samples and expanded in vitro, thus, coengraftment of matched stromal components should be considered wherever possible. This would significantly increase the advantages these models already have in retaining the complex heterogeneity found in patient samples.

Considering the crucial role of the immune system in tumor progression, perhaps the most obvious disadvantage of PDX models is the necessity for severely immunodeficient host animals. Tumor cells are broadly thought to be antigenic: point mutations in coding exons in a developed tumor results in a large repertoire of neoantigens. Targeting of these neoantigens can lead to significant CD8⁺ cytotoxic T-cell infiltration and tumor cell death. However, most tumors eventually progress and evade the immune system—often through the dominant inhibitory effects of suppressive pathways (so-called “immune checkpoints” such as CTLA-4/B7 and PD-1/PD-L1). This is supported by the prognostic value of the CD8⁺ to FOXP3⁺ (cytotoxic to regulatory T-cell, Treg) ratio in many solid tumors, and the recently reported clinical efficacy of a variety of checkpoint inhibitors (29, 30).

The proinflammatory microenvironment established by CD8⁺ T cells, M1 polarized tumor-associated macrophages (TAM), NK cells, and others can lead to the recruitment of numerous immune-suppressive components. TAMs and myeloid-derived suppressor cells have been implicated in resistance to antiangiogenic therapy. In addition, macrophage and CD4⁺ T-cell recruitment following intensive chemotherapy in breast cancer patients is associated with significantly reduced recurrence-free survival (30). Clearly, the coengraftment of immune components into PDX models (Fig. 1B) would facilitate both the study of novel therapies targeting tumor-immune interactions and allow for basic research into patient-specific cross-talk between tumor progression and immune surveillance. Clone or patient-specific differences in tolerization of dendritic cells, macrophage, and neutrophil polarity and Treg infiltration could provide multiple novel insights into tumor biology.

The most robust reconstitution of the human immune system in immunodeficient mice is seen when bone marrow–derived stem cells are coengrafted along with liver and thymus fragments (BMT model; ref. 31). However, the highly invasive multisite biopsy required renders this model impractical for patient-matched humanized PDX models (huPDXs). CD34 marks a population of hematopoietic stem and progenitor cells (HSPC) found in the blood and bone marrow. Mice implanted with CD34⁺ cells from umbilical cord blood show robust multilineage engraftment of human immune populations, though with reduced functionality relative to BMT mice. During chemotherapy, CD34⁺ cells leave the bone marrow and enter the circulation. If patients are given granulocyte-macrophage colony stimulating factor (GM-CSF; Leukine) to aid recovery from chemotherapy, numbers of CD34⁺ cells in the circulation have been known to exceed the bone marrow itself. Hence, CD34⁺ cells could potentially be harvested from patient's blood to reconstitute a functional, patient-matched, immune system in mouse models (huCD34 model). As such, an immune system would mature in the mouse and human immune cells would undergo central tolerance to mouse antigens during development. However, as they would not be exposed to patient antigens during this process, it is likely that they would mount a rapid non–self-response to any subsequently engrafted human tissue. One possible solution comes from a recent study by Cosgun and colleagues (32), showing immunodeficient adult mice carrying a mutation in the Kit receptor could support robust, uniform, and sustained engraftment of CD34⁺ cells. If patient-matched CD34⁺ HSPCs were engrafted in adult Kit mutant mice with an established PDX tumor, it is possible that a functional immune system could develop in the presence of both human and mouse antigens.

The alternative, to engraft fully mature human immune cells, is used in the huPBMC model. Here, mononuclear cells from the peripheral blood mononuclear cells (PBMC) are isolated and implanted in immunodeficient mice. PBMCs comprise around 75% CD4/CD8⁺ T cells with the remainder primarily containing B and NK cells. As such, these models are well suited to short-term experiments where lymphocyte function is of primary concern. Aside from the lifetime of circulating cells, the major limitation of the huPBMC model is the rapid onset of graft versus host disease (GVHD) as engrafted cells mount an immune response against host murine tissue. The onset of GVHD can be delayed somewhat by the use of NOD scid gamma (NSG) strains lacking MHC I (33).

Undoubtedly, the reconstitution of a patient-matched immune system in PDX models would be extremely valuable in the development of novel oncologic drugs and, in particular, immunotherapeutics. The extent to which findings would be valid in the context of immune hyperactivation (against mouse in huPBMC or against tumor in huCD34) is unclear.

The PDX is arguably the most faithful model of cell-autonomous drivers of malignant progression. Sharing of expertise and resources through collaborative initiatives, such as the EuroPDX consortium, will lead to improved engraftment efficiencies and increase the breadth of tumor subtypes available in these model systems, contributing to a better representation of cancer heterogeneity in the laboratory (10).

Cooperation and competition between genetically and phenotypically distinct subclonal populations are thought to drive tumor growth, resistance to therapy, and recurrence. Although cell-autonomous sources of heterogeneity are clearly recapitulated in PDX models, current techniques fail to properly account for non–cell-autonomous factors. The microenvironment has long been known to play a significant role in tumor progression, but an incomplete understanding of stromal influences makes coengraftment of non–patient-matched cell compartments a risky strategy. In order to maintain PDXs as models of diversity of human malignancies, we must take care to engraft only patient-matched stromal components. CAFs have known roles in resistance to targeted therapy. It should, therefore, be a priority to ensure patient fibroblasts are maintained in the tumor xenograft.

Reconstituting a patient-matched immune system in PDX models is a significant challenge. Standard methods of engrafting either CD34⁺ HSPCs or mature circulating PBMCs will likely lead to inappropriate immune responses against human or murine tissues, respectively. In order to study long-term tumor–immune interactions, a reconstituted immune system must simultaneously maintain tolerance to its human donor and acquire tolerance to its new host. A solution could come from engrafting both mature and naïve cell types. Maturing cells in the thymus and bone marrow would acquire central tolerance to murine tissues, whereas mature cells in the periphery could act to suppress inappropriate responses against human antigens.

PDX models are capable of recapitulating the complexity of human malignancy remarkably well. These models have extraordinary utility in basic cancer research and beyond this have demonstrated clinical predictive power, allowing multiplexed screening of novel therapeutics in vivo. However, the aforementioned limitations of this model must be carefully considered when interpreting data. Although a significant amount of research is still needed, patient-matched huPDX models with coengrafted stromal and immune components would offer unprecedented opportunity to study tumor biology and would be invaluable models in oncologic drug development. In the future, huPDX models could allow researchers and clinicians to both predict and explain tumor response to novel targeted therapies.
