Cancer genome sequencing has identified numerous somatic mutations whose biologic relevance is uncertain. In this study, we used genome-editing tools to create and analyze targeted somatic mutations in murine models of liver cancer. Transcription activator-like effector nucleases (TALEN) were designed against β-catenin (Ctnnb1) and adenomatous polyposis coli (Apc), two commonly mutated genes in hepatocellular carcinoma (HCC), to generate isogenic HCC cell lines. Both mutant cell lines exhibited evidence of Wnt pathway dysregulation. We asked whether these TALENs could create targeted somatic mutations after hydrodynamic transfection into mouse liver. TALENs targeting β-catenin promoted endogenous HCC carrying the intended gain-of-function mutations. However, TALENs targeting Apc were not as efficient in inducing in vivo homozygous loss-of-function mutations. We hypothesized that hepatocyte polyploidy might be protective against TALEN-induced loss of heterozygosity, and indeed Apc gene editing was less efficient in tetraploid than in diploid hepatocytes. To increase efficiency, we administered adenoviral Apc TALENs and found that we could achieve a higher mutagenesis rate in vivo. Our results demonstrate that genome-editing tools can enable the in vivo study of cancer genes and faithfully recapitulate the mosaic nature of mutagenesis in mouse cancer models. Cancer Res; 74(18); 5311–21. ©2014 AACR.

Genome sequencing has identified many uncharacterized genetic lesions in hepatocellular carcinoma (HCC), the third most common cause of cancer-related death in the world (1–5). These efforts have introduced an overwhelming amount of information that remains correlative until functionally validated. Because there are few effective therapies for HCC, and virtually no prognostic or predictive markers based on molecular understanding of the disease, it would be important to increase our understanding of HCC genetics. RNAi has traditionally been used to assess gene function in cell lines, but this technology fails to generate genetic nulls and is also plagued by off-target effects (6). The most powerful studies of in vivo gene function involve genetically engineered mice, but these approaches are time consuming. Conditional knockouts and transgenics often result in organ-wide or whole body mutants that do not accurately model disease states. Thus, faster and better methods for modeling somatic mutations in mouse models are needed.

Recently, powerful tools for genome engineering have been developed, including transcription activator-like effector nucleases (TALENs; refs. 7–9) and clustered regularly interspaced short palindromic repeats (CRISPR; refs. 10–12). Genome-editing techniques are usually used in cell culture, but they are also being introduced in vivo to make knockout zebrafish (13–15), xenopus (16, 17), rats (18), and even floxed mice (19–22). However, these animals are generally made from embryonic stem cells or mutated zygotes and result in germline mutants. These methods increase experimental efficiency, but do not offer a fundamentally new way to model alterations in cancer genes in vivo.

In this study, we used liver cancer as a platform to determine if TALENs can accurately and efficiently target genes in vitro and in vivo. To demonstrate this, we chose to focus on driver genes with well-understood functions in tumor initiation and maintenance. The WNT signaling pathway is frequently altered in HCC, with 32.8% and 1.6% of HCCs harboring β-catenin and adenomatous polyposis coli (Apc) mutations, respectively (2). We designed TALENs directed against β-catenin and Apc and used them to generate isogenic HCC cell lines. Next we asked if TALENs were able to generate somatic mutations after delivery into mouse liver using hydrodynamic transfection (HDT; ref. 23). Surprisingly, HDT of β-catenin TALENs consistently generated β-catenin–induced murine tumors. The same method was not able to efficiently induce homozygous Apc loss in vivo, a finding that was due in part to the high number of polyploid hepatocytes in the liver. To increase the efficiency of tumor-suppressor editing, we packaged TALENs in adenoviral vectors. After delivery of these Ad-TALENs, we found that approximately 5% of cells in the liver had completely lost Apc function. These results show that efficient and physiologic liver cancer mouse models can be generated with in vivo TALEN delivery.

TALEN design and construction

TALENs were designed using the TALE-NT software (24) and assembled using methods described in Cermak and colleagues (9). Criteria used for TALEN design: (i) TALEN binding sites range from 15 to 19 bases. (ii) The spacer length was 15 to 16 bp to fit the GoldyTALEN designs. (iii) When possible, TALEN target sequences were selected around a restriction enzyme site. Characteristics of mouse β-catenin and Apc TALENs are provided in Supplementary Table S1.

To construct TALEN plasmids, intermediary arrays were produced for each TALEN pair that were compatible for Golden Gate cloning into pC-GoldyTALEN (Addgene, #38143). Arrays were joined in the pC-GoldyTALEN vector as follows: 150 ng each pFUS_A, pFUS_B, pLR-X, and 75 ng pC-GoldyTALEN vector backbone were mixed in a 20-μL digestion/ligation reaction including 1 μL T4 DNA ligase (New England Biolabs) and 1 μL Esp3I (Thermo Scientific Fermentas). The reaction is incubated in a thermocycler for 10 cycles of 5 minutes at 37°C, 10 minutes at 16°C, 37°C for 15 minutes, and 80°C for 5 minutes. Two microliters of each reaction was transformed into Escherichia coli and plated on LB-ampicillin plates. Adenoviral Apc TALENs were subcloned by cutting Apc TALENs from pC-GoldyTALEN construct with SpeI and EcoRI to transfer the full gene expression cassette to the adenoviral vector pACCMVpLpA(-)loxP-SSP. The Apc-TALEN adenovirus was generated by the Molecular Biology Vector Core, UTSW.

Cell culture and transfection

The H2.35 cell line was directly obtained from ATCC and has been cultured for less than 6 months. The cells were authenticated by ATCC using short tandem repeat (STR) DNA profiling. Cells were cultured in DMEM with 4% (v/v) FBS, 1× Pen/Strep (Thermo Scientific) and 200 nmol/L dexamethasone (Sigma). Cells were transfected with 2 μg of each TALEN arm in 6-well plates by using Lipofectamine 2000 (Life Technologies), and were cultured for 48 or 72 hours before performing assays. For selection of single Apc−/− homozygous mutant clones, H2.35 cells were cotransfected with Apc TALEN pair and 0.5 μg pcDNA3.1-GFP followed by cell sorting for GFP+ clones, plating for extended culture and colony selection in 15-cm dishes. Single clones were trypsinized and transferred to 24-well plates for the further selection by gene mutation analysis.

Analysis of TALEN gene editing

Genomic DNA for transfected cells and mouse liver samples were collected using QuickExtract DNA Extraction Solution (Thermo Fisher Scientific). Genotyping was conducted using PCR, followed by restriction enzyme assay. β-Catenin genotyping primers: 5′-TTCAGGTAGCATTTTCAGTTCAC-3′ and 5′-GCTAGCTTCCAAACACAAATGC-3′. Apc genotyping primers: 5′-GTTTCTAAACTCATTTGGCCCACAGGTGGA-3′ and 5′-TACTTGGGTTTTTGTCCTGGTCCATGCCTT-3′. Mutations were assessed by loss of restriction enzyme digestion. ImageJ was used to quantify the percent TALEN-modified alleles by measuring the intensity of uncut PCR product band versus total bands postdigestion. To verify mutations, the gel-purified uncut PCR products were cloned into the TOPO TA Cloning Kit (Invitrogen) and sequenced.

Mice

All mice were handled in accordance with the guidelines of the Institutional Animal Care and Use Committee at UTSW. Two-week-old C3H/HeJ pups were i.p. injected with N-nitrosodiethylamine (DEN; Sigma) in saline at 5 μg/g body weight dose or saline alone. At 7 weeks, they were HDT injected with either 10 μg of each TALEN arm or 20 μg of pC-GoldyTALEN vector. The HDT method was performed as described in Bell and colleagues (25). Adenovirus particles (5 × 1011) carrying each arm of Apc TALENs or 1 × 1012 of adenovirus particles carrying only the right arm of Apc TALEN were introduced into 4-week-old male C57BL/6J-ApcMin/J mice by tail-vein injection. Twenty-four hours and 3 weeks after the injection, liver samples were collected for analysis. FRG mice were obtained from Yecuris.

Xenograft experiments

Nude mice were injected s.c. with 1 × 107 H2.35 parental, H2.35 Apc+/+ (clone #25) or Apc−/− cells (clone #29). Cells were suspended in a 1:1 ratio of Matrigel (BD Biosciences) and serum free media, and 5 tumors for each cell type were inoculated. Tumor volume was calculated according to the formula (length × width2)/2.

Western blot assay

Liver tissues were ground in T-PER Tissue Protein Extraction Reagent, cells were lysed in RIPA buffer (Thermo Scientific) and proteins were separated in a 4% to 20% precast polyacrylamide gel and transferred to a nitrocellulose membrane (BioRad). The following antibodies were used: AcV5 (Sigma, A2980), APC (Calbiochem, OP44), β-actin (Cell Signaling Technology, #4970), anti-rabbit IgG, HRP-linked antibody (Cell Signaling, #7074) and anti-mouse IgG, HRP-linked antibody (Cell Signaling Technology, #7076).

Hepatocyte isolation and transplantation

Primary mouse hepatocytes were isolated by two-step collagenase perfusion. Cell number and viability were determined by Trypan blue exclusion in a hemocytometer. 106 viable hepatocytes in 100 μL of DMEM without serum were injected intrasplenically into FRG mice via a 30-gauge needle. The concentration of NTBC was gradually decreased (8 mg/L, day 0–2; 4 mg/L, day 3–4; 2 mg/L, day 5–6) and completely withdrawn 1 week after transplantation. Three months after transplantation, FRG mice were sacrificed for analysis.

Flow cytometry

Primary hepatocytes were fixed in 75% ethanol (2 × 106/mL) at −20°C. For ploidy analysis, hepatocytes were incubated with 500 μL (2 × 106 mL) of PI/RNAse staining buffer (BD Pharmingen) at 25°C for 15 minutes. Cells were analyzed with FACS Aria II SORP machine (BD Biosciences). The transfected H2.35 cells were isolated by trypsinization. Cells (1 × 106 mL) were incubated with 10 μmol/L Hoechst 33342 (Sigma), 5 μg/mL propidium iodide, and 5 μmol/L reserpine (Invitrogen) for 30 minutes at 37°C. Cells were analyzed and sorted using a 100-μm nozzle. DNA content was identified using an ultraviolet 355-nm laser. Sorted cells were collected in H2.35 cell medium.

Histology

Tissue were fixed in 4% paraformaldehyde (PFA) overnight at 4°C, then in 70% ethanol and embedded in paraffin. Sectioning and H&E staining were performed by the Molecular Pathology Core at UTSW. To make frozen sections, tissue was fixed in 4% PFA for 2 hours at 25°C, dehydrated overnight in 30% (w/v) sucrose, embedded in Cryo-Gel (Thermo Fisher), and frozen on dry ice. Sections were 7 μm.

Immunohistochemistry and immunofluorescence

Immunofluorescence staining of cultured cells.

Cells seeded on poly-l-lysine-coated glass coverslips (BD Biosciences) were fixed in 4% PFA for 30 minutes and then incubated in 0.5% Triton X-100 (BioRad) in PBS for 15 minutes at 25°C, followed by blocking with 10% FBS–PBS for 1 hour at 25°C. Slides were incubated with primary antibody overnight at 4°C, then fluorophore-conjugated secondary antibody for 1 hour at 25°C, then mounted. The following antibodies were used: AcV5, β-catenin (BD, #610154), anti-glutamine synthetase (GS) rabbit antibody (Abcam, ab49873), anti-Fah antibody (Yecuris, 20-0034), Alexa Fluor 488 goat anti-rabbit IgG (Invitrogen, A11008), and Alexa Fluor 488 goat anti-mouse IgG1 (Invitrogen, A21121).

Immunofluorescence and immunohistochemistry on tissue sections.

Frozen sections were incubated in blocking buffer (5% BSA and 0.25% Triton X-100 in PBS) for 1 hour at 25°C. Slides were incubated with primary antibody overnight at 4°C, then fluorophore conjugated secondary antibody for 1 hour at 25°C, then mounted. Immunohistochemistry (IHC) of paraffin sections was performed in the standard fashion. Detection was performed with the Elite ABC Kit and DAB Substrate (Vector Laboratories).

Generating targeted mutations in isogenic liver cell lines

Isogenic cell lines can be used to precisely understand the contribution of a genetic alteration toward cellular phenotypes. We first designed a pair of TALENs that target β-catenin (Supplementary Table S1), a commonly mutated gene in HCC (26). Mutations in β-catenin are frequently found in codons 32, 33, and 45 because these codons are within a negative regulatory motif containing an E3 ubiquitin ligase recognition region (27). When this motif is abrogated, β-catenin stability increases because of the lack of ubiquitinylation and degradation. Thus, we engineered TALENs to target the region around codons 32 and 33 in exon 2 (Fig. 1A). To first test TALEN efficiency in vitro, we transfected these β-catenin–targeted TALENs into H2.35 cells, an immortalized hepatocyte cell line. Using an antibody against AcV5, an epitope tag fused to each TALEN, we detected high protein levels of the TALEN pair (Fig. 1B). Because the TALEN target region in β-catenin includes an XmnI enzyme site, TALEN-mutated PCR products cannot be digested by XmnI. Using endonuclease digestion, we found that the TALEN editing efficiency was 27.4% (Fig. 1C). After TALEN cutting, double-strand DNA breaks are repaired by nonhomologous end joining (NHEJ), thus the resulting mutations are variable in distinct cell clones. As expected, subcloning and sequencing of the uncut band revealed deletion and insertion mutations, or indels, in the TALEN-targeting region (Supplementary Fig. S1). Normally, β-catenin is localized on the cell membrane and cytoplasmic β-catenin degradation is facilitated by the Apc/Axin complex and subsequent ubiquitinylation. Among H2.35 cells treated with the TALEN pair (but not with individual TALENs), 5% to 10% had cytoplasmic β-catenin staining as measured by immunofluorescence (Fig. 1D), indicating that the β-catenin mutations result in increased cytoplasmic protein stability.

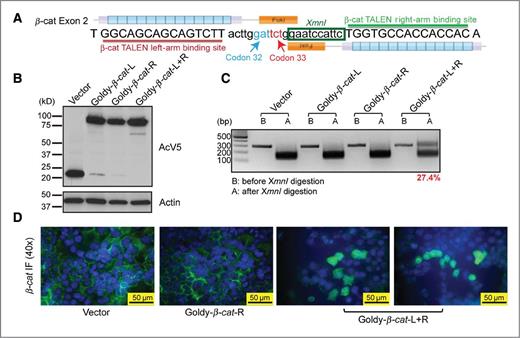

Figure 1.

β-Catenin TALENs are effective and efficient in vitro. A, design of β-catenin (β-cat) GoldyTALEN. The target region contains β-catenin codon 32 and 33 and an XmnI cut site between the two TALENs. B, protein expression of β-catenin TALENs in H2.35 cells. H2.35 cells were transfected with GoldyTALEN control vector, single TALENs, or TALEN pairs. Cells were harvested and subjected to Western blot analysis 48 hours after transfection. AcV5 is an epitope tag fused to the TALENs. C, β-catenin TALEN efficiency in H2.35 cells. Genomic DNA was PCR amplified for the region targeted by TALENs and digested by XmnI. The uncut band in A lane is mutated DNA. TALEN efficiency is determined by the ratio of uncut band versus total bands. D, immunofluorescent (IF) staining in H2.35 cells for β-catenin. Cells were fixed 72 hours after transfection and stained for β-catenin (green). Cytoplasmic localization of β-catenin (arrow) is seen in cells treated with the TALEN pair.

Figure 1.

β-Catenin TALENs are effective and efficient in vitro. A, design of β-catenin (β-cat) GoldyTALEN. The target region contains β-catenin codon 32 and 33 and an XmnI cut site between the two TALENs. B, protein expression of β-catenin TALENs in H2.35 cells. H2.35 cells were transfected with GoldyTALEN control vector, single TALENs, or TALEN pairs. Cells were harvested and subjected to Western blot analysis 48 hours after transfection. AcV5 is an epitope tag fused to the TALENs. C, β-catenin TALEN efficiency in H2.35 cells. Genomic DNA was PCR amplified for the region targeted by TALENs and digested by XmnI. The uncut band in A lane is mutated DNA. TALEN efficiency is determined by the ratio of uncut band versus total bands. D, immunofluorescent (IF) staining in H2.35 cells for β-catenin. Cells were fixed 72 hours after transfection and stained for β-catenin (green). Cytoplasmic localization of β-catenin (arrow) is seen in cells treated with the TALEN pair.

Close modal

In addition to oncogenes like β-catenin, we also wanted to target tumor suppressors. Apc, a tumor suppressor in the Wnt signaling pathway, is commonly mutated in hepatic adenomas (28), hepatoblastomas (29), and HCCs (30). Our Apc TALENs were designed to target exon 9 (Fig. 2A and Supplementary Table S1). Transfection of the Apc TALEN pair into H2.35 cells resulted in high TALEN expression (Fig. 2B) and a 71% mutation efficiency (Fig. 2C). Because Apc is required for β-catenin degradation, we found that approximately 2% to 5% of Apc TALEN-transfected cells had β-catenin localization in the cytoplasm (Fig. 2D). We then performed single-cell clonal analysis, and found that 13.9% of the clones were homozygous (5/36) and 50% were heterozygous (18/36) for Apc mutations in exon 9 (Supplementary Fig. S2A). Subcloning and sequencing of the TALEN-targeted gene region showed the expected indels (Supplementary Fig. S2B). Next, we expanded wild-type (WT) Apc clone (#25) and homozygous Apc mutant clone (#29) and confirmed the expected Apc protein levels (Fig. 2E). The mutation in clone #29 caused a pre-stop codon (TAA) at codon 342 (Fig. 2E). This would theoretically result in a 41-kD truncated protein, but this was not seen on Western blot analysis likely because the truncated protein is degraded soon after translation (Fig. 2E). Next, we subcutaneously transplanted these clones into nude mice and measured the growth of these xenografts (Fig. 2F). The homozygous Apc mutant tumors grew faster than both the WT and parental H2.35 tumors (Fig. 2F). These results confirm the efficiency and specificity of the β-catenin and Apc TALENs in vitro and in xenograft models of HCC.

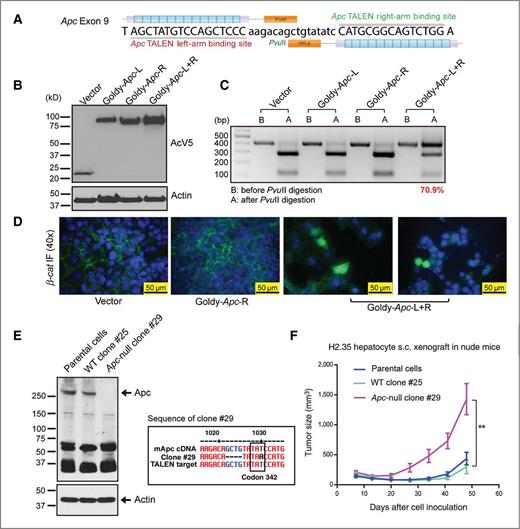

Figure 2.

Ape TALENs are effective and efficient in vitro and in xenografts. A, design of Apc GoldyTALEN. The target region in exon 9 contains a PvuII cut site. B, protein expression of Apc TALENs in H2.35 cells. H2.35 cells were transfected with GoldyTALEN vector, single TALENs, or the TALEN pair. Cells were harvested and subjected to Western blot analysis 48 hours after transfection. C, Apc TALEN efficiency in H2.35 cells. Genomic DNA was PCR amplified for the region targeted by TALENs and digested by PvuII. TALEN efficiency is determined by the ratio of uncut band versus total bands. D, immunofluorescent (IF) staining in H2.35 cells for β-catenin. Cells were fixed after 72 hours of transfection and then stained for β-catenin (green). Cytoplasmic localization of β-catenin (arrow) is seen in cells treated with the TALEN pair. E, Western blot analysis for Apc in H2.35 cell clones and the sequencing data of Apc mutant clone #29. The H2.35 parental cells and WT clone #25 express full length Apc, and mutant clone #29 has no full length Apc, as well as the predicted truncated Apc. F, growth curve of the H2.35 xenografts subcutaneously transplanted into nude mice. ±SEM; **, P < 0.01.

Figure 2.

Ape TALENs are effective and efficient in vitro and in xenografts. A, design of Apc GoldyTALEN. The target region in exon 9 contains a PvuII cut site. B, protein expression of Apc TALENs in H2.35 cells. H2.35 cells were transfected with GoldyTALEN vector, single TALENs, or the TALEN pair. Cells were harvested and subjected to Western blot analysis 48 hours after transfection. C, Apc TALEN efficiency in H2.35 cells. Genomic DNA was PCR amplified for the region targeted by TALENs and digested by PvuII. TALEN efficiency is determined by the ratio of uncut band versus total bands. D, immunofluorescent (IF) staining in H2.35 cells for β-catenin. Cells were fixed after 72 hours of transfection and then stained for β-catenin (green). Cytoplasmic localization of β-catenin (arrow) is seen in cells treated with the TALEN pair. E, Western blot analysis for Apc in H2.35 cell clones and the sequencing data of Apc mutant clone #29. The H2.35 parental cells and WT clone #25 express full length Apc, and mutant clone #29 has no full length Apc, as well as the predicted truncated Apc. F, growth curve of the H2.35 xenografts subcutaneously transplanted into nude mice. ±SEM; **, P < 0.01.

Close modal

TALEN-mediated mutagenesis in murine livers can drive tumor development

To directly perform mutagenesis in vivo, we delivered TALENs into the liver via HDT. The liver has the highest levels of gene expression after HDT (31). Consistent with this, Western blot analysis and IHC showed high TALEN protein expression 8 hours after HDT (Fig. 3A and B). To ensure that tumors would form within 1 year, we introduced the liver carcinogen diethylnitrosamine (DEN) at 2 weeks of age. We also used mice on the C3H strain background, which has a high predisposition for liver cancer (32). Starting at 7 weeks of age, we performed weekly HDT for 5 weeks to introduce β-catenin–targeted TALENs (schema shown in Fig. 3C). At 34 weeks of age, there was extensive tumorigenesis in both control and TALEN HDT groups (Fig. 3D and Supplementary Fig. S3A). TALEN-injected mice did not harbor more frequently or larger tumors than saline-injected mice. However, 3 of 4 mice in the β-catenin TALEN-treated group harbored tumors with a red, fleshy appearance (Fig. 3D and Supplementary Fig. S3A), although tumors with this gross morphology were not seen in the control group (Fig. 3D and Supplementary Fig. S3A). Histologic examination revealed that these red fleshy tumors were more poorly differentiated HCCs with reduced fatty droplets (Fig. 3F), which likely explained the distinct tumor color. In each of these tumors, genotyping and sequencing identified in-frame mutations that the β-catenin TALENs were designed to induce, whereas tumors without this appearance did not harbor β-catenin mutations (Fig. 3E and Supplementary Fig. S3B and S3C).

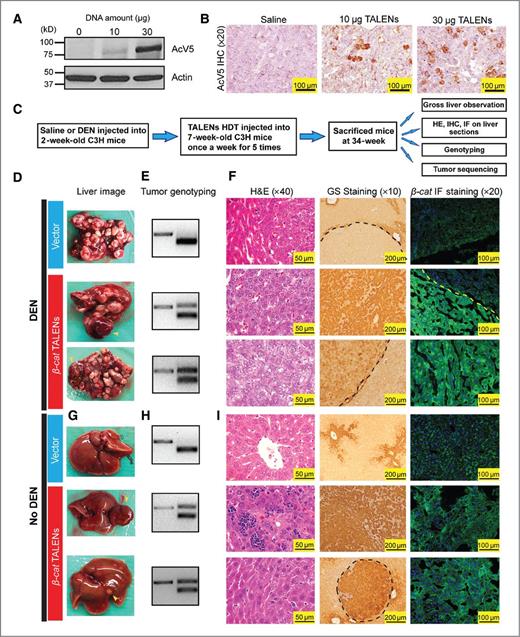

Figure 3.

TALEN-mediated somatic mutagenesis in murine livers can drive tumor development. A, protein expression of β-catenin TALENs in liver 8 hours after HDT. C3H mice were HDT administrated with saline, 10 or 30 μg of each TALEN. B, IHC for AcV5 showing liver β-catenin TALEN expression after HDT injection. C, schema for using β-catenin TALENs to induce mutations in C3H mice. D, gross liver images of the C3H mice treated with GoldyTALEN vector (20 μg) or β-catenin TALENs (10 μg of each) plus DEN according to the schema in C. Yellow arrows, red, fleshy tumors, which were only found in β-catenin TALEN-treated mice. E, tumor genotyping of the above mice. For β-catenin TALEN-injected mice, the red, fleshy tumors were genotyped (if these tumors were identified). F, H&E staining (×40), GS IHC staining (×10), and β-catenin immunofluorescent (IF) staining (×20) of the tumors and livers from the above mice. For β-catenin TALEN-injected mice, the red, fleshy tumors were genotyped (if these tumors were identified). G, gross liver images of the C3H mice treated with GoldyTALEN vector (20 μg) or β-catenin TALEN (10 μg of each) without DEN. The red, fleshy tumor is indicated by the yellow arrow. H, tumor genotyping of the above mice. I, H&E staining (×40), GS IHC staining (×10), and β-catenin immunofluorescent staining (×20) of the tumors and livers from the above mice.

Figure 3.

TALEN-mediated somatic mutagenesis in murine livers can drive tumor development. A, protein expression of β-catenin TALENs in liver 8 hours after HDT. C3H mice were HDT administrated with saline, 10 or 30 μg of each TALEN. B, IHC for AcV5 showing liver β-catenin TALEN expression after HDT injection. C, schema for using β-catenin TALENs to induce mutations in C3H mice. D, gross liver images of the C3H mice treated with GoldyTALEN vector (20 μg) or β-catenin TALENs (10 μg of each) plus DEN according to the schema in C. Yellow arrows, red, fleshy tumors, which were only found in β-catenin TALEN-treated mice. E, tumor genotyping of the above mice. For β-catenin TALEN-injected mice, the red, fleshy tumors were genotyped (if these tumors were identified). F, H&E staining (×40), GS IHC staining (×10), and β-catenin immunofluorescent (IF) staining (×20) of the tumors and livers from the above mice. For β-catenin TALEN-injected mice, the red, fleshy tumors were genotyped (if these tumors were identified). G, gross liver images of the C3H mice treated with GoldyTALEN vector (20 μg) or β-catenin TALEN (10 μg of each) without DEN. The red, fleshy tumor is indicated by the yellow arrow. H, tumor genotyping of the above mice. I, H&E staining (×40), GS IHC staining (×10), and β-catenin immunofluorescent staining (×20) of the tumors and livers from the above mice.

Close modal

To determine if TALENs could generate tumors without an accelerating carcinogen, we next performed the same HDT procedure in C3H mice without giving DEN. At 34 weeks, we found that in the GoldyTALEN vector alone treated group, 3 of 5 mice had small single liver tumors, most of which were less than 5 mm in diameter (Fig. 3G and Supplementary Fig. S4A). None of these tumors contained β-catenin mutations in the TALEN-targeted region (Fig. 3H and Supplementary Fig. S4B). However, all of the β-catenin TALEN-treated mice developed liver tumors, and 2 of 5 mice had large tumors (Fig. 3G and Supplementary Fig. S4A). A total of 4 of 5 mice had tumors with β-catenin mutations (Fig. 3H and Supplementary Fig. S4B), and no mutations were found in adjacent normal tissue (Supplementary Fig. S4B). These sequencing results again confirmed that the mutations were caused by TALEN genome editing, and all were in-frame (Supplementary Fig. S4C).

Next, β-catenin and GS immunostains were used to analyze the tumors for Wnt pathway dysregulation. GS is a transcriptional target of Wnt signaling and its expression is normally restricted to pericentral vein hepatocytes. GS positivity in non–pericentral hepatocytes indicates aberrant Wnt activation, which could be caused by events such as constitutive β-catenin activation or Apc loss (33). In tumors from mice that were not treated with TALENs, no GS or cytoplasmic β-catenin could be seen. In contrast, all tumors harboring TALEN-mediated β-catenin mutations had both GS overexpression and β-catenin mislocalization (Fig. 3F and I). These results show that HDT of TALENs is sufficient to create targeted somatic mutations in the liver and also induce HCCs in the presence or absence of other tumor-promoting agents.

Polyploidy protects the liver from TALEN-mediated tumor-suppressor loss

Although oncogene activation is a common mechanism of liver tumorigenesis, it would also be important to develop models for homozygous tumor-suppressor loss. HDT using our previously validated pair of Apc TALENs resulted in a 7% to 19% mutation rate in vivo (Fig. 4A). Despite this high rate, we did not observe frequent ectopic GS-expressing cells representing Apc homozygous clones or any tumors with exon 9 Apc mutations, with or without DEN (Supplementary Fig. S5).

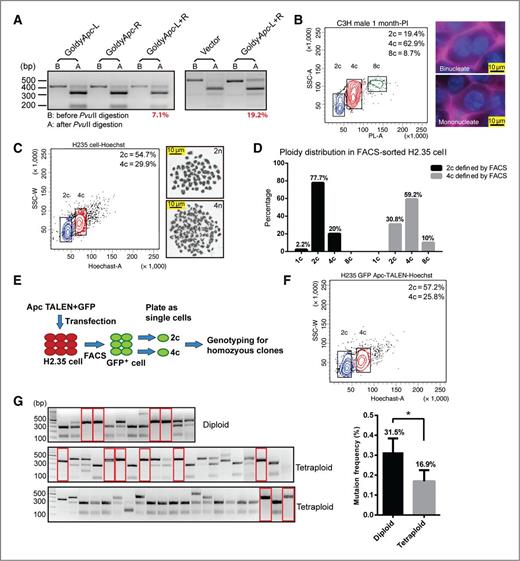

Figure 4.

Hepatocyte polyploidy protects the liver from TALEN-mediated tumor-suppressor loss. A, genotyping of mouse liver treated with Apc TALENs by HDT. Mice underwent HDT with GoldyTALEN vector (20 μg), Apc single TALENs (20 μg), or TALEN pair (10 μg of each TALEN) at 6 weeks of age, then weekly × 4 (left) or × 2 (right). B, FACS showing DNA content distribution, as stained by PI/RNAse, of primary hepatocytes in a 1-month-old C3H mouse. Right, two panels are liver immunofluorescent images showing a mononucleated and a binucleated hepatocyte. β-catenin (purple) stains the membrane. C, left, the DNA content distribution for H2.35 cells, which were stained by Hoechst 33342 and sorted into 2c and 4c populations. Representative karyotypes of the sorted cells are shown. D, ploidy distribution within the sorted populations. A total of 50 cells were counted for each population. E, experiment assessing the efficiency of TALEN induced Apc LOH in diploid versus tetroploid cells. H2.35 cells were transfected with TALENs and a GFP plasmid. GFP+ cells were sorted and separated by ploidy and plated as single-cell clones. Genotyping was performed on individual clones. F, DNA content distribution (Hoechst 33342) of the H2.35 cells transfected with Apc TALENs. G, genotyping of the H2.35 cell single clones described in E and F. The red rectangles highlight homozygous clones. The experiment was performed four times, and the overall percentage of homozygous clones is shown on the right. ± SEM; *, P < 0.05.

Figure 4.

Hepatocyte polyploidy protects the liver from TALEN-mediated tumor-suppressor loss. A, genotyping of mouse liver treated with Apc TALENs by HDT. Mice underwent HDT with GoldyTALEN vector (20 μg), Apc single TALENs (20 μg), or TALEN pair (10 μg of each TALEN) at 6 weeks of age, then weekly × 4 (left) or × 2 (right). B, FACS showing DNA content distribution, as stained by PI/RNAse, of primary hepatocytes in a 1-month-old C3H mouse. Right, two panels are liver immunofluorescent images showing a mononucleated and a binucleated hepatocyte. β-catenin (purple) stains the membrane. C, left, the DNA content distribution for H2.35 cells, which were stained by Hoechst 33342 and sorted into 2c and 4c populations. Representative karyotypes of the sorted cells are shown. D, ploidy distribution within the sorted populations. A total of 50 cells were counted for each population. E, experiment assessing the efficiency of TALEN induced Apc LOH in diploid versus tetroploid cells. H2.35 cells were transfected with TALENs and a GFP plasmid. GFP+ cells were sorted and separated by ploidy and plated as single-cell clones. Genotyping was performed on individual clones. F, DNA content distribution (Hoechst 33342) of the H2.35 cells transfected with Apc TALENs. G, genotyping of the H2.35 cell single clones described in E and F. The red rectangles highlight homozygous clones. The experiment was performed four times, and the overall percentage of homozygous clones is shown on the right. ± SEM; *, P < 0.05.

Close modal

Up to 90% of mouse hepatocytes and 50% of human hepatocytes are polyploid (34–37). Because of this unique feature of the liver (Fig. 4B), we hypothesized that polyploidy might protect the liver from homozygous loss of tumor suppressors. To examine this hypothesis, we analyzed the ploidy distribution of H2.35 cells using flow cytometry and identified distinct 2c and 4c populations (Fig. 4C). Because 4c populations could represent either tetraploid cells in G0–G1 phase (4n, 4c) or diploid cells in G2–M phase (2n, 4c), we counted chromosome numbers in these populations after karyotyping, revealing that the 2c and 4c populations contained high frequencies of diploid (2n) and tetraploid (4n) cells, respectively (Fig. 4C and D). To test if tetraploid hepatocytes are less likely to mutagenize all copies of Apc than diploid hepatocytes, we cotransfected H2.35 cells with Apc TALENs and a GFP plasmid. To select successfully transfected cells, we isolated GFP+ diploid or tetraploid hepatocytes by flow cytometry and grew them as single-cell clones (Fig. 4E and F). Genotyping of these clones showed that there was a higher frequency of homozygous Apc mutant clones in the diploid than in the tetraploid population (n = 4 experiments; P = 0.013; Fig. 4G). These results indicate that polyploidy is one potential mechanism of protecting against LOH, and show that improved TALEN delivery methods are required to efficiently delete tumor suppressors in the liver.

Adenovirus TALEN delivery increases mutagenesis efficiency in vivo

Besides polyploidy, a major barrier to obtaining high mutagenesis rates is the low efficiency of HDT (Fig. 3B). To overcome this issue, we packaged our TALENs into adenovirus (Ad-TALENs). We cloned Apc targeting TALENs into the adenovirus shuttle pACCMVpLpA(-)loxP (Fig. 5A) and made high-titer adenovirus-expressing Apc TALENs (designated Ad-Apc-TAL-R/L). Each TALEN (Ad-Apc-TAL-R and L) was packaged separately because TALENs were too large to be included in a single adenoviral shuttle. We first confirmed that proteins of the correct size are produced (Fig. 5B), and that Apc is efficiently mutated after transfection of the adenoviral plasmids into H2.35 cells (Fig. 5C). After packaging into adenovirus, all the viral plaques carrying the left TALEN resulted in slightly truncated protein (Fig. 5D and Supplementary Fig. S6). Nevertheless, the right TALEN protein was intact, so we injected the TALEN adenoviruses into the tail veins of mice.

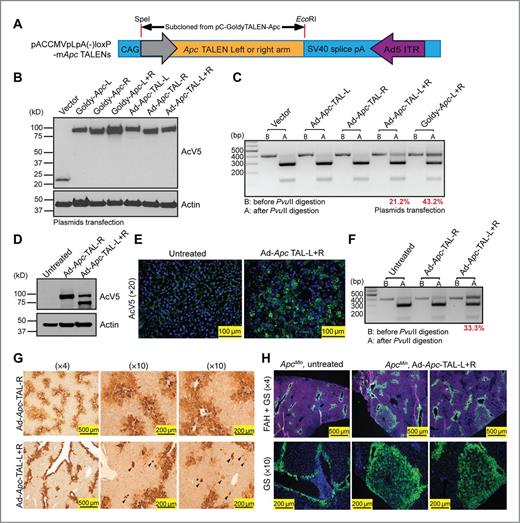

Figure 5.

Adenovirus TALEN delivery increases mutagenesis efficiency in vivo. A, the construct map of the adenovirus plasmid containing Apc TALENs. B, protein expression in H2.35 cells transfected with pC-Goldy-mApc TALEN and pACCMVpLpA(-)loxp-mApc TALEN plasmids. C, genotyping of the transfected H2.35 cells. D, protein expression level from the ApcMin liver 24 hours after injection with adenovirus Apc TALENs. E, AcV5 immunofluorescent staining (green) of the ApcMin mice. F, genotyping of treated mice showing an efficiency of about 33.3%. G, IHC staining for GS 3 weeks after adenovirus injection. n = 3 and two independent livers shown here. Ectopic GS+ cells found outside of the central vein region (arrowheads). H, immunofluorescent staining for GS (green) and Fah (red) from the FRG mice. Mice (n = 4) were euthanized 3 months after transplantation with TALEN-treated or -untreated ApcMin hepatocytes.

Figure 5.

Adenovirus TALEN delivery increases mutagenesis efficiency in vivo. A, the construct map of the adenovirus plasmid containing Apc TALENs. B, protein expression in H2.35 cells transfected with pC-Goldy-mApc TALEN and pACCMVpLpA(-)loxp-mApc TALEN plasmids. C, genotyping of the transfected H2.35 cells. D, protein expression level from the ApcMin liver 24 hours after injection with adenovirus Apc TALENs. E, AcV5 immunofluorescent staining (green) of the ApcMin mice. F, genotyping of treated mice showing an efficiency of about 33.3%. G, IHC staining for GS 3 weeks after adenovirus injection. n = 3 and two independent livers shown here. Ectopic GS+ cells found outside of the central vein region (arrowheads). H, immunofluorescent staining for GS (green) and Fah (red) from the FRG mice. Mice (n = 4) were euthanized 3 months after transplantation with TALEN-treated or -untreated ApcMin hepatocytes.

Close modal

Besides attempting to improve the efficiency of TALEN delivery, we also tried to increase the probability of generating cells with Apc LOH by using the ApcMin mouse strain. This mouse contains a heterozygous mutation in codon 850 of Apc, which results in a truncated, nonfunctional protein (38). Because the ApcMin mutation site is in exon 16, our TALEN target genotyping assay was still specific for quantifying TALEN-induced mutagenesis rates in exon 9. As expected, Ad-Apc-TAL-R/L exhibited much higher in vivo expression as assessed by Western blotting and immunofluorescence (Fig. 5D and E). This led to a 33% mutagenesis rate in exon 9, which is an improvement over the 7% to 19% rate seen after HDT (Fig. 4A compared with Fig. 5F). Based on this mutation rate, we calculated that using ApcMin would approximately double the frequency of LOH to 5%. Consistent with this, many cells expressed GS 3 weeks after infection. Compared with Ad-Apc-TAL-R alone, injecting the TALEN pair resulted in ectopic GS staining outside the central vein (n = 3; Fig. 5G). The percentage of the ectopic GS+ cells was approximately 2% to 4%.

To enable further expansion of these GS+ cells, we dissociated and isolated primary hepatocytes from Ad-Apc-TALEN-injected ApcMin mice and transplanted them into Fah−/−;Rag2−/−;Il2rg−/− (FRG) mice via splenic injection. The FRG mouse is an immunodeficient model of tyrosinemia that is a hepatocyte transplant recipient model (39). These mice are susceptible to liver failure unless they are treated with 2-(2-nitro-4-trifluoromethylbenzoyl)-1,3-cyclohexanedione (NTBC). After transplantation, we gradually withdrew NTBC until body weight stabilized, indicating engraftment of donor cells. Three months posttransplantation, we sacrificed the FRG mice transplanted with Ad-Apc-TALEN-treated ApcMin hepatocytes and found large GS+ clones (n = 4 mice; Fig. 5H). Mice transplanted with untreated control ApcMin hepatocytes had no GS+ clones (n = 2 mice; Fig. 5H). This showed that adenovirus-packaged TALENs could achieve higher mutagenesis efficiency than HDT, and resulted in detectable tumor suppressor LOH in vivo. We did not observe tumors in these ApcMin or FRG mice, likely because the tumor latency of Apc deficient livers is 7 to 12 months (40).

In cancer, somatic alterations in oncogenes and tumor suppressors are much more common than germline mutations. Carcinogens have been used to introduce random somatic mutations, but targeted mutations are important to study and more difficult to generate. Although shRNAs and transposons have been used with success in vivo (41, 42), these technologies come with major drawbacks. First, it is very difficult for shRNAs to completely eliminate the expression of proteins. For the shRNAs that are effective, the microRNA biogenesis machinery could be overwhelmed, thus altering the normal production of endogenous microRNAs. In addition, shRNAs have many off-target effects that can contribute to tumorigenesis (43, 44). There are also disadvantages for transposons delivered in vivo using the Sleeping Beauty transposase. Transposons carrying an overexpression construct can be used to generate overexpression models, but transgenes are randomly integrated and not under the control of endogenous regulatory elements.

TALENs represent a technology that allows efficient generation of targeted mutations, but their range and accuracy, especially in vivo, are just beginning to be explored. Theoretically, these highly specific nucleases can obviate many of the problems and weaknesses of shRNAs and transposons, but extensive analysis will be required to confirm this. Using TALENs, we aimed to generate and study somatic mutations found in cancer without first having to generate conditional knockout mice, a major roadblock in cancer genetics. We focused our efforts on the liver, the site of a devastating tumor type with few treatment options, and where gene delivery has been optimized for a variety of applications (45–48).

By directly delivering TALENs against β-catenin and Apc into mice, we successfully introduced targeted mutations against these two genes, and generated β-catenin–induced liver neoplasms. This is a remarkable result because TALENs have not yet been used to develop in vivo mouse tumor models. This method could save time and resources because experiments can be done in WT mice and within 1 generation. Another important advantage is that cells are mutated in a mosaic fashion, which is more physiologically relevant and models the evolutionary realities of cancer development. Therefore, this method introduces a way to faithfully study genetic events in HCC progression. These tools can also be used to test combinations of mutations that might synergize to promote cancer.

Although our method works well to mutate β-catenin, we had difficulty generating homozygous mutations in Apc, a 2-hit tumor-suppressor gene. Our studies suggest that polyploidy might be one way in which liver cells suppress tumor-suppressor loss and tumorigenesis. Because approximately 70% of hepatocytes in adult livers are polyploid, this could be a powerful form of tumor suppression. However, polyploidy could also potentially make a cell more vulnerable to oncogenic mutations, so further studies need to directly test this hypothesis in vivo. Given this issue, we increased the efficiency of Apc TALENs by using adenoviral vectors. Adenoviral TALEN resulted in a higher mutagenesis rate and even observable Apc-null cells. The presence of highly repetitive modules in TALENs leads to adenoviral recombination events that might preclude the ability to generate intact TALENs for all targeted loci. In fact, one of our TALENs was frequently truncated when packaged into adenovirus, although this did not impair its nuclease activity in vivo (Fig. 5D and G). Shorter TALENs with fewer DNA binding modules could alleviate this situation. Directly delivering CRISPRs, which do not have repetitive modules, should also be exploited to induce mutations in vivo. In fact, delivering CRISPRs with HDT was recently used to effectively “cure” FAH mice (49). Regardless of the technology, achieving a substantially higher mutagenesis rate will require major improvements in the delivery of these tools, either by viral or nonviral methods. Nevertheless, we found that the ease of using TALENs to generate permanent somatic genetic change will allow faster and better ways of understanding the fate of mutant cells in vivo. This work provides the first example of using genome editing to generate targeted cancer mutations and tumors directly in an adult organ. This work could serve as a starting point for understanding novel genetic alterations in cancers of many tissues.

No potential conflicts of interest were disclosed.

Conception and design: S. Zhang, L. Li, H. Zhu

Development of methodology: S. Zhang, L. Li, S.L. Kendrick, R.D. Gerard, H. Zhu

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): S. Zhang, L. Li, S.L. Kendrick, H. Zhu

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): S. Zhang, L. Li, R.D. Gerard, H. Zhu

Writing, review, and/or revision of the manuscript: S. Zhang, L. Li, R.D. Gerard, H. Zhu

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): S. Zhang, L. Li, R.D. Gerard, H. Zhu

Study supervision: L. Li

This work was supported by an NIH K08 (1K08CA157727-02), a Cancer Prevention and Research Institute of Texas New Investigator grant, and a Burroughs Welcome Career Award for Medical Scientists to H. Zhu.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
