Natural Allelic Variations in Glutathione Peroxidase-1 Affect Its Subcellular Localization and Function Free

Glutathione peroxidase 1 (GPx-1) is the ubiquitously expressed and best characterized member of the GPx family of selenium-containing proteins that uses reducing equivalents from glutathione to detoxify peroxides (extensively reviewed in ref. 1). The translation of GPx-1 includes the recognition of an in-frame UGA triplet as the codon for selenocysteine in a process that requires a selenocysteine insertion sequence in the 3′-untranslated region of the GPx-1 mRNA, a selenocysteine tRNA, and a host of selenoprotein-specific translation factors (2–5).

Support for a role for GPx-1 in cancer etiology comes from genetic data indicating significant associations between allelic variations in the GPx-1 gene and cancer risk (6, 7). Two GPx-1 common genetic variations have been extensively studied; an SNP resulting in either a proline (pro) or leucine (leu) variation at codon 198 or a variable number of alanine (ala) codon repeats that result in 5, 6, or 7 alanines in the amino terminus of the protein (reviewed in ref. 7). These variations are functional and interactive, determining the levels of GPx-1 enzyme activity for a given concentration of available selenium (8, 9). The leu allele has been associated with increased risk of cancers of several types, whereas no clear pattern of association has emerged about the number of Ala repeats (7). Recent data demonstrating the interactions between the amino acid at position 198 and the number of alanines may indicate that both variations may need to be considered when conducting studies assessing the role of allelic variations in GPx-1 as it relates to affecting health outcomes (9). These genetic variations in GPx-1 are not uncommon, with the proline/leucine-resulting polymorphism exhibiting an approximately 2:1 allele frequency, although the occurrence of the leucine/leucine homozygote genotype is 10% or less (10, 11). GPx-1 alleles encoding 5, 6, or 7 alanine-repeat codons in the 5′-terminus of that gene are present at frequencies that are approximately in a 2:1:1 ratio, although individuals homozygous for GPx-1 alleles with either the 5 or 6 codon repeat are uncommon (11, 12). The consequences of these variations on GPx-1 function are not understood, although in vitro and human data indicate interactions with enzyme activity and selenium availability, and in one study, gender as well (1).

To study the impact of allelic variations in GPx-1, we have taken advantage of the observation that human MCF-7 breast carcinoma cells have negligible GPx enzyme activity and undetectable GPx-1 levels. Previously, we used these cells to exclusively express different GPx-1 alleles by transfection with allelic-specific GPx-1 expression constructs (8, 9). In this article, we used the same approach to further investigate the molecular and biologic consequences of allelic variations in the GPx-1 gene to gain a better understanding of the role of GPx-1 in cancer etiology.

MCF-7 cells were maintained in modified Eagle's medium (Gibco) supplemented with 10% FBS at 37°C with 5% CO₂. These cells were originally obtained from the ATCC and were authenticated by Genetetica DNA Laboratories on July 19, 2013, by analyses of 15 autosomal short tandem repeat loci and the gender identity locus amelogenein. The selenium concentration of the serum used was determined to be 152 nmol/L by graphite furnace atomic absorption spectrometry conducted at the Texas A&M Veterinary Diagnostic Laboratory at College Station, Texas, resulting in a final concentration of selenium in media containing 10% serum to be 15.2 nmol/L. Transfectants were generated using the Lipofectamine 2000 transfection reagent (Invitrogen) following the manufacturer's protocol and selected with 500 μg/mL G418 (Sigma), expanded, and screened for GPx-1 activity and expression. Cell survival and proliferation were assayed using the FluoReporter Blue Fluorometric dsDNA Quantitation Kit (InVitrogen).

Previously generated GPx-1 expression constructs encoding 5 or 7 alanine repeats at the NH₂ terminus and either a proline or leucine at codon 198 were used as templates to generate mitochondrially targeted variants by fusion of the open reading frames to the mitochondrial targeting sequence (MTS) from the SOD2 gene. A primer containing an 87 nucleotide DNA sequence that included the 72 nucleotide MTS from the SOD2 gene, as well as 15 nucleotides of the 5′-end of the human GPx-1 gene, shown underlined (5′-ATGTTGAGCCGGGCAGTGTGCGGCACCAGCAGGCAGCTGGCTCCGGTTTTGGGGTATCTGGGCTCCAGGCAGATGTGTGCTGCTCGG-3′), was obtained from Integrated DNA Technologies annealed to the DNA from individual GPx-1 expression constructs and extended using the Klenow fragment. The resulting hybrid DNA was amplified using a HindIII-containing forward primer (5′-GCAGCAAAGCTTGCAGCATGTTG-3′) and a ClaI-containing reverse primer (5′-ATAATCGATTGACACCCGGCA-3′). The resulting PCR product was digested with HindIII and Cla1 and directionally inserted into the pLNCX retroviral vector (13).

Subcellular fractionation was performed using the standard procedure of Magalhães and colleagues (14). Briefly, cells were harvested by trypsinization, suspended in ice-cold mitochondria isolation buffer (250 mmol/L Sucrose, 10 mmol/L Tris-Cl, pH 7.4, and 1 mmol/L EDTA), and homogenized in a dounce-homogenizer. Efficient lysis was confirmed by viewing images under a light microscope with more than 60% of the cells having been ruptured. The cell lysate was centrifuged at 700 × g for 10 minutes at 4°C and the resulting supernatant was again centrifuged at 14,000 × g for 10 minutes at 4°C to pellet mitochondria, which were suspended in the isolation buffer.

GPx enzyme activity was determined on whole cell lysates, as well as the mitochondrial and cytosolic fractions, using a coupled spectrophotometric assay that determines the GPx-dependent consumption of NADPH (15). Enzyme activity was expressed as nmole NADPH oxidized per minute per milligram of total protein. In the text, we refer to the cellular activity determined by this assay as “GPx” activity as it cannot be completely ruled out that no other member of the GPx family of proteins contributed to the measured activity. For all experiments, cells were plated in triplicate and transfectants were maintained in G418, which was removed from the culture media 2 days before plating the cells to reduce any impact of that antibiotic on selenoprotein synthesis (16, 17).

Oxidation of the reduction-oxidation sensitive green fluorescent protein (roGFP) and mito-roGFP probes was measured by flow cytometry. Briefly, cells were infected with adenoviral vectors expressing roGFP and mito-roGFP sensors at 100 plaque-forming unit per cell and incubated for 6 hours, after which time the virus-containing media were replaced with complete RPMI 1640 media and incubated overnight. Cells were harvested and equal aliquots were transferred to tubes with media, media with 1 mmol/L dithiothreitol, or media with 1 mmol/L t-butylhydroperoxide (t-BOOH). After incubation for 10 minutes at room temperature, the ratio of fluorescence emission at 535 nm and excitations at 405 and 488 nm was measured in 5,000 cells per sets using a Dako Cytomation CyAn ADP analyzer. The roGFP ratio was obtained by dividing the emission values obtained at 488 nm/535 nm by that obtained by 405 excitation/535-nm emissions. The oxidation state of the cells was calculated as the difference in the ratio observed with untreated values and completely reduced values divided by the difference in the ratio observed with dithiothreitol and t-BOOH. Values are represented as the percentage of oxidation of the probe with 100% being fully reduced and 1% being fully oxidized (18).

Intracellular localization of GPx-1 was verified by confocal microscopy. Briefly, cells were plated on a 1.5-mm thick glass bottom culture dish (Mat Tek Corp) and incubated overnight, probed with 200 nmol/L Mitotracker red for labeling mitochondria, and then fixed with 4% paraformaldehyde at 37°C for 30 minutes. After fixation, cells were permeabilized and blocked with 3% BSA solution to minimize nonspecific binding of the primary antibody. Cells were incubated with a solution containing GPx-1 primary antibody (Aviva) for 45 minutes at room temperature followed by incubation with AlexaFluor-conjugated secondary antibody for 45 minutes at room temperature. Nuclear staining was achieved with 300 nmol/L DAPI, and cells were imaged using a Zeiss LSM510UV microscope.

Cells were plated and grown on Seahorse Bioscience custom plates in Minimum Essential Medium (MEM) media containing 10% FBS to a uniform monolayer. Cells were then rinsed and transferred to bicarbonate-free MEM for 2 hours and then analyzed on the Seahorse Extracellular Flux (XF) Analyzer using the Mitochondria Stress Test Kit. The XF Analyzer measures the oxygen consumption rate (OCR) and the extracellular acidification rate (EACR; ref. 19) at intervals of approximately 2 to 5 minutes. OCR is an indicator of mitochondrial respiration, and ECAR is predominately the result of glycolysis.

For Western blot analysis, protein samples were prepared in NuPAGE LDS sample buffer (Invitrogen) containing NuPAGE sample-reducing agent, boiled for 10 minutes, electrophoresed on a 4% to 12% Bis-Tris denaturing polyacrylamide gel (Invitrogen), and transferred to polyvinylidene difluoride membranes. Antibodies against the following proteins were used: GPx-1 and SBP1 (MBL, International), GAPDH and TRXRD (Proteintech) and MnSOD (BD Biosciences), GPx4 and β-actin (Abcam), and AKT, pAKT(Ser-473), and NF-κB p65 (Cell Signaling). Protein bands were quantified using ImageJ software (NIH) and normalized to β-actin band density.

For detection of superoxide, cells were washed twice with Dulbecco's Phosphate Buffered Saline and incubated with Hank's Balanced Salt Solution containing 10 μmol/L dihydroethidium (DHE) for 60 minutes. Media were collected and centrifuged at 3,000 rpm for 5 minutes. Fluorescence analysis of the oxidation product 2-hydroxyethidium (EOH) was performed on a Beckman Coulter high-performance liquid chromatography (HPLC) system. Samples were separated on a Synergi-Fusion column (250 × 4.6 mm; Phenomenex) using a gradient elution of 10% v/v acetonitrile, 0.1% trifluoracetic acid solution as the mobile phase A and 100% acetonitrile as mobile phase B with a flow rate set at 1.00 mL/min. Runs began at 100% phase A. Phase B was increased linearly from 0% to 42% in 25 minutes, then reduced to 0% during 5 minutes, and kept at 0% for 5 minutes. The UV detector was set at 350 nm to monitor the elution of DHE. Fluorescence detection was measured using 480 nm (excitation) and 580 nm (emission). Authentic DHE and EOH standard solutions were injected onto the HPLC to determine the retention time of the corresponding peaks. All procedures were performed in the dark or under indirect light. Quantification was performed by normalizing the integrated peak areas with protein concentrations measured using the BCA Protein Reagent (Thermo Scientific).

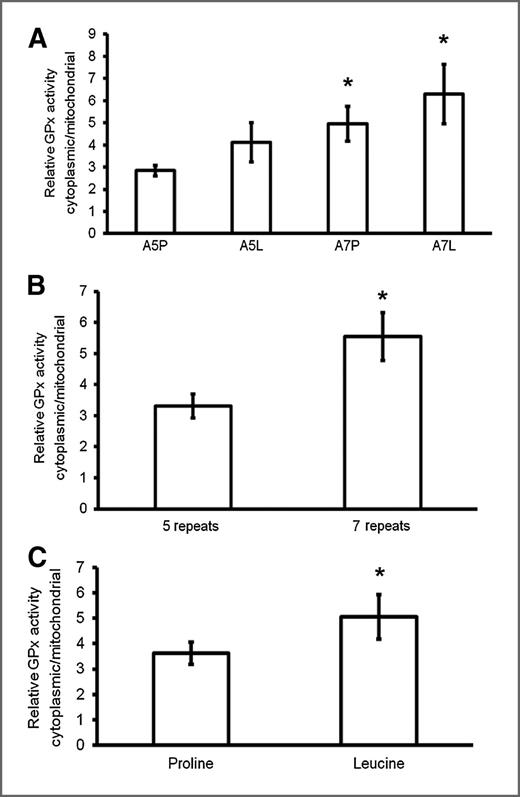

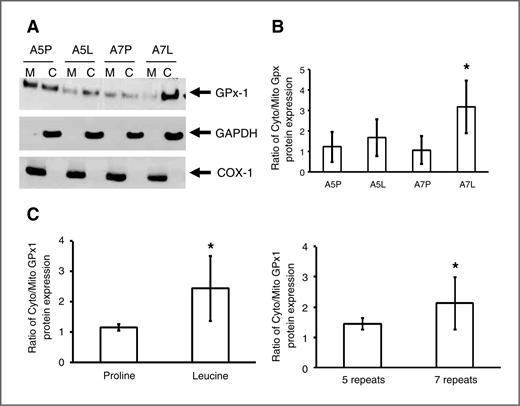

Most studies have focused on the investigation of the cytosolic activities of GPx-1 despite the demonstration that the enzyme also can reside within the mitochondria (20, 21). To assess the cellular location of the GPx-1 protein expressed by different alleles, cytoplasmic and mitochondrial cellular fractions were obtained from four previously generated MCF-7 transfectants containing either 5 or 7 alanine repeat codons (A5 or A7) and either a proline (P) or leucine (L) at codon 198, these being referred to as A5L, A7L, A5P, or A7P (9). The extracts were analyzed by Western blotting with anti–GPx-1 antibodies as well as with anti–COX-1 antibodies as a marker for mitochondrial protein expression. Consistent with several previous publications, GPx-1 was detected in both the cytoplasmic and mitochondrial fractions (20–23). However, this analysis indicated that there was a differential distribution between the cytoplasm and the mitochondria among the proteins encoded by the distinct GPx-1 alleles, with A7L being less distributed to the mitochondria as compared with A5P, A5L, and A7P (Fig. 1A and B). Pooling data by either the number of alanine repeats or the leucine/proline variation indicated that both genetic variations were contributing to determining cellular localization (Fig. 1C). These results were confirmed by assaying for GPx activity utilizing the same extracts as were used in the Western blotting shown in Figs. 1 and 2. Thus, quantification of protein levels and the measurement of GPx enzyme activity indicated a differential partitioning of GPx-1 between the cytoplasm and mitochondria, as well as the contribution of both the alanine repeats and the codon 198 polymorphism in determining that distribution.

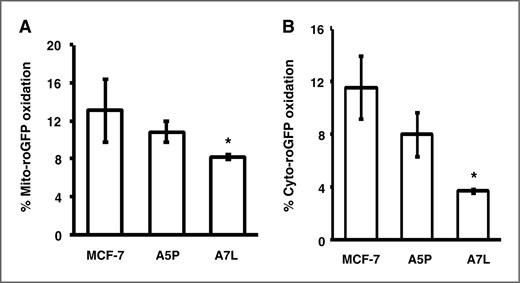

To investigate the consequences of allelic variation in the GPx-1 gene on reactive oxygen species (ROS) levels, we used roGFP directed to either the cytoplasm or mitochondria (cyto-RoGFP or mito-RoGFP, respectively). These constructs were delivered to cells by viral infection, and fluorescence was quantified by flow cytometry. Given the greatest differences among cells expressing distinct GPx-1 genotypes were between those expressing the A5P and A7L alleles, subsequent studies focused on just those two genotypes. The results of this analysis are shown in Fig. 3 and demonstrate that cells expressing the A7L allele, which partitioned to the greatest extent to the cytoplasm, also exhibited the lowest levels of oxidized GFP, both in the cytoplasm (Fig. 3A) and the mitochondria (Fig. 3B).

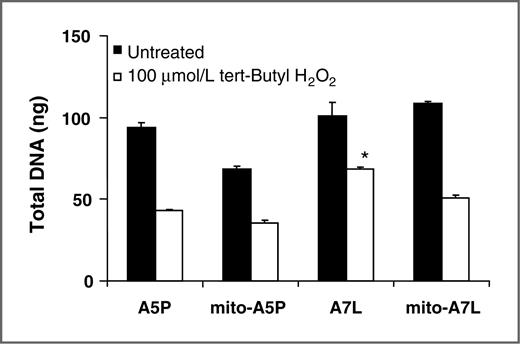

To assess whether there were differences in the response of MCF-7 cells expressing those GPx-1 alleles to oxidative stress, cells were exposed to 100 μmol/L t-BOOH and consequential changes in growth were assessed over 2 days (Fig. 4). Cells expressing A5P were more sensitive to t-BOOH than cells expressing A7L (P < 0.05).

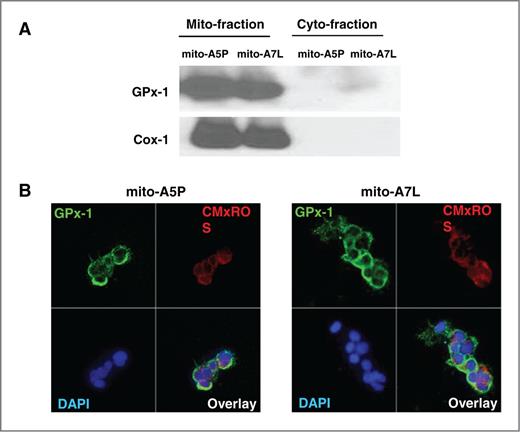

All of the data presented above were conducted with naturally occurring GPx-1 alleles and indicated that the localization of GPx-1 proteins might have a significant impact on the cellular biology of the enzyme. To further investigate this possibility, a hybrid GPx-1 protein targeted to the mitochondria was generated by the fusion of the MnSOD MTS to the GPx-1 open reading frame. The constructs encoding the hybrid protein were transfected into MCF-7 cells. Transfectants that expressed the mitochondrially targeted GPx-1 (mito-A5P and mito-A7L) were selected, which exhibited similar GPx enzyme activity levels (41.70 ± 1.1 units and 47.16 ± 1.9 units, respectively), similar to that achieved by the expression of the same two native, nontargeted A5P and A7L alleles (66.47 ± 5.4 units and 49.75 ± 4.5 units, respectively). As seen in Fig. 5A, examination of mitochondrial and cytoplasmic fractions from mito-A5P and mito-A7L expressing cells and examination by Western blotting indicated that the targeting was successful and these proteins partitioned exclusively to the mitochondria. Verification of successful targeting was achieved by confocal microscopy using GPx-1–specific antibodies and the Mitotracker Red dye to identify the location of the mitochondria (Fig. 5B).

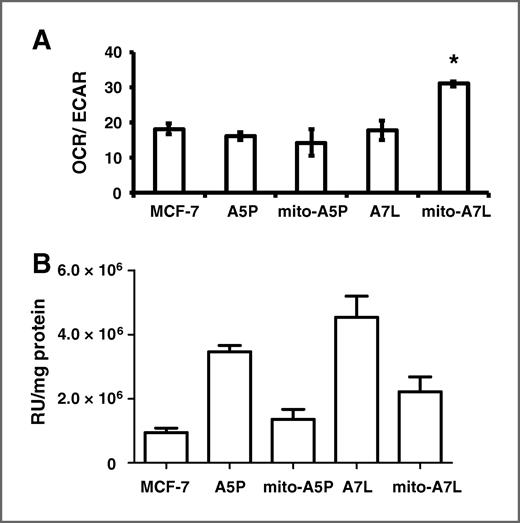

The Seahorse XF24 XF analyzer permits the simultaneous determination of the ECAR (19), which is dominated by lactic acid generated as a result of glycolytic energy metabolism, and the OCR that is a measure of mitochondrial bioenergetic function (24). The relative use of mitochondrial respiration as compared with glycolysis can then be represented as the OCR/ECAR ratio (25). MCF-7 (GPx-1 null), MCF-7 cells expressing the A5P and A7L GPx-1 isoforms, and MCF-7 transfectants that express those same isoforms exclusively directed to the mitochondria were analyzed using the Seahorse platform (Fig. 6A). The baseline OCR/ECAR ratio was initially recorded, followed by the treatment of the cells with 1.5 μmol/L oligomycin to inhibit complex V of ATP synthase thus disrupting ATP production from the proton gradient. Cells were subsequently exposed to carbonylcyanide-4-(trifluoromethoxy)-phenylhydrazone to uncouple respiration, resulting in a measure of maximal respiratory rate, a sensitive measure of electron transport chain integrity and mitochondrial functional capacity. Finally, electron flow through complex I and III was blocked by treating the reaction with rotenone and antimycin A. The data presented in Fig. 6A surprisingly indicated that both cellular location and the primary amino acid sequence of the GPx-1 isoform affected energy metabolism in these cells, with the mitochondrially directed A7L isoform resulting in mitochondria significantly more active in electron transport as compared with cells expressing the other GPx-1 isoforms.

Next, we assessed the effects of GPx-1 cellular location on superoxide levels by measuring the oxidation of DHE by HPLC. Superoxide concentrations were 3- to 4-fold higher when cells expressed GPx-1 (Fig. 6B). However, this effect of GPx-1 was significantly diminished when that enzyme was restricted to the mitochondria.

As an additional means of assessing the impact of GPx-1 primary structure and cellular location, cells were treated with t-BOOH, and cell viability was determined after 48 hours by quantifying DNA with the blue-fluorescent Hoechst 33258 nucleic acid stain. As seen in Fig. 4, when A7L was directed to the mitochondria, the cells were less protected as compared with the MCF-7 cells expressing GPx-1 isoform in both the mitochondria and the cytoplasm (Fig. 4). The consequences of directing A5P to the mitochondria on resistance to t-BOOH were less clear given the reduced growth caused by the expression of mito-A5P.

It was investigated whether signaling molecules involved in cell growth and metabolism may be differentially affected by the GPx-1 proteins investigated here. Previously, we reported that enhanced GPx-1 expression could alter the phosphorylation of Akt (26), a protein kinase with multiple downstream targets that, when activated, can stimulate the switch from oxidative phosphorylation to glycolysis (reviewed in ref. 27). Increased levels of A5P, mito-A5P, A7L, or mito-A7L in MCF-7 cells did not change the levels of total Akt (Fig. 7). Increased expression of A5P dramatically reduced the levels of pAkt, whereas this was not seen with the mitochondrially targeted protein. In contrast, the expression of A7L increased the phosphorylation of Akt and did so slightly more when located exclusively to the mitochondria (Fig. 7).

GPx-1 downregulates NF-κB, a redox-sensitive transcription factor that affects cell survival, immunity, and other biologic processes (28, 29). As expected, overexpression of either A5P or A7L reduced the levels of the NF-κB, with this effect being stronger for A7L than A5P. Targeting of those isoforms to the mitochondria had opposing effects: mito-A5P reduced NF-κB more effectively than A5P, whereas mito-A7L only marginally reduced NF-κB levels.

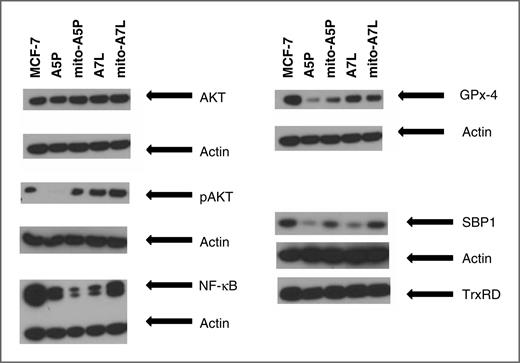

Lastly, it was investigated whether the cellular location and allelic identity of GPx-1 had an effect on other selenium-containing proteins (Fig. 7). Although no effect was observed on the levels of thioredoxin reductase (TrxRD), a selenoprotein critical in maintaining the cellular redox environment, the levels of GPx-4, a membrane-associated member of the GPx family, were affected by both GPx-1 genotype and location. Expression of A5P dramatically reduced the levels of GPx-4 while targeting A5P to the mitochondria also reduced GPx-4 levels, but to a lesser extent. The expression of A7L also reduced the levels of GPx-4 but not to the extent seen with A5P, but in contrast to that seen with A5P, mito-A7L was more effective in reducing GPx-4 levels (Fig. 7). Selenium binding protein-1 (SBP1) is a non-selenocysteine containing selenoprotein whose levels are inversely associated with GPx-1 activity and is typically expressed at lower levels in tumors compared with the corresponding normal tissue (30). Expression of either A5P or A7L reduced the levels of SBP1 in MCF-7 cells, although this effect was considerably less when GPx-1 was targeted to the mitochondria (Fig. 7).

These studies were initiated to elucidate the biologic consequences of GPx-1 allelic variations and to begin to establish a role for these variations in cancer risk. A role for GPx-1 in determining cancer risk might not be unexpected as a primary function of GPx-1 is to reduce levels of H₂O₂. Although more stable and less reactive than other ROS, H₂O₂ might contribute to the direct oxidation of proteins and nucleic acids, or H₂O₂ can be converted into much more reactive ROS, such as the hydroxyl radical by redox active metals. In addition to direct oxidative damage to biomolecules, aerobic organisms have also evolved to use ROS as potent signaling molecules. Fluctuations in the levels and types of ROS can be due to changes in the cellular microenvironment or intrinsic metabolic adaptations, and examples abound throughout phylogeny, indicating the sensing and response to H₂O₂. A significant component of ROS signaling is the consequence of the oxidation of reactive cysteine residues in catalytic proteins and one estimate postulates that over 500 individual proteins might be regulated in this manner, with many being tyrosine and multi-specific phosphatases (31, 32).

A principal result reported in this article was that the selected GPx-1 allelic variants distributed differently between the mitochondria and cytoplasm. The lack of detectable GPx-1 levels in MCF-7 cells made it possible to examine the consequences of the sequence variations in the same cellular environment by ectopically expressing these proteins from expression constructs, thus minimizing the potential contributions of other proteins or factors that might differ across individual cell lines. How GPx-1 partitions to mitochondria remains unknown, particularly as its primary sequence lacks a canonical MTS. The surprising observation that the A7L allele distributed differently than the other variants examined (A5P, A5L, and A7P) indicates that there is an interaction between those variable amino acids located at opposite ends of the protein, perhaps by affecting GPx-1 higher-order structure and/or its interaction with other proteins that affect its mitochondrial transport. To date, there is limited information about GPx-1 binding proteins. However, physical interaction with the Abl/Arg tyrosine kinase (33) and selenium binding protein 1, or SBP1 (34), has been reported. The interaction between the alanine repeat motif and the polymorphism at codon 198 may explain the lack of consistency observed among independent epidemiologic studies examining the effect of these variations on cancer risk. To date, there are currently no reports examining associations among cancer risk and both variations in the same population.

The generation of a derivative GPx-1 protein that exclusively partitions to the mitochondria provided direct evidence that the cellular localization of that protein can have a profound effect on cell biology, including resistance to oxidative stress, energy metabolism, and signaling. As such, these results provide new evidence for the functionality of these variations and support the existing epidemiologic data linking them to disease risk. How the localization of GPx-1 affects these endpoints remains to be determined. GPx-1–specific enzyme activity may be higher in the mitochondria than the cytoplasm due to its availability for posttranslational activation. Recently, two studies have indicated that chronic alcohol consumption and ablation of SIRT3, a mitochondrial deacetylase, leads to hyper-acetylation of several proteins, including GPx-1 (35, 36). Acetylation of GPx-1 was also noted in a recent proteomic analysis that mapped lysine acetylation sites of various proteins across rat tissues and identified 5 potential acetylated lysines in the antioxidant protein (37). It is noteworthy that the GPx-1 allele encoding a leucine at codon 198 is most often associated with elevated disease risk (7, 38) and may be localized preferentially to the cytoplasm where it would be unavailable for deacetylation and presumed activation by Sirt3. GPx-1 levels and specific activity in the mitochondria may (i) affect the susceptibility of proteins to oxidative damage, (ii) influence signaling mediated by the efflux of H₂O₂ generated by the dismutation of superoxide by the mitochondrially located MnSOD protein, or (iii) affect the availability of H₂O₂ to serve as a substrate for the recently discovered peroxidase activity of MnSOD (39), resulting in mitochondrial damage, and predisposing to cancer.

The complexity of the data obtained by comparing the effects of the different GPx-1 isozymes on both biologic and molecular endpoints indicates that both the primary sequence and cellular location affect signaling pathways that may account for the associations between GPx-1 genotype and cancer. The expression of distinct GPx-1 alleles resulted in differences in ROS species that were noted by using roGFP as an indicator of ROS, both in the cytoplasm and in the mitochondria, and differences in superoxide levels were observed using DHE detection. The particular species of ROS and their compartmentalization are likely to contribute to the divergent patterns of activation of signaling pathways, such as those affected by Akt and NF-κB activity seen when different GPx-1 alleles were expressed. GPx-1 has been shown to reduce the transcription of SBP1 as well as to physically interact with that protein (30, 34). It is therefore plausible that the sequestration of GPx-1 in the mitochondria makes it less available to interact with SBP1, a predominantly cytoplasmic protein, or makes it less efficient at reducing H₂O₂ that can stimulate SBP1 transcription via a ROS-responsive antioxidant response element located 5′ to the SBP1 promoter. Collectively, these data provide novel insight into the consequences of GPx-1 genotype and provide plausible mechanisms by which different GPx-1 alleles can contribute to cancer risk.
