Susceptible Stages in Schwann Cells for NF1-Associated Plexiform Neurofibroma Development

Stem cells undergo self-renewal divisions and produce daughter cells that differentiate into specific tissue lineages, thus playing an essential role in tissue homeostasis. Whether self-renewal or differentiation occurs is under strict regulation by both intrinsic and extrinsic factors. There is increasing evidence that in many tissues, tumor initiation can result from acquisition of genetic mutations in stem cells or their progenitors followed by alterations of the surrounding microenvironment (1–8). Neurofibromatosis type 1 (NF1) is a heritable genetic disease in which afflicted individuals suffer a germ line loss of function mutation in 1 allele. Upon stochastic somatic LOH, deregulation of the Ras signal transduction pathway leads to the development of multiple neurofibromas, which are benign tumors of the peripheral nerves. A large body of direct and indirect studies has provided evidence that NF1 gene deletion in the Schwann cell lineage is the requisite initial step that precedes the cascade of interactions with other cell types in the microenvironment and additional cell autonomous modifications (3, 9–12). Many studies further suggest that somatic stem cells or their progenitors may be the cells of origin of neurofibromas (3, 10). This stem cell model of tumorigenesis has important implications for understanding early cellular events that dictate neurofibromagenesis and other tumor types. In addition, the concept of neurofibroma as a disease of stem and progenitor cells has implications for the development of novel therapies targeting these tumors.

NF1 is one of the most common genetic disorders of the nervous system, affecting 1 in 3,500 individuals worldwide (13–15). NF1 patients have a wide spectrum of clinical presentations, including developmental, pigment or neoplastic aberrations of the skin, nervous system, bones, endocrine organs, blood vessels, and eyes. The cardinal features of NF1 are café au lait macules, axillary, and groin freckling, combined with multiple peripheral and central nerve tumors (16–20).

The development of neurofibromas, the most frequent tumor in NF1, and malignant peripheral nerve sheath tumors (MPNST) represents a serious complication. These are unique and complex tumors that contain proliferating Schwann-like cells and other local supporting elements of the nerve fibers, including perineurial cells, neurons, fibroblasts, and blood vessels, as well as infiltration of mast cells. Neurofibromas are classified as dermal or plexiform. Dermal neurofibromas are exclusively in the skin and occur in virtually all individuals with NF1 primarily emerging around puberty. Plexiform neurofibromas, although similar to dermal neurofibromas at the cellular and ultrastructural levels, develop along a nerve plexus. They occur in about 30% of NF1 individuals and are virtually pathognomonic of the disease (21). Plexiform neurofibromas are thought to be congenital and owing to their unusual capacity for growth can be life threatening through physical impairment of organ or neural function. In addition, patients with plexiform neurofibromas have a 10% lifetime risk of developing MPNSTs, which can widely metastasize and often signal a fatal outcome (21, 22). Current treatment options for NF1-related tumors are primarily limited to surgery and longitudinal surveillance.

The temporally and spatially distinct clinical presentation of dermal versus plexiform neurofibromas supports the hypothesis that these neurofibromas may originate from distinct progenitor cells. The use of mouse models of temporal and spatial somatic NF1 gene deletion has shed light on this hypothesis. We recently reported that skin-derived precursors, a neural crest-like neural stem cell residing in the dermis, are the cell of origin for dermal neurofibromas (3). Additional and varied mouse models of NF1 plexiform neurofibromas are consistent with the idea that some form of Schwann cell lineage cells are the likeliest candidates to give rise to plexiform tumors (9–12, 23, 24). During the development of peripheral nerves, neural crest cells generate myelinating and nonmyelinating Schwann cells in a process that parallels embryonic development. Migrating neural crest cells move through immature connective tissue before the time of nerve formation at mouse embryonic days E9-E11 and then differentiate into Schwann cell precursors (SCP) between E12-E13. These SCPs then become immature Schwann cells, which are generated from E14 until early neonatal stages. The immature Schwann cells eventually differentiate into mature Schwann cells after birth (25, 26). Given that the majority of plexiform neurofibromas are generally detected at birth or in infancy, we hypothesize that there must exist a temporal “window of opportunity” for NF1 loss in cells of the Schwann cell lineage to elicit tumor development. To gain insight into this question, we employed spatially and temporally controlled Cre driver transgenes to ablate NF1 function in the Schwann cell lineage at various developmental time points. In this model, we find that tumor incidence is highest when NF1 function is deleted during the embryonic period when SCP and immature Schwann cells predominate, suggesting that these cells are the likely sources for plexiform neurofibroma tumorigenesis.

All mice were housed in the animal facility at the University of Texas Southwestern Medical Center at Dallas (UTSW). Animal care and use were in compliance with regulations of the Institutional Animal Care and Research Advisory Committee at UTSW. The NF1^flox/− mice are in a mixed genetic background of C57BL/6/Sv129 and have been described previously (9). For conditional ablation of NF1, we used a tamoxifen-inducible Cre line, the PLPCre-ERT2 transgenic mice (27). The LacZ reporter mice, ROSA26R (28), were obtained from the Jackson Laboratories.

Tamoxifen (Sigma) was dissolved in a sunflower oil/ethanol (10:1) mixture at 10 mg/mL. For embryonic induction, the pregnant mice were gavaged orally with 1 mg of tamoxifen twice a day for 1 day during embryogenesis (E12.5). We were unable to give tamoxifen earlier because it resulted in spontaneous abortion. For perinatal induction, 2 mg of tamoxifen were gavaged orally twice a day for 5 days to lactating mothers of newborn animals during perinatal period (P0–P5). To activate Cre activity in adulthood, adult mice were gavaged orally with 4 mg of tamoxifen a day for 5 days.

For hematoxylin and eosin (H&E) histology analysis, tissue specimens were harvested and fixed with 10% formalin in PBS for 1 day and subsequently embedded in paraffin. Sections (5 μm thick) were stained with H&E per manufacturer's protocol (StatLab). For immunohistochemistry, paraffin sections were deparaffinized, rehydrated, and subjected to antigen retrieval prior to incubation with the primary antibodies. The primary antibodies were visualized by treating the sections with biotinylated secondary antibody and followed by amplification with peroxidase-conjugated avidin and 3,3′-diaminobenzidine substrate per manufacturer's protocol (Vector Labs). The dilutions of primary antibodies used in this study are as follows: GAP43 (rabbit, 1:1,000, Abcam) and S100β (rabbit, 1:5,000, DAKO).

For X-gal staining, mice were anesthetized with ketamine (1.5 mg per mouse) and subjected to total body perfusion with 4% paraformaldehyde in PBS. Tissues were harvested, equilibrated in 30% sucrose in PBS overnight at 4°C, washed 3 times with 1× PBS and stained with X-gal at 30°C overnight. The tissues were then postfixed with 10% formalin overnight, paraffin embedded, sectioned, and counterstained with nuclear fast red. The X-gal reaction mixture is comprised of 1 mg/mL 4-chloro-5-bromo-3-indolyl-β-galactoside (X-gal), 4 mmol/L potassium ferrocyanide, 4 mmol/L potassium ferricyanide, and 2 mmol/L magnesium chloride in PBS.

Leder staining, an enzymatic stain for Naphthol AS-D (3-hydroxy-2-naphthoic acid-O-toluidine) chloroacetate esterase to detect tissue mast cells, was done as previously described (29). Briefly, paraffin sections were deparaffinized, rehydrated, and placed in pararosaniline veronal acetate esterase solution for 30 minutes, rinsed in distilled water for 2 minutes and counterstained with hematoxylin solution. The tissue slides were then rinsed again in distilled water, dehydrated, and mounted by using xylene base medium.

To direct functional NF1 loss specifically in the Schwann cell lineage during varying times in development and beyond, we employed a transgenic mouse line expressing a tamoxifen-inducible variant of the Cre recombinase (Cre-ERT2) under the control of the proteolipid protein (PLP) gene regulatory region. The efficiency of this transgene to mediate recombination in glial cells has been well documented (27, 30). Nonetheless, we verified the capability of PLPCre-ERT2 to ablate genes of interest in peripheral nerves by crossing into the Flox-stop-Flox ROSA26 (R26R) reporter background (28) to generate PLPCre-ERT2;R26R mice. Pregnant PLPCre-ERT2;R26R mice were administered oral tamoxifen at embryonic day 12.5 and embryos were harvested 48 hours later for whole mount X-gal staining. We observed recombination specifically in the peripheral nerve plexuses (Fig. 1A). Next, we examined whether tamoxifen given to lactating mothers would, through the milk, induce recombination in the developing neonate peripheral nerves. Oral tamoxifen administration to mothers for the first 5 days after birth, efficiently induced recombination in neonate sciatic nerves, dorsal root ganglia (DRG) and trigeminal ganglia as assessed by X-gal staining (Fig. 1B). Finally, tamoxifen administration to adult (2–3 months old) mice induced recombination in sciatic nerves, DRG, and trigeminal ganglia thus showing the power and specificity of the temporally and spatially inducible PLPCre-ERT2 transgene (Fig. 1C).

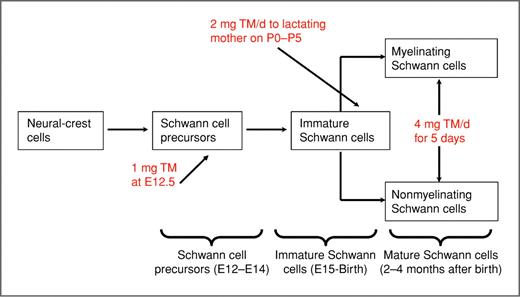

In mice, SCPs are present at E12-E13 and begin the transition from precursor to immature Schwann cell in the developing peripheral nerves between E14 and E15. The differentiation of immature Schwann cells to form the nonmyelinating and myelinating cells of mature nerves is essentially postnatal (25, 31). We selectively ablated NF1 function at different stages of Schwann cell development as follows: we bred the PLPCre-ERT2 mice with NF1^+/− mice to generate PLPCre-ERT2;NF1^+/− progeny. These mice were then crossed with NF1^flox/flox; R26R mice to generate PLPCre-ERT2;NF1^flox/−; R26R mice. We used PLPCre-ERT2;NF1^+/flox; R26R as controls.

We selectively ablated embryonic NF1 expression at the SCP stage by giving 1 mg of tamoxifen orally twice at embryonic day 12.5 to pregnant NF1^flox/flox; R26R female mice that have been bred with PLP-CreERT2;NF1^+/− male mice (Fig. 2). Earlier administration than E12.5 resulted in spontaneous abortion. The E12.5;PLPCre-ERT2;NF1^flox/−; R26R progeny showed classic signs of illness beginning at 5 to 6 months of age and were necropsied along with control littermates. In all cases, the mice exhibited tumors along the cervical and thoracic DRG that impinged on the spinal cord (Fig. 3). Histopathologic analysis of these tumors indicated that the tumors exhibited cardinal features of plexiform neurofibromas (Fig. 3). Tumor sections were also evaluated immunohistochemically and all the E12.5;PLPCre-ERT2;NF1^flox/−; R26R tumors exhibited Schwann cell marker (S100β) immunoreactivity. Ultrastructural evaluation of the tumors revealed abundant collagen and prominent disorganized spindle cells with cytoplasmic processes and abundant mast cell infiltration into the tumors, as assessed by morphologic, histologic, and enzymatic criteria. These findings indicated that PLP-Cre–mediated ablation of NF1 in Schwann cells at the precursor stage is sufficient to initiate plexiform neurofibroma formation, with the resultant neurofibromas exhibiting defining histologic features of the human counterpart.

We next tested whether targeting NF1 in neonates when most Schwann cells are in the immature stage would lead to neurofibroma formation. Lactating mothers were administered 2 mg of tamoxifen orally twice a day for 5 days following birth (Fig. 2). We and others, have previously established that lactating mothers can effectively transmit tamoxifen through the milk and induce recombination in the peripheral nerves of neonates (Fig. 1B; refs. 27, 32). Although the littermate controls remained healthy, the P0tam;PLPCre-ERT2;NF1^flox/− mice began to show signs of lethargy, weight loss, and paralysis at 5 to 6 months of age requiring that they will be sacrificed. Gross dissection of the sick mice revealed obvious enlargement of peripheral nerves (Fig. 4A, arrows), specifically in the brachial plexus, thoracic nerves, and sciatic nerves. We also observed the presence of plexiform neurofibromas in close proximity to the DRGs, in all of the sick P0tam;PLPCre-ERT2;NF1^flox/− mice (Fig. 4B and C). These neurofibromas exhibited the classic characteristics of human plexiform neurofibromas, being poorly circumscribed, composed primarily of spindle cells, and expressing the Schwann cell markers S100β and GAP43 (Fig. 5). We also observed heavy infiltration of mast cells into these plexiform neurofibromas, a critical component of tumor initiation, that is, commonly observed in human neurofibromas (Fig. 5). These data indicated that at the immature Schwann cell stage, like in the embryonic precursor cell stage, abundant competent cells are present that when subjected to NF1 loss give rise to plexiform neurofibroma formation.

The postnatal fate of immature Schwann cells is terminal differentiation into mature Schwann cells that ensheath large and small diameter axons throughout the peripheral nervous system (PNS). In the mouse, this process is essentially completed by postnatal day 21 (33). To determine whether induced loss of NF1 at the mature stage of Schwann cell development would lead to neurofibroma formation, we used oral gavage to administer 4 mg of tamoxifen a day for 5 days to adult (2–4 months of age) Atam;PLPCre-ERT2;NF1^flox/−; R26R and control mice to activate Cre activity. Five days after the last tamoxifen dose, we harvested DRGs and nerves for both X-gal staining and genotype analysis. We observed that both the DRGs and isolated peripheral nerves were positive for X-gal staining, indicating that the gavaged tamoxifen was able to penetrate the peripheral nervous system and induce recombination at the flox sites within these tissues (Fig. 6). Although virtually 100% of E12.5tam- or P0tamPLPCre-ERT2;NF1^flox/− mice robustly developed paraspinal plexiform neurofibromas near the DRGs when NF1 was ablated at the precursor or immature Schwann cell stage, the picture was significantly different with the Atam;PLPCre-ERT2;NF1^flox/−; R26R mice. Two of 19 Atam;PLPCre-ERT2;NF1^flox/−; R26R mice were sacrificed in their second year of life when they developed signs of sickness including lethargy, ruffled hair, weight loss, and limb paralysis. Gross autopsy analysis revealed that one of the 2 sick mutant mice (of 19) developed plexiform neurofibroma only at the cervical paraspinal areas, whereas the other mutant mouse developed both paraspinal plexiform neurofibromas and a classic plexiform neurofibroma within the left hindlimb, causing left leg gigantism (Fig. 6). This clinical presentation is a pathognomonic feature seen in NF1 patients with plexiform neurofibroma on the leg (21, 34, 35) but has never been reported in any of the previously published NF1 mouse models. These tumors were analyzed histopathologically and all results indicated that they were, in fact, plexiform neurofibromas, exhibiting the classic characteristics of human plexiform neurofibromas including being poorly circumscribed, composed primarily of spindle cells, and expressing the Schwann cell marker S100β.

These results indicated that NF1 ablation within the Schwann cell lineage in adult mice rarely leads to plexiform neurofibroma formation. In addition, these mice develop tumors after a much longer period of time (more than 1.5 years) and with very limited samples show tumor development at an additional anatomical location (on the leg along the sciatic nerve causing leg gigantism). On the other hand, virtually 100% of the PLPCre-ERT2;NF1^flox/− mice in which NF1 is ablated at the precursor or immature Schwann cell stages develop paraspinal plexiform neurofibromas exclusively near the DRGs within 5 to 7 months after tamoxifen induction. Whether more peripheral manifestation is preempted in the mice induced earlier by the rapid development of internal tumors remains to be determined.

Recent progress points to the importance of stem cells and their immediate progenitors in the initiation and maintenance of many cancers consistent with the notion that these neoplasms originate in a subset of primitive precursor cells and that most cells in an organ do not generate tumors (1–8). Identifying which cell type gives rise to a particular cancer (the cell of origin) will permit better informed design approaches for treating various cancers.

Plexiform neurofibromas are congenital tumors that develop along nerve plexuses and are thought to derive from the embryonic Schwann cell lineage (10, 11, 36). However, identification of the cell of origin of plexiform neurofibromas has yet to be resolved.

Early speculation, regarding the cell of origin, came from genetic studies examining the participation of differing cells including neural crest derivatives in the pathogenesis of many of the clinical presentations of NF1, including neurofibroma. In human neurofibromas, Schwann-like cells with biallelic NF1 mutations are the most consistently found cell type, leading to the argument that the tumors initiate in Schwann cells or their earlier precursors. Indeed, genetic mouse models have shown that NF1 gene deletion in the embryonic Schwann cell lineage is the genetic bottleneck for neurofibroma development (9–12, 23, 24). Conditional deletion of NF1 from fetal neural crest stem cells (NCSC) by using Wnt-1-Cre transgenic mice leads to a transient increase in NCSC frequency and self-renewal but the isolated NCSCs fail to form tumors upon transplantation (12), suggesting that early NCSC derivatives may not contain potential cells of origin for neurofibroma (Fig. 7). However, these negative data are not conclusive and, if ultimately correct, still leave open the question of which later NCSC derivatives give rise to the neurofibroma; the committed mature Schwann cell, or earlier immature Schwann cell, or postcrest precursor cells.

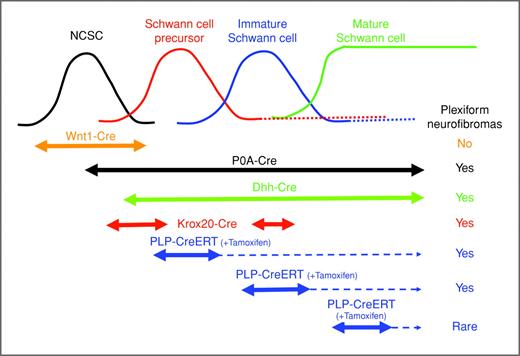

Recently, Zheng and colleagues reported that conditional ablation of NF1 from the SCP stage by using P0A-Cre;NF1^flox/− mice, which ablates NF1 continuously from early Schwann cell progenitors through mature cells, efficiently induces neurofibroma formation; based on observed abnormalities in Remak bundles, they proposed that nonmyelinating mature Schwann cells give rise to neurofibromas (11). On the other hand, Wu and colleagues proposed that the neurofibroma cell of origin corresponds to cells at the boundary between SCPs and immature Schwann cells as they observed that the neurofibromas that develop in DhhCre;Nf1^flox/flox mice contain large numbers of BLBP+/S100β+ cells, indicating that cells similar to immature Schwann cells accumulate in these tumors (10). The Cre recombinase transgenes used in these 2 studies both compromise NF1 function at the earliest Schwann cell stages of development (at E12.5), and the Cre recombinase activity persists through the mature Schwann cell stage. Therefore, it is not possible to pinpoint or exclude any particular Schwann cell developmental stage as the critical one for NF1 loss–mediated tumor development. The interpretation of the data instead rests on correlations relating to detectable appearance of abnormal cells or structures. To circumvent this problem, we used a transgenic mouse line, PLP-CreERT2, in which Cre activity is primed for activity in the Schwann cell lineage and inducible by tamoxifen, thus allowing temporal control of gene ablation (Fig. 7).

When NF1 was inactivated in adult mice between 2 to 4 months of age, only about 2% of the mutant mice developed neurofibroma. On the other hand, virtually 100% of the mutant mice developed paraspinal neurofibromas when NF1 was ablated at the precursor or immature Schwann cell stage. Thus, the mice are most susceptible to develop paraspinal plexiform neurofibroma when the LOH of the wild-type NF1 allele occurs during the stages when precursor and immature Schwann cells are predominant, indicating that the precursors and/or immature Schwann cells may have the capacity to give rise to plexiform neurofibroma (Fig. 7). However, the fact that NF1 inactivation in adult mice also gives rise to neurofibroma, although at a much lower frequency, indicates that either (i) mature Schwann cells can, in rare cases, give rise to neurofibroma or (ii) that rare populations of precursor or immature Schwann cells persist within the adult PNS. A third alternative is that the neurofibromas that arise during the embryonic or perinatal period originate from a different cell of origin/progenitor than those that arise in adulthood. Finally, although we observe the colocalization of X-gal stain with adult Schwann cell markers (Fig. 6A, d–e), we cannot exclude the possibility that adult mice may induce recombination less efficiently at the NF1 locus than the Rosa26 locus in adult Schwann cells from the peripheral nerves.

The level of resolution afforded by temporal targeting of NF1 with tamoxifen-inducible PLP-CreERT2 has limitations. First, we were unable to generate viable embryos upon tamoxifen administration prior to E12.5. Therefore, we were unable to directly address the potential of the earliest NCSC stages to give rise to tumors. Second, the Schwann cell lineage does not undergo transition en masse at tightly defined times from the NCSC stage, to the precursor stage, to the immature stage, and onward to more differentiated stages. Instead, gradients of cells transition over extended periods and there exists considerable overlap between the disappearance of 1 population and the emergence of another (Fig. 7). Whether the tamoxifen inductions at birth-targeted residual precursors or immature Schwann cell populations could not be distinguished. On this basis, we cannot exclude the possibility that in addition to SCPs, immature Schwann cell lineages may also retain tumor-forming potential.

The ability of mature Schwann cells to give rise to tumors is less evident. Individuals afflicted with NF1 rarely present with plexiform tumors for the first time in adults (21). Indeed, most such cases are clinically interpreted to be a manifestation of a longtime indolent, subclinical tumor. Schwann cell maturation and terminal differentiation into myelinating cells mostly occurs postnatally. If mature Schwann cells as a whole can give rise to neurofibromas when LOH occurs in adulthood, then neurofibromas should develop robustly in our PLP-CreERT2 mice induced postnatally because cre-mediated recombination remains efficient in mature Schwann cells (Fig. 6). The fact that neurofibromas develop only rarely in this scenario can only be explained either by a very rare set of circumstances that render an NF1^−/− mature Schwann cell capable of developing into a tumor or alternatively, the very rare presence of progenitor/immature Schwann cells that, when targeted at NF1, then give rise to the tumor.

Vestigial compartments of Schwann progenitor/immature cells may also persist into adulthood and retain the capacity to form plexiform neurofibromas within the peripheral nerves. In fact, NCSCs can be found at sites of gliogenesis, including the sciatic nerve and DRG (37, 38). Strikingly, stem/progenitor cells exhibiting NCSC features, such as the ability to self-renew and differentiate into various cell types typical for the neural crest, including Schwann cells have been isolated in adult DRGs and other tissues (39–44). Although the physiologic role of these adult NCSC-related cells remains to be elucidated, they have the capacity to give rise to PNS tumors such as neurofibroma (3). As such, it is entirely possible that when NF1 is ablated at, or prior to, the neonatal period, plexiform neurofibromas arise from the embryonic Schwann cells. On the other hand, the adult NCSC-related stem cells or their precursor/immature Schwann cell derivatives may be the cell of origin for neurofibromas in adulthood. This may explain why only paraspinal neurofibromas develop in the DRG when NF1 is ablated at, or prior to, the neonatal period, but in the few mice that develop neurofibromas when NF1 is inactivated in adulthood, the tumor develops along the sciatic nerve in the left hindlimb causing left leg gigantism, a phenotype that has never been observed in the PLPCre-ERT2;NF1^flox/− mutant mice when tamoxifen is given transiently early in embryonic development.

Our data, and those of Mayes and colleagues (submitted manuscript), who used a different inducible PLP-Cre transgene to ablate NF1, show that acute loss of NF1 at either the embryonic or the adult Schwann cell stage can lead to neurofibroma formation. There are, however, considerable differences between the 2 studies. Mayes and colleagues observed a high incidence of hematopoietic expansion and splenomegaly, a hallmark of juvenile chronic myelogenous leukemia, which is a rare malignancy associated with NF1. Their mutant mice also develop facial neurofibromas associated with the cranial nerves, a feature we did not observe in our model. In fact, we do not see any hematopoietic tumor or neurofibromas above the cervical level in our model. These differences in scope of pathology (hematopoietic) indicate that the independently derived tamoxifen-inducible PLP-Cre transgene used by Mayes and colleagues must have broader tissue targets than the transgene used in our study whose activity is confined essentially to the glial cell lineage (Fig. 1; ref. 27). The higher prevalence of adult tumors observed by Mayes and colleagues could additionally be a reflection of differing modes of tamoxifen exposure. In our study, tamoxifen was delivered by oral gavage whereas Mayes and colleagues used intraperitoneal injection for tamoxifen delivery.
