Abstract
Increased activity of the proto-oncogene c-Src and elevated levels of integrin αvβ3 are found in melanomas and multiple carcinomas. Regulation of c-Src involves “priming” through disruption of intramolecular interactions followed by “activation” through phosphorylation in the kinase domain. Interactions with overexpressed receptor tyrosine kinases or mutations in the SRC gene can induce priming of c-Src in cancer. Here, we show that αvβ3 promotes activation of primed c-Src, causing enhanced phosphorylation of established Src substrates, survival, proliferation, and tumor growth. The β3 cytoplasmic tail is required and sufficient for integrin-mediated stimulation of all these events through a mechanism that is independent of β3 tyrosine phosphorylation. Instead, experiments using Src variants containing the v-Src Src homology 3 (SH3) domain and using mutant β3 subunits indicate that a functional interaction of the β3 cytoplasmic tail with the c-Src SH3 domain is required. These findings delineate a novel integrin-controlled oncogenic signaling cascade and suggest that the interaction of αvβ3 with c-Src may represent a novel target for therapeutic intervention. [Cancer Res 2007;67(6):2693–700]
Introduction
Interactions of tumor cells with their microenvironment are important for cancer development and progression (1). Tumor cells connect with the extracellular matrix through various members of the integrin family of adhesion receptors and upon malignant transformation cells often undergo specific changes in the expression levels of integrins. High levels of integrin αvβ3 correlate with growth and/or progression of melanoma (2, 3), neuroblastoma (4), and multiple different carcinomas (5–9). Moreover, individuals homozygous for the β3L33P polymorphism that enhances the affinity of β3 integrins have an increased risk to develop breast cancer, ovarian cancer, and melanoma (10). Despite the fact that αvβ3 in the tumor vasculature has been identified as a valuable drug target, endothelial αvβ3 is dispensable for tumorigenesis (11, 12). It remains unclear if and how increased levels of αvβ3 on tumor cells contribute to cancer development.
Following ligand binding, integrins cluster and organize into multiprotein complexes termed cell-matrix adhesions that connect to the actin cytoskeleton through a variety of cytoskeletal linker proteins. Cell-matrix adhesions also contain various signaling intermediates, including non–receptor tyrosine kinases (non-RTK) such as focal adhesion kinase (FAK) and c-Src (13). Integrin-mediated adhesion stimulates FAK and c-Src activities, and, in turn, c-Src modulates the stability of cell-matrix adhesions through phosphorylation of several components, including integrin cytoplasmic tails (14–16). In addition, the FAK/c-Src complex is involved in the transmission of information from the extracellular matrix into the cell to regulate cellular signaling cascades in control of apoptosis and proliferation (17).
In unstimulated cells, c-Src is folded into a closed, autoinhibitory conformation. Its activation requires dephosphorylation of the COOH-terminal Tyr530 residue (amino acid numbering used in this study is for human c-Src) to disrupt intramolecular binding of this residue to the Src homology 2 (SH2) domain. A disruption of the interaction between the SH3 domain and prolines in the linker region further contributes to the formation of an unfolded or “primed” conformation. Finally, for full enzymatic activity, primed c-Src must be phosphorylated in its kinase domain at residue Tyr419 by transphosphorylation (18, 19). The oncogenic product of Rous sarcoma virus (v-Src) is constitutively activated through amino acid substitutions in the SH3 domain and the kinase domain as well as a deletion of the regulatory COOH-terminal tyrosine (18, 20). Although Rous sarcoma virus is avian specific, c-Src plays a critical role in cancer development (21, 22). Indeed, levels of c-Src activity are frequently increased in human melanoma and carcinomas of the breast, colon, and other epithelia (23–25). It is incompletely understood how c-Src activity is enhanced in tumors. Increased levels of c-Src and binding of overexpressed RTKs to the c-Src SH2 domain may enhance c-Src priming. In addition, mutations in the SRC gene stabilizing a primed conformation of c-Src through truncation of the regulatory COOH terminus have been detected in colon and endometrial cancer, although such mutations seem to be rare (26–29).
Because (a) c-Src selectively mediates signaling by β3 integrins (30), (b) null mutations in the Src or the Itgb3 gene give rise to partially overlapping abnormalities (31, 32), and (c) increased expression or activity of αvβ3 or c-Src has been associated with growth, progression, or poor prognosis of the same types of cancer (2–9, 23–25), we hypothesized that a functional interaction of αvβ3 with c-Src may contribute to cancer development. In this report, we show that the activity and oncogenic potential of primed c-Src is in fact subject to a remarkably tight regulation by integrin αvβ3. Our findings identify the β3 cytoplasmic domain as a critical regulator of c-Src–mediated oncogenic signaling.
Materials and Methods
Cell lines and plasmids. The HBL100 cell line was obtained from the American Type Culture Collection (Rockville, MD). The β1 integrin–deficient cell lines GD25 and GE11 were provided by Dr. Reinhard Fässler (Max Planck Institute, Martinsried, Germany) and have been described previously (33, 34). All cell lines were cultured in DMEM supplemented with 10% FCS, penicillin, and streptomycin. A Myc tag was added at the 3′ end of the cDNA encoding c-SrcY530F (the plasmid encoding mouse-chicken c-Src in which the COOH-terminal regulatory Tyr was replaced by Phe was purchased from Upstate Biotechnology, Lake Placid, NY); a hemagglutin (HA) tag was added at the 3′ end of the cDNA encoding mouse c-Src (Upstate Biotechnology); and the tagged constructs were cloned into the LZRS retroviral vector. Retroviral expression plasmids encoding integrin β1 or β3 subunits, β1exβ3in and β3exβ1in chimeras, and those encoding the extracellular and transmembrance region of the non-signaling interleukin 2 receptor α (IL2Rα) subunit alone or fused to the integrin β1 cytoplasmic domain were described before (33, 34). To generate the LZRS-IL2Rβ3 plasmid, the β1 cytoplasmic domain in IL2Rβ1 was replaced with the β3 cytoplasmic domain. The retroviral expression plasmid encoding ts72v-Src (35) was provided by Dr. Irwin H. Gelman (Roswell Park Cancer Institute, Buffalo, NY). The LZRS retroviral construct expressing chimeric vSrc/SrcYF was generated by substituting the first 131 amino acids of SrcYF with the same region from ts72v-Src. The cDNA encoding human epidermal growth factor receptor (EGFR) was provided by Dr. Frank Furnari (Ludwig Institute for Cancer Research, La Jolla, CA) and cloned into the pMSCV retroviral expression plasmid by Sophia Bruggeman (The Netherlands Cancer Institute, Amsterdam, The Netherlands). The retroviral H-RasG12V expression plasmid (RasGV) was provided by Dr. John Collard (The Netherlands Cancer Institute). The β3Y747A, β3Y759A, and β3Δ759 mutants were provided by Dr. Jari Ylänne (University of Oulu, Finland) and subcloned into the LZRS retroviral vector (36). All cDNAs were transfected into amphotrophic or ecotrophic packaging cells to generate virus-containing culture supernatants that were used for retroviral transduction of HBL100, GD25, and GE11 cells. Subsequently, SrcYF, c-Src, ts72v-Src, vSrc/SrcYF, or RasGV expressing clones were transduced with retroviral constructs encoding wild-type, mutant, and chimeric integrin subunits or EGFR. Positive cells were bulk sorted at least twice by fluorescence-activated cell sorting for human integrin, IL2Rα, or EGFR surface expression.
Antibodies and other materials. Anti-human β1 monoclonal antibodies were TS2/16, clone 18 (BD Transduction Laboratories, Lexington, KY), and K20 (Biomeda, San Francisco, CA). Anti-human β3 monoclonal antibodies were C17 (provided by Dr. Ellen van der Schoot, Sanquin, Amsterdam, The Netherlands), 23C6 (provided by Dr. Michael Horton, University College London, United Kingdom), and SSA6 (provided by Dr. Sanford Shattil, University of California San Diego, CA). Other monoclonal antibodies were anti-c-Src (B-12; Santa Cruz Biotechnology, Santa Cruz, CA), anti-α-tubulin (B-5-1-2; Sigma, St. Louis, MO), anti-β-actin (AC-15; Sigma), anti-EGFR (Ab-1 clone 528; Calbiochem, La Jolla, CA), anti–phosphorylated signal transducer and activator of transcription 3(Y705) [anti-p-Stat3(Y705); 3E2; Cell Signalling Technology], and anti-bromodeoxyuridine (anti-BrdUrd; Bu20a; DAKO, Carpinteria, CA). The following rabbit polyclonal antibodies were used: anti–phosphorylated Src(Y419) [anti-p-Src(Y419); Biosource, Camarillo, CA], anti-c-Src (SRC 2; Santa Cruz Biotechnology), anti-myc (A-14; Santa Cruz Biotechnology), anti-HA (GeneTex, Inc., San Antonio, TX), anti-FAK (C-20; Santa Cruz Biotechnology), anti–phosphorylated FAK(Y925) [anti-p-FAK(Y925); Biosource], anti-human β1 (provided by Dr. Ulrike Mayer, University of Manchester, United Kingdom), anti-Stat3 (K-15; Santa Cruz Biotechnology), anti-human IL2Rα (N-19; Santa Cruz Biotechnology), and polyclonal goat anti-human β3 (N-20; Santa Cruz Biotechnology). Texas Red–conjugated phalloidin was purchased from Molecular Probes (Eugene, OR). Human plasma fibronectin was prepared as described previously (34).
Flow cytometry, immunofluorescence, and Western blot analysis. These experiments were done as described previously (34).
Immunoprecipitations. For immunoprecipitations, cells were lysed for 15 min at 4°C in lysis buffer [1% NP40, 50 mmol/L Tris-HCl (pH 7.4), 150 mmol/L NaCl, 1 mmol/L sodium vanadate, 0.5 mmol/L sodium fluoride, and protease inhibitor cocktail (Sigma-Aldrich, St. Louis, MO)]. Lysates were clarified by centrifugation at 14,000 rpm for 15 min at 4°C and precleared with protein A-Sepharose (Amersham Pharmacia Biotech AB, Uppsala, Sweden) for 2 h at 4°C. Proteins were immunoprecipitated o/n at 4°C with antibodies to c-Src (B-12), β1 (K20), or β3 (SSA6), coupled to protein A-Sepharose.
For in vitro Src kinase assays, cells were lysed for 15 min at 4°C in lysis buffer [0.5% NP40, 50 mmol/L Tris-HCl (pH 7.4), 150 mmol/L NaCl, 5 mmol/L MgCl2, 1 mmol/L sodium vanadate, and protease inhibitor cocktail (Sigma-Aldrich)]. Lysates were clarified by centrifugation at 14,000 rpm for 15 min at 4°C. SrcYF protein was isolated from the clarified lysates by immunoprecipitation with 5 μg anti-myc antibody for 2 h at 4°C, and immune complexes were collected with protein A-Sepharose. Kinase activity of isolated SrcYF protein was determined by use of a Src kinase assay kit (Upstate Cell Signaling Solutions, Charlottesville, VA).
Soft agar and tumorigenicity assays. For soft agar assays, six-well plates were first coated with 0.6% low melting point (LMP) agarose (Roche, Indianapolis, IN). Subsequently, 100,000 cells were suspended in culture medium containing 0.35% LMP agarose and seeded on top of the 0.6% LMP agarose layer. For tumorigenicity assays, cells were harvested, washed, and resuspended in 0.2 mL sterile PBS per injection. Female 6-week-old athymic BALB/c mice were then s.c. injected into the left and right flanks. After cell inoculation, tumor volumes were measured using calipers at the indicated times. All animal experiments were approved by the animal welfare committee of the Netherlands Cancer Institute.
Terminal deoxynucleotidyl transferase–mediated nick-end labeling staining and BrdUrd incorporation assays. Cells (75,000) were plated in culture medium on fibronectin coated coverslips, and after 4 h, the cells were either kept in culture medium or switched to serum-free medium for 24 or 48 h. The cells were labeled with 15 μmol/L BrdUrd (Sigma) for 4 h before fixation in 2% paraformaldehyde. For BrdUrd staining, cells were permeabilized in 0.5% Triton X-100; DNA was denatured with 2 mol/L HCl and neutralized with 0.1 mol/L sodium borate; and coverslips were labeled with anti-BrdUrd antibody followed by FITC-conjugated secondary antibody. For terminal deoxynucleotidyl transferase–mediated nick-end labeling (TUNEL) staining, cells were permeabilized in 0.1% Triton X-100 with 0.1% sodium citrate in PBS and stained with an in situ cell death detection kit (Roche). For both procedures, nuclei were visualized with TOPRO-3 (Molecular Probes), and preparations were mounted in MOWIOL 4-88 solution supplemented with DABCO (Calbiochem).
Results
Integrin αvβ3 supports primed c-Src–mediated tumor growth. A c-Src mutant in which a primed conformation is induced by the substitution of Tyr530 by Phe (SrcYF) was introduced alone or in combination with the β3 integrin subunit in HBL100, GD25, and GE11 cells. Although SrcYF-transformed HBL100 cells were tumorigenic, tumors grew much faster when the surface expression levels of αvβ3 were increased (Supplementary Fig. S1). The cooperation between αvβ3 and SrcYF was even more striking in GD25 and GE11: whereas cells expressing β1 integrins (GDSrcYFβ1 and GESrcYFβ1) were virtually unable to grow in soft agar or form tumors in mice, cells lacking β1 integrins but expressing high levels of αvβ3 (GDSrcYFβ3 and GESrcYFβ3) were highly tumorigenic (Fig. 1; Supplementary Fig. S2A; see ref. 34). Ectopic expression of β1 integrins in GESrcYFβ3 cells did not affect tumor growth, indicating that αvβ3 supports SrcYF-mediated tumor formation, irrespective of the expression of β1 integrins (Fig. 2A). Moreover, when a 1:1 mixture of GESrcYFβ1 and GESrcYFβ3 cells was injected s.c., GESrcYFβ3 cells (recognized by an antibody directed against human β3) were readily detectable in the resulting tumors, whereas GESrcYFβ1 cells (recognized by an antibody directed against human β1) were virtually absent, indicating that αvβ3 supports Src-mediated tumor formation in a cell-autonomous fashion (Fig. 2B).

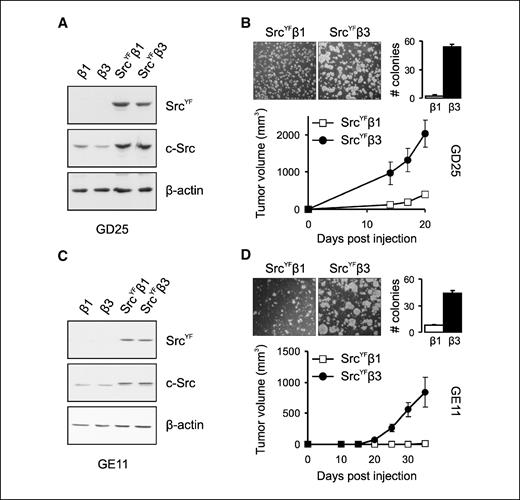

Integrin αvβ3 supports oncogenic transformation by SrcYF. A and C, Western blot analysis of SrcYF (Myc-tag antibody), total Src (c-Src antibody), and β-actin in lysates of GD25 (A) or GE11 cells (C) expressing the indicated constructs. Note that lysates were separated on a 10% polyacrylamide gel in (C), allowing the visualization of c-Src and the Myc-tagged SrcYF as separate bands (middle), whereas 4-20% gels were used in all other cases. B and D, colony formation and tumorigenicity of GD25 (B) or GE11 cells (D) expressing SrcYF and β1 or β3 integrins as indicated. Phase-contrast images of soft agar assays were taken 14 d after plating. Columns, average number of colonies larger than five cells per image of at least two independent experiments; bars, SE. The small clusters of GDSrcYFβ1 cells (smaller than five cells) did not grow out with time. Points, average tumor volume of 1 × 106 injected cells (n ≥ 4 for GD25 lines, n = 11 for GE11 lines) obtained from two independent experiments; bars, SE.
Integrin αvβ3 supports oncogenic transformation by SrcYF. A and C, Western blot analysis of SrcYF (Myc-tag antibody), total Src (c-Src antibody), and β-actin in lysates of GD25 (A) or GE11 cells (C) expressing the indicated constructs. Note that lysates were separated on a 10% polyacrylamide gel in (C), allowing the visualization of c-Src and the Myc-tagged SrcYF as separate bands (middle), whereas 4-20% gels were used in all other cases. B and D, colony formation and tumorigenicity of GD25 (B) or GE11 cells (D) expressing SrcYF and β1 or β3 integrins as indicated. Phase-contrast images of soft agar assays were taken 14 d after plating. Columns, average number of colonies larger than five cells per image of at least two independent experiments; bars, SE. The small clusters of GDSrcYFβ1 cells (smaller than five cells) did not grow out with time. Points, average tumor volume of 1 × 106 injected cells (n ≥ 4 for GD25 lines, n = 11 for GE11 lines) obtained from two independent experiments; bars, SE.

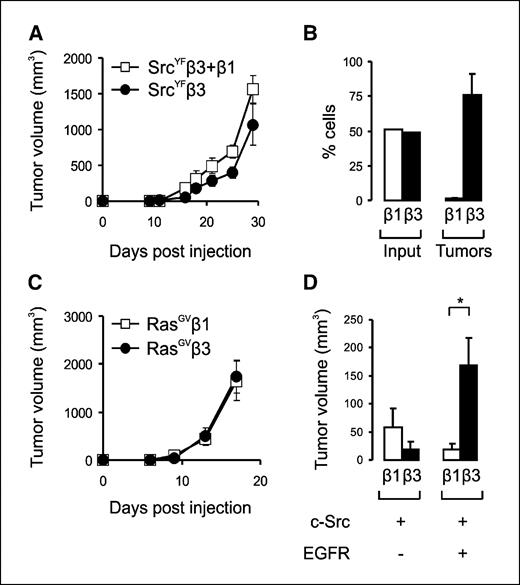

Specific cooperation of αvβ3 and primed c-Src stimulates tumor growth in a cell-autonomous fashion. A, points, average tumor volume of GESrcYFβ3 cells lacking (•) or expressing β1 (□) obtained from two independent experiments (n = 8) where 1 × 106 cells were injected; bars, SE. B, columns, quantification of integrin expression on cells isolated from four tumors of a 1:1 mix of 5 × 105 GESrcYFβ1 and GESrcYFβ3 cells. Bars, SE. Expression of human β1 (open columns) and human β3 integrins (filled columns) was determined by fluorescence-activated cell sorting before injection (“input”) or after one month of tumor growth (“tumors”). The fact that the percentage of GESrcYFβ1 and GESrcYFβ3 cells does not add up to 100% can be explained by the presence of stromal cells (lacking human β1 and β3 integrins). C, points, average tumor volume of GERasGVβ1 (□) and GERasGVβ3 cells (•) obtained from two independent experiments (n ≥ 7) where 1 × 106 cells were injected; bars, SE. D, columns, average tumor volume at 33 d after injection of GEβ1 (open columns) and GEβ3 cells (filled columns) containing the indicated expression constructs obtained from two independent experiments (n ≥ 12) where 1×106 cells were injected; bars, SE. *, P < 0.01, significant difference between mean values (Student's t test).
Specific cooperation of αvβ3 and primed c-Src stimulates tumor growth in a cell-autonomous fashion. A, points, average tumor volume of GESrcYFβ3 cells lacking (•) or expressing β1 (□) obtained from two independent experiments (n = 8) where 1 × 106 cells were injected; bars, SE. B, columns, quantification of integrin expression on cells isolated from four tumors of a 1:1 mix of 5 × 105 GESrcYFβ1 and GESrcYFβ3 cells. Bars, SE. Expression of human β1 (open columns) and human β3 integrins (filled columns) was determined by fluorescence-activated cell sorting before injection (“input”) or after one month of tumor growth (“tumors”). The fact that the percentage of GESrcYFβ1 and GESrcYFβ3 cells does not add up to 100% can be explained by the presence of stromal cells (lacking human β1 and β3 integrins). C, points, average tumor volume of GERasGVβ1 (□) and GERasGVβ3 cells (•) obtained from two independent experiments (n ≥ 7) where 1 × 106 cells were injected; bars, SE. D, columns, average tumor volume at 33 d after injection of GEβ1 (open columns) and GEβ3 cells (filled columns) containing the indicated expression constructs obtained from two independent experiments (n ≥ 12) where 1×106 cells were injected; bars, SE. *, P < 0.01, significant difference between mean values (Student's t test).
In contrast to SrcYF, RasGV-mediated tumor growth was not affected by the expression of αvβ3, indicating that this integrin is specifically required for Src-mediated tumorigenesis (Fig. 2C). In several human cancers, overexpressed and/or activated EGFR can stimulate priming of c-Src through (in)direct interactions with its SH2 domain (19, 23). We analyzed if αvβ3 can also support c-Src–mediated tumor growth under such conditions. Moderate overexpression of c-Src was not sufficient by itself to induce tumor formation even in the presence of αvβ3 (Fig. 2D; Supplementary Fig. S2B). However, although tumors grew slow compared with those induced by SrcYF, αvβ3 significantly increased tumor growth when c-Src and EGFR were coexpressed (Fig. 2D; Supplementary Fig. S2C).
Together, these findings indicate that αvβ3 specifically cooperates with primed c-Src in a cell-autonomous fashion to stimulate the formation of tumors by fibroblasts and epithelial cells.
αvβ3 supports SrcYF-mediated survival, proliferation, and tumor formation upstream of FAK and Stat3 by enhancing SrcYF activation. The activation of the transcription factor Stat3 by phosphorylation at Tyr705 is strongly enhanced in cells transformed by v-Src (37, 38). SrcYF only moderately increased Stat3 activity in the presence of β1 integrins, whereas phosphorylation was clearly enhanced in the presence of αvβ3 (Fig. 3A). This suggested that αvβ3 may enhance SrcYF activity, which, like wild-type c-Src, requires transphosphorylation of Tyr419 in its catalytic domain to acquire full enzymatic activity. Indeed, whereas expression of SrcYF led to increased levels of p-Src(Y419) in the presence of either β1 or β3 integrins, phosphorylation was much stronger in GESrcYFβ3 than in GESrcYFβ1 cells (Fig. 3B). Stimulation of the levels of p-Src(Y419) and of two known Src substrates [p-FAK(Y925) and p-Stat3(pY705)] in the presence of αvβ3 was also observed when cells were cultured under conditions that may mimic the tumor environment (serum-free or nonadherent; Fig. 3C; data not shown). On the other hand, equal levels of Src activity were detected in in vitro Src kinase assays on SrcYF immunoprecipitates from GESrcYFβ1 and GESrcYFβ3 lysates (Fig. 3D). These data raise the possibility that in vivo activation of SrcYF is regulated by αvβ3, possibly by enhanced clustering and subsequent transphosphorylation in the kinase domain. Concentration of SrcYF on the beads in the in vitro Src kinase assays might result in activation of SrcYF in a similar way.

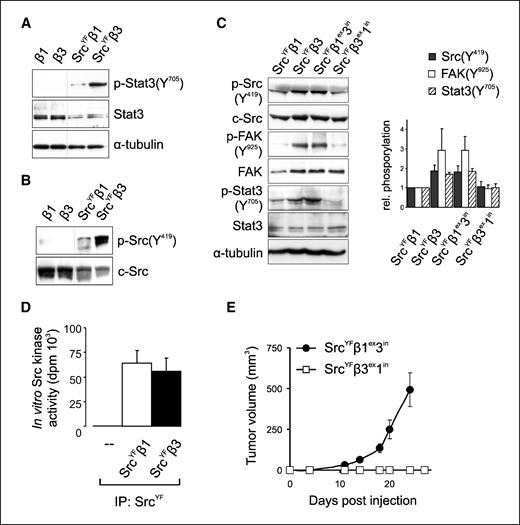

The β3 cytoplasmic tail supports SrcYF activation and SrcYF-mediated tumor growth. A, Western blot analysis of p-Stat3(Y705), total Stat3 (α and β isoforms), and tubulin loading control in lysates of GEβ1 and GEβ3 cells expressing or lacking SrcYF. Dotted lines in (A) and (B) separate different regions from a single film placed together. B, Western blot analysis of p-Src(Y419) and total Src in lysates of GEβ1 and GEβ3 cells expressing or lacking SrcYF. C, Western blot analysis of p-Src(Y419), total Src, p-FAK(Y925), total FAK, p-Stat3(Y705), total Stat3, and loading control in lysates of GE11 cells expressing the indicated constructs and grown in the absence of serum. Columns, mean of relative p-Src(Y419), p-FAK(Y925), and p-Stat3(Y705) levels compared with GESrcYFβ1 in serum-starved cultures of GE11 cells expressing the indicated constructs obtained from at least two independent experiments; bars, SE. D, activity of SrcYF immunoprecipitated from GE11 (−), GESrcYF β1, or GESrcYFβ3 cells in an in vitro Src kinase assay. E, points, average tumor volume of GESrcYFβ1ex3in (•) or GESrcYFβ3ex1in cells (□) obtained from two independent experiments (n ≥ 8) where 1×106 cells were injected; bars, SE.
The β3 cytoplasmic tail supports SrcYF activation and SrcYF-mediated tumor growth. A, Western blot analysis of p-Stat3(Y705), total Stat3 (α and β isoforms), and tubulin loading control in lysates of GEβ1 and GEβ3 cells expressing or lacking SrcYF. Dotted lines in (A) and (B) separate different regions from a single film placed together. B, Western blot analysis of p-Src(Y419) and total Src in lysates of GEβ1 and GEβ3 cells expressing or lacking SrcYF. C, Western blot analysis of p-Src(Y419), total Src, p-FAK(Y925), total FAK, p-Stat3(Y705), total Stat3, and loading control in lysates of GE11 cells expressing the indicated constructs and grown in the absence of serum. Columns, mean of relative p-Src(Y419), p-FAK(Y925), and p-Stat3(Y705) levels compared with GESrcYFβ1 in serum-starved cultures of GE11 cells expressing the indicated constructs obtained from at least two independent experiments; bars, SE. D, activity of SrcYF immunoprecipitated from GE11 (−), GESrcYF β1, or GESrcYFβ3 cells in an in vitro Src kinase assay. E, points, average tumor volume of GESrcYFβ1ex3in (•) or GESrcYFβ3ex1in cells (□) obtained from two independent experiments (n ≥ 8) where 1×106 cells were injected; bars, SE.
To investigate the role of the β3 cytoplasmic tail in SrcYF activation and oncogenic potential, we expressed a chimeric integrin subunit consisting of the β3 extracellular and transmembrane regions fused to the β1 cytoplasmic region (β3exβ1in) in GESrcYF cells (Supplementary Fig. S2A, left). Unlike wild-type β3, β3exβ1in did not enhance the levels of p-Src(Y419), p-Stat3(Y705), and p-FAK(Y925) (Fig. 3C). On the other hand, an inverse chimeric β1exβ3in integrin subunit, unlike wild-type β1, strongly increased the degree of phosphorylation of Src, Stat3, and FAK (Fig. 3C; Supplementary Fig. S2A, right). Moreover, surface expression of β1exβ3in supported SrcYF-mediated tumor formation, whereas expression of β3exβ1in did not (Fig. 3E).
We next investigated if increased levels of αvβ3 promote survival and proliferation of SrcYF-transformed cells. After 24 and 48 h of serum deprivation, there were significantly fewer TUNEL-positive GESrcYFβ3 than GESrcYFβ1 cells (Fig. 4A; Supplementary Fig. S3A; P < 0.05, Student's t test). In agreement with the role of the β3 cytoplasmic tail in tumor formation induced by SrcYF, the sensitivity to serum starvation was suppressed in the presence of the β1exβ3in but not the β3exβ1in chimeric integrin subunit (P < 0.05). Furthermore, following serum deprivation the expression of β3 or β1exβ3in correlated with high proliferation rates, whereas a large proportion of the cells expressing β1 or β3exβ1in underwent cell cycle arrest (P < 0.05; Fig. 4B; Supplementary Fig. S3B).

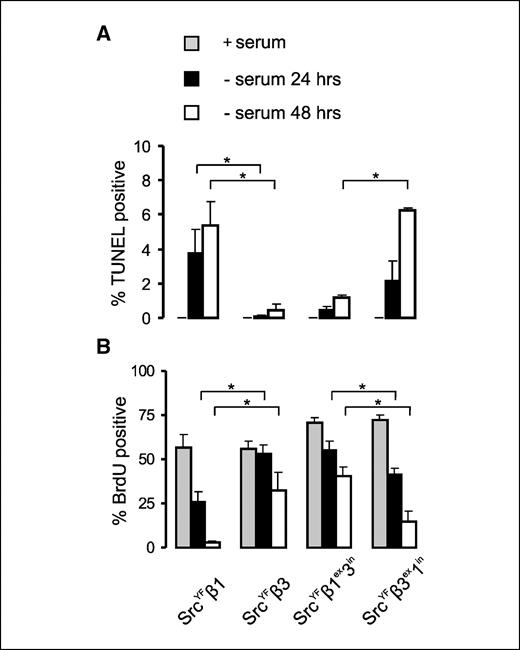

The β3 cytoplasmic tail supports SrcYF signaling to survival and proliferation. A, TUNEL assays on GE11 cells expressing the indicated constructs under standard culture conditions and after 24 and 48 h of serum starvation. Columns, mean percentage of TUNEL-positive cells of two independent experiments; bars, SE. B, BrdUrd incorporation under conditions described for (A). Columns, mean percentage of BrdUrd-positive cells of three independent experiments; bars, SE. *, P < 0.05, significant difference between mean values (Student's t test).
The β3 cytoplasmic tail supports SrcYF signaling to survival and proliferation. A, TUNEL assays on GE11 cells expressing the indicated constructs under standard culture conditions and after 24 and 48 h of serum starvation. Columns, mean percentage of TUNEL-positive cells of two independent experiments; bars, SE. B, BrdUrd incorporation under conditions described for (A). Columns, mean percentage of BrdUrd-positive cells of three independent experiments; bars, SE. *, P < 0.05, significant difference between mean values (Student's t test).
From these findings, we conclude that (a) the primed SrcYF mutant is in fact subject to tight regulation in vivo; (b) as part of a functional integrin, the β3 cytoplasmic tail is required and sufficient to support the activity of SrcYF under conditions that mimic the tumor environment; and (c) the ability of the β3 cytoplasmic tail to support SrcYF activation is correlated with its ability to support SrcYF-mediated survival, proliferation, and tumor formation.
Functional, spatial, and molecular association of the β3 cytoplasmic tail with SrcYF. Having shown that the β3 cytoplasmic tail controls the activity and oncogenic potential of SrcYF, we asked two questions: Is SrcYF-mediated phosphorylation of the β3 tail involved? And can the β3 tail on its own support oncogenic signaling by primed Src? Both β3Y747A and β3Y759A mutants stimulated tumor growth of GESrcYF cells to the same extent as wild-type β3, indicating that recruitment of signaling and adaptor proteins to phosphorylated tyrosine residues in the β3 cytoplasmic tail is not required (Fig. 5A; Supplementary Fig. S4A). On the other hand, an IL2R fusion construct containing the β3 cytoplasmic tail did not enhance tumor growth of GESrcYF cells compared with IL2R- or IL2R-β1, indicating that the cooperation between the β3 cytoplasmic tail and SrcYF requires the context of a functional integrin (Fig. 5B; Supplementary Fig. S4B).

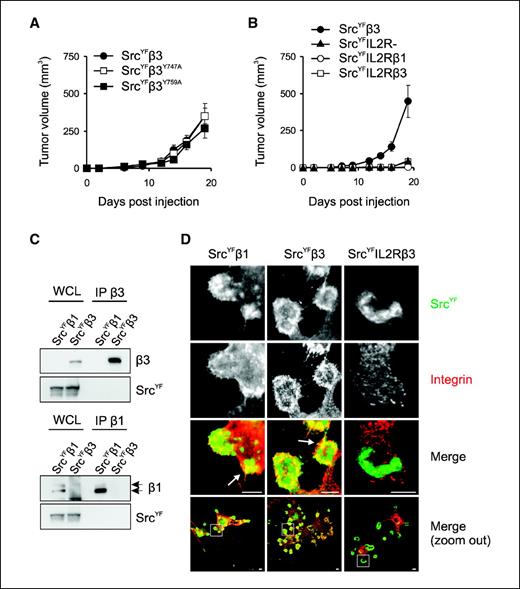

Functional and spatial association of the β3 cytoplasmic tail and SrcYF. A, points, average tumor volume of GESrcYF cells expressing integrin β3 (•), β3Y747A (□), or β3Y759A (▪) obtained from two independent experiments (n = 12) where 1 × 106 cells were injected; bars, SE. B, points, average tumor volume of GESrcYF cells expressing integrin β3 (•), IL2R- (▴), IL2Rβ1 (○), or IL2Rβ3 (□) obtained from at least two independent experiments (n ≥ 5) where 1 × 106 cells were injected; bars, SE. C, Western blot analysis of the indicated proteins in immunoprecipitations of β3 (top) or β1 integrin (bottom), or in total lysates of GESrcYFβ1 and GESrcYFβ3 cells [whole-cell lysate (WCL)]. D, localization of SrcYF (anti-Myc antibody; green), integrin β1, β3, or IL2Rβ3 (K20, 23C6, anti-IL2Rα antibodies, respectively; Texas red) in GE11 cells expressing the indicated constructs. Arrows, colocalization. Bar, 5 μm.
Functional and spatial association of the β3 cytoplasmic tail and SrcYF. A, points, average tumor volume of GESrcYF cells expressing integrin β3 (•), β3Y747A (□), or β3Y759A (▪) obtained from two independent experiments (n = 12) where 1 × 106 cells were injected; bars, SE. B, points, average tumor volume of GESrcYF cells expressing integrin β3 (•), IL2R- (▴), IL2Rβ1 (○), or IL2Rβ3 (□) obtained from at least two independent experiments (n ≥ 5) where 1 × 106 cells were injected; bars, SE. C, Western blot analysis of the indicated proteins in immunoprecipitations of β3 (top) or β1 integrin (bottom), or in total lysates of GESrcYFβ1 and GESrcYFβ3 cells [whole-cell lysate (WCL)]. D, localization of SrcYF (anti-Myc antibody; green), integrin β1, β3, or IL2Rβ3 (K20, 23C6, anti-IL2Rα antibodies, respectively; Texas red) in GE11 cells expressing the indicated constructs. Arrows, colocalization. Bar, 5 μm.
We next investigated if SrcYF formed a complex with the β3 subunit but did not detect an interaction using coimmunoprecipitation, whereas an interaction of SrcYF with endogenous FAK was readily detectable (Fig. 5C; Supplementary Fig. S4C; data not shown). To investigate if a possible weak interaction may occur, we analyzed the subcellular localization of SrcYF and β3 integrins. Irrespective of the type of integrins expressed, SrcYF induced the formation of podosomes, adhesive structures that are characteristic for Src-transformed cells. Notably, this indicates that the activity of SrcYF in cells lacking high amounts of αvβ3 is sufficient to cause morphologic but not oncogenic transformation. β1 and β3 integrins were partially colocalized with SrcYF in podosomes (Fig. 5D,, left and middle), making it possible that the β3 cytoplasmic tail locally interacts with SrcYF and enhances SrcYF-mediated oncogenic signaling. In line with this idea, IL2Rβ3 did not colocalize with SrcYF in podosomes, which may explain its inability to support SrcYF-mediated oncogenic transformation (Fig. 5D , right).
The last four amino acids of the integrin β3 tail have been reported to mediate binding of αIIbβ3 to the SH3 domain of c-Src (16). A similar interaction may explain αvβ3-mediated control of the oncogenic potential of primed c-Src. Experiments using v-Src, which contains multiple mutations in its SH3 domain (18), showed efficient phosphorylation on Tyr419 and colony outgrowth in soft agar irrespective of αvβ3 expression levels (Fig. 6A and B). However, v-Src also contains activating mutations in its kinase domain (18) that may make the interaction with the β3 cytoplasmic domain redundant. Therefore, we generated a v-Src/SrcYF chimera in which only the NH2-terminal region including the SH3 domain was derived from v-Src. This construct failed to induce oncogenic transformation even in the presence of high levels of αvβ3 (Fig. 6C; Supplementary Fig. S4D). Moreover, expression of a β3Δ759 mutant that lacks the four most COOH-terminal amino acids required for binding the c-Src SH3 domain (16) failed to support SrcYF-mediated tumor formation (Fig. 6D).

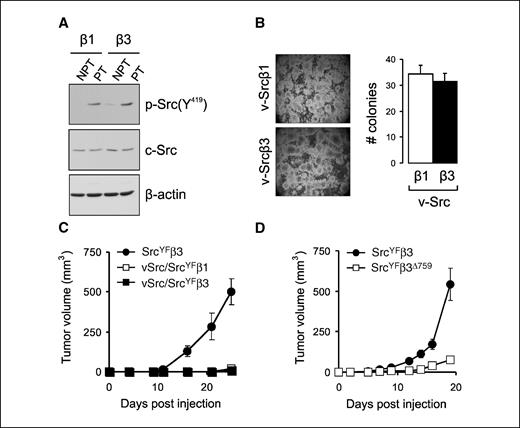

Cooperation between SrcYF and αvβ3 involves integrin interaction with the Src SH3 domain. A, Western blot analysis of p-Src(Y419), total Src, and actin loading control in lysates of GEβ1 and GEβ3 cells expressing ts72v-Src at nonpermissive (NPT) and permissive temperature (PT). B, colony formation of GEts72v-Srcβ1 and GEts72v-Srcβ3 cells. Phase-contrast images of soft agar assays were taken 10 d after plating at permissive temperature. Columns, average number of colonies larger than five cells per image of two independent experiments; bars, SE. C, points, average tumor volume of GE11 cells expressing the indicated constructs obtained from two independent experiments (n = 10) where 1 × 106 cells were injected; bars, SE. D, points, average tumor volume of GESrcYFβ3 (•) or GESrcYFβ3Δ759 cells (□) obtained from two independent experiments (n ≥ 5) where 1 × 106 cells were injected; bars, SE.
Cooperation between SrcYF and αvβ3 involves integrin interaction with the Src SH3 domain. A, Western blot analysis of p-Src(Y419), total Src, and actin loading control in lysates of GEβ1 and GEβ3 cells expressing ts72v-Src at nonpermissive (NPT) and permissive temperature (PT). B, colony formation of GEts72v-Srcβ1 and GEts72v-Srcβ3 cells. Phase-contrast images of soft agar assays were taken 10 d after plating at permissive temperature. Columns, average number of colonies larger than five cells per image of two independent experiments; bars, SE. C, points, average tumor volume of GE11 cells expressing the indicated constructs obtained from two independent experiments (n = 10) where 1 × 106 cells were injected; bars, SE. D, points, average tumor volume of GESrcYFβ3 (•) or GESrcYFβ3Δ759 cells (□) obtained from two independent experiments (n ≥ 5) where 1 × 106 cells were injected; bars, SE.
Together, these data support the idea that oncogenic activity of primed Src variants containing a wild-type kinase domain depends on SH3-mediated interactions with the β3 cytoplasmic domain.
Discussion
In human melanomas and carcinomas of the breast, colon, pancreas, and other organs, the activity of c-Src is frequently increased compared with that in surrounding tissue (23–25). It is not fully understood how high levels of c-Src activity contribute to human cancer. The fact that activating mutations in the SRC gene seem to be rare argues against a role in tumor initiation. Increased c-Src activity may contribute to invasion and metastasis by promoting tumor cell scattering, migration, proteolytic activity, and anoikis resistance (39, 40). For colon cancer, increased c-Src activity may also contribute to tumor growth (41), perhaps by stimulating vascular endothelial growth factor–mediated angiogenesis (42). Our findings clearly show that elevated c-Src activity promotes tumorigenicity of immortalized cells where the p53 and Rb tumor suppressor pathways are suppressed, as is almost invariably the case in human cancer. We find that elevated c-Src activity promotes tumor growth in a cell-autonomous fashion by stimulating survival and proliferation. This may be especially important during early stages of cancer development. The contribution of elevated levels of c-Src activity to tumor growth may decrease as tumors progress and acquire additional mutations (e.g., those activating Ras).
The molecular mechanism responsible for the increased activity of c-Src in human cancers is incompletely understood. Overexpression of RTKs has been proposed to induce a primed conformation of c-Src by disrupting the intramolecular binding of the SH2 domain to phosphorylated Tyr530 (19, 23). In addition, mutations in the COOH-terminal region of the SRC gene that lead to a primed conformation of c-Src have been detected in a small subset of carcinomas of the colon and the endometrium (26, 27). Whatever the mechanism of priming, our findings show that the oncogenic potential of primed c-Src can be strongly enhanced by integrin αvβ3. The notion that αvβ3 and c-Src may cooperate in human cancer is supported by a number of reports showing that an increase in the expression of αvβ3 is associated with growth and/or progression of various cancers in which c-Src activity is frequently enhanced (2–9, 23–25). The loss of α5β1 or other β1 integrins has also been associated with oncogenic transformation and tumor growth (43, 44). We observed that β1-deficient SrcYF transformed cells were slightly more tumorigenic than their β1-expressing derivatives (data not shown). However, expression of β1 in SrcYFβ3 cells did not reduce their tumorigenic capacity, indicating that αvβ3 supports oncogenic signaling by primed Src, irrespective of the expression of β1 integrins. The expression of αvβ3 will be important for Src-mediated aspects of cancer development, whereas αvβ3 may be dispensable for those aspects that are driven by oncogenic Ras (our findings) or other oncogenes such as c-Neu (11).
The interaction between the β3 cytoplasmic tail and the c-Src SH3 domain has been shown by others (16), but we were unable to detect the interaction of the β3 tail and primed c-Src by coimmunoprecipitation (possibly due to the much lower levels of expression). Nevertheless, several lines of evidence support a model in which this interaction controls the oncogenic potential of primed c-Src: (a) only those integrins and integrin chimeras that contain the β3 cytoplasmic tail promote oncogenic signaling by primed c-Src; (b) in contrast to full-length β3, an IL2Rβ3 fusion construct fails to colocalize with primed Src in podosomes and fails to support tumor growth; (c) the YRGT motif in the β3 cytoplasmic domain that was reported to interact with the SH3 domain of c-Src (16) is required for the functional interaction of αvβ3 with primed c-Src; and (d) αvβ3 cannot stimulate primed c-Src variants containing the SH3 domain of v-Src despite the fact that both SH2- and SH3-mediated autoinhibition is prevented. The β3 subunit has a tendency to form homo-oligomers and clustering of αvβ3 in the plane of the membrane may cocluster primed c-Src, leading to enhanced activation through cross-phosphorylation in the kinase domain (45, 46). Indeed, such intermolecular autophosphorylation is considered the major mechanism underlying c-Src activation (47). In addition to clustering, αvβ3 may support conformational alterations in the Src protein or recruit additional proteins that contribute to oncogenic signaling. In this respect, our results using Tyr to Ala mutants argue against a role for the recruitment of signaling or adaptor proteins to the conserved NpxY/NxxY motifs in the β3 cytoplasmic tail.
In conclusion, a functional interaction with the β3 cytoplasmic tail augments the activity and oncogenic potential of primed c-Src. Phosphorylation of FAK and Stat3 are enhanced in the presence of αvβ3, but it remains to be investigated if these or other downstream pathways underlie the synergistic effect of primed c-Src and αvβ3 on survival, proliferation, and tumor growth. As overexpression of αvβ3 and elevated levels of c-Src activity occur in the same types of tumors, the interaction of these two proteins may be an important event in cancer development and/or progression. Interfering with their interaction might therefore be a valuable therapeutic approach in melanomas and carcinomas of the breast, colon, and several other tissues. Moreover, a combinatorial analysis of the levels of integrin αvβ3 and c-Src may be useful to predict cancer development and/or progression.
Note: Supplementary data for this article are available at Cancer Research Online (http://cancerres.aacrjournals.org/).
I. van den Bout and P. Sonneveld contributed equally to this work.
Acknowledgments
Grant support: Dutch Cancer Society grant NKI 2003-2858 (S. Huveneers and E.H.J. Danen) and NKI 2001-2488 (I. van den Bout).
The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
We thank Sophia Bruggeman, John Collard, Reinhard Fässler, Frank Furnari, Irwin Gelman, Michael Horton, Ulrike Mayer, Sanford Shattil, Ellen van der Schoot, and Jari Ylänne for their generous gifts of reagents; Ingrid Kuikman for the generation of the LZRS-β3Δ759 vector; and Anton Berns, John Collard, Ed Roos, Marc Vooijs, Bob van de Water, and members of the Sonnenberg group for critical reading of the article.
